Evaluation of Water Quality and Pollution Source Analysis of Meihu Reservoir
Abstract
:1. Introduction
2. Materials and Methods
2.1. Study Area
2.2. Monitoring Layout and Testing Items
2.3. Laboratory Analysis
2.4. Data Processing
2.5. Evaluation and Survey Methods
2.5.1. The Trophic Level Index (TLI) Method
2.5.2. Pollution Source Survey Method
3. Results and Discussion

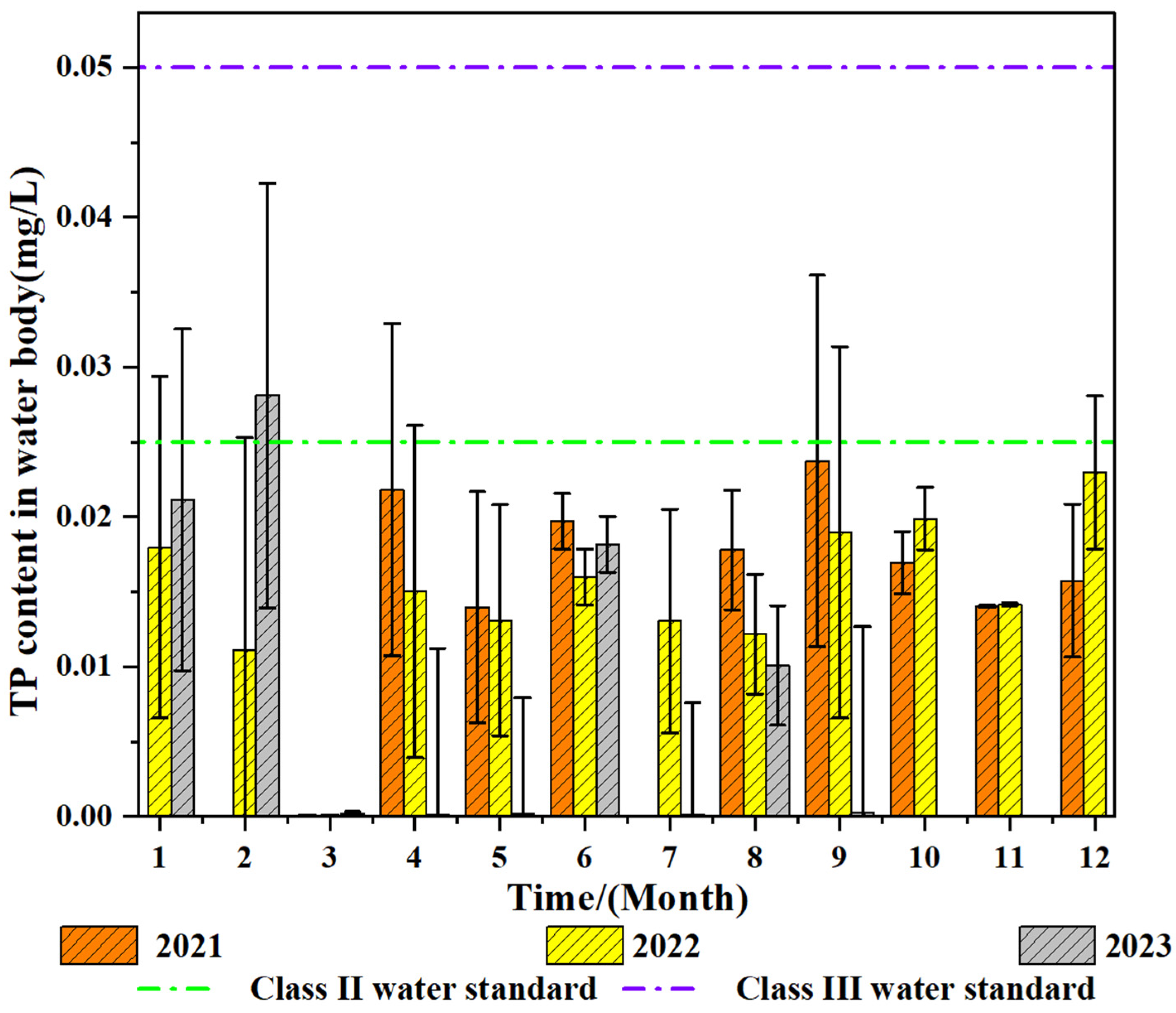

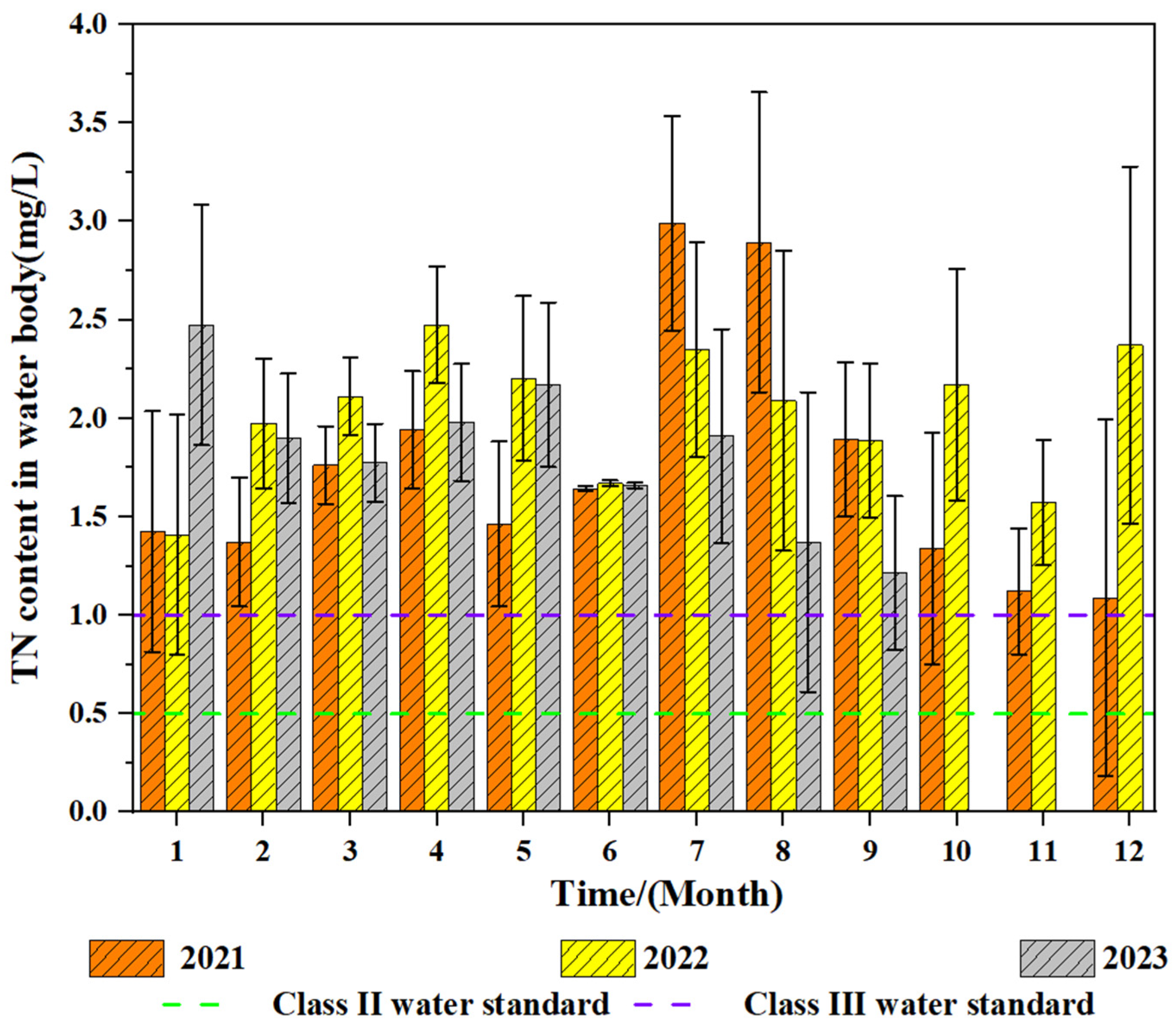

3.1. Water Quality Analysis of Reservoir
3.1.1. Water Environment Quality
3.1.2. Suitability Evaluation of Drinking Water Source
3.1.3. Evaluation of Reservoir Eutrophication
3.2. Reservoir Pollution Source Survey
3.2.1. Agricultural Non-Point-Source Pollution
3.2.2. Domestic Pollution
Domestic Sewage Pollution
Domestic Garbage Pollution
3.2.3. Livestock Pollution
4. Conclusions
- (1)
- The water quality analysis results of the Meihu Reservoir show that among the 13 evaluation indicators extracted, except for total nitrogen, the rest are in line with Class II-III standards for drinking water, and the control and management of nitrogen sources should be strengthened after reservoir management.
- (2)
- In the water source suitability evaluation of the Meihu Reservoir, all the water quality detection indicators from January to September 2023 reached the standard. Therefore, the water of the reservoir is directly used as a drinking water source, which can meet the quality standards of drinking water sources.
- (3)
- The eutrophication evaluation results of the Meihu Reservoir showed that the comprehensive nutrient state index (TLI) of the reservoir was between 30 and 50/month, indicating that the eutrophication degree of the water body was not serious, and the water body changed from mild eutrophication to moderate eutrophication.
- (4)
- The survey results of pollution sources in the Meihu Reservoir show that the main sources of pollution are non-point-source pollution such as agricultural planting, domestic pollution and livestock and poultry breeding pollution. The main sources of nitrogen in the reservoir were domestic sewage pollution > domestic garbage pollution > livestock pollution > agricultural non-point-source pollution, accounting for 50.09%, 23.99%, 14.13% and 11.80% of the total load, respectively.
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Borthwick, A.G.; Liu, R.; Zhang, K.; Zhang, Z. Watershed–scale environmental risk assessment of accidental water pollution: The case of Laoguan River, China. J. Environ. Inform. 2016, 31, 87–96. [Google Scholar]
- World Health Organization. Water Sanitation Hygiene for Accelerating and Sustaining Progress on Neglected Tropical Diseases; World Health Organization Press: Geneva, Switzerland, 2019. [Google Scholar]
- Yang, B.; Yang, H.; Zhang, C.; Wang, Y. Risk Assessment and Countermeasures of Heavy Metals in Drinking Water Environment of Guizhou Province. In E3S Web of Conferences; EDP Sciences: Les Ulis, France, 2021; Volume 245, p. 02012. [Google Scholar] [CrossRef]
- Sang, J.; Liu, Z.; Ding, X.; Yin, Y. Prediction model for pollution accidents trend in drinking water source areas: Enhancing water safety and comprehensive applications. Process Saf. Environ. 2024, 184, 12–24. [Google Scholar] [CrossRef]
- Wang, A.; Wang, J.; Luan, B.; Wang, S.; Yang, D.; Wei, Z. Classification of Pollution Sources and Their Contributions to Surface Water Quality Using APCS–MLR and PMF Model in a Drinking Water Source Area in Southeastern China. Water 2024, 16, 1356. [Google Scholar] [CrossRef]
- Ding, X.; Dong, X.; Hou, B.; Fan, G.; Zhang, X. Visual platform for water quality prediction and pre–warning of drinking water source area in the Three Gorges Reservoir Area. J. Clean. Prod. 2021, 309, 127398. [Google Scholar] [CrossRef]
- Khan, M.H.; Nafees, M.; Muhammad, N.; Ullah, U.; Hussain, R.; Bilal, M. Assessment of drinking water sources for water quality, human health risks, and pollution sources: A case study of the district Bajaur, Pakistan. Arch. Environ. Con. Tox. 2021, 80, 41–54. [Google Scholar] [CrossRef] [PubMed]
- Qin, G.; Liu, J.; Xu, S.; Sun, Y. Pollution source apportionment and water quality risk evaluation of a drinking water reservoir during flood seasons. Int. J. Environ. Res. Public Health 2021, 18, 1873. [Google Scholar] [CrossRef] [PubMed]
- Bogale, G.G. Hotspots of unimproved sources of drinking water in Ethiopia: Mapping and spatial analysis of Ethiopia demographic and health survey Data 2016. BMC Public Health 2020, 20, 878. [Google Scholar] [CrossRef] [PubMed]
- Cheng, Z.; He, J.; Xu, S.; Yang, X. Coupling assessment for the water-economy-ecology nexus in Western China. Ecol. Indic. 2023, 154, 110648. [Google Scholar] [CrossRef]
- May, L.; Olszewska, J.; Gunn, I.D.M.; Meis, S.; Spears, B.M. Eutrophication and restoration in temperate lakes. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2020; Volume 535, p. 012001. [Google Scholar]
- Lee, H.W.; Lee, Y.S.; Kim, J.; Lim, K.J.; Choi, J.H. Contribution of internal nutrients loading on the water quality of a reservoir. Water 2019, 11, 1409. [Google Scholar] [CrossRef]
- Bai, Y.; Wang, Y.; Wu, D.; Zhu, J.; Zou, B.; Ma, Z.; Li, L. Identify the seasonal differences in water quality and pollution sources between river–connected and gate–controlled lakes in the Yangtze River basin. Mar. Pollut. Bull. 2024, 206, 116760. [Google Scholar] [CrossRef] [PubMed]
- Xiong, H. The effect of agricultural non–point Source Pollution of nitrogen and phosphorous on Lake Eutrophication. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2017; Volume 64. [Google Scholar]
- Zhao, Y.; Jiang, M.; Cheng, J.; Jiang, C. Characteristics and Impact Evaluation of Hydrological and Water Quality Changes in the Northern Plain of Cixi, Eastern China, from 2010 to 2022. Water 2024, 16, 489. [Google Scholar] [CrossRef]
- da Silva, Y.J.A.B.; Cantalice, J.R.B.; do Nascimento, C.W.A.; Singh, V.P.; da Silva, Y.J.A.B.; Silva, C.M.C.A.C.; Guerra, S.M. Bedload as an indicator of heavy metal contamination in a Brazilian anthropized watershed. Catena 2017, 153, 106–113. [Google Scholar] [CrossRef]
- Prasad, M.; Aswal, R.S.; Joshi, A.; Kumar, G.A.; Ramola, R.C. A systematic study on occurrence, risk estimation and health implications of heavy metals in potable water from different sources of Garhwal Himalaya, India. Sci. Rep. 2022, 12, 20419. [Google Scholar] [CrossRef] [PubMed]
- Zhang, P.; Yang, M.; Lan, J.; Huang, Y.; Zhang, J.; Huang, S.; Ru, J. Water quality degradation due to heavy metal contamination: Health impacts and eco–friendly approaches for heavy metal remediation. Toxics 2023, 11, 828. [Google Scholar] [CrossRef] [PubMed]
- Yuan, Z.; Li, Q.; Ma, X.; Han, M. Assessment of heavy metals contamination and water quality characterization in the Nanming River, Guizhou Province. Environ. Geochem. Health 2021, 43, 1273–1286. [Google Scholar] [CrossRef] [PubMed]
- Kasuga, I.; Yuthawong, V.; Kurisu, F.; Furumai, H. Molecular–level comparison of dissolved organic matter in 11 major lakes in Japan by Orbitrap mass spectrometry. Water Supply 2020, 20, 1271–1280. [Google Scholar] [CrossRef]
- Wang, G.; Shen, J.; Wei, S.; Cai, D.; Liu, J. Identification of Heavy Metals and Organic Micropollutants in Drinking Water Sources in Typical Villages and Towns in Northeast China. Molecules 2022, 27, 8033. [Google Scholar] [CrossRef] [PubMed]
- Unyimadu, J.P.; Osibanjo, O.; Babayemi, J.O. Selected persistent organic pollutants (POPs) in water of River Niger: Occurrence and distribution. Environ. Monit. Assess. 2018, 190, 6. [Google Scholar] [CrossRef]
- Pawlak, F.; Kozioł, K.; Ruman, M.; Polkowska, Ż. Persistent organic pollutants (POPs) as an indicator of surface water quality in the vicinity of the Polish Polar Station, Horsund. Monatsh. Chem. 2019, 150, 1573–1578. [Google Scholar] [CrossRef]
- de Bastos, F.; Reichert, J.M.; Minella, J.P.G.; Rodrigues, M.F. Strategies for identifying pollution sources in a headwater catchment based on multi–scale water quality monitoring. Environ. Monit. Assess. 2021, 193, 169. [Google Scholar] [CrossRef] [PubMed]
- Tleuova, Z.; Snow, D.D.; Mukhamedzhanov, M.; Ermenbay, A. Relation of hydrogeology and contaminant sources to drinking water quality in southern Kazakhstan. Water 2023, 15, 4240. [Google Scholar] [CrossRef]
- Huang, S.J.; Zhou, G.Q.; Tang, Y.D.; Wei, J. Investigation on Water Pollution Control of Drinking Water Source in China. In IOP Conference Series: Earth and Environmental Science; IOP Publishing: Bristol, UK, 2023; Volume 1204, p. 012004. [Google Scholar] [CrossRef]
- Hou, L.; Zhou, Z.; Wang, R.; Li, J.; Dong, F.; Liu, J. Research on the non–point source pollution characteristics of important drinking water sources. Water 2022, 14, 211. [Google Scholar] [CrossRef]
- Holas, J.; Hrncir, M. Integrated watershed approach in controlling point and non–point source pollution within Zelivka drinking water reservoir. Water Sci. Technol. 2002, 45, 293–300. [Google Scholar] [CrossRef] [PubMed]
- Gong, J.; Guo, X.; Yan, X.; Hu, C. Review of urban drinking water contamination source identification methods. Energies 2023, 16, 705. [Google Scholar] [CrossRef]
- Arshad, I.; Rashid, U. Status of urban hydrogeology research with emphasis on India. Hydrogeol. J. 2020, 28, 477–490. [Google Scholar] [CrossRef]
- Kaown, D.; Koh, E.H.; Mayer, B.; Ju, Y.; Kim, J.; Lee, H.L.; Lee, K.K. Differentiation of natural and anthropogenic contaminant sources using isotopic and microbial signatures in a heavily cultivated coastal area. Environ. Pollut. 2021, 273, 116493. [Google Scholar] [CrossRef] [PubMed]
- Arora, M.L.; Kenneth, M.T. Fouling of RO membranes in wastewater applications. Desalination 1983, 48, 299–319. [Google Scholar] [CrossRef]
- Liu, H.; Gopalakrishnan, S.; Browning, D.; Sivandran, G. Valuing water quality change using a coupled economic–hydrological model. Ecol. Econ. 2019, 161, 32–40. [Google Scholar] [CrossRef]
- Ji, R.; Yang, S.Q.; Sivakumar, M.; Enever, K.; Bin Riaz, M.Z.; Khalil, U. A coastal reservoir for Greater Sydney water supply in Shoalhaven river–a preliminary study. Water Supply 2022, 22, 4457–4476. [Google Scholar] [CrossRef]
- Van Dijk, J.C.; Van der Kooij, D. Water Quality 21 research programme for water supplies in The Netherlands. Water Sci. Technol. Water Supply 2004, 4, 181–188. [Google Scholar] [CrossRef]
- Lim, M.H.; Leong, Y.H.; Tiew, K.N.; Seah, H. Urban stormwater harvesting: A valuable water resource of Singapore. Water Pract. Technol. 2011, 6, wpt20110067. [Google Scholar] [CrossRef]
- Zhao, M.; Liu, P.; Jiang, B.; Chen, Y. Design of a drinking water quality monitoring and evaluation system. Water Pract. Technol. 2020, 15, 77–83. [Google Scholar] [CrossRef]
- Qi, Y.; Cao, X.; Cao, R.; Cao, M.; Yan, A.; Li, E.; Xu, D. Research on the Analysis of and Countermeasures for the Eutrophication of Water Bodies: Waihu Reservoir as a Case Study. Processes 2024, 12, 796. [Google Scholar] [CrossRef]
- SEPA. Technical Specifications Requirements for Monitoring of Surface Water and Waste Water; Ministry of Environment Protection, People’s Republic of China: Beijing, China, 2002. (In Chinese) [Google Scholar]
- GB 3838–2002; Environmental Quality Standards for Surface Water. Ministry of Ecology and Environment of the People’s Republic of China. Standardization Administration of China: Beijing, China, 2002. (In Chinese)
- Nanjing Institute of Geography; Limnology Chinese Academy of Sciences. Technical Regulations for Lake Surveys; Science Press: Beijing, China, 2015; pp. 58–80. (In Chinese) [Google Scholar]
- Editional Board of Water and Wastewater Monitoring and Analysis Methods; Ministry of Environmental Potection of the People’s Republic of China. Water and Wastewater Monitoring and Analysis Methods, 4th ed.; China Environmental Science Press: Beijing, China, 2002; pp. 105–610. (In Chinese) [Google Scholar]
- Jin, X.C.; Tu, Q.Y. Lake Eutrophication Survey Specification, 2nd ed.; China Environmental Science Press: Beijing, China, 1990. (In Chinese) [Google Scholar]
- Wang, S.T.; Lei, J.S.; Jia, H.Y.; Yang, C.G. Characteristics of Phytoplankton Community and Eutrophication Evaluation of the Three Gorges Reservoir. Ecol. Environ. Monit. Three Gorges 2020, 5, 32–41, (In Chinese with English Abstract). [Google Scholar]
- Jin, X.; Tu, Q. The Standard Methods in Lake Eutrophication Investigation, 2nd ed.; China Environmental Science Press: Beijing, China, 1990. (In Chinese) [Google Scholar]
- Mondal, A.; Khare, D.; Kundu, S. A comparative study of soil erosion modelling by MMF, USLE and RUSLE. Geocarto Int. 2018, 33, 89–103. [Google Scholar] [CrossRef]
- Bezak, N.; Borrelli, P.; Mikoš, M.; Auflič, M.J.; Panagos, P. Towards multi–model soil erosion modelling: An evaluation of the erosion potential method (EPM) for global soil erosion assessments. Catena 2024, 234, 107596. [Google Scholar] [CrossRef]
- Ministry of Ecology and Environment of the People’s Republic of China. Standard for Drinking Water Sources; Ministry of Environment Protection, People’s Republic of China: Beijing, China, 1993. (In Chinese) [Google Scholar]
- Leng, M.; Feng, L.; Wu, X.; Ge, X.; Lin, X.; Song, S.; Sun, Z. Assessment of water eutrophication at Bao’an Lake in the middle reaches of the Yangtze River based on multiple methods. Int J Environ Res Public Health 2023, 20, 4615. [Google Scholar] [CrossRef]
- Madyouni, H.; Almanza, V.; Benabdallah, S.; Joaquim–Justo, C.; Romdhane, M.S.; Habaieb, H.; Deliege, J.F. Assessment of Water Quality Variations and Trophic State of the Joumine Reservoir (Tunisia) by Multivariate Analysis. Water 2023, 15, 3019. [Google Scholar] [CrossRef]
- Zhu, J.; Hou, Y.Z.; Zou, S.C.; Cao, M.H.; Tu, S.X. Spatio–temporal distribution characteristic and risk assessment of heavy metals in soils around centralized drinking water sources in Wuhan. Huan Jing Ke Xue Huanjing Kexue 2021, 42, 3215–3222. [Google Scholar] [PubMed]
- Luo, M.; Liu, X.; Legesse, N.; Liu, Y.; Wu, S.; Han, F.X.; Ma, Y. Evaluation of Agricultural Non–point Source Pollution: A Review. Water Air Soil Pollut. 2023, 234, 657. [Google Scholar] [CrossRef]
- Wang, H.; He, P.; Shen, C.; Wu, Z. Effect of irrigation amount and fertilization on agriculture non–point source pollution in the paddy field. Environ. Sci. Pollut. Res. Int. 2019, 26, 10363–10373. [Google Scholar] [CrossRef] [PubMed]
- Fujiwara, M. Present state and future direction of countermeasures for pollution from domestic wastewater in Japan. Water Sci. Technol. 1986, 18, 1–8. [Google Scholar] [CrossRef]
- Walker, D.I.; Adriaenssens, E.M.; McDonald, J.E.; Hillary, L.S.; Malham, S.K.; Jones, D.L. Viral indicators for tracking domestic wastewater contamination in the aquatic environment. Water Res. 2020, 181, 115926. [Google Scholar]
- Yan, B.; Cao, Q.; Yan, S.; Gao, Z.; Liu, D.; Li, Y. Analysis of spatial distribution characteristics of Non–point Source Pollution in Liaoning Province. Water 2023, 15, 3014. [Google Scholar] [CrossRef]
- Ministry of Health of the People’s Republic of China. Standard for Rural Living Water Quantity and Hygiene; Ministry of Health of the People’s Republic of China: Beijing, China, 1989. (In Chinese) [Google Scholar]
- Ministry of Water Resources of the People’s Republic of China. Technical Code for Village and Town Water Supply Engineering; Ministry of Water Resources of the People’s Republic of China: Beijing, China, 2004. (In Chinese) [Google Scholar]
- Cai, X.; Qin, Y.; Yan, B.; Shi, W. Identification of livestock farms with potential risk of environmental pollution by using a model for returning livestock manure to cultivated land. Environ. Sci. Pollut. Res. Int. 2023, 30, 103062–103072. [Google Scholar] [CrossRef] [PubMed]
- Jie, D.F.; Wei, X.; Zhou, H.L.; Pan, J.M.; Ying, Y.B. Research progress on interference in the detection of pollutant gases and improving technology in livestock farms: A review. Appl. Spectrosc. Rev. 2017, 52, 101–122. [Google Scholar] [CrossRef]
Sampling Time | Chl-a (mg/m3) | TN (mg/L) | TP (mg/L) | SD (m) | CODMn (mg/L) | TLI |
---|---|---|---|---|---|---|
January 2021 | 7.06 | 1.44 | 0.02 | 1.80 | 1.50 | 42.68 |
February 2021 | 6.34 | 1.37 | 0.01 | 2.00 | 1.53 | 41.58 |
March 2021 | 6.42 | 1.77 | 0.02 | 2.00 | 1.65 | 43.72 |
April 2021 | 6.11 | 1.95 | 0.01 | 2.10 | 1.41 | 42.73 |
May 2021 | 7.78 | 1.46 | 0.01 | 1.50 | 1.61 | 43.01 |
June 2921 | 7.68 | 1.65 | 0.01 | 1.55 | 2.17 | 49.01 |
July 2021 | 6.54 | 3.00 | 0.01 | 2.10 | 2.00 | 44.79 |
Auguest 2021 | 6.36 | 2.90 | 0.01 | 2.00 | 1.78 | 48.91 |
September 2021 | 6.29 | 1.90 | 0.01 | 2.20 | 2.46 | 44.83 |
October 2021 | 7.75 | 1.34 | 0.01 | 1.50 | 1.79 | 43.49 |
November 2021 | 8.91 | 1.12 | 0.01 | 1.00 | 1.46 | 44.12 |
December 2021 | 7.52 | 1.10 | 0.01 | 1.50 | 1.42 | 41.80 |
January 2022 | 7.17 | 1.40 | 0.02 | 1.80 | 1.46 | 42.65 |
February 2022 | 7.23 | 1.96 | 0.01 | 1.80 | 1.46 | 43.22 |
Mach 2022 | 6.58 | 2.12 | 0.01 | 2.00 | 1.53 | 43.23 |
April 2022 | 7.21 | 2.47 | 0.02 | 1.80 | 1.43 | 44.37 |
May 2022 | 6.73 | 2.19 | 0.01 | 2.00 | 1.64 | 43.55 |
June 2022 | 7.35 | 1.67 | 0.02 | 1.80 | 1.80 | 44.18 |
July 2022 | 6.13 | 2.34 | 0.01 | 2.20 | 1.76 | 43.95 |
Auguest 2022 | 6.42 | 2.08 | 0.01 | 2.00 | 1.99 | 44.36 |
September 2022 | 6.39 | 1.88 | 0.02 | 2.00 | 2.07 | 47.72 |
October 2022 | 5.91 | 2.17 | 0.01 | 2.50 | 1.69 | 43.33 |
November 2022 | 6.85 | 1.57 | 0.01 | 1.70 | 1.84 | 43.19 |
December 2022 | 6.38 | 2.37 | 0.01 | 2.00 | 1.62 | 43.78 |
January 2023 | 6.41 | 2.46 | 0.02 | 2.00 | 1.65 | 46.99 |
February 2023 | 6.35 | 1.89 | 0.02 | 2.00 | 1.16 | 43.63 |
March 2023 | 5.83 | 1.77 | 0.01 | 2.50 | 1.83 | 46.44 |
April 2023 | 6.45 | 1.98 | 0.01 | 2.10 | 1.76 | 47.80 |
May 2023 | 7.42 | 2.16 | 0.01 | 1.80 | 1.50 | 36.63 |
June 2023 | 7.38 | 1.66 | 0.02 | 1.80 | 1.64 | 43.58 |
July 2023 | 7.75 | 1.90 | 0.01 | 1.50 | 1.68 | 44.45 |
Auguest 2023 | 7.61 | 1.37 | 0.01 | 1.60 | 1.86 | 47.21 |
September 2023 | 7.68 | 1.21 | 0.01 | 1.60 | 1.55 | 41.73 |
TLI Value | Trophic States |
---|---|
Oligotropher | |
Mesotropher | |
Eutropher | |
Light eutropher | |
Middle eutropher | |
Hyper eutropher |
Land-Use Type | R | K | LS | C | P | Erosion per Unit Area (t/hm2) | Area (km2) | Erosion Amount (t) |
---|---|---|---|---|---|---|---|---|
Cultivated land | 163.58 | 0.17 | 29.59 | 0.01 | 0.17 | 2.85 | 1.00 | 285 |
Woodland | 163.58 | 0.19 | 0.71 | 0.25 | 0.40 | 1.80 | 22.5 | 4050 |
Total | 23.5 | 4335 |
Land-Use Type | Soil Detection Value mg/kg | Sediment Concentration in Runoff mg/kg | Quantity of N and P in Storage kg/a | |||
---|---|---|---|---|---|---|
TN | TP | TN | TP | TN | TP | |
Cultivated land | 158.3 | 3.32 | 316.6 | 6.64 | 90.23 | 1.89 |
Woodland | 46.6 | 0.15 | 93.2 | 0.3 | 377.46 | 1.21 |
Total | 409.8 | 6.94 | 467.69 | 3.10 |
Pollutant Source Type | TN | TP |
---|---|---|
Agricultural non-point-source pollution | 467.69 | 3.1 |
Domestic sewage pollution | 1985.6 | 496.4 |
Domestic garbage pollution | 950.9 | 95.1 |
Livestock pollution | 560 | 240 |
