Electrochemical Oxidation Treatment of Organic Matter in Wastewater from Wet Fermentation of Yunnan Arabica Coffee

by
Fanfan Liang
1,
Yan Wang
1,
Yungen Liu
2,*,
Silin Yang
1,
Fajin Yin
1 and
Liping Peng
1
1
College of Ecology and Environment, Southwest Forestry University, Kunming 650224, China
2
Yunnan Key Laboratory of Ecological Environment Evolution and Pollution Control in Mountainous Rural Areas, Kunming 650224, China
*
Author to whom correspondence should be addressed.
Water 2024, 16(2), 343; https://doi.org/10.3390/w16020343
Submission received: 11 December 2023 / Revised: 29 December 2023 / Accepted: 29 December 2023 / Published: 19 January 2024
(This article belongs to the Section Wastewater Treatment and Reuse)
Browse Figures
Review Reports Versions Notes

Abstract

:
Electrochemical oxidation combined with reagents of O3, H2O2 and FeCl2 was conducted in this study to treat the wastewater from wet fermentation of Yunnan arabica coffee. In addition, the effect of oxidants on the efficiency of wastewater treatment, the binding capacities of the oxidants to proteins, the degradation of organic pollutants in the wastewater, and the formation of oxidized organic components were systematically investigated. The results reveal better performance of O3-combined electrochemical oxidation (63.60% COD removal efficiency) for treatment of organic species in coffee wastewater than that of the electrochemical processes with H2O2 (47.70% COD removal efficiency) and FeCl2 (34.48% COD removal efficiency). The synergy of the electrooxidation/O3 process (0.0133 A/cm2, 20 mg/L–2 L/min) could not only raise the pH value (3.70~4.20, 5.14~5.44) of the wastewater and reduce the NaOH dosage of 2.80~3.7 g/L, but also effectively degrade the proteins, lipids, unsaturated hydrocarbons, and carbohydrates, with a total chemical oxygen demand (COD) value above 20,000 mg/L. After the oxidation treatment, some organic components remained in the wastewater, including 31.94% of S-containing organics, lignin, condensed aromatic compounds, and aromatic structural compounds, which are difficult to be utilized by microorganisms. In addition, it was found that OH− could bind to proteins and affect the required amount of NaOH addition, whereas the protein binding energy of O3 is higher than that of H2O2, indicating a stronger ability of O3 to oxidize proteins. Therefore, the combination of O3 and electrochemical oxidation can be considered as an effective method to treat organic pollutants in the wastewater from wet fermentation of Yunnan arabica coffee.

1. Introduction

Coffee is one of the most widely produced and traded agricultural products [1]. China’s coffee beans are dominated by Yunnan arabica coffee because of the unique climatic conditions of its growth. To meet market demands for coffee beans with better quality, wet fermentation has been becoming the common processing method used by coffee producers. More than 80% of Yunnan arabica coffee is currently fermented using the wet processing method to degrade the mucilage, which consists of hemicelluloses, pectin substances and sugars [2]. However, for the fresh fruit fermentation of Yunnan arabica coffee, a large amount (1~2 tons) of clean water is required. Moreover, a variety of by-products, such as coffee pulp, parchment, and wastewater, are produced during the wet processing [3]. The wastewater from wet fermentation of Yunnan arabica coffee (e.g., at Yunnan Simao Beigui Coffee Co., Ltd. from 2022 to 2023) has been measured to have the following typical parameter values: chemical oxygen demand (COD) of 31,333.33–31,666.67 mg/L, five-day biochemical oxygen demand (BOD5) of 1270–1350 mg/L, total salt content of 1017–1032 mg/L, suspended substances of 3547–3556 mg/L, total phosphorus of 116.75–116.89 mg/L, ammonia nitrogen of 143.33–147.78 mg/L, color of 200 times and pH value of 3.7–4.2. These data reveal wastewater characteristics of high acidity and color, a large concentration of various pollutants, and poor biodegradability. In cases in which the wet processing is performed at a large scale, the produced effluents will significantly exceed the self-purification capacity of the natural waterways [4].
For the treatment of coffee wastewater, efficient and cost-effective biological methods have been developed. However, they also show a number of disadvantages. For example, the combination of an anaerobic digester and an engineered wetland could remove 70% of the organic matter in coffee wastewater; however, this process requires a lengthy period of acclimatization. This is particularly problematic considering that the annual coffee harvest season is relatively short (3 to 4 months) [5,6,7]. Based on the observations from a field visit to a wet fermentation site of Yunnan arabica coffee, the wastewater is treated mainly by a biochemical method, such as the reserved anaerobic–anoxic–aerobic (A2O) method. In this process, the pH value of the wastewater is first adjusted with a large number of lye, followed by the addition of flocculants and coagulants into the wastewater to remove residues and pectin. To ensure that the effluent water during the biochemical process meets the secondary standard of the Comprehensive Wastewater Discharge Standards (GB 8979-1996), a pool with a large area is required. Meanwhile, the generation of wastewater due to the seasonal production of coffee will result in unstable water quality and quantity, thus affecting the biochemical process.
It has been found that green coffee beans are rich in unsaturated fatty acids such as oleic acid (18:1n-9), linoleic acid (18:2n-6), and linolenic acid (18:3n-3), and proteins composed of different amino acids, which are the main compounds contributing to the formation of the typical aroma during roasting [8,9,10]. The wet processing method allows the release of reduced sugars and free amino acids during the fermentation step [11]. Relevant studies have shown that electrochemical oxidation treatment of wastewater has the advantages of small land occupation, rapid reaction process, and oxidation capability for difficult-to-degrade organics [12,13]. For example, excellent performance of electrochemical oxidation for pretreatment of agricultural wastewater has been observed [14]. To solve the problems of high acidity and the large concentration of organic pollutants in the seasonally produced wastewater from wet fermentation of Yunnan arabica coffee, electrochemical advanced oxidation of the organic matter in the wastewater was conducted in this study. Specifically, the role of the reagents in the electrochemical treatment process of COD in wastewater was analyzed. Moreover, the effects of the electrooxidation treatment on the pH value of the wastewater and the required amount of alkali addition were also investigated, along with analysis of degraded fractions in coffee wastewater treated by electrochemical oxidation.

2. Materials and Methods

2.1. Reagents and Instruments

The wastewater from wet processing of Yunnan arabica coffee was supplied by Yunnan Simao Beigui Coffee Co., Ltd. (Pu’er, China, production season from November 2022 to March 2023). In addition, analytical grade reagents, including H2O2 (≥30% XILONG SCIENCE), polymerized aluminum chloride (PAC, Al2O3 ≥ 28% Daqian Environmental Protection Technology Co., Ltd., Xingyang, China), polyacrylamide (PAM, molecular weight of 18 million Daqian Environmental Protection Technology Co., Ltd.), NaOH (≥96% Tianjin Fengboat Chemical reagent Technology Co., Ltd., Tianjin, China), Ca(OH)2 (≥99.8% Tianjin Fengboat Chemical reagent Technology Co., Ltd.), concentrated sulfuric acid (95~98% Tianjin Fengboat Chemical reagent Technology Co., Ltd.), phthalic acid (≥99.8% Tianjin Fengboat Chemical reagent Technology Co., Ltd.), potassium dichromate (≥99.8% Tianjin Fengboat Chemical reagent Technology Co., Ltd.), silver sulfate (99.7% Tianjin Fengboat Chemical reagent Technology Co., Ltd.), mercury sulfate (99% Tianjin Fengboat Chemical reagent Technology Co., Ltd.), and ferrous sulfate (FeCl2 > 99% Tianjin Fengboat Chemical reagent Technology Co., Ltd.) were used in this study.
The electrochemical oxidation device is shown in Figure 1. It has a size of 320 × 160 × 150 mm (L × W × H) and 8 sets of pole plates (150 × 100 × 2 mm, titanium) with a spacing of 20 mm between the plates. Water is fed in and out from the bottom of the device, and wastewater flows back and forth through the device, maintaining a liquid level of 100 mm. The device is also equipped with a high-frequency switching power supply (50 A/36 V), ozone generator (LCP-G/A-50 g/h, Chian Hebei Lantis Environmental Protection Technology Co., Ltd.), panel gas flowmeter (0.5–8.0 L/min), spectrophotometer (Hach DR-2800, HACH Company, made in China), digester (Hach DRB-200, HACH Company, made in China), pH starter (3100, Ohaus Instrument Co., Ltd., Changzhou, China), ultraviolet-visible (UV–Vis) spectrophotometer (UV-2600, Sainyu Hengping Instrument Co., Ltd., Shanghai, China), 3D fluorescence spectrometer (Perkin-Elemer-LS55, PerkinElmer, Shanghai, China), and Fourier transform ion cyclotron resonance mass spectrometer (FTICR-MS, America Bruker Daltonics, Inc., Billerica, MA, USA).

2.2. Experimental Methods

The electrochemical oxidation of organic species in the coffee fermentation wastewater was conducted as follows: 7 L of the wastewater was added into the reactor together with the O3 (20 mg/L 2 L/min) or H2O2 (30% 10 mL/L) solution. The reaction was then performed at current strength of 40 A (0.0133 A/cm2) for 2, 3, 4 and 5 h. After each processing time, a sample was taken and its pH value was adjusted to 7 with the NaOH solution. Subsequently, PAC (10%, 2 mL/L) and PAM (0.1%, 2 mL/L) were added to the sample and the system was stirred for 5 min. After resting for 30 min, the supernatant was taken for analysis of the contents of organics (COD, Hach model). In another process, 7 L of the wastewater was added to the reactor together with a FeCl2 (10%, 2 mL/L), H2O2 (30% 10 mL/L) or O3 (20 mg/L 2 L/min) solution. The electrochemical oxidation was then conducted at current intensities of 30, 40 and 50 A for 4 h. Afterwards, a sample was taken and its pH value was adjusted to 7 with the NaOH solution. Subsequently, PAM (0.1%, 2 mL/L) was added into the FeCl2-containing sample, while PAC (10%, 2 mL/L) and PAM (0.1%, 2 mL/L) were introduced into the sample, with previously added O3. The obtained systems were first stirred for 5 min and then rested for 30 min. Finally, the supernatants were used for determination of the organic contents.
The O3-treated wastewater sample and the sample treated with FeCl2 at a current intensity of 40 A for 4 h were selected for analysis by fluorescence/UV–Vis spectroscopy. In addition, FTICR–MS was conducted to determine the dissolved organic matter (DOM) in the coffee wastewater after electrochemical oxidation with O3 at current of 40 A for 4 h.

3. Results

3.1. Effects of Oxidants and Current Intensity on Electrochemical Oxidation of Organics in Coffee Wastewater

Experimental results reveal that the pH value of coffee wastewater could be adjusted to neutral with 4 g/L of NaOH or 4.5 g/L of Ca(OH)2 in the wastewater. As shown in Table 1, the combination of electrochemical oxidation with oxidant of O3 or H2O2 can reduce the consumption of NaOH. The addition of O3 and H2O2 leads to a decrease in the required NaOH concentration of 2.8–3.76 and 0.8–1.6 g/L, respectively, indicating a more pronounced effect of O3 than that of H2O2 on the reduction of alkali consumption during the electrochemical oxidation treatment of coffee fermentation wastewater.
At the same time, it can be deduced from Figure 2 that the reduced alkali consumption could be attributed to the removal of organic pollutants that affect the pH value of coffee wastewater by the combined electrooxidation/oxidant treatment. The lower degree of reduction in the alkali consumption caused by H2O2 compared to that by O3 suggests that the fermentation wastewater of Yunnan arabica coffee contains refractory pollutants, which are responsible for the high difficulty encountered in biochemical treatment of coffee wastewater. The more significantly reduced alkali amount for the pH adjustment process in the combined electrooxidation/O3 treatment indicates a better performance of the strong oxidant O3 for removal of pollutants affecting the pH value of the coffee wastewater.
As shown in Figure 2, the synergistic effect of electrooxidation and H2O2/O3 could induce enhanced efficiency for removal of organic pollutants in coffee wastewater. The addition of H2O2 in the 2-h electrochemical oxidation process obviously removed some organic pollutants. After the oxidation, the COD of the coffee fermentation wastewater was reduced from 31,444.44 ± 192.45 to 15,194.44 ± 127.29 mg/L, i.e., a decrease of more than 15,000 mg/L. With the increase in the treatment time to 3, 4 and 5 h, the measured CODs of the wastewater were 21,500.00 ± 83.33, 19,277.78 ± 267.88 and 16,394.44 ± 197.44 mg/L, respectively, indicating that the further removal of organics with prolonged oxidation time was inhibited. In case of electrooxidation/O3 treatment with a processing time of 4 h, more significant degradation of the organics was observed. The COD of the wastewater was reduced from 31,444.44 ± 192.45 to 10,583.33 ± 144.34 mg /L after the treatment, revealing a COD decrease of more than 20,000 mg/L. When the oxidation time was extended to 5 h, the corresponding COD value was measured as 15,516.67 ± 132.29 mg/L, showing a trend similar to that of the above electrooxidation/H2O2 process. During the coffee fermentation stage, the mucilage layer needs to be degraded, which is correlated to acidification by lactic acid bacteria [15]. The digested mucilage is precipitated from the solution [16]. Concentrations are higher in coffee pulps than in coffee beans. For example, the content of malic acid in coffee pulps is six times higher than that in green coffee beans [11]. Sugars in wastewater are most likely released from coffee pulp and mucilage that precipitate after fermentation [17,18]. In addition, soluble proteins are present in coffee samples, with a considerable content ranging from 5% to 15%. For instance, an average protein content of 10–14% in coffee arabica has been reported [19]. Therefore, the wastewater from wet processing of Yunnan arabica coffee also contains organic acids, soluble sugars, soluble proteins and other pollutants, resulting in a complex composition and high concentration of organic pollutants, which further lead to the large difficulty in the electrochemical oxidation treatment. Adjusting the pH value of coffee wastewater to neutral consumes a large number of alkali. The addition of oxidants, especially O3, during electrochemical oxidation of wastewater can effectively remove organic pollutants and significantly reduce alkali consumption. The more organic pollutants removed, the less NaOH required to remove organic acids, soluble sugars, soluble proteins, and other organic pollutants from the wastewater.
On the other hand, the addition of H2O2 and O3 oxidants can significantly remove total phosphorus (TP) from coffee wastewater. The initial TP concentration of 116.81 ± 0.07 mg/L decreased to 1.01 ± 0.01 mg/L after the electrooxidation/O3 treatment and to 3.79 ± 0.07 mg/L after the 2-h electrooxidation/H2O2 process, indicating removal rates greater than 98%. Upon adding Fe2+ salt instead of O3 or H2O2, the removal rate of phosphate in wastewater began to rise at a pH value of 3 and reached 67.4% at a pH value of 8. The initial pH value of the system affects the precipitation modes of Fe2+ salt and phosphate, which in turn influence the removal of phosphate [20]. As shown in Figure 3, the addition of O3 in the electrochemical oxidation process is more effective than the H2O2 addition for lowering the TP concentration in the treated wastewater. O3 shows a higher capability for removal of organic pollutants and TP because of its stronger oxidizing ability. In the process of electrochemical oxidation, hydroxyl radicals can be generated from ionized water and H2O2 molecules. More oxidized radicals could not only oxidize and degrade the pollutants in the wastewater but also consume themselves by mutual reaction, eventually resulting in a weaker effect in water purification [21]. As shown in Figure 4, the addition of H2O2 oxidant led to a negative effect on the removal of NH3-N in coffee wastewater, whose concentration increased from 145.29 ± 2.27 to 414.26 ± 6.23 mg/L after 4-h treatment. In contrast, the 2-h electrooxidation/O3 process reduced the concentration of NH3-N from 145.29 ± 2.27 to 122.17 ± 2.70 mg/L. Overall, the addition of O3 oxidant exhibits a negative effect on the removal of NH3-N from coffee wastewater. Electrochemical oxidation of protein can produce peptides with structures similar to those of tyrosine and tryptophan, i.e., amino acids containing amino groups [22,23]. Therefore, the increase in the pollutant concentration after the combined treatment of coffee wastewater with electrochemical oxidation and oxidant is caused by NH3-N in the degradation products.
After adding FeCl2 to acidic wastewater containing oxidant H2O2, Fe2+ ions can react with H2O2 to produce additional oxidizing radicals, resulting in an increase in the number of oxidized radicals. As shown in Figure 5, the COD in the treated wastewater decreases with the rise of the current intensity. However, the simultaneous addition of FeCl2 and enhancement of the current would slow down the rate of COD decrease, especially at a current intensity of 40 A. During the electrochemical oxidation process without the addition of FeCl2, the COD value of the wastewater decreased from 31,444.44 ± 192.45 to 18,666.67 ± 166.67 mg/L, corresponding to a COD decrease of more than 12,000 mg/L. In the presence of FeCl2, the relevant COD decreased only to 23,205.56 ± 327.59 mg/L, i.e., a reduction in COD of ca. 8000 mg/L. After addition of FeCl2 to the acidic wastewater, the outer electrons of Fe2+ ions can form carboxyl radicals with H2O2 to oxidize the pollutants (Fe2+ + H2O2 → Fe3+ + −OH + ·OH). This reaction process is similar to the Fenton reaction, in which the generated hydroxyl radicals can degrade organic pollutants in the wastewater, and the degradation efficiency decreases with the increase in the current intensity [24].
It can be seen from Figure 6 that the electrochemical oxidation treatments at different current intensities show negative effects on the removal of NH3-N in coffee wastewater. In particular, the NH3-N concentration increased from 145.29 ± 2.27 to 212.24 ± 2.04 mg/L after treatment at 40 A. The addition of Fe2+ ions to the treatment process had a weaker effect on the elevation of NH3-N, which was similar to that of oxidizing COD, with a high amount of NH3-N under a high number of O3-degraded organics and low amount of NH3-N under a low number of Fe2+-degraded organics. The concentration of NH3-N in the wastewater treated by the combined electrooxidation/O3 process is approximately twice as high as that of the system after Fe2+-combined electrochemical oxidation treatment, further indicating that electrochemical oxidation of proteins produces polypeptides with structures close to those of tyrosine and tryptophan. Therefore, the increase in the pollutant concentration after the combined electrooxidation/oxidant treatment of coffee wastewater is caused by NH3-N in the degradation products.
In brief, the O3-assisted electrochemical advanced oxidation could effectively remove organic pollutants and TP from coffee wastewater, while the concentration of NH3-N in the system would increase after the treatment. The degraded organic pollutants during the oxidation process include organic acids, soluble sugars and proteins, whereas the corresponding degradation products are responsible for the elevated NH3-N concentration in the system. On the other hand, the more organic pollutants and TP removed, the less NaOH required for adjusting the pH value of the wastewater.

3.2. Fluorescence/UV–Vis Spectrophotometric Analysis of Coffee Wastewater Treated by Electrochemical Oxidation

It can be observed from Figure 7a that the peaks in the 3D fluorescence spectrum of the wastewater are located in Region II and IV, indicating that the main substances in the wastewater from wet processing of Yunnan arabica coffee are aromatic proteins, tryptophan and protein-like components. The fluorescence intensity of the wastewater was significantly reduced after the combined electrooxidation/O3 treatment, suggesting that most of the aromatic proteins and protein-like components were removed by the oxidation process (Figure 7b). In contrast, the fluorescence peaks in the spectrum of the wastewater treated by the H2O2-assisted electrochemical oxidation are more obvious, which indicates an inferior capability of the treatment process for removal of aromatic proteins, tryptophan and protein-like components (Figure 7c). As discussed above, divalent iron ions could react with H2O2 to form carboxyl radicals. In comparison with H2O2, O3 with stronger oxidizing ability shows better performance for oxidative degradation of organic pollutants in the coffee fermentation wastewater, which is consistent with the observation in Section 3.1 that the introduction of O3 oxidant to the electrochemical oxidation process of coffee wastewater can more effectively improve the degradation rate of organic pollutants compared to the addition of H2O2.
An analysis on the UV–Vis spectra shows that the absorption peaks of coffee wastewater are mainly in the wavelength range from 200 to 300 nm, and the intensities of the peaks are significantly lower after the O3-assisted electrochemical oxidation treatment of the wastewater, indicating that the contents of C=O and C=C groups, as well as the average molecular weight of the organic matter in the wastewater, were reduced by the treatment (Figure 8). In contrast, after the combined electrooxidation/FeCl2 treatment of the wastewater, no obvious change in the intensity of the peaks was observed, revealing the negligible effect of this treatment process for degradation of organic substances in coffee wastewater. This could be interpreted by the mutual reaction between oxidized radicals and the consumption of partial Fe2+ salts due to the removal of TP from the wastewater, both of which negatively influence the oxidative degradation of organic pollutants in the wastewater. Compared to the combined electrooxidation/FeCl2 process, the H2O2-assisted electrochemical oxidation exhibited a higher capability for purification of the coffee fermentation wastewater.
As shown in Section 3.1, the introduction of Fe2+ and O3 during electrochemical oxidation of coffee wastewater can promote the degradation of organic pollutants, and this promotion effect is more pronounced in the case of O3 addition than that of Fe2+ salt. The contents and molecular weights of aromatic proteins, tryptophan, and proteins in coffee wastewater were significantly reduced after the combined electrooxidation/O3 treatment, indicating the high effectiveness of electrochemical advanced oxidation for removal of the organic matter in the wastewater. In the electrochemical oxidation process with added Fe2+ salt instead of O3, however, the organic pollutants in the wastewater were only slightly removed. These results suggest that, in comparison with the addition of Fe2+ salt, the introduction of O3 can more efficiently promote the electrooxidation of organic pollutants (including refractory organics) in coffee fermentation wastewater.

3.3. Analysis of Degraded Fractions in Coffee Wastewater Treated by Electrochemical Oxidation

The results in Section 3.1 show that the addition of ferrous sulfate during electrochemical oxidation of the coffee fermentation wastewater has a negative effect on the removal of organics. To determine the DOM in the wastewater treated by the combined electrooxidation/O3 process, FTICR–MS measurements were conducted and the results were analyzed with the Kendrick mass defect (KMD) method due to its unique advantage in the characterization of organics containing the same series of molecular fragments. In this method, CH2 is the most commonly used group, and other functional groups, such as OCH2, COO, O, H2O, and H2 can also be used [25]. In addition, the van Krevelen diagram (VK diagram with H/C as the vertical coordinate and O/C as the horizontal coordinate) was applied to the DOM resolution. Based on the values of O/C and H/C for each molecular formula, DOM molecules in the wastewater fall into different regions of the VK diagram, including lipids, proteins/amino sugars, saccharides, unsaturated hydrocarbons, polycyclic aromatic hydrocarbons, lignans, and tannins [26].
As shown in Figure 9, a total of 4949 compounds were detected in the coffee wastewater after the O3-assisted electrochemical oxidation treatment. Among these species, CHO exhibits the highest content (37.91%), followed by CHON (30.15%), CHOS (24.63%) and CHONS (7.31%), with a decreasing trend in concentration. The S-containing fractions, including CHOS and CHONS, have a total content of 31.94% in the treated wastewater, and biological degradation is difficult.
It can be seen from Figure 10 that the coffee wastewater after the combined electrooxidation/O3 treatment contains lignin and condensed aromatic structures as the main refractory components, as well as some proteins, lipids, carbohydrates, unsaturated hydrocarbons, and other compounds degraded by microorganisms. As discussed in Section 3.2, the proteins, lipids, unsaturated hydrocarbons and carbohydrates in the wastewater from wet processing of Yunnan arabica coffee can be degraded and removed by the combined treatment with electrochemical oxidation and O3, leading to a decrease in the molecular weights and an increase in the molecular diversity of DOM in the system. To further reduce the contents of lignin and condensed aromatic compounds, the degree of electrochemical oxidation was increased, while the content of labile DOM components in the wastewater was reduced to ca. 30% of the original value. For the subsequent treatment of this wastewater system, biochemical methods are not suggested.
The condensation degree of molecules is usually expressed by the double bond equivalent (DBE), which is numerically equal to the total number of rings and double bonds in the molecule. Considering the contribution of oxygen atoms to the double bonds in the DOM molecules, Koch and Dittmar proposed the aromaticity index (AI) according to the data from the negative ions of electrospray ionization (ESI) FTICR–MS to indicate the unsaturation degree of compounds [27,28]. Based on the magnitude of AI and the ratios of O/C and H/C, DOM molecules can be classified into the following five groups: saturated compounds, unsaturated aliphatic compounds, highly unsaturated compounds, polyphenolic compounds, and polycyclic aromatic hydrocarbons, which exhibit an increasing trend in biological inertia [29]. As shown in Figure 11, an analysis of the aromaticity of DOM fractions in the electrochemically treated wastewater reveals the largest proportion (61.27%) of non-aromatic compounds, mainly including hypoxic phenolic compounds (AI ≤ 0.5, H/C < 1.5, and O/C < 0.5), hyperoxic phenolic compounds (AI ≤ 0.5, H/C < 1.5), and aliphatic compounds (2.0 ≥ H/C ≥ 1.5). The contents of polycyclic aromatic hydrocarbons (18.39%) and aromatic compounds (14.35%) rank second and third, respectively. Compared to non-aromatic compounds, species containing aromatic ring structures are more difficult to be degraded by microorganisms.
Studies of the molecular fractions of DOM in municipal sewage treated with different flocculants show that conventional flocculants and coagulants could only remove organic compounds with low H/C ratios and high O/C ratios. For efficient removal of aliphatic compounds, highly unsaturated compounds, phenolic compounds, and sulfur-containing organics, some novel flocculants have been developed and excellent performance has been observed [30,31]. In this work, the PAM and PAC added during the electrochemical oxidation treatment of coffee fermentation wastewater mainly play a role in the removal of suspended solids (SS), rather than organics. Therefore, the combination of electrochemical oxidation with O3 contributes significantly to the removal of organic pollutants from coffee wastewater. The electrochemical advanced oxidation can be used as an effective method to treat industrial wastewater, in which the sulfur-containing compounds are difficult to be degraded biologically by microorganisms. In this process, the increase in the amount of oxidant could lead to reduced content of sulfur-containing compounds such as CHOS. Therefore, it is not recommended to apply biological methods for the subsequent purification of coffee wastewater after electrochemical oxidation treatment.

3.4. Simulation Experiments of Binding OH−, H2O2 and O3 to Proteins

As discussed above, the wastewater from wet fermentation of Yunnan arabica coffee contains a large amount of proteinaceous organic matter, and thereby a large quantity of NaOH will be consumed in adjusting the pH value of the wastewater to neutral. It is inferred that the content of hydroxy ions in the wastewater is affected by the proteinaceous organic matter. On the other hand, it was concluded that the electrooxidation process with O3 could more effectively remove the organic matter in coffee wastewater than the electrochemical treatment with H2O2. To verify the assumption that hydroxide ions were consumed by proteinaceous organic matter in the wastewater and to compare the ability of O3 and H2O2 to oxidize proteinaceous organic matter, simulation experiments were conducted with open-source software Autodock_vina and AutoDockTools–1.5.7. Active sites and ligand-binding cavities in native proteins are often formed by curved β sheets, and the control of β-sheet curvature would allow the design of proteins with cavities customized to bind with specific ligands. Toward this end, Marcos et al. investigated the mechanisms of controlling β-sheet curvature by folding simulations based on the geometry of β sheets in natural protein structures [32]. Two proteins with curved β-folded layers (RCSB PDB: 5L33, 5TPH) studied by Marcos et al. were selected in this study for docking OH−, O3 and H2O2 in the simulation experiments.
Macromolecule content-5TPH: total structure weight of 28.97 kDa, atom count of 1850, medelled residue count of 241, deposited residue count of 246, unique protein chains of 1; Macromolecule content-5TPH: total structure weight of 12.85 kDa, atom count of 987, medelled residue count of 106, deposited residue count of 108, unique protein chains of 1. Figure 12a and Figure 13a illustrate the electrostatic potential diagrams of proteins 5L33 and 5TPH, respectively. It can be seen that the electrostatic potential of 5TPH is higher than that of 5L33. A total of nine binding sites and binding energies of the proteins with OH− and O3 were calculated during the simulation experiments. The binding site diagrams in Figure 12b–d show that OH−, O3 and H2O2 bind at the electropositive sites of 5L33 with the corresponding binding energies of −1.8, −2.9 and −2.8 kcal/mol, respectively. The absolute values of the binding energies of these species with 5L33 increase in the order of OH− < H2O2 < O3 (Table 2). Figure 13b–d present the binding site diagrams of 5L33 with OH−, O3 and H2O2, respectively. It can be seen that OH− ions bind at the electronegative sites of 5TPH, while O3 and H2O2 bind at the electropositive sites. As shown in Table 2, the binding energies of 5TPH with OH−, H2O2 and O3 rise from less than 2 kcal/mol to nearly 3 kcal/mol in absolute values. The binding energies of 5L33 with OH−, H2O2 and O3 are higher than the corresponding values of 5TPH with the species, which is caused by the structural differences between 5L33 and 5LPH. These results indicate that OH− can be bound to the proteins, confirming the assumption that the presence of protein pollutants in the wastewater from wet fermentation of Yunnan arabica coffee is responsible for the high NaOH consumption in the process of adjusting the pH value of the wastewater. O3 is easier to bind to the electropositive sites of proteins than H2O2 because of its stronger oxidation capacity, which is the reason why the binding energies of O3 with 5L33 and 5TPH are higher than those of H2O2. The excellent performance of the combined electrooxidation/O3 process for removal of the organic matter in the coffee fermentation wastewater could be attributed to the strong oxidizing ability of O3 and the high binding energy of O3 with proteins, which promote the degradation of protein-like organics in the wastewater.

4. Conclusions

Due to the proteinaceous organic pollutants in the wastewater from the wet fermentation of Yunnan arabica coffee, a large amount of NaOH is consumed in the pH adjustment process. O3-combined electrochemical oxidation (63.60%) for treatment of organic species in coffee wastewater is better than that of electrochemical processes with H2O2 (47.70%) and FeCl2 (34.48%). The synergy of electrooxidation/O3 process (40A, 20mg/L-2L/min) could not only raise the pH value (3.70~4.20, 5.14~5.44) of the wastewater and reduce the NaOH dosage of 2.80~3.7 g/L, but also effectively degrade the proteins, lipids, unsaturated hydrocarbons, and carbohydrates, with a total chemical oxygen demand (COD) value above 20,000 mg/L. The electrochemical oxidation in the presence of oxidant O3 or H2O2 can not only effectively degrade the proteins, lipids, unsaturated hydrocarbons, and carbohydrates in the wastewater, but also significantly remove TP from the system. Compared to the H2O2-assisted and FeCl2-assisted electrochemical process, the combined electrooxidation/O3 treatment of the coffee fermentation wastewater shows better performance for removal of the organic pollutants. Fluorescence/UV–Vis spectrophotometric analysis of the treated wastewater reveals that the degradation fractions consist of S-containing organics, lignin, aromatic structures, and condensed aromatic compounds, which are all difficult to be degraded by microorganisms. Therefore, the treatment process of coffee fermentation wastewater should be based on the electrochemical advanced oxidation technique rather than the biological methods. In addition, results from the simulation experiments show that the binding energies of proteins 5L33 and 5TPH with O3 are higher than those with H2O2, and the binding of OH− ions with protein organic pollutants leads to an increase in the consumption of NaOH for adjusting the pH value of the wastewater. In sum, the results from this study demonstrate that O3-assisted electrochemical oxidation can be applied as an effective method for degradation of the organic matter in the wastewater from wet fermentation of Yunnan arabica coffee, and could simultaneously reduce the consumption of NaOH.

Author Contributions

All authors contributed intellectual input to this study and manuscript preparation. Investigation, writing—original draft, formal analysis, visualization, software, methodology, F.L.; conceptualization, methodology, writing—review and editing, supervision, data curation, Y.L.; writing—review and editing, Y.W.; supervision, visualization, software, S.Y.; visualization, methodology, F.Y.; visualization, methodology, L.P. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported financially by National Natural Science Foundation of China (2176070136).

Data Availability Statement

The data are available from the corresponding author on reasonable request.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Mullen, W.; Nemzer, B.; Stalmach, A.; Ali, S.; Combet, E. Polyphenolic and Hydroxycinnamate Contents of Whole Coffee Fruits from China, India, and Mexico. J. Agric. Food Chem. 2013, 61, 5298–5309. [Google Scholar] [CrossRef] [PubMed]
  2. Avallone, S.; Guyot, B. Microbiological and Biochemical Study of Microbiological and Biochemical Study of Coffee Fermentation. J. Artic. 2001, 42, 252. [Google Scholar]
  3. Chala, B.; Oechsner, H.; Müller, J. Introducing Temperature as Variable Parameter into Kinetic Models for Anaerobic Fermentation of Coffee Husk, Pulp and Mucilage. Appl. Sci. 2019, 9, 412. [Google Scholar] [CrossRef]
  4. Pereira, G.V.d.M.; Soccol, V.T.; Brar, S.K.; Neto, E.; Soccol, C.R. Microbial ecology and starter culture technology in coffee processing. Crit. Rev. Food Sci. Nutr. 2015, 57, 2775–2788. [Google Scholar] [CrossRef] [PubMed]
  5. Selvamurugan, M.; Doraisamy, P.; Maheswari, M. An integrated treatment system for coffee processing wastewater using anaerobic and aerobic process. Ecol. Eng. 2010, 36, 1686–1690. [Google Scholar] [CrossRef]
  6. Selvamurugan, M.; Doraisamy, P. High rate anaerobic treatment of coffee processing wastewater using upflow anaerobic hy brid reactor. J. Iran. J. Environ. Health Sci. Eng. 2010, 7, 129. [Google Scholar]
  7. Beyene, A.; Yemane, D.; Addis, T.; Assayie, A.A.; Triest, L. Experimental evaluation of anaerobic digestion for coffee wastewater treatment and its biomethane recovery potential. Int. J. Environ. Sci. Technol. 2014, 11, 1881–1886. [Google Scholar] [CrossRef]
  8. Toci, A.T.; Neto, V.J.; Torres, A.G.; Farah, A. Changes in triacylglycerols and free fatty acids composition during storage of roasted coffee. LWT 2013, 50, 581–590. [Google Scholar] [CrossRef]
  9. Romano, R.; Santini, A.; Le Grottaglie, L.; Manzo, N.; Visconti, A.; Ritieni, A. Identification markers based on fatty acid composition to differentiate between roasted Arabica and Canephora (Robusta) coffee varieties in mixtures. J. Food Compos. Anal. 2014, 35, 1. [Google Scholar] [CrossRef]
  10. Murkovic, M.; Derler, K. Analysis of amino acids and carbohydrates in green coffee. J. Biochem. Biophys. Methods 2006, 69, 25–32. [Google Scholar] [CrossRef]
  11. Campos, G.A.F.; Sagu, S.T.; Celis, P.S.; Rawel, H.M. Comparison of Batch and Continuous Wet-Processing of Coffee: Changes in the Main Compounds in Beans, By-Products and Wastewater. Foods 2020, 9, 1135. [Google Scholar] [CrossRef] [PubMed]
  12. Sirés, I.; Brillas, E. Remediation of water pollution caused by pharmaceutical residues based on electrochemical separation and degradation technologies: A review. Environ. Int. 2012, 40, 212. [Google Scholar] [CrossRef] [PubMed]
  13. Oturan, N.; Brillas, E.; Oturan, M.A. Unprecedented total mineralization of atrazine and cyanuric acid by anodic oxidation and electro-Fenton with a boron-doped diamond anode. Environ. Chem. Lett. 2012, 10, 165–170. [Google Scholar] [CrossRef]
  14. Alvarez-Pugliese, C.E.; Moreno-Wiedman, P. Distillery wastewater treated by electrochemical oxidation with boron-doped diamond electrodes. J. Adv. Oxid. Technol. 2011, 14, 213. [Google Scholar]
  15. Avallone, S.; Brillouet, J.M. Involvemnt of pectolytic micro-organisms in coffee fermentation. Int. J. Food Sci. Technol. 2002, 37, 191. [Google Scholar] [CrossRef]
  16. Rattan, S.; Parande, A.K.; Nagaraju, V.D.; Ghiwari, G.K. A comprehensive review on utilization of wastewater from coffee processing. Environ. Sci. Pollut. Res. 2015, 22, 6461–6472. [Google Scholar] [CrossRef]
  17. Acidri, R.; Sawai, Y.; Sugimoto, Y.; Handa, T.; Sasagawa, D.; Masunaga, T.; Yamamoto, S.; Nishihara, E. Phytochemical Profile and Antioxidant Capacity of Coffee Plant Organs Compared to Green and Roasted Coffee Beans. Antioxidants 2020, 9, 93. [Google Scholar] [CrossRef]
  18. Kinyua, A.W.; Kpkorrir, R. Effect of different fermentation methods on physicochemical composition and sensory quality of coffee (Coffea arabica). J.Environ. Sci. Toxicol, Food Technol. 2017, 11, 31. [Google Scholar]
  19. Shimizu, M.M.; Mazzafera, P. Compositional changes of proteins and amino acids in germinating coffee seeds. Braz. Arch. Biol. Technol. 2000, 43, 259. [Google Scholar] [CrossRef]
  20. Li, T.; Dong, W. Phosphate removal from industrial wastewater through in-situ Fe2þ oxidation induced homogenous precipitation: Different oxidation approaches at wide-ranged pH. J. Environ. Manag. 2020, 225, 4. [Google Scholar]
  21. Brillas, E.; Sirés, I.; Oturan, M.A. Electro-Fenton Process and Related Electrochemical Technologies Based on Fenton’s Reaction Chemistry. Chem. Rev. 2009, 109, 6570–6631. [Google Scholar] [CrossRef] [PubMed]
  22. Permentier, P.H. Electrochemical Oxidation and Cleavage of Proteins with On-line Mass Spectrometric Detection: Development of an Instrumental Alternative to Enzymatic Protein Di-gestion. J. Am. Soc. Mass Spectrom. 2004, 15, 1707. [Google Scholar] [CrossRef] [PubMed]
  23. Vacek, J.; Zatloukalová, M.; Dorčák, V.; Cifra, M.; Futera, Z.; Ostatná, V. Electrochemistry in sensing of molecular interactions of proteins and their behavior in an electric field. Microchim. Acta 2023, 190, 442. [Google Scholar] [CrossRef] [PubMed]
  24. Panizza, M.; Brillas, E. Application of Boron-doped diamond electrodes for wastewater treatment. J. Mex. Chem. Soc. 2008, 18, 139. [Google Scholar]
  25. Zhang, B.; Shan, C.; Hao, Z.; Liu, J.; Wu, B.; Pan, B. Transformation of dissolved organic matter during full-scale treatment of integrated chemical wastewater: Molecular composition correlated with spectral indexes and acute toxicity. Water Res. 2019, 157, 472–482. [Google Scholar] [CrossRef] [PubMed]
  26. Sleighter, R.L.; Hatcher, P.G. The application of electrospray ionization coupled to ultrahigh resolution mass spectrometry for the molecular characterization of natural organic matter. J. Mass Spectrom. 2007, 42, 559. [Google Scholar] [CrossRef] [PubMed]
  27. Koch, B.P.; Dittmar, T. From mass to structure: An aromaticity index for high-resolution mass data of natural organic matter. Rapid Commun. Mass Spectrom. 2006, 20, 926. [Google Scholar] [CrossRef]
  28. Zheng, J.; Wang, X.-G.; Sun, Y.; Wang, Y.-X.; Sha, H.-Q.; He, X.-S.; Sun, X.-J. Natural and anthropogenic dissolved organic matter in landfill leachate: Composition, transformation, and their coexistence characteristics. J. Hazard. Mater. 2023, 25, 133081. [Google Scholar] [CrossRef]
  29. Medeiros, P.M.; Seidel, M. Dissolved organic matter composition and photo chemical trans-formations in the northern North Pacific Ocean. J. Geophys Res Lett. 2015, 42, 863. [Google Scholar] [CrossRef]
  30. Geng, C.X.; Cao, N. Molecular characterization of organics removed by a covalently bound inorganic-organic hybrid coagulant for advanced treatment of municipal sewage. Environ. Sci. Technol. 2018, 52, 12642. [Google Scholar] [CrossRef]
  31. Liu, J.; Cheng, S. Actinia-like multifunctional nanocoagulant for single-step removal of water contaminants. Nat. Nanotechnol. 2019, 14, 64. [Google Scholar] [CrossRef] [PubMed]
  32. Marcos, E.; Basanta, B.; Chidyausiku, T.M.; Tang, Y.; Oberdorfer, G.; Liu, G.; Swapna, G.V.T.; Guan, R.; Silva, D.-A.; Dou, J.; et al. Principles for designing proteins with cavities formed by curved β sheets. Science 2017, 355, 201–206. [Google Scholar] [CrossRef] [PubMed]
Water 16 00343 g001

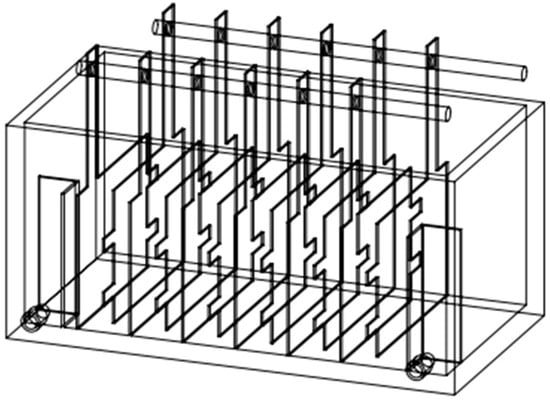

Figure 1. Electrochemical oxidation device.
Figure 1. Electrochemical oxidation device.
Water 16 00343 g001
Water 16 00343 g002

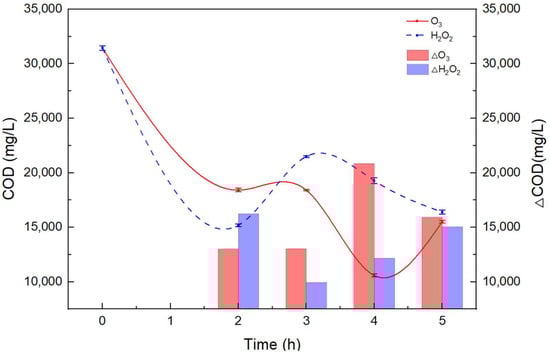

Figure 2. COD and reduction of coffee waste at different processing times.
Figure 2. COD and reduction of coffee waste at different processing times.
Water 16 00343 g002
Water 16 00343 g003

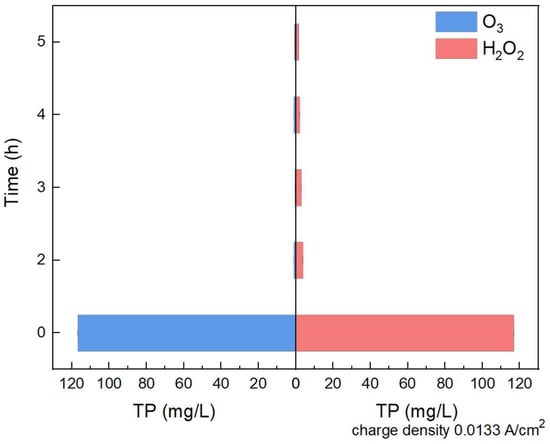

Figure 3. TP concentrations in coffee waste at different processing times.
Figure 3. TP concentrations in coffee waste at different processing times.
Water 16 00343 g003
Water 16 00343 g004

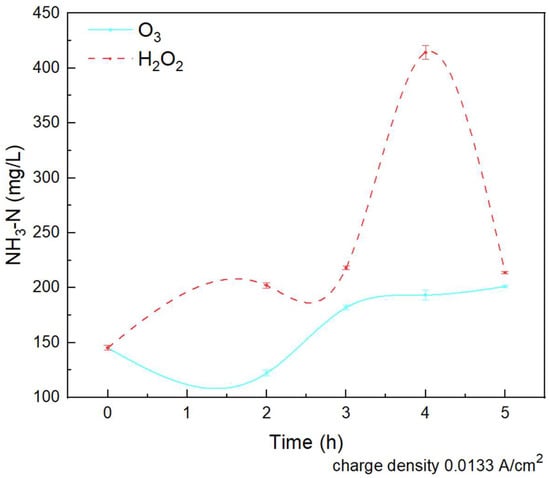

Figure 4. Concentrations of NH3-N in coffee waste at different processing times.
Figure 4. Concentrations of NH3-N in coffee waste at different processing times.
Water 16 00343 g004
Water 16 00343 g005

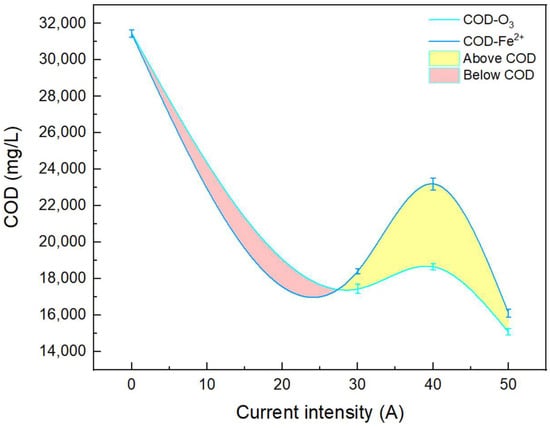

Figure 5. COD of coffee waste after treatment at different current intensities.
Figure 5. COD of coffee waste after treatment at different current intensities.
Water 16 00343 g005
Water 16 00343 g006

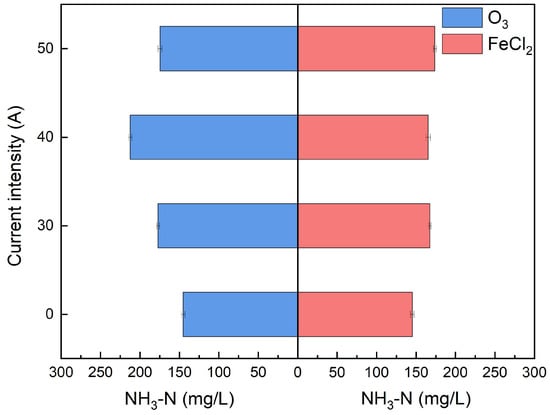

Figure 6. Concentrations of NH3-N in coffee waste after treatments at different current intensities.
Figure 6. Concentrations of NH3-N in coffee waste after treatments at different current intensities.
Water 16 00343 g006
Water 16 00343 g007

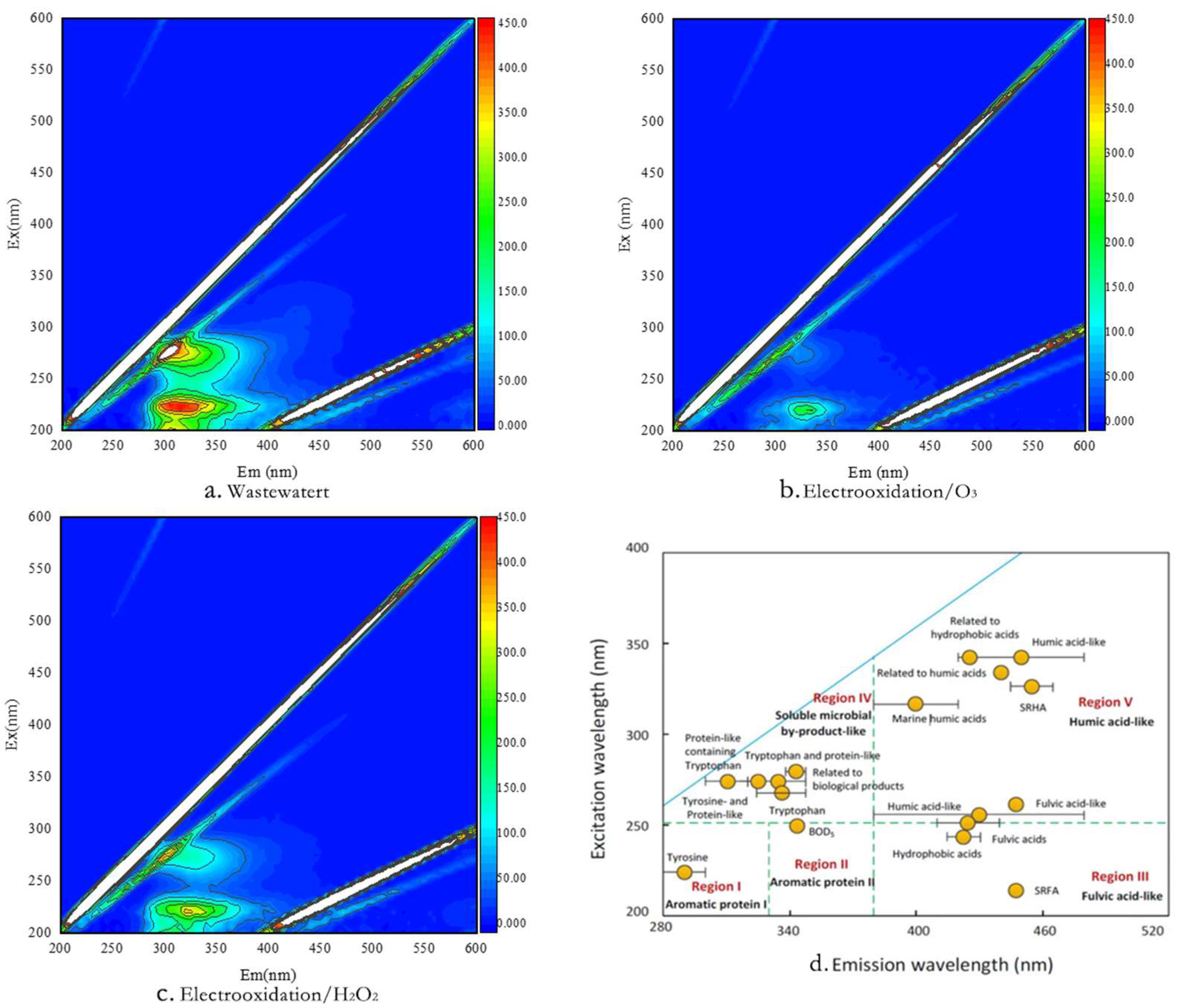

Figure 7. 3D fluorescence spectra.
Figure 7. 3D fluorescence spectra.
Water 16 00343 g007
Water 16 00343 g008

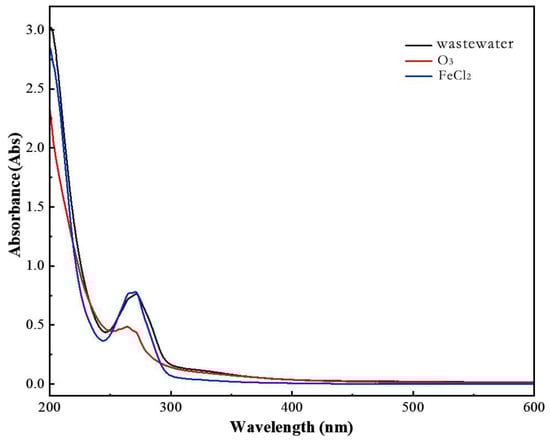

Figure 8. UV–Vis spectra.
Figure 8. UV–Vis spectra.
Water 16 00343 g008
Water 16 00343 g009

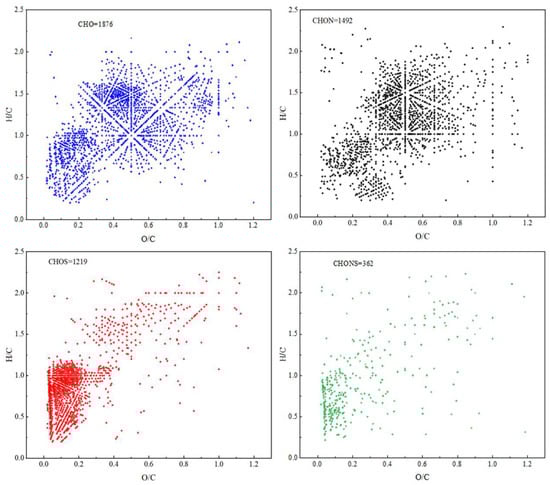

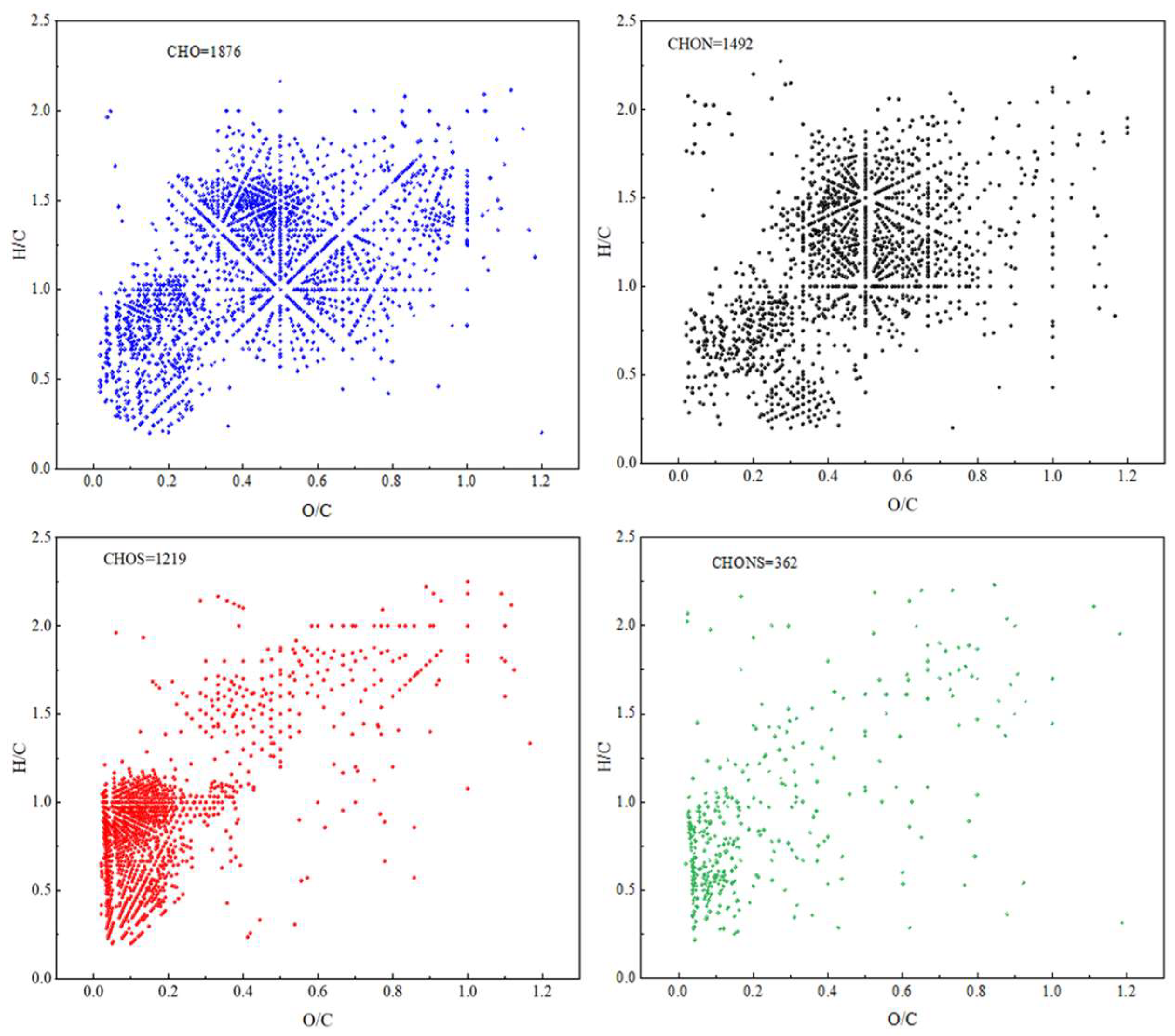

Figure 9. VK diagram of DOM in electrooxidized coffee wastewater.
Figure 9. VK diagram of DOM in electrooxidized coffee wastewater.
Water 16 00343 g009
Water 16 00343 g010

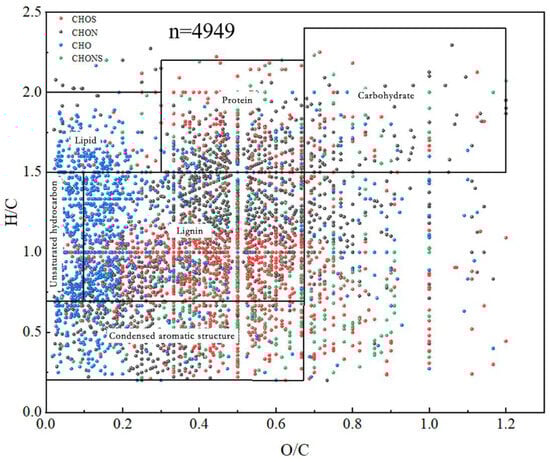

Figure 10. VK diagram and molecular composition of DOM in electrooxidized coffee wastewater. Lipid: (H:C = 1.5–2.0, O:C = 0–0.3); Protein: (H:C = 1.5–2.2, O:C = 0.3–0.67); Lignin: (H:C = 0.7–1.5, O:C=0.1–0.67); Carbohydrate: (H:C=1.5–2.4, O:C=0.67–1.2); Unsaturated hydrocarbon: (H:C = 0.7–1.5, O:C = 0–0.1); Condensed aromatic structure: (H:C = 0.2–0.7, O:C = 0–0.67).
Figure 10. VK diagram and molecular composition of DOM in electrooxidized coffee wastewater. Lipid: (H:C = 1.5–2.0, O:C = 0–0.3); Protein: (H:C = 1.5–2.2, O:C = 0.3–0.67); Lignin: (H:C = 0.7–1.5, O:C=0.1–0.67); Carbohydrate: (H:C=1.5–2.4, O:C=0.67–1.2); Unsaturated hydrocarbon: (H:C = 0.7–1.5, O:C = 0–0.1); Condensed aromatic structure: (H:C = 0.2–0.7, O:C = 0–0.67).
Water 16 00343 g010
Water 16 00343 g011

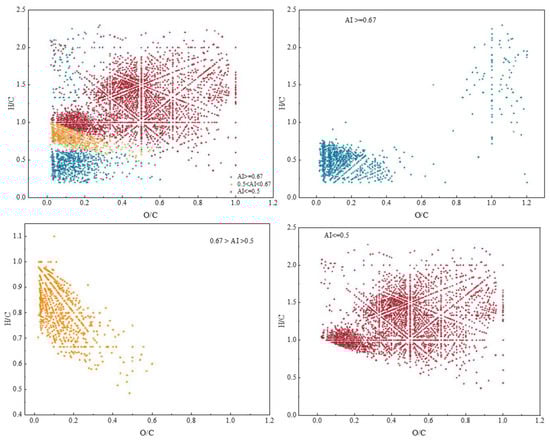

Figure 11. VK diagram and molecular composition of DOM in electrooxidized coffee wastewater. Aromatic compounds (0.67 > AI > 0.5); polycyclic aromatic hydrocarbon compounds (AI ≥ 0.67); non-aromatic compounds (AI ≤ 0.5).
Figure 11. VK diagram and molecular composition of DOM in electrooxidized coffee wastewater. Aromatic compounds (0.67 > AI > 0.5); polycyclic aromatic hydrocarbon compounds (AI ≥ 0.67); non-aromatic compounds (AI ≤ 0.5).
Water 16 00343 g011
Water 16 00343 g012

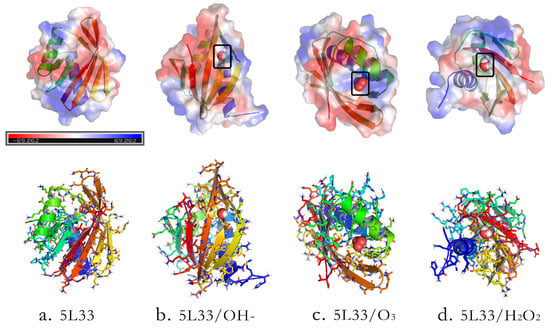

Figure 12. OH−, H2O2 and O3 binding 5L33.
Figure 12. OH−, H2O2 and O3 binding 5L33.
Water 16 00343 g012
Water 16 00343 g013

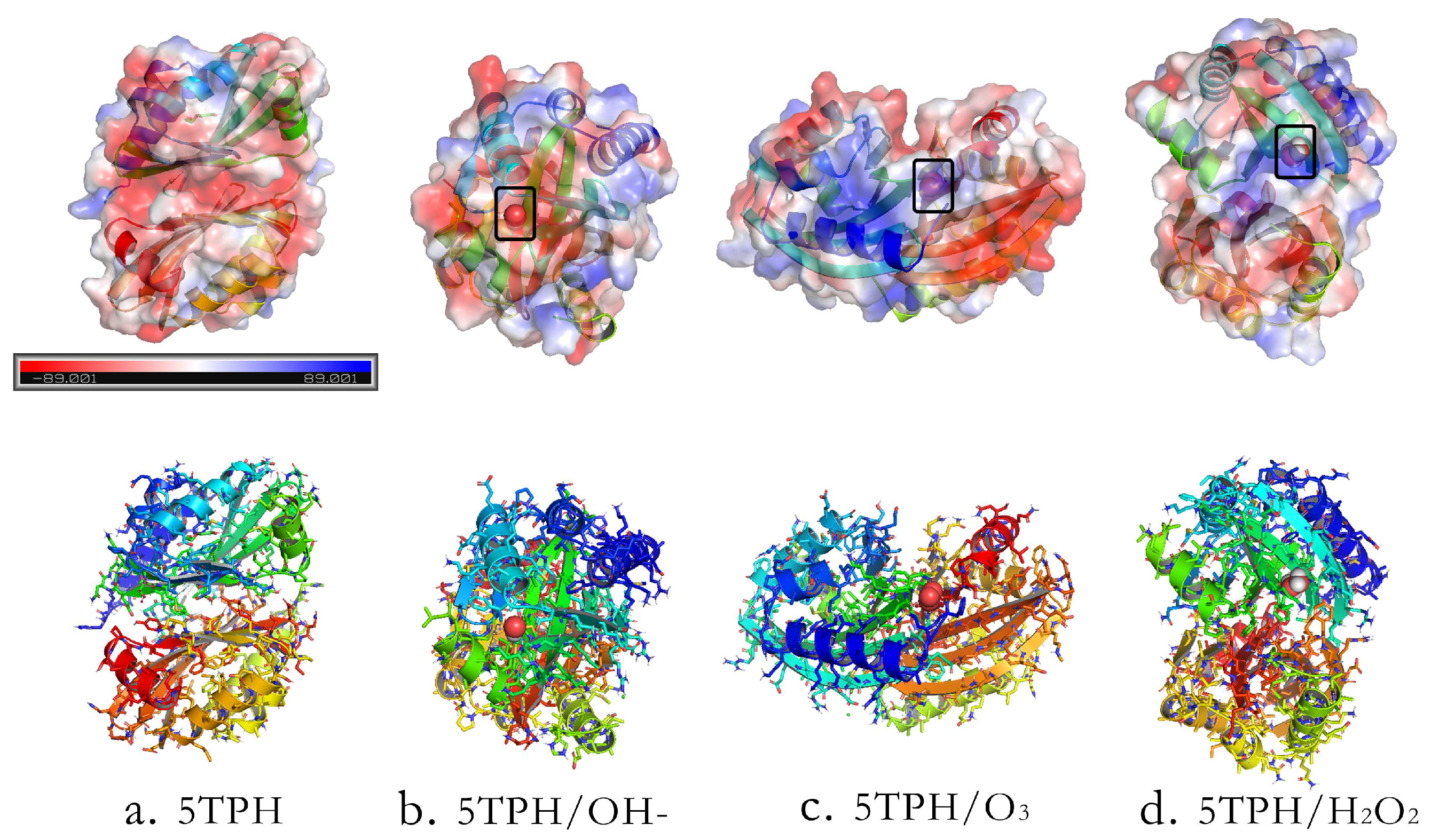

Figure 13. OH−, H2O2 and O3 binding 5TPH.
Figure 13. OH−, H2O2 and O3 binding 5TPH.
Water 16 00343 g013
Table 1. pH values and NaOH dosages of coffee waste at different processing times.
Table 1. pH values and NaOH dosages of coffee waste at different processing times.
OxidantInitial pHProcessing Time hAfter Treatment pHNaOH Dosage g/L
O33.70–4.2025.141.20
35.280.40
45.300.32
55.440.24
H2O223.333.20
33.473.20
43.522.40
53.922.40
Notes: ozone concentration: 20 mg/L, charge density: 0.0133 A/cm2.
Table 2. Binding energies of proteins with OH−, O3 and H2O2.
Table 2. Binding energies of proteins with OH−, O3 and H2O2.
Mode5L33 kcal/mol5TPH kcal/mol
OH−O3H2O2OH−O3H2O2
1−1.8−2.9−2.8−1.5−2.8−2.4
2−1.6−2.9−2.7−1.4−2.4−2.4
3−1.5−2.5−2.6−1.2−2.3−2.3
4−1.5−2.5−2.4−1.2−2.3−2.3
5−1.5−2.3−2.3−1.2−2.3−2.2
6−1.4−2.3−2.3−1.2−2.3−2.1
7−1.4−2.3−2.1−1.1−2.2−2.1
8−1.3−2.2−2.1−1.1−2.1−2.1
9−1.2−2.1−2.0−1.1−2.0−2.0
