Optimizing the Production-Living-Ecological Space for Reducing the Ecosystem Services Deficit

Abstract

With rapid urbanization and industrialization, China’s metropolises have undergone a huge shift in land use, which has had a profound impact on the ecological environment. Accordingly, the contradictions between regional production, living, and ecological spaces have intensified. The study of the optimization of production-living-ecological space (PLES) is crucial for the sustainable use of land resources and regional socio-economic development. However, research on the optimization of land patterns based on PLES is still being explored, and a unified technical framework for integrated optimization has yet to be developed. Ecosystem services (ES), as a bridge between people and nature, provide a vehicle for the interlinking of elements of the human-land system coupling. The integration of ES supply and demand into ecosystem assessments can enhance the policy relevance and practical application of the ES concept in land management and is also conducive to achieving ecological security and safeguarding human well-being. In this study, an integrated framework comprising four core steps was developed to optimize the PLES in such a way that all ecosystem services are in surplus as far as possible. It was also applied to a case study in the middle and lower reaches of the Yellow River Basin. A regression analysis between ES and PLES was used to derive equilibrium thresholds for the supply and demand of ES. The ternary phase diagram method was used to determine the direction and magnitude of the optimization of the PLES, and finally, the corresponding optimization recommendations were made at different scales.

1. Introduction

Since the 20th century, along with the acceleration of global urbanization and industrialization, the continued large-scale exploitation of land resources has been accompanied by environmental problems, such as the crowding of ecological space by urban construction land, atmospheric pollution, water pollution, and ecological imbalance [1,2,3]. Since the reform and opening up of China in 1978, urbanization and industrialization have advanced rapidly. At the end of 2018, 59.6% of China’s land was urbanized, and China has entered a period of steady urbanization [4,5]. In this context, structural imbalances in land use have come to the fore, the contradiction between production-living-ecological space (PLES) has become increasingly prominent, and land use is facing enormous pressure and challenges [6,7]. Therefore, to promote regional sustainable development and the effective and efficient application of land space, it is necessary to reasonably allocate limited spatial resources [8,9,10]. Integrating the spatial functions and land use structure under the PLES linkage and promoting the coordinated development of the quantitative structure and spatial layout of the PLES has become an urgent issue to be addressed [11,12].

Ecosystem services (ES), as a bridge between natural ecosystems and human well-being, are the various benefits that humans derive directly or indirectly from ecosystems [13,14]. Ecosystem services depend on the interactions and feedback between ecological and socio-economic factors [15,16]. Humans manage ecosystem processes by modifying ecosystem components and structures to provide ES that better meet their needs [17,18]. A common way of doing this is improving human well-being by changing land use/cover, e.g., converting other lands to cropland can improve food production service. The conversion of arable land and grassland into forest land can improve water yield services, soil conservation services, and carbon sequestration services, etc. [19]. The gradual deepening and formation of the concept of ES provides a vehicle for interlinking the elements of human-land system coupling [20,21]. As a result, the concept of ES is now becoming increasingly important at the land management level [22,23].

With the deepening of ES research, a large number of researchers have begun to focus on both the ES supply (i.e., the capacity of ecosystems to provide ecosystem goods and services to humans) and the ES demand (i.e., the sum of ecosystem goods and services used or consumed by humans) [24,25]. The gradual intensification of global climate change, environmental pollution, and human-land conflicts have led to changes in ecosystem structure and function, affecting the supply capacity of ES [26,27]. Meanwhile, the increasing level of urbanization and industrialization has led to the emergence of a large number of ES demand aggregation centers [28,29], further exacerbating the mismatch between ES supply and demand. Incorporating ES supply and demand into ecosystem assessments can improve the policy relevance and practical application of the ES concept in land management. It is also conducive to achieving ecological security and safeguarding human well-being [30,31].

There is often a desire to maximize the ES supply through land management to reduce mismatches and shortages, but a major challenge is to integrate analysis to avoid unnecessary trade-offs in ES [32,33]. In this context, exploring spatial mismatches between ES supply and demand associated with urbanization-related land use is crucial for the proper integration of ES into land management strategies [34]. Many studies have considered both ES supply and demand and have identified potential mismatches between ES supply and demand at multiple scales [35]. The challenge is that most ES assessments have not yet been effective in influencing land management decisions and, in particular, lack holistic considerations [36,37]. The PLES covers the spatial range of activities of human social life and is the basic vehicle for human economic and social development [38]. The three are both independent and interrelated, with symbiotic integration and constraining effects, and the collaboration of PLES functions can produce a synergistic effect in which the overall function is greater than the sum of the partial functions [39]. The PLES optimization belongs to the problem of optimizing the allocation of national land resources. Based on land characteristics and land-use system principles, the structure and direction of land resource use are arranged, designed, combined, and laid out at a hierarchical level on a spatial and temporal scale to improve the efficiency and effectiveness of land use, maintain the relative balance of land ecosystems, and realize the sustainable use of land resources [40]. The main theoretical support for current PLES optimization comes from the theory of regional resource and environmental carrying capacity and the theory of coupling urbanization and ecological environment [41,42]. This study focuses on the consideration from the perspective of ecosystem services, and it is a new attempt to apply the assessment of ecosystem service supply and demand to the optimization of PLES.

The Yellow River Basin, an important ecological barrier, straddles three regions in the east, central, and west of China and is an ecological corridor connecting the Qinghai-Tibet Plateau, the Loess Plateau, and the North China Plain. Although breakthroughs in ecological construction and environmental management have been made in the Yellow River Basin in recent years, the fragile ecological environment, water scarcity, and water environment problems are outstanding. especially in the middle and lower reaches of the Yellow River, which have undergone rapid urbanization over the past decades, leading to huge changes in the spatial pattern of land use, accompanied by huge landscape changes and related degradation of ES. Therefore, this study takes the Yellow River basin as an example to explore the spatial patterns of ES supply and demand and the response to PLES changes and to identify optimization areas through response thresholds to provide optimization strategies for land use at multiple scales.

Land use optimization is a complex concept [43]. This study has envisaged an ideal area where optimal PLES management reduces ES deficits and mismatches, to which the land use pattern of the remaining areas should be as close as possible. The basic optimization four steps included: (1) classifying production-living-ecological spaces based on land use types; (2) choosing key ES, quantifying ES supply and demand, and identifying spatial mismatches; (3) identifying the impact of PLES on the spatial mismatch of ES and thresholds; (4) determining the direction of optimization and proposing optimization solutions for different spatial scales.

The selection of key ES was based on the following principles: (1) spatially quantifiable mapping; (2) consistent with the focus of regional governments and residents; (3) better representation of the coupling mechanisms between different ES; (4) availability of measurement data. In this study, the carbon sequestration service, water yield service, soil conservation service, and grain production service were selected as indicators for measuring the ES supply and demand in the Yellow River Basin to minimize the deficit and mismatch of these four ES and carry out corresponding PLES optimization.

2. Materials and Methods

2.1. Study Area

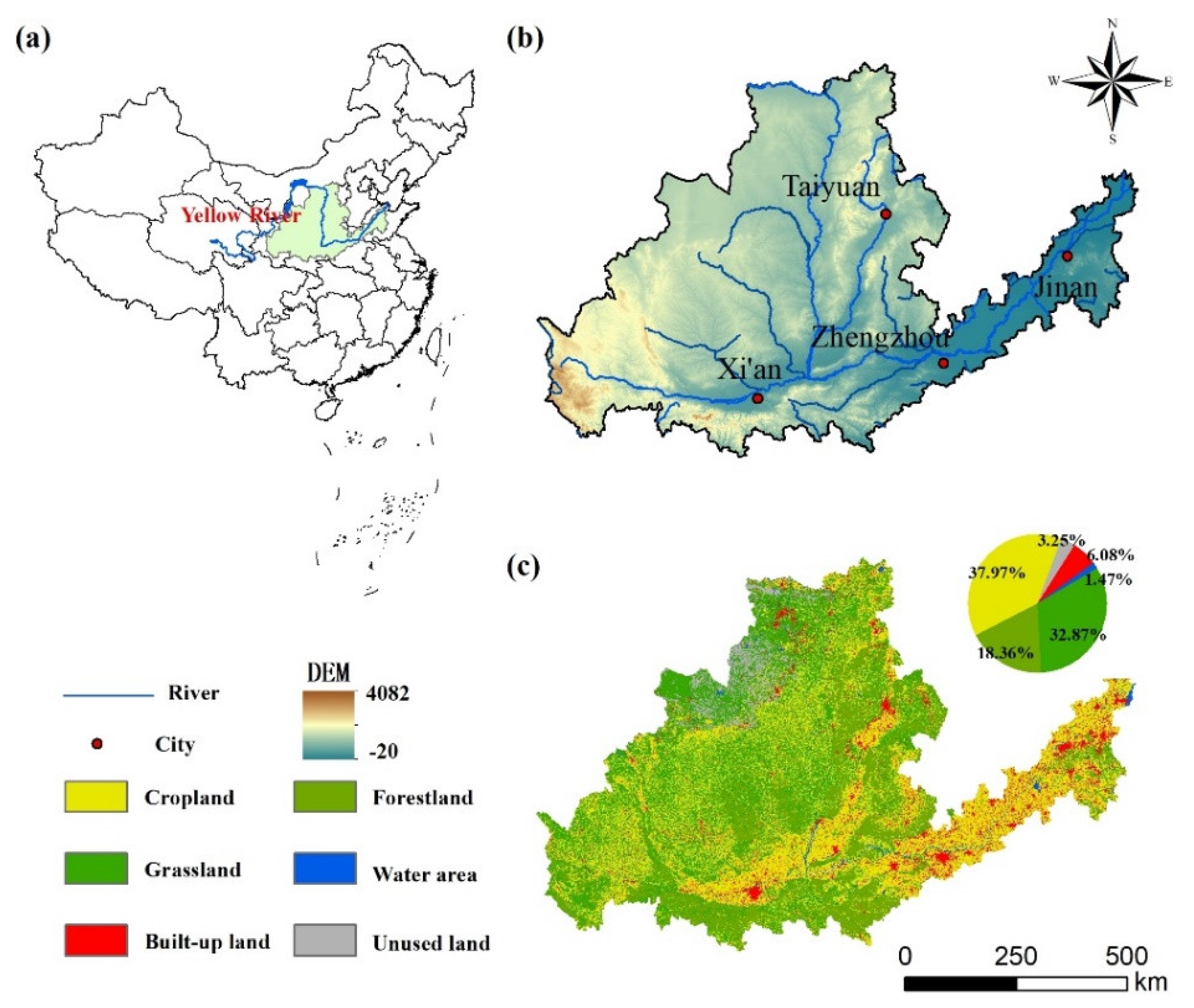

The study area was in the middle and lower reaches of the Yellow River basin (103°36′–119°55′ E, 41°03′–32°46′ N), at an altitude of about 0–4082 m. The area was located in the central-eastern part of China (Figure 1). The main provinces involved included Inner Mongolia Autonomous Region, Henan Province, Shaanxi Province, Shanxi Province, Qinghai Province, and Gansu Province. The middle and lower reaches of the Yellow River Basin are dominated by plains and hills. The region has a temperate continental climate and a temperate monsoon climate. The middle and lower reaches of the Yellow River Basin have abundant light, high temperature, abundant precipitation, are suitable for crop growth, and are the main production areas for agricultural products. The Yellow River Basin is an important economic zone and an important base for energy, chemicals, raw materials, and basic industries in China.

2.2. Data Sources

In this study, we used data from five different sources. (1) Meteorological elements and daily precipitation for 2000, 2010, and 2018, supplied by the China Meteorological Data Sharing Network (http://data.cma.cn/ (accessed on 1 July 2021)), were batch interpolated using the professional meteorological interpolation software ANUSPLIN. (2) Monthly NDVI data for 2000, 2010, and 2018 at a spatial resolution of 1 km × 1 km, supplied by the Geospatial Data Cloud (http://www.gscloud.cn/ (accessed on 1 July 2021)), and annual NDVI data were obtained using the maximum synthesis method. (3) Population data for 2000, 2010, and 2018 at a spatial resolution of 1 km × 1 km was supplied by WorldPop (https://www.worldpop.org/ (accessed on 1 July 2021)). (4) Land use data for 2000, 2010, and 2018 at a spatial resolution of 1 km × 1 km was supplied by the Resource and Environmental Science and Data Centre (http://www.resdc.cn/ (accessed on 1 July 2021)). (5) Grain production, energy consumption, and water consumption by the municipality for 2000, 2010, and 2018 was obtained from the statistical yearbooks and water resources bulletins of each province.

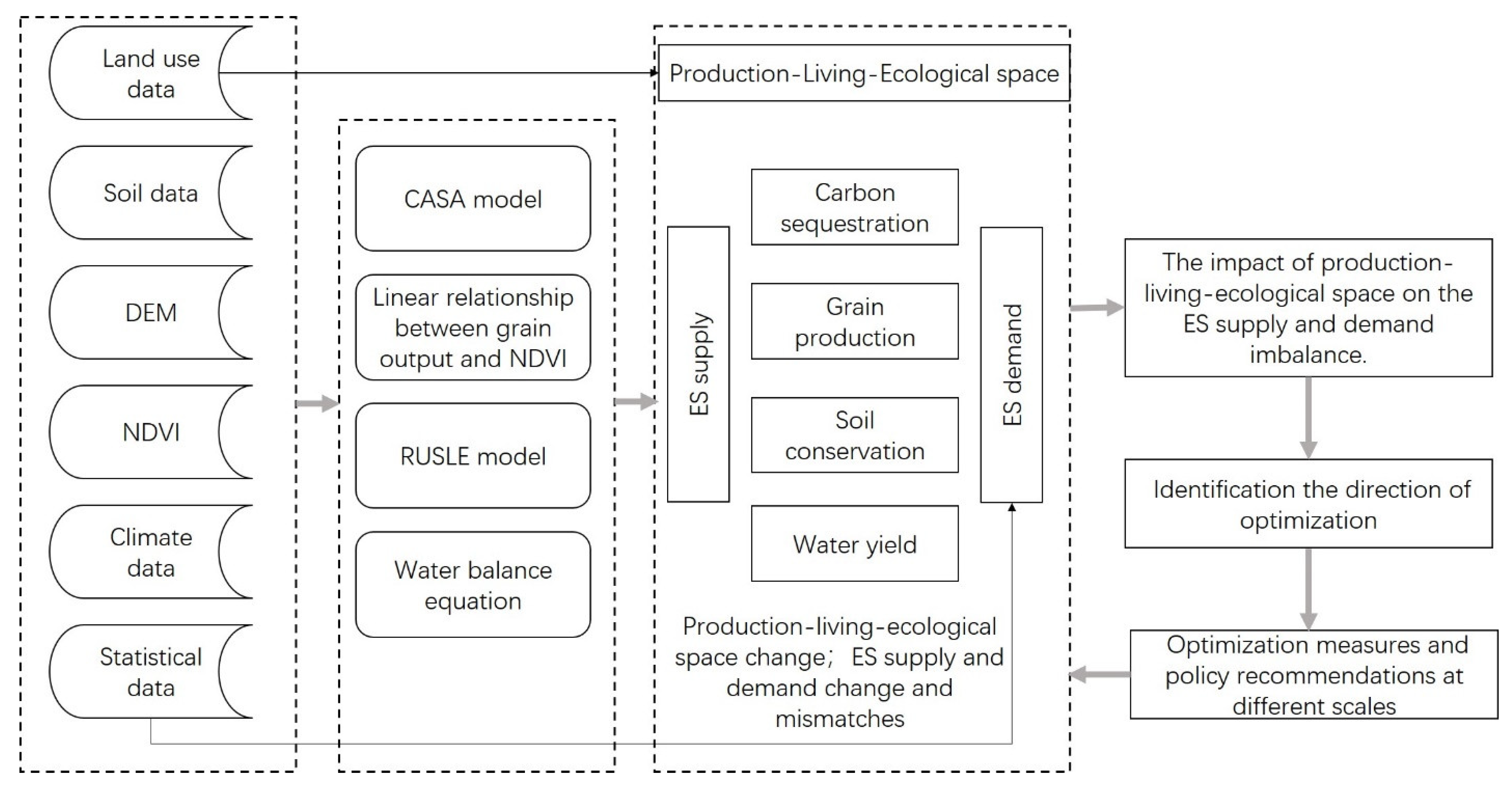

2.3. Framework for Optimizing Production-Living-Ecological Space

Based on previous approaches and frameworks for land use optimization [23,44], this study identified ideal land-use patterns and optimized PLES at different scales by quantifying the mismatch between the supply and demand of ES associated with PLES. This was achieved through the following four core steps (Figure 2): In the first step, the composition, configuration, and spatial transition of PLES were analyzed based on land use data in the Yellow River Basin during 2000, 2010, and 2018. This step aims to examine the spatial changes in PLES in the Yellow River Basin during 2000, 2010, and 2018, and establish a basis for subsequent research. In the second step, those ES suitable for the Yellow River Basin were selected based on the basic principles for the selection of ES proposed above to assess the ES supply and demand. Mismatches and shortages between ES supply and demand were also identified. In the third step, based on the correlation between the ratio of production/living/ecological space and the supply and demand of ES, the thresholds were identified when ES supply and demand were imbalanced. This step aims to analyze the links that exist between the two, the most central part of which is the identification of thresholds. In the fourth step, the thresholds identified in the previous step were used to identify optimization areas using ternary phase diagrams, which were then optimized for PLES at different scales.

Step 1: The classification of production-living-ecological space based on land use types.

Production space is mainly the area that provides various products or services for people. Living space refers to the area that provides the function of carrying and guaranteeing human habitation and provides the function of residence, consumption, leisure, and recreation in the country. Ecological space refers to the area that can provide an ecological barrier and has the function of regulating the atmosphere, concealing water, and maintaining soil and water [11,12]. In this study, a classification system for PLES in the Yellow River Basin was constructed based on geographical features and previous research results [45] (

Table 1. Production-living-ecological space classification in the Yellow River Basin.

	LUCC Classification System
Production space	Paddy land (11), dry land (12), transport, industrial, and mining construction land (53)
Living space	Urban sites (51), rural settlements (52)
Ecological space	Wooded land (21), shrubland (22), high cover grassland (31), medium cover grassland (32), rivers and canals (41), lakes (42), reservoir ponds (43), open woodland (23), other woodlands (24), permanent glacial snow (44), mudflats (46) cover grassland (33), sandy land (61), gobi 62), saline land (63), marshland (64), bare land (65), bare rocky ground (66)

).

Step 2: Quantify ES supply and demand and identify spatial mismatches.

(1) Quantifying ES supply and demand

Water yield service are the ability of an ecosystem to intercept or store water resources from rainfall while mitigating ground runoff [46]. The Yellow River Basin is an important water source in northwest China and assessing the water yield service is of great practical importance for the rational use and conservation of water resources. The water balance model was used to calculate the supply of water yield service [47]. The amount of water consumed per capita in each city in the Yellow River Basin was obtained from data on industrial, agricultural, and domestic water consumption and the resident population of each city and combined with data on population density to obtain the demand for water yield services. The formulas are as follows.

$$W{Y}_{\left(x\right)}=P_{\left(x\right)}-E{T}_{\left(x\right)}$$

(1)

$$E{T}_{\left(x\right)}=\frac{P_{\left(x\right)}\left(1+PE{T}_{\left(x\right)}/P_{\left(x\right)}\right)}{1+{\omega }_{\left(x\right)}(PE{T}_{\left(x\right)}/P_{\left(x\right)})+{\left(PE{T}_{\left(x\right)}/P_{\left(x\right)}\right)}^{-1}}$$

(2)

$$D_w=D_{pw}\times {\rho }_{pop}$$

(3)

where $W{Y}_{\left(x\right)}$ represents the annual average yield at pixel x (m³); $P_{\left(x\right)}$ is the average annual precipitation on pixel x (mm); $E{T}_{\left(x\right)}$ is the actual annual evapotranspiration at pixel x (mm); $PE{T}_{\left(x\right)}$ is based on the Penman-Monteith formula [48]. $D_{wy}$ is water demand, which in this case equates to water consumption (m³); $D_{pw}$ is water consumption per capita (m³/ person), which includes water consumption for agricultural, industrial, domestic, and ecological purposes; ${\rho }_{pop}$ is the local resident population density (person/km²).

Grain production service, as one of the basic ecological services, plays a vital role in human survival and development [49]. There is a significant linear relationship between crop and livestock production based on the NDVI. The total production of grain was allocated according to the ratio of raster NDVI values to total arable land NDVI values, which in turn characterized the grain production capacity of each raster. Grain demand was estimated by multiplying the per capita grain demand by the population density [17]. The formulas are as follows:

$$G{P}_{\left(x\right)}=G{P}_{sum}\times \frac{NDV{I}_x}{NDV{I}_{sum}}$$

(4)

$$D_g=D_{pg}\times {\rho }_{pop}$$

(5)

where $G{P}_{\left(x\right)}$ is the total production of grain for grid x (t/km²); $G{P}_{sum}$ is the production of grain products for each province (t); $NDV{I}_x$ is the normalized difference vegetation index for grid x; $NDV{I}_{sum}$ is the sum of NDVI of cropland for each province; $D_g$ is the grain demand (t/km²); $D_{pg}$ is the annual per capita grain consumption (t/person); ${\rho }_{pop}$ is the resident population density (person/km²).

Carbon sequestration services are important regulatory services in ecosystems. The CASA model is a common model for calculating NPP due to its high calculation accuracy and easy-to-access data and parameters [50]. The carbon sequestration demand was calculated from the product of population density, per capita energy consumption, and energy carbon conversion rate, where energy consumption was obtained from the statistical yearbooks of the Yellow River Basin provinces. The formulas are as follows:

$$NPP\left(x,t\right)=APAR\left(x,t\right)\times \epsilon \left(x,t\right)$$

(6)

$$D_c=D_{pc}\times {\rho }_{pop}$$

(7)

where NPP is the net primary productivity of the pixel x at time t (gC/m²·a); APAR is the Absorbed Photosynthetic Active Radiation (MJ/m²·a), which is estimated from the ratio of total solar radiation (SOL) to absorbed photosynthetically active radiation (FPAR); $\epsilon$ is the efficiency of conversion of photosynthetically active radiation to organic carbon (gC/MJ²), which is estimated by maximum light energy utilization (0.389 gC/MJ²), temperature stress (Tε), and water stress (Wε). $D_c$ represents carbon sequestration demand (t/km²); $D_{pc}$ is the annual per capita carbon consumption (t/person); ${\rho }_{pop}$ is the resident population density (person/km²).

Soil conservation service reduces soil erosion and restores soil fertility, which is critical to agricultural production [51]. This study quantified the soil conservation service supply based on the classical revised universal soil loss equation (RUSLE). The ecosystem service demand is the number of ecological goods that humans expect to be able to obtain from an ecosystem. Since actual soil erosion causes unwanted human losses and humans expect to manage these actual amounts of soil erosion, the actual amount of soil erosion is defined as the soil conservation service demand. The formulas are as follows:

$$SC=R\times K\times LS\times \left(1-C\times P\right)$$

(8)

$$D_s=R\times K\times LS\times C\times P$$

(9)

where $SC$ is soil conservation; $D_s$ is actual soil erosion; $R$ is the precipitation erosion factor; $K$ is the soil erosion factor; $LS$ is slope length factor; $P$ is soil conservation factor; $C$ is vegetation cover factor [52].

(2) ES supply and demand mismatches and shortfalls

The supply and demand of ES are significantly spatially heterogeneous and are reflected in spatial mismatches. The state of ES supply and demand can be characterized by the ecological supply-demand ratio (ESDR), which can be used to reveal the nature of surpluses or deficits [35,53].

$$ESDR=\frac{ESS-ESD}{\left(ES{S}_{max}+ES{D}_{max}\right)/2}$$

(10)

where $ESS$ and $ESD$ refer to the ES supply and demand, respectively; $ES{S}_{max}$ is the maximum value of the ES supply; $ES{D}_{max}$ is the maximum value of the ES demand. $ESDR$ > 0 indicates a surplus, $ESDR$ = 0 indicates a balanced ES supply and demand, and $ESDR$ < 0 indicates a deficit.

Step 3: The impact of production-life-ecological space on the ES supply and demand imbalance.

The ESDRs for the four major ES in 2000, 2008, and 2018 were calculated by the above method, while the production space ratio/living space ratio/ecological space ratio at the 1 km grid scale was calculated based on 30 m land use data. The data were statistically graded for the years 2000, 2010, and 2018, and then least squares regression analysis was conducted via SPSS to plot the trend line between ESDR and production space ratio/living space ratio/ecological space ratio to indicate negative or positive effects and significance levels. Spatial land management thresholds (i.e., the ratio of production-living-ecological land when there is a deficit in the ES) were then calculated based on the results of the regression analysis.

Step 4: Identification of the direction of optimization and policy recommendations.

A ternary diagram is a type of center of gravity diagram that has three variables but requires the sum of the three to be constant. In an equilateral triangular coordinate system, the position of a point in the diagram represents the proportional relationship between the three variables. In this study, the same ternary was used to visually express the ratio of production-living-ecological space, which was used to identify the optimization area with the main optimization direction, where the ratio occupied by this type of land at the endpoint is 100%. The regions are divided according to the thresholds determined above. The projection of units of different scales is performed, and when the projection falls in the ideal region, it means that the unit does not need to be optimized, and when it falls in other regions, the direction and quantity relationship of optimization can be determined based on the direction and distance from the ideal region.

3. Results

3.1. Structure and Transition of PLE Land Use

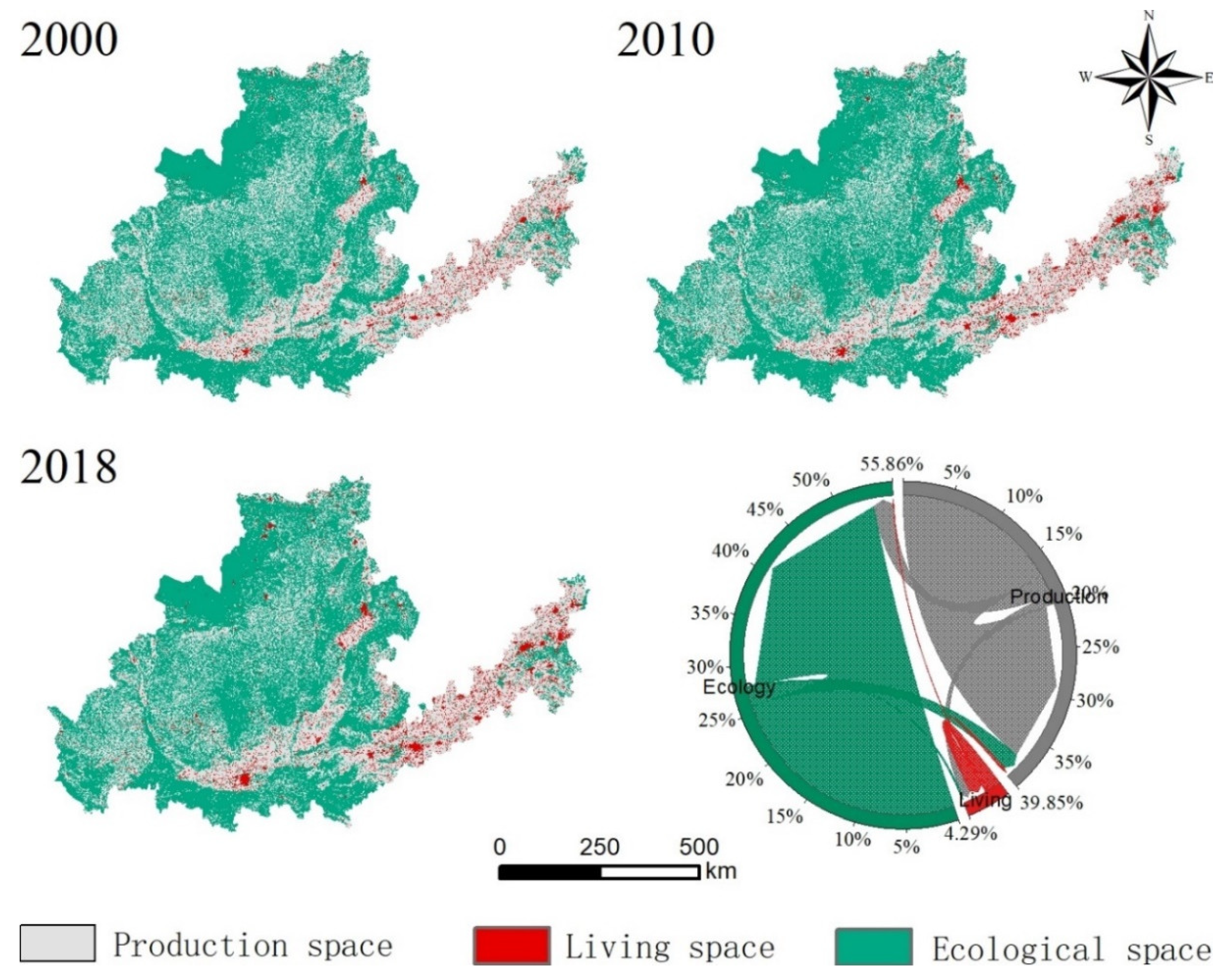

The Yellow River basin was mainly dominated by ecological space, with the percentage of ecological space being 55.73%, 55.97%, and 55.99% in 2000, 2010, and 2018, respectively, showing an increasing trend (Figure 3). The northwestern and southern parts of the study area were relatively less densely populated and had a lower level of urbanization and were therefore dominated by ecological space. The percentage of production space was 40.79%, 39.38%, and 38.91% in 2000, 2010, and 2018, respectively, showing a decreasing trend. Production space was mainly located in the eastern coastal areas of the study area, which have better water and heat conditions and are also conducive to crop growth. The region is economically developed, highly urbanized, with a high level of human activity and is a major industrial center and food producer.. The percentage of living space increased from 3.48% in 2000 to 5.10% in 2018. Spatially, living space was mainly distributed around the main cities in the study area, showing a tendency to spread outwards. The chord diagram suggests the scale of transfer of different land uses. The direction shown by the arrow represents the direction of transfer of the land, and the width of the arrow represents the proportion of the area transferred (Figure 3). According to the area conversion of PLES from 2000 to 2018, the largest area of production land was converted outwards, with a total of 35,300 km², of which 10,800 km² was converted to living land and 24,500 km² was converted to ecological land. The smallest area of living land was converted outwards, with a total of 3720 km², of which 3280 km² was converted to production land and 433 km² to ecological land. Ecological land converted mainly into productive land was 21,500 km², while converted into living land was 1940 km².

3.2. ES Supply and Demand Change and Mismatches

3.2.1. Water Yield Service

Over the entire period, the total water yield service supply exceeded demand, with surpluses of 47.72 billion m³, 60.31 billion m³, and 41.88 billion m³ in 2000, 2010, and 2018, respectively (

Table 2. Ecosystem services supply and demand in the Yellow River Basin in 2000, 2010, and 2018.

Year	Water Yield (m3/km2/a)		Carbon Sequestration (tc/km2/a)		Soil Conservation (t/ha/a)		Grain Production (t/km2/a)
	Supply	Demand	Supply	Demand	Supply	Demand	Supply	Demand
2000	128,995.41	43,882.20	239.82	134.75	71.80	8.96	223.92	91.52
2010	150,950.80	43,368.23	375.92	428.83	110.53	10.58	326.43	98.28
2018	119,332.21	44,622.76	420.52	508.78	90.39	6.92	382.62	104.55

). Water yield service supply in 2000, 2010, and 2018 was 72.32 billion m³, 84.63 billion m³, and 66.90 billion m³, respectively, showing a trend of increase followed by a decrease. The water demand increased significantly from 24.60 billion m³ in 2000 to 25.02 billion m³ in 2018, an increase of 1.69%.

Water yield service supply was strongly influenced by precipitation and evapotranspiration, while water demand was influenced by population density and industrial structure. Precipitation anomalies can increase the uncertainty of the spatial match of water yield service. Although there was an overall surplus of water service, the spatial distribution of water yield service supply and demand also showed a mismatch (Figure 4). The southern and eastern parts of the study area were the main areas of water yield service supply (Figure 5), but the deficit situation of the water yield service was still significant due to the dense population and agricultural development of the area, which means that there is a huge demand for water resources. Due to the lower water yield service supply in 2018, this has resulted in a significant deficit in water yield service in the South East, with the shortfall areas mainly in the city center.

3.2.2. Carbon Sequestration Service

Carbon sequestration service supply has shown an increasing trend, from 134.45 million tons in 2000 to 235.76 million tons in 2018, an increase of 75.35% (Table 2). However, the growth in the carbon sequestration service supply did not cause surpluses. Carbon sequestration demand in 2000, 2010, and 2018 was 134.45 million tons, 210.75 million tons, and 235.76 million tons, respectively, and the carbon sequestration demand in 2010 and 2018 exceeded the carbon sequestration supply with a deficit of 29.66 million tons and 49.48 million tons, respectively, with an upward trend.

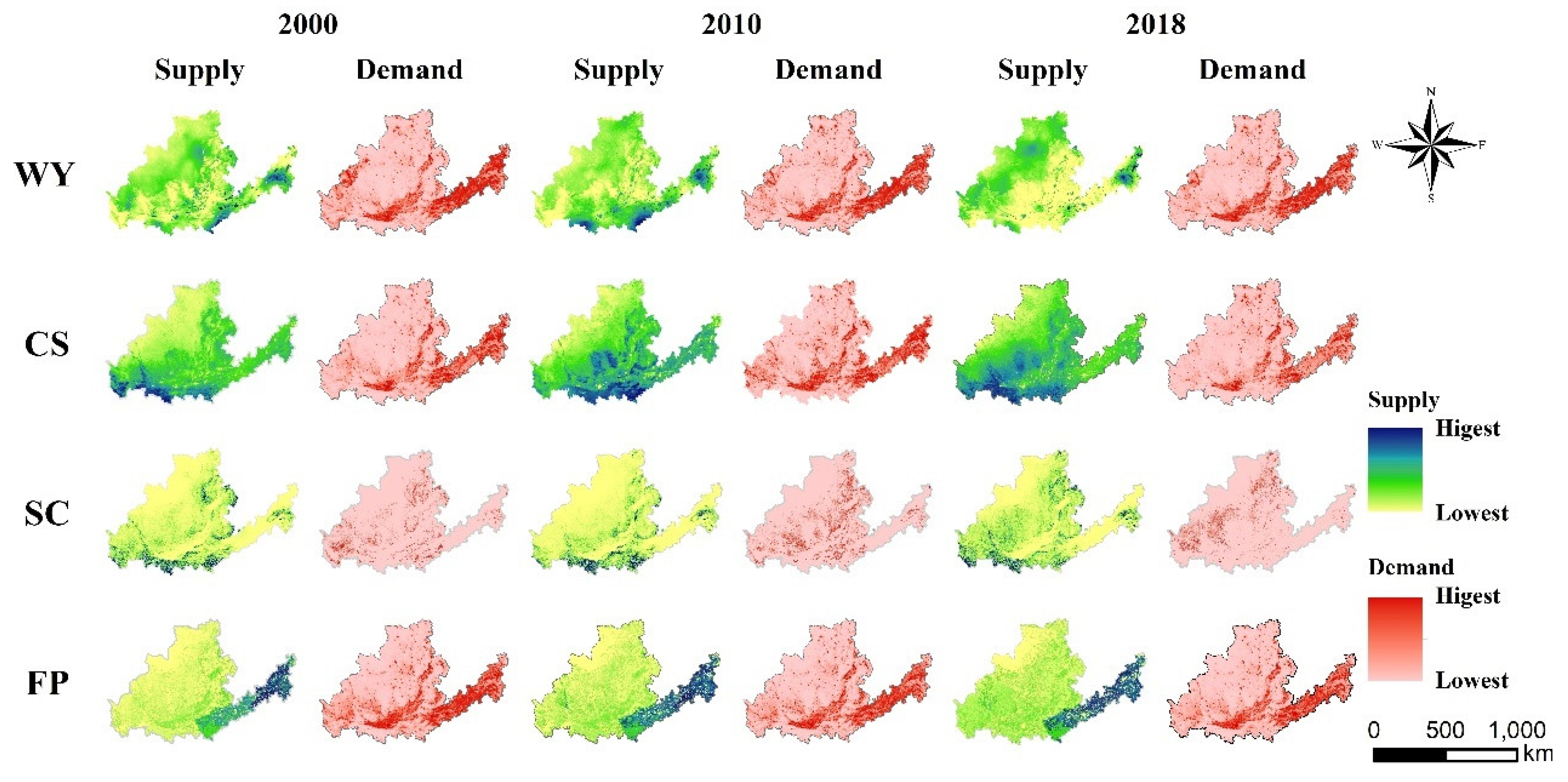

According to the spatial distribution of carbon sequestration service supply and demand (Figure 4), higher carbon sequestration service supply was mainly concentrated in the south, showing an increasing trend, followed by a decreasing trend. Carbon sequestration supply in the north-western region was relatively low and shows an increasing trend. Higher carbon sequestration service demand was mainly in the main urban area downstream of the study but showed a decreasing trend from 2000 to 2018. There was a clear spatial mismatch in sequestration service (Figure 5), with increased surpluses in the central and western regions of the study area and relatively significant deficits in the eastern regions. The main urban areas around the study area showed a significant deficit in carbon sequestration service, with Zhengzhou showing an increase in the deficit position in 2018.

3.2.3. Soil Conservation Service

From 2000 to 2018, soil conservation service supply exceeded the demand, and both showed an increasing trend (Table 2). The surplus of soil conservation services increased significantly from 3.52 billion tons in 2000 to 5.6 billion tons in 2010 and 4.67 billion tons in 2018. Soil conservation services, as an in-situ service, i.e., one that is generated in situ and benefits in situ, have an aggregate surplus that hardly offsets their spatial mismatch.

In terms of the spatial distribution of the soil conservation services ESDR, the deficit areas were concentrated in the north-central region of the study area and the downtown area in the east (Figure 4). The spatial mismatch in soil conservation services was mainly due to: (1) the north-central region being a loess plateau area, which is very weak for soil and water conservation due to the undulating terrain, loose soil, and poor vegetation cover; (2) the eastern city center area, with strong human activity and high population density in the area, which has led to a reduction in vegetation area. The land-use types are mainly urban land, rural settlements, and other construction lands, which have a poor soil conservation capacity, thus leading to a deficit in soil conservation services.

3.2.4. Grain Production Service

Grain production service increased from 125.54 million tons in 2000 to 214.51 million tons in 2018, an increase of 70.87%. During the same period, grain production demand exhibited an increase of 14.24% from 51.30 million tons in 2000 to 58.62 million tons in 2018 (Table 2). Thus, there was a clear surplus for grain production service, and this surplus showed an increasing trend, from 74.23 million tons in 2000 to 155.90 million tons in 2018.

Despite the overall surplus in grain production service, there were still some spatially mismatched centers (Figure 5). The southeastern part of the study area has relatively good hydrothermal conditions and is a major grain producer, hence the high grain supply. At the same time, the grain demand was relatively high due to the high level of human activity and the relatively high population density in the area. The region’s grain production service showed a surplus, indicating that its production capacity was greater than its consumption capacity.

3.3. Influence of PLES Changing on ESDR

3.3.1. Influence of Production Space Changing on ESDR

There was a significant negative impact of production space on the ESDR for carbon sequestration service, soil conservation service, and water yield service during 2000–2018 (p < 0.01). The production space explained most of the variance in ESDR for carbon sequestration services, soil conservation services, and water production services, at 87%, 84%, and 48%, respectively (Figure 6a). For the carbon sequestration service, when the production space ratio exceeded 62.83%, the carbon sequestration service swas in deficit. Therefore, to ensure that the carbon sequestration service supply is greater than the demand, it is necessary to ensure that the ratio of production space is less than 62.83%. For the soil conservation service, the range was 0–98.73%. For the water yield service, there was no significant threshold effect due to the limited influence of production space (k = −0.02). Production space had a significant positive effect on the ESDR of grain production service and explained most of the variation in the ESDR for the grain supply service, at 89%. When the production space ratio exceeded 18.2%, grain production services supply exceeded the demand. In summary, it is necessary to ensure that the production space ratio in the study area is between 18.2% and 62.83% to ensure that all ecosystem services are in surplus.

3.3.2. Influence of Living Space Changing on ESDR

Living space had a significant negative influence (p < 0.01) on water yield service, grain production service, and carbon sequestration service (Figure 6c). For water production services, when the ratio of living space was greater than 31.35%, there was a deficit. This means that the water yield service supply was greater than the demand if the ratio of living space was less than 31.35%. For the carbon sequestration service and grain production service, this threshold was 15.68% and 44.39%, respectively.

Although the ESDR of living space on soil conservation services was negative, the trend was not strong (k = −0.01) and explained only part of the variation in soil conservation services (R² = 0.45). The influence of the living space ratio was not significant, i.e., the soil conservation service was in surplus for any value of the living space ratio between 0–100%. In summary, the living space ratio between 0–15.68% is needed to ensure that all ecosystem services are in surplus in the study area. Due to the limited number of ES selected in this study, this resulted in a significant negative effect of living space on all ES. For some ES, such as landscape aesthetics, there is a dependence on living space, and too little living space will inevitably affect the supply of these ES.

3.3.3. Influence of Ecological Space Changing on ESDR

Ecological space had a significant positive influence on water yield service, soil conservation service, and carbon sequestration service during the period 2000–2018 (Figure 6b). Ecological space explained most of the variation in the ESDR for the soil conservation service and carbon sequestration service, at 78% and 86%, respectively. When the ecological space ratio was less than 29.79%, the carbon sequestration service was a deficit. This threshold did not exist for water yield service or soil conservation service. The ESDR of ecological space on grain production service was negative (p < 0.01). When the ecological space ratio was greater than 88.61%, there was a deficit in the grain production service. In summary, an ecological space ratio of 29.79% to 88.61% is needed to ensure that all ecosystem services are in surplus. However, this does not mean that ecological space can be expanded indefinitely, as too much ecological space can squeeze the original production space and lead to a deficit in grain production service.

4. Discussion

4.1. Identification of Optimization Directions in PLES

The ternary phase diagram can visually represent the ratio of PLES in any region, where the endpoints of the triangle indicate a production/living/ecological space ratio of 100% (Figure 7). According to the threshold value of the impact of PLES on the ES supply and demand imbalance, when the ratio of living space is less than 15.68%, the ratio of production space is between 18.2 and 62.83%, and the ratio of ecological space is between 29.79% and 88.61%, while the ES involved in this study are all in surplus. Accordingly, an ideal area, i.e., an area that does not need to be optimized, can be obtained. When the projection of an area falls within the ideal area, it means that this type of area does not need to be optimized, while the rest of the area needs to be optimized to varying degrees, depending on its location. The PLES of a region can be adjusted according to the range in the diagram where the ratio of PLES of any region falls. The greater the distance from the ideal area, the greater the area of change required in the land use pattern of the region.

The size of the ideal area is usually related to the ES selected. The more ES selected, the smaller the ideal area will be in response, meaning that more area will need to be adjusted. The ES can therefore be adjusted in the actual management process to suit the needs of the policymaker accordingly.

4.2. Optimization Measures and Policy Recommendations at Different Scales

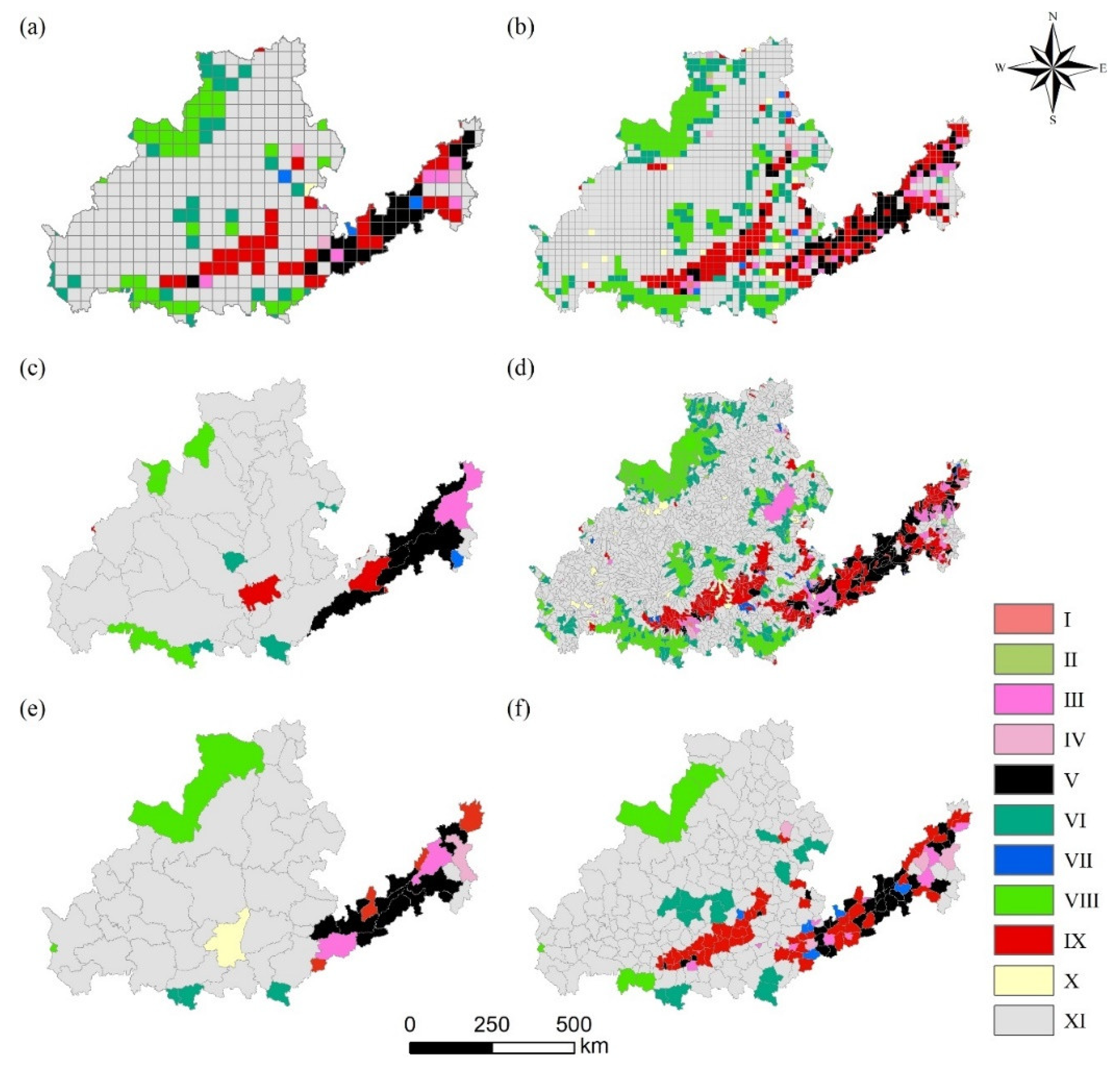

The distribution of PLES was highly spatially heterogeneous, which led to a spatial mismatch in ES. Therefore, the PLES optimization should be coupled with optimization measures at different scales to determine the best measures for ecosystem service management. In this study, the ratios of PLES at different scales were counted, and this was used to obtain optimization measures at multiple scales (Figure 8).

At the grid-scale, there was too much ecological space and not enough production space in the north-western part of the study area, and there is a need for conversion of ecological to production space, such as converting unused land in the area to industrial land. The central part of the study area had too much production space and not enough ecological space, so there is a need to convert the production land in the area to ecological land, such as implementing a system of returning farmland to forest or converting farmland unsuitable for cultivation to forest land. The eastern part of the study area, i.e., the lower reaches of the Yellow River Basin, was mainly characterized by an excess of living space and production space and a shortage of ecological space, so it is necessary to shift the production/living space towards ecological space, increasing the ratio of ecological space and reducing living space. For example, increase the woodland and grassland and reduce the rate of urbanization development. At the primary watershed scale, most of the Midwest was in the ideal mode of PLES, i.e., it did not need to be optimized. There was an excess of productive space in the eastern region and an excess of living space in the coastal region. At the secondary watershed scale, the central and western regions of the study area had more watersheds that need to be optimized, and they behaved in much the same way spatially as at the grid-scale. At the city scale, Erdos had too much ecological space and not enough production space, while Weinan had too much production space. At the county scale, some counties in the central region showed a shortage of production space, while others showed an excess of production space and a shortage of ecological space, implying that production space was not evenly distributed at the county scale in the region.

In conclusion, as the statistical scale increases, there is a general trend towards fewer areas in need of spatial optimization. The main problem in the north-western part of the study area was that there was too much ecological space and not enough production space. Therefore, it is necessary to increase the area of production land in the region, and as the region is also the main area of the Loess Plateau and undertakes important functions of soil and water conservation, the area of regional terraces and industrial land can be increased appropriately. The central part of the study area showed an uneven distribution of production space and a lack of ecological space, so it is necessary to adjust the distribution of production space at several scales to ensure that it is in a reasonable range, while the ratio of ecological land, such as woodland and grassland, can be increased appropriately. The eastern part of the study area had a large ratio of production space and living space area and too little ecological space. Therefore, it is necessary to reduce and harmonize production and living space, while increasing the right amount of ecological space, such as green space and woodland. Here, the direction of the PLES adjustment is mainly explained, which in practice it can be quantified according to the difference between the PLES ratio of a region and the ideal region.

4.3. Limitations and Future Research Directions

This study aims to optimize the PLES with the objective that all ecosystem services can be in surplus as far as possible and proposes corresponding optimizations at multiple scales. This study can provide a basis for decision-making on regional land use management and rational allocation of resources. However, there are some problems with this study. Firstly, in assessing ES, this study used several models, such as the RUSLE model, water balance equation, and CASA model, where differences in data sources and calculation methods can lead to differences in results. Although there are still no effective solutions to these problems, these methods are still widely used [54,55]. Additionally, due to the lack of data and the limitations of ecosystem service models, only the supply and demand of four ES were assessed, which is not comprehensive for the complete management of ES. More ES assessments should be added in future studies. In addition, the use of land-use types for the classification of PLES is a more straightforward method [56]. However, this approach ignores the complex multifunctionality of land. For example, arable land (paddy and dryland) is uniformly classified as production space without taking into account its ecological characteristics. Finally, the issue of scale is also one of the problems studied in this study, with spatial correlation results varying with unit size (grid cell or grain size) [26,57]. In this study, the identification of thresholds was based on the grid-scale using a hierarchical statistical approach. Random points, various grid cell sizes, and basin units should be selected in subsequent studies to explore the differences in the impact of PLES on the ES supply and demand imbalance.

5. Conclusions

Based on various models and methods, this study quantified the mismatch of supply and demand for the four ES in the Yellow River Basin and explores how the spatial pattern of PLES can be adjusted to keep the ES in supply and demand balance. The results show that in 2000, 2010, and 2018, the total supply of the three ecosystem services in the Yellow River Basin was greater than the total demand, except for carbon sequestration services. Along with the implementation of revegetation projects and the establishment of ecological reserves in the region, the supply of many ecosystem services was on the rise. However, increased urbanization and over-concentration of population and economy resulted in a serious spatial mismatch between supply and demand for all four ecosystem services, especially in the major urban centers. The spatial mismatch in ES can be effectively reduced by optimizing the PLES, e.g., increasing the production spatial ratio can effectively increase the supply of grain production service and alleviate the contradiction between supply and demand of grain production service in certain regions. This study provides an optimization objective for the PLES optimization of other regions by providing an ideal region in the ternary phase diagram, i.e., one that can ensure that multiple ES are in surplus at the same time. The direction of optimization of other areas is determined by their relative position to the ideal area, and the amount of adjustment of PLES can be determined by the difference from the ideal area. The PLES optimization framework proposed in this study is very flexible, as reflected in the choice of ES and multi-scale optimization proposals, which can effectively reduce the deficit problem of regional ES in the process of practical application.
