The Spatio-Temporal Analysis of Urban-Rural Coordinated Development and Its Driving Forces in Yangtze River Delta

Abstract

This paper conducts an analytical study on the urban-rural coordinated development (URCD) in the Yangtze River Delta urban agglomeration (YRDUA), and uses data from 2000–2015 of 27 central cities to study the spatial and temporal evolution patterns of URCD and to discover the influencing factors and driving forces behind it through PCA, ESDA and spatial regression models. It reveals that URCD of the YRDUA shows an obvious club convergence phenomenon during the research duration. The regions with high-level URCD gather mainly in the central part of the urban agglomeration, while the remaining regions mostly have low-level URCD, reflecting the regional aggregation phenomenon of spatial divergence. At the same time, we split URCD into efficiency and equity: urban-rural efficient development (URED) also exhibits similar spatiotemporal evolution patterns, but the patterns of urban-rural balanced development (URBD) show some variability. Finally, by analyzing the driving forces in major years during 2000–2015, it can be concluded that: (i) In recent years, influencing factors such as government financial input and consumption no longer play the main driving role. (ii) Influencing factors such as industrialization degree, fixed asset investment and foreign investment even limit URCD in some years. The above results also show that the government should redesign at the system level to give full play to the contributing factors depending on the actual state of development in different regions and promote the coordinated development of urban and rural areas. The results of this study show that the idea of measuring URCD from two dimensions of efficiency and equity is practical and feasible, and the spatial econometric model can reveal the spatial distribution heterogeneity and time evolution characteristics of regional development, which can provide useful insights for urban-rural integration development of other countries and regions.

1. Introduction

By referring to and summarizing the existing development experiences, we can find that the evolution of urban-rural relations has certain commonalities, and specific stage characteristics will be formed over time. The advancement of industrialization has led to the massive absorption of rural labor by cities, and the gap between town and country has gradually come to the fore, and a dichotomy has gradually emerged. [1,2]. Subsequently, the rise in productivity levels allowed cities to spread the effects of industrialization further into the countryside and drive rural development, gradually forming various development models such as “core-edge” [3] and “growth pole” [4]. With the further increase of urbanization, the linkage between cities and rural areas has become stronger, and the concept of urban agglomeration has been gradually formed. Different models of urban-rural agglomeration, such as the regional network model and the Desakota model, have been developed among different countries and regions [5]. At the same time, many scholars believe that with the continuous development and evolution of urban agglomerations, a relatively healthy and balanced relationship will be formed between cities and villages [6]. Through the integrated planning within urban agglomerations, the spatial pattern of urbanization will be continuously optimized, and the flow of factors within the whole region will contribute to the steady development and play a vital role as traction and a driving force in a larger regional context [7].

China’s urban-rural development has also undergone the same phased process of moving from “confrontation” to “integration” since the founding of the country. Due to the planned economic system, the household registration system and some other control measures, the free flow of population, capital and other factors of production between town and country were not possible, and the urban-rural relationship centered on and dominated by cities made the gap expand rapidly, and the urban-rural dichotomy became an obstacle to modernization [8]. After the reform and opening up in 1978, China’s urbanization accelerated in the context of the market economy system, and the connection between city and village began to emerge and develop. As a large amount of rural laborers have entered the cities to engage in non-farm industries [9], the government has begun to focus on the development of rural areas, encouraging rural areas to set up township enterprises and develop non-farm industries [10,11]. Scholars generally agree that both urban and rural areas experience remarkable development in social, economic and environmental aspects during this period. In particular, rural areas have experienced considerable growth in their lifestyle [12], employment [13], industrial development [14], land use [15], infrastructure conditions [16] and health care services [17], and produce dramatic changes. At the same time, many scholars have suggested that there are gaps in the development process between city and countryside in terms of the provision of public goods [18], urban and rural incomes [19], infrastructure allocation [20], investment in educational resources [21], rational land resource use [22] and other aspects. In the course of urban-rural development, China has gradually formed many urban agglomerations, including the Yangtze River Delta urban agglomeration (YRDUA), Beijing-Tianjin-Hebei urban agglomeration, Guangdong-Hong Kong-Macao Greater Bay Area, etc. All these urban agglomerations have a mega-city as their core and at least three or more large cities as their constituent units, forming a basic pattern of compact spatial organization and close economic ties based on developed transportation and communication infrastructure networks.

In addition to the above commonalities, China’s development also exhibits some unique characteristics due to the existence of historical background and policies. After forty years of high-speed growth, even though the government has intentionally tilted various policies toward rural areas, the trend of the town feeding the county is still not present, and many social, economic and environmental dimensions between city and village give rise to staged development issues such as resource allocation and opportunities [23,24]. Moreover, even within the more developed urban agglomerations, the spatial pattern is also fragmented. Therefore, to promote coordinated development, China put forward the strategies of “integrated urban and rural development” and “new type of urbanization” in 2003 and 2012, respectively, and URCD has become one of the main objectives to further deepen the development after China’s economic development has entered the new normal.

At present, many types of research have been conducted on URCD, which mainly includes theoretical combing [25], promotion measures [26,27] and coordination models [28]. Meanwhile, many scholars have also studied the connotation of URCD from various perspectives. For instance, Liu et al. (2016) argue that URCD refers to a good symbiotic relationship formed by balanced spatial distribution, smooth flow of economic factors, orderly society, and ecological harmony between city and village [29]. According to He et al. (2019), URCD refers to the distribution of regional production factor sources between the city and the countryside [30]. A high level of URCD can lead to an orderly distribution of factors within the region, while on the contrary, cities will further crowd out the development opportunities of the countryside. Wang et al. (2016) argue that URCD should include three dimensions, such as social, economic, and demographic, and establishes an evaluation system containing indicators of income expenditure, industry share, science and technology education, agricultural modernization, and quality of life for coordinated development evaluation [31]. Trapa et al. (2020) argue that URCD refers that urban and rural districts are closely connected through diverse linkages, which include population movements, resource mobility, etc, and it has significant implications for regional circulation and resource flows [32]. Hu et al. (2016) argue that the level of URCD is not the same as the level of economic development, but there is also the dilemma of the “Hu Huangyong line”, and there is a risk that the gap will gradually widen [33]. With the Rio Declaration on Environment and Development issued by the United Nations Conference on Environment and Development (UNCED) in June 1992, sustainable development has gradually become the dominant development philosophy in various countries. The idea of balancing the efficiency and equity of development has been widely recognized and applied to many issues, such as labor policies [34], government compensatory payments [35] and income structure [36]. Similarly, as an important part of sustainable development, URCD possesses a similar concept and thus is applicable to be measured from both efficiency and equity dimensions. To summarize the existing studies, most scholars have used Geographic Information Systems (GIS) to study the relevant issues. Yet, due to the inherently static nature of GIS, this evaluation process only measures the spatio-temporal variation by collecting and updating periodical data [37]. However, the evolution process between efficiency and equity is dynamic and subject to a combination of multiple driving forces at different times, and thus the driving forces behind it need to be further explored from the top down based on the study of URCD.

In the process of exploring the driving forces in-depth, as an extension tool of GIS, the Cellular Automata model (CA) becomes the main method for some scholars to investigate the dynamic evolution of URCD [38]. However, CA focuses more on monitoring and simulating the spatiotemporal variation of URCD and lacks the combination and interpretation of its driving forces. On this basis, the System Dynamics model (SD) is introduced into the related field of research, which depicts the complex interactions between each component by viewing the urban-rural system as a collection of interconnected ones [39,40], but SD also suffers from the lack of incorporating spatial factors into the model. For this purpose, spatial regression models have been proposed to analyze the driving forces of objects affected by spatial effects and have been gradually applied in the fields of land pattern evolution [41], climate change [42], but have been less frequently used to study issues related to urban-rural development.

Taken together, the existing studies still have certain shortcomings. First, the indicators selected by scholars in evaluating the level of URCD have been relatively well established [43,44], but it is still possible to further classify the indicators, for example, by measuring them from the perspective of integrated evaluation of efficiency and equity. Second, in terms of the selection of research objects, some scholars choose the whole of China as the study object [45], while others choose a certain province [46] or even a certain county [47] as the research object. Relatively little attention has been paid to urban cluster regions based on economic ties, sociocultural and geographic connections. Third, few scholars have examined the inclusion of spatial effects in the study of the driving forces of URCD, leading to a certain bias in the exploration. Therefore, this paper focuses on the efficiency and equity dimensions of URCD to construct a comprehensive assessment indicator system, evaluates the individual and comprehensive indexes of URCD using statistical data of 27 central cities in YRDUA, and investigates its spatial evolution patterns. On the premise of considering spatial effects, we explore the driving forces of URCD to enhance scientific understanding of its inner mechanism and ultimately provide a foundation for policy formulation.

2. Methodology

2.1. Study Area

The Yangtze River Delta urban agglomeration (YRDUA) covers a total of 41 cities in Shanghai, Zhejiang, Jiangsu, and Anhui. Considering factors such as data coherence and availability, and referring to the research areas mainly chosen by most scholars in studying various issues of YRDUA (e.g., [48,49,50]), this paper defines 27 cities such as Shanghai, Nanjing, Wuxi, Suzhou, Hangzhou, Ningbo and Hefei as the central area of YRDUA, and as the research object of this paper (as shown in Figure 1a,b). With a resident population of about 16% of the country’s total population, a total economic volume of about 24% of the country, and an average urbanization rate of over 60%, the region occupies a crucial strategic position in the modernization process of China. Since ancient times, this region has been one of the most economically developed and populous areas and was famous as the “land of fish and rice” due to its two convenient waterways, the Yangtze River and the Beijing-Hangzhou Grand Canal, as well as its favorable climate and fertile plains. In modern times, some cities in the region, including Shanghai and Ningbo, became early ports of commerce in China, thus gradually giving rise to commercial development and further promoting the economic expansion of cities in the region. In particular, in the 1980s and 1990s, private capital in the region became active, and township-enterprise-oriented town development models such as the “Southern Jiangsu Model” gradually emerged. With the gradual emergence of Pudong New Area and Suzhou Park, the internal cooperation of the region has become closer, and the overall industrial structure is dominated by high technology, manufacturing production and service industries, and promotes the common development of each city in the region. At present, as an early and highly developed urban agglomeration in China, the study of its development has a high degree of relevance.

2.2. Indicator Assessment System of URCD

At this point, the academic circle has not yet formed a consensus on the measurement system for assessing the level of URCD, and various insights on the construction of the system and the selection of indicators have been proposed by scholars. Zhang et al. (2018) construct a sustainable URCD evaluation index system based on three dimensions: “economy, society and environment” [51]. Zhang et al. (2015) measure the role of sustainable infrastructure projects in promoting URCD with the objectives of efficiency and equity [51]. Meanwhile, scholars such as Sun & Liu (2015) [52] and Liu & Li (2017) [53] have also made certain contributions in the construction of index systems. Thus, considering the requirements of accessibility, measurability and generalizability of indicators, this paper constructs the comprehensive indicator system according to the dimensions of efficiency and equity. The GDP per capita, the number of college students per 10,000 people, the number of hospital beds per 10,000 people, disposable income per capita, consumption expenditure per capita and greening coverage rate of built-up areas are categorized as efficiency indicators of URCD, and this target layer is defined as URED; and the bias of local financial support to agriculture, urban-rural dual structure index, urban-rural per capita disposable income ratio and urban-rural Engel coefficient ratio are categorized as equity indicators of URCD and this target layer is defined as URBD. Finally, the comprehensive assessment indicator system is formed, as shown in

Table 1. The comprehensive assessment indicator system of URCD.

General Layer	Target Layer	Guide Line Layer	Indicator Layer	Indicator Description
URCD	URED	Economy	GDP per capita (+)	Total GDP (100 million yuan)/registered residence population (person)
		Education	The number of college students per 10,000 people (+)	Total number of college students (person)/number of registered population (10,000 persons)
		Medical treatment	The number of hospital beds per 10,000 people (+)	Total number of beds in medical institutions (person)/number of registered population (10,000 persons)
		Income	Disposable income per capita (+)	/
		Consumption	Consumption expenditure per capita (+)	/
		Environment	Greening coverage rate of built-up areas (+)	Greening area of built-up area (km2)/total area of built-up area (km2)
	URBD	Financial support	The bias of local financial support to agriculture (+)	The proportion of local financial expenditure on agriculture, forestry and water conservancy/the proportion of regional primary industry output value
		Industry structure	Urban-rural dual structure index (+)	(Gross output value of primary industry/the number of employees in primary industry)/(gross output value of secondary and tertiary industries/the number of employees in secondary and tertiary industries)
		Income gap	Urban-rural per capita disposable income ratio (−)	Per capita disposable income of urban residents (yuan)/per capita disposable income of rural residents (yuan)
		Consumption gap	Urban-rural Engel coefficient ratio (−)	Engel coefficient of urban residents (%)/Engel coefficient of rural residents (%)

.

2.3. Driving Force System of URCD

The driving forces behind URCD consist of both micro and macro levels together. At the micro-level, URCD refers to the process of continuous flow and reorganization between city and village, including population, land, resources, capital, information, technology and other factors. At the macro-level, it includes the role of government policies, social institutions and other systems in coordinating the city and the village in terms of functional positioning, factor allocation, labor division and collaboration, etc. The combined effect of the above two levels constitutes the driving force system of URCD, which ultimately affects the feelings of various social groups towards it.

To this extent, this paper first studies the micro-level influencing factors. Liu et al. (2013) have conducted a lot of research on this issue [54], and based on their research and combined with the previous section, this paper selects factors including (i) Population size (mainly portrays by number of the registered population). (ii) Industrialization degree (mainly portrays by gross industrial output per capita). (iii) Urbanization level (mainly portrays by urbanization rate). (iv) Fixed asset investment (mainly portrays by per capita fixed asset investment). (v) Government financial input (mainly portrays by per capita expenditure on science, education, culture, health and sports). (vi) Infrastructure construction (mainly portrays by highway density). (vii) Foreign Investment (mainly portrays by per capita actually utilized foreign investment). (viii) Consumption (mainly portrays by per capita retail sales of social consumer goods). A total of eight factors and their indicators above are studied as relevant factors influencing URCD. On this foundation, this paper then focuses on the factors at the macro-level in terms of government policies and social institutions, and finally thus finds the fundamental driving forces. The factors, indicators and descriptions of the URCD system are shown in

Table 2. The driving forces system of URCD.

Serial Number	Factors	Indicators	Indicator Description
X1	Population size	Number of registered population	/
X2	Industrialization degree	Gross industrial output per capita	Industrial added value (10,000 yuan)/number of registered population (10,000 persons)
X3	Urbanization level	Urbanization rate	Urban population (10,000 persons)/number of registered population (10,000 persons)
X4	Fixed asset investment	Per capita fixed asset investment	Total investment in fixed assets (10,000 yuan)/number of registered population (10,000 persons)
X5	Government financial input	Per capita expenditure on science, education, culture, health and sports	Expenditure on science, education, culture (10,000 yuan)/number of registered population (10,000 persons)
X6	Infrastructure construction	Highway density	Highway mileage (km)/land area (km2)
X7	Foreign investment	Per capita actually utilized foreign investment	Actually utilized foreign investment (10,000 dollars)/number of registered population (10,000 persons)
X8	Consumption	Per capita retail sales of social consumer goods	Retail sales of social consumer goods (yuan)/number of registered population (10,000 persons)

.

2.4. Data Source

The statistical data of 27 cities in the YRDUA in 2000, 2005, 2010 and 2015 are selected as the samples for this study. The reasons for choosing these four years include the following. First, the years chosen for study coincide with the end of China’s recurring five-year national development plan, which allows us to compare and test the impact of the implementation of each phase of the plan on urban and rural development. Second, the selection of equally spaced periods facilitates the subsequent objective spatiotemporal analysis modeling. Finally, the Yangtze River Delta Regional Plan (2010–2015) was promulgated by China in 2010, so this year became a key point to study the implementation of regional synergistic development in the YRDUA. Consequently, the selected years can be used as a typical object to study the URCD in YRDUA. Also, to ensure that the data are comparable with each other, the raw economic data for calculation during the study period are based on comparable prices in 2000.

All the original data used in this study are obtained from the China Statistical Yearbook, the Compilation of Statistics for 60 Years of New China, China Urban Statistical Yearbook, China Rural Statistical Yearbook and the statistical yearbooks of 27 cities in the YRDUA from 2000 to 2016, the statistical reports published by the National Bureau of Statistics of China for all years, and the Chinese economic and social statistical database. Some of the missing values are filled in using linear interpolation.. In general, this part of missing data has little impact on the final evaluation index values and the determination of subsequent influencing factors.

2.5. Evaluation Method

2.5.1. Principal Component Analysis (PCA)

Principal component analysis (PCA) is an analytical and statistical method that converts multiple elements with correlation into several unrelated composite indicators. Under the principle of ensuring the least loss of information, PCA reduces the dimensionality of the original indicators, omits some irrelevant indicators, and converts the original indicators into less comprehensive indicators that can reflect the research phenomenon, which can simplify the complex research and improve the research efficiency while ensuring the research accuracy [55]. Generally speaking, the process of PCA is performed in the following 6 steps. (i) Calculate the correlation coefficient matrix R of the evaluation indexes. (ii) Calculate the eigenvalues of the correlation coefficient matrix R and the corresponding eigenvectors. (iii) Calculate the variance contribution and cumulative variance contribution of the principal components. (iv) Determine the number of principal components. (v) Calculate the loadings of the principal components. (vi) Calculate the score of each principal component.

2.5.2. Exploratory Spatial Data Analysis Model (ESDA)

Exploratory Spatial Data Analysis (ESDA) is a statistical analysis method that helps analyze the spatial effects of a phenomenon by analyzing spatial autocorrelation, which can be utilized in analyzing spatial dependence and heterogeneity [56]. This method brings together various spatial data analysis techniques to explore the spatial distribution characteristics of the data and reveal the spatial mechanism of action between research objects through visualization. According to the first law of Geography, all things are interconnected, and the closer the spatial distance, the stronger the connection between them and vice versa [57]. Spatial autocorrelation is a measurement for the strength of the connection between neighboring things. This method measures the covariance between neighboring observation units by comparing the similarity of observations and the similarity between their observation space locations [58]. Generally, the Spatial Autocorrelation is mainly classified into two types on research: Global Spatial Autocorrelation (e.g., Moran’s I index, Geary’s C index, etc.) and Local Spatial Autocorrelation (e.g., Getis-Ord’s Gi, Moran scatter plot, etc.).

2.5.3. Spatial Regression Model

In traditional statistics, if the data to be regressed do not exhibit spatial effects between them, the model parameters can be estimated directly using general estimation methods (e.g., ordinary least squares models) [59]. Normally, a benchmark model is needed for comparative reference when performing spatial econometric model analysis. The ordinary least squares model (OLS) is the most common benchmark model, as shown in Equation (1).

$$y=X\beta +\epsilon$$

(1)

where: y is the dependent variable, X is the independent variable, β is the parameter and ε is the error term.

However, since spatial data or data containing geographic information have certain spatial effects, models that consider spatial regression effects are needed to describe and explain the related problems arising from spatial effects. This includes the Spatial Lag Model (SLM) and the Spatial Error Model (SEM).

The SLM takes into account the spatial correlation of the dependent variable, which can be expressed by Equation (2).

$$y=\rho W_y+X\beta +\epsilon$$

(2)

where: y is the dependent variable, ρ is the regression coefficient, W is the weight, X is the independent variable, β is the parameter and ε is the error term.

The SEM, on the other hand, considers the error process through the covariance of the differences, which can be expressed in Equation (3).

$$\begin{array}{l}y=X\beta +\mu \\ \mu =\lambda W_{\mu }+\epsilon \end{array}$$

(3)

where: y is the dependent variable, W is the weight, X is the independent variable, β is the parameter, $\mu$ is the intercept distance, λ is the spatial autoregressive coefficient and ε is the error term.

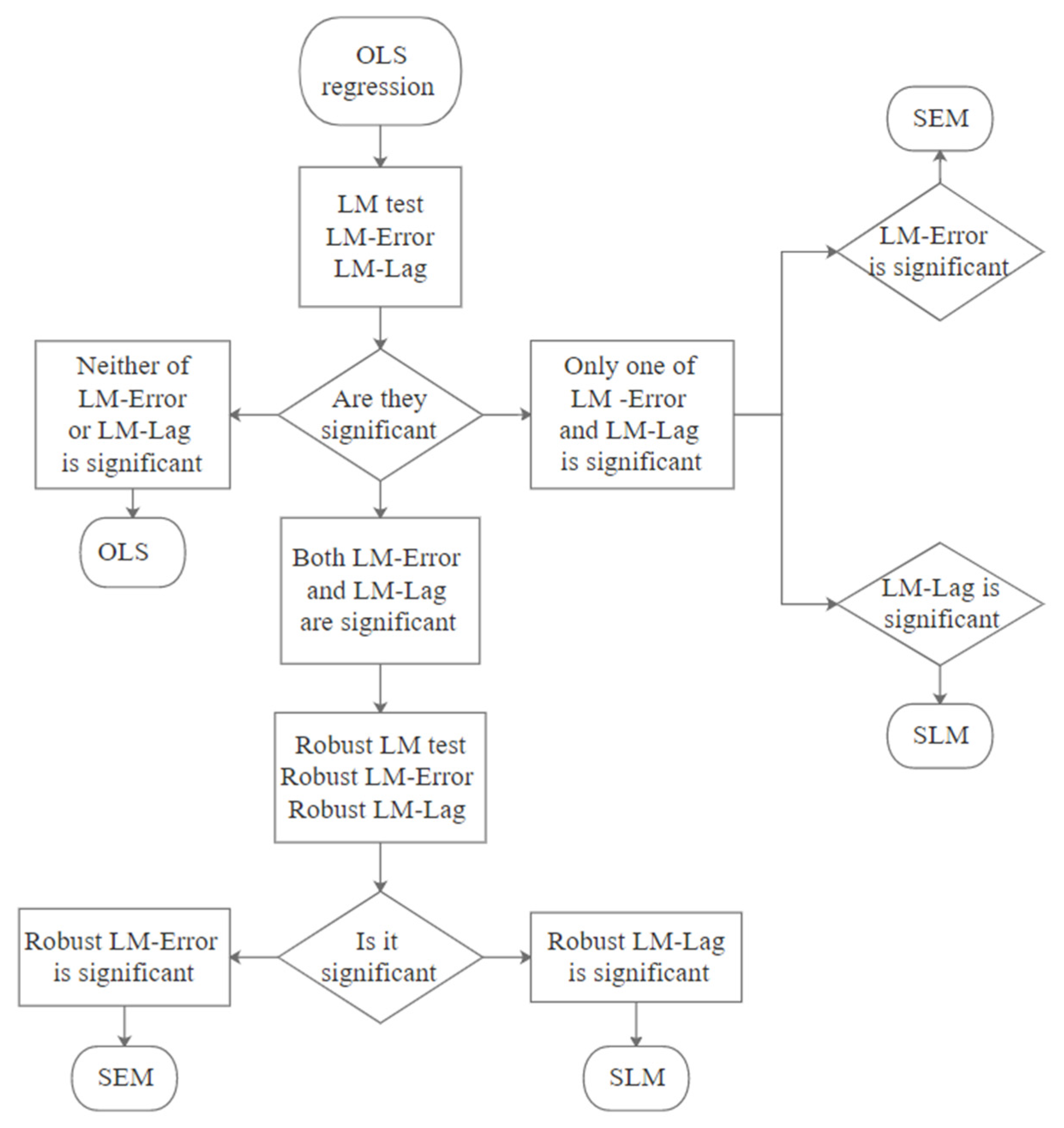

To analyze this spatial effect, this paper investigates the relevant issues through the choice of three models: OLS, SLM and SEM. Anselin gives a flow chart of the empirical analysis for spatial econometric modeling (Figure 2).

3. Spatiotemporal Analysis

3.1. Calculation of the Values of URCD in the YRDUA

For effectively assessing the real level of URCD, we calculate the value on the foundation of the specific data of 27 cities in the YRDUA using the PCA method with the help of SPSS software. First, the raw data are preprocessed, i.e., the data are normalized and standardized (among them, the normalization is done by taking the inverse and the standardization is done by the Z-score standardization method). Second, the specific expressions of m principal components (Fi) and the calculation model of comprehensive principal component assessment value are extracted. Finally, the comprehensive level of URCD of 27 cities in YRDUA for each year is estimated by the derived model.

In general, various criteria can be utilized for principal component extraction. For example, Kaiser (1960) suggests that the number of principal components can be determined based on the criterion that the corresponding eigenvalues of principal components are greater than one [60], while Ca Ttell (1968) suggests that the extraction of principal components can be performed by the empirical criterion of cumulative variance contribution of 70% or more and the steep slope test criterion [61]. In this paper, the variance decomposition and principal component extraction are carried out according to the principle of eigenvalue greater than 1 in combination with the above criteria, and three principal components are extracted in 2000, 2005, 2010 and 2015, and their cumulative variance contributions are 80.351%, 71.340%, 73.640% and 70.665%, respectively, all of which passed the tests of the above criteria. This result indicates that the extracted Fi already contains most of the information in the 10 original indicator variables, which shows it is effective to use PCA for assessing the comprehensive level of URCD of the 27 cities in YRDUA. In summary, the standardized values of indicators are substituted into the above model, and finally the values of the comprehensive level of URCD and their rankings in 2000, 2005, 2010 and 2015 are calculated as shown in

Table 3. The value and rank of URCD of 27 cities in 2000, 2005, 2010 and 2015.

City	URCD (2000)	Rank (2000)	URCD (2005)	Rank (2005)	URCD (2010)	Rank (2010)	URCD (2015)	Rank (2015)
Shanghai	17.423	1	13.530	1	8.194	5	9.368	3
Hangzhou	13.262	3	12.432	3	12.291	2	10.030	1
Ningbo	4.189	6	6.589	6	5.027	8	5.986	6
Wenzhou	2.047	11	4.416	7	−2.057	19	2.252	10
Jiaxing	3.807	7	2.819	11	3.631	9	4.169	7
Huzhou	−0.211	15	2.857	10	1.414	13	−0.550	15
Shaoxing	2.728	10	3.253	8	1.630	12	2.920	9
Jinhua	−1.290	16	−0.736	15	−1.738	17	0.773	13
Tai’zhou	−3.283	20	−0.829	16	−1.670	16	−2.293	19
Zhoushan	−1.293	12	−1.417	17	5.072	6	2.000	11
Nanjing	13.754	2	10.718	4	10.631	3	8.080	4
Suzhou	9.335	4	12.704	2	12.976	1	9.514	2
Wuxi	4.468	5	10.462	5	9.867	4	6.567	5
Changzhou	3.009	9	3.209	9	5.029	7	3.808	8
Yangzhou	−0.031	14	−5.585	19	−1.549	15	−4.276	22
Zhenjiang	0.494	13	0.857	13	2.112	10	−0.090	14
Nantong	−2.667	19	−5.176	18	−1.957	18	−3.096	20
Taizhou	−2.461	18	−6.351	21	−5.316	20	−5.999	21
Yancheng	−7.443	23	−10.478	23	−7.360	23	−8.874	24
Hefei	3.716	8	2.728	12	2.110	11	−0.945	16
Wuhu	−6.082	21	−5.819	20	−5.816	21	−1.197	17
Ma’anshan	−1.697	17	−0.368	14	0.600	14	−1.340	18
Tongling	−7.168	22	−6.953	22	−5.820	22	1.416	12
Anqing	−15.892	27	−14.583	27	−14.240	27	−10.998	27
Chuzhou	−12.999	25	−11.071	25	−12.036	26	−9.528	25
Chizhou	−15.735	26	−12.567	26	−10.357	24	−6.984	23
Xuancheng	−11.800	24	−10.640	24	−10.828	25	−10.020	26

Note: To differentiate, Taizhou is the city in Jiangsu Province, and Tai’zhou is the city in Zhejiang Province.

.

The following conclusions can be extracted from Table 3. First, from the overall distribution of regional scores, the four regions of southern Jiangsu, northern Zhejiang, northern Anhui and Shanghai are always relatively high-level, while the scores of northern Jiangsu, southern Zhejiang and parts of Anhui are generally low-level. Second, in terms of provinces, the four-year average scores of URCD in Zhejiang Province are 2.838, 3.265, 2.400 and 2.810, respectively; the four-year average scores of URCD in Jiangsu Province are 2.495, 1.706, 2.826 and 0.848 respectively; and the four-year average scores of URCD in Anhui Province are −8.457, −7.284, −6.698 and −4.950, respectively. In other words, the overall URCD level of Jiangsu and Zhejiang provinces is slightly better than that of Anhui province. Finally, in terms of city-specific scores, the highest-ranked cities in each study year are Shanghai in 2000 and 2005, Suzhou in 2010 and Hangzhou in 2015, with scores of 17.423, 13.530, 12.976 and 10.030; the lowest-ranked city in each study year is Anqing, with scores of −15.892, −14.583, −14.240 and −10.998. In terms of the gap in scores, the overall gap between cities with the highest and lowest scores is relatively large in 2000, while the differences in 2005, 2010 and 2015 all fall back to different degrees, indicating that while the gap in URCD between regions within YRDUA gradually decreases, the overall development tends to be stable, with a greater degree of improvement for cities at the low-level development as a whole.

3.2. The Spatial Pattern of URCD

3.2.1. Spatial Autocorrelation Analysis of URCD

The spatial distribution heterogeneity and characteristics of the temporal evolution of the integrated level of URCD in YRDUA can be revealed by the Global Moran’s I index and Moran scatter plot. In this paper, we apply ESDA with the help of GIS and Geoda software to calculate the Moran’s I index of URCD of 27 cities in the YRDUA in 2000, 2005, 2010 and 2015, and draw Moran scatter plots for the corresponding periods. In particular, the results of the calculations are presented as scatter plots in the four quadrants of the Cartesian coordinate system (the horizontal axis indicates the integrated level of URCD and the vertical axis indicates its spatial lag) according to the spatial clustering and dispersion characteristics between each city and its neighboring cities, and thus classify each city into four spatial types. The cities in the first and third quadrants are HH (high-high) and LL (low-low) respectively, indicating homogeneity (high or low level) of URCD values of the city itself and its neighboring cities, while the cities in the second and fourth quadrants are LH (low-high) and HL (high-low), respectively, indicating heterogeneity (high level on one side and low level on the other side) of URCD values of the city itself and its neighboring cities.

After calculation, Figure 3. shows the Moran’s I index and Moran’s I scatterplot of the level of URCD of the YRDUA in 2000, 2005, 2010 and 2015. It can be seen that the value of the comprehensive level of URCD and its spatial lagging value are roughly positively correlated. The Moran’s I index for each year is 0.393, 0.496, 0.425 and 0.306, which are positive and significantly greater than zero, suggesting a strong positive spatial correlation among provinces. At the same time, randomized simulations are conducted to test the spatial autocorrelation of the above data; 99,999 randomized simulations are conducted using Geoda software, and the statistical distribution plots are all very close to normal distribution, and the results of each test indicate that the observations have strong positive spatial autocorrelation, which means that the comprehensive level of similar URCD (including both high-level values and low-level values) of provinces tend to show spatial clustering. This spatial autocorrelation is manifested as below.

(i)

Analyzing the trend, the Moran’s I index of the URCD of YRDUA shows an increasing trend between 2000 and 2005, from 0.393 in 2000 to 0.496 in 2005, which indicates that during this period cities with close URCD values in the YRD tend to be more geographically concentrated. However, by 2010 and 2015, the Moran’s I index of URCD in YRDUA declines to 0.425 and 0.306, indicating that following the stronger growth in the previous period, the positive spatial correlation of URCD in the cities slowly falls back during this period, and the spatial differences in the development of individual cities intensify to some extent.

(ii)

Analyzing the magnitude of change, the change in Moran’s I index from 2000 to 2005 is 0.103, while that from 2005 to 2010 is −0.071 and from 2010 to 2015 is −0.119. This suggests that the positive spatial correlation of URCD among the cities in YRDUA increased between 2000 and 2005, and the spatial relationship tends to decline from 2005 to 2010 and 2010 to 2015, with repeated fluctuations.

(iii)

Analyzing the spatial autocorrelation type changes, HH-type cities and LL-type cities account for a larger proportion of the cities studied in the four study periods, and there is a great degree of spatial proximity peer effect of URCD in the YRDUA. In other words, when the URCD of neighboring cities around the region is high-level (low-level) URCD, the region is more likely to become a city with high-level (low-level) URCD, thus forming a local spatial agglomeration pattern of “the weak is always weak, the strong is always strong”. The main reason for the formation of this spatial pattern is that the neighboring cities in the YRDUA are more similar in economic, social, cultural and resource endowments. With closer in spatial distance, lower transportation costs, easier and faster access to information, and frequent inter-city connections, there is a great degree of correlation in the implementation of policies and measures concerning urban-rural integration and development, thus forming a geographical spatial spillover effect. Meanwhile, the results demonstrate that the URCD of YRDUA shows a certain trend of polarization, with a certain degree of agglomeration in both high-level and low-level areas.

3.2.2. Spatial Pattern Evolution of URCD, URED and URBD

Based on the Arcgis spatial analysis model, we classify the URCD of 27 cities in YRDUA in 2000, 2005, 2010 and 2015 into five levels: highest, higher, medium, lower and lowest, and the corresponding spatial distribution diagrams are drawn in Figure 4. The five levels are arranged according to the color sequence of “Red-Orange-Yellow-Green -Blue”, and the color sequence matches the five levels from high to low. Besides, since the URCD includes two dimensions of urban-rural efficient development (URED) and urban-rural balanced development (URBD), the evolution of these two integrated levels is analyzed simultaneously using the above-mentioned method (Figure 5 and Figure 6).

By comparing the spatial patterns of the three indicators of YRDUA in each study year, two direct conclusions can be drawn. First, the spatial patterns of URCD and URED are relatively stable, while the spatial patterns of URBD produce greater volatility. Second, the spatial patterns of URCD and URED are relatively similar in the same study year, while there are some differences with the spatial patterns of URBD. The following is a specific analysis of the distribution characteristics and spatial pattern evolution of URCD, URED and URBD in each study year.

(i)

2000 to 2005. In terms of the rank and number of cities in URCD, the changes are mainly concentrated in northern Jiangsu and southern Zhejiang, and the number of both high-level and low-level cities has increased. First, Suzhou, Wuxi, Changzhou and Nanjing in Jiangsu Province, Hangzhou, Ningbo, Shaoxing, Jiaxing in Zhejiang Province and Shanghai form an obvious highest- and higher-level agglomeration area. This pattern remains unchanged during 2000–2005, and Wenzhou City in Zhejiang Province is ranked from the medium level to the higher level. Second, the number of medium level cities decreases from 10 to 5 due to the high-level change, and the change is mainly concentrated in Yangzhou, Taizhou and Nantong in Jiangsu Province. Third, the number of lower level and lowest level cities is relatively consistent, mainly concentrated in some areas of Anhui Province and the northern part of Jiangsu Province, with Yancheng City in Jiangsu Province decreasing from lower level to lowest level. The overall distribution and changes in the number of URBD in each city produce some variability in terms of their rank and number of cities. For example, among the highest and higher URCD clusters mentioned above, Changzhou’s URBD is only at a medium level in 2000 and 2005, while Wuxi, Suzhou and Ningbo’s URBD increased from a higher level to the highest level between 2000 and 2005. In addition, Hefei’s URBD increases from medium to high level.

(ii)

2005 to 2010. First, the number of cities above medium level increases from 12 to 13, which shows that the overall situation of URCD in YRDUA has improved. Second, in terms of distribution, the higher- and highest-level cities are still concentrated and show a strong aggregation. The changes are mainly concentrated in Jiangsu Province, and the development of southern Zhejiang Province has also changed. The overall situation in Jiangsu Province has improved, with Yangzhou and Nantong cities rising from lower to medium level. Wenzhou in Zhejiang Province declines from a higher level to a medium level. Throughout the period from 2000 to 2010, the developmental change of URCD shows a repeated trend of decreasing and then rebounding, indicating that the developmental change of URCD is somewhat repetitive. Similarly, the overall distribution and change of each city in terms of URED is more consistent with URCD, but it can be noted that there is an overall decline in URED in Zhejiang Province, with Jinhua, Tai’zhou and Wenzhou dropping from medium and higher levels to lower level respectively. However, there are major differences in URBD. First, the total number of highest- and higher-level cities remains the same in terms of quantity, but the number of highest level cities decreases from 5 to 3. The overall development of Jiangsu Province has improved, with Yancheng, Taizhou, Yangzhou and Nantong all increasing. Second, in terms of distribution, the regions where the higher and highest level cities located are further narrowed and concentrated, mainly in the central-eastern region of the YRD, while the low-level regions are primarily concentrated in some parts of Anhui Province, and the aggregation is further strengthened.

(iii)

2010 to 2015. In terms of the number and levels in URCD of the cities, the distribution of the high-level development pattern of YRD has been consolidated. First, the number of the highest- and higher-level cities remains unchanged at 13, while the number of medium level cities has slightly changed from 6 to 5. Second, in terms of distribution, cities including Nanjing, Wuxi and Suzhou in Jiangsu Province, Jiaxing, Hangzhou, Shaoxing, Ningbo in Zhejiang Province and Shanghai have formed a region of the higher or highest level of URCD, while Yancheng and Taizhou in Jiangsu Province, and Anqing, Chuzhou, Xuancheng and Chizhou in Anhui Province have formed a region of low-level, and the URCD of the remaining cities has changed slightly during the five years. Similarly, the overall distribution and change of each city in terms of URED is more consistent with URCD. However, in terms of URBD, the overall situation has decreased. First, in terms of number, the cities at the highest level remain largely unchanged, while the number of cities at the medium level decreases from 8 to 6. Many cities with high-level URBD, such as Yangzhou, Taizhou, Nanjing and Nantong experience different degrees of decline in URBD; and the number of cities at the medium level also decreases from 7 to 6. Second, in terms of distribution, the overall URBD in Anhui Province has increased during the study period, with Hefei and Tongling rising from lower to medium level, but the overall URBD level in Anhui Province still needs to be improved.

From a comprehensive view of the four study periods, the URCD of each city in the YRDUA can be roughly categorized into three categories. The first category is high in both URED and URBD, for example, Suzhou, Shanghai, Hangzhou, Wuxi, Nanjing and Jiaxing, whose URED and URBD are both at higher and highest levels in the four study periods, so the development experience of these cities is therefore worthy of further consideration by other cities. In the second category, most cities have low-level URED and URCD, and they are mainly concentrated in the northern part of Jiangsu and the western region of Anhui. These cities tend to have a weak development foundation and need to learn more experience from neighboring regions at a later stage, and to balance efficiency and equity in the development process and strengthen all-round development. The third category is cities with URED and URBD which have a certain degree of high-level and low-level repetition in the development process. These cities are characterized by their high URED and URBD in the early stage of development, but in the last decade, a mismatch between URED and URCD begin to arise. The main reason for this phenomenon is that most of them are more economically developed and tend to focus too much on enhancing efficiency but neglect equity in the development process, resulting in structural imbalance in urban and rural development. For example, Wenzhou experienced an increase in URCD in the early stage of development in 2005, but its URBD decreased in 2010 and increased again in 2015. Comparing URED and URBD, it can be found that the changes of the two also experienced similar fluctuations and in opposite directions, i.e., equity is lower when efficiency is high. This phenomenon is largely since Wenzhou focused on development efficiency in the early stage of development and experienced a “wild growth” process. Especially around 2000, relying on the opportunity of China’s accession to the World Trade Organization (WTO), Wenzhou’s private economy pushed a large number of light industrial products to the whole country and even the whole world, and various levels of urban development were improved. However, this private economy-dominated model led to a lack of government supervision, insufficient public investment, a serious mismatch between urban construction and the degree of economic development, and a bottleneck in the efficiency and fairness of development. In recent years, Wenzhou has started to improve urban infrastructure construction and other aspects in addition to development, so the equity of urban and rural development has gradually risen. Depending on the basic situation of most cities, we can conclude that, in general, URBD and URED need to achieve simultaneous development, and on this basis, URCD can be further promoted.

4. Driving Forces

4.1. The Spatial Regression Model for the Driving Forces

The URCD of YRDUA has a clear spatial and temporal divergence. The emergence of this phenomenon is influenced by the combination of deep-seated driving forces, which are composed of micro-level factors and macro-level institutions and policies. To further quantify the driving forces, this chapter will first analyze the micro-level factors and then analyze the macro-level institutions and policies concerning the changes in the factors. From the above discussion, it can be found that the Moran’s I values of each city in YRDUA are positive and significantly greater than zero, which indicates the existence of spatial autocorrelation and aggregation in space, and a spatial regression analysis model can be constructed. The covariance analysis is conducted for each influence index. It is tested that there is no covariance between two of the indicators to be regressed. There is a noticeable spatial correlation in URCD, which implies the data are spatially distributed non-independently, so the spatial effect model is estimated using the maximum likelihood method based on the traditional least-squares method. Although Moran’s I test shows significant spatial autocorrelation of the residuals, this test does not determine which specific spatial regression model should be selected. Therefore, the judgment needs to be made by the general process of spatial econometric modeling combined with the Lagrange multiplier test, the results of which are shown in

Table 4. Estimated results of influencing factors of URCD using the chosen models.

Year	2000		2005		2010		2015
Model	SLM		OLS		SEM		SLM
	Coefficient (z)	p	Coefficient (z)	p	Coefficient (z)	p	Coefficient (z)	p
Constant (C)	0.007 (0.202)	0.840	0.000	1.000	−0.024 (−0.332)	0.739	0.013 (0.212)	0.832
X1	−0.015 (0.255)	0.736	0.161 (1.651)	0.116	−0.314 (−5.906)	0.000	−0.577 (−4.196)	0.000
X2	0.454 (3.789)	0.000	0.121 (1.182)	0.253	0.003 (0.060)	0.952	−0.145 (−2.176)	0.030
X3	0.602 (6.029)	0.000	0.432 (2.994)	0.008	0.449 (4.957)	0.000	1.138 (7.497)	0.000
X4	−0.558 (−2.448)	0.014	0.351 (2.173)	0.043	0.254 (3.993)	0.000	−0.420 (−3.061)	0.002
X5	0.180 (3.805)	0.000	−0.077 (−0.596)	0.559	0.314 (4.328)	0.000	−0.135 (1.016)	0.310
X6	0.119 (1.826)	0.068	−0.118 (−1.241)	0.231	0.187 (3.120)	0.002	−0.122 (−1.582)	0.113
X7	0.140 (2.364)	0.018	0.116 (0.905)	0.377	−0.155 (−3.037)	0.002	0.506 (3.653)	0.000
X8	0.349 (2.432)	0.015	0.153 (1.019)	0.322	0.062 (0.951)	0.342	0.088 (0.881)	0.378
Spatial lag term	0.162 (2.167)	0.030	/	/	/	/	0.222 (1.776)	0.076
Spatial error term	/	/	/	/	0.469 (2.265)	0.023	/	/
Statistical Tests
R2	0.966		0.900		0.956		0.901
δ2	0.032		0.144		0.042		0.094
logL	7.941		−6.688		3.878		−6.612
AIC	4.117		31.375		10.243		33.224
SC	17.075		43.038		21.906		46.182

.

For the data of 2000, the LM-Lag test is significant at the 0.1 level (LM-Lag = 4.673, p = 0.052), the LM-Error test is not significant, and the SLM model is selected directly. For 2005, the LM-Lag test and LM-Error test are not significant at the 0.1 level, and the OLS regression model is selected. For 2010, the LM-Lag test is not significant at the 0.1 level and the LM-Error test is significant at the 0.1 level (LM-Lag = 3.606, p = 0.057), and the SEM model is selected directly. For 2015, the LM-Lag test is significant at the 0.1 level (LM-Lag = 2.731, p = 0.098) and the LM-Error test is not significant, and the SLM model is chosen directly. The specific regression results and model fit results tests are shown in Table 4.

As can be seen in Table 4, the R² of each regression model for each year exceeds 0.9, the δ² are smaller, and the log likelihood value, AIC value and SC value test results are better than other choices under the same conditions, indicating that the model has a better fit. After comparison, it is found that the spatial lag term or spatial error term of the model selected for all years except 2005 passed the significance test, indicating that URCD in neighboring regions and the status of socioeconomic and other factors would have a significant impact on the region.

4.2. Results of Spatial Regression Analysis of Driving Forces

The model results (Table 4) show that the main influencing indicators of URCD in YRDUA in 2000 are gross industrial output per capita X2, urbanization rate X3, per capita fixed asset investment X4, per capita expenditure on science, education, culture, health and sports X5, highway density X6, per capita actually utilized foreign investment X7 and per capita retail sales of social consumer goods X8. Among them, X4 is significant at the 0.1 level and has a negative impact coefficient, which plays a negative driving role, while the remaining indicators play a positive driving role.

In 2005, the main influencing indicators of URCD in YRDUA are urbanization rate X3 and per capita fixed asset investment X4, which are significant at the 0.1 level and have positive impact coefficients, playing a positive driving role.

In 2010, the main influencing indicators of URCD in YRDUA are number of registered population X1, urbanization rate X3, per capita fixed asset investment X4, per capita expenditure on science, education, culture, health and sports X5, highway density X6, and per capita actually utilized foreign investment X7, among which X1 and X7 are significant at the 0.1 level with negative coefficients and play a negative role. The rest of the indicators play a positive role.

In 2015, the main influencing indicators of URCD in YRDUA are number of registered population X1, gross industrial output per capita X2, urbanization rate X3, per capita fixed asset investment X4, and per capita actually utilized foreign investment X7. Among them, X1, X2, and X4 are significant at the 0.1 level with negative coefficients, which play a negative driving role, while the rest of the indicators play a positive driving role.

From the above results, it can be seen that the URCD of YRDUA in 2000 is mainly influenced by the factors of industrialization degree, urbanization level, fixed asset investment, government financial input, infrastructure construction, foreign investment and consumption. It indicates that around 2000, the overall level of URCD is relatively low, and the development of several aspects such as urbanization development, infrastructure level improvement, industrialization development, government financial investment, foreign investment and consumption demand expansion are all conducive to the improvement of the overall level of URCD. The fixed asset investment factor plays a negative role, indicating that the amount of per capita fixed asset investment around 2000 is insufficient, and development has a strong constraining effect.

The spatial correlation of URCD in YRDUA decreases in 2005, and the results of estimation using the OLS model show that only two factors, urbanization level and fixed asset investment, are significant. This indicates that the increase in urbanization level and the increase in fixed assets investment effectively contributed to the further development of urban-rural integration compared to the year 2000. The insignificant indicator of population size indicates that the total population size has little influence on URCD compared with the population structure (i.e., urbanization rate). The insignificant factor of infrastructure construction may be related to the constraints of topography on accessibility. And the insignificant factor of foreign investment indicates that the level of economic development is still relatively low at the beginning of the 21st century, and foreign investment does not play an essential role in promoting economic development and even urban-rural development.

The URCD of YRDUA in 2010 is mainly influenced by factors such as population size, urbanization level, fixed asset investment, government financial input, infrastructure construction and foreign investment. The factor of population size plays a negative role, indicating that the population problems such as continuous rural population outflow, separation of people and land, and population aging make population growth an obstacle to urban-rural integration. The industrialization level is no longer a significant factor, indicating that the traditional industrialization process is no longer the main factor hindering the development of urban-rural integration by around 2010. The factor of urbanization level is significant, indicating that the improvement of population structure at this stage further promotes URCD. The increase of fixed asset investment and government financial investment further promotes URCD in the economic and social environments and other aspects. The highway density indicator is significant at 0.1 level with positive correlation coefficient, indicating that the road network of cities in the YRDUA has been developed significantly around 2010, which accelerates the transportation between the city and the village including resources, population and finished products, and effectively promotes the connection between areas. The foreign investment factor plays a negative influence, indicating that the actual amount of foreign investment utilized per capita is insufficient and becomes a hindering factor for urban-rural development.

The URCD of YRDUA in 2015 is mainly influenced by factors such as population size, industrialization degree, urbanization level, fixed asset investment and foreign investment. The indicator of gross industrial output per capita becomes significant at the 0.1 level but with a negative impact coefficient, indicating that the traditional industrialization process may begin to lead to the cities plundering the resources of the rural areas and becoming one of the factors that eat away at the rural development process. The population problem still exists after 2010 and the significant factor of urbanization level indicates that the continuous improvement of the demographic structure is still a favorable factor to promote the coordinated development. The per capita expenditure on science, education, culture, health and sports is no longer significant at the 0.1 level, indicating that government financial input to the current level is no longer the main factor driving URCD. Per capita fixed asset investment is significant at the 0.1 level with a negative impact coefficient, indicating that insufficient investment in fixed assets in YRDUA at this stage makes economic development less dynamic, thus affecting the coordinated development. Per capita retail sales of social consumer goods indicator is no longer significant at the 0.1 level, suggesting that simply increasing consumption demand can no longer promote URCD by 2015. The overall consumption level of YRDUA has already reached a high level, and the marginal effect brought by consumption is no longer very significant, so further attention needs to be paid to issues such as consumption structure. The per capita actually utilized foreign investment indicator is significant at the 0.1 level with a positive coefficient of influence, suggesting that foreign investment has begun to play a role in promoting urban-rural development, and may benefit rural areas through, among other things, the acquisition of rural land for the construction of plants and the recruitment of large numbers of workers, bringing about a catalytic effect on URCD.

Comprehensively considering the changes in the factors that influenced URED in the urban agglomeration in the past 15 years, combined with the evolutionary patterns of URCD, URED and URBD in each city of YRDUA can be found as follows.

(i)

In the early stage of development, URCD is highly correlated with URED, while URED mainly relies on economic development, so many factors related to economic development such as urbanization level, industrialization, infrastructure construction, and government financial investment can effectively promote URCD. In fact, in the early stage of development, land finance is the main means of development relied on by local governments, especially under the demand of industrialization and urbanization. Local governments expropriated a large amount of rural land and sold it to obtain fiscal revenue while transforming the rural population into the urban population and transforming rural collective land into urban construction land. These revenues were then used to build infrastructure such as roads, railways, bridges, etc., or to provide a range of public services. In particular, for urban agglomerations, under the joint action of the two operating mechanisms of agglomeration and diffusion, various factors including capital, technology, talent, information, etc. flow continuously between cities, and factors such as regional and transportation accessibility of cities have a great impact on the flow of the above factors, which easily lead to the formation and optimization of inter-city spatial economic linkage network structure. Taking the transportation field as an example, the Shanghai-Nanjing intercity railroad and Shanghai-Hangzhou intercity railroad, which were opened around 2010, have built a “two-hour commuting circle” around Shanghai and gradually expanded its radiation range. With this advantage, the cities along its route, including Shanghai, Nanjing, Suzhou, Jiaxing, Hangzhou and Ningbo, have closer communication, so the northern Zhejiang, southern Jiangsu and Shanghai areas where the above cities are located have further become high-level URCD region.

(ii)

In the later stage of development, especially during 2010–2015, it is obvious from the regression model that consumption, investment, industrialization process and government financial input are no longer the main factors influencing URCD, and even once played an inverse role, and the demographic factors also hindered it to a certain extent. The root cause of this phenomenon is that under the traditional dual economy system, local governments often simply and roughly transform the appearance of rural areas into that of cities, but fail to fundamentally explore the development advantages of rural areas and realize the transformation of rural lifestyles. A large number of people and resources are flowing into cities, which makes them gain more development benefits than rural areas, thus further widening the urban-rural gap. Influenced by the idea of “development is the first priority”, this phenomenon is especially obvious in cities with high URED, such as Nanjing and Wuxi, which do not reach high-level URBD. However, as China’s economic development enters a new normal period, promoting URED is no longer the only goal, and URBD has also become an important part of URCD. Therefore, for cities within YRDUA, such as cities in northern Zhejiang, southern Jiangsu, northern Anhui and Shanghai regions, considering that their industrialization urbanization process and infrastructure construction have been perfected, and government financial investment and foreign investment in residents’ consumption level are also at a high level, the marginal benefit brought by simply increasing the input of these factors is not enough. Therefore, the focus of these cities should be on how to distribute factors equitably between city and village. This requires the government to design at the institutional level so that the rural areas can discover economic growth points and direct development factors to the rural areas naturally rather than artificially. For instance, Suzhou has promoted agricultural parks in rural areas, in addition to building special industries such as “e-commerce industrial parks”, and providing financial and institutional support, which has achieved good results. On the other hand, cities in other regions of YRDUA still have some room for improvement in URED, and can still promote development through industrial transfer, financial investment, and improvement of infrastructure construction, etc. However, in the process of development, we should also focus on URBD to avoid large urban-rural differences.

5. Conclusions and Discussion

Situated on the background of the development and evolution of urban-rural relations in YRDUA, this paper proposes the concept of URCD based on many existing studies and further discusses the concept in URED and URBD, respectively. Through an in-depth discussion of the evolutionary patterns of URCD from perspectives of efficiency and equity in URED and URBD, respectively, in the 27 central cities in YRDUA between 2000 to 2015 and their main driving forces, some insights into their development history during the study period are gained. Based on the above understanding we can further promote the development within YRDUA in various dimensions, such as economic, social and infrastructure, and promote the development of each city within the region to improve the development efficiency and at the same time enhance the development equity.

This paper constructs a complete evaluation system to assess the URCD of 27 cities in YRDUA, which is divided into sub-dimensions of URED (including economy, education, medical treatment, income, consumption and environment) and URBD (including financial support, industrial structure, income gap, consumption), covering all important factors reflecting a city’s URCD. Based on the above, this paper provides an in-depth analysis of the URCD of each city in YRDUA.

(i)

Exploratory spatial data analysis. This paper uses ESDA to characterize the spatial evolution of the integrated level of URCD of each city in YRDUA in each year, and concludes that there is a positive spatial correlation between the integrated level of URCD in the region, and the high-level regions and the low-level regions show a certain degree of aggregation individually.

(ii)

Spatial distribution pattern analysis. This paper analyzes the changes of URCD, URED and URBD in the YRDUA from 2000 to 2015. From the perspective of regional differences, URCD of YRDUA, in general, shows the spatial distribution characteristics of decreasing from the central part to the north and south parts in order, i.e., the high-level cities are in northern Zhejiang, southern Jiangsu, northern Anhui and Shanghai regions, and the low-level cities are in the southern part, northern Jiangsu and some parts of Anhui Province. Compared with the spatial distribution of URCD, that of URED also shows a similar pattern in general, and the distribution pattern of each year during the study period is also very similar. In contrast, the spatial distribution of URBD is different, and some cities with high URED are not at the high level of URBD, which shows that many cities have the problem of “focusing on efficiency at the expense of equity”.

To reveal the driving forces of URCD in YRDUA, this paper first uncovers the main factors influencing the comprehensive level of URCD over the years based on the power indicators. Considering the role of spatial interactions between cities, the spatial regression model is chosen for further study, and it is concluded that the factors vary in different periods. In the early stage, many factors including fixed asset investment, infrastructure construction and urbanization level play a vital role in promoting URCD. However, with the continuous advancement of development, some factors such as consumption level and government financial investment used to play an important role, but their influence gradually weakens in the new stage. Some factors such as industrialization degree, foreign investment, fixed asset investment, etc. have positive driving effects in some years but negative driving effects in other years. The level of urbanization has effectively promoted the process of URCD throughout the study period. Secondly, based on the changes in factors, this paper concludes that the traditional approach of simply transforming rural areas into cities in shape and appearance is only the most superficial form and is no longer feasible. In the new era of development, what we need to do is to re-examine the interaction between elements, structures, functions and systems between town and country, that is, how to more effectively allocate the organic flow and concentration of development factors and establish a synergistic mechanism including population, land and industry, to promote the organic integration of urban development and rural construction.

It can be concluded that, as one of the more important urban agglomerations in China, YRDUA is already at a high level in many aspects including infrastructure, public services and financial investment, but there is still great variability in URCD among cities within it, and there is also much room for improvement. For cities in different development levels, the main influencing factors for promoting URCD are different, so it is necessary for each city to consider the situation of URED and URBD together and make a distinction in the top-level government design. At present, how to study URCD from the perspective of internal factor flow is still a complex task, so there are certain shortcomings in this paper. From the research method, the problem involves topology and system dynamics, which is why it is possible to reveal the intrinsic relationship between each influencing factor and URCD through quantitative models. From the research scale, it is necessary to further analyze the evolution of the integrated level of URCD with the county as a unit. Therefore, more in-depth research is needed in the future, using specific cities as typical cases.
