Review

Bridging the Gap between Landscape and Management within Marinas: A Review

by
Ricardo Martín
1 and
Víctor Yepes
2,*
1
Department of Civil Engineerng, Universitat Politècnica de València, 46022 Valencia, Spain
2
ICITECH, Department of Civil Engineering, Universitat Politècnica de València, 46022 Valencia, Spain
*
Author to whom correspondence should be addressed.
Land 2021, 10(8), 821; https://doi.org/10.3390/land10080821
Submission received: 12 July 2021 / Revised: 31 July 2021 / Accepted: 1 August 2021 / Published: 5 August 2021
(This article belongs to the Section Land Planning and Landscape Architecture)
Browse Figures
Versions Notes

Abstract

:
Marinas are known to be features related to nautical tourism. Nevertheless, the responsibility of managers does not lie solely on providing accurate services to boats, seafarers and visitors. Thus, an effective management should include other factors, because marinas are embodied in a singular space, with links to diverse nature. Landscape, known as the relationship between people and their environment, represents a set of these links. In this paper, we attempt to delve into the marina management and landscape. Firstly, a targeted exploration of the main issues related to the management of marinas was accomplished. Secondly, based on the previous items, a screening was carried out from a landscape viewpoint with the aim to stablish which elements of marina’s management are significant when tackling landscape. The results indicated that there is a concern with environmental aspects, specifically, on issues related to marine pollution and water quality. However, the determination of the main management-related issues, valued from a landscape perspective, may provide the main issues that need to be addressed in decision-making processes, incorporating the landscape dimension. Thus, we have attempted to understand and discuss how the landscape should be considered in marina management as a potential competitive advantage.

1. Introduction

The landscape is defined by the European Landscape Convention (ELC) as “an area, perceived by people, whose character is the result of the action an interaction of natural and/or human factors” [1] (art. 1). The landscape is an essential component of human being’s surroundings, because of the human interaction with their environment [2,3]. ELC has also highlighted the landscape as a contribution to human well-being and as an important economic resource in the global competition. One of the general measures of the ELC is to integrate landscape into policies [1], which also includes landscape management. It is understood as the set of continuing actions made to ensure the regular landscape’s maintenance, throughout an evolving plan, which adapts to the transformations that societies have related to their lifestyle, their development, and their surroundings [4].
Marinas are features associated to nautical tourism, conceived as platforms to accommodate recreation activities on land [5,6,7,8]. Thus, the services provided are preponderant activities when dealing with decision-making process in the management of marinas. However, the responsibility of managers does not lie solely on providing accurate services to boats, seafarers and visitors. Supervision over control and good financial results makes successful marina management [9]. Marinas are a driving force of economic wealth [10,11]. A characteristic landscape should enhance a territory and its tourist appeal as a tourism image [12,13,14]. Thus, a landscape in a marina including an environmental quality and scenic views should be able to gain economic benefits [15,16]. Moreover, the communication of the image of the marina, through a landscape character, may also improve business [17]. The previously mentioned facts highlight the importance of landscape in the management of the marinas.
As the quantity of research in the field of marina management is growing, it is advantageous to consider the landscape. Although it is possible to find some documents regarding the landscape in the marinas [3,16], little research effort seems to have been focused on how to approach landscape within management.
The intention of this paper is to cover a lack of knowledge about how to deal with the landscape in marinas. To do this, we carried out a bibliographic review with a twofold objective. On the one hand, to underline the relevant elements to consider in the management of the marinas. The management of marinas comprises many aspects, it is a question of establishing which ones occur with higher incidence (RQ1). On the other hand, the second objective aimed to highlight the most significant elements of marina management from a landscape viewpoint. Within the most relevant elements in the management of marinas, it is question of identifying those that are most significant from a landscape perspective (RQ2) and, therefore, to address the landscape within decision-making processes.

2. Research Method

The research method used was a systematic literature review. This method required the undertaking of the research questions, followed by the formulation of a strategy to achieve the answers to the questions posed. We developed a research plan as an appropriate tool for the review, consisting of three main phases: (i) Data collection in the issues considered; (ii) Screening, where the relevant literature was selected by inclusion criteria; (iii) Analysis, refining the selection through additional inclusion criteria.

2.1. Data Collection

The purpose of this phase was to obtain the relevant literature in the field of study. The revision of the main marina management books represented the main way to fulfil the targets. In this sense, we made a review of the specific handbooks and manuals [18,19,20,21,22,23,24,25,26,27]. The results are shown in Table 1.
However, the aim was to focus on which topics were most the frequently addressed within the scientific literature related to the management of marinas. Scopus was used as academic database for this purpose. With the aim to obtain the maximum of information, the research was conducted with no limitations (subject area, document type or language), except the period, which adopted 2020 as a maximum. The terms “marina”, “tourist port”, “small craft harbour” and “management” were identified as searching criteria in the field article title, abstract, and keywords. The Boolean operators “AND” and “OR” were used to combine the three first designations with the topic “management”. Other terms such as “port” or “cruise” were not considered because they refer to commercial maritime activity.
With the aim to delve into the definition of marina, other relevant sources were used for the search, in addition to utilizing others such as grey ones, or researcher’s social networks, such as Researchgate or Mendeley.

2.2. Screening

The contents of the aforementioned papers were broad, including issues not dealt with in marina management (marine areas, mangrove ecosystems, seagrass ecosystem, or nautical boats). Considering this, a screening process was accomplished with the aim to approach to the target issues. The analysis of the title and abstract allowed for the narrowing of the search, identifying the items related to the terms considered, and disposing of the others reading the title was used as the first filter criterion. If there was any doubt about the adequacy of the content, the abstract was also read as a second discriminator element. Sixty-one outputs were admitted to the following phase.

2.3. Analysis

This final phase represented the formulation of fulfilling the requested answer through the analysis of the selected papers. For this last approach, two suitability criteria were adopted. First, the topics obtained in Table 1 were taken as a reference. Adaptation with the landscape elements in marinas [16] was considered as a second validation criterion. A detailed read of the content of the papers was carried out to check the adequacy to the criteria adopted, and to categorize the issues to provide answer to RQs.

3. Results and Discussion

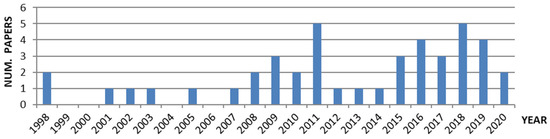

Figure 1 shows the number of articles finally considered. They cover a period from 1998 to 2020. It is possible to find references before this period e.g., [28,29], however they are either not numerically relevant or they have been used in the previous literature review e.g., [20]. The selected literature was used to provide an answer to the research question. For this purpose, we divided the section into the following subsections: (i) Main management items (RQ1); (ii) Landscape dimension within marina management (RQ2).

3.1. Main Management Items

Marina management has become increasingly complex. Firstly, it entails the balancing out of boat users, visitors, and neighboring residents with technical, economic, social, and environmental constraints [30]. Secondly, the powers of various authorities coincide in the marinas [31,32], thus coordination between them must be managed.
A first step when dealing with management of marina was to identify the main items through a literature review. Table 2 shows the results of the main issues.
With the aim to tackle the management of marinas, we identified broad indicator issues. For this purpose, a review of the main categories related to marina management was carried out. Magalhães and Carmona [33] established four interlinked processes in public space management: the regulation of uses and conflicts between uses; routine maintenance; the new investments; the coordination of interventions in public space. Girard [10] has stated that the environmental assessment should also consider economic and social criteria. Kasum et al. [34] determined five categories for the optimal management of resources: safety, educational, protector, environmental, and management indicators. The European Commission [35] identified four key factors for a well-functioning marina sector: environment; services offer; marketing; and infrastructure. Lučić and Luković [9] indicated control and planning as two crucial factors of the successful management of the marina. In addition to providing services and obtaining economic revenue, Janković and Vlašić [36] recommended incorporating a greater interrelationship with social environment into the management of environmental issues and long-term sustainability. Bukša et al. [37] pointed out three specific issues related to the management of nautical tourism ports: development of basic services; seasonal character of the services; location in extremely ecologically sensitive coastal zones.
Based on the previously mentioned criteria, four main topics were considered when setting about marina management: (a) services provided; (b) financial feasibility; (c) environmental management; (d) maintenance. Table 2 shows the results of the literature review grouped into the considered main topics.
Table
Table 2. Marina management’s review.
Table 2. Marina management’s review.
CategoryTypeReferences
ServicesBerthing capacity[36,37,38,39]
Boat handling[37]
Shipyard and boat storage[37,39,40,41]
Buildings[41,42]
Parking facilities[41]
Auxiliary elements[41]
Access[39,40]
Circulation[41]
Quality of services[36,39,43,44,45]
Financial [36,37,38,46,47,48,49,50]
Environmental managementMarine pollutants[37,38,50,51,52,53,54,55,56]
Invasive species introduction[56,57]
Biological impact (habitat loss)[47,53,54,58,59]
Seabed alteration[47,51,57,60,61]
Waste management[41,51,55,62,63]
Social dimension[37,38,39,55,64,65,66]
Water quality[36,54,57,66,67,68,69,70,71,72,73]
Noise level[66]
Quality environmental certifications[36,44,66,72,74]
Promotion of nautical fairs[75]
Relationship with surroundings[41,45,65,74,75]
Environmental risk[76,77]
Safety and security[39,43,78]

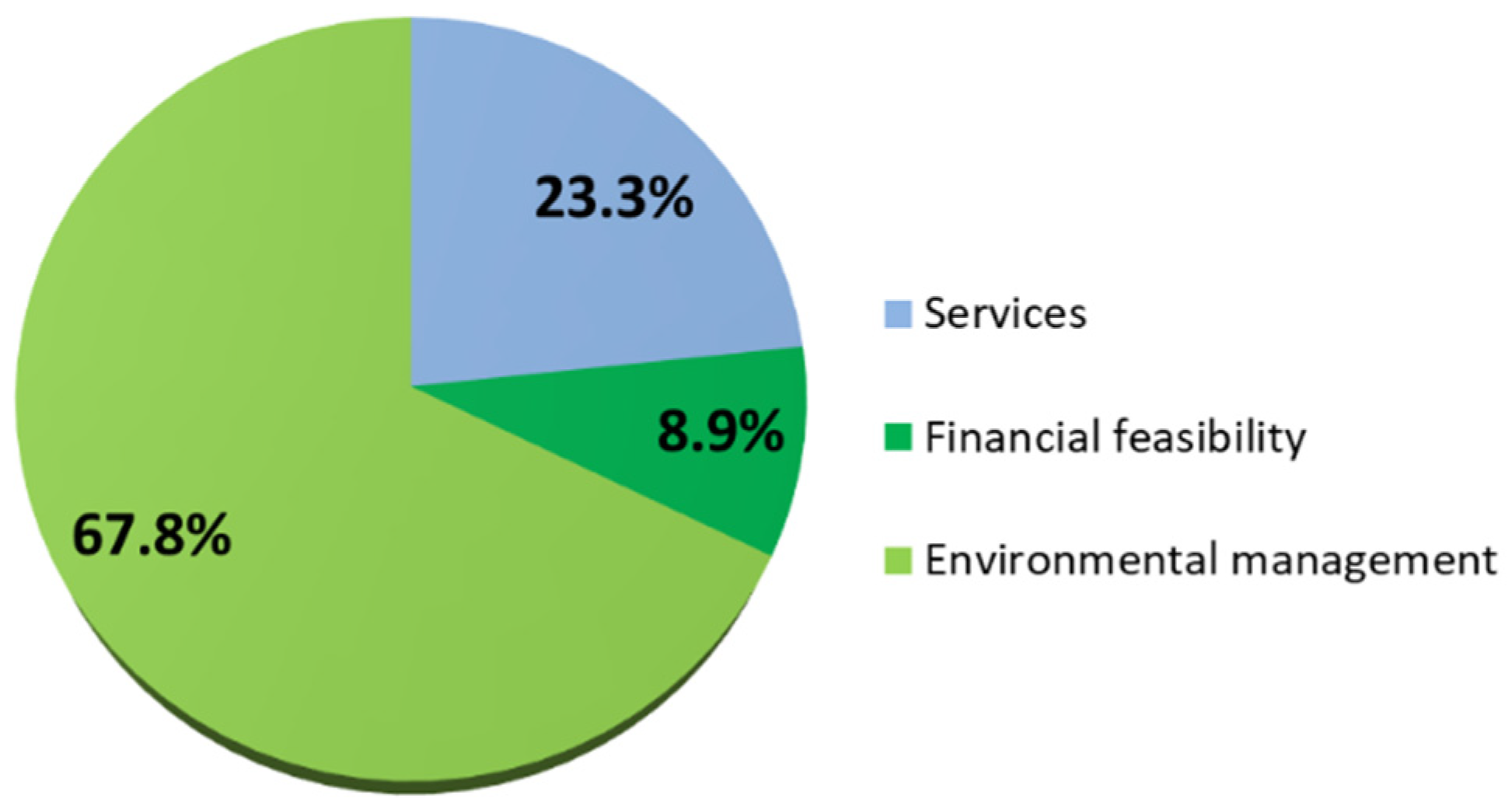

The results provided after grouping of the contents of papers analysed into the main topics are shown in Figure 2. There is an increasing interest toward environmental management, specifically on issues related to marine pollution and water quality. However, maintenance is not included in any of the analysed papers. It is not itself a subject of study, but it is considered as an intrinsic action in order to maintain the level of services.
Focusing on marinas’ services, the major goal of a marina is to attend to boats and their seafarers, and to provide leisure for the boatmen and visitors. The nature and variety of the services provided depend on the legal framework [58,79], the land availability [35,80,81], the compatibility of associated uses [82,83], as well as the type of owner and boat catered for [35,45,84]. Thus, boaters want to understand what sort of facilities and services they will find before travelling to a marina because variety and quality of services offered are a competitive advantage and a selection factor [20,85]. Port managers must learn from customers’ needs and their requirements for the future [27,86]. The sale of services is one of the essential economic meanings of a port [86]. Martín [22] has defined a marina as a port used exclusively or primarily by pleasure boats, providing services for such boats and their users, and allowing the establishment of a transit between water and land in terms of comfort. Whilst commercial ports are designed to make the port stay of the vessels shorter, marinas are conceived for leisure; therefore, the provision of a pleasant stay is attempted, seeking for a character of permanence more than the mere transit of boats and crews [22]. The services provided have been evolving, not only by technological advances, but also by the new needs of users. The principal design problem of the nautical offer is to coincide with the perspective of the users and what they request, and even to surprise them by providing more that they expect [26,87,88,89]. This fact requires flexibility enough within a programme, distinguishing between three main types of provisions: “that which serves the boats, that which serves the owners and that which […] is only remotely connected with boating or even not connected at all” [20] (p.64). The focus on the various parts that encompass these factors characterizes the evolving stages in marina services: (a) boat-based, (b) human environment, and (c) community environment. In the beginning, marinas were places just for berthing boats, so it was necessary to take care of the boat. However, increased interest necessitated concern about the boat owner too: while the boat is safely afloat, the owner may enjoy himself. This changed the business from being conducted from offshore to onshore, to one also being focused on the desires of the boat owners and their requirements.
In relation to financial feasibility, it establishes the total costs and the probable return that may be expected over a given period, determining how successful a project can be. Nevertheless, this economic evaluation must consider both economic and non-market values because these maritime facilities have a high social value, and contribute to the enhancement of individuals’ welfare [90]. The marinas are tourist elements, generally associated to nautical tourism [5,45,84,88,91,92]. They need high investment; however, they usually have slow revenue. Moreover, they must guarantee the continuity of their economic viability through safe and successful port services and operations, retaining boat owners and visitors through the satisfaction of their requirements, and offering a high-quality service [45,84,87,93,94].
Focusing on the environmental management, it must be considered in a widespread definition, including topics such as minimizing environmental impact, enhancing environmental compatibility and quality, or the existence of certified management standards, between others [58,95]. The environmental protection is the main topic because the activities developed in the marinas are likely to generate impact on their environment. This item has been broadly studied by literature, such as pollution problems [15,56,70,73,96,97], conditions to the coastal dynamics [61,98], as well as to the flora and fauna [54,99,100,101,102,103,104,105]. Nevertheless, environmental management strategies are rare in marinas [57]. The relationship with the environment has been studied for the commercial ports, such as relations with their surroundings [79,83,106] or the safety of facilities [40,107,108], but to a lesser extent for marinas. The main topics related to the condition of the marina on the surrounding development are the participation of local communities [91,109,110,111,112,113] as well as the relationship with nautical tourism [6,89,92]. In addition, the sense of being in a secure environment, protected against danger, damage, and vandalism also has a positive impact on users of the marina [45,84].
Nowadays, new intangible items have been brought in the management of marinas. They have introduced new concepts related to environmental management, such as social aspects [111,113,114,115] and the character, understood as what makes the marina have a unique and different pattern from its surroundings [16,24,27,116]. In addition, the sustainability of the maritime facilities has been taken into account [66,113,117,118,119] in an attempt to find a balance between the tourists and the local residents or users, whilst facilitating the development of future opportunities.
Finally, the state of maintenance is in the group of main indicators of good management of marina because it is the cornerstone of the safety of the facility and its long-term survival [18,21]. Facilities should be maintained so that they may perform the functions for which they have been built [33]. As noted by Zhang et al. [120], it is also important to note that the marina is exposed to a harsh environment, which requires more attention, and the consequences associated with a disruption to services provided affects the efficiency and image of the marina. The marinas must not only present a level of satisfaction, but it is also necessary to preserve it over time, performing the maintenance tasks for this purpose. In other words, the condition of infrastructural performance is directly related to quality perception [84,120].
In any case, in addition to the above, management processes should be based on flexibility and adaptation, with the capacity enough to create new services adjusted to users [118,121].

3.2. Landscape Dimension within Marina Management

To provide the landscape focus, the selected elements of the marina’s management were analysed, taking into account the landscape’s dimension. Based on Martín and Yepes’ [16] analysis of the elements that embrace landscape within marinas, we confronted the most significant elements of the management obtained previously, with the elements of the landscape in marinas. As a determination criterion, we considered to main aspects: (a) physical and (b) perceived/subjective/social. The first one refers to the visibility properties of the elements, taking into account their size or their number. The second refers to the possibility to create an impression or judgement in the observer (positive or negative), as well as being able to establish links with the image of the marina to be transmitted (Table 3).

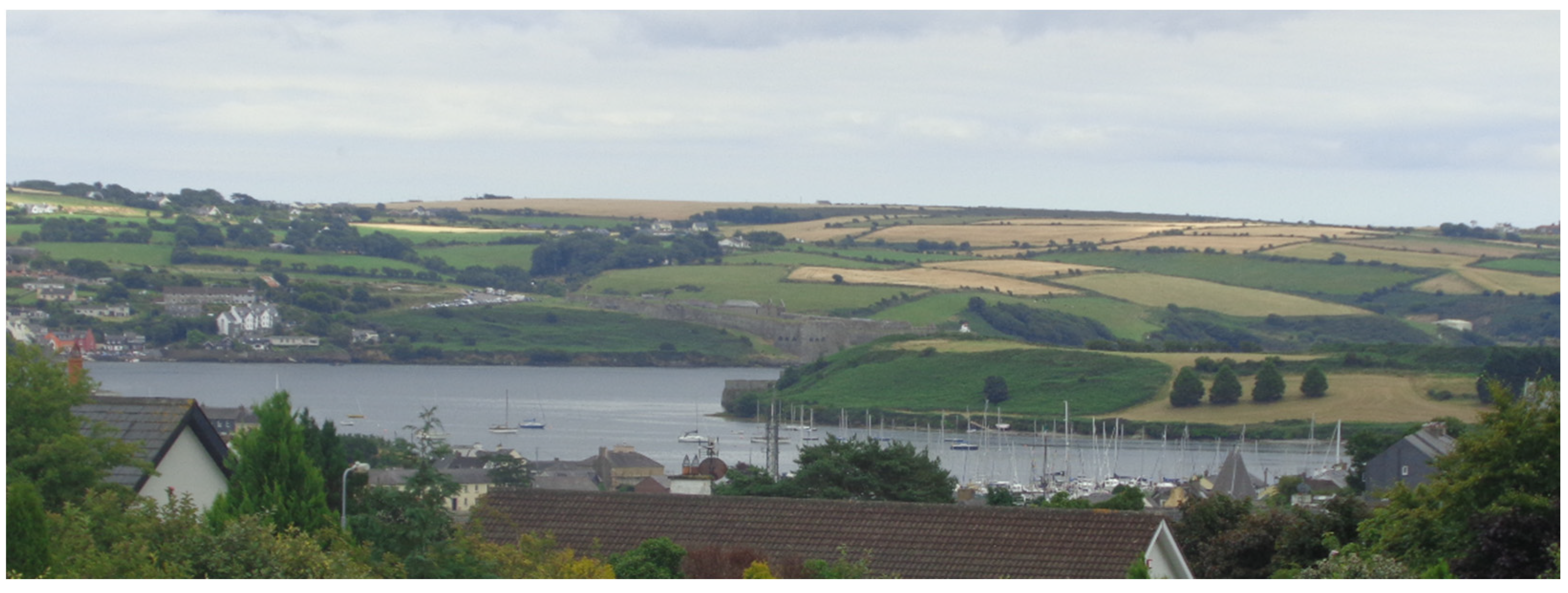

A marina is a maritime infrastructure that responds to a lacking need in the environment, in particular, a sheltered area for boats. The alleviation of these shortcomings is materialized through the transformation of the natural processes using technology [122]. The absence of boats in a marina leaves no justification of the need for such infrastructure, causing not only the destruction of the existing landscape, but also social rejection [3]. Therefore, the degree of occupancy of berths reflects the degree of acceptance of this maritime infrastructure, because the small craft and the sailing boats are the justification of every marina. Besides, the variety of boats and vessels, and the maritime activity developed, have been an attraction since antiquity [20,123]. Vessels identify and configure all ports (Figure 3 and Figure 4).
Water is an essential element within the design of the landscape [124,125]. This aspect is obvious in the marinas: their configuration (breakwaters embracing a sheltered sheet of water) provides a visual attractiveness and cultural links [126,127]. The surface of water is the focus of all ports [3,128]. The piers and pontoons are distributed on all these surfaces according to the characteristics of the boats and their maneuverability. In addition, this distribution determines the amount of the sheet of water seen. Thus, viewpoints will be more suitable where the dock is wide enough to allow a vision of an extensive water surface, or where the mooring lines are located at a minor angle than with respect to the direction of vision (Figure 3 and Figure 5). Nevertheless, the importance of the extension of the surface of water seen is not only due to visual motives, but also of comprehension: the water is the means of transport of the boats, and it is bonded together with the rest of the surrounding water. There must be a visual coherence between sheltered and open water.
In relation to port uses, the first stage is to establish a spatial port planning, defined as a general plan of programmed actions with a dynamic nature in order to achieve future objective of management, starting with some personal constraints [129,130]. The use of the term “spatial planning” is an advantageous fact because it is becoming the term for territorial planning and policy making at all spatial scales [131]. Generally, spatial planning has been reduced “to little more than the allocation of land use and the logistics of distribution” [132] (p. 24). However, as discussed by Alemany and Bruttomesso [133], the traditional economic and functional approach to port spatial planning must be complete with another consideration, such as city–port relationship, cultural and heritage aspects, or landscape, among others. Therefore, the processes of spatial planning should address the relationship with the environment of the port from the sharing not only from space, but also of strategies and targets, starting from a mutual understanding of the respective requirements and needs, and with a shared negotiation of policies [10]. Complementary and compatible uses can help to improve these links between the marina and the city, serving as transition spaces from the strictly urban uses to the port uses, making port uses compatible with urban life [134].
With respect to the distribution of activities, the location of the elements with a great visual impact (Figure 3 and Figure 6), such as ships yards, boat storage hangars, or parking lots, must be studied with the aim of not impairing the relationships above. It is also necessary to take into account the port character of these elements. In addition, landscaping is a tool whose use can help mitigate the visual impact of the elements, in addition to the attractiveness that it presents (Figure 3 and Figure 7).

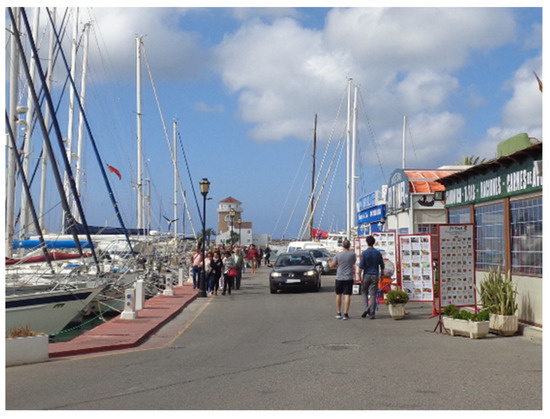

Regarding mobility, the port activities generate new traffic flows affecting the existing ones, both within the marina itself, and interfering with urban mobility [134]. An added difficulty rests on the ambiguity distinction between visitors and marina users, since both groups generally stay in the same place and use similar services [135]. In addition, the linear utilities have a significant effect on the visual environment, causing a fragmentation of the space and concentrating the flows [136,137,138]. Within these linear infrastructures, walkways and bike paths are important from the perspective of the landscape, both for its leisure character and for the lower speed circulation that allows more attention to be paid to the landscape. Moreover, the incompatibility between landscape users and a status may lead to various negative outcomes [139] (Figure 3 and Figure 8). The path has some elements designed to make it more attractive for users, such as the width, traffic separation measures, greenery and woodland availability, and the presence of other pedestrians [140,141]. Nevertheless, it also must be a coherent and legible place, allowing for an easy way to find a destination and return [142], and it must provide viewpoints around it.
Related to port services, there are elements associated with the providing of the service required and which have an important visual impact because they strongly mark the area, providing sense and coherence to the landscape [143]. The port office or other buildings as the main construction for general services, or maritime signaling and beacons as primordial visual elements for sailing, also serve as visual attractors to the landscape (Figure 3 and Figure 9). Most of these elements are easily identifiable at each port and provide their own identity [144], which also help to avoid a homogeneous surrounding landscape. Therefore. These elements may improve the port’s character, helping to enhance and imbricate it in the collective. It is also reached through the introduction of local peculiarities and practices [143,145], which also leads to the achievement of the concept of singularity at the place [132,146,147].
The search for links between small ports and users is achieved through the singling-out of space, which can be reached through several positions, mainly through the building elements and quality. First is to focus on the constructive elements of the port, both in the recognition and preservation of traditional elements corresponding to infrastructure or superstructure and the execution of new unique buildings which differentiate with respect to other ports, applicable to the port office, the building of services, fish markets, or the rooms of ship-owners [3,148]. If these traditional elements have a cultural heritage, they also help to enhance the character and the identity of the marina [149], which turns the space into the protagonist. Secondly, it is highlighted in the quality of the product offered, affecting both the provision of services and the environmental values existing within the port. It is also necessary to favour the permeability of the flows in the contact and provides a new vision that brings the port to its surroundings through the agglutination of these images.
Financial viability is not considered a direct influence on the landscape, but rather an indirect one, as the greater availability of economic resources allows a greater number of resources to deal with the landscape. Nevertheless, it is also necessary to consider that a pleasant landscape is able to generate economic benefits due to the quality of the environment and panoramic sights of its surroundings which are attractive to people [15,150].
Nowadays, there is an increase in awareness of the importance of the quality of the landscape [151], and environmental quality is one of the core values when perceiving the identity of the site [152]. Human uses of coastal waters interact with the natural environment depending on the nature and intensity of these activities. Marinas are crucial to maintain or enhance the environmental quality [63]. Marinas, as ports in general, are containers of contaminants due to significant factors [153,154]: they have been designed to create sheltered water (minimising hydrodynamic energy) and they are direct and indirect sources of pollution. The first one is due to the commercial activities developed inside (accidental spills, hull cleaning, painting, etc.,) and, secondly, because they are receptors or industrial and urban activities (e.g., wastewater emissions). The environmental impacts of marinas have long been a topic to many scholars and researchers [100,155,156], specially related to recreational boats which are responsible for significant environmental challenges for waterways and seagrass [95,157,158,159].
If we focus on environmental management in marinas, firstly we must take into account that anthropogenic activities can generate diversity and a decrease of the quality of the coastal environment [160,161]. Landscape visual quality is directly linked to public perception [162], and a neglect of the environment can represent a decrease in the attractiveness for visitors and users of the marina [16,160]. This fact is more remarkably related to the surface of water of the basin: directly, it is the focus of the marina, and indirectly, it affects seawaters. Secondly, waste management has a double impact over marina landscape, both on the environment and on the landscape. It is not just adopting guidelines for the compliance of applicable legislation to dangerous and non-dangerous waste, but also that waste itself has a visual impact [63], and a poor management produces a decrease in the image of the marina, also negatively affecting the environment. Finally, the adoption of codes of action and environmental certifications encourage the marina to move beyond compliance with environmental quality [160]. The implementation of contingency plans against marine pollution and environmental management certificates are guarantors of the maintenance of the environmental quality.
The most important goal in the relationship of the marina with its surroundings is to get people to perceive this space as something of their own. Place is not a mere physical space but is conditioned by other intangible elements, such as cultural practices [132] or the existence of a “genius loci” as the strong character of a place with clearly defined and easily identifiable features that determines their image and identity [146]. In addition, Girard [10] (p. 178) has defined a place as “spaces characterized by high levels of values and meanings, with interconnections in time and space of different components (tangible and intangible) that determines a sense of unity and wholeness”. The gaining of this character should be achieved by transforming the marina into a focal point of attraction of its environment, improving the interaction and exchange of experiences [3,127,163,164]. Therefore, every place is configured as a physical reality and a subjective perception [145,164,165]. It can be stated that “place” is obtained by adding to “space” the set of relations between configuration and environment; it is a cultural site. When a space becomes a place, its vision becomes landscape. However, the relationship with the environment is also developed in a physical way: the marina, as a coastal infrastructure, affects the dynamic process and generates impacts on the adjacent coast [60,166,167]. Measures must be taken to avoid shore erosion and to encourage the preservation of the environment, such as beach nourishment or by-pass process [168].
Place is defined not only by its quantitative and qualitative properties, but also by its surroundings [169]. Thus, the needs of the environment should be addressed as far as possible by analysing the relationships and influences of both [10]. Enhancing the interchange fluxes of knowing between the marina and its environment helps strengthen these relationships. These fluxes can be physical (permeability) and social (porosity). On the one hand, the best way to know a site is through the ripple effect, that is, to favour its permeability [169]. In analogy with waves, when their transmission through the medium is not possible, they disappear. It is necessary to seek into the balance between existing flows and port operability, which allows penetrating within the reality of space. The accumulation of the coherent visions of a space allows for the achieving of its conception and understanding as a place [170]. In addition, there must be a visual compatibility with the environment. As noted by Krause [143], a local landscape image reflects a part of the landscape’s general spatial character. Therefore, it should attempted to encompass the broad spatial pattern and its interconnections, enhancing the value though the natural, socio-cultural features. On the other hand, the term porosity refers to a more diffuse interface and emphasises the overlapping of the different socio-economic dimensions [171]. The proximity to environmental amenities and disamenities in the surrounding area is an indirect reflection of the value of the space [172]. In this sense, the arrangement of adjacent spaces and their complementary uses help to resolve the transition between the different uses. Moreover, the overlapping of the mutual knowing in a territory—such as the promotion of the nautical promotion in the surroundings and the promotion of the surroundings within the marina—and urban level—the celebration of marina activities within the port or the cession of port space for urban uses—are factors of imbricating those spaces.
New governance may be encouraged and spread out, characterized by an adaptive, participative, and reflective management, involving all stakeholders and inhabitants. This strategy allows for the creation of a more positive image of the marina and a greater relationship with their environment [10].

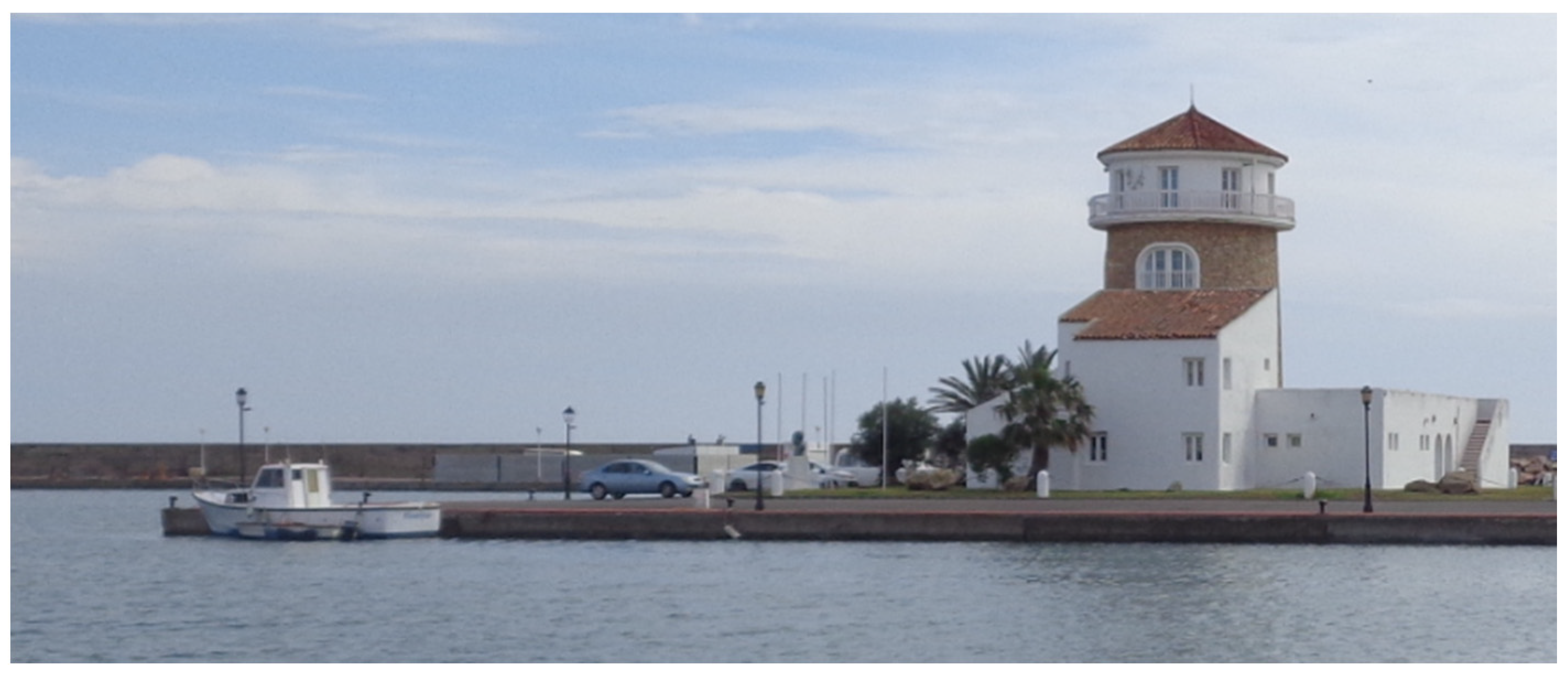

The marina must be able to create a relationship between physical elements and the needs of people, transforming the conceived space and the living space. It must be sought that people form an integral part of the visual environment: as space become socialized, it becomes place [170,173]. The planning process must drive this new space in concordance with the social memory, that is, the new space must have be attractive enough for people to assume the new meaning and impose it on the previous one [174]. The introduction of the new codes in the significance of space must be based on the set of intangible elements that constitute the “soft values” of the marina, which produce new benefits and promote correlation with their environment [10,175].

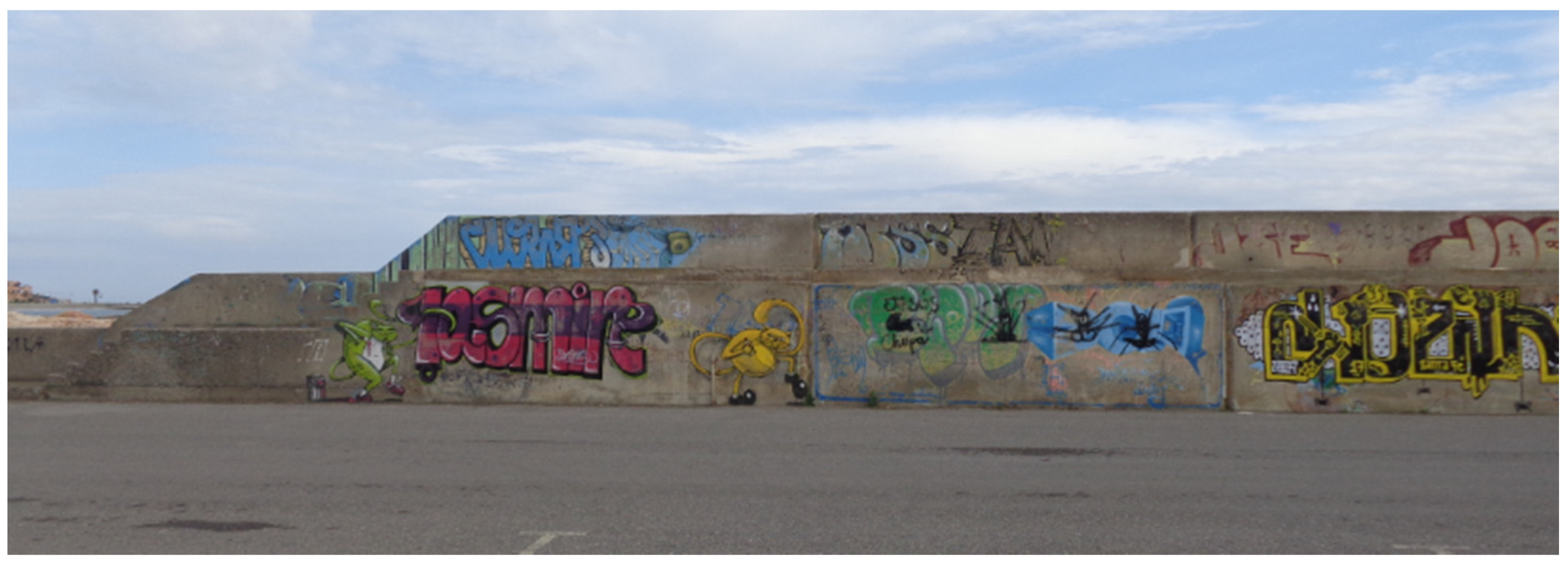

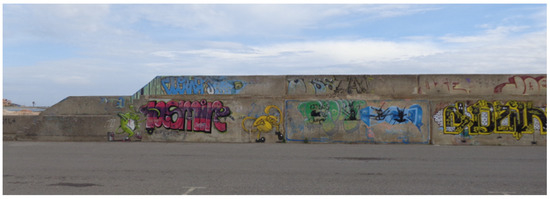

Security and landscape are related in the sense of taking all the measures to protect a place, and preserving its state. In an analogy given by Sklenicka et al. [176], the success of preservation strategies is dependent on a blend of incentives, planning actions, and restrictions. Incentives should be considered, as all actions are carried out with the aim of getting stakeholders involved. Planning actions are related to all processes, driving how to preserve the landscape or the features that comprises the landscape. In a general sense, emergency plans for different issues, e.g., pollution prevention, marine contingency plans, and even maintenance plans, should include a landscape preservation approach. Finally, the port space close to urban uses may be considered as undeveloped open space, and the high value of these areas increase pressure over port uses. Nevertheless, all open space is not public space; although public space invites interaction between people, relaxation, or walking [177], the port activity presents uses in intensity, danger, or economic benefit that justifies its separation from other spaces. However, these separations must be sufficiently permeable not to isolate the port from the urban uses, and should not be a barrier to urban flows [16,20]. In addition, surveillance is a preventive measure to prevent the deterioration and ensure the preservation of the landscape.
Another measure to preserve the state of the landscape is through maintenance, that is, all the actions carried out with the aim of preserving it in its being, giving vigour and permanence. As Zhang et al. [120] has shown, the main reasons for port infrastructure maintenance are: (a) maintaining the operating level of the feature for the maximum lifetime; (b) the exposure environment is aggressive; (c) the high cost of the consequence associated with port infrastructure failure. From the perspective of landscape, the maintenance must be considered in two ways: visual and structural. Firstly, the maintenance will be more important than the greater visibility elements to be considered (Figure 3 and Figure 10), both by their volume (breakwaters, seawalls, buildings, docks, and berths) and by the number of observers (e.g., statutory services, pavements, landscaping, public spaces and urban furniture). Secondly, it also ensures that the elements maintain their function, there being coherence between the element and its meaning (e.g., a port mouth loses its function and meaning if the siltation and lack of dredging produces its closure) Thus, the condition of visual and infrastructural performance affects the efficiency of port landscape.
Although landscape is a recurrent topic in the regeneration of waterfronts and derelict port areas [133,145,178,179,180,181,182,183,184], this issue is addressed to a lesser extent in marinas, sometimes in a vague and ambiguous way.
Some scholarships remark the pleasant environment as a major attractive stimulus for users of marinas, formed as a harmonic and balanced set of shapes on land and water [18,185]. A pleasant atmosphere where sharing experiences also represents an element which lure visitors to marinas [161,186]. The aesthetic conditions should also be expanded to the relationship with the environment [20,163]. Girard [187] has analysed various factors related to the beauty of ports. Martín and Yepes [16] identified the elements that integrates the landscape in the marinas. Therefore, the landscape is a strategic factor that influences port management [39].
In order to investigate marina management, it could be beneficial to analyse other researchers’ scientific databases. The use of more related terms and Boolean operators could also help expand the field or review. Likewise, each marina has its own particularities, both from an environmental, social, economic, or cultural point of view. This makes this review a mere starting point, and not a general procedure. This represents a tool for each marina manager to make modifications so that the marina will be better characterized.
Finally, based on the concept of landscape, which is understood as a relationship between people and its environment, this review shows which of these elements may be considered for the implementation of the landscape within marinas. In this sense, it can be seen that that landscape goes beyond a mere physical perception, and that the social/subjective aspects should be taken into account when considering the marina landscape. This better understanding represents a two-fold competitive advantage: on the one hand, it allows a better identification of the elements for its management; on the other hand, it allows the implementation of specific strategies when dealing with the image and identity of the marina.

4. Conclusions

We have carried out a review of management issues related to marinas. We have identified a concern on environmental aspects, specifically on issues related to marine pollution and water quality. Nevertheless, an assessment from the viewpoint of landscape revealed a lack of consistency in the applied frameworks. This review showed that landscape is often excluded from management. Therefore, it seems to be reasonable to establish a relationship between landscape and management.
The ELC has called for the assessing of landscapes, in identifying their characteristics and in defining quality objective. In this way, based on visibility and social perception, it was possible to establish a set or relevant elements within marinas, both from the perspective of management and landscape. This provided a starting point to introduce landscape in marina management. However, the related elements may vary depending on each marina, since each one has its own particularities, whether social, cultural, economic, or geographical. Research effectiveness will be best enhanced through a rating of the elements that constitute the landscape in each marina and how they are managed.
Faced with the particular idiosyncrasies of the marinas, landscapes play an essential role in defining the people’s welfare, the environmental quality, and the scenic views, as well as being an important economic resource. Therefore, it is possible to remark the importance of landscape in the management of the marinas and its consideration as a potential competitive advantage.

Author Contributions

Conceptualization, R.M. and V.Y.; methodology, R.M. and V.Y.; validation, R.M. and V.Y.; formal analysis, R.M.; investigation, R.M. and V.Y.; resources, V.Y.; data curation, R.M.; writing—original draft preparation, R.M.; writing—review and editing, R.M. and V.Y.; supervision, V.Y.; project administration, V.Y.; funding acquisition, V.Y. All authors have read and agreed to the published version of the manuscript.

Funding

The authors acknowledge the financial support of the Spanish Ministry of Science and Innovation (Project: PID2020-117056RB-I00), along with FEDER funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable, this research is a review.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Council of Europe. European Landscape Convention and Explanatory Report. Document by the Secretary General Established by the General Directorate of Education, Culture, Sport and Youth, and Environment. 2000. Available online: https://rm.coe.int/CoERMPublicCommonSearchServices/DisplayDCTMContent?documentId=0900001680080621 (accessed on 15 May 2016).
  2. Swanwick, C. Landscape Character Assessment. Guidance for England and Scotland. The Countryside Agency-Scottish Natural Heritage. 2002. Available online: https://www.nature.scot/landscape-character-assessment-guidance-england-and-scotland (accessed on 14 October 2015).
  3. Martín, R.; Yepes, V. El paisaje en la planificación y gestión de los puertos deportivos en Andalucía. The landscape in the planning and management of marinas in Andalucia. Rev. Obras Públicas 2017, 164, 38–55. [Google Scholar]
  4. Council of Europe. Recommendation CM/Rec (2008)3 of the Committee of Ministers to Member States on the Guidelines of the Implementation of the European Landscape Convention. 2008. Available online: https://rm.coe.int/16802f80c9 (accessed on 15 May 2016).
  5. Orams, M. Marine Tourism: Development, Impacts and Management; Routledge: London, UK; New York, NY, USA, 1999. [Google Scholar]
  6. Luković, T. (Ed.) Nautical Tourism; CAB International: Boston, MA, USA, 2013. [Google Scholar]
  7. Ugolini, G.M.; Ivaldi, E. Tourist ports and yachting: The case of Sardinia. Rev. Estud. Andal. 2017, 34, 429–452. [Google Scholar] [CrossRef]
  8. Lam-González, Y.E.; Suárez-Rojas, C.; León, C.J. Factors constraining international growth in nautical tourism firms. Sustainability 2019, 11, 6846. [Google Scholar] [CrossRef] [Green Version]
  9. Lučić, L.; Luković, T. Controlling as a function of successful management of a marina. Dubrov. Int. Econ. Meet. 2017, 3, 469–479. Available online: https://hrcak.srce.hr/187403 (accessed on 8 November 2020).
  10. Girard, L.F. Sustainability, creativity, resilience: Towards new development strategies of port areas though evaluation processes. Int. J. Sust. Dev. 2010, 13, 161–184. [Google Scholar] [CrossRef]
  11. Benevolo, C.; Spinelli, R. Benefit segmentation of pleasure boaters in Mediterranean marinas: A proposal. Int. J. Tour. Res. 2021, 23, 134–145. [Google Scholar] [CrossRef]
  12. Bonadonna, A.; Rostagno, A.; Beltramo, R. Improving the landscape and tourism in marginal areas: The case of land consolidation associations in the North-West of Italy. Land 2020, 9, 175. [Google Scholar] [CrossRef]
  13. Jiménez-García, M.; Ruiz-Chico, J.; Peña-Sánchez, A.R. Landscape and tourism: Evolution of research topics. Land 2020, 9, 488. [Google Scholar] [CrossRef]
  14. Tian, M.; Cànoves, G.; Chu, Y.; Font-Garolera, J.; Prat Forga, J.M. Influence of cultural background on visitor segment/s tourist destination image: A case of Barcelona and chinese tourits. Land 2021, 10, 626. [Google Scholar] [CrossRef]
  15. Petrosillo, I.; Valente, D.; Zaccarelli, N.; Zurlini, G. Managing tourist harbors: Are managers aware of the real environmental risks? Mar. Pollut. Bull. 2009, 58, 1454–1461. [Google Scholar] [CrossRef] [PubMed]
  16. Martín, R.; Yepes, V. The concept of landscape within marinas: Basis for consideration in the management. Ocean Coast. Manag. 2019, 179, 104815. [Google Scholar] [CrossRef]
  17. Benevolo, C.; Spinelli, R. The use of websites by Mediterranean tourist ports. J. Hosp. Tour. Technol. 2019, 10, 190–204. [Google Scholar] [CrossRef]
  18. Chaney, C.A. Marinas Recommendations for Design, Construction and Maintenance, 2nd ed.; National Association of Engine and Boat Manufacturers, Inc.: New York, NY, USA, 1961. [Google Scholar]
  19. Dunham, J.W.; Finn, A.A. Small-Craft Harbors: Design, Construction and Operation (Special Report No.2); US ASCE Costal Engineering Research Center: Fort Belvoir, VA, USA, 1974. [Google Scholar]
  20. Adie, D.W. Marinas, A Working Guide to their Development and Design, 3rd ed.; The Architectural Press Ltd.: London, UK, 1984. [Google Scholar]
  21. Tobiasson, B.O.; Kollmeyer, R.C. Marinas and Small Craft Harbours; Van Nostrand Reinhold: New York, NY, USA, 1991. [Google Scholar]
  22. Martín, F.J. Dirección de Instalaciones Náutico Deportivas; Management of Nautical Sports Facilites; Centro Internacional de la Marina de Recreo: Madrid, Spain, 1995. [Google Scholar]
  23. Arrol, S.J. The Marina Manual; Arrol Limited: St. Helier, Jersey, UK, 2010. [Google Scholar]
  24. ASCE (American Society of Civil Engineers). Planning and Design Guidelines for Small Craft Harbors, 3rd ed.; ASCE: Reston, VA, USA, 2012. [Google Scholar]
  25. PIANC (Permanent International Association of Navigation Congress). Guidelines for Marina Design; Report n°149/part IV; PIANC: Brussels, Belgium, 2017. [Google Scholar]
  26. Martín, F.J. (Ed.) Curso práctico de Dirección de Instalaciones Náuticas de Recreo; Practical Course on the Management of Recreational Nautical Facilites; Escuela Oficial de Turismo de la Universidad de Alicante: Murcia, Spain, 2003. [Google Scholar]
  27. Heron, R.; Juju, W. The Marina: Sustainable Solutions for a Profitable Business; CreateSpace Independent Publishing Platform: London, UK, 2012. [Google Scholar]
  28. Bell, F.W.; Leeworthy, V.R. Economic demand for marinas and projected impact on wetlands. Land Econ. 1987, 63, 70–91. [Google Scholar] [CrossRef]
  29. Walsh, D. Pleasure in the ports: Can recreation and shipping live together? Proceeding of the OCEANS’87, Halifax, NS, Canada, 28 September–1 October 1987; IEEE Publishing Service: New York, NY, USA, 1987; pp. 737–742. [Google Scholar]
  30. Sheppard, H. Marketing and Management Options. ICOMIA Library. 1998. Available online: https://www.icomia.org/content/marketing-and-management-options (accessed on 3 August 2021).
  31. Zambonino, M. Puertos y Costas: Régimen de los Puertos Deportivos; Ports and Coasts: Marina Regime; Tirant lo Blanch: Valencia, Spain, 1997. [Google Scholar]
  32. Castillo-Manzano, J.I.; Casto-Nuño, M.; González-Laxe, F.; Pedregal, D.J. Legal reform and the devolution of the Spanish Port System: An econometric assessment. Util. Policy 2018, 50, 73–82. [Google Scholar] [CrossRef]
  33. Magalhães, C.; Carmona, M. Dimensions and models of contemporary public space management in England. J. Environ. Plan. Manag. 2009, 52, 111–129. [Google Scholar] [CrossRef]
  34. Kasum, J.; Mikuličić, J.K.; Fredorivić, K.B. Nautical tourism. In WIT Transactions on Ecology and the Environment: Management of Natural Resources, Sustainable Development and Ecological Hazards III; Brebbia, C.A., Zubit, S.S., Eds.; WITT Press: Southampton, UK, 2011; Volume 148, pp. 597–602. [Google Scholar] [CrossRef] [Green Version]
  35. European Commission. Assessment of the Impact of Business Development Improvements around Nautical Tourism; Publications Office of the European Union: Luxemburg, 2016; Available online: https://op.europa.eu/en/publication-detail/-/publication/473c0b82-18f9-11e7-808e-01aa75ed71a1 (accessed on 23 October 2020).
  36. Janković, S.; Vlačić, D. Developing a benchmarking methodology for marina business. Tour. Mar. Environ. 2018, 13. [Google Scholar] [CrossRef]
  37. Bukša, J.; Jugović, A.; Schiozzi, D.; Renato, O. The compromise model—One way to a better performance of a nautical tourism port. Eur. Transp. 2019, 74, 6. Available online: http://www.istiee.unict.it/sites/default/files/files/Paper%206%20n%2074%20(1).pdf (accessed on 22 October 2020).
  38. Kovačić, M.; Dundović, C.; Bošković, D. Nautical tourism development through integrated planning. Pomorstvo 2007, 21, 189–210. Available online: https://hrcak.srce.hr/14194 (accessed on 2 November 2020).
  39. Raviv, A.; Tarba, S.Y.; Weber, Y. Strategic planning for increasing profitability: The case of marina industry. EuroMed J. Bus. 2009, 4, 200–2014. [Google Scholar] [CrossRef]
  40. Yang, Z.; Ng, A.K.; Wang, J. A new risk quantification approach in port facility security assessment. Transport. Res. Part Policy Pract. 2014, 59, 72–90. [Google Scholar] [CrossRef]
  41. Bilski, M. Selected human factors in marina design. Procedia Manuf. 2015, 3, 1646–1653. [Google Scholar] [CrossRef] [Green Version]
  42. Rivera, M. The marinas as infrastructures of it supports of the nautical recreational activities in Andalusia. Bol. Asoc. Geogr. Esp. 2010, 54, 453–458. [Google Scholar]
  43. Stipanović, C.; Gračan, D. Development strategies functioning as ACI marina Umag competitiveness. NAŠE MORE Znan. Časopis Pomorstvo. 2005, 52, 163–172. Available online: https://hrcak.srce.hr/8281 (accessed on 2 November 2020).
  44. Manigel, U. IMCI Blue Star Marina Certification—A transparent system to indicate the quality level of marinas. J. Coast. Res. 2011, 61, 123–125. [Google Scholar] [CrossRef]
  45. Paker, N.; Vural, C.A. Customer segmentation for marinas: Evaluating marinas as destinations. Tour. Manag. 2016, 56, 156–171. [Google Scholar] [CrossRef]
  46. Tegido, E. Financing new marinas in Spain. In WIT Transactions in The Building Environment: Coastal Engineering & Marina Deveopment; Brebbia, C.A., Anagnostopoulos, P., Eds.; WITT Press: Southampton, UK, 1999; pp. 489–496. [Google Scholar] [CrossRef]
  47. Fröhle, P. Marinas in German Coastal Areas. Die Küste 2008, 74, 404–410. Available online: https://hdl.handle.net/20.500.11970/101620 (accessed on 2 November 2020).
  48. Klancnik, F.A.; Phillips, P.L. Planning and financial considerations for small craft harbors. Proceedings of the 12th Triannual International Conference on Ports, Jacksonville, FL, USA, 25–28 April 2010; Ward, T., Ostbo, I., Eds.; ASCE: Reston, VA, USA, 2010; pp. 572–583. [Google Scholar]
  49. Marrou, L. Nautical frequentation and marina management. J. Coast. Res. 2011, 61, 126–132. [Google Scholar] [CrossRef]
  50. Andrés, M.A.; Madariaga, E.; Delgado, O.; Martínez, J.E. Marine pollution in the nautical seaports in Croatia by the effluent of tourist. Eur. Transp. 2017, 64, 3. [Google Scholar]
  51. Kasum, J.; Gržetić, Z.; Vidan, P. How nautical tourism ports affect the environment. In WIT Transactions in Ecology and the Environment: Management of Natural Resources, Sustainable Development and Ecological Hazards II; Brebbia, C.A., Jovanovic, N., Tiezzi, E., Eds.; WITT Press: Southampton, UK, 2009; pp. 123–133. [Google Scholar] [CrossRef] [Green Version]
  52. Mensa, J.A.; Vassallo, P.; Fabiano, M. JMarinas: A simple tool for the environmentally sound management of small marinas. J. Environ. Manag. 2011, 92, 67–77. [Google Scholar] [CrossRef]
  53. Rivero, N.; Dafforn, K.A.; Coleman, M.A.; Johnston, E.L. Environmental and ecological changes associated with a marina. Biofouling 2013, 29, 803–815. [Google Scholar] [CrossRef]
  54. Kenworthy, J.M.; Rolland, G.; Samadi, S.; Lejeusne, C. Local variation within marinas: Effects of pollutants and implications for invasive species. Mar. Pollut. Bull. 2018, 133, 96–106. [Google Scholar] [CrossRef] [PubMed]
  55. Ahmad, N.B.; Othman, M.R.; Saadon, M.S.I.; Nor, D.A.M. Sustainable development goal of the recreation port: The case study of the Duyong marina & resort, Terengganu, Malaysia. J. Crit. Rev. 2020, 7, 1449–1545. [Google Scholar]
  56. Ibabe, A.; Borrel, Y.L.; Knobelspiess, S.; Dopico, E. Perspectives on the marine environment and biodiversity in recreational ports: The marina of Gijon as a case study. Mar. Pollut. Bull. 2020, 160, 111645. [Google Scholar] [CrossRef] [PubMed]
  57. Valdor, P.F.; Gómez, A.G.; Juanes, J.A.; Kerléguer, C.; Steinberg, P.; Tunner, E.; MacLeod, C.; Knights, A.M.; Seitx, R.D.; Airoldi, L.; et al. A global atlas of the environmental risk of marinas on water quality. Mar. Pollut. Bull. 2019, 149, 110661. [Google Scholar] [CrossRef]
  58. Wilson, A.M.W.; Mugerauer, R.; Klinger, T. Rethinking marine infrastructure policy and practice: Insights from three large-scale marina developments in Seattle. Mar. Policy 2015, 53, 67–82. [Google Scholar] [CrossRef]
  59. Perkol-Finkel, S.; Hadary, T.; Rella, A.; Shirazi, R.I.; Sella, I. Seascape architecture—Incorporating ecological considerations in design of coastal and marine infrastructure. Ecol. Eng. 2018, 120, 645–654. [Google Scholar] [CrossRef]
  60. Galofré, J.; Montoya, F.J.; Medina, R. The influence of marina construction in beach stability: El Milagro case study. Proceedings of the 26th International Conference on Coastal Engineering, Copenhagen, Denmark, 22–26 June 1998; Billy, L.E., Ed.; ASCE: Reston, VA, USA, 2016; pp. 3388–3409. [Google Scholar]
  61. Klein, M.; Zviely, D. The environmental impact of marina development on adjacent beaches: A case study of the Herzliya marina, Israel. Appl. Geogr. 2001, 21, 145–156. [Google Scholar] [CrossRef]
  62. Dolgen, D.; Alpaslan, M.N.; Scrigoglu, A.G. Best waste management programs (BWMPs) for marinas: A case study. J. Coast. Conserv. 2003, 9, 53–63. Available online: https://www.jstor.org/stable/25098410 (accessed on 5 November 2020). [CrossRef]
  63. Madariaga, E.; Correa, F.; Oria, J.M.; Walliser, J. Methodology for waste management of nautical ports in Croatia. Proceedings of the 57th International Symposium ELMAR, Zadar, Croatia, 28–30 September 2015; IEEE: Piscataway, NJ, USA, 2015; pp. 189–192. [Google Scholar] [CrossRef]
  64. Bizarri, C.; La Foresta, D. Yachting and pleasure crafts in relation to local development and expansion: Marina di Stabia case study. In WIT Transactions on Ecology and the Environment: Coastal Processes II; Benassai, G., Brebbia, C.A., Rodríguez, G., Eds.; WITT Press: Southampton, UK, 2011; pp. 53–61. [Google Scholar] [CrossRef] [Green Version]
  65. Kovačić, M.; Gržeti, Z.; Bošković, D. Nautical tourism in fostering the sustainable development: A case study of Croatia’s coast and island. Tourismos 2011, 6, 221–232. [Google Scholar]
  66. Dragović, B.; Tselentis, V.; Papadimitriou, S.; Tzannatos, E.; Paladin, Z. Environmental management and monitoring for sustainable development in marinas. FME Trans. 2016, 44, 304–312. [Google Scholar]
  67. Polychronidou, K.; Liolios, K.; Tselentis, B.S. Marina development and environmental assessment requirements—The case of Lefkada Marina. In WIT Transactions Ecology on the Built Environment Maritime Engineering Ports III; Brebbia, C.A., Sciutto, G., Eds.; WITT Press: Southampton, UK, 2002; pp. 101–110. [Google Scholar] [CrossRef]
  68. Tselentis, V. Marina environmental review system: A methodology to assess environmental management in recreational ports. Eur. Res. Stud. J. 2008, 9, 47–59. [Google Scholar] [CrossRef]
  69. Tselentis, V.; Dragović, B.; Tzannatos, E.; Paladin, Z. A practical monitoring approach in marinas. A case study of Marina Bar. Proceedings of the 5th Mediterranean Conference on Embedded Computing (MECO), Bar, Montenegro, 12–16 June 2016; Stojanovic, R., Jozwiak, L., Lutovac, B., Eds.; IEEE: Piscataway, NJ, USA, 2016; pp. 504–507. [Google Scholar]
  70. Gómez, A.G.; Ondiviela, B.; Fernández, M.; Juanes, J.A. Atlas of susceptibility to pollution in marinas. Application to the Spanish coast. Mar. Pollut. Bull. 2017, 114, 239–246. [Google Scholar] [CrossRef]
  71. Dreizis, T. Examples of complex measures to improve water exchange in marina. MATEC Web Conf. 2018, 239, 03016. [Google Scholar] [CrossRef]
  72. Gómez, A.G.; Valdor, P.F.; Ondivela, B.; Díaz, J.L.; Juanes, J.A. Mapping the environmental risk assessment of marinas on water quality: The Atlas of the Spanish coast. Mar. Pollut. Bull. 2019, 139, 355–365. [Google Scholar] [CrossRef] [PubMed]
  73. Huguet, J.R.; Brenon, I.; Coulombier, T. Characterisation of the water renewal in a macro-tidal marina using several transport timescales. Water 2019, 11, 2050. [Google Scholar] [CrossRef] [Green Version]
  74. Martín, I. Economic development versus environmental sustainability: The case of tourist marinas in Andalucia. Eur. J. Tour. Res. 2009, 2, 162–177. Available online: https://ejtr.vumk.eu/index.php/about/article/view/35 (accessed on 5 November 2020).
  75. Silveira, L.; Santos, N.; Perna, F. Yachts passing by the West coast of Portugal—What to do to make the marina and the destination of Figuera da Foz a nautical tourism reference? Pomorstvo 2018, 32, 182–190. [Google Scholar] [CrossRef]
  76. Zviely, D.; Gitan, M.; DiSegni, D.M. The effect of sea-level rise in the 21st century on marine structures along the Mediterranean coast of Israel: An evaluation of physical damage and adaptation cost. Appl. Geogr. 2016, 57, 154–162. [Google Scholar] [CrossRef]
  77. DiSegni, D.M.; Bitan, M.; Zviely, D. Assessing the costs for adaptation of marine constructions to sea-level rise. J. Environ. Plan. Manag. 2017, 60, 2056–2070. [Google Scholar] [CrossRef]
  78. Garzia, F.; Sammarco, E.; Cusani, R. Vehicle/people access control system for security management in ports. J. Saf. Secur. Eng. 2012, 2, 351–367. [Google Scholar] [CrossRef]
  79. Daamen, T.A.; Vries, I. Governing the European port-city interface: Institutional impacts on spatial projects between city and port. J. Transp. Geogr. 2013, 27, 4–13. [Google Scholar] [CrossRef]
  80. Qanir, A. Planning of marina developments along the Moroccan coastline. Ocean Shorel. Manag. 1989, 12, 561–570. [Google Scholar] [CrossRef]
  81. Apicella, M.; Benassai, E.; Natale, M.; Panelli, E. An example of possible innovations in Mediterranean marina design. Mar. Pollut. Bull. 1991, 23, 403–410. [Google Scholar] [CrossRef]
  82. Hoyle, B.S. The port-city interface: Trends, problems and examples. Geoforum 1989, 20, 429–435. [Google Scholar] [CrossRef]
  83. Monios, J.; Bergqvist, R.; Woxenius, J. Port-centric cities: The role of freight distribution in defining the port-city relationship. J. Transp. Geogr. 2018, 66, 53–64. [Google Scholar] [CrossRef]
  84. Sari, F.O.; Bulut, C.; Pirnar, I. Adaptation of hospitality service quality scales for marina services. Int. J. Hosp. Manag. 2016, 54, 95–103. [Google Scholar] [CrossRef]
  85. Stone, R. The Key Role of Marinas in Nautical Tourism; ICOMIA Library. 2000. Available online: https://www.icomia.org/content/key-role-marinas-nautical-tourism (accessed on 3 August 2021).
  86. Vigarié, A. Ports de Commerce et Vie Littorale; Commercial Ports and Coastal Life; Hachette: Paris, France, 1979. [Google Scholar]
  87. Esteban, V. (Ed.) Náutica de Recreo y Turismo en el Mediterráneo: La Comunidad Valenciana; Nautical recreation and tourism in the Mediterranean: The Valencian Region; Síntesis: Madrid, Spain, 1998. [Google Scholar]
  88. Favro, S.; Gržetić, Z. Nautical tourism—The advantages and effects of development. In WIT Transactions on Ecology and the Environment: Sustainable Tourism III; Pineda, F.D., Brebbia, C.A., Eds.; WITT Press: Southampton, UK, 2008; Volume 115, pp. 35–44. [Google Scholar] [CrossRef] [Green Version]
  89. Lam, Y.E.; León, J.; León, C.J. European nautical tourists: Exploring destination image perceptions. Tour. Hosp. Manag. 2015, 21, 33–49. [Google Scholar] [CrossRef]
  90. Lee, M.; Yoo, S. Public’s willingness to pay for a marina port in Korea: A contingent valuation study. Ocean. Coast. Manag. 2016, 119, 119–127. [Google Scholar] [CrossRef]
  91. Sariisik, M.; Turkay, O.; Akova, O. How to manage yacht tourism in Turkey: A SWOT analysis and related strategies. Procedia 2011, 24, 1014–1025. [Google Scholar] [CrossRef] [Green Version]
  92. Kovačić, M.; Favro, S.; Peričić, M. Spatial and environmental preconditions for the establishment of nautical tourism ports. In Sustainable Development and Planning VI; Brebbia, C.A., Ed.; WIT Press: Sothampton, UK, 2013; pp. 369–381. [Google Scholar] [CrossRef] [Green Version]
  93. Abraham, C. How to Create Successful Marinas. ICOMIA Library. 2000. Available online: http://www.icomia.com/library/Default.aspx (accessed on 19 March 2021).
  94. Carpenter, A.; Lozano, R.; Sammalisto, K.; Astner, L. Securing a port’s future through Circular Economy: Experiences from the Port of Gävle in contributing to sustainability. Mar. Pollut. Bull. 2018, 128, 539–547. [Google Scholar] [CrossRef]
  95. Ritchie, W.J.; Melnyk, S.A.; Ni, J.Z. Environmental standard adoption in Marinas: A spatiotemporal analysis of a special form of maritime transportation hubs. Transp. Res. Part Transp. Environ. 2017, 55, 1–11. [Google Scholar] [CrossRef]
  96. Mali, M.; Dell’Anna, M.M.; Mastrorilli, P.; Damiani, L.; Ferruccio, A. Assessment and source identification of pollution risk for touristic ports: Heavy metals and polycyclic aromatic hydrocarbons in sediments of 4 marinas of the Apulia region (Italy). Mar. Pollut. Bull. 2017, 114, 768–777. [Google Scholar] [CrossRef] [PubMed]
  97. Neira, C.; Cossaboon, J.; Mendoza, G.; Hoh, E.; Levin, L.A. Occurrence and distribution of polycyclic aromatic hydrocarbons in surface sediments of San Diego Bay marinas. Mar. Pollut. Bull. 2017, 114, 466–479. [Google Scholar] [CrossRef] [Green Version]
  98. Cappucci, S.; Scarcella, D.; Rossi, L.; Taramelli, A. Integrated coastal zone management at Marina di Carrara Harbor: Sediment management and policy making. Ocean Coast. Manag. 2011, 54, 277–289. [Google Scholar] [CrossRef]
  99. Clynick, B.G. Characteristics of an urban fish assemblage: Distribution of fish associated with coastal marinas. Mar. Environ. Res. 2008, 65, 18–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  100. Di Franco, A.; Graziano, M.; Granzitta, G.; Felline, S.; Chemello, R.; Milazzo, M. Do small marinas drive habitat specific impacts? A case study from Mediterranean Sea. Mar. Pollut. Bull. 2011, 62, 926–933. [Google Scholar] [CrossRef]
  101. Bishop, J.D.D.; Wood, C.A.; Lévêque, L.; Yunnie, A.L.E.; Viard, F. Repeated rapid assessment surveys reveal contrasting trends in occupancy of marinas by non-indigenous species of opposite sides of the western English Channel. Mar. Pollut. Bull. 2015, 95, 699–706. [Google Scholar] [CrossRef]
  102. Oricchio, F.T.; Pastro, G.; Vieira, E.A.; Flores, A.A.; Gibran, F.Z.; Dias, G.M. Distinct community dynamics at two artificial habitats in a recreational marina. Mar. Environ. Res. 2016, 122, 85–92. [Google Scholar] [CrossRef]
  103. Chatzinikolaou, E.; Mandalakis, M.; Damianidis, P.; Dailianis, T.; Gambineri, S.; Rossano, C.; Scapini, F.; Carucci, A.; Arvanitidis, C. Spatio-temporal benthic biodiversity patterns and pollution pressure in three Mediterranean touristic ports. Sci. Total Environ. 2018, 624, 648–660. [Google Scholar] [CrossRef] [PubMed]
  104. Selfati, M.; El Ouamari, N.; Lenfant, P.; Fontcuberta, A.; Lecaillon, G.; Mesfioui, A.; Boissery, P.; Bazairi, H. Promoting restoration of fish communities using artificial habitats in coastal marinas. Biol. Conserv. 2018, 219, 89–95. [Google Scholar] [CrossRef]
  105. Martínez-Laiz, G.; Ulman, A.; Ros, M.; Marchini, A. Is recreational boating a potential vector for non-indigenous peracrid crustaceans in the Mediterranean Sea? A Combined biological and social approach. Mar. Pollut. Bull. 2019, 140, 403–415. [Google Scholar] [CrossRef] [PubMed]
  106. Zhao, Q.; Xu, H.; Wall, R.S.; Stavropoulos, S. Building a bridge between port and city: Improving the urban competitiveness of port cities. J. Transp. Geogr. 2017, 59, 120–133. [Google Scholar] [CrossRef]
  107. Yeo, G.; Pak, J.; Yang, Z. Analysis of dynamic effects on seaports adopting port security policy. Transp. Res. Part A Policy Pract. 2013, 49, 285–301. [Google Scholar] [CrossRef]
  108. Romero-Faz, D.; Camarero-Orive, A. Risk assessment of critical infrastructures—New parameters for commercial ports. Int. J. Crit. Infrastruct. Prot. 2017, 18, 50–57. [Google Scholar] [CrossRef]
  109. Žnidar, K.; Alfirević, N.; Pavičić, J. Business application of the sociological and psychological aspects of communities of interest: The case of nautical tourism in Croatia. Manag. J. Contemp. Manag. Issues 2014, 19, 45–61. Available online: https://hrcak.srce.hr/133219 (accessed on 22 October 2020).
  110. Gon, M.; Osti, L.; Pechlaner, H. Leisure boat tourism: Residents’ attitudes towards nautical tourism development. Tour. Rev. 2016, 71, 180–191. [Google Scholar] [CrossRef]
  111. Kovačić, M.; Favro, S.; Mezak, V. Construction of nautical tourism ports as an incentive to local development. Environ. Eng. Manag. J. 2016, 15, 395–403. [Google Scholar] [CrossRef]
  112. Moreno, M.J.; Otamendi, F.J. Fostering nautical tourism in the Balearic Islands. Sustainability 2017, 9, 2215. [Google Scholar] [CrossRef] [Green Version]
  113. Nebot, N.; Rosa-Jiménez, C.; Pié Ninot, R.; Perea-Medina, B. Challenges for the future of ports. What can be learnt from the Spanish Mediterranean ports? Ocean Coast. Manag. 2017, 137, 165–174. [Google Scholar] [CrossRef]
  114. Sislian, L.; Jaegler, A.; Cariou, P. A literature review on port sustainability and ocean’s carrier network problem. Res. Transp. Bus. Manag. 2016, 19, 19–26. [Google Scholar] [CrossRef]
  115. Sierra, L.A.; Pellicer, E.; Yepes, V. Method for estimating the social sustainability of infrastructure projects. Environ. Impact Assess Rev. 2017, 65, 41–53. [Google Scholar] [CrossRef] [Green Version]
  116. Mill, R.C. Resorts: Management and Operation; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2008. [Google Scholar]
  117. Paoli, C.; Vassallo, P.; Fabiano, M. An emergy approach for the assessment of sustainability of small marinas. Ecol. Eng. 2008, 33, 167–178. [Google Scholar] [CrossRef]
  118. Jugović, A.; Kovačić, M.; Hadžić, A. Sustainable development model for nautical tourism ports. Tour. Hosp. Manag. 2011, 17, 175–186. Available online: https://hrcak.srce.hr/75211 (accessed on 7 November 2020). [CrossRef]
  119. Kuznetsov, A.; Dinwoodie, J.; Gibbs, D.; Sansom, M.; Knowles, H. Towards a sustainability management system for smaller ports. Mar. Policy 2015, 54, 59–68. [Google Scholar] [CrossRef]
  120. Zhang, Y.; Kim, C.W.; Tee, K.F.; Lam, J.S.L. Optimal sustainable life cycle maintenance strategies for port infrastructures. J. Clean. Prod. 2017, 142, 1693–1709. [Google Scholar] [CrossRef]
  121. Jugović, A. Functioning of the management in port of nautical tourism of the Republic of Croatia. Sci. J. Marit. Res. 2016, 30, 51–57. [Google Scholar] [CrossRef] [Green Version]
  122. Rodiek, J. The evolving landscape. Landsc. Urban Plan. 1988, 16, 35–44. [Google Scholar] [CrossRef]
  123. Keller, A. The Twenty-One Books of Engineering and Machines of Juanelo Turriano (Turriano J., 1501–1575); A Translation of the Manuscript in the National Library; Fundación Juanelo Turriano: Madrid, Spain, 1996. [Google Scholar]
  124. Ramos, A.; Aguiló, M. The landscape of water: Introduction. Landsc. Urban Plan. 1988, 16, 1–11. [Google Scholar] [CrossRef]
  125. Nasar, J.L.; Li, M. Landscape mirror: The attractiveness of reflecting water. Landsc. Urban Plan. 2001, 66, 233–238. [Google Scholar] [CrossRef]
  126. Whalley, J.M. Water in the landscape. Landsc. Urban Plan. 1988, 16, 145–162. [Google Scholar] [CrossRef]
  127. Pinder, D.A.; Smith, H. Heritage and change on the naval waterfront: Opportunity and challenge. Ocean Coast. Manag. 1999, 42, 861–889. [Google Scholar] [CrossRef]
  128. Aguiló, M. Qué Significa Construir. Claves Conceptuales de la Ingeniería Civil; What It Means to Build. Conceptual Keys to Civil Engineering; Adaba: Madrid, Spain, 2013. [Google Scholar]
  129. Svendsen, A.S. Port Planning. In Port Engineering; Bruun, P., Ed.; Gulf Publication Company: Houston, FL, USA, 1989; pp. 29–81. [Google Scholar]
  130. Thoresen, C. Port Designer’s Handbook; Thomas Telford Limited: London, UK, 2010. [Google Scholar]
  131. Williams, R. European spatial planning and the cityport system. In European Port Cities in Transition; Hoyle, B.S., Pinder, D.A., Eds.; John Wiley & Sons, Inc.: New York, NY, USA, 1992; pp. 59–79. [Google Scholar]
  132. Frampton, K.T. Towards a critical regionalism: Six points for an architecture of resistance. In The Anti-Aesthetic: Essays on Postmodern Culture; Hoster, H., Ed.; The New York Press: New York, NY, USA, 1983; pp. 16–32. [Google Scholar]
  133. Alemany, J.; Bruttomesso, R. (Eds.) The Port City. New Challenges in the Relationship between Port and City; Rete: Venice, Italy, 2011. [Google Scholar]
  134. Grindlay, A.L.; Martínez-Hornos, S. City-port relationships in Málaga, Spain: Effects of the new port proposals on urban traffic. In WIT Transactions on the Built Environment: Urban Transport XXIII; Ricci, S., Brebbia, C.A., Eds.; WITT Press: Southampton, UK, 2017; Volume 176, pp. 45–56. [Google Scholar] [CrossRef] [Green Version]
  135. Barrera-Fernández, D.; Hernández-Escampa, M. Spatial analysis of tourist activities and services in the historic city: The cases of Málaga and Plymouth. Eur. J. Geogr. 2017, 7, 139–160. [Google Scholar]
  136. Hadrian, D.R.; Bishop, I.D.; Mitcheltree, R. Automated mapping of visual impacts in utility corridors. Landsc. Urban Plan. 1988, 16, 261–282. [Google Scholar] [CrossRef]
  137. Geneletti, D. Biodiversity impact assessment of roads: An approach based on ecosystem rarity. Environ. Impact Assess. Rev. 2003, 23, 343–365. [Google Scholar] [CrossRef]
  138. Ceia-Hasse, A.; Navarro, L.M.; Borda-de-Agua, L.; Pereira, H.M. Population persistence in landscapes fragmented by roads: Disentangling, isolation, mortality, and the effect of dispersal. Ecol. Model. 2018, 375, 45–53. [Google Scholar] [CrossRef]
  139. Daniel, T.C. Whither scenic beauty? Visual landscape quality assessment in the 21st century. Landsc. Urban Plan. 2001, 54, 267–281. [Google Scholar] [CrossRef]
  140. Hurtubia, R.; Guevara, A.; Donoso, P. Using images to measure qualitative attributes of public spaces through SP surveys. Trans. Res. Procedia 2015, 11, 460–474. [Google Scholar] [CrossRef] [Green Version]
  141. Erath, A.; van Eggermond, M.A.B.; Ordóñez, S.A.; Axhausen, K.W. Introducing the pedestrian accessibility tool: Walkability analysis for a Geographic Information System. Trans. Res. Rec. 2017, 2661, 51–61. [Google Scholar] [CrossRef]
  142. Kaplan, S.; Kaplan, R.; Ryan, R.L. With People in Mind: Design and Management of Everyday Nature; Island Press: Washington, DC, USA, 1998. [Google Scholar]
  143. Krause, C.L. Our visual landscape: Managing the landscape under special consideration of visual aspects. Landsc. Urban Plan. 2011, 54, 239–254. [Google Scholar] [CrossRef]
  144. Pinder, D. Seaport decline and cultural heritage sustainability issues in the UK coastal zone. J. Cult. Herit. 2003, 4, 35–47. [Google Scholar] [CrossRef]
  145. Braae, E.; Diedrich, L. Site specificity in contemporary large-scale harbour transformation projects. J. Landsc. Archit. 2012, 7, 20–33. [Google Scholar] [CrossRef] [Green Version]
  146. Norberg-Schulz, C. Genius Loci. Paesaggio, Ambiente, Architettura; Genius Loci. Landscape, Environment, Architecture; Electra: Milano, Italy, 1979. [Google Scholar]
  147. Aguiló, M. El Paisaje Construido. Una Aproximación a la Idea de Lugar; The Landscape Built. An Approximation to the Idea of Place; Colegio de Ingenieros de Caminos, Canales y Puertos: Madrid, Spain, 1999. [Google Scholar]
  148. Verhoeven, P. (Ed.) The Port Office. The Art and Architecture of European Port Authorities; Exhibitions International: Leuven, Belgium, 2016. [Google Scholar]
  149. Martín, R.; Yepes, V.; Grindlay, A. Discovering the marina’s cultural heritage and cultural landscape. Proceedings of the 8th International Symposium Monitoring of Mediterranean Coastal Areas. Problems and Measurement Techniques, Livorno, Italy, 16–18 June 2020; Bonora, L., Carboni, E., De Vincenzi, M., Eds.; Firenze University Press: Firenze, Italy, 2020; pp. 95–104. [Google Scholar] [CrossRef]
  150. Blain, W.R. (Ed.) Marina Technology. Proceedings of the 2nd International Conference on Marinas; Southampton, UK, 31 March–2 April 1992; Computational Mechanics Publications: Southampton, UK, 1992. [Google Scholar]
  151. Dupont, L.; Ooms, K.; Antrop, M.; van Etvelde, V. Testing the validity of a saliency-based method for visual assessment of constructions in the landscape. Landsc. Urban Plan. 2017, 167, 325–338. [Google Scholar] [CrossRef]
  152. Ržepicka, D.; Ziemeļniece, A.; Ile, U. The industrial heritage around the coast of the Baltic sea at Pāvilosta municipality. Landsc. Archit. Art 2017, 11, 33–41. [Google Scholar] [CrossRef]
  153. Chouba, L.; Mzoughi, N. Assessment of heavy metals in sediment and in suspended particles affected by multiple anthropogenic contributions in harbours. Int. J. Environ. Sci. Technol. 2013, 10, 779–788. [Google Scholar] [CrossRef] [Green Version]
  154. Petranich, E.; Croce, S.; Crosera, M.; Pavoni, E.; Faganeli, J.; Adami, G.; Covelli, S. Mobility of metal(loid)s at the sediment-water interface in two tourist port areas of the Gulf of Trieste (northern Adriatic Sea). Environ. Sci. Pollut. Res. 2018, 25, 26887–26902. [Google Scholar] [CrossRef]
  155. Jones, B.; Bolam, T. Cooper speciation survey from UK marinas, harbours and estuaries. Mar. Pollut. Bull. 2007, 54, 1127–1138. [Google Scholar] [CrossRef]
  156. Jupp, B.P.; Fowler, S.W.; Dobretsov, S.; van der Wiele, H.; Al-Ghafri, A. Assessment of heavy metal and petroleum hydrocarbon contamination in the Sultanate of Oman with emphasis on harbours, marinas, terminals and ports. Mar. Pollut. Bull. 2017, 121, 206–273. [Google Scholar] [CrossRef]
  157. Sapozhnikova, Y.; Wirth, E.; Singhasemanon, N.; Bacey, J.; Fulton, M. Distribution of antifouling biocides in California marinas. J. Environ. Monit. 2008, 10, 1069–1075. [Google Scholar] [CrossRef]
  158. Collins, K.J.; Suonpää, A.M.; Mallinsong, J.J. The impacts of anchoring and mooring in seagrass, Studland Bay, Dorset, UK. Underw. Technol. 2010, 29, 117–123. [Google Scholar] [CrossRef]
  159. Lagerström, M.; Lindgren, J.F.; Holmqvist, A.; Dahlström, M.; Ytreberg, E. In situ release rates of Cu and Zn from commercial antifouling paints at different salinities. Mar. Pollut. Bull. 2018, 127, 269–289. [Google Scholar] [CrossRef]
  160. Creo, C.; Fraboni, C. Awards for the sustainable management of coastal tourism destinations: The example of the Blue Flag program. J. Coast. Res. 2011, 61, 378–381. [Google Scholar] [CrossRef]
  161. Palafox-Juárez, E.B.; Liceaga-Correa, M.A. Spatial diversity of a coastal seascape: Characterization, analysis and application for conservation. Ocean Coast. Manag. 2017, 136, 185–195. [Google Scholar] [CrossRef]
  162. Felix, G.; Marenzi, R.C.; Polette, M.; Netto, S.A. Landscape visual quality and meiofauna biodiversity on sandy beaches. Environ. Manag. 2016, 58, 682–683. [Google Scholar] [CrossRef]
  163. Garrido, E. Superestructura. Encaje Urbano y Paisajístico, Superestructure. Urban and landscape lace. In II Curso de Puertos e Instalaciones Deportivas; Vila, L., Ed.; Colegio de Ingenieros de Caminos, Canales y Puertos: Madrid, Spain, 1986. [Google Scholar]
  164. Viola, P. Porti turistici: Una disciplina e una sfida = Marinas: A discipline and a challenge. Portus 2005, 9, 14–21. [Google Scholar]
  165. Burns, C.J.; Kahn, A. (Eds.) Site Matters: Design Concepts, Histories and Strategies; Routledge: New York, NY, USA, 2005. [Google Scholar]
  166. Diez, J.J.; Fernando, R.; Veiga, E.M. Coastal impacts around Guadiaro River Mouth (Spain). In Engineering Geology for Society and Territory-Volume 4: Marine and Coastal Processes; Lollino, G., Manconi, A., Locat, J., Huang, Y., Canals Artigas, M., Eds.; Springer: Cham, Switzerland, 2014; pp. 187–190. [Google Scholar] [CrossRef]
  167. Manno, G.; Anfuso, G.; Messina, E.; Williams, A.T.; Suffo, M.; Liguori, V. Decadal evolution of coastline armouring along the Mediterranean Andalusia littoral (South of Spain). Ocean Coast. Manag. 2016, 124, 84–99. [Google Scholar] [CrossRef]
  168. Yepes, V.; Medina, J.R. Land use tourism model in Spanish coastal areas. A case study of the Valencia Region. J. Coast. Res. 2005, 49, 83–88. [Google Scholar]
  169. Lippard, L.R. Around the corner: A photo essay. In Sites Matters. Designs Concepts, Histories, and Strategies; Burns, C.J., Kahn, A., Eds.; Routledge: New York, NY, USA, 2005; pp. 1–18. [Google Scholar]
  170. Lynch, K. Site Planning, 2nd ed.; The MIT Press: Cambridge, MA, USA, 1971. [Google Scholar]
  171. Busk, A.G.; Kristensen, S.P.; Præstholm, S.; Primdahl, J. Porous landscapes—The case of Greater Copenhagen. Urban For. Urban Green. 2008, 7, 145–156. [Google Scholar] [CrossRef]
  172. Sunak, Y.; Madlener, R. The impact of wind farm visibility on property values: A spatial difference-in-differences analysis. Energy Econ. 2016, 55, 79–91. [Google Scholar] [CrossRef]
  173. Lefebvre, H. The Production of Space; Basil Blackwell: Oxford, UK, 1991. [Google Scholar]
  174. Beauregard, R.A. From place to site: Negotiating narrative complexity. In Sites Matters. Designs Concepts, Histories, and Strategies; Burns, C.J., Kahn, A., Eds.; Routledge: New York, NY, USA, 2005; pp. 39–58. [Google Scholar]
  175. Hooydonk, E. Soft Values of Seaports. A Strategy for the Public Support for Seaports; Garant: Antwerp, The Netherlands, 2007. [Google Scholar]
  176. Sklenicka, P.; Kottová, B.; Šálek, M. Success in preserving historic rural landscapes under various policy measures: Incentives, restrictions or planning? Environ. Sci. Policy 2017, 75, 1–9. [Google Scholar] [CrossRef]
  177. Cybriwsky, R. Changing patterns of urban public space: Observations and assessments from the Tokyo and New York metropolitan areas. Cities 1999, 16, 223–231. [Google Scholar] [CrossRef]
  178. Wrenn, D.M.; Casazza, J.A.; Smart, J.E. Urban Waterfront Development; The Urban Land Institute: Washington, DC, USA, 1983. [Google Scholar]
  179. Torre, A.A. Waterfront Development; Van Nostrand Reinhold: New York, NY, USA, 1989. [Google Scholar]
  180. Bruttomesso, R. Waterfronts: A New Frontier for Cities on Water; International Center for Cities on Water: Venice, Italy, 1993. [Google Scholar]
  181. Malone, P. (Ed.) City, Capital and Water; Routledge: London, UK; New York, NY, USA, 1996. [Google Scholar]
  182. Meyer, H. City and Port: Urban Planning as a Cultural Venture in London, Barcelona, New York, and Rotterdam; International Books: Rotterdam, The Netherlands, 1999. [Google Scholar]
  183. Fisher, B.; Gordon, D.L.A.; Holst, L.; Krieger, A.; McMillan, G.; Rafferty, L.; Stark Schiffman, L. Remarking the Urban Waterfront; Urban Land Institute: Washington, DC, USA, 2004. [Google Scholar]
  184. Hein, C. Port cityscapes: Conference and research contributions on port cities. Plan. Perspect. 2016, 31, 313–326. [Google Scholar] [CrossRef] [Green Version]
  185. Ministerio de Obras Públicas. La Cuarta Flota. Directrices Aplicables a la Promoción de Iniciativas; The Fourth Fleet. Guidelines Applicable to the Promotion of Initiatives; Servicio de Publicaciones: Madrid, Spain, 1975. [Google Scholar]
  186. Roff, S. Landscape Design Guidelines for Marinas; Diploma, Landscape Architecture, Lincon College, University of Canterbury: Christchurch, New Zeland, 1987. [Google Scholar]
  187. Girard, L.F. Towards a smart sustainable development of port/cities areas: The role of the “Historic Urban Landscape” approach. Sustainability 2013, 5, 4329–4348. [Google Scholar] [CrossRef] [Green Version]
Land 10 00821 g001 550
Figure 1. Selected papers organized by year of publication.
Figure 1. Selected papers organized by year of publication.
Land 10 00821 g001
Land 10 00821 g002 550
Figure 2. Management subjects related to papers.
Figure 2. Management subjects related to papers.
Land 10 00821 g002
Land 10 00821 g003 550

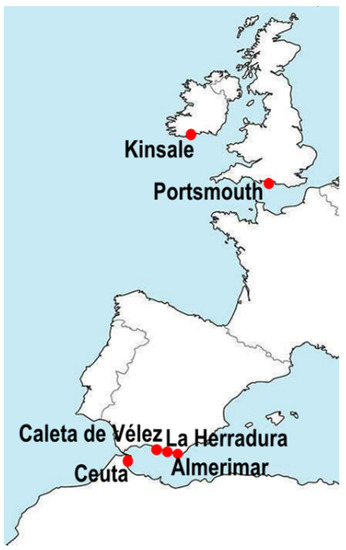

Figure 3. Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9 location map.
Figure 3. Figure 4, Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9 location map.
Land 10 00821 g003
Land 10 00821 g004 550
Figure 4. The identification of a marina unit’s environment, Kinsale, IE.
Figure 4. The identification of a marina unit’s environment, Kinsale, IE.
Land 10 00821 g004
Land 10 00821 g005 550

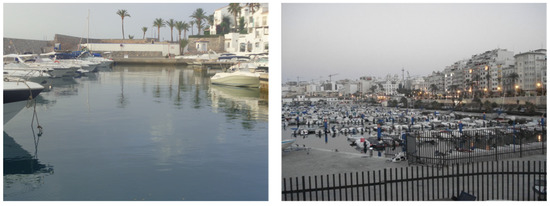

Figure 5. Viewpoints of the watershed depending on the distribution of the pontoons and boats, La Herradura (Granada) and Ceuta, ES.
Figure 5. Viewpoints of the watershed depending on the distribution of the pontoons and boats, La Herradura (Granada) and Ceuta, ES.
Land 10 00821 g005
Land 10 00821 g006 550

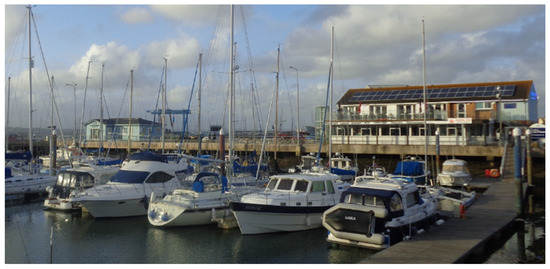

Figure 6. Location of elements with a great visual impact, Portsmouth, UK.
Figure 6. Location of elements with a great visual impact, Portsmouth, UK.
Land 10 00821 g006
Land 10 00821 g007 550

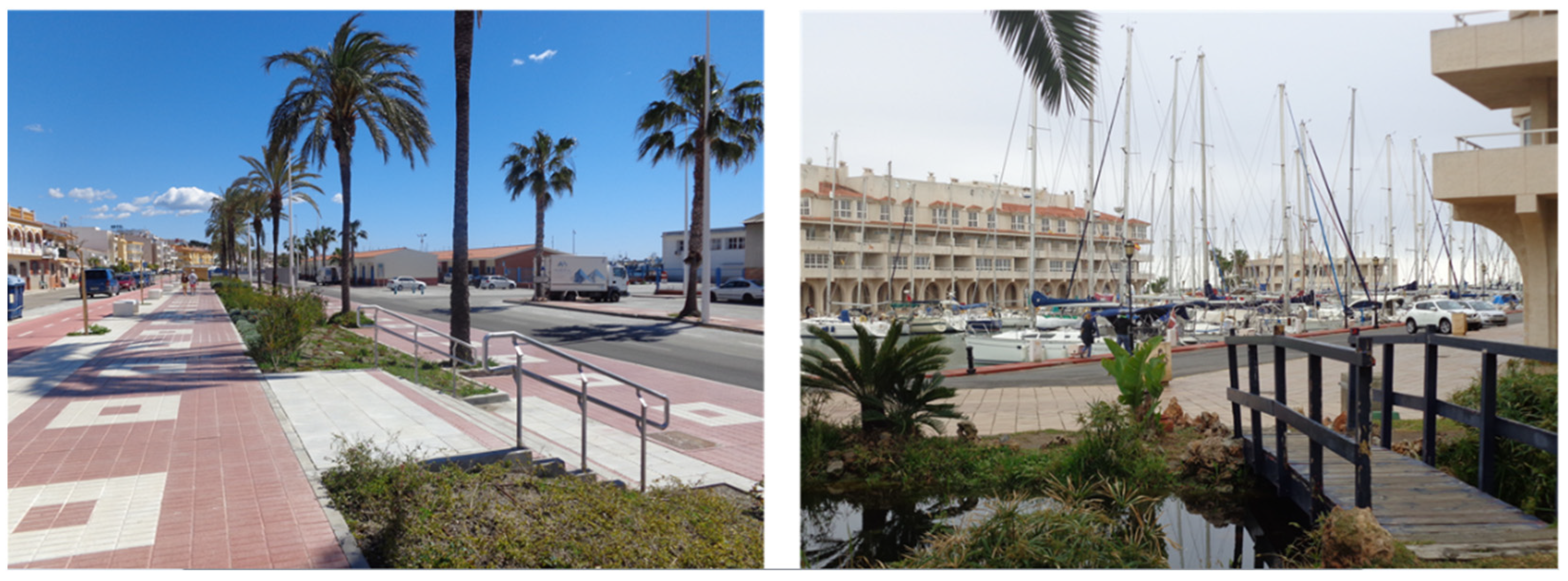

Figure 7. Landscaping in marinas, Caleta de Vélez (Málaga) and Almerimar (Almería), ES.
Figure 7. Landscaping in marinas, Caleta de Vélez (Málaga) and Almerimar (Almería), ES.
Land 10 00821 g007
Land 10 00821 g008 550
Figure 8. Incompatibility between pedestrian and vehicle traffic, Almerimar (Almería), ES.
Figure 8. Incompatibility between pedestrian and vehicle traffic, Almerimar (Almería), ES.
Land 10 00821 g008
Land 10 00821 g009 550
Figure 9. Port office as a landmark, Almerimar (Almería), ES.
Figure 9. Port office as a landmark, Almerimar (Almería), ES.
Land 10 00821 g009
Land 10 00821 g010 550
Figure 10. Maintenance of seawalls, Almerimar (Almería), ES.
Figure 10. Maintenance of seawalls, Almerimar (Almería), ES.
Land 10 00821 g010
Table
Table 1. Marina management relevant issues.
Table 1. Marina management relevant issues.
TypeDescriptionReferences
Marina capacityBerthing[18,19,20,21,22,23,24,25]
Dry storage[18,19,20,21,22,24,26,27]
Service facilitiesWater supply[18,19,20,21,22,23,24,25]
Bunkering[18,19,20,21,22,23,24,25,27]
Electrical equipment[18,19,20,21,22,23,24,25,27]
Sewage, storm water and waste disposal[18,19,20,21,23,24]
Boat handling[18,19,20,21,22,23,24,26]
Environmental managementPollution prevention[19,22,23,24,25,26,27]
Fire protection[18,19,20,22,23,24,25]
Ice protection[18,19,24]
Ancillary services[20,22,24]
Safety and security[19,20,21,22,23,24]
Landscaping[20,24]
BuildingsAdministration[18,19,21,24]
Social[18,19,21,24]
Sales and services[18,19,21,24]
Covered storage[18,19,24]
Piers and walk structures [18,19,20,24,27]
Development of groundsCirculation roads[18,19,20,24]
Parking areas[18,19,21,22,24]
Boat yards[18,19,22,23,24,26]
Walks[18,24]
Financial feasibility [18,19,20,21,22,23,24,26]
Maintenance [18,19,20]
Dredging[18,22]
Staffing and personnel [18,19,20,21,22,23,24,26,27]
Level of quality/services orientation [18,21,22,23,24,26,27]
Procedures and regulations [18,19,20,21,22,23,24]
Liability and insurance [19,21,22,23,27]
Table
Table 3. Marina management’s literature review.
Table 3. Marina management’s literature review.
ActivityCategorySubjectReferences
ServicesBerthsBerthing capacitySocial
Port usesBoat handlingPhysical
Shipyard and boat storagePhysical
Buildings (direct, indirect and ancillary services)Physical/social
Parking facilitiesPhysical
Auxiliary elementsPhysical
MobilityAccessPhysical/social
CirculationPhysical/social
Port servicesSupplies (water, electricity, bunkering, etc.)Physical
Financial feasibility Social
Environmental managementEnvironmentWaste managementPhysical/social
Environmental compatibilityPhysical/social
Pollution preventionPhysical/social
Water qualityPhysical/social
LandscapingPhysical/social
SurroundingsVisual compatibilitySocial
Other public agencies’ relationshipSocial
Uses for adjoining landSocial
SecurityFire protection and preventionSocial
Safety and securitySocial
Maintenance Physical/social
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Martín, R.; Yepes, V. Bridging the Gap between Landscape and Management within Marinas: A Review. Land 2021, 10, 821. https://doi.org/10.3390/land10080821

AMA Style

Martín R, Yepes V. Bridging the Gap between Landscape and Management within Marinas: A Review. Land. 2021; 10(8):821. https://doi.org/10.3390/land10080821

Chicago/Turabian Style

Martín, Ricardo, and Víctor Yepes. 2021. "Bridging the Gap between Landscape and Management within Marinas: A Review" Land 10, no. 8: 821. https://doi.org/10.3390/land10080821

APA Style

Martín, R., & Yepes, V. (2021). Bridging the Gap between Landscape and Management within Marinas: A Review. Land, 10(8), 821. https://doi.org/10.3390/land10080821

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
