Evaluation of Desertification Severity in El-Farafra Oasis, Western Desert of Egypt: Application of Modified MEDALUS Approach Using Wind Erosion Index and Factor Analysis

Abstract

Desertification is a serious threat to human survival and to ecosystems, especially to inland desert oases. An assessment of desertification severity is essential to ensure national sustainable development for agricultural and land expansion processes in this region. In this study, Index of Land Susceptibility to Wind Erosion (ILSWE) was integrated with a Modified Mediterranean Desertification and Land Use (MEDALUS) method and factor analysis (FA) to develop a GIS-based model for mapping desertification severity. The model was then applied to 987.77 km² in the El-Farafra Oasis, located in the Western Desert of Egypt, as a case study. Climate and field survey data together with remote sensing images were used to generate five quality indices (soil, climate, vegetation, land management and wind erosion). Based on the FA, a weighted value was assigned to each index. Five thematic layers representing the indices were created within the GIS environment and overlaid using the weighted sum model. The developed model showed that 59% of the total area was identified as high-critical and 38% as medium-critical. The results of an environmentally sensitive area index suggested by the original MEDALUS model indicated similar results: 18.37% of the total area was classified as high-critical and 78.73% as medium-critical. However, the sensitivity analysis indicated that weights derived from FA resulted in better performance of the developed spatial model than that derived from the original MEDALUS method. The proposed model would be a suitable tool for monitoring vulnerable zones, and could be a starting point for sustainable agricultural development in inland oases.

1. Introduction

In dryland areas, desert oases play an important role in sustainable development [1,2]. However, they are fragile agrarian areas and are very sensitive to degradation and desertification [3]. In these areas, desertification is a dynamic and complex form of land degradation processes [4]. It poses negative effects on land productivity, and causes serious problems including food insecurity, poverty, political instability, and social disintegration [5]. Therefore, precise assessment of environmentally sensitive areas (ESAs) to desertification is essential for sustainable development [6].

Evaluating current desertification status requires key parameters and factors, including various biophysical and human factors [1]. In this context, the Mediterranean Desertification and Land Use (MEDALUS) method developed by Kosmas et al. [7] has been widely used. This model focused primarily on common degradation processes in the European Mediterranean environment. However, it provided acceptable results for assessing desertification status in many desert oases in Egypt [8], Morocco [1] and Tunisia [9]. A science-based estimation of ESAs requires the adoption and analysis of parameters and factors related directly to the locally dominant degradation-related processes [6,10]. As a result, under Egyptian local conditions, adjusted MEDALUS models have been implemented to incorporate new variables as predictors of soil quality such as salinity, organic matter content [6], calcium carbonate and gypsum content [11]. Furthermore, the vegetation index has been expressed by the Normalized Differential Vegetation Index (NDVI) [11,12]. However, land susceptibility to degradation in the inland western oasis is closely related to wind erosion [13]. According to the Egyptian National Action Program to Combat Desertification [14], wind erosion hazards in the western desert oases varies between moderate and severe with an average soil loss rate varying from 4.5 to 66.9 Mg ha⁻¹ year⁻¹. Thus, quantitative assessment of soil loss due to wind action is crucial when appraising desertification in these areas. The index of land susceptibility to wind erosion (ILSWE) proposed by Borrelli et al. [15] is a well-established model for measuring wind erosion. The model depends on a combination of climatic erosivity, soil erodibility, soil crust factor, vegetation cover, and surface roughness derived from comprehensive measurements of climate data, field observations, and laboratory analysis. Although ILSWE was primarily developed under European conditions, Fenta et al. [16] proved its applicability under African conditions. Therefore, integration of ILSWE and the original MEDLAUS indices in a spatial model would be useful for better evaluation of desertification hazards. Real estimation of current desertification status requires the integration of a given set of parameters and their relative importance or weights [17,18]. A statistical-based approach such as factor analysis (FA) provides an effective and objective methodology to develop dynamic weights for a set of multiple parameters [19,20]. This technique provides dynamic weights and permits modifying weight values based on spatial and temporal changes [21,22]. The FA has been used increasingly in land resource assessments [18,23,24]; however, little attention has been paid to using this technique in analyzing desertification sensitivity.

This work therefore aimed to (i) incorporate soil loss calculated by the ILSWE with the original four quality indices that were adjusted by the MEDALUS methodology, (ii) integrate FA in establishing weights for the five indices, and (iii) develop a GIS-based model using the weighted indices. The model was then applied in the El-Farafra Oasis, in the western desert of Egypt, as a case study to evaluate the current status of desertification sensitivity.

2. Materials and Methods

2.1. The Study Area

El-Farafra is one of the inland oases in the Egyptian western desert, approximately midway between the Dakhla and Bahariya oases. The study area was conducted in 987.77 km² (Figure 1). The geographic location is in the UTM zone 35 between longitudes 27°39′41″ to 28°00′17″ E and latitudes 26°43′07″ to 27°14′45″ N. The climate in the investigated area is ordered as hot desert, the minimum temperate is 6 °C and occurs during January, while the highest is 39 °C and occurs during August. The mean annual temperature is 22.92 °C and the total annual rainfall is 0.25 mm. The mean annual potential evapotranspiration (PET) is 6.14 mm day⁻¹. The mean annual relative humidity averages 36.33%, while the mean annual wind speed is 8.18 km h⁻¹ [25]. The area is covered by sedimentary sequences of Upper Cretaceous to Quaternary eras. In the western parts, chalky limestone of Tarawan Formation (Paleocene), Farafra limestone (Eocene) and Esna shale Formations (Miocene) are predominant. The remaining parts are covered with chalk of Upper Cretaceous (Dakhla and Khoman) and Quaternary Formations (Sabkha). The elevation height ranges from 42 to 342 m above sea level.

2.2. Remote Sensing and GIS Work

Two scenes (T35RNL and T35RNK) from the Sentinel-2A Multispectral Instrument (MSI) sensor satellite with a 10 m spatial resolution were acquired from the Copernicus Data Hub gateway (https://scihub.copernicus.eu/, accessed on 23 December 2019). A digital elevation model (DEM) with 12.5 m pixel size of Advanced Land Observing Satellite (ALOS) Phased Array type L-band SAR (PALSAR) was also downloaded from the Alaska Satellite Facility (ASF) (https://www.asf.alaska.edu/sar-data/palsar/, accessed on 26 February 2021). The digital processing of satellite images was performed using ENVI 5.1 software, including atmospheric correction (FLASH module), stretching, band-stacking, mosaicking and spatial-spectral subsets. Thereafter, an unsupervised classification (ISO DATA classifier) followed by a supervised classification (maximum likelihood) was executed. Within ArcGIS 10.8 (ESRI Co, Redlands, CA, USA), slope classes and aspect were extracted from the DEM. In the light of the processed image, geological map and DEM, the different landforms were delineated [25], and the mapping units were described [26].

2.3. Field Work and Laboratory Analyses

Twenty-eight geo-referenced soil profiles (Figure 2) were dug to a 150 cm depth or to lithic contact. General features of each profile were recorded according to the Food and Agriculture Organization of the United Nations (FAO [27]. Ninety-three soil samples were collected from the subsequent horizons. Thereafter, samples were air-dried, ground, and sieved through a 2-mm mesh. Soil analyses were carried out according to the Soil Survey Staff [28]. The particle size distribution was performed using the standard pipette method. pH and electrical conductivity (EC) were measured in the 1:2.5 soil-water suspensions and in the soil paste extract, respectively. The soil organic matter (OM) was determined using the standard Walkley–Black procedure. The cation exchange capacity (CEC) and exchangeable sodium were determined using the ammonium acetate pH 7.0 method. Calcium carbonate was determined using the calcimeter. The gypsum content was determined using the acetone precipitation method. The studied area was classified into four main landscapes (physiographic units) i.e., Plateau (Pt) that divided to Summit (Pt 111) and Escarpment (Pt 211); Piedmont “Slopping area” (Pd 111); Plain (Pl) that divided to High terraces (Pl 111), Low terraces (Pl 112), Basin (Pl 113) and Salt marshes (Pl 121) and Water bodies (Wb).

2.4. Modeling Desertification in the Studied Area

This procedure involved five steps as follows: (1) quantifying the original quality indices of the MEDALUS method; (2) developing a wind erosion protection index; (3) establishing a weight for each index, (4) generating a GIS-based model and (5) model validation, (Figure 3).

2.4.1. Quantifying the Original MEDALUS Indices

Parameters used for defining the four standard indices of the MEDLUS method are shown in

Table 1. Dataset included in the modified MEDALUS methodology.

Index	Parameter	Class	Description	Score
Soil quality index (SQI)	Texture a	1	L, SCL, SL, LS, CL	1.0
		2	SC, SiL SiCL	1.2
		3	Si, C, SiC	1.6
		4	S	2.0
	Slope a	1	Very gentle to flat: <6%	1.0
		2	Gentle: 1–18%	1.2
		3	Steep: 18–35%	1.5
		4	Very steep: >35%	2.0
	Parent material a	1	Shale, Schist, Basic, ultra Basic, Conglomerates, unconsolidated	1.0
		2	Limestone, Marble, Granite, Rhyolite, Ignibrite, Gneiss, Siltstone, Sandstone	1.7
		3	Marl, Pyroclastics	2.0
	Depth a	1	Deep: >75 cm	1.0
		2	Moderate: 75–30 cm	2.0
		3	Shallow: 30–15 cm	3.0
		4	Very shallow: <15 cm	4.0
	Drainage a	1	Well drained	1.0
		2	Imperfectly drained	1.2
		3	Poorly drained	2.0
	Rock fragment a	1	Very stony: >60%	1.0
		2	Stony: 60–20%	1.3
		3	Bare to slightly stony: <20%	2.0
	Electrical conductivity (EC) b	1	None: EC < 4 dS m−1	1.0
		2	Slight: EC 4–8 dS m−1	1.2
		3	Moderate: EC 8–16 dS m−1	1.5
		4	Strong: EC 16–32 dS m−1	1.7
		5	Extreme: EC > 32 dS m−1	2.0
	Exchangeable sodium percentage (ESP) c	1	None: ESP < 10	1.0
		2	Slight: ESP 10–15	1.2
		3	Moderate: ESP 15–30	1.5
		4	Strong: ESP 30–50	1.7
		5	Extreme: ESP > 50	2.0
	Calcium carbonate (CaCO3) d	1	Non-calcareous: 0 g kg−1	1.0
		2	Slightly calcareous: 0–20 g kg−1	1.2
		3	Moderately calcareous: 20–100 g kg−1	1.5
		4	Strongly calcareous: 100–250 g kg−1	1.7
		5	Extremely calcareous: >250 g kg−1	2.0
	Gypsum d	1	Non-gepsiric: 0 g kg−1	1.0
		2	Slightly gypsiric: 0–50 g kg−1	1.2
		3	Moderately gypsiric: 50–150 g kg−1	1.5
		4	Strongly gypsiric: 150–600 g kg−1	1.7
		5	Extremely gypsiric: >600 g kg−1	2.0
Climate quality index (CQI)	Rainfall a	1	High: >650 mm	1.0
		2	Moderate: 650–280 mm	2.0
		3	Low: <280 mm	4.0
	Aridity index (P/PET) e	1	Humid: >65	1.0
		2	Dry sub-humid: 0.50–0.65	1.2
		3	Semi-arid: 0.20–0.50	1.5
		4	Arid: 0.05–2.0	1.7
		5	Hyper-arid < 0.05	2.0
	Aspect a	1	NE and NW	1.0
		2	SE and SW	2.0
Vegetation quality index (VQI)	Fire risk a	1	Low: Bare land, perennial crops, annual crops	1.0
		2	Moderate: Annual crops, deciduous oak, mixed Mediterranean, macchia/evergreen forests	1.3
		3	High: Mediterranean macchia	1.6
		4	Very high: Pine forests	2.0
	Erosion protection a	1	Very high: Mixed mediterranean macchia/evergreen forests	1.0
		2	High: Mediterranean macchia, pine forests, Permanent grasslands, evergreen perennial crops	1.3
		3	Moderate: Deciduous forests	1.6
		4	Low: Deciduous perennial agricultural crops (almonds, orchards)	1.8
		5	Very low: Annual agricultural crops (cereals), annual grasslands, vines	2.0
	Drought resistance a	1	Very high: Mixed Mediterranean macchia/evergreen forests, Mediterranean macchia	1.0
		2	High: Conifers, deciduous, olives	1.2
		3	Moderate: Perennial agricultural trees (vines, almonds, ochrand)	1.4
		4	Low: Perennial grasslands	1.7
		5	Very low: Annual agricultural crops, annual grasslands	2.0
	Plant cover f	1	High: NDVI > 0.95	1.0
		2	Moderate: NDVI 95–65	1.2
		3	Low: NDVI 65–0.35	1.5
		4	Very low: NDVI < 0.35	2.0
Land manage-ment quality index (MQI)	Cropland a	1	Low: Land use intensity (LLUI)	1.0
		2	Medium: Land use intensity (MLUI)	1.5
		3	High: Land use intensity (HLUI)	2.0
	Pasture a	1	Low: ASR< SSR	1.0
		2	Moderate: ASR = SSR to 1.5×SSR	1.5
		3	High: ASR > 1.5×SSR	2.0
	Natural areas a	1	Low: A/S = 0	1.0
		2	Moderate: A/S < 1	1.2
		3	High: A/S = 1 or greater	2.0
	Mining areas a	1	Low: Adequate erosion control measurements	1.0
		2	Moderate: Moderate erosion control measurements	1.5
		3	High: Low erosion control measurements	2.0
	Recreations areas a	1	Low: A/P > 1	1.0
		2	Moderate: A/P = 1 to 2.5	1.5
		3	High: A/P > 2.5	2.0
	Policy a	1	High: Complete, >75% of the area under protection	1.0
		2	Moderate: Partial, 25–75% of the area under protection	1.5
		3	Low: Incomplete: <25% of the area under protection	2.0

^a Kosmas et al. [7], ^b Soil Science Division Staff [29], ^c FAO [30], ^d FAO [27], ^e Michael et al. [31], ^f Mohamed [11] and Saleh et al. [12].

. The indices involve the soil quality index (SQI), climate quality index (CQI), vegetation quality index (VQI) and land management quality index (MQI). Each index was calculated using the geometric mean algorithm of number (n) of scores (S) as follows:

$${\mathrm{Index}}_{\mathrm{x}}={\left[\mathrm{S}1\ast \mathrm{S}2\ast \mathrm{S}3\ast {\mathrm{S}}_{\mathrm{n}}\right]}^{1/\mathrm{n}}$$

For the SQI, the weighted mean values for texture, EC, ESP, CaCO₃, and gypsum were calculated by multiplying the value of the property by the thickness of the soil horizon and divided by the depth of soil profile.

2.4.2. Wind Erosion Protection Index (WEPI), Index of Land Susceptibility to Wind Erosion (ILSWE)

The index of land susceptibility to wind erosion protection [15,16] was computed to estimate the potential annual soil loss (t ha⁻¹ year⁻¹) as follows:

$$\mathrm{ILSWE}=\mathrm{CQF}\ast \mathrm{WEF}\ast \mathrm{SCF}\ast \mathrm{VCF}\ast \mathrm{SRF}$$

where CQF is the climatic quality factor; WEF is the wind-erodible fraction factor; SCF is the soil crust facto; VCF is the vegetation cover factor and SRF is the surface roughness factor.

1. Climate quality factor (CQF)

This factor was calculated as follows:

$$\mathrm{CQF}=\frac{1}{100}{\displaystyle \sum }_{\mathrm{i}=1}^{\mathrm{i}=12}\ast {\mathrm{Wi}}^3 \left[\left(\mathrm{PETi}-\mathrm{Pi}\right)/\mathrm{PETi} \right]\ast \mathrm{di}$$

where: W_i is the mean monthly wind speed (m s⁻¹) at 2 m height in month i, PET_i is the potential evapotranspiration (mm) in month i, P_i is the precipitation (mm) in month i, and d_i is the total number of days in month i.

2. Wind-erodible factor (WEF)

The WEF (t ha⁻¹ year⁻¹) was calculated based on the soil contents of sand (SA), silt (SI), clay (CL), and organic matter (OM) as follows:

$$\mathrm{WEF}=(29.09+0.31\mathrm{SA}+0.17\mathrm{SI}+0.33 \mathrm{SA}/\mathrm{SL}-2.59\mathrm{SOM}-0.95{\mathrm{CaCO}}_3)/100$$

3. Soil crust factor (SCF)

The SCF factor was computed as follows:

$$\mathrm{SCF}=1/(1+0.0066{\left(\mathrm{Clay}\right)}^2+0.21{\left(\mathrm{Organic} \mathrm{Matter}\right)}^2)$$

4. Vegetation cover factor (VCF)

The VCF was expressed by the fractional vegetation cover (FVC) derived from the Sentinel 2-A satellite image. The VCF was computed based on values of the NDVI of highly dense vegetation (NDVIv) and bare soil (NDVIs) as follows:

$$\mathrm{VCF}=\left(\mathrm{NDVI}-\mathrm{NDVIs}\right)/\left(\mathrm{NDVIv}-\mathrm{NDVIs}\right)$$

5. Surface roughness factor (SRF)

The SRF represents the ratio of ridge height to ridge spacing and is expressed as an index with a range of 0 (high ridges and furrows) to 1 (flat, bare, and smooth field) [32]. The focal statics within the ArcGIS 10.x tools was used to calculate SRF from DEM, as follows:

$$\mathrm{SRF}=\frac{{\mathrm{DEM}}_{\mathrm{Mean}}-{\mathrm{DEM}}_{\mathrm{Min}}}{{\mathrm{DEM}}_{\mathrm{Max}}-{\mathrm{DEM}}_{\min }}$$

6. Wind erosion severity classes

The ILSWE are normally arranged in five erosion severity classes, including very slight (<2), slight (2–5), moderate (5–10), high (10–50), and very high (>50). Each one was assigned a score value ranging from 1 (very slight) to 2 (very high) and these scores represented the WEPI.

2.4.3. Establishing a Weight Value for Each Index

Based on the communality extracted from FA, each of the five quality indices was assigned a weight value. Communality indicates the portion of the variance explained by each index, considering the factor model estimated. High value denotes the high contribution of this factor to explain the phenomenon examined [20].

2.4.4. Generating a GIS-Based Model

Five thematic layers representing SQI, CQI, VQI, MQI and WEPI were generated using the inverse distance weighted (IDW) interpolation technique. The IDW has been known as a powerful technique used for mapping soil and other environmental attributes [33,34]. Thereafter, they were overlain in a single map representing ESAs to desertification using the weighted sum algorithm.

2.4.5. Model Performance

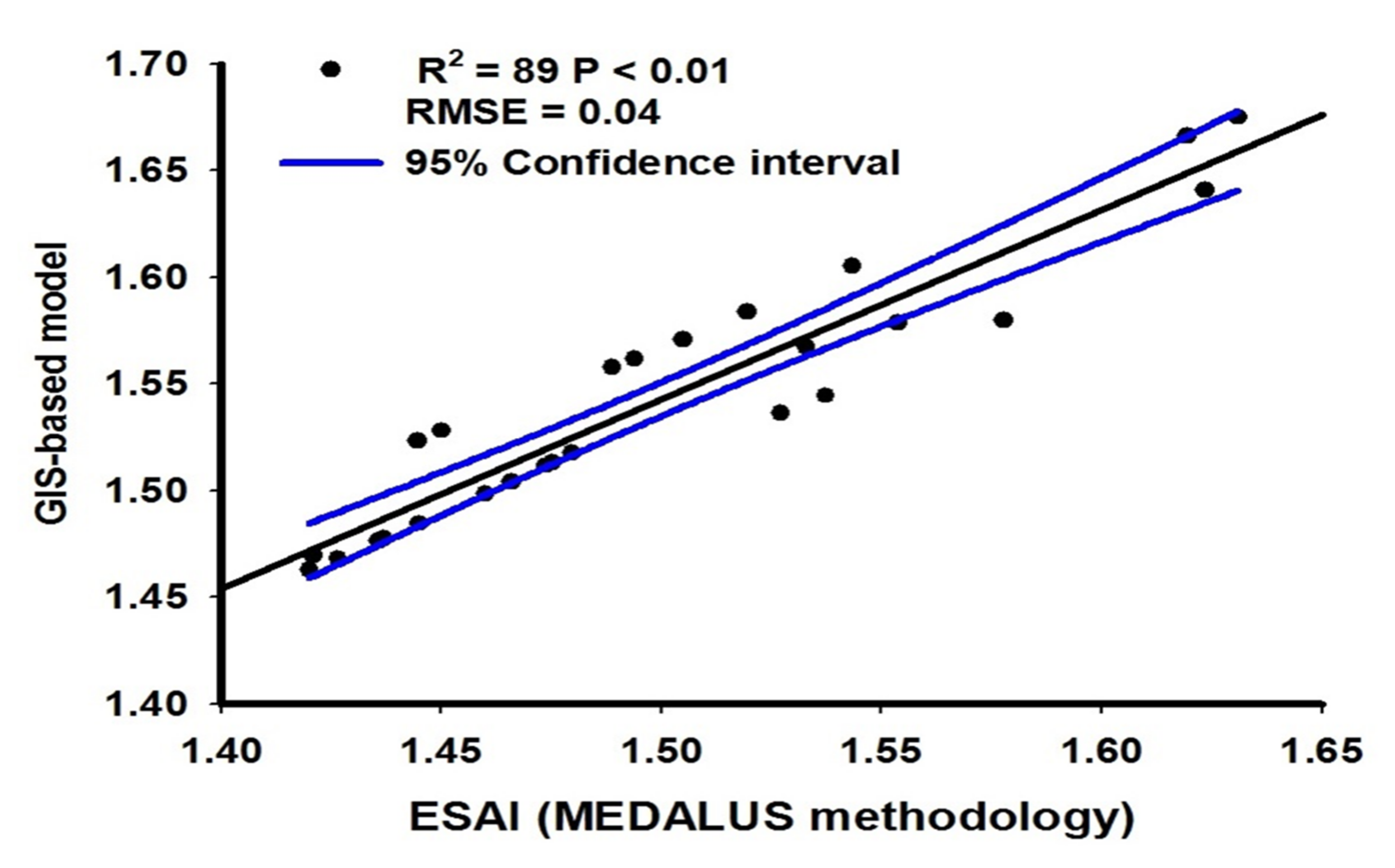

Validation was performed by comparing results of the developed model against those obtained by the environmentally sensitive area index (ESAI) provided in the original MEDALUS model. The geometric mean algorithm of the five quality indices were used for calculating the ESAI as follows:

$$\mathrm{ESAI}={\left[\mathrm{SQI}\ast \mathrm{CQI}\ast \mathrm{VQI}\ast \mathrm{MQI}\ast \mathrm{WEPI}\right]}^{1/5}$$

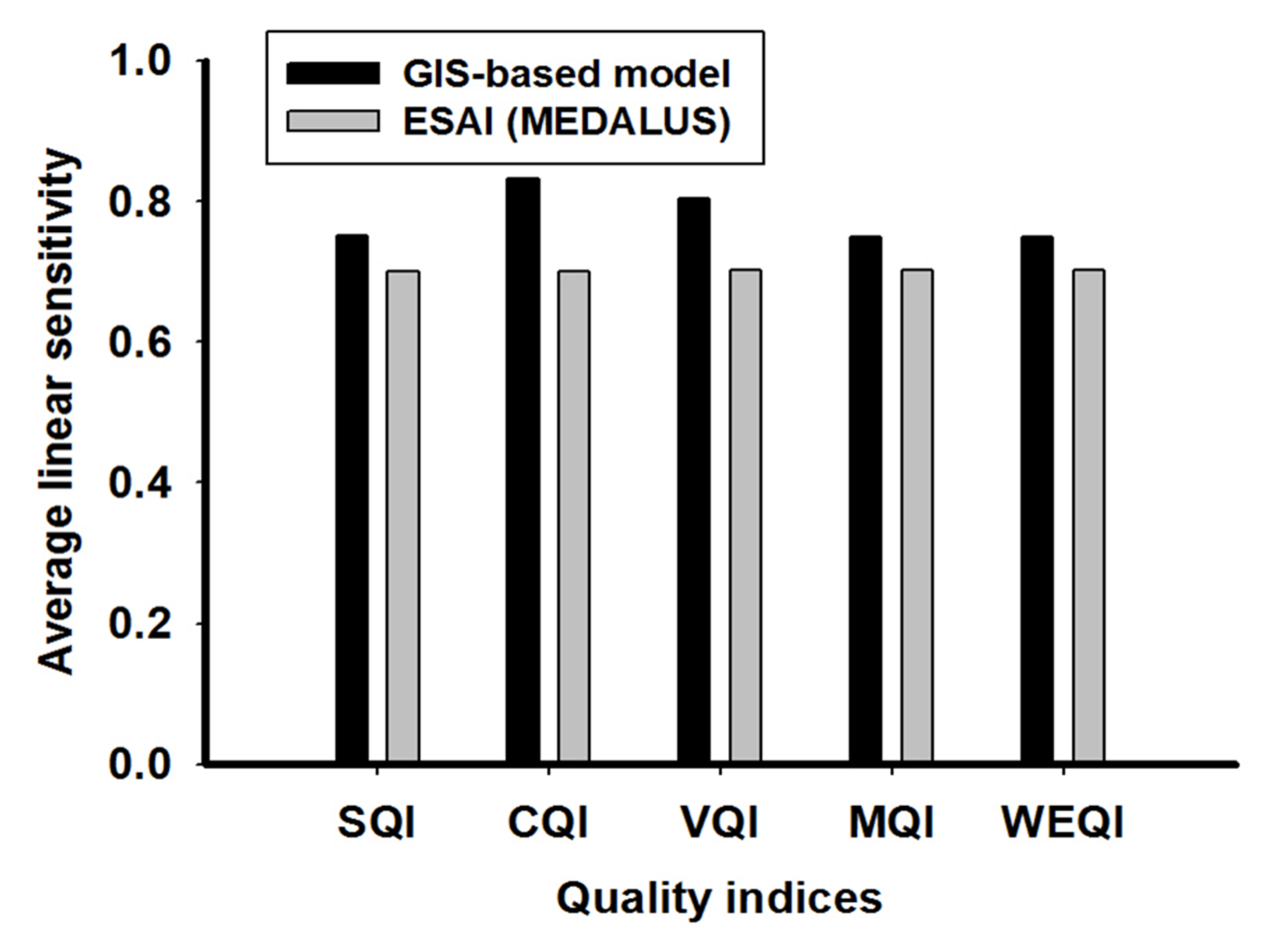

The average linear sensitivity (ALS) method [35,36] was used for calibration of the results. The ALS denotes a relative normalized change in output in relation to a normalized change in input as follows:

$$\mathrm{ALS}=\frac{\left[\frac{{\mathrm{O}}_{\mathrm{x}}-{\mathrm{O}}_{\mathrm{n}}}{{\mathrm{O}}_{\mathrm{m}}}\right]}{\left[\frac{{\mathrm{I}}_{\mathrm{x}}-{\mathrm{I}}_{\mathrm{n}}}{{\mathrm{I}}_{\mathrm{m}}}\right]}$$

where: I_n and I_x represent the minimum and maximum values of the considered input parameter and O_n and O_x are the values of the model output for the corresponding input values; I_m is the mean value of I_n and I_x and O_m is the mean value of O_n and O_x. The ALS values express the correlation between the model output and the individual parameter.

3. Results

3.1. Land Use/Land Cover

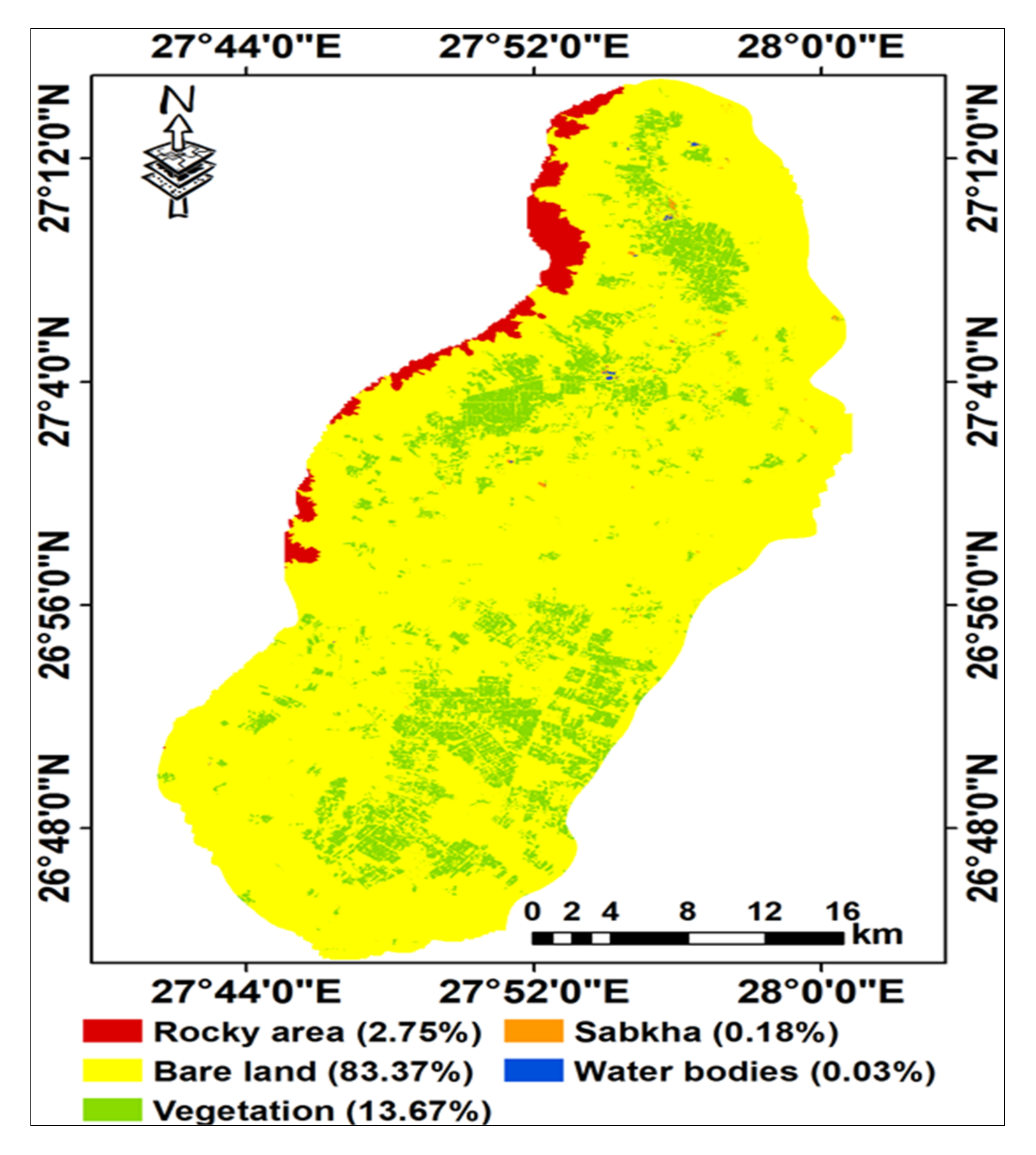

According to three classification methods i.e., Parallelepiped, Mahalanobis Distance and Maximum Likelihood with overall accuracy of 96.15%, 91.31% and 97.59%, respectively, and Kappa coefficient of 0.95, 0.88 and 0.97, respectively, the best classification method is Maximum Likelihood, and according to these results, the investigated area was dominated by five land cover classes: rocky areas, bare land, vegetation, sabkha and water bodies (Figure 4). They occupied 27.15, 823.53, 134.98, 1.78 and 0.33 km², representing 2.75, 83.37, 13.67, 0.18 and 0.03% of the total area, respectively. The natural vegetation occurred in small scattered areas covered with perennial grasses (Arundinoideae) around the lakes and halophytic species (Chenopodiaceae) of the sabkha. According to the official statistics, field crops dominated 69% of the total cultivated area of which a perennial crop (alfalfa) covers 15%, while annual crops (wheat, barely clover, broad bean, maize, sorghum, and groundnuts) cover 54%. The remaining area was occupied by orchards (19%); mango, date palm, guava and timer tress, and vegetable crops (13%); potato, tomato, onion, and arugula.

3.2. Geomorphology and Soils

Results in

Table 2. Physiographic map legend and soil taxonomy of the studied area.

Landscape	Relief	Lithology	Landform	Unit	Area, km2	Area, %	Profile	Soil Taxonomy
Plateau (Pt)	Almost flat (1)	Farafra chalk formation (1)	Summit (1)	Pt 111	14.87	1.51	---	---
	Steep back slope (2)	Esna shale formation (1)	Escarpment (2)	Pt 211	12.27	1.24	---
Piedmont (Pd)	Gently undulating (1)	Quaternary sand deposits mixed with alluvial-colluvial deposits and Tarawan chalk formation (1)	Slopping area (1)	Pd 111	20.52	2.08	21	Typic Torriorthents
Plain (Pl)	Flat to almost flat (1)		High terraces (1)	Pl 111	158.05	16.00	14	Typic Torriorthents 25%
							17, 19, 24	Typic Torripsaments 75%
			Low terraces (2)	Pl 112	420.41	42.56	2, 6, 12, 16, 18, 23, 25, 26, 27	Typic Torripsaments 69%
							11	Typic Torriorthents 8%
							13	Typic Haplocalcids 8%
							15, 20	Sodic Haplocalcids 15%
			Basin (3)	Pl 113	360.13	36.46	1, 3, 4, 7, 8, 9, 22, 28	Typic Torripsaments 80%
							5	Typic Haplocalcids 10%
							10	Sodic Haplocalcids 10%
		Sabkha formation (2)	Salt marshes (1)	Pl 121	1.18	0.12	---	---
Water bodies (Wb)					0.33	0.03	---	---

and Figure 2 show that the studied area includes four main landscapes; plateau (Pt), piedmont (Pd), plain (Pl) and water bodies (Wb). The Pt covers an area of 27.15 km² (2.75%) in the western part. The Pd covers an area of 20.55 km² (2.08%) at the base of the Pt. Soils of Pd are classified as Typic Torriorthents. The Pl covers the bottom of the area and occupies the majority of the total coverage (95.14%). It includes four units; high terraces (Pl 111), low terraces (Pl 112), basin (Pl 113), and salt marshes (Pl 121), repressing 16.00, 42.65, 36.46 and 0.12% of the total area, respectively. Soils of the Pl 111 unit are classified as Entisols, including sub-great groups, Typic Torripsaments. Soils of the Pl 112 unit are classified as Entisols (77%) and Aridisols (23%). The Entisols include sub-great groups, Typic Torripsaments, while the Aridisols include two sub-great groups, i.e., Sodic Haplocalcids (15%) and Typic Haplocalcids (8%). Soils of the Pl 113 unit are classified as Entisols (80%) and Aridisols (20%). The Entisols include one sub-great group (Typic Torripsaments), while the Aridisols include two sub-great groups (Sodic Haplocalcids and Typic Haplocalcids).

3.3. Soil Properties

Descriptive statics of soil properties (

Table 3. Descriptive statistics of soil properties of the studied area.

Parameter	Unit	Min	Max	Mean	SD	CV, %
Depth	cm	105.00	150.00	130.77	11.66	8.92
Slope	%	0.01	3.44	0.49	0.70	144.13
Gravel	%	2.89	29.07	14.66	5.90	40.26
pH	---	7.49	8.95	8.05	0.29	3.66
EC	dS m−1	2.67	42.61	9.31	10.79	115.90
CaCO3	g kg−1	22.76	321.97	109.85	67.92	61.83
Gypsum	g kg−1	1.21	31.21	9.65	8.51	88.15
OM	g kg−1	1.24	7.82	3.78	1.77	46.79
CEC	cmolc kg−1	8.61	19.90	12.29	2.94	23.96
ESP	---	7.92	26.83	18.13	5.02	27.67
Sand	%	58.40	91.10	79.05	10.37	13.11
Silt	%	4.95	27.72	11.58	6.70	57.90
Clay	%	3.95	28.72	9.38	5.33	56.89

SD, standard deviation; CV, coefficient of variation; EC, electrical conductivity; OM, organic matter; CEC, cation exchange capacity; ESP, exchangeable sodium percentage.

) show that the soil depth ranged from 105 to 150 cm, slope range of 0.01 to 3.44. The soils had little to large gravel content with a range of 2.89 to 29.07%. The soil pH ranged from 7.49 to 8.95, while the EC varied from 2.67 to 42.61 dS m⁻¹. Calcium carbonate and gypsum content varied from 22.76 to 321.97 g kg⁻¹ for the former and from 1.21 to 31.21 g kg⁻¹ for the latter. The OM content varied from 1.24 to 7.82 g kg⁻¹. The CEC ranged between 8.61 to 19.90 cmolc kg⁻¹. The ESP varied from 7.92 to 26.83. The sand dominated the soil particle size distribution averaging about 79% of the fine earth followed by silt (12%) and clay (9%).

3.4. Quantifying the Original Indices

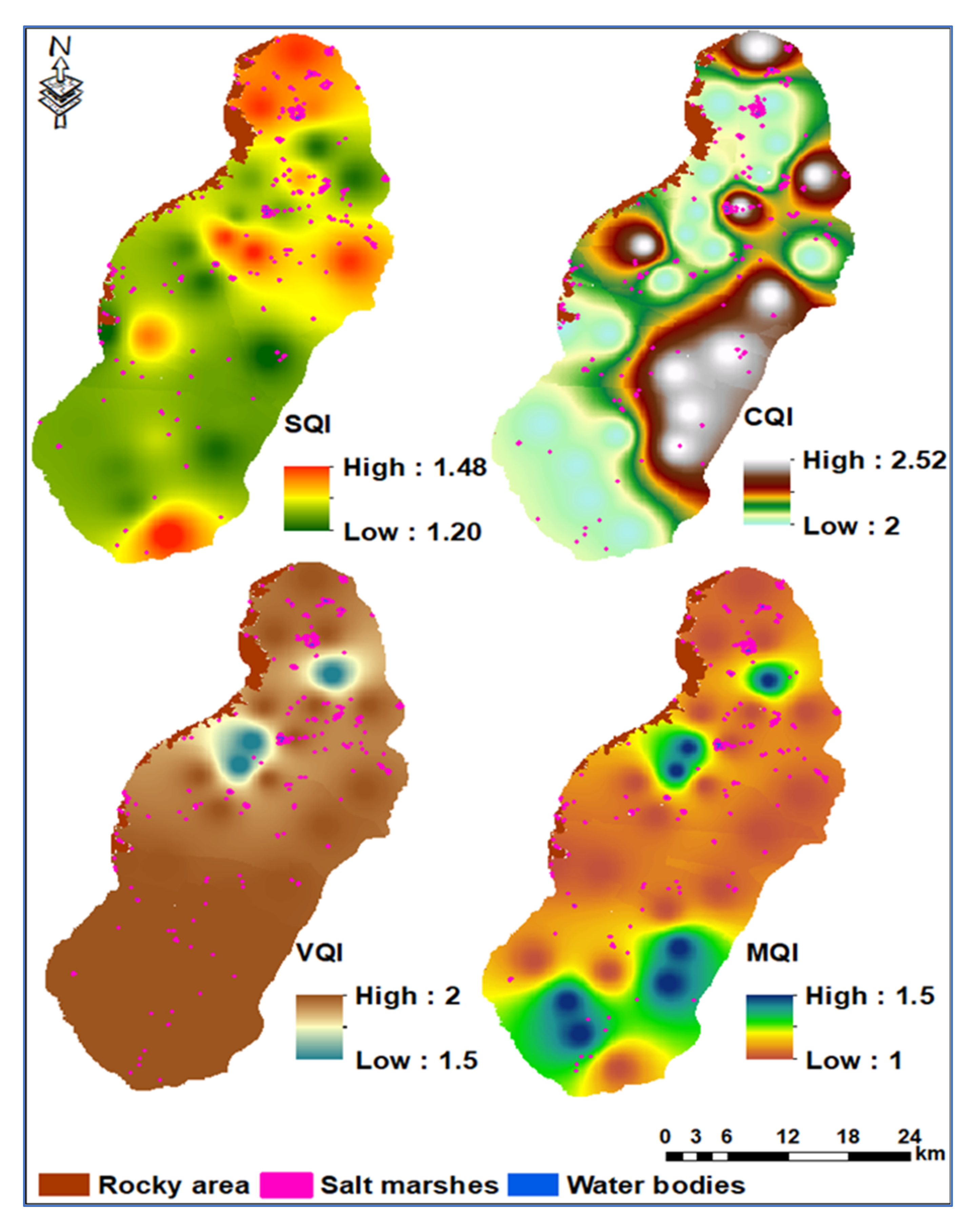

Results in Figure 5 indicate that the SQI ranged from 1.20 to 1.48, indicating moderate to low soil quality class. The moderate quality soils occupied 96.38% of the total area, while the low quality soils covered only 0.72% (

Table 4. Classes and areas of quality indices of the modified MEDLAUS methodology.

Soil quality index	Class	Quality	Range	Area, km2	Area, %
	1	High	<1.13	0.00	0.00
	2	Moderate	1.13–1.45	951.97	96.38
	3	Low	>1.45	7.14	0.72
Vegetation quality index	1	High	<1.2	0.00	0.00
	2	Moderate	1.2–1.4	0.00	0.00
	3	Low	1.4–1.6	10.29	1.04
	4	Very low	>1.6	949.82	96.06
Land management quality index	1	High	<1.25	766.73	77.62
	2	Moderate	1.25–1.5	192.38	19.48
	3	Low	>1.5	0.00	0.00
Reference terms (Rocky areas, Salt marshes and Water bodies)				28.66	2.90

). The CQI ranged from 2.00 to 2.52, indicating low climate quality due to low rainfall and high evaporation rates (Figure 5). Of the 26bstudied soil sampling sites, 18 sites occurred in the north- and east-facing slopes, while the remaining sites were on the south- and west-facing slopes.

The VQI varied from 1.20 to 2.00 (Figure 5), indicating moderate to very low vegetation quality. Areas of very low vegetation quality covered nearly 96% of the total area, while low quality areas covered about 1% of the total area (Table 4).

The land management quality varied from high to moderate, since the MQI ranged from 1.00 to 1.50 (Figure 5). Areas of high land management quality covered 77.62% of the total area, while those of moderate quality occupied 19.48% (Table 4).

3.5. Assessment of Wind Erosion Protection Index (WEPI), Index of Land Susceptibility to Wind Erosion (ILSWE)

Results in Figure 6 show values of the five parameters used for calculating the ILSWE; CQF, WEF, SCF, VCF, and SRF. Combining the five factors, the ILSWE ranged from 0.05 to 15.81 Mg ha⁻¹ year⁻¹, which demonstrated very slight to moderate wind erosion severity. These values were transformed to the corresponding WEPI (

Table 5. Classes and areas of the index of land susceptibility to wind erosion (ILSWE) and corresponding wind erosion quality index (WEPI).

Class	ILSWE		WEPI		Area, km2	Area, %
	Range	Severity	Score	Quality
1	<2	Very slight	1.0	Very high	10.52	1.07
2	2–10	Slight	1.2	High	897.87	90.90
3	10–20	Moderate	1.5	Moderate	50.72	5.13
4	20–50	High	1.7	Low	0.00	0.00
5	>50	Very high	2.0	Very low	0.00	0.00
Reference terms (Rocky areas, Salt marshes and Water bodies)					28.66	2.90

) with a range of 1.00 to 1.50, indicating very high to moderate quality. According to the WEPI, 90.90% of the total area was classified as high (areas with slight erosion severity), 1.07% as very high (areas with very slight erosion severity), and 5.13% as moderate (areas with moderate erosion severity).

3.6. Multivariate Analysis

Pearson’s correlation matrix (

Table 6. Correlation matrix among the five quality indices.

	Soil	Climate	Vegetation	Land Management	Wind Erosion
Soil	1.000
Climate	−0.309	1.000
Vegetation	0.013	0.263	1.000
Land management	−0.265	−0.077	−0.595 **	1.000
Wind erosion	0.003	−0.400 *	−0.666 **	0.577 **	1.000

* Correlation is significant at the 0.05 level, ** Correlation is significant at the 0.01 level.

) shows that the CQI had a significant negative correlation (p < 0.05) with the WEPI. The VQI indicated highly significant negative correlations (p < 0.01) with MQI and WEPI, while the MQI showed a highly significant positive correlation with the WEPI.

Results in

Table 7. Varimax rotated component matrix of the five quality parameters.

Parameter	PC1	PC2	Communality	Weight
Eigenvalue	2.34	1.40
Variance, %	46.79	27.98
Cumulative, %	46.79	74.76
Indicator	Eigenvectors
Soil index	−0.20	−0.83	0.74	0.20
Climate index	−0.34	0.76	0.69	0.18
Vegetation index	−0.86	0.11	0.75	0.20
Land management index	0.84	0.26	0.78	0.21
Wind erosion index	0.86	−0.22	0.79	0.21

Bold-face numbers indicates highly-loaded variables (>0.6).

indicate that the two components with eigenvalues > 1.0 explained 74.76% of the total variance. The first component was responsible for 46.79% of the total variance and included WEPI with high positive loadings and VQI with high negative loading. The second component accounted for 27.98% of the total variance and was dominated by CQI with high positive loading and SQI with high negative loading. According to weight values derived from the FA, the five indices could be arranged based on their relative importance as follows: MQI (0.21) = WEPI (0.21) > SQI (0.20) = VQI (0.20) > CQI (0.18).

3.7. Environmentally Sensitivite Areas to Desertification

Results of the proposed model (Figure 7 and

Table 8. Classes and areas of sensitive areas to desertification in the studied area.

Sensitivity Degree	Type	Subtype	Index	Model	Area, km2	Area, %
High	Critical	C3	>1.53	Weighted sum	585.87	59.25
				ESAI	181.62	18.37
		C2	1.53–142	Weighted sum	374.24	37.85
				ESAI	778.49	78.73
Reference terms (plateau, sabkha and water bodies)					28.66	2.90

) showed that the studied area was classified as critical-sensitive to desertification. The high-critical ESAs (C3) occupied 59.25% of the total area, while the medium-critical ESAs (C2) occupied 37.85% of the total coverage. However, the spatial distribution of ESAs under this model indicated that 18.37% of the total area was classified as high-critical (C3) and 78.73% as medium-critical.

3.8. Validation

The statistical analysis indicated no significant differences (p < 0.01) between the proposed model and the ESAI. Furthermore, values of R² and RMSE (Figure 8) were 0.89 and 0.04, respectively, which demonstrates a high correlation between the estimated values from both models. However, the sensitivity analysis (Figure 9) revealed that the outputs of the proposed model showed higher values of ALS to the five indices rather than those obtained by the ESAI.

4. Discussion

4.1. Geomorphology and Soils

Analysis of the main scene extracted from the satellite images through DEM and field observations enabled the geomorphological unit’s identification in the investigated area. Soils and sediments affect current operations, and to maintain evidence of past operations, one must refer to the evolutionary stages in the landscape and provide a basis for the relative sequence and absolute time.

Results in Table 2, show four main landscapes; plateaus, piedmonts, plains and water bodies in the investigated area. Plateau represented 2.75% of the study area. Piedmont covers an area of 2.08% and soils of piedmont are classified as Typic Torriorthents. The plain occupies the majority of the study area with a total coverage of 95.14%, and includes four geomorphic units: high terraces, low terraces, basins, and salt marshes. Soils of the high terraces are classified as Entisols, (Typic Torripsaments). Soils of the low terraces are classified as Entisols and Aridisols. The Entisols include sub-great groups (Typic Torripsaments), while the Aridisols include two sub-great groups, i.e., Sodic Haplocalcids and Typic Haplocalcids. Soils of the basin unit are classified as Entisols and Aridisols. The Entisols include sub-great groups (Typic Torripsaments), while the Aridisols include two sub-great groups (Sodic Haplocalcids and Typic Haplocalcids). The water bodies representing 0.03% of the total area. Some of these water bodies are natural lakes of brackish or saline water that were formed as a result of the uncontrolled spilling of water and flooding of the plains or due to the shallow groundwater table [37]. Other man-made lakes were developed in order to collect water drained from irrigated lands.

4.2. Land Use/Land Cover

Land cover data indicates how much of the study area is covered by land uses i.e., water bodies, agriculture, urban and other land and water types and can be determined by analyzing satellite imagery. Therefore land cover maps provide information to help decision makers best understand the best use of the land. Land use maps help managers use the landscape for agriculture expansion, soil conservation, or a combination of uses.

The study area was dominated by five land cover classes: rocky areas, bare land, vegetation, sabkha and water bodies, representing 2.75, 83.37, 13.67, 0.18 and 0.03% of the total area, respectively. Field investigations indicated two types of vegetation, i.e., natural vegetation and cropland. The current land cover status accelerates desertification risks due to low vegetation cover (40–10%) and the predominance of annual crops, providing low protection against wind erosion and drought resistance [7]. According to AbdelRahman et.al., [38] Siwa Oasis in Egypt experiences several problems that affect its development: the deterioration of cultivated lands as well as changes in land use and land cover are the main problems in the oasis. Improper land management is the main cause of soil salinization and water logging degradation processes in the area. The study also determined a rapid increase in salt marshes and saline lakes. This highlights the risks that could affect agricultural land in the oasis. To conserve the oasis requires immediate measures to confront the worsening deterioration problems in the oasis, such as salinization, water logging and encroachment of sand dunes [38].

4.3. Soil Properties

All soils contain mineral particles, organic matter, water and air; the combinations of these determine the soil’s properties such as texture, structure, porosity, chemistry and color. Soil properties such as alkalinity and salinity limit soil fertility, and soil type plays an important role in agricultural sustainability, essential to improve land production and conservation of natural resources to prevent further land desertification [39,40,41,42,43]. Table 3 represents soil depth and refers to deep to very deep soils and soils which were flat to gently sloping. The soils had little large gravel content. The soils were slightly to strongly alkaline, non-saline to strongly saline [29], moderately to extremely calcareous and slightly gypsiric [27]. According to Hazelton and Murphy [39], the soil had extremely low to very low organic matter, but low to moderate cation exchange capacity. The ESP indicated none to moderate sodicity (alkalinity) hazards [30].

4.4. Quantifying the Original Indices

Results in (Table 4) indicate that the SQI was classified into a moderate to low soil quality class representing 96.38% and 0.72% of the total area, respectively. Little variations in soil quality could be attributed mainly to similar parent materials that govern nearly all of the other soil attributes: salinity, alkalinity, calcium carbonate and gypsum content. The soils did not show limitations related to slope, depth, and drainage, while other factors (texture, parent materials, rock fragments, salinity, alkalinity, SOM, CaCO₃, and gypsum) showed different degrees of limitation [44,45,46,47].

The CQI indicated low climate quality due to low rainfall and high evaporation rates; since the annual precipitation and aridity index are constant across the area, the slight variation in the CQI value was due to the slope aspect. The high values of CQI occurred within the southern and western aspects, which are warmer and have higher evaporation rates and lower water storage capacity than the northern and eastern aspects [7]. For VQI indicating moderate to very low vegetation quality, areas of very low vegetation quality covered nearly 96% of the total area, while low quality areas covered about 1% of the total area. Spatial variations in VQI related mainly to the NDVI since other factors (fire risk, erosion protection, and drought resistance) were similar due to a similar crop pattern. The NVDI derived from remotely sensed images has been used as a good indicator for monitoring and forecasting vegetation patterns in regions at risk of desertification [11,12]. This can reflect the spatial distribution density of surface vegetation and provide the growth status and coverage information for the plants being grown [45,46]. Areas of high land management quality (MQI) covered 77.62% of the total area, while those of moderate quality occupied 19.48%; this spatial variation related mainly to the land use intensity rather than the protection policies. Two types of land use intensity were identified in the area depending on the frequency of irrigation, degree of mechanization, use of pesticides and fertilizers, crop varieties, etc. [7]. They included low land use intensity on the small farms managed by local farmers and medium land use intensity on the large-scale farms owned by investors. However, there was incomplete enforcement of the policies on environmental protection across the area. The major factor of land degradation in Kafr El-Sheikh Governorate, North Nile Delta, Egypt was soil sealing; therefore, a Fuzzy model was used to assess quantitative land degradation caused by soil sealing. Land degradation caused inappropriate agricultural practices mainly associated with conservation measurements as well as improper time use of heavy machinery, over irrigation, and human interventions in natural drainage [47,48,49].

4.5. Assessment of Wind Erosion Protection Index (WEPI), Index of Land Susceptibility to Wind Erosion (ILSWE)

Results in (Table 5) show values of the five parameters used for calculating the ILSWE; CQF, WEF, SCF, VCF, and SRF. The climatic factors (rainfall, PET, and wind speed) involved in calculating the CE factor were constant across the studied area, and thus. compared with WEF and SCF, VCF and SRF seem to be more effective drivers for wind erosion hazards. This is because soil texture and chemical properties (OM and CaCO₃) that affect wind-erodible fractions and surface crusting showed little variation among the studied soil profiles. On the other hand, the NDVI and elevation heights determining VCF and SRF respectively showed higher variation among the studied sites. Combining the five factors, the ILSWE demonstrated very slight to moderate wind erosion severity. These values were transformed to the corresponding WEPI which indicated very high to moderate quality.

4.6. Multivariate Analysis

CQI showed a significant negative correlation (p < 0.05) with the WEPI (Table 6). This indicates that the slope aspect, the most critical climatic factor, exerts an important influence on soil erosion intensity. The VQI showed highly significant negative correlations (p < 0.01) with MQI and WEPI, while the MQI showed a highly significant positive correlation with the WEPI. These findings illustrate that intensive cultivation through mechanized cultivation, proper use of fertilizers and pesticides and cultivation of improved varieties enhanced the vegetation vigor on the one hand, while resulting in greater wind erosion risks on the other hand. Results of the correlation analysis, in general, indicated that the FA could be used efficiently for estimating weights of the parameters since they showed correlations among themselves [20,23]. Results in Table 7 indicate that, for the two components with eigenvalues > 1.0, the first component included WEPI with high positive loadings and VQI with high negative loading, which emphasizes that areas of more intensive cultivation showed higher susceptibility to wind erosion risks rather than those of lower intensity; the second component was dominated by CQI with high positive loading and SQI with high negative loading, which indicates that poor quality soils dominated areas of the north- and east-facing slope aspects. According to weight values derived from the FA, the five indices could be arranged based on their relative importance as follows: MQI = WEPI > SQI = VQI > CQI. Weight values, in fact, refer to relative contribution and degree of priority for each factor in proportion to those remaining for decision-making [40].

4.7. Environmentally Sensitivity Areas to Desertification

Results in (Table 8) showed that the studied area was classified as critical-sensitive to desertification (high-critical ESAs (C3) and medium-critical ESAs (C2)). Results of the ESAI suggested by the MEDALUS model indicated also a critical-sensitive degree of desertification. Although both models used similar input indices, the differences in weights of indicators resulted in changes in the final output values.

4.8. Validation

The statistical analysis indicated no significant differences (p < 0.01) between the proposed model and the ESAI. Furthermore, values of R² and RMSE were 0.89 and 0.04, respectively, which demonstrates a high correlation between the estimated values from both models. This emphasizes that the performance of the proposed model was satisfactory for quantifying ESAs to desertification in the studied area. However, the sensitivity analysis (Figure 8) revealed that the outputs of the proposed model showed higher values for ALS in the five indices rather than those obtained by the ESAI. This means that the proposed model was more representative for the input parameters [35,36], indicating its preference for tracking spatiotemporal changes in the desertification status of the studied area. This shows that the proposed model has taken into account the relative influence (weight) of each input parameter derived from a reliable and science-based estimation (FA) rather than the equal weights as adopted in the MEDALUS approach. Using weights of the indices in generating desertification maps could render the results closer to reality [40,41,48,49].

5. Conclusions

Quantifying locally dominant degradation-related processes as well as their representation is essential for proper spatiotemporal monitoring of ESAs to desertification. El-Farafra Oasis was dominated by five geomorphic units: rocky area, bare land, vegetation, sabkha and water bodies. Data was collected from remotely sensed images, field observations, climate conditions and laboratory analysis covering the 987.77 km² of the study area. The data were analyzed in order to characterize five soil quality indices as well as climate, vegetation, land management, and wind erosion. The geometric mean algorithm of number (n) of scores (S) was used to calculated each soil quality index. They were weighted using FA and the inverse distance weighted (IDW) interpolation technique was used to generate SQI, CQI, VQI, MQI and WEPI thematic layers; then a GIS-based spatial model was implemented to superimpose the five indicators on a single map using the weighted sum model. The proposed model showed that the studied area was classified as critical-sensitive to desertification. The high-critical ESA is (C3) which occupied 59.25% of the total area, while the medium-critical is (C2) with 37.85% of the total coverage. The ESAI suggested by the MEDALUS methodology indicated that 18% of the total area was classified as high-critical and 78% as medium-critical. The statistical analysis indicated no significant differences (p < 0.01) between the proposed model and the ESAI with values of R² and RMSE of 0.89 and 0.04, respectively, which demonstrates a high correlation between the estimated values from both models. However, the sensitivity analysis revealed that the outputs of the proposed model showed higher values of ALS to the five indices rather than those obtained by the ESAI. Using weights based on the FA technique resulted in a better representation of the quality indices than the original MEDALUS methodology. The developed model would be useful in precise monitoring of spatiotemporal changes in the desertification status under inland desert oases conditions.
