1. Introduction
Ecosystem services include all the benefits that humans gain from ecosystems [
1,
2,
3,
4,
5] and are aimed at establishing a link to human well-being in four categories of service: regulating, provisioning, cultural and supporting. Regulating services consists of the benefits of natural ecosystem regulation processes such as climate setting, land cover change, etc. [
3]. Ecosystems with the additional and removal function of greenhouse gases (GHGs), as CO
2 from the atmosphere, play an important role in climate regulation as an ecosystem service [
6]. In fact, carbon storage of forests, rangelands and other land ecosystems is four times more than the atmosphere (3060 Giga Tons vs. 760 GTs) [
7]. Furthermore, concentration of carbon in plants and soil over time, will lead to excess carbon sequestration every year. Domestic carbon storage is one of the main ecosystem services, and studies have shown that the value of one tone of cinnamon is equal to the amount of damage that is avoided by preventing the release of one ton of carbon into the atmosphere [
8,
9]. In addition, carbon inventory is an important indicator of the land’s potential capacity for carbon storage. Changes in carbon storage may have direct and indirect effects and consequences on socio-economic well-being of human and natural environment [
10].
Sustainable land management involves using the land within its capability to ensure the productivity and economic potential of the land is maintained, whilst its ecological function, is not diminished. Where economic, social and environmental factors are considered simultaneously by land managers, the long-term sustainability of the health, resilience and productivity of a property is more likely to be assured. Human activities in terms of land cover change have substantially altered global land cover, so that land cover change is around four times greater in extent than previously estimated from long-term land change assessments [
11]. The area used for livestock grazing from 234 million hectares in 1700 reached 3429 million hectares in 2000, accounting for 25% of the Earth’s surface [
12]. Land cover change has affected the capability of ecosystems to deliver services. Among ecosystems, forests provide the largest number of ecosystem services. Also, most biodiversity is seen in forest ecosystems. One of the most important services of forest ecosystems is the absorption and stabilization of carbon dioxide and its use in the process of photosynthesis. Zagros forests, which stretch from northwest to southeast of Iran, are one of the strategic regions in Iran. These forests account for more than 33% of the annual rainfall and are the headwater of about half of rivers and springs, which provide 50 billion m
3 of water per year as the main source of water supply in the central dry plateau of Iran [
13]. Regarding the intensification of global warming in recent years, forests, as the largest source of GHG emissions, especially CO
2, play a basic role in regulating global temperature, and the destruction of forest cover in the crisis escalation. Based on the Intergovernmental Panel on Climate Change (IPCC), 20% of the whole carbon dioxide produced in the world comes from deforestation and forest degradation [
6]. Integrating the concept of ecosystem services into land cover management issues, selecting areas for protection and ecosystem services compensation requires information about the spatial distribution of services.
With the growing recognition of the importance of ecosystem services, there is a need for adequate software and accurate prediction models that can provide information for ecosystem services to decision-makers, and examine the results of land cover management on services. One of the ecosystem services mapping software, the integrated software ecosystem services pricing and the interaction between them, is the Ecosystem Services Modeler, which is a vertical application within the TerrSet System. It is a spatially powerful decision support system to evaluate ecosystem services, which is based entirely on InVEST toolset developed by the Natural Capital Project.
The aim of this study is to investigate the stored or lost carbon over the study period by addressing the following key questions: how much land cover change has happened and how much will occur in the future?; how much carbon is stored or sequestered and how much it costs?; what is the trend of land cover changes and how it affects carbon sequestration?
2. Materials and Methods
Based on

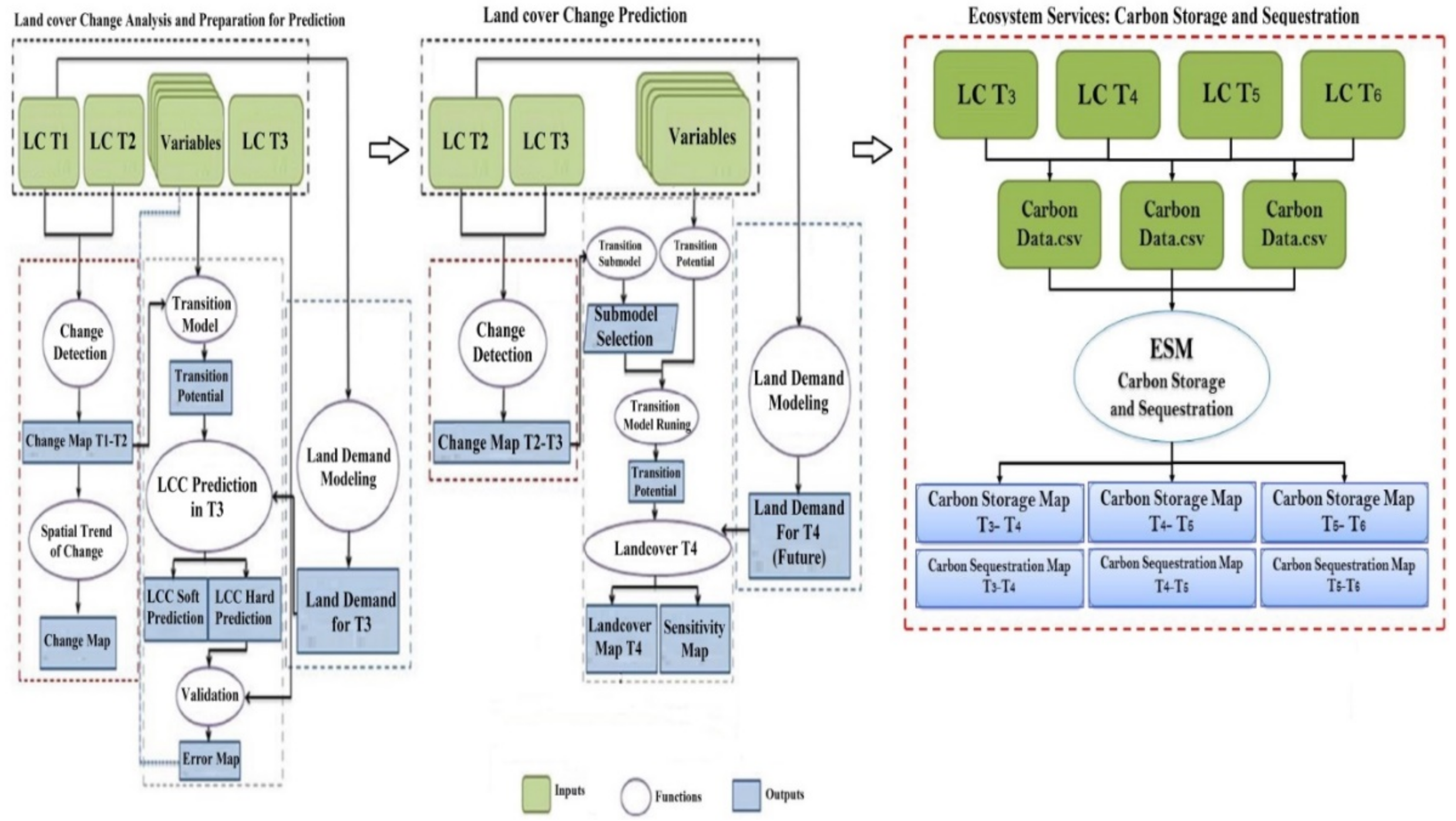

Figure 1 this study includes three main parts: the first part is land cover change analysis and preparation for prediction, the second part is land cover change prediction and the third part is carbon storage and sequestration using Ecosystem Services Modeler (ESM).
For satellite image analysis and modeling, the softwares used in this study are as follows:
ERDAS IMAGINE 9.2 was used for Landsat image classification, accuracy assessment of images classification and production of land cover maps.
TerrSet: In this software, two main models were used in this study as follows:
- -
Land Change Modeler (LCM) was used for land cover change detection, transition sub-model selection, variable selection, transition potential modelling, change demand modelling, model validation and land cover change prediction.
- -
Ecosystem Services Modeler (ESM) was used for carbon storage and sequestration calculation.
2.1. Study Area

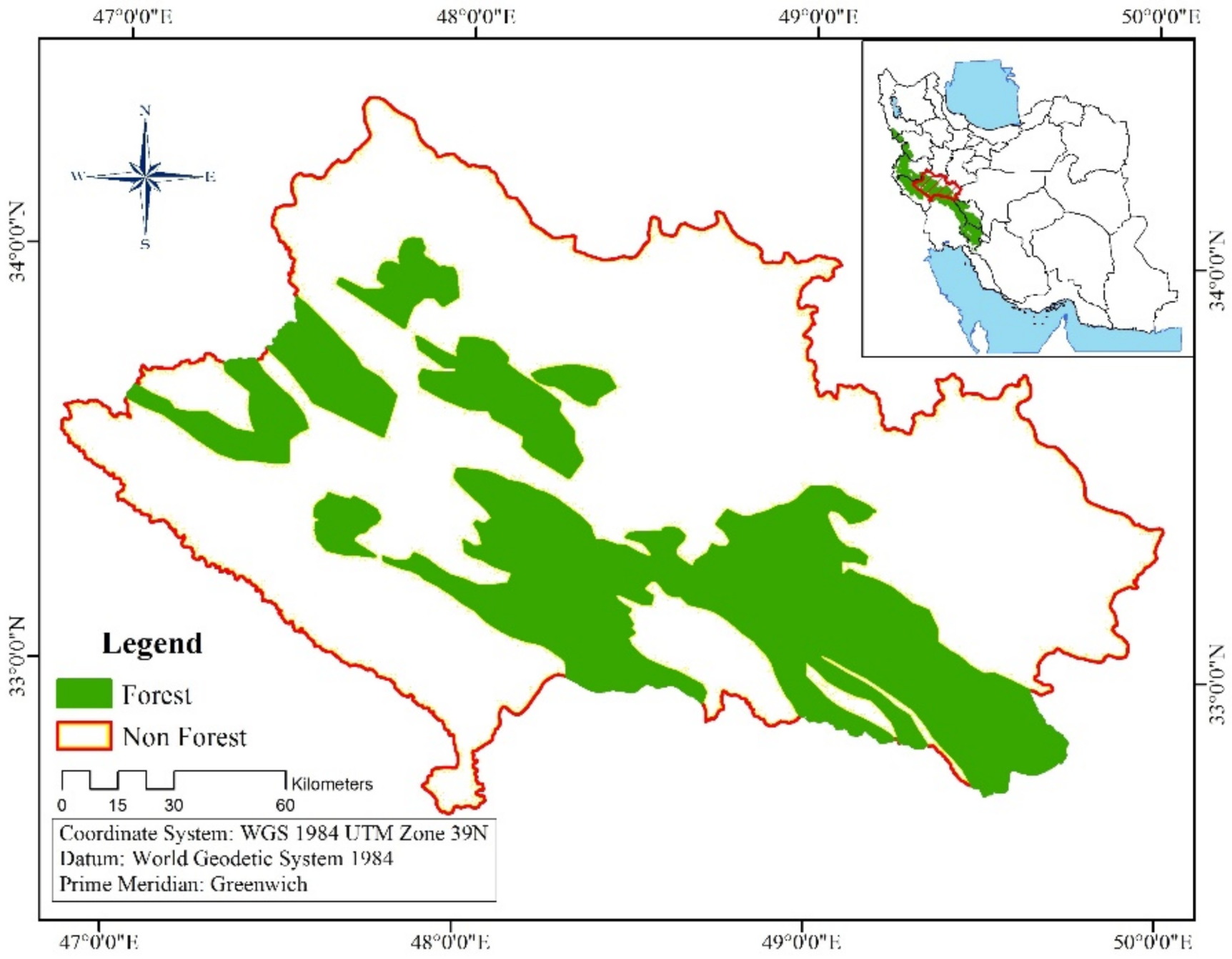

Zagros area, with the three major regions Northern, Central and Southern, stretches from northwest to southeast of Iran. In this research, the central Zagros region in Lorestan province of Iran between 46°50 E to 50°1 E, and 32°40 N to 34°23 N with about 2.8 × 10
6 ha is studied while 7.6 × 10
5 ha of this area is covered by the forest (
Figure 2) [
13].
2.2. Land Cover Change Analysis and Preparation for Prediction

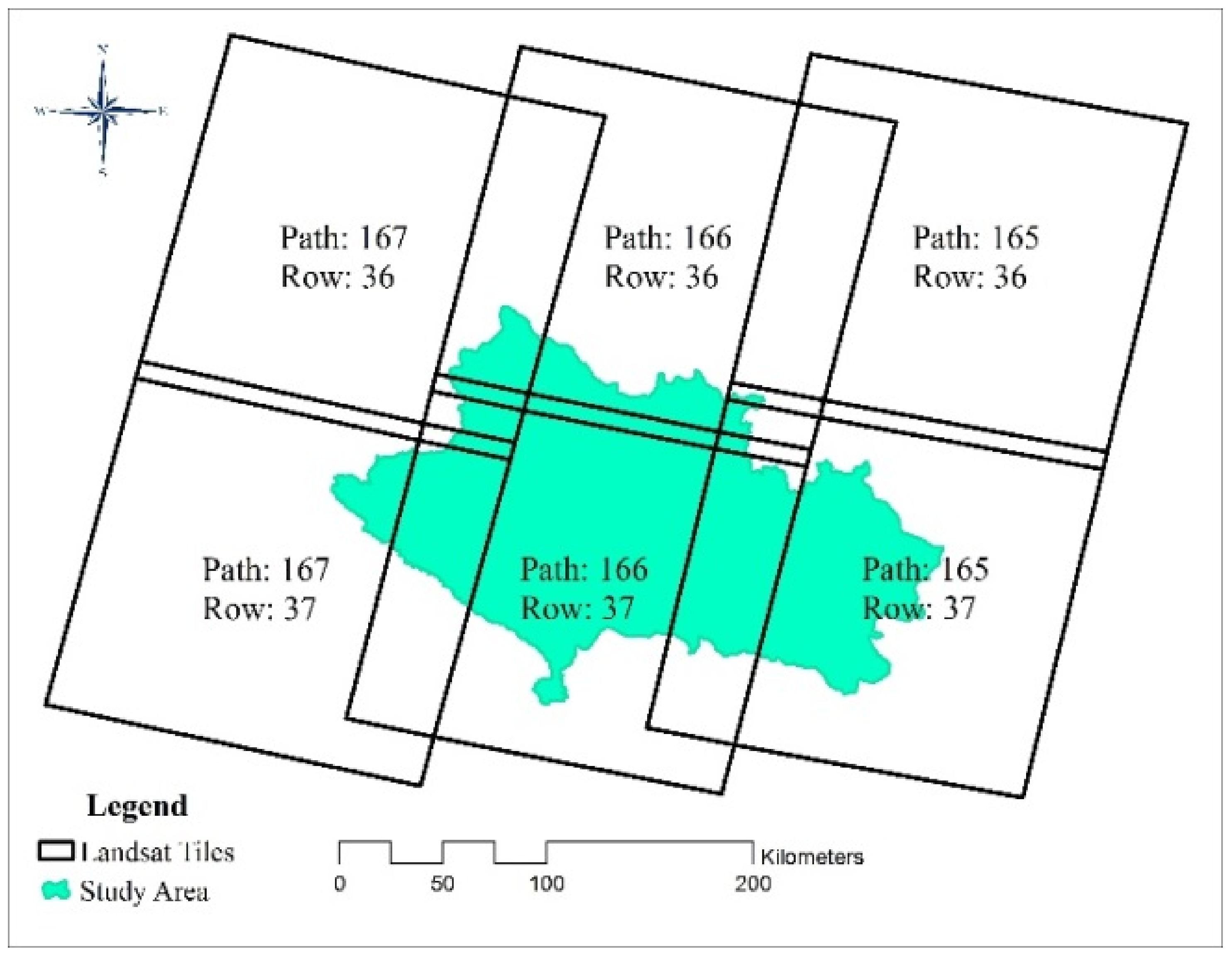

Six Landsat tiles cover the study area (

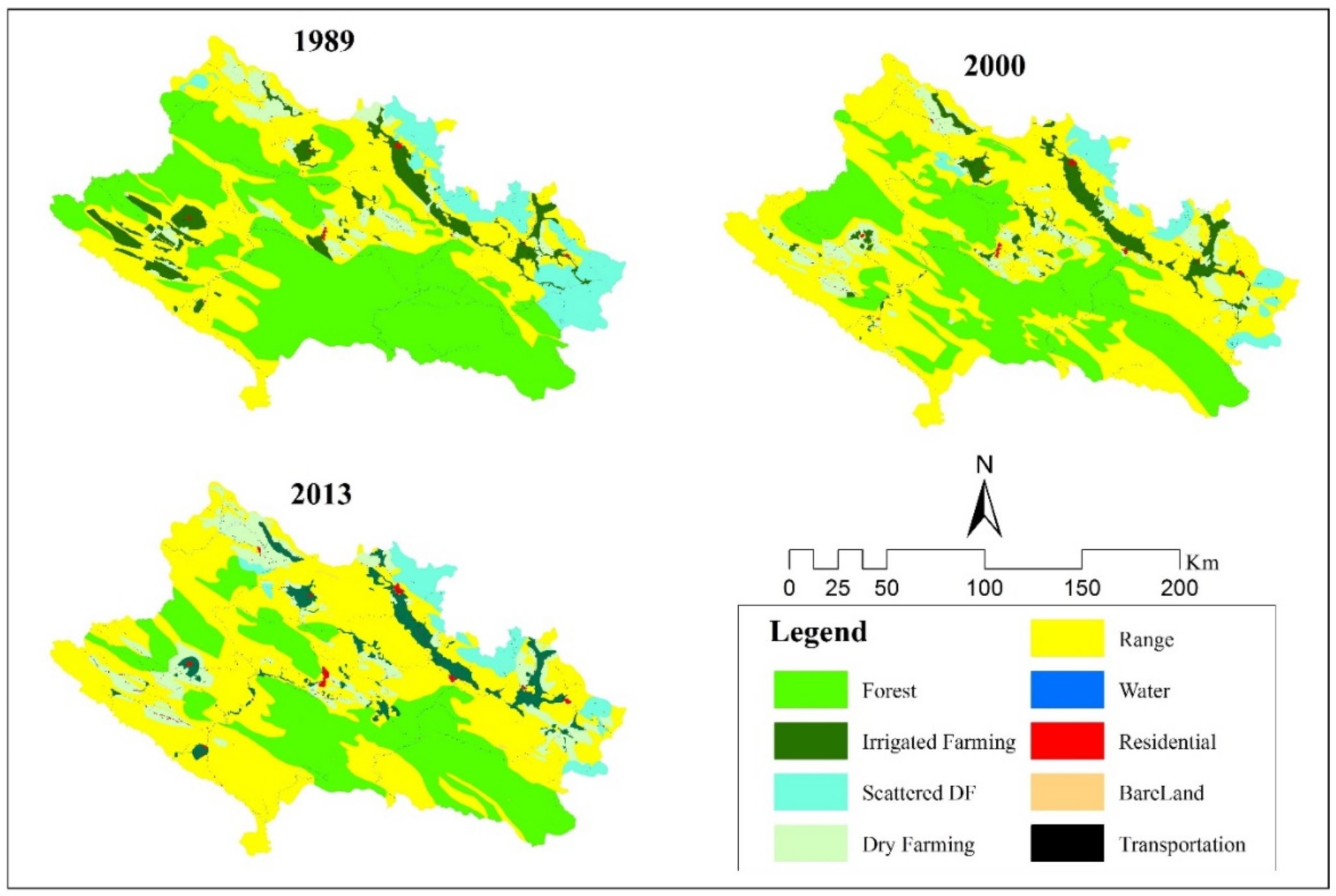

Figure 3). Based on
Figure 3 in this step, all Landsat images of the study area from different sensors, such as TM, ETM
+ and OLI which were downloaded for the years 1989, 2000 and 2013, respectively. Moreover, street map was downloaded from Open Street Map (OSM) and then it was edited using Landsat images and Google earth maps [
13]. Also, carbon data were extracted from Intergovernmental Panel on Climate Change (IPCC) data.
2.3. Multi-Temporal Land Cover Classification for Land Cover Change Detection
Based on
Figure 1, in order to analyze land cover changes, Landsat images were classified using maximum likelihood and object-oriented methods into nine classes: forest, irrigated farming, scattered dry farming, dry farming, range, water, residential, bare land; and transportation using ERDAS IMAGINE 9.2 software.
Maximum likelihood classification is a popular method for determining a known class of distributions as the maximum for a given statistic. The root of maximum likelihood classification can be traced back [
14]. An assumption of normality is made for the training samples. The algorithm builds the probability density functions for each category. During classification, all unclassified pixels are assigned membership based on the relative likelihood (probability) of that pixel occurring within each category’s probability density function [
14,
15]. Training areas were established by choosing one or more polygons for each class. Pixels that fall within the training area were taken as the training pixels for a particular class. In order to select a good training area for a class, the important properties (e.g., uniformity) and how well they represent the same class throughout the whole image were taken into consideration [
16,
17].
Land cover change detection was carried out using Land Change Modeler (LCM) in TerrSet Software by using the land cover maps of 1989 and 2000 as T1 and T2, respectively which produced T1-T2 land cover change map and 2000 and 2013 as T2 and T3, respectively which produced T2-T3 land cover change map.
2.4. Accuracy Assessment
Accuracy assessment of classified land cover maps was carried out using ground control points (GCP) in ERDAS IMAGINE 9.2 software. Based on Equation (1) [
18], the optimum number of GCP was determined as 196 points for each Landsat tile. The study area is covered by 6 Landsat tiles (
Figure 1). A summation of 1176 points were checked for each time point and the accuracy assessment measures of KIA (Kappa Index of Agreement), kappa and classification accuracy are shown in
Table 1.
where:
N: number of GCP
Z: standard score for suitable of confidence level (e.g., 1.96 for 95% and 2.58 for 99% confidence)
P: required accuracy
q: 1-p
E: acceptable error (e.g., 0.01 for ± 10%)
2.5. Transition Sub-Model Selection

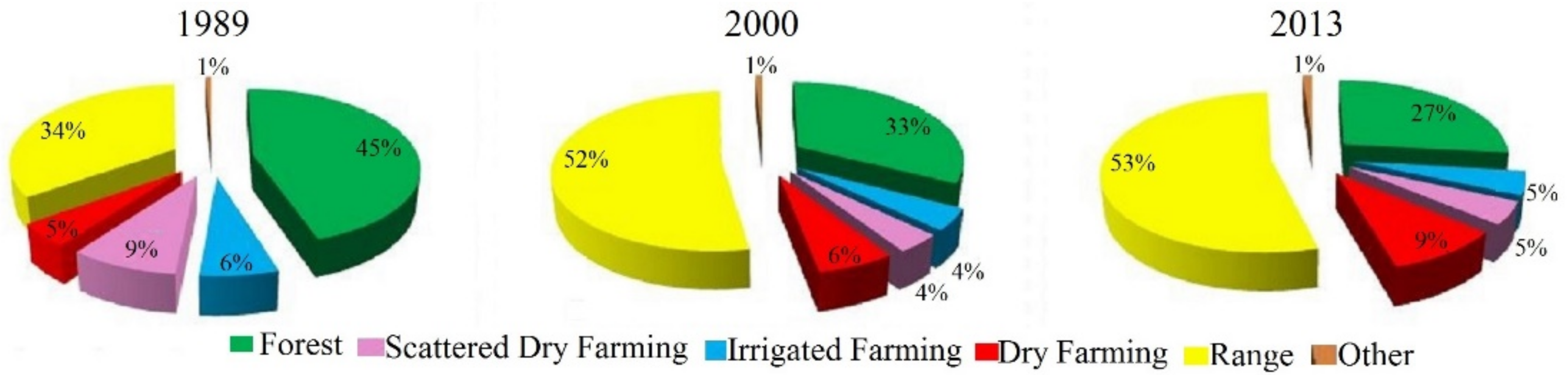

Based on the most important and frequent land cover changes in 1989–2000 and 2000–2013, transition from all other classes to forest selected as deforestation sub-model [
13]. Transition potential modelling was done in LCM in TerrSet software.
2.6. Variable Selection
Based on
Table 2, variable selection was performed using the literature review and Cramer’s correlation coefficient in LCM in TerrSet software. Cramer is a statistical coefficient that shows chi-square values between 0–1 while 1 shows the most agreement between two variables. In this section, Explanatory power test module of LCM is used to select the suitable variables based on Equation (2) [
19].
where:
2.7. Transition Potential Modelling
Transition potential modelling, which determines the potential of each cell of a land cover class for conversion to another, requires the selection of a suitable approach and definition of transition sub-model. Transition potential modelling is a base for land cover change simulation [
13]. In this study, a Multilayer Perceptron Neural network, which includes three main layers of input, hidden and output, is used for transition potential modelling based on two sub-models: (1) deforestation and (2) residential development was performed using LCM in TerrSet software. Deforestation refers to changes from forest to all other land cover classes, and residential development refers to changes from all other classes to residential.
2.8. Change Demand Modelling
To predict land cover changes, Land Change Modeler (LCM) was used. This model, using Markov chain, can predict the possible future change from a land cover class to another under customized scenarios [
2,
13,
20] using TerrSet software. Markov chain is a proper tool for land cover changes prediction, which simplifies the description of land cover changes. This model has the capabilities of explaining and determining the land cover changes [
13,
21]. In this study, Markov chain has been used in preparing the “probability prediction matrix” in TerrSet software.
2.9. Model Validation
Considering the importance of model validation, a Kappa coefficient was carried out using LCM in TerrSet software to determine model accuracy and persistence based on a comparison of derived land cover maps using Landsat image classification and change simulation in 2013 (as T3).
2.10. Land Cover Change Prediction
Based on the results of model validation, if model accuracy is more than 85% there is a good situation and if it is less, model should be repeated [
13]. At last, when model validation gave suitable results, land cover maps of 2000 and 2013 (as T
2 and T

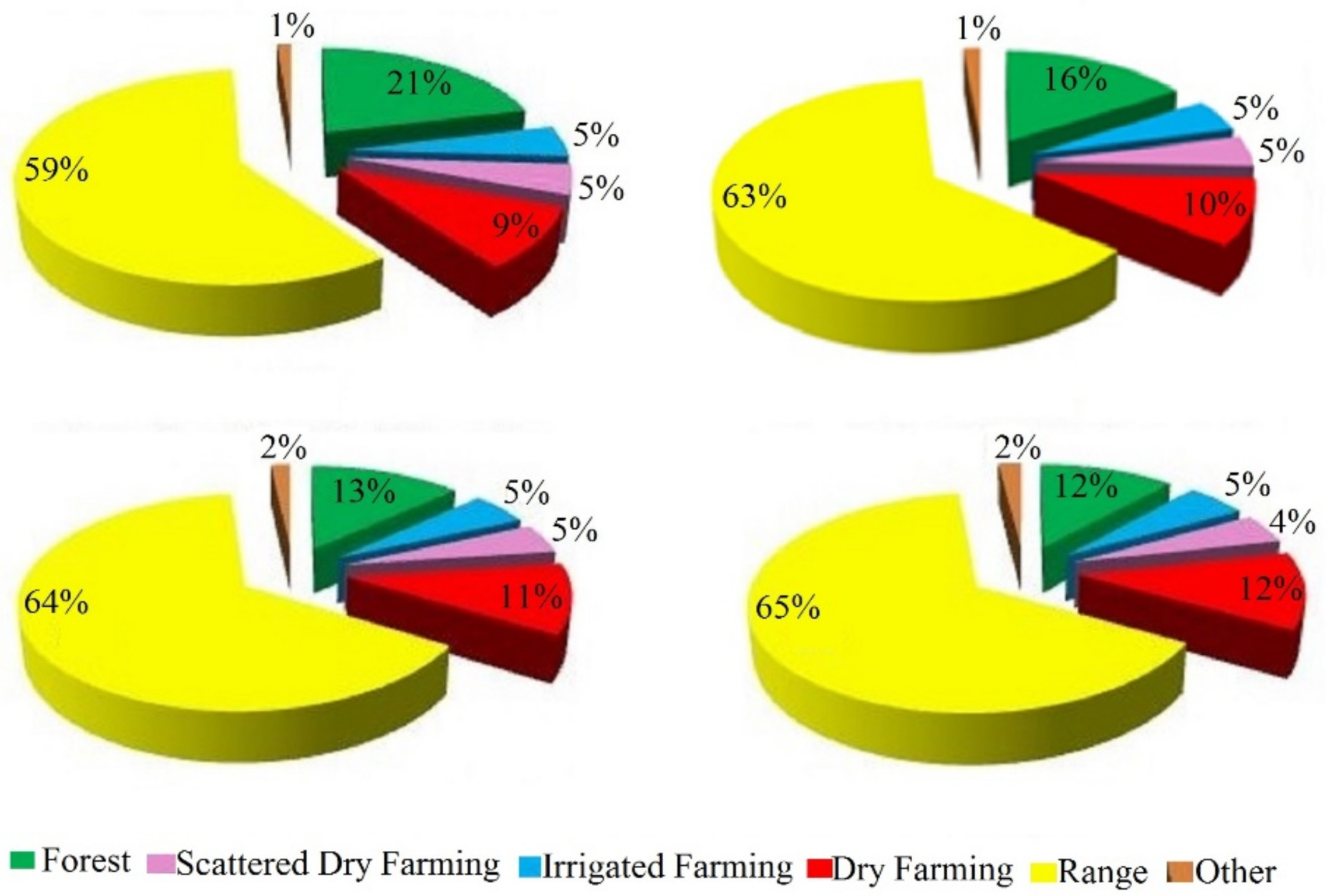

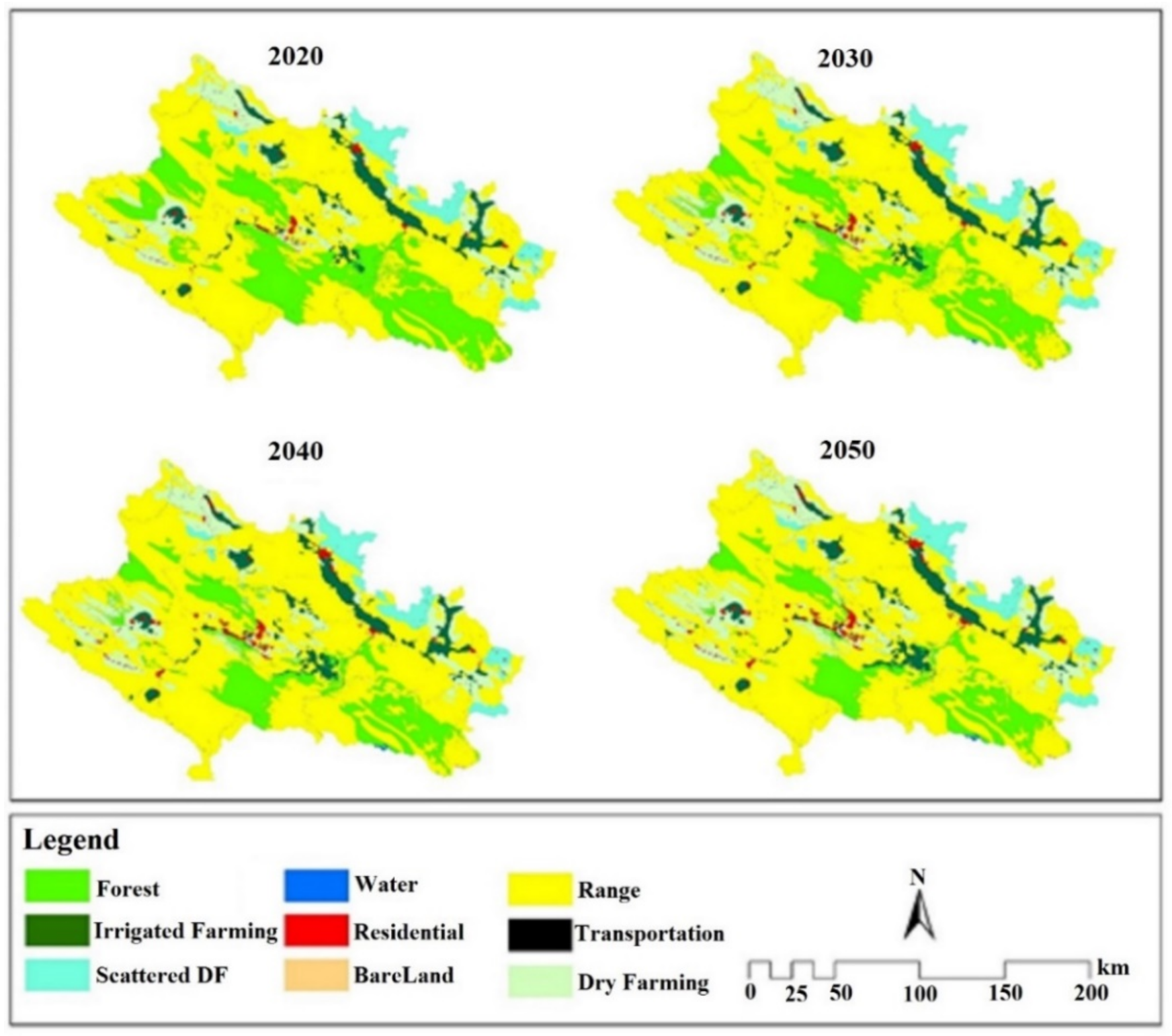

3) were defined as input maps and land cover change prediction will occur in the future in 2020, 2030, 2040 and 2050.
2.11. Carbon Storage and Sequestration Calculation Using ESM
Currently, the amount of carbon stored in terrestrial ecosystems is four times more than the atmosphere, and they play a very important role in moderating climate change due to the changes in carbon levels. However, changing land cover because of timber harvesting, fire or deforestation may change the amount of carbon stored in a landscape. Thus, land management methods are necessary to preserve terrestrial carbon resources [
22].
Four primary sources of carbon storage determine the amount of carbon stored in a terrestrial parcel: aboveground biomass, underground biomass, soil organic matter and dead organic matter [
23]. Each of these sources contains different sections that store a certain amount of carbon. Stems, stumps, branches, bark, seeds and foliage of plants are known as aboveground biomass (living biomass top of the soil surface). Live biomass of underground roots is the source of underground biomass. Also, soil organic matter, as the largest carbon pool on land, is composed of biomass of micro-organisms, fresh and partially decomposed residues and humus. Dead or particulate organic matter is also composed of leaf litter and other organic matter mixed with soil [
22].

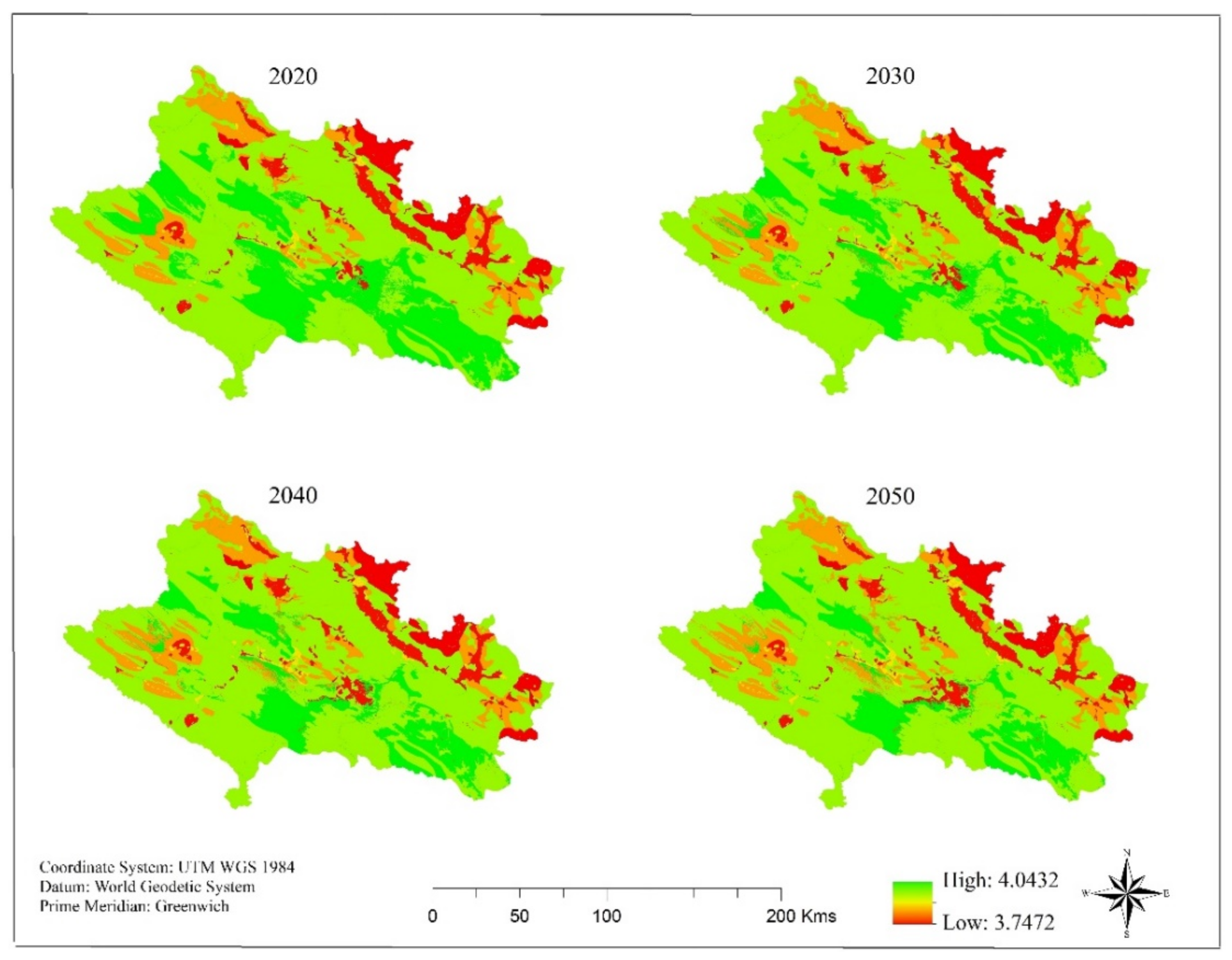

A simplified carbon cycle is used in ESM in TerrSet software to estimate the amount of carbon stored in an area, and to calculate the total amount of destroyed biomass in a forested area [
22]. To estimate carbon storage and sequestration, ESM needs land cover maps in raster (*.rst) and the table of carbon pools in *.csv file and they should match with column code of each other [
4,
22].
In order to explain the difference between stored carbon and precipitated carbon, the definitions of these concepts are explained as follows. Stored carbon is the amount of carbon that is stored in the short term in each carbon pool, while sequestered carbon indicates the amount of long-term stored carbon in each pool [
22]. In order to map the amount of carbon stored in the study area, it is necessary to estimate the amount of carbon stored in four main carbon pools for all land cover classes. In this regard, if possible, elevation classes’ data, human disturbances and landscape dynamic data can be used [
22].
At the end of processes, three maps were produced as listed below:

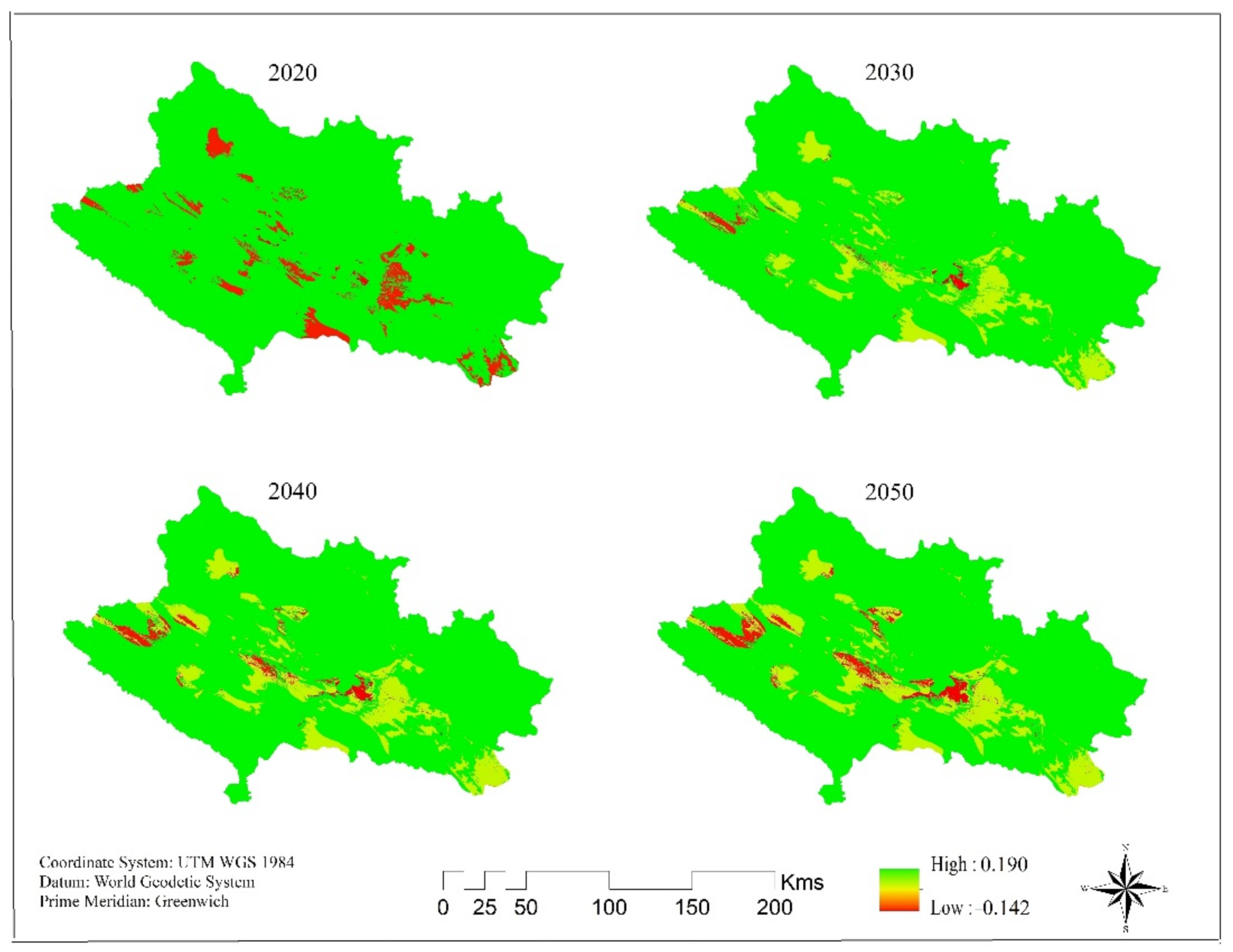

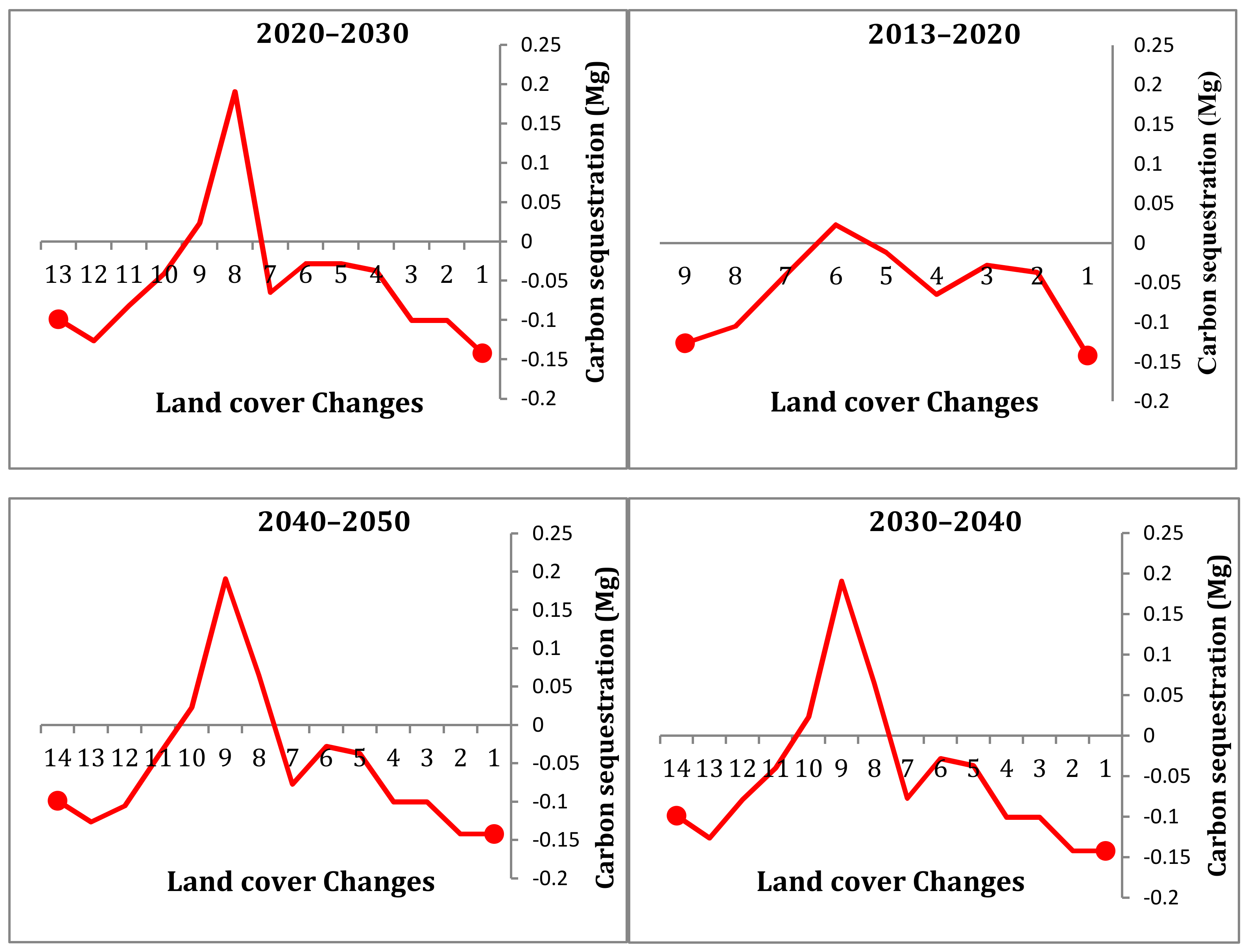

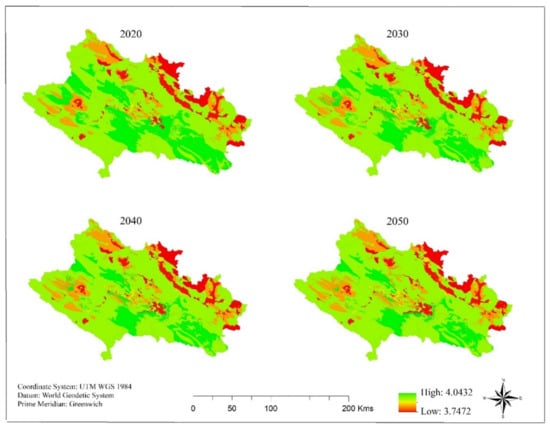

Sequestered Carbon (Mg): The total amount of carbon sequestered per land parcel. The amount of it is based on the difference between the amount of carbon between T1 (present) and T2 (future) at land cover level. The resulting map shows the amount of carbon sequestration in which the positive values indicate carbon sequestration and negative values indicate released carbon to the atmosphere.
The value of Currently Stored Carbon: The value of stored carbon represents the market price of carbon in the carbon market in US dollars, which determines the total value of carbon stored in the landscape based on the current land cover.
The value of Sequestered Carbon: The value of sequestered carbon shows the economic value of the amount of carbon sequestered per pixel of the T1 (current) to T2 (future) land cover scenario in US dollars or other currencies, while positive values representing the sequestration gain and the negative values indicates the cost of carbon emissions.

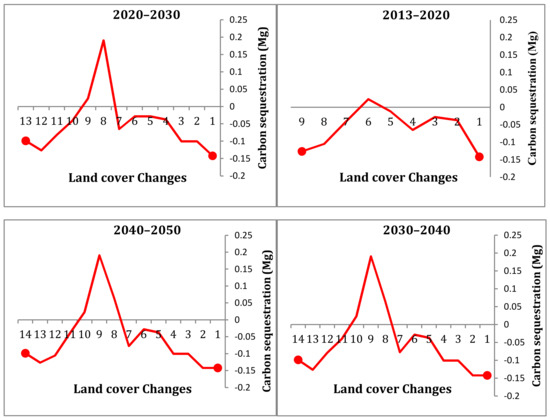

The ESM model can estimate the amount of net changes in carbon stock using the current and future land cover maps, which determine the amount of carbon storage and emissions. In this process, the total amount of sequestered carbon during the study period and its economic value will be determined [
22].
2.11.1. Carbon Density
The carbon density values are required for four carbon pools (Cabove, Cbelow, Csoil and Cdead). Due to the lack of carbon data, carbon density data are obtained from the Intergovernmental Panel on Climate Change (IPCC) report. Additionally, carbon capture densities of carbon pools that can be used to maintain the carbon sequestration of forest landscape in each grid are considered as constant values throughout the study period, with the difference that the time for the change is ignored.
Therefore, in this research biomass carbon stock for each land cover class was not calculated and, therefore, the IPCC data were used.
2.11.2. Extracting Carbon Data from IPCC Report
Intergovernmental Panel on Climate Change (IPCC) has published a report on climate change that includes carbon data obtained from previous literature and data collection using half-life of wood product to estimate the average decay rate. Moreover, chapter HWP in 2006 IPCC Guidelines for National Greenhouse Gas Inventories report has introduced applicable methods for the calculation of carbon stored in wood such as decay rate and half-life estimation. Note that if the harvested wood is used to produce different products, the slowest half-life should be applied [
10].
4. Discussion
Central Zagros region as a strategic environmental zone of Iran during last decade experienced rapid land cover change while at the beginning of study period about half of study area was covered by Zagros forests while human disturbances caused severe deforestation in this region that affects ecosystem services. The main forces of land cover changes consist of overgrazing, timber harvest, cut of trees, fire and human-made land cover development such as residential areas, cultivated lands [
14,
25,
26] and roads, which are also evident in the results of this study. Residential areas development is a key issue in land cover change [
27], because most of the settlements at first have occurred in the adjacent of suitable lands for cultivation. When the residential areas grow, these suitable lands will be converted to settlement and in order to safeguard food requirement, the surrounding lands will be converted to cultivated lands. On the other hand, most of these lands have a poor fertilization and after a short time, cultivation in these lands won’t be profitable, and finally these destroyed lands will be released and its result is bare land or a poor rangeland [
28] that expansion of bare lands near residential areas in this study confirms it.
However, the land cover change and its impacts on ecosystem services of the central Zagros region Iran are not well addressed in existing literatures, despite its immense importance for natural resources management in this region. So that, this study was an effort to reveal the land cover history of Central Zagros region Iran since 1989 and to assess the changes in ecosystem services caused by the land cover change, using freely available Landsat data. Using remote sensing data is the most feasible and cost-effective way to assess land cover change with high spatial, spectral and temporal resolution over large areas [
21]. Using a global data set of ecosystem value coefficients along with the land cover data gives a scope to eliminate the cost of ground data collection and getting quick and reliable information for similar data poor area [
21].
Tolessa et al. (2017) mentioned that land cover change is a major driver of ecosystem services changes. Carbon storage and sequestration as a key ecosystem service having a direct relation with land cover/cover. Based on results of this study, carbon storage and sequestration is decreasing in land cover classes during study period due to a high rate of transition from natural land covers to human-made as a result of human influences [
10]; while the conversion of forests to rangeland causes the most carbon loss in this land cover class because of large area; this can be a good comparison between forests and rangeland which shows the capability of forests in carbon sequestration versus rangelands because of the enlarged area coverage, more density of plant cover and bigger assigned coefficients value therefore, a decrease in the values of this component of ecosystem prevents a balanced flow of landscape ecosystem services [
29]. Generally, transition from natural land covers, especially forests to human made land covers such as cultivated lands, bare land, transportation network, residential areas or natural landcovers such as rangeland causes carbon loss. On the other hand, the conversion of scattered dry farming to residential areas will cause carbon storage because the amount of stored carbon in lands covered by scattered dry farming is so low while in a residential area due to the plantation of green areas such as trees, shrubs, etc., the amount of stored carbon in comparison to scattered dry farming is more. The amount of carbon storage and sequestration as an ecosystem service of central Zagros region is extremely decreased because of forest degradation and the expansion of human made land covers, which emphasizes other findings elsewhere [
29,
30,
31,
32].
Primary reason for the increase in carbon emission, is a rapid and severe deforestation in Central Zagros region, which leads to a high commercial compensation in this region. Total sequestered carbon is constantly decreasing because of human disturbances which will cause ecosystem services loss and at last human health will be affected. Also, impact on the net ecosystem service values caused by the large change in total value of sequestered carbon shows that human activities in study area impose a high economic damage. Forest has large contribution on total value of ES despite large change in area, because the forest land provides higher amount of carbon storage and sequestration [
21].
One of the limitations of this study is related to ESM model that lies in this hypothesis that ESM model does not consider changes due to the self-purification and self-regulation power of ecosystems over time and considers any changes in carbon storage due to sudden changes in land cover. Accordingly, if there is no change in land cover during the study period, the net carbon sequestration rate will be zero. To resolve this limitation, we have used long time period land cover data to prevent the effects of abrupt changes in land cover. Another limitation of this study is the lack of updated carbon data in the study area to be used in estimations.
5. Conclusions
In this paper, using Landsat satellite images, land cover maps were produced and used as the inputs of LCM. Land cover change prediction was carried out using Markov Chain and Multilayer Perceptron Neural network based on two sub-models: (1) Deforestation, (2) Residential development; then land cover change prediction was carried out for 2020, 2030, 2040 and 2050. Due to the lack of updated carbon data, we used IPCC data to extract carbon data on four carbon pools as aboveground, belowground, soil organic matter and dead organic matter. The predicted land cover maps and carbon data were used as the inputs of ESM in Carbon storage and sequestration tool. The results show that Zagros forests have occupied the most land cover changes due to human disturbances which has led to the reduction of carbon storage and sequestration. This study simulates the results of human activities in the central Zagros region and its consequences which will lead to severe deforestation and at last the reduction of ecosystem services especially storage and the sequestration of carbon. The results can be used by environmental planners to improve and protect natural land covers, especially forests to protect the ecosystem services and their continuity.
