Article

Accounting for Value Changes in Cultivated Land Resources within the Karst Mountain Area of Southwest China, 2001–2020

1
School of Karst Science, Guizhou Normal University, Guiyang 550001, China
2
Real Estate Registration Center of Guizhou Province, Guiyang 550001, China
3
National Engineering Research Center for Karst Rocky Desertification Control, Guiyang 550001, China
4
The State Key Laboratory Incubation Base for Karst Mountain Ecology Environment of Guizhou Province, Guiyang 550001, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work and should be considered co-first authors.
Land 2022, 11(6), 765; https://doi.org/10.3390/land11060765
Submission received: 28 April 2022 / Revised: 21 May 2022 / Accepted: 22 May 2022 / Published: 24 May 2022
(This article belongs to the Special Issue Karst Land System and Sustainable Development)

Abstract

:
Cultivated land resources are important natural resource assets that are related to food security and sustainable development. Due to the many restrictive factors of the karst landform on agricultural production, the quantity and quality of cultivated land in the karst mountainous areas in Southwest China are poor. Reclaiming cultivated land to develop economy or to avoid transitional reclamation to protect ecology is an important proposition in this area. Analyzing changes in the physical and monetary value of cropland resources can help us to formulate more reasonable policies for the development and utilization of cultivated land resources, and to achieve a win-win scenario for economic development and ecological protection. Using multi-source remote sensing data and 20-year landcover data obtained by the GEE platform, this paper evaluated the cropland resources of the karst mountain areas of China at the pixel level. It was found that under the apparent outflow of the physical account of the cultivated land resources, the monetary value still maintained growth, proving that the current cultivated land-use policy in Guizhou Province has significantly improved the value of local cultivated land resources.

1. Introduction

Natural resource assets are important means of production that are derived from nature, and that play a decisive role in economic and social development. The coordinated relationship between resource consumption, environmental protection, and economic growth has become a subject that affects human destiny [1]. Therefore, we need to find a method for tracking changes in nature, and for determining how changes are linked to economic and other human activities, to reflect the interactions between man and nature. Considering the increasing demand for statistics on natural capital within analytical policy frameworks on environmental sustainability, human well-being, and economic growth and development, advancing this emerging statistical field has become increasingly urgent [2].
Many scholars have performed statistical accounting for various natural resources, such as land resources and forests. Natural resource asset accounting uses the theories of statistics, accounting, resource science, and other disciplines to make a reasonable valuation of natural resources within certain periods of space and time, reflecting quantitative and structural changes to their physical quantity and value [3,4]. The purpose for this is to understand the current situation of natural resources, and the reasonable occupation, use, benefits, and disposal of natural resource assets, and finally, to solve the contradiction between resource utilization and environmental protection.
In 1993, the United Nations and the World Bank incorporated natural resources and the environment into a system of national economic accounting (SNA), and successively issued SEEA-1993 and SEEA-2003, in which physical value is used to describe interactions between the economy and the environment in various fields [5,6]. In March 2012, the 2012 System of Environmental Economic Accounting—Central Framework (SEEA-CF) was adopted as the international general guide, making it the first international statistical standard for environmental economic accounting, and it was supplemented by SEEA Experimental Ecosystem Accounting (SEEA-EEA) and SEEA Applications and Expansion. SEEA applies the accounting concepts, structures, rules, and principles of environmental information that are included in the System of National Accounts (SNA), and it uses a single framework to integrate environmental information (often measured in physical quantity) and economic information (often measured in value) [5,6,7,8,9]. It mainly covers the measurement of three areas: the physical flow of material and energy within and between the economy and the environment, and stocks of environmental assets and changes in these stocks, as well as environmentally related economic activities and transactions [10].
SNA, SEEA, and SEEA-EEA account research provides a good theoretical basis for the accounting of natural resource assets, but traditional SNA and SEEA accounting takes the natural environment as a kind of production material and adopts methods for which it can be presented to reflect the stock of the means of production and the flow in economic activities. Experience exists in related areas of assessment, such as land-cover and land-use statistics, but the integration of different areas of expertise into an accounting framework is new. In the latest SEEA-EEA specification, the principle of using surveying and mapping results has also been emphasized. At present, many studies also focus on how to use remote sensing data to support natural capital accounting [11]. Since natural resources have inherent location attributes, natural resources of the same quantity or quality will show great geographical differentiation in different locations; that is, simple presentation and accounting methods will not include the important spatial characteristics of natural resources. As a result, using multi-remote sensing data to conduct natural resource value not only allows the quantity and quality indicators of accounting objects to be obtained quickly, reducing the workload of manual investigation, but it can also evaluate the accounting results in the spatial dimension, so that the accounting results can better serve the decision-making processes.
In October 2016, UNSD, UNEP, CBD, and EU initiated NCAVES. The project lasted 3 years and was implemented in China, Brazil, India, Mexico, and South Africa. This project aimed to assist China in advancing the country’s knowledge agenda for environmental and ecosystem accounting, and to initiate the pilot testing of SEEA Experimental Ecosystem Accounting (SEEA-EEA), as well as ecosystem valuation and macro-economic analysis, with a view toward improving the management of natural biotic resources, ecosystems, and their services at the national level, and mainstreaming biodiversity and ecosystems in national level policy planning and implementation [12]. Guizhou Province is one of the pilots in China, and many scholars have conducted much research into the natural resource balance sheet, GEP, ESV, and other fields, but the subject, object, and method of accounting need to be unified [13,14,15].
Cropland accounts for 10.20% of the global land surface area, which is the most important resource for agricultural production, and it plays an important role in ensuring food security, ecological security, and sustainable development [16,17]. The cultivated land resource is a natural resource that has been domesticated by human beings. Its growth and decline are not only restricted by natural laws, but are significantly affected by human activities. Compared to other kinds of natural resource assets, cultivated land resources can not only provide necessary food for survival, but they also participate in the energy transformation and material cycle of nature as an ecosystem, which is closely related to human society. This thus establishes how cropland value contributes to physical and monetary changes in long time series, which can assist with the analysis of the change range, flow characteristics, and reasons for change.
The formation of a karst landform is the result of the long-term dissolution of limestone and other soluble rocks by groundwater or surface water. The surface water is dissolved and eroded along the joints and fissures of soluble rocks, forming an uneven and broken surface shape. As one of the three karst-concentrated distribution areas in the world, the karst area in southern China has many factors that are not conducive to agricultural production. These factors, such as bedrock exposure, small soil stock, and discontinuous distribution [18,19], make agricultural planting difficult, and the cost of cultivated land management is very high. Additionally, due to the development of karst, the surface water is difficult to maintain, which means there is a serious water shortage in this region, but at the same time, the discharge of surface water in the rainy season is too late, causing water accumulation in some karst depressions. Therefore, karst areas in southern China are often accompanied by poverty; because both the quality and quantity of cultivated land are poor, the more cultivated the land is, the poorer the people, and the contradiction between man and land is very prominent. As the core area of karst in southern China, Guizhou has serious rocky desertification and a large area of rock exposure. By exploring the impact of human activities on cultivated land, we can determine the positive policies that can improve the value of cultivated land resources, something that is of great significance for ameliorating the current situation of poverty in China’s poor areas within the karst [20,21,22].
Landcover data provide the most direct feedback when accounting for cultivated land resource physical quantity, but cropland resource assessment methods will inevitably require more detailed spatial data. As the development of remote sensing and big-data technology have already brought a new approach towards accounting, we can obtain multi-source remote sensing data more quickly to assist with the accounting work, improve the accuracy of the accounting, and reduce the cost. This research aimed to realize the dynamic monitoring of the spatial pattern evolution of cropland resources via physical accounting, using multi-remote sensing data [23]. It can make up for the defects in the SEEA-CF accounting framework, which only presents data rather than spatial information. Meanwhile, in order to quantify the change rules of the cultivated land resource value, and to observe whether effective land management policies have been adopted, this paper evaluated the changes of cultivated land resource value in Guizhou Province from 2001 to 2020. By analyzing the impact of the economy and other human activities on cropland, it proved that the current cultivated land use policy in Guizhou has significantly improved the value of local cultivated land resources. This provides a reference for the rational utilization of cultivated land resources.

2. Materials and Methods

2.1. Study Area

Guizhou province is located in the inland area of Southwest China, to the east of Yunnan Guizhou Plateau, and is located between 24°37′–29°13′ N and 103°36′–190°35′ E, which is an important ecological barrier in the upper reaches of the Yangtze River and the Pearl River [24,25]. Meanwhile, as the junction of the Eurasian plate and the Indian Ocean plate, its terrain is high in the west and low in the east, tilting from the middle to the north, and from the east and to the south. The landform of the whole province can be divided into four basic types: plateau, mountain, hill, and basin. Moreover, Guizhou province is one of the three karst-concentrated distribution areas in the world, the core area of East Asia, which is also the largest distribution area and the strongest conical karst development in China. With high mountains, deep valleys, and steep terrain, 92.5% of the area of the province is mountainous and hilly, and 109,100 square km comprises exposed karst landform, which means the surface is extremely fragmented and lacks the cropland resources for agriculture [26,27,28]. In addition, due to the increasing population, the cultivated land area continues to reduce, meaning that the percapita cultivated land area is less than 300 square meters, which is far lower than the average level in China [29]. Moreover, the proportion of cultivated land with a thick soil layer, high fertility, and good conditions of water conservation is low (Figure 1).

2.2. Dataset

2.2.1. Spatial Data

We used Google Earth Engine (GEE) to gather and to calculate the spatial data for this analysis. GEE is an interactive platform that provides geospatial processing services that are powered by the Google Cloud Platform [30]. With Earth Engine, we can perform geospatial processing at a scale that is free of charge, and we can carry out high-impact, data-driven scientific research involving large geospatial datasets [31,32]. In this research, we adopted multi-remote sensing time series data from 2000 to 2020, to detect the impact of land use changes on the value of cropland resources. Landcover data were derived from images collected by the MODIS sensor (the MCD12Q1 V6 product), which provides global land cover types at yearly intervals (250 m × 250 m). The digital elevation models (DEMs) used Shuttle Radar Topography Mission (SRTM) data at a 30 m resolution. Additionally, we estimated the Landsat net primary production (NPP) using Landsat Surface Reflectance for CONUS (Landsat net primary production CONUS) [33]. Beyond these, we selected the GPM data (Monthly Global Precipitation Measurement v6) to revise the existing results of ecological value. Global Precipitation Measurement (GPM) is an international satellite mission that provides next-generation observations of rain and snow worldwide, every three hours. The Integrated Multi-Satellite Retrievals for GPM (IMERG) is a unified algorithm that provides rainfall estimates by combining data from all passive-microwave instruments in the GPM Constellation.

2.2.2. Socioeconomic Data

Socioeconomic data, including the yields of major farm crops (YMFC), the gross output value of farming (GOVF), the gross domestic product (GDP), the permanent resident population (PRP) and the employment in agriculture were obtained from the Guizhou statistical yearbook (2001–2021) (http://stjj.guizhou.gov.cn/ accessed on 4 April 2022). In addition, we derived the grain prices from 2001 to 2020 from the “The National Compilation of Cost-benefit data of Agricultural Products” as a reference (Table 1).

2.3. Methods

2.3.1. Cropland Resources Value Accounting Framework

To make a scientific evaluation of the value of cropland resources, we established three accounting accounts [34]: the physical quantity account, the conditional account, and the monetary account [35,36,37,38]. Among them, the physical quantity account was used to reflect the changes in the number and scope of cultivated land in the study area from 2000 to 2020, and to provide necessary data for value accounting, while the quality account was used to record the quality status of cultivated land in the study area. Since it is obvious that the value of cropland varies along the quality status, there will be significant differences in crop yield and ecological function. Finally, the monetary account includes two parts. One is the direct value, also called the use value or the commodity value, which is the value that is formed by people’s direct harvesting, which is the output value of agricultural products provided by cropland resources. This part can be calculated by the market price method, because agricultural products can directly enter circulation as commodities [39]. The other part is the indirect value, which refers to the ecological service ability of cropland resources as a part of the natural environment when they exist in a natural way, as well as the value of natural resource assets that are used to meet human spiritual, cultural, and moral needs, and social development [40] (Table 2).
The direct value is the gross output value of various grains, tubers, oil crops, vegetables, and other crops in Guizhou Province. The indirect value is the sum of the value equivalent for each ecological function. The annual cropland resources value is the direct value plus the indirect value.
V T = V D + V I D
V T = i = 1 n V D i
V I D = i = 1 n V I D i
In the formula, V T is the total monetary value of cropland resources, V D is the gross output value, and V I D is the total value equivalent of cropland ecological function.

2.3.2. Landscape Index

Cropland fragmentation refers to the fragmentation, dispersion, and size of the cultivated land due to natural or human factors, and the area of each cultivated land is relatively small, showing a decentralized and disorderly pattern, which is a long-term dynamic process [41,42,43]. For the karst mountain areas, the high mountains and deep valleys lead to obvious cutting terrain, and cultivated land can only be distributed on gentle slopes or small flat land. Therefore, the degree of cultivated land fragmentation is a very typical quality evaluation index in karst areas and plays a decisive role in the realization of the value of cultivated land resources [44,45].
Research on the impact of cultivated land fragmentation on the landscape scale of cultivated land can directly reflect changes in cultivated land fragmentation. In this study, we used the open-source Python library to compute landscape metrics, and the following six indicators were selected to measure the cultivated land landscape [46]:
  • Patch Density (PD)
This indicator refers to the number of cultivated land patches per unit area in the study area, and it has an important impact on biological protection, material, and energy distribution. This index reflects the situation in which the concentrated and contiguous cultivated land is divided into small patches, which directly reflects upon the connotation of cultivated land landscape fragmentation [47].
PD = n / A
n is the number of the patches; A is the total area.
  • Edge Density (ED)
This is an index that is used to analyze the shape of land patches, revealing the degree of cropland segmentation, as well as being a direct reflection of the degree of cultivated land fragmentation. The greater the edge density, the higher the degree of cultivated land division, and the more scattered the layout [48].
ED = P / A
P is the total perimeter of all cropland patches; A is the total area.
  • Fragmentation Index of Patch Numbers (FN)
The patch size is the most basic spatial feature and it directly affects the mechanization level of agricultural production. As such, this index is used to measure the degree of fragmentation of the landscapes.
FN = ( N 1 ) / M P S
MPS is the mean patch size; N is the number of cropland patches.
  • Area-Weighted Mean Shape Index (AWMSI)
Since an irregular shape leads to a reduction in the actual planting area within the total area, the farming production cost per unit area will be increased. However, with an increase in the patch size, the impact caused by the irregular shape will gradually weaken. Considering this phenomenon, AWMSI is taken to be one of the indicators to measure the degree of the cultivated landscape.
AMWSI = i = 1 n [ ( 0.25 P i a i ) ( a i / A ) ]
n is the number of cropland patches; P i is the perimeter of the patches; a i is the area of the patches; A is the total area of cropland.
  • Fragmentation Shape Index (FS)
This index is used to reflect the internal combination of cultivated land patches. The distribution of cultivated land patches becomes more scattered as the index increases. Additionally, the internal combination simultaneously becomes more complex.
FS = 1 1 / M S I
M S I = i = 1 n ( 0.25 P i / a i ) / N
MSI is the mean shape index; a i is the patch area; P i is the perimeter of the patch; N is the number of cropland patches.
  • Aggregation Index (AI).
This index reflects the degree of patch agglomeration within the landscape type. When the value is larger, the landscape is composed of a few large patches, and when the value is smaller, the landscape is composed of many small patches [49].
AI = e i max _ e i × 100
max _ e i = { 2 n ( n 1 ) ,                                               m = 0 2 n ( n 1 ) + 2 m 1 ,         m n 2 n ( n 1 ) + 2 m 2 ,       m > n ,           ( m = A i n 2 )
e i is the number of edges that the patches have in common; max _ e i is the maximum number of edges that the patches have in common; P i is the perimeter of the patch; n is the edge length of the largest integer square that does not exceed the total area of the cropland area.

2.3.3. Revisions of the Ecological Value Equivalent Factors

Costanza et al. proposed the principle and method of ecosystem service value estimation [50], but their methods were criticized because they resulted in the ecological value of the cultivated land being significantly low. Therefore, Chinese researchers such as Xie Gaodi revised Costanza’s assessment framework based on China’s economic situation, land use, and vegetation types, and developed an assessment method for China’s ecosystem service value based on the unit area value equivalence factor [51,52,53] (Appendix A). As the ecological function value consequently varies with the internal structure and external form of ecosystem, constantly changing within different regions or different periods, we conducted two revisions to obtain the final ecosystem service value equivalent of Guizhou [54]:
  • Previous studies have shown that the ecosystem function is positively correlated with NPP and precipitation. As such, we used two temporal and spatial factors (NPP and precipitation) to modify the ecosystem service value equivalent table of China for each year.
F i = { P i × F n 1 R i × F n 2
F i refers to the unit area value equivalent of the ecological service function for each year; P i refers to the NPP regulation factor; R i refers to the precipitation regulation factor; F n 1 represents the value equivalent per unit area of China for gas regulation, climate regulation, environmental purification, nutrient conservation, and biodiversity maintenance; and F n 2 represents the value equivalent of China’s unit area of hydrological regulation function.
2.
According to Costanza’s research, the economic value of ecological service value equivalent factors is 54 USD/hm2 (1997). Combined with China’s grain production income, Chinese scholars have calculated that the economic value of an ecological service value equivalent factor in China is 449 CNY/hm2 (58.5 USD/hm2 in 2007), using the shadow land rent method. However, the price index and grain yield vary interannually, and so to reflect the indirect value change of cultivated land resources more accurately, we revised the economic value by year to form the final economic value of the ecological function, to make it suitable for the study area [55].
E V i = 1 7 i = 1 n m i p i q i M
E V i refers to the economic value of an ecological service value for equivalent factors of cropland resources in each year; m i refers to the area of crops; p i refers to the average price of crops; q i represents the output of agricultural products; n represents the types of crop products.

3. Results

3.1. Physical Account Changes

3.1.1. Spatial Changes of Guizhou Province

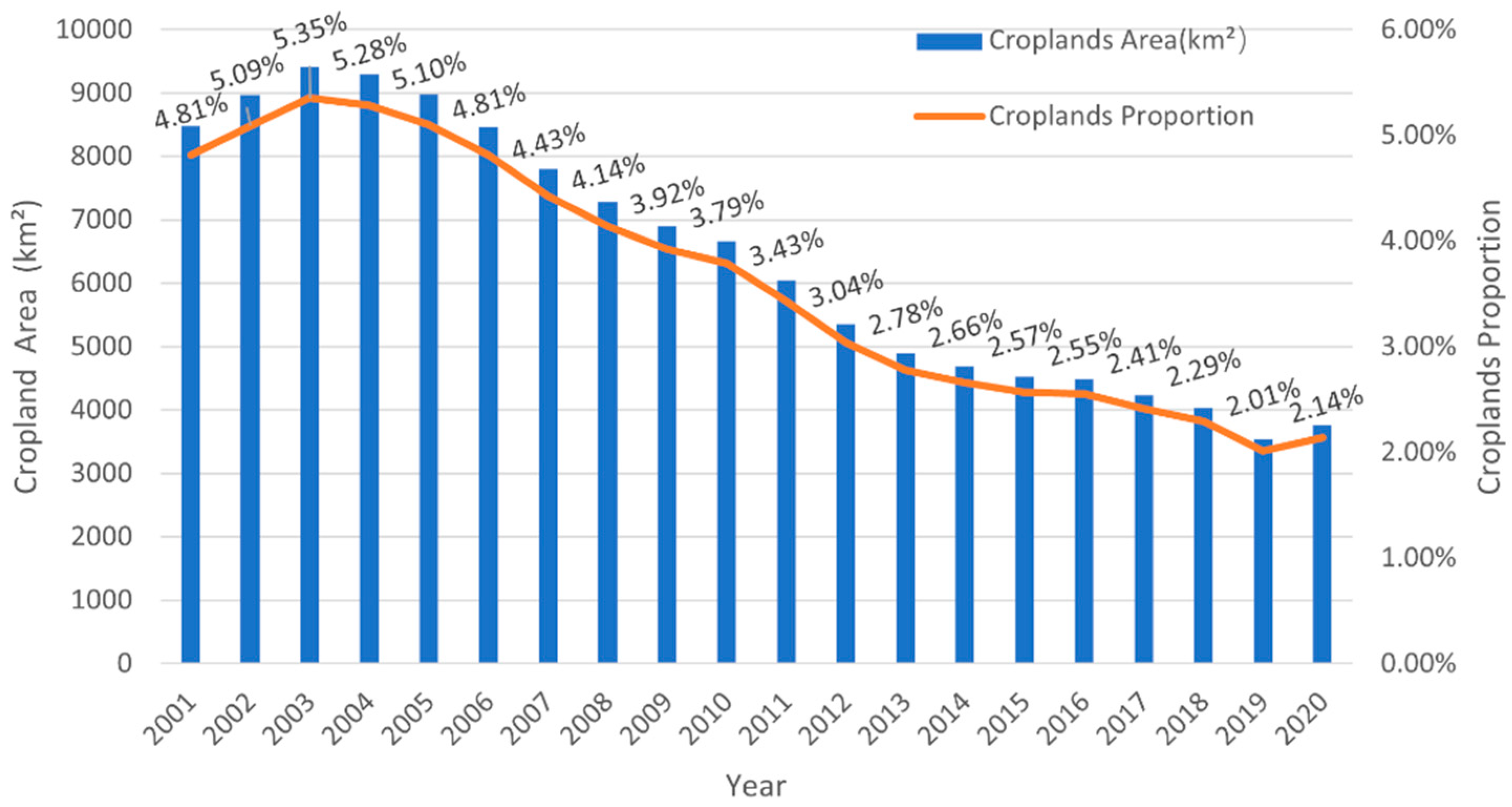

Through the analysis of the land cover data of the study area from 2001 to 2020, it was found that the cropland resources in Guizhou Province experienced a small increase from 2001 to 2003, and they have then decreased year-by-year since 2004 (Figure 2). By 2020, the cropland resources had reduced to 3768.34 km2, which means that the number had decreased by 55.52% compared to 2001. At the same time, it is easy to see that the cultivated land resources in Guizhou Province are very scarce. The proportion of cultivated land resources only accounted for 5.35% at the highest level (2003), while this figure reduced to 2.14% in 2020 (Table 3). Moreover, with the increase in the population, the percapita cultivated land resources in Guizhou Province show absolute scarcity, from 223.04 m2 in 2001 to 97.68 m2 in 2020.

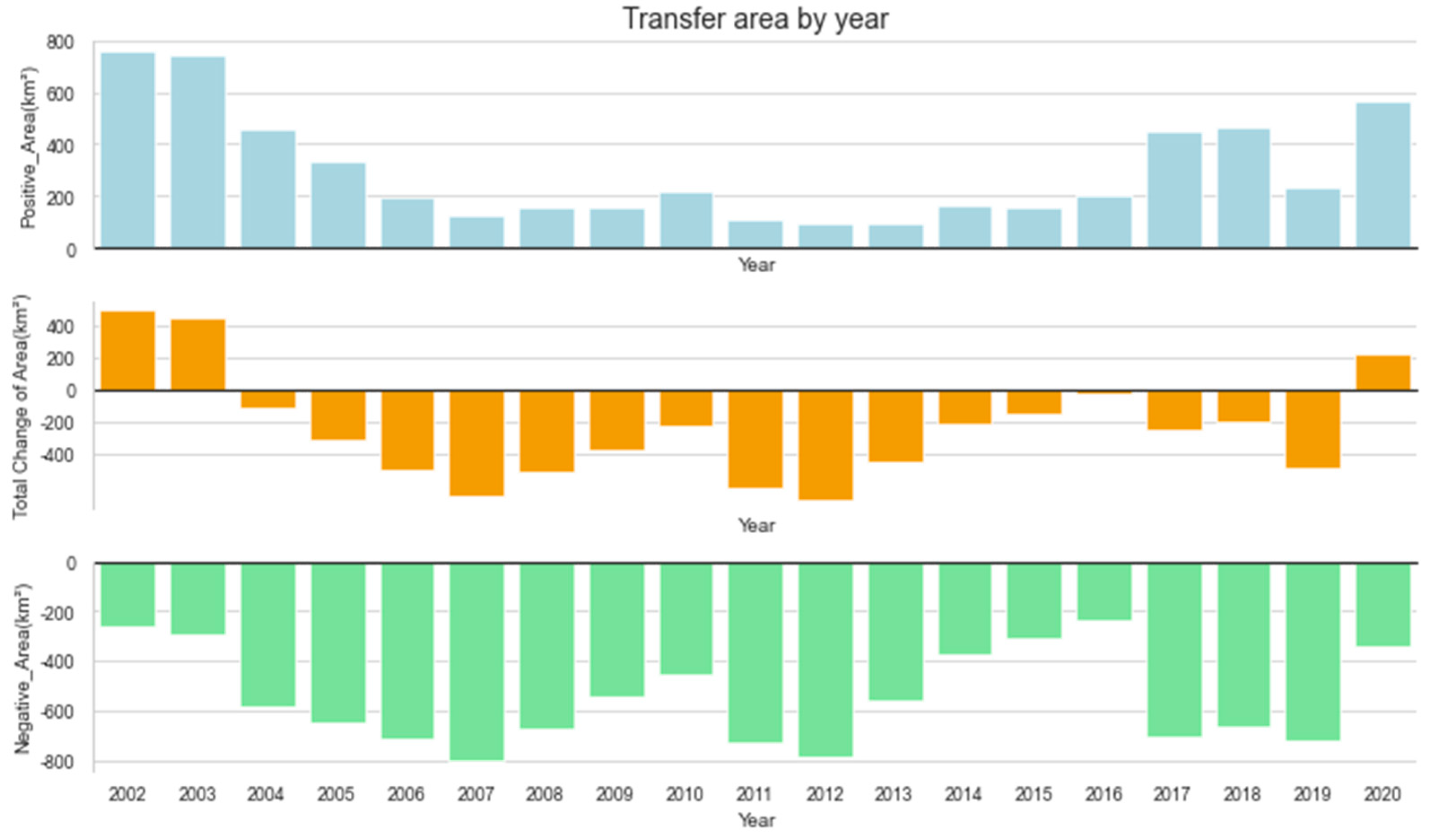

Secondly, each patch of land cover data was calculated, and the time series changes of each pixel was analyzed for different years, with the finding that the area of cropland resources experienced both transfer-in and transfer-out in the same year. During this period, the positive area changes in the cultivated land area are in a “U” shape, while the negative area changes are represented by a wave form. Moreover, with the transfer proportions of −9.43% (−798.82 km2), −9.28% (−786.03 km2), and −8.55% (−724.78 km2), 2007, 2012 and 2019 became troughs. The overall distribution of the total change area was similar to that of the negative area (Figure 3).

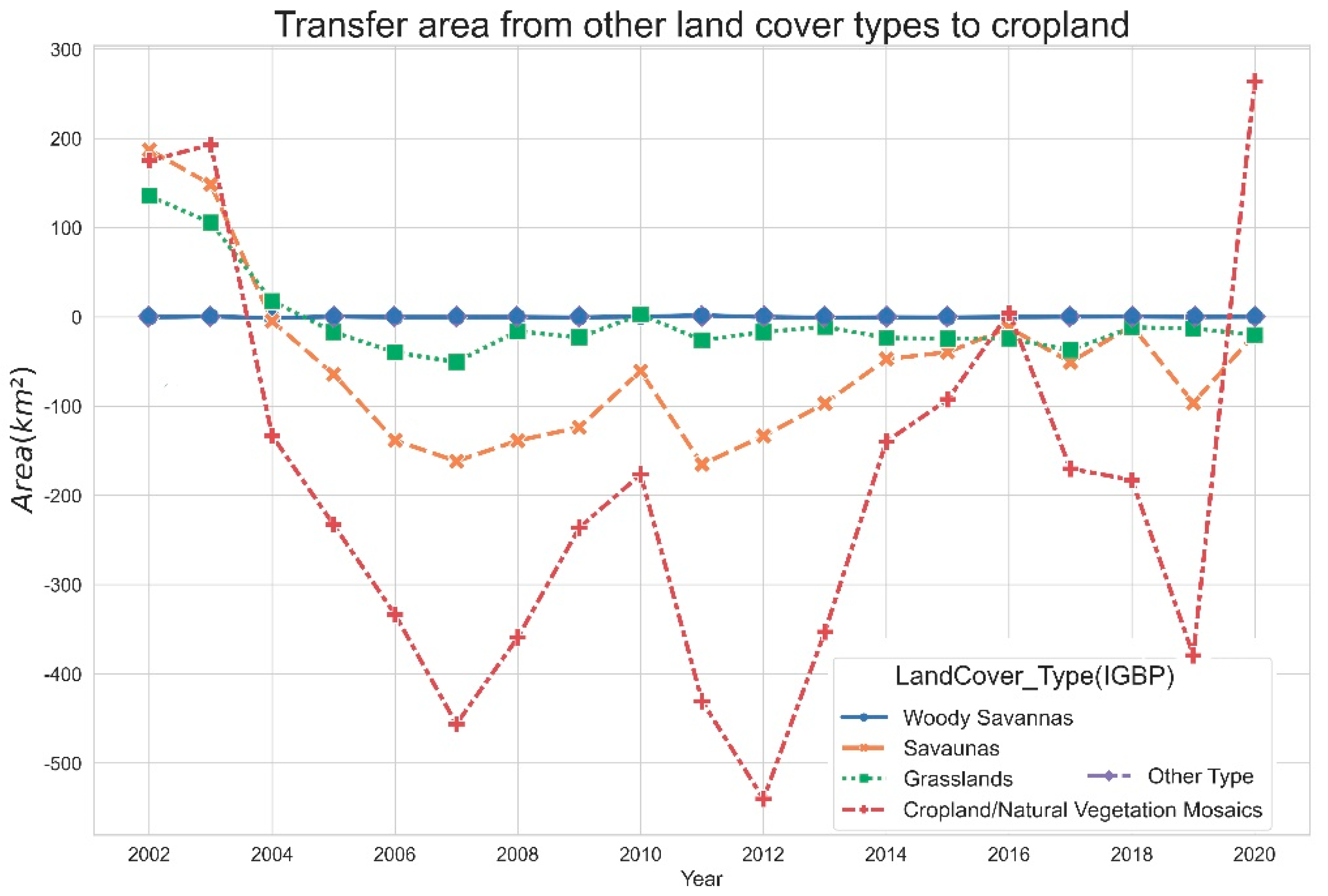

According to the International Geosphere-Biosphere Programme (IGBP) classification (Appendix A), there are 15 types of land cover in Guizhou Province. As can be seen from Figure 4, the cultivated land resources in Guizhou Province are mainly transferred with grasslands, savannas, and cropland/natural vegetation mosaics. Recent land cover data over the last 20 years show that the transfer of cropland/natural vegetation mosaics account for an average of 66% of the total transfer area. The type of cropland/natural vegetation mosaics are mosaics of small-scale cultivation, with 40–60% of natural tree, shrub, or herbaceous vegetation in a pixel. The increase in cropland/natural vegetation mosaics shows that the fragmentation of cultivated land resources in Guizhou Province increased from 2014 to 2019 (Table 4).

3.1.2. Crop Production Changes in Guizhou Province

According to the research presented, there are two dimensions of changes in the output of agricultural products in Guizhou Province. The first is the change in quantity. The total output of agricultural products increased from 12.67 million tons up to 42.34 million tons, from 2001 to 2020, with an increase rate of 234.19%. The second is that the planting structure changed greatly, which is reflected in the changes in the crop types within the same crop type, and the quantitative changes between the different types.
The main agricultural products in Guizhou Province can be divided into grains, potatoes, oil crops, and others, of which the output of vegetables far exceeds other products, reaching 29.9087 million tons in 2020. Rice and corn are the main grain, showing little interannual change and fluctuating in the range of 605,940. Tubers increased slightly; Irish potatoes are the main crop and showed obviously changes. The median output from 2001 to 2020 was 1.535 million tons, and the third quarter was 2.335 million tons. Rapeseed is the main oil plant crop, accounting for more than 70%. As the economy has continued to develop, ramie has been completely replaced by other types of crops (Figure 5).
The proportion of grain compared to the total agriculture products of Guizhou Province increased from 72.55% in 2001 and plummeted to 16.34% in 2020; at the same time, the output of oil crops and tubers has also decreased by nearly half in 20 years, while other high-value-added crops that increased from 916.1 thousand tons (7.23%) in 2001 surged to 30.73 million tons (72.58%) in 2020 (Table 5).

3.2. Conditional Account Changes

3.2.1. Changes in Site Conditions

We used the GEE to calculate the DEM data for the cultivated land resources in Guizhou Province, which showed that the cultivated land resources in Guizhou Province are mainly distributed near the elevations of 1320 m and 2220 m. The mean elevation increased by approximately 130 m from 2001 to 2020, but the standard deviation decreased significantly, implying that the elevation of the cultivated land resources in Guizhou Province is gradually concentrated to the average value (Table 6). Therefore, it can also be judged that the elevation of the cultivated land resources in Guizhou Province have shown an overall increase.

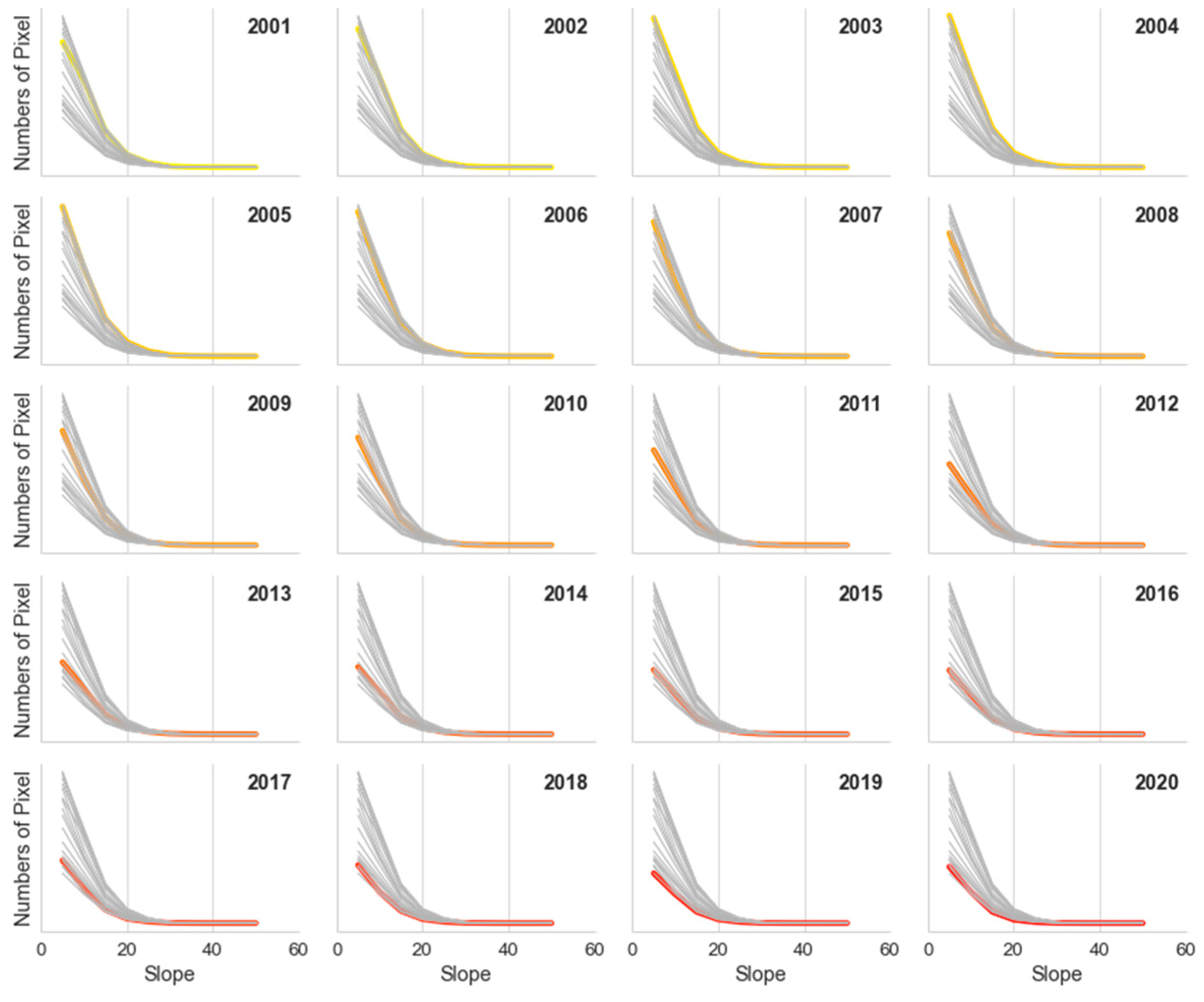

Meanwhile, through the statistics of the slope of each cultivated land pixel, it was found that 70–80% of the cultivated land resources in Guizhou Province are distributed in areas with a slope of less than 10°. With the evolution of the distribution pattern of the cultivated land resources, the changes in the slope of the cultivated land resources can be divided into two stages (Figure 6). First, from 2001 to 2004, the number of cultivated land pixels with a slope of less than 25° continued to increase. In 2004, 46812 pixels were distributed in areas below 5°, accounting for 50.68% of the total area of cultivated land resources. Additionally, there were 28556 pixels with a slope of between 5° and 10°, accounting for 29.75% of the total area of cultivated land resources in that year. Secondly, from 2005 to 2020, the area of cultivated land with a slope of more than 25° decreased significantly, with a maximum change rate of more than 80%, and the cultivated land area with a slope above 40° completely disappeared (Table 7).

3.2.2. Landscape Index Changes

By calculating the six dimensions of the landscape index for the cultivated land resources in Guizhou Province from 2001 to 2020 (Table 8), we found that the patch density (PD), edge density (ED), and aggregation index (AI) in Guizhou Province increased first, and then decreased. Meanwhile, the area-weighted mean shape index (AWMSI) showed a negative trend by year. Additionally, the change trend in the fragmentation index of the patch numbers (FN) was negatively correlated with the fragmentation shape index (FS). According to the calculation results, the PD decreased from 0.0117 in 2001 to 0.007 in 2020, indicating that the fragmentation of cultivated land resources in Guizhou Province improved, and the ED decreased from 0.9973 in 2001 to 0.5548 in 2020, indicating that the shape of the cultivated land gradually became more regular [47]. The AWMSI decreased from 7.954 in 2001 to 6.001 in 2020, indicating that the distribution of cultivated land plots tends to be centralized. It can be seen that the vulnerability of cultivated land in Guizhou Province has been reduced.

3.3. Monetary Account Changes

From 2001 to 2020, with the development of the economy, the direct economic value of cultivated land resources in Guizhou Province increased rapidly. The production value increased from CNY 27,995 million per year to CNY 180,025 million per year, with an increase of 543%. It could be evidenced (Table 9) that in the past 20 years, with the adjustment of the industrial structure, the main labor force flowed to the secondary and tertiary industries with a high added value and high income, reducing the number of agricultural employees in Guizhou. In 2001, there were 1.36 million agricultural employments, while in 2020, only 0.634 million people were employed in agriculture. At the same time, the per capita output value increased from CNY 2046.42/y to CNY 28,395.11/y, an increase of 12.87-fold. However, according to the calculation of the price index of agricultural products in “The National Compilation of Cost-benefit data of Agricultural Products”, the sales price of agricultural products in China only increased by 181.96% from 2001 to 2020. In other words, the direct economic value of cultivated land resources in Guizhou Province still improved significantly after removing the influence of the interannual differences in prices.
As for the indirect value, according to the revised ecological value per unit area of farmland ecosystems and the equivalent of the ecological service value per unit area in Guizhou Province (Table 10), we calculated the indirect value of cultivated land resources (Table 11). Under the dual influence of cultivated land resource area falling and the grain price index increasing, the indirect economic value of cultivated land resources in Guizhou Province first increased, and then decreased. Among them, it reached a peak of CNY 7775.25 million in 2009, but the overall decrease was no more than 3%, indicating that the ecological function of the cultivated land resources in Guizhou Province is still well-protected while the economy is developing (Table 12).

4. Discussion

4.1. Analysis of Reasons for the Change in Physical and Conditional Account

Based on the results of this paper, the cultivated land resources in Guizhou Province declined continually after a short increase, and the reduced area was mainly transformed into natural vegetation and grassland, especially as the steep slope terraces disappeared from 2001 to 2020 [56]. These changes are closely related to the continuous implementation of the policy mandating the return of farmland to forest and grassland land types in Guizhou Province [57,58]. In particular, the intensity of returning farmland to forest and grassland in poverty-stricken areas of Guizhou has increased during a critical period of poverty alleviation, such as farmland with a slope of more than 25 degrees, severely sandy farmland, sloped farmland of 15–25 degrees in areas with important water sources, and steep sloped terraces, the conversion of all of which are examples of remarkable achievements [44,59]. At the same time, it is worth mentioning that on the premise of the obvious outflow of the physical account of the cultivated land resources, the output of agricultural products has still shown a huge increase [60,61]. It is not difficult to find that the output of grain crops decreased, but that the output of high value-added crops such as tobacco and vegetables increased. On the one hand, as people’s quality of life improves, people’s eating habits tend to become more diversified and healthier, leading to an increase in the demand for more value-added commodities in human society. Namely, the relationship between supply and demand in the market has guided farmers to the crop types that they choose to grow. On the other hand, in order to get rid of poverty in Guizhou Province, the government has implemented relevant policies with regard to the adjustment of the agricultural planting structure to improve the income of farmers in karst mountainous areas [62].
Meanwhile, six dimensions of cropland landscape indicators, such as edge density and the area-weighted means shape index were used as a measure of cultivated land fragmentation, to analyze the landscape change of cultivated land resources in Guizhou Province from 2001 to 2020 [63]. These indicators have decreased significantly, indicating that the fragmentation of cultivated land resources has been alleviated through land consolidation and ecological restoration projects [64].

4.2. Analysis of Reasons for the Change in Monetary Account

As for the results of the analysis on the monetary account, the monetary value of cultivated land resources in Guizhou Province has increased greatly over the past 20 years. It is interesting that, with the obvious outflow of the physical quantity account of cultivated land resources, the growth rate of the monetary value of agricultural products is still significant. More importantly, the settlement of the issue cannot be achieved by simply expanding the cultivated area or by increasing the employed population. It can be seen from the above data that agricultural employment and the cultivated land area in Guizhou Province have decreased by more than 50%, but the value of the agricultural products created per capita has increased by 12-fold. The improvement of cropland quality and the development of technology have led to a rise in cropland resource value in Guizhou Province. While the direct value has increased, the indirect value has not fallen sharply, indicating that the ecological environment has been protected during economic development [65].
In addition, we collected government expenditure data from the study area over the past 20 years (Appendix B). In 2001, the local government spent CNY 4.25 billion on farming, forestry, and water conservation, which has increased to CNY 10.431 billion in 2020, and this investment had increased 23-fold. This included the giving of subsidies to encourage farmers to adjust their planting structure, increasing the construction of water conservation facilities to ensure irrigation conditions, and conducting corresponding education on agricultural technology to improve farmers’ planting skills. These policies ensure that the adjustment of planting structure can be quickly completed within the study area [66,67].
At the same time, with high mountains and steep slopes, the construction cost of roads and bridges is very high, which makes the transportation and sales of agricultural products inconvenient. The local government increased its investment in transportation and other infrastructure from CNY 4.31 billion in 2001 to CNY 34.15 billion in 2020, realizing the County-to-County Expressway and the “village to village” hardened road in Guizhou Province. From the results of this study, it seems that reasonable policy guidance and sustained high-level financial investment have led to a significant increase in the value of cultivated land resources in this area [68,69].
Affected by karst landforms, Guizhou Province has serious soil erosion, serious rocky desertification, and a lack of cultivated land resources [70]. In order to improve rocky desertification and soil erosion, Guizhou Province has conducted large-scale rocky desertification prevention and control projects. Meanwhile, the financial investment for environmental protection has increased from CNY 2.667 billion in 2006 to CNY 14.615 billion in 2020. By accounting for the cultivated land resource assets in Guizhou Province over the past 20 years, it has been found that even under relatively bad natural conditions, the asset value of cultivated land resources can apparently be improved and realized in a win-win situation of economic development and ecological protection, through the guidance of reasonable land use methods and scientific land policies [71].

4.3. Shortcomings/Uncertainties of This Research

However, the landcover data selected is of 250 m resolution in this study. For the karst mountainous areas, some sloped croplands of small areas may not have been identified, or they could have been identified as cropland/natural vegetation mosaics, which may lead to deviations in the evaluation results. In addition, only site conditions and landscape indexes are selected for conditional accounting. For cropland resources, soil quality, soil physical and chemical properties, and obstacle factors are also important measures. In future research, multiple measures should be added to the conditional account, so as to more comprehensively develop knowledge regarding the quality changes in cultivated land resources.

5. Conclusions

In this paper, multi-remote sensing data were used to calculate the physical and conditional account changes of the cultivated land resources in Guizhou Province at the pixel level, which may make up for the deficiency of traditional accounting of natural capital by presentation. At the same time, according to the characteristics of karst landforms in the study area, landscape factors were added to the conditional account, which will assist us with precisely analyzing the reasons for the change of monetary account. Through this research, we drew the following conclusions.
  • In the physical account, the cultivated land resources in Guizhou Province showed an obvious downward trend, but the planting structure of agricultural products showed obvious changes, and the gross output increased significantly. This shows that the value of the cultivated land is not strongly related to the size of the land area.
  • In the condition account, the quality of the cultivated land resources in Guizhou Province improved. Specifically, the fragmentation of the cultivated land improved, and the area of cultivated land on steep slopes decreased. This shows that the local governance policy on cultivated land is effective.
  • In the monetary account, the monetary value of the cropland resources in Guizhou Province increased greatly and rapidly. Additionally, an increase in economic value did not place negative impacts upon the ecological value of the cultivated land. This shows that reasonable policy and financial investment are of positive significance for the sustainable utilization of the cultivated land resources.
Based on the above conclusions, we believe that it is very necessary to introduce additional representative factors into the accounting of cultivated land resource value in the study area. Evaluation and research into the value of cultivated land resources in the karst mountainous areas in Southwest China can provide a good reference for scholars of related fields. Moreover, in this case, reasonable policies, such as returning farmland to forest and adjusting agricultural planting structure have very positive impacts on the value of cultivated land resources and the improvement of farmers’ benefits in this area. This is not only an evaluation of the effect of land policy implementation through quantitative methods, but it is also is a useful demonstration for leaders in other areas with similar difficulties; an active exploration of the sustainable utilization of cultivated land resources.
There are still many deficiencies in this study, such as the low accuracy of land use classification, the factor of the condition account being imperfect, and so on. This is the direction in which we will continue to study in the future. It is hoped that a more perfect and universal accounting framework that is suitable for karst areas can be developed in the future, so that the evaluation results can better guide sustainable land use in the study area.

Author Contributions

Conceptualization, Z.Z. and L.Z.; methodology, Q.C.; software, Q.F. and L.Z.; formal analysis, L.Z. and Q.C.; investigation, L.W., D.L., and T.W.; data curation, Q.F.; writing—original draft preparation, L.Z.; writing—review and editing, Z.Z., L.Z., and Q.C.; visualization, L.Z.; supervision, Q.C.; project administration, L.Z.; funding acquisition, Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NSFC regional project, “Research on the coupling mechanism between ecological assets and regional poverty in karst rocky desertification areas (41661088)”, by “Guizhou Province’s high-level innovative talent training plan ‘hundred’ level talents (Qiankehe platform talents [2016] 5674)” and a special study of Guizhou Provincial Department of natural resources on the “Construction of evaluation system of real estate economic operation system in Guizhou Province” (520000215RSUFG5DLMENO).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. MCD12Q1 International Geosphere-Biosphere Programme (IGBP) legend and class descriptions.
Table A1. MCD12Q1 International Geosphere-Biosphere Programme (IGBP) legend and class descriptions.
NameValueDescription
Evergreen Needleleaf Forests1Dominated by evergreen conifer trees (canopy > 2 m). Tree cover > 60%.
Evergreen Broadleaf Forests2Dominated by evergreen broadleaf and palmate trees (canopy > 2 m). Tree cover > 60%.
Deciduous Needleleaf Forests3Dominated by deciduous needleleaf (larch) trees (canopy > 2 m). Tree cover > 60%.
Deciduous Broadleaf Forests4Dominated by deciduous broadleaf trees (canopy > 2 m). Tree cover > 60%.
Mixed Forests5Dominated by neither deciduous nor evergreen (40–60% of each) tree type (canopy > 2 m). Tree cover > 60%.
Closed Shrublands6Dominated by woody perennials (1–2 m height), > 60% cover.
Open Shrublands7Dominated by woody perennials (1–2 m height), 10–60% cover.
Woody Savannas8Tree cover 30–60% (canopy > 2 m).
Savannas9Tree cover 10–30% (canopy > 2 m).
Grasslands10Dominated by herbaceous annuals (<2 m)
Permanent Wetlands11Permanently inundated lands with 30–60% water cover and >10% vegetated cover.
Croplands12At least 60% of area is cultivated cropland.
Urban and Built-up Lands13At least 30% impervious surface area, including building materials, asphalt, and vehicles.
Cropland/Natural Vegetation Mosaics14Mosaics of small-scale cultivation, 40–60% with natural trees, shrubs, or herbaceous vegetation.
Permanent Snow and Ice15At least 60% of area is covered by snow and ice for at least 10 months of the year.
Barren16At least 60% of area is non-vegetated barren (sand, rock, soil) areas with less than 10% vegetation.
Water Bodies17At least 60% of area is covered by permanent water bodies. Unclassified 255 Has not received a map label because of missing inputs.
Table A2. Ecosystem service equivalent value per unit area.
Table A2. Ecosystem service equivalent value per unit area.
Ecosystem ClassificationProvisioning ServicesRegulating ServicesSupporting ServicesCultural Services
Primary ClassificationSecondary ClassificationFood ProductionRaw Material ProductionWater SupplyGas RegulationClimate RegulationEnvironmental PurificationHydrological RegulationSoil ConservationMaintenance of Nutrient CyclesBiodiversityAesthetic Landscape
Crop landDryland0.850.40.020.670.360.10.271.030.120.130.06
Paddy field1.360.09−2.631.110.570.172.720.010.190.210.09
ForestConiferous0.220.520.271.75.071.493.342.060.161.880.82
Mixed coniferous0.310.710.372.357.031.993.512.860.222.61.14
Broad-leaved0.290.660.342.176.51.934.742.650.22.411.06
Shrub0.190.430.221.414.231.283.351.720.131.570.69
GrasslandGrass0.10.140.080.511.340.440.980.620.050.560.25
Scrub0.380.560.311.975.211.723.822.40.182.180.96
Meadow0.220.330.181.143.0212.211.390.111.270.56
WetlandWetlands0.510.52.591.93.63.624.232.310.187.874.73
DesertDesert0.010.030.020.110.10.310.210.130.010.120.05
Bare ground0000.0200.10.030.0200.020.01
WatersWater system0.80.238.290.772.295.55102.240.930.072.551.89
Glacial snow002.160.180.540.167.13000.010

Appendix B

Table A3. Statistics of financial expenditure in Guizhou Province (section) (unit: CNY billion).
Table A3. Statistics of financial expenditure in Guizhou Province (section) (unit: CNY billion).
Unit: Billion CNYGeneral Public Budget ExpenditureFarming, Forestry and Water Conservancy TransportationEnergy Saving and Environment Protection
200127.52 4.25 4.31 -
200231.67 4.86 3.64 -
200333.24 4.53 3.16 -
200441.84 7.23 3.83 -
200552.07 7.66 4.12 -
200661.0416.1554.193-
200779.54 8.75 4.88 2.67
2008105.5412.174.944.04
2009137.2320.4112.085.53
2010163.1524.6810.965.43
2011224.9427.8530.525.55
2012275.5736.1928.866.57
2013308.26640.03129.9796.644
2014354.2844.71943.2018.534
2015393.9553.42639.2259.649
2016426.23662.93828.99712.709
2017461.25261.20533.69112.539
2018502.96866.48438.14913.438
2019594.87499.8934.77918.853
2020573.95102.43134.1514.615

References

  1. Blignaut, J.; Aronson, J.; de Groot, R. Restoration of natural capital: A key strategy on the path to sustainability based on lucc. Ecol. Eng. 2014, 65, 54–61. [Google Scholar] [CrossRef]
  2. Development, United Nations; European Union; Food and Agriculture Organization of the United Nations; Organisation for Economic Co-Operation; World Bank Group. System of Environmental Economic Accounting 2012—Experimental Cosystem Accounting. 2014. Available online: https://seea.un.org/home/Natural-Capital-Accounting-Project (accessed on 1 December 2021).
  3. Liu, L. Comparison and implications of natural resource asset accounting at home and abroad. Stat. Decis. Mak. 2019, 35, 9–12. [Google Scholar]
  4. Liu, G.; Hu, L.; Gao, X.; Du, L.; Li, J.; Xiao, N. Research on the connotation of natural capital and its accounting. Ecoeconomics 2018, 34, 63, 153–157. [Google Scholar]
  5. Geng, J.; Hu, T.; Liu, Z. A preliminary study on the preparation and application of china’s national balance sheet and natural resource balance sheet: An analysis of SNA 2008 and SEA 2012. J. Account. Res. 2015, 1, 15–24, 96. [Google Scholar]
  6. Hu, W.; Shi, D. A study on the balance sheet framework system of natural resources in China: An idea based on SEEA 2012, SNA 2008 and national balance sheets. Chin. Resour. Environ. 2015, 25, 1–9. [Google Scholar]
  7. Liu, S.; Yang, S. Comparison of accounting for natural resource assets at home and abroad and its implications. Land Resour. Inf. 2020, 12, 24–31. [Google Scholar]
  8. Xiang, S.; Zheng, R. A study of the category of assets in the balance sheet of natural resources. Stat. Res. 2015, 32, 3–11. [Google Scholar]
  9. Li, N. Discussion on the construction of statistical indicators of all natural resource assets owned by the whole people. Land Resour. Inf. 2020, 11, 16–21, 51. [Google Scholar]
  10. Missemer, A. Natural capital as an economic concept, history and contemporary issues. Ecol. Econ. 2018, 143, 90–96. [Google Scholar] [CrossRef] [Green Version]
  11. Virto, L.R.; Weber, J.L.; Jeantil, M. Natural capital accounts and public policy decisions: Findings from a survey. Ecol. Econ. 2018, 144, 244–259. [Google Scholar] [CrossRef]
  12. Department of National Accounts, NBS. Outlines of Natural Capital Accounting and Valuation of Ecosystem Services Project in China. 2021. Available online: https://seea.un.org/content/china-0 (accessed on 1 March 2022).
  13. He, L.; Shen, L.; Zhang, W.; Tao, J.; Fan, Z. Practical progress and theoretical system construction of natural resource accounting in China. J. Nat. Resour. 2020, 35, 2968–2979. [Google Scholar] [CrossRef]
  14. Cheng, S.; Shen, L.; Feng, Z.; Zhong, S. The development history and prospect of natural resources research in China. J. Nat. Resour. 2020, 35, 1757–1772. [Google Scholar]
  15. Tao, J.; Lv, Y.; He, L.; Shen, L. Research on land resource asset accounting and report preparation based on double-entry bookkeeping. Chin. Resour. Environ. 2020, 30, 22–29. [Google Scholar]
  16. Li, Y.; Wu, D.; Liu, Y. Research hotspots and trends of arable land ecological risk assessment: Based on citespace visual analysis. J. Agric. Resour. Environ. 2019, 36, 502–512. [Google Scholar]
  17. Li, X. Changes in China’s arable land area in the past 20 years and its policy implications. J. Nat. Resour. 1999, 4, 329–333. [Google Scholar]
  18. Wang, Y.J.; Xie, B.G.; Li, X.Q.; Zhao, W.Q.; Wang, J.Y.; Luo, H.B. Ecosystem carrying capacity balance of the Karst region in China, based on the supply and demand of cultivated land. Acta Ecol. Sin. 2017, 37, 7030–7038. [Google Scholar]
  19. Wu, M.; Liu, S.J.; Ye, Y.Y.; Zhang, W.; Wang, K.L.; Chen, H.S. Spatial variability of surface soil organic carbon and its influencing factors in cultivated slopes and abandoned lands in a Karst peak-cluster depression area. Acta Ecol. Sin. 2016, 36, 1619–1627. [Google Scholar]
  20. Li, D.; Yang, Y.; Du, G.; Huang, S. Understanding the contradiction between rural poverty and rich cultivated land resources: A case study of heilongjiang province in northeast China. Land Use Policy 2021, 108, 105673. [Google Scholar] [CrossRef]
  21. Yang, Q.; Bi, G.; Chen, Z.; Zeng, L.; Yang, R. Spatial allocation of fallow land in karst ecologically fragile areas: A case study of Qinglong county, Guizhou province. Acta Geogr. Sin. 2018, 73, 2250–2266. [Google Scholar]
  22. Chen, Q. Study on the mechanism of remote sensing assessment and temporal evolution of ecological assets in karst rocky desertification area. Guizhou Norm. Univ. 2021, 20–25. [Google Scholar]
  23. Liu, X.; Hu, G.; Chen, Y.; Li, X.; Xu, X.; Li, S.; Pei, F.; Wang, S. High-resolution multi-temporal mapping of global urban land using landsat images based on the google earth engine platform. Remote Sens. Environ. 2018, 209, 227–239. [Google Scholar] [CrossRef]
  24. Su, W.; Zhu, W.; Xiong, K. Rocky desertification and its ecological and economic governance model in karst mountainous area of Guizhou province. Karst China Karst 2002, 1, 21–26. [Google Scholar]
  25. Chen, H.; Zhu, D.; Chen, H.; Wen, Y.; Lin, D.; Wang, C. A comparative study on the characteristics of climate change in different water systems in the Yangtze River basin in Guizhou province. Bull. Soil Water Conserv. 2018, 38, 189–197, 203. [Google Scholar]
  26. Xiong, K. Remote sensing of karst rock desertification—A typical study of Gis—Aa case study in Guizhou Province; Geological Publishing House: Beijing, China, 2002. [Google Scholar]
  27. Zhang, Y.; An, Y.; Ma, L.; Li, X. Land use change on steep slopes in karst mountains of Guizhou Province from 1960 to 2010. Prog. Geogr. 2012, 31, 878–884. [Google Scholar]
  28. Zhu, D.; Yang, Q.; Chen, H.; Chen, J.; Li, S. Temporal and spatial variation characteristics of rainfall erosion forces in different water systems in Guizhou Province from 1960 to 2017. Bull. Soil Water Conserv. 2021, 41, 6–14. [Google Scholar]
  29. Zhang, Y.; Zhou, Z.; Huang, D.; Zhu, M.; Wu, Y.; Sun, J. Spatio-temporal evolution and impact factor analysis of cultivated land in karst mountainous areas. Trans. Chin. Soc. Agric. Eng. 2020, 36, 266–275. [Google Scholar]
  30. Wang, L.; Diao, C.; Xian, G.; Yin, D.; Lu, Y.; Zou, S.; Erickson, T.A. A summary of the special issue on remote sensing of land change science with google earth engine. Remote Sens. Environ. 2020, 248, 112002. [Google Scholar] [CrossRef]
  31. Liu, L.; Xiao, X.; Qin, Y.; Wang, J.; Xu, X.; Hu, Y.; Qiao, Z. Mapping cropping intensity in china using time series landsat and sentinel-2 images and google earth engine. Remote Sens. Environ. 2020, 239, 111624. [Google Scholar] [CrossRef]
  32. Huang, H.; Chen, Y.; Clinton, N.; Wang, J.; Wang, X.; Liu, C.; Gong, P.; Yang, J.; Bai, Y.; Zheng, Y.; et al. Mapping major land cover dynamics in Beijing using all landsat images in google earth engine. Remote Sens. Environ. 2017, 202, 166–176. [Google Scholar] [CrossRef]
  33. Robinson, N.P.; Allred, B.W.; Smith, W.K.; Jones, M.O.; Moreno, A.; Erickson, T.A.; Naugle, D.E.; Running, S.W. Terrestrial Primary Production for the Conterminous United States Derived from Landsat 30 M and Modis 250 M. Remote Sens. Ecol. Conserv. 2018, 4, 264–280. [Google Scholar] [CrossRef]
  34. United Nations. Study on the Valuation Accounting Method of the Natural Resources Assets and Liabilities. 2020. Available online: https://seea.un.org/home/Natural-Capital-Accounting-Project (accessed on 1 December 2021).
  35. Jiao, Z.; Wang, H.; Xu, X.; Yang, B. Natural resource balance sheet preparation design and application I.: Design. J. Nat. Resour. 2018, 33, 1706–1714. [Google Scholar]
  36. Jiao, Z.; Wang, H.; Xu, X.; Yang, B. Natural resource balance sheet preparation design and application II: Application. J. Nat. Resour. 2018, 33, 1715–1724. [Google Scholar]
  37. Shi, J.; Wang, P.; Li, N.; Li, Y. A Framework of ideas for the preparation of balance sheets of all natural resources for all people. J. Nat. Resour. 2020, 35, 2270–2282. [Google Scholar]
  38. Hu, Y.; Yu, L.; Wu, J. Construction of a balance sheet accounting system for natural resources: A case study of forest resources. For. Resour. Manag. 2020, 3, 22–25, 31. [Google Scholar]
  39. Nations, United. Final Report on Ncaves Pilot Project in Guizhou Province. 2021. Available online: https://seea.un.org/content/china-0 (accessed on 1 March 2022).
  40. Long, X.; Lin, H.; An, X.; Chen, S.; Qi, S.; Zhang, M. Evaluation and analysis of ecosystem service value based on land use/cover change in dongting lake wetland. Ecol. Indic. 2022, 136, 108619. [Google Scholar] [CrossRef]
  41. Wan, W. Spatial differentiation of cultivated land fragmentation in Zhejiang province based on county scale. Environ. Ecol. 2021, 3, 15–21, 48. [Google Scholar]
  42. Hou, B.; Ma, R.; Jin, Y.; Zhang, Y.; Zhao, Y.; Dou, S. Spatial structure and audit zoning of land resource assets in Zhejiang province from the perspective of landscape ecology. Bull. Soil Water Conserv. 2018, 38, 268–276. [Google Scholar]
  43. Li, W. Study on the Quality Change of Cultivated Land in the Suburban Area of Black Soil Based on the Standing Conditions and Localization Characteristics. Ph.D. Thesis, Jilin University, Jilin, China, 2018. [Google Scholar]
  44. Liu, W.; Liao, H.; Wu, X.; Guo, Q.; Mao, X.; Li, C. A study on the spatial coupling relationship between arable land fragmentation and poverty in southwest karst region. J. Southwest Univ. 2019, 41, 10–20. [Google Scholar]
  45. Zhang, X.; Cai, Z.; Li, G.; Sun, J.; Li, G.; Chen, Z. Analysis of the Causes of fragmentation of cultivated land landscape and its impact on rural income. Sci. Surv. Mapp. 2020, 45, 134–141. [Google Scholar]
  46. Chen, W.; Feng, X.; Ma, R.; Hong, Q. Evaluation methods and empirical research on fragmentation of cultivated land: A case study of Ningbo city, Zhejiang province. China Land Sci. 2016, 30, 80–87. [Google Scholar]
  47. Fu, B.; Ding, D. Principles and Applications of Landscape Ecology; Science Press: Beijing, China, 2002. [Google Scholar]
  48. Forman, R.T.; Godron, M. Landscape Ecology; John & Wiley: New York, NY, USA, 1986. [Google Scholar]
  49. Bosch, M. Pylandstats: An open-source pythonic library to compute landscape metrics. PLoS ONE 2019, 14, e0225734. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Costanza, R.; d’Arge, R.; de Groot, R.; Farber, S.; Grasso, M.; Hannon, B.; Limburg, K.; Naeem, S.; ONeill, R.V.; Paruelo, J.; et al. The value of the world’s ecosystem services and natural capital. Nature 1997, 387, 253–260. [Google Scholar] [CrossRef]
  51. Xie, G.; Zhang, C.; Zhang, C.; Xiao, Y.; Lu, C. The value of ecosystem services in China. Resour. Sci. 2015, 37, 1740–1746. [Google Scholar]
  52. Xie, G.; Zhen, L.; Lu, C.; Xiao, Y.; Chen, C. A value-based approach to ecosystem services based on expert knowledge. J. Nat. Resour. 2008, 23, 911–919. [Google Scholar]
  53. Xie, G.; Lu, C.; Leng, Y.; Zheng, D.; Li, S. Valuation of ecological assets on the tibetan plateau. J. Nat. Resour. 2003, 5, 189–196. [Google Scholar]
  54. Xie, G.; Zhang, C.; Zhang, L.; Chen, W.; Li, S. Improvement of valueization methods for ecosystem services based on value equivalence factor per unit area. J. Nat. Resour. 2015, 30, 1243–1254. [Google Scholar]
  55. Gu, X.; Long, A.; Liu, G.; Yu, J.; Wang, H.; Yang, Y.; Zhang, P. Changes in ecosystem service value in the 1 km lakeshore zone of Poyang lake from 1980 to 2020. Land 2021, 10, 951. [Google Scholar] [CrossRef]
  56. Wang, C.; Maclaren, V. Evaluation of economic and social impacts of the sloping land conversion program: A case study in Dunhua county, China. For. Policy Econ. 2012, 14, 50–57. [Google Scholar] [CrossRef]
  57. Fan, M.; Xiao, Y.T. Impacts of the grain for green program on the spatial pattern of land uses and ecosystem services in mountainous settlements in Southwest China. Glob. Ecol. Conserv. 2020, 21, e00806. [Google Scholar] [CrossRef]
  58. Cai, Z.; Jiang, Z.; Li, Y.; Zhang, L.; Jia, M.; Xie, Y. The Effectiveness of farmland reforestation policies and the existence of effective policies. Resour. Environ. 2015, 25, 60–69. [Google Scholar]
  59. Wu, Y.; Zhou, Z.; Zhu, C.; Ma, G.; Huang, D. A study on the measurement and spatial differentiation of rural poverty in Karst mountainous areas: A case study of panzhou city. Resour. Environ. Yangtze River Basin 2020, 29, 1247–1256. [Google Scholar]
  60. Hao, L.; Cai, Y.; Chen, R.; Chen, Q.; Xiang, Y. Evaluation of the effect of reforestation of farmland in southwest Karst based on vegetation remote sensing: A case study of Bijie area in Guizhou Province. Acta Ecol. Sin. 2011, 31, 3255–3264. [Google Scholar]
  61. Shu, T.; Xiong, K.N.; Chen, L. Land use and landscape pattern changes under the control of rocky desertification. Southwest China J. Agric. Sci. 2022, 35, 446–452. [Google Scholar]
  62. Chen, Q.; Xiong, K.; Dan, W.; Niu, L. Analysis of coupled characteristics of ecology and poverty in typical karst areas: A case study of 9000 provincial-level poor villages in Guizhou Province. Acta Ecol. Sin. 2021, 41, 2968–2982. [Google Scholar]
  63. Zhang, T.; Shi, H.; Xu, Y.; Xue, J.; Zhu, J.; Geng, Q. Quantitative evaluation of the impact of returning farmland to forest on the landscape pattern of land use in karst areas. J. Beijing For. Univ. 2015, 37, 34–43. [Google Scholar]
  64. Wang, X.; Yu, S.; Shi, Z.; Wang, L. Responses of ecosystem service trade-offs and synergies to the return of farmland to forests in the red soil area of southern China. Chin. J. Ecol. 2021, 41, 7002–7014. [Google Scholar]
  65. Ding, Z.; Yao, S. Ecological effectiveness of payment for ecosystem services to identify incentive priority areas: Sloping land conversion program in China. Land Use Policy 2021, 104, 105350. [Google Scholar] [CrossRef]
  66. Liu, Q.; Qiong, Q.; Xiao, H. The impact of farmland operation scale and financial support policies on agricultural carbon emissions. Resour. Sci. 2020, 42, 1063–1073. [Google Scholar]
  67. Jin, F.; Jin, R. Spatial Effect Analysis of the Impact of Fiscal Support on changes in agricultural industrial structure. J. Financ. Econ. 2020, 5, 82–91. [Google Scholar]
  68. Wu, H. A Study on the Impact of Local Fiscal Expenditure on Agricultural Production. Ph.D. Thesis, Nanjing Agricultural University, Nanjing, China, 2002; pp. 22–31. [Google Scholar]
  69. Yang, L. The impact of transfer payments on local fiscal agricultural expenditure: A study based on prefecture-level panel data from 2003–2009. Econ. Rev. 2016, 5, 148–160. [Google Scholar]
  70. Hu, Z.; Wang, S.; Bai, X.; Luo, G.; Li, Q.; Wu, L.; Yang, Y.; Tian, S.; Li, C.; Deng, Y. Changes in ecosystem service values in Karst areas of China. Agric. Ecosyst. Environ. 2020, 301, 107026. [Google Scholar] [CrossRef]
  71. Gong, B.L.; Wang, S. The multi-channel impact of fiscal spending on China’s agricultural growth. Issues Agric. Econ. 2021, 1, 54–68. [Google Scholar]
Figure 1. Location of the study area.
Figure 1. Location of the study area.
Land 11 00765 g001
Figure 2. Cropland resources area of Guizhou Province.
Figure 2. Cropland resources area of Guizhou Province.
Land 11 00765 g002
Figure 3. Cropland resources transfer area of Guizhou Province.
Figure 3. Cropland resources transfer area of Guizhou Province.
Land 11 00765 g003
Figure 4. Transfer area of each landcover type in Guizhou Province.
Figure 4. Transfer area of each landcover type in Guizhou Province.
Land 11 00765 g004
Figure 5. Crop production distribution in Guizhou Province (2001–2020).
Figure 5. Crop production distribution in Guizhou Province (2001–2020).
Land 11 00765 g005
Figure 6. Slope changes of cropland resources in Guizhou Province.
Figure 6. Slope changes of cropland resources in Guizhou Province.
Land 11 00765 g006
Table 1. Data sources for assessing cultivated land resources value.
Table 1. Data sources for assessing cultivated land resources value.
Resource TypeData Sources
Spatial DataLand cover (MCD12Q1 V6)Google Earth Engine Plateform
(https://developers.google.cn/earth-engine/datasets) accessed on 4 April 2022
Digital elevation models (DEMs)
Landsat net primary production (NPP)
Global precipitation measurement (GPM)
Socioeconomic DataYields of major farm crops (YMFC)Guizhou statistical yearbook (2001–2021) (http://stjj.guizhou.gov.cn/) accessed on 4 April 2022
Gross output value of farming (GOVF)
Gross domestic product (GDP)
Permanent resident population (PRP)
Financial expenditure
Employments in agriculture
Grain pricesThe National Compilation of Cost-benefit data of Agricultural Products
Table 2. Indicators for assessing cultivated land resources value.
Table 2. Indicators for assessing cultivated land resources value.
AccountFirst-Level IndicatorsSecond-Level Indicators
Physical AccountExtentArea
Biomass provisionCrop Production
Conditional AccountSite conditionsElevation
Slope
Landscape indexPatch Density (PD)
Edge Density (ED)
Area-Weighted Mean Shape Index (AWMSI)
Fragmentation Index of Patch Numbers (FN)
Fragmentation Shape Index (FS)
Aggregation Index (AI)
Monetary AccountDirect valueCrop Market Value
Indirect valueGas Regulation
Climate Regulation
Environmental Purification
Hydrological Regulation
Soil Conservation
Maintenance of Nutrient Cycles
Biodiversity
Aesthetic Landscape
Table 3. Area changes of cropland resources.
Table 3. Area changes of cropland resources.
2001200220032004200520062007200820092010
Cropland Area (km2)8473.228968.619416.089294.788980.948469.237800.177286.116902.276667.85
Croplands Proportion4.81%5.09%5.35%5.28%5.10%4.81%4.43%4.14%3.92%3.79%
Croplands per capita (m2)223.04233.74243.31238.08240.78229.52214.76202.62195.14191.66
2011201220132014201520162017201820192020
Croplands Area (km2)6047.5275356.44894.824683.904526.894494.664236.634032.423543.723768.34
Croplands Proportion3.43%3.04%2.78%2.66%2.57%2.55%2.41%2.29%2.01%2.14%
Croplands per capita (m2)174.33153.74139.77133.52128.24119.60111.40105.5192.0997.68
Table 4. Transfer area and proportion of main landcover types.
Table 4. Transfer area and proportion of main landcover types.
Woody SavannasSavannasGrasslandsCropland/Natural Vegetation Mosaics
2002Area (km2)−0.32187.22135.42175.06
Proportion0.06%37.79%27.34%35.34%
2003Area (km2)0.45148.45105.53193.05
Proportion0.10%33.17%23.58%43.14%
2004Area (km2)−1.23−4.6817.78−133.17
Proportion0.79%2.98%11.34%84.90%
2005Area (km2)0.34−64.31−16.98−232.89
Proportion0.11%20.47%5.40%74.13%
2006Area (km2)−0.22−138.36−39.78−333.35
Proportion0.04%27.04%7.77%65.14%
2007Area (km2)−0.22−161.69−50.45−456.26
Proportion0.03%24.17%7.54%68.19%
2008Area (km2)−0.22−138.62−16.06−359.17
Proportion0.04%26.97%3.12%69.87%
2009Area (km2)−0.56−123.74−23.01−236.31
Proportion0.15%32.24%6.00%61.56%
2010Area (km2)0.38−60.772.67−176.47
Proportion0.16%25.27%1.11%73.37%
2011Area (km2)1.63−165.25−26.13−430.57
Proportion0.26%26.50%4.19%69.05%
2012Area (km2)−0.11−133.43−17.06−540.31
Proportion0.02%19.31%2.47%78.18%
2013Area (km2)−0.76−96.93−11.00−352.89
Proportion0.17%21.00%2.38%76.45%
2015Area (km2)−0.11−12.31−24.254.43
Proportion0.35%25.13%15.53%58.99%
2016Area (km2)−0.11−12.31−24.254.43
Proportion0.26%29.95%59.01%10.78%
2017Area (km2)0.16−50.65−37.40−170.15
Proportion0.06%19.60%14.48%65.86%
2018Area (km2)0.28−10.01−11.73−182.74
Proportion0.13%4.89%5.73%89.25%
2019Area (km2)0.00−96.45−12.99−379.26
Proportion0.00%19.74%2.66%77.61%
2020Area (km2)0.12−19.17−20.16263.83
Proportion0.04%6.32%6.65%86.99%
Table 5. Crops production of Guizhou Province (10,000 tons).
Table 5. Crops production of Guizhou Province (10,000 tons).
GrainOil PlantsOthersTubersTotal Yields
2001919.272.55%71.325.63%91.617.23%184.914.59%1267.03
2002829.768.49%72.485.98%104.738.65%204.516.88%1211.41
2003903.545.33%72.313.63%816.7240.97%200.810.07%1993.33
2004939.3244.69%82.713.94%869.3841.37%210.2610.00%2101.67
2005906.2441.59%84.893.90%942.0843.23%245.8211.28%2179.03
2006820.0741.23%68.243.43%882.5944.38%217.9310.96%1988.83
2007869.7340.53%69.663.25%975.5345.46%231.1310.77%2146.05
2008911.6739.18%68.392.94%1100.6247.30%246.3310.59%2327.01
2009918.7637.87%78.683.24%117948.60%249.5110.29%2425.95
2010901.936.60%60.342.45%1291.352.41%210.48.54%2463.94
2011605.1326.52%78.853.46%1326.1558.12%271.7711.91%2281.9
2012804.9129.73%87.383.23%1540.956.91%274.5910.14%2707.78
2013718.8825.46%91.533.24%1701.5360.27%311.1111.02%2823.05
2014790.3325.78%98.053.20%1829.2359.67%348.1711.36%3065.78
2015815.8925.48%101.343.16%1920.959.99%364.1111.37%3202.24
2016828.3824.09%113.663.31%2132.2462.01%36410.59%3438.28
2017808.9422.11%109.823.00%2370.1864.78%369.610.10%3658.54
2018732.5918.93%112.622.91%2698.6569.72%327.118.45%3870.97
2019707.5717.81%103.012.59%2819.2270.95%343.678.65%3973.47
2020692.0416.34%103.42.44%3073.2772.58%365.598.63%4234.3
Table 6. Statistical results of the elevation of the cultivated land resources in Guizhou Province.
Table 6. Statistical results of the elevation of the cultivated land resources in Guizhou Province.
MeanMedianStd-DevMixMax
20011577.951461526.762992831
20021557.51440524.912292831
20031540.921426527.192292831
20041529.131415534.462292831
20051516.961403538.912292831
20061521.531402536.462292834
20071535.181407531.342292815
20081549.441418527.262292815
20091571.461433524.212292815
20101587.781448517.442292834
20111623.421483516.992292834
20121648.671516520.092292834
20131674.581564516.22292834
20141682.551576510.252612834
20151689.861585506.382612834
20161682.651559500.842602834
20171659.461508493.312602811
20181661.551520494.062602811
20191700.181633492.132412769
20201693.961587475.212622757
Table 7. Pixels counts of the slopes of cropland resources in Guizhou Province.
Table 7. Pixels counts of the slopes of cropland resources in Guizhou Province.
Year0–5°5°–10°10°–15°15°–20°20°–25°25°–30°30°–35°35°–40°40°–45°45°–50°
200138,59926,79911,16239351391324863282
200242,76527,87911,56241181422338913482
200346,05929,25212,2084396153337310638112
200446,81228,55611,993443815533639431102
200546,24027,14611,49043691540340842162
200644,63625,23610,53539071335286741962
200741,47422,768936033991127256641762
200838,02421,051862030681024233591662
200935,30320,25382322857948220551662
201033,25319,61379852790936218571662
201129,36917,97272942559868209571662
201225,02815,55064142260781187481582
201322,19714,10758332103720181491281
201420,75213,12753981925636147381051
201519,85712,3505021178356313332841
201619,71711,9454768159749611732741
201719,34610,659409813804638531741
201817,9329610376312424067228230
201915,3858921349811623686820200
202017,4059697349710563125419300
Max Change rate62.82%66.85%71.35%76.20%79.89%85.11%82.08%92.11%100.00%100.00%
Table 8. Landscape index changes of cultivated land resources in Guizhou Province.
Table 8. Landscape index changes of cultivated land resources in Guizhou Province.
Year PD ED FNAWMSIFS AI
20010.01170.997314.8026227.9540.2831027379.5801
20020.0121.035314.6665247.97340.2835649879.9096
20030.01191.065313.8138627.64210.2926363480.2707
20040.01131.036212.5070777.65850.2935857680.6063
20050.01060.991711.4159857.67820.2908807380.8496
20060.00970.938410.2626087.36960.2956754580.878
20070.00930.881810.1425696.88980.2947316580.5931
20080.00890.8469.98829396.57780.2990326780.132
20090.00880.811410.4136696.58180.2917345479.9631
20100.00890.797710.8070416.37480.291784779.6394
20110.00840.738510.7579286.48250.2886106679.3885
20120.00810.683611.3139656.5970.2831027378.6491
20130.00780.643911.5635486.45750.2791753878.1715
20140.00810.63812.9353126.63230.2743632577.4089
20150.00830.632413.997036.7290.2669159276.8763
20160.00850.640714.9198126.77270.2652461476.3702
20170.00810.616314.0780876.31730.2702860576.0021
20180.00830.610915.6513826.01930.2697531875.0247
20190.00710.5413.1042895.84620.2710307675.385
20200.0070.554811.8862966.00010.27494276.1123
PD: patch density. ED: edge density. FN: patch numbers. AI: aggregation index. AWMSI: area-weighted mean shape index. FS: fragmentation shape index.
Table 9. Direct economic value of cropland resources in Guizhou Province.
Table 9. Direct economic value of cropland resources in Guizhou Province.
YearCross Output Value (Million Yuan)Agriculture Employment (104)Cross Output Value per Capita (CNY)
200127,99513682046.42
200227,88813542059.68
200346,67213223530.41
200452,46412884073.29
200533,35312682630.36
200634,79712472790.46
200739,22013882825.65
200830,84813502285.04
200933,05012992544.26
201038,56112103186.86
201143,08411943608.38
201256,13211894720.94
201364,61211805475.59
201485,18911717274.89
2015109,65411629436.66
2016119,65088313,550.35
2017130,64382815,778.11
2018143,92976518,814.19
2019156,64770022,378.14
2020180,02563428,395.11
Table 10. Ecosystem service equivalent value per unit area of cropland ecosystem in Guizhou.
Table 10. Ecosystem service equivalent value per unit area of cropland ecosystem in Guizhou.
Regulating ServicesSupporting ServicesCultural Services
Gas RegulationClimate RegulationEnvironmental PurificationHydrological RegulationSoil ConservationMaintenance of Nutrient CycleBiodiversityAesthetic Landscape
20013.251.700.495.271.900.570.620.27
20023.011.570.465.361.760.520.570.25
20032.771.450.424.641.620.480.530.23
20042.701.410.415.401.580.470.520.23
20052.911.520.444.441.700.510.560.25
20062.981.560.455.001.740.520.570.25
20073.091.610.475.471.800.540.590.26
20083.001.570.465.511.750.520.570.25
20093.031.580.464.491.770.530.580.26
20102.721.420.414.631.590.470.520.23
20112.841.480.434.171.660.490.540.24
20122.861.500.434.561.670.500.550.24
20133.151.640.484.161.840.550.600.27
20142.951.540.455.991.720.510.560.25
20153.031.580.465.481.770.530.580.26
20163.081.610.474.841.800.540.590.26
20173.071.600.474.971.790.530.590.26
20182.751.440.424.811.610.480.530.23
20193.191.660.485.391.860.550.610.27
20202.861.490.435.831.670.500.550.24
Table 11. Indirect value of cropland resources in Guizhou Province (million CNY).
Table 11. Indirect value of cropland resources in Guizhou Province (million CNY).
Regulating ServicesSupporting ServicesCultural Services
Gas RegulationClimate RegulationEnvironmental PurificationHydrological RegulationSoil ConservationMaintenance of Nutrient CycleBiodiversityAesthetic Landscape
20011042.31544.58158.101687.38608.99181.53199.0987.83
20021037.58542.11157.391850.00606.23180.70198.1987.44
20031185.91619.61179.891989.32692.89206.54226.5299.94
20041353.88707.36205.362708.69791.03235.79258.61114.09
20051337.41698.76202.872036.25781.41232.92255.46112.70
20061443.82754.36219.012424.08843.58251.45275.79121.67
20071735.44906.72263.243075.901013.97302.24331.49146.25
20081587.42829.38240.792913.23927.48276.46303.22133.77
20091699.16887.76257.742512.78992.77295.92324.56143.19
20101560.85815.50236.762655.25911.96271.83298.14131.53
20111012.34528.92153.561486.50591.48176.31193.3785.31
20121321.58690.49200.462102.56772.16230.16252.44111.37
20131121.78586.10170.161483.78655.42195.37214.2794.53
20141069.32558.69162.202173.93624.77186.23204.2590.11
2015908.11474.46137.751645.79530.58158.15173.4676.53
2016788.70412.07119.631239.54460.81137.36150.6566.46
2017841.59439.71127.661364.21491.72146.57160.7570.92
2018661.68345.71100.371157.39386.60115.24126.3955.76
2019698.34364.86105.931181.51408.02121.62133.3958.85
2020924.71483.14140.271885.77540.28161.05176.6377.93
Table 12. Changes of economic value of cropland resources in Guizhou Province (million CNY).
Table 12. Changes of economic value of cropland resources in Guizhou Province (million CNY).
YearDirect ValueIndirect ValueTotal Value
200127,995.004509.8032,504.80
200227,888.004659.6432,547.64
200346,672.005200.6051,872.60
200452,464.006374.8158,838.81
200533,353.005657.7639,010.76
200634,797.006333.7641,130.76
200739,220.007775.2546,995.25
200830,848.007211.7538,059.75
200933,050.007113.8840,163.88
201038,561.006881.8445,442.84
201143,084.004227.7947,311.79
201256,132.005681.2161,813.21
201364,612.004521.4269,133.42
201485,189.005069.5190,258.51
2015109,654.004104.83113,758.83
2016119,649.563375.23123,024.78
2017130,642.733643.13134,285.85
2018143,928.562949.13146,877.69
2019156,647.003072.52159,719.52
2020180,025.004389.76184,414.76
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, L.; Zhou, Z.; Chen, Q.; Wu, L.; Feng, Q.; Luo, D.; Wu, T. Accounting for Value Changes in Cultivated Land Resources within the Karst Mountain Area of Southwest China, 2001–2020. Land 2022, 11, 765. https://doi.org/10.3390/land11060765

AMA Style

Zhang L, Zhou Z, Chen Q, Wu L, Feng Q, Luo D, Wu T. Accounting for Value Changes in Cultivated Land Resources within the Karst Mountain Area of Southwest China, 2001–2020. Land. 2022; 11(6):765. https://doi.org/10.3390/land11060765

Chicago/Turabian Style

Zhang, Lu, Zhongfa Zhou, Quan Chen, Lan Wu, Qing Feng, Dan Luo, and Tangyin Wu. 2022. "Accounting for Value Changes in Cultivated Land Resources within the Karst Mountain Area of Southwest China, 2001–2020" Land 11, no. 6: 765. https://doi.org/10.3390/land11060765

APA Style

Zhang, L., Zhou, Z., Chen, Q., Wu, L., Feng, Q., Luo, D., & Wu, T. (2022). Accounting for Value Changes in Cultivated Land Resources within the Karst Mountain Area of Southwest China, 2001–2020. Land, 11(6), 765. https://doi.org/10.3390/land11060765

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
