Synthesis, Optical and DFT Characterizations of Laterally Fluorinated Phenyl Cinnamate Liquid Crystal Non-Symmetric System

by
Laila A. Al-Mutabagani
1,
Latifah A. Alshabanah
1,
Hoda A. Ahmed
2,3,* and
Mohamed A. El-Atawy
3,4
1
Department of Chemistry, College of Science, Princess Nourah Bint Abdulrahman University, Riyadh 11671, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Cairo University, Cairo 12613, Egypt
3
Chemistry Department, Faculty of Science, Taibah University, Yanbu 46423, Saudi Arabia
4
Chemistry Department, Faculty of Science, Alexandria University, P.O. 426 Ibrahemia, Alexandria 21321, Egypt
*
Author to whom correspondence should be addressed.
Symmetry 2021, 13(7), 1145; https://doi.org/10.3390/sym13071145
Submission received: 1 June 2021 / Revised: 22 June 2021 / Accepted: 23 June 2021 / Published: 26 June 2021
(This article belongs to the Section Chemistry: Symmetry/Asymmetry)
Browse Figures
Versions Notes

Abstract

:
A new laterally fluorinated unsymmetric liquid crystalline homologous series, based on cinnamate linkage, named 2-fluoro-4-(4-(alkoxy)phenyl)diazenyl)phenyl cinnamate (In), was synthesized and evaluated via different experimental and computational tools. The series had different terminal alkoxy-chain lengths with a lateral F atom in the meta position with respect to the azo moiety. The experimental mesomorphic and optical investigations were carried out using differential scanning calorimetry (DSC) and polarized optical microscopy (POM). Theoretical calculations and geometrical parameter predictions were conducted using the DFT program method at B3LYP/6-311G** level of theory. The results revealed that all the designed compounds exhibited the nematic (N) mesophase enantiotropically. The nematic stability and temperature range were impacted by the terminal alkoxy chain length. Compounds with the shortest chains (I6 and I8) showed a monotropic smectic A (SmA) phase, while the longest chain derivative, I16, possessed enantiotropic Sm A phase. Theoretical density functional theory (DFT) predictions were correlated with the practically observed data from the mesomorphic investigations. Data revealed that the terminal alkoxy and lateral F groups had an essential impact on the total energy of possible geometrical structures and their physical and thermal parameters.

1. Introduction

Recently, liquid crystal (LC) materials have exhibited excellent applications in non-linear optics [1], photonic devices [2], liquid crystal displays [3,4], and photo-switching materials [5]. The steric packing of rod-like geometry plays an important role in the phase transition phenomena of LC materials [6,7]. Symmetric and non-symmetric families of different linkages have been widely employed in the preparation of numerous LC materials [8,9,10,11,12]. For instance, azobenzene systems have good advantages over derivatives with other linkages. The azo linkers are thermally stable and attractive for investigating photo-induced approaches [13]. Moreover, they can generate photoactive LC materials because they can easily undergo trans/cis photo-induced isomerization. Thus, azobenzenes are also widely reported [13,14,15,16,17,18,19,20,21,22,23,24,25,26].
Generally, the mesomorphic ranges of nematic (N) phases are strongly enhanced when a lateral polar substituent is inserted to the mesogenic cores [24,25,26]. The extent of such impact is dependent on the volume, location, and polarity of the lateral group. The lateral substituents decrement the intermolecular packing and effectively broaden the mesogenic core. This leads to lateral interaction depressions [25,26,27,28] and, consequently, the N thermal stability is reduced. It was documented by Gray et.al. [29] that the increase in the breadth of molecules will reduce the stability of both the N and smectic mesophases. Moreover, different locations of the lateral substituent result in the protrusion of the side group with oriented angles.
On the other hand, the kind of the symmetrical and unsymmetrical terminal substituents will affect the mesomorphic phenomena [30,31,32,33]. Thus, when a change of the length of the terminal alkyl/alkoxy chains is affected and the rigidity of the structural molecular core is altered, the linearity of the molecules will be accordingly changed, to some extent, due to the higher number of the chain configurations that lead to different interactions between linear molecules [34,35]. Additionally, lengthening of the terminal chain impacts the twist-bend N and heliconical phases [22,23,36,37].
The surface hydrophobicity of materials plays an important role in governing the stability of LC alignment of molecules [38]. In addition, it is mainly impacted by the surface chemical nature and surface topography. Moreover, such studies have mostly investigated polymeric LC systems [38,39].
The DFT calculations program is one of the more interesting applied theoretical methods for LC and optical systems [40,41,42]. Prediction of the geometrical parameters for the molecular structure offers more interesting correlations between the obtained experimental results and the estimated theoretical simulations [43,44,45]. This will offer the predictions of the preferred molecular shape in the gas phase, but the presence of these materials in the condensed phase leads to a slight difference in resulted energy [46].
Cinnamate-composed LC materials were mostly approved to be important in applications and exhibited nematogenic phases [47,48,49,50,51,52,53,54,55,56,57]. In addition, the optical behavior of nematogenic materials was shown to be strongly enhanced by the inclusion of a lateral fluorine (F) atom. This influence was mainly dependent on the location and orientation of the F atom. The small volume and high polarity of the lateral F atom played an essential role in affecting the physical and thermal characteristics of the resulting LC system, such as melting and phase transitions [58].
Our research lab has focused its interests on the computational studies of newly synthesized LC materials in order to investigate their mesomorphic behavior with the theoretical prediction relationship. Additionally, the design of new laterally substituted LC molecules resulted in a new geometrical property, and the N phases were observed [24,25,26,27]. In previous works [24,25,26,27], more investigations were directed towards analyzing the effect of introducing the lateral group in the central or terminal rings on their mesophase behaviors. These investigated compounds were found to exhibit low melting transitions and mesomorphic behavior depending on the structural shape of the prepared molecules.
Continuing our work concerning the design and investigation of azo LC materials, a non-symmetrical homologues series based on a latterally attached F atom, namely 2-fluoro-4-(4-(octyloxy)phenyl)diazenyl)phenyl cinnamate (In) (Scheme 1), was synthesized and evaluated experimentally and theoritically.
The present study aims to investigate the mesomorphic and optical properties of the newly prepared derivatives and correlate their experimental outcome data with the computional predictions. Moreover, the study aims to compare the present investigated system with the previously reported latterally neat derivatives (IIn).

2. Results and Discussion

2.1. Mesomorphic and Optical Investigations

The mesophase properties of the designed laterally fluorinated homologous series (In) were investigated. Data on the phase transition temperatures, enthalpies, and normalized entropies of transitions, as measured by DSC, are collected in Table 1. An example of DSC thermograms for the synthesized compound I8, during heating and cooling cycles, is displayed in Figure 1. DSC analyses were performed from the second heating/cooling cycles to ensure the thermal stability of the designed materials. Figure 1 shows two endothermic transitions upon heating cycle and three exothermic transitions during cooling scans. Nematic and smectic A mesophases were observed in all the investigated derivatives under the POM (Figure 2). The DSC transitions were confirmed by the POM investigations. DSC and POM examinations indicated that these materials exhibit dimorphic mesophases. Derivatives I6 and I8 exhibited enantiotropic N and monotropic SmA phases, while I16 possessed enantiotropic SmA and N mesophases (Figures S1 and S2). Graphical representation of DSC transition temperatures for I6, I8, and I16 homologues are displayed in Figure 3 to illustrate the effect of the flexible terminal length chain on the mesomorphic properties of the synthesized laterally F-substituted system (In).
Table 1 and Figure 3 show that the melting transitions of the designed system In have an irregular behavior that is independent from the length of the terminal flexible alkoxy-chain (n). Melting points increase as the polarizability of the whole molecule within the same series increases and are dependent again on its molecular shape. Furthermore, all members of the series are mesomorphic in nature, with mesophase stability and temperature range depending on their terminal alkoxy chain length (n). All derivatives are dimorphic, possessing both the SmA and N mesophases. The thermal stability of the SmA mesophase increases as the terminal alkoxy chain length increases [59,60,61,62], while the N thermal mesophase stability decreases with n. The shortest terminal chain I6 derivative exhibits a monotropic SmA phase, with the lowest thermal stability nearly 54.7 °C, and its enantiotropic N phase stability is high at about 195.5 °C, with temperature ranging up to 103.0 °C upon heating. In the case of the I8 homologue, it also possesses the SmA phase monotropically, with stability close to 74.5 °C, and an enantiotropic N phase stability and temperature range of nearly 173.5 and 66.7 °C, respectively. However, the longest alkoxy chain bearing homologue I16 exhibits enantiotropic behavior for both observed SmA and N mesophases. In addition, it possesses the highest thermal SmA stability of nearly 97.6 °C and smectogenic temperature range of 13.7 °C. Additionally, the homologue I16 possesses N stability and a range of nearly 132.8 and 35.2 °C, respectively.
Generally, the molecular shape, polarizability, and dipole moment of the investigated system are highly affected by the electronic nature of the attached terminal groups. Additionally, the mesomorphic properties are influenced by an increment in the polarity and/or polarizability of the mesogenic portions. In the present study, the mesophase range and stability of the investigated series increased in this order: I6 > I8 > I16. The mesophase behavior of rod-like molecules was a direct result of molecular–molecular interactions that are mainly dependent on the molecular geometry of the terminal polar groups. The increment in the Van der Waals attraction forces between the terminal alkoxy chains facilitated their lamellar packing and the observation of the smectic A phase in addition to the N phase. Furthermore, the mesomorphic thermal stability reflected the nonsymmetric electronic properties of the different terminals of the molecule.
The data on normalized entropy changes of N-I transitions, ΔS/R, and of the investigated system (In) are collected in Table 1. Results indicate that the entropy changes of N-I transitions possess small values. This may be due to the possible biaxial configuration of the compounds [63,64,65]. In addition, the stereo configuration of the lateral F atom plays an essential role in the thermal parameters. This will be discussed in the computational part. Moreover, the thermal cis-trans isomerization of the azo moiety has an important role in the observed lower entropy changes, as documented before [64,65,66].

2.2. DFT Studies and Molecular Geometries Investigations

The chemical quantum parameters, estimated by the DFT method, and experimental findings were correlated for the present investigated homologues In. The computational calculations were carried out in the gas phase at B3LYP level (using 6–311G** basis set) of the estimated geometrical structures. The present series (In) exhibited LC properties, so they should exist in a planar conformation. The optimized geometry of each member in the system proved to be stable due to the absence of the imaginary frequency (Figure 4). All resulted thermal parameters of the computational predictions are collected in Table 2. The zero-point energy and other calculated quantum chemical parameters were predicted to increase when increasing the length of the molecule. Similarly, the polarity of the prepared compounds was predicted to increase with the length of the terminal chain, as indicated by the higher magnitude of the dipole moment with higher value of n. It was previously [24,25,26,27] reported that the planarity of the mesogenic portion of the LC compounds is enhanced by the mesomeric nature of the attached polar group. Hence, the conjugated π-cloud interactions, resulting from the terminal alkoxy group, offer a high thermal stability with suitable geometrical parameters, which is in agreement with the experimental findings in the present investigated series.
On the other hand, the polar attached groups, aspect ratio, polarizability, and geometrical structure of the LC molecule are considered as important parameters for the influence of the formed mesophase thermal stability.
Total thermal energy, dipole moments, and polarizability of the optimized conformers were related with the experimental finding values of the mesophase thermal stability and the length of terminal alkoxy chains (n) in order to evaluate the effect of n on the predicted thermal parameters. Figure 5 illustrates the correlation between the N stability and the total thermal energy (Etot) of the molecule bearing changeable terminal chain length. Table 2 and Figure 5 show a pronounced decrement in Etot with increasing n, and an increment as the N stability increases. Figure 6 shows the relation between the N stability and the whole polarizability and dipole moment of molecular structures (In). The relation indicated that the mean polarizability has a pronounced decrease with increment in N stability and increases as the chain length increases. This could be ascribed to the increase in the aspect ratios, which influence the space filling of the LC materials and lead to the enhancement of the mean polarizability as the terminal chain length increases. Additionally, the dipole moment has nearly constant relation with the nematic range independent from the alkoxy chain length, as shown in Figure 6. The van der Waals week intermolecular attractions have a role in destabilizing the observed N mesophase as the length of alkoxy chain is increased. The lower dipole moments values allow the terminal aggregations to predominate, which enhances the N mesophase formation.

2.3. Frontier Molecular Orbitals (FMOs)

The investigations of frontier molecular orbital HOMO (highest occupied) and LUMO (lowest unoccupied) distributions for the present synthesized compounds, In, are represented in Figure 7. Table 2 collects their resulting energies and energy gaps. The energy gap (∆E) between HOMO and LUMO levels is a function of the chemical reactivity of compounds. The lower its value of energy gap (∆E), the more reactive the molecule is. The predicted energy gaps (Table 2) confirm that all members of the investigated series In possess the same reactivity. In addition, they have the same softness because the energy gap is inversely correlated to the softness (softness = 1/∆E). Furthermore, all the designed homologues (In) showed similar electron cloud distributions over the carbon atoms and π-system of the azo linkage and lateral F atom.

2.4. Molecular Electrostatic Potential (MEP)

The molecular shape of the designed LC compounds is affected by the mesomeric configurations, which are normally impacted by the molecular-molecular interactions. The electronic structure, molecular polarizability, dipole moment, and many other parameters are influenced by the electron density distribution at atomic sites of LC materials [27]. Prediction of the presence of inter- or intra-molecular interactions of the designed molecules via the molecular electrostatic potential (MEP) is one of the best tools. MEP is an indicator which shows the distribution of electron density within the molecular structure. The charge distribution map for the investigated materials In, was computationally predicted under the same B3LYP/6-311G** level of calculation according to MEP (Figure 8). The MEP examinations suggests high electrostatic potential but low electron density for the terminal polar alkoxy groups of all the prepared members (In); this is represented by the blue cloud. On the other hand, the red regions (which indicates high electron density) are expected to be localized on the mesogenic cores, which appear at the oxygen atoms of the ester linkage and the alkoxy chains.

2.5. Effect of the Introduction of Lateral F Atom on the Mesomorphic Behavior of Laterally-Neat Series

In order to evaluate the impact of the addition of the F atom within the center of the molecular structure and on the mesomorphic behavior of nonfluorinated derivatives (IIn, Scheme 2), the thermal phase transition stabilities of the present laterally fluorinated system (In) were compared with the laterally neat derivatives, IIn [47]. Thermal mesophase stabilities (TC) data for both series In and IIn are collected in Table S1. The comparison was made between their mesophase stabilities (TC) as a function of their terminal alkoxy chain length. All compounds of homologous series IIn [47] are nematogenic, exhibiting wide N mesophases with high thermal stability. The N phase was detected upon cooling from the isotropic liquid by the observation of N droplets via POM. Two endothermic peaks were detected through the DSC technique for Cr-N and N-I transitions upon heating, and two other reversed exothermic peaks from I-N and N-Cr during cooling were observed [47]. The comparison revealed that the kind and stability of the formed mesophase are dependent on the enhanced dipole moment of the molecular mesogenic part, which is essentially dependent on the location and relative orientation of the lateral F moiety. Moreover, the introduction of the lateral F group into the mesogenic core enhances the SmA phase for all lengths of the terminal chains.
In order to investigate the isomerization effect on the mesomorphic properties of laterally F (In) and laterally neat (IIn) derivatives, the total energies of homologues I6 and II6 were predicted by the same set B3LYP level using 6–311G** basis set. All estimated data were collected in Table S2. The optimized z-form structural geometries of both compounds (I6 and II6) showed non-planar conformations (Figure 9). Moreover, their thermal energies were higher values than the E-isomers. Thus, the E-isomers proved to be stable and planar geometries, which satisfied the mesomorphic properties requirements.

3. Experimental Methods

3.1. Synthesis

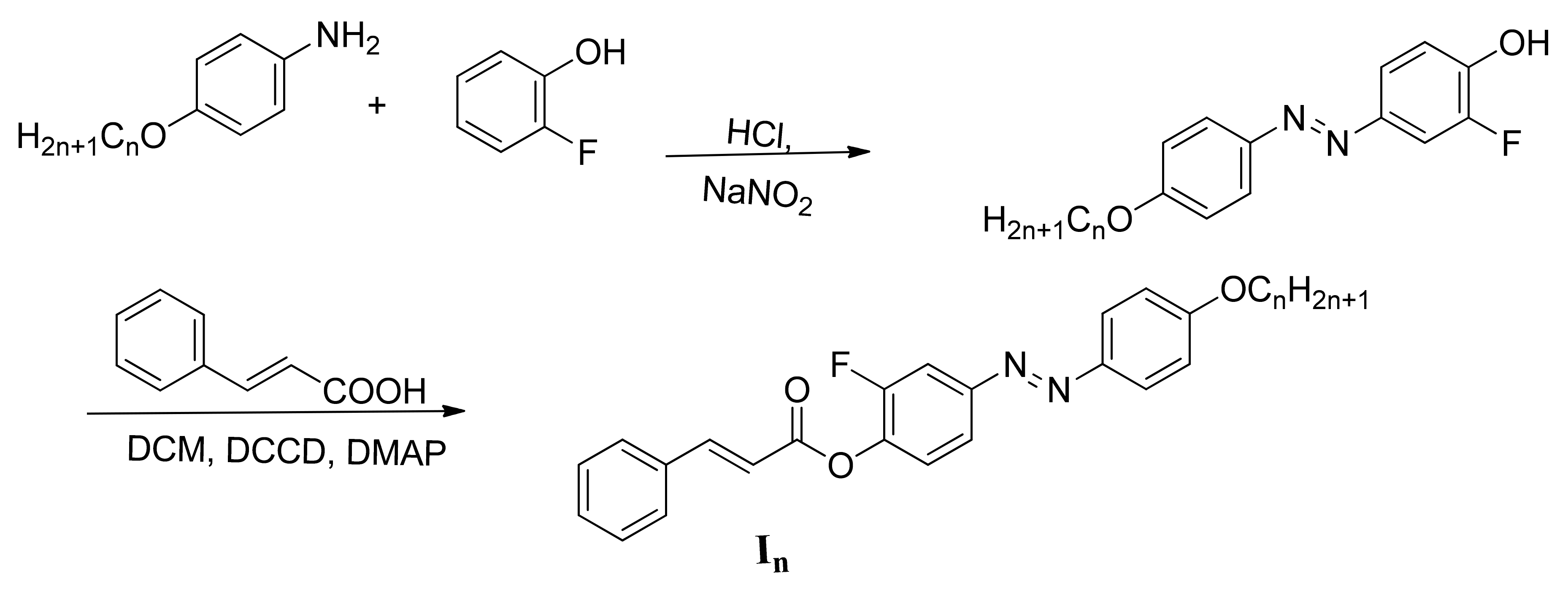

The liquid crystalline compounds In were synthesized as the following Scheme 3:

3.1.1. Synthesis of 2-Fluoro-4-((4-(alkoxy)phenyl)diazenyl)phenol

Details are given as supplementary data.

3.1.2. Synthesis of 2-Fluoro-4-(4-(alkoxy)phenyl)diazenyl)phenyl Cinnamate In

Details are given as supplementary data. All spectra are depicted in Figures S3–S8.
2-fluoro-4-(4-(hexyloxy)phenyl)diazenyl)phenyl cinnamate I6. Yield: 92.1%; mp 93.0 °C, FTIR (ύ, cm−1): 2963, 2897 (CH2 stretching), 1714 (C=O), 1640 (C=C), 1590 (N=N), 1169 (C−O Ester), 1072 (C-O Alkoxy) 1H NMR (850 MHz, CDCl3) δ 8.16 (m, 2H), 7.72 (d, 1H), 7.70–7.52 (m, 8H), 7.41 (d, 2H), 6.74 (d, J = 15.4 Hz, 1H), 4.05 (t, 2H), 1.73 (m, 2H), 1.62–1.37 (m, 6H), 1.19 (m, 3H). Elemental Analysis Calc.(Found): C, 72.63 (72.61); H, 6.09 (6.05); F, 4.25 (4.24); N, 6.27 (6.26).
2-fluoro-4-(4-(octyloxy)phenyl)diazenyl)phenyl cinnamate I8. Yield: 90.7%; mp 107.0 °C, FTIR (ύ, cm−1): 2960, 2895 (CH2 stretching), 1716 (C=O), 1642 (C=C), 1598 (N=N), 1165 (C−O Ester), 1070 (C-O Alkoxy) 1H NMR (850 MHz, CDCl3) δ 8.20 (m, 2H), 7.75 (d, 1H), 7.72–7.50 (m, 8H), 7.42 (d, 2H), 6.74 (d, 1H), 4.06 (t, 2H), 1.76 (m, 2H), 1.64–1.31 (m, 10H), 1.20 (m, 3H). Elemental Analysis Calc.(Found): C, 73.40 (73.40); H, 6.58 (6.55); F, 4.00 (3.99); N, 5.90 (5.88).
2-fluoro-4-(4-(hexadecyloxy)phenyl)diazenyl)phenyl cinnamate I16. Yield: 91.9%; mp 84.0 °C, FTIR (ύ, cm−1): 2960, 2895 (CH2 stretching), 1712 (C=O), 1639 (C=C), 1592 (N=N), 1162 (C−O Ester), 1068 (C-O Alkoxy) 1H NMR (850 MHz, CDCl3) δ 8.23 (d, J = 6.2 Hz, 2H), 7.85 (d, J = 8.8 Hz, 1H), 7.69 (d, J = 15.4 Hz, 1H), 7.50–7.43 (m, 5H), 7.40 (d, J = 7.2 Hz, 2H), 6.99 (d, J = 8.9 Hz, 2H), 6.77 (d, J = 15.4 Hz, 1H), 4.04 (t, J = 6.6 Hz, 2H), 1.95–1.90 (m, 2H), 1.77–1.71 (m, 2H), 1.58 (m, 4H), 1.38–1.24 (m, 16H), 1.23–1.17 (m, 4H), 0.89 (t, J = 7.1 Hz, 3H). Elemental Analysis Calc.(Found): C, 75.73 (75.71); H, 8.07 (8.05); F, 3.24 (3.23); N, 4.77 (4.75).

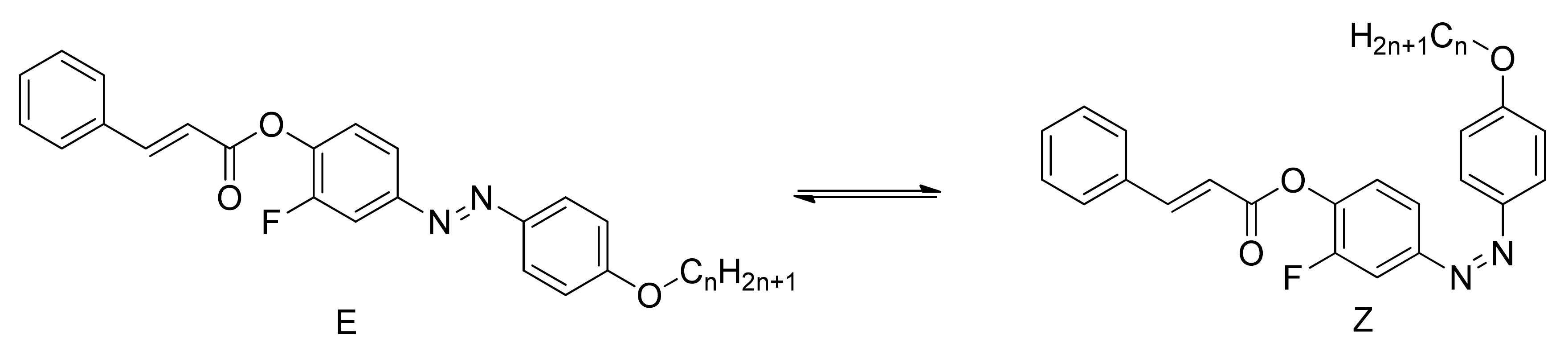

The isomerization of the present investigated derivatives (In) has been evaluated. The NMR spectra indicated that only one isomer (E-isomer) was observed that was confirmed by the singlet proton resonances of most aromatic protons of the synthesized materials. Thus, the incorporation of a high electron-withdrawing lateral F atom in the meta-position with respect to the azo-linkage may stabilize the E-isomer rather than the Z-isomer (Scheme 4). It will be discussed in the theoretical part.

4. Conclusions

In the present investigation, a new non-symmetric series of laterally fluorinated liquid crystalline materials based on cinnamate moiety, namely 2-fluoro-4-(4-(alkoxy)phenyl)diazenyl)phenyl cinnamate (In), was synthesized and mesomorphically investigated using DSC and POM. Mesomorphic and optical characterizations revealed that all of the prepared azo derivatives of the cinnamate set are dimorphic, exhibiting both the SmA and N mesophases. All homologues have been shown to possess monotropic SmA except the longest chain derivative (I16), which possesses the enantiotropic SmA phase. The introduction of a lateral F atom on the mesogenic molecular structure has induced the SmA phase. The unsymmetric geometry of the designed molecules plays an important role in the resulted physical and thermal parameters. DFT simulations showed that the length of the terminal chain enhanced the thermodynamic energy as well as the geometrical parameters.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/sym13071145/s1, The synthetic and characterization details of investigated compounds as well as Figures S1–S7.

Author Contributions

Conceptualization, L.A.A.-M. and H.A.A.; methodology, H.A.A. and M.A.E.-A.; software, M.A.E.-A.; validation, L.A.A., H.A.A. and L.A.A.-M.; formal analysis, L.A.A.-M. and H.A.A.; investigation, L.A.A.-M., H.A.A. and M.A.E.-A.; resources, L.A.A.; data curation, L.A.A.; writing—original draft preparation, H.A.A., L.A.A.-M. and M.A.E.-A.; writing—review and editing, L.A.A.-M., H.A.A., M.A.E.-A. and L.A.A.; visualization, H.A.A.; supervision, H.A.A.; project administration, L.A.A.-M.; funding acquisition, L.A.A.-M. and L.A.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Deanship of Scientific Research at Princess Nourah bint Abdulrahman University through the Fast-track Research Funding Program.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors acknowledge the Deanship of Scientific Research at Princess Nourah bint Abdulrahman University through the Fast-track Research Funding Program.

Conflicts of Interest

No conflict of interest.

References

  1. Srinivasan, M.V.; Kannan, P. Photo-switching and nonlinear optical behaviors of center linked bent-core azobenzene liquid crystalline polymers. J. Mater. Sci. 2011, 46, 5029–5043. [Google Scholar] [CrossRef]
  2. Smela, E. Conjugated polymer actuators for biomedical applications. Adv. Mater. 2003, 15, 481–494. [Google Scholar] [CrossRef]
  3. Fukuhara, K.; Nagano, S.; Hara, M.; Seki, T. Free-surface molecular command systems for photoalignment of liquid crystalline materials. Nat. Commun. 2014, 5, 1–8. [Google Scholar] [CrossRef] [Green Version]
  4. Chung, C.-M.; Roh, Y.-S.; Cho, S.-Y.; Kim, J.G. Crack healing in polymeric materials via photochemical [2 + 2] cycloaddition. Chem. Mater. 2004, 16, 3982–3984. [Google Scholar] [CrossRef]
  5. Srinivasan, M.V.; Kannan, P.; Roy, A. Photo and electrically switchable B 7 mesophase exhibiting asymmetric bent-core liquid crystals. New J. Chem. 2013, 37, 1584–1590. [Google Scholar] [CrossRef]
  6. Ahmed, H.; Mansour, E.; Hagar, M. Mesomorphic study and DFT simulation of calamitic Schiff base liquid crystals with electronically different terminal groups and their binary mixtures. Liq. Cryst. 2020, 47, 2292–2304. [Google Scholar] [CrossRef]
  7. Demus, D.; Gray, G.; Spiess, H.; Vill, V. Handbook of Liquid Crystals, Vols. Q, 2a, 2b, and 3; Wiley-VCH: Weinheim, Germany, 1998. [Google Scholar]
  8. Al-Mutabagani, L.A.; Alshabanah, L.A.; Gomha, S.M.; Ahmed, H.A. Synthesis, thermal and optical characterizations of new lateral organic systems. Crystals 2021, 11, 551. [Google Scholar] [CrossRef]
  9. Ahmed, H.A.; Hagar, M.; Saad, G.R. Impact of the proportionation of dialkoxy chain length on the mesophase behaviour of Schiff base/ester liquid crystals; experimental and theoretical study. Liq. Cryst. 2019, 46, 1611–1620. [Google Scholar] [CrossRef]
  10. Al-Mutabagani, L.A.; Alshabanah, L.A.; Ahmed, H.A.; Alalawy, H.H. Synthesis, Mesomorphic and Computational Characterizations of Nematogenic Schiff Base Derivatives in Pure and Mixed State. Molecules 2021, 26, 2038. [Google Scholar] [CrossRef] [PubMed]
  11. Altowyan, A.S.; Ahmed, H.A.; Gomha, S.M.; Mostafa, A.M. Optical and Thermal Investigations of New Schiff Base/Ester Systems in Pure and Mixed States. Polymers 2021, 13, 1687. [Google Scholar] [CrossRef]
  12. Blatch, A.E.; Luckhurst, G.R. The liquid crystal properties of symmetric and non-symmetric dimmers based on the azobenzene mesogenic group. Liq. Cryst. 2000, 27, 775–787. [Google Scholar] [CrossRef]
  13. Tanaka, D.; Ishiguro, H.; Shimizu, Y.; Uchida, K. Thermal and photoinduced liquid crystalline phase transitions with a rod–disc alternative change in the molecular shape. J. Mater. Chem. 2012, 22, 25065–25071. [Google Scholar] [CrossRef]
  14. Alaasar, M.; Poppe, S.; Tschierske, C. Photoresponsive halogen bonded polycatenar liquid crystals. J. Mol. Liq. 2019, 277, 233–240. [Google Scholar] [CrossRef]
  15. Iftime, M.-M.; Cozan, V.; Airinei, A.; Varganici, C.; Ailiesei, G.; Timpu, D.; Sava, I. Asymmetric azomethine amines with azobenzene moieties–liquid crystalline and optical properties. Liq. Cryst. 2019, 46, 1584–1594. [Google Scholar] [CrossRef]
  16. Wang, M.; Han, Y.; Guo, L.-X.; Lin, B.-P.; Yang, H. Photocontrol of helix handedness in curled liquid crystal elastomers. Liq. Cryst. 2019, 46, 1231–1240. [Google Scholar] [CrossRef]
  17. Hagar, M.; Ahmed, H.; Alhaddad, O. New azobenzene-based natural fatty acid liquid crystals with low melting point: Synthesis, DFT calculations and binary mixtures. Liq. Cryst. 2019, 46, 2223–2234. [Google Scholar] [CrossRef]
  18. Zhou, M.; Lu, H.; Zhang, X.; Zhang, Q.; Xu, M.; Zhu, J.; Zhang, G.; Ding, Y.; Qiu, L. Tuning helical twisting power and photoisomerisation kinetics of axially chiral cyclic azobenzene dopants in cholesteric liquid crystals. Liq. Cryst. 2019, 46, 2181–2189. [Google Scholar] [CrossRef]
  19. Yu, Y.-B.; He, W.-L.; Jiang, Z.-M.; Yu, Z.-F.; Ren, L.; Lu, Y.; Yang, Z.; Cao, H.; Wang, D. The effects of azo-oxadiazole-based bent-shaped molecules on the temperature range and the light-responsive performance of blue phase liquid crystal. Liq. Cryst. 2019, 46, 1024–1034. [Google Scholar] [CrossRef]
  20. Abberley, J.P.; Storey, J.M.; Imrie, C.T. Structure-property relationships in azobenzene-based twist-bend nematogens. Liq. Cryst. 2019, 46, 2102–2114. [Google Scholar] [CrossRef]
  21. Aya, S.; Salamon, P.; Paterson, D.A.; Storey, J.M.; Imrie, C.T.; Araoka, F.; Jákli, A.; Buka, Á. Fast-and-giant photorheological effect in a liquid crystal dimer. Adv. Mater. Interfaces 2019, 6, 1802032. [Google Scholar] [CrossRef] [Green Version]
  22. Paterson, D.A.; Walker, R.; Abberley, J.P.; Forestier, J.; Harrison, W.T.; Storey, J.M.; Pociecha, D.; Gorecka, E.; Imrie, C.T. Azobenzene-based liquid crystal dimers and the twist-bend nematic phase. Liq. Cryst. 2017, 44, 2060–2078. [Google Scholar] [CrossRef]
  23. Paterson, D.A.; Xiang, J.; Singh, G.; Walker, R.; Agra-Kooijman, D.a.M.; Martínez-Felipe, A.; Gao, M.; Storey, J.M.; Kumar, S.; Lavrentovich, O.D. Reversible isothermal twist–bend nematic–nematic phase transition driven by the photoisomerization of an azobenzene-based nonsymmetric liquid crystal dimer. J. Am. Chem. Soc. 2016, 138, 5283–5289. [Google Scholar] [CrossRef] [PubMed]
  24. Ahmed, H.A.; AEl-Atawy, M. Synthesis, mesomorphic and geometrical approaches of new non-symmetrical system based on central naphthalene moiety. Liq. Cryst. 2021, 1–13. [Google Scholar] [CrossRef]
  25. El-Atawy, M.A.; Alhaddad, O.A.; Ahmed, H.A. Experimental and geometrical structure characterizations of new synthesized laterally fluorinated nematogenic system. Liq. Cryst. 2021, 1–11. [Google Scholar] [CrossRef]
  26. Al-Zahrani, S.A.; Ahmed, H.A.; El-Atawy, M.A.; Abu Al-Ola, K.A.; Omar, A.Z. Synthetic, Mesomorphic, and DFT Investigations of New Nematogenic Polar Naphthyl Benzoate Ester Derivatives. Materials 2021, 14, 2587. [Google Scholar] [CrossRef]
  27. El-Atawy, M.A.; Naoum, M.M.; Al-Zahrani, S.A.; Ahmed, H.A. New Nitro-Laterally Substituted Azomethine Derivatives; Synthesis, Mesomorphic and Computational Characterizations. Molecules 2021, 26, 1927. [Google Scholar] [CrossRef]
  28. Weissflog, W.; Demus, D. Proceedings of the 10th International Liquid Crystal Conference, York, UK 1984. Part E. Mol. Cryst. Liq. Cryst. 1985, 129, 235–243. [Google Scholar] [CrossRef]
  29. Gray, G.W. Molecular Structure and the Properties of Liquid Crystals; Academic Press: New York, NY, USA, 1962. [Google Scholar]
  30. Chen, B.-Q.; Wen, J.-X. Synthesis and mesophase behaviour of mesogens bearing omega, alpha, alpha-trihydroperfluoroalkoxy end tails. Liq. Cryst. 1999, 26, 1135–1140. [Google Scholar] [CrossRef]
  31. Da Rosa, R.R.; Tariq, M.; Weber, C.S.; Hameed, S.; Silva, S.; Merlo, A.A. Hybrid liquid crystals tetrazolyl and isoxazolyl cinnamates. Liq. Cryst. 2016, 43, 1659–1670. [Google Scholar] [CrossRef]
  32. Ahmed, H.A.; Khushaim, M.S. Nematic phase induced from symmetrical supramolecular H-bonded systems based on flexible acid core. Crystals 2020, 10, 801. [Google Scholar] [CrossRef]
  33. Ahmed, H.; Khushaim, M.S. Nematogenic Laterally Substituted Supramolecular H-Bonded Complexes Based on Flexible Core. Crystals 2020, 10, 878. [Google Scholar] [CrossRef]
  34. Hagar, M.E.F.; Alnoman, R.B.; Jaremko, M.; Emwas AH, M.; Sioud, S.; Al-Ola, K.A.; Ahmed, H.A. New liquid crystal assemblies based on cyano-hydrogen bonding interactions. Front. Chem. 2021, 9, 679885. [Google Scholar] [CrossRef] [PubMed]
  35. Hagar, M.; Ahmed, H.; El-Sayed, T.; Alnoman, R. Mesophase behavior and DFT conformational analysis of new symmetrical diester chalcone liquid crystals. J. Mol. Liq. 2019, 285, 96–105. [Google Scholar] [CrossRef]
  36. Paterson, D.A.; Crawford, C.A.; Pociecha, D.; Walker, R.; Storey, J.M.; Gorecka, E.; Imrie, C.T. The role of a terminal chain in promoting the twist-bend nematic phase: The synthesis and characterisation of the 1-(4-cyanobiphenyl-4′-yl)-6-(4-alkyloxyanilinebenzylidene-4′-oxy) hexanes. Liq. Cryst. 2018, 45, 2341–2351. [Google Scholar] [CrossRef]
  37. Abberley, J.P.; Killah, R.; Walker, R.; Storey, J.M.; Imrie, C.T.; Salamończyk, M.; Zhu, C.; Gorecka, E.; Pociecha, D. Heliconical smectic phases formed by achiral molecules. Nat. Commun. 2018, 9, 1–7. [Google Scholar]
  38. Liu, B.-Y.; Chen, L.-J. Role of surface hydrophobicity in pretilt angle control of polymer-stabilized liquid crystal alignment systems. J. Phys. Chem. C. 2013, 117, 13474–13478. [Google Scholar] [CrossRef]
  39. Mayr, L.; Amschler, S.; Edenharter, A.; Dudko, V.; Kunz, R.; Rosenfeldt, S.; Breu, J. Osmotic swelling of sodium hectorite in ternary solvent mixtures: Nematic liquid crystals in hydrophobic media. Langmuir 2020, 36, 3814–3820. [Google Scholar] [CrossRef]
  40. Khushaim, M.S.; Alalawy, H.H.; Naoum, M.M.; Ahmed, H.A. Experimental and computational simulations of nematogenic liquid crystals based on cinnamic acid in pure and mixed state. Liq. Cryst. 2021, 1–12. [Google Scholar] [CrossRef]
  41. Ahmed, H.; Hagar, M.; Alhaddad, O. Mesomorphic and geometrical orientation study of the relative position of fluorine atom in some thermotropic liquid crystal systems. Liq. Cryst. 2020, 47, 404–413. [Google Scholar] [CrossRef]
  42. Ibrahim, M.F.; Senior, S.; El-Atawy, M.A.; El-Sadany, S.K.; Hamed, E.A. DFT calculations of 2, 4, 6-trinitrophenylbenzoate derivatives: Structure, ground state properties and spectral properties. J. Mol. Struct. 2011, 1006, 303–311. [Google Scholar] [CrossRef]
  43. Hagar, M.; Ahmed, H.; Alhaddad, O. Experimental and theoretical approaches of molecular geometry and mesophase behaviour relationship of laterally substituted azopyridines. Liq. Cryst. 2019, 46, 1440–1451. [Google Scholar] [CrossRef]
  44. Paterson, D.A.; Gao, M.; Kim, Y.-K.; Jamali, A.; Finley, K.L.; Robles-Hernández, B.; Diez-Berart, S.; Salud, J.; de la Fuente, M.R.; Timimi, B.A. Understanding the twist-bend nematic phase: The characterisation of 1-(4-cyanobiphenyl-4′-yloxy)-6-(4-cyanobiphenyl-4′-yl) hexane (CB6OCB) and comparison with CB7CB. Soft Matter. 2016, 12, 6827–6840. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Omar, A.Z.; Mahmoud, M.N.; El-Sadany, S.K.; Hamed, E.A.; El-Atawy, M.A. A combined experimental and DFT investigation of mono azo thiobarbituric acid based chalcone disperse dyes. Dyes Pigment. 2021, 185, 108887. [Google Scholar] [CrossRef]
  46. Cruickshank, E.; Salamończyk, M.; Pociecha, D.; Strachan, G.J.; Storey, J.M.; Wang, C.; Feng, J.; Zhu, C.; Gorecka, E.; Imrie, C. T Sulfur-linked cyanobiphenyl-based liquid crystal dimers and the twist-bend nematic phase. Liq. Cryst. 2019, 46, 1595–1609. [Google Scholar] [CrossRef] [Green Version]
  47. Matharu, A.; Chambers-Asman, D. Structure–property investigation of 2-and 3-thienylacrylates bearing laterally fluorinated azobenzene moieties. Liq. Cryst. 2007, 34, 1317–1336. [Google Scholar] [CrossRef]
  48. Wei, P.; Wang, Y.; Xia, Y.; He, Y.; Wang, Y. Synthesis and properties of novel photocrosslinkable aromatic-aliphatic liquid crystal copolyesters based on poly (ethylene glycol) and cinnamic acid. Liq. Cryst. 2019, 46, 176–184. [Google Scholar] [CrossRef]
  49. Bubnov, A.; Cigl, M.; Sedláčková, N.; Pociecha, D.; Böhmová, Z.; Hamplová, V. Self-assembling behaviour of new functional photosensitive cinnamoyl-based reactive mesogens. Liq. Cryst. 2020, 1–16. [Google Scholar] [CrossRef]
  50. Hung, Y.-H.; Liu, C.-Y.; Chen, W.-C.; Liu, J.-H. Thermal and optical properties of amphitropic liquid crystals derived from cholesterol and cinnamic acid. Liq. Cryst. 2020, 1–13. [Google Scholar] [CrossRef]
  51. Dmochowska, E.; Bombalska, A.; Kula, P. Synthesis and mesomorphic properties of four ring, rod-like fluorene derivatives–the influence of the lateral substitution on mesomorphic properties of 2, 7-bis (4-alkylphenyl)-fluorenes. Liq. Cryst. 2020, 47, 17–27. [Google Scholar] [CrossRef]
  52. Zhu, G.; Wang, F.; Liu, W.; Gong, X.; Geng, P.; Gao, Z.; Wang, Y. Synthesis of photosensitive polyimide for liquid crystal alignment under non-polarised UV ageing lamp irradiation and a study on the possible mechanism of alignment. Liq. Cryst. 2020, 47, 489–499. [Google Scholar] [CrossRef]
  53. Yu, H.; Zhu, G.; Wang, Y. Preparation of polyimide alignment films with high photosensitivity and low solid content. Liq. Cryst. 2020, 48, 598–606. [Google Scholar] [CrossRef]
  54. Sung, S.-J.; Cho, K.-Y.; Park, J.-K. Photo-induced liquid crystal alignment of poly (vinyl cinnamate) and fluorinated polyimide blends. Mater. Sci. Eng. C. 2004, 24, 181–184. [Google Scholar] [CrossRef]
  55. Lee, J.; Lee, S.; Jeong, Y.-C.; Cho, K.Y.; Park, J.K. Generation of pretilt angles of liquid crystals on cinnamate-based photoalignment layer by a simple directional peel-off process. Opt. Express 2009, 17, 23565–23575. [Google Scholar] [CrossRef] [PubMed]
  56. Francescangeli, O.; Lucchetti, L.; Simoni, F.; Stanić, V.; Mazzulla, A. Light-induced molecular adsorption and reorientation at polyvinylcinnamate-fluorinated/liquid-crystal interface. Phys. Rev. E. 2005, 71, 011702. [Google Scholar] [CrossRef] [PubMed]
  57. Thaker, B.; Kanojiya, J. Mesomorphic properties of liquid crystalline compounds with biphenyl moiety containing azo-ester, azo-cinnamate central linkages and different terminal group. Liq. Cryst. 2011, 38, 1035–1055. [Google Scholar] [CrossRef]
  58. Hegde, G.; Alla, R.A.; Matharu, A.; Komitov, L. Azo containing thiophene based prop-2-enoates for photoalignment of a nematic liquid crystal. J. Mater. Chem. C. 2013, 1, 3600–3605. [Google Scholar] [CrossRef]
  59. Imrie, C.T.; Henderson, P.A.; Seddon, J.M. Non-symmetric liquid crystal trimers. The first example of a triply-intercalated alternating smectic C phase. J. Mater. Chem. 2004, 14, 2486–2488. [Google Scholar] [CrossRef]
  60. Chan, T.-N.; Lu, Z.; Yam, W.-S.; Yeap, G.-Y.; Imrie, C.T. Non-symmetric liquid crystal dimers containing an isoflavone moiety. Liq. Cryst. 2012, 39, 393–402. [Google Scholar] [CrossRef]
  61. Henderson, P.A.; Niemeyer, O.; Imrie, C.T. Methylene-linked liquid crystal dimers. Liq. Cryst. 2001, 28, 463–472. [Google Scholar] [CrossRef]
  62. Lee, H.-C.; Lu, Z.; Henderson, P.A.; Achard, M.F.; Mahmood, W.A.K.; Yeap, G.-Y.; Imrie, C.T. Cholesteryl-based liquid crystal dimers containing a sulfur–sulfur link in the flexible spacer. Liq. Cryst. 2012, 39, 259–268. [Google Scholar] [CrossRef]
  63. Imrie, C.; Karasz, F.; Attard, G. Comparison of the mesogenic properties of monomeric, dimeric, and side-chain polymeric liquid crystals. Macromolecules 1993, 26, 545–550. [Google Scholar] [CrossRef]
  64. Donaldson, T.; Staesche, H.; Lu, Z.; Henderson, P.; Achard, M.; Imrie, C. Symmetric and non-symmetric chiral liquid crystal dimers. Liq. Cryst. 2010, 37, 1097–1110. [Google Scholar] [CrossRef]
  65. Henderson, P.A.; Imrie, C.T. Methylene-linked liquid crystal dimers and the twist-bend nematic phase. Liq. Cryst. 2011, 38, 1407–1414. [Google Scholar] [CrossRef]
  66. Sıdır, İ.; Sıdır, Y.G.; Kumalar, M.; Taşal, E. Ab initio Hartree–Fock and density functional theory investigations on the conformational stability, molecular structure and vibrational spectra of 7-acetoxy-6-(2, 3-dibromopropyl)-4, 8-dimethylcoumarin molecule. J. Mol. Struct. 2010, 964, 134–151. [Google Scholar] [CrossRef]
Symmetry 13 01145 sch001 550

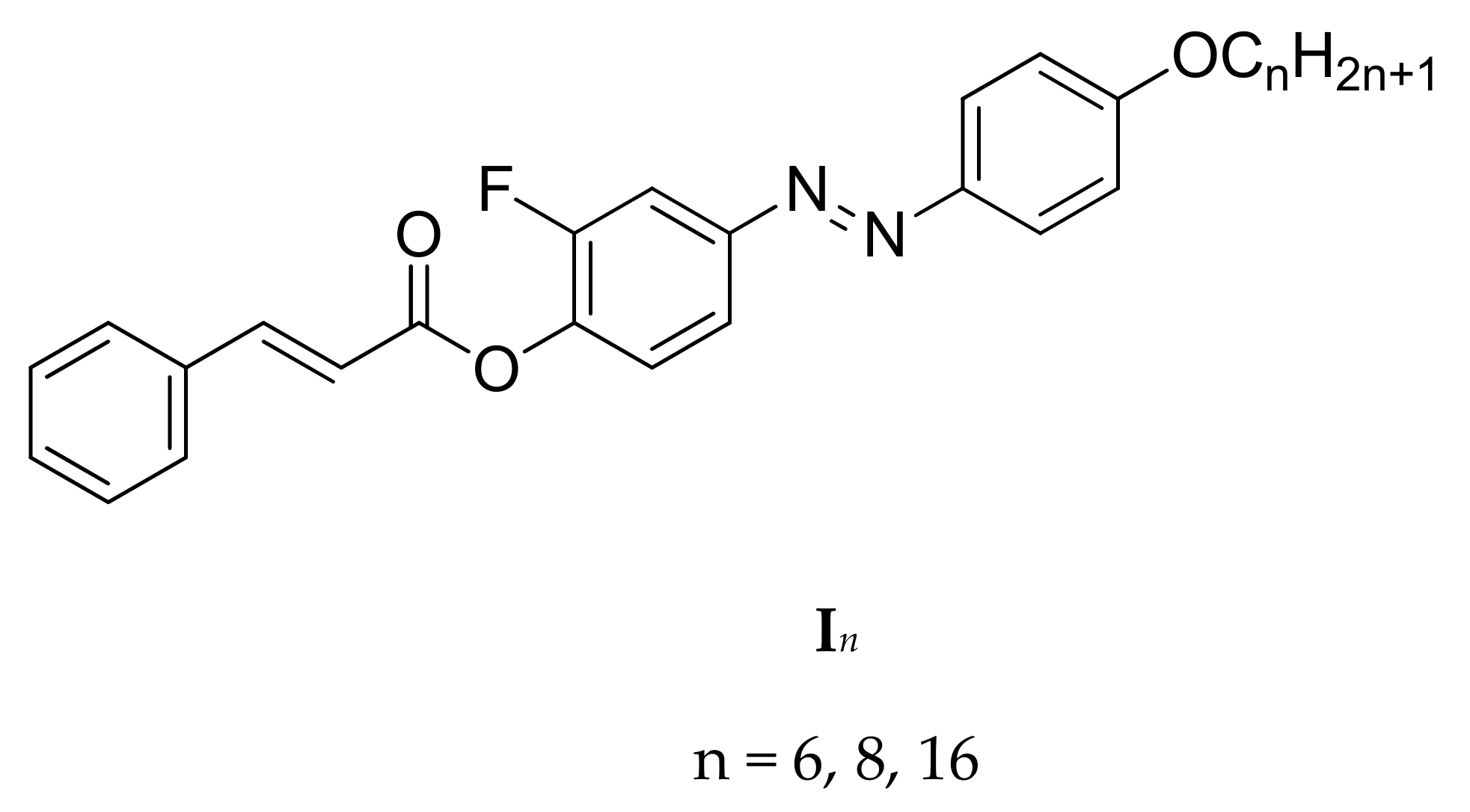

Scheme 1. Investigated homologue series, In.
Scheme 1. Investigated homologue series, In.
Symmetry 13 01145 sch001
Symmetry 13 01145 g001 550

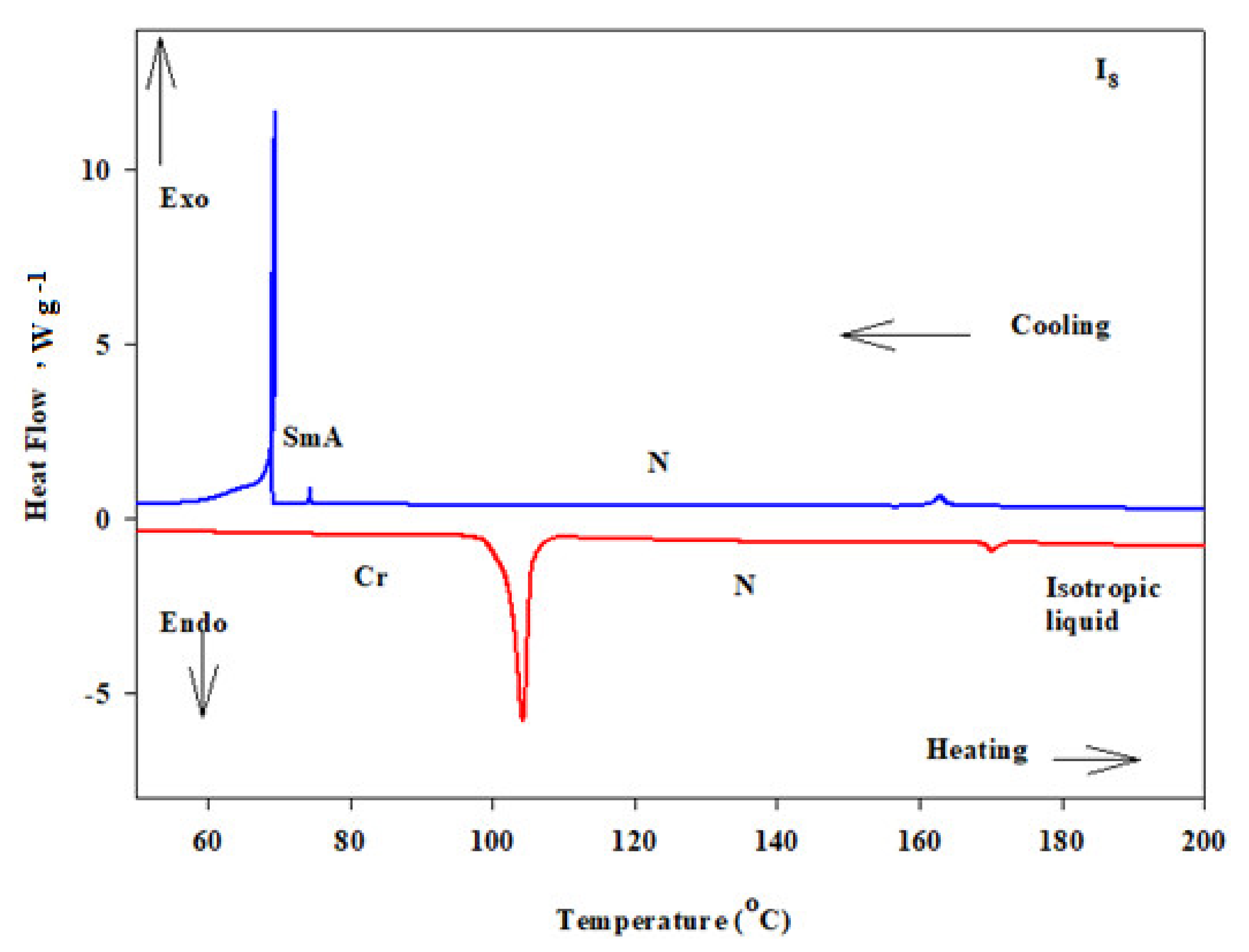

Figure 1. DSC thermograms of compound I8 upon heating and cooling scans with heating rate 10 °C min−1.
Figure 1. DSC thermograms of compound I8 upon heating and cooling scans with heating rate 10 °C min−1.
Symmetry 13 01145 g001
Symmetry 13 01145 g002 550
Figure 2. Textures of mesophases under POM for compound I8 (a) N phase at 150.0 °C upon heating and (b) SmA phase at 71.0 °C on cooling.
Figure 2. Textures of mesophases under POM for compound I8 (a) N phase at 150.0 °C upon heating and (b) SmA phase at 71.0 °C on cooling.
Symmetry 13 01145 g002
Symmetry 13 01145 g003 550

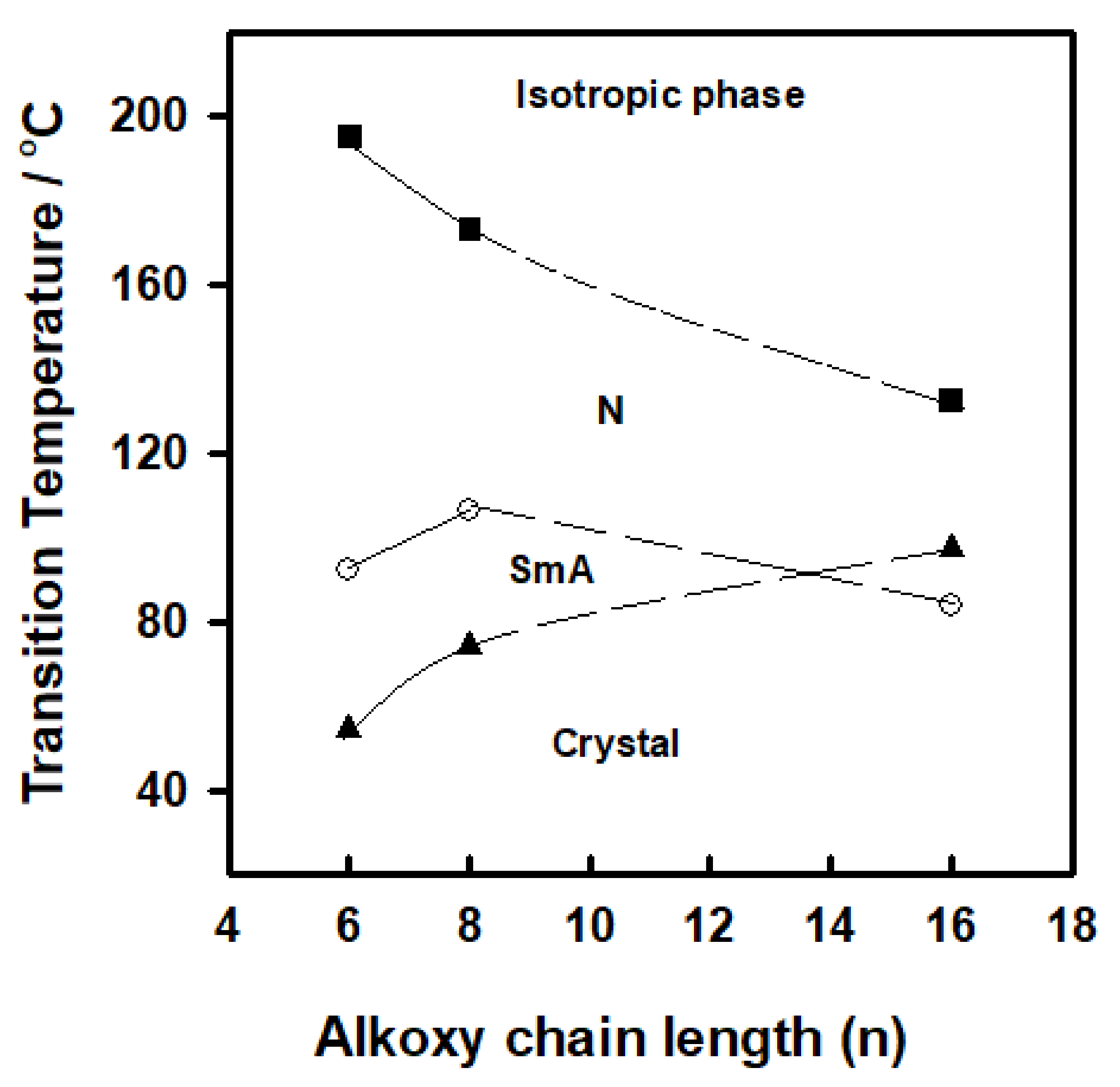

Figure 3. DSC graphical transitions of prepared series In; N-I transition (■); Cr-mesophase (○); SmA-mesophase (▲); (--------) expected extrapolation lines.
Figure 3. DSC graphical transitions of prepared series In; N-I transition (■); Cr-mesophase (○); SmA-mesophase (▲); (--------) expected extrapolation lines.
Symmetry 13 01145 g003
Symmetry 13 01145 g004 550

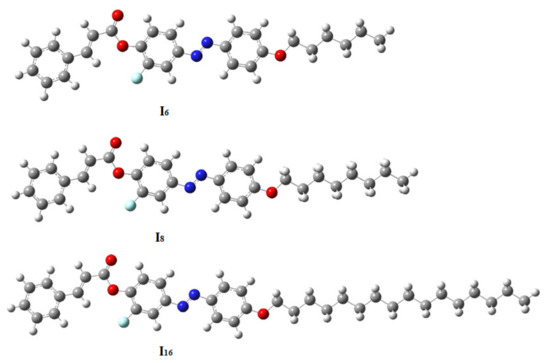

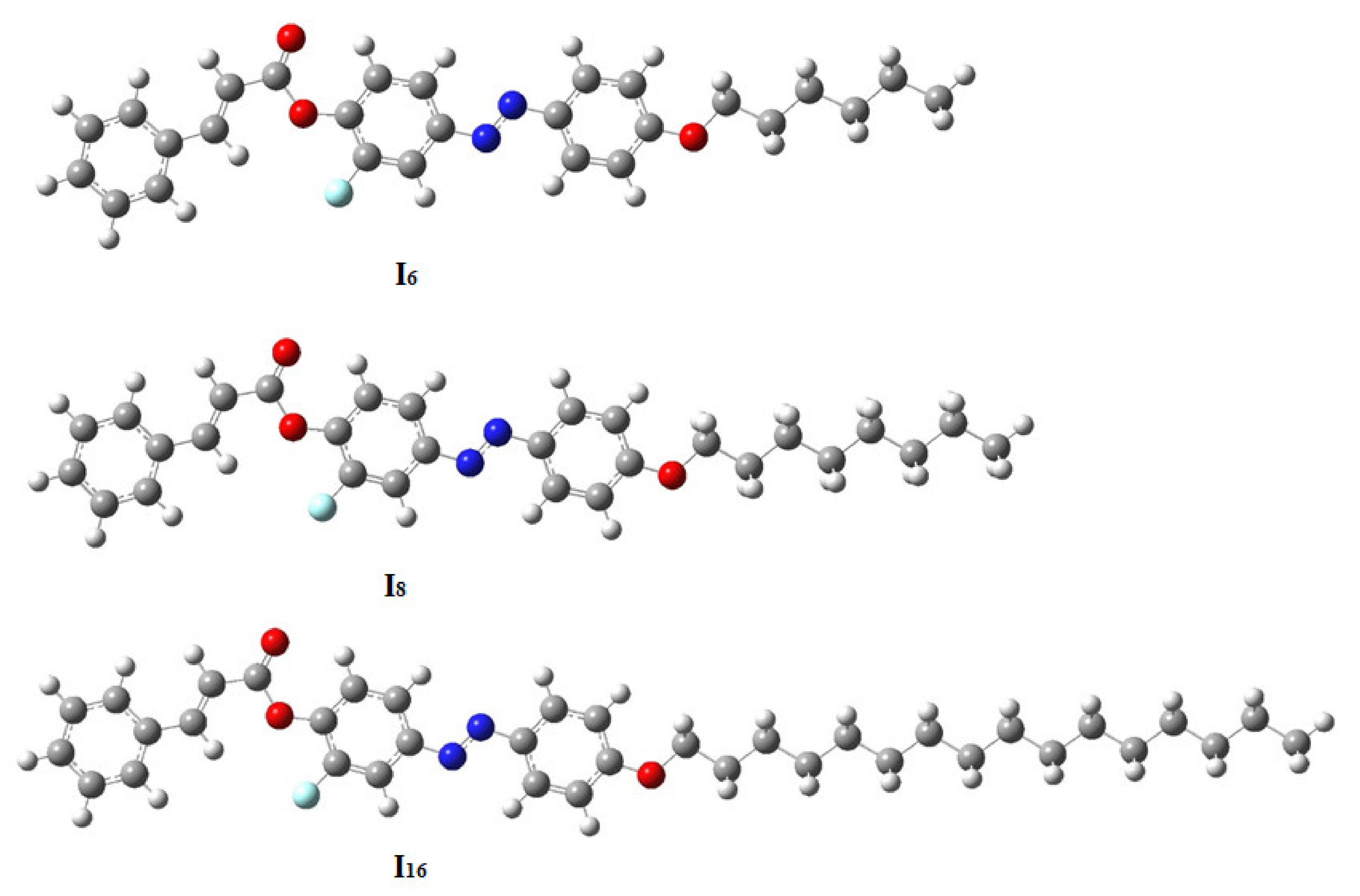

Figure 4. Optimized geometries of the investigated In series, calculated at B3LYP/6-311G** level.
Figure 4. Optimized geometries of the investigated In series, calculated at B3LYP/6-311G** level.
Symmetry 13 01145 g004
Symmetry 13 01145 g005 550

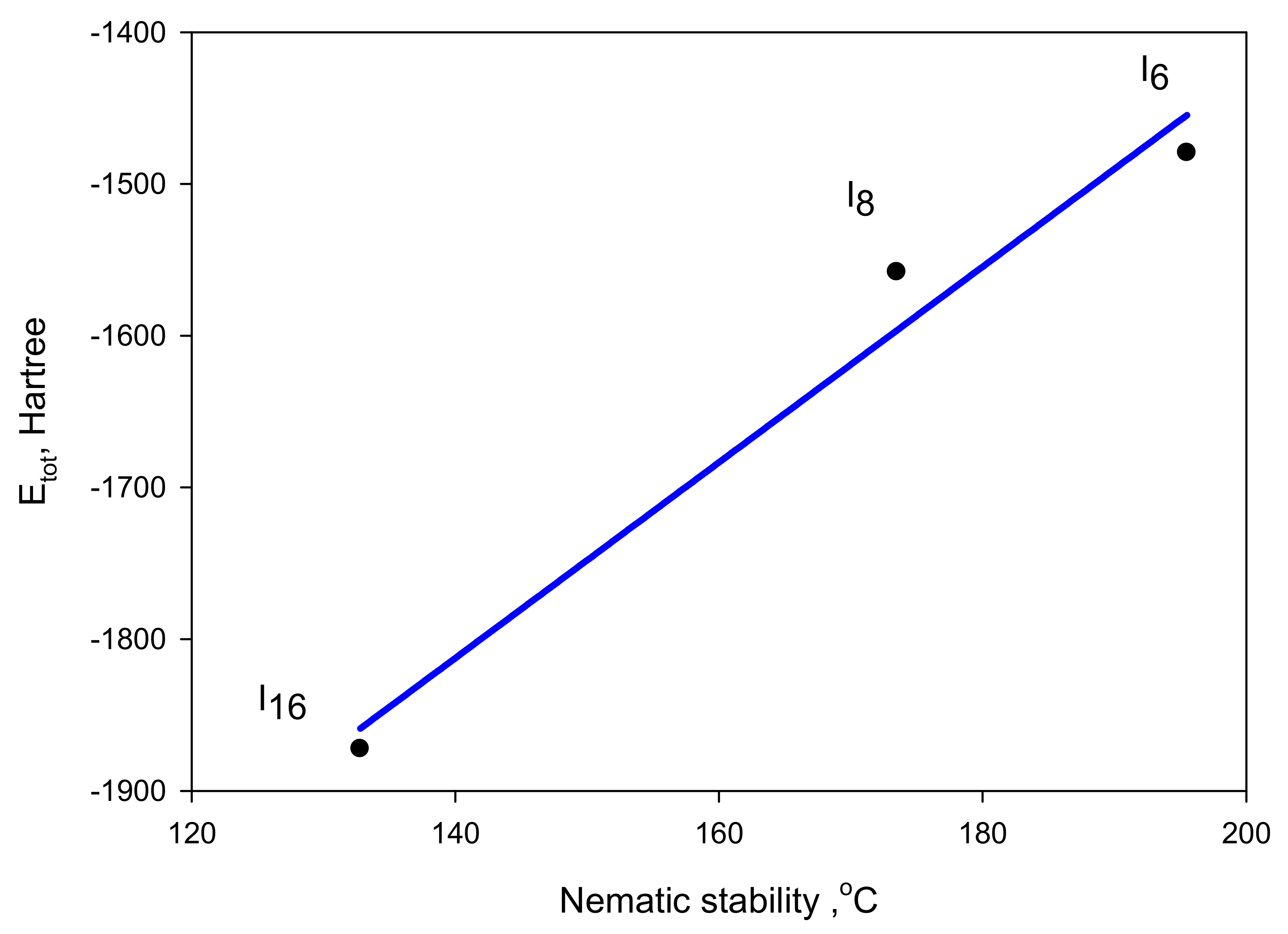

Figure 5. Effect of the calculated total energy (Etot) on the N thermal stability of the system In.
Figure 5. Effect of the calculated total energy (Etot) on the N thermal stability of the system In.
Symmetry 13 01145 g005
Symmetry 13 01145 g006 550

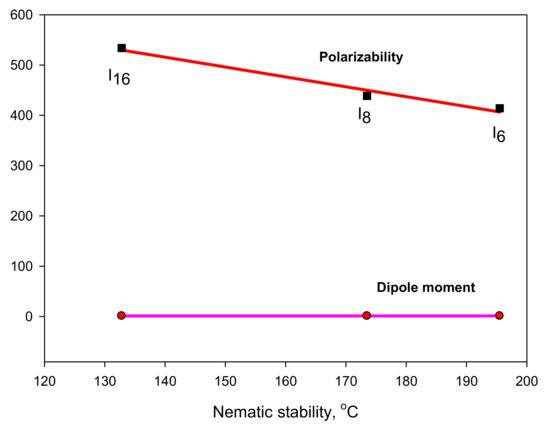

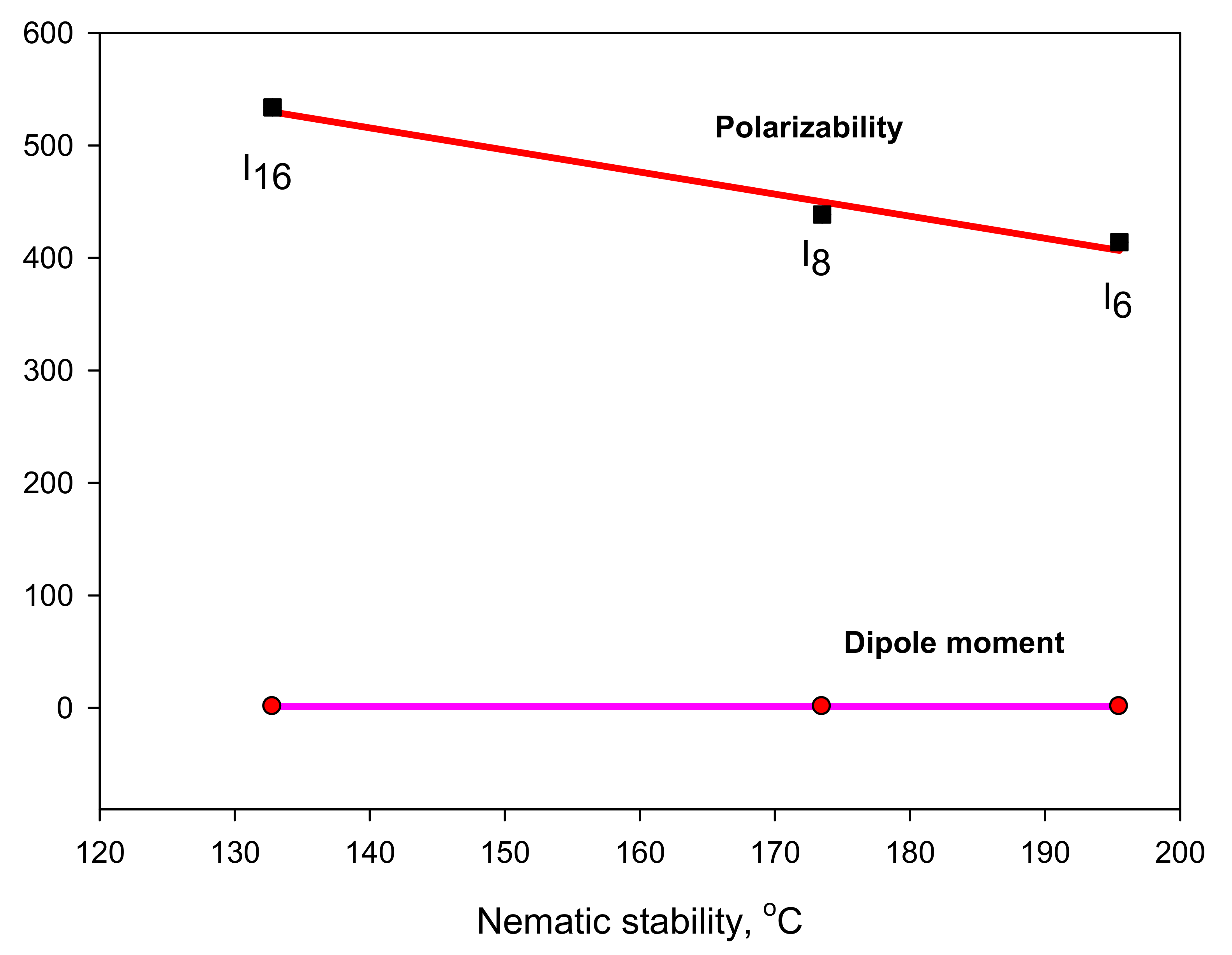

Figure 6. Effect of the calculated polarizability (■) and dipole moment (●) on the N thermal stability of the system In.
Figure 6. Effect of the calculated polarizability (■) and dipole moment (●) on the N thermal stability of the system In.
Symmetry 13 01145 g006
Symmetry 13 01145 g007 550

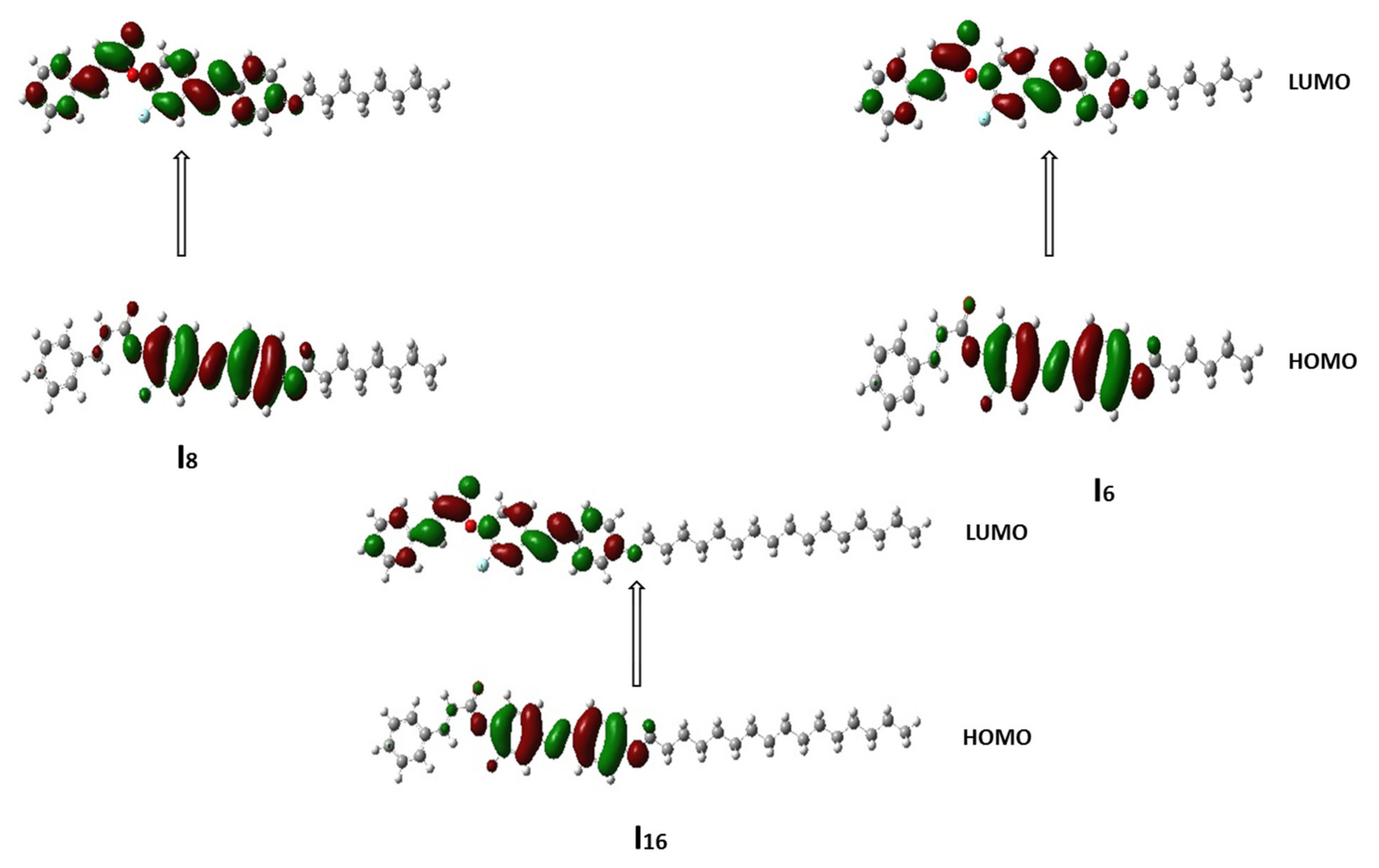

Figure 7. Predicted geometry for FMOs of the present compounds, In.
Figure 7. Predicted geometry for FMOs of the present compounds, In.
Symmetry 13 01145 g007
Symmetry 13 01145 g008 550

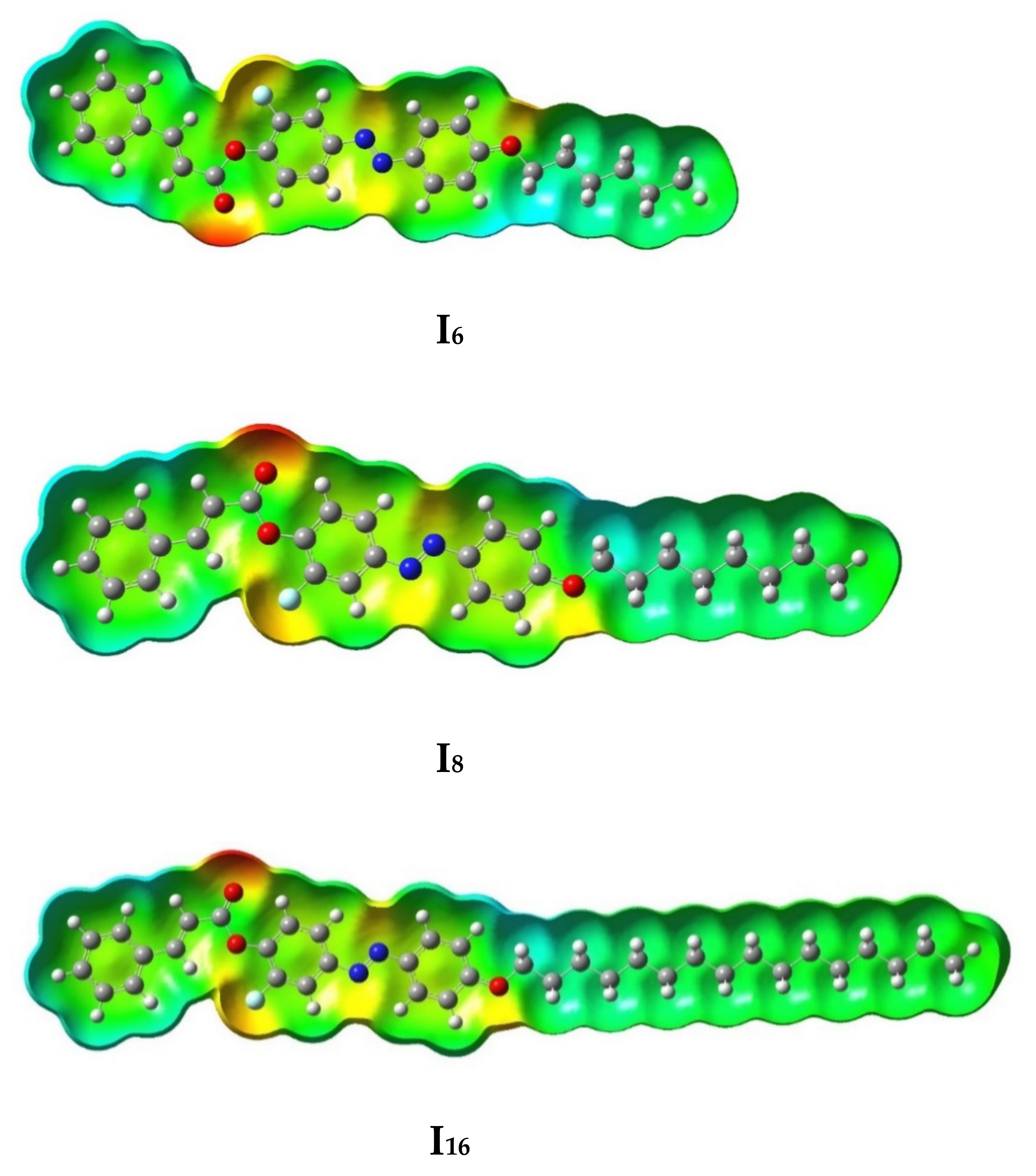

Figure 8. Molecular electrostatic potentials (MEP) for the investigated compounds, In, blue color is the electron-rich region and; red color is the maximum electron deficient one.
Figure 8. Molecular electrostatic potentials (MEP) for the investigated compounds, In, blue color is the electron-rich region and; red color is the maximum electron deficient one.
Symmetry 13 01145 g008
Symmetry 13 01145 sch002 550

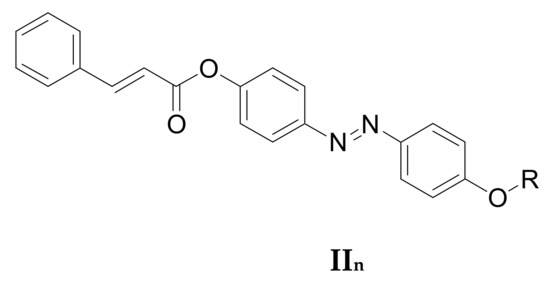

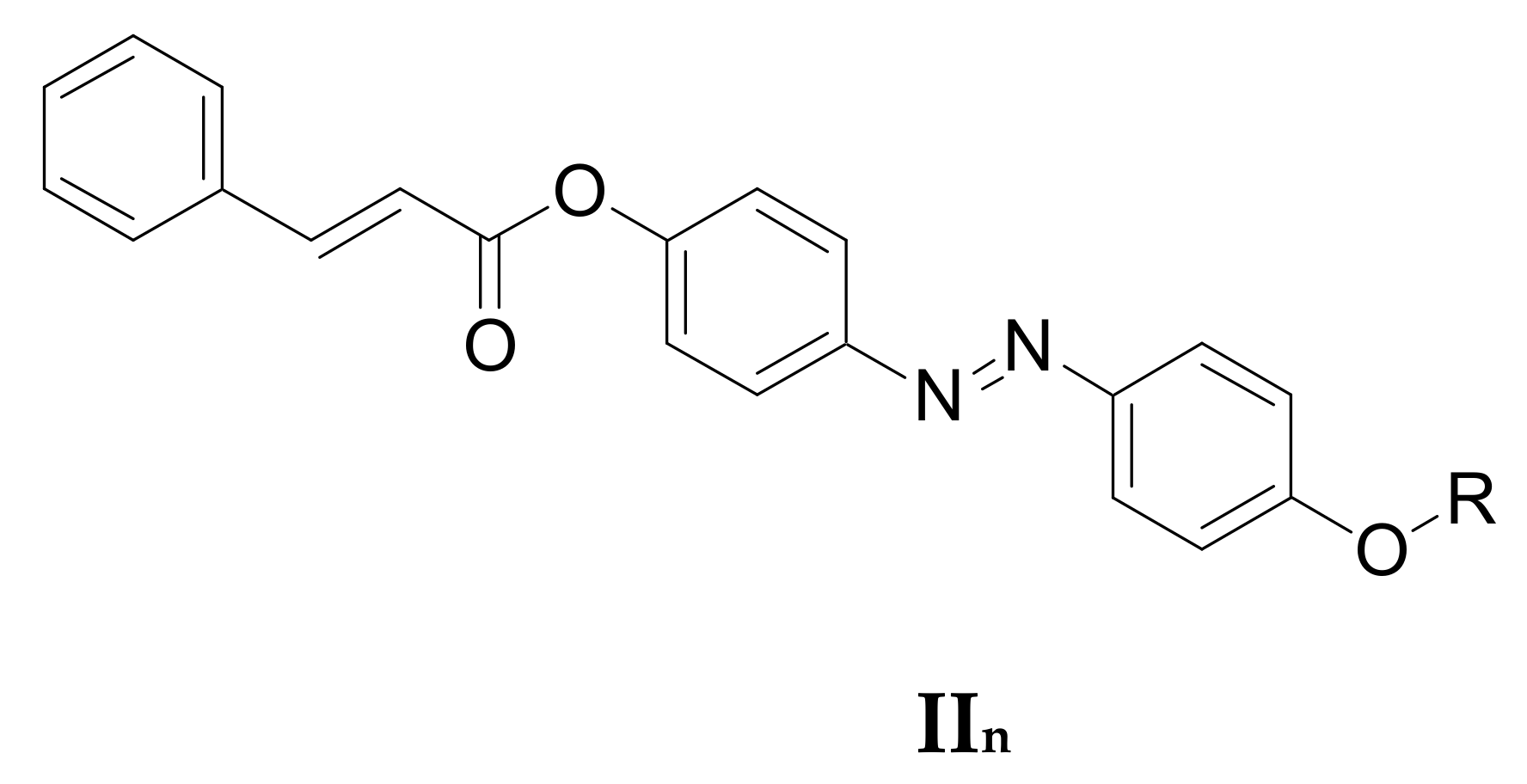

Scheme 2. Molecular structure of homologue series, IIn.
Scheme 2. Molecular structure of homologue series, IIn.
Symmetry 13 01145 sch002
Symmetry 13 01145 g009 550

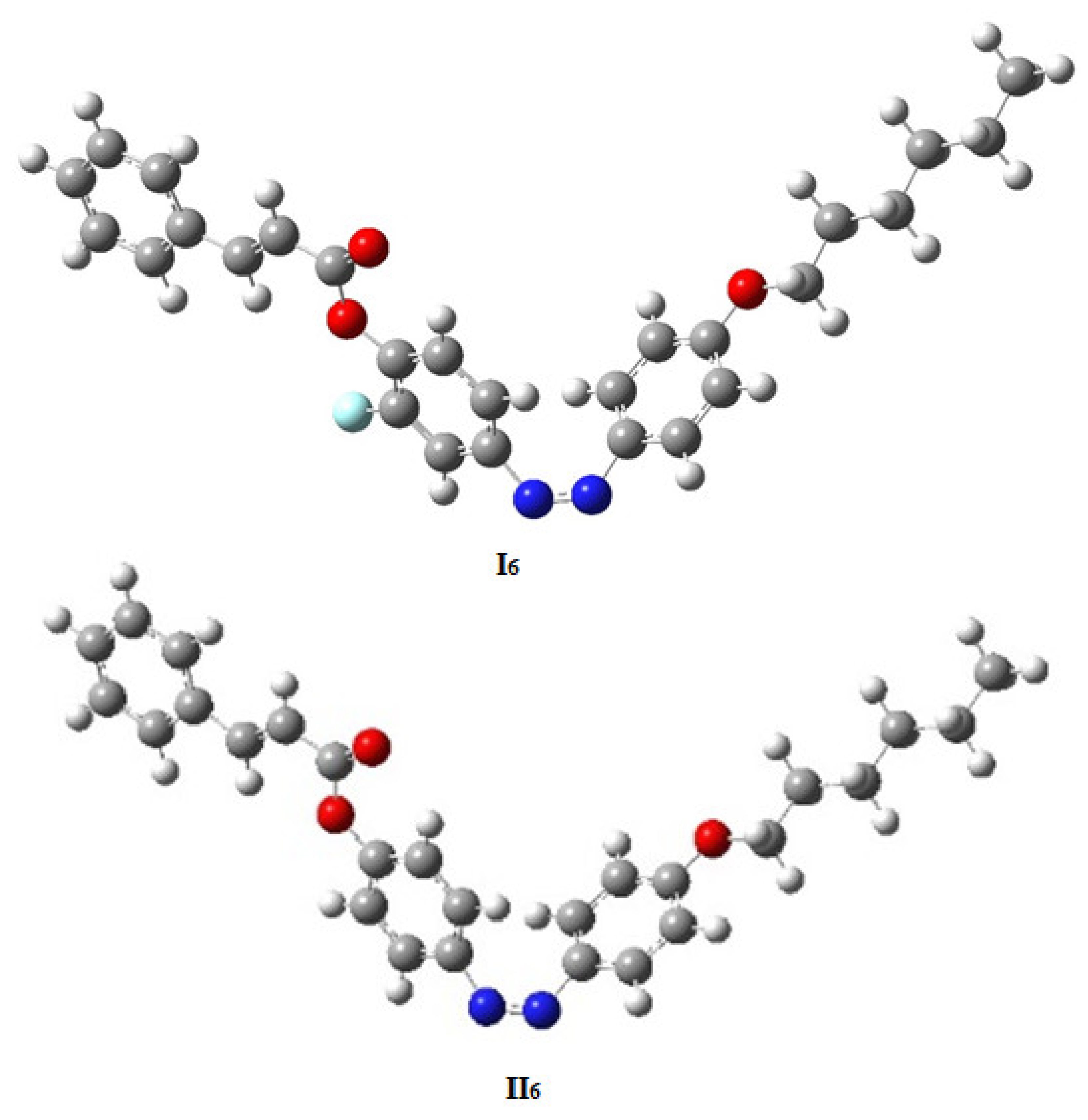

Figure 9. Optimized structures of z-forms for I6 and II6, calculated at B3LYP/6-311G** level.
Figure 9. Optimized structures of z-forms for I6 and II6, calculated at B3LYP/6-311G** level.
Symmetry 13 01145 g009
Symmetry 13 01145 sch003 550
Scheme 3. Synthesis of 2-fluoro-4-(4-(alkoxy)phenyl)diazenyl)phenyl cinnamate In.
Scheme 3. Synthesis of 2-fluoro-4-(4-(alkoxy)phenyl)diazenyl)phenyl cinnamate In.
Symmetry 13 01145 sch003
Symmetry 13 01145 sch004 550
Scheme 4. Molecular isomerization of Z:E isomers of In.
Scheme 4. Molecular isomerization of Z:E isomers of In.
Symmetry 13 01145 sch004
Table
Table 1. Mesophase transition temperatures (°C), (enthalpy, ΔH (kJ/mole)) and normalized entropy ΔS/R of transitions for system In.
Table 1. Mesophase transition temperatures (°C), (enthalpy, ΔH (kJ/mole)) and normalized entropy ΔS/R of transitions for system In.
CycleUpon HeatingUpon Cooling
CompTCr-SmATCr-NTSmA-NTN-IΔSN-I/RTI-NTN-SmATSmA-Cr
I6-92.5
(35.5)		-195.5
(1.91)		0.49193.7
(1.80)		54.7
(0.76)		38.9
(15.7)
I8-106.8
(31.05)		-173.5
(1.81)		0.49169.8
(1.73)		74.5
(0.77)		70.1
(23.22)
I1683.9
(41.52)		 97.6
(0.79)		132.8
(1.24)		0.37132.0
(1.26)		96.1
(0.75)		43.1
(35.8)
Cr-SmA = solid to the smectic A phase transition; SmA-N = smectic A to nematic phase transition; N-I = nematic to the isotropic phase transition; N-SmA = nematic to smectic A phase transition; SmA-Cr = smectic A to solid phase transition.
Table
Table 2. Thermal parameters of the investigated In series, calculated at B3LYP/6-311G** level.
Table 2. Thermal parameters of the investigated In series, calculated at B3LYP/6-311G** level.
Comp. ParametersI6I8I16
ZPE (Kcal/Mol)305.187341.000484.284
Thermal energy (Kcal/Mol)324.660362.180512.278
Enthalpy (Kcal/Mol)325.252362.772512.870
Gibbs free energy (Kcal/Mol)261.854295.094428.132
Entropy (Cal mol.k)212.638226.995284.211
EHOMO (ev)−6.047−6.046−6.044
EluMO (ev)−2.591−2.590−2.589
∆E (ev)3.4563.4563.455
Etot Total energy (Hartree)−1479.541−1558.105−1872.363
Dipole moment (Debye)1.1731.2221.267
Polarizability (Bohr3)414.12438.56533.85
IE (ev)6.0476.0466.044
EA (ev)2.5912.5902.589
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Al-Mutabagani, L.A.; Alshabanah, L.A.; Ahmed, H.A.; El-Atawy, M.A. Synthesis, Optical and DFT Characterizations of Laterally Fluorinated Phenyl Cinnamate Liquid Crystal Non-Symmetric System. Symmetry 2021, 13, 1145. https://doi.org/10.3390/sym13071145

AMA Style

Al-Mutabagani LA, Alshabanah LA, Ahmed HA, El-Atawy MA. Synthesis, Optical and DFT Characterizations of Laterally Fluorinated Phenyl Cinnamate Liquid Crystal Non-Symmetric System. Symmetry. 2021; 13(7):1145. https://doi.org/10.3390/sym13071145

Chicago/Turabian Style

Al-Mutabagani, Laila A., Latifah A. Alshabanah, Hoda A. Ahmed, and Mohamed A. El-Atawy. 2021. "Synthesis, Optical and DFT Characterizations of Laterally Fluorinated Phenyl Cinnamate Liquid Crystal Non-Symmetric System" Symmetry 13, no. 7: 1145. https://doi.org/10.3390/sym13071145

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
