1. Introduction
The nondestructive detection of industrial materials, such as mutiphase soil, oil reserves, pile testing, concrete testing, etc., are implemented on the basis of wave response, such as phase velocity, attenuation, and travel time. The propagation behaviors of the elastic wave in materials are not only dependent on the materials’ elastic characteristics, but also the thermal and viscous characteristics. Therefore, it is of great engineering and theoretical significance to investigate the relationship of materials’ thermoviscoelastic parameters and the propagation behaviors of the elastic wave.
Under an isothermal condition, there are generally two types of elastic waves present in the single-phase medium, namely, body waves and surface waves. Body waves, including compression and shear waves, propagate in unbounded domains. Surface waves, mainly for Rayleigh and Love waves, are identified as the superposition of body waves and propagate along the medium boundary. Therefore, the research of body waves propagation is a crucial basis for studying the other types of waves. When considering the influences of temperature change, there is a type of thermal wave in the single-phase medium besides compression, shear, and surface waves. Because the form of natural soil is generally biphase or even complex multiphase, researchers have carried out many related works on elastic wave propagation in multiphase media. Biot [
1,
2] first developed the dynamic equation of saturated poroelastic media filled with single-phase fluid, and successfully predicted that there are two compression waves, i.e., P
1 and P
2 waves, and one shear wave, i.e., S wave, in fluid-saturated poroelastic media, which has been validated by Plona [
3] and Berryman [
4] through laboratory experiments. Therefore, the model developed by Biot laid the foundation for the dynamic analysis in biphase or even multiphase porous media. Since then, based on the Biot model, many researchers [
5,
6,
7,
8,
9,
10,
11,
12,
13,
14,
15,
16,
17,
18,
19,
20,
21,
22,
23,
24] carried out various related works on the propagation of elastic waves in saturated porous media.
In the process of interdisciplinary research, such as the petrochemical process and nuclear waste management, the thermal effect, such as temperature change, also has serious influence on the propagation of elastic waves, which is keenly noticed by researchers. Biot [
25] first developed the thermoelastic coupling model of single-phase solid medium and predicted a kind of thermal wave propagating at infinite speed, which is contrary to the fact that the wave propagates at finite speed. Then, Lord and Shulman [
26] modified the early thermoelastic coupling model of single-phase solid medium and predicted the finite wave velocity propagation of thermal wave. In subsequent studies, considering the polyphasy of natural soil, researchers macroscopically regard it as a kind of porous elastic medium with pores filled with fluids such as water, oil, or gas to construct the thermoelastic wave model in saturated soil. Youssef [
27] considered a homogeneous, isotropic elastic body with a boundary filled by compressible ideal liquid and established a generalized thermoelastic theory. Following, Singh [
22] developed a more complex thermoelastic coupling model of porous media; however, the meaning of some of the physical parameters were not sufficiently clear due to the complexity of the model. For the propagation of thermoelastic body waves in saturated soil, Liu et al. [
28] developed a thermoelastic dynamic model for studying the spherical cavity’s thermoelastic dynamic response in saturated porous medium under nontorsional loads. Recently, Zhou et al. [
29] established a thermal-fluid-solid coupling elastic wave model for saturated porous media with clear physical parameters, and studied the evolution of Rayleigh wave velocity, whereas the non-Fourier heat conduction with single-phase lag model was adopted so that only the phase-lag of the temperature gradient influenced the wave characteristics.
Although many works have been carried out on the propagation characteristics of elastic/thermoelastic waves in saturated soils, most of which only consider the viscosity associated with the pore-fluid flow, i.e., the coupling effect between pore fluid and the solid skeleton. However, it is well known that the deformation of nature soils under the action of external force is apparently time dependent. That is, the viscoelasticity of the solid skeleton is associated with the flow-independent viscosity, which is likely to affect the propagation characteristics of elastic waves, but is mostly ignored in existing related literatures. Fortunately, the dependence of soil and structure responses on the viscoelasticity of the soil skeleton was established many years ago [
30,
31,
32]. Naturally, it is necessary to establish a closer relationship between the propagation behavior of elastic waves and the flow-independent viscosity of the soil skeleton. The elastic constants of soil (i.e., the bulk modulus, the Lame constant, and shear modulus) should be related to the flow-independent viscosity by the relaxation time.
The present work simplifies the natural soil to a fluid-saturated porous medium, which consists of a soil particle composing the solid skeleton and liquid filling the pores between the skeleton. Considering the influences of the thermal effect and the flow-independent viscosity of natural soil, a thermoviscoelastic dynamic coupling model of fluid-saturated soil were established by employing the Biot model, the generalized thermoelastic theory, and the Kelvin–Voigt linear viscoelastic model, and the dispersion equations of the body waves were theoretically derived by employing the Helmholtz resolution. Then, the variations of the wave velocity and the attenuation coefficient of the body waves with the thermophysical parameters, such as the relaxation time (characterizing the flow-independent viscosity), thermal expansion coefficient of the soil particle and pore fluid, and the permeability coefficient (characterizing the flow-dependent viscosity) are discussed with some numerical examples.
2. Thermoviscoelastic Dynamic Model
In general, the volume change of viscoelastic materials is closely related to its elasticity and viscosity, that is, loading and time. For natural soil, its deformation under the action of external force is apparently time dependent, which exhibits obvious viscoelastic properties. In order to express the viscoelastic properties of natural soil, the present work introduced a linear viscoelastic model that is commonly employed to characterize materials’ creep behavior, i.e., generalized Kelvin–Voigt model [
33,
34], which is composed of a spring in parallel with a dashpot, as illustrated in
Figure 1.
The spring displayed in
Figure 1 represents the material’s linear-elastic response to the acting force, and the dashpot displayed in
Figure 1 represents the material’s damping behavior, and is employed to prevent the spring from reaching immediately to the applied force. The elastic constants of the material (denoted by
and
) are related to the viscosity constants (denoted by
and
) by the relaxation time (denoted by
) [
35], which is written as:
where the relaxation time
characterizes the viscosity normalized with respect to the Lame elastic moduli and is assumed to be constant without loss of generality [
31,
32]. In the present work, the relaxation time
is utilized to determine the flow-independent viscosity from the solid skeleton.
It is assumed that the saturated soil is a kind of homogeneous and isotropic thermoviscoelastic porous medium composed of the soil skeleton and pore fluid, and that the viscoelastic property of the soil skeleton may be simulated by the generalized Kelvin–Voigt model. According to the Biot theory, the motion equation for a unit total volume of biphase mixture in the absence of body force and dissipation can be expressed as [
1,
2]:
in which
denotes the total stress, and
and
represent the displacement of solid particles and the relative displacement of fluid in the direction
, respectively.
is the density of media, where
denotes the porosity,
represents the density of solid particle, and
designates the density of pore fluid.
Following the single stress state variable proposed by Bishop and Blight [
2], the effective stress tensor
can be described as:
where
designates the Kronecker delta, and
designates the pore-fluid pressure.
According to the generalized thermoelastic theory, the compression of the solid skeleton is pore-fluid pressure and temperature variation dependent. Thus, the stress-strain relationship of the solid skeleton can be expressed as [
36,
37]:
where
designates the isotropic viscoelastic coefficient matrix of the solid skeleton.
denotes the strain tensor of the solid skeleton,
represents the strain tensor of the solid skeleton under the spherical tensor of the pore pressure, and
signifies the strain tensor of the solid skeleton under temperature variation.
The strain tensor of the solid skeleton can be expressed as:
The strain tensor of the solid skeleton under the spherical tensor of liquid pressure,
, can be expressed as:
where
denotes the compressibility moduli of the solid particles.
The strain tensor of the solid skeleton under the temperature variation,
, is written as:
where
denotes the linear thermal expansion coefficient of the solid skeleton.
designates the temperature variation from the reference temperature
to the medium temperature
T with the formula
.
Substituting Equations (5)–(7) into Equation (4) and making algebraic operations yield:
in which
where
designates the volumetric strain of the solid skeleton.
and
are the Lame elastic moduli of the solid skeleton.
and
are the shear and dilatant constants describing the flow-independent viscosity from the solid skeleton. It is worth noting herein that Equation (9) is the bulk modulus after considering the flow-independent viscosity associated with the solid skeleton, which is different from the convention in that the third term on the right of the formula is added to characterize the flow-independent viscosity.
For facilitating the writing of the symbols, let
Substitution of Equation (8) in Equation (3) gives the total stress tensor of fluid-saturated soil as:
where
.
Considering the compressibility of liquid in pores and solid grains, the constitutive model of the pore fluid under the effect of temperature variation for the thermoviscoelastic fluid-saturated media can be written as [
28]:
where
is the thermal expansion coefficient of the thermoviscoelastic fluid-saturated media, in which
and
represent the linear thermal expansion coefficient of the solid particle and pore fluid, respectively.
is the Biot modulus,
, in which
denotes the volume modulus of pore fluid.
designates the relative strain of the pore fluid.
The flow equation of the liquid phase under a nonisothermal condition can be expressed as [
28]:
where
, in which
denotes the permeability coefficient and
represents the gravitational acceleration.
designates a phenomenological coefficient associated with the influence of the thermal gradient on the water flux.
The generalized non-Fourier heat conduction law proposed by Tzou [
38,
39] can be described by:
in which
is the heat flux.
is the thermal conductivity.
and
denote the phase-lag of the heat flux and the temperature gradient, respectively.
Employing Equation (15), the heat conduction equation for fluid-saturated porous media can be written as:
where
is the weight specific heat for fluid-saturated porous media, in which
and
denote the specific heat capacity of the solid grains and pore fluid, respectively. Equation (16) is the non-Fourier heat conduction equation that is derived from the double-phase lag model, which considers the influence of the phase-lag of the heat flux and temperature gradient that is employed, which can be coupled with the motion in Equations (12)–(14).
After incorporating Equations (2), (12)–(14), and (16), the wave equations in terms of displacement for thermoviscoelastic fluid-saturated medium can be yielded as:
with
3. Wave Field Solution of Body Waves
In thermoviscoelastic saturated soil, body waves include compression, thermal, and shear waves, and propagate inside an unbounded domain. The diagram of wave field motion of body waves in soil half-space is displayed in
Figure 2. As illustrated in
Figure 2, the compression and thermal waves, a kind of propulsive wave, propagate along the particle vibration direction. The shear wave, caused by rotating external force and generated under shear deformation, propagates along the route perpendicular to the vibration direction of the particle.
According to Helmholtz vector decomposition principle, the vector field can be replaced as the sum of the gradient of the scalar field (
and
) and the curl of the vector field (
and
):
where the two sets symbols,
,
and
,
, denote the scalar potential and vector potential of the solid skeleton and pore fluid, respectively.
Substituting Equations (20) and (21) into Equations (17)–(19) and making divergence and curl operations yield
The potentials of solid phase, liquid phase, and temperature variation when the body waves propagate in the fluid-saturated soil can be expressed as:
where
,
,
,
, and
stand for the amplitudes of corresponding potential;
denotes the imaginary unit;
designates the angular frequency in which
represents the frequency;
and
signify the complex wavenumber of the compressional wave including thermal wave and shear wave, respectively;
is the position vector.
The following formulas can be yielded by substituting Equations (27) and (28) into Equations (22)–(26) and making some algebraic operations as:
with
At last, the characteristic equation for body waves in thermoviscoelastic fluid-saturated medium is obtained
where Equation (31) is the dispersion equation for compression and thermal waves, and Equation (32) is the dispersion equation of shear wave.
The following two formulas can be derived from formulas (31) and (32), respectively, by implementing the determinant operation as:
where the coefficients
–
and
–
can be expressed as the combination of the elements
–
in Equation (31) and the elements
–
in Equation (32) respectively, in which the specific forms of these coefficients are not given herein. Considering the attenuation of the amplitudes for the body waves along its propagation direction, Equation (33) has only three meaningful complex roots, i.e.,
, two of which stand for the complex wavenumbers of the compression waves (typically signed as P
1 and P
2 waves in descending order of phase velocity), whereas the third of which stands for the complex wavenumber of the thermal wave (typically signed as T wave). Likewise, Equation (34) has only one meaningful complex root, i.e.,
, which is the complex wavenumber of the shear wave (typically signed as S wave).
In general, the wave velocity and attenuation coefficient of P
1, P
2, T, and S waves can be defined as:
where the two sets of symbols,
,
,
,
and
,
,
,
represent the wave velocity and attenuation coefficient of P
1, P
2, T, and S waves, respectively.
4. Calculation Examples and Parametric Analysis
In order to study the propagation behavior of body waves in the thermoviscoelastic fluid-saturated ground, this section utilizes calculation examples to discuss the effect of various thermophysical parameters of the thermoviscoelastic fluid-saturated medium on wave velocity and the attenuation coefficient of each body wave. In the present work, the values of thermophysical parameters refer to the values selected in
Table 1 [
28] unless otherwise specified.
Figure 3 highlights the thermophysical parameters utilized for sensitivity analysis of wave velocity and attenuation coefficient of body waves in thermoviscoelastic soil. In this work, the influences of frequency, relaxation time, permeability coefficient, thermal expansion coefficient of solid particle and water, phase-lag of heat flux and temperature gradient, and thermal conductivity on the wave velocity and attenuation coefficient of body waves were the main object of study.
To verify the correctness of the above derivation, the results of this paper were compared with those obtained by Yang et al. [
40] without considering the nonflowing viscosity of the saturated soil solid skeleton. The values of the relevant soil parameters were taken as:
ns = 0.05 ~ 0.45,
ρs = 2650 kg/m
3,
ρw = 1000 kg/m
3,
Ks = 36 GPa,
Kw = 2 Gpa,
kw = 10
−5 m/s,
μe = 26.1 Mpa,
= 43.6 Mpa, and
f = 100 Hz,
ts = 0 s.
Figure 4 shows the comparison curves of P
1, P
2, and S waves with the porosity of saturated soil. It can be seen from
Figure 4 that the wave velocity of the P
1 wave in saturated soil gradually decreased nonlinearly and the wave velocity of the S wave increased approximately linearly as the porosity of the soil increased, whereas the wave velocity of the P
2 wave was almost unaffected. It can also be seen that the results obtained from the calculations in this paper are in good qualitative and quantitative agreement with those of Yang et al. [
40], which can indicate the correctness of the theoretical derivation and the validity of the paper’s calculation results.
The dependency of the wave velocity and the attenuation coefficient of body waves on the relaxation time
and frequency
are depicted in
Figure 5 and
Figure 6. The frequency ranged from 0.01 Hz to 150 Hz therein. The relaxation time associated with the flow-independent viscosity was taken to be 0 s, 5 × 10
−4 s, and 1 × 10
−3 s, respectively.
As depicted in
Figure 5, the wave velocity of the P
1 wave was the largest, followed by the S wave, and then the P
2 wave, whereas the wave velocity of the thermal wave was the smallest. More importantly,
Figure 5a,b,d show that although the wave velocities of P
1, P
2, and S waves all increased with the increase of relaxation time
, the influence of relaxation time
on the wave velocity of P
1 wave was unnoticeable compared with its influence on the other waves. Whereas
Figure 5c shows that the wave velocity of the thermal wave will decrease with the increase of relaxation time
. In other words, under the frequency condition herein, the positive relativities between the wave velocity of P
1, P
2, and S waves and the frequency
gradually increased with the relaxation time
increasing; however, the positive relativity of the thermal wave gradually decreased with the relaxation time
increasing.
The enlargement of relaxation time
increased the wave velocity of P
1, P
2, and S waves and decreased the wave velocity of the thermal wave, as illustrated in
Figure 5. At the same time,

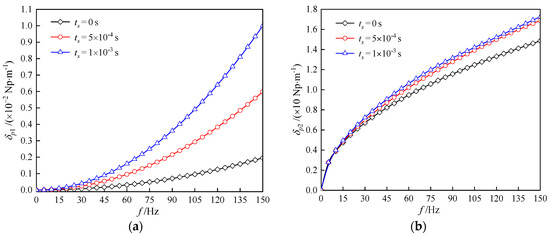

Figure 6 shows that the attenuation coefficient of the thermal wave was the largest, followed by the P
2 wave, and then the S wave, whereas the attenuation coefficient of the P
1 wave was the smallest. The variation trends of the attenuation coefficient of P
1, P
2, and the S waves with the frequency
were basically the same as their wave velocity trends. However, the attenuation coefficient of the thermal wave had a different variation with and without considering the relaxation time accounting for flow-independent viscosity. The attenuation coefficient of the thermal wave increased rapidly at first, then gradually stabilized and remained constant when the relaxation time was not considered, i.e.,
, and then slightly reduced when the relaxation time was considered, i.e.,
herein, in which the greater the relaxation time, the more prominent the decreasing trend of the attenuation coefficient of thermal wave.

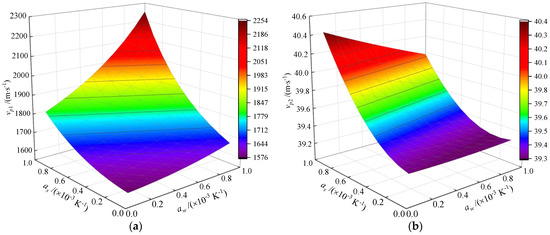

The relationships of thermal expansion coefficients of solid particle and pore fluid and the wave velocity and attenuation coefficient of body waves are portrayed in
Figure 7 and
Figure 8 when
s. The thermal expansion coefficients of solid particle and pore fluid all ranged from 0.0 K
−1 to 1.0 × 10
−3 K
−1. The enlargement of the thermal expansion coefficient of solid particle was accompanied by the increase of both wave velocity and the attenuation coefficient for the P
1 wave, whereas the augmentation of the thermal expansion coefficient of pore fluid was accompanied by the increase of wave velocity and the decrease of the attenuation coefficient for the P
1 wave, as depicted in
Figure 7a and
Figure 8a. Meanwhile, a diminution of the thermal expansion coefficient of the solid particle resulted in a negative growth of wave velocity and a positive growth of the attenuation coefficient for the P
2 wave, whereas the influence of the thermal expansion coefficient of pore fluid on the P
2 wave was quite contrary, as displayed in
Figure 7b and
Figure 8b.
In addition,
Figure 7d and
Figure 8d present that the wave velocity and attenuation coefficient of the S wave are independent on the change in the thermal expansion coefficients of the solid particle and pore fluid, which can also be obtained legibly by Equations (32) and (34). Lastly, the dependency of the wave velocity and attenuation coefficient of the thermal wave on the thermal expansion coefficient is presented in
Figure 7c and
Figure 8c, which is not repeated herein because the thermal wave had a very small wave velocity (about 1/10
5 of
) and a very fast attenuation (about 10
5 times
) that is difficult to measure in practice.
The flow-dependent viscosity of the fluid-saturated soil is characterized by the parameter
shown in Equation (14), where
is expressed as the ratio of the product of the fluid density
and gravitational acceleration
to the permeability coefficient
. Apparently, the flow-dependent viscosity of the fluid-saturated soil was finally represented by the permeability coefficient
. In this work, the permeability coefficient
ranged from 10
−6 m/s to 1 m/s, which included common soil types such as normal-consolidation/overconsolidation clay and dense/loose sand. The permeability coefficient of 1 m/s was selected in this work only to make the discussion convenient. The actual permeability coefficient of the oil was much smaller than 1 m/s.
Figure 9 and
Figure 10 demonstrate the effects of the permeability coefficient
and relaxation time
on the wave velocity and attenuation coefficient of P
1, P
2, and S waves. As mentioned above, the thermal wave had slow velocity and fast attenuation which are difficult to measure in practice; thus, the effect of the permeability coefficient on its dispersion behavior will not be discussed herein.
From
Figure 9a,c, it can be captured that the wave velocities of the P
1 and S waves remained constant in the high zone (
) and low zone (
) of the permeability coefficient, whereas they increased rapidly with the augmentation of the permeability coefficient in the middle permeability zone (
). The difference was that the wave velocity of the P
2 wave increased sharply with the increase of the permeability coefficient in the low and middle permeability zones (
) and remained constant in the high permeability zone (
), as illustrated in
Figure 9b. Furthermore,
Figure 9 shows that the increase of relaxation time
made the dependence curves of the wave velocity of P
1, P
2, and S waves on the permeability coefficient
move upward (in the positive direction of the vertical coordinate), in which the upward movement of the S wave curve was the most obvious, followed by the P
2 wave, and the least obvious was the P
1 wave. The influence law of relaxation time shown in
Figure 9 corresponds to that in
Figure 5.
As shown in
Figure 10a,c the variation of the attenuation coefficients of the P
1 and S waves were an approximately normal distribution over the whole permeability zone. However, with the augmentation of the permeability coefficient
, the attenuation coefficient of the P
2 wave first decreased rapidly, then decreased tardily, and then finally tended to be steady. Similarly, the greater the relaxation time
, the more the curves of attenuation coefficients of the P
1, P
2, and S waves moved upward.
In addition to the influence of thermophysical parameters such as relaxation time, frequency, thermal expansion coefficient of the solid particle and pore fluid, and the permeability coefficient in the preceding discussion, the authors found that the change in the thermal conductivity, phase-lag of the heat flux, and phase-lag of the temperature gradient had little effect on the dispersion behavior of P1, P2, and S waves, which can almost be ignored. However, the change in these parameters had a great influence on the dispersion behavior of the thermal wave, as presented in
Figure 11 and
Figure 12. Due to limited space, the current study will not elaborate on it. It should be noted that the above theoretical study can be further proven by a nondestructive testing technique [
41,
42,
43,
44].
