Roles of Hydrogen, Halogen Bonding and Aromatic Stacking in a Series of Isophthalamides

by
Islam Ali Osman
1,
Vickie McKee
2,
Christian Jelsch
3 and
John F. Gallagher
1,*
1
School of Chemical Sciences, Dublin City University, D09 E432 Dublin, Ireland
2
Department of Physics, Chemistry and Pharmacy, University of Southern Denmark, Campusvej 55, 5230 Odense M, Denmark
3
CRM2, CNRS UMR 7036, Faculté des Sciences et Technologies, Université de Lorraine, 54000 Nancy, France
*
Author to whom correspondence should be addressed.
Symmetry 2023, 15(3), 738; https://doi.org/10.3390/sym15030738
Submission received: 31 January 2023 / Revised: 23 February 2023 / Accepted: 2 March 2023 / Published: 16 March 2023
(This article belongs to the Special Issue Symmetry in Molecular Aggregation)
Browse Figures
Versions Notes

Abstract

:

Highlights

What are the main findings?
  • A complete series of structures differing from H-DIP to I-DIP.
  • Rationalizing the Cl-DIP structure (Z’ = 3) with two distinct conformations.
  • The great wall of bromines at the 2D sheet interfaces in Br-DIP.
What is the implication of the main finding?
  • Comparison of organic halogenated materials Br-DIP and the inorganic PbBr2, CuBr2.
  • The unusual synthon formed by the tightly bound hydrate in I-DIP•½(H2O).

Simple Summary

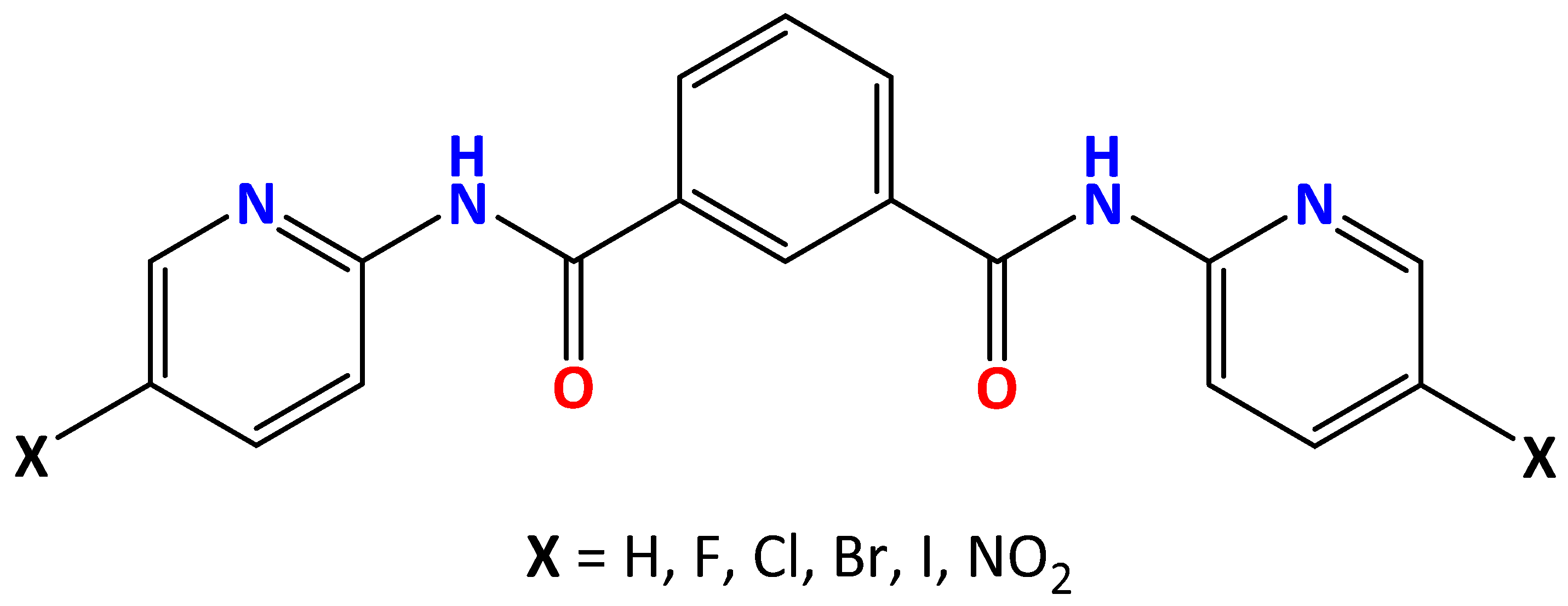

Crystal and modelled structures of five N1,N3-di(5-X-pyridin-2-yl)isophthalamides (X = H, F to I) as (X-DIP) are reported. The roles that their molecular conformations and interactions play in solid-state aggregation are assessed. Cl-DIP (Z’ = 3) exhibits both syn/anti and anti/anti molecular conformations in 2:1 ratio. The hydrogen bonding hierarchy and sheet formation in Br-DIP induces the formation of a bromine-rich environment manifesting as a ‘wall of bromine atoms’ at the sheet interfaces. The hydrate in I-DIP•½(H2O) forms a rare synthon.

Abstract

The synthesis and spectroscopic characterisation of six bis(5-X-pyridine-2-yl)isophthalamides (X = H, F, Br, Cl, I, NO2) are reported, together with five crystal structure analyses (for X = H, F to I). The isophthalamides span a range of conformations as syn/anti (H-DIP; I-DIP), anti/anti- (F-DIP; Br-DIP) and with both present in ratio 2:1 in Cl-DIP. The essentially isostructural F-DIP and Br-DIP molecules (using strong amide…amide interactions) aggregate into 2D molecular sheets that align with either F/H or Br atoms at the sheet surfaces (interfaces), respectively. Sheets are linked by weak C-H⋯F contacts in F-DIP and by Br⋯Br halogen bonding interactions as a ‘wall of bromines’ at the Br atom rich interfaces in Br-DIP. Cl-DIP is an unusual crystal structure incorporating both syn/anti and anti/anti molecular conformations in the asymmetric unit (Z’ = 3). The I-DIP•½(H2O) hemihydrate structure has a water molecule residing on a twofold axis between two I-DIPs and has hydrogen and N⋯I (Nc = 0.88) halogen bonding. The hydrate is central to an unusual synthon and involved in six hydrogen bonding interactions/contacts. Contact enrichment analysis on the Hirshfeld surface demonstrates that F-DIP, Cl-DIP and Br-DIP have especially over-represented halogen···halogen interactions. With the F-DIP, Cl-DIP and Br-DIP molecules having an elongated skeleton, the formation of layers of halogen atoms in planes perpendicular to the long unit cell axis occurs in the crystal packings. All six DIPs were analysed by ab initio calculations and conformational analysis; comparisons are made between their minimized structures and the five crystal structures. In addition, physicochemical properties are compared and assessed.

1. Introduction

The structural chemistry of potentially useful organic ligands for applications in a range of scientific areas, such as coordination chemistry, bioinorganic, medicinal chemistry and drug development, continues unabated [1,2,3,4]. At the heart of the many and varied classes of organic ligands lies the benzamide/carboxamide group of compounds and their derivatives such as isophthalamides [5,6,7]. These and closely related compounds have been developed over the past two decades and especially in the drive to acquire a deeper and more fundamental knowledge in foldamer chemistry and host•guest science [8,9,10].
In structural science, the hierarchy of interactions has been the subject of much discussion in the past few decades with considerable effort in identifying key synthons in molecular aggregation and their ranking in crystal structure formation [11,12,13,14,15]. The effects of various interactions, for example in competition/interplay between hydrogen and halogen bonding, have been assessed [11,12,13,14,15]. Benzamides and their foldamer derivatives have proven to be convenient compounds to study in order to gain a greater insight into intermolecular interactions, conformational analyses and helical structures in foldamers [8,9,10].
Benzamides and related ligands such as carboxamides and carbamates have proven important as ligands in coordination chemistry, and especially those incorporating pyridine or related heteroaromatic groups [16,17,18,19,20,21,22,23]. Herein, we report the synthesis and spectroscopic characterisation of six N1,N3-di(5-X-pyridin-2-yl)isophthalamides or X-DIPs in a series (X = H, F, Cl, Br, I, NO2; Scheme 1). All crystal structures, except X = NO2, were determined. Comparisons are made between the solid-state structures and modelled structures as obtained from ab initio calculations [17,18,19]. A variety of conformations are obtained and in the Cl-DIP structure two distinct conformations are observed in a Z’ = 3 structure. Isophthalamides such as these are proving to be important compounds in terms of their structural chemistry as well as their utilisation in metal coordination chemistry, where the halogen substitution can influence the overall metal complex properties [5,6,7,23].

2. Experimental

2.1. Materials and Characterisation

The materials used, IR and NMR spectra, crystallographic methods, programs and equipment are as documented in previous papers. Further spectroscopic and analytical details are provided in the ESI (part I) [17,24].

2.2. Synthetic Procedures (1 and 2)

Two procedures were used in the isophthalamide synthesis (as described for 2-aminopyridine). Both involved standard condensation procedures and differed by using isophthalic acid (route 1) and isophthaloyl dichloride (route 2) as starting materials and the subsequent workup (Scheme 2) [25].

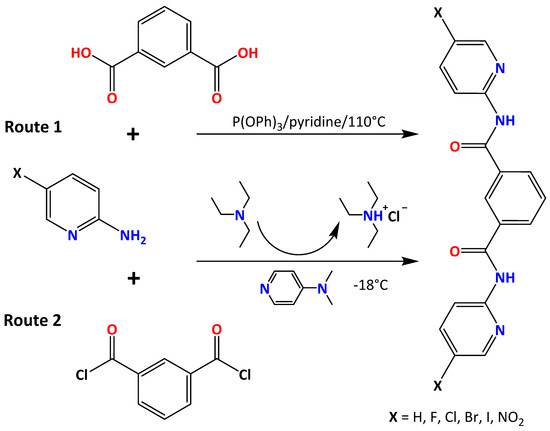

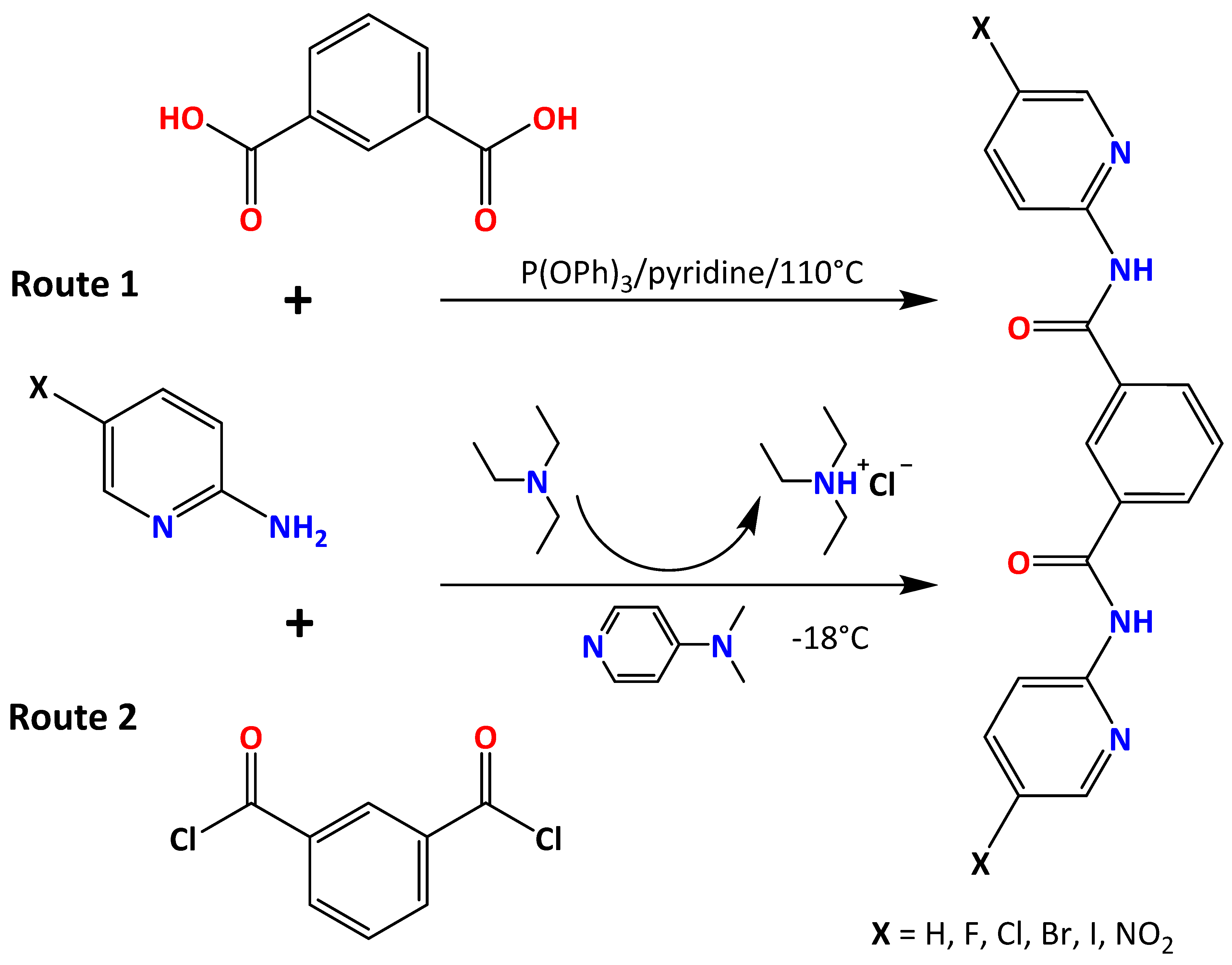

In route 1 (Scheme 2), the synthesis of N1,N3-di(pyridine-2-yl)isophthalamide involves the condensation reaction of isophthalic acid with 2-aminopyridine in pyridine solvent using triphenylphosphite [P(OPh)3] at ~110 °C. Thus, isophthalic acid (2.08 g, 12.5 mmol), 2-aminopyridine (3.54 g, 37.5 mmol) with 50 mL pyridine and a magnetic stirrer were placed in a 100 mL round-bottom flask (RBF). This mixture in an oil bath, equipped with a reflux condenser, was warmed with stirring for 15–20 min to 40 °C until both chemicals dissolved. Triphenylphosphite (9.9 mL, 37.5 mmol) was added through the condenser (using a 10 mL pipette) and the mixture was heated under reflux conditions at 110 °C for 12 h. The reaction flask and contents were cooled to room temperature. The pyridine solvent was removed by evaporation on a rotary evaporator equipped with a high vacuum pump (80–90 °C/20 mbar). The resulting viscous red-brown oil was dissolved in 150 mL of dichloromethane (CH2Cl2), and the product was extracted twice with 150 mL 1:1 (v/v) of dilute HCl. Each of the acidic aqueous extracts was transferred into a 500 mL Erlenmeyer flask on an ice bath. The pH of acidic solution was slowly neutralised with a concentrated aqueous solution of NaOH and solid Na2CO3 to a pH of 7–8. The mixture was cooled slowly to enhance the formation of a white precipitate. The white solid was filtered on a Buchner’s funnel and washed thoroughly with water to remove traces of pyridine and the solid was left to dry overnight. The product was dissolved in 150–200 mL of CH2Cl2 (DCM) and the solution washed with an aqueous solution of NaHCO3 and Na2CO3. The organic layer was dried with MgSO4 and a small amount of charcoal added. The solution was double-filtered, and the product recovered after solvent evaporation.
In the second route (Scheme 2), the reaction of isophthaloyl dichloride with 2-aminopyridine in the presence of triethylamine (Et3N) and 4-(dimethylamino)pyridine (DMAP) was performed at −18 °C. Isophthaloyl dichloride (2.03 g, 10 mM) and 2-aminopyridine (1.88 g, 20 mM) were suspended in 50 mL of dry DCM and poured into a flask and placed in an ice bath (−18 °C to 0 °C). Then, Et3N (5 mL, 20mM) was added dropwise over 10 min and the reaction mixture stirred for 4 hrs. The reaction solution was filtered under vacuum, the filtrate powder was collected and the solution was removed by a rotary evaporator. The resulting residue was dissolved in 200 mL of DCM and the solution was washed with aqueous solutions of NaHCO3 and Na2CO3. The organic layer was dried with MgSO4 and a small amount of charcoal was added, then filtered. Finally, the product was recovered after evaporation of solvent.
Route 1 was used to synthesise H-DIP. For F-DIP, Cl-DIP, Br-DIP, I-DIP and NO2-DIP, the extraction step was the last step; further re-purification had no significant effect on product purity. H-DIP and F-DIP were obtained in a reasonably pure grade because their starting materials had good water solubility. However, both Cl-DIP and Br-DIP syntheses gave a mixture of starting materials and products which were insoluble in water. In the Cl-DIP and Br-DIP extraction, the first extraction from DCM by aqueous HCl gave a high quantity of the product and starting materials, and the second extraction gave a low yield of pure product. These two extractions were not mixed. For Br-DIP, the amount of unreacted starting material was much higher than the desired product. Therefore, the mixture was reused in a fresh reaction and heated at reflux conditions over 48 h. This gave a higher product yield than starting material although a mixture was still obtained. Liquid chromatography was performed to purify both Cl-DIP and Br-DIP. For I-DIP, a low yield of pure product was obtained by this route. However, the NO2-DIP synthesis did not work despite the reaction being heated at reflux temperatures overnight. Although the pyridine solvent colour became very deep red in colour, the extracted product only contained starting material.
Synthetic route 2 was developed to overcome the low reactivity in route 1 that failed to produce NO2-DIP. Isophthaloyl dichloride was reactive, and the reaction temperature was lowered to −18 °C with Et3N added dropwise to control the reaction rate. The NO2-DIP purification process was not sufficient to obtain a pure product (as determined by TLC and NMR) by this approach. Therefore, column chromatography was used to purify the final NO2-DIP product using a mixture of DCM:ethyl acetate (95:5) as a mobile phase.
F-DIP gave the desired product with a high yield of 98%. The product was filtered directly from the reaction mixture with a high purity. In addition, the purification of H-DIP, Cl-DIP and Br-DIP by washing with Na2CO3 was sufficient to obtain significantly high yields of pure products by this route when compared to route 1 [25].
Single crystal X-ray data collections, processing and refinements for the five X-DIPs (Scheme 1) are as detailed previously [17,24,26]. Data were collected using Mo and Cu radiation for Cl-DIP, but only Cu data are discussed herein. The H-DIP and I-DIP•½(H2O) data were collected using an XtaLAB Synergy, Dualflex, ATLAS2 at 100(1) K [24] and the F-DIP, Cl-DIP and Br-DIP data at 294(1) K on a Xcalibur Sapphire 3, Gemini diffractometer [17]. Selected crystallographic and structural data are in Table 1 and Table 2 and full details are in Figures S1–S9 and Tables S1–S3 in the ESI (Part II). Molecular and crystal structure diagrams (Figure 1, Figure 2, Figure 3, Figure 4 and Figure 5) are standard [27,28]. Computational calculations and methods are as described (ESI Part I) [19,29,30,31]. Crystal structure comparisons were performed with Conquest 2022.1.0 and CSD 2022 version (5.43 + 4 updates) [32].

3. Methods

Fingerprint plots of contacts on the Hirshfeld surface around the molecules were computed with CrystalExplorer17 [33] (ESI). The Hirshfeld surface contact statistics and enrichment ratios were acquired using MoProViewer [34]. In the latter case, the hydrophobic hydrogen atom HC attached to a carbon atom is distinguished from HP the more polar and charged the HO/N atoms attached to N or O are. Enrichments of hydrophobic contacts and of H bonds are depicted in Figure 6. The contact types on the 3 independent Cl-DIP molecules were averaged as the contacts CXY between chemical species X and Y and showed globally a 97% correlation (Figure S8). In the case of the iodinated I-DIP•½(H2O) structure with half a water molecule (hemi-hydrate) in the asymmetric unit, the Hirshfeld surface was computed around an ensemble of one water and two I-DIP•½(H2O) molecules; molecules not in contact with each other were selected in the crystal packing in order to obtain integral Hirshfeld surfaces about all three entities.

4. Results and Discussion

4.1. Crystal and Molecular Structural Analysis of H-DIP

The X-DIP molecules contain two amides [O=CN(H)] and two pyridine rings per molecule and therefore each X-DIP possesses two donor N-Hs and four acceptors (2 × O=C, 2 × Npyridine) (Figure 1). The donor:acceptor mismatch is usually compensated by C-H donors pairing with the free O or N in the X-DIP crystal structures.
Symmetry 15 00738 g001 550

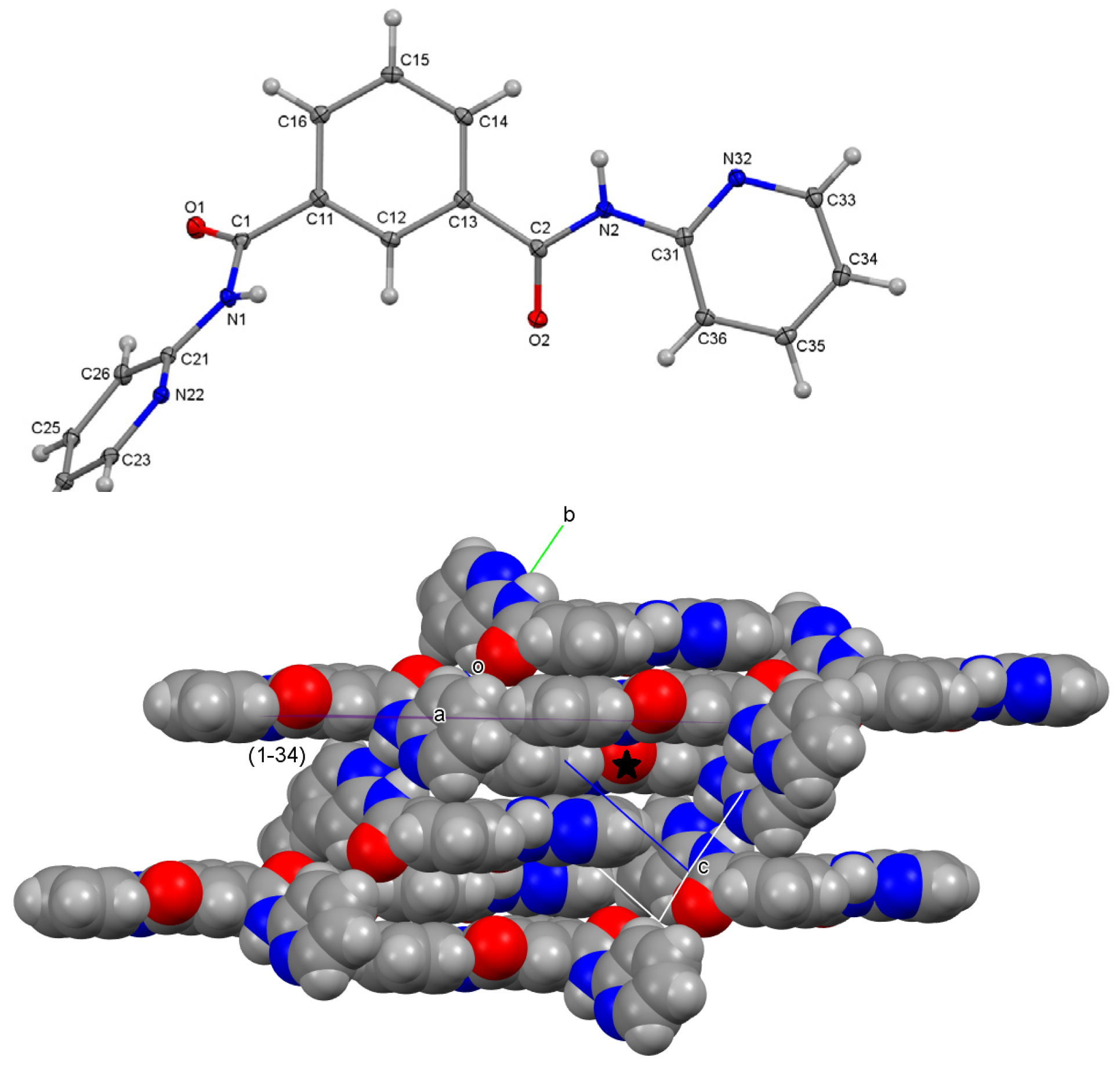

Figure 1. An ORTEP view of H-DIP and the intermolecular interactions with cyclic N-H⋯N, N-H⋯O=C chains (★), aromatic stacking and C-H⋯π(arene) contacts.
Figure 1. An ORTEP view of H-DIP and the intermolecular interactions with cyclic N-H⋯N, N-H⋯O=C chains (★), aromatic stacking and C-H⋯π(arene) contacts.
Symmetry 15 00738 g001

4.2. H-DIP: Short C-H⋯π(Arene) Contacts and Tight Ring⋯Ring Stacking

The H-DIP crystal structure in space group P 1 ¯ (No. 2) refines to R = 3.1% without issues [26]. H-DIP molecules adopt the syn/anti molecular conformation (Figure 1) as noted by Malone and co-workers in PULHUZ [5,32]. The H-DIP structure exhibits a range of intermolecular interactions and contacts especially involving the two amide and the two pyridines yielding amide⋯pyridine N1-H1⋯N22i hydrogen bonds with centrosymmetric rings. H-DIP also forms chains of amide···amide intermolecular interactions as N2-H2⋯O2=C2ii H bonds with symmetry codes (i, ii in Table S2, ESI Part II). The N1-H1⋯N22i interactions form cyclic R22(8) hydrogen-bonded rings augmented by C23-H23⋯π(arene)i contacts (H23⋯Cgi = 2.63 Å, 156°; [2.51 Å, 155° with normalized C-H]) and with N2⋯O2ii generating 1D columns along the a-axis direction [17]. With two amides (N1, N2, O1, O2) and two pyridine N22, N32 atoms per H-DIP (underline for amide⋯amide or pyridine⋯pyridine interactions), the amide carbonyl O1 and pyridine N32 only participate in weaker, cyclic C25-H25⋯(O1=C1)iii as R22(14) rings and C15-H15⋯N32iv interactions as R22(16) rings (Table S2). This results in 1D columns linking via C25-H25⋯O1iii and C15-H15⋯N32iv interactions and aromatic stacking.
H-DIP molecules aggregate as pairs through aromatic stacking about inversion centres (Figure 1); this involves two approximately co-planar aromatic rings having a pyridine and a benzene ring mutually oriented at 5.65(7)°. Pairs of H-DIP molecules interact via parallel offset stacking involving pyridine rings resulting in offset stacked columns in the crystal structure and with aromatic rings parallel with the (1 3 ¯ 4) plane. The closest stacking contact is the pyridine ring C36⋯C36xiv tight contact distance of 3.2864(16) Å for inversion-symmetry-related C36 atoms (Table S2). The short C-H⋯π(arene) contact involving C23-H23···π(C11,…,C16)i that augments the N1-H1⋯N22i cyclic interaction has a short H23⋯(Cg1 ring centroid)i = 2.63 Å distance and is similar in geometry to those in the tightly interacting dimers of Moo where C-H⋯π(arene) contacts form in tandem with strong N-H⋯N hydrogen bonding [17].

4.3. F-DIP

F-DIP was grown from a CH2Cl2/acetone mixture and adopts the anti/anti molecular conformation in space group P21/c (No. 14) (Figure 2). The central molecular C6 ring and a fluoropyridine ring (F34) are mutually oriented close to planarity at an interplanar angle of 14.20(6)°, but at angles of 47.20(4)° and 48.55(4)° to the F24 fluoropyridine ring, respectively. Both amido groups lie close to planarity with the fluoropyridine rings to which they are attached, at 3.22(7)° and 3.97(7)°.
Symmetry 15 00738 g002 550

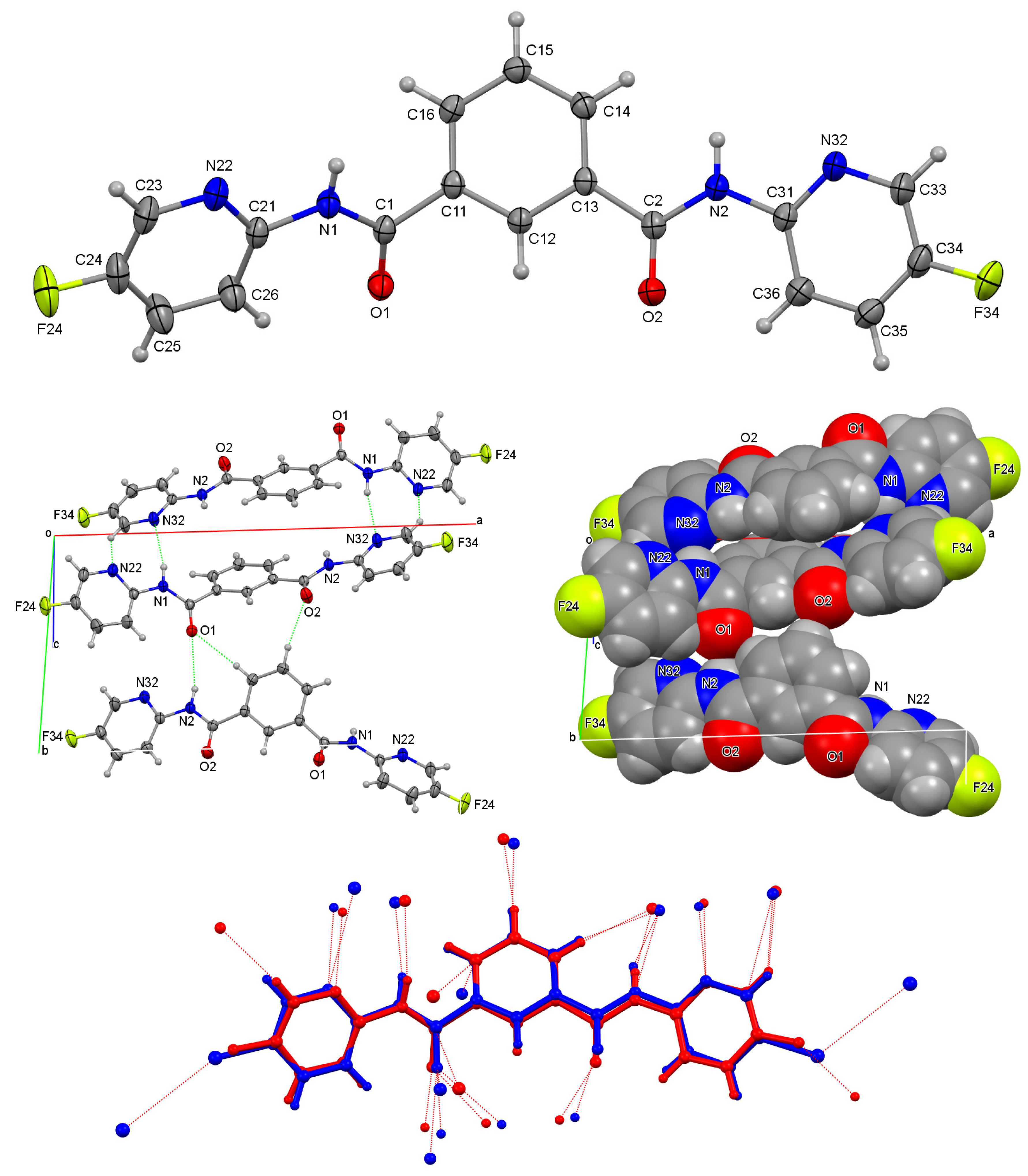

Figure 2. An ORTEP view of F-DIP (top) with two views of the main intermolecular interactions; an overlay of the F-DIP (in P21/c) and Br-DIP structures (in C2/c) with interactions and close contacts.
Figure 2. An ORTEP view of F-DIP (top) with two views of the main intermolecular interactions; an overlay of the F-DIP (in P21/c) and Br-DIP structures (in C2/c) with interactions and close contacts.
Symmetry 15 00738 g002
F-DIP aggregates through the formation of tight hydrogen-bonded dimers. This arises via N1-H1⋯N32v hydrogen bonding about inversion centres, graph set R22(20), with N1⋯N32v = 3.3129(19) Å and in tandem with the reciprocal (C33-H33)v⋯N22 = 3.269(2) Å, graph set = R22(7) and offset amide⋯aromatic ring stacking. The hydrogen-bonded dimers are linked by the second amide N-H as the N2-H2⋯O1=C1vi = 3.2605(16) Å interaction (two per dimer, assisted by C14-H14 as R12(7)). The O2=C2 is involved in weaker C15-H15⋯(O2=C2)vi interactions, though from the same molecule. The H⋯N/O distances are within the range 2.36 to 2.52 Å (with D⋯A is 3.2605(16) to 3.3936(17) Å, with angles from 138° to 174°). The hydrogen-bonded aggregate forms one-molecule-wide molecular sheets parallel with (100) and linked by C23-H23⋯F34viii intermolecular contacts (with H23⋯F34viii = 2.61 Å, C-H⋯F of 126°) spanning the sheets (Figure S3b). F-DIP has all of its strong donors/acceptors engaged in intermolecular hydrogen bonding which is augmented by both intramolecular and intermolecular C-H···O contacts.
In contrast to F-DIP, the TOYQIJ molecular structure [32,35] (differing only from F-DIP by the ipsoC-H C12-H12 replaced by N), adopts a syn/syn conformation. The conformational stability of TOYQIJ is enhanced by two intramolecular N-H⋯Npyridine interactions involving the central pyridine N atom in preference to forming either of the syn/anti (as in H-DIP) or anti/anti conformations (in F-DIP) as favored by having the C12-H12 moiety. This is a recurring feature in the X-DIP molecular systems in comparison to their pyridine relatives.

4.4. Cl-DIP: A Crystal Structure (Z’ = 3) with Two Different Conformations

Cl-DIP (as grown from ethyl acetate) crystallises with three independent molecules in the asymmetric unit (Z’ = 3) in space group P 1 ¯ (No. 2). Cl-DIP is a rare example of a crystal structure with two distinct conformations (in ratio 1:2). Molecule A adopts the anti/anti molecular conformation and is similar to F-DIP, whereas molecules B and C have the syn/anti conformation and are more comparable in structure to H-DIP (Figure 3). The molecular conformations clearly differ as exemplified by the para [Cl1…C15…Cl2]A/B/C angles of 125.06(4)° (molecule A), 104.75(4)° (B) and 110.41(4)° (C) with the two smaller angles for the syn/anti conformations. The aromatic rings and amide groups in Cl-DIP do not twist much from co-planarity and the largest twist is 33.5(2)° for the two flanking fluoropyridine rings in molecule B, with corresponding data for molecules A and C being 8.5(3)° and 5.8(3)°.
Symmetry 15 00738 g003a 550Symmetry 15 00738 g003b 550

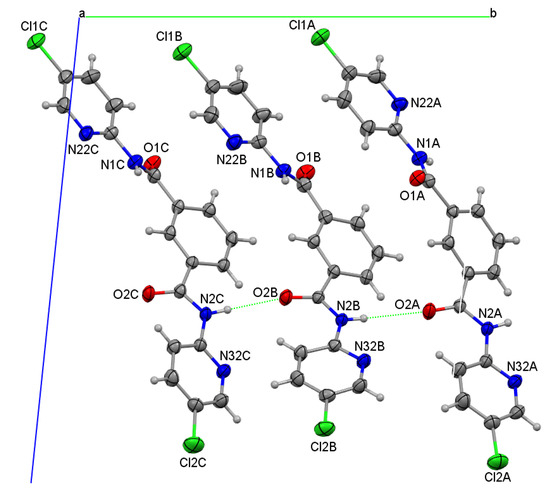

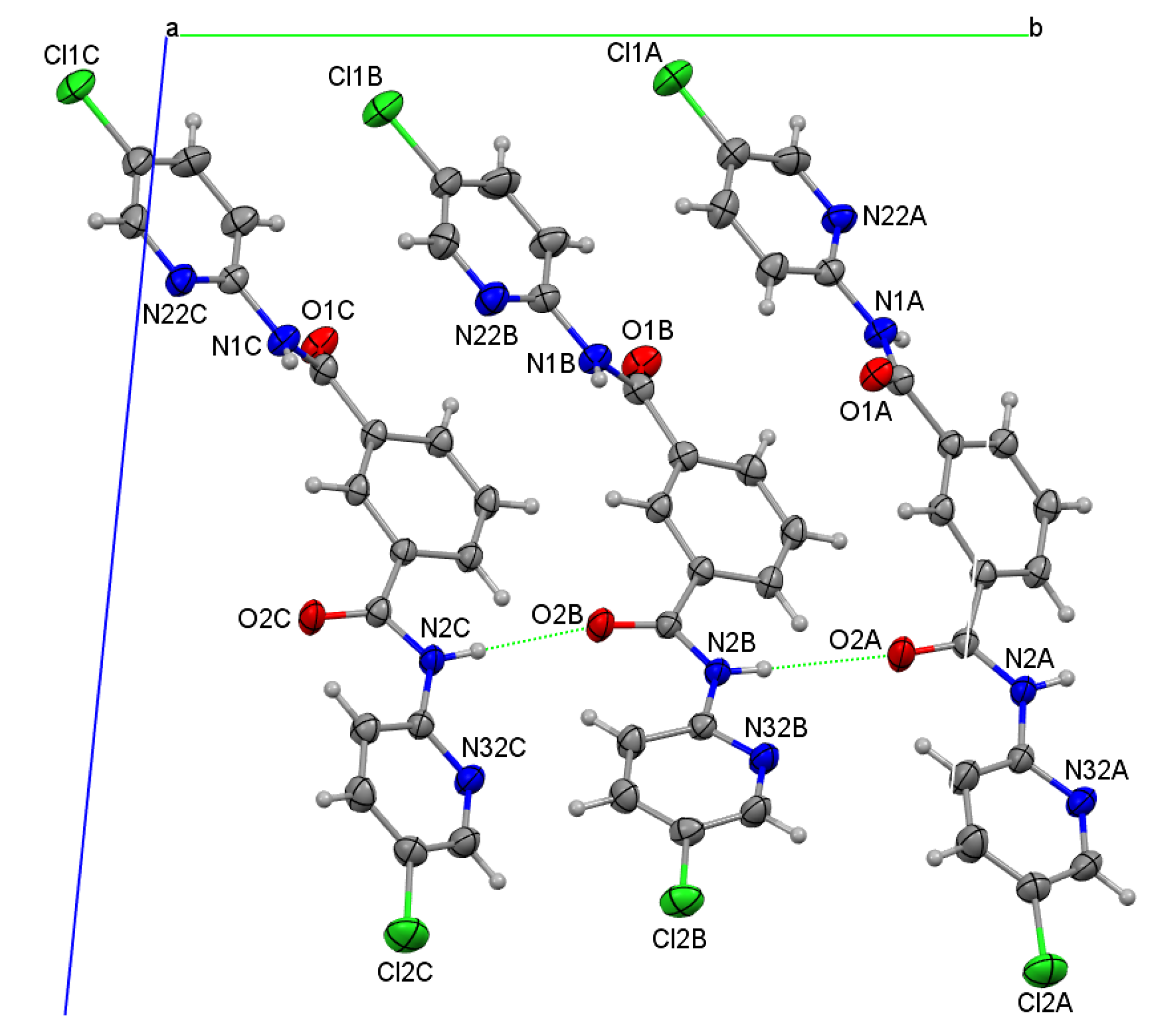

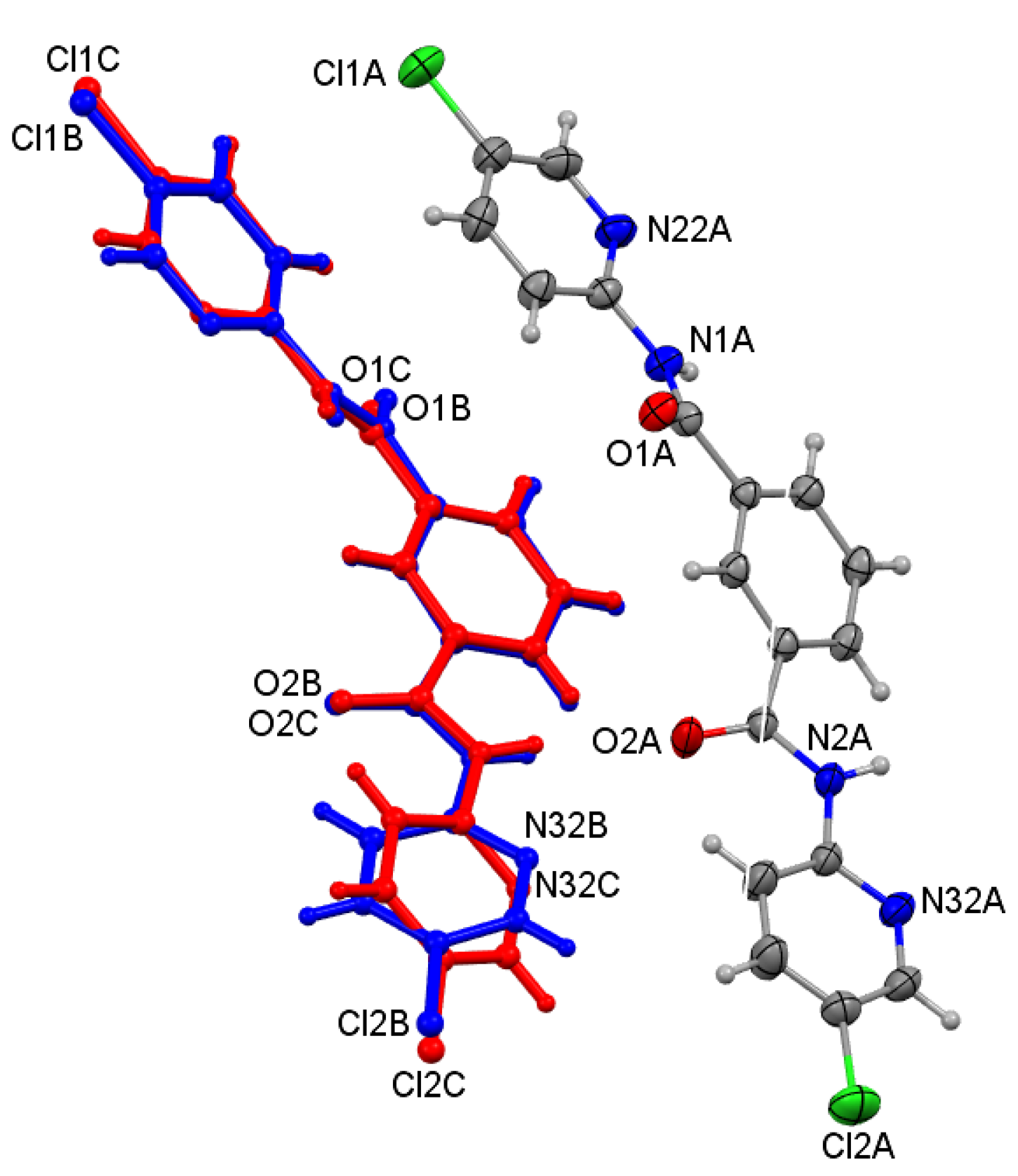

Figure 3. Asymmetric unit of Cl-DIP and overlay of molecule A (ORTEP) with molecules B and C.
Figure 3. Asymmetric unit of Cl-DIP and overlay of molecule A (ORTEP) with molecules B and C.
Symmetry 15 00738 g003aSymmetry 15 00738 g003b
The aggregation is of interest in that all six amides in molecules A to C are involved in N-H⋯O=C interactions. There are no strong N-H⋯Npyridine hydrogen bonding interactions as the amide donors/acceptors are all utilised in strong amide···amide intermolecular interactions. The molecules aggregate (using one of the two amide groups per molecule) forming individual chains of (A…A…)n, (B…B…)n and (C…C…)n molecules in the a-axis direction. The second amide group links chains together as (A…C…B…A…)n. As such, all six amides are involved in regular, elegant amide⋯amide hydrogen bonds. The six amide…amide interactions can be grouped into two categories with the shorter intrachain interactions as A…Aii = 2.924(4) Å, B…Bviii = 2.973(4) Å, C…Cviii = 2.865(4) Å (for the N⋯O distances) and are considerably shorter than the 3.078(4) Å, 3.289(4) Å and 3.029(5) Å for the interchain N⋯O distances of [C…B…A…Cii]n. The pyridine-N atoms are at most involved in weaker C-H⋯N contacts (e.g., C35C-H35C⋯N32Aix) augmenting the primary interactions. This is unusual, as ortho-N pyridine atoms usually form cyclic hydrogen-bonded rings, but this does not arise due to the plethora of amide⋯amide hydrogen bonds. Furthermore, there are two halogen⋯halogen contacts of note, namely Cl1B⋯Cl1Cv = 3.249(2) Å and Cl2B⋯Cl2Cxv = 3.308(2) Å (both of which are <3.50 Å, the van der Waals radii sum [15,28]) and a weak C25B-H25B⋯Cl1Axvi hydrogen bonding contact (2.90 Å) as well as aromatic stacking. Cl-DIP demonstrates a snapshot of dynamic behaviour between three distinct conformations and with the syn/anti and anti/anti conformations isolated in the crystal structure. Of further note are the two Ru derivatives of Cl-DIP (with the N-H deprotonated and N atoms as donors) and one is a RuII(terpy)(Cl-DIP) structure [CITDAL] [23].

4.5. Br-DIP: A Wall of Bromine Atoms at the 2D Sheet Interfaces

Br-DIP is a twinned structure in space group C2/c and is isostructural with F-DIP (Figure 2), adopting the anti/anti conformation (Figure 4). Br-DIP molecules aggregate via reciprocal N1-H1⋯N32x and C33-H33⋯N22x interactions about inversion centres forming molecular pairs (with graph sets R22(7) and R22(20)). This is similar to the pairs formed in F-DIP. In Br-DIP, hydrogen-bonded dimers are connected by N2-H2⋯O1xi and C15-H15⋯O2xi hydrogen bonds that cumulatively aggregate and form a sheet that is one molecule or ~20.4 Å wide (or ½ unit cell a-axis), and parallel with the bc plane (Figure 4). Strong intermolecular interactions form within the sheet using both amides (N1-H1, N2-H2, O1, O2) and pyridines (N22, N32), together with additional C-H⋯O/N contacts. There are two sheets per unit cell intersecting at x = 0, ½ (midpoint at x = ¼, ¾). The sheet surface contains both terminal Br atoms (Br24, Br34) interspersed in a regular fashion as an array with the five shortest Br⋯Br distances in a range from 4.1 to 5.1 Å. Sheets are aligned so that Br⋯Br halogen bonding contacts arise with the shortest interfacial sheet distance being Br24⋯Br34xvii = 3.6197(17) Å; 121.2(3)°, 155.7(3)° [Nc = 0.98] [14]. In addition, two Br34⋯Br34xviii,xix distances are noted spanning the sheet interface and are 3.8534(14) Å and 3.8988(16) Å, respectively [14,15,28]. When the Hirshfeld surface is computed between two layers of molecules, the Br⋯Br contacts constitute 76% of the surface and Br⋯HC constitute 24%. One can speculate that sheets can glide over one another with relative ease. This may provide some rationale for the twinning in this crystal structure (additional diagrams of the Br-DIP sheets are provided; ESI, Figures S5 and S6). F-DIP differs from Br-DIP with unit cell wide sheets and F-DIP interfacial interactions comprising weak C-H⋯F contacts. The Br-DIP hydrogen bonding distances are mostly ca. 0.1 Å shorter than their F-DIP equivalents. However, the KPI packing index is 69.1 (Br-DIP) and 71.1 (F-DIP) as calculated using PLATON [28]. This small difference is accountable by small voids in proximity to the Br···Br interactions at the sheet interface in Br-DIP [14,27,28].
An overview of the X-DIP crystal structures suggests that H-DIP contains tight amide⋯pyridine and amide⋯amide interactions. The F-DIP and Br-DIP structures are essentially isostructural, but with key differences involving their F⋯H and Br⋯Br interactions at the 2D sheet interfaces, as shown for the wall of bromine atoms in Figure 4b. Of note is that Cl-DIP diverges in structure from the other three X-DIPs (H, F, Br) by having strong amide⋯amide hydrogen bonding interactions forming exclusively. The F, Cl and Br halogenated crystal structures all have walls of halogen⋯halogen interactions but the Br-DIP case is more pronounced, notably due to the larger size of the bromine atom.
Symmetry 15 00738 g004a 550Symmetry 15 00738 g004b 550

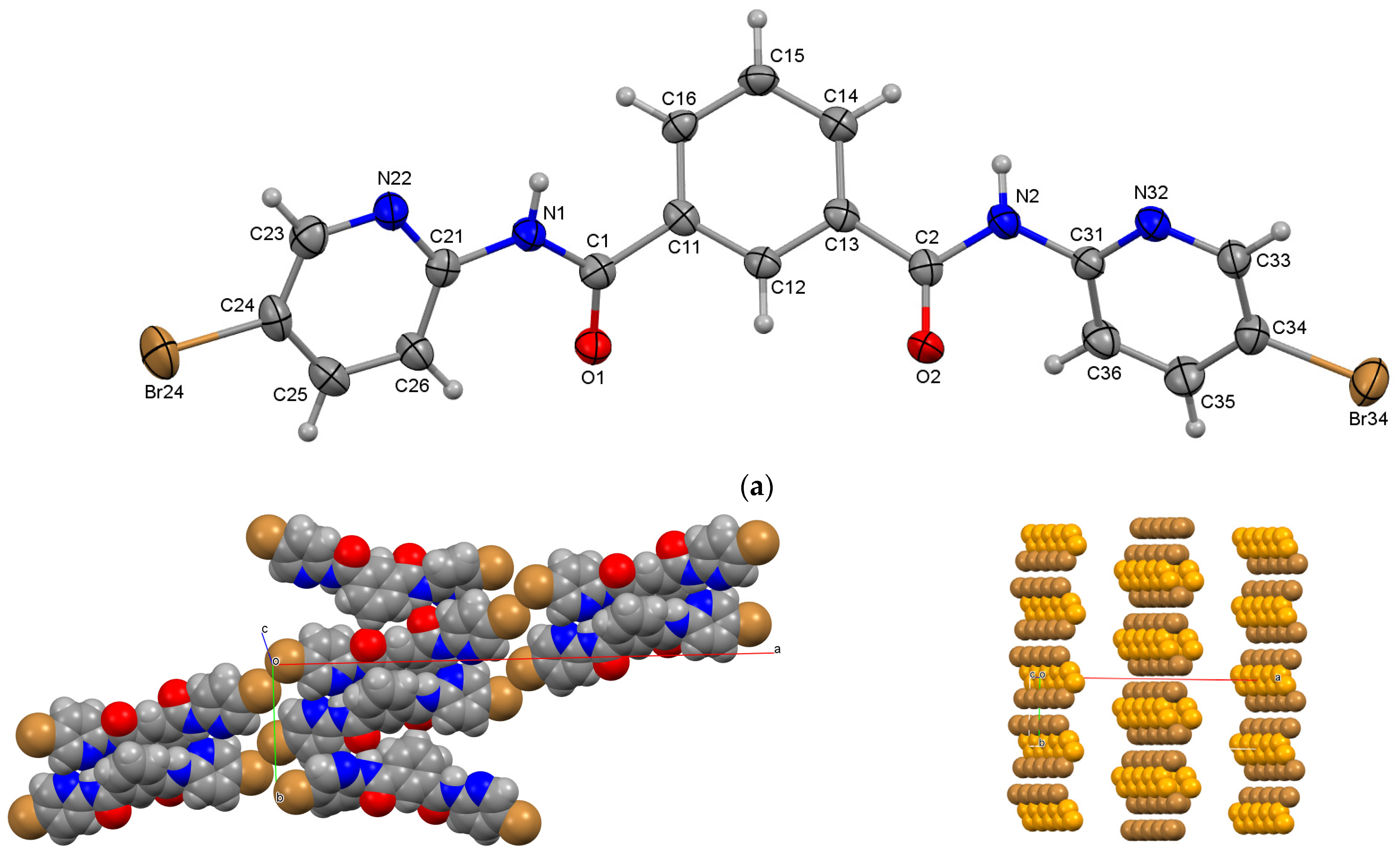

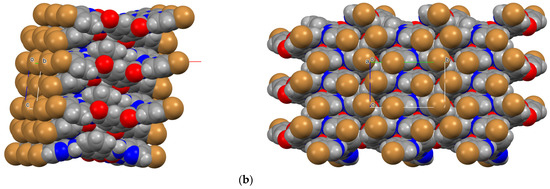

Figure 4. (a) An ORTEP view of Br-DIP with atoms depicted at 30% displacement ellipsoids. (b) CPK views of the (i) primary hydrogen and halogen bonding interactions, (ii) wall of bromines only with Br24 (brown) and Br34 (orange) and (iii, iv) two views of the wall of Br atoms on the bromine-rich sheet interface in the Br-DIP crystal structure (both Br as brown).
Figure 4. (a) An ORTEP view of Br-DIP with atoms depicted at 30% displacement ellipsoids. (b) CPK views of the (i) primary hydrogen and halogen bonding interactions, (ii) wall of bromines only with Br24 (brown) and Br34 (orange) and (iii, iv) two views of the wall of Br atoms on the bromine-rich sheet interface in the Br-DIP crystal structure (both Br as brown).
Symmetry 15 00738 g004aSymmetry 15 00738 g004b

4.6. I-DIP•½(H2O): The N⋯I, I⋯I Halogen Bonding and Role of the Water Molecule

The I-DIP molecular structure adopts the syn/anti conformation and is comparable to H-DIP in molecular structure, although a hydrate is incorporated per I-DIP halogen-bonded dimer. The primary interactions driving the aggregation involve (i) amide⋯amide chain formation along the b-axis direction, (ii) a hydrogen-bonding synthon involving two aminopyridine groups and a water molecule that resides on twofold axes in a tightly bound arrangement, together with (iii) compact N22⋯I34 halogen bonding (Nc = 0.877) that drives I-DIP dimer formation [14] and further linked by the water, chain formation and aromatic stacking.
The primary hydrogen bonding in I-DIP•½(H2O) is N1-H1⋯(O1=C1)vii along the b-axis direction (with offset aromatic stacking forming a column). This is augmented by centrosymmetric N22⋯I34xiii halogen bonding between pairs of chains to aggregate as a two-molecules (slipped) stack with a cyclical N22⋯I34xiii assembly of R22(28) halogen-bonded rings. The iodinated compound is the only one among X-DIP to form N⋯X halogen bonds. The centrosymmetric C35-H35···O2=C2xiii hydrogen bonds complement the N22⋯I34xiii dimer formation [14]. Halogen bonding as I24⋯I34xx = 3.8441(3) Å (Nc = 0.97) with C24-I24⋯I34xx = 168.23(9)° and I24⋯I34xx-C24xx = 91.56(8)° is noted [14]. The O1W water molecule resides on a twofold axis and is tightly sandwiched between a pair of I-DIP molecules. It engages in hydrogen bonding to two amide N2-H2 donors and N32 pyridine acceptors (related by twofold symmetry: Figure 5a,b). There are also two weak C14-H14⋯O1W contacts per water molecule augmenting the stronger interactions. Centrosymmetric columns are linked by this hydrogen bonding involving (2 × N, N-H, C-H) and the O1W water molecule. Therefore, the O1W molecule interacts with two donors (as 2 × O1W-H1W) and as four acceptors (from 2 × N2-H2⋯O1W; 2 × C14-H14⋯O1W) and links the two-molecule columns into a sheet. The C14-H14⋯O1W is long but nonetheless a contributing hydrogen bonding contact (with normalised data for H14⋯O1W giving a H⋯O distance = 2.58 Å, C14-H14⋯O1W = 150°). The I24⋯I34xx, C35-H35⋯ (O2=C2)xiii and aromatic stacking interactions complete the 3D interactions (Figure 5c,d). The I-DIP•½(H2O) packing does not display 2D layers of I⋯I interactions, but such interactions are only repeated along lines parallel to the b axis.
Symmetry 15 00738 g005 550

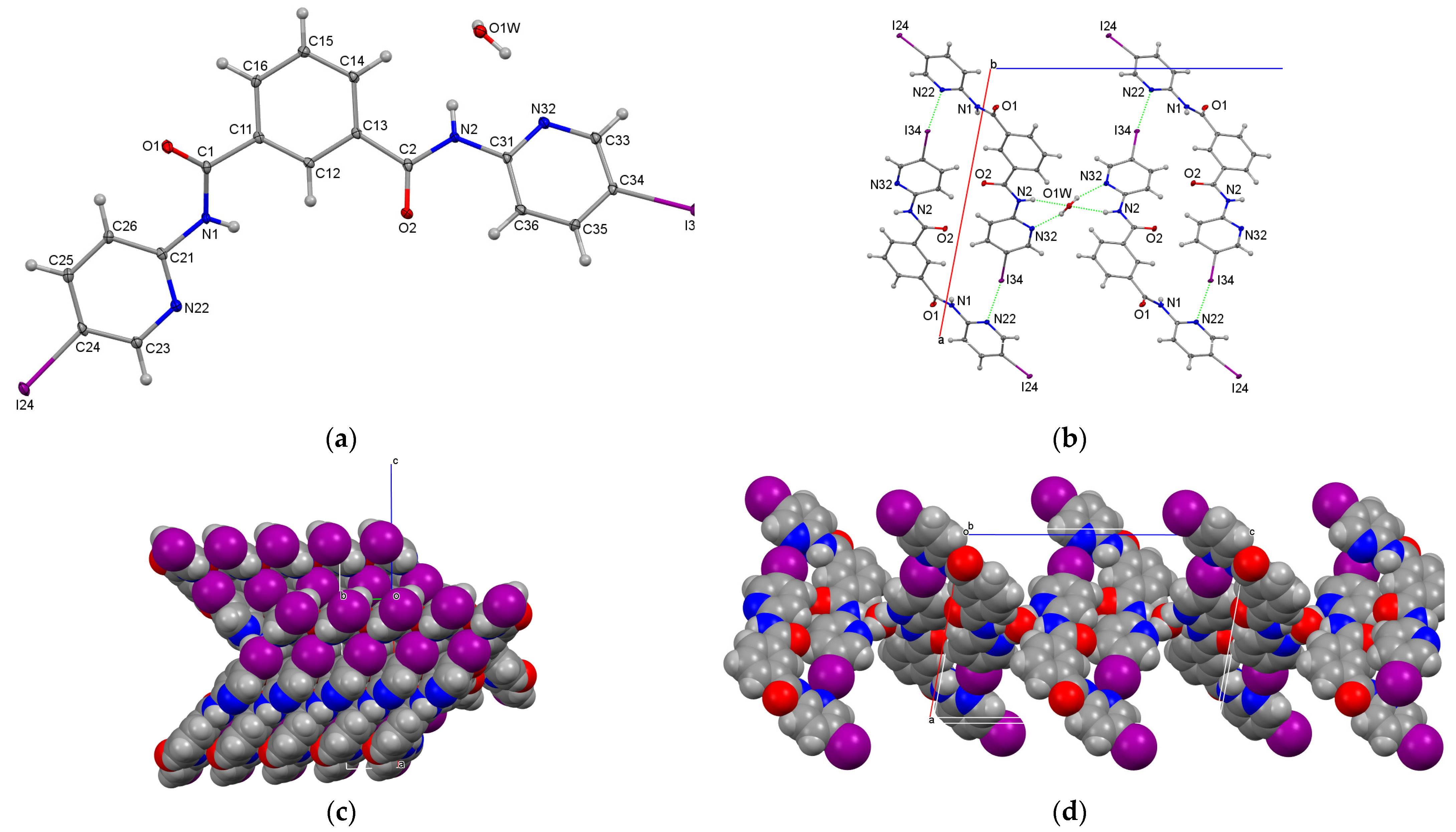

Figure 5. (a,b) An ORTEP plot of the I-DIP•½(H2O) structure and a view of the hydrate in the assembly of the halogen-bonded dimers via an unusual synthon. (c,d) The stacking along the b-axis in the I-DIP•½(H2O) structure and role of the water molecule linking two molecule stacks in the assembly process.
Figure 5. (a,b) An ORTEP plot of the I-DIP•½(H2O) structure and a view of the hydrate in the assembly of the halogen-bonded dimers via an unusual synthon. (c,d) The stacking along the b-axis in the I-DIP•½(H2O) structure and role of the water molecule linking two molecule stacks in the assembly process.
Symmetry 15 00738 g005

4.7. How Unusual Is the Water Environment in I-DIP•½(H2O)?

The synthon involving the water molecule is uncommon although there are notable cases in the CSD [32]. For example, in CIMTOI, the ligand wraps around the H2O molecule, resulting in two short O-H⋯N, two short N-H⋯O and two longer N-H⋯O hydrogen bonds [36]. In context, it is a relatively rare synthon to observe in ortho-amidopyridine (HN-C5HN4)-type structures as the tendency is for this group to form hydrogen-bonded dimers with graph set R22(8) as noted in an ortho-methyl-N-(2-pyridyl)benzamide (Moo) [17]. Insertion of a water molecule to disrupt this cyclic assembly is relatively rare [32]. In UGARIE, the water molecule is located such that it is involved in an excess of the usual [2D+2A] H2O hydrogen bonding arrangement [37]. Another example (MIJSII01) highlights research on an unusual exotic state of a water molecule located in hydrophilic nanoconfined spaces [38].

4.8. CSD Analyses with the 2021.3.0 Version (January 2023)

A CSD search shows that there are 8446 ortho-aminopyridine (HNC5N) fragments (hits) with 3D coordinates; 3509 with C-H. There are 3971 (47%) organic without a metal (4M) [32]. A total of 574 (7%) form hydrogen-bonded dimers (N…N within van der Waals limits). There are several notable examples of the (N, NH)2•OH2-type synthon present in the CIMTOI, ESALES, MONGON, SEMGEY and WAMSOT structures [32]. It can be shown that this represents only <1% of these general-type structures. Incorporation of a water molecule to disrupt ‘aminopyridine dimer’ formation is therefore unusual. Statistics do not vary much from analyses using datasets from the earlier versions of the CSD. An analogous study of carboxylic acid structures as C-CO2H with 3D coordinates shows similar statistics when compared with organic carboxylic acids without 4M dimer formation and also checking for H2O insertion between the carboxylic acids (as for pyridine above).

5. Comparisons with Related Structures

The isostructural N,N’-bis(4-halophenyl)pyridine-2,6-dicarboxamides TOYQIJ (F-pyr) [35] and MEWNEJ (Br-pyr) [39] in space groups P21/c and C2/c, respectively, differ from F-DIP and Br-DIP by replacing the central aromatic ipsoC-H with N. This difference enforces syn/syn conformations on TOYQIJ and MEWNEJ via a relay of intramolecular N-H⋯N⋯H-N interactions and contrasting with the anti/anti conformations in F-DIP and Br-DIP. As noted from our X-DIP structures, the ipsoC-H exerts both steric and electronic effects on the neighboring amido N-Hs and does not promote intramolecular hydrogen bonding apart from weak C-H···O=C hydrogen bonds. Therefore, the ipsoC-H moiety does not form strong intramolecular hydrogen bonding, and this facilitates the relatively free rotation about the C6-amide bond from the syn/syn to anti/anti conformation via syn/anti.

6. Crystallographic Structural Summary

Although the syn-syn conformation is the most stable conformation, the H-DIP, I-DIP and Cl-DIP (molecules B, C) have the syn-anti conformation, whereas the F-DIP, Cl-DIP (molecule A) and Br-DIP adopt anti-anti conformations. The five crystal structures aggregate by similar intermolecular interactions due to their overall molecular similarities (varying only by the terminal aromatic para-H to para-I relative to the amide group). Amide⋯amide hydrogen bonding dominates as the main hydrogen bonding interaction responsible for aggregation with an Nc value ≈ 0.81 for the Cl-DIP, Br-DIP and I-DIP•½(H2O) structures, while in H-DIP and F-DIP, the amide…amide interaction is less notable (Nc values ≥ 0.90). In tandem, the R12(7) bifurcated interaction from the C=O⋯H–N interaction and central C6 ring C–H (as C=O⋯H–C) is present in all crystal structures, except for I-DIP•½(H2O). Moreover, the N–H⋯Npyridine hydrogen bonding dominates in F-DIP as the N-H⋯O interaction is weaker with a relatively long H···O distance of 2.488 Å. Despite their structural similarities, each compound exhibits its own unique intermolecular interactions. For H-DIP, ring⋯ring interactions play a crucial role in aggregation by both phenyl⋯pyridine stacking and pyridine⋯pyridine ring stacking. Additionally, the F-DIP and Br-DIP compounds exhibit a larger amount of C–H⋯F interactions and Br⋯Br contacts, respectively. In I-DIP•½(H2O), the I⋯Npyridine halogen bonding interaction is present, in addition to weaker I⋯I contacts with C34-I34⋯I24 = 91.56(8)°. The water solvate also plays a crucial role in aggregation.
In previous studies of 3 × 3 isomer grids, we reported detailed analyses of their melting points and examined the influence of the substituent position and molecular symmetry [17,18,19,40]. The X-DIP series with six compounds shows a melting point trend increasing along the series from H→F→Cl→Br→I→NO2, noting Z’ = 3 for Cl-DIP and hemihydrate in I-DIP•½(H2O). The average melting point changes from 184 °C (H-DIP), 224 °C (F-DIP), 236 °C (Cl-DIP), 246 °C (Br-DIP), 265 °Cdecomp (I-DIP•½(H2O) to 300 °Cdecomp (NO2-DIP). This is expected on increasing molecular weights in the X-DIP series. Of note is the recent study examining the lowering of melting points in deformed plastic crystals [41] and would be of interest if extended to crystals with Z’ > 1 and isomorphous structures [20,32].

7. Fingerprint and Contact Analysis

All five crystal structures were analyzed using fingerprint analysis (ESI). It has to be noted that for the Cl-DIP (Z’ = 3) structure, a set of separated molecules was analyzed globally (Hirshfeld surfaces around three molecules not in contact in order to have an integral surface around each molecule). For I-DIP•½(H2O), the hemihydrate molecule is not included in the crystal packing.

8. Contacts Statistics on the Hirshfeld Surface

The Hirshfeld surface represents the region where molecules come into contact. The contact surface is attributed to pairs of chemical species X and Y in mutual contact. The contacts’ enrichment and derived ratios are in the ESI part II, as computed with MoProViewer [34].
The strong hydrogen bonds O⋯HP and N⋯HP involving the H-N (and water H-O in the I-DIP•½(H2O) structure) polar hydrogen atoms are nearly always significantly over-represented at enrichments E > 3 (Figure 6b). The only exception occurs for the chlorinated Cl-DIP structure, where, despite the presence of three independent molecules, all the strong H bonding occurs only in N-H⋯O interactions (E = 9.9). The weaker hydrogen bonds HC⋯O and HC⋯N do also occur; they are generally also over-represented but with E values closer to unity (extreme values are 0.55 and 2.43 for I-DIP•½(H2O).
Symmetry 15 00738 g006 550

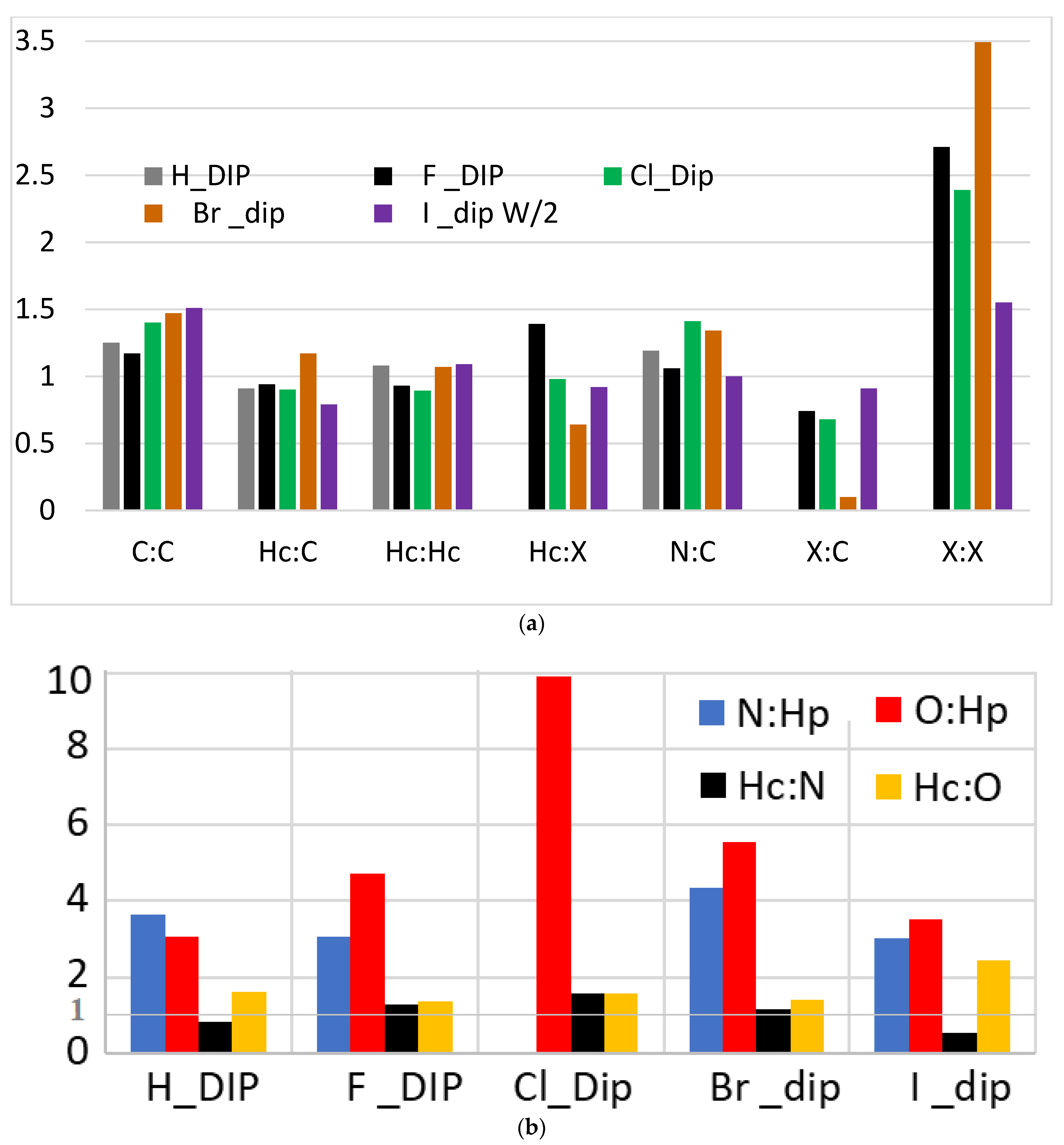

Figure 6. (a) Enrichment of the hydrophobic contacts and (b) enrichment of hydrogen bonds. HC and HP refer to the hydrophobic H-C and the polar hydrogen (H-N and H-O) atoms, respectively.
Figure 6. (a) Enrichment of the hydrophobic contacts and (b) enrichment of hydrogen bonds. HC and HP refer to the hydrophobic H-C and the polar hydrogen (H-N and H-O) atoms, respectively.
Symmetry 15 00738 g006
The enrichment of hydrophobic contacts between C, HC and halogen X atoms are shown in Figure 6a. The X⋯X contacts appear to be the most favoured hydrophobic interaction in the four halogenated compounds and the highest enrichment ratio reaches 3.5 for the Br-DIP crystal (Table S4). The halogen⋯halogen contacts in relation to the molecular geometry are discussed in more detail in the enriched halogen⋯halogen contacts section below.
The C⋯C and N⋯C contacts are always slightly enriched (E between 1.0 and 1.5) which denotes the occurrence of aromatic stacking in the five DIP structures. Aromatic stacking is generally favoured in aromatic heterocycles as the presence of electropositive and electronegative atoms on the aromatic rings allows attractive electrostatic interactions between adjacent cycles [42,43]. HC⋯HC contacts have limited enrichments which remain close to unity as competition arises with X⋯HC, N⋯HC and O⋯HC weak H bonds. The C⋯HC contacts also exhibit limited E values close to one, as all compounds show significant aromatic stacking. They are essentially van der Waals contacts (between aromatic rings that are not far from being parallel) rather than C-H⋯π weak hydrogen bonds.
In statistical studies of the interaction propensities in crystal structures of halogenated compounds [44,45], it was observed that HC atoms are generally the favoured interaction partners for organic halogen atoms, which are hydrophobic in nature. The X⋯H-C weak hydrogen bonds do occur in all four halogenated crystal structures but are over-represented only in the F-DIP case. The Br⋯HC contacts are particularly disfavoured (EBrHc = 0.64) in the Br-DIP crystal structure which instead displays high Br⋯Br contact enrichment (Table S4). It can be seen in Figures S5 and S6a–e (ESI), that the bromine atoms interact almost only with Br atoms and to a small extent with the HC hydrogen atoms.

9. Enriched Halogen···Halogen Contacts

The Br, F and Cl-DIP compounds display all layers in the crystal packing formed by halogen atoms forming many frontal and lateral contacts. These halogen layers may be related to the para- position of the halogen atoms, at the extremities of the molecules which are nearly linear for the Br, F and Cl crystal structures (Figure 2, Figure 3 and Figure 4). The Br-DIP crystal has, for instance, all molecules oriented along the a-axis direction, which is the longest unit cell axis (40.80 Å). There are layers of Br atoms in the planes x = n and x = n + ½. The situation is the same in Cl-DIP crystal where c is the longest unit cell axis (33.83 Å) and the Cl layers are located at z = n and z = n + ½. In the case of F-DIP, molecules are oriented along a, the long unit cell axis, but there are layers of F atoms only in the planes x = n as the a-axis is not so long (17.94 Å). The halogen⋯halogen interactions in these layers are all of type II (C1-X1⋯X2 ≈ C2-X2⋯X1) where the two halogen atoms minimize repulsion by interfacing the neutral regions of their electrostatic potential surfaces [46].
On the contrary, the I-DIP•½(H2O) and H-DIP compounds (Figure 1 and Figure 5a–d) do not have a global linear shape but are bent (syn-/anti- conformations). In I-DIP•½(H2O), the iodine atoms are not located in crystalline layers, but are located along rows parallel to the short unit cell axis b. The shortest I⋯I contact has type II geometry [47] with ∠C34-I34⋯I24 = 91.56(8)° ≈ 90° and C24-I24⋯I34xx = 168.23(9)° near linearity (180°) and is an electrophilic (σ-hole)⋯nucleophilic interaction. In addition, longer I⋯I-type contacts are present.
By analogy, there are several other crystal structures of elongated molecules with aryl groups halogenated in the para position as detailed in the CSD [32]. Among the four para-dihalo-benzene crystals, the C6H4F2 [48] and C6H4Cl2 (ZZZPRO05; [32]) compounds also show plane layers of halogen atoms.
Among the four 4,4′-di-halo-biphenyl compounds, which are elongated molecules with halogen atom in para positions, the iodinated [49] and fluorinated [50] compounds show plane layers constituted by the halogen atoms. The molecules in the crystal display two orientations but the line between the two halogen atoms is always oriented in the same direction. The chlorinated and brominated compounds show head-to-tail X⋯X contacts, but the halogen atoms are distributed in unidimensional rows. Para-difluoro benzamide is also a typical example of such packing [51]. The 4-fluoro-N-(4-fluorophenyl)benzamide molecules are all aligned in space group P-1 (No. 2) along the c-axis corresponding to the longest unit cell axis and the crystal has layers of fluorine atoms around planes z = n + ½.
In the study of contact propensities in the crystal structures of halogenated organic molecules [44], the packing of the C22H12Br2 molecule (OKANOE [32,52]) was identified as having a particularly high Br···Br contact enrichment. The molecule 2,3-dibromopentacene is a very long rigid elongated molecule bearing two Br atoms on its extremities where the shape of the molecule plays an essential role in the crystal packing formation. The packing shows the typical elongated unit cell with layers of bromine atoms (together here with HC atoms) around planes z = n and z = n + ½.
In related halogen bonding research, the effect of temperature on isostructural triethyl-tris(4-halophenoxy)-methylbenzenes shows that the increase in interhalogen distance on increasing temperatures is the reverse order of the strength of the interhalogen interaction [53]. Recently, in an elegant study, the differences in thermal expansion and motion ability were reported for a series of (di)imines, (di)olefins and di(azo) derivatives. Herringbone packing and face-to-face π stacking were studied and key differences in expansion and motion were analysed [54]. In comprehensive melting point analyses, we have shown that the substituent position is more important than the nature of the substituent in a series of 3 × 3 benzamide isomer grids [17,18,19]. Together, these and other studies highlight the complex considerations needed in the design and structures of new materials, especially those containing halogen atoms [14,32].

10. Structure Optimization—Ab Initio Calculations

The X-DIP molecules were modelled in gas phase using DFT (B3LYP/6-311++G**) methods [30,31] and only the I-DIP molecule was optimised by several semi-empirical methods (AM1, PM3, MNDO), then optimised by the (B3LYP/3-21G) method due to the difficulty in using (B3LYP/6-311++G**) for iodo-containing molecules [30,31,55,56]. The main geometric parameters are the (i) α-dihedral C12–C11–C1=O1 angle, (ii) β-dihedral C1–N1–C21–C26 and (iii) γ or amide dihedral angle H1–N1–C1=O1. On the opposite side of the DIP structures are the (iv) α-dihedral C12–C13–C2=O2 angle, (v) β-dihedral C2–N2–C31–C36 and (vi) γ or amide dihedral angle H2–N2–C2=O2, with all six angles tabulated in Table 3 and Table 4.
The six DIP compounds were optimized to the lowest energy structure having the syn-syn conformation (Figure 7). This is shown in Figure 8 (as the Potential Energy Scans or PES diagram) and only the I-DIP structure was optimized as the syn-syn, syn-anti and anti-anti conformations. In the syn-syn conformation, the outer pyridine rings are not co-planar with the central aromatic ring and rotated by ~28°, while they are almost co-planar with the amide linkages (~4° deviation). Additionally, the amide linkages are planar as expected (Table 3) with γ1 and γ2 values of ~171°. The different substituents do not affect the molecular geometries, which is expected, since the substituents are para-related relative to the amide linkage. However, the crystal structures showed the effect of these substituents on intermolecular interactions. The molecular energies decrease in the expected order since the negative interaction energy increases with the enhancement of halogen bonding, which has the lowest value in the presence of iodine. This explains the small differences in energy between F-DIP, NO2-DIP and H-DIP compared with the other halogens [57,58,59]. Moreover, the crystal structures reveal the increase in halogen⋯halogen intermolecular interactions as noted by the Cl⋯Cl contacts in the Cl-DIP structure and Br⋯Br contacts in Br-DIP and ultimately both N⋯I halogen bonding and I⋯I contacts in the I-DIP structure. For I-DIP, optimization of the three different conformations reveals the syn-syn conformation to have the lowest molecular energy and syn-anti to have the highest.
The anti-anti conformation in I-DIP shows the pyridine rings to be almost perpendicular to the phenyl ring while the carbonyl groups are not co-planar. The amide bridges retain planarity (as expected) and with the syn-syn conformation resulting in a highly planar structure. The syn-anti conformation, though, shows a slight deviation from planarity in the anti component and complete planarity for the syn side. Despite the different geometries between the syn-syn and the anti-anti conformation, their energies vary within a few kJ and are to be discussed in the conformational analysis section.

11. Conformational Analysis

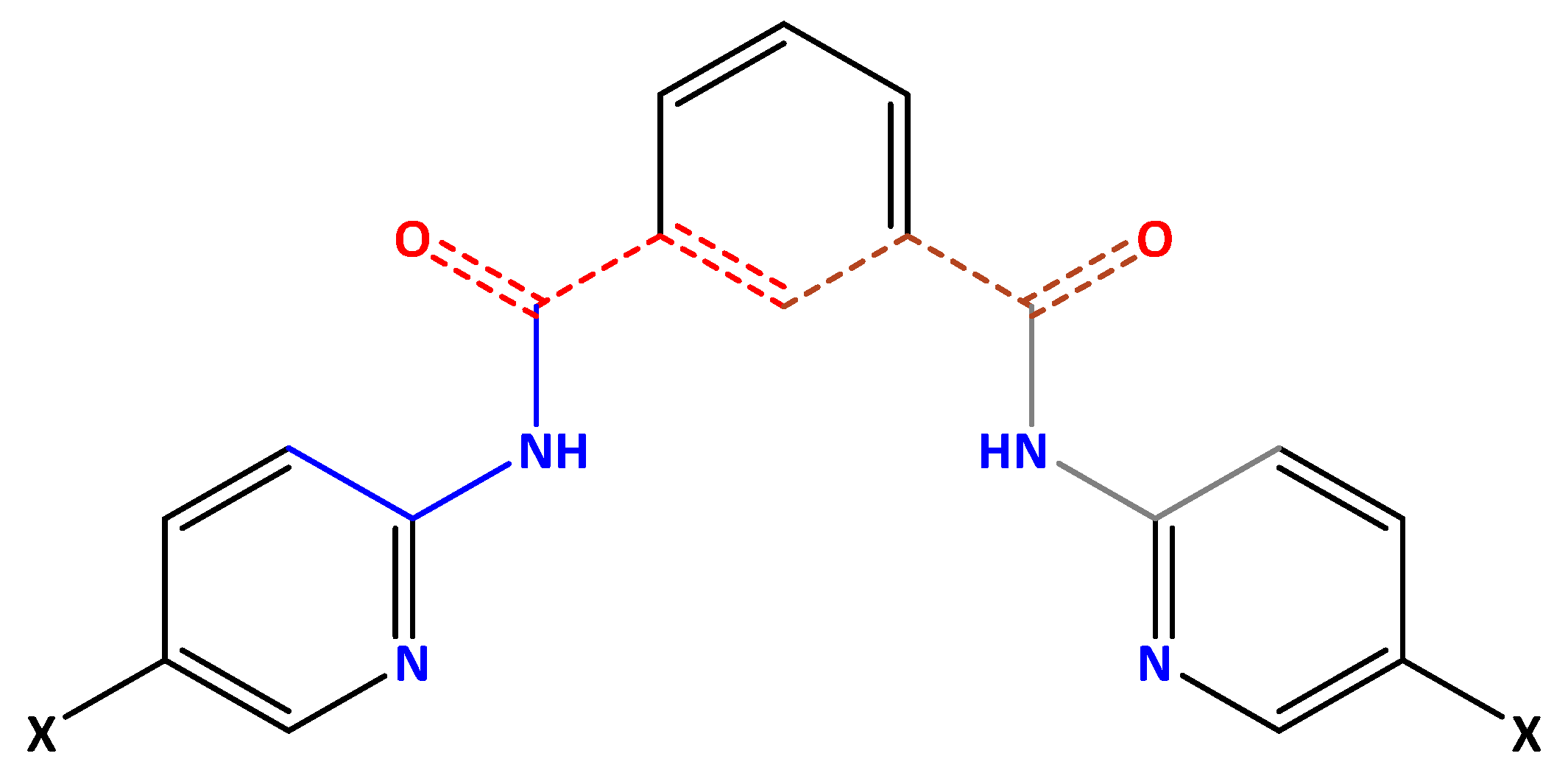

Conformational analysis is a useful approach to understand the relationships between energy and geometry [17,18,19,20]. The possibility of attaining different conformational preferences as influenced by steric and electronic factors may be realised by varying the position of carbonyl groups relative to the aromatic rings and to the position of the N atom in the pyridine rings (Figure 7). Because the substituents atoms are located para, the effect of pyridine ring rotation is not influenced by the para-substituent nature. Only the position of the pyridine ring with respect to the amide linkage is responsible for the change in the energy as shown in PES diagrams (Figure 8) as represented by a blue curve. The lowest energy is obtained by having the Npyridine in the opposite direction to the carbonyl group and planar with the amide linkage. The rotation of the pyridine ring in the syn-syn conformation to the perpendicular position increases the molecular energy (TSNI) by 36.5 ± 0.5 kJ mol−1 (as for F-DIP increasing to 34 kJ mol−1 and for NO2-DIP to 44 kJ mol−1). If the rotation occurs with the Npyridine in the same direction of the carbonyl group, it increases the energy of molecule (TSNII) by 38.1 ± 0.5 kJ mol−1 (only NO2-DIP increases to 44 kJ mol−1). In I-DIP, the energy increase reaches 56.8 kJ mol−1and 57 kJ mol−1, respectively. This highlights and ties in with the analysis of the X-DIP crystal structures that their torsion angles are always close to the global minimum point (Figure 8).

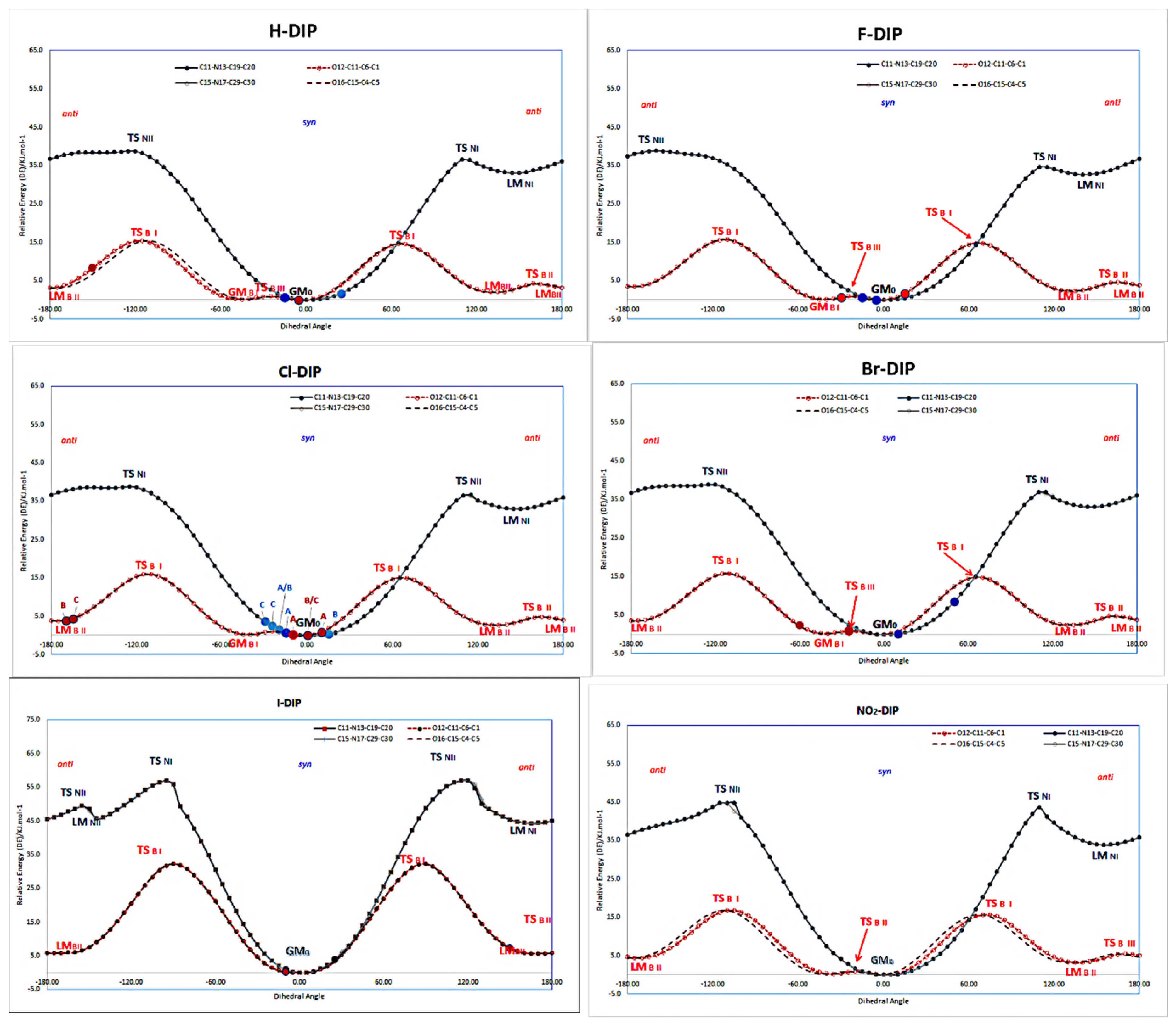

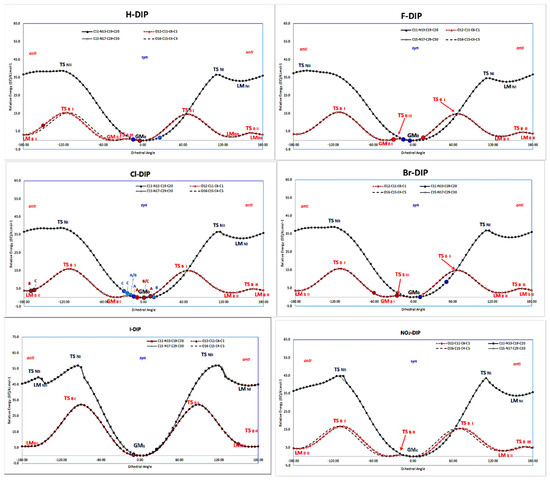

The rotation of the carbonyl group around the phenyl ring as represented by the red curve in the PES (Figure 8) is found to be more flexible since the maximum transition point is 15.8 ± 1 kJ mol−1 in all syn-syn conformations and can be observed in the crystal structure torsion angles of H-DIP and Cl-DIP. The corresponding transition energy doubles in I-DIP. The PES for the X-DIP compounds shows the lowest energy molecule to adopt the syn-syn conformation, then the anti-anti conformation, as noted in the F-DIP and Cl-DIP (molecule A) structures. Although the syn-anti conformation is found to have a relatively high energy compared with the other two conformations, it is seen in the H-DIP, Cl-DIP (molecules B, C) and I-DIP crystal structures. Differences between the syn-syn and syn-anti conformations do not exceed 5.0 kJ mol−1; however, the difference between the anti-anti and syn-anti conformation varies by up to 10 kJ mol−1.

12. Conclusions, Insights and Future Work

Isophthalamides are an interesting group of molecules that provide a diverse range of structural types as noted in their crystal structures. The development of molecules with functional groups and directing components to facilitate subtle structural changes is of interest. The crystal and model structures of the N1,N3-di(pyridin-2-yl)isophthalamide H-DIP and four N1,N3-bis(5-X-pyridin-2-yl)isophthalamides (X = F, Br, Cl, I) as X-DIP are reported, with an assessment of the roles which their molecular conformations and interactions play in solid-state aggregation. Peculiarly, Cl-DIP (Z’ = 3) exhibits two different syn/anti and anti/anti molecular conformations. The hydrogen bonding hierarchy and sheet formation in Br-DIP creates a bromine-rich environment that manifest as a ‘wall of bromine atoms’ at the 2D sheet interfaces (ESI: Figures S5 and S6a,b). This leads to the possibility for use as potential model structures for bromine-rich surface environments and interfaces in materials science structures. The Br-DIP crystal structure is reminiscent of the lead(II) bromide and copper(II) bromide structures as presented for PbBr2 in Figure S6d [60,61]. For I-DIP•½(H2O), the hemihydrate forms a rare synthon involving a water molecule sandwiched between two I-DIP molecules. The X-DIP compounds are being further modified with the development of new mixed amide-imide and di-imide systems of interest in several research areas [62].
Much research has gone into understanding intermolecular interactions such as halogen bonding in order to facilitate the construction of new materials [14,32,63]. When presented with a rare type of structural feature, it can promote a new direction in a research program. The changing of H by F is feasible and in many X-ray crystal structures does not yield a different structural type e.g., in fluorobenzamides [18]. A small and subtle shift of changing the meta-H to a meta-F atom in the bromopyridine ring in Br-DIP may be able to facilitate the wall of bromines being augmented by F atoms in the indentations, thereby further enhancing of the halogen-rich interface [14,63]. Model compounds such as this can be useful in designing new materials, or at least be used to study interesting, halogenated surfaces.
Contact enrichment analysis on the Hirshfeld surface pinpoints that the F, Br, Cl-DIP compounds have very over-represented halogen…halogen interactions [14,46]. In the crystal packing of the F-DIP, Cl-DIP and Br-DIP compounds, the molecules have an elongated skeleton and form layers of halogen atoms in planes perpendicular to the long unit cell axis. This kind of behaviour is often observed in elongated molecules which are halogenated at their extremities and may prove useful in the future design of new layered materials with specific functionalities.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/sym15030738/s1. Crystallographic data for the five X-DIP crystal structures are deposited with the Cambridge Crystallographic Data Centre, CCDC numbers 2171172 to 2171177. The Cl-DIP structural data have been collected using both Cu (2171174) and Mo (2171175) radiation. CIF data may be accessed from the CCDC. Data are available as CIF files from the corresponding author in DCU—J.F.G. ESI_Part-1_Synthesis. Enlarged Figure 8 and Optimized structures. ESI_Part-2_Structures. Table S1 (Crystal Structure Experimental details). Table S2 (Selected hydrogen-bond parameters). Table S3 (The X-DIP melting point ranges); CSD studies and parameters. Figures S1–S7: (for the H-DIP, F-DIP, Cl-DIP, Br-DIP and I-DIP·0.5(H2O) structures. Figure S8: Contact types on the Hirshfeld surfaces of Cl-DIP. Table S4: Hirshfeld Surface content SX, actual contacts CXY and enrichment ratios EXY. Figure S9: Views of the five X-DIP crystals as mounted prior to data collection. ESI_Part-3_Fingerprint plots. Finger plots for the X-DIPS.

Author Contributions

I.A.O.: synthesis, methodology, molecular modelling, software, analysis; V.M.: data collection, structure solution, refinement, crystal structure analysis; V.M. and J.F.G.: design, crystal structure analysis, data curation, writing and editing; C.J.: contacts analysis, Hirshfeld analysis, writing and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Additional data pertaining to this publication are available in the ESI.

Acknowledgments

Acknowledgments J.F.G. and I.A.O. thank Dublin City University for research chemical funding. We hereby thank Pavle Mocilac (Department of Nuclear Science & Technology, Lanzhou University, Gansu, China) and Niall Hehir (APC Ltd.) for discussions on supramolecular chemistry and ligand/macrocyclic syntheses over several years of postgraduate research.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the research work as reported in this scientific paper.

References

  1. Constable, E.; Parkin, G.; Que, L. (Eds.) Comprehensive Coordination Chemistry III, 3rd ed.; Elsevier: Amsterdam, The Netherlands, 2021; ISBN 9780081026885. [Google Scholar]
  2. Stradiotto, M.; Lundgren, R.J. Ligand Design in Metal Chemistry; J. Wiley & Sons Ltd.: Hoboken, NJ, USA, 2016. [Google Scholar] [CrossRef]
  3. Storr, T. (Ed.) Ligand Design in Medicinal Inorganic Chemistry; J. Wiley & Sons Ltd.: Hoboken, NJ, USA, 2014. [Google Scholar] [CrossRef]
  4. Silverman, R.B.; Holladay, M.W. The Organic Chemistry of Drug Design and Drug Action, 3rd ed.; Academic Press: Cambridge, MA, USA, 2014. [Google Scholar] [CrossRef]
  5. Malone, J.F.; Murray, C.M.; Dolan, G.M.; Docherty, R.; Lavery, A.J. Intermolecular Interactions in the Crystal Chemistry of N,N‘-Diphenylisophthalamide, Pyridine-2,6-dicarboxylic Acid Bisphenylamide, and Related Compounds. Chem. Mater. 1997, 9, 2983–2989. [Google Scholar] [CrossRef]
  6. Gondi, S.R.; Son, D.R. Synthesis of N,N′-bis(2-Thiazolinyl)-, N,N′-bis(2-Thiazolyl)-, and N,N′-bis(2-Pyrimidinyl)-Benzene Dicarboxamides. Synth. Commun. 2004, 34, 3061–3072. [Google Scholar] [CrossRef]
  7. Odago, M.O.; Hoffman, A.E.; Carpenter, R.L.; Chi Tak Tse, D.; Sun, S.S.; Lees, A.J. Thioamide, urea and thiourea bridged rhenium(I) complexes as luminescent anion receptors. Inorg. Chim. Acta 2011, 374, 558–565. [Google Scholar] [CrossRef]
  8. Zhang, D.W.; Zhao, X.; Hu, J.L.; Li, Z.T. Aromatic Amide Foldamers: Structures, Properties, and Functions. Chem. Rev. 2012, 112, 5271–5316. [Google Scholar] [CrossRef]
  9. Yashima, E.; Ousaka, N.; Taura, D.; Shimomura, K.; Ikai, T.; Maeda, K. Supramolecular Helical Systems: Helical Assemblies of Small Molecules, Foldamers, and Polymers with Chiral Amplification and Their Functions. Chem. Rev. 2016, 116, 13752–13990. [Google Scholar] [CrossRef]
  10. Ferrand, Y.; Huc, I. Designing Helical Molecular Capsules Based on Folded Aromatic Amide Oligomers. Acc. Chem. Res. 2018, 51, 970–977. [Google Scholar] [CrossRef]
  11. Desiraju, G.R.; Steiner, T. The Weak Hydrogen Bond in Structural Chemistry and Biology; Oxford University Press: Oxford, UK, 2001. [Google Scholar]
  12. Martinez, C.R.; Iverson, B.L. Rethinking the term “pi-stacking”. Chem. Sci. 2012, 3, 2191–2201. [Google Scholar] [CrossRef] [Green Version]
  13. Alvarez, S. A cartography of the van der Waals territories. Dalton Trans. 2013, 42, 8617–8636. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Desiraju, G.R.; Ho, P.S.; Kloo, L.; Legon, A.C.; Marquardt, R.; Metrangolo, P.; Politzer, P.; Resnati, G.; Rissanen, K. Definition of the halogen bond (IUPAC Recommendations 2013). Pure Appl. Chem. 2013, 85, 1711–1713. [Google Scholar] [CrossRef]
  15. Politzer, P.; Murray, J.S. The use and misuse of van der Waals radii. Struct. Chem. 2021, 32, 623–629. [Google Scholar] [CrossRef]
  16. McMahon, J.; Gallagher, J.F.; Anderson, F.P.; Lough, A.J. A structural systematic study of four isomers of difluoro-N-(3-pyridyl)benzamide. Acta Crystallogr. 2009, C65, 345–351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Mocilac, P.; Tallon, M.; Lough, A.J.; Gallagher, J.F. Synthesis, structural and conformational analysis of a 3 × 3 isomer grid based on nine methyl-N-(pyridyl)benzamides. CrystEngComm 2010, 12, 3080–3090. [Google Scholar] [CrossRef] [Green Version]
  18. Mocilac, P.; Donnelly, K.; Gallagher, J.F. Structural systematics and conformational analyses of a 3 × 3 isomer grid of fluoro-N-(pyridyl)benzamides: Physicochemical correlations, polymorphism and isomorphous relationships. Acta Crystallogr. 2012, B68, 189–203. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Gallagher, J.F.; Farrell, M.; Hehir, N.; Mocilac, P.; Aubert, E.; Espinosa, E.; Guillot, B.; Jelsch, C. At the Interface of Isomorphous Behavior in a 3 × 3 Isomer Grid of Monochlorobenzamides: Analyses of the Interaction Landscapes via Contact Enrichment Studies. Cryst. Growth Des. 2019, 19, 6141–6158. [Google Scholar] [CrossRef]
  20. Mocilac, P.; Gallagher, J.F. Monohalogenated carbamates where hydrogen bonding rules without halogen bonding: Is there a link between poor carbamate crystal growth and Z′ > 1? CrystEngComm 2019, 21, 4048–4062. [Google Scholar] [CrossRef]
  21. Khavasi, H.R.; Tehrani, A.A. Effect of halogen bonding interaction on supramolecular assembly of halogen-substituted phenylpyrazinamides. CrystEngComm 2013, 15, 3222–3235. [Google Scholar] [CrossRef]
  22. Abeysekera, A.M.; Day, V.W.; Sinha, A.S.; Aakeröy, C.B. Mapping out the Relative Influence of Hydrogen and Halogen Bonds in Crystal Structures of a Family of Amide-Substituted Pyridines. Cryst. Growth Des. 2020, 20, 7399–7410. [Google Scholar] [CrossRef]
  23. Dasgupta, M.; Nag, S.; Das, G.; Nethaji, M.; Bhattacharya, S. N,N′-Bis(aryl)pyridine-2,6-dicarboxamide complexes of ruthenium: Synthesis, structure and redox properties. Polyhedron 2008, 27, 139–150. [Google Scholar] [CrossRef]
  24. Møller, M.S.; Liljedahl, M.C.; McKee, V.; McKenzie, C.J. Solid phase nitrosylation of enantiomeric cobalt(II) complexes. Chemistry 2021, 3, 585–597. [Google Scholar] [CrossRef]
  25. Osman, I.A. Chapter 3. Ph.D. Thesis, Dublin City University, Dublin, Ireland, 2021. [Google Scholar]
  26. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. 2008, A64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  27. Macrae, C.F.; Sovago, I.; Cottrell, S.J.; Galek, P.T.A.; McCabe, P.; Pidcock, E.; Platings, M.; Shields, G.P.; Stevens, J.S.; Towler, M.; et al. Mercury 4.0: From visualization to analysis, design and prediction. J. Appl. Crystallogr. 2020, 53, 226–235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 2003, 36, 7–13. [Google Scholar] [CrossRef] [Green Version]
  29. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09 Revision B.01; Gaussian Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  30. Becke, A.D. Density-Functional Thermochemistry. 3. The Role of Exact Exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar]
  31. Krishnan, R.; Binkley, J.S.; Seeger, R.; Pople, J.A. Self-Consistent Molecular-Orbital Methods. 20. Basis Set for Correlated Wave-Functions. J. Chem. Phys. 1980, 72, 650–654. [Google Scholar]
  32. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta Crystallogr. 2016, B72, 171–179. [Google Scholar] [CrossRef]
  33. Spackman, P.R.; Turner, M.J.; McKinnon, J.J.; Wolff, S.K.; Grimwood, D.J.; Jayatilaka, D.; Spackman, M.A. CrystalExplorer: A program for Hirshfeld surface analysis, visualization and quantitative analysis of molecular crystals. J. Appl. Crystallogr. 2021, 54, 1006–1011. [Google Scholar] [CrossRef]
  34. Guillot, B.; Enrique, E.; Huder, L.; Jelsch, C. MoProViewer: A tool to study proteins from a charge density science perspective. Acta Crystallogr. 2014, C70, 279. [Google Scholar] [CrossRef]
  35. Czerny, F.; Döhlert, P.; Weidauer, M.; Irran, E.; Enthaler, S. Synthesis, characterization and application of nickel(II) complexes modified with N,N′,N″-pincer ligands. Inorg. Chim. Acta 2015, 425, 118–123. [Google Scholar] [CrossRef]
  36. Meyer, K.; Dalebrook, A.F.; Wright, L.J. Selective palladation of a large (32 ring atom) macrocyclic ligand at a bis(N-heterocyclic carbene) coordination pocket through transmetallation of the corresponding mercury(ii) derivative. Dalton Trans. 2012, 41, 14059–14067. [Google Scholar] [CrossRef]
  37. Chen, M.S.; Chen, S.S.; Okamura, T.A.; Su, Z.; Ueyama, N. Syntheses and crystal structures of two supramolecular isomers of manganese (II) with 3,5-bis(isonicotinamido) benzoate. J. Coord. Chem. 2009, 62, 2421–2428. [Google Scholar] [CrossRef]
  38. Ichii, T.; Arikawa, T.; Omoto, K.; Hosono, N.; Sato, H.; Kitagawa, S.; Tanaka, K. Observation of an exotic state of water in the hydrophilic nanospace of porous coordination polymers. Nat. Chem. Commun. 2020, 3, 16. [Google Scholar] [CrossRef] [Green Version]
  39. Waris, G.; Siddiqi, H.M.; Flörke, U.; Hussain, R.; Butt, M.S. N, N′-Bis (4-bromophenyl) pyridine-2, 6-dicarboxamide. Acta Crystallogr. 2013, E69, o416. [Google Scholar] [CrossRef] [Green Version]
  40. Gallagher, J.F.; Hehir, N.; Mocilac, P.; Violin, C.; O’Connor, B.F.; Aubert, E.; Espinosa, E.; Guillot, B.; Jelsch, C. Probing the Electronic Properties and Interaction Landscapes in a Series of N-(Chlorophenyl)pyridinecarboxamides. Cryst. Growth Des. 2022, 22, 3343–3358. [Google Scholar] [CrossRef] [PubMed]
  41. Ahmed, E.; Karothu, D.P.; Pejov, L.; Commins, P.; Hu, Q.; Naumov, P. From Mechanical Effects to Mechanochemistry: Softening and Depression of the Melting Point of Deformed Plastic Crystals. J. Am. Chem. Soc. 2020, 142, 11219–11312. [Google Scholar] [CrossRef] [PubMed]
  42. Jelsch, C.; Ejsmont, K.; Huder, L. The enrichment ratio of atomic contacts in crystals, an indicator derived from the Hirshfeld surface analysis. IUCrJ 2014, 1, 119–128. [Google Scholar] [CrossRef] [PubMed]
  43. Salonen, L.M.; Ellermann, M.; Diederich, F. Aromatic rings in chemical and biological recognition: Energetics and structures. Angew. Chem. Int. Ed. 2011, 50, 4808–4842. [Google Scholar] [CrossRef]
  44. Jelsch, C.; Soudani, S.; Ben Nasr, C. Likelihood of atom-atom contacts in crystal structures of halogenated organic compounds. IUCrJ 2015, 2, 327–340. [Google Scholar] [CrossRef]
  45. Jelsch, C.; Bibila Mayaya Bisseyou, Y. Atom interaction propensities of oxygenated chemical functions in crystal packings. IUCrJ 2017, 4, 158–174. [Google Scholar] [CrossRef]
  46. Metrangolo, P.; Resnati, G. Type II halogen···halogen contacts are halogen bonds. IUCrJ 2014, 1, 5–7. [Google Scholar] [CrossRef]
  47. Ramasubbu, N.; Parathasarathy, R.; Murray-Rust, P. Angular preferences of intermolecular forces around halogen centers: Preferred directions of approach of electrophiles and nucleophiles around carbon-halogen bond. J. Am. Chem. Soc. 1986, 108, 4308–4314. [Google Scholar] [CrossRef]
  48. Thalladi, V.R.; Weiss, H.C.; Bläser, D.; Boese, R.; Nangia, A.; Desiraju, G.R. C−H···F Interactions in the Crystal Structures of Some Fluorobenzenes. J. Am. Chem. Soc. 1998, 120, 8702–8710. [Google Scholar] [CrossRef]
  49. Britton, D. 4,4′-diiodobiphenyl. Acta Crystallogr. 2005, E61, o187–o188. [Google Scholar] [CrossRef]
  50. Lemee, M.H.; Toupet, L.; Delugeard, Y.; Messager, J.C.; Cailleau, H. Crystal structure and thermal-motion analysis of 4,4′-difluorobiphenyl. Acta Crystallogr. 1987, B43, 466–470. [Google Scholar] [CrossRef]
  51. Chopra, D.; Row, T.G. Evaluation of the interchangeability of C–H and C–F groups: Insights from crystal packing in a series of isomeric fluorinated benzanilides. CrystEngComm 2008, 10, 54–67. [Google Scholar] [CrossRef]
  52. Okamoto, T.; Reese, C.; Senatore, M.L.; Tang, M.L.; Jiang, Y.; Parkin, S.R.; Bao, Z. 2,9-Dibromopentacene: Synthesis and the role of substituent and symmetry on solid-state order. Synth. Met. 2010, 21, 2447–2451. [Google Scholar] [CrossRef]
  53. Saraswatula, V.G.; Saha, B.K. The effect of temperature on interhalogen interactions in a series of isostructural organic systems. New J. Chem. 2014, 38, 897–901. [Google Scholar] [CrossRef]
  54. Ding, X.; Zahid, E.; Unruh, D.K.; Hutchins, K.M. Differences in thermal expansion and motion ability for herringbone and face-to-face π-stacked solids. IUCrJ 2022, 9, 31–42. [Google Scholar] [CrossRef] [PubMed]
  55. Varadwaj, A.; Varadwaj, P.R.; Marques, H.M.; Yamashita, K. A DFT assessment of some physical properties of iodine-centered halogen bonding and other non-covalent interactions in some experimentally reported crystal geometries. Phys. Chem. Chem. Phys. 2018, 20, 15316–15329. [Google Scholar] [CrossRef]
  56. Shallangwa, G.A.; Uzairu, A.; Oltunji Ajibola, V.; Abba, H. Computational Study of the Mechanism of the Oxidation of Hydrazine/Hydrazinium Ion by Iodine in the Gas Phase. Int. J. Comp. Theor. Chem. 2015, 3, 6–18. [Google Scholar] [CrossRef] [Green Version]
  57. Saccone, M.; Terraneo, G.; Pilati, T.; Cavallo, G.; Priimagi, A.; Metrangolo, P.; Resnati, G. Azobenzene-based difunctional halogen-bond donor: Towards the engineering of photoresponsive co-crystals. Acta Crystallogr. 2014, B70, 149–156. [Google Scholar] [CrossRef] [PubMed]
  58. Wang, C.; Danovich, D.; Mo, Y.; Shaik, S. On The Nature of the Chemical Bond. J. Chem. Theory Comput. 2014, 10, 3726–3737. [Google Scholar] [CrossRef] [PubMed]
  59. Kuznetsov, M.L. Relationships between Interaction Energy and Electron Density Properties for Homo Halogen Bonds of the [(A)nY–X···X–Z(B)m] Type (X = Cl, Br, I). Molecules 2019, 24, 2733. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Lumbreras, M.; Protas, J.; Jebbari, S.; Dirksen, G.J.; Schoonman, J. Structure and ionic conductivity of mixed lead halides PbCl2xBr2(1−x). II. Solid State Ion. 1986, 20, 295–304. [Google Scholar] [CrossRef]
  61. Altawarneh, M.; Marashdeh, A.; Dlugogorski, B.Z. Structures, electronic properties and stability phase diagrams for copper(I/II) bromide surfaces. Phys. Chem. Chem. Phys. 2015, 17, 9341–9351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Meng, G.R.; Zhang, J.; Szostak, M. Acyclic Twisted Amides. Chem. Rev. 2021, 21, 12746–12783. [Google Scholar] [CrossRef] [PubMed]
  63. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The Halogen Bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
Symmetry 15 00738 sch001 550
Scheme 1. The N1,N3-bis(5-X-pyridin-2-yl)isophthalamides (X = H, F to I, NO2) or X-DIPs as depicted in the anti/anti conformation (with respect to the amide groups).
Scheme 1. The N1,N3-bis(5-X-pyridin-2-yl)isophthalamides (X = H, F to I, NO2) or X-DIPs as depicted in the anti/anti conformation (with respect to the amide groups).
Symmetry 15 00738 sch001
Symmetry 15 00738 sch002 550
Scheme 2. Isophthalic acid (1) and isophthaloyl dichloride (2) synthetic routes [25].
Scheme 2. Isophthalic acid (1) and isophthaloyl dichloride (2) synthetic routes [25].
Symmetry 15 00738 sch002
Symmetry 15 00738 g007 550
Figure 7. The X-DIP structure showing the torsion angles as analyzed.
Figure 7. The X-DIP structure showing the torsion angles as analyzed.
Symmetry 15 00738 g007
Symmetry 15 00738 g008 550
Figure 8. Conformational analyses of the X-DIP molecules: the equivalent solid-state angle is shown with an identification letter and/or occupancy (%) if required. I-DIP is represented without the hemihydrate and data are not available for NO2-DIP.
Figure 8. Conformational analyses of the X-DIP molecules: the equivalent solid-state angle is shown with an identification letter and/or occupancy (%) if required. I-DIP is represented without the hemihydrate and data are not available for NO2-DIP.
Symmetry 15 00738 g008
Table
Table 1. Selected crystallographic data for X-DIPs (full details are listed; ESI Part II).
Table 1. Selected crystallographic data for X-DIPs (full details are listed; ESI Part II).
Crystal StructureCrystal System:
Space Group		Z’Volume (Å3)R, wR2 R-Factors, GoF
H-DIPTriclinic, P 1 ¯ (No. 2)1713.43 (4)0.031, 0.078, 1.030
F-DIPMonoclinic, P21/c (No. 14)11559.71 (8)0.045, 0.111, 1.026
Cl-DIPTriclinic, P 1 ¯ (No. 2)32553.5 (3)0.062, 0.162, 1.075
Br-DIPMonoclinic, C2/c (No. 15)13509.3 (6)0.078, 0.205, 1.045
I-DIP•½(H2O)Monoclinic, P2/c (No. 13)11814.49 (5)0.023, 0.056, 1.060
Footnote: R-factors defined as R[F2 > 2σ(F2)], wR(F2) [26]. GoF: goodness of fit.
Table
Table 2. Salient structural features of the five X-DIPs: angle between planes (°) and H-bond donor⋯acceptor distances (Å).
Table 2. Salient structural features of the five X-DIPs: angle between planes (°) and H-bond donor⋯acceptor distances (Å).
StructureC6/C5NC6/AmideC5N/AmideN⋯N/O #Primary H-Bond
H-DIP68.17 (3)
5.65 (7)		49.60 (4)
19.49 (6)		15.04 (15)
14.10 (6)		3.1252 (13)
3.3425 (13)		amide⋯amide
amide⋯pyridine
F-DIP47.20 (4)
14.20 (6)		45.69 (4)
10.47 (7)		3.22 (7)
3.97 (7)		3.3129 (19)
3.2605 (16)		amide⋯amide
amide⋯pyridine
Cl-DIP (in sequence for molecules A, B, C)11.6 (3)
15.7 (3),
10.3 (3)
24.5 (2),
9.3 (3)
10.2 (3)		30.3 (2)
31.6 (2),
29.3 (2)
21.8 (2),
33.5 (2)
19.4 (2)		26.6 (2)
17.3 (3),
20.7 (3)
3.0 (3),
26.9 (2)
28.9 (2)		2.924 (4)
3.029 (5),
2.973 (4)
3.289 (4),
2.865 (4)
3.078 (4)		amide⋯amide
Br-DIP36.4 (2)
46.6 (2)		38.8 (2)
1.5 (4)		2.6 (3)
47.8 (2)		3.186 (8)
2.999 (8)		amide⋯amide
amide⋯pyridine
I-DIP•½(H2O)4.6 (2)
19.21 (15)		28.8 (3)
9.0 (6)		24.2 (3)
10.2 (5)		2.897 (4)
2.931 (3)
2.833 (3)		amide⋯H2O
(pyridine)N⋯I-C
Footnote: C6 is the isophthaloyl ring; C5N represents the terminal pyridine rings. The amides are represented as the adjoining five atom C-C(=O)NC plane. The # refers to the ‘Primary hydrogen bonding⋯pyridine’. Primary hydrogen bonding; usually as either amide⋯amide or amide⋯pyridine.
Table
Table 3. Torsion angles (°) of the optimized X-DIPs by DFT (B3LYP/6-311++G**) method.
Table 3. Torsion angles (°) of the optimized X-DIPs by DFT (B3LYP/6-311++G**) method.
Dihedral
Angle		O1–C1–C11–C12 (α1) C1–N1–C21–C26 (β1) O1–C1–N1–H1
(γ1)		O2–C2–C13–C12 (α2)C2–N2–C31–C36 (β2) O2–C2–N2–H2 (γ2)Molecular Energy (103 kJ mol−1)
H-DIP152.38−4.12171.73152.38−4.12171.73−2793.9
F-DIP152.31−4.04171.68152.31−4.04171.67−3315.1
Cl-DIP152.53−3.98171.68152.53−3.98171.69−5207.4
Br-DIP152.43−3.98171.63152.43−3.97171.63−16,307.6
NO2-DIP152.48−4.00171.18152.48−3.98171.20−3868.04
Table
Table 4. Torsion angles (°) of the optimized I-DIP conformations by DFT (B3LYP/3-21G) method.
Table 4. Torsion angles (°) of the optimized I-DIP conformations by DFT (B3LYP/3-21G) method.
I-DIPO1–C1–C11–C12 (α1)C1–N1–C21–C26 (β1)O1–C1–N1–H1
(γ1)		O2–C2–C13–C12 (α2)C2–N2–C31–C36 (β2)O2–C2–N2–H2
(γ2)		Molecular Energy (103 kJ mol−1)
syn-syn170.73−0.41175.15170.72−0.40175.51−38,982.94
syn-anti−13.20164.03163.25−178.750.04−179.41−38,982.73
anti-anti−17.65161.91161.16−17.65161.91161.16−38,982.84
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Osman, I.A.; McKee, V.; Jelsch, C.; Gallagher, J.F. Roles of Hydrogen, Halogen Bonding and Aromatic Stacking in a Series of Isophthalamides. Symmetry 2023, 15, 738. https://doi.org/10.3390/sym15030738

AMA Style

Osman IA, McKee V, Jelsch C, Gallagher JF. Roles of Hydrogen, Halogen Bonding and Aromatic Stacking in a Series of Isophthalamides. Symmetry. 2023; 15(3):738. https://doi.org/10.3390/sym15030738

Chicago/Turabian Style

Osman, Islam Ali, Vickie McKee, Christian Jelsch, and John F. Gallagher. 2023. "Roles of Hydrogen, Halogen Bonding and Aromatic Stacking in a Series of Isophthalamides" Symmetry 15, no. 3: 738. https://doi.org/10.3390/sym15030738

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
