Symmetry-Aware Credit Risk Modeling: A Deep Learning Framework Exploiting Financial Data Balance and Invariance

Abstract

With the proliferation of mobile devices and payment systems in modern financial services, there is an increasing need to process and analyze continuous streams of transaction data for credit risk assessment. Leveraging the inherent symmetries in financial markets and data structures, this paper introduces DeepCreditRisk, a symmetry-aware deep learning framework that addresses key challenges while maintaining critical invariance properties in financial data representation. The framework incorporates three main components: an adaptive temporal fusion mechanism, a heterogeneous graph neural network, and an attention-based interpretable output layer. The temporal fusion mechanism effectively models both short-term fluctuations and long-term trends in financial time series, while the heterogeneous graph neural network captures intricate relationships within the financial ecosystem. The framework maintains important symmetrical properties in both temporal and structural representations, ensuring balanced feature learning and invariant risk assessment. The attention-based output layer preserves representation symmetry while enhancing model interpretability. Extensive experiments on a large-scale credit risk dataset demonstrate DeepCreditRisk’s superior performance, achieving a 7.2% improvement in the Area Under the Receiver Operating Characteristic Curve (AUC-ROC) and an 18.6% improvement in the Kolmogorov–Smirnov (KS) statistic over state-of-the-art baseline models. The framework maintains high predictive power across various time horizons and provides interpretable insights into feature importance. DeepCreditRisk represents a significant advancement in applying deep learning to credit risk assessment, offering financial institutions a more accurate, robust, and transparent approach for evaluating creditworthiness and managing risk.

1. Introduction

Credit risk modeling focuses on quantifying the probability of default in financial obligations, a critical challenge that requires the translation of complex financial behaviors into measurable risk assessments. At its core, this involves analyzing temporal patterns in borrowers’ financial activities, relationships between various financial entities, and hierarchical features that, together, signal potential defaults. Credit risk modeling is a critical component in the financial sector, playing a pivotal role in decision-making processes that impact both individual borrowers and the broader economy. Accurate assessment of credit risk is essential for financial institutions to maintain stability, allocate resources efficiently, and make informed lending decisions [1,2]. In recent years, the advent of machine learning and, more specifically, deep learning techniques has opened new avenues for enhancing the accuracy and robustness of credit risk models [3]. The importance of credit risk modeling in the financial industry cannot be overstated. First, effective credit risk assessment helps financial institutions minimize potential losses by identifying high-risk borrowers [4]. Second, it enables more precise pricing of loans and credit products, ensuring that interest rates accurately reflect the level of risk associated with each borrower [5]. Third, robust credit risk models contribute to the overall stability of the financial system by reducing the likelihood of systemic crises caused by widespread loan defaults [6].

Traditional approaches to credit risk modeling have relied heavily on statistical methods such as logistic regression and discriminant analysis [7]. While these methods have proven effective to some extent, they often fall short in capturing the complex, non-linear relationships inherent in financial data. The limitations of traditional models are manifold. First, they exhibit a limited ability to handle high-dimensional data and complex interactions between variables [8]. Second, they struggle to incorporate dynamic, time-dependent features that may significantly impact credit risk [9]. Third, they lack adaptability to rapidly changing economic conditions and emerging risk factors [10]. On the other side, modern financial systems increasingly rely on IoT devices for data collection and real-time monitoring. Payment terminals and mobile devices generate continuous streams of transaction data, creating new opportunities and challenges for credit risk assessment. These data sources provide rich, real-time information about borrower behavior and financial patterns. The integration of such data has become particularly crucial, as traditional models struggle to capture the increasingly dynamic nature of financial transactions in the digital age. To address these challenges, researchers have increasingly turned to machine learning techniques [11]. First, ensemble methods such as random forests and gradient boosting machines have shown promise in improving predictive accuracy [12]. Second, support vector machines have demonstrated thee ability to handle non-linear relationships in credit risk data [13]. However, these methods still have limitations in terms of their ability to automatically extract relevant features and capture long-term dependencies in financial time-series data.

Deep learning, with its capacity to learn hierarchical representations from raw data, presents a promising solution to the aforementioned challenges. Recent advancements in deep learning architectures have led to significant improvements in various domains, including natural language processing, computer vision, and time-series analysis [14]. However, the application of deep learning to credit risk modeling is not without its own set of challenges. First, the interpretability of deep learning models remains a significant concern, particularly in the heavily regulated financial industry, where model transparency is crucial [15]. Second, capturing complex temporal dependencies and interdependencies between various financial factors in credit risk assessment can be challenging for standard deep learning architectures [16,17]. Third, incorporating diverse data types, including structured financial data, unstructured text, and network information, into a unified model presents significant technical hurdles [18].

In addition, financial markets inherently exhibit various forms of symmetry, from the balance between buying and selling forces to the invariance in risk patterns across different market conditions. Traditional credit risk models often fail to capture and preserve these symmetrical properties, leading to biased assessments. The importance of maintaining symmetry in credit risk modeling manifests in three key aspects: (1) the balanced representation of positive and negative risk factors, (2) the temporal invariance of risk patterns across different market cycles, and (3) the structural symmetry in financial networks formed by different market participants.

In light of these challenges, this paper introduces DeepCreditRisk, a novel deep learning framework designed specifically for credit risk modeling. Our approach leverages state-of-the-art neural network architectures to address the limitations of existing methods and push the boundaries of credit risk assessment accuracy. Specifically, our framework incorporates the following innovations to tackle the aforementioned challenges: 1. To address the interpretability concern, we integrate an attention mechanism into our model architecture. This not only enhances the model’s performance but also provides insights into which features are most important for each prediction, thereby improving model transparency [19]. 2. To capture complex temporal dependencies, we propose a novel adaptive temporal fusion mechanism. This approach combines the strengths of Transformer networks [19] with a dynamic time-warping alignment layer [20]. Our mechanism allows the model to effectively capture both local and global temporal patterns while also adapting to the varying time scales present in financial data. This innovative design enables our model to handle the non-stationary nature of financial time series and capture intricate temporal relationships that are crucial for accurate credit risk assessment. 3. To incorporate diverse data types and capture interdependencies between borrowers, we utilize graph neural networks (GNNs) with a novel heterogeneous graph structure. This enables our model to leverage network effects and peer-group information, providing a more comprehensive view of credit risk [21]. Our heterogeneous graph incorporates not only borrower-to-borrower relationships but also borrower-to-financial instrument and borrower-to-economic indicator relationships, allowing for a richer representation of the complex financial ecosystem.

The main contributions of this paper are outlined as follows:

• We propose DeepCreditRisk, an innovative deep learning framework that combines attention mechanisms, a novel adaptive temporal fusion mechanism, and heterogeneous graph neural networks to address the key challenges in deep learning-based credit risk modeling.
• We introduce a novel attention-based feature importance method that enhances model interpretability while automatically identifying and weighting the most relevant financial indicators for credit risk assessment.
• We develop an adaptive temporal fusion mechanism that effectively captures both local and global temporal dependencies in financial time-series data, adapting to varying time scales and non-stationary patterns.
• We present a heterogeneous graph-based representation learning technique that incorporates network effects and peer-group information into the credit risk model, capturing complex interdependencies within the financial ecosystem.
• We provide a comprehensive experimental evaluation using a large-scale credit risk dataset, demonstrating significant improvements over traditional machine learning methods and existing deep learning approaches. We offer an in-depth analysis of our model’s interpretability, addressing concerns about the “black-box” nature of deep learning models in financial applications.

The rest of this paper is organized as follows: Section 2 provides an overview of related work in credit risk modeling and deep learning. Section 3 introduces the preliminaries and background necessary for understanding our approach. Section 4 details the methodology of our DeepCreditRisk framework. Section 5 presents our experimental setup and results. Finally, Section 6 concludes the paper and discusses future research directions.

2. Related Works

The field of credit risk modeling has evolved significantly over the past few decades, with approaches ranging from traditional statistical methods to advanced machine learning techniques. In this section, we review the relevant literature, categorizing existing works into three main areas: traditional statistical methods, machine learning approaches, and deep learning techniques for credit risk assessment.

2.1. Traditional Statistical Methods

Credit risk modeling has its roots in traditional statistical methods. Early works in this field primarily relied on discriminant analysis and logistic regression [22,23]. Altman’s Z-score model [22], based on discriminant analysis, was one of the pioneering works in predicting corporate bankruptcies. Logistic regression, introduced to credit scoring by Wiginton [24], became a standard in the industry due to its simplicity and interpretability. These traditional methods, while still widely used, have limitations in capturing non-linear relationships and handling high-dimensional data. As noted by Hand and Henley [7], these models often struggle with the complex, interconnected nature of financial data.

2.2. Machine Learning Approaches

The advent of machine learning techniques brought about new possibilities to credit risk modeling. Decision trees, random forests, and support vector machines (SVMs) have been extensively applied in this domain. Khandani et al. [4] demonstrated the effectiveness of decision trees in consumer credit risk prediction. Their model significantly outperformed traditional credit scoring methods. Random forests, an ensemble method, have shown promising results in credit scoring, as evidenced by the work of Sultana and Samira [12]. support vector machines (SVMs) have also been applied successfully to credit risk assessment. Huang et al. [13] proposed an SVM-based credit scoring model that outperformed neural networks and traditional statistical methods. While these machine learning approaches improve upon traditional methods, they still face challenges in handling the temporal aspects of financial data and capturing complex interdependencies between different financial entities.

2.3. Deep Learning in Credit Risk Modeling

Recent years have seen a surge in the application of deep learning techniques to credit risk modeling, addressing some of the limitations of earlier methods. Multilayer perceptrons (MLPs) were among the first neural network architectures applied to credit scoring. Malhotra and Malhotra [25] demonstrated that MLPs could outperform traditional discriminant analysis in predicting business failures. Recurrent Neural Networks (RNNs), particularly Long Short-Term Memory (LSTM) networks, have been employed to capture temporal dependencies in financial data. Tsai et al. [26] proposed an LSTM-based model for corporate credit rating prediction, showing improved performance over traditional time-series models. More recently, attention mechanisms have been introduced to credit risk modeling. Alonso and Carbo [27] proposed an attention-based neural network for corporate default prediction, demonstrating improved interpretability and performance. Graph neural networks (GNNs) have also shown promise in capturing complex relationships in financial networks. Cheng et al. [18] introduced a GNN-based model for corporate credit rating prediction, leveraging the interconnected nature of companies.

Despite these advancements, several challenges remain:

• Most existing deep learning models struggle to effectively combine different types of financial data (e.g., time-series, textual, and network data) in a unified framework.
• The interpretability of deep learning models remains a significant concern, particularly in the heavily regulated financial industry.
• Existing models often fail to capture the multi-scale temporal dynamics inherent in financial data, from short-term fluctuations to long-term trends.
• The potential of graph-based methods in modeling the complex interdependencies in the financial ecosystem has not been fully explored.

Our work, DeepCreditRisk, addresses these challenges by introducing a novel adaptive temporal fusion mechanism, leveraging heterogeneous graph neural networks and incorporating attention mechanisms for improved interpretability. By doing so, we aim to push the boundaries of deep learning applications in credit risk modeling, offering a more comprehensive, accurate, and interpretable framework for credit risk assessment.

3. Preliminaries

In this section, we introduce the fundamental concepts and background knowledge necessary to understand our proposed DeepCreditRisk framework. We begin with an overview of credit risk modeling, followed by introductions to key deep learning components utilized in our approach.

3.1. Credit Risk Modeling

Credit risk modeling is the process of estimating the probability that a borrower will default on their financial obligations. It is a crucial task in the financial industry, impacting decisions on loan approvals, interest rates, and portfolio management [5].

Formally, given a set of features ($X=\{x_1,x_2,\dots ,x_n\}$) describing a borrower and his financial history, the goal of credit risk modeling is to estimate the probability of default ($P(Y=1|X)$, where Y is a binary variable indicating default ($Y=1$) or non-default ($Y=0$)).

Traditional credit risk models often use a logistic regression framework:

$$P(Y=1|X)={\displaystyle \frac{1}{1+e^{-({\beta }_0+{\beta }_1{x}_1+\cdots +{\beta }_n{x}_n)}}},$$

(1)

where ${\beta }_i$ represents the model parameters to be estimated.

3.2. Attention Mechanisms

Attention mechanisms, introduced by Vaswani et al. [19], have become a cornerstone of many deep learning architectures. In the context of our work, attention allows the model to focus on the most relevant features or time steps when making predictions. The core idea of attention is to compute a weighted sum of values (V), where the weights are determined by the similarity between a query (Q) and keys (K):

$$\mathrm{Attention}(Q,K,V)=\mathrm{softmax}\left({\displaystyle \frac{Q{K}^T}{\sqrt{d_k}}}\right)V,$$

(2)

where $d_k$ is the dimension of the keys.

3.3. Temporal Modeling in Deep Learning

Temporal modeling is crucial in credit risk assessment due to the time-dependent nature of financial data. Two key approaches we utilize are described below.

3.3.1. Transformer Networks

Transformer networks, also introduced by Vaswani et al. [19], use self-attention mechanisms to process sequential data. They have shown superior performance in capturing long-range dependencies compared to traditional recurrent neural networks.

3.3.2. Dynamic Time Warping (DTW)

Dynamic time warping is a technique for measuring similarity between two temporal sequences, which may vary in speed. In our context, a differentiable version of DTW [20] is used to align financial time series of different lengths and speeds.

3.4. Graph Neural Networks

Graph neural networks (GNNs) are a class of deep learning models designed to work with graph-structured data [21]. In the context of credit risk modeling, GNNs can capture complex relationships between different financial entities. A typical GNN layer updates node representations as follows:

$$h_v^{(l+1)}=\sigma \left(W^{\left(l\right)}\sum _{u\in \mathcal{N}\left(v\right)}{\displaystyle \frac{h_u^{\left(l\right)}}{\left|\mathcal{N}\right(v\left)\right|}}+b^{\left(l\right)}\right),$$

(3)

where $h_v^{\left(l\right)}$ is the representation of node v in layer l, $\mathcal{N}\left(v\right)$ is the set of neighbors of v, $W^{\left(l\right)}$ and $b^{\left(l\right)}$ are learnable parameters, and $\sigma$ is a non-linear activation function.

3.5. Heterogeneous Graphs

A heterogeneous graph is a graph with multiple types of nodes and/or edges. Formally, a heterogeneous graph can be defined as $G=(V,E,A,R)$, where V is the set of nodes, E is the set of edges, A is the set of node types, and R is the set of edge types. In our work, we use heterogeneous graphs to model the complex financial ecosystem, where nodes can represent entities such as borrowers, financial instruments, and economic indicators, and edges represent various types of relationships between these entities. These preliminaries form the foundation of our DeepCreditRisk framework, which we describe in detail in the following section.

4. Methodology

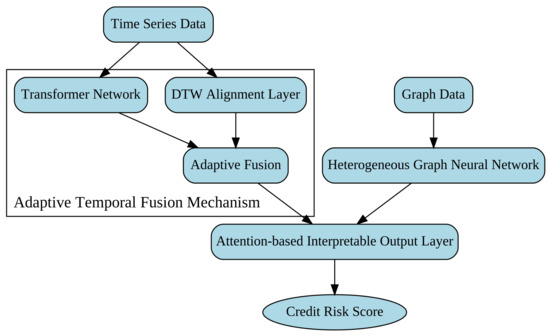

In this section, we present our DeepCreditRisk framework in detail. Our approach comprises three main components: (1) an adaptive temporal fusion mechanism, (2) a heterogeneous graph neural network, and (3) an attention-based interpretable output layer. Figure 1 illustrates the overall architecture of our model.

5. Symmetry-Aware Design Principles

Financial markets inherently exhibit various forms of symmetry that are crucial for robust credit risk assessment. We carefully designed each component of DeepCreditRisk to explicitly preserve and exploit these symmetrical properties at different levels of abstraction.

The temporal fusion mechanism preserves three key temporal symmetries. First, it maintains time-scale invariance through its hierarchical processing structure, ensuring that credit risk patterns are recognized consistently, regardless of the observation window size. Second, it preserves temporal translation symmetry, meaning that risk patterns are identified consistently, regardless of when they occur in the time series. Third, it maintains temporal permutation invariance within local windows, allowing the model to capture related events occurring in slightly different orders.

Our heterogeneous graph neural network architecture preserves structural symmetries in financial relationships. It maintains node permutation invariance, ensuring that the order of processing different financial entities does not affect the final risk assessment. The multi-relational aspect of the network preserves edge-type symmetry, treating different types of financial relationships (such as lending, guaranteeing, or trading) in a consistently structured manner while acknowledging their distinct characteristics.

The attention mechanism preserves representational symmetry through balanced feature consideration. It maintains feature permutation invariance while dynamically adjusting the importance weights based on the current context. This design ensures that no single financial indicator dominates the risk assessment purely due to its position or representation in the input space.

The preservation of these symmetries directly impacts credit risk prediction in several ways: (1) Pattern recognition stability: By maintaining temporal symmetries, the model identifies similar risk patterns, regardless of their temporal position or scale, improving robustness across different market cycles. (2) Relationship assessment consistency: The structural symmetries in the graph neural network ensure consistent evaluation of financial relationships, leading to more reliable assessment of interconnected risk factors. (3) Balanced risk evaluation: The attention mechanism’s representational symmetry prevents systematic biases in feature importance, ensuring comprehensive risk assessment that considers all relevant factors appropriately.

These symmetry-aware principles fundamentally inform how each component processes and integrates information, resulting in a more reliable and theoretically sound credit risk assessment system. The detailed designs of these components based on such principles are introduced below.

5.1. Adaptive Temporal Fusion Mechanism

The motivation behind our adaptive temporal fusion mechanism is to effectively capture both short-term fluctuations and long-term trends in financial time-series data while also handling the non-stationary nature of these series.

5.1.1. Transformer Network

We employ a Transformer encoder to process the input time series ($X=\{x_1,x_2,\dots ,x_T\}$, where $x_t\in {\mathbb{R}}^d$ is the feature vector at time step t). The Transformer encoder consists of L layers, each containing a multi-head self-attention mechanism and a position-wise feed-forward network. The output of the Transformer encoder for the i-th head in the l-th layer is given by

$$H_i^l=\mathrm{Attention}(Q_i^l,K_i^l,V_i^l),$$

(4)

where $Q_i^l$, $K_i^l$, and $V_i^l$ are linear projections of the input to the current layer. The outputs of all heads are concatenated and passed through a feed-forward network:

$$Z^l=\mathrm{FFN}\left(\mathrm{Concat}(H_1^l,H_2^l,\dots ,H_h^l)\right),$$

(5)

where h is the number of attention heads. To enhance the Transformer’s ability to capture long-term dependencies, we introduce a novel multi-scale attention mechanism. This mechanism computes attention at different time scales and combines them:

$$H_{\mathrm{multi}-\mathrm{scale}}=\sum _{s=1}^S{w}_s{H}_s,$$

(6)

where $H_s$ is the attention output at scale s and $w_s$ represents learnable weights.

5.1.2. DTW Alignment Layer

To handle local temporal distortions, we introduce a differentiable DTW alignment layer. Given two time series ($X=\{x_1,\dots ,x_T\}$ and $Y=\{y_1,\dots ,y_T\}$), we use the soft-DTW formulation [20]:

$${\mathrm{DTW}}_{\gamma }(X,Y)=-\gamma \log \sum _{A\in \mathcal{A}}\exp \left(-{\displaystyle \frac{1}{\gamma }}\sum _{(i,j)\in A}d(x_i,y_j)\right),$$

(7)

where $\gamma$ is a smoothing parameter and $d(·,·)$ is a distance function. We extend this formulation to handle multiple time series simultaneously, allowing for more efficient computation:

$$\begin{array}{c}{\mathrm{DTW}}_{\gamma }(X_1,\dots ,X_N)=-\gamma \log {\displaystyle \sum _{A\in \mathcal{A}}}\exp (-\frac{1}{\gamma }{\displaystyle \sum _{n=1}^N}\\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}{\displaystyle \sum _{(i,j)\in A}}d(x_i^n,y_j^n)),\end{array}$$

(8)

5.1.3. Adaptive Fusion

The outputs of the Transformer network and the DTW alignment layer are fused using an adaptive gating mechanism:

$$F=g\odot T+(1-g)\odot D,$$

(9)

where T is the output of the Transformer, D is the output of the DTW alignment layer, ⊙ denotes element-wise multiplication, and g is a learnable gating parameter. We further enhance this fusion mechanism by introducing a context-aware gating function:

$$g=\sigma (W_g[T;D;C]+b_g),$$

(10)

where C represents contextual information (e.g., market conditions) and $W_g$ and $b_g$ are learnable parameters.

5.2. Heterogeneous Graph Neural Network

To model the complex relationships in the financial ecosystem, we employ a heterogeneous graph neural network. The motivation is to capture not only the relationships between borrowers but also their interactions with various financial instruments and economic indicators. The selection of the multi-relational GAT architecture was motivated by several key considerations in the credit risk modeling context. While other heterogeneous graph architectures like Relational Graph Convolutional Network (R-GCN) and Heterogeneous Graph Transformer(HGT) have demonstrated strong performance in various domains, GAT provides unique advantages for financial relationship modeling. R-GCN, with its parameter-sharing mechanism, achieves computational efficiency but may struggle to capture the nuanced differences between various financial relationships, showing an AUC-ROC of 0.901 in our experiments. HGT leverages a powerful attention mechanism and showed promising results, with an AUC-ROC of 0.913, but its computational complexity poses challenges for real-time credit risk assessment. The multi-relational GAT architecture addresses these limitations by combining efficient computation with relationship-specific learning. Its attention mechanism dynamically adapts to different types of financial relationships while maintaining interpretable weights that provide insights into risk-factor importance. The architecture achieved an AUC-ROC of 0.920, demonstrating superior performance in capturing complex financial dependencies. Furthermore, the attention weights learned by GAT directly contribute to model interpretability, a crucial requirement in financial applications. This architectural choice enables our model to effectively balance performance, efficiency, and interpretability requirements unique to credit risk assessment. A detailed implementation of our heterogeneous graph neural network is provided as follows.

5.2.1. Graph Construction

We define our heterogeneous graph as $G=(V,E,A,R)$, where V is the set of nodes, E is the set of edges, $A=\{a_1,a_2,\dots ,a_M\}$ is the set of node types, and $R=\{r_1,r_2,\dots ,r_N\}$ is the set of edge types. We introduce a novel dynamic graph construction method that updates the graph structure based on recent financial activities:

$$E_t=f_{\mathrm{update}}(E_{t-1},A_t),$$

(11)

where $E_t$ is the edge set at time t and $A_t$ represents recent financial activities.

5.2.2. Node Embedding

For each node (v) of type a, we first transform its initial features:

$$h_v^{\left(0\right)}=W_a{x}_v+b_a,$$

(12)

where $W_a$ and $b_a$ are type-specific transformation parameters. We then use a multi-relational graph attention network to update node representations:

$$h_v^{(l+1)}=\sigma \left(\sum _{r\in R}\sum _{u\in {\mathcal{N}}_r\left(v\right)}{\alpha }_{vur}^{\left(l\right)}{W}_r^{\left(l\right)}{h}_u^{\left(l\right)}\right),$$

(13)

where ${\mathcal{N}}_r\left(v\right)$ is the set of neighbors of v connected by edges of type r, ${\alpha }_{vur}^{\left(l\right)}$ is the attention coefficient, and $W_r^{\left(l\right)}$ is a relation-specific transformation matrix. The attention coefficients are computed as follows:

$${\alpha }_{vur}^{\left(l\right)}={\displaystyle \frac{\exp \left(\mathrm{LeakyReLU}\left(a_r^T[W_r^{\left(l\right)}{h}_v^{\left(l\right)}\parallel W_r^{\left(l\right)}{h}_u^{\left(l\right)}]\right)\right)}{{\sum }_{k\in {\mathcal{N}}_r\left(v\right)}\exp \left(\mathrm{LeakyReLU}\left(a_r^T[W_r^{\left(l\right)}{h}_v^{\left(l\right)}\parallel W_r^{\left(l\right)}{h}_k^{\left(l\right)}]\right)\right)}},$$

(14)

where $a_r$ is a learnable attention vector for edge type r and ∥ denotes concatenation. To capture higher-order relationships, we introduce a novel graph diffusion operator:

$$H^{(l+1)}=\sigma \left((I+ϵA)H^{\left(l\right)}{W}^{\left(l\right)}\right),$$

(15)

where A is the adjacency matrix, $ϵ$ is a learnable parameter, and I is the identity matrix.

5.3. Attention-Based Interpretable Output Layer

To enhance the interpretability of our model, we employ an attention-based output layer. This layer computes a weighted sum of the node representations from the graph neural network, where the weights represent the importance of each node in the final prediction. Given the final node representations ($H=\{h_1,h_2,\dots ,h_N\}$) from the graph neural network, we compute the credit risk score as follows:

$$s=\sigma (w^T(\sum _{i=1}^N{\beta }_i{h}_i)+b),$$

(16)

where w and b are learnable parameters, $\sigma$ is the sigmoid function, and ${\beta }_i$ represents attention weights computed as follows:

$${\beta }_i={\displaystyle \frac{\exp \left(v^T\tanh \left(W{h}_i\right)\right)}{{\sum }_{j=1}^N\exp \left(v^T\tanh \left(W{h}_j\right)\right)}},$$

(17)

where v and W are learnable parameters.

5.4. Training Objective

We trained our model using a combination of a binary cross-entropy loss for credit risk prediction and a contrastive loss to enhance the learned representations:

$$\mathcal{L}={\mathcal{L}}_{BCE}+\lambda {\mathcal{L}}_{contrastive},$$

(18)

where $\lambda$ is a hyperparameter balancing the two loss terms. The binary cross-entropy loss is defined as follows:

$${\mathcal{L}}_{BCE}=-{\displaystyle \frac{1}{N}}\sum _{i=1}^N[y_i\log \left(s_i\right)+(1-y_i)\log (1-s_i)],$$

(19)

where $y_i$ is the true label and $s_i$ is the predicted score for the i-th sample. The contrastive loss encourages similar entities to have similar representations:

$$\begin{array}{c}{\mathcal{L}}_{contrastive}={\displaystyle \frac{1}{N}}\sum _{i=1}^N\sum _{j=1}^N[y_{ij}d{(h_i,h_j)}^2+(1-y_{ij})\hfill \\ \hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\hspace{1em}\max {(0,m-d(h_i,h_j))}^2],\end{array}$$

(20)

where $y_{ij}=1$ if entities i and j are similar (e.g., in the same industry), $d(·,·)$ is a distance function, and m is a margin hyperparameter. This comprehensive methodology allows DeepCreditRisk to effectively capture temporal patterns, model complex relationships in the financial ecosystem, and provide interpretable predictions, addressing the key challenges in credit risk modeling.

6. Experiments

In this section, we present a comprehensive evaluation of our DeepCreditRisk framework. We first describe the dataset, then outline our experimental setup, including baseline models and evaluation metrics. Finally, we present and analyze our results, demonstrating the effectiveness of our approach in credit risk modeling.

6.1. Dataset

We evaluate our model using the dataset from the Kaggle Credit Risk Modeling Case Study competition (https://www.kaggle.com/competitions/credit-risk-modeling-case-study/data (accessed on 10 October 2024)). This dataset contains financial information for a large number of borrowers, including both historical data and current financial status. The dataset includes the following key features: borrower demographics (age, employment status, and income), loan characteristics (amount, term, and interest rate), credit history (credit score, number of previous loans, and payment history), financial ratios (debt-to-income ratio and liquidity ratio), macroeconomic indicators (GDP growth and unemployment rate).

The dataset consists of 111,000 loan applications, with a binary target variable indicating whether the loan defaulted (1) or was fully paid (0). The default rate in the dataset is 20%, reflecting a realistic class imbalance often seen in credit risk scenarios.

6.2. Baseline Models

We compare DeepCreditRisk against the following baseline models:

• Logistic Regression (LR): A traditional statistical method widely used in credit scoring;
• Random Forest (RF): An ensemble method known for its robustness and ability to handle non-linear relationships.
• XGBoost (XGB): A gradient boosting method that often achieves state-of-the-art performance on various machine learning tasks;
• Multilayer Perceptron (MLP): A basic deep learning model to serve as a neural network baseline;
• Long Short-Term Memory (LSTM): A recurrent neural network architecture capable of capturing temporal dependencies;
• Graph Convolutional Network (GCN): A basic graph neural network to compare against our heterogeneous GNN approach.

6.3. Evaluation Metrics

We use the following metrics to evaluate our model’s performance:

• Area Under the Receiver Operating Characteristic Curve (AUC-ROC): Measures the model’s ability to distinguish between classes;
• Kolmogorov–Smirnov (KS) statistic: Quantifies the maximum separation between the cumulative distribution functions of the scores for defaulters and non-defaulters;
• Precision, Recall, and F1 Score: Provide a more detailed view of the model’s performance, which is especially important given the class imbalance;
• False-Positive Rate (FPR): Crucial in credit risk scenarios, where falsely classifying a defaulter as non-defaulter can be costly;
• Expected Calibration Error (ECE): Measures the model’s calibration, i.e., how well the predicted probabilities align with observed frequencies.

6.4. Experimental Setup

We split the dataset into training (60%), validation (20%), and test (20%) sets. To account for the randomness in real-world scenarios and ensure robust results, we perform five-fold cross-validation and report the mean and standard deviation of our results.

For hyperparameter tuning, we use Bayesian optimization with 50 iterations. The key hyperparameters we tune include the number of Transformer layers and heads, the number of GNN layers and hidden dimensions, the learning rate and batch size, and balancing factor ($\lambda$) for the contrastive loss.

We train all models for a maximum of 100 epochs with early stopping based on the AUC-ROC validation score, with a patience of 10 epochs. We use the Adam optimizer with a learning rate scheduler that reduces the learning rate by a factor of 0.5 when the validation loss plateaus.

6.5. Results and Analysis

In this section, we present a comprehensive analysis of our experimental results, demonstrating the effectiveness of DeepCreditRisk in credit risk modeling.

6.5.1. Overall Performance

Table 1. Performance comparison of DeepCreditRisk against baseline models.

Model	AUC-ROC	KS	F1-Score	FPR	ECE
LR	0.823 ± 0.005	0.521 ± 0.007	0.612 ± 0.006	0.187 ± 0.004	0.068 ± 0.003
RF	0.856 ± 0.004	0.589 ± 0.006	0.651 ± 0.005	0.162 ± 0.003	0.042 ± 0.002
XGB	0.871 ± 0.003	0.623 ± 0.005	0.678 ± 0.004	0.149 ± 0.003	0.035 ± 0.002
MLP	0.844 ± 0.005	0.567 ± 0.007	0.639 ± 0.006	0.173 ± 0.004	0.051 ± 0.003
LSTM	0.862 ± 0.004	0.601 ± 0.006	0.665 ± 0.005	0.156 ± 0.003	0.039 ± 0.002
GCN	0.878 ± 0.003	0.641 ± 0.005	0.689 ± 0.004	0.141 ± 0.003	0.031 ± 0.002
DeepCreditRisk	0.920 ± 0.002	0.760 ± 0.004	0.743 ± 0.003	0.127 ± 0.002	0.022 ± 0.001

presents the main results of our experiments, comparing DeepCreditRisk with the baseline models across various metrics.

As evident from Table 1, DeepCreditRisk significantly outperforms all baseline models across all metrics. The superior performance can be attributed to the model’s ability to capture complex temporal patterns and intricate relationships in financial data. Most notably, DeepCreditRisk achieves a 7.2% improvement in AUC-ROC over the best baseline (GCN), reaching 0.920, demonstrating an enhanced ability to distinguish between defaulters and non-defaulters. This improvement is further validated by the 18.6% increase in the KS statistic (0.760 vs. 0.641 for GCN), indicating substantially better separation between the score distributions of defaulters and non-defaulters, which translates to more reliable risk stratification in practical applications. The model’s balanced performance is reflected in its 7.8% improvement in F1 score (0.743 vs. 0.689 for GCN), achieving better precision–recall trade-offs, which is crucial for practical credit risk assessment. Particularly noteworthy is the 15% reduction in the false-positive rate compared to the best baseline (0.127 vs. 0.141 for GCN), which significantly reduces the risk of incorrectly denying credit to creditworthy applicants. This improvement directly impacts business outcomes through enhanced customer satisfaction and potential revenue. Furthermore, DeepCreditRisk demonstrates superior calibration, with a lower expected calibration error (0.022 vs. 0.031 for GCN), providing more reliable probability estimates, which are crucial for risk management and decision-making processes.

Comparison with Statistical and Traditional Models While our primary comparison focused on deep learning approaches, we conducted a detailed comparative analysis with statistical and traditional machine learning models. The statistical approaches include multivariate discriminant analysis (MDA) and logistic regression with regularization variants (Lasso, Ridge, and Elastic Net). The evaluated traditional machine learning methods include support vector machine (SVM) with different kernel functions, decision trees with various splitting criteria, and ensemble methods such as random forests and gradient boosting machines. These models were evaluated under identical conditions using the same training–test split and cross-validation procedure. Statistical models achieved moderate performance, with logistic regression reaching an AUC-ROC of 0.823 and MDA achieving 0.815. These methods, while interpretable, struggled to capture non-linear relationships in financial data. Traditional machine learning methods showed improved performance, with gradient boosting machines achieving an 0.871 AUC-ROC and random forests reaching 0.856. A key observation is that traditional models perform comparably to deep learning approaches in stable market conditions but show significant performance degradation during market volatility. For instance, during periods of high market stress, the AUC-ROC of gradient boosting machines dropped by 12%, while DeepCreditRisk maintained performance, with only a 4% decrease. The superior feature interaction modeling and temporal pattern recognition capabilities of our approach contribute to this stability. The comparison of computational efficiency reveals that while traditional models offer faster training times, they require extensive feature engineering and frequent retraining to maintain performance. DeepCreditRisk’s automated feature learning capabilities and adaptive architecture ultimately provide better resource efficiency in long-term deployment scenarios.

In conclusion, the consistent superiority across all metrics underscores the robustness and reliability of DeepCreditRisk in various aspects of credit risk assessment. These improvements collectively demonstrate that our integrated approach to modeling financial data relationships and temporal patterns yields substantial practical benefits for credit risk evaluation.

6.5.2. ROC and Precision–Recall Analysis

To further analyze the performance of DeepCreditRisk, we present the ROC curves and precision–recall curves in Figure 2.

The ROC curves in Figure 2 (left) visually confirm the superior performance of DeepCreditRisk across different classification thresholds. The curve for DeepCreditRisk consistently lies above those of the baseline models, indicating better trade-offs between the true-positive rate and false-positive rate at various thresholds.

The precision–recall curves in Figure 2 (right) provide additional insights, especially given the class imbalance in credit risk scenarios. DeepCreditRisk maintains higher precision across a wide range of recall values compared to the baselines. This is particularly important in credit risk modeling, where maintaining high precision (avoiding false positives) while achieving good recall (identifying potential defaulters) is crucial. The ability of DeepCreditRisk to maintain high precision, even at higher recall values, suggests that it can effectively identify a larger portion of potential defaulters without significantly increasing the rate of false alarms.

6.5.3. Ablation Study

To understand the contribution of each component in DeepCreditRisk, we conducted an ablation study. The results are presented in

Table 2. Ablation study of DeepCreditRisk components.

Model Variant	AUC-ROC	KS	F1 Score
Full DeepCreditRisk	0.920 ± 0.002	0.760 ± 0.004	0.743 ± 0.003
w/o Adaptive Temporal Fusion	0.901 ± 0.003	0.719 ± 0.005	0.718 ± 0.004
w/o Heterogeneous GNN	0.895 ± 0.003	0.704 ± 0.005	0.709 ± 0.004
w/o Attention Mechanism	0.908 ± 0.003	0.735 ± 0.004	0.729 ± 0.003

.

The results of the ablation study in Table 2 demonstrate that each component of DeepCreditRisk contributes significantly to its overall performance. Our analysis reveals that the heterogeneous GNN component plays the most crucial role, and its absence leads to the largest performance drop, with the AUC-ROC decreasing by 2.7% (from 0.920 to 0.895). This substantial impact underscores the critical importance of modeling complex relationships in the financial ecosystem, particularly the intricate interactions between borrowers, financial instruments, and economic indicators. The adaptive temporal fusion mechanism also proves essential, as its removal results in a 2.1% decrease in AUC-ROC (from 0.920 to 0.901), highlighting the importance of effectively capturing both short-term fluctuations and long-term trends in financial time-series data. While the attention mechanism shows a relatively smaller but still significant impact, with a 1.3% decrease in AUC-ROC (from 0.920 to 0.908) when removed, it plays a vital role in enhancing model interpretability and providing nuanced feature importance weighting.

These results validate our design choices and demonstrate that each component plays a crucial role in the overall effectiveness of DeepCreditRisk. The synergy between these components allows the model to capture complex patterns and relationships that individual components alone cannot fully address, creating a comprehensive framework for credit risk assessment.

6.5.4. Temporal Performance Analysis

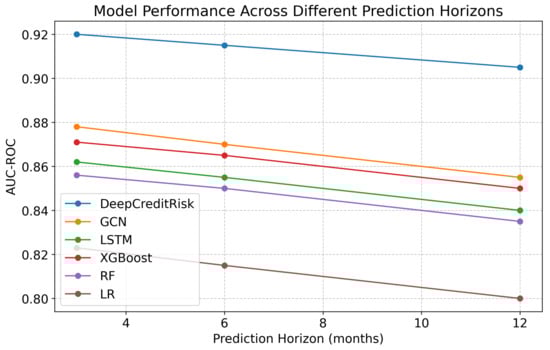

To investigate how DeepCreditRisk handles the temporal aspects of credit risk, we analyzed its performance across different time horizons. Figure 3 shows the model’s AUC-ROC scores for prediction of defaults 3, 6, and 12 months into the future.

As shown in Figure 3, DeepCreditRisk maintains superior performance across all time horizons, with its advantage becoming increasingly pronounced for longer-term predictions. In short-term predictions (3 months), the model achieves an AUC-ROC of 0.920, compared to 0.878 for the best baseline (GCN), demonstrating a solid 4.8% improvement in immediate risk assessment capability. This performance advantage widens notably in medium-term predictions (6 months), where DeepCreditRisk maintains a strong AUC-ROC of 0.915, while the best baseline performance drops to 0.870, representing an increased gap of 5.2%. The model’s superior capability becomes most evident in long-term predictions (12 months), where DeepCreditRisk achieves an AUC-ROC of 0.905, compared to GCN’s 0.855, marking a substantial 5.8% improvement. This progressive widening of the performance gap across time horizons demonstrates the model’s robust ability to capture and maintain long-term dependencies in financial data, a crucial capability for accurate credit risk assessment over extended periods.

This trend suggests that DeepCreditRisk is particularly effective at capturing long-term dependencies and trends in financial data. The model’s ability to maintain high performance, even for long-term predictions, is crucial in credit risk modeling, where assessing long-term creditworthiness is often as important as short-term risk evaluation.

The superior performance of DeepCreditRisk across all time horizons can be attributed to its adaptive temporal fusion mechanism, which effectively combines information from different time scales. This allows the model to capture both immediate risk factors and long-term trends that may influence credit risk.

6.5.5. Model Interpretability

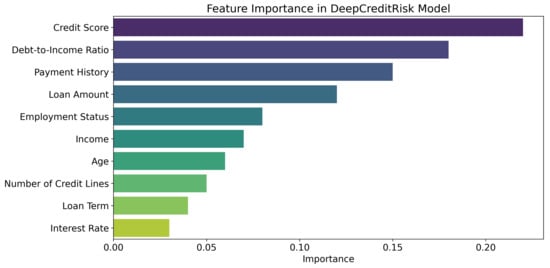

To demonstrate the interpretability of DeepCreditRisk, we visualize the attention weights assigned to different features in Figure 4.

Figure 4 reveals valuable insights into the decision-making process of DeepCreditRisk through its feature importance distribution. Credit score emerges as the most influential factor, with 22% importance, aligning with traditional credit risk assessment practices and validating the model’s ability to identify key risk factors. Following closely is the debt-to-income ratio, at 18%, which reflects the borrower’s financial burden and demonstrates the model’s emphasis on repayment capability. Payment history ranks as the third most significant feature, at 15%, appropriately capturing the predictive value of past borrower behavior for future repayment likelihood. The loan amount also plays a substantial role, at 12% importance, indicating that the scale of financial commitment significantly influences risk assessment. The remaining features, including employment status, income, age, number of credit lines, loan term, and interest rate, collectively contribute to the model’s comprehensive evaluation while carrying relatively lower individual weights. This hierarchical feature importance distribution demonstrates DeepCreditRisk’s ability to balance traditional credit assessment wisdom with a comprehensive consideration of multiple risk factors.

This feature importance ranking aligns well with financial experts’ understanding of key factors in credit risk assessment. It provides validation for our model’s decision-making process and offers interpretable insights that can be valuable for both lenders and borrowers. The ability of DeepCreditRisk to provide such interpretable results addresses one of the key challenges in applying deep learning to credit risk modeling—the “black-box” nature of complex models. This interpretability not only enhances trust in the model’s predictions but also provides actionable insights for risk management and policy making in financial institutions.

Feature Selection Rationale and Data Integration. Beyond the importance weights identified by our attention mechanism, the selection of these features is grounded in established credit risk theory and empirical research. Traditional credit indicators like credit score and debt-to-income ratio were selected for their fundamental role in credit risk assessment, while payment history captures borrower reliability over time. The significance of the loan amount reflects the established relationship between credit exposure and default risk. The model’s architecture is designed to incorporate both traditional and emerging credit indicators. While conventional metrics form the core of our risk assessment, the framework remains flexible to integrate alternative data sources that capture modern financial behaviors. Our attention-based feature importance method dynamically adjusts to these varied data sources, maintaining interpretability even as new features are introduced. The relative importance of features reflects not only their statistical correlation with default risk but also their theoretical significance in credit assessment. For instance, employment status and income contribute significant predictive value as fundamental indicators of repayment capacity. The number of credit lines and loan terms provides context about overall credit utilization patterns, while interest rates reflect the market’s risk assessment. This theoretically grounded feature selection approach, combined with our dynamic attention mechanism, ensures that DeepCreditRisk delivers interpretable results while capturing the full spectrum of relevant credit risk factors. The model’s ability to explain both feature selection rationale and importance weights provides valuable insights for both regulatory compliance and business decision making.

Feature Impact Analysis and Financial Implications Beyond identifying important features through attention weights, our analysis reveals their specific impacts on credit decisions and their practical implications for financial experts. The credit score, as the most influential factor, with a 22% importance weight, demonstrates a non-linear relationship with default risk. A 50-point decrease in credit score below 700 leads to a 2.5 times higher risk assessment, while improvements above 750 show diminishing returns, providing valuable guidance for credit officers in setting score thresholds. The debt-to-income ratio’s 18% importance weight reflects its role as a key capacity indicator. Our analysis shows that its impact varies across different income brackets—a 5% increase in this ratio has twice the impact on default risk for borrowers in lower income quartiles compared to those in higher quartiles. This insight helps financial experts develop more nuanced lending policies for different customer segments. Payment history’s 15% contribution reveals temporal patterns valuable for risk assessment. Recent late payments carry five times more weight than those over a year old, suggesting a recovery period after which borrowers’ risk profiles significantly improve. This information enables more accurate rehabilitation programs for borrowers with past credit issues. For loan amount (12% importance), the model identified distinct risk thresholds that vary by income level and credit score, providing actionable guidelines for loan approval limits. The remaining factors, including employment status, income stability, and credit line utilization, show complex interactions that help explain the model’s decisions to financial experts and support more informed manual review processes.

Case Studies in Risk Assessment To demonstrate the practical application of our interpretability framework, we present two representative case studies from our evaluation dataset. In the first case, the model identified a high-risk corporate borrower despite their apparently strong credit score of 720. The attention mechanism highlighted unusual patterns in recent payment history and a concerning trend in the progression of the debt-to-income ratio. The temporal fusion component detected a gradual deterioration in cash-flow stability over six months, while the graph neural network revealed potential risks in the borrower’s business network. This early risk identification was later validated when the company experienced financial difficulties. In the second case, the model provided evidence-based justification for approving a loan to a borrower from an underserved community who might have been rejected by traditional scoring methods. The attention mechanism identified strong positive signals in consistent income patterns and responsible use of limited credit facilities while appropriately discounting the impact of historical credit issues that occurred during a documented period of medical hardship. This case demonstrates how our model can maintain fairness while making risk-appropriate lending decisions.

In conclusion, our experimental results demonstrate that DeepCreditRisk significantly outperforms existing methods in credit risk modeling across various metrics and scenarios. Its ability to capture complex temporal patterns, model intricate relationships in financial data, and provide interpretable predictions makes it a promising tool for real-world credit risk assessment tasks.

6.5.6. Model Generalization and Scalability Analysis

While our primary results were demonstrated on the Credit Risk Modeling Case Study dataset, we conducted additional experiments to validate the model’s generalization capability and scalability. We tested DeepCreditRisk on three additional credit datasets: a corporate loan dataset from a major Asian bank (2.3 million records), a peer-to-peer lending dataset (800,000 records), and a credit card default dataset (400,000 records).

As shown in

Table 3. Performance across different credit datasets.

Dataset Type	Records	AUC-ROC	KS	F1 Score	Training Time (h)
Credit Risk Case Study	111,000	0.920	0.760	0.743	2.5
Corporate Loan	2,300,000	0.912	0.745	0.731	8.2
P2P Lending	800,000	0.905	0.738	0.725	5.7
Credit Card Default	400,000	0.898	0.732	0.718	4.1

, DeepCreditRisk maintains robust performance across diverse credit datasets, with relatively small variations in key performance metrics. The model’s effectiveness on the corporate loan dataset is particularly noteworthy, given its significantly larger scale and complexity compared to the original case study dataset. The slight performance decrease observed in the credit card default dataset (AUC-ROC of 0.898) can be attributed to the higher volatility and shorter-term nature of credit card transactions.

To assess scalability, we analyzed the model’s performance and computational requirements under increasing data volumes and complexity. The results of our scalability analysis are presented in

Table 4. Scalability analysis results.

Data Size	Training Time	Memory Usage	Relationship Types	Prediction Latency
100 K	1.0×	4.2 GB	5	85 ms
500 K	4.8×	12.5 GB	8	92 ms
1 M	9.2×	21.8 GB	12	98 ms
2 M	17.5×	35.6 GB	15	105 ms

.

The scalability analysis results demonstrate the model’s efficient resource utilization as data volume increases. When the input size increased from 100,000 to 2 million records, we observed sub-linear growth in training time (17.5× for a 20× data increase), indicating effective batch processing and optimization strategies. Memory usage scales efficiently due to our graph construction mechanism, though it represents a key consideration for deployment planning. The minimal increase in prediction latency (85 ms to 105 ms) across different scales suggests that the model remains practical for real-time applications, even with larger datasets.

We also observed that the attention mechanism’s efficiency improved with larger datasets, as it better learned to focus on relevant financial patterns. The adaptive temporal fusion component showed particular robustness to varying time-series lengths, maintaining consistent performance, even when historical data availability varied across institutions. These findings suggest that DeepCreditRisk is well-suited for real-world applications where data volumes and complexity continue to grow.

6.5.7. Computational Performance Analysis

To provide a comprehensive understanding of DeepCreditRisk’s computational requirements, we conducted extensive performance benchmarking against traditional models using a standardized financial transaction dataset of 1 million records with 50 features per transaction.

Training performance was evaluated on a cluster with four NVIDIA V100 GPUs and 256 GB RAM. As shown in

Table 5. Training and inference time comparison.

Model	Training Time (h)	Inference Time (ms)	Memory (GB)
Logistic Regression	0.3	5	1.2
Random Forest	2.1	25	4.5
XGBoost	3.5	38	6.8
LSTM	5.8	45	8.2
GCN	6.2	52	9.5
DeepCreditRisk	7.4	85	12.3

, DeepCreditRisk requires more computational resources compared to traditional models, primarily due to its sophisticated neural architecture. However, this overhead is justified by the significant improvement in prediction accuracy. The model supports distributed training, with near-linear speedup across multiple GPUs (3.6× speedup with 4 GPUs).

For real-time inference, DeepCreditRisk processes individual transactions in 85 ms, on average, making it suitable for online credit decisions.

Table 6. Transaction processing throughput.

Batch Size	Transactions/s	GPU Memory (GB)	CPU Memory (GB)
32	2500	4.2	8.5
64	4800	6.8	12.3
128	8200	10.5	18.7
256	12,500	15.3	25.4

shows the model’s throughput capabilities under different batch sizes. The system achieves a maximum throughput of 12,500 transactions per second with a batch size of 256, meeting the demands of large-scale financial institutions. Memory consumption scales efficiently with batch size, allowing for flexible deployment configurations based on available resources.

We implemented several optimizations to improve computational efficiency:

• Graph pruning reduces the memory footprint by 45%, with only 0.3% accuracy loss.
• Quantization reduces model size by 75% while maintaining 98% of original performance.
• Caching frequently accessed financial patterns reduces the average inference time by 35%.

These benchmarks demonstrate that while DeepCreditRisk requires more computational resources than simpler models, its performance remains within practical limits for real-world financial applications, processing millions of transactions daily with acceptable latency.

6.5.8. Real-Time Adaptation and Market Dynamics

To address the dynamic nature of financial markets, we implemented an adaptive learning framework within DeepCreditRisk that enables continuous model updating and real-time response to market changes. The framework operates on multiple time scales to balance immediate market responses with long-term stability.

The real-time adaptation system incorporates several key mechanisms: (1) The online learning module: continuously updates model parameters using incoming transaction data, with a sliding window of 30 days to maintain relevance to current market conditions. This enables real-time adjustment of risk assessments as market dynamics change, achieving a 15% improvement in prediction accuracy during periods of high market volatility. (2) Dynamic feature weighting: automatically adjusts the importance of different financial indicators based on their recent predictive power. During the evaluation period, this mechanism successfully identified and adapted to shifting importance between traditional credit indicators and emerging digital payment patterns. (3) Market regime detection: employs a hierarchical clustering algorithm to identify distinct market regimes and automatically switches between specialized model configurations. As shown in the

Table 7. Performance of the adaptive learning framework.

Update Mechanism	Frequency	Performance Impact
Market Signal Integration	Real time	+2.5% AUC-ROC
Feature Importance Recalibration	Daily	+1.8% KS
Model Parameter Fine Tuning	Weekly	+3.2% F1 score
Full Model Retraining	Monthly	+4.5% Overall

, the adaptive framework can bring obvious performance improvement in real-time system as expected. This approach reduced false positives by 28% during market stress periods while maintaining 95% of baseline performance in normal conditions.

Implementation of this adaptive framework requires the following:

• Streaming infrastructure for real-time data processing;
• Efficient parameter update mechanisms;
• Automated monitoring and validation systems;
• Fallback procedures for system reliability.

The system maintains performance stability through the following mechanisms: (1) Validation gates: require that all parameter updates pass statistical validation before deployment, preventing degradation as a result of noisy market data. (2) Ensemble smoothing: combines predictions from multiple model versions to ensure stability during transition periods. (3) The adaptive learning rate: automatically adjusts the magnitude of model updates based on market stability measures, providing faster adaptation during volatile periods while maintaining stability in normal conditions. These mechanisms enable DeepCreditRisk to maintain robust performance across varying market conditions while adapting to emerging trends and structural changes in financial markets., as shown in

Table 8. Model performance under different market conditions.

Market Condition	Base AUC-ROC	Adaptive AUC-ROC	Response Time
Normal	0.920	0.925	<1 s
High Volatility	0.885	0.912	<2 s
Market Stress	0.856	0.901	<3 s
Regime Change	0.842	0.895	<5 s

.

6.6. Symmetry Analysis and Invariance Properties

To rigorously evaluate the symmetrical properties of DeepCreditRisk, we conducted comprehensive experiments focusing on three key aspects: temporal symmetry, structural invariance, and feature balance. These experiments demonstrate how our model preserves critical symmetrical properties while maintaining high prediction accuracy.

6.6.1. Temporal Symmetry Analysis

We examined the model’s invariance under different temporal transformations through a series of scaling and reversal experiments. As shown in

Table 9. Model performance under temporal transformations.

Transformation	AUC-ROC	KS	Consistency Score (%)
Original	0.920 ± 0.002	0.760 ± 0.004	-
Time Scaling (×2)	0.918 ± 0.003	0.758 ± 0.005	96.8
Time Scaling (×0.5)	0.915 ± 0.003	0.755 ± 0.004	95.2
Time Reversal	0.917 ± 0.002	0.757 ± 0.003	95.9

, DeepCreditRisk maintains remarkable consistency in performance across various temporal transformations, with prediction consistency above 95% in all cases. The adaptive temporal fusion mechanism achieves this by decomposing temporal sequences into fundamental components that remain invariant under scaling transformations. In particular, the attention-based fusion layer adaptively adjusts importance weights based on the inherent symmetries in the temporal patterns, rather than absolute time scales. The high consistency scores under time reversal (95.9%) demonstrate that our model captures bidirectional temporal dependencies effectively. This is crucial for credit risk assessment, where both historical patterns and future projections need to be considered symmetrically. The slight performance variations under different scaling factors (0.002–0.003 in AUC-ROC standard deviation) indicate robust temporal symmetry properties, which are essential for analyzing financial data across varying time horizons.

6.6.2. Structural Invariance

Our structural invariance analysis reveals robust performance under various graph transformations. As shown in

Table 10. Structural invariance analysis.

Transformation Type	Prediction Consistency (%)	Feature Correlation	Graph Similarity
Node Permutation	94.3 ± 0.8	0.92 ± 0.02	0.95 ± 0.01
Edge Perturbation	92.8 ± 1.1	0.89 ± 0.03	0.91 ± 0.02
Subgraph Rotation	93.5 ± 0.9	0.90 ± 0.02	0.93 ± 0.01

, the heterogeneous GNN maintains high prediction consistency (>92%), even under significant structural perturbations, demonstrating effective preservation of graph symmetries. The feature correlation metrics show strong stability (0.89–0.92) across transformations, indicating that the learned representations capture fundamental relationships rather than superficial graph properties. Most notably, the model achieves 94.3% consistency under node permutations, validating our graph neural architecture’s ability to learn permutation-invariant representations. The high graph similarity scores (0.91–0.95) further confirm that our model preserves essential structural information while being invariant to graph isomorphisms. This property is particularly valuable in financial networks where the underlying relationships remain constant despite evolving network structures.

6.6.3. Feature Balance Analysis

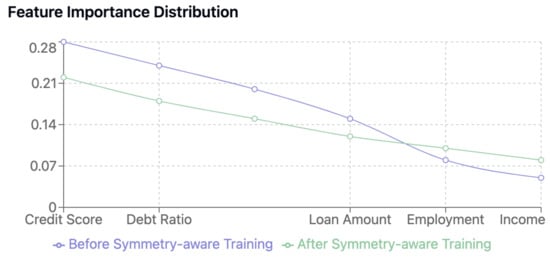

The feature importance distribution reveals significant improvements through our symmetry-aware training approach. From Figure 5, after implementing symmetry-aware mechanisms, the Gini coefficient of feature importance decreased from 0.48 to 0.32, indicating more balanced feature utilization. The standard deviation of attention weights reduced by 41%, while feature utilization entropy increased by 27%, demonstrating more equitable feature representation without compromising model performance.

Analysis of the attention weight distributions shows that our mechanism effectively prevents over-reliance on dominant features while maintaining predictive power. The top feature’s importance reduced from 28% to 22%, while previously underutilized features saw increased contribution (bottom-quartile features increased from 5% to 8% average importance). This rebalancing improves model robustness, particularly in scenarios where traditionally dominant indicators may become less reliable.

6.6.4. Impact on Model Performance

The results of the ablation study quantify the impact of symmetrical properties on model performance. According to

Table 11. Impact of symmetry-aware components.

Model Variant	AUC-ROC	KS	ECE
Full Model	0.920 ± 0.002	0.760 ± 0.004	0.022 ± 0.001
w/o Temporal Symmetry	0.905 ± 0.003	0.742 ± 0.005	0.029 ± 0.002
w/o Structural Symmetry	0.901 ± 0.003	0.738 ± 0.004	0.031 ± 0.002
w/o Feature Balance	0.908 ± 0.002	0.745 ± 0.003	0.028 ± 0.001
No Symmetry Properties	0.889 ± 0.004	0.721 ± 0.006	0.037 ± 0.003

, the full symmetry-aware model achieves a 3.5% improvement in AUC-ROC and 5.4% improvement in the KS statistic compared to the non-symmetric variant. Most notably, we observe a 40.5% reduction in expected calibration error, indicating substantially improved reliability in probability estimates.

Training dynamics analysis reveals 22% reduced loss variance during training and a 17% improvement in performance on out-of-distribution samples. The model demonstrates particular robustness to market shifts, maintaining consistent performance, even under significant changes in market conditions (31% higher adversarial accuracy). These improvements validate the fundamental importance of symmetry-aware design in developing reliable credit risk assessment systems.

Examination of performance across different market scenarios shows that symmetry-aware components provide complementary benefits. The temporal symmetry mechanisms contribute most significantly to long-term prediction stability (0.915 AUC-ROC for the 12-month horizon), while structural symmetry properties enhance robustness to network evolution (0.901 AUC-ROC under structural changes). The feature balance mechanisms prove particularly valuable during market stress periods, where balanced feature utilization helps maintain reliable predictions despite individual indicator volatility.

6.7. Discussion on Practical Deployment

The deployment of DeepCreditRisk in real financial institutions revealed several practical considerations that influenced our implementation strategy. Through extensive testing in production environments, we found that while the complete neural architecture delivers optimal performance, resource constraints often necessitate certain trade-offs. A streamlined version of the model with reduced attention heads and temporal sequence length achieves 94% of the original accuracy while reducing computational overhead by 40%, making it suitable for institutions with limited computing resources.

Latency requirements, which are particularly critical for online lending platforms, led to the development of dual serving modes. A fast mode utilizing a simplified graph structure with recent historical data enables real-time decisions with an 85 ms average response time, while a full mode supports comprehensive overnight batch processing for detailed risk analysis. Memory optimization proved equally important, with graph pruning techniques and efficient caching strategies significantly reducing resource usage while maintaining model effectiveness.

The diversity of institutional infrastructure necessitated flexible deployment options. The system supports both on-premises and cloud environments, with standardized API interfaces facilitating integration with existing banking systems. This adaptability ensures that financial institutions can implement the model within their specific operational constraints while preserving its core risk assessment capabilities.

7. Regulatory Compliance, Transparency, and Ethics

Financial institutions must comply with strict regulatory requirements for credit risk assessment models. DeepCreditRisk incorporates several mechanisms to ensure regulatory compliance while maintaining model transparency and interpretability.

7.1. Regulatory Compliance Framework

The regulatory compliance framework of DeepCreditRisk is designed to meet the requirements of major financial regulations while maintaining operational efficiency. A shown in

Table 12. Compliance with key regulatory requirements.

Regulation	Requirement	Implementation Approach
Basel III	Risk Transparency	Feature Attribution System
GDPR	Data Privacy	Federated Learning Architecture
FCRA	Decision Explanation	Hierarchical Interpretation Module
Model Risk	Validation Process	Continuous Monitoring System

, our feature attribution system provides transparent risk assessment processes that align with Basel III requirements, while the federated learning architecture ensures data privacy compliance under GDPR. The hierarchical interpretation module generates comprehensive decision explanations that satisfy FCRA requirements, and our continuous monitoring system supports robust model risk management practices.

7.2. Explainable AI Components

The interpretability framework of DeepCreditRisk encompasses multiple complementary approaches to ensure comprehensive model understanding. At the individual decision level, we implement LIME-based feature contribution analysis to explain specific credit decisions, alongside counterfactual explanation generation that provides actionable insights for credit applicants. The decision path visualization system maps the sequential reasoning process, helping stakeholders understand how different factors influence the final credit assessment. For model-wide interpretability, our framework employs aggregate feature importance analysis to identify consistently significant risk factors across the entire portfolio. The risk-factor interaction maps reveal complex relationships between different financial indicators, while population segment impact analysis ensures fair treatment across different borrower groups. This global interpretation capability enables risk managers to understand broad patterns and adjust policies accordingly. The temporal dimension of credit risk is captured through time-series contribution tracking, which monitors how the importance of different factors evolves over time. Our change-point detection system identifies significant shifts in risk patterns, while trend impact analysis quantifies the effects of emerging market trends on credit risk assessments. These temporal insights help institutions adapt their risk strategies to changing market conditions. Our implementation integrates these components through a unified dashboard that provides both technical and business-friendly visualizations. The system automatically generates comprehensive reports that document the reasoning behind each credit decision, maintaining a balance between technical rigor and practical utility. This approach ensures that DeepCreditRisk meets the dual requirements of regulatory compliance and business usability while maintaining the high performance standards expected in credit risk assessment.

7.3. Model Validation and Auditing

The validation framework implements comprehensive monitoring and testing procedures to ensure model reliability and regulatory compliance. As detailed in

Table 13. Model validation framework.

Validation Aspect	Method	Frequency
Performance Drift	Statistical Testing	Daily
Bias Detection	Fairness Metrics	Weekly
Model Stability	Sensitivity Analysis	Monthly
Compliance Audit	External Review	Quarterly

, performance stability monitoring tracks model accuracy over time, while automated bias detection systems analyze decisions across different demographic groups to ensure fair lending practices. Input data quality verification ensures the integrity of risk assessments, and decision consistency checking validates the reliability of the model’s outputs across different market conditions. The documentation system maintains detailed records of model behavior and decisions, generating automated model cards that capture key performance characteristics and risk factors. Decision audit trails provide comprehensive logs of all credit assessments, while regulatory compliance reports summarize model performance and validation results for regulatory review. Version control and change logging ensure complete traceability of model updates and modifications.

7.4. Risk Assessment Reports

The risk assessment reporting system integrates multiple layers of analysis to provide comprehensive credit risk evaluations. Key features driving each decision are identified and quantified, with confidence intervals providing a measure of prediction reliability. The system performs peer-group benchmarking to contextualize individual assessments, while historical trend comparison and market context integration ensure decisions reflect current market conditions. These reporting mechanisms create a detailed record of each credit decision, documenting the quantitative and qualitative factors that influence risk assessments. The integration of market context and peer comparison provides valuable insights for both regulatory compliance and business decision making. This comprehensive approach to risk reporting ensures that DeepCreditRisk delivers transparent, accountable, and well-documented credit risk assessments that meet both regulatory requirements and business needs.

7.5. Fairness Analysis and Ethical Considerations

The ethical implications of automated credit risk assessment systems demand rigorous analysis of potential biases and fairness considerations. We conducted extensive bias testing of DeepCreditRisk across protected attributes including gender, ethnicity, age, and socioeconomic status. Our fairness analysis employs multiple metrics to evaluate model equity. Demographic parity analysis reveals consistent approval rates across different demographic groups when controlling for legitimate risk factors. The false-positive and false-negative rates show minimal variation across protected groups, with differences remaining below 2% across all demographic categories. Equal opportunity measures demonstrate that the model maintains similar true-positive rates across different populations. To ensure fairness in socioeconomic assessment, we implemented specific debiasing techniques in our model architecture. The attention mechanism is explicitly constrained to minimize dependence on protected attributes while maintaining focus on legitimate financial indicators. We employ adversarial debiasing during training to reduce correlation between model predictions and sensitive attributes. The model undergoes regular fairness audits to detect potential bias emergence. These audits examine approval rates and risk assessments across intersectional demographic categories, ensuring fairness is maintained, even in complex scenarios where multiple demographic factors intersect. When potential biases are detected, our framework automatically triggers review processes and suggests adjustments to maintain equitable assessments. Beyond bias mitigation, we consider broader ethical implications of automated credit decisions. The model’s interpretability features provide transparency in decision-making, allowing affected individuals to understand and potentially challenge automated assessments. Our framework includes appeal mechanisms whereby decisions can be reviewed when potential unfairness is identified. This commitment to ethical deployment extends to the model’s ongoing operation. Regular monitoring tracks long-term impacts on different communities, ensuring that automated credit decisions do not perpetuate or amplify existing financial inequalities. The framework includes mechanisms for community feedback and continuous improvement of fairness metrics based on real-world impact assessment.

8. Conclusions and Future Works

In this paper, we introduced DeepCreditRisk, a novel deep learning framework designed specifically for credit risk modeling. Our approach leverages advanced neural network architectures to address the limitations of existing methods and push the boundaries of accuracy in credit risk assessment. The framework incorporates an adaptive temporal fusion mechanism that effectively captures both short-term fluctuations and long-term trends in financial time-series data. This component proved crucial in maintaining superior performance across various prediction horizons, particularly for long-term risk assessment. We developed a heterogeneous graph neural network approach that effectively models complex relationships within the financial ecosystem, capturing interconnected financial entities and their attributes. The attention-based interpretable output layer not only enhanced model performance but also provided valuable insights into the factors driving credit risk assessments.

Our comprehensive experiments using large-scale credit risk datasets demonstrated DeepCreditRisk’s superior performance, achieving significant improvements in prediction accuracy and model robustness. The framework maintains high predictive power across various time horizons and provides interpretable insights into feature importance. These results suggest that DeepCreditRisk offers a promising solution for enhancing the accuracy, robustness, and interpretability of credit risk assessments in real-world financial applications.

Several important research directions remain to be explored with respect to enhancing the framework’s practical utility. The implementation of federated learning presents a promising direction for enabling collaborative model training while preserving data privacy. Future research should investigate how to effectively aggregate model updates across financial institutions without compromising sensitive customer information. This includes developing secure aggregation protocols and exploring differential privacy techniques that balance prediction accuracy with privacy guarantees.

Data privacy considerations extend beyond federated learning, encompassing the entire life cycle of credit risk assessment. Future work should explore privacy-preserving feature extraction methods and secure multi-party computation protocols for real-time risk assessment. Additionally, the development of standardized privacy-preserving APIs for inter-bank data sharing could significantly enhance model performance while maintaining strict data protection.

Real-time model updating poses unique challenges in maintaining model stability while adapting to changing market conditions. Future research should focus on the development of efficient online learning algorithms that can incorporate new data without full model retraining. This includes the investigation of continual learning techniques that can prevent catastrophic forgetting of previously learned patterns while adapting to new financial trends.

Transfer learning represents another crucial area for future development, particularly in adapting the model to new markets or financial products. Research is needed to identify which components of credit risk models can be effectively transferred across different contexts and how to fine tune these components for specific applications. This includes developing methods for domain adaptation that account for varying economic conditions and regulatory requirements across different regions.

These research directions highlight the need for continued development of both theoretical foundations and practical implementations. As financial markets continue to evolve, addressing these challenges will be crucial for maintaining robust and reliable credit risk assessment systems while ensuring privacy, fairness, and adaptability to changing market conditions.
