Recognition of Symmetric 3D Bodies

Abstract

The paper deals with the recognition of symmetric three-dimensional (3D) bodies that can be rotated and translated. We provide a complete list of all existing combinations of rotation and reflection symmetries in 3D. We define 3D complex moments by means of spherical harmonics, and the influence of individual symmetry groups on complex moment values is studied. Each particular symmetry pre-defines certain moment values. These moments can no longer differentiate between two objects of the same symmetry, which decreases the recognition power of the feature set. They should not be included when constructing the invariants. Translation and rotation invariants up to the fourth order are presented and their performance is studied on both artificial and real data.

1. Introduction

Automatic recognition of 2D and 3D objects from their digital images has become a well-established discipline in the last two decades. A lot of feature systems that enable to describe and recognize objects regardless of their particular position, orientation and size have been proposed and tested in the literature. Such features are called invariants. In most cases, invariants to translation, rotation and scaling (TRS) are sufficient, although invariants to more general object deformations also exist.

When testing most current general-purpose recognition systems, one immediately discovers that they perform poorly on symmetric objects. This fact has a straightforward mathematical explanation. Most features are “projections” of the image function onto a set of certain simple basis functions (for instance, Fourier coefficients are projections onto a harmonic basis, moments are projections onto polynomials, etc.). The basis functions usually exhibits some kind of symmetry. Depending on the kind of object symmetry, some features are always zero because the respective basis functions do not contribute to object description. This is a well-known fact even in 1D: the Fourier transform of an even function has all imaginary coefficients zero because we need only the cosine basis function for a complete expansion. The zero values themselves would not be a problem. However, when constructing invariants, we often create them as a product of selected features. If one factor in the product is zero, the whole invariant is zero and looses its recognition ability. This effect was thoroughly studied in 2D case in [1]. The authors demonstrated that recognition of symmetric objects and patterns requires designing of special invariants which do not contain any always-zero features.

Surprisingly, in the case of 3D objects this problem has not been addressed in the literature in a systematic way. At the same time, it is not a borderline problem because most natural and man-made objects have some kind of symmetry.

One can find two groups of papers relevant to this topic. The first one deals with the rotationally invariant pattern recognition of 3D bodies and describes creation of various sets of invariants but these papers ignore the symmetry issue. Sadjadi and Hall [2] derived three TRS invariants from moments of the second order. Guo [3] used different approach with the same result. Galvez and Canton [4] used the normalization approach to 3D recognition. Cyganski and Orr [5] proposed a tensor method for derivation of rotation invariants from geometric moments. The method of geometric primitives of Xu and Li [6,7] yields the same results. Kazhdan [8] studied registration of objects differing by 3D rotation, Kakarala and Mao [9] used bispectrum for derivation of TRS invariants. The work of Lo and Don [10] has the biggest impact on this area because they derived 3D TRS invariants from complex moments and the influence of rotation symmetry on the recognition can be in this representation advantageously studied. However, Lo and Don [10] presented only 12 invariants of the second and third order of limited discriminability, without any generalization to higher orders, and they ignored completely the issue of symmetric objects. Their approach was later used in [11], where the additional invariance to blurring was introduced, and most recently in [12], where several higher-order invariants were presented but still without studying the impact of symmetry.

The papers from the second group study the symmetry itself, but they do not consider the recognition task and the derivation of invariants. There have been many such papers and books from antiquity until now. The most relevant for us are those studying combinations of reflection and rotation symmetry, e.g., Weyl [13], Slavík et al. [14] (symmetry in mineralogy), Urch [15] (symmetry in chemistry), and the papers dealing with the relation between the object symmetry and its moments as Schmidt and Žďánská [16] (octahedral and icosahedral symmetry), Samoson et al. [17] (tetragonal, tetrahedral, octahedral, icosahedral and spherical rotation symmetry) and Mamone et al. [18] (tetrahedral, octahedral, icosahedral and spherical symmetry including both rotation and reflection).

The main goal of the paper is to introduce rotation invariants of arbitrary orders that are specifically designed for recognition of symmetric objects. To do so, we start the paper with a survey of all possible rotation and reflection symmetries in 3D including their combinations. Then we study complex moments, one of popular features in object recognition, and investigate the influence of particular symmetries on the moment values. Each particular symmetry pre-defines certain moment values (mostly sets certain moments equal to zero). These moments can no longer differentiate between two objects of the same symmetry. Even if this zero features are mixed with valued features, the success rate is usually lower than that provided by valued features only because the classifier works in a high-dimensional space. That’s why these zero features should be identified in advance and should not be included into the feature vector. We show how to design special rotation invariants which are suitable for recognition of symmetric 3D bodies. In contrast to Lo and Don [10] and other earlier papers, we present general formulae for constructing invariants which are not restricted to low order moments only. We demonstrate practical usage of such invariants by numerical experiments.

The paper is organized as follows. The term “symmetry” is recalled in Section 2, the survey of 2D case is in Section 3, the influence of the symmetry on 3D moments is analyzed in Section 4, the TRS invariants based on the complex moments are introduced in Section 5 and their behavior is shown in numerical experiments in Section 6. Section 7 concludes the paper.

2. Symmetry in 2D

In this paper we use the term symmetry in a common geometric sense. Let us have a transformation G of spatial coordinates x =(x₁,...,x_N) such that G : x → x′. Then the image f is called symmetric w.r.t. G if:

$$f\left(\mathbf{x}\right)=f\left(\mathbf{G}\left(\mathbf{x}\right)\right)$$

By symmetry group of function f, we understand all such transformations G along with a composition operator. Note that the symmetry group of function f is something else than a set of all functions having the same symmetry as f.

We deal with rotation and reflection symmetry only, the other kinds of symmetry, such as translational, scaling and skewing symmetry are irrelevant in the context of object recognition. They require infinite support and the scaling symmetry even requires infinite spatial resolution. It cannot be fulfilled in practice, so in reality we do not meet these two kinds of symmetry. Hence, G(x) can be expressed in a matrix form as:

$$\mathbf{G}\left(\mathbf{x}\right)=\mathbf{R}\mathbf{x}$$

(1)

where R is a rotation or rotoreflection matrix.

In two dimensions, we recognize two basic symmetries—n-fold rotation symmetry and reflection symmetry. In the former case G is a rotation around the origin by angle α =2π/n (i.e., an object is mapped onto itself when rotated by 2πk/n, k =1, ···,n). The n is called the fold number of the rotation symmetry. In the latter case G is a reflection across a line passing through the origin. There is a well-known link between rotation and reflection symmetries [19]. If a function has n-fold rotation symmetry, then it has either n axes of the reflection symmetry or has no reflection symmetry at all. On the other hand, the existence of n symmetry axes always implies the n-fold rotation symmetry. The combined rotation and reflection symmetry is called dihedral symmetry. The functions having rotation symmetry without any reflection symmetry are called chiral. Hence, we have two sequences of symmetry groups—rotation groups:

$$C_1,C_2,C_3,\dots ,C_{\infty }$$

and dihedral groups:

$$D_1,D_2,D_3,\dots ,D_{\infty }$$

The groups D_∞ and C_∞ are called circular symmetry groups. Function f has D_∞ symmetry if and only if it has C_∞ symmetry.

3. Recognition of Symmetric 2D Objects

Various systems of features for description and recognition of planar objects have been proposed in literature (see for instance [20], Chapter 1, for a short survey and other references). Many of them perform poorly on symmetric objects. This is a contrast to human perception. For humans, symmetry serves as a useful additional information for recognition because our brain easily detects the type of symmetry. In automatic systems, features are often based on mathematical quantities which vanish or have the same value for all symmetric objects, which means they have no discrimination power. This is a significant drawback because in many applied tasks we want to classify man-made objects or natural shapes from their silhouettes. In most cases such shapes have some kind of symmetry. Different classes may or may not have the same symmetry that makes the task even more difficult. This is why we must pay attention to these situations and why it is necessary to design special invariants for each type of symmetry.

One of the most powerful and the most popular features for object recognition are invariants based on image moments [20]. Let us illustrate how moments are influenced by object symmetry and how to overcome this problem in 2D. Moments in general are projections of a function on the given polynomial basis. We may use various bases yielding different moment systems but in any case we face the symmetry problem because it is induced by the symmetry of the basis functions. Let us show how it works in the case of so-called complex moments, where the theory is the most transparent. For all other moment systems the principle stays the same.

The complex moment of a function f is defined as:

$$c_{pq}=\underset{-\infty }{\overset{\infty }{\int }}\underset{-\infty }{\overset{\infty }{\int }}{\left(x+iy\right)}^p{\left(x-iy\right)}^{q}f\left(x,y\right)\text{d}x\hspace{0.17em}\text{d}y$$

where p + q is called the order of the moment. To obtain translation invariance, we mostly work with centralized moments where the polynomial basis is shifted into the centroid of object f.

It follows from the definition that $c_{pq}=c_{qp}^{*}$ (the asterisk denotes complex conjugate). In polar coordinates (r, θ):

$$\begin{array}{ll}x=r\text{cos}\hspace{0.17em}\theta \hfill & r=\sqrt{x^2+y^2}\hfill \\ y=r\text{sin}\hspace{0.17em}\theta \hfill & \theta =\text{arctan}\hspace{0.17em}\left(y/x\right)\hfill \end{array}$$

(2)

we get:

$$c_{pq}=\underset{0}{\overset{\infty }{\int }}\underset{0}{\overset{2\pi }{\int }}{r}^{p+q+1}{e}^{i\left(p-q\right)\theta }f\left(r,\theta \right)\text{d}r\text{d}\theta .$$

(3)

Hence, after rotating the object by α its complex moment is changed as:

$$c_{pq}^{\text{'}}=e^{-i\left(p-q\right)\alpha }.c_{pq}$$

(4)

This is an important property which shows on one hand that rotation invariance can easily be achieved by a proper phase cancellation (see [20] for details) and, on the other hand, explains all the problems with symmetry. If f exhibits an n-FRS, then for α =2π/n must hold $c_{pq}^{\text{'}}=c_{pq}$, which can be fulfilled by two ways only. Either (p – q)/n must be an integer or c_pq =0 otherwise. Here we can see that the complex moments of non-integer (p − q)/n are not able to discriminate objects having n-FRS even if they are visually clearly different.

The reflection symmetry also constrains the moment values. Let us for simplicity illustrate this on the case when the symmetry axis is horizontal, i.e., f(x, y)= f(x, −y). Then $c_{pq}=c_{qp}^{*}=c_{qp}$ which implies all complex moments must be real. For an arbitrary oriented axis we get another constraint on the moment phase. Such a pre-determination of the moment values regardless of the particular shape of f decreases the recognition power.

Table 1. The values of the moments for selected symmetry groups. Here, zero means the moment identically equals zero, R only real part can be nonzero, C means the moment value is not constrained. Constrained moments provide limited recognition power.

ℓ = p − q	0	1	2	3	4	5	6	7	8	9	10	11	12
C5	R	0	0	0	0	C	0	0	0	0	C	0	0
D5	R	0	0	0	0	R	0	0	0	0	R	0	0
D6	R	0	0	0	0	0	R	0	0	0	0	0	R
D∞	R	0	0	0	0	0	0	0	0	0	0	0	0

summarizes the constraints for selected symmetry groups.

4. Recognition of Symmetric 3D Objects

In recognition of 3D objects we face similar problems as in 2D but the situation is much more complicated. Rotation in 3D has three degrees of freedom, is not commutative and there exist many more symmetry groups than in 2D. Hence, the generalization is not straightforward. We first study the existing symmetry groups and then we will investigate the impact of each particular symmetry on the moment values.

4.1. Rotation in 3D

Rotation in 3D can be expressed by various ways. Two common ways are by a rotation matrix and by Euler angles.

Definition 4.1 A 3D rotation matrix is:

$$\mathbf{R}=\left(\begin{array}{lll}\text{cos}\hspace{0.17em}{\alpha }_{\mathit{xx}}\hfill & \text{cos}\hspace{0.17em}{\alpha }_{\mathit{xy}}\hfill & \text{cos}\hspace{0.17em}{\alpha }_{xz}\hfill \\ \text{cos}\hspace{0.17em}{\alpha }_{yx}\hfill & \text{cos}\hspace{0.17em}{\alpha }_{yy}\hfill & \text{cos}\hspace{0.17em}{\alpha }_{yz}\hfill \\ \text{cos}\hspace{0.17em}{\alpha }_{zx}\hfill & \text{cos}\hspace{0.17em}{\alpha }_{zy}\hfill & \text{cos}\hspace{0.17em}{\alpha }_{zz}\hfill \end{array}\right)$$

The rotation matrix is the matrix of direction cosines, e.g., α_zy is the angle between original position of z-axis and new position of y-axis.

Another way of rotation description in 3D are so called Euler angles α, β, and γ. The α is the angle of rotation around z-axis, the corresponding rotation matrix is:

$$\mathbf{A}=\left(\begin{array}{ccc}\text{cos}\hspace{0.17em}\alpha & -\text{sin}\hspace{0.17em}\alpha & 0\\ \text{sin}\hspace{0.17em}\alpha & \text{cos}\hspace{0.17em}\alpha & 0\\ 0& 0& 1\end{array}\right)$$

(5)

β is the angle of rotation around y-axis, the rotation matrix is:

$$\mathbf{B}=\left(\begin{array}{ccc}\text{cos}\hspace{0.17em}\beta & 0& -\text{sin}\hspace{0.17em}\beta \\ 0& 1& 0\\ \text{sin}\hspace{0.17em}\beta & 0& \text{cos}\hspace{0.17em}\beta \end{array}\right)$$

(6)

and γ is the angle of rotation around z-axis again, the rotation matrix is:

$$\mathbf{C}=\left(\begin{array}{ccc}\text{cos}\hspace{0.17em}\gamma & -\text{sin}\hspace{0.17em}\gamma & 0\\ \text{sin}\hspace{0.17em}\gamma & \text{cos}\hspace{0.17em}\gamma & 0\\ 0& 0& 1\end{array}\right)$$

(7)

While α and γ are from zero to 2π, β is from zero to π. The matrices can be multiplied to give the resultant rotation matrix:

$$\mathbf{R}=\mathbf{\text{CBA}}$$

(8)

The Euler angles can be recovered from the rotation matrix by:

$$\begin{array}{lll}\alpha \hfill & =\hfill & \text{arctan}\hspace{0.17em}2\left(-r_{32},r_{31}\right)\hfill \\ \beta \hfill & =\hfill & \text{arccos}\hspace{0.17em}\left(r_{33}\right)\hfill \\ \gamma \hfill & =\hfill & \text{arctan}2\left(-r_{23}-r_{13}\right)\hfill \end{array}$$

(9)

where r_ij are elements of the rotation matrix.

4.2. Rotation and Reflection Symmetry in 3D

In 3D, the reflection symmetry is always with respect to a reflection plane and rotation symmetry is w.r.t. a symmetry axis. When categorizing the symmetry groups, we will always assume that the axis with the maximum fold number of the rotation symmetry coincides with the z-axis, and if there is a plane of the reflection symmetry containing the axis, it coincides with the xz-plane. If the reflection plane is perpendicular to the z axis, it coincides with the xy-plane. We can make this assumption without a loss of generality because we study such object properties which do not depend on the particular orientation. A survey of all 3D symmetry groups with the rotation and reflection symmetry is presented below.

• Asymmetric extension of the 2D groups:

  $$C_1,C_2,C_3,\hspace{0.17em}\hspace{0.17em}\dots$$
  into 3D. We can imagine e.g., some chiral pyramid constructed on the 2D base with the symmetry group C_n. The group has still n elements. An example of a body with this symmetry is in Figure 1a.

• A single horizontal plane of the reflection symmetry. These symmetry groups are denoted as:

  $$C_{1h},C_{2h},C_{3h},\hspace{0.17em}\hspace{0.17em}\dots$$
  The symmetry group C_nh has 2n elements: n identical with C_n (the identity and n − 1 rotations) and other n, where the rotations are combined with the reflection. The objects resemble a “double pyramid”, where the bottom pyramid is a reflection of the top pyramid. An example of a body with this symmetry is in Figure 1b.

• The group can include n vertical planes of the reflection symmetry. Then we have:

  $$C_{1v},C_{2v},C_{3v},\hspace{0.17em}\hspace{0.17em}\dots$$
  The symmetry group C_nv has also 2n elements: n identical with C_n and n reflections. It is called pyramidal symmetry, because a pyramid built on a regular n-sided polygon has this type of the symmetry. Examples are in Figure 1c,d.

• We can generalize the 2D reflection as rotation by 180° in 3D. Then the symmetry is called dihedral (the term “dihedral” has this meaning in 3D) and we have a sequence:

  $$D_1,D_2,D_3,\hspace{0.17em}\hspace{0.17em}\dots$$
  The symmetry group D_n has 2n elements: n rotations by the z-axis (identical with C_n) and n rotations by π around axes perpendicular to z. We have again a double pyramid as in C_nh, but the bottom pyramid is a rotation by π of the top pyramid. An example from connected tetrahedrons is in Figure 1e.

• We can combine the dihedral symmetry with the reflection:

  $$D_{1h},D_{2h},D_{3h},\hspace{0.17em}\hspace{0.17em}\dots$$
  The symmetry group D_nh has 4n elements: 2n identical with D_n and other 2n combined with reflection across the horizontal plane. The reflections across one of n vertical planes can be expressed as combinations of the horizontal reflection and rotation. This symmetry is called prismatic, because a prism built on a regular n-sided polygon has this type of the symmetry. An examples are in Figure 1g,h.

• There is another group sequence:

  $$D_{1d},D_{2d},D_{3d},\hspace{0.17em}\hspace{0.17em}\dots$$
  without the horizontal reflection plane, but with symmetry to compound reflection across the horizontal plane and rotation by (2k +1)π/n for k =0, 1,...,n − 1. The number of elements of D_nd is 4n. It is called antiprismatic symmetry, because we would have to rotate the bottom half of the prism by π/n to obtain this type of symmetry. An example is in Figure 1f.

• The last group sequence:

  $$S_2,S_4,S_6,\hspace{0.17em}\hspace{0.17em}\dots$$
  contains the symmetry to the compound transformation from the previous case but without the corresponding simple rotations. S_2n has 2n elements: n rotations by 4kπ/n and n compound transformations from the rotations by 2(2k +1)π/n and the reflections. The actual fold number of the rotation symmetry is n. An example is in Figure 1i.

Note that some of these groups are equivalent. For instance, C_1h = C_1v (a single reflection), D₁ = C₂ (a single rotation by π), D_1h = C_2v (a reflection in a plane and a rotation by π along a line in that plane), and D_1d = C_2h (a reflection in a plane and a rotation by π along a line perpendicular to that plane). The group S₂ (sometimes called central symmetry) is a composition of a reflection in a plane and a rotation by π through a line perpendicular to that plane. Unlike D_1d, in S₂ both these transformations must be performed together.

All the above symmetry group sequences include at most one rotation axis with the fold number higher then two. However, there exist other symmetry groups such as regular polyhedra which do not fit into the above framework.

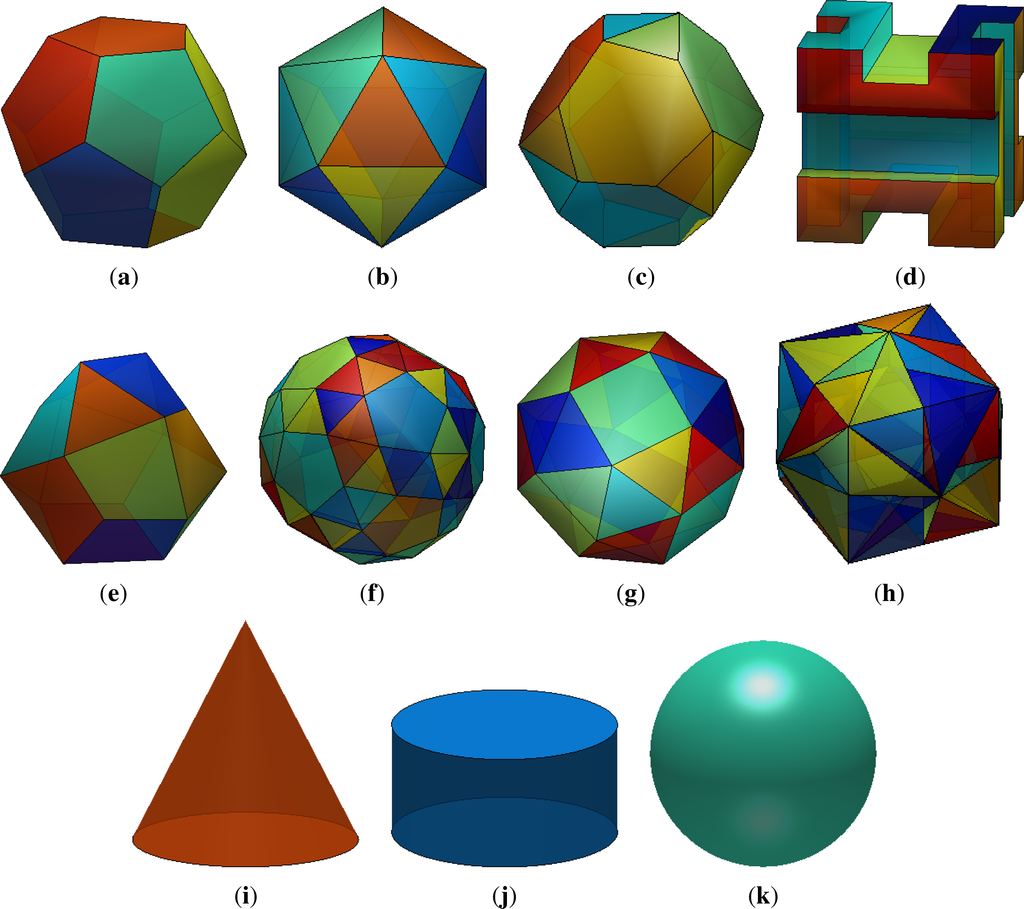

• Full tetrahedral symmetry: the regular tetrahedron has four axes of three-fold symmetry, three axes of two-fold symmetry and six planes of the reflection symmetry. The symmetry group T_d has 24 elements in total (the letter d means diagonal mirror planes). The regular tetrahedron is in Figure 1j.

• Full octahedral symmetry: the cube and the octahedron have the same symmetry. It includes three axes of four-fold symmetry, four axes of three-fold symmetry, six axes of two-fold symmetry and nine planes of the reflection symmetry. The symmetry group O_h has 48 elements, T_d is its subgroup. The cube and the octahedron are in Figure 1k,l.

• Full icosahedral symmetry: the dodecahedron and the icosahedron have also the same symmetry. It includes six axes of five-fold symmetry, 10 axes of three-fold symmetry, 15 axes of two-fold symmetry and 15 planes of the reflection symmetry. The symmetry group I_h has 120 elements. The dodecahedron and the icosahedron are in Figure 2a,b.

• Pyritohedral symmetry T_h: this group includes the same rotations as T_d, but has only three planes of reflection symmetry, the rest are rotoreflections. This group has 24 elements (the letter h means horizontal mirror planes). Examples are in Figure 2c,d.

• Chiral tetrahedral symmetry: the group T includes the same rotations as T_d, but without the planes of the reflection symmetry. It has 12 elements. An example is in Figure 2e.

• Chiral octahedral symmetry: the group O includes the same rotations as O_h, but without the planes of the reflection symmetry. It has 24 elements. Examples are in Figure 2g,h.

• Chiral icosahedral symmetry: the group I includes the same rotations as I_h, but without the planes of the reflection symmetry. It has 60 elements. An example is in Figure 2f.

Finally, there exist three groups containing circular symmetry:

• Conical symmetry group C_∞v.

• Cylindrical symmetry group D_∞h.

• Spherical symmetry group K.

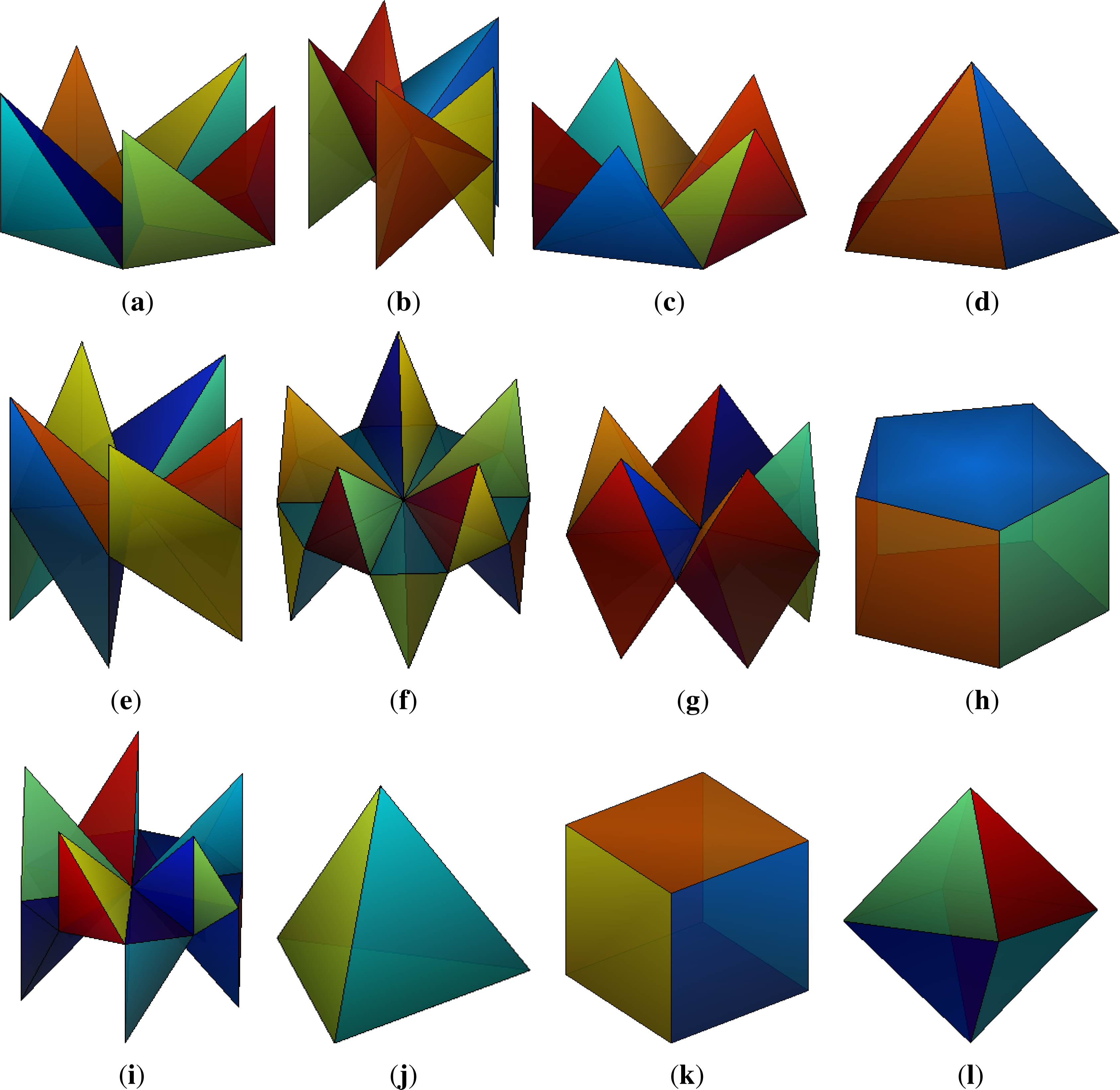

Examples of these three groups are shown in Figure 2i,j,k. Summarizing, we have:

• Seven infinite sequences of the symmetry groups, where each group has one main rotation axis and the other axes are at most twofold;

• Seven separate symmetry groups with more than one rotation axes with the fold number higher than two;

• Three infinite symmetry groups with some kind of circular symmetry.

The presented list of symmetry groups is complete. It has been proved that in 3D there are no other independent combinations of the rotation and reflection symmetries [13].

4.3. Complex Moments in 3D

The most natural way of the generalization of the complex moments into 3D leads through so-called spherical harmonics (e.g., [8] among others).

Definition 4.2 A spherical harmonic $Y_{\ell }^m$ is:

$$Y_{\ell }^m\left(\theta ,\phi \right)=\sqrt{\frac{\left(2\ell +1\right)}{4\pi }\frac{\left(\ell -m\right)!}{\left(\ell +m\right)!}}{P}_{\ell }^m\left(\text{cos}\theta \right)e^{im\phi }$$

where ℓ =0, 1, 2,... is its degree and m = −ℓ, − ℓ+1,..., ℓ is its order. $P_{\ell }^m$ is associated Legendre function which is defined for non-negative m as:

$$P_{\ell }^m\left(x\right)={\left(-1\right)}^m{\left(1-x^2\right)}^{(m/2)}\frac{d^m}{d{x}^m}{P}_{\ell }\left(x\right)$$

(10)

with P_ℓ (x) being Legendre polynomial:

$$P_{\ell }\left(x\right)=\frac{1}{2^{\ell }\ell !}\frac{d^{\ell }}{d{x}^{\ell }}{\left(x^2-1\right)}^{\ell }$$

(11)

For negative orders m the definition is extended as:

$$P_{\ell }^m\left(x\right)={\left(-1\right)}^{-m}\frac{\left(\ell +m\right)!}{\left(\ell -m\right)!}{P}_{\ell }^{-m}\left(x\right)$$

(12)

The spherical harmonics form an orthonormal basis. If we have a function f(θ, ϕ) defined on the unit sphere, it can be expressed as a linear combination of the basis functions:

$$f\left(\theta ,\phi \right)=\sum _{\ell =0}^{\infty }\sum _{m=-\ell }^{\ell }{f}_{\ell }^m{Y}_{\ell }^m\left(\theta ,\phi \right)$$

(13)

The coefficients $f_{\ell }^m$ can be computed as:

$$f_{\ell }^m=\underset{0}{\overset{2\pi }{\int }}\underset{0}{\overset{\pi }{\int }}f\left(\theta ,\phi \right)Y_{\ell }^{m*}\left(\theta ,\phi \right)\text{sin}\theta \text{d}\theta \text{d}\phi$$

(14)

This expansion is in fact Fourier transformation on a sphere, where the spherical harmonics are the basis functions of this transform.

The complex moments can then be generalized into 3D such that the function e^i(p−q)θ in their polar definition (3) is replaced by the corresponding spherical harmonic.

Definition 4.3 The 3D complex moment:

$$c_{s\ell }^m=\underset{0}{\overset{2\pi }{\int }}\underset{0}{\overset{\pi }{\int }}\underset{0}{\overset{\infty }{\int }}{\rho }^{s+2}{Y}_{\ell }^m\left(\theta ,\phi \right)f\left(\rho ,\theta ,\phi \right)\text{sin}\theta \text{d}\rho \hspace{0.17em}\text{d}\theta \hspace{0.17em}\text{d}\phi$$

where s is the order of the moment. The index ℓ is called latitudinal repetition, and the index m is called longitudinal repetition.

There is a relation between the spherical harmonic of negative and positive orders:

$$Y_{\ell }^{-m}={\left(-1\right)}^m{\left(Y_{\ell }^m\right)}^{*}$$

which implies $c_{s\ell }^{-m}={\left(-1\right)}^m{\left(c_{s\ell }^m\right)}^{*}$.

In the above definition, the complex moment is expressed in the spherical coordinates ρ, θ and ϕ:

$$\begin{array}{ll}x=\rho \text{sin}\theta \text{cos}\phi \hfill & \rho =\sqrt{x^2+y^2+z^2}\hfill \\ y=\rho \text{sin}\theta \text{sin}\phi \hfill & \phi =\text{arctan}\left(y/x\right)\hfill \\ z=\rho \text{cos}\theta \hfill & \theta =\text{arccos}\left(z/p\right)\hfill \end{array}$$

(15)

If we substitute $\rho =\sqrt{x^2+y^2+z^2}$, sin θe^iϕ =(x + iy)/ρ and cos θ = z/ρ into Definition 4.3, then we can express the complex moment in the Cartesian coordinates

$$c_{s\ell }^m=\underset{-\infty }{\overset{\infty }{\int }}\underset{-\infty }{\overset{\infty }{\int }}\underset{-\infty }{\overset{\infty }{\int }}{\rho }^s{Y}_{\ell }^m\left(x,y,z\right)f\left(x,y,z\right)\text{d}x\hspace{0.17em}\text{d}y\hspace{0.17em}\text{dz}$$

(16)

If, e.g.,

$$Y_3^2\left(\theta ,\phi \right)=\frac{1}{4}\sqrt{\frac{105}{2\pi }}{\text{sin}}^2\theta \text{cos}\theta e^{2i\phi },Y_3^2\left(x,y,z\right)=\frac{1}{4}\sqrt{\frac{105}{2\pi }}\frac{{\left(x+iy\right)}^{2}z}{{\rho }^3}$$

then

$$c_{33}^2=\frac{1}{4}\sqrt{\frac{105}{2\pi }}\underset{-\infty }{\overset{\infty }{\int }}\underset{-\infty }{\overset{\infty }{\int }}\underset{-\infty }{\overset{\infty }{\int }}{\left(x+iy\right)}^{2}zf\left(x+y,z\right)\text{d}x\hspace{0.17em}\text{d}y\hspace{0.17em}\text{d}z$$

If s = 0, 1, 2,..., then ℓ= 0, 2, 4,...,s − 2,s for even s and ℓ = 1, 3, 5,...,s − 2,s for odd s, m = −ℓ, − ℓ +1,...,ℓ. The object centroid (which is needed for shift-invariant representation) can be computed as

$$x_c=-\sqrt{\frac{2}{3}}\frac{ℛe\left(c_{11}^1\right)}{c_{00}^0},\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{y}_c=-\sqrt{\frac{2}{3}}\frac{ℐm\left(c_{11}^1\right)}{c_{00}^0},\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{z}_c\sqrt{\frac{1}{3}}\frac{c_{11}^0}{c_{00}^0}$$

(17)

Under a rotation, the spherical harmonics are transformed in a simple way:

$$Y_{\ell }^m\left(\mathbf{\text{Rx}}\right)=\sum _{m^{\prime }=-\ell }^{\ell }{D}_{m^{\prime }m}^{\ell }\left(\mathbf{R}\right)Y_{\ell }^{m^{\prime }}\left(\mathbf{x}\right)$$

(18)

The spherical harmonics after a rotation given by the rotation matrix R are linear combinations of the spherical harmonics with the same degree. The coefficients of these linear combinations are so called Wigner D-functions $D_{m\text{'}m}^{\ell }\left(\mathbf{R}\right)$.

Definition 4.4 If the rotation matrix R is decomposed into the Euler angles α, β, γ, then the Wigner D-function (also Wigner D-matrix) is defined as

$$D_{m^{\prime }m}^{\ell }\left(\alpha ,\beta ,\gamma \right)=e^{i{m}^{\prime }\alpha }{d}_{m^{\prime }m}^{\ell }\left(\beta \right)e^{im\gamma }$$

(19)

where $d_{m\text{'}m}^{\ell }\left(\beta \right)$ is Wigner d-function (also Wigner small d-function)

$$\begin{array}{l}{d}_{m^{\prime }m}^{\ell }\left(\beta \right)=\sqrt{\left(\ell +m^{\prime }\right)!\left(\ell -m^{\prime }\right)!\left(\ell +m\right)!\left(\ell -m\right)!}\times \hfill \\ \times \sum _{s=\text{max}\left(0,m-m^{\prime }\right)}^{\text{min}\left(\ell +m,\ell -m^{\prime }\right)}\frac{{\left(-1\right)}^{m^{\prime }-m+s}}{\left(\ell +m-s\right)!s!\left(m^{\prime }-m+s\right)!\left(\ell -m^{\prime }-s\right)!}{\left(\text{cos}\frac{\beta }{2}\right)}^{2\ell +m-m^{\prime }-2s}{\left(\text{sin}\frac{\beta }{2}\right)}^{m^{\prime }-m+2s}\hfill \end{array}$$

(20)

The sum goes over such indices, where the arguments of the factorials are nonnegative. If there are no such arguments, then $d_{m\text{'}m}^{\ell }\left(\beta \right)=0$.

Wigner d-functions with swapped lower indices can be obtained by the relation $d_{mm\text{'}}^{\ell }\left(\beta \right)={\left(-1\right)}^{m-m\text{'}}{d}_{m\text{'}m}^{\ell }\left(\beta \right)$.

If we substitute (18) into Definition 4.3, we obtain the complex moment after the rotation by the matrix R

$${\left(c_{s\ell }^m\right)}^{\left(\mathbf{R}\right)}=\sum _{m^{\prime }=-\ell }^{\ell }{D}_{m^{\prime }m}^{\ell }\left(\mathbf{R}\right)c_{s\ell }^{m^{\prime }}$$

(21)

4.4. The Influence of Symmetry on 3D Complex Moments

The investigation of the influence of the symmetry on the 3D complex moments is complicated. A complete solution to this problem would require successive substitution of all elements of the corresponding symmetry group to the Equation (21), which is extremely laborious. We do not follow this approach in this paper. Instead, we show that many (possibly not all) constraints can be discovered by much simpler techniques.

If the object has an n-FRS and the rotation axis coincide with z-axis, then the Euler angles of a transformation from its symmetry group are α =0, β =0, and γ =2π/n. $d_{m\text{'}m}^{\ell }\left(0\right)$ = 0 for m′ ≠ m and $d_{m\text{'}m}^{\ell }\left(0\right)=1$ for m′ = m. Then (21) becomes

$$c_{s\ell }^m=e^{2\pi im/n}\cdot c_{s\ell }^m$$

(22)

It means the longitudinal repetition m must be an integer multiple of the fold number n or $c_{s\ell }^m=0$ otherwise. This rule is similar to that one we already derived in 2D.

If there is an additional two-fold axis perpendicular to z (e.g., symmetry groups D_n and D_nh), then additional symmetry operation is the rotation by the Euler angles α =0, β = π, and γ =0. $d_{m\text{'}m}^{\ell }=\left(\pi \right)$ is non-zero only if m′= −m. Then $d_{-m,m}^{\ell }\left(\pi \right)={\left(-1\right)}^{\ell -m}$ and (21) becomes

$$c_{s\ell }^m={\left(-1\right)}^{\ell }{\left(c_{s\ell }^m\right)}^{*}$$

(23)

It means $ℐm\left(c_{s\ell }^m\right)=0$ for even ℓ and $ℛe\left(c_{s\ell }^m\right)=0$ for odd ℓ.

If the object has the reflection symmetry across the xz-plane, then f(x, y, z) = f(x, −y, z), and in polar coordinates it holds f(ρ, θ, ϕ) = f(ρ, θ, −ϕ). For the spherical harmonics we have $Y_{\ell }^m\left(\theta ,-\phi \right)=Y_{\ell }^m{\left(\theta ,\phi \right)}^{*}$ and for the complex moment $c_{s\ell }^m={\left(c_{s\ell }^m\right)}^{*}$. It implies $ℐm\left(c_{s\ell }^m\right)=0$ for every ℓ and m.

The reflection symmetry across the yz-plane is similar. We have f(x, y, z) = f(−x, y, z) and in polar coordinates f(ρ, θ, ϕ) = f(ρ, θ, π − ϕ). For the spherical harmonics we have $Y_{\ell }^m\left(\theta ,\pi -\phi \right)={\left(-1\right)}^m{Y}_{\ell }^m{\left(\theta ,\phi \right)}^{*}$ which yields $c_{s\ell }^m={\left(-1\right)}^m{\left(c_{s\ell }^m\right)}^{*}$. It implies $ℐm\left(c_{s\ell }^m\right)=0$ for odd m and $ℛe\left(c_{s\ell }^m\right)=0$ for even m, both for every ℓ. If the object has the reflection symmetry across the xy-plane, then f(x, y, z)= f(x, y, −z), f(ρ, θ, ϕ)= f(ρ, π − θ, ϕ), and for the spherical harmonics it holds $Y_{\ell }^m\left(\pi -\theta ,\phi \right)=Y_{\ell }^m\left(\theta ,\phi \right)$ for even l −|m| and $Y_{\ell }^m\left(\pi -\theta ,\phi \right)=-Y_{\ell }^m\left(\theta ,\phi \right)$ for odd l −|m|. Consequently, $c_{s\ell }^m=0$ for odd l −|m|.

If the object has the circular symmetry around the z-axis, then

$$c_{s\ell }^m=e^{im\gamma }\cdot c_{s\ell }^m$$

(24)

for every γ, i.e., $c_{s\ell }^m$ can be nonzero only if m =0.

If the object has spherical symmetry, then the complex moment does not also change during the arbitrary rotation around the y-axis, i.e., β is arbitrary. If $d_{m\text{'}m}^{\ell }\left(\beta \right)$ is not dependent on β, then it equals one only if ℓ = m′= m =0 otherwise $d_{m\text{'}m}^{\ell }\left(\beta \right)=0$. It means only $c_{s0}^0$ can by nonzero, $c_{s\ell }^m=0$ for ℓ ≠ 0 or m ℓ ≠ 0.

We have derived the constraints (rules) for the seven infinite sequences of the symmetry groups C_n, C_nh, C_nv, D_n, D_nh, D_nd and S_2n and for the three symmetry groups with a circular symmetry C_∞v, D_∞h and K. The constraints for the polyhedral symmetry groups T_d, O_h, I_h, T_h, T, O and I still remain to be found. To do so, we can use the rules for the longitudinal repetition m saying that m must be an integer multiple of the maximum fold number for the nonzero complex moment. The rule that l −|m| must be even applies to the group O_h only, where the reflection plane is perpendicular to the main four-fold rotation axis.

In principle we could use this approach also for the latitudinal repetition ℓ but it is too complicated in the case of the polyhedral groups. Instead, we use the group representation proposed by Mamone, Pileio and Levitt [18]. A group can be represented by matrices such that:

$$M^{\mathrm{\Gamma }}\left(G_1\circ G_2\right)=M^{\mathrm{\Gamma }}\left(G_1\right)\cdot M^{\mathrm{\Gamma }}\left(G_2\right)$$

where M^Γ(G) is the matrix representation of the group element G in the representation Γ and ○ is the group operation. The character is the trace of the representation:

$${\chi }^{\mathrm{\Gamma }}\left(G\right)=\mathit{Tr}\left\{M^{\mathrm{\Gamma }}\left(G\right)\right\}$$

The character does not depend on the basis vectors of the matrix representation. Two group elements G and G′ belong to the same class, if there is such similarity transformation A from the group that G = AG′A⁻¹. Then all elements in the same class have the same character for all representations.

If we have some finite subgroup 𝔤 of the group $𝒢$ and the sum of the characters of all elements of 𝔤 equals zero, then the sum of their representations equals zero, too:

$$\sum _{𝒞}{h}_{𝒞}\left(𝔤\right){\chi }_{𝒞}^{\mathrm{\Gamma }}=0\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\Rightarrow \sum _{G\in 𝒞}{M}^{\mathrm{\Gamma }}\left(G\right)=0$$

where h_$𝒞$(𝔤) is the number of elements of the class $𝒞$ in the subgroup 𝔤.

If the group element G is a geometric transformation of coordinates in an n-dimensional space, it can transform function f as:

$$f^{\prime }\left(\mathbf{x}\right)=f\left(G^{-1}\mathbf{x}\right)$$

The average function over a finite subgroup 𝔤 ⊂$𝒢$ is:

$${\langle f\rangle }_{𝔤}=h{\left(𝔤\right)}^{-1}\sum _{G\in 𝔤}f\left(G^{-1}\mathbf{x}\right)$$

where h(𝔤) is the number of elements of 𝔤. If set of functions $f_1^{\mathrm{\Gamma }},\dots ,f_m^{\mathrm{\Gamma }}$ form a basis for m-dimensional representation Γ of $𝒢$, then:

$$\sum _{𝒞}{h}_{𝒞}\left(𝔤\right){\chi }_{𝒞}^{\mathrm{\Gamma }}=0\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\Rightarrow \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{\langle f_i^{\mathrm{\Gamma }}\rangle }_{𝔤}=0$$

This is also valid if 𝔤 is symmetry group of some polyhedron and the functions f are evaluated at its vertices or even if we compute complex moments, i.e., integral transformation of a body with polynomial kernel function.

The representations of 3D orthogonal group O(3) are Wigner D-matrices. If the symmetry group is its subgroup, the constraints for the latitudinal repetition can be obtained as a sum of the characters of the individual symmetry operations. If the symmetry operation is rotation, the character is the trace of the corresponding Wigner D-matrix:

$${\chi }_D^{\left(\ell \right)}\left(\beta \right)=\sum _{m=-\ell }^{\ell }{D}_{mm}^{\ell }\left(0,\beta ,0\right)$$

where β is the angle of the rotation. In the case of rotoinversion, i.e., the rotation followed by the inversion, the character is:

$${\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(\beta \right)$$

The rotoinversion differs from the rotoreflection. The character of the inversion itself is ${\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(0\right)$, while the character of the reflection is ${\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(\pi \right)$, the inversion equals the rotation by π followed by the reflection. If the sum over all symmetries from the given symmetry group equals zero, then all complex moments with the corresponding latitudinal repetition equal zero. Let us apply this general approach to particular symmetry groups.

The full tetrahedral symmetry group T_d contains:

• identity,

• eight rotations by 2π/3,

• three rotations by π,

• six reflections,

• six rotoreflections by π/2,

therefore the sum is:

$$S_{T_d}\left(\ell \right)={\chi }_D^{\left(\ell \right)}\left(0\right)+8{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+3{\chi }_D^{\left(\ell \right)}\left(\pi \right)+6{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(\pi \right)+6{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(\pi /2\right)$$

(the rotoinversion by π/2 equals the rotoreflection by π/2). The sum equals zero for ℓ =1, 2 and 5, i.e., $c_{s\ell }^m=0$, for all s and m if ℓ =1, 2 or 5.

The full octahedral symmetry group O_h contains:

• identity,

• six rotations by π/2,

• eight rotations by 2π/3,

• three rotations by π about a four-fold axis,

• six rotations by π about a two-fold axis,

• inversion,

• six rotoinversions by π/2,

• eight rotoinversions by 2π/3,

• three reflections perpendicular to a four-fold axis,

• six reflections perpendicular to a two-fold axis.

The sum is:

$$\begin{array}{l}{S}_{O_h}\left(\ell \right)={\chi }_D^{\left(\ell \right)}\left(0\right)+6{\chi }_D^{\left(\ell \right)}\left(\pi /2\right)+8{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+9{\chi }_D^{\left(\ell \right)}\left(\pi \right)+{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(0\right)+\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}6{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(\pi /2\right)+8{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+9{\left(-1\right)}^{\left(\ell \right)}{\chi }_D^{\left(\ell \right)}\left(\pi \right).\end{array}$$

It equals zero for ℓ =1,2,3,5,7, ..., i.e., all odd ℓ and ℓ =2.

The full icosahedral symmetry group I_h contains:

• identity,

• 12 rotations by 2π/5,

• 12 rotations by 4π/5,

• 20 rotations by 2π/3,

• 15 rotations by π,

• inversion,

• 12 rotoinversions by 2π/5,

• 12 rotoinversions by 4π/5,

• 20 rotoinversions by 2π/3,

• 15 reflections,

e.g., the rotoinversion by 2π/5 equals the rotoreflection by π − 2π/5 = 108°. The sum is:

$$\begin{array}{l}{S}_{I_h}\left(\ell \right)={\chi }_D^{\left(\ell \right)}\left(0\right)+12{\chi }_D^{\left(\ell \right)}\left(2\pi /5\right)+12{\chi }_D^{\left(\ell \right)}\left(4\pi /5\right)+20{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+15{\chi }_D^{\left(\ell \right)}\left(\pi \right)+\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(0\right)+12{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(2\pi /5\right)+12{\left(-1\right)}^{\left(\ell \right)}{\chi }_D^{\left(\ell \right)}\left(4\pi /5\right)+20{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}15{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(\pi \right)\end{array}$$

It equals zero for ℓ =1, 2, 3, 4, 5, 7, 8, 9, 11, 13, 14, 15, 17, 19 ..., i.e., all odd ℓ and ℓ =2, 4, 8 and 14.

The pyritohedral symmetry group T_h contains:

• identity,

• eight rotations by 2π/3,

• three rotations by π,

• inversion,

• eight rotoreflections by π/3,

• three reflections.

The sum is:

$$S_{T_h}\left(\ell \right)={\chi }_D^{\left(\ell \right)}\left(0\right)+8{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+3{\chi }_D^{\left(\ell \right)}\left(\pi \right)+{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(0\right)+8{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+3{\left(-1\right)}^{\ell }{\chi }_D^{\left(\ell \right)}\left(\pi \right).$$

It equals zero for ℓ =1,2,3,5,7,9, ..., i.e., all odd ℓ and ℓ =2

The chiral symmetry groups include the same rotations as the full versions without all inversions. For the chiral tetrahedral group T we have:

$$S_T\left(\ell \right)={\chi }_D^{\left(\ell \right)}\left(0\right)+8{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+3{\chi }_D^{\left(\ell \right)}\left(\pi \right)$$

The sum equals zero for ℓ =1, 2 and 5.

The chiral octahedral symmetry group O:

$$S_O\left(\ell \right)={\chi }_D^{\left(\ell \right)}\left(0\right)+6{\chi }_D^{\left(\ell \right)}\left(\pi /2\right)+8{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+9{\chi }_D^{\left(\ell \right)}\left(\pi \right)$$

It equals zero for ℓ =1,2,3,5,7 and 11.

The chiral icosahedral symmetry group I:

$$S_I\left(\ell \right)={\chi }_D^{\left(\ell \right)}\left(0\right)+12{\chi }_D^{\left(\ell \right)}\left(2\pi /5\right)+12{\chi }_D^{\left(\ell \right)}\left(4\pi /5\right)+20{\chi }_D^{\left(\ell \right)}\left(2\pi /3\right)+15{\chi }_D^{\left(\ell \right)}\left(\pi \right)$$

It equals zero for ℓ =1, 2, 3, 4, 5, 7, 8, 9, 11, 13, 14, 17, 19, 23 and 29.

All these rules deal with the longitudinal repetition m and the latitudinal repetition ℓ separately. There are additional rules saying that the complex moments are zero for some additional particular combinations of the m and ℓ. We have created a few bodies with the specific symmetry and computed their complex moments, the results are in

Table 2. The values of the moments for the symmetry groups C₅, C_5h, C_5v, D₅, D_5h and D_5d: 0, the moment identically equals zero; R, only real part can be nonzero; I, only imaginary part can be nonzero; C, the value is not constrained.

m	0	1	2	3	4	5	6	7	8	9	10	11	12	0	1	2	3	4	5	6	7	8	9	10	11	12
ℓ
0	R													R
1	R	0												0	0
2	R	0	0											R	0	0
3	R	0	0	0										0	0	0	0
4	R	0	0	0	0									R	0	0	0	0
5	R	0	0	0	0	C								0	0	0	0	0	C
6	R	0	0	0	0	C	0							R	0	0	0	0	0	0
7	R	0	0	0	0	C	0	0						0	0	0	0	0	C	0	0
8	R	0	0	0	0	C	0	0	0					R	0	0	0	0	0	0	0	0
9	R	0	0	0	0	C	0	0	0	0				0	0	0	0	0	C	0	0	0	0
10	R	0	0	0	0	C	0	0	0	0	C			R	0	0	0	0	0	0	0	0	0	C
11	R	0	0	0	0	C	0	0	0	0	C	0		0	0	0	0	0	C	0	0	0	0	0	0
12	R	0	0	0	0	C	0	0	0	0	C	0	0	R	0	0	0	0	0	0	0	0	0	C	0	0
0	R													R
1	R	0												0	0
2	R	0	0											R	0	0
3	R	0	0	0										0	0	0	0
4	R	0	0	0	0									R	0	0	0	0
5	R	0	0	0	0	R								0	0	0	0	0	R
6	R	0	0	0	0	R	0							R	0	0	0	0	I	0
7	R	0	0	0	0	R	0	0						0	0	0	0	0	R	0	0
8	R	0	0	0	0	R	0	0	0					R	0	0	0	0	I	0	0	0
9	R	0	0	0	0	R	0	0	0	0				0	0	0	0	0	R	0	0	0	0
10	R	0	0	0	0	R	0	0	0	0	R			R	0	0	0	0	I	0	0	0	0	R
11	R	0	0	0	0	R	0	0	0	0	R	0		0	0	0	0	0	R	0	0	0	0	I	0
12	R	0	0	0	0	R	0	0	0	0	R	0	0	R	0	0	0	0	I	0	0	0	0	R	0	0
0	R													R
1	0	0												0	0
2	R	0	0											R	0	0
3	0	0	0	0										0	0	0	0
4	R	0	0	0	0									R	0	0	0	0
5	0	0	0	0	0	R								0	0	0	0	0	0
6	R	0	0	0	0	0	0							R	0	0	0	0	I	0
7	0	0	0	0	0	R	0	0						0	0	0	0	0	0	0	0
8	R	0	0	0	0	0	0	0	0					R	0	0	0	0	I	0	0	0
9	0	0	0	0	0	R	0	0	0	0				0	0	0	0	0	0	0	0	0	0
10	R	0	0	0	0	0	0	0	0	0	R			R	0	0	0	0	I	0	0	0	0	R
11	0	0	0	0	0	R	0	0	0	0	0	0		0	0	0	0	0	0	0	0	0	0	0	0
12	R	0	0	0	0	0	0	0	0	0	R	0	0	R	0	0	0	0	I	0	0	0	0	R	0	0

Table 3. The values of the moments for the symmetry groups S₁₀, T_d, O_h, I_h, T_h and T : 0, the moment identically equals zero; R, only real part can be nonzero; I, only imaginary part can be nonzero; C, the value is not constrained.

m	0	1	2	3	4	5	6	7	8	9	10	11	12	0	1	2	3	4	5	6	7	8	9	10	11	12
ℓ
0	R													R
1	0	0												0	0
2	R	0	0										0	0	0
3	0	0	0	0										R	0	0	R
4	R	0	0	0	0									R	0	0	R	0
5	0	0	0	0	0	0								0	0	0	0	0	0
6	R	0	0	0	0	C	0							R	0	0	R	0	0	R
7	0	0	0	0	0	0	0	0						R	0	0	R	0	0	R	0
8	R	0	0	0	0	C	0	0	0					R	0	0	R	0	0	R	0
9	0	0	0	0	0	0	0	0	0	0				R	0	0	R	0	0	R	0	0	R
10	R	0	0	0	0	C	0	0	0	0	C			R	0	0	R	0	0	R	0	0	R	0
11	0	0	0	0	0	0	0	0	0	0	0	0		R	0	0	R	0	0	R	0	0	R	0	0
12	R	0	0	0	0	C	0	0	0	0	C	0	0	R	0	0	R	0	0	R	0	0	R	0	0	R
0	R													R
1	0	0												0	0
2	0	0	0											0	0	0
3	0	0	0	0										0	0	0	0
4	R	0	0	0	R									0	0	0	0	0
5	0	0	0	0	0	0								0	0	0	0	0	0
6	R	0	0	0	R	0	0							R	0	0	0	0	R	0
7	0	0	0	0	0	0	0	0						0	0	0	0	0	0	0	0
8	R	0	0	0	R	0	0	0	R					0	0	0	0	0	0	0	0	0
9	0	0	0	0	0	0	0	0	0	0				0	0	0	0	0	0	0	0	0	0
10	R	0	0	0	R	0	0	0	R	0	0			R	0	0	0	0	R	0	0	0	0	R
11	0	0	0	0	0	0	0	0	0	0	0	0		0	0	0	0	0	0	0	0	0	0	0	0
12	R	0	0	0	R	0	0	0	R	0	0	0	R	R	0	0	0	0	R	0	0	0	0	R	0	0
0	R													R
1	0	0												0	0
2	0	0	0											0	0	0
3	0	0	0	0										0	0	I	0
4	R	0	0	0	R									R	0	0	0	R
5	0	0	0	0	0	0								0	0	0	0	0	0
6	R	0	R	0	R	0	R							R	0	R	0	R	0	R
7	0	0	0	0	0	0	0	0						0	0	I	0	0	0	I	0
8	R	0	0	0	R	0	0	0	R					R	0	0	0	R	0	0	0	R
9	0	0	0	0	0	0	0	0	0	0				0	0	I	0	I	0	I	0	I	0
10	R	0	R	0	R	0	R	0	R	0	R			R	0	R	0	R	0	R	0	R	0	R
11	0	0	0	0	0	0	0	0	0	0	0	0		0	0	I	0	0	0	I	0	0	0	I	0
12	R	0	R	0	R	0	R	0	R	0	R	0	R	R	0	R	0	R	0	R	0	R	0	R	0	R

and

Table 4. The values of the moments for the symmetry groups O, I, C_∞v, D_∞h and K: 0, the moment identically equals zero; R, only real part can be nonzero; I, only imaginary part can be nonzero.

m	0	1	2	3	4	5	6	7	8	9	10	11	12	0	1	2	3	4	5	6	7	8	9	10	11	12
ℓ
0	R													R
1	0	0												0	0
2	0	0	0											0	0	0
3	0	0	0	0										0	0	0	0
4	R	0	0	0	R									0	0	0	0	0
5	0	0	0	0	0	0								0	0	0	0	0	0
6	R	0	0	0	R	0	0							R	0	R	0	R	0	R
7	0	0	0	0	0	0	0	0						0	0	0	0	0	0	0	0
8	R	0	0	0	R	0	0	0	R					0	0	0	0	0	0	0	0	0
9	0	0	0	0	I	0	0	0	I	0				0	0	0	0	0	0	0	0	0	0
10	R	0	0	0	R	0	0	0	R	0	0			R	0	R	0	R	0	R	0	R	0	R
11	0	0	0	0	0	0	0	0	0	0	0	0		0	0	0	0	0	0	0	0	0	0	0	0
12	R	0	0	0	R	0	0	0	R	0	0	0	R	R	0	R	0	R	0	R	0	R	0	R	0	R
0	R													R
1	R	0												0	0
2	R	0	0											R	0	0
3	R	0	0	0										0	0	0	0
4	R	0	0	0	0									R	0	0	0	0
5	R	0	0	0	0	0								0	0	0	0	0	0
6	R	0	0	0	0	0	0							R	0	0	0	0	0	0
7	R	0	0	0	0	0	0	0						0	0	0	0	0	0	0	0
8	R	0	0	0	0	0	0	0	0					R	0	0	0	0	0	0	0	0
9	R	0	0	0	0	0	0	0	0	0				0	0	0	0	0	0	0	0	0	0
10	R	0	0	0	0	0	0	0	0	0	0			R	0	0	0	0	0	0	0	0	0	0
11	R	0	0	0	0	0	0	0	0	0	0	0		0	0	0	0	0	0	0	0	0	0	0	0
12	R	0	0	0	0	0	0	0	0	0	0	0	R	R	0	0	0	0	0	0	0	0	0	0	0	0
1	0	0
2	0	0	0
3	0	0	0	0
4	0	0	0	0	0
5	0	0	0	0	0	0
6	0	0	0	0	0	0	0
7	0	0	0	0	0	0	0	0
8	0	0	0	0	0	0	0	0	0
9	0	0	0	0	0	0	0	0	0	0
10	0	0	0	0	0	0	0	0	0	0	0
11	0	0	0	0	0	0	0	0	0	0	0	0
12	0	0	0	0	0	0	0	0	0	0	0	0	0

.

If an object with the symmetry group C_nv for odd n is rotated such that it is symmetric to reflection across the yz-plane instead of the xz-plane, then there would be I in each second nonzero column, see Table 2 C_5v. This rule applies also to the group T_d.

The tables presented in this section show that for symmetric objects many moments are identically zero. This is a very important observation; if we want to recognize objects with certain symmetry, we should avoid invariants containing zero moments. This is the reason why the knowledge of the constraints found in this section is so important.

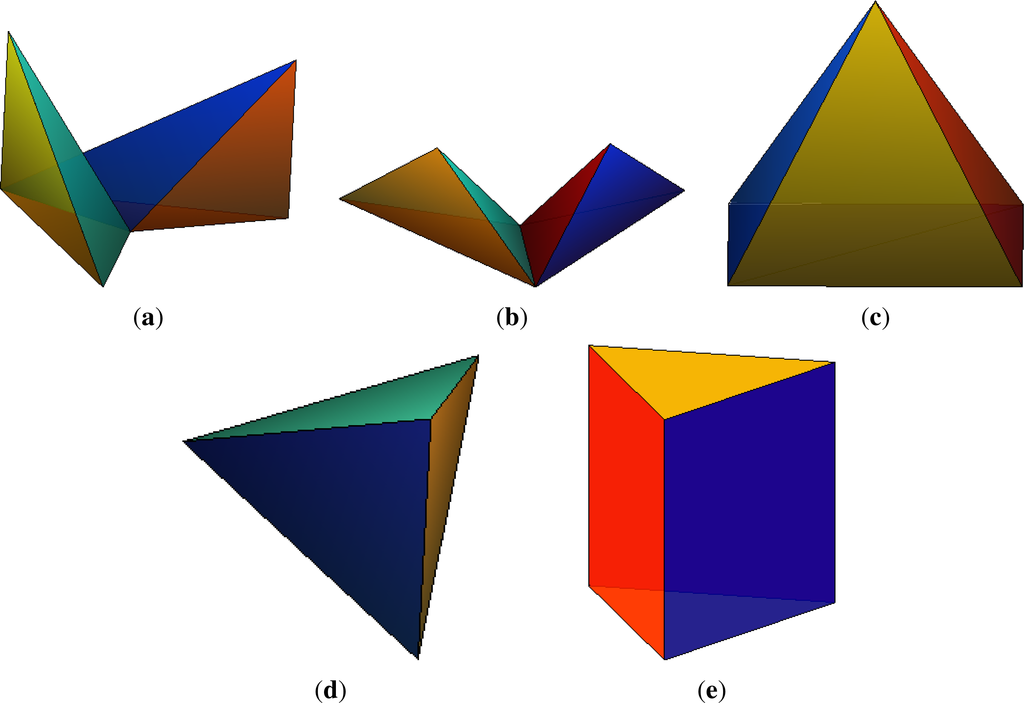

Figures 1 and 2 show some bodies used for the computation of the tables.

5. Invariants Based on Complex Moments in 3D

In this section, we show how to construct invariants to translation, rotation and scaling. Translation invariance is easily achieved by shifting the basis into the object centroid and scaling invariance can be obtained by normalization

$${\widehat{c}}_{s\ell }^m=\frac{c_{s\ell }^m}{{\left(c_{00}^0\right)}^{\frac{s}{3}+1}}$$

(25)

In the following text we show how to achieve rotation invariance, which is far more difficult. The invariants are constructed as polynomials in moments, the coefficients of which are given by so called Clebsch–Gordan coefficients.

Definition 5.1 Clebsch–Gordan coefficient can be computed

$$\begin{array}{l}\langle j_1,j_2,m_1,m_2|j_1,j_2,j,m\rangle \hfill \\ ={\delta }_{m,m_1+m_2}\sqrt{\frac{\left(2j+1\right)\left(j+j_1-j_2\right)!\left(j-j_1+j_2\right)!\left(j_1+j_2-j\right)!}{\left(j_1+j_2+j+1\right)!}}\hfill \\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\times \sqrt{\left(j+m\right)!\left(j-m\right)!\left(j_1+m_1\right)!\left(j_1-m_1\right)!\left(j_2+m_2\right)!\left(j_2+m_2\right)!}\hfill \\ \times \sum _k\frac{{\left(-1\right)}^k}{k!\left(j_1+j_2-j-k\right)!\left(j_1-m_1-k\right)!\left(j_2+m_2-k\right)!\left(j-j_1-m_2+k\right)!\left(j-j_2+m_1+k\right)!},\hfill \end{array}$$

(26)

where the sum is over such values of k that the arguments of the factorials are nonnegative. The factor δ_m,m1+m2 means it is nonzero only if m = m₁ + m₂.

The Clebsch–Gordan coefficients are used in group representation theory, see e.g., [21]. They arise from the explicit direct sum decomposition of the outer product of two irreducible representations of a group. Here, they are used for 3D analogy of 2D phase cancellation; they compensate changes of the spherical harmonics caused by their multiplication by the Wigner D-function when the object rotates.

The rotation invariants can be expressed by means of composite complex moment forms.

Definition 5.2 Composite complex moment form is

$$c_s{\left(\ell ,{\ell }^{\prime }\right)}_j^k=\sum _{m=\text{max}\left(-\ell ,k-{\ell }^{\prime }\right)}^{\text{min}\left(\ell ,k+{\ell }^{\prime }\right)}\langle \ell ,{\ell }^{\prime },m,k-m|\ell ,{\ell }^{\prime },j,k\rangle c_{s\ell }^m{c}_{s{\ell }^{\prime }}^{k-m}$$

(27)

The parameter s is its order, ℓ and ℓ′ are latitudinal repetitions and k is longitudinal repetition. The parameter j is total angular momentum from the Clebsch–Gordan coefficient, it has no special meaning here.

The form $c_s{\left(\ell ,\ell \right)}_0^0$ is the rotation invariant itself as well as $c_{s0}^0$, other invariants can be obtained as the tensor product of the composite complex moment forms and complex moments, where the sum of the upper indices equals zero. To obtain the rotation invariants, we can multiply a form and a complex moment

$$c_s{\left(\ell ,{\ell }^{\prime }\right)}_j{c}_{s^{\prime }}=\frac{1}{\sqrt{2j+1}}\sum _{k=-j}^j{\left(-1\right)}^{j-k}{c}_s{\left(\ell ,{\ell }^{\prime }\right)}_j^k{c}_{s^{\prime }j}^{-k}$$

(28)

or two forms

$$c_s{\left(\ell ,{\ell }^{\prime }\right)}_j{c}_{s^{\prime }}{\left({\ell }^{″},{{\ell }^{\prime }}^{″}\right)}_j=\frac{1}{\sqrt{2j+1}}\sum _{k=-j}^j{\left(-1\right)}^{j-k}{c}_s{\left(\ell ,{\ell }^{\prime }\right)}_j^k{c}_{s^{\prime }}{\left({\ell }^{″},{{\ell }^{\prime }}^{″}\right)}_j^{-k}$$

(29)

If both forms are identical, we obtain the square of the form from Equation (29)

$$c_s^2{\left(\ell ,{\ell }^{\prime }\right)}_j=\frac{1}{\sqrt{2j+1}}\sum _{k=-j}^j{\left(-1\right)}^{j-k}{c}_s{\left(\ell ,{\ell }^{\prime }\right)}_j^k{c}_s{\left(\ell ,{\ell }^{\prime }\right)}_j^{-k}$$

(30)

In all the formulas, the parameter j of the Clebsch–Gordan coefficients must be even. Conceivably, we can multiply more forms, but as we will see later, the product of two factors in Equations (28)–(30) is usually sufficient. The proof of the invariance is in Appendix A. The generation of the invariants can be done automatically. The results up to the 5th order in explicit forms can be found on our website [22].

The number of the independent invariants n_i is limited. We can estimate it as a difference between the number of moments n_m and the number of degrees of freedom of the transformation n_p

$$n_i=n_m-n_p$$

(31)

It holds precisely, if both the moments and the transformation parameters are independent. Since we have $n_m=\left(\begin{array}{c}s+3\\ 3\end{array}\right)$ moments up to the order s and n_p =7 parameters of TRS in 3D (three translations, scaling and three rotations), we can have at most $n_i=\left(\begin{array}{c}s+3\\ 3\end{array}\right)-7$ independent invariants.

Seemingly it would be possible to use only $c_{s0}^0$ for the recognition and avoid the computation of the form products, but such description of an object would be strongly incomplete. For instance, there should be 77 invariants of the sixth order according to Equation (31), but we have just three invariants from single moments ( $c_{20}^0$, $c_{40}^0$ and $c_{60}^0$ while $c_{00}^0$ is used for scaling normalization in both cases). Therefore we need the invariants obtained by phase cancellation by means of the tensor product of at least two composite complex moment forms. The moments $c_{s0}^0$ describe only the distance distribution of the mass, not the directional distribution. The higher-order moments express the finer details of the object, but they are also more sensitive to noise, therefore we aim to use the lower-order moments preferably.

In the experiments, we use the following invariants: the second order:

$${\mathrm{\Phi }}_1=c_2=\left(c_{20}^0\right)/{\left(c_{00}^0\right)}^{5/3}$$

$${\mathrm{\Phi }}_2=c_2{(2,2)}_0^0=\sqrt{\frac{1}{5}}({(c_{22}^0)}^2-2c_{22}^{-1}{c}_{22}^1+2c_{22}^{-2}{c}_{22}^2)/{\left(c_{00}^0\right)}^{10/3}$$

$$\begin{array}{l}{\mathrm{\Phi }}_3=c_2{\left(2,2\right)}_2{c}_2=\sqrt{\frac{1}{35}}(-\sqrt{2}{\left(c_{22}^0\right)}^3+3\sqrt{2}{c}_{22}^{-1}{c}_{22}^0{c}_{22}^1-3\sqrt{3}{\left(c_{22}^{-1}\right)}^2{c}_{22}^2-3\sqrt{3}{c}_{22}^{-2}{\left(c_{22}^1\right)}^2\\ \hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}+6\sqrt{2}{c}_{22}^{-2}{c}_{22}^0{c}_{22}^2)/{\left(c_{00}^0\right)}^5\end{array}$$

The third and higher orders are expressed just by the composite complex moment forms. The third order: ${\mathrm{\Phi }}_4=c_3{\left(3,3\right)}_0^0$, ${\mathrm{\Phi }}_5=c_3{\left(1,1\right)}_0^0$, Φ₆ = c₃(3, 3)₂c₂, Φ₇ = c₃(3, 1)₂c₂, Φ₈ = c₃(1, 1)₂c₂, Φ₉ = c₃(3, 3)₂c₂(2, 2)₂, ${\mathrm{\Phi }}_{10}=c_3^2{\left(3,3\right)}_2$, Φ₁₁ = c₃(3, 3)₂c₃(3, 1)₂, Φ₁₂ = c₃(3, 3)₂c₃(1, 1)₂, Φ₁₃ = c₃(3, 1)₂c₃(1, 1)₂, the fourth order: Φ₁₄ = c₄, ${\mathrm{\Phi }}_{15}=c_4{\left(4,4\right)}_0^0$, ${\mathrm{\Phi }}_{16}=c_4{\left(2,2\right)}_0^0$, Φ₁₇ = c₄(4, 4)₂c₂, Φ₁₈ = c₄(4, 2)₂c₂, Φ₁₉ = c₄(2, 2)₂c₂, Φ₂₀ = c₄(4, 4)₂c₄, Φ₂₁ = c₄(4, 2)₂c₄, Φ₂₂ = c₄(2, 2)₂c₄, Φ₂₃ = c₄(4, 4)₄c₄, Φ₂₄ = c₄(4, 4)₂c₂(2, 2)₂, Φ₂₅ = c₄(4, 2)₂c₂(2, 2)₂, Φ₂₆ = c₄(2, 2)₂c₂(2, 2)₂, Φ₂₇ = c₄(4, 4)₂c₃(3, 3)₂, Φ₂₈ = c₄(4, 4)₂c₃(3, 1)₂, Φ₂₉ = c₄(4, 4)₂c₃(1, 1)₂, Φ₃₀ = c₄(4, 2)₂c₃(3, 1)₂, Φ₃₁ = c₄(4, 2)₂c₃(1, 1)₂, Φ₃₂ = c₄(2, 2)₂c₃(1, 1)₂, ${\mathrm{\Phi }}_{33}=c_4^2{\left(4,4\right)}_2$, Φ₃₄ = c₄(4, 4)₂c₄(4, 2)₂, Φ₃₅ = c₄(4, 4)₂c₄(2, 2)₂, ${\mathrm{\Phi }}_{36}=c_4^2{\left(4,2\right)}_2$ and Φ₃₇ = c₄(4, 2)₂c₄(2, 2)₂. Their number is still higher then n_i in Equation (31), therefore we have carried out another selection. We use only these 28 invariants Φ₁–Φ₁₇, Φ₁₉–Φ₂₃ and Φ₃₂–Φ₃₇.

The symmetry induces new dependencies in the invariants. A typical example is the circular symmetry. If we take a body with the conic symmetry C_∞v, we can see in Table 4 C_∞v that $c_{s\ell }^m=0$ for m ≠ 0. If we substitute it into the formulas for Φ₁–Φ₃₇, they become much simpler. The invariants of the second order:

$${\mathrm{\Phi }}_1=c_{20}^0,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{\mathrm{\Phi }}_2=\frac{1}{5}{\left(c_{22}^0\right)}^2,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{\mathrm{\Phi }}_3=-\sqrt{\frac{2}{35}}{\left(c_{22}^0\right)}^3.$$

From that we can derive the polynomial dependency ${\left({\mathrm{\Phi }}_3\right)}^2=\frac{2\sqrt{5}}{7}{\left({\mathrm{\Phi }}_2\right)}^3$, therefore it is sufficient to use either Φ₂ or Φ₃ for recognition of bodies with the conic symmetry. Similarly the third order:

$$\begin{array}{lll}{\mathrm{\Phi }}_4=-\frac{1}{\sqrt{7}}{\left(c_{33}^0\right)}^2,\hfill & {\mathrm{\Phi }}_5=-\frac{1}{\sqrt{3}}{\left(c_{31}^0\right)}^2,\hfill & {\mathrm{\Phi }}_6=\frac{2}{\sqrt{105}}{c}_{22}^0{\left(c_{33}^0\right)}^2,\hfill \\ {\mathrm{\Phi }}_7=-\frac{3}{\sqrt{105}}{c}_{22}^0{c}_{31}^0{c}_{33}^0,\hfill & {\mathrm{\Phi }}_8=-\sqrt{2}{c}_{22}^0{\left(c_{31}^0\right)}^2,\hfill & {\mathrm{\Phi }}_9=-\frac{2}{7}\sqrt{\frac{2}{15}}{\left(c_{22}^0\right)}^2{\left(c_{33}^0\right)}^2,\hfill \\ {\mathrm{\Phi }}_{10}=-\frac{4}{21\sqrt{5}}{\left(c_{33}^0\right)}^4,\hfill & {\mathrm{\Phi }}_{11}=-\frac{2}{7\sqrt{5}}{c}_{31}^0{\left(c_{33}^0\right)}^3,\hfill & {\mathrm{\Phi }}_{12}=\frac{2}{3}\sqrt{\frac{2}{35}}{\left(c_{31}^0\right)}^2{\left(c_{33}^0\right)}^2,\hfill \\ {\mathrm{\Phi }}_{13}=-\sqrt{\frac{2}{35}}{\left(c_{31}^0\right)}^2{c}_{33}^0.\hfill & \hfill & \hfill \end{array}$$

Only two of the invariants Φ₄–Φ₁₃ of the third order and three of the invariants Φ₁₄–Φ₃₇ of the fourth order are independent.

In the case of the cylindrical symmetry D_∞h, $c_{s\ell }^m$ can be nonzero, if m =0 and ℓ is even, it implies all invariants containing third-order moments (Φ₄–Φ₁₃ and Φ₂₇–Φ₃₂) equal zero. If the symmetry is spherical (K), then only Φ₁ and Φ₁₄ can be nonzero.

If we know the dependency, we can convert it into the zero. If ${\left({\mathrm{\Phi }}_3\right)}^2=\frac{2\sqrt{5}}{7}{\left({\mathrm{\Phi }}_2\right)}^3$ for the bodies with the circular symmetry, it means:

$${\mathrm{\Phi }}_3^{C\infty }={\left({\mathrm{\Phi }}_3\right)}^2-\frac{2\sqrt{5}}{7}{\left({\mathrm{\Phi }}_2\right)}^3$$

must be zero for these bodies, the high absolute value of ${\mathrm{\Phi }}_3^{C\infty }$ mean there is no circular symmetry. Other such invariants:

$$\begin{array}{ll}{\mathrm{\Phi }}_6^{C\infty }={\left({\mathrm{\Phi }}_6\right)}^2-\frac{4}{3\sqrt{5}}{\mathrm{\Phi }}_2{\left({\mathrm{\Phi }}_4\right)}^2,\hfill & {\mathrm{\Phi }}_7^{C\infty }={\left({\mathrm{\Phi }}_7\right)}^2-3\sqrt{\frac{3}{35}}{\mathrm{\Phi }}_2{\mathrm{\Phi }}_4{\mathrm{\Phi }}_5,\hfill \\ {\mathrm{\Phi }}_{17}^{C\infty }={\mathrm{\Phi }}_{17}{\mathrm{\Phi }}_2-\sqrt{\frac{10}{11}}{\mathrm{\Phi }}_{15}{\mathrm{\Phi }}_3,\hfill & {\mathrm{\Phi }}_{19}^{C\infty }={\mathrm{\Phi }}_{19}{\mathrm{\Phi }}_2-{\mathrm{\Phi }}_{16}{\mathrm{\Phi }}_3\hfill \end{array}$$

can be derived from the additional polynomial dependencies induced by the circular symmetry.

If there is some other symmetry than circular, then the number of vanishing moments is not so high and searching for polynomial dependencies is computationally more demanding. We have identified the following dependencies for the two-fold rotation symmetry:

$$\begin{array}{l}{\mathrm{\Phi }}_{12}^{C2}=\frac{12}{5\sqrt{5}}{\mathrm{\Phi }}_{12}{\mathrm{\Phi }}_{10}-{\mathrm{\Phi }}_{12}{\mathrm{\Phi }}_4^2+\frac{1}{5}\sqrt{\frac{63}{10}}{\mathrm{\Phi }}_{11}^2,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{\mathrm{\Phi }}_{13}^{C2}={\mathrm{\Phi }}_{13}^2-\frac{9}{\sqrt{70}}{\mathrm{\Phi }}_{12}{\mathrm{\Phi }}_5^2,\hfill \\ {\mathrm{\Phi }}_6^{C2}={\mathrm{\Phi }}_6{\mathrm{\Phi }}_5^2-2\sqrt{5}{\mathrm{\Phi }}_{12}{\mathrm{\Phi }}_8+\sqrt{\frac{70}{3}}{\mathrm{\Phi }}_{13}{\mathrm{\Phi }}_7,\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}\hspace{0.17em}{\mathrm{\Phi }}_{27}^{C2}={\mathrm{\Phi }}_{27}{\mathrm{\Phi }}_5^2-2\sqrt{5}{\mathrm{\Phi }}_{29}{\mathrm{\Phi }}_{12}+\frac{\sqrt{70}}{3}{\mathrm{\Phi }}_{28}{\mathrm{\Phi }}_{13},\hfill \\ {\mathrm{\Phi }}_{29}^{C2}={\mathrm{\Phi }}_{29}{\mathrm{\Phi }}_8{\mathrm{\Phi }}_2-{\mathrm{\Phi }}_{17}{\mathrm{\Phi }}_8^2+\frac{1}{2}\sqrt{\frac{7}{5}}{\mathrm{\Phi }}_5\left({\mathrm{\Phi }}_{29}{\mathrm{\Phi }}_3-{\mathrm{\Phi }}_{24}{\mathrm{\Phi }}_8\right),\hfill \\ {\mathrm{\Phi }}_{25}^{C2}={\mathrm{\Phi }}_{25}{\mathrm{\Phi }}_{12}{\mathrm{\Phi }}_2-{\mathrm{\Phi }}_{31}{\mathrm{\Phi }}_9{\mathrm{\Phi }}_2-{\mathrm{\Phi }}_{18}{\mathrm{\Phi }}_{12}{\mathrm{\Phi }}_3+{\mathrm{\Phi }}_{31}{\mathrm{\Phi }}_6{\mathrm{\Phi }}_3-{\mathrm{\Phi }}_{25}{\mathrm{\Phi }}_8{\mathrm{\Phi }}_6+{\mathrm{\Phi }}_{18}{\mathrm{\Phi }}_9{\mathrm{\Phi }}_8.\hfill \end{array}$$

So, we have two types of the polynomial dependencies, the polynomial dependencies induced by some symmetry, e.g., ${\mathrm{\Phi }}_{25}^{C2}=0$ for bodies with two-fold rotation symmetry only, and the general polynomial dependencies that equals zero for all bodies. The knowledge of the dependencies is important for recognition because dependent invariants only increase the dimensionality but do not contribute to the discrimination power of the system.

6. Numerical Experiments

To demonstrate the performance and numerical properties of the invariants, we present the results of three experiments. The first experiment uses ideal computer-generated bodies (both in surface and volumetric representations) and demonstrates the invariance property and the influence of the sampling. The second experiment works with real 3D objects scanned by a 3D scanner. It demonstrates namely the ability of the invariants to distinguish different objects. The last experiment was performed on objects from the Princeton Shape Benchmark dataset. Its main mission is to illustrate that is really important to use non-vanishing invariants.

The values of the moments decrease rapidly as their order increases if they are not normalized. To keep them in a reasonable interval, we apply so-called magnitude normalization with respect to the order

$$\widehat{c_{s\ell }^m}=\frac{\left(s+3\right){\pi }^{\frac{s}{6}}}{{\left(\frac{3}{2}\right)}^{\frac{s}{3}+1}}{c}_{s\ell }^m$$

(32)

There may exist also other normalizations but we choose this one because it ensures that the moments of a sphere equal one. Then we substitute the normalized moments to the formulas for the invariants and compute so-called magnitude normalization to degree

$$\widehat{{\mathrm{\Phi }}_i}=\text{sign}{\mathrm{\Phi }}_i\sqrt[g]{\left|{\mathrm{\Phi }}_i\right|}$$

(33)

where g is the degree of the invariant Φ_i (the degree equals the number of moments contained in a single term).

6.1. Artificial Bodies

In this experiment, we used artificial objects of various kind and degree of symmetry. The object in Figure 3a is asymmetric and that in Figure 3b has the reflection symmetry only. The rectangular pyramid on Figure 3c has the symmetry group C_2v, the pyramid and the prism in Figure 3d,e have 3-fold rotation symmetry. Unlike the regular tetrahedron, only one side of the triangular pyramid is regular triangle, the other three are isosceles triangles. We also used the bodies with the symmetry group O_h: cube and octahedron (Figure 1k,l) and the bodies with circular symmetry (Figure 2i,j,k). The circular symmetry was in the discrete space approximated by a 1000-fold rotation symmetry. We used 28 invariants Φ₁–Φ₁₇, Φ₁₉–Φ₂₃ and Φ₃₂–Φ₃₇ derived in the previous section in this experiment. These invariants are irreducible, i.e., there is neither linear nor product dependency among them. The bodies are defined by their triangulated surfaces. We used formulas from [23] to compute the volume moments of them.

For each object we generated 1000 random rotations and translations, then we calculated the values of the 28 irreducible invariants for each object and each rotation. The mean values of the invariants are in

Table 5. The values of the invariants in the experiment with the artificial objects. In the first row, there is the corresponding symmetry group, “c” means cube and “o” means octahedron.

Inv.	C1	C1v	C2v	C3v	D3h	Oh(c)	Oh(o)	C∞v	D∞h	K
Φ1	2.882	3.136	1.430	1.377	1.261	1.083	1.073	1.191	1.178	1.000
Φ2	2.164	2.500	0.707	0.294	0.471	0	0	0	0.503	0
Φ3	−1.865	−1.593	0.534	−0.273	−0.438	0	0	0	0.467	0
Φ4	−4.351	−5.041	−1.252	−1.381	−0.479	0	0	−0.813	0	0
Φ5	−1.240	−1.312	−0.069	−0.159	0	0	0	0	0	0
Φ6	2.943	3.678	0.935	0.554	−0.471	0	0	0.003	0	0
Φ7	−1.976	−2.140	0.188	−0.373	0	0	0	0	0	0
Φ8	1.125	−0.765	0.084	0.192	0	0	0	0	0	0
Φ9	−1.956	2.014	0.851	−0.447	0.445	0	0	0	0	0
Φ10	3.999	4.803	1.190	0.760	0.470	0	0	0.715	0	0
Φ11	−2.366	−2.478	−0.478	−0.565	0	0	0	−0.009	0	0
Φ12	1.631	1.892	0.260	0.343	0	0	0	0	0	0
Φ13	−1.392	1.585	−0.135	−0.255	0	0	0	0	0	0
Φ14	11.006	13.214	2.556	2.454	1.804	1.247	1.227	1.627	1.470	1.000
Φ15	6.078	8.685	0.681	1.090	0.347	0.521	0.609	0.273	0.074	0
Φ16	8.562	10.815	1.402	0.822	0.749	0	0	0.126	0.683	0
Φ17	−3.365	−2.540	0.490	−0.437	−0.351	0	0	−0.001	0.128	0
Φ19	−4.606	−3.849	0.923	−0.542	−0.596	0	0	0	0.572	0
Φ20	−5.276	−3.871	0.581	−0.616	−0.410	0	0	−0.192	0.142	0
Φ21	6.484	8.348	0.934	0.782	−0.565	0	0	0.159	0.317	0
Φ22	−7.248	−5.896	1.197	−0.763	−0.695	0	0	−0.117	0.634	0
Φ23	−2.635	5.327	0.601	−0.934	−0.308	−0.489	0.572	0.242	0.066	0
Φ32	−2.718	3.504	0.277	−0.337	0	0	0	0	0	0
Φ33	5.060	5.509	0.543	0.533	0.303	0	0	0.238	0.065	0
Φ34	−4.410	5.311	0.413	−0.638	0.386	0	0	−0.206	0.118	0
Φ35	5.211	7.290	−0.539	0.626	0.450	0	0	0.164	0.199	0
Φ36	6.111	8.103	0.784	0.763	0.491	0	0	0.178	0.216	0
Φ37	−6.343	6.979	0.976	−0.749	0.573	0	0	−0.141	0.363	0

.

The only source of errors is numerical inaccuracy of the computer arithmetic (except the cone, the cylinder and the sphere, they were approximated by a high but finite number of triangles), therefore we can consider the values in Table 5 to be precise. We can see they correspond to the theoretical assumptions. The invariants Φ₄–Φ₁₃ and Φ₃₂ of the cylinder, the cube and the octahedron are really zero, precisely as predicted by the theory. The values one of Φ₁ and Φ₁₄ of the sphere are not accidental; the invariants were normalized so the values of $c_{s0}^0$ of the sphere would be 1, see Equation (32).

The maximum standard deviations inside one class (one body) are in the row “ideal” of

Table 6. The standard deviations of the invariants in the experiment with the artificial objects. In the first row, there is the corresponding symmetry group, “c” means cube and “o” means octahedron. In the second row, there are the values of the ideal triangulated bodies and in the third row, there are the values of the sampled volumetric data. samp.—sampling.

Version	C1	C1v	C2v	C3v	D3h	Oh(c)	Oh(o)	C∞v	D∞h	K
ideal	1 × 10−13	2 × 10−13	3 × 10−14	3 × 10−14	2 × 10−8	4 × 10−5	4 × 10−5	2 × 10−10	2 × 10−8	7 × 10−11
samp.	0.3	0.3	0.3	0.009	0.02	0.03	0.04	0.1	0.02	0.0003

, they illustrate the perfect invariance of the features. The standard deviation is calculated over the rotations, while the maximum is calculated over the invariants. The slightly bigger standard deviations 4 × 10⁻⁵ in the case of O_h are caused by the normalization to the degree, see Equation (33), without normalization the value is 2 × 10⁻¹⁴.

Then we repeated this experiment with the same bodies in volumetric representation, which is less accurate. Each body at each attitude was converted into the volumetric form in the cube 100 × 100 × 100 voxels, which is relatively coarse resolution allowing to study the impact of discretization. The moments were computed from the characteristic function that equals one in voxels inside the bodies and zero outside. The examples of the sampled data are in Figure 4, the standard deviations caused by the sampling are in the row “samp.” of Table 6.

6.2. Archeological Findings

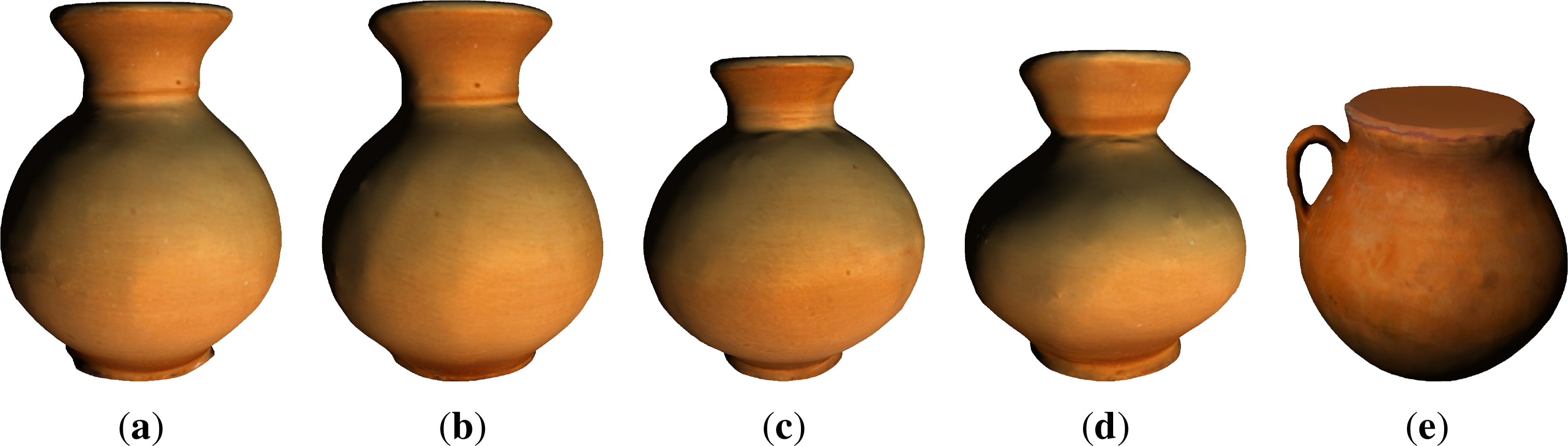

This experiment is an example of behavior of the invariants on real objects. We chose five real objects—archeological findings from ancient Greece, as an example. The objects were scanned by a laser rangefinder from several sides and the measurements were combined together to obtain a 3D binary image of the object (see Figure 5). Since the rangefinder cannot penetrate inside the objects, the vases are considered full and closed on the top. As a result of the acquisition, we obtain a triangulated surface of the object. In this experiment we worked solely with binary shapes and ignored color and texture, they are shown for illustration only. We used 37 invariants Φ₁–Φ₃₇ in this experiment.

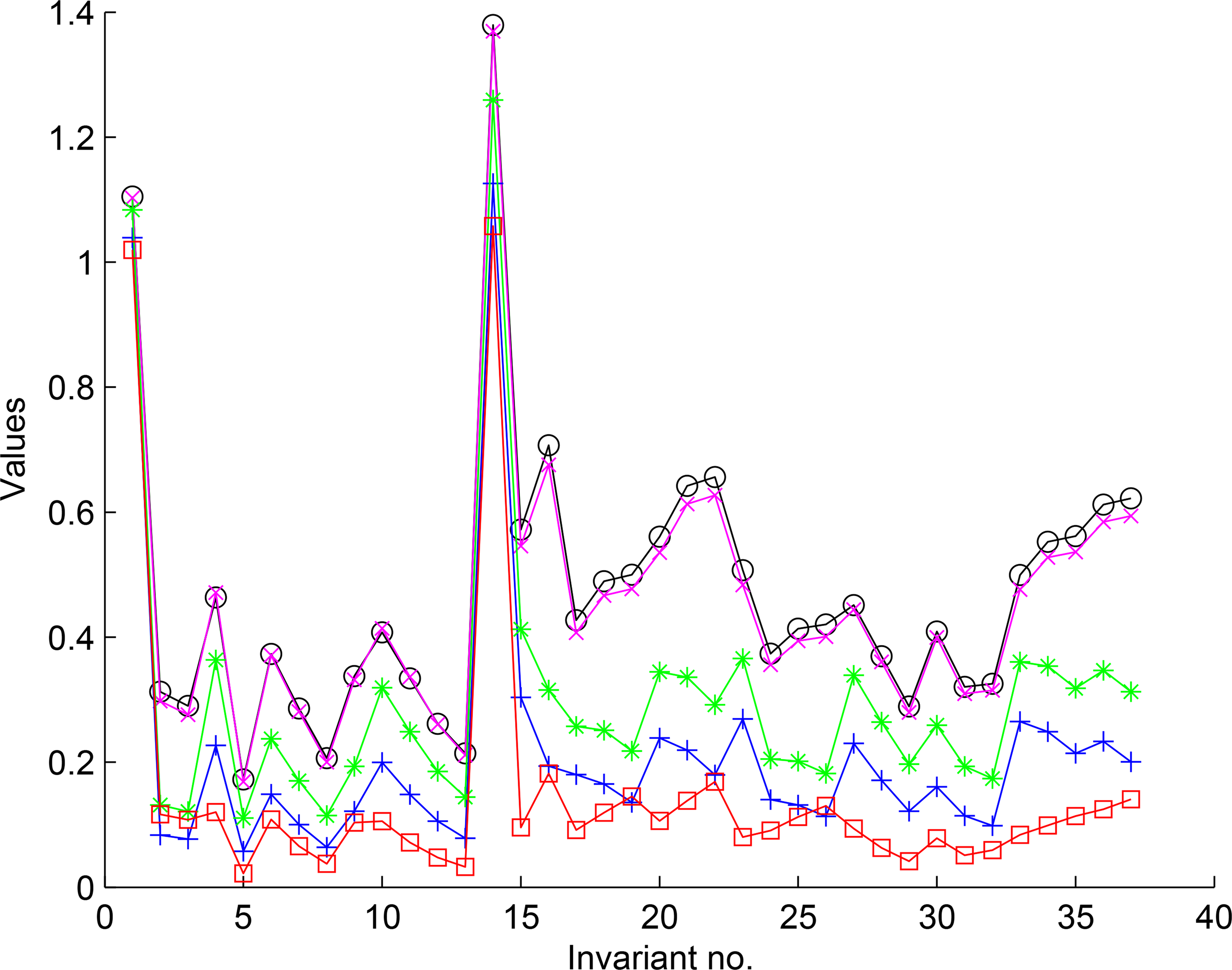

The absolute values of the invariants up to the 4th order of the objects can be seen in Figure 6. The objects in Figure 5a,b are two scans of the same vase which was rotated between the scannings. Their feature values differ from each other only slightly. Theoretically they should be the same but the scanner produces some errors. The objects in Figure 5c,d are two different objects of the same kind. We can see the differences between them are bigger than those between Figure 5a,b. The object in Figure 5e differs by a handle, but it still similar. The feature values are further more different. The graphs demonstrate not only the rotation invariance of the features but also their ability to distinguish similar but different objects. The objects in Figure 5a–d have approximate circular symmetry C_∞v and the object in Figure 5e has reflection symmetry C_1v.

An interesting question is what are the actual values of those invariants which should theoretically vanish due to the object symmetries. The invariants which should be zero due to the circular symmetry are in

Table 7. The actual values of the invariants that should be zeroed by the circular symmetry for the archeological findings.

Inv.	(a)	(b)	(c)	(d)	(e)
${\mathrm{\Phi }}_3^{\infty }$	−0.113	−0.097	−0.035	−0.073	−0.057
${\mathrm{\Phi }}_6^{\infty }$	−0.123	−0.129	−0.074	−0.110	−0.063
${\mathrm{\Phi }}_7^{\infty }$	−0.085	−0.084	−0.048	−0.073	−0.039
${\mathrm{\Phi }}_{17}^{\infty }$	−0.103	−0.088	−0.034	−0.092	0.054
${\mathrm{\Phi }}_{19}^{\infty }$	−0.101	−0.085	−0.030	−0.073	−0.044

. We can see that the values of the objects Figure 5a–d are really very small, nevertheless it is true for Figure 5e, too. This is because the violation of the circular symmetry by the handle is small.

The values of the invariants zeroed by the two-fold rotation symmetry are in

Table 8. The actual values of the invariants that should be zeroed by the two-fold rotation symmetry for the archeological findings.

Inv.	(a)	(b)	(c)	(d)	(e)
${\mathrm{\Phi }}_{12}^{C2}$	−0.114	−0.146	−0.053	−0.125	−0.046
${\mathrm{\Phi }}_{13}^{C2}$	0.056	0.074	−0.038	−0.069	−0.016
${\mathrm{\Phi }}_6^{C2}$	−0.058	0.090	−0.044	0.078	−0.024
${\mathrm{\Phi }}_{27}^{C2}$	0.080	−0.116	0.059	−0.069	−0.031
${\mathrm{\Phi }}_{29}^{C2}$	−0.054	−0.102	−0.053	−0.080	−0.030
${\mathrm{\Phi }}_{25}^{C2}$	−0.063	−0.063	0.040	0.064	−0.035

. This experiment shows that also in the case of real objects, where the symmetry is not exact due to measurement errors and object imperfection, the features which should theoretically vanish actually get very low values close to zero, providing no discrimination power. So, one has to analyze the object symmetry and discard the vanishing invariants from the feature vector. For instance, if we need to recognize the cube and the octahedron, the only non-zero invariants are Φ₁, Φ₁₄, Φ₁₅ and Φ₂₃. While Φ₁, Φ₁₄ and Φ₁₅ have similar values for both the cube and the octahedron (see Table 5), only Φ₂₃ is sufficiently discriminative, therefore the feature set should definitely include Φ₂₃ in this case.

6.3. Princeton Shape Benchmark

In this experiment we demonstrate that the invariants which are for the given objects zero or close to zero are useless for object recognition. We used the objects from the Princeton Shape Benchmark (PSB) [24]. This dataset contains 1815 3D objects which are labeled from zero to 1814. Each object is represented by its triangulated surface.

We intentionally chose eight objects that have a high degree of symmetry, see Figure 7. In the PSB, they are labeled as 1338, 1337, 760, 1343, 1344, 741, 527, and 1342, respectively. In a continuous representation they should have the C_∞v symmetry. This is however not exactly true in the actual triangular representation. The symmetry group of the gear No. 741 is C_36v, that of the hot air balloons No. 1338 and 1337 are C_20v, the balloon No. 1343 and the vase No. 527 have C_16v, and the ice cream No. 760 has only C_8v. The symmetry group of the hot air balloon No. 1344 is C_24v, but its gondola has only C_4v. The balloon No. 1342 is not fully inflated, so it is not symmetric at all.

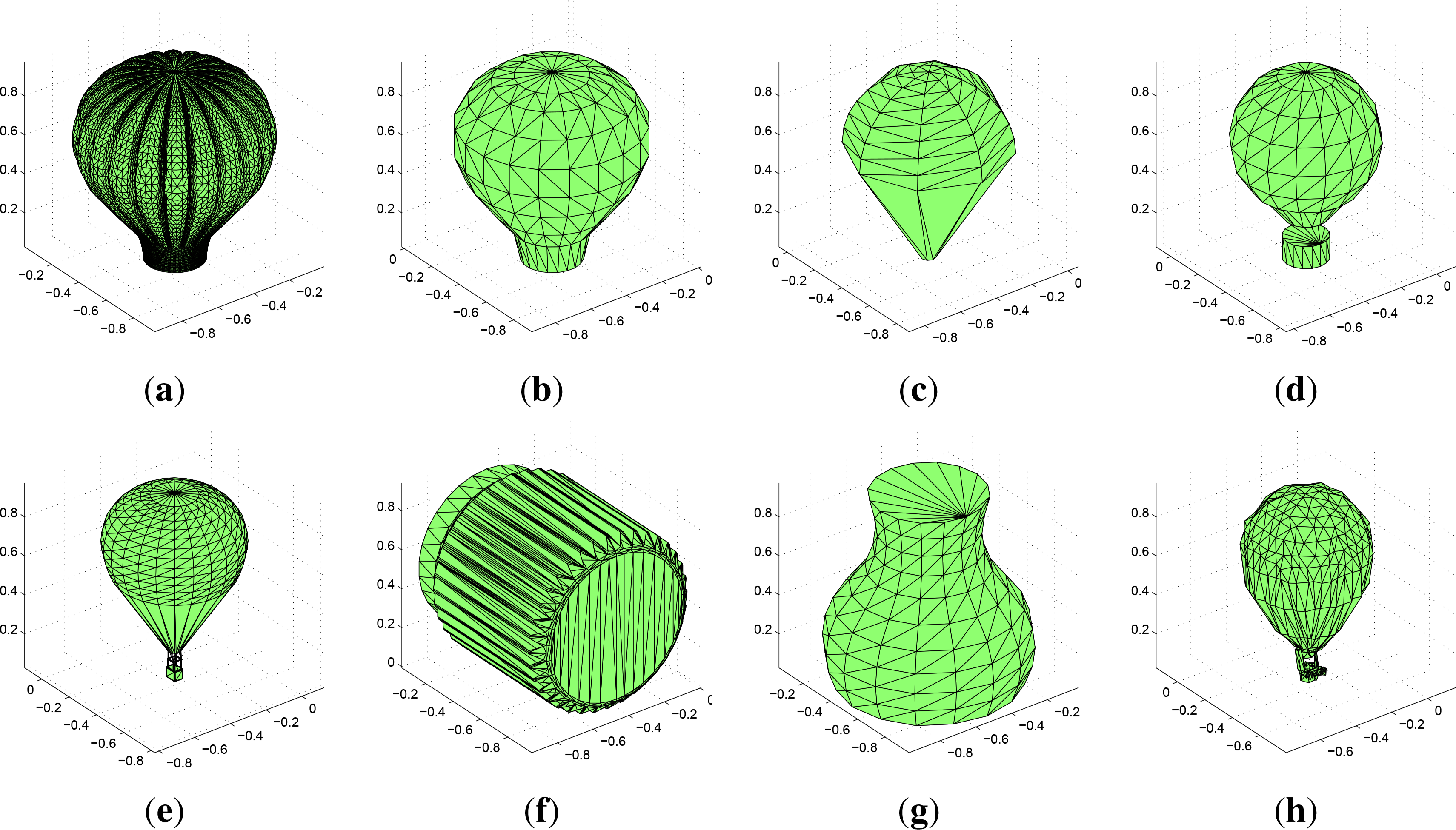

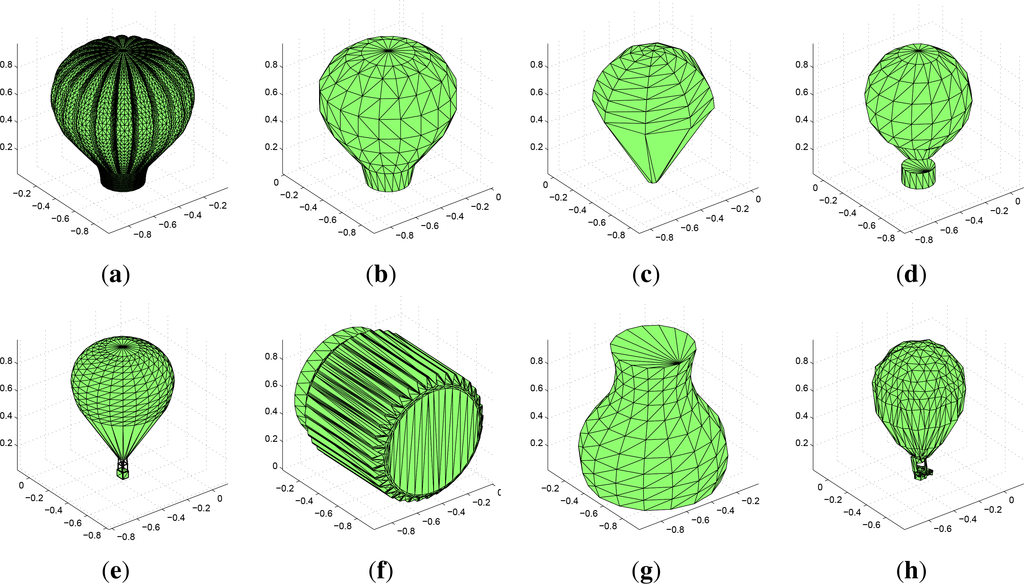

In our experiment we did not use the texture and worked with the shape only, hence our templates (class representatives) looked as depicted in Figure 8. To generate test objects, we added a noise to the coordinates of each vertex of the templates. The amount of the noise measured in terms of signal-to-noise ratio (SNR) was 25 dB, where SNR is here defined as

$$\mathit{SNR}=10{\text{log}}_{10}\frac{{\sigma }_o^2}{{\sigma }_n^2}$$

(34)

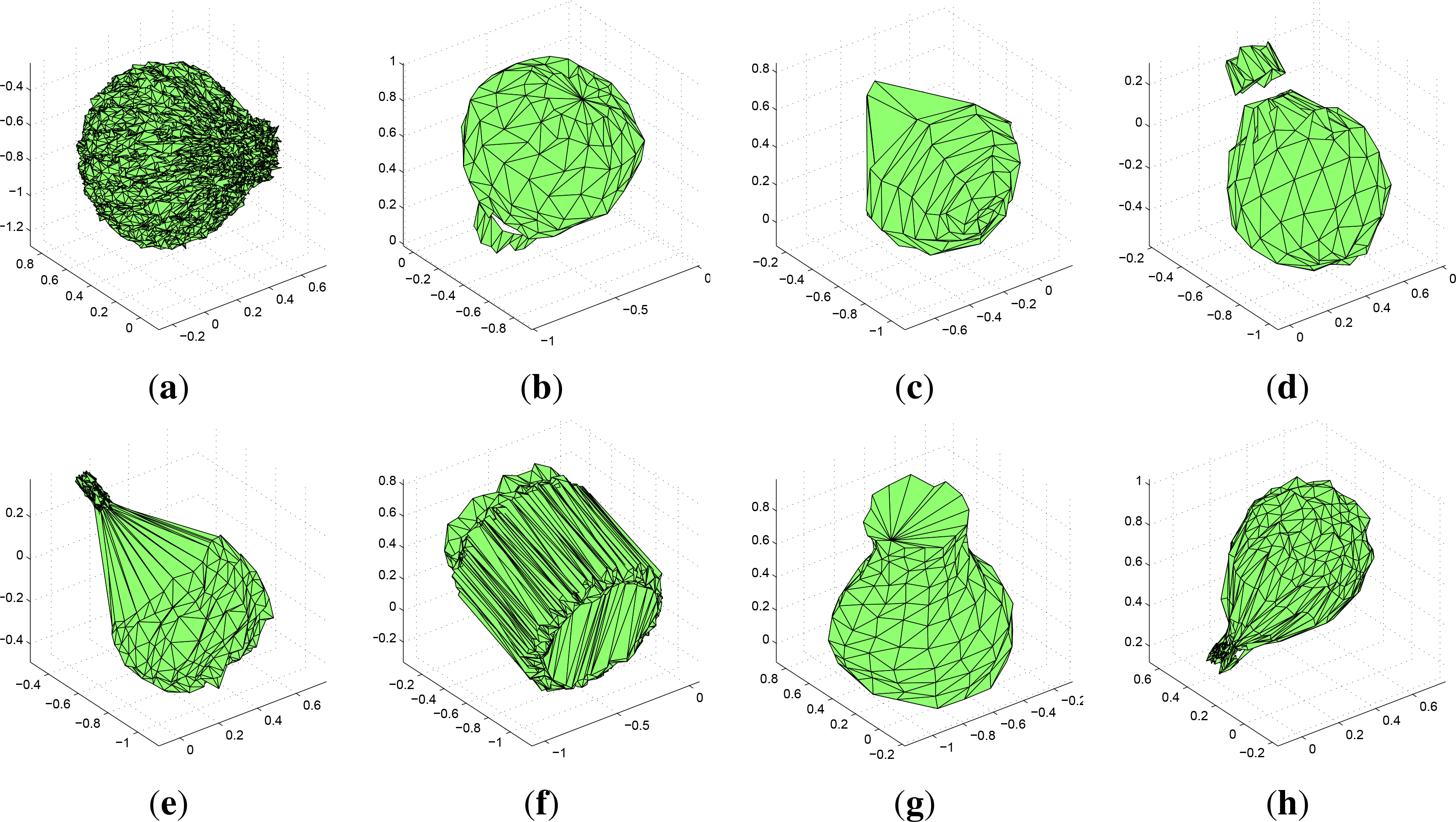

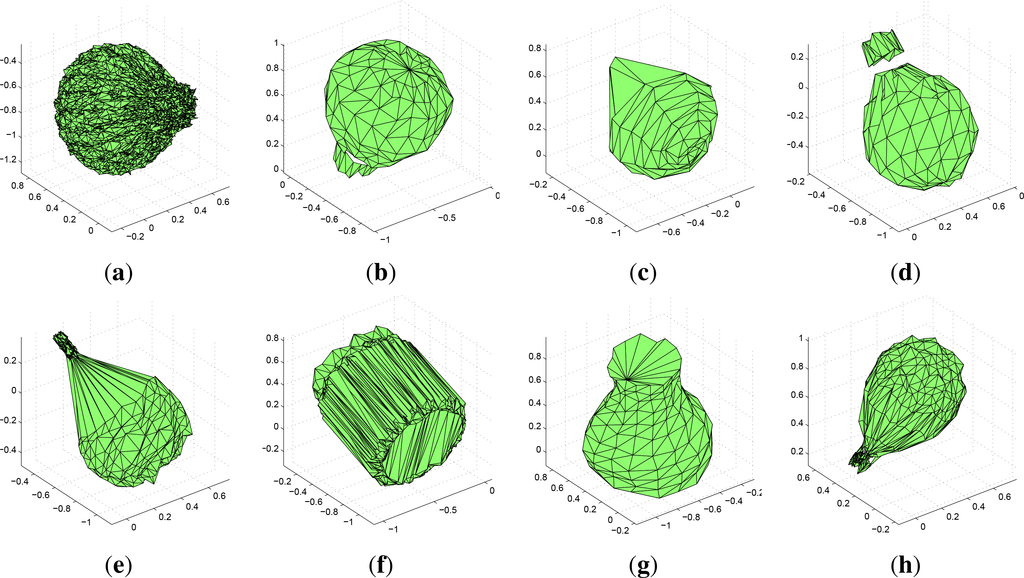

with σ_o being the standard deviation of the object coordinates and σ_n the standard deviation of the noise. In other words, the noise corresponds to about 5% of the object coordinate extent in each direction. We generated nine noisy instances of each template and each of these noise objects was randomly rotated (see Figure 9 for some examples).

The test objects were classified by invariants using minimum-distance rule and majority vote: the minimum distance was found for each individual invariant and the final class assignment was made by majority vote.

First, we used the five invariants that are identically zero in the case of circular symmetry: ${\mathrm{\Phi }}_3^{\infty }$, ${\mathrm{\Phi }}_6^{\infty }$, ${\mathrm{\Phi }}_7^{\infty }$, ${\mathrm{\Phi }}_{17}^{\infty }$, and ${\mathrm{\Phi }}_{19}^{\infty }$. Since the objects do not have exact circular symmetry, these invariants are able to recognize some test objects. The result was 12 errors out of 72 trials, i.e., the success rate 83%. When we added Φ₁₄, which is non-zero, to the invariant vector, the number of errors decreased to six, i.e., the success rate increased to 92%. Now we removed all “zero” invariants and recognized solely by Φ₁₄. The result was the same as before: six misclassifications but the algorithm run much faster. On the other hand, when we use the vector of “non-zero” invariants (Φ₁₄, Φ₁₀, Φ₆) or (Φ₁₄, Φ₁₀, Φ₄) we end up with three misclassifications only. This clearly illustrates that the “zero” invariants are useless even if they are not exactly zero and should not be included into the feature vector.

7. Conclusions

In this paper we proposed a general scheme for constructing 3D features, that are invariant to object rotation and translation. We presented 37 invariants in explicit form along with a general algorithm, how to construct invariants of arbitrary order. We paid particular attention to the influence of object symmetry on the feature values and showed how to design features if some of the objects in the dataset are symmetric. This issue has not been systematically studied in 3D so far, although most objects we meet in practical applications (man-made objects and natural shapes) exhibit certain symmetry.

The presented features are based on complex moments and spherical harmonics. Comparing to other approaches, moments allow to study the impact of symmetry in a transparent way and easier than the other features. At the same time, they are also computationally efficient because there exist fast algorithms for moment calculation both in 2D [25] and 3D [23]. We showed that object symmetry of various kind either makes certain invariants identically zero or introduces dependencies among the invariants. This must be taken into account when designing a 3D object recognition system. The constrained and zero invariants should not be included because they decrease the performance of the system.

It should be noted that this technique is not intended to be used as a detector of symmetry, even if it might provide a good estimate in some cases. The implication does not hold the other way around. Zero value of certain moments does not necessarily mean that the object is symmetric.
