Double-Front Crystallization in the Chapesvara Ultramafic Subvolcanic Complex, Serpentinite Belt, Kola Peninsula, Russia

Abstract

Dunite–harzburgite–olivine-bearing orthopyroxenite successions in the subvolcanic Chapesvara-I and Chapesvara-II intrusions in the Serpentinite Belt, western Kola Peninsula, are notably magnesian. The mean Mg# value (whole-rock) is 86.6, and the olivine is Fo₈₄₋₈₉. The upper contact facies (UCF) displays a lower Mg# (81.6). It consists of grains of Fo₉₂ and abundant chromian spinel, implying rapid crystallization of an almost unfractionated melt. On average, the whole-rock Al₂O₃/TiO₂ value is 22.45, close to 22.9 (UCF) and to the primitive mantle, ~22. The rise of primitive ultramafic magma presumably occurred in a special tectonic setting at the boundary of the Paleoproterozoic Lapland Granulite Terrane and the Belomorian Composite Terrane of Archean age. The Chapesvara suite resembles examples of the Al-undepleted komatiites in the Barberton Belt, South Africa, with magmas of up to 30–35% MgO. The UCF rock yields an anomalously low molar MgO/SiO₂ value, close to that of dunitic rocks located at the center of the Chapesvara-II body. This rock is the most primitive, as indicated by the maximum Fo content of olivine, the lowest value of (Gd/Yb)_N, 0.52, and the lowest abundances of middle to heavy rare-earth elements (REE) in the chondrite-normalized spectrum. The crystallization of the Chapesvara-II sill-like intrusion likely proceeded in two stages, which are evident from the olivine compositions varying from the maximum Fo₉₂ (UCF) to Fo_≤89.5 (the central dunite zone). At Stage 1, the UCF rock (Fo₉₂) crystallized first, close to the upper contact. The area of crystallization then shifted to a central portion of the Chapesvara-II body, in which the dunitic zone (Fo_89.5) formed in situ (Stage 2). The compositional variations in chromian spinel are consistent with this suggestion. Two crystallization trends were recognized. The type-1 trend displays a relative maximum or minimum close to the center, and then diverges into two linear subtrends directed upward and downward. This pattern is manifested in the variations of Mg# in olivine and chromian spinel, the whole-rock contents of Al and Ca, and in levels of incompatible elements: Ti, V, Zr, Y, and Hf. The type-2 trend decreases or increases uniformly from top to bottom. Variations in amount of Ni in olivine, the Fe³⁺# index in chromian spinel, and in values of Mg# (rocks), follow a type-2 trend. Variations in total amounts of REE, Nb, and Th, which gradually increase downward, are also related to a type-2 trend. Thus, a contrasting development and possible interference of the two types of evolutionary trends were observed in the crystallization history of the Chapesvara-II sill-like body. A double-front crystallization, hitherto unreported, involved two fronts moving upward and downward, respectively. The upward subtrend appeared to be of subordinate importance, whereas the extent of fractional crystallization of the downward front was much greater. Crystallization proceeded from the top to the bottom, presumably because of the preferential loss of heat at the roof. Variations in the Fe³⁺# index indicate that the level of fO₂ also increased downward with progressive crystallization. Convection cells were presumably the key mechanism of accumulation of the crystallizing olivine grains to form the central dunite zone close to the center of the sill-like intrusion. The observed characteristics of the Chapesvara complex indicate the existence of a primitive-mantle source and imply a highly magnesian composition of intruding magma not only for Chapesvara, but also for the Pados-Tundra layered complex and associated suites of the Serpentinite Belt in the Kola Peninsula.

1. Introduction

The Serpentinite Belt, so named by A.M. Shukevich in the 1930s [1,2] and further investigated by Murashov [3], located in the Kola Peninsula of northwestern Russia, consists of dunite–harzburgite–orthopyroxenite bodies and associated serpentinite. Along the 40-km belt [4], one finds the Mount Kareka-Tundra suite close to the Finnish border, ultramafic bodies in the upper reaches of the River Terma, the Mount Khanlauta suite, the Chapesvara (I and II) and the Lotmvara (I and II) bodies, and the Pados-Tundra complex [5,6]. Roughly 6 km long, the Pados-Tundra complex is the largest member of the belt in terms of volume. It is Paleoproterozoic, dated at ~2.1 (zircon age) or 2.4–2.5 Ga [7], and was emplaced along a regional shear zone associated with the Kola–Mezenskiy block of the Lapland Granulite Belt (Paleoproterozoic) close to its contact with the Archean Belomorian (Belomorskiy) block. The Pados-Tundra complex hosts chromite mineralization, both podiform and stratiform [5], with associated platinum-group minerals, some of which (the sulfarsenides of ruthenium) are highly unusual [8].

We focus here on the little-known Chapesvara ultramafic complex. We present information on the mineralogy and bulk-rock geochemistry of well-located representative samples of the Chapesvara-I and Chapesvara-II bodies. We document compositional variations, fractionation trends, and crystallization history, which point to a double-front crystallization unreported previously. This information is used to shed light on the petrogenesis of the ultramafic suite.

Background Information

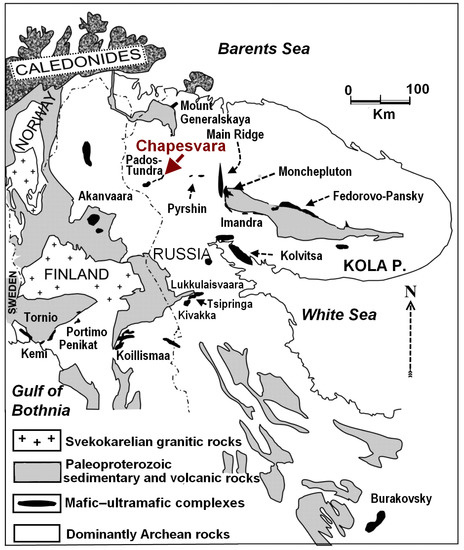

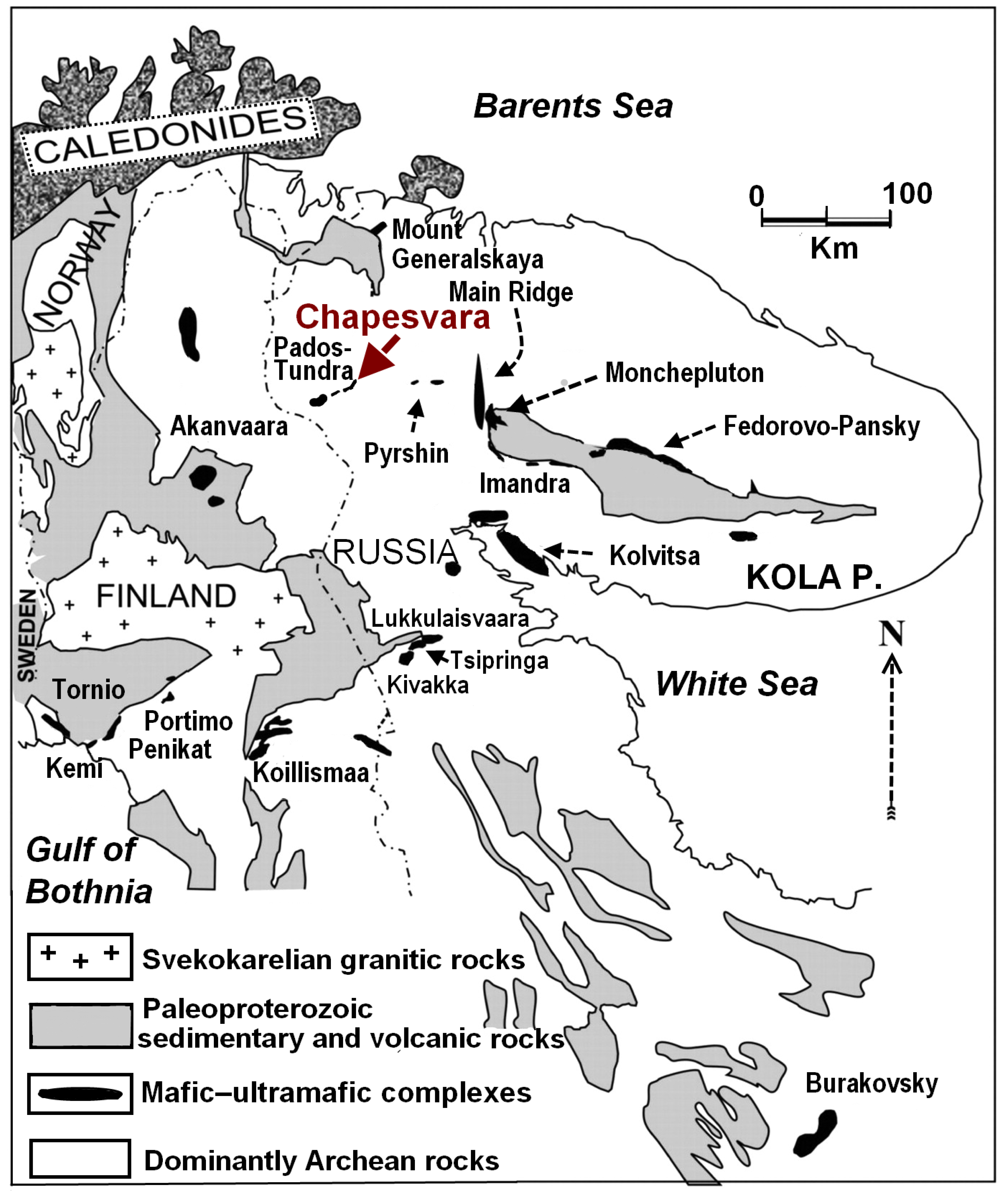

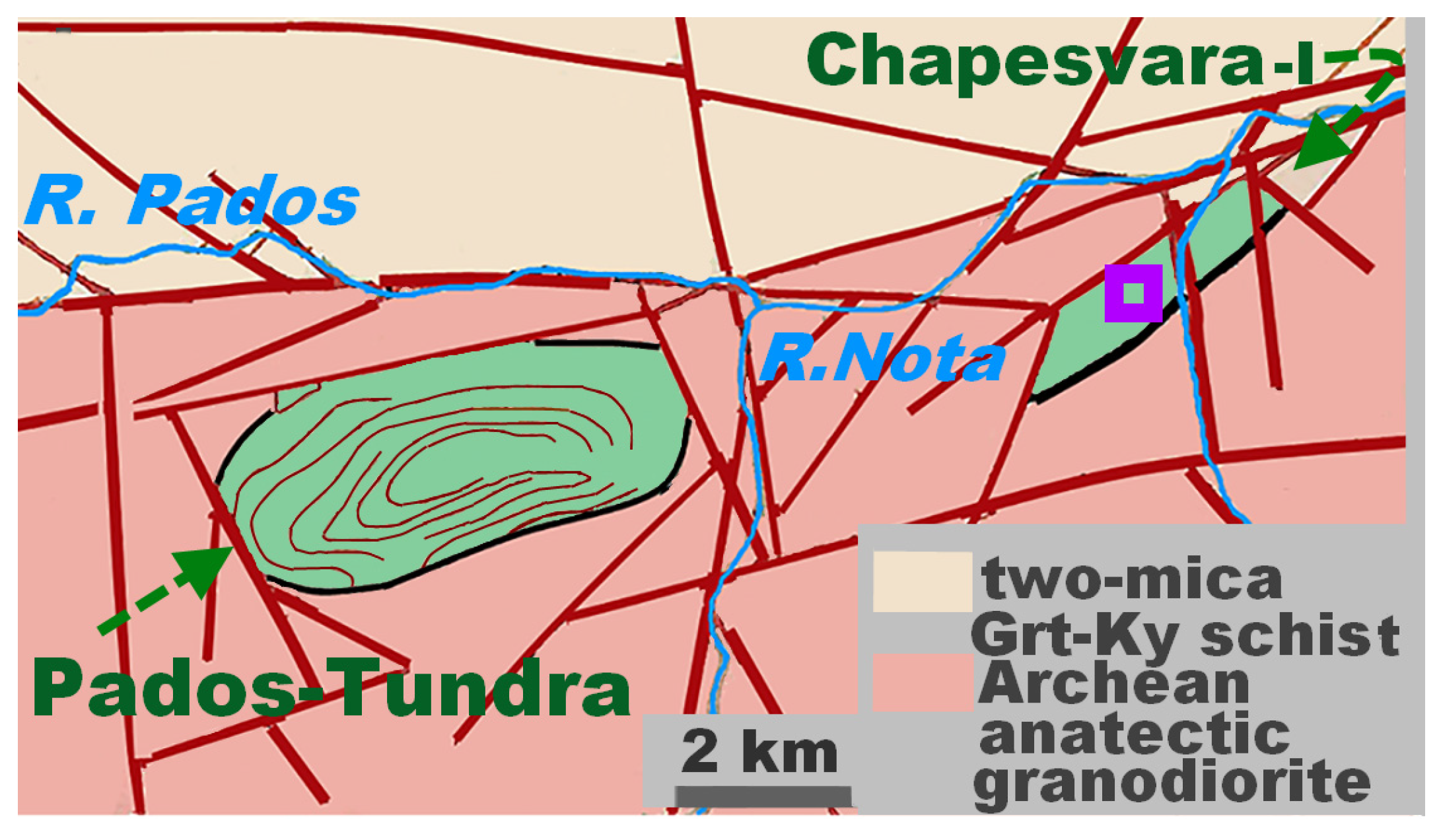

The two components of the Chapesvara intrusive complex, located close to the Pados-Tundra body (Figure 1, Figure 2, Figure 3 and Figure 4), have previously been mapped [9,10,11]. The Chapesvara-II body is fairly well exposed, and less strongly affected by cataclastic deformation than Chapesvara-I. Thus, we have essentially a complete cross-section of this little-known body in its original position. The Chapesvara-I body (Figure 2) was deformed during multiple phases of regional brittle and ductile deformation associated with the Lapland–Kola orogeny at 1.94–1.86 Ga [12,13] or the Svecofennian orogeny at 1.92–1.79 Ga [14]. Our sampling of Chapesvara-I consists of representative samples taken from blocks ≤1 to 3–4 m across in the area shown in Figure 2. They are judged to be sufficient to characterize the body adequately.

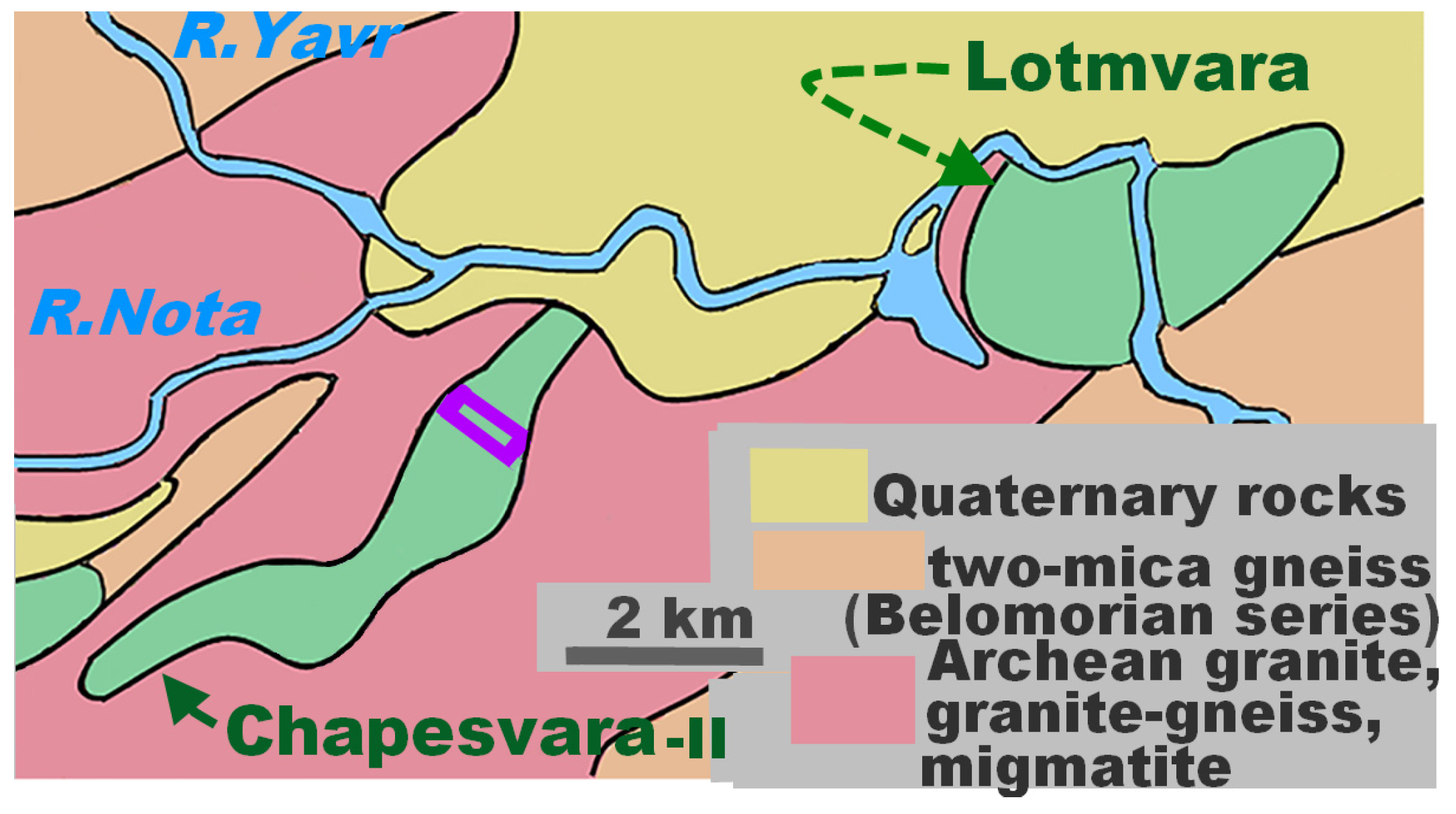

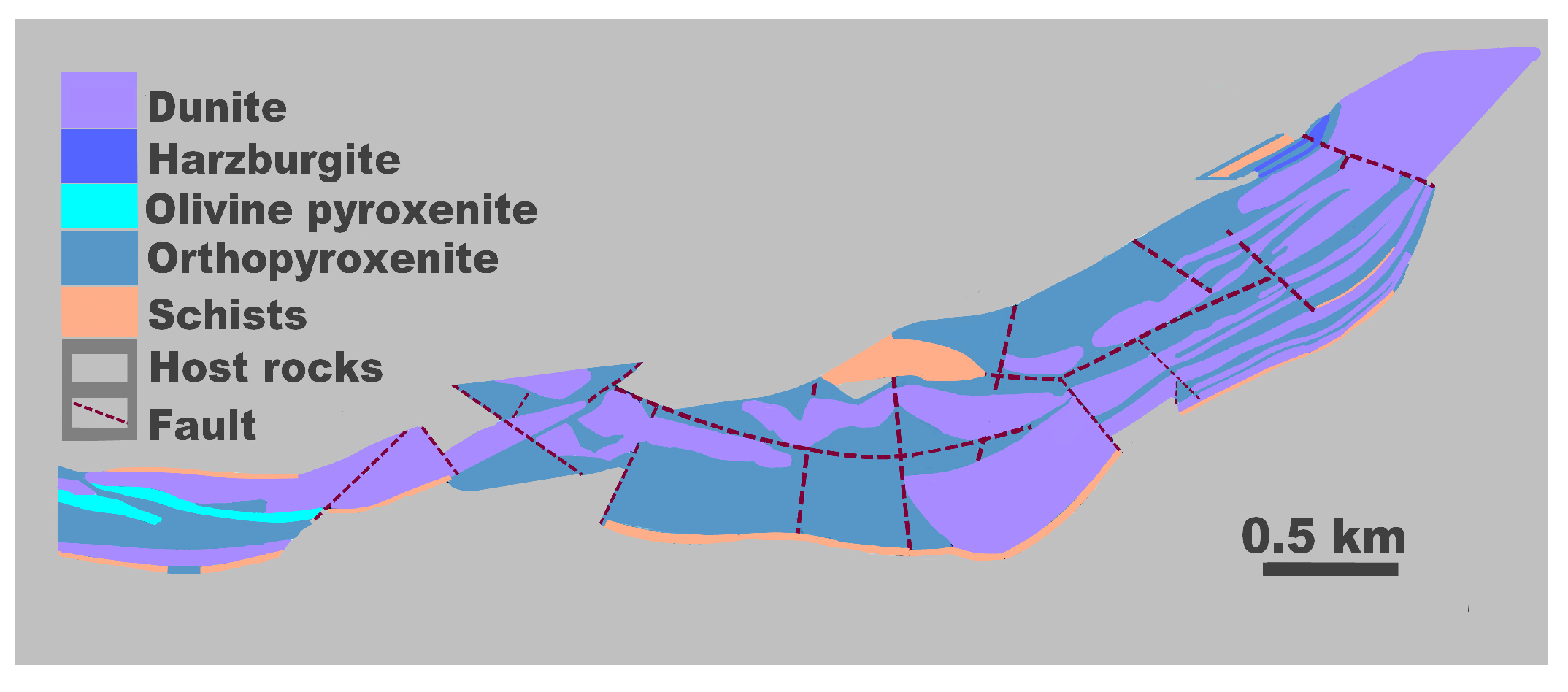

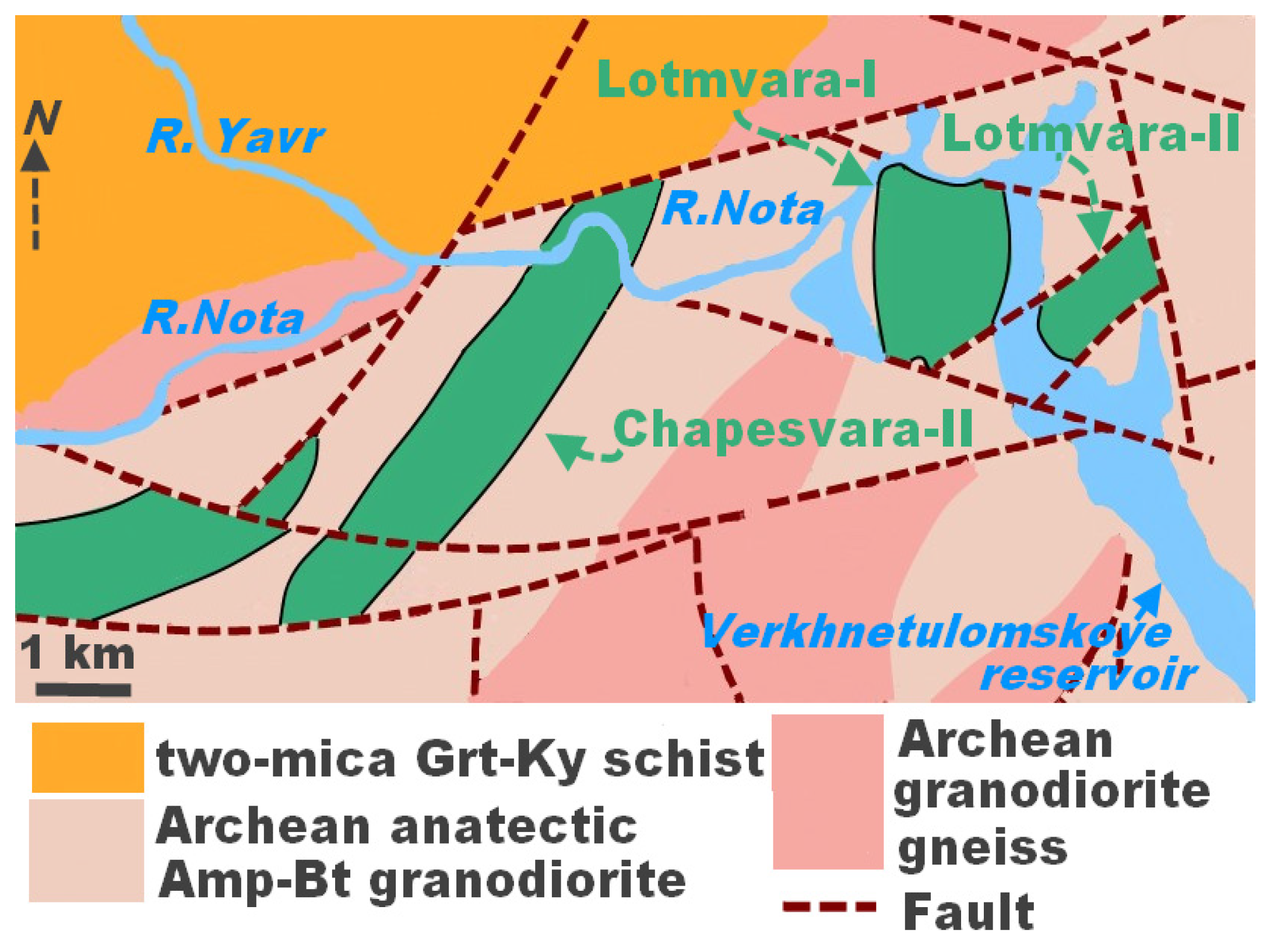

Gorbacheva et al. [11] provided a detailed map of the Chapesvara-II body (Figure 5). It generally extends over 8.5 km and dips 40–60° towards the north. Harzburgite (~80% olivine) and olivine orthopyroxenite seem to be subordinate. The proportion of the oxide minerals, mostly chromian spinel and ilmenite, varies from <1–3 to ~15 vol. %. Two generations of chromian spinel are recognized in the Chapesvara complex [15].

The Chapesvara ultramafic bodies are located close to the contact of two regional units of Archean age, one mostly composed of two-mica garnet–kyanite schist and the other of granodiorite, granite, granitic gneiss, and migmatite (Figure 2, Figure 3 and Figure 4). A sharp inflection in the course of the River Nota (Figure 3 and Figure 4) presumably reflects a control by the fine-grained ultramafic rocks exposed at the northern end of the Chapesvara-II sill-like body. Shlayfshteyn [10] revised the small-scale map of [9], on which the Lotmvara complex is shown as a single body. The first author’s 2019 field work implies the existence of Lotmvara-I and Lotmvara-II as separate northeast-striking linear bodies that are subparallel and generally conformable with the Chapesvara-II body. Therefore, all these sill-like bodies may well have formed by injection of an ultramafic magma, derived from a common mantle source, along a subparallel system of northeast-trending regional shear zones.

2. Materials and Methods

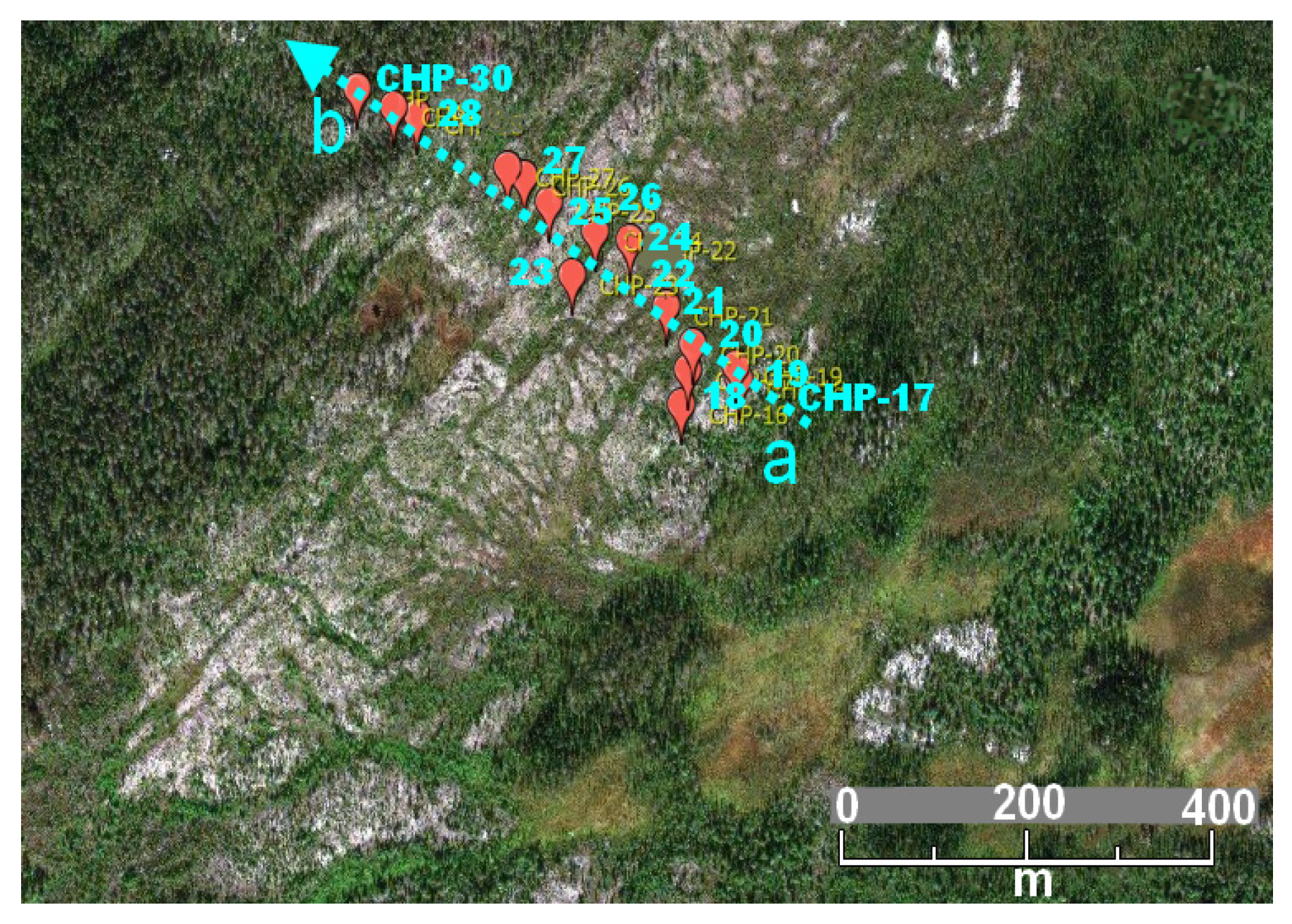

A set of fifty representative samples were collected in the areas shown in Figure 2, Figure 3 and Figure 6. Thirty of these samples, labeled CHP-1–15 (Chapesvara-I) and CHP-16–30 (Chapesvara-II), were studied in detail mineralogically and geochemically. The Chapesvara-II samples were taken along the traverse a–b (Figure 6) and across the following units (bottom to top; this study): amphibole-olivine zone (IV), central dunite zone (II), olivine-bearing orthopyroxenite zone (III), and the upper contact facies (I) (Figure 7). These lithologies represent a comagmatic series that likely formed in the order from I to IV under closed-system conditions during crystallization of the komatiitic magma. A representative example of the outcrops sampled is shown in Figure 8.

All the analyses were conducted at the Analytical Center for Multi-Elemental and Isotope Studies, Institute of Geology and Mineralogy, SB RAS, in Novosibirsk, Russia. The minerals were analyzed using a JEOL JXA-8100 instrument in wavelength-dispersion spectrometry mode (WDS). An accelerating voltage of 20 kV and a probe current of 20–50 nA were used. We employed K_α analytical lines for all elements except for Cr, where the K_β1 line was used because of peak overlap. Periods of measurements at the peaks were 20 or 10 s. The superposition of the TiK_β1 line on the VK_α line and of the VK_β line on the CrK_α line was accommodated using the overlap correction software. The beam diameter was ~1 μm. Natural specimens of olivine (Mg, Si, Fe and Ni) and chromiferous or manganiferous garnet (Ca, Cr and Mn) were used as standards for olivine. A natural specimen of magnesian chromite (for Cr, Fe, Mg, and Al), manganiferous garnet (Mn), ilmenite (Ti), and synthetic oxides NiFe₂O₄ (Ni), ZnFe₂O₄ (Zn), and V₂O₅ (V) were used as standards for the chromian spinel. Grains of orthopyroxene and amphiboles were analyzed using pyrope (Si, Al, Fe), a glass Ti standard (GL-6), chromiferous garnet (Cr), diopside and pyrope (Mg, Ca), manganiferous garnet (Mn), albite (Na), and orthoclase (K). Clinopyroxene was analyzed with essentially the same set of standards, and diopside was used for Si, Ca, and Mg. The following standards were applied in the analysis of plagioclase: orthoclase (Si, Al, K), diopside (Ca), pyrope (Fe), and albite (Na). All the data were processed with the ZAF method of corrections. The calculated values of detection limit (for 1σ criteria) are: ≤0.01 wt. % for Ti, Cr, Fe, Ni, Ca, Zn, Mn, and K, and 0.02 wt. % (Na and Al). Special tests [16,17] were done to evaluate the accuracy and reproducibility of the analytical procedures.

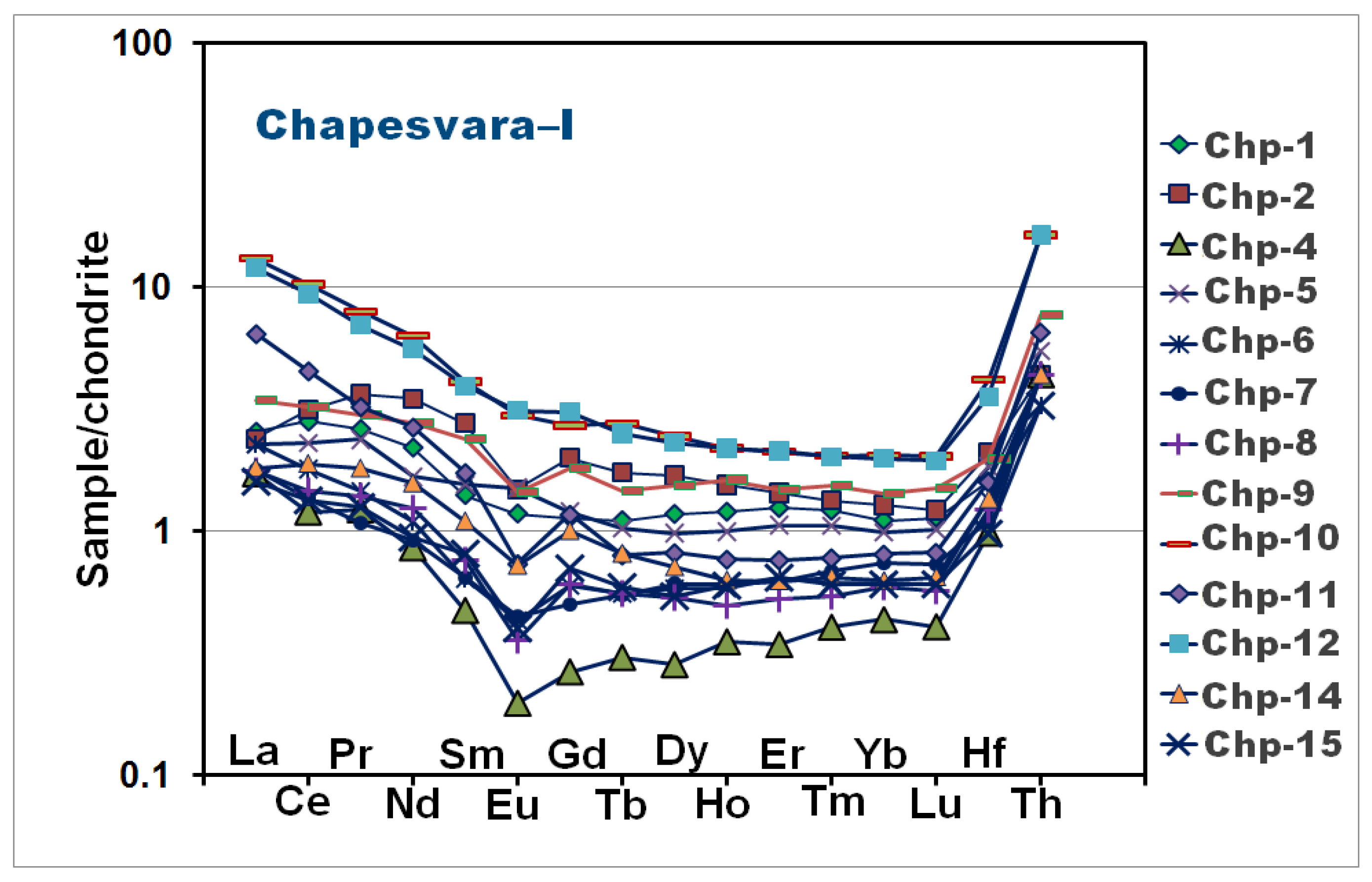

The whole-rock abundances of trace elements, including the rare-earth elements (REE), were established at the same center by inductively coupled plasma–mass spectrometry (ICP–MS) using a high-resolution Finnigan MAT mass spectrometer (the model ELEMENT; Finnigan MAT, San Jose, CA, USA). The analytical procedures used were described in [18,19]. Contents of major oxides in the rocks were established at the same center by X-ray fluorescence (XRF) using procedures [20] based on the use of an ARL 9900XP spectrometer Thermo Fisher Scientific, Waltham, MA, USA) equipped with a Lifumat 2.0-Ox high-frequency induction furnace (Linn High Therm GmbH, Eschenfelden, Germany) and a HERZOG hydraulic HTP 40 pellet press (HERZOG Maschinenfabrik GmbH & Co. KG, Osnabrück, Germany). A special set of state-approved standards was used to evaluate the precision of the XRF analyses.

3. Results

3.1. Rock Textures and Mineral Associations

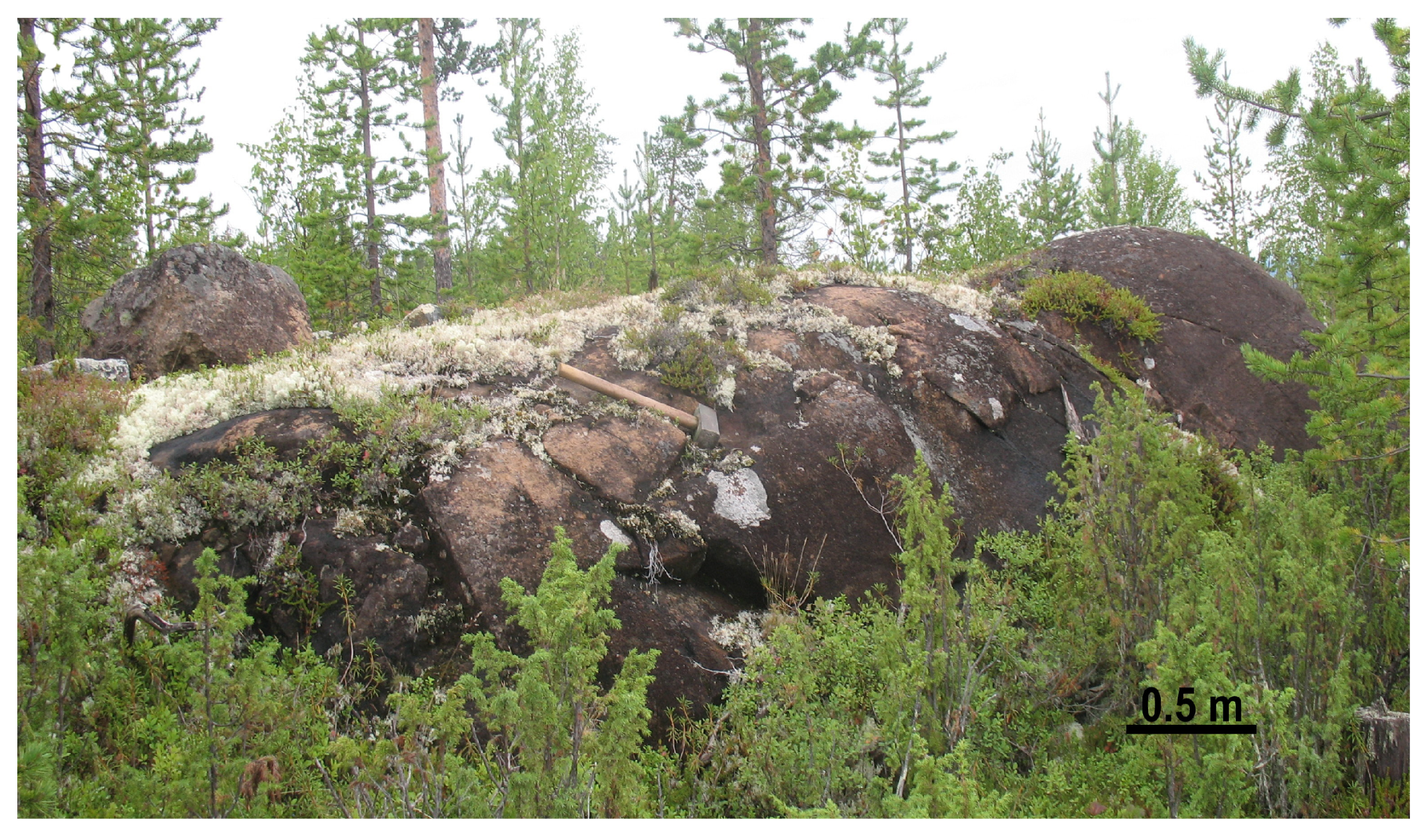

The Chapesvara-I and Chapesvara-II bodies exhibit notable similarities in their textural characteristics (Figure 9 and Figure 10). Modal proportions of olivine vary considerably from ≤10 vol. % in orthopyroxenite to ≥90 vol. % in dunite. Their fine grain-size, down to 0.1–0.3 mm across (Figure 10a), is indicative of fairly rapid crystallization in a subvolcanic setting. Medium-grained varieties also are present. As found in the Pados-Tundra complex [6], a magnesian calcic amphibole corresponding to tremolite is abundant not only as interstitial grains coexisting with fresh domains of olivine, but also as a deuteric (autometamorphic) phase formed by replacement of orthopyroxene or olivine (Figure 9a,b). On the other hand, it is common to see grains of orthopyroxene preferentially replaced by this amphibole, whereas the associated olivine remains relatively fresh. These relations recall observations documented in spheroidally textured specimens (cf. Figure 2 in [21]) of the Pados-Tundra layered complex, in which orthopyroxene oikocrysts are preferentially replaced by tremolite and talc, leaving the matrix olivine intact [21].

Chromian spinel typically forms accessory grains located at boundaries of olivine grains (Figure 9c,d,f and Figure 10c,f), implying that these grains crystallized after olivine. Two textural variants of orthopyroxene, indicative of two generations, are recognizable at Chapesvara (I and II), in agreement with observations at the Pados-Tundra complex [6]. The first is early and pertains to the orthopyroxene of magmatic origin. The second generation is late and occurs in veinlets or as a rim-like zone (dark in back-scattered images: Figure 9c and Figure 10d), or a peripheral replacement, or as lamellae not attributed to exsolution hosted by the matrix phase of early orthopyroxene: cf. Figure 8 in [6].

Clinopyroxene and plagioclase occur sporadically as rare constituents of ultramafic rocks of the Chapesvara bodies. They are involved in breakdown reactions, showing the following assemblages: Cpx → Pl → aluminous Amp, or Pl → aluminous Amp (Figure 9c,f and Figure 10b). On textural evidence, the amphibole rims likely formed from a late hydrous fluid as a result of plagioclase decomposition, which seems to have been the source of the Al.

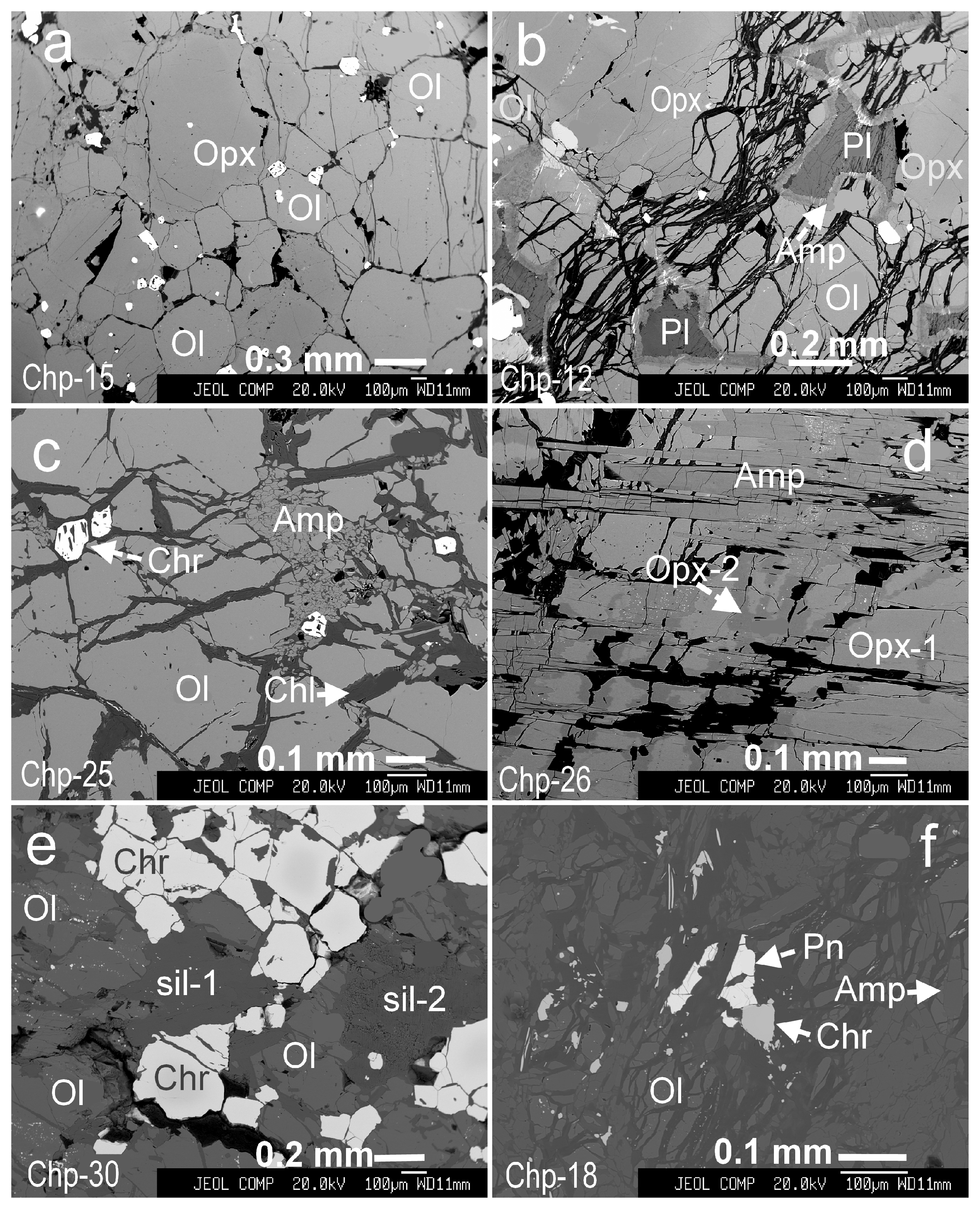

On the basis of microscopic observations, we infer that the investigated rocks are very poor in S. Pentlandite was documented only as tiny grains ~50 μm in size (Figure 10f).

3.2. Mineralogical Variations

3.2.1. Olivine, Chromian Spinel, and Orthopyroxene

The field of compositions of olivine in rocks of Chapesvara-I and Chapesvara-II (

Table 1. Compositions of olivine in the Chapesvara (I and II) ultramafic bodies.

	Sample	*M	SiO2	FeO	MnO	NiO	MgO	CaO	Total	Mg#
Ch-ra–I	CHP-1	-	39.82	14.44	0.13	0.38	45.22	bdl	99.99	84.7
	CHP-4	-	40.09	11.41	0.13	0.40	47.74	0.01	99.78	88.1
	CHP-5	-	40.07	13.41	0.18	0.34	46.56	bdl	100.56	85.9
	CHP-6	-	40.07	11.12	0.17	0.39	47.98	bdl	99.72	88.3
	CHP-7	-	40.14	11.10	0.16	0.38	48.07	bdl	99.84	88.4
	CHP-8	-	40.22	11.29	0.17	0.37	47.36	bdl	99.41	88.0
	CHP-9	-	39.07	14.58	0.18	0.31	45.00	bdl	99.14	84.5
	CHP-10	-	40.13	12.63	0.18	0.33	46.59	0.01	99.86	86.6
	CHP-11	-	40.19	12.11	0.15	0.39	47.36	0.01	100.20	87.3
	CHP-12	-	39.78	12.83	0.20	0.35	46.43	0.01	99.59	86.4
	CHP-13	-	40.17	12.49	0.16	0.31	47.27	0.01	100.40	87.0
	CHP-15	-	40.76	11.01	0.15	0.36	48.06	0.01	100.35	88.5
Ch-ra–II	CHP-17	10	40.34	11.72	0.21	0.35	46.68	bdl	99.30	87.5
	CHP-19	49.5	40.00	13.06	0.21	0.32	46.53	0.01	100.12	86.2
	CHP-20	74.3	40.12	12.51	0.17	0.35	47.39	0.01	100.54	87.0
	CHP-21	123.8	40.09	13.79	0.17	0.33	46.06	bdl	100.45	85.5
	CHP-22	212.9	40.82	10.64	0.17	0.39	48.26	bdl	100.27	88.8
	CHP-23	237.6	40.39	10.37	0.15	0.39	48.82	bdl	100.11	89.2
	CHP-24	247.5	39.91	10.30	0.14	0.39	49.37	0.01	100.12	89.4
	CHP-25	297	41.01	10.18	0.16	0.38	48.51	0.01	100.25	89.3
	CHP-26	371.3	40.38	10.46	0.13	0.43	48.46	0.02	99.89	89.1
	CHP-27	420.8	40.19	10.84	0.10	0.44	48.03	bdl	99.60	88.7
	CHP-28	544.5	40.69	11.07	0.13	0.42	48.14	0.01	100.45	88.5
	CHP-30	579.2	40.55	7.91	0.19	0.41	50.30	bdl	99.37	91.7
	CHP-30	579.2	40.58	8.03	0.17	0.40	50.17	bdl	99.35	91.6

Note. Results of electron-microprobe analyses (WDS data) are listed in wt. %. Mg# = 100Mg/(Mg + Fe²⁺ + Mn). *M is a relative distance (in meters) from the point “a” toward “b” in the transection a–b oriented across the Chapesvara–II body (Figure 2 and Figure 5). bdl: below detection limits.

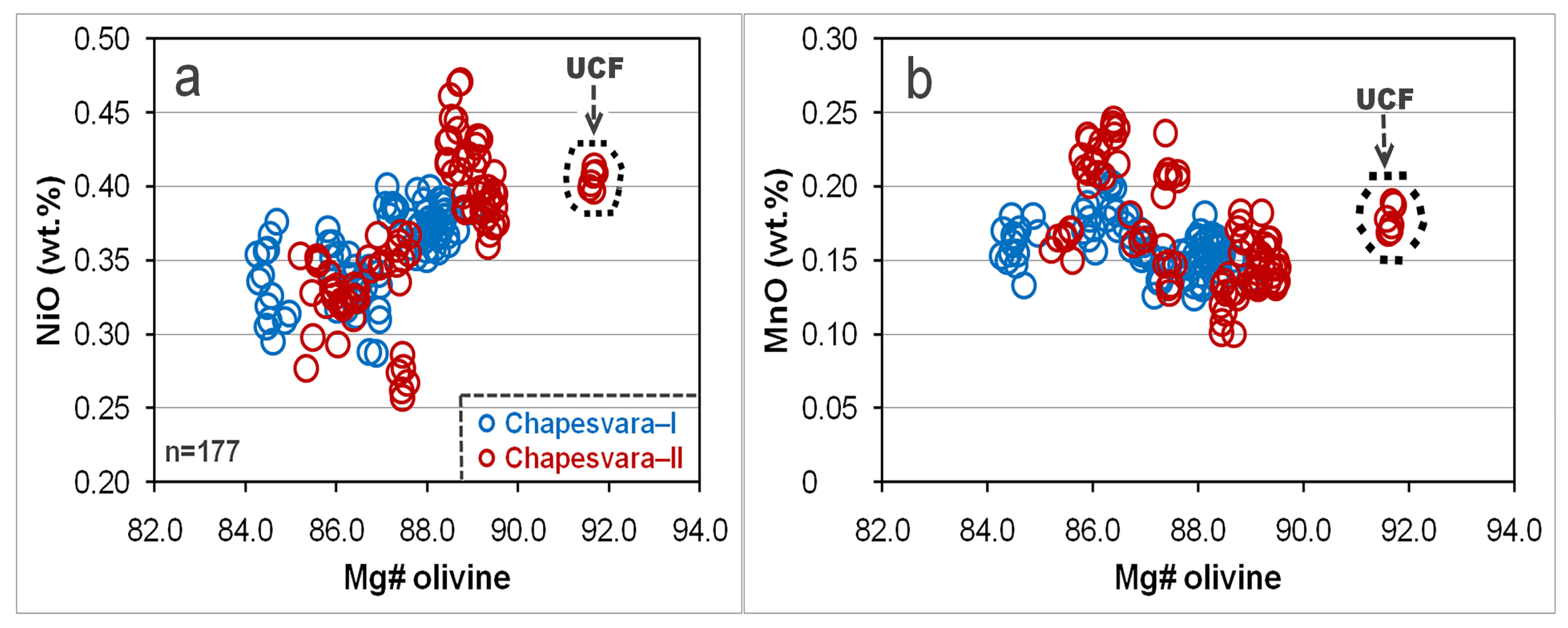

, Figure 11a,b) largely overlap as a consequence of the close petrogenetic relationship existing between these bodies. A slightly positive correlation of the Mg# index, defined as 100Mg/(Mg + Fe²⁺ + Mn), versus Ni, and a slightly negative one of Mg# versus Mn, were observed. Trends for these two suites are similar. Note that the compositions of olivine in fine-grained rocks of the upper contact facies (UCF) are plotted in an area distinct from the rest. This unit is distinctive, as is argued below.

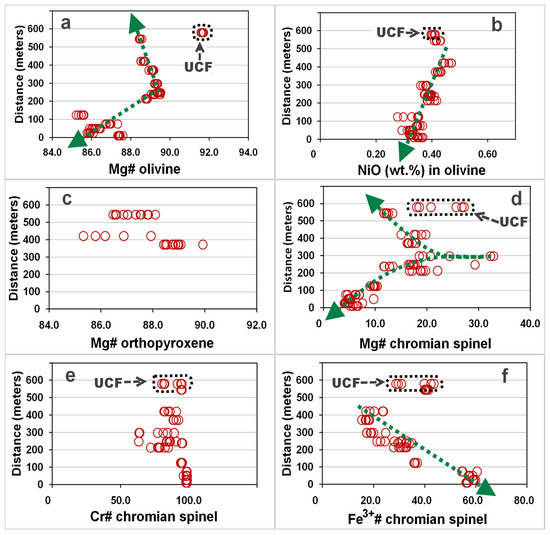

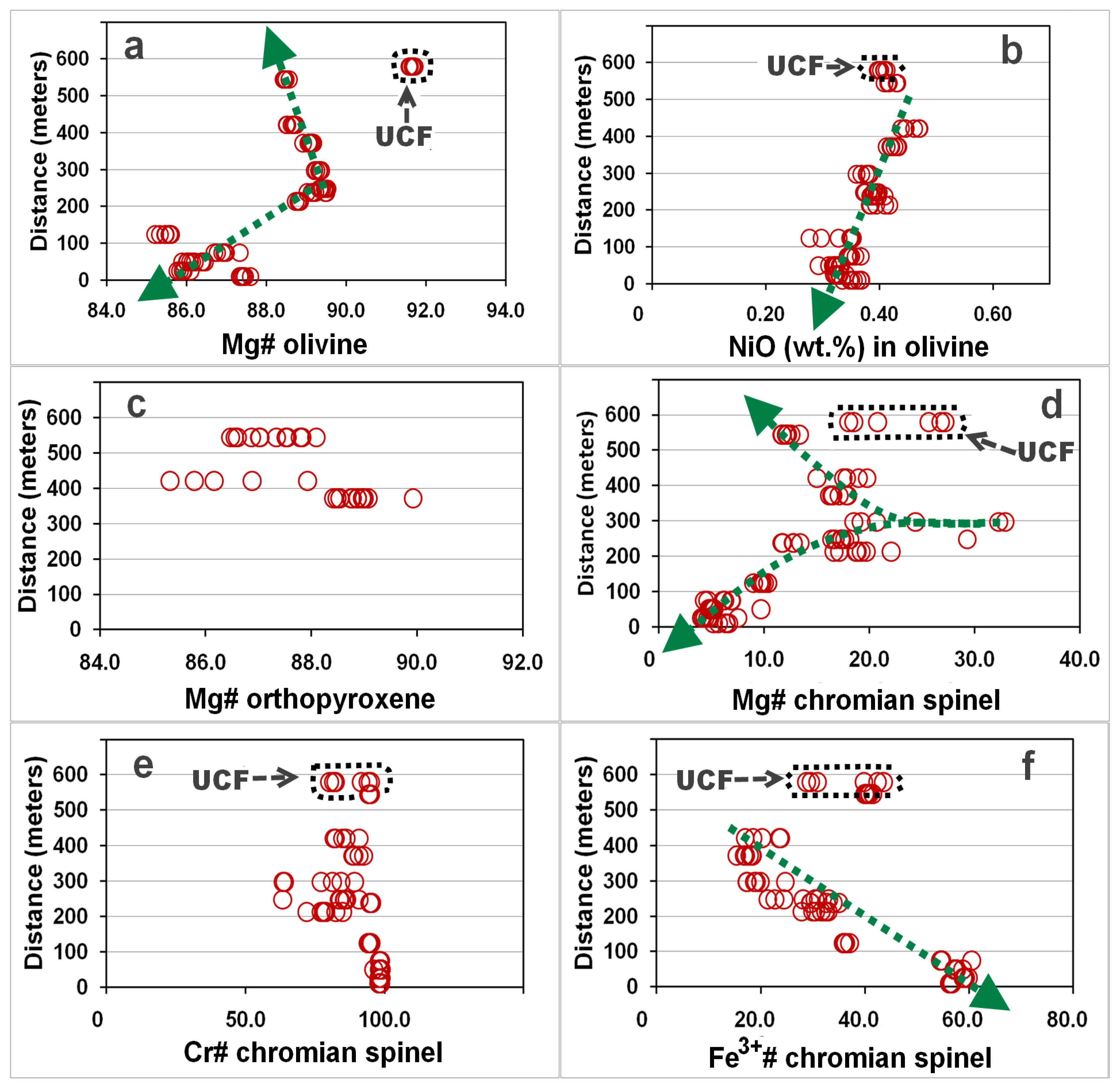

Figure 12a displays an interesting and unusual trend in olivine composition across the Chapesvara-II body. Except for the UCF unit, the maximum value of Mg# is attained in olivine of the central dunite zone (Figure 7) close to the center of the ultramafic body. From this point, the values decrease upward and downward, respectively, relative to the a–b traverse direction (Figure 6). Note that the downward subtrend is much more pronounced, showing a broad range of variations. In contrast, the values of Ni in solid solution display rather a single trend decreasing downward (Figure 12b).

Compositional variations in the chromian spinel (

Table 2. Compositional variations of accessory grains of chromian spinel along a transection oriented across of the Chapesvara–II ultramafic body.

#	Sample	*M	TiO2	Al2O3	Cr2O3	V2O3	FeO Total	FeO Calc.	Fe2O3 Calc.	MnO	MgO	NiO	ZnO	Total	Mg#	Cr#	Fe3+#
1	CHP-17	10	1.73	0.26	22.02	0.22	69.73	30.38	43.73	0.45	1.18	0.44	0.13	100.54	6.4	98.2	56.4
2	CHP-17	10	1.74	0.22	21.86	0.24	70.05	30.65	43.78	0.50	0.96	0.43	0.16	100.54	5.2	98.5	56.2
3	CHP-18	24.8	1.52	0.19	17.11	0.24	74.91	30.05	49.85	0.47	1.40	0.35	0.16	101.32	7.5	98.4	59.9
4	CHP-18	24.8	1.51	0.14	16.76	0.28	76.01	30.92	50.11	0.40	0.90	0.36	0.15	101.54	4.9	98.8	59.3
5	CHP-19	49.5	1.75	0.19	19.67	0.17	73.42	31.18	46.94	0.45	0.91	0.42	0.14	101.81	4.9	98.6	57.5
6	CHP-19A	49.5	1.66	0.21	20.47	0.21	71.83	30.80	45.60	0.45	0.93	0.42	0.15	100.89	5.0	98.5	57.1
7	CHP-20	74.3	1.65	0.29	24.35	0.23	68.38	30.92	41.62	0.38	0.86	0.49	0.25	101.03	4.7	98.3	54.8
8	CHP-20	74.3	1.37	0.15	15.70	0.26	75.76	29.94	50.92	0.29	1.25	0.55	0.05	100.49	6.9	98.6	60.5
9	CHP-21	123.8	0.91	1.95	45.87	0.30	44.58	28.55	17.81	0.55	1.89	0.10	0.32	98.26	10.4	94.0	35.9
10	CHP-21	123.8	1.05	1.73	45.81	0.30	44.96	28.83	17.93	0.55	1.80	0.12	0.29	98.40	9.8	94.7	35.9
11	CHP-22	212.9	1.23	6.63	46.72	0.17	40.21	28.16	13.39	0.62	3.34	0.13	0.24	100.63	17.2	82.5	30.0
12	CHP-22	212.9	1.32	11.11	42.55	0.19	39.70	27.57	13.48	0.56	4.47	0.14	0.26	101.65	22.1	72.0	30.5
13	CHP-23	237.6	0.75	1.97	52.56	0.13	40.88	28.78	13.45	0.70	2.21	0.10	0.20	100.84	11.8	94.7	29.6
14	CHP-23	237.6	1.36	1.76	48.33	0.20	44.35	28.81	17.27	0.65	2.57	0.22	0.15	101.32	13.4	94.9	35.0
15	CHP-24	247.5	2.14	5.18	45.59	0.22	40.59	28.25	13.72	0.64	3.42	0.18	0.19	99.52	17.4	85.5	30.4
16	CHP-24	247.5	0.77	3.74	55.46	0.22	34.89	27.43	8.29	0.69	3.18	0.08	0.24	100.09	16.8	90.9	21.4
17	CHP-24	247.5	0.80	16.58	42.69	0.21	32.77	25.34	8.26	0.50	6.01	0.19	0.44	101.00	29.3	63.3	22.7
18	CHP-25	297.0	0.78	10.04	50.57	0.14	32.59	26.08	7.23	0.59	4.82	0.10	0.38	100.74	24.4	77.2	20.0
19	CHP-25	297.0	1.27	7.52	48.67	0.25	36.51	27.49	10.03	0.63	3.76	0.12	0.33	100.06	19.2	81.3	24.7
20	CHP-25	297.0	0.49	17.17	45.63	0.10	29.13	24.07	5.63	0.49	6.76	0.08	0.50	100.90	32.9	64.1	17.4
21	CHP-26	371.3	1.30	4.58	55.25	0.41	34.18	27.90	6.98	0.42	3.48	0.12	0.42	100.86	18.0	89.0	18.4
22	CHP-26	371.3	0.81	3.13	57.27	0.29	33.48	27.50	6.65	0.45	3.08	0.09	0.40	99.67	16.4	92.5	17.9
23	CHP-27	420.8	1.16	5.69	52.90	0.46	34.90	27.83	7.87	0.51	3.46	0.06	0.34	100.27	17.9	86.2	20.3
24	CHP-27	420.8	0.84	3.81	55.71	0.40	34.23	27.88	7.05	0.53	2.83	0.11	0.38	99.53	15.1	90.8	18.5
25	CHP-27	420.8	1.56	7.30	48.83	0.45	36.60	27.97	9.58	0.49	3.74	0.13	0.34	100.40	19.0	81.8	23.6
26	CHP-28	544.5	1.13	1.61	44.06	0.28	48.33	28.88	21.62	0.50	2.20	0.26	0.35	100.88	11.8	94.8	40.3
27	CHP-28	544.5	1.14	1.61	44.59	0.27	48.56	28.99	21.74	0.51	2.31	0.25	0.34	101.76	12.2	94.9	40.3
28	CHP-30	579.2	0.23	2.98	47.90	0.08	42.36	25.49	18.75	0.82	3.88	0.14	0.29	100.54	20.8	91.5	39.8
29	CHP-30	579.2	0.23	8.24	50.02	0.07	34.14	24.32	10.91	0.73	5.25	0.09	0.34	100.22	27.2	80.3	28.8
30	CHP-30	579.2	0.35	1.64	45.43	0.08	46.40	26.18	22.46	0.83	3.34	0.26	0.20	100.77	18.1	94.9	43.6

Note. These compositional data (WDS; in weight percent) were observed along the traverse a–b (shown in Figure 6) oriented across the Chapesvara–II body. The label UCF pertains to the upper contact facies (see text for details). Contents of ferric and ferrous iron were calculated on the basis of stoichiometry and charge balance. *M is the distance in meters. Values of the Mg# index = 100Mg/(Mg + Fe²⁺ + Mn); the Cr# index = 100Cr/(Cr + Al); the Fe³⁺# index = 100Fe³⁺/(Fe³⁺ + Fe²⁺).

, Figure 12d) are clearly sympathetic with respect to those of olivine. The data points also display, from the same horizon close to the center, a characteristic split into two separate subtrends directed upward and downward in the Chapesvara-II body. Values of the Cr# index 100Cr/(Cr + Al) exhibit a relative decrease at the same central position (Figure 12e), which is accompanied by the corresponding increase in the spinel component (MgAl₂O₄) at this level. Values of the index Fe³⁺# 100Fe³⁺/(Fe³⁺ + Fe²⁺) gradually increase downward (Figure 12f), implying a progressive rise in oxygen fugacity, fO₂, in this direction during crystallization.

In the Chapesvara-II body, compositions of orthopyroxene show relatively broad lateral variations (Figure 12c,

Table 3. Compositions of orthopyroxene in the Chapesvara (I and II) ultramafic bodies.

#		Sample	SiO2	TiO2	Al2O3	Cr2O3	FeO	MnO	MgO	CaO	Total	Mg#
1	Ch-ra–I	CHP-4	56.28	0.06	1.51	0.70	6.72	0.16	32.26	1.58	99.25	88.6
2		CHP-4	56.08	0.05	1.39	0.76	6.89	0.18	32.05	1.58	98.98	88.4
3		CHP-6	56.32	0.06	1.45	0.72	6.59	0.18	32.64	1.48	99.43	89.4
4		CHP-6	57.50	0.02	0.02	0.06	8.25	0.20	33.37	0.04	99.44	86.5
5		CHP-7	56.21	0.07	1.50	0.67	6.66	0.14	32.63	1.65	99.52	89.7
6		CHP-7	56.37	0.05	1.29	0.67	6.48	0.17	32.60	1.45	99.08	88.7
7		CHP-10	56.63	0.07	1.37	0.72	7.67	0.17	31.97	1.33	99.92	86.6
8		CHP-10	56.61	0.06	1.24	0.72	7.00	0.15	32.54	1.24	99.55	88.0
9		CHP-12	56.37	0.06	1.19	0.76	7.07	0.18	32.21	1.44	99.28	87.6
10		CHP-12	55.53	0.09	1.91	0.76	7.80	0.19	30.22	2.71	99.22	86.3
11		CHP-14	57.72	0.02	0.17	0.08	7.89	0.21	33.66	0.07	99.81	87.1
12		CHP-14	56.45	0.10	1.90	0.63	7.71	0.19	31.93	1.31	100.22	86.6
13		CHP-15	57.10	0.08	1.53	0.60	6.73	0.16	32.22	1.79	100.20	87.3
14		CHP-15	57.24	0.03	1.26	0.57	6.58	0.15	32.73	1.37	99.93	87.6
15	Ch-ra–II	CHP-26	56.59	0.06	1.35	0.74	6.57	0.14	32.76	1.35	99.57	89.0
16		CHP-26	57.79	0.01	0.03	0.02	7.03	0.21	34.34	0.05	99.49	88.9
17		CHP-27	57.22	0.07	1.28	0.68	6.98	0.17	32.13	1.40	99.92	86.2
18		CHP-27	56.98	0.05	1.38	0.67	7.17	0.16	31.60	1.65	99.66	85.8
19		CHP-28	56.65	0.05	1.29	0.61	7.54	0.18	31.84	1.37	99.52	86.6
20		CHP-28	58.01	0.03	0.02	0.05	7.70	0.20	34.06	0.06	100.13	87.8

Note. Results of electron-microprobe analyses (WDS) are listed in weight percent. All Fe is given as FeO.

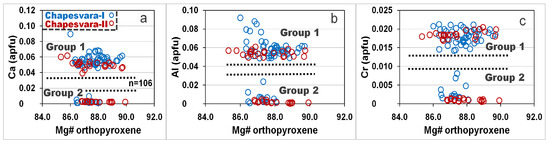

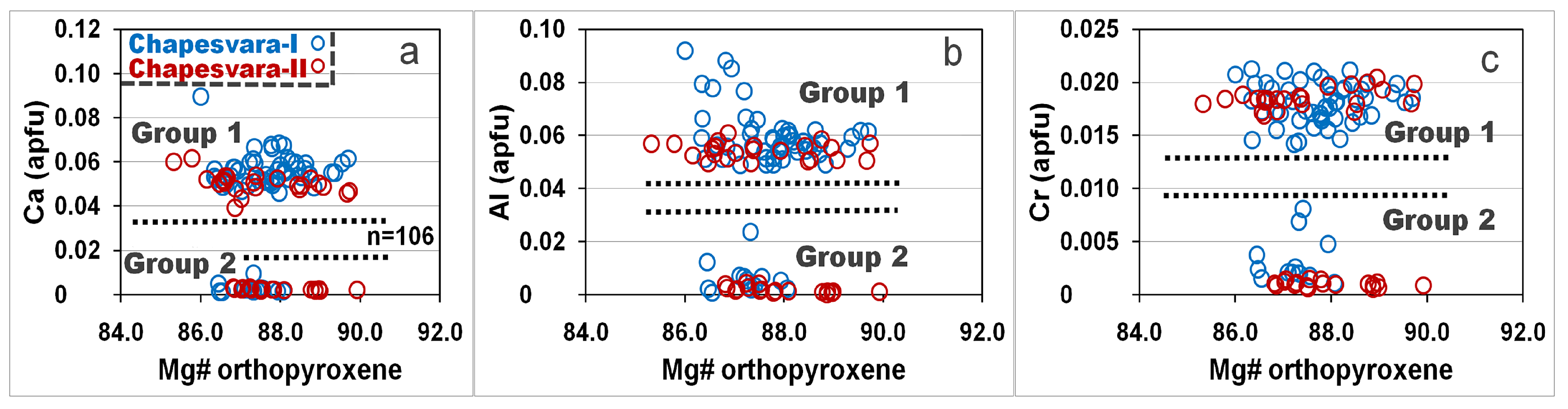

), which reflect the presence of two generations of the mineral. At low stratigraphic levels, orthopyroxene could not be analyzed, as it was totally transformed to a tremolite-dominant assemblage, presumably as a result of an increase in H₂O in the system (in the late-crystallized portions). The two generations of orthopyroxene are separated by a gap (Figure 13a–c). Group-1’s pyroxene (the original phase) contains normal levels of incorporation of Ca, Al, and Cr. In contrast, compositions of the second generation (group 2), which formed by replacement of the original phase, are highly depleted in Ca, Al, and Cr (Figure 13a–c).

3.2.2. Clinopyroxene, Plagioclase and Aluminous Amphibole

Clinopyroxene (Wo_43.9–46.0En_47.6–49.₁Fs_6.4–7.0) has a highly magnesian composition at Chapesvara (

Table 4. Compositions of clinopyroxene, plagioclase and aluminous amphibole in the Chapesvara–I ultramafic body.

#	Sample	Mineral	SiO2	TiO2	Al2O3	Cr2O3	FeO	MnO	MgO	CaO	Na2O	K2O	Total
1	CHP-10	Cpx	52.98	0.19	2.81	1.32	3.79	0.13	16.70	21.16	0.84	0.01	99.91
2			52.44	0.21	3.30	1.26	3.93	0.10	16.58	20.97	0.72	bdl	99.51
3		Pl	57.37	bdl	26.41	bdl	0.14	0.01	bdl	8.75	7.32	0.02	100.02
4			54.38	bdl	28.23	bdl	0.11	bdl	bdl	10.98	5.79	0.04	99.54
5		Amp	40.63	0.03	20.68	bdl	5.02	0.15	17.91	8.12	4.24	0.19	96.98
6			43.49	0.04	17.07	0.01	4.74	0.13	18.84	8.28	4.36	0.19	97.13
7			42.46	0.08	17.71	0.03	4.55	0.08	18.52	8.57	4.40	0.48	96.88
8	CHP-12	Cpx	52.32	0.19	3.02	1.41	3.71	0.14	16.03	21.53	0.80	bdl	99.14
9			51.84	0.25	3.74	1.35	4.07	0.12	16.53	20.57	0.77	bdl	99.24
10		Pl	53.64	bdl	28.94	bdl	0.06	bdl	bdl	11.81	5.77	0.04	100.26
11			55.04	bdl	28.00	bdl	0.12	bdl	bdl	10.69	6.63	0.03	100.51
12		Amp	42.02	0.08	18.15	bdl	4.19	0.12	17.31	11.21	4.52	0.32	97.91
13			41.55	0.06	19.95	bdl	6.59	0.28	20.68	5.27	4.64	0.16	99.17
14			42.14	0.05	19.92	bdl	6.03	0.21	21.35	3.78	4.67	0.12	98.27
15			43.03	0.06	18.06	bdl	4.97	0.15	20.87	5.75	4.23	1.00	98.12

Note. Results of electron-microprobe analyses (WDS) are listed in weight percent. All Fe values are given as FeO. Cpx is clinopyroxene, Pl is plagioclase, and Amp is aluminous amphibole (pargasite).

). The compositions plot close to the boundary of diopside with augite, as defined in the accepted nomenclature [22]. Plagioclase (Figure 9e and Figure 10b; Table 4) represents a late phase formed from portions of interstitial melt. It is strongly enriched in the albite component: Ab_46.8–60.1An_39.7–53.0Or_0.1–0.2. The aluminous amphibole (Table 4) displays notable variations: (Na_1.15–1.26Ca_0.56–1.31K_0.02–0.18)([Mg_3.66–4.43Fe²⁺_0.50–0.77Mn_0.01–0.03]Al_0.99–1.28)(Si_5.77–6.15Al_1.85–2.23)O₂₂(OH)₂. These compositions are closest to pargasite, although somewhat deficient in Ca [23].

3.2.3. Calcic and Iron-Magnesium Amphiboles, and Deuteric-Stage Assemblages

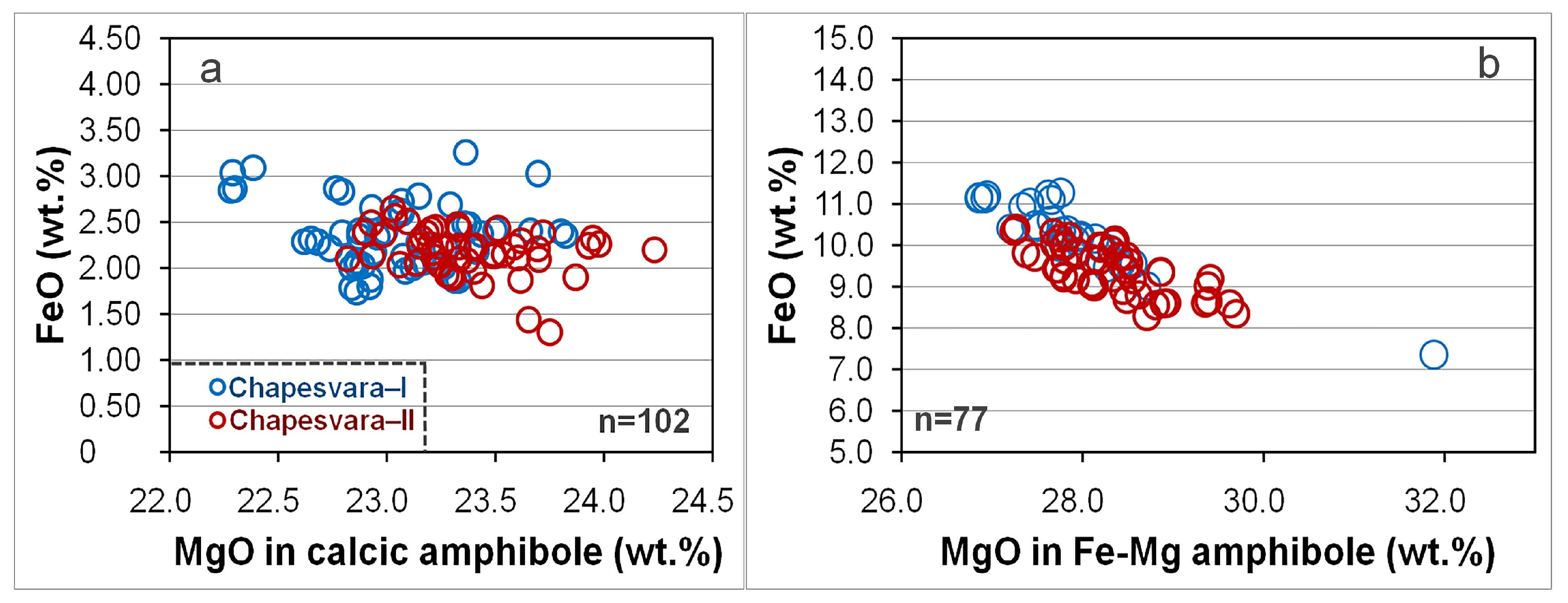

Compositional fields of the Ca amphibole (tremolite) and Fe–Mg amphibole (anthophyllite) overlap in the Chapesvara-I and Chapesvara-II bodies (Figure 14a,b;

Table 5. Compositions of calcic amphibole in the Chapesvara (I and II) ultramafic bodies.

#		Sample	SiO2	TiO2	Al2O3	Cr2O3	FeO	MnO	MgO	CaO	Na2O	K2O	Total
1	Ch-ra–I	CHP-1	58.18	0.03	0.52	0.03	2.40	0.08	22.99	12.60	0.56	0.02	97.40
2		CHP-1	56.28	0.09	2.05	0.31	3.09	0.09	22.38	11.97	1.45	0.04	97.75
3		CHP-2	57.84	0.04	0.86	0.08	2.87	0.06	22.77	12.21	0.80	0.03	97.55
4		CHP-3	58.02	0.05	0.74	0.12	2.78	0.07	23.15	12.17	0.67	0.03	97.79
5		CHP-4	58.80	0.02	0.16	0.05	1.88	0.07	22.93	13.38	0.07	0.01	97.37
6		CHP-4	57.94	0.02	0.50	0.10	2.17	0.08	22.94	13.14	0.23	0.03	97.15
7		CHP-5	58.32	0.04	0.43	0.02	2.40	0.09	23.66	12.55	0.38	0.02	97.91
8		CHP-5	58.43	0.02	0.30	0.02	2.18	0.08	23.41	13.02	0.23	0.02	97.70
9		CHP-6	58.02	0.06	0.75	0.08	2.04	0.07	23.14	12.49	0.35	0.02	97.02
10		CHP-7	58.44	0.02	0.65	0.05	2.00	0.08	22.84	12.77	0.24	0.02	97.11
11		CHP-7	57.51	0.08	1.12	0.10	2.13	0.07	23.08	12.44	0.51	0.03	97.06
12		CHP-8	59.14	0.01	0.19	0.03	1.79	0.07	22.84	13.46	0.17	0.01	97.70
13		CHP-9	58.53	0.05	0.62	0.05	2.60	0.08	23.07	12.35	0.64	0.02	97.99
14		CHP-11	58.62	0.02	0.42	0.06	2.47	0.10	23.38	12.16	0.49	0.03	97.75
15		CHP-13	58.90	0.04	0.23	0.04	2.06	0.05	23.17	12.65	0.34	0.02	97.48
16		CHP-14	56.53	0.13	2.48	0.14	2.34	0.09	22.87	12.06	0.83	0.04	97.50
17		CHP-14	58.83	0.02	0.31	0.02	1.87	0.04	23.33	12.87	0.15	0.01	97.46
18	Ch-ra–II	CHP-16	58.80	0.05	0.30	0.07	2.51	0.10	23.10	12.61	0.20	0.02	97.74
19		CHP-17	58.80	0.04	0.24	0.06	2.05	0.13	23.14	12.65	0.28	0.01	97.39
20		CHP-18	58.18	0.02	0.33	0.01	2.38	0.09	23.72	12.50	0.32	0.03	97.58
21		CHP-19	58.60	0.04	0.37	0.07	2.33	0.12	23.16	12.46	0.40	0.02	97.56
22		CHP-20	57.85	0.05	0.51	0.18	2.23	0.08	23.41	12.39	0.63	0.02	97.35
23		CHP-21	58.13	0.04	0.57	0.09	2.42	0.08	23.21	12.01	0.70	0.02	97.27
24		CHP-22	57.79	0.06	1.00	0.17	2.12	0.08	23.22	12.38	0.83	0.03	97.68
25		CHP-24	58.06	0.05	0.45	0.11	1.87	0.08	23.62	12.64	0.44	0.01	97.33
26		CHP-25	58.48	0.05	0.59	0.13	1.91	0.07	23.30	12.41	0.51	0.03	97.48
27		CHP-25	58.59	0.03	0.44	0.15	2.20	0.12	24.23	11.66	0.34	0.02	97.78
28		CHP-26	57.94	0.06	0.69	0.20	1.96	0.09	23.40	12.46	0.49	0.01	97.30
29		CHP-28	58.19	0.05	0.56	0.19	2.15	0.07	23.49	12.21	0.41	0.01	97.33
30		CHP-28	58.50	0.06	0.43	0.10	2.08	0.07	23.37	12.38	0.33	0.02	97.33

Note. Results of electron-microprobe analyses (WDS) are listed in wt. %. All Fe is given as FeO.

and

Table 6. Compositions of Fe–Mg amphibole in the Chapesvara (I and II) ultramafic bodies.

#		Sample	SiO2	TiO2	Al2O3	Cr2O3	FeO	MnO	MgO	CaO	Na2O	K2O	Total
1	Ch-ra–I	CHP-1	58.18	bdl	0.13	0.03	10.41	0.28	27.21	1.06	0.10	0.01	97.40
2		CHP-1	58.77	0.03	0.10	0.01	10.35	0.28	27.83	0.35	0.12	bdl	97.82
3		CHP-2	59.07	bdl	0.05	0.05	11.15	0.32	26.86	0.60	0.08	bdl	98.18
4		CHP-3	58.60	bdl	0.05	0.01	11.22	0.29	27.62	0.53	0.03	0.01	98.36
5		CHP-5	58.91	bdl	0.08	0.02	10.12	0.36	27.93	0.65	0.04	bdl	98.10
6		CHP-9	59.29	bdl	0.08	0.03	10.03	0.30	27.78	0.51	0.09	bdl	98.10
7		CHP-11	59.24	0.01	0.05	0.01	9.55	0.29	28.42	0.58	0.04	bdl	98.18
8		CHP-13	59.17	0.01	0.06	0.02	9.77	0.31	27.93	0.62	0.05	bdl	97.92
9	Ch-ra–II	CHP-16	59.40	0.01	0.01	0.02	9.71	0.32	27.47	0.57	0.01	bdl	97.53
10		CHP-17	59.01	bdl	0.02	0.03	9.42	0.43	27.72	0.65	0.05	bdl	97.33
11		CHP-18	58.67	bdl	0.03	0.01	9.73	0.35	28.48	0.52	0.01	bdl	97.81
12		CHP-19	59.13	0.01	0.05	bdl	9.65	0.40	27.81	0.63	0.07	bdl	97.75
13		CHP-19A	59.10	0.02	0.07	0.02	10.03	0.48	27.68	0.71	0.03	bdl	98.13
14		CHP-20	58.61	bdl	0.07	0.03	9.40	0.34	28.47	0.67	0.03	0.01	97.63
15		CHP-21	58.86	0.01	0.08	0.05	10.16	0.31	27.75	0.60	0.09	bdl	97.92
16		CHP-26	59.13	0.01	0.06	bdl	8.29	0.30	28.71	0.50	0.04	bdl	97.03
17		CHP-26	59.01	0.01	0.10	bdl	8.55	0.29	28.81	0.65	0.04	0.01	97.46
18		CHP-27	59.31	0.01	0.09	0.02	9.01	0.26	28.13	0.62	0.08	bdl	97.52
19		CHP-28	59.41	0.02	0.08	0.03	8.80	0.24	28.62	0.59	0.04	bdl	97.82
20		CHP-28	59.19	0.01	0.05	bdl	9.22	0.28	28.34	0.62	0.03	bdl	97.74

Note. Results of electron-microprobe analyses (WDS) are listed in weight percent. All Fe is given as FeO.

) as a result of the close relationship between these bodies. As noted, the calcic amphibole develops locally in fairly fresh rocks in association with unaltered olivine or orthopyroxene. This mode of occurrence reflects a primary crystallization at a late stage as a result of increase in levels of H₂O, cf. [24,25]. It thus differs from amphibole formed deuterically or during regional metamorphism.

Representatives of the serpentine-group minerals, chlorite (clinochlore), talc, and a magnesium carbonate (likely magnesite) are invariably highly magnesian at Chapesvara (

Table 7. Compositions of deuterically formed assemblages of hydrous silicates and a magnesium carbonate in the Chapesvara (I and II) ultramafic bodies.

#	Sample	Mineral	SiO2	TiO2	Al2O3	Cr2O3	FeO	MnO	MgO	CaO	Na2O	K2O	Total
1	CHP-2	Chl	33.23	0.03	14.70	2.53	4.23	0.03	33.14	0.01	bdl	0.01	87.90
2			32.78	0.03	14.20	2.77	4.19	0.03	33.10	bdl	bdl	bdl	87.10
3	CHP-3		32.48	0.04	13.67	2.45	4.78	0.02	32.45	0.03	bdl	0.02	85.94
4			32.51	0.02	14.48	2.30	4.00	0.01	33.33	0.04	0.01	0.01	86.71
5	CHP-8	Srp	39.73	0.02	0.14	0.01	9.06	0.08	36.32	0.03	bdl	bdl	85.39
6	CHP-11	Crb	0.01	bdl	0.01	0.01	5.42	0.23	42.20	0.20	0.02	bdl	48.09
7		Srp	41.86	0.02	0.03	0.01	9.29	0.15	35.62	0.07	bdl	bdl	87.04
8	CHP-15	Chl	32.42	0.03	16.55	1.73	2.93	0.02	33.68	bdl	bdl	bdl	87.35
9			31.93	0.07	16.92	2.11	3.09	0.02	33.75	bdl	bdl	bdl	87.88
10	CHP-16		34.35	0.04	13.38	1.96	3.96	0.02	34.40	bdl	0.02	bdl	88.13
11			33.38	0.05	14.33	2.05	4.22	0.02	33.83	bdl	0.01	bdl	87.89
12	CHP-18	Srp	41.78	0.01	bdl	0.02	13.93	0.30	33.12	0.07	bdl	bdl	89.23
13			41.62	0.01	0.03	0.01	13.61	0.26	33.56	0.08	0.01	bdl	89.20
14		Chl	34.48	0.02	10.86	1.51	5.38	0.06	35.57	bdl	bdl	bdl	87.87
15			34.27	0.03	13.33	1.80	4.55	0.02	33.01	bdl	0.02	0.01	87.04
16	CHP-21		34.32	0.03	13.14	2.39	3.95	0.02	32.39	bdl	0.05	bdl	86.29
17	CHP-23		32.86	0.03	12.59	3.35	3.31	0.02	35.06	bdl	bdl	bdl	87.21
18			32.89	0.02	12.89	3.34	3.24	0.01	35.41	bdl	bdl	bdl	87.79
19		Crb	bdl	0.01	0.00	0.01	4.49	0.25	43.39	0.16	bdl	bdl	48.30
20	CHP-24	Tlc	61.75	0.02	0.33	0.03	1.30	0.01	31.33	0.01	0.24	bdl	95.02
21			62.18	0.02	0.29	0.02	1.21	0.01	30.87	0.01	0.26	0.01	94.88
22	CHP-25	Chl	34.37	0.05	13.58	3.33	2.70	0.02	33.32	0.02	bdl	0.01	87.40
23	CHP-29	Tlc	61.56	0.06	0.81	0.14	1.26	bdl	31.08	bdl	0.63	0.01	95.54
24			60.41	0.11	1.94	0.27	1.34	0.01	31.24	bdl	1.26	0.02	96.61
25		Chl	33.38	0.05	13.63	2.31	3.66	0.01	34.99	0.01	bdl	0.01	88.05
26			33.44	0.04	13.62	2.29	3.66	0.02	35.26	bdl	bdl	0.01	88.34
27	CHP-30	Tlc	63.37	bdl	0.14	0.04	0.82	0.01	30.87	bdl	0.12	bdl	95.38
28			63.00	bdl	0.11	0.03	1.00	0.01	30.90	bdl	0.07	bdl	95.12
29		Chl	32.88	0.01	13.82	3.12	2.93	0.02	34.95	0.01	bdl	bdl	87.73
30			33.08	0.02	13.68	3.16	3.01	0.02	35.02	0.02	0.01	0.01	88.01

Note. Results of electron-microprobe analyses (WDS) are listed in weight percent. All Fe is given as FeO. Labels CHP-2 to CHP-15 pertain to Chapesvara–I, and CHP-16 to CHP-30 pertain to Chapesvara–II. Labels Chl is chlorite (clinochlore), Tlc is talc, Srp is serpentine, and Crb is a magnesium carbonate (magnesite). Bdl: below detection limits.

), as a reflection of the composition of primary grains of olivine and orthopyroxene.

3.2.4. Cobaltiferous Pentlandite

As noted, sulfide occurrences are extremely scarce in these samples. A Co-bearing pentlandite (1.2–1.7 wt. % Co) is the only sulfide species documented at Chapesvara (

Table 8. Compositions of Co-bearing pentlandite in the Chapesvara-I–II complex.

Sample		Fe	Co	Ni	S	Total	ΣMe (apfu)	Ni/Fe	S (apfu)
CHP-13	Ch-ra–I	30.40	1.73	33.94	33.84	99.91	8.87	1.1	8.13
CHP-13	Ch-ra–I	30.15	1.67	33.76	33.87	99.45	8.84	1.1	8.16
CHP-18	Ch-ra–II	31.89	1.24	33.88	33.63	100.64	8.96	1.0	8.04
CHP-18	Ch-ra–II	31.52	1.19	33.83	33.42	99.96	8.96	1.0	8.04
CHP-18	Ch-ra–II	31.69	1.19	33.84	33.41	100.13	8.97	1.0	8.03
CHP-18	Ch-ra–II	31.72	1.19	33.64	33.49	100.04	8.95	1.0	8.05
CHP-19A	Ch-ra–II	35.09	1.43	30.59	33.45	100.56	9.00	0.8	8.00
CHP-19A	Ch-ra–II	34.91	1.52	30.27	33.62	100.32	8.95	0.8	8.05
CHP-19A	Ch-ra–II	34.98	1.35	30.36	33.65	100.34	8.95	0.8	8.05
CHP-19A	Ch-ra–II	35.03	1.33	30.41	33.71	100.48	8.95	0.8	8.05

Note. Results of electron-microprobe analyses (WDS) are quoted in weight percent. The values in apfu (atoms per formula unit) are based on a total of 17 apfu.

). Values of the Ni:Fe ratio (atomic) are 0.8–1.1, close to a 1:1 proportion. In general, cobaltiferous pentlandite could represent one of index minerals of the entire Serpentinite Belt. Indeed, it occurs at Pados-Tundra [6], at Khanlauta and at Kareka-Tundra (Barkov et al.; unpublished data).

3.3. Geochemical Characteristics

3.3.1. Whole-Rock Variations and Fractionation Trends

The rocks of the sequence dunite–harzburgite–olivine-bearing orthopyroxenite are highly magnesian. Mean values of Mg# 100MgO/(MgO + FeO_total), calculated on a whole-rock (molar) basis, are nearly identical: 86.6 for Chapesvara-I (n = 13) and 86.5 for Chapesvara-II (n = 14) (

Table 9. Whole-rock contents of major oxides in representative samples of the Chapesvara bodies (I and II).

	Sample	SiO2	TiO2	Al2O3	Fe2O3	MnO	MgO	CaO	Na2O	K2O	P2O5	BaO	SO3	V2O5	Cr2O3	NiO	LOI	Total	Mg#	Al2O3/TiO2
Ch-ra–I	CHP-1	38.18	0.10	2.50	12.43	0.13	35.94	2.08	0.07	0.04	0.02	0.01	0.07	0.01	1.28	0.22	6.61	99.69	85.1	25.0
	CHP-3	49.15	0.10	4.78	8.85	0.18	28.19	2.54	0.12	0.01	0.01	0.01	<0.03	0.01	1.20	0.12	4.59	99.89	86.3	47.8
	CHP-4	43.68	0.07	1.52	11.25	0.16	39.61	0.89	<0.05	0.01	0.01	<0.01	<0.03	0.01	1.27	0.23	1.00	99.74	87.5	21.7
	CHP-5	40.28	0.12	2.62	12.18	0.15	33.01	2.43	<0.05	0.01	0.02	0.01	0.06	0.01	0.95	0.20	7.76	99.85	84.3	21.8
	CHP-6	44.25	0.07	1.60	10.19	0.16	38.62	1.12	<0.05	0.01	0.01	0.01	<0.03	0.01	1.14	0.20	2.19	99.65	88.2	22.9
	CHP-7	45.05	0.07	1.57	10.37	0.16	39.49	1.05	<0.05	0.01	0.01	0.01	<0.03	0.01	1.18	0.21	0.79	100.04	88.3	22.4
	CHP-8	40.02	0.07	1.35	11.94	0.16	41.63	0.86	<0.05	0.01	0.01	0.01	<0.03	0.01	1.46	0.25	1.80	99.62	87.4	19.3
	CHP-9	44.26	0.12	2.76	11.27	0.16	31.84	2.51	0.06	0.02	0.02	0.01	0.06	0.01	0.90	0.16	5.55	99.70	84.8	23.0
	CHP-10	43.93	0.18	3.94	11.08	0.16	33.22	2.94	0.51	0.18	0.02	0.01	0.05	0.01	1.14	0.18	2.53	100.09	85.6	21.9
	CHP-11	36.85	0.09	1.84	10.78	0.15	36.06	1.29	<0.05	0.01	0.01	0.01	0.06	0.01	1.60	0.23	10.81	99.79	86.9	20.4
	CHP-12	45.35	0.17	3.72	10.93	0.16	33.54	2.73	0.45	0.16	0.02	0.01	<0.03	0.01	1.12	0.17	1.68	100.26	85.9	21.9
	CHP-14	41.57	0.08	1.72	11.55	0.15	40.83	1.08	<0.05	0.01	0.01	0.01	<0.03	0.01	1.50	0.25	1.30	100.13	87.5	21.5
	CHP-15	43.79	0.07	1.50	10.63	0.15	39.55	0.99	<0.05	0.01	0.01	0.01	<0.03	0.01	1.23	0.21	1.12	99.36	88.1	21.4
Ch-ra–II	CHP-16	41.45	0.18	4.15	11.43	0.16	28.47	3.44	<0.05	0.02	0.03	0.01	0.16	0.01	1.64	0.18	8.73	100.04	83.2	23.1
	CHP-17	39.06	0.17	3.42	10.95	0.16	32.74	2.04	<0.05	0.01	0.03	0.01	<0.03	0.01	1.45	0.20	9.30	99.58	85.6	20.1
	CHP-18	40.62	0.18	4.15	10.36	0.14	31.22	3.20	<0.05	0.01	0.03	0.01	0.07	0.01	1.14	0.19	7.98	99.35	85.7	23.1
	CHP-19	39.90	0.18	4.05	11.91	0.16	31.68	2.92	0.07	0.02	0.02	0.01	<0.03	0.02	1.60	0.19	6.71	99.48	84.1	22.5
	CHP-20	41.20	0.13	2.66	11.52	0.16	34.76	1.71	<0.05	0.01	0.02	0.01	<0.03	0.01	1.22	0.21	5.59	99.28	85.7	20.5
	CHP-21	48.31	0.13	2.61	9.45	0.15	31.82	2.08	0.14	0.02	0.02	0.01	<0.03	0.01	1.19	0.14	3.59	99.69	87.0	20.1
	CHP-22	38.18	0.07	1.53	12.23	0.16	42.50	0.79	<0.05	0.01	0.01	0.01	<0.03	0.01	2.25	0.30	1.26	99.38	87.3	21.9
	CHP-23	39.48	0.05	0.81	11.79	0.16	43.95	0.40	<0.05	0.00	0.01	0.01	<0.03	0.01	1.23	0.31	1.34	99.56	88.1	16.2
	CHP-24	38.67	0.05	0.99	11.49	0.15	44.87	0.20	<0.05	0.01	0.01	0.01	<0.03	0.01	1.29	0.31	1.75	99.81	88.6	19.8
	CHP-25	38.58	0.05	1.04	11.31	0.16	44.90	0.58	<0.05	0.01	0.01	0.01	<0.03	0.01	1.50	0.31	1.42	99.90	88.7	20.8
	CHP-26	46.40	0.07	1.48	9.28	0.15	38.17	1.11	<0.05	0.01	0.01	0.01	<0.03	0.01	0.81	0.21	1.72	99.48	89.1	21.1
	CHP-27	48.38	0.07	1.49	9.36	0.14	35.95	1.24	<0.05	0.01	0.01	<0.01	<0.03	0.01	0.89	0.16	2.15	99.93	88.4	21.3
	CHP-28	48.99	0.08	1.69	9.73	0.16	34.16	1.34	<0.05	0.01	0.01	0.01	<0.03	0.01	1.02	0.16	2.22	99.64	87.4	21.1
UCF*	CHP-30	30.95	0.09	2.06	16.54	0.26	37.04	0.06	<0.05	0.01	0.01	0.01	<0.03	0.02	10.03	0.27	2.46	99.86	81.6	22.9

Note. Results of XRF analyses are listed in weight percent; all Fe is quoted as Fe₂O₃. Mg# = 100MgO/(MgO + FeO_total) on a molar basis. *UCF means the upper contact facies. LOI: loss on ignition.

). A substantial enrichment in Cr (1–2 wt. % Cr₂O₃) is invariably observed. The whole-rock ratios for Al₂O₃ and TiO₂ (ratios of wt. % values) are 23.9 and 21.0, respectively. These values are indicative of crystallization from batches of a primitive magma derived from a common mantle source.

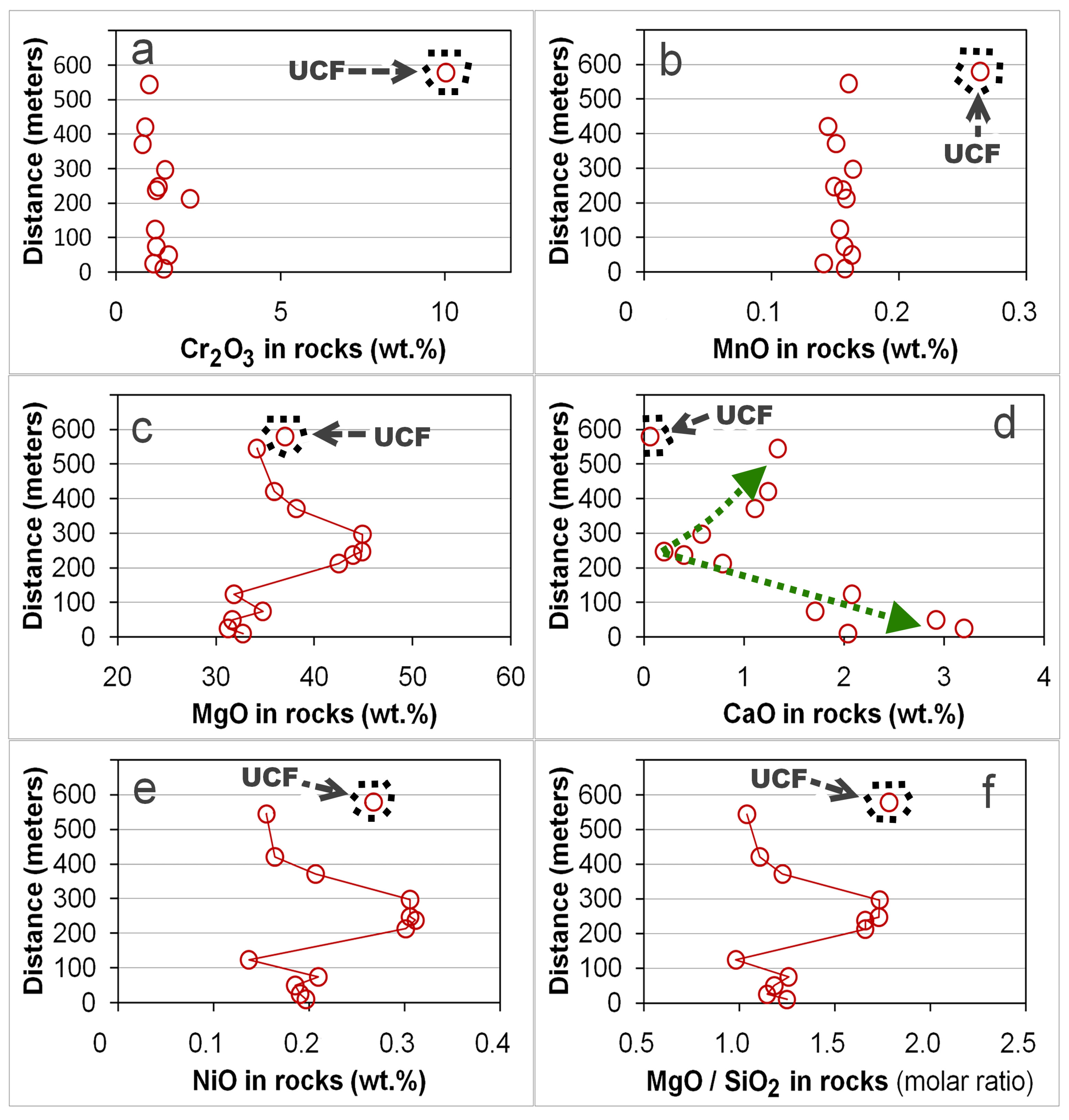

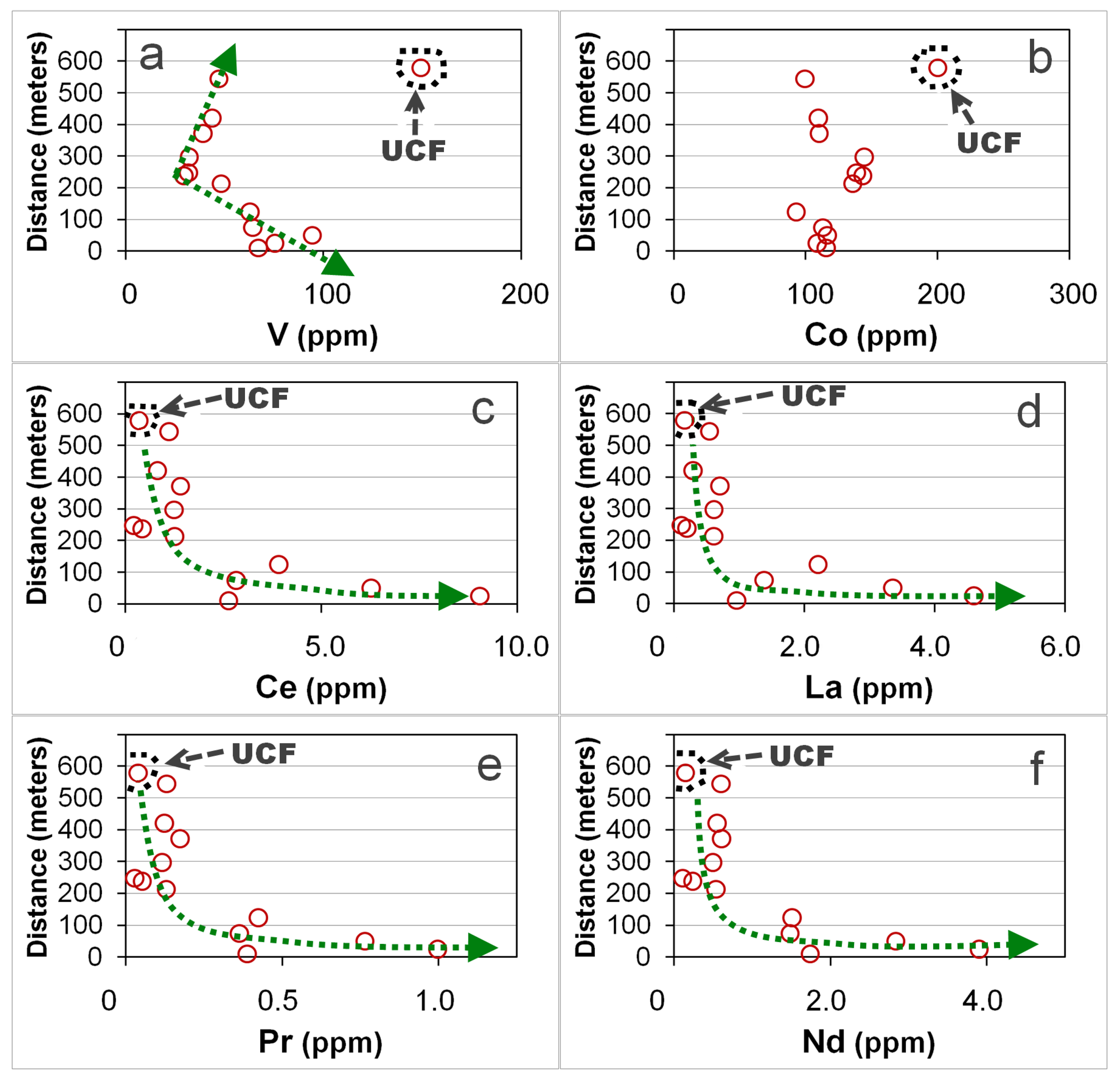

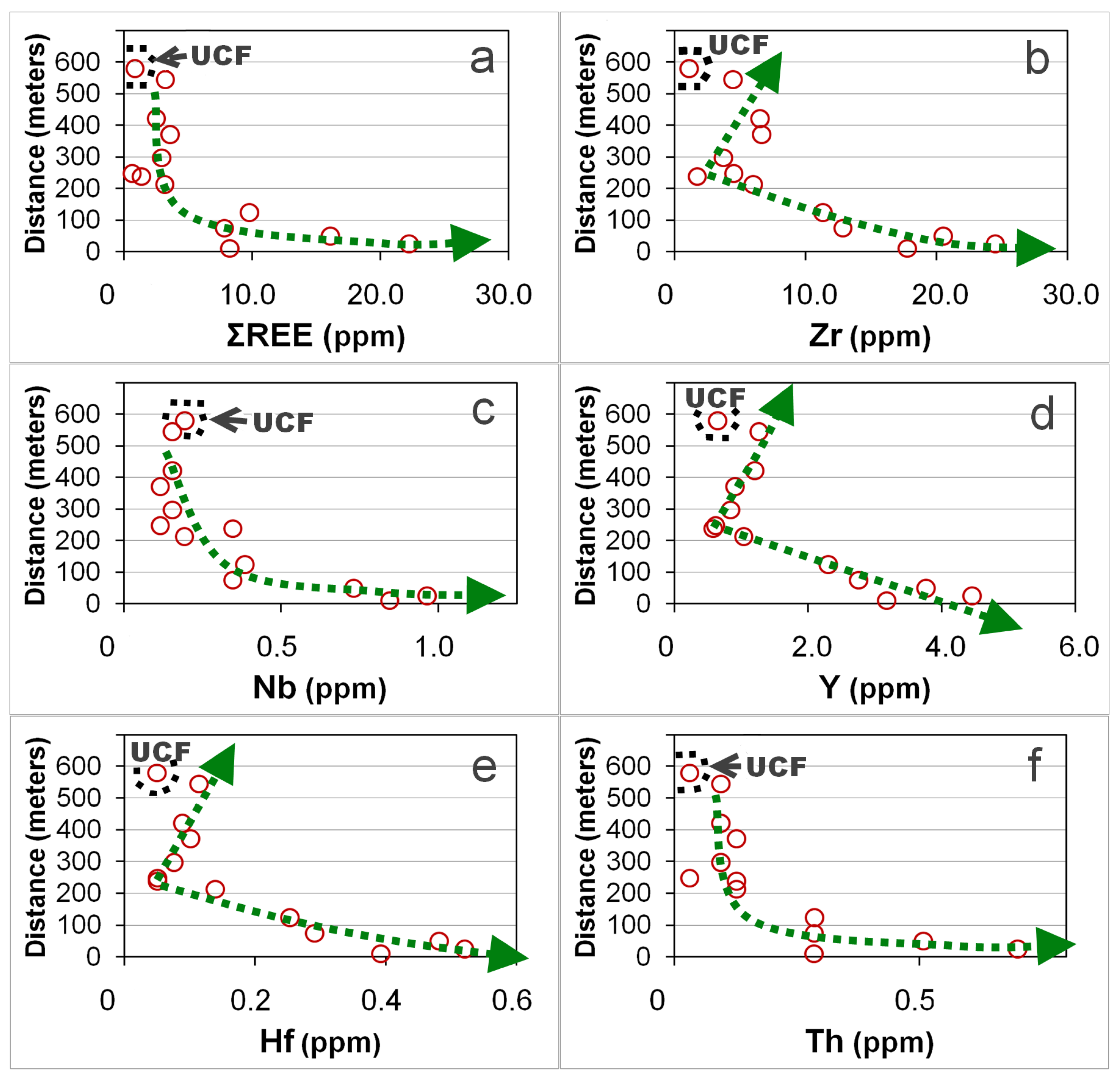

The whole-rock compositions (Table 9,

Table 10. Whole-rock contents of rare-earth elements, Hf and Th in representative samples of the Chapesvara (I and II) ultramafic bodies.

	Sample	La	Ce	Pr	Nd	Sm	Eu	Gd	Tb	Dy	Ho	Er	Tm	Yb	Lu	Hf	Th	(Gd/Yb)N	Eu/Eu*
Ch-ra–I	CHP-1	0.61	1.73	0.24	1.01	0.21	0.066	0.23	0.040	0.29	0.066	0.20	0.030	0.18	0.028	0.16	0.13	1.03	0.93
	CHP-2	0.57	1.93	0.34	1.60	0.41	0.084	0.40	0.063	0.42	0.085	0.23	0.033	0.21	0.030	0.22	0.13	1.56	0.62
	CHP-4	0.41	0.74	0.11	0.39	0.070	0.011	0.053	0.011	0.070	0.019	0.055	0.010	0.070	0.010	0.10	0.13	0.61	0.53
	CHP-5	0.54	1.42	0.22	0.77	0.23	0.085	0.24	0.037	0.24	0.055	0.17	0.026	0.16	0.025	0.19	0.16	1.21	1.09
	CHP-6	0.54	1.10	0.14	0.50	0.095	0.024	0.12	0.020	0.14	0.032	0.10	0.015	0.099	0.015	0.14	0.095	0.98	0.70
	CHP-7	0.42	0.84	0.10	0.42	0.096	0.025	0.100	0.020	0.15	0.033	0.10	0.017	0.12	0.018	0.11	0.13	0.67	0.79
	CHP-8	0.42	0.89	0.13	0.57	0.11	0.020	0.12	0.020	0.13	0.027	0.085	0.013	0.10	0.014	0.13	0.13	1.03	0.52
	CHP-9	0.82	1.98	0.28	1.27	0.35	0.082	0.36	0.053	0.38	0.089	0.24	0.038	0.23	0.037	0.20	0.22	1.27	0.69
	CHP-10	3.1	6.3	0.74	2.9	0.61	0.17	0.54	0.10	0.61	0.12	0.34	0.050	0.33	0.050	0.43	0.48	1.33	0.87
	CHP-11	1.53	2.8	0.30	1.22	0.26	0.042	0.23	0.029	0.20	0.042	0.12	0.019	0.13	0.020	0.16	0.19	1.46	0.51
	CHP-12	2.8	5.8	0.65	2.6	0.58	0.18	0.62	0.091	0.57	0.12	0.34	0.050	0.32	0.048	0.37	0.48	1.55	0.89
	CHP-14	0.43	1.16	0.17	0.72	0.16	0.041	0.20	0.029	0.18	0.034	0.10	0.016	0.10	0.016	0.14	0.13	1.60	0.69
	CHP-15	0.38	0.82	0.12	0.43	0.12	0.022	0.14	0.021	0.13	0.033	0.10	0.015	0.098	0.015	0.10	0.095	1.17	0.53
Ch-ra–II	CHP-16	1.73	3.8	0.54	2.2	0.50	0.098	0.54	0.090	0.58	0.13	0.37	0.054	0.34	0.050	0.46	0.35	1.28	0.57
	CHP-17	0.96	2.6	0.39	1.74	0.53	0.12	0.45	0.081	0.53	0.11	0.31	0.050	0.31	0.048	0.39	0.29	1.17	0.70
	CHP-18	4.6	9.0	1.00	3.9	0.72	0.22	0.75	0.12	0.77	0.16	0.43	0.064	0.42	0.064	0.52	0.70	1.45	0.90
	CHP-19	3.4	6.3	0.76	2.8	0.61	0.17	0.57	0.080	0.52	0.11	0.35	0.052	0.35	0.051	0.48	0.51	1.32	0.88
	CHP-20	1.38	2.8	0.36	1.49	0.41	0.081	0.30	0.050	0.34	0.084	0.23	0.036	0.22	0.035	0.29	0.29	1.14	0.67
	CHP-21	2.2	3.9	0.42	1.51	0.37	0.086	0.34	0.055	0.32	0.073	0.21	0.031	0.21	0.031	0.25	0.29	1.30	0.73
	CHP-22	0.61	1.25	0.13	0.54	0.12	0.038	0.14	0.020	0.14	0.028	0.078	0.012	0.071	0.011	0.14	0.13	1.60	0.87
	CHP-23	0.20	0.43	0.053	0.24	0.078	0.017	0.074	0.011	0.077	0.020	0.062	0.010	0.075	0.012	0.051	0.13	0.79	0.69
	CHP-24	0.11	0.21	0.029	0.11	0.026	0.009	0.034	0.006	0.039	0.009	0.025	<0.005	0.025	<0.005	0.051	0.03	1.09	0.93
	CHP-25	0.62	1.24	0.12	0.50	0.12	0.029	0.073	0.013	0.092	0.019	0.059	0.010	0.058	0.009	0.076	0.095	1.02	0.90
	CHP-26	0.71	1.40	0.17	0.61	0.14	0.045	0.15	0.022	0.12	0.027	0.08	0.013	0.09	0.014	0.10	0.13	1.35	0.94
	CHP-27	0.29	0.82	0.12	0.55	0.13	0.029	0.100	0.019	0.14	0.032	0.11	0.019	0.14	0.023	0.089	0.10	0.58	0.75
	CHP-28	0.55	1.11	0.13	0.60	0.14	0.036	0.16	0.023	0.15	0.035	0.12	0.020	0.14	0.021	0.11	0.10	0.90	0.73
*UCF	CHP-30	0.17	0.35	0.039	0.15	0.021	0.008	0.020	<0.005	0.030	0.007	0.027	0.005	0.031	0.005	<0.05	0.03	0.52	1.18

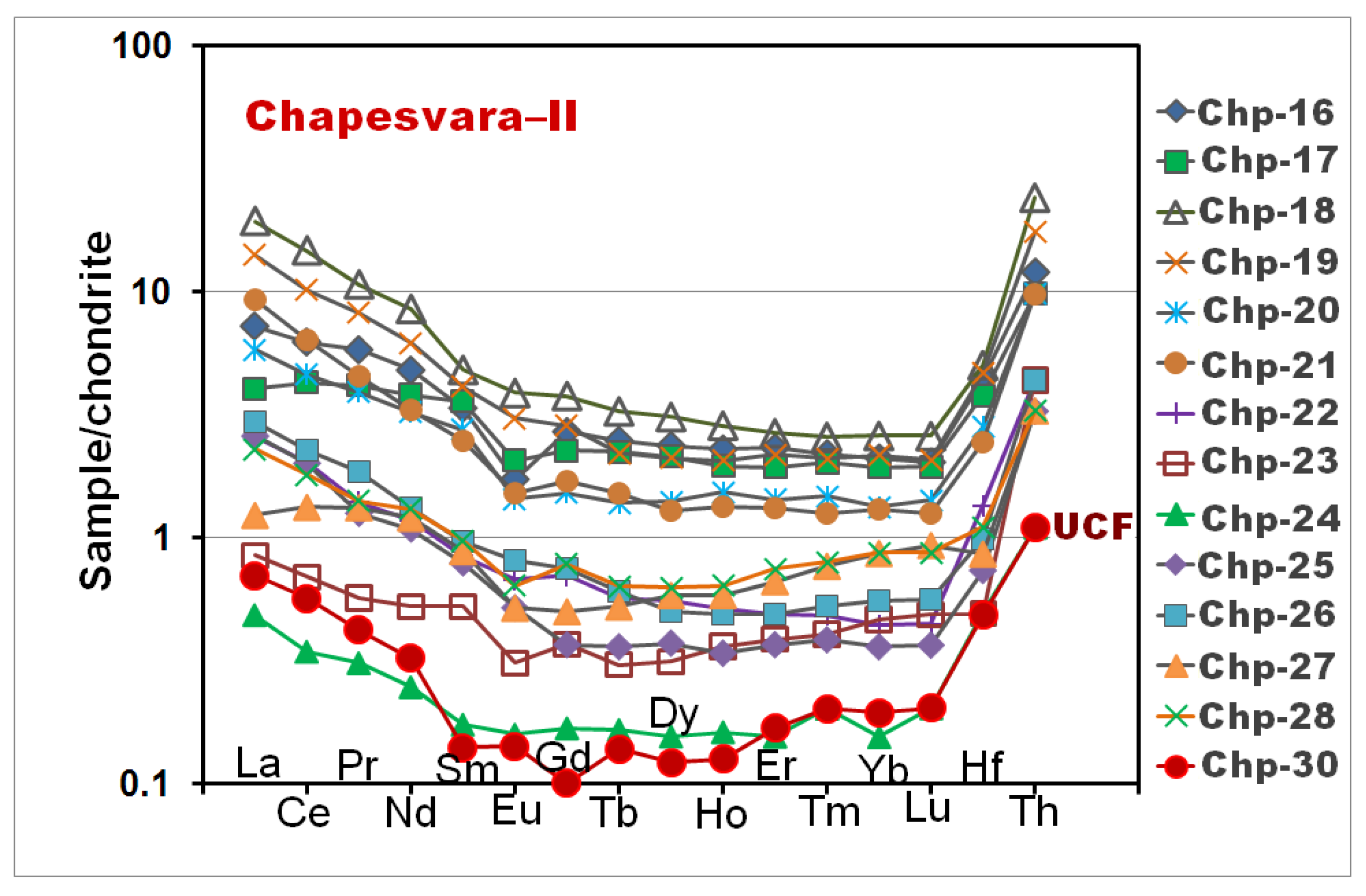

Note. Results of ICP-MS analyses are listed in ppm. The C1-chondrite-normalizing values take after [26]. *UCF means the upper contact facies. Eu/Eu* are the Eu-anomaly values.

and

Table 11. Whole-rock contents of different elements in representative samples of the Chapesvara (I and II) ultramafic bodies.

	Sample	Sc	V	Cr	Co	Ni	Cu	Zn	Rb	Sr	Y	Zr	Nb	Cs	Ba	Ta	U
Ch-ra–I	CHP-1	10.8	50	8803.6	135	1907.3	13.5	92	0.89	24	1.79	7.8	0.31	<0.1	3.3	<0.05	0.06
	CHP-2	13.2	60	8159.5	68	1053.8	13.9	70	1.10	18.0	3.4	10.5	0.46	<0.1	36	0.058	0.06
	CHP-4	8.9	45	8441.1	118	1937.9	10.7	67	1.44	7.9	1.30	8.5	0.19	<0.1	6.0	<0.05	0.03
	CHP-5	11.8	64	6357.6	107	1727.9	7.2	61	1.51	29	2.6	8.5	0.27	<0.1	9.3	<0.05	0.09
	CHP-6	10.1	44	7847.1	108	1748.4	13.9	57	1.40	14.9	1.04	4.7	0.19	<0.1	5.7	<0.05	0.03
	CHP-7	9.6	45	7812.7	117	1844.9	7.0	109	0.72	11.1	1.13	8.9	0.27	<0.1	4.2	<0.05	0.03
	CHP-8	7.3	44	9359.6	143	2263.4	8.4	64	0.72	10.6	0.81	10.6	0.23	<0.1	4.5	<0.05	<0.02
	CHP-9	14.5	69	5791.5	114	1462.9	9.3	62	1.13	23	2.7	9.8	0.39	<0.1	<3	<0.05	0.06
	CHP-10	14.0	78	7668.7	109	1606.1	27	64	3.0	48	3.7	19.0	0.73	<0.1	63	<0.05	0.06
	CHP-11	7.4	50	10,480.6	129	2037.5	<5	76	0.55	8.1	1.40	7.9	0.31	<0.1	3.3	<0.05	0.03
	CHP-12	13.8	74	7229.9	108	1527.8	28	76	3.4	43	3.4	18.4	0.69	<0.1	59	<0.05	0.06
	CHP-14	8.2	48	9714.9	139	2227.1	7.8	76	0.65	11.0	1.49	10.7	0.23	<0.1	4.8	<0.05	0.03
	CHP-15	8.7	44	8117.1	122	1952.4	7.6	71	0.68	9.8	1.39	4.3	0.15	<0.1	3.5	<0.05	0.03
Ch-ra–II	CHP-16	12.6	86	10,581.6	101	1591.1	26	103	0.99	13.0	3.8	21	0.35	<0.1	55	<0.05	0.03
	CHP-17	11.3	67	9250.2	116	1782.1	7.5	69	0.79	17.4	3.2	17.8	0.85	<0.1	6.1	<0.05	0.09
	CHP-18	12.5	75	7692.4	109	1788.6	27	67	0.72	21	4.5	25	0.96	<0.1	11.0	0.057	0.09
	CHP-19	12.0	94	11,088.8	116	1677.8	12.1	131	1.27	25	3.8	21	0.73	<0.1	6.2	<0.05	0.09
	CHP-20	10.8	64	7986.6	113	1855.1	7.2	72	0.72	15.5	2.8	12.9	0.35	<0.1	<3	<0.05	0.03
	CHP-21	13.1	63	7683.4	93	1198.2	6.9	63	1.10	20	2.3	11.4	0.39	<0.1	8.6	<0.05	0.03
	CHP-22	6.3	48	14,160.8	136	2662.2	6.9	80	1.16	8.2	1.04	6.0	0.19	<0.1	3.4	<0.05	0.03
	CHP-23	5.3	29	8503.4	143	2899.3	11.4	1728.4	0.62	<3	0.58	1.75	0.35	<0.1	3.7	<0.05	0.09
	CHP-24	5.2	32	8480.8	139	2763.0	9.4	55	0.75	5.2	0.62	4.5	0.12	<0.1	3.5	<0.05	<0.02
	CHP-25	5.9	32	10,063.5	144	2729.3	6.0	151	0.79	3.9	0.84	3.7	0.15	<0.1	<3	<0.05	<0.02
	CHP-26	9.6	39	5402.9	110	1880.9	14.3	80	0.86	5.8	0.91	6.7	0.12	<0.1	<3	<0.05	<0.02
	CHP-27	9.9	44	5868.6	110	1474.8	8.6	47	0.75	4.6	1.20	6.5	0.15	<0.1	<3	<0.05	0.03
	CHP-28	13.5	47	6729.9	99	1417.4	<5	71	0.82	5.6	1.27	4.5	0.15	<0.1	10.6	<0.05	0.03
UCF*	CHP-30	4.9	149	>10,000	200	2297.5	8.8	335	4.3	<3	0.65	1.13	0.19	0.11	<3	<0.05	0.03

Note. Results of ICP-MS analyses are listed in ppm. *UCF means the upper contact facies.

) display low contents of Ca and Al and a characteristic depletion in REE and high field-strength elements (Y, Nb, Hf, and Th). The mean values of the (Gd/Yb)_N ratio (Table 10), normalized with respect to the C1 chondrite [26], are 1.19 (Chapesvara-I) and 1.11 (Chapesvara-II). These very similar values exhibit a minor extent of depletion in the heavy REE. Mean values of the index Eu/Eu* (Table 10) also are close: 0.72 (Chapesvara-I) and 0.82 (Chapesvara-II). They indicate a slightly negative Eu anomaly, which could reflect a minor extent of plagioclase fractionation.

The two patterns of fractionation recognized in the primary minerals at Chapesvara-II (Figure 6, Table 1 and Table 2) are reflected in geochemical profiles (Table 9, Table 10 and Table 11). Pattern 1 displays a relative maximum or minimum close to the body center. A split into two subtrends then develops, both of which are approximately linear and directed upward and downward in the plots, respectively. This pattern, established on the basis of values of Mg# in Ol and Chr (Figure 12a,d), is also reflected in the whole-rock contents of Al and Ca (Figure 15e and Figure 16d), and levels of incompatible elements: Ti (Figure 15d), V (Figure 17a), Zr (Figure 18b), Y (Figure 18d), and Hf (Figure 18e). The second pattern is representative of variations in values of Ni in olivine (Figure 12b), the Fe³⁺# index in Chr (Figure 12f), and the Mg# index in bulk-rock compositions (Figure 15b), which all show a single trend of values progressively decreasing or increasing from top to bottom. The variations observed in ΣREE (Figure 18a), Nb, and Th (Figure 18c,f), which gradually increase downward, are related to the second type of trend. The similarities observed in chondrite-normalized spectra of ultramafic rocks of the Chapesvara-I and Chapesvara-II bodies (Figure 19 and Figure 20) provide convincing evidence that they are comagmatic and belong to a single complex.

3.3.2. The Upper Contact Facies (UCF)

The upper contact facies (UCF) represents a distinct unit of fine-grained ultramafic rocks at the top of the Chapesvara-II body (Figure 7). Compared to the rocks below, this unit displays the most strongly magnesian grains of olivine (Fo₉₂; Figure 12a and Table 1). No orthopyroxene grains were observed in the UCF rock. The relative modal proportion of olivine in this rock is greater (Figure 15a), which accounts for the elevated level of Ni (Figure 16e). The presence of abundant disseminations of chromian spinel (Figure 10e) leads to a notable enrichment in Cr (Figure 16a). The UCF rocks also consist of substantial amounts of hydrous silicates, talc [(Mg_2.74–2.78Fe_0.06Al_0.01–0.02Cr_0.01)Si_4.06–4.08O₁₀(OH)₂], and Cr-enriched clinochlore [(Mg_4.65–4.72Fe_0.22)Al(Si_3.26–3.28Al_0.47–0.49Cr_0.22–0.23)O₁₀(OH)₈], which locally form whitish or colorless spherules up to 4–5 mm in diameter. The other geochemical characteristics are: markedly lower SiO₂ (Figure 15c) and CaO (Figure 16d) and high values of the molar ratio of MgO/SiO₂ (Figure 16f), along with greater abundances of Mn (Figure 16b), V, and Co (Figure 17a,b). In spite of the high MgO (37.04 wt. %), the UCF rock is also enriched in Fe; consequently, the calculated value of its Mg# is not so high (Figure 15b).

The UCF rocks have a low Al₂O₃/TiO₂ value, 22.9 (Mg# = 81.6; Table 9), and are relatively depleted in incompatible elements: REE (Figure 17c–f and Figure 18a), Zr (Figure 18b), Y, Hf, and Th (Figure 18d–f). Their chondrite-normalized spectra are the most primitive in the series, with the lowest abundances of the middle to heavy REE (Figure 20). The indexes (Gd/Yb)_N and Eu/Eu* normalized with respect to the C1 chondrite [26] are also anomalous in the UCF rocks: 0.52 and 1.18 (i.e., the Eu anomaly is positive), respectively (Table 10). For comparison, the mean (Gd/Yb)_N values are 1.19 (Chapesvara-I) and 1.11 (Chapesvara-II). The mean values of the index Eu/Eu* are 0.72 (Chapesvara-I) and 0.82 (Chapesvara-II). As noted, the UCF rock is composed of the most magnesian olivine: Fo₉₂ versus Fo_≤89.5 in the central dunite zone and other ultramafic rocks of the complex (Figure 11a). On the basis of these results, we infer that the UCF rocks represent the most primitive member of the ultramafic suite at Chapesvara.

4. Discussion

The successions of dunite–harzburgite–olivine-bearing orthopyroxenite in the Chapesvara-I and Chapesvara-II subvolcanic intrusive complexes are notably magnesian. The mean Mg# values are 86.6 (Chapesvara-I) and 86.5 (Chapesvara-II). A UCF rock (upper contact facies) displays a slightly lower value, 81.6. This unit occurs near the upper contact, presumably part of a chilled margin, and was likely produced by the rapid crystallization of the intruding melt in its almost unfractionated state. The whole-rock Al₂O₃/TiO₂ values are 23.9 (Chapesvara-I) and 21.0 (Chapesvara-II), giving a mean of 22.45, close to 22.9 (UCF), all very close to the primitive mantle value of ~22 [26]. The depleted mantle has a notably higher Al₂O₃/TiO₂ value of ~32 [27], consistent with the greater compatibility of Al with respect to Ti.

We thus believe that primitive ultramafic magma rose from a deep level in the Chapesvara area of the Serpentinite Belt as a consequence of an unusual tectonic setting. Indeed, the Chapesvara sill-like bodies are located within a major shear zone accompanied by an abundant collisional mélange, part of the Tanaelv high-grade ductile thrust belt. This belt is closely associated with the Lapland Granulite Terrane, LGT (or Lapland Granulite Belt), forming part of the Paleoproterozoic Lapland–Kola Collisional Orogen (LKCO). The Chapesvara intrusive bodies are thus positioned at the boundary of the two large terranes of the Baltic Shield: the Paleoproterozoic LGT and the Belomorian Composite Terrane (BCT) of the Archean age. Deep channels controlling the migration of ultramafic magma thus appeared because of the presence of major faults marking this juxtaposition. Note that the LKCO structure is an essential component of Paleoproterozoic orogenies affecting the entire North Atlantic region and resulting in the formation of a considerable portion of the Nuna supercontinent; the Baltic (Fennoscandian) Shield is considered to be one of surviving fragments of the Nuna supercontinent [28].

On the basis of geochemical characteristics and their highly magnesian nature, the Chapesvara rocks resemble some picrites [29,30]. In spite of the absence of spinifex textures, they closely resemble some examples of the most highly magnesian komatiites, such as those of the Barberton Belt in South Africa, for which magmas with up to 34.8% MgO (and 30.9% MgO in a chilled margin sample) were postulated on the basis of whole-rock chemistry and olivine compositions ([31,32,33,34,35,36,37,38,39], and references therein). The chilled margin sample of the Alexo komatiite flow in Ontario, Canada contains 28% MgO [32], and ~26% MgO is found in a komatiitic sequence at Inyala in Zimbabwe [39]. In addition, a Hawaiian picrite at Mauna Loa was reported with olivine having a Mg# up to ~92, corresponding to a calculated value 21.2% MgO in a parental melt [30]. The level of ~28% MgO is considered to be realistic for the parental magma of the Munro komatiites in the Abitibi Greenstone Belt, Ontario, Canada. The Munro-type komatiites are Al-undepleted, also having close to a primitive-mantle Al₂O₃/TiO₂ ratio of about 22 [31]. Note that Al-depleted komatiites are considered to have been produced in unusually hot mantle plumes by extremely deep (~400 km), high-degree and equilibrium melting at a depth where garnet was a stable residual phase. In contrast, Al-undepleted and Al-enriched komatiites are produced in mantle plumes as a result of shallower melting associated with a garnet-free residue ([37] and references therein).

According to calculations [37], the estimated parental magma of the Al-undepleted komatiite at Komati contains ~30 wt. % MgO and ~12 wt. % FeO, leading to the initial crystallization of Fo₉₄. The analyzed UCF sample at Chapesvara-II gave 37.04% MgO, 14.88% FeO_total (or 16.54% Fe₂O_{3 total}), and the olivine phase is Fo₉₂. This sample (CHP-30) yields a very low value of the molar MgO/SiO₂ ratio, close to that of dunitic rocks located at the center (Figure 16f, Table 9). Thus, this sample is unlikely to have been subjected to any extent of magmatic contamination by the host rock. Besides, this sample seems to be undifferentiated. Indeed, it is the most primitive of the suite, as indicated by the lowest value of (Gd/Yb)_N, 0.52, and the lowest abundances of middle to heavy REE in the chondrite-normalized spectrum (Figure 20). Thus, we contend that this sample reflects fairly well the basic characteristics of a primary melt. The Cr content of sample CHP-30 is anomalously high (10.03 wt. % Cr₂O₃; Table 9). This enrichment is related to the occurrence of a contact-style mineralization in disseminated chromite.

We thus infer that the UCF rock, which contains the most magnesian olivine (Fo₉₂), was the first to crystallize close to the upper contact. Similarly, Arndt [32] documented the occurrence of most magnesian composition of olivine (Fo₉₄) in the upper chilled margin of the Alexo komatiite flow in Ontario, Canada. After the UCF zone, the inferred area of further crystallization shifted to a central portion of the Chapesvara-II body, where the olivine phase, Fo_89.5, crystallized as the second most magnesian composition (Figure 12a). The documented trend of chromian spinel variations is consistent with the inference that crystallization continued at the center (Figure 12d). The zone of high-MgO dunitic rocks (Figure 7 and Figure 16c) crystallized in situ in the central portion at this stage of crystallization.

As noted, at low stratigraphic levels, orthopyroxene was entirely transformed to a tremolite-dominant assemblage as a result of an increase in H₂O in the system; i.e., in the late-crystallized portions. In addition, the extent of deuteric alteration and the development of hydrous silicates increase toward the bottom. The inferred crystallization of a primary amphibole at a late magmatic stage presumably reflects the buildup in levels of H₂O in the magma. Synthetic tremolite is in its field of stability at 840 °C and 6 kbar [24], whereas the association enstatite + quartz is converted to anthophyllite in the presence of H₂O over a range of 670–800 °C at 2 kbar [25]. These conditions are consistent with deposition of the calcic amphibole from a hydrous fluid.

Two trends of evolution are recognized at Chapesvara-II. The first trend displays a relative maximum or minimum close to the center, which then splits into two linear subtrends. These are divergent and directed upward or downward. This pattern is manifested in the variations documented of Mg# in olivine and chromian spinel, the whole-rock contents of Al and Ca, and in levels of incompatible elements: Ti, V, Zr, Y, and Hf (Figure 12a,d, Figure 15d,e, Figure 16d, Figure 17a, Figure 18b,d,e). The second type of element distribution is represented by a single line and shows a decrease or increase from top to bottom; such a pattern applies to the variations in incorporation of Ni in olivine, the Fe³⁺# index in chromian spinel, and in values of Mg# in bulk-rock compositions. In addition, the total amounts of REE, Nb, and Th, which gradually increase downward, are related to the type-2 trend (Figure 12b,f, Figure 15b, and Figure 18a,c,f).

The contrasting development and possible interference of the two types of evolutionary trends reveal a complex history of crystallization in the Chapesvara-II body. It began with the formation of the UCF zone and continued with the crystallization and accumulation of olivine in the dunite zone close to the center. There were two fronts of crystallization, one moving upward and one progressing downward. The upward subtrend appears to be of subordinate importance, as relevant ranges of values are at least two times smaller than those displayed by the downward subtrend (Figure 12a,d, Figure 15d,e, Figure 16d, Figure 17a, Figure 18b,d,e). Along the downward trend, the extent of progressive fractional crystallization was much greater (Figure 12b,f, Figure 15b, Figure 18a,c,f). These observations indicate that the general crystallization of the Chapesvara-II sill-like body proceeded from the top to the bottom in response to the preferential heat loss through the roof. At the same time, the lithological units observed in the comagmatic series likely formed in the order from I to IV (Figure 7) under closed-system conditions during crystallization of the komatiitic magma.

The oxidation state of iron in spinel-type phases is a well-established monitor of magmatic oxygen fugacity [40,41]. Our results based on compositions of chromian spinel (Figure 12f) imply that the general level of fO₂ likely increased downward with progressive crystallization of the Chapesvara-II body. In addition, a relative increase in fO₂ at the UCF level, associated with the deposition of accessory chromite, points to the intruding melt itself as the likely agent of oxidation. The inferred trend of increasing fO₂ downward (Figure 12f) and close to the chilled margin was likely caused by a relative enrichment in oxygen content of the evolving magma due to the escape of hydrogen once bubbles of H₂O appeared [42].

As noted, tremolite-dominant assemblages formed at the expense of Ca-poor pyroxene in the late-crystallized portions at Chapesvara-II. This feature implies the influx of Ca via a late hydrous fluid at a stage of deuteric alteration. What we found, thus, differs from a normal process of “uralitization” [43,44], which represents an autometasomatic alteration of primary clinopyroxene to form “uralite” (i.e., Ca-amphiboles of the actinolite–tremolite series). The same phenomenon is evident in the Pados-Tundra intrusion, where orthopyroxene oikocrysts are entirely replaced by a deuteric assemblage of talc + tremolite [21]. The relative Ca-enrichment, thus, occurred under closed-system conditions at Chapesvara, in contrast to other systems (e.g., [45]).

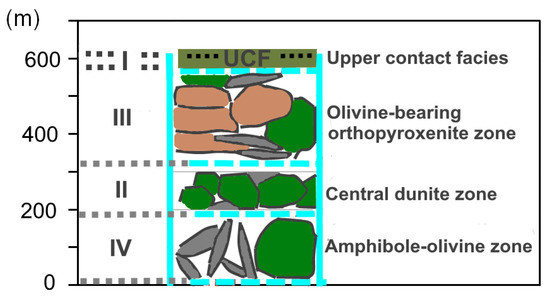

A puzzling aspect of the Chapesvara–II zoned sill is the presence of the Central Dunite Zone (Figure 7, Figure 15a, and Figure 16c). This zone contrasts with the olivine-enriched cumulates in the more voluminous Pados-Tundra complex [6] and other layered intrusions, which are located at a lower structural level [46,47]. The buildup of olivine in the core of concentrically zoned complexes of alkaline ultramafic rocks like Kondyor [48] seems unrelated in view of the important petrogenetic differences. A zonal arrangement of the same type as that at Chapesvara-II seems present in a large ultramafic complex (possibly up to ~15 km² in size) investigated previously in the upper reaches of the River Terma in the Serpentinite Belt. As noted [49], there is a reported dominance in central portions of dunite, grading to peridotite (harzburgite) towards the periphery in this body.

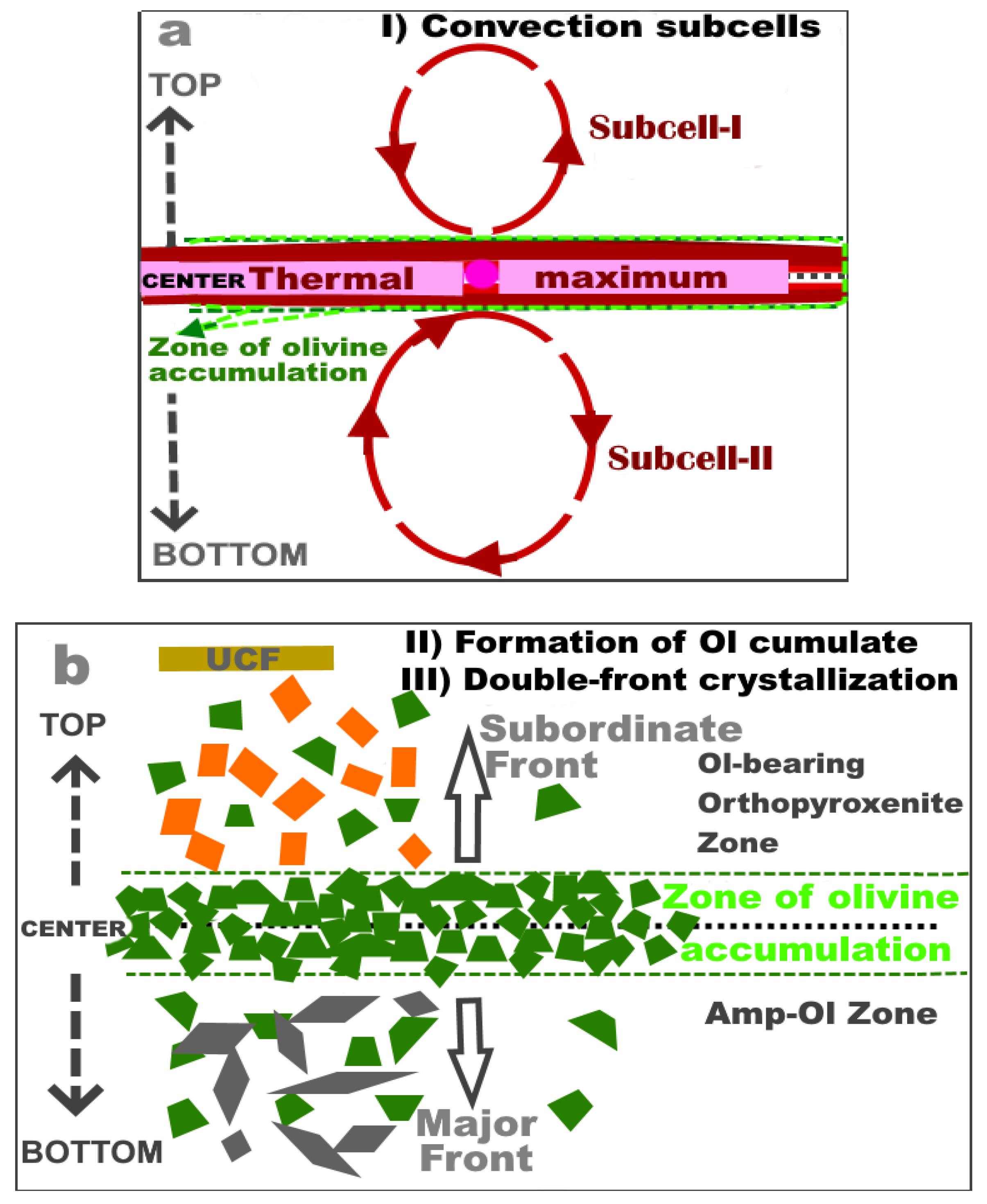

We presume that three events (Figure 21a,b) could be crucial in the crystallization history of the Chapesvara-II sill: (I) the formation of a complementary system of convection subcells around a zone of very hot melt present in the center of magmatic reservoir during cooling; (II) an intensive accumulation of crystallizing olivine crystals in the area between the functioning subcell-I and subcell-II; and (III) the double-front crystallization of the bulk volume of remaining melt. The inferred subcells generated around the zone of thermal maximum (Figure 21a) are elliptical and subvertically elongate in the cross-section, as expected in case of sheet-like or similar geometries (cf. [50]). In addition, komatiite flows are expected to convect vigorously during cooling [32]. In our case, these subcells of convection may have played a twofold role: (1) to transport and accumulate the olivine crystals suspended and clumped together close to the center to form the central dunite zone, and (2) to cause the split of the magmatic reservoir into two subsystems in the upper and bottom half of the sill, which evolved more or less independently, thus showing the contrasting fronts and fractionation trends. The phase Fo_89.5 presumably crystallized close to the thermal maximum area in the center, and the opposite trends of cryptic variations involve progressively less forsteritic olivine (Figure 12a).

The conditions of crystallization could differ in important ways in other portions of the chamber, in which olivine-rich cumulate likely formed as a result of olivine settling to the bottom. Thus, there might be areas showing the development of rhythmic cycles of dunite–(harzburgite)-olivine-bearing orthopyroxenite, as was reported by the previous investigators (Figure 5) [11]. On the other hand, our observations may stimulate a re-examination of the presently known structure of the Chapesvara complex.

5. Conclusions

(1) The Chapesvara-I and Chapesvara-II bodies are comagmatic. They belong to one and the same ultramafic subvolcanic complex, which forms part of the Serpentinite Belt in the Kola Peninsula.

(2) The Chapesvara complex is a well-documented example of a highly magnesian Al-undepleted komatiite related to a primitive mantle source, which is associated with northeastern-striking shear zones related with the Tanaelv high-grade ductile thrust belt in the northeastern Fennoscandian Shield.

(3) The Chapesvara complex crystallized from a primitive komatiitic melt that displays an unusual combination of a highly magnesian and Cr-enriched composition with a relative enrichment in Fe, as follows from our observations made on the rock of the upper contact facies at Chapesvara-II. The latter rock is the most primitive in the series, as it contains the most forsteritic olivine (Fo₉₂), has the lowest value of (Gd/Yb)_N, 0.52, and the lowest abundances of middle to heavy REE in the chondrite-normalized spectrum. It likely is representative of the basic characteristics of primary melt inferred not only for Chapesvara, but also for the Pados-Tundra layered complex and other subvolcanic suites of the Serpentinite Belt.

(4) We documented a double-front type of crystallization for the first time in a subvolcanic ultramafic complex.

(5) The Chapesvara-II body displays a progressive build-up in fO₂ during crystallization. The parental komatiitic melt itself was likely the source of oxidation. We attribute the enrichment in intrinsic oxygen fugacity of the evolving magma to the escape of hydrogen upon degassing in a subvolcanic setting upon vesiculation and dissociation of H₂O.

(6) The characteristics of the Chapesvara-II sill-like body are indicative of vigorous convection of the komatiitic magma with the inferred existence of a complementary system of convection subcells functioning around a zone of very hot melt (present in the center of magmatic reservoir). These circumstances were important (a) to cause the split of the magmatic reservoir into two subsystems, evolving independently, and (b) to transport and accumulate the olivine crystals suspended and clumped together close to the center to form dunitic cumulate of the central dunite zone.
