Experimental Study on Strengthening Carbothermic Reduction of Vanadium-Titanium-Magnetite by Adding CaF₂

Abstract

The effects and reduction mechanisms of carbothermic reduction of vanadium–titanium–magnetite were studied by adding various mass fractions of CaF₂ ranging from 0%, 1%, 3%, 5% to 7%. The results showed that the proper CaF₂ addition could strengthen the carbothermic reduction of vanadium–titanium–magnetite while the excessive amounts will weaken the promotive effect, hence the appropriate dosage was determined to be 3 mass%. The CaF₂ was favorable for the carbon gasification reaction, where it increased the partial pressure of CO inside briquette and caused the lattice distortion of vanadium–titanium–magnetite. The reaction improved the reduction process and accelerated the reduction rate. The appearance of 3CaO·2SiO₂·CaF₂ and other complex compounds with low melting point facilitated the aggregation and growth of the slag and the iron, which increased the concentration of iron grains and the aggregation level of the slag.

1. Introduction

Vanadium–titanium–magnetite is a valuable resource [1,2,3,4,5,6]. Vanadium–titanium–magnetite has a variety of species, good conditions for storage, and high comprehensive utilization value. Vanadium–titanium–magnetite refining could recover a variety of valuable metal elements and obtain a variety of industrial products, which plays an important role in the metallurgical industry. The main refining technique for vanadium titanium magnetite is the “blast furnace-converter” process [7,8], which is limited by the fact that titanium is completely unrecoverable, it causes a huge waste of titanium resources and simultaneously environmental pollution. To realize the efficient utilization of vanadium–titanium–magnetite has been an industrial goal of related fields at home and abroad [9,10,11,12]. Solid-state reduction technology could get a better reduction effect at a lower temperature. However, due to the combination of different titanium compounds and iron compounds in vanadium–titanium–magnetite, the complex and dense mineral structure are formed, which makes reduction difficult [13,14]. Compared with the reduction of common iron-bearing minerals, vanadium–titanium–magnetite needs higher energy and lower production efficiency.

At present, there are a lot of previous researches regarding the reinforced carbothermic reduction of ilmenite [15,16,17]. However, few researches can be found regarding–vanadium titanium–magnetite. Song et al. [15] studied the carbothermic reduction process of ilmenite concentrates with added sodium borate, demonstrating it can effectively improve the metallization degree of the carbothermic reduction and reduce the reduction temperature. Liu et al [16] investigated the effects of alkali metal additives on the pre-oxidation and the solid-state reduction reaction of ilmenite, indicating that many additives could promote the reaction. Borax (Na₂B₄O₇) was found to have an especially strong effect on the degree of reduction and metallization. Wu et al [17] discovered that alkali oxides could accelerate reduction reaction. Mono-metal oxide is better than binary, ternary, or quaternary oxides. Different alkali compounds as an accelerator could increase the metallization rate in different degrees [18]. Chen et al. [19] studied the various influencing factors of carbothermal reduction of vanadium–titanium–magnetite, and analyzed the reasons for the difficulty of reduction of vanadium–titanium–magnetite. The research on ilmenite reduction provided a lot of important information for the reinforced carbothermic reduction of vanadium–titanium–magnetite. The measure of adding catalysts is simple in operation, and the strengthening effect is obvious. CaF₂ is a flux commonly used in the metallurgical industry [20,21]. It is used in titanium-containing blast furnace slag, which reduces the viscosity and improves the stability. In addition, CaF₂ could be used not only as a reducing agent, but also as a carbon activation agent to make the carbon porous and subsequently more reactive. However, the effect of additives CaF₂ on vanadium titanium magnetite is not clear.

In the present study, the effect of adding CaF₂ on the isothermal carbothermal reduction process of vanadium–titanium–magnetite was studied. Meanwhile, the reduction mechanism was also studied using X-ray diffraction (XRD), scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS) to provide empirical guidance for the high efficient industrial utilization of the vanadium–titanium–magnetite.

2. Experiments

2.1. Experimental Materials

The material of vanadium–titanium–magnetite used in the current study was obtained from Liaoning, China. The ore was ground into fines with a size distribution of 98% less than 74 µm. Its component analysis and phase analysis are shown in

Table 1. The compositions of the magnetite ore (mass percent, %).

FeO	Fe2O3	V2O5	TiO2	SiO2	Al2O3	CaO	MgO
20.60	51.27	1.85	12.96	6.28	1.74	3.72	0.29

and Figure 1, respectively. The additive was analytic pure CaF₂ with a size distribution of 100% less than 74 µm. The reductant was high purity graphite powder with 99.8% fixed carbon.

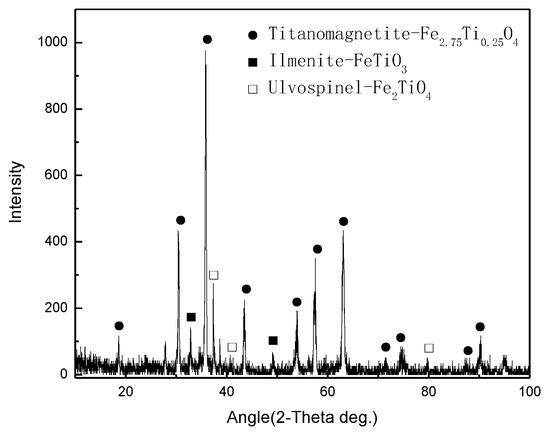

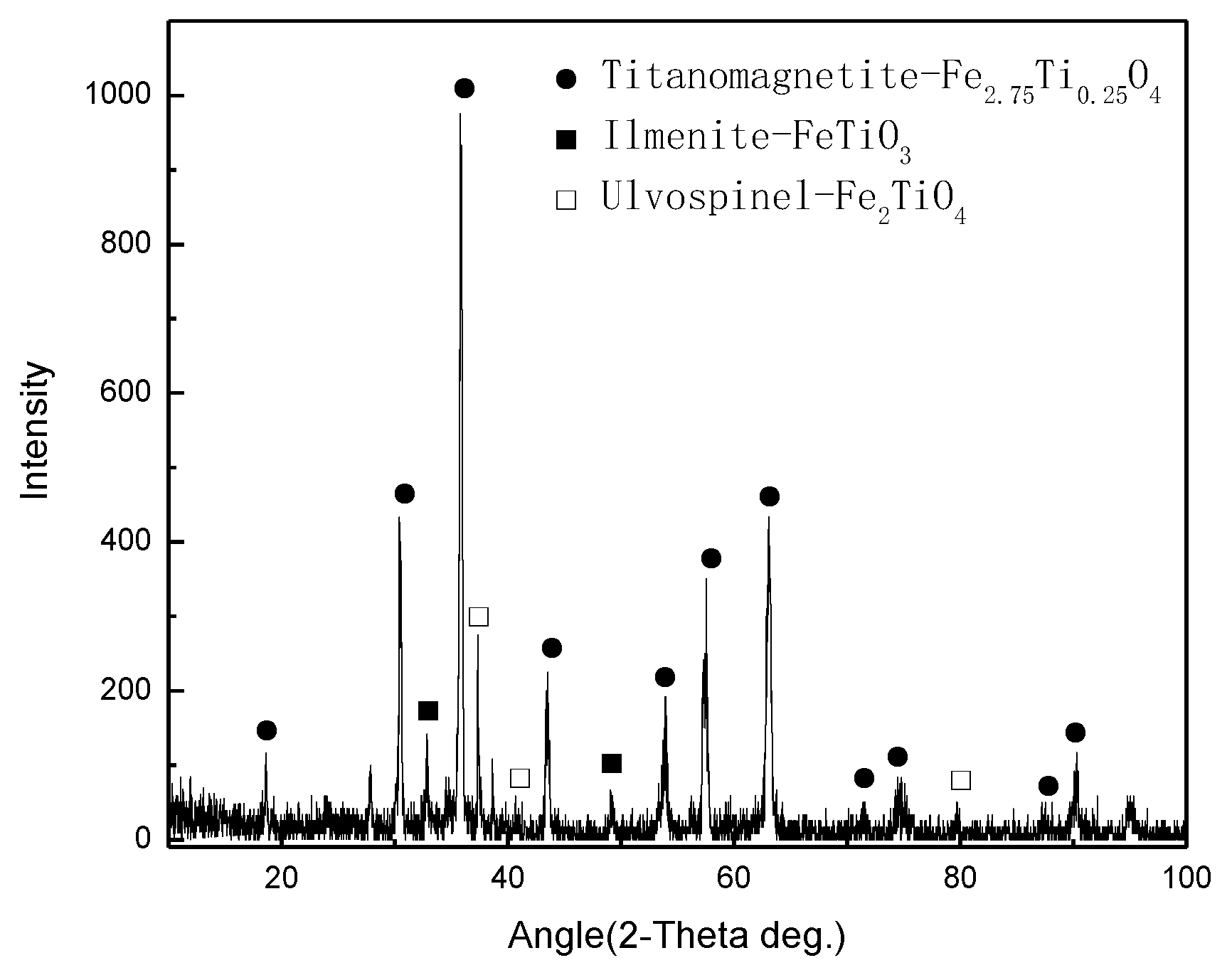

As shown in Table 1, the iron grade of vanadium–titanium–magnetite is relatively low and the MgO content is only 0.29%. The impurity content is high. The contents of SiO_2, Al₂O₃, and CaO are 6.28%, 1.74%, and 3.72% respectively. The TiO₂ content reaches 12.96%, which is difficult to utilize by traditional ironmaking technology. Figure 1 depicts the diffraction peaks of vanadium–titanium–magnetite concentrates, where the ores with superior crystallization are predominantly composed of iron, ilmenite (FeTiO₃), ulvospinel (Fe₂TiO₄) and titanomagnetite (Fe_2.75Ti_0.25O₄).

2.2. Experimental Process and Characterization Method

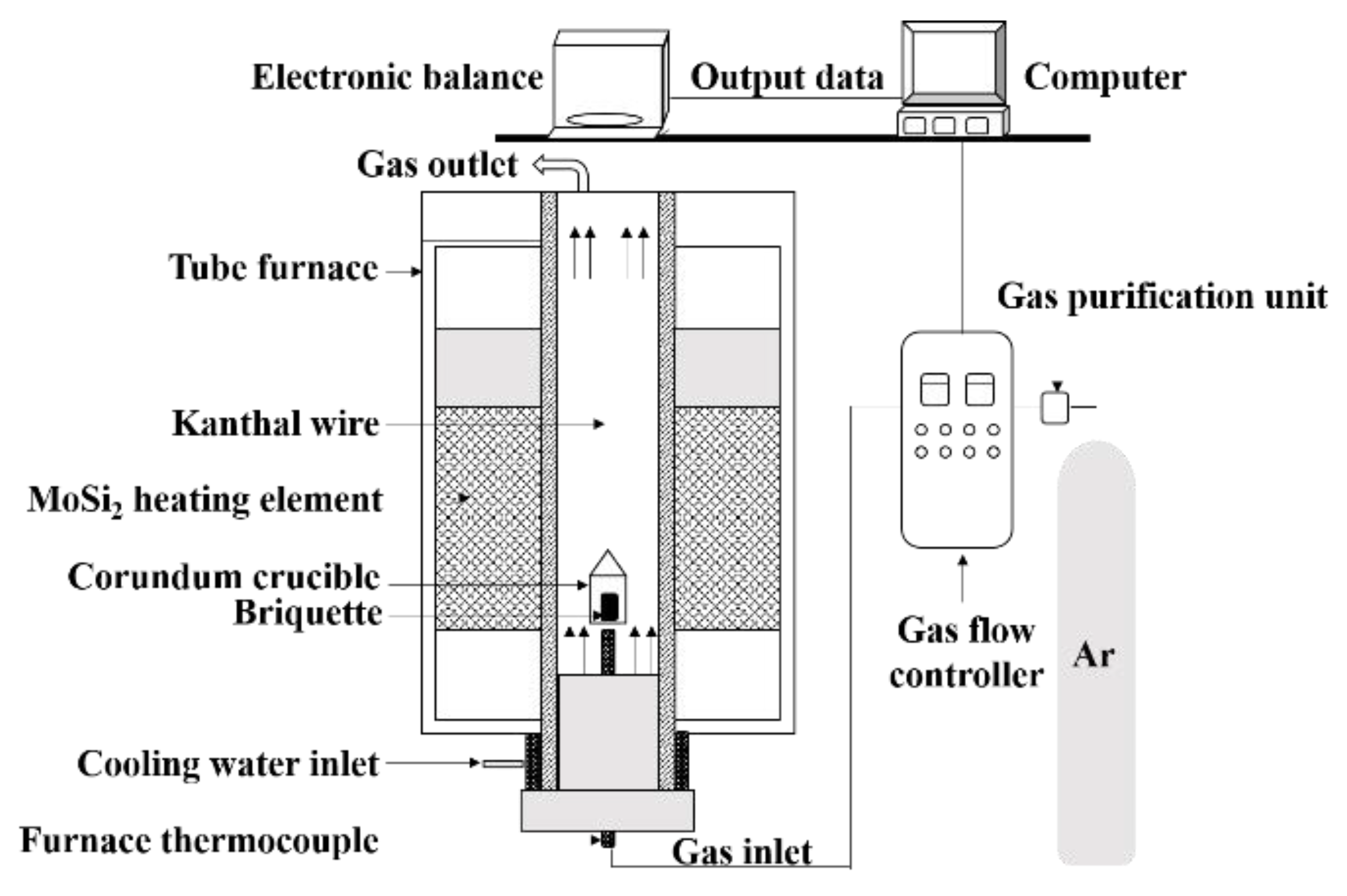

The main apparatus used for the experiment included a vacuum drying oven (DZF-6050), a molding press, a resistance furnace with a rated temperature of 1600 °C, an electronic balance, a data acquisition system, a thermocouple, and a temperature controller. The schematic diagram of the experimental apparatus is shown in Figure 2.

The isothermal experiment was used to clarify the mechanism that CaF₂ had on the carbothermic reduction process of vanadium–titanium–magnetite. The C/O was 1.2, and a certain amount of vanadium–titanium–magnetite and high purity graphite powder were weighed. The CaF₂ was added as 0%, 1%, 3%, 5%, and 7%.The powders were mixed homogeneously in acetone. The cylindrical samples were φ10 mm × 10 mm created via a molding press under 10 Mpa. The samples were dried for 2 h in a vacuum drying oven, and then loaded in the high-temperature experiment apparatus to conduct the isothermal reduction experiment. The experiments were finished at 1100 °C, 1200 °C, 1300 °C and 1400 °C, respectively. The exhaust gas was introduced into a container containing NaOH solution for the treatment of SiF₄. After the samples were kept at the experimental temperature, they were rapidly cooled in argon and analyzed via XRD and SEM-EDS. To characterize the effect of CaF₂ on the reduction process, the reaction fraction was selected as the evaluation index, seen in Equation (1).

$$f=\frac{\Delta W_t}{\Delta W\max }\times 100\%;$$

(1)

f——reaction fraction, %;

△W_t——the weight loss of the carbonaceous briquettes after the reduction time (t), g;

△W_max——the maximum weight loss of the carbonaceous briquettes, g.

3. Results and Discussion

3.1. The Thermodynamic Analysis of Carbothermic Reduction

The carbothermic reduction process of vanadium–titanium–magnetite could be divided into two parts [22,23]. One part is that the iron oxides are directly reduced by C, the other is the indirect reduction which used CO as the reductant, containing carbon dissolution reaction as well as the reduction of iron compounds. The possible reactions are listed in

Table 2. The main reactions during the reduction process.

Reaction Equation	Gibbs Free Energy (△G)/kJ bs fre	Temperature Range /°C	Equation
2FeTiO3 + C = FeTi2O5 + Fe + CO	106.59 − 21.864T	400–1400	(2)
FeTi2O5 + C = 2TiO2 + Fe + CO	101.06 − 42.408T	400–1400	(3)
Fe2TiO4 + C = FeTiO3 + Fe + CO	88.607 − 0.0268T 3.8712 + 0.0478T	400–800 800–1400	(4)
FeO + C = Fe + CO	151.78 − 0.1529T	400–1400	(5)
C + CO2 = 2CO	169.39 − 0.1738T	400–1400	(6)
Fe2TiO4 + CO = FeTiO3 + Fe + CO2	−9.5332 + 18.816T	400–1400	(7)
2FeTiO3 + CO = FeTi2O5 + Fe + CO2	43.199 − 0.0225T 48.709 − 0.0563T	400–700 700–1400	(8)
FeTi2O5 + CO = 2TiO2 + Fe + CO2	174.74 − 0.2503T	400–1400	(9)
FeTiO3 + CO = TiO2 + Fe + CO2	118.63 − 0.1476T	400–1400	(10)
3TiO2 + CO = Ti3O5 + CO2	107.4 − 0.0263T	400–1400	(11)
FeO + CO = Fe + CO2	−5.6599 + 2.0844T	400–1400	(12)
3TiO2 + C = Ti3O5 + CO	273.595 − 0.1981T	400–1400	(13)
TiO2 + 3C = TiC + 2CO	527.685 − 0.3367T	400–1400	(14)
Ti3O5 + 3C = 3TiC + 2.5O2	590.396 − 0.1914T	400–700	(15)
SiO2 + C = SiO + CO	668.07 − 0.3288T	400–1400	(16)
SiO2 + CO = SiO + CO2	505.76 − 0.1598T	400–800	(17)
SiO + 3CO = SiC + 2CO2	−403.51 + 0.339T	400–1400	(18)
SiO + 2C = SiC + CO	−78.89 + 0.0010T	400–1400	(19)

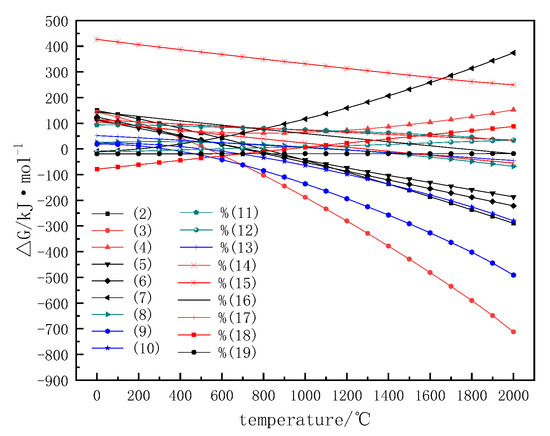

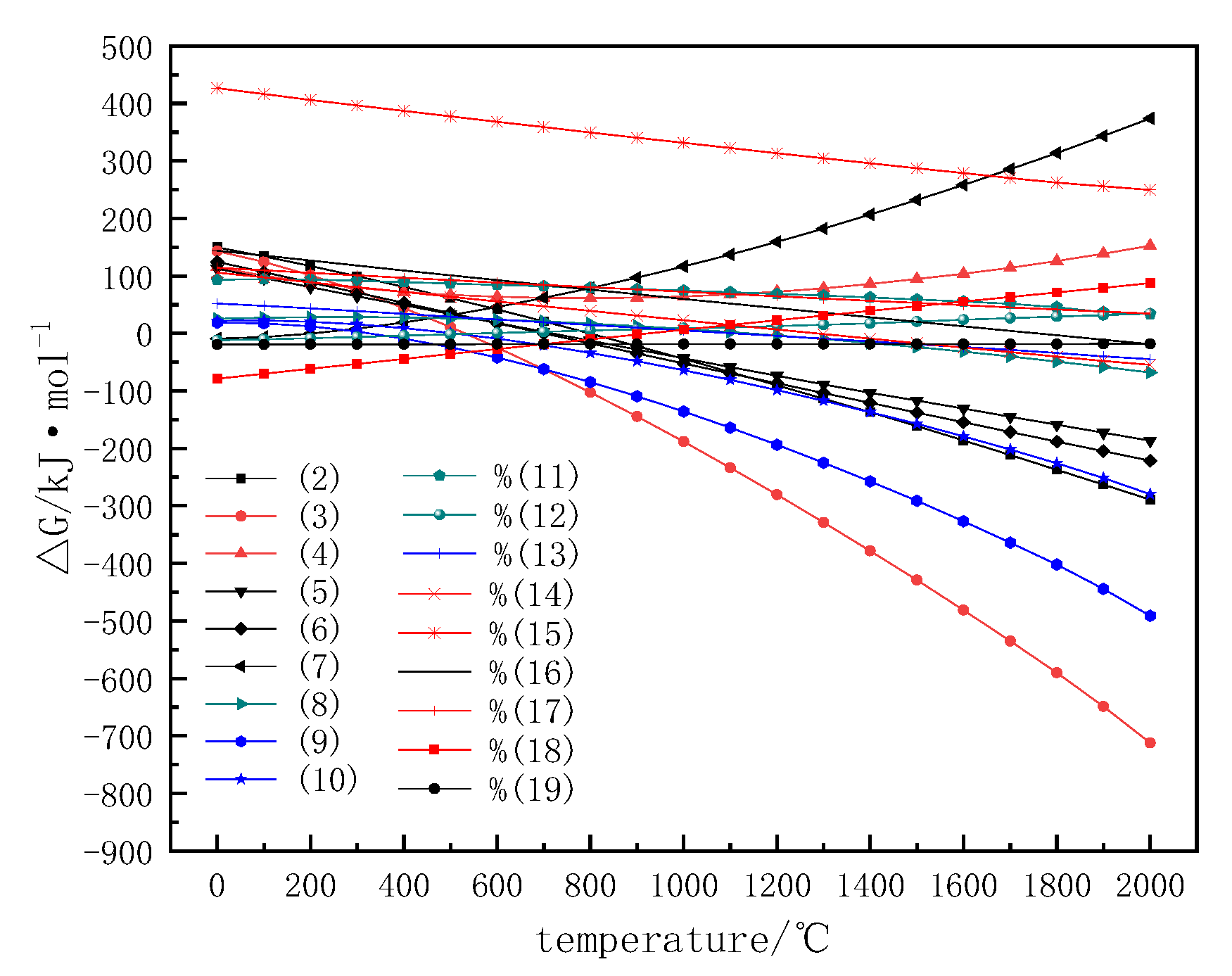

. Figure 3 shows the relationship between the △G and the temperature.

Table 2 shows that these reactions are mainly endothermic. So it is favorable for improving reactions at high temperature. At the early stage, the low CO partial pressure inside briquette causes the reduction process to be primarily the solid-solid reaction between carbon and iron compounds. As the temperature increases, ferrotitanium compound reacts with CO easily.

3.2. Influence of Additive Amounts of CaF₂

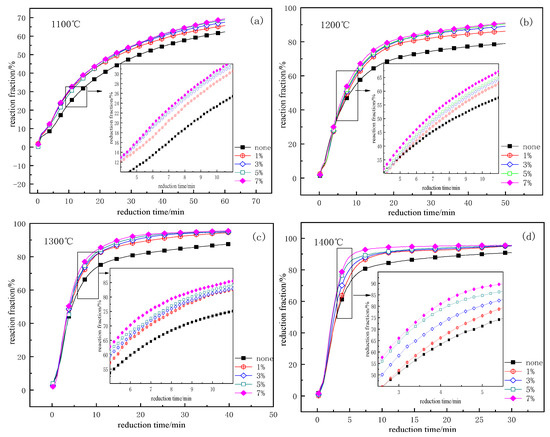

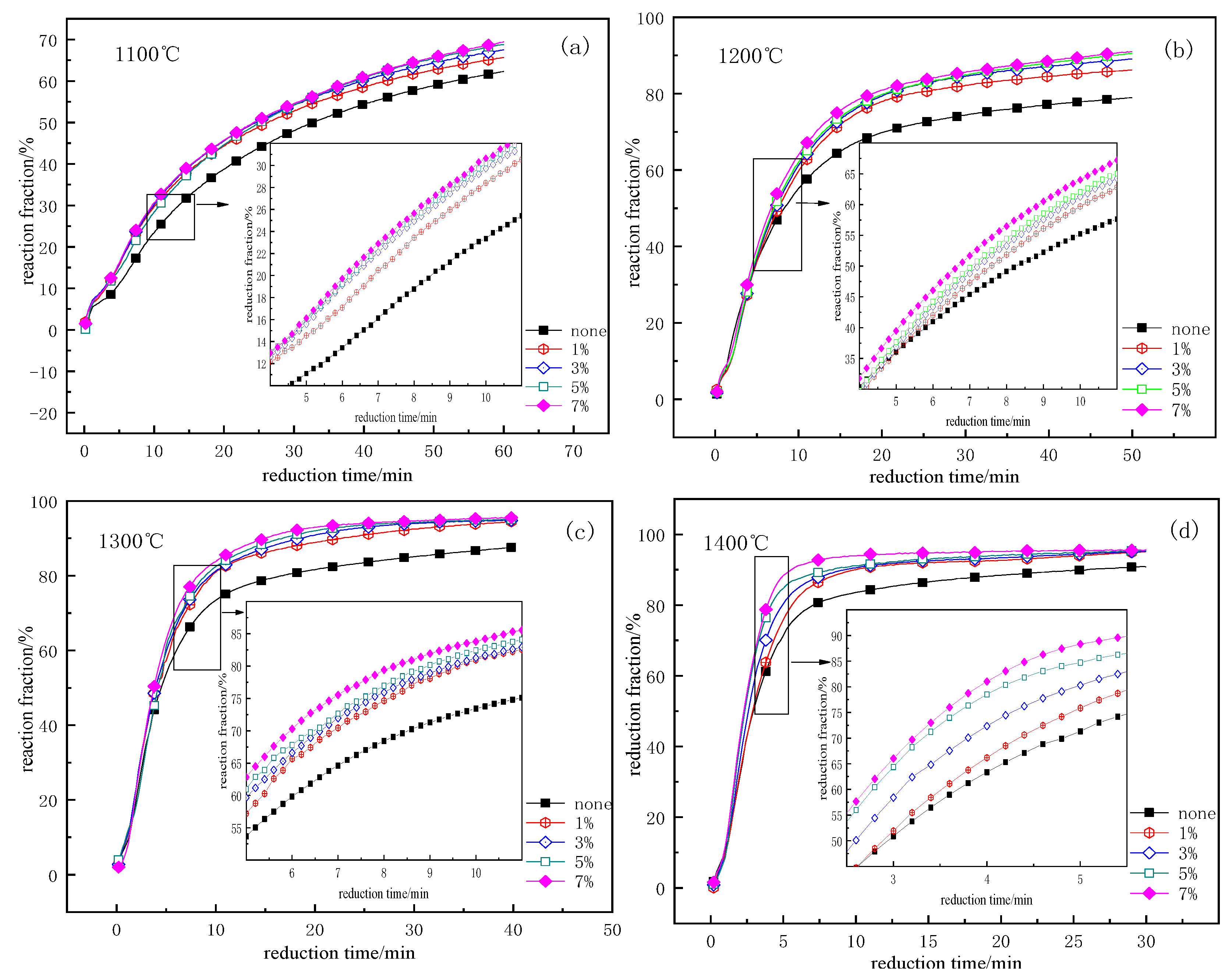

The experiments were performed at various conditions, with 0%, 1%, 3%, 5%, and 7% CaF₂ in order to explore the influence of CaF₂ on the carbothermic reduction process. The results are shown in Figure 4.

Figure 4 shows that the addition of CaF₂ can accelerate the reduction process. When the reduction temperature was 1100 °C, the reaction fraction rose by prolonging the reduction time, although the reaction could not reach equilibrium within the scope of the experiment time. The reaction process increased as the additive content increased and the temperature reduced with 1% CaF₂. The reaction process reduced when more than 3% CaF₂ was added. The higher the reduction temperature, the less time required for reduction equilibrium. When CaF₂ of 3% was added, the equilibrium time for the carbothermic reduction at 1200 °C, 1300 °C, and 1400 °C was 22 min, 10 min, and 6 min, respectively. The reaction fraction was close to 90% when 3% of the CaF₂ was added at 1200 °C. When the temperature was over 1300 °C, the change of reduction fraction was relatively small, reaching about 95% at 1400 °C. When CaF₂ of 7% was added, the reaction fraction increased, but the increasing trend was not obvious. The optimum conditions were obtained at the reduction temperature of 1300 °C and additive amounts of 3%.

3.3. Morphological Analysis

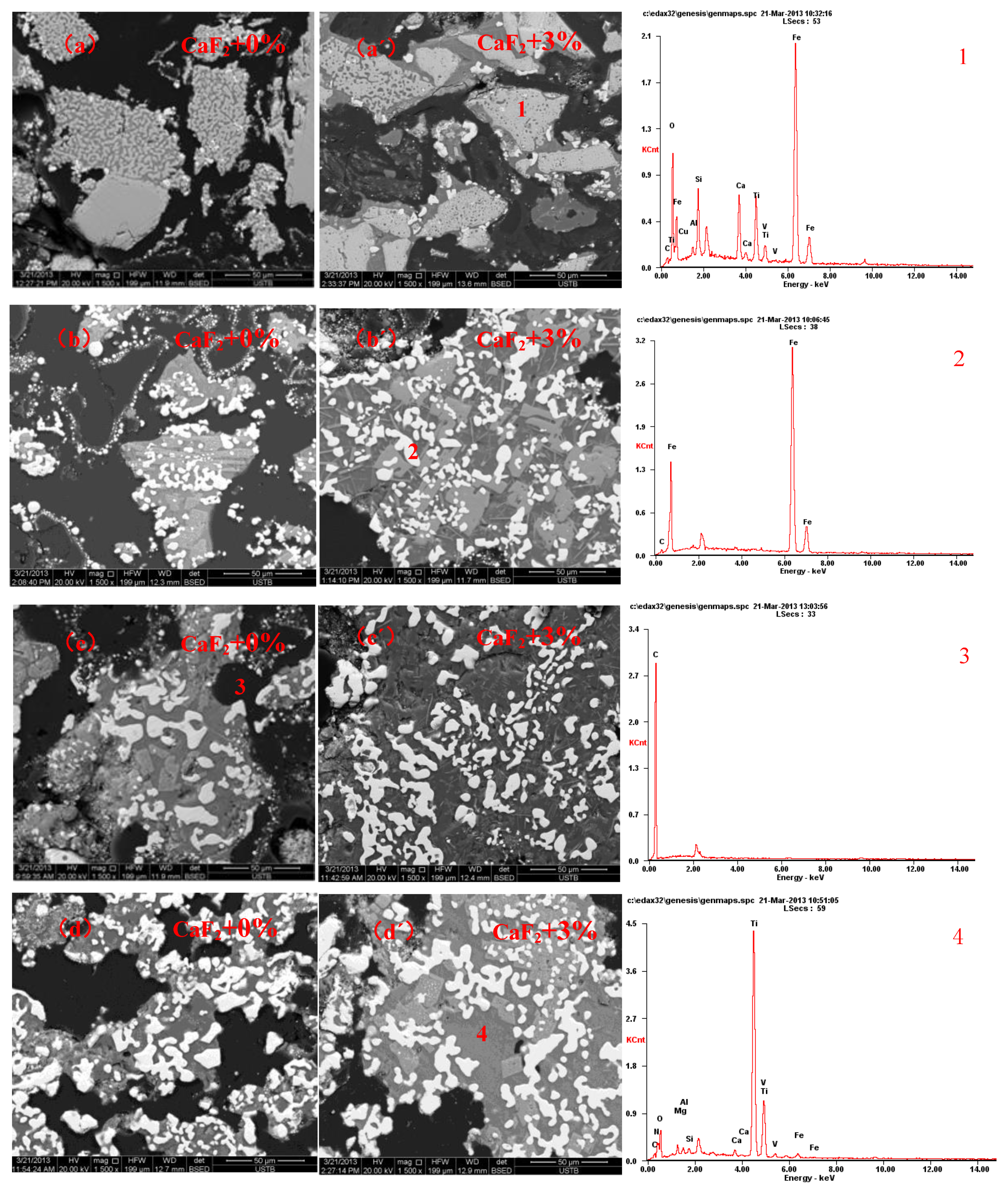

The non-CaF₂ and the 3% CaF₂ were chosen for the experiments at 1300 °C. Figure 5 shows the SEM-EDS results for the products obtained with a reduction time of 5 min, 10 min, 20 min, and 30 min, respectively.

Figure 5 shows that the two types of samples could participate internally in the reduction reaction to generate bits of metallic iron quickly. The vanadium–titanium–magnetite particles reacted rapidly with the surrounding carbon and the CO created by the reaction. The particles were eroded gradually from outside to inside and the interface tended to be smooth. The iron grain size in the inner section of the reduction product with 3% CaF₂ was larger. Due to the erosion of CaF₂ and the occurrence of the reduction reaction, the surface of internal particles was relatively rough. As the reduction time increased, the iron phase inside samples increased constantly, and the grain size increased. However, the content or grain size of the iron phase inside briquettes adding CaF₂ was better than others. This phenomenon demonstrated that CaF₂ could enhance the chemical reaction rate. The larger the partial pressure of CO, the faster the diffusion rate was into the particles to seize the oxygen bound to the iron. This suggested that CaF₂ expedited the Boudouard reaction to accelerate the CO generation rate, which raised the partial pressure of reducing gas. When the reduction time was 30 min, there were a large number of metal irons in the products with either none or 3% CaF₂. The mineral segregation results in a homogeneous distribution of metal iron around or inside the non-ferrous particles. The CaF₂ could not only facilitate the segregation of metal iron grains, but also erode the surface of particles to make them rough.

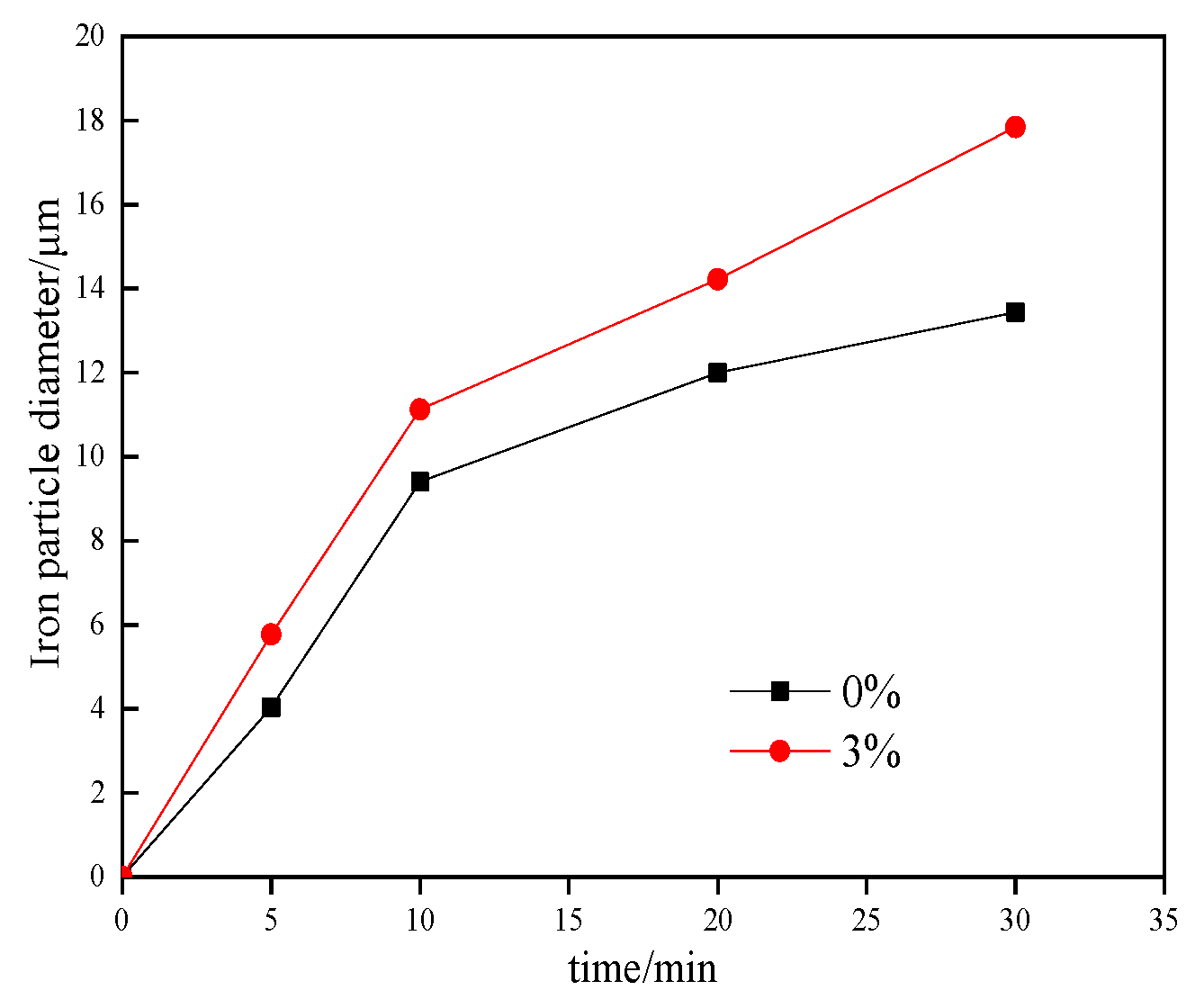

The grain sizes of the metal iron varied with the reduction time and they were analyzed with “Image-Pro-Plus”, all the complete grains in the picture are selected out, and the average grain size is calculated. The results were shown in Figure 6. The CaF₂ had a significant effect on the formation, aggregation, and growth of the metal iron grains, and the effect was more evident with longer reduction time.

3.4. XRD Analysis

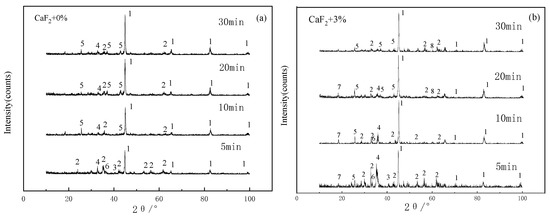

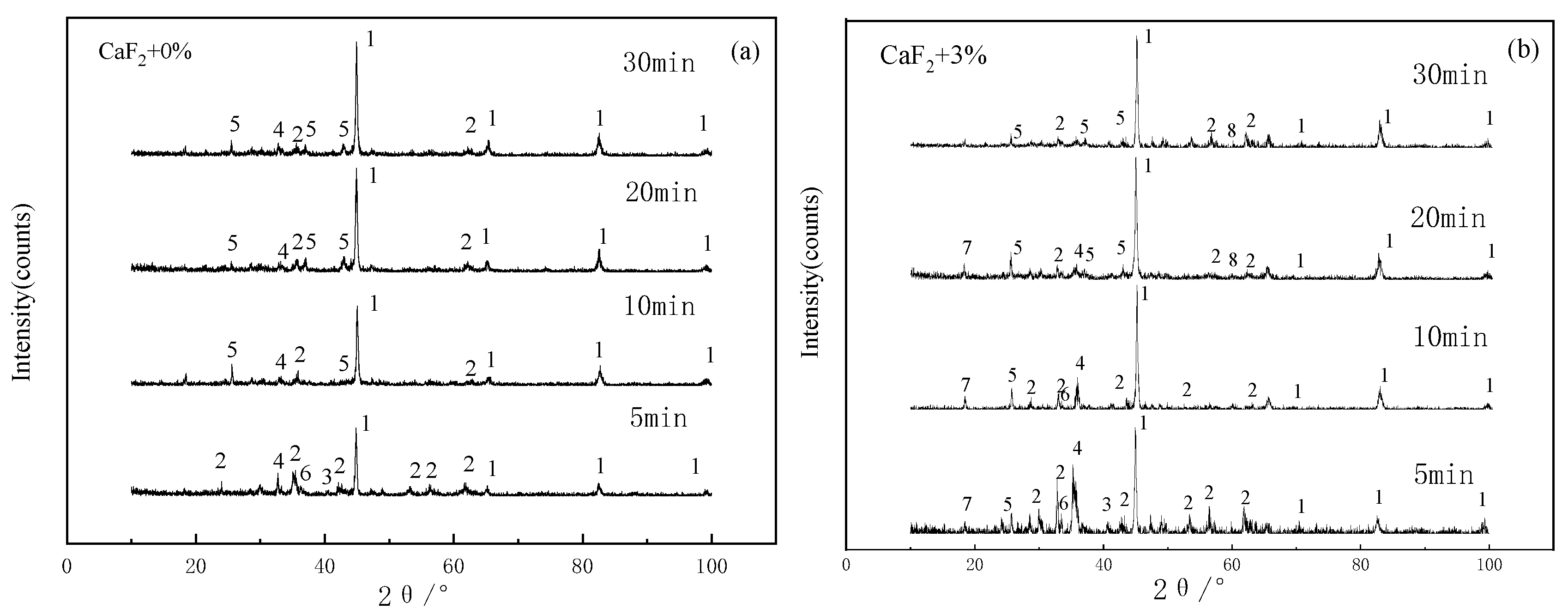

Figure 7 shows the XRD results of the reduction products that were reacted with none or 3% CaF₂ for 5 min, 10 min, 20 min, and 30 min.

The principal phases (shown in Figure 7) were Fe, FeTiO₃, TTM, some Fe₂TiO₄ and FeTi₂O₅ after 5 min. The additive could be detected from the samples of 3% CaF₂, indicating that the CaF₂ did not react, basically remaining at the earlier stage. When the reduction time was 10 min, the CaF₂ did not change the product phases. The peak values of Fe and FeTiO₃ were high. The reaction time extended and the CaF₂ with mixed mineral compositions including CaO and SiO₂ were in the reaction. 3CaO·2SiO₂·CaF₂ is a low-melting complex compound, appeared, which was favorable for diffusion and iron phases aggregation. The production phases consisted of Fe, FeTi₂O₅ and a slight amount of titanomagnetite (TTM) with a 30 min reaction time. The behavior of the main phases in the reduction process is shown in Figure 8.

The “Jade” software (Version 6.5) was used to interpret the XRD data of the 20 min reaction time in Figure 8. The XRD data of the crystal lattice parameters of the main phases amended by the “Rietveld” methods [21] are listed in

Table 3. The crystal lattice parameters of the main phases.

Crystal Lattice Parameters	TTM		FeTiO3		FeTi2O5		Fe2TiO4
	0%CaF2	3%CaF2	0%CaF2	3%CaF2	0%CaF2	3%CaF2	0%CaF2	3%CaF2
a/Å	5.07824	5.07623	5.07934	5.07951	3.76023	3.75751	8.49324	8.50731
±	0.0001	0.0002	0.0002	0.0001	0.0002	0.0001	0.0002	0.0003
b/Å	-	-	-	-	9.65635	9.65635	-	-
±				0.0001	0.0003
c/Å	13.43312	13.45201	-	-	9.98301	9.98190	-	-
±	0.0002	0.0001		0.0002	0.0001
Volume/Å3	346.42	346.63	131.04	131.06	362.27	363.36	612.66	615.71

.

Table 3 shows that the CaF₂ had particular influences on the crystal structure of the ferrotitanium phase contained in vanadium–titanium–magnetite during the reduction process. In the TTM phase, the crystal cell stretched along the axis c, decreased slightly along the axis a, and its volume expanded. The crystal lattice parameter shortened from 5.07824Å to 5.07623Å, value c increased from 13.43312Å to 13.45201Å, and volume expanded from 346.42ų to 346.63ų. It can be observed that the change rules of the crystal lattice parameter of FeTiO₃, FeTi₂O₅ and Fe₂TiO₄ are similar. The CaF₂ distorted the crystal structure, which benefited the transformation of the TTM phase from the rhombohedral system to other reduction product crystal system and lowered the reduction difficulty between iron compounds with C and CO.

3.5. Mechanism Analysis of CaF₂

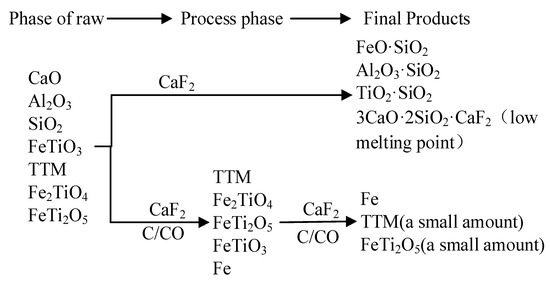

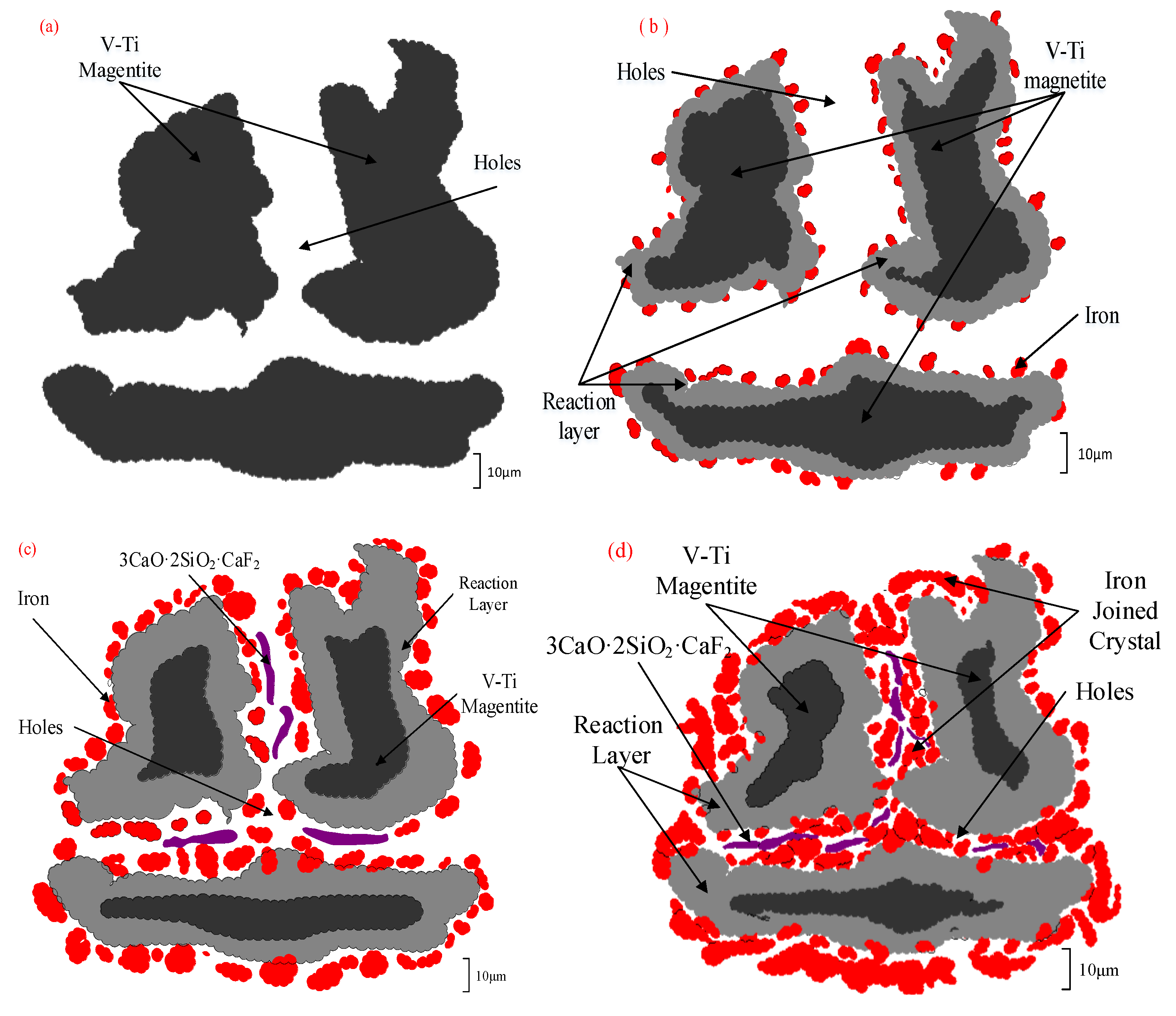

According to the analysis results depicted in Figure 5, Figure 7 and Table 3, the schematic diagram of the samples reduction process with adding CaF₂ is given in Figure 9. The CaF₂ had little effect on the reduction process at the initial stage. As the reaction layer thickened, the reduction degree of vanadium–titanium–magnetite rose, the iron grains proliferated, and the slag phase formed. The CaF₂ reacted with the high-melting-point phase to generate a certain amount of 3CaO·2SiO₂·CaF₂, which had a low-melting-point and could be a “lubricant” to the reaction layer and the interstitial flow, promoting the migration of the iron and the aggregation of slag.

Vanadium–titanium–magnetite with the CaF₂ enabled the equilibrium of the original Boudouard reaction to be broken and then to catalytically form a new one, seen in Equations (20) and (22).

2CaF₂ + 2C + SiO₂ = 2Ca(g) + SiF₄(g) + 2CO(g)

(20)

Ca(g) + 4CO(g) = CaC₂ + 2CO₂(g)

(21)

2CaC₂ + SiF₄(g) + 6CO₂(g) = 2CaF₂ + SiO₂ + 10CO(g).

(22)

The favorable reaction activity of the Ca (g) was not the restrictive step of the reaction, but rather led to its higher reaction rate. Equations (21) and (22) were combined to form the catalytic reaction cycle, which sped up the Boudouard reaction and produced CO, which improved the reduction process of the ferrotitanium compounds. The carbon surface participated in the Boudouard reaction that intensified the surface erosion degree of the high purity graphite powder. The larger contact area between the carbon particles and the vanadium–titanium–magnetite would update carbon layers to pile up the active points into the carbon surface and to build up the solid-solid reduction.

4. Conclusions

The addition of CaF₂ facilitated the carbothermic reduction of the vanadium–titanium–magnetite, enhanced the reaction fraction, and the continuously increasing additive amounts and reduction temperature led to the reaction fraction tending to increase slowly. The appropriate condition was 3% CaF₂ at 1300 °C, where reaction fraction could reach up to 95%.

The CaF₂ accelerated the diffusion and migration of the metal iron points, extended the grain size, eroded the surface of the vanadium–titanium–magnetite particles, destroyed the crystal structure of the non-metallic reduction products in the specimens, promoted the aggregation of the particles like titanomagnetite, ilmenite, and ferrous brookite, increased the lattice distortion of the reduced phase, and improved the reduction capacity.

Vanadium–titanium–magnetite with CaF₂ disrupted the equilibrium of the original Boudouard reaction which formed a new catalytic reaction, and the larger contact area between the carbon particles and the vanadium–titanium–magnetite updated the carbon layers to pile up the active points in the carbon surface.
