A Mineral X-ray Linear Attenuation Coefficient Tool (MXLAC) to Assess Mineralogical Differentiation for X-ray Computed Tomography Scanning

Abstract

X-ray computed tomography (XCT) is becoming one of the most important techniques in the geosciences. The technique relies on linear attenuation coefficient differences in order to reveal the internal structure of the rocks. In this work, we present a new excel macro tool, called MXLAC, which is a data bank with an excel interface that uses density, X-ray energy and the mineral chemical formula to allow users to calculate mineral linear attenuation coefficients that can then be used to determine discrimination between mineral pairs. Elements within a mineral and specified by the chemical formula, determine how the X-ray beam is attenuated. Analysis of a variety of scanned mineral pairs with similar densities and attenuation coefficients indicates that an attenuation coefficient difference of greater than or equal to 6% at 45.5 keV effective X-ray energy is required for effective discrimination between two minerals using XCT with single energy scanning. This means that mineral pairs, such as quartz and pyrophyllite cannot be discriminated using the current XCT instruments due to the fact that the attenuation coefficient difference is less than 1.9% at 45.5 keV effective X-ray energy. Garnets and a variety of other minerals were used as examples to illustrate the importance of knowing the actual chemical formula of the mineral to demonstrate whether they can be partially or fully discriminated from each other.

1. Introduction

X-ray computed tomography (XCT) is a non-destructive technique that utilizes X-rays to image the 3D internal structure of a wide variety of materials [1,2,3]. Soon after its development in the medical sciences in the 1970s [4], it attracted considerable attention within the geosciences due to its potential to visualise the internal structure of rocks and minerals [5,6,7]. In particular, the ability of the technique to determine the mineral content, distribution of minerals, mineral texture, porosity and pore structure network, at a variety of scales, made it an attractive technique across diverse fields from petrology to palaeontology to minerals processing [2,8,9,10,11]. Micro and nano XCT has also been used widely to characterize shale gas pore framework [12,13,14]. XCT has proven to be an important analytical technique for the analysis of drill cores, that lend themselves to analysis because of their uniform sample geometry. Material density [15,16] as well as ore grade [17] have been successfully calculated from drill core using advanced segmentation methods. More recently, it has been proposed to combine XCT with grey level co-occurrence matrices (GLCM) to generate algorithms that will automatically interrogate texture in 3D applications using drill core [18].

XCT images record the difference in density by means of grey values that represent the linear attenuation coefficient of each and every mineral present within the specimen [2,7]. The interaction of X-rays with minerals depends not only on the mineral density (a function of mineral chemistry and atomic structure) but also on the thickness (grain size) and effective atomic number of the mineral. This means that if the density variation between the minerals present is large, the X-ray beam is attenuated differently, resulting in distinct grey values. This makes the XCT technique attractive to different material science disciplines. However, if the density difference between minerals is small, then it is difficult for XCT to differentiate them because of similar attenuation response of the minerals resulting in similar grey values [2]. Because of this, different combinations of minerals or mineral assemblages are more amenable to interrogation by XCT than others. In particular, some combinations of minerals or mineral pairs cannot be differentiated from one another because of the similarity in attenuation response. In such cases, it is important to know up front, the limitations of the XCT system with respect to the mineral assemblage or problem being worked with.

In this contribution, a simple way to evaluate whether different minerals can be differentiated, on the basis of their linear attenuation coefficient, is presented as the downloadable mineral X-ray linear attenuation coefficient (MXLAC) file. MXLAC represents an attenuation coefficient ‘data bank’, developed in the form of a user-friendly excel spreadsheet that uses macros to calculate linear attenuation coefficients at any effective energy (with any increment of choice) between 41.7 and 72.6 keV which is equivalent to an X-ray energy spectrum of between 60 and 225 keV. The conversion of the X-ray energy spectrum to an effective energy that is correlated to the X-ray voltage, is important for XCT users because it allows an accurate calculation of the linear attenuation coefficient for different minerals. An application of MXLAC is demonstrated by looking at several examples including high density iron-ore minerals, some of which cannot be differentiated by XCT.

2. Methodology

The development of the MXLAC data bank involved several steps. The first step was to collect different energy spectrums of a tungsten target under a high voltage (kV) and convert them into effective energies equivalent to a monochromatic beam of the X-ray energy spectrum. This allows evaluation of how mineralogical grey value information is affected by scanning parameters, different filter materials, sample size and beam hardening by comparing the effective linear attenuation difference with the measured grey value difference. Tungsten is normally used as the target in XCT instruments because it has high flux and can withstand high temperatures. The second step was to collect the National Institute of Standards and Technology (NIST) database for attenuation and energy information for all elements from 41.7 to 72.6 keV and compile this information into an excel spreadsheet. The collected NIST database consists of predetermined energy and linear attenuation coefficient information which prohibit the calculation of linear attenuation coefficient for any X-ray energy increment. To deal with this, different interpolation functions have been incorporated into the spreadsheet in order to calculate linear attenuation coefficient for any X-ray energy. The third step was to develop the excel macros that take the compiled NIST elemental data and convert it to linear attenuation coefficients for any mineral.

2.1. Tungsten Energy Spectrum

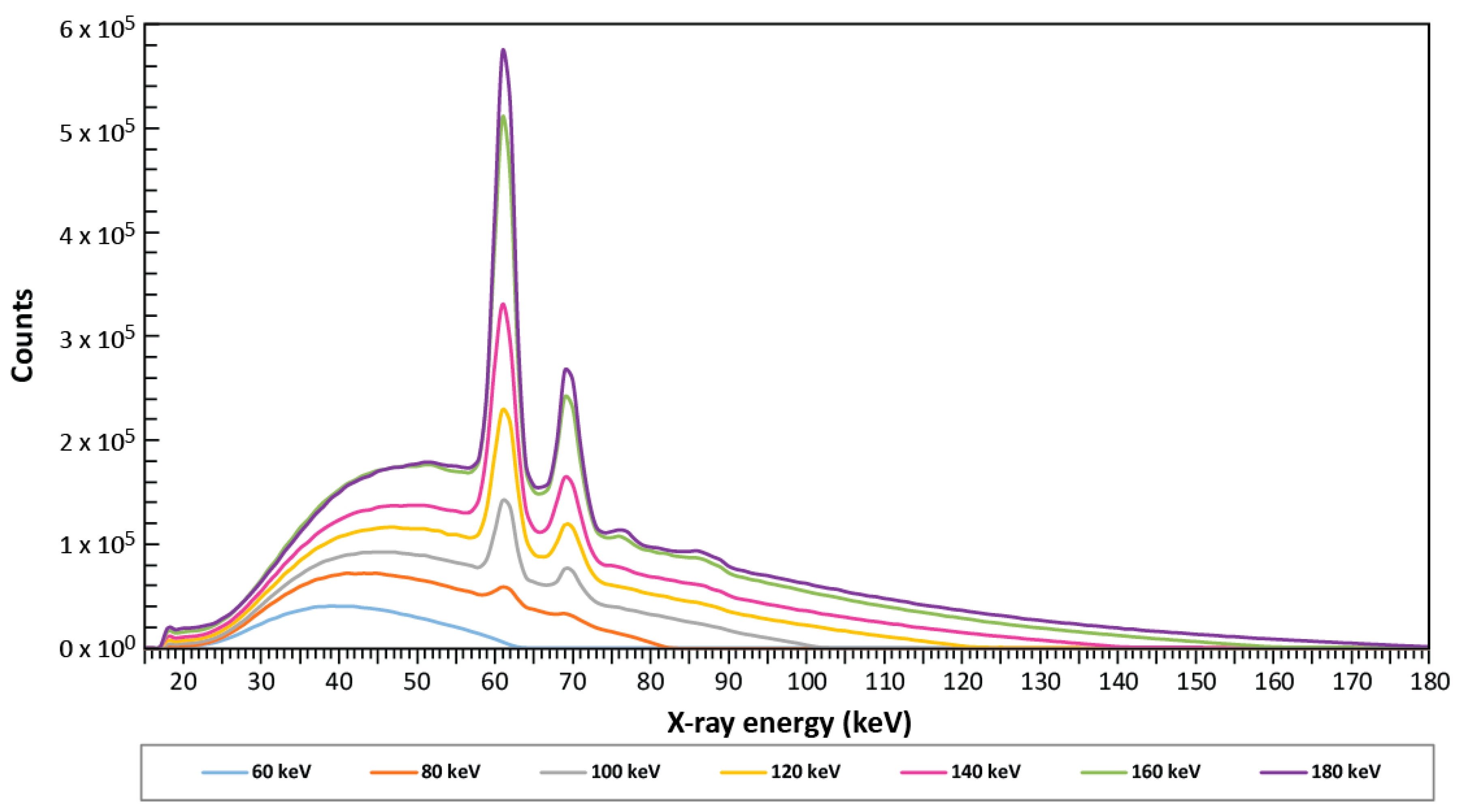

Different energy spectrums of a tungsten target under a high voltage (kV) were collected using a germanium detector (Figure 1). Although the X-ray system being used to collect the energy spectrums can reach high X-ray voltage of 225 kV, this level of voltage affects mineralogical discrimination due to smaller linear attenuation coefficient difference. The set voltage on the target is equivalent to the maximum energy of the produced spectrum. The spectrum consists of different proportions of various energies because of the polychromatic nature of the X-ray beam. The varying energy proportions each interact differently with minerals, thus making the associated linear attenuation coefficient calculations complex—minerals absorb more energy at the lower energy range compared to the higher energy range of the spectrum. To simplify the interpretation of the interaction of the X-ray spectrum with a mineral, an effective energy of the spectrum was calculated. An effective energy is a weighted average of an actual polychromatic beam. Although previously the effective energy has been assumed to be close to 30–40% of the peak energy [19], it is more accurate to calculate it for each spectrum.

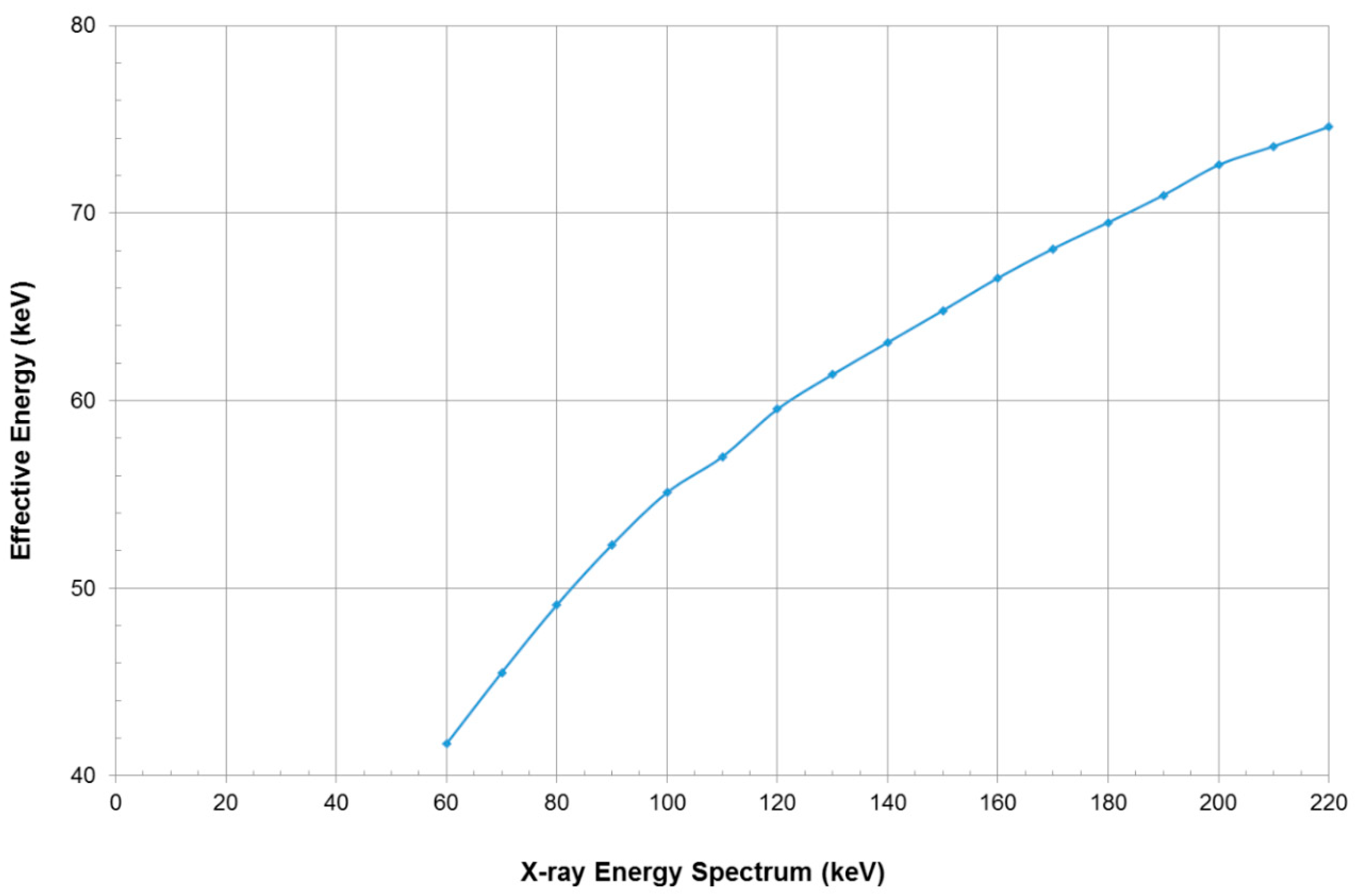

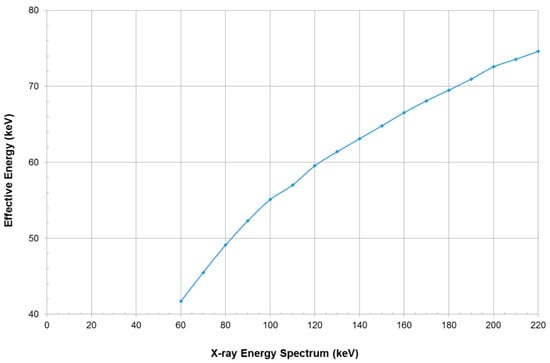

One way to determine the effective energy is to use the aluminium half-value layer method [21,22,23]. To do this, the effective energy is calculated by converting the X-ray energy spectrum from polychromatic to monochromatic (Figure 2). This is done by combining all the photon energies (E) of the spectrum, relative to the count ratio for each photon energy of the spectrum, using Equations (1) and (2). Equation (1) combines all the counts with respect to each energy of the spectrum. Calculating the effective energy using Equations (1) and (2) is more reliable as compared to calculating it using the mean equation. The mean equation does not take into consideration the counts for each energy photon of the spectrum. The resultant effective energies (Figure 2) calculated using Equation (2) are similar to the ones reported by Yada et al. [23] using the same method.

$$Coun{t}_{Total}=Coun{t}_1\left(E_1\right)+Coun{t}_2\left(E_2\right)+\mathrm{\dots }+Coun{t}_n\left(E_n\right)$$

(1)

$$\mathrm{Effective} \mathrm{energy} \left(keV\right)=\left[\frac{Coun{t}_1\left(E_1\right)}{Coun{t}_{Total}}\right]\times E_1+\left[\frac{Coun{t}_2\left(E_2\right)}{Coun{t}_{Total}}\right]\times E_2+\mathrm{\dots }+\left[\frac{Coun{t}_n\left(E_n\right)}{Coun{t}_{Total}}\right]\times E_2$$

(2)

Conversion of the spectrum into a single energy simplifies the linear attenuation coefficient calculations. In addition to this, it allows a direct comparison of theoretically calculated linear attenuation coefficients with the experimental ones. This means that the calculated linear attenuation coefficients can be used to predict how minerals will correlate with grey values on radiographs or 2D image slices taken from 3D image volumes. Grey values are a direct representation of the average linear attenuation coefficients of minerals [24,25]. Where samples are high density or larger volume, it can be difficult to calculate accurate linear attenuation coefficients since the X-ray beam is hardened as it passes through the sample [26] causing the effective energy to be higher [27]. This will affect the expected discrimination between the mineralogical information based on the initially calculated linear attenuation coefficients. Therefore, in such a case, a step-wise protocol should be used to determine what is affecting the discrimination between the minerals.

2.2. Development of the Attenuation Coefficient Data Bank

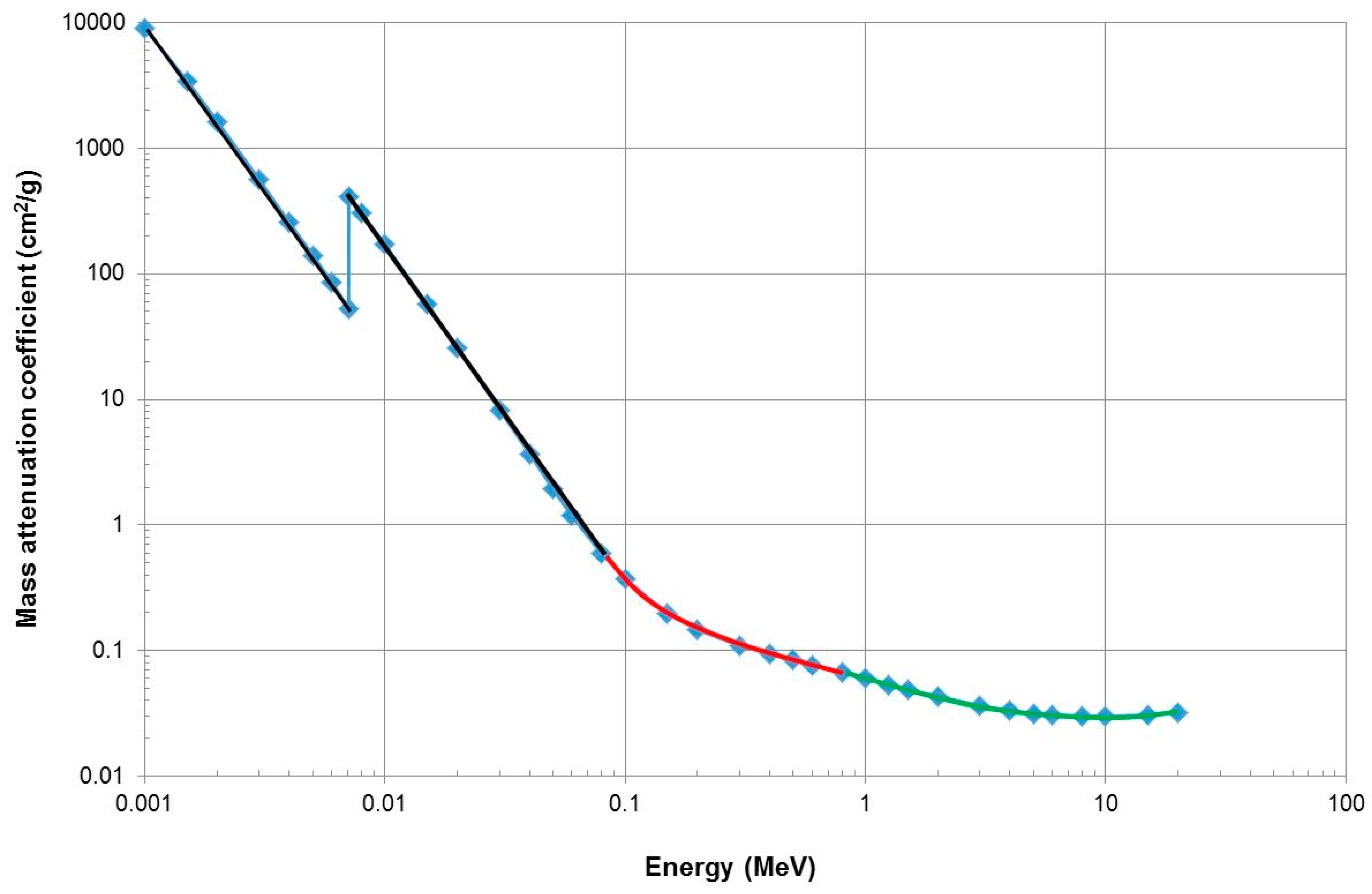

The mass attenuation coefficient data from NIST represent the mass attenuation coefficients for all elements at different X-ray energies (http://physics.nist.gov/PhysRefData/XrayMassCoef/tab3.html). In order to properly utilise the mass attenuation coefficient data for discrete X-ray energies or X-ray energies similar to the collected spectrums mentioned above, a set of linear and polynomial equations (Equations (3)–(5)) were fitted to represent the change of mass attenuation coefficient as the X-ray energy increases (Figure 3). Iron has been used as an example to illustrate the decreasing mass attenuation coefficient with increasing X-ray energy and the spike in mass attenuation coefficient at 7.112 keV is due to a K-edge absorption. These equations were fitted for all elements in the periodic table taking into consideration the behaviour of mass attenuation coefficients with respect to energy. Fitting different equations was done to minimise deviations between the expected mass attenuation coefficients with the calculated ones.

$$y=mx+c$$

(3)

$$y=a{x}^2+bx+c$$

(4)

$$y=a{x}^5+b{x}^4+c{x}^3+d{x}^2+ex+f$$

(5)

The x and y-axis represents the X-ray energy and mass attenuation coefficient respectively. This method was repeated for all the elements. In cases where Equations (3) and (4) could not provide satisfactory mass attenuation coefficients, Equation (5) (high order polynomial) was used to minimize deviations between the mass attenuation coefficient calculated in this spreadsheet and that provided by NIST. The mass attenuation coefficient for minerals, µ/ρ (cm²/g), was calculated using Equation (6) where ω_i is the weight fraction of ith element [24,25]. The linear attenuation coefficient, µ (cm⁻¹), was then obtained by rearranging Equation (6) to give Equation (7).

$$\frac{\mu }{\rho }={\Sigma }_i{\left(\frac{\mu }{\rho }\right)}_i\times {\omega }_i$$

(6)

$$\mu =\left[{\Sigma }_i{\left(\frac{\mu }{\rho }\right)}_i\times {\omega }_i\right]\rho$$

(7)

2.3. Development of User Spreadsheet

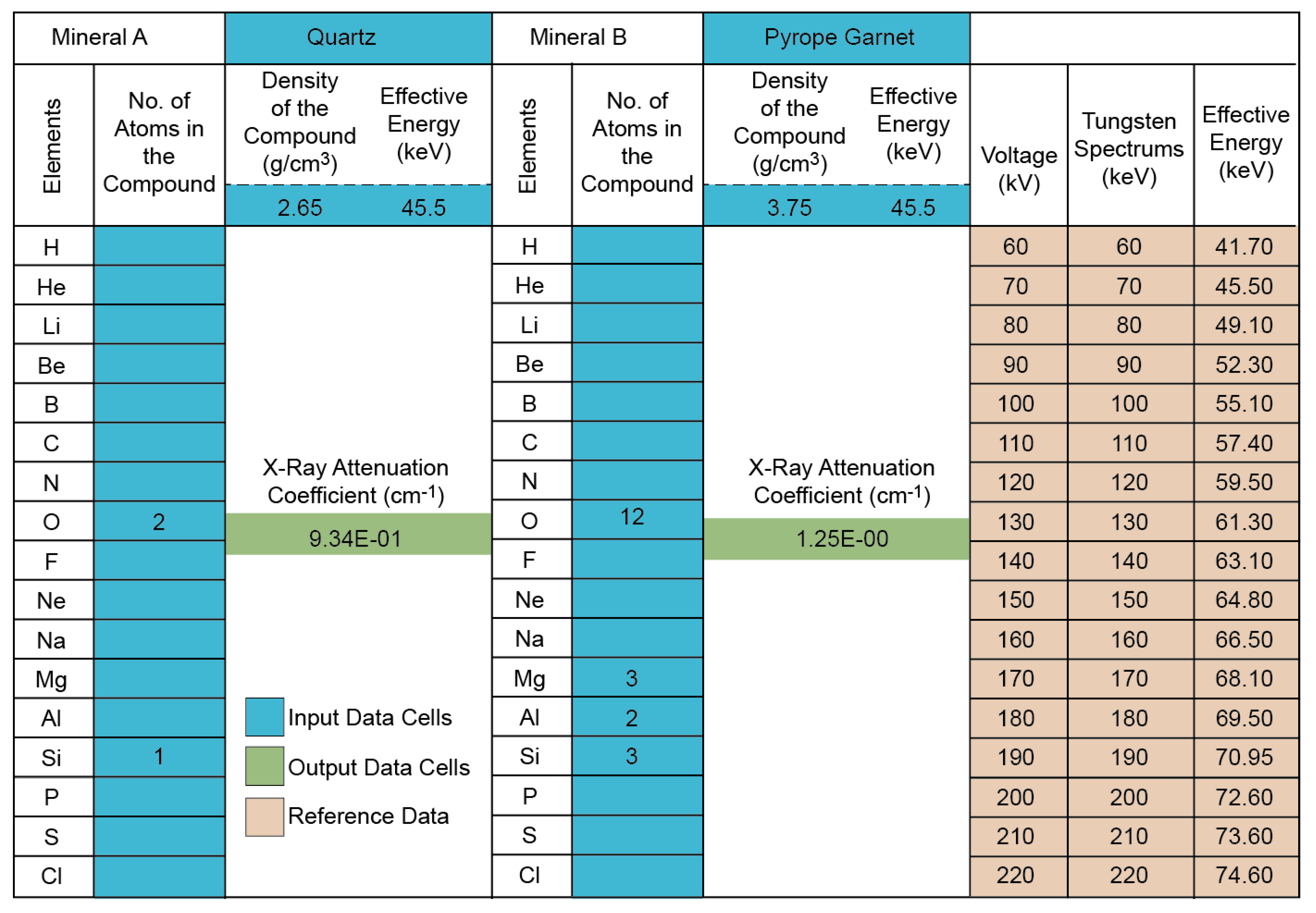

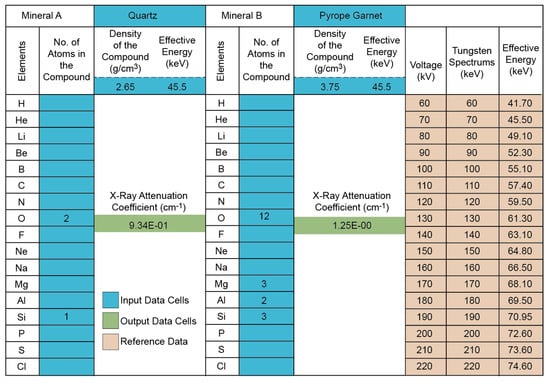

The MXLAC spreadsheet (also provided as Supplementary Materials) calculates the linear attenuation coefficient as an output using Equation (7). The spreadsheet is designed to be user-friendly with minimal inputs required to immediately calculate the linear attenuation coefficient for any mineral and can accommodate complex mineral compositions. Calculating the linear attenuation coefficient of different minerals requires a user to insert the actual number of elements (both cations and anions) present within a mineral (i.e., the exact mineral composition), the mineral density and the relevant effective energy under the appropriate columns (Figure 4). MXLAC can calculate the linear attenuation coefficient of the same or different mineral at two different energies simultaneously. This allows a direct comparison of the linear attenuation coefficient of minerals to better understand the impact of grey value variation on image slices in order to optimize mineralogical discrimination prior to scanning. The voltage is equivalent to the energy spectrum indicated in the column for the tungsten spectrum. The effective energy is converted from the tungsten spectrum and is utilized to calculate the linear attenuation coefficient as an output under the X-ray attenuation coefficient cell.

2.4. Validation of Linear Attenuation Coefficients

To validate the ability of MXLAC to predict mineral discrimination using linear attenuation coefficients, thirteen minerals were scanned using a micro-focus X-ray computed tomography system (Nikon XTH 225 ST) and their grey values compared. Prior to scanning, the minerals were grouped as follows based on linear attenuation coefficient and mineral density: (a) almandine, andradite and grossular; (b) quartz, kaolinite, dolomite, calcite; (c) fluorite, apatite; and (d) goethite, chromite, magnetite and hematite. The density information for all the minerals was obtained from https://www.mindat.org. All the minerals were scanned at 70 kV (45.5 keV effective energy) using different filter materials as well as having no filter (

Table 1. Scanning parameters to optimize discrimination between minerals.

Exposure Time (sec)	No. of Projections	Voltage (kV)/ Effective Energy (keV)	Filter Material
4	3000	70/45.5	No filter
4	3000	70/45.5	0.25 mm Cu
4	3000	70/45.5	1 mm Al + 1 mm Cu

). The set voltage on the target represents the collected energy spectrum with a maximum energy of 70 keV. The samples were scanned at a 20 µm resolution with 3000 projections and 4 s exposure time. The selection of a high number of projections and high exposure time optimises mineralogical discrimination using grey values and minimises image noise associated with a low number of projections and low exposure time. The scanned data were reconstructed using CT Pro 3D software version 3.1.9 by applying various built-in beam hardening correction factors within the software. The mean grey value analysis was conducted in all the samples using VG Studio Max version 3.2 software to determine the required grey value difference that renders minerals to be discriminated. Before the grey value analysis was conducted, the region growing tool was used to remove background information from all the minerals in order to deal only with the mineral grey values themselves. It was important to define the mineral grey value range because it was used to assign a false colour to the individual minerals in order to determine how grey values of different minerals overlap with each other. The mineral identities, compositions, as well as compositional homogeneity were confirmed using both standardized scanning electron microscopy (SEM) and quantitative evaluation of materials by scanning electron microscopy (QEMSCAN). Individual minerals were prepared into polished sections and characterised using an FEI QEMSCAN 650F instrument on the field image analysis routine at the University of Cape Town. Measurements were run at 25 kV, 10 nA using a 100 micron pixel spacing. The same sections were then used for SEM-EDS analysis conducted at the Electron Microscopy Unit of the Central Analytical Facility (Stellenbosch University, South Africa) using Zeiss EVO MA15VP Scanning Electron Microscope. The measurements were run at between 20 kV to 30 kV, with a working distance for EDS analyses of 8.5 mm and magnifications ranging between 1000× and 5000×. Appropriate ASTIMEX© certified mineral standards were used for different element concentrations even within similar mineral families, such as garnet (e.g., almandine, andradite and grossular). The validation process also provided information about possible inclusions that may: (a) affect expected discrimination between minerals and (b) provide a false assumption that a mineral can be discriminated from another mineral due to the presence of non-uniformly distributed inclusions that cannot be easily detected by the XCT scanning resolution.

3. Results

Here we present the results of this study in two parts. In the first part, we use MXLAC to calculate linear attenuation coefficients for a variety of minerals of varying compositional complexity using the compiled spreadsheet. These values are compared to those that can be generated using the NIST database to assess the accuracy of the MXLAC spreadsheet. Thereafter, mineral linear attenuation coefficients, calculated using MXLAC, are compared with the mineral grey values, generated using XCT, to evaluate the minimum difference in attenuation coefficient needed to be able to discriminate two minerals using XCT.

3.1. Calculated Linear Attenuation Coefficients

Table 2. Comparison of the NIST and MXLAC attenuation coefficients for different types of minerals.

Mineral.	Chemical Formula	Density (g/cm3)	NIST	MXLAC	%Error	NIST	MXLAC	%Error
			Attenuation Coefficient (cm−1), at 44.79 keV			Attenuation Coefficient (cm−1), at 62.53 keV
Acanthite	Ag2S	7.24	79.68	80.60	1.14	32.43	32.70	0.83
Almandine	Fe3Al2Si3O12	4.32	4.77	4.55	4.56	2.21	2.19	0.53
Andradite	Ca3Fe3+2Si3O12	3.86	4.09	3.91	4.44	1.91	1.90	0.35
Ankerite	CaFe(CO3)2	3.20	3.33	3.19	4.20	1.56	1.56	0.00
Apatite	Ca5(PO4)3OH	3.19	2.36	2.28	3.39	1.19	1.19	0.00
Arsenopyrite	FeAsS	6.18	20.23	20.40	0.83	8.26	8.51	2.94
Barite	BaSO4	4.48	48.67	48.10	1.17	20.31	21.00	3.29
Borax	Na2B4O5(OH)4·8H2O	1.70	0.42	0.41	3.02	0.34	0.33	2.94
Calcite	CaCO3	2.71	1.80	1.73	4.09	0.94	0.94	0.54
Carnotite	K2(UO2)2(VO4)2·3H2O	4.91	38.90	40.60	4.19	17.83	17.20	3.53
Chalcocite	Cu2S	5.60	16.48	17.20	4.19	6.72	6.49	3.42
Chalcopyrite	CuFeS2	4.20	9.48	9.58	1.04	3.95	3.89	1.52
Chlorite	(Mg)5Al2Si3O10(OH)8	3.20	1.09	1.04	4.44	0.73	0.72	1.30
Chromite	FeCr2O4	4.79	7.93	8.03	1.21	3.42	3.40	0.55
Corundum	Al2O3	4.02	1.41	1.34	4.96	0.92	0.91	1.09
Dolomite	CaMg(CO3)2	2.85	1.39	1.33	4.32	0.80	0.80	0.00
Fluorite	CaF2	3.13	2.50	2.41	3.76	1.23	1.23	0.38
Gibbsite	Al(OH)3	2.34	0.74	0.70	4.89	0.52	0.51	2.16
Goethite	FeO(OH)	4.28	7.34	7.01	4.49	3.17	3.16	0.22
Grossular	Ca3Al2Si3O12	3.65	2.22	2.12	4.45	1.19	1.18	0.77
Hematite	Fe2O3	5.26	9.89	9.45	4.48	4.21	4.20	0.16
Ilmenite	FeTiO3	4.76	7.26	6.95	4.34	3.17	3.13	1.05
Kaolinite	Al2Si2O5(OH)4	2.60	0.91	0.87	4.90	0.60	0.59	1.95
K-feldspar	KAlSi3O8	2.56	1.22	1.16	4.65	0.71	0.71	0.00
Lepidolite	KLi2AlSi4O10(OH)2	2.83	1.21	1.16	4.45	0.74	0.73	1.35
Magnetite	Fe3O4	5.18	10.03	9.58	4.48	4.25	4.25	0.14
Molybdenite	MoS2	5.00	29.65	30.50	2.79	12.03	12.50	3.76
Olivine	Fe2SiO4	3.32	5.20	4.97	4.42	2.27	2.26	0.44
Pecoraite	Ni3S2O5(OH4)	3.47	6.65	6.92	3.87	2.57	2.70	4.81
Pyrite	FeS2	5.01	8.02	7.81	2.52	3.48	3.50	0.63
Pyrope	Mg3Al2Si3O12	3.75	1.34	1.28	4.51	0.87	0.86	1.30
Quartz	SiO2	2.65	1.01	0.96	4.95	0.64	0.63	1.68
Rynersonite	CaTa2O6	6.39	35.64	36.00	0.99	15.13	15.20	0.46
Safflorite	CoAs2	7.47	32.11	31.10	3.13	12.91	13.40	3.66
Siderite	FeCO3	3.96	5.41	5.17	4.47	2.41	2.40	0.35
Spessartine	Mn3Al2Si3O12	4.29	4.22	4.33	2.51	2.00	1.98	0.94
Sphalerite	ZnS	4.10	11.68	11.90	1.82	4.78	4.80	0.42
Talc	Mg3Si4O10(OH)2	2.75	0.99	0.94	4.85	0.64	0.64	0.00
Uvarovite	Ca3Cr2Si3O12	3.85	3.55	3.55	0.15	1.70	1.69	0.69
Wolframite	FeWO4	7.30	38.12	38.70	1.50	16.16	16.30	0.86
Zircon	ZrSiO4	4.71	20.06	21.10	4.94	8.26	8.40	1.67

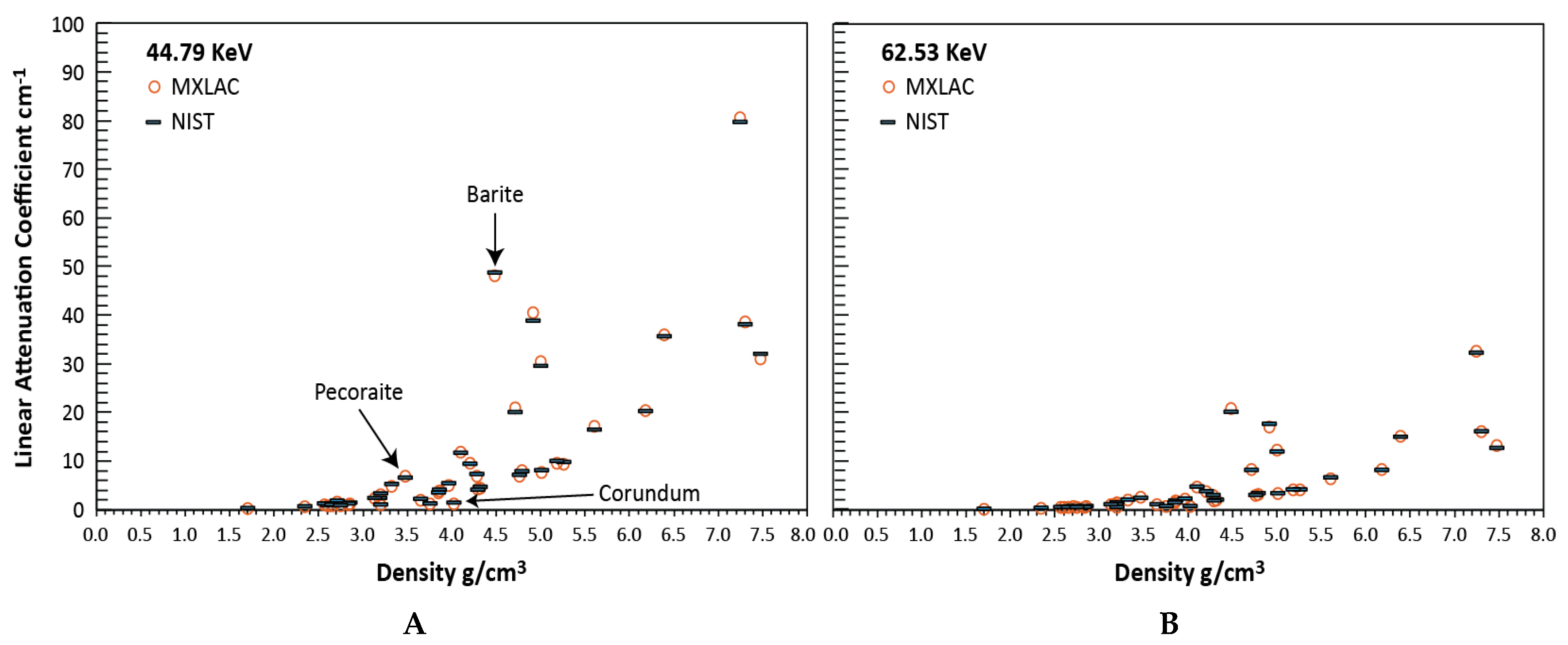

lists a wide range of minerals (40 in total) with different densities and chemical compositions. The 40 minerals were picked to evaluate different mineral compositional complexity in terms of both the range of elements present in the mineral as well as the mineral structure. It includes minerals regarded as ore minerals (e.g., chalcopyrite, hematite and sphalerite), clay minerals (e.g., kaolinite), carbonates (e.g., calcite and dolomite) and end-member varieties of the same mineral (e.g., pyrope, almandine, grossular, andradite and spessartine garnets). The maximum % error difference between the calculated linear attenuation coefficients using MXLAC and those given by the NIST database, is 4.96% at 44.79 keV and 4.81% at 62.53 keV. At 44.79 keV, nine minerals have a % error less than 2%, whilst at 62.53 keV, 22 minerals have a % error less than 2% (Table 2). The X-ray energy of 44.79 keV and 62.53 keV from the NIST database were selected as they are sufficiently close enough to the calculated effective energy of the energy spectrums collected at the voltage of 70 kV and 140 kV respectively. This provides more information about the expected % error at both 70 kV and 140 kV. The calculated mineral linear attenuation coefficients increase with increasing density, but the trend is not linear and the mineral attenuation is lower at 62.53 keV as expected (Figure 5). Interrogation of the data indicates that it is not possible to predict the linear attenuation coefficient based on mineral density alone. Comparison of sphalerite and corundum for example, shows similar densities (4.1 g/cm³ and 4.02 g/cm³ respectively) but large differences in linear attenuation coefficient (11.9 cm⁻¹ and 1.34 cm⁻¹, respectively). Because the minerals have similar densities, the logical assumption would be that these minerals cannot be differentiated using XCT, which would be incorrect, based on the difference in their linear attenuation coefficients.

In contrast, dolomite and corundum have similar attenuation coefficients (1.33 cm⁻¹ and 1.34 cm⁻¹ respectively) suggesting they cannot be differentiated using XCT, but these two minerals have significant differences in density (2.85 g/cm³ and 4.02 g/cm³ respectively). In this case, the difference in density would suggest these minerals can be differentiated using XCT, which is not true, based on the linear attenuation coefficient information. The above examples illustrate the complexity of trying to evaluate whether XCT is useful for different mineral pairs, although the likelihood of dolomite and corundum naturally occurring in the same rock is low. A more likely combination is dolomite and calcite. In this case, the density of calcite is 2.71 g/cm³ in comparison to the 2.85 g/cm³ of dolomite and the linear attenuation of calcite is 1.73 cm⁻¹ in comparison to the 1.33 cm⁻¹ of dolomite. In this example, it is unclear if these differences are large enough to be able to differentiate these minerals using XCT. Therefore, the second part of the results presented here, uses MXLAC to evaluate the minimum difference in linear attenuation coefficient needed to differentiate two minerals.

3.2. Minimum Attenuation Coefficient Difference to Determine Discrimination

XCT, SEM-EDS and QEMSCAN analysis was undertaken on 13 minerals from Table 2 which provided data that could be properly interrogated for grey level variation (Figure 6 and

Table 3. Grey value variation of different minerals with their corresponding density (https://www.mindat.org/) and linear attenuation coefficients at 45.5 keV effective energy.

Mineral	Chemical Formula	Density g/cm3	Attenuation Coefficient cm−1	Mean Grey Value
Almandine	Fe3Al2Si3O12	4.32	4.36	28,084.5
Andradite	Ca3Fe3+2Si3O12	3.86	3.74	34,569.4
Grossular	Ca3Al2Si3O12	3.65	2.05	22,971.9
Quartz	SiO2	2.65	0.93	10,540.6
Kaolinite	Al2Si2O5(OH)4	2.60	0.85	11,014.9
Dolomite	CaMg(CO3)2	2.85	1.29	15,047.8
Calcite	CaCO3	2.71	1.66	18,285.0
Fluorite	CaF2	3.13	2.31	23,956.0
Apatite	Ca5(PO4)3OH	3.15	2.15	21,737.9
Goethite	FeO(OH)	4.28	6.70	36,097.6
Chromite	FeCr2O4	4.79	7.70	38,856.9
Magnetite	Fe3O4	5.18	9.15	54,895.8
Hematite	Fe2O3	5.26	9.02	57,344.8

).

Table 4. Mineral discrimination using linear attenuation coefficient difference at 45.5 keV effective energy in conjunction with grey value and density difference. BH = beam hardening.

Mineral Comparison	Filter Material/BH Correction Factor	% Grey Value Difference	% Attenuation Coefficient Difference	% Density Difference	Discrimination
Almandine vs. Andradite	0.25 mm Cu/2	18.8	14.2	10.7	Yes
Almandine vs. Grossular		18.2	53.0	15.5	Yes
Grossular vs. Andradite		33.6	45.2	5.44	Yes
Quartz vs. Kaolinite	No Filter/2	4.31	9.42	1.89	Partial
Quartz vs. Dolomite		30.0	27.6	7.02	Yes
Quartz vs. Calcite		42.4	43.7	2.21	Yes
Kaolinite vs. Dolomite		26.8	34.4	8.77	Yes
Kaolinite vs. Calcite		39.8	49.0	4.06	Yes
Dolomite vs. Calcite		17.7	22.3	4.91	Yes
Fluorite vs. Apatite	0.25 mm Cu/1	9.26	6.06	0.63	Yes
Goethite vs. Chromite	0.25 mm Cu/2	7.10	13.0	10.7	Partial
Gothite vs. Magnetite	1 mm Cu + 1 mm Al/3	34.2	26.8	17.4	Yes
Goethite vs. Hematite		37.1	25.7	18.6	Yes
Chromite vs. Magnetite		29.2	15.9	7.53	Yes
Chromite vs. Hematite		32.2	14.6	8.94	Yes
Magnetite vs. Hematite		4.27	1.42	1.52	No

shows comparison of different mineral pairs from these 13 minerals. The pairs are based on minerals occurring in the same QEMSCAN polished mount so that the grey values are comparable and reflect the linear attenuation coefficient (Figure 6). Minerals with a linear attenuation coefficient less than 2 cm⁻¹ did not require the utilisation of any filters to optimize grey value variation. This is demonstrated by quartz, kaolinite, dolomite and calcite (Figure 6D–G) respectively). However, minerals with a linear attenuation coefficient more than 3 cm⁻¹ required application of a filter in order to optimise X-ray penetration and minimise beam hardening. In the case of magnetite and hematite (Figure 6L,M), the highest density minerals examined, a combination of filter materials and high beam hardening correction factor was used to minimise the impact of beam hardening.

Evaluating the required linear attenuation coefficient difference to determine discrimination between minerals is not trivial. This is due to grey value overlap between minerals which cannot be avoided in most cases, when using XCT. Partly this is because most naturally occurring minerals have inclusions of other minerals in them to some extent. This is well demonstrated by the quartz and kaolinite samples used here. The calculated linear attenuation coefficient difference between these minerals is 9.42%. However, the measured grey value difference between these two minerals was determined to be 4.31%, resulting in only partial discrimination (Figure 6D,E). The grey value overlap is due to the presence of small inclusions of quartz and k-feldspar in the kaolinite (Figure 7). Figure 6 is given at such a resolution that the small inclusions cannot be seen but the QEMSCAN analysis supports their presence. A similar situation exists between goethite and chromite (Figure 6J,K) where the linear attenuation coefficient difference is higher (12.99%) but the grey value difference is lower (7.1%), resulting in only partial discrimination of the two minerals. In this case, the grey value overlap is due to different Fe-concentrations within the goethite matrix. In some cases, the presence of mineral inclusions does not affect the mineral discrimination but still affects the mean grey value that is supposed to represent the true linear attenuation coefficient. This is a case with almandine, which has a higher linear attenuation coefficient than andradite, but has a lower mean grey value (Table 3 and Figure 7) due to the presence of uniformly distributed pyrope and minor grossular as inclusions. Despite the presence of these mineral inclusions in almandine, almandine was clearly discriminated from andradite with a grey value difference of 18.76% and a linear attenuation coefficient difference of 14.22% (Table 4 and Figure 6). Similarly, apatite and fluorite (Figure 6H,I) are completely discriminated from one another in terms of their grey value levels (9.26%) but have a lower linear attenuation coefficient difference (6.06%). This is attributed to the fact that there are no inclusions within the minerals. This shows that a minimum linear attenuation coefficient difference of 6% is enough to discriminate between minerals. Minerals with linear attenuation coefficient difference less than this may be difficult to discriminate. Hematite and magnetite have a linear attenuation coefficient difference of 1.42% with a density difference of 1.54%, resulting in a grey value difference of 4.27%. Therefore, hematite and magnetite cannot be discriminated from each other according to Figure 6. Thus, it would seem that minerals with a linear attenuation coefficient difference of less than ~4.3% cannot be differentiated using XCT, whereas minerals with a linear attenuation coefficient difference above ~6% can be differentiated. However, this assumes that the target material is tungsten, minerals are pure and free of inclusions. If the minerals are not compositionally pure then the presence of inclusions complicates discrimination as in the case of the quartz and kaolinite samples used here. In addition to this, different target materials (e.g., Silver, Copper, Molybdenum) would have different effective energies at the same X-ray voltage but the minimum required attenuation coefficient difference is expected to remain the same. This means that the X-ray voltage for each target material would be different in order to achieve the same minimum required attenuation coefficient difference to differentiate minerals.

4. Discussion

The linear attenuation coefficient database developed above is a practical, user friendly tool for calculating linear attenuation coefficients. It is also very flexible in that it allows the user to calculate attenuation coefficients at any effective X-ray energy between 41.7 keV and 74.6 keV and this can be done offline. Comparison of the MXLAC database with that of the NIST online calculation tool indicates that the difference between the two is less than 5%. MXLAC highlights the importance of knowing the exact mineral composition (in terms of specific cation and anion numbers) and density in order to predict which minerals can be discriminated and which cannot. In the following discussion, several examples of where MXLAC can be used to better set up XCT experiments are demonstrated.

4.1. Mineral Composition and Linear Attenuation Coefficient

For minerals with no solid solution, such as quartz, the calculation of the linear attenuation coefficient is straight forward as the chemical formula is fixed. In the case of quartz, which is SiO₂, the linear attenuation coefficient is 0.93 cm⁻¹ at 45.5 keV. However, for minerals with solid solution substitution, it is necessary to know the exact composition of the mineral in the sample being analysed. Garnet which is a common mineral in a variety of rocks elegantly illustrates this. The generic formula for garnet is X₃Y₂(SiO₄)₃ with X representing Mg, Fe, Mn or Ca and Y representing Al or Cr [28]. The example shown in Figure 4 is of a pyrope garnet, with the composition Mg₃Al₂Si₃O₁₂ and density 3.75 g/cm³ and has the linear attenuation coefficient of 1.25 cm⁻¹ at 45.5 keV effective energy. This is distinct from garnet with different compositions such as almandine Fe₃Al₂Si₃O₁₂ (4.32 g/cm³, 4.36 cm⁻¹), spessartine Mn₃Al₂Si₃O₁₂ (4.29 g/cm³, 4.16 cm⁻¹), andradite Ca₃Fe³⁺₂Si₃O₁₂ (3.86 g/cm³, 3.74 cm⁻¹), uvarovite Ca₃Cr₂Si₃O₁₂ (3.85 g/cm³, 3.41 cm⁻¹), and grossular Ca₃Al₂Si₃O₁₂ (3.65 g/cm³, 2.05cm⁻¹) calculated at the same X-ray energy. The difference in the linear attenuation coefficients is a result of differences in the densities and chemical compositions of these minerals even though the structural formula remains constant and the physical properties of all the garnet varieties remains very similar. As a consequence of the differences in linear attenuation coefficient, these minerals will appear differently on a 2D image slice except for almandine and spessartine due to a lower attenuation coefficient difference of 4.6%.

The example given above assumes that garnet exists as one of the end-member compositions, but this is not usually the case, with garnet exhibiting solid solution substitution within both the X and Y cation sites. What this means in practice is that garnet in any given rock will have a linear attenuation coefficient of between 4.36 cm⁻¹ and 1.25 cm⁻¹ at 45.5 keV depending on its exact composition. For example, a garnet that is dominantly Fe-rich but also containing appreciable amounts of Mg as well as minor amounts of Mn and Ca in the cation proportions (Fe_2.1Mg_0.7Mn_0.15Ca_0.05)Al₂Si₃O₁₂ would have an approximate composite density of 4.16 g/cm³ and a linear attenuation coefficient of 3.60 cm⁻¹ at 45.5 keV. This is significantly different from the linear attenuation coefficient values for either end-member almandine or pyrope. Assuming a linear attenuation coefficient of either of these end-members would result in significant error associated with the differentiation of this garnet composition from other minerals with linear attenuation coefficients in this range at 45.5 keV. Similarly, using the density of one garnet composition, when in fact a different composition is present, will also result in the calculation of an incorrect linear attenuation coefficient.

4.2. Mineral Density and Attenuation

MXLAC can also be used to illustrate the importance of upfront mineral density and compositional information when differentiating minerals using XCT. To evaluate this issue, iron ore is considered where iron ore mineralisation involves both iron ore minerals themselves (hematite, magnetite and goethite) as well as commonly associated gangue minerals may be present (quartz, kaolinite, gibbsite, chlorite, siderite, ankerite, fluorite, barite and apatite). The theoretically calculated linear attenuation coefficients for these minerals (

Table 5. Summary of common minerals in iron ores, alongside their formulae and density https://www.mindat.org/.

Iron Mineral	Formula	Density g/cm3	Gangue Mineral	Formula	Density g/cm3
Hematite	Fe2O3	5.26	Quartz	SiO2	2.65
Magnetite	Fe3O4	5.18	Kaolinite	Al2Si2O5(OH)4	2.60
Goethite	FeO(OH)	4.28	Fluorite	CaF2	3.13
Siderite	FeCO3	3.96	Barite	BaSO4	4.48
Chlorite	(Mg)5Al2Si3O10(OH)8	3.20	Apatite	Ca5(PO4)3OH	3.19
Pyrite	FeS2	5.01	Gibbsite	Al(OH)3	2.34
Ilmenite	FeTiO3	4.76	Ankerite	CaFe(CO3)2	3.20

) were compared in order to evaluate the impact of different densities on the attenuation coefficient. This is well illustrated by barite (BaSO₄), which has a lower density (4.48 g/cm³) than hematite and magnetite (5.26 and 5.18 g/cm³) respectively. These minerals have a minimum density difference 13.51% which suggest that barite should appear darker or with lower grey values than hematite and magnetite. However, this is not the case, because barite has a higher linear attenuation coefficient of 46.1 cm⁻¹ at 45.5 keV effective X-ray energy which would make it to appear brighter. In contrast, magnetite has a linear attenuation coefficient of 9.15 cm⁻¹ while hematite is 9.02 cm⁻¹. The linear attenuation coefficients of hematite and magnetite are similar because their densities and chemical composition are similar, Table 5. In addition to this the majority of the minerals with a density difference <5% presented in Table 4 were partially or full distinguishable from each other. This emphasizes the need to use linear attenuation coefficient information to predict if minerals can be discriminated or not as compared to using the density information alone.

4.3. Influence of Mineral Composition vs. Density on Attenuation Coefficient

Linear attenuation coefficients are much more strongly impacted by mineral composition than they are by density. This would suggest that it is much more important to obtain an accurate composition in order to optimize the discrimination between the minerals than it is to obtain an accurate density. This is illustrated using the example of olivine, which has a general structural formula of (Mg,Fe)₂SiO₄, and an average density of 3.3 g/cm³. Olivine of this composition and density, has a linear attenuation coefficient of 4.20 cm⁻¹ at an arbitrary effective energy of 41.7 keV, which is distinct from olivine of composition Mg_1.6Fe_0.4SiO₄ with an attenuation coefficient of 2.6 cm⁻¹ at the same energy and density. Swapping the ratio of magnesium and iron (i.e., Mg_0.4Fe_1.6SiO₄) results in an attenuation coefficient of 5.49 cm⁻¹, yielding an attenuation coefficient difference of 52.64% from the Mg_1.6Fe_0.4SiO₄ composition when the same density is used for the calculations. When the same scenario is considered for Mg_0.4Fe_1.6SiO₄ with a density reduction of 52.64% to 1.74 g/cm⁻³ from its average density of 3.3 g/cm³, its attenuation coefficient is 2.9 cm⁻¹ which is 35.41% less than when the density is 3.3 g/cm³. This means that a 52.64% reduction in density only resulted in a 32.42% reduction in attenuation coefficient for the same composition. Similarly, andradite and uvarovite garnets have almost identical densities (3.86 vs. 3.85 g/cm⁻¹) but linear attenuation coefficients of 4.88 and 4.31 cm⁻¹ with a percentage attenuation coefficient difference of 11.68% at 41.7 keV. Using density information alone would suggest that these two minerals cannot be discriminated even though their linear attenuation coefficients suggest that they can be. Thus, a change in composition has more effect on the attenuation coefficient than a change in density and hence knowing the exact composition of the minerals to be interrogated with XCT is critical to evaluate whether XCT is an appropriate tool to use.

5. Conclusions

Theoretically calculated linear attenuation coefficients form an important basis for planning XCT scans with optimal image contrast. These attenuation coefficients can be utilised to optimise the X-ray scanning energy to discriminate minerals according to exact mineral compositions as well as density for proper quantification. The data bank presented here is designed not only to be user friendly and compare attenuation coefficient information of two different minerals at the same time but also to be easily available. The discrimination between minerals with an attenuation coefficient difference of less than 6% will be challenging. This will depend on the complexity of the minerals especially if they have inclusions as observed between quartz and kaolinite with grey values difference of 4.31% even though their attenuation coefficient difference is >9%. Optimal discrimination using attenuation coefficients depends more on the composition but also on scanning parameters including appropriate filter material being used. Different minerals respond differently on the type of filter material being used, especially those with a density greater than 3 g/cm³. Minerals with a density less than 3 g/cm³ might not require any application of filter materials in order to optimize discrimination. This depends on the sample size and complexity of the sample being scanned (mineral inclusion). This means that minerals of interest should be well defined and understood prior to scanning so that the limitations associated with discriminating minerals using linear attenuation coefficients can be evaluated before XCT scanning. However, the extent of mineral inclusions that affects discrimination and direct comparison between linear attenuation coefficient difference with grey value difference should be investigated in more detail in future studies. This will include studying how uniform and non-uniform distribution of mineral inclusions affects grey value difference that is supposed to correlate directly with the attenuation coefficient difference. In addition to this different detector filter materials that can minimise the impact of environmental scatter that contribute to inaccurate mineral grey values should also be investigated in order to obtain the expected grey value difference that correlates with the attenuation coefficient difference. This will allow effective utilization or application of the XCT technique to the geological samples. The effective application of the XCT techniques together with the MXLAC spreadsheet is not only important for geological samples but also to any research field that studies attenuating materials of any kind, e.g., material sciences, electrochemical studies, etc. Most importantly understanding the limitations of XCT will lead to further refinements of the XCT technique that may in the future overcome these limitations.
