Influence of Hydrofluoric Acid Leaching and Roasting on Mineralogical Phase Transformation of Pyrite in Sulfidic Mine Tailings

by
Babak Koohestani
1,*,
Ahmad Khodadadi Darban
2,
Pozhhan Mokhtari
3,
Esmaeel Darezereshki
4,
Erol Yilmaz
5 and
Elif Yilmaz
6
1
Mining and Mineral Processing Department, Tarbiat Modares University, Tehran 14155-6343, Iran
2
Faculty of Engineering, Tarbiat Modares University, Tehran 14155-6343, Iran
3
Materials Science and Nano Engineering, Sabanci University, Orta Mahalle, Tuzla, Istanbul 34956, Turkey
4
Central Laboratory of Applied Research, Shahid Bahonar University, Kerman 76169-14111, Iran
5
Department of Civil Engineering, Geotechnical Division, Recep Tayyip Erdogan University, Fener, Rize 53100, Turkey
6
Hydromet B&PM Research Group, Division of Mineral & Coal Processing, Department of Mining Engineering, Karadeniz Technical University, Ortahisar, Trabzon 61080, Turkey
*
Author to whom correspondence should be addressed.
Minerals 2020, 10(6), 513; https://doi.org/10.3390/min10060513
Submission received: 14 April 2020 / Revised: 26 May 2020 / Accepted: 26 May 2020 / Published: 1 June 2020
(This article belongs to the Special Issue Circum-Neutral Mine Waters and Mine Wastes Geochemistry)
Browse Figures
Versions Notes

Abstract

:
Under the oxidative roasting process, pyrite, as a major mineral in sulfidic mine tailings, can transform to iron oxides. Generated iron oxides, if exhibiting enough magnetic properties, can be recovered via magnetic separation resulting in partial mine tailings valorization. However, due to the presence of various minerals and sintering possibility, it is advantageous to remove impurities and increase the pyrite content of mine tailings prior to the roasting procedure. In this case, hydrofluoric acid that has no influence on pyrite can be used to leach most inorganic minerals, including aluminosilicates. Therefore, this study investigated and compared the influence of the roasting process with and without hydrofluoric acid leaching pretreatment on mineralogical phase transformation of pyrite and magnetic properties of thermally generated minerals. Several tests and analyses were performed to study mineralogical phase transformation, morphology, elemental composition, surface characterization, and magnetic properties. Results of this study indicated that without acid leaching pretreatment, pyrite was mainly transformed to hematite. However, via acid leaching, fluorine, as a more electronegative element over oxygen, entered the compound and neglected the role of oxygen in thermal oxidation, instead reducing sulfur content of pyrite to only form pyrrhotite.

1. Introduction

Metal mining operations generate a considerable amount of waste rock and mine tailings. The latter is finely grounded during the mineral processing and is highly reactive due to the small size. Mine tailings may contain base transition metals such as iron (Fe), precious metals like gold (Au), or toxic elements including arsenic (As), in different forms such as oxides, sulfides, and hydroxides [1,2]. Due to the presence of various impurities such as silicates and aluminosilicates and the complexity of the chemical and mineralogical compositions, mine tailings recovery and reuse are difficult [3,4]. However, due to the depletion of global ore deposits and continuous high demands for metals, the recycling and reusing of mine tailings are still an interesting topic to work on. This is of great importance, since mine tailings are already fine-grain particles that may be more economically beneficial over the extraction of deep-buried ore body [5,6].
As one of the transition-metal sulfide and gangue mineral present in igneous rocks, vein deposits, and sedimentary rocks, pyrite (FeS2) coexists with some valuable minerals and metals, such as gold, copper, zinc, and nickel [7,8]. After ore beneficiation and separation of gangue minerals from ore body, a considerable amount of pyrite can be produced and transferred to the tailings ponds disposal [2,9]. Under the oxidative condition in the presence of oxygen and moisture, pyrite oxidizes and generates acid mine drainage (AMD), known as a critical environmental problem [10,11]. In this case, AMD treatments that increase the overall costs of the tailings’ management should be applied to protect the environment [12,13]. It might be environmentally and economically beneficial if the pyrite in mine tailings could be eliminated or recovered to be usable on its original or modified form [14].
Reduction-roasting is routinely used to recover valuable minerals or remove toxic elements from a variety of combinations [15,16,17]. Since minerals in mine tailings are not at equilibrium state, it is believed that during the reduction-roasting, a combination of different minerals (e.g., oxides, sulfides) and released gas (carbon dioxide, sulfur dioxide) can be produced or released. For example, calcite decomposes over 800 °C and releases CO2 whereas silicate-based minerals do not thermally decompose at the temperatures below 1000 °C [18,19]. Besides, as the temperature increases during the roasting process, particles become more prone to sintering that necessitates the performance of extra separation techniques, such as grinding, to improve the mineralogical uniformity [20,21]. Therefore, the purification of mine tailings before roasting can improve the overall mineralogical phase transformation. Reduction-roasting may also change the crystalline phase of minerals to amorphous similar to blast furnace slag as a by-product of metal recovery [22,23].
In the presence of oxygen, roasting of pyrite releases sulfur dioxide (desulfurization) that can be captured and converted to sulfuric acid, but high oxygen accessibility during the roasting may form sulfur trioxide and hamper the production of sulfuric acid [24,25]. By the occurrence of various exothermic-endothermic reactions during the pyrite’s roasting, some intermediate products (minerals) may also form, depending on the overall oxygen availability-pressure and the temperature range (Equations (1)–(7)) [26,27]. Thermal decomposition of pyrite by direct or successive oxidation in an inert or oxygen-containing atmosphere generally occurs at the temperatures higher than 600 °C [18]. As the oxygen accessibility increases during the pyrite’s thermal decomposition (Equation (3)), hematite (Fe2O3) as the main oxidation product and the most stable iron oxide at ambient condition forms, while any restriction in oxygen availability causes pyrite to mainly transform to magnetite (Fe3O4) (Equation (4)) [20,26,28,29]. However, in non-oxidative conditions, the thermal transformation of pyrite follows the sequence of pyrite/pyrrhotite/troilite/iron [30,31]. As the consequence of pyrite’s oxidation-reduction, the magnetic properties of the formed minerals will be boosted that influences the magnetic separation efficiency [29]. The mechanism of pyrite endothermic thermal transformation to pyrrhotite, as a non-stoichiometric and transition chalcogenide iron sulfide with lower sulfur content (Equation (6)), follows the unreacted core model and is followed by zero-order surface reaction, or gas film/product layer diffusion, or a combination of these mechanisms [30]. Due to the Fe vacancy on octahedral sites, potential plateaus, and high specific capacities, pyrrhotite provides an astonishing electrochemical specification that can be used as the cathode material in lithium-ion batteries [32,33,34]. Pyrite to pyrrhotite mineralogical transformation requires higher temperature over the transformation of pyrite to iron oxides, while the presence of carbon dioxide may improve the overall transformation process, as shown in Equation (7) [35,36].
FeS2(s) → FeS(s) + S(s)
FeS(s) + 5/3 O2(g) → 1/3 Fe3O4(s) + SO2(g)
1/3 Fe3O4(s) + 1/12 O2(g) → ½ Fe2O3(s)
S + O2(g) → SO2(g)
SO2(g) + ½ O2(g) → SO3(g)
FeS2(s) → FeSx(s) + (1 − 0.5x) S2(s)
FeS2(s) + 2CO2(g) →Fe1−xS(s) + 2CO(g) + SO2(g)
Acid leaching of waste materials such as mine tailings is routinely performed for different purposes, such as minerals’ dissolution and recovery [37,38,39]. However, efficient acid dissolution of target minerals could be hindered by the presence of various coexisting minerals and the formation of secondary oxidation/dissolution products [40]. To increase the concentration of pyrite in mine tailings, acid leaching is not proposed, since most of the acids dissolve pyrite [41,42]. Hydrofluoric acid (HF) that leaches most inorganic minerals including aluminosilicates through etching effect has no influence on pyrite and can be used to boost the pyrite content of mine tailings [43,44,45]. Equation (8) presents the theoretical reaction of silica with hydrofluoric acid, while silicon tetrafluoride and water are the main output of the reaction. During the leaching process, silicon tetrafluoride may react with the present metal and metalloid ions in mine tailings to precipitate as some new compounds [46,47]. Further roasting of enriched pyrite tailings generates a more homogeneous combination, while decreasing the sintering possibility simultaneously.
4HF(aq) + SiO2(s) → SiF4(g) + 2H2O(l)
The originality of the present study was to partially valorize sulfidic mine tailings by the thermal transformation of pyrite under the oxidative roasting process to a more valuable mineral that can be magnetically recovered. The novelty of this study was to beneficiate the pyrite content of mine tailings using hydrofluoric acid leaching, to improve the quality and quantity of the thermally transformed form of minerals. The influence of hydrofluoric acid pretreatment combined with the roasting operation was also investigated on the mineralogical phase transformation of pyrite.

2. Materials and Methods

2.1. Materials Collection and Preparation

Sulfidic tailings used in this study were sampled from a polymetallic underground hard rock zinc mine located in Turkey (41.040231° N, 40.765379° E). The provided tailings were first dried and then underwent physical, chemical, and mineralogical assessments. Table 1 presents the mineralogical and elemental compositions of the as-received tailings estimated by X-ray diffraction (XRD, Xpert MPD, cobalt tube, voltage 40 kV, current 40 mA, X’Pert software) and inductively coupled plasma optical emission spectrometry (ICP-OES, Model 730-ES, Varian Company, Palo Alto, CA, USA). Table 2 presents the physical characterizations of the tailings including relative density, specific surface area (characterized by BET test), and cumulative particle size distribution (determined by Malvern® Mastersizer S2000). Hydrofluoric acid (HF 40%, Merck-100335) was also used to enrich the pyrite content of the tailings by leaching.

2.2. Tailings Leaching and Roasting

To boost the pyrite content, 30 g of mine tailings were left in 90 mL cold hydrofluoric acid (40%) for 24 h. After this period, a highly agglomerated white to gray minerals (slag tailings) accumulated on top of the leached tailings; both components underwent continuous washing followed by drying before further analyses. The roasting process was performed using a laboratory high-temperature muffle furnace. Based on trial and error at lab scale, when the temperature value was changed between 700–1000 °C for a particular time between 5–60 min, roasting at 1000 °C for 15 min was found to be the optimum temperature and time that removed the maximum elemental S from the specimen, possibly in the form of SO2 or based on Equations (1) and (6) during pyrite thermal decomposition. In each cycle of the roasting experiment, the oven’s temperature fixed at 1000 °C, and 30 g of tailings were placed in the porcelain crucible and left in the oven for 15 min. Thereafter, the roasted sample was immediately removed from the oven and left in the lab atmosphere for stabilization and oxidation accomplishment.

2.3. Complementary Analyses and Tests

Different methods were used to characterize the influence of roasting and acid dissolution (leaching) on the mineralogy and chemical configuration of tailings. X-ray diffraction (XRD, Xpert MPD, copper tube, voltage 40 kV, current 40 mA) combined with Rietveld refinement method was performed to identify the mineral phases and quantification using materials analysis software (MAUD) [48]. Fourier transform infrared spectroscopy (FTIR, Bruker Optics Tensor 27 Spectrometer, 200 independent scans, resolution of 2 cm−1, 4000–400 cm−1) and thermogravimetric analysis (TG, NETZSCH STA 449 JUPITER, nitrogen gas, 10 °C/min to 1000 °C) were utilized to identify the chemical and mineralogical changes as well. Scanning electron microscopy and energy dispersive spectroscopy detector (SEM-EDS, JEOL JSM 6010 LV, OXFORD XMAX 20, 5 kv electron emission and 20 kV emission voltage) were also performed to observe the microstructure and elemental compositions of the samples. Nitrogen adsorption-desorption isotherm was also used to determine the influence of acid dissolution and roasting on surface properties of the specimens including Brunauer–Emmet–Teller (SBET) surface area, total pore volume (p/p0 = 0.990), and mean pore diameter at 77 K using BELSORP MINI II. Before BET analysis, samples were purged with nitrogen gas for 2 h at 120 °C using BEL PREP VAC II. For magnetic properties evaluation, vibrating sample magnetometer (VSM), the magnetic measurement has been carried out at room temperature with an applied field of 10 kOe. A magnetic stirrer with 1000 rpm spinning speed was used to separate the magnetic particles. In this case, water was firstly poured into the beaker (250 mL) containing a 40 mm Teflon covered stirrer bar, then tailings were added to the solution (solid/liquid ratio: 1:200) and stirred for 10 min at lab atmosphere. At the end of the experiment, the stir bar containing adhered magnet particles removed from the beaker and underwent drying and mass measurement. Based on the mass of stir bar, dried adhered particles, and the initial mass of the tailings, the recovery rate (wt%) was calculated. This inaccurate method was used due to the lack of proper equipment and insufficient amount of materials and it is not generally recommended.

3. Results

3.1. XRD Experiment

Figure 1 presents the XRD results of acid leaching on mineralogical changes of the tailings. As can be seen, a considerable amount of quartz (SiO2) was dissolved by hydrofluoric acid as the intensity of the pertinent peaks reduced in leached tailings. In addition, carbonates including smithsonite (ZnCO3), calcite (CaCO3), and dolomite (CaMg(CO3)2) were also dissolved by HF, as the related peaks were disappeared in leached tailings. However, HF did not leach pyrite (FeS2), as the relevant peaks remained constant in the leached tailings. As shown in Figure 1, the newly formed minerals in slag tailings are mainly aluminum hydroxide (Al(OH)3 or gibbsite) and fluorine-dominate minerals, including Frankamenite (K3Na3Ca5(Si12O30)F2(OH)2·(H2O)), calcium silicon fluoride hydrate (CaSiF6·2H2O), and potassium aluminum fluoride hydrate (KAlF4.H2O). A minor amount of iron oxide (magnetite or Mn3O4), iron sulfate (rozenite or Fe2SO4·4H2O), and polymorph silica (cristobalite) were also formed, while the precipitated slag tailings could be physically removed from the leached tailings. The leaching condition of this study was suitable to form a considerable amount of gibbsite as the reaction between Al3+ and OH− ions (2 θ ~18 in slag tailings), indicating higher reactivity of aluminium ions (Al) with OH over fluorine (F). The evolved peak at 2 θ = 17 in slag tailings remained unknown. Equation (9) proposes the chemical reaction between hydrofluoric acid and existing minerals in the tailings.
FeS2(s) + SO2 + ZnCO3(s) + CaMgSi2O6(s) + 4 CaCO3(s) + (Na, Ca) Al (Si,
Al)3O8(s) + MgCO3.3H2O(s) + 2NaCuS(s) + BaMg2(Al6Si9O30)(s) +14HF(aq)
+10H2O(l)→SiO2(s) + FeS2(s) + Zn+2(aq) + Mg+2(aq) + 2CaSiF6.2H2O(s) +
K3Na3Ca4Si12O30F2.(OH)2.H2O(s) + Cu+2(aq) + 10Al(OH)3(s) + Ba+2(aq) + 2CO2(g)
+SO4−2(aq) + O2(g)
Figure 2 displays the influence of roasting (15 min at 1000 °C) on acid leached and raw (original) tailings. As can be seen, the roasting of raw tailings mainly transformed pyrite to iron oxides including magnetite and hematite (Fe2O3), whereas in acid leached tailings, pyrrhotite (Fe0.95S) was the major formed mineral.
Table 3 provides the influence of roasting and acid leaching on crystallinity, amorphousness, and quantities of SiO2 and iron minerals extracted from Rietveld analysis [49]. Since raw tailings were produced from different chemical and physical operations during mineral processing, only 27% of the overall minerals were crystalline. In addition, 28.4 wt% of the minerals in raw tailings were composed of smithsonite, diopside, calcite, albite, and sodium copper sulfide, while pyrite and silica are the main mineralogical compositions (71.6 wt%). Roasting and acid leaching procedures also reduced the crystallinity and increased the amorphousness phases of minerals. Based on Table 3, the acid leaching increased the overall pyrite content, while roasting completely transformed pyrite to pyrrhotite.

3.2. Thermogravimetric Analysis

Figure 3a,b display the differential thermogravimetric (DTG) and thermogravimetric (TG) graphs of raw, acid leached, and slag tailings. The emerged peak between 620 to 670 °C presents the thermal decomposition of pyrite. This peak in acid leached and raw tailings are approximately similar (Figure 3a) equal to approximately 14.5% mass loss (Figure 3b). There are two minor peaks in slag tailings at approximately 620 and 570 °C (Figure 3a), indicating the presence of pyrite with 3.5% and rozenite with 1.5% mass loss [18]. The major peak at approximately 330 °C in slag tailings (Figure 3a) with 64.5% mass loss (Figure 3b) presents the formation of gibbsite as the main mineral, which is a well-known compound in bauxite [50,51].
As Figure 4a,b illustrate the DTG and TG thermographs of roasted raw and roasted acid leached tailings, no thermal decomposition peak for pyrite available anymore. The identical weight loss (1.55 wt%) at approximately 520 °C represents the minor formation siderite (FeCO3) indicating the marginal reactivity of carbon dioxide with iron ions [52,53]. Figure 4a also displays a negligible reactivity of calcium ions with carbon dioxide in roasted raw tailings at approximately 800 °C by the formation of CaCO3 [10].

3.3. Infrared Spectroscopy

Figure 5 displays the influence of acid leaching and roasting on the chemical condition of minerals through infrared spectroscopy. The emerged peaks at 3544–3332 and 1630–1740 cm−1 are attributed to –OH groups of hydrated minerals such as iron sulfates; the frequency bands between 2800 and 3000 cm−1 are assigned to the stretching vibration of CO2, and the bands at 1380 and 1450 cm−1 implicate the presence of carbonates [10,54]. The derived peaks at approximately 568, 791, and 1082 cm−1 were attributed to symmetric stretching of Al–O–Si and Si–O–Si bands [55]. The emerged peak at 1082 cm−1 could also present the S–O adsorption band of SO42− pertinent to thermal oxidation of pyrite [56]. The emerged peak at 730 cm−1 in slag tailings, which is similar to the 791 cm−1 peak in other specimens, indicates the structural changes of silicon-based minerals [57]. The emerged stretching band at approximately 430 cm−1 in raw and leached tailings (Figure 5a) is attributed to pyrite [58,59]. This peak in roasted specimens moved and overlapped with the stretching band at 460 cm−1 that may demonstrate the transformation of pyrite to pyrrhotite (Figure 5b). The stretching band at approximately 687 cm−1 in roasted raw and slag tailings ascribed to iron oxides as the other thermally transformed form of pyrite [60,61]. The two stretching bands in slag tailings at 730 and 1423 cm−1 illustrate the formation of fluoride-based minerals [62,63].

3.4. Microstructural and Elemental Characterization

Figure 6 displays SEM micrographs (50-100 µm) and related EDS elemental mapping, while the average extracted elemental concentrations are included in Table 4. Based on Figure 6a,b and Table 4, a considerable amount of elemental sulfur was reduced due to the roasting process. It is also evident that the oxygen and iron elements in roasted raw tailings (Figure 6b) are well linked, indicating the formation of iron oxides. In acid leached specimen (Figure 6c), the concentration of iron and sulfur are higher over the rest of the elements (Table 4), implicating the ineffectiveness of hydrofluoric acid leaching on pyrite. The concentration of silicon (Si), aluminum (Al), fluorine (F), and oxygen elements in acid leached specimen presents the newly formed minerals and leftover silicate or aluminosilicate minerals from tailings, which is in good agreement with XRD results. A more extensive hydrofluoric acid leaching may be necessary to dissolve silicate-based minerals to a higher level. The interrelation between iron and sulfur elements in roasted leached specimen (Figure 6d) displays the formation of pyrrhotite as the thermal transformation of pyrite. In contrast to the roasted raw tailings specimen (Figure 6b), no iron oxide was formed, due to the thermal oxidation of pyrite in the acid leached sample. A high concentration of fluorine, silicon, and aluminum ions in slag tailings (Figure 6e) can be seen, that declares the effectiveness of HF to dissolve minerals containing such ions. Additionally, there is a minor amount of iron connected with sulfur and oxygen (Figure 6e), indicating the physical displacement of pyrite and marginal formation of iron sulfate (rozenite), and iron oxides (magnetite).

3.5. BET Surface Properties Analysis

The surface characteristics of raw, leached, and roasted tailings specimens are summarized in Table 5. It is evident that the roasting process increased the surface area, total pore volume, and mean pore diameter of the tailings up to 4%, 13%, and 8%. Acid leaching made this difference to a higher level, including 27%, 101%, and 58% increases in surface area, total pore volume, and mean pore diameter. Roasting of leached tailings similarly increased less than 1% surface area, 14% total pore volume, and 1.5% mean pore diameter over the leached tailings. It is evident that both acid leaching and roasting procedures made the overall minerals more porous, due to the dissolution influence or impurities removal from the pores of minerals.

3.6. Magnetic Properties Results

Figure 7 displays the M-H curve of the magnetically separated roasted specimens. As can be seen, the magnetization saturation (MS) occurred at a low external field (~2000–3000 Oe), while the achieved MS values for magnetically roasted raw and magnetically roasted leached tailings were 37.16 and 31.8 emu/g. A higher MS value indicates the emergence of divalent metal ions such as Fe2+ [64]. The MS values of pyrite, pyrrhotite, hematite, magnetite, siderite, and calcite are 0.3, 2800, 20.6, 15,600, 331.45, and 0.75 emu/g [65]. Based on Figure 7, roasted raw tailings displays a higher magnetic property over the roasted leached tailings, since they mainly consist of iron oxides. The results of wet magnetic separation also confirmed that 54% of the roasted raw tailings were recovered over the 32% magnetic recovery of the roasted leached specimen. Table 6 displays the elemental EDS mapping analysis of magnetically separated specimens.

4. Discussion

4.1. Thermal Oxidation

As the results of this study indicated, hydrofluoric acid leaching was considerably beneficiated by the pyrite content of sulfidic mine tailings. However, when the beneficiated mine tailings underwent the roasting process, the pyrite completely transformed to pyrrhotite, another iron sulfide with lower sulfur content. Pyrrhotite formation from pyrite mainly occurs in the absence of oxygen [30], but in this study, oxygen was available to all the roasted specimens. To scrutinize the achieved results, the residue of raw tailings after thermogravimetric test underwent XRD analysis and it was found that all the pyrite minerals transformed to pyrrhotite, which is perceivable, due to the absence of oxygen. Therefore, leftover fluorine ions or newly formed fluorine-based minerals in leached tailings neglected the role of oxygen in the thermal transformation of pyrite to iron oxides. Fluorine is a more electronegative element than oxygen, but at the level of this study, with the current tests and methods, it was not possible to elucidate the exact mechanism of fluorine that declined the role of oxygen in the thermal transformation of pyrite. This is quite a new and considerable achievement, because if fluorine could also diminish the role of oxygen in the oxidation of pyrite in wet chemistry, one of the most challenging environmental concerns originated from mining activities, acid mine drainage (AMD), may be controllable. In this case, use of less hazardous fluorine-based components such as sodium fluoride should be examined, to see if there is any competition between the fluorine and oxygen ions, which occurs during the wet chemical oxidation. As Equation (8) proposes, a considerable amount of HF transfers to H2O and SiF4, but the leftover acid residue may still be useable in a new leaching process depending on the quality of the acid; acid neutralization with lime can also be considered to protect the environment.

4.2. Sintering and Technological Aspects

Both roasted raw and roasted leached tailings were magnetically recovered (54 and 32 wt%), but the recovery rate in the oxide-based combination was higher than that of sulfide-based [66]. This is noticeable, since the magnetic saturation value of pyrrhotite is higher than that of hematite [65], but apparently the roasting process was more efficient in improving the magnetic properties of iron oxides. The recovered minerals still contain some impurities (e.g., silicates), implicating the sintering influence of the roasting process. Figure 8 displays the sintered silica particles on the surface of iron oxide particle on magnetically separated roasted raw tailings. To improve the magnetic separation quality, performing secondary operation such as milling is necessary. A dedicated section in the mineral processing plant at mine site should be established for the proposed mine tailings valorization. This section should consist of a roasting part (e.g., furnace) and pools or containers for acid leaching (for pyrrhotite generation). The reusing or neutralization of acid after leaching should be estimated on-site depending on the quality of leftover acid. However, some of the instruments, such as grinders and separators are available in the mineral processing plant that may legitimate the tailings thermal treatment on mine site, collection, and transportation of mine tailings to a metallurgy plant (iron and steel industry) is another option that should be considered and evaluated based on capital.

5. Conclusions

Acid leaching and roasting procedures are used to valorize and purify sulfidic mine tailings in this study. It was found that the oxidative roasting process of the sulfidic mine tailings containing 32.4 wt% pyrite at 1000 °C for 15 min boosted the iron oxide content (hematite) of the combination by up to 41.5%. At the same condition when hydrofluoric acid beneficiation was applied to remove silicate-based minerals from mine tailings, the pyrrhotite content of the compound elevated to 79.2 wt%. Based on SEM-EDS observations, the presence of elemental fluorine ions or formed fluorine-based minerals during acid leaching prevented the thermal transformation of pyrite to iron oxides, indicating a competition between fluorine and oxygen ions during thermal oxidation. The roasting process improved the overall magnetic properties of hematite more importantly than that of pyrrhotite, even though the original magnetic saturation value of pyrrhotite was higher. In this case, the magnetic recovery rate of the hematite-based compounds was 54 wt%, while the magnetic recovery rate of pyrrhotite-based mixture was 32 wt%. Silica particles could not be completely separated from iron oxides due to the sintering influence that necessitates the performance of secondary operations such as milling.

Author Contributions

Conceptualization, B.K. and A.K.D.; Methodology, B.K., P.M. and E.D.; Data Curation, B.K. and E.Y. (Erol Yilmaz); Formal Analysis, A.K.D. and E.Y. (Erol Yilmaz); Investigation, B.K., P.M. and E.D.; Writing—Original Draft Preparation, B.K. and A.K.D.; Validation, Writing—Review and Editing, A.K.D., E.Y. (Erol Yilmaz), P.M., E.D. and E.Y. (Elif Yilmaz); Visualization, all; All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by Iran National Science Foundation (INSF) with a research grant (NO:96016805, 2018).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tayebi-Khorami, M.; Edraki, M.; Corder, G.; Golev, A. Re-Thinking Mining Waste Through an Integrative Approach Led by Circular Economy Aspirations. Minerals 2019, 9, 286. [Google Scholar] [CrossRef] [Green Version]
  2. Falagán, C.; Grail, B.M.; Johnson, D.B. New approaches for extracting and recovering metals from mine tailings. Miner. Eng. 2017, 106, 71–78. [Google Scholar] [CrossRef]
  3. Zhang, Y.; Li, H.; Yu, X. Recovery of iron from cyanide tailings with reduction roasting–water leaching followed by magnetic separation. J. Hazard. Mater. 2012, 213, 167–174. [Google Scholar] [CrossRef] [PubMed]
  4. Koohestani, B. Effect of saline admixtures on mechanical and microstructural properties of cementitious matrices containing tailings. Constr. Build. Mater. 2017, 156, 1019–1027. [Google Scholar] [CrossRef]
  5. Johnson, D. The evolution, current status, and future prospects of using biotechnologies in the mineral extraction and metal recovery sectors. Minerals 2018, 8, 343. [Google Scholar] [CrossRef] [Green Version]
  6. Gorakhki, M.H.; Bareither, C.A. Sustainable reuse of mine tailings and waste rock as water-balance covers. Minerals 2017, 7, 128. [Google Scholar] [CrossRef] [Green Version]
  7. Ilyas, S. Gold Ore Processing and Environmental Impacts: An Introduction. In Gold Metallurgy and the Environment; CRC Press: Boca Raton, FL, USA, 2018; pp. 1–28. [Google Scholar]
  8. Qian, G.; Fan, R.; Short, M.D.; Schumann, R.C.; Li, J.; St. C. Smart, R.; Gerson, A.R. The effects of galvanic interactions with pyrite on the generation of acid and metalliferous drainage. Environ. Sci. Technol. 2018, 52, 5349–5357. [Google Scholar] [CrossRef]
  9. Fashola, M.; Ngole-Jeme, V.; Babalola, O. Heavy metal pollution from gold mines: Environmental effects and bacterial strategies for resistance. Int. J. Environ. Res. Public Health 2016, 13, 1047. [Google Scholar] [CrossRef] [Green Version]
  10. Koohestani, B.; Darban, A.K.; Darezereshki, E.; Mokhtari, P.; Yilmaz, E.; Yilmaz, E. The influence of sodium and sulfate ions on total solidification and encapsulation potential of iron-rich acid mine drainage in silica gel. J. Environ. Chem. Eng. 2018, 6, 3520–3527. [Google Scholar] [CrossRef]
  11. Giordani, A.; Rodriguez, R.P.; Sancinetti, G.P.; Hayashi, E.A.; Beli, E.; Brucha, G. Effect of low pH and metal content on microbial community structure in an anaerobic sequencing batch reactor treating acid mine drainage. Miner. Eng. 2019, 141, 105860. [Google Scholar] [CrossRef]
  12. Igarashi, T.; Herrera, P.S.; Uchiyama, H.; Miyamae, H.; Iyatomi, N.; Hashimoto, K.; Tabelin, C.B. The two-step neutralization ferrite-formation process for sustainable acid mine drainage treatment: Removal of copper, zinc and arsenic, and the influence of coexisting ions on ferritization. Sci. Total Environ. 2020, 715, 136877. [Google Scholar] [CrossRef] [PubMed]
  13. Park, I.; Tabelin, C.B.; Jeon, S.; Li, X.; Seno, K.; Ito, M.; Hiroyoshi, N. A review of recent strategies for acid mine drainage prevention and mine tailings recycling. Chemosphere 2019, 219, 588–606. [Google Scholar] [CrossRef] [PubMed]
  14. Primo, E.N.; Bracamonte, M.V.; Luque, G.L.; Bercoff, P.G.; Leiva, E.P.; Barraco, D.E. Mechanochemically synthesized pyrite and its electrochemical behavior as cathode for lithium batteries. J. Solid State Electrochem. 2019, 23, 1929–1938. [Google Scholar] [CrossRef]
  15. Salisbury, T.; White, J. The Advantages of Thermal Analysis Prior to Bench-Scale Roasting. In Drying, Roasting, and Calcining of Minerals; Springer: Berlin, Germany, 2015; pp. 27–34. [Google Scholar]
  16. Cai, Z.; Zhang, Y.; Liu, T.; Huang, J. Mechanisms of vanadium recovery from stone coal by novel BaCO3/CaO composite additive roasting and acid leaching technology. Minerals 2016, 6, 26. [Google Scholar] [CrossRef]
  17. Petrus, H.T.B.M.; Putera, A.D.P.; Sugiarto, E.; Perdana, I.; Warmada, I.W.; Nurjaman, F.; Astuti, W.; Mursito, A.T. Kinetics on roasting reduction of limonitic laterite ore using coconut-charcoal and anthracite reductants. Miner. Eng. 2019, 132, 126–133. [Google Scholar] [CrossRef]
  18. Koohestani, B.; Khodadadi Darban, A.; Mokhtari, P. A comparison between the influence of superplasticizer and organosilanes on different properties of cemented paste backfill. Constr. Build. Mater. 2018, 173, 180–188. [Google Scholar] [CrossRef]
  19. Deng, W.; Wright, R.; Boden-Hook, C.; Bingham, P.A. Melting behavior of waste glass cullet briquettes in soda-lime-silica container glass batch. Int. J. Appl. Glass Sci. 2019, 10, 125–137. [Google Scholar] [CrossRef]
  20. Li, L.; Polanco, C.; Ghahreman, A. Fe (III)/Fe (II) reduction-oxidation mechanism and kinetics studies on pyrite surfaces. J. Electroanal. Chem. 2016, 774, 66–75. [Google Scholar] [CrossRef]
  21. Wang, G.; Ning, X.-A.; Lu, X.; Lai, X.; Cai, H.; Liu, Y.; Zhang, T. Effect of sintering temperature on mineral composition and heavy metals mobility in tailings bricks. Waste Manag. 2019, 93, 112–121. [Google Scholar] [CrossRef]
  22. Yang, M.; Zhu, Q.-S.; Fan, C.-L.; Xie, Z.-H.; Li, H.-Z. Roasting-induced phase change and its influence on phosphorus removal through acid leaching for high-phosphorus iron ore. Int. J. Miner. Metall. Mater. 2015, 22, 346–352. [Google Scholar] [CrossRef]
  23. Rzepa, G.; Bajda, T.; Gaweł, A.; Debiec, K.; Drewniak, L. Mineral transformations and textural evolution during roasting of bog iron ores. J. Therm. Anal. Calorim. 2016, 123, 615–630. [Google Scholar] [CrossRef] [Green Version]
  24. Apodaca, L.E.; d’Aquin, G.E.; Fell, R.C. Sulfur and Sulfuric Acid. In Handbook of Industrial Chemistry and Biotechnology; Springer: Berlin, Germany, 2017; pp. 1241–1266. [Google Scholar]
  25. Zhang, Y.; Li, Q.; Liu, X.; Xu, B.; Yang, Y.; Jiang, T. A Thermodynamic Analysis on the Roasting of Pyrite. Minerals 2019, 9, 220. [Google Scholar] [CrossRef] [Green Version]
  26. Runkel, M.; Sturm, P. Pyrite roasting, an alternative to sulphur burning. J. South. Afr. Inst. Min. Metall. 2009, 109, 491–496. [Google Scholar]
  27. Zhang, Y.; Ge, X.; Nakano, J.; Liu, L.; Wang, X.; Zhang, Z. Pyrite transformation and sulfur dioxide release during calcination of coal gangue. RSC Adv. 2014, 4, 42506–42513. [Google Scholar] [CrossRef]
  28. Legodi, M.; De Waal, D. The preparation of magnetite, goethite, hematite and maghemite of pigment quality from mill scale iron waste. Dye. Pigment. 2007, 74, 161–168. [Google Scholar] [CrossRef]
  29. Elfiad, A.; Galli, F.; Djadoun, A.; Sennour, M.; Chegrouche, S.; Meddour-Boukhobza, L.; Boffito, D.C. Natural α-Fe2O3 as an efficient catalyst for the p-nitrophenol reduction. Mater. Sci. Eng.: B 2018, 229, 126–134. [Google Scholar] [CrossRef]
  30. Hu, G.; Dam-Johansen, K.; Wedel, S.; Hansen, J.P. Decomposition and oxidation of pyrite. Prog. Energy Combust. Sci. 2006, 32, 295–314. [Google Scholar] [CrossRef]
  31. Lu, P.; Chen, T.; Liu, H.; Li, P.; Peng, S.; Yang, Y. Green Preparation of Nanoporous Pyrrhotite by Thermal Treatment of Pyrite as an Effective Hg (Ⅱ) Adsorbent: Performance and Mechanism. Minerals 2019, 9, 74. [Google Scholar] [CrossRef] [Green Version]
  32. Zhang, K.; Zhang, T.; Liang, J.; Zhu, Y.; Lin, N.; Qian, Y. A potential pyrrhotite (Fe 7 S 8) anode material for lithium storage. RSC Adv. 2015, 5, 14828–14831. [Google Scholar] [CrossRef]
  33. Veerasubramani, G.K.; Subramanian, Y.; Park, M.-S.; Nagaraju, G.; Senthilkumar, B.; Lee, Y.-S.; Kim, D.-W. Enhanced storage ability by using a porous pyrrhotite@ N-doped carbon yolk–shell structure as an advanced anode material for sodium-ion batteries. J. Mater. Chem. A 2018, 6, 20056–20068. [Google Scholar] [CrossRef]
  34. Qin, H.; Jia, J.; Lin, L.; Ni, H.; Wang, M.; Meng, L. Pyrite FeS2 nanostructures: Synthesis, properties and applications. Mater. Sci. Eng.: B 2018, 236, 104–124. [Google Scholar] [CrossRef]
  35. Bhargava, S.; Garg, A.; Subasinghe, N. In situ high-temperature phase transformation studies on pyrite. Fuel 2009, 88, 988–993. [Google Scholar] [CrossRef]
  36. Liu, S.; Ma, W.; Zhang, Y.; Zhang, Y.; Qi, K. Sequential transformation behavior of iron-bearing minerals during underground coal gasification. Minerals 2018, 8, 90. [Google Scholar]
  37. Lai, H.; Huang, L.; Gan, C.; Xing, P.; Li, J.; Luo, X. Enhanced acid leaching of metallurgical grade silicon in hydrofluoric acid containing hydrogen peroxide as oxidizing agent. Hydrometallurgy 2016, 164, 103–110. [Google Scholar] [CrossRef]
  38. Yu, W.; Wen, X.; Chen, J.; Tang, Q.; Dong, W.; Zhong, J. Effect of Sodium Borate on the Preparation of TiN from Titanomagnetite Concentrates by Carbothermic Reduction–Magnetic Separation and Acid Leaching Process. Minerals 2019, 9, 675. [Google Scholar] [CrossRef] [Green Version]
  39. Yun, Y.; Stopic, S.; Friedrich, B. Valorization of Rare Earth Elements from a Steenstrupine Concentrate Via a Combined Hydrometallurgical and Pyrometallurgical Method. Minerals 2020, 10, 248. [Google Scholar] [CrossRef] [Green Version]
  40. Tabelin, C.B.; Corpuz, R.D.; Igarashi, T.; Villacorte-Tabelin, M.; Alorro, R.D.; Yoo, K.; Raval, S.; Ito, M.; Hiroyoshi, N. Acid mine drainage formation and arsenic mobility under strongly acidic conditions: Importance of soluble phases, iron oxyhydroxides/oxides and nature of oxidation layer on pyrite. J. Hazard. Mater. 2020, 390, 122844. [Google Scholar] [CrossRef]
  41. Mahmoud, M.A.; Kamal, M.; Bageri, B.S.; Hussein, I. Removal of Pyrite and Different Types of Iron Sulfide Scales in Oil and Gas Wells without H 2 S Generation. In Proceedings of the International Petroleum Technology Conference, Doha, Qatar, 6–9 December 2015. [Google Scholar]
  42. Peiffer, S.; Behrends, T.; Hellige, K.; Larese-Casanova, P.; Wan, M.; Pollok, K. Pyrite formation and mineral transformation pathways upon sulfidation of ferric hydroxides depend on mineral type and sulfide concentration. Chem. Geol. 2015, 400, 44–55. [Google Scholar] [CrossRef]
  43. Galukhin, A.; Gerasimov, A.; Nikolaev, I.; Nosov, R.; Osin, Y. Pyrolysis of Kerogen of Bazhenov Shale: Kinetics and Influence of Inherent Pyrite. Energy Fuels 2017, 31, 6777–6781. [Google Scholar] [CrossRef]
  44. Neuerburg, G.J. A method of mineral separation using hydrofluoric acid. Am. Mineral. 1961, 46, 1498–1501. [Google Scholar]
  45. Ji, Y.; Yang, S.; Li, Z.; Duan, J.; Xu, M.; Jiang, H.; Li, C.; Chen, Y. Mechanistic Insight into Etching Chemistry and HF-Assisted Etching of MgO-Al2O3-SiO2 Glass-Ceramic. Materials 2018, 11, 1631. [Google Scholar] [CrossRef] [Green Version]
  46. Schaefer, L.; Fegley Jr, B. Silicon tetrafluoride on Io. Icarus 2005, 179, 252–258. [Google Scholar] [CrossRef] [Green Version]
  47. Shimizu, K.; Cramb, A. Fluoride evaporation from CaF2-SiO2-CaO slags and mold fluxes in dry and humid atmospheres. High Temp. Mater. Processes 2003, 22, 237–246. [Google Scholar] [CrossRef]
  48. Nowak, S.; Lafon, S.; Caquineau, S.; Journet, E.; Laurent, B. Quantitative study of the mineralogical composition of mineral dust aerosols by X-ray diffraction. Talanta 2018, 186, 133–139. [Google Scholar] [CrossRef] [PubMed]
  49. Tabelin, C.B.; Corpuz, R.D.; Igarashi, T.; Villacorte-Tabelin, M.; Ito, M.; Hiroyoshi, N. Hematite-catalysed scorodite formation as a novel arsenic immobilisation strategy under ambient conditions. Chemosphere 2019, 233, 946–953. [Google Scholar] [CrossRef] [PubMed]
  50. Denigres Filho, R.W.N.; Rocha, G.D.A.; Montes, C.R.; Vieira-Coelho, A.C. Synthesis and characterization of boehmites obtained from gibbsite in presence of different environments. Mater. Res. 2016, 19, 659–668. [Google Scholar] [CrossRef] [Green Version]
  51. Cao, J. Synthesis of Anisotropic Plate-Like Nanostructures Using Gibbsite Nanoplates as the Template; Mathematisch-Naturwissenschaftliche Fakultät, Humboldt-Universität zu Berlin: Berlin, Geramny, 2017. [Google Scholar]
  52. Zhang, X.; Han, Y.; Li, Y.; Sun, Y. Effect of heating rate on pyrolysis behavior and kinetic characteristics of siderite. Minerals 2017, 7, 211. [Google Scholar] [CrossRef] [Green Version]
  53. Xing, B.; Chen, T.; Liu, H.; Qing, C.; Xie, J.; Xie, Q. Removal of phosphate from aqueous solution by activated siderite ore: Preparation, performance and mechanism. J. Taiwan Inst. Chem. Eng. 2017, 80, 875–882. [Google Scholar] [CrossRef]
  54. Zhu, Y.; Liu, H.; Chen, T.; Xu, B.; Li, P. Kinetics and thermodynamics of Eu (III) adsorption onto synthetic monoclinic pyrrhotite. J. Mol. Liq. 2016, 218, 565–570. [Google Scholar] [CrossRef]
  55. Rosas, C.; Arredondo-Rea, S.; Cruz-Enríquez, A.; Corral Higuera, R.; Cervantes, M.J.; Gómez-Soberón, J.; Medina-Serna, T.D.J. Influence of Size Reduction of Fly Ash Particles by Grinding on the Chemical Properties of Geopolymers. Appl. Sci. 2018, 8, 365. [Google Scholar] [CrossRef] [Green Version]
  56. Tabelin, C.B.; Veerawattananun, S.; Ito, M.; Hiroyoshi, N.; Igarashi, T. Pyrite oxidation in the presence of hematite and alumina: I. Batch leaching experiments and kinetic modeling calculations. Sci. Total Environ. 2017, 580, 687–698. [Google Scholar] [CrossRef]
  57. Tabelin, C.B.; Sasaki, R.; Igarashi, T.; Park, I.; Tamoto, S.; Arima, T.; Ito, M.; Hiroyoshi, N. Simultaneous leaching of arsenite, arsenate, selenite and selenate, and their migration in tunnel-excavated sedimentary rocks: I. Column experiments under intermittent and unsaturated flow. Chemosphere 2017, 186, 558–569. [Google Scholar] [CrossRef]
  58. Dunn, J.; Gong, W.; Shi, D. A Fourier transform infrared study of the oxidation of pyrite. Thermochim. Acta 1992, 208, 293–303. [Google Scholar] [CrossRef]
  59. Chukanov, N.V.; Chervonnyi, A.D. Infrared Spectroscopy of Minerals and Related Compounds; Springer International Publishing: Berlin, Germany, 2016. [Google Scholar]
  60. Jubb, A.M.; Allen, H.C. Vibrational spectroscopic characterization of hematite, maghemite, and magnetite thin films produced by vapor deposition. ACS Appl. Mater. Interfaces 2010, 2, 2804–2812. [Google Scholar] [CrossRef]
  61. Darezereshki, E. One-step synthesis of hematite (α-Fe2O3) nano-particles by direct thermal-decomposition of maghemite. Mater. Lett. 2011, 65, 642–645. [Google Scholar] [CrossRef]
  62. Kalem, S. Synthesis of ammonium silicon fluoride cryptocrystals on silicon by dry etching. Appl. Surf. Sci. 2004, 236, 336–341. [Google Scholar] [CrossRef] [Green Version]
  63. Chukanov, N.V. Infrared spectra of mineral species. In Extended library; Springer: Dordrecht, The Netherlands, 2013. [Google Scholar]
  64. Tholkappiyan, R.; Vishista, K. Tuning the composition and magnetostructure of dysprosium iron garnets by Co-substitution: An XRD, FT-IR, XPS and VSM study. Appl. Surf. Sci. 2015, 351, 1016–1024. [Google Scholar] [CrossRef]
  65. Kawatra, S.K.; Eisele, T.C. Coal Desulfurization. In High-Efficiency Preparation Methods; Taylor & Francis: Milton Park, UK, 2001. [Google Scholar]
  66. Lv, J.-F.; Zhang, H.-P.; Tong, X.; Fan, C.-L.; Yang, W.-T.; Zheng, Y.-X. Innovative methodology for recovering titanium and chromium from a raw ilmenite concentrate by magnetic separation after modifying magnetic properties. J. Hazard. Mater. 2017, 325, 251–260. [Google Scholar] [CrossRef]
Minerals 10 00513 g001 550
Figure 1. XRD results of hydrofluoric acid leaching on tailings.
Figure 1. XRD results of hydrofluoric acid leaching on tailings.
Minerals 10 00513 g001
Minerals 10 00513 g002 550
Figure 2. XRD results of roasted tailings specimens.
Figure 2. XRD results of roasted tailings specimens.
Minerals 10 00513 g002
Minerals 10 00513 g003 550

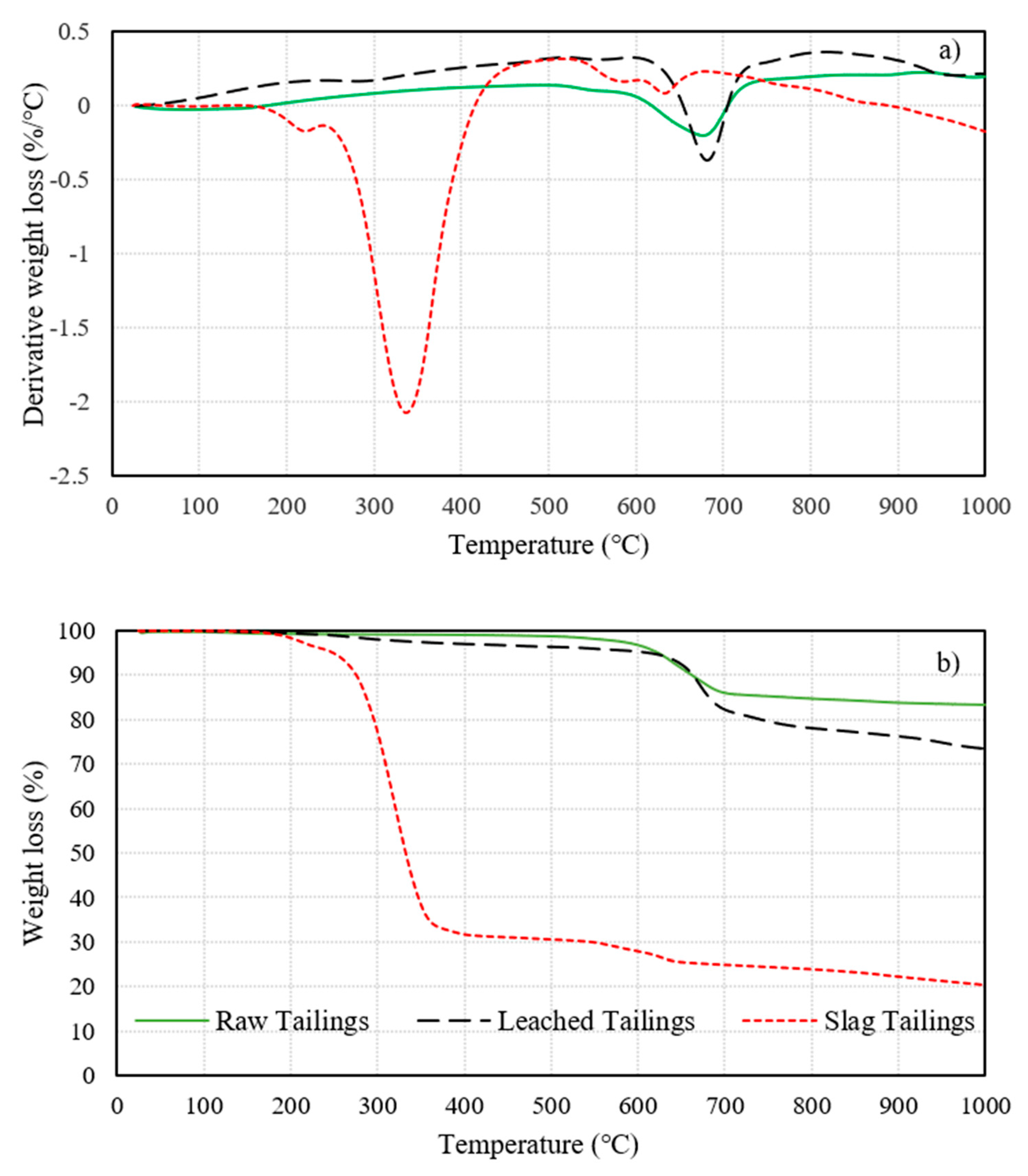

Figure 3. Differential thermogravimetric (a) and thermogravimetric (b) graphs of raw, acid leached, and slag tailings.
Figure 3. Differential thermogravimetric (a) and thermogravimetric (b) graphs of raw, acid leached, and slag tailings.
Minerals 10 00513 g003
Minerals 10 00513 g004 550
Figure 4. Differential thermogravimetric (a) and thermogravimetric (b) graphs of roasted tailings.
Figure 4. Differential thermogravimetric (a) and thermogravimetric (b) graphs of roasted tailings.
Minerals 10 00513 g004
Minerals 10 00513 g005 550

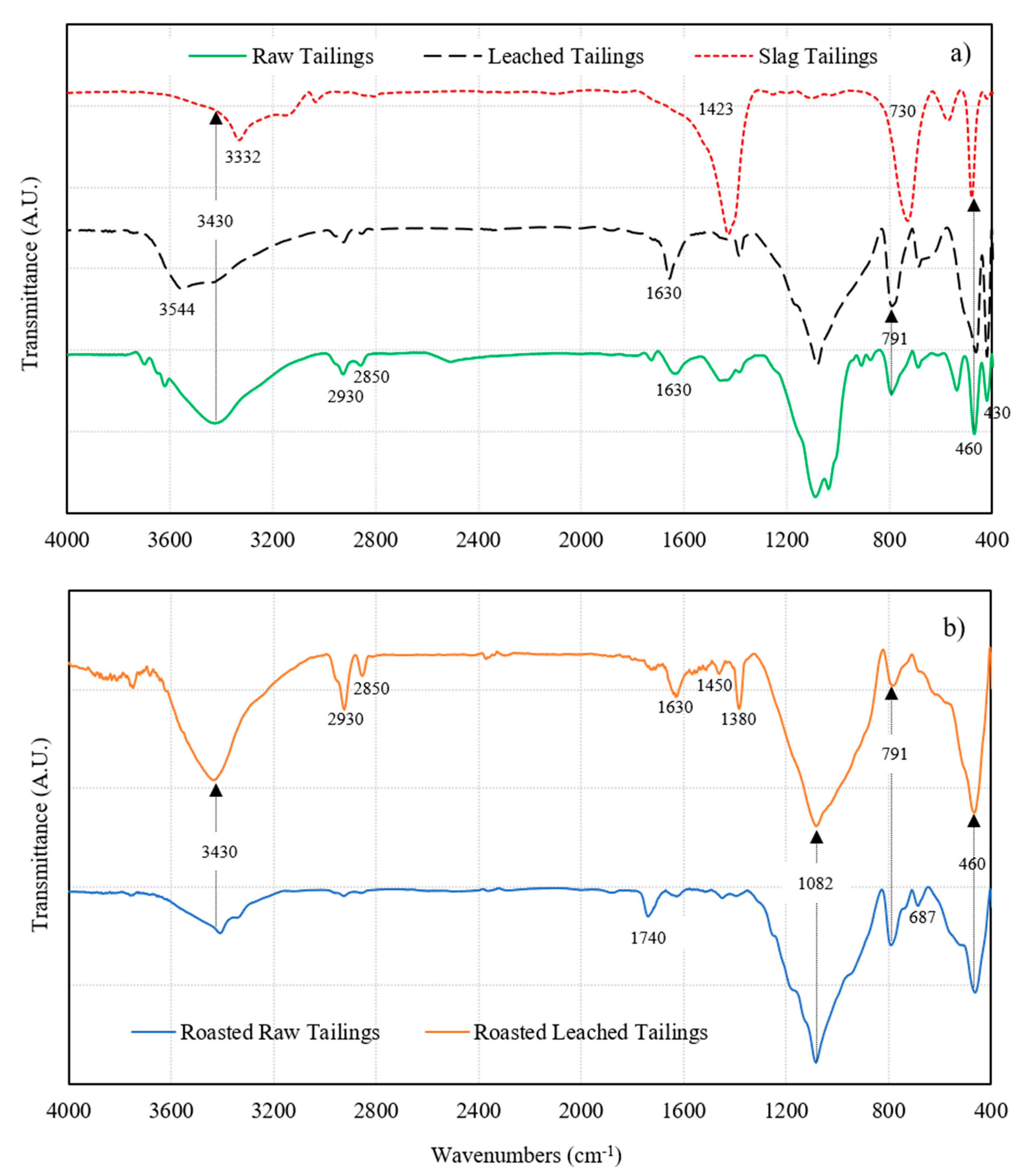

Figure 5. FTIR spectrum of (a) raw-leached-slag tailings (b) roasted raw-leached tailings.
Figure 5. FTIR spectrum of (a) raw-leached-slag tailings (b) roasted raw-leached tailings.
Minerals 10 00513 g005
Minerals 10 00513 g006a 550Minerals 10 00513 g006b 550Minerals 10 00513 g006c 550

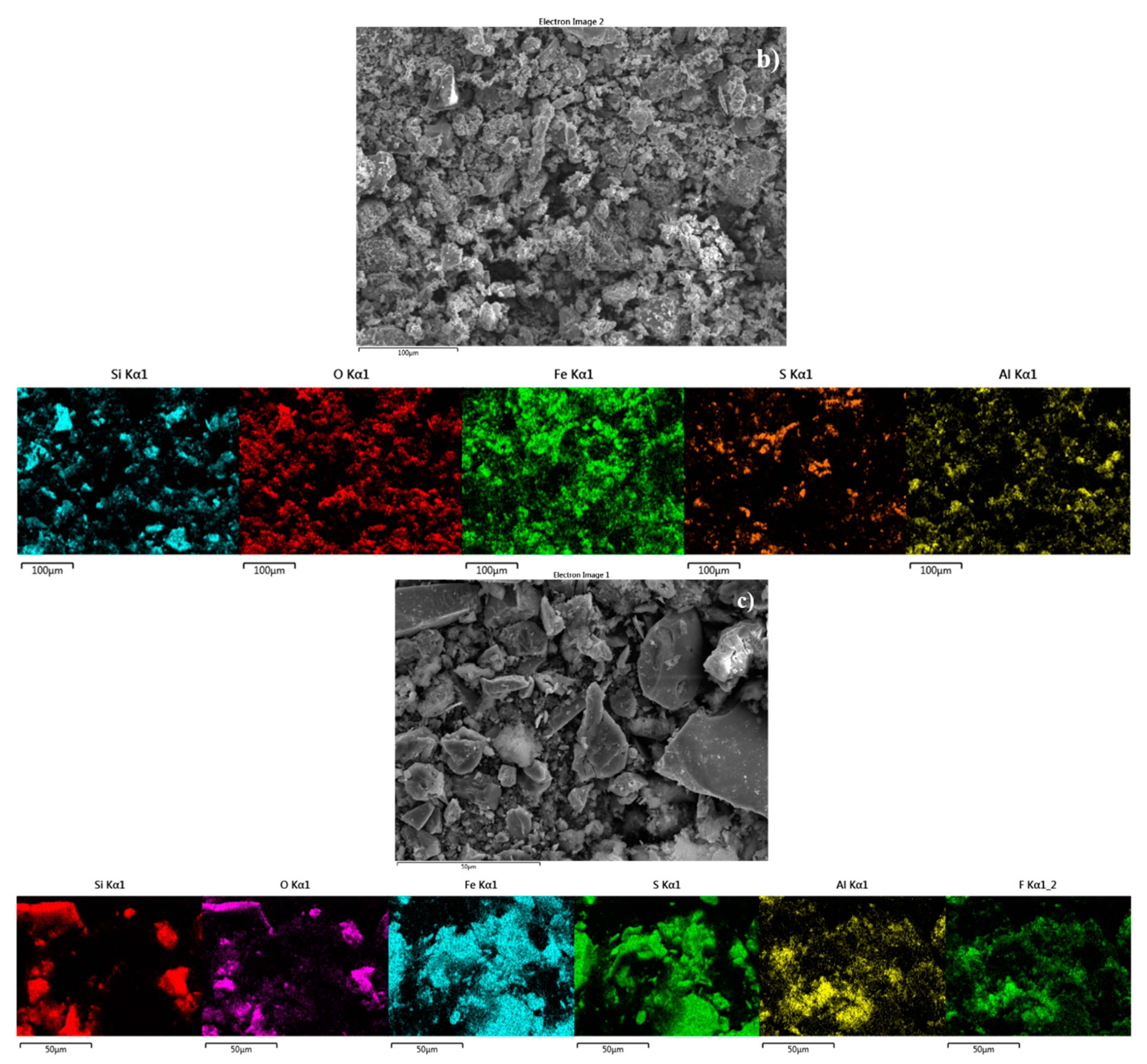

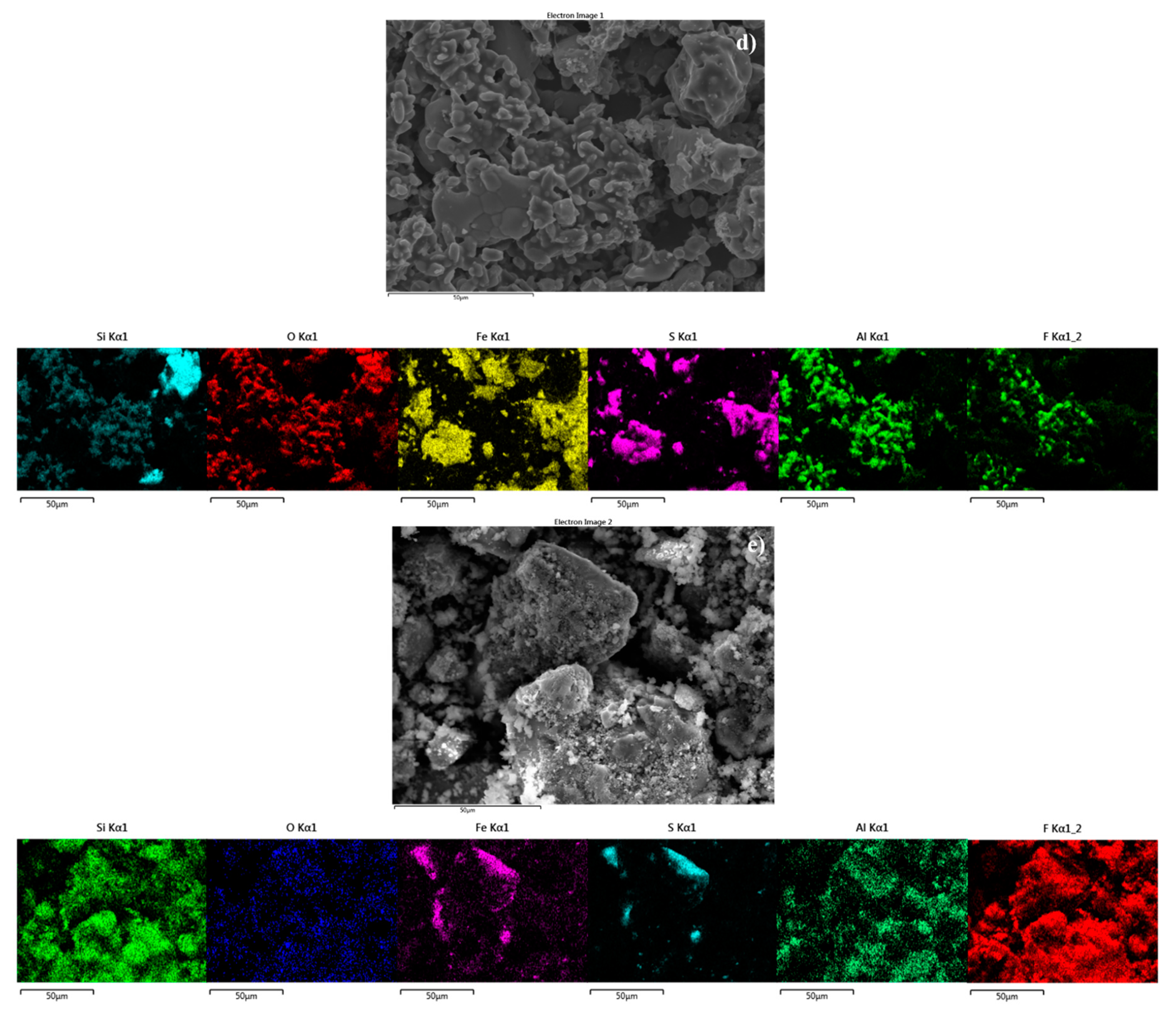

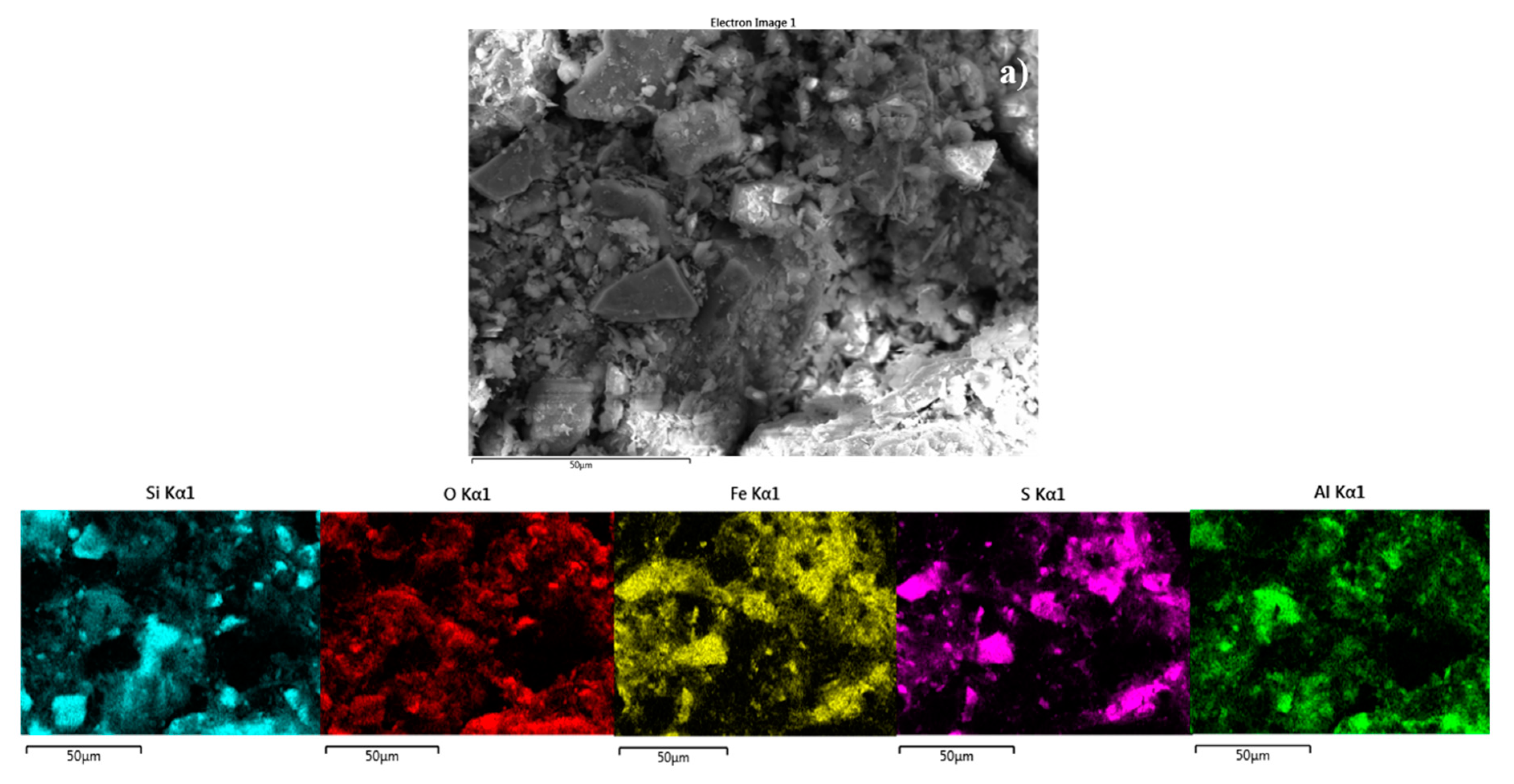

Figure 6. SEM images (50–100 µm) and EDS mapping of (a) raw, (b) roasted raw, (c) leached, (d) roasted leached, (e) slag tailings.
Figure 6. SEM images (50–100 µm) and EDS mapping of (a) raw, (b) roasted raw, (c) leached, (d) roasted leached, (e) slag tailings.
Minerals 10 00513 g006aMinerals 10 00513 g006bMinerals 10 00513 g006c
Minerals 10 00513 g007 550
Figure 7. Magnetic hysteresis curves of roasted raw and roasted acid leached tailings.
Figure 7. Magnetic hysteresis curves of roasted raw and roasted acid leached tailings.
Minerals 10 00513 g007
Minerals 10 00513 g008 550
Figure 8. EDS images of magnetically separated roasted raw tailings.
Figure 8. EDS images of magnetically separated roasted raw tailings.
Minerals 10 00513 g008
Table
Table 1. Main chemical and mineralogical composition of the tailings.
Table 1. Main chemical and mineralogical composition of the tailings.
Elemental CompositionMineralogy
Elementwt%
Al2.742Quartz (SiO2)
As0.008Pyrite (FeS2)
Si20.9Smithsonite (ZnCO3)
Ca1.242Diopside (CaMgSi2O6)
Cu0.264Calcite (CaCO3)
Fe17.3Albite (Na, Ca)Al(Si, Al)3O8
K0.428Sodium copper sulfide Na(Cu4S4)
Na0.174
Mg1.271
Zn0.342
S15.09
Table
Table 2. Physical properties of tailings.
Table 2. Physical properties of tailings.
Specific Surface Area (m2/g)Relative Density
(g/cm3)		Particle Size Distribution
(µm)
3.513.72d(10%): 8.6d(50%): 73.67d(80%): 134.89d(90%): 176.67
Table
Table 3. The obtained results from Rietveld analysis.
Table 3. The obtained results from Rietveld analysis.
SpecimenMinerals%
Silicon Dioxide
(wt%)		Pyrite
(wt%)		Pyrrhotite
(wt%)		Hematite
(wt%)		Magnetite
(wt%)		Crystallinity
(%)		Amorphous Phases
(%)
Raw tailings39.232.4---2773
Roasted raw tailings14.80.7-41.51.715.684.4
Leached tailings25.974.1---19.280.8
Roasted leached tailings20.8-79.2--12.687.4
Slag tailings3.111.2--7.23367
Table
Table 4. The semi-quantitative average elemental compositions extracted from EDS Map spectrum.
Table 4. The semi-quantitative average elemental compositions extracted from EDS Map spectrum.
SpecimenElements (wt%)
AlSiCaMgFeSOKF
Raw tailings3.516.40.8122.914.928.60.6-
Roasted raw tailings4.715.12.81.537.64.624.70.7-
Leached tailings2.710.60.8124.521.613.60.213.6
Roasted leached tailings9.710.20.84.527.88.715.50.214.7
Slag tailings312.81.91.113.15.90.70.748.2
Table
Table 5. Structural surface characteristics of the specimens.
Table 5. Structural surface characteristics of the specimens.
SampleSBET
(m2·g−1)		Total Pore Volume
(cm−3·g−1)		Mean Pore Diameter
(nm)
Raw tailings3.6750.018320.01
Roasted raw tailings3.8580.020921.70
Leached tailings4.6880.037031.62
Roasted leached tailings4.7310.042332.11
Table
Table 6. The semi-quantitative average elemental compositions of magnetic separated specimens from EDS Mapping.
Table 6. The semi-quantitative average elemental compositions of magnetic separated specimens from EDS Mapping.
SpecimenElements (wt%)
AlSiCaMgFeSOKF
Magnetically separated roasted raw tailings5.311.82.91.653.8613.40.8-
Magnetically separated roasted leached tailings0.37.54--47.528.58.5-2.6

Share and Cite

MDPI and ACS Style

Koohestani, B.; Darban, A.K.; Mokhtari, P.; Darezereshki, E.; Yilmaz, E.; Yilmaz, E. Influence of Hydrofluoric Acid Leaching and Roasting on Mineralogical Phase Transformation of Pyrite in Sulfidic Mine Tailings. Minerals 2020, 10, 513. https://doi.org/10.3390/min10060513

AMA Style

Koohestani B, Darban AK, Mokhtari P, Darezereshki E, Yilmaz E, Yilmaz E. Influence of Hydrofluoric Acid Leaching and Roasting on Mineralogical Phase Transformation of Pyrite in Sulfidic Mine Tailings. Minerals. 2020; 10(6):513. https://doi.org/10.3390/min10060513

Chicago/Turabian Style

Koohestani, Babak, Ahmad Khodadadi Darban, Pozhhan Mokhtari, Esmaeel Darezereshki, Erol Yilmaz, and Elif Yilmaz. 2020. "Influence of Hydrofluoric Acid Leaching and Roasting on Mineralogical Phase Transformation of Pyrite in Sulfidic Mine Tailings" Minerals 10, no. 6: 513. https://doi.org/10.3390/min10060513

APA Style

Koohestani, B., Darban, A. K., Mokhtari, P., Darezereshki, E., Yilmaz, E., & Yilmaz, E. (2020). Influence of Hydrofluoric Acid Leaching and Roasting on Mineralogical Phase Transformation of Pyrite in Sulfidic Mine Tailings. Minerals, 10(6), 513. https://doi.org/10.3390/min10060513

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
