Geochemical Assessment of Desulphurized Tailings as Cover Material in Cold Climates
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Methods
2.3. Environmental Performance of ICCBEs
2.3.1. Experimental Design

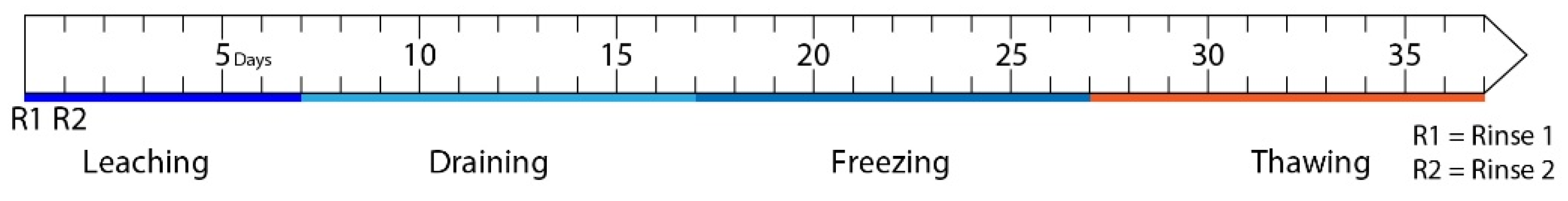

2.3.2. Experimental Approach
3. Results and Discussion
3.1. Physical, Mineralogical, and Chemical Characteristics of the Materials
3.2. Quality of Leachates

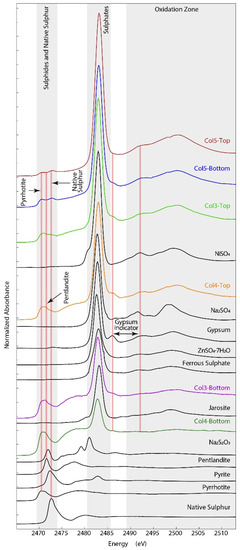

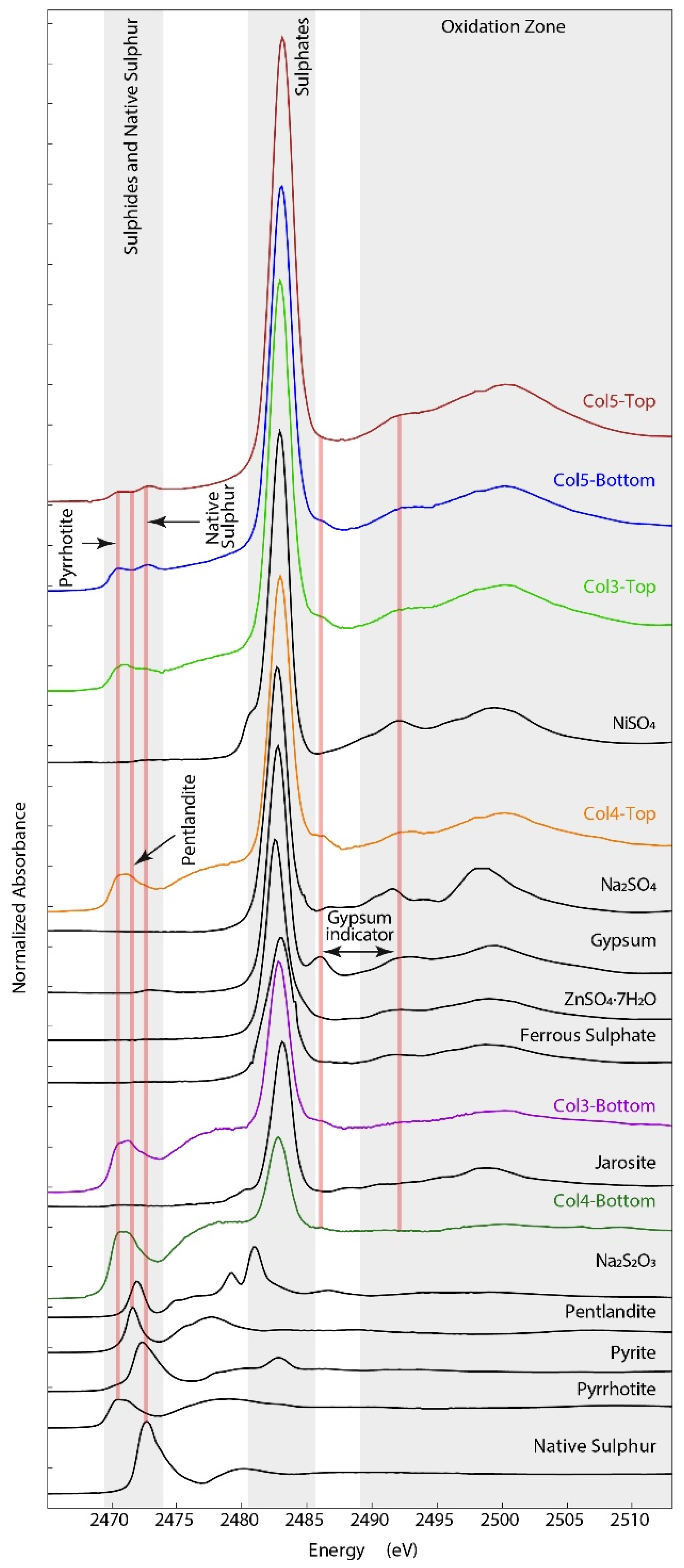

3.2.1. High Sulphate Leachates
3.2.2. The Efficiency of DST vs. RT to Control Ni and Zn Leaching
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Lottermoser, B. Mine Wastes Characterization, Treatment and Environmental Impacts; Springer: Berlin, Germany, 2014; ISBN 9783642446092. [Google Scholar]
- Blowes, D.W.; Ptacek, C.J.; Jambor, J.L.; Weisener, C.G.; Paktunc, D.; Gould, W.D.; Johnson, D.B. The Geochemistry of Acid Mine Drainage. In Treatise on Geochemistry: Second Edition; Elsevier Inc.: Amsterdam, The Netherlands, 2013; Volume 11, pp. 131–190. ISBN 9780080983004. [Google Scholar]
- Bussière, B.; Guittonny, M. Hard Rock Mine Reclamation: From Prediction to Management of Acid Mine Drainage; CRC Press: Boca Raton, FL, USA, 2020. [Google Scholar]
- Benzaazoua, M.; Bussière, B.; Kongolo, M.; McLaughlin, J.; Marion, P. Environmental desulphurization of four Canadian mine tailings using froth flotation. Int. J. Miner. Process. 2000, 60, 57–74. [Google Scholar] [CrossRef]
- Aubertin, M.; Bussière, B.; Pabst, T.; James, M.; Mbonimpa, M. Review of the Reclamation Techniques for Acid-Generating Mine Wastes upon Closure of Disposal Sites. In Proceedings of the Geo-Chicago 2016, Chicago, IL; American Society of Civil Engineers: Reston, VA, USA, 2016; pp. 343–358. [Google Scholar]
- Boulanger-Martel, V.; Bussière, B.; Côté, J. Thermal behaviour and performance of two field experimental insulation covers to control sulfide oxidation at Meadowbank mine, Nunavut. Can. Geotech. J. 2020, 1–14. [Google Scholar] [CrossRef]
- Bussière, B.; Hayley, D. Effects of Climate Change on Mine Waste Disposal in the Arctic. Geo-Strat. Geo Inst. ASCE 2010, 14, 44–46. [Google Scholar]
- Boulanger-Martel, V.; Bussière, B.; Côté, J.; Mbonimpa, M. Influence of freeze–thaw cycles on the performance of covers with capillary barrier effects made of crushed rock–bentonite mixtures to control oxygen migration. Can. Geotech. J. 2016, 53, 753–764. [Google Scholar] [CrossRef]
- Boulanger-Martel, V.; Bussière, B.; Côté, J. Insulation Covers. In Hard Rock Mine Reclamation: From Prediction to Management of Acid Mine; Bussière, B., Guittonny, M., Eds.; CRC Press: Boca Raton, FL, USA, 2020. [Google Scholar]
- Lessard, F.; Bussière, B.; Côté, J.; Benzaazoua, M.; Boulanger-Martel, V.; Marcoux, L. Integrated environmental management of pyrrhotite tailings at Raglan Mine: Part 2 desulphurized tailings as cover material. J. Clean. Prod. 2018, 186, 883–893. [Google Scholar] [CrossRef]
- Meldrum, J.L.; Jamieson, H.E.; Dyke, L.D. Oxidation of mine tailings from Rankin Inlet, Nunavut, at subzero temperatures. Can. Geotech. J. 2001, 38, 957–966. [Google Scholar] [CrossRef]
- Kyhn, C.; Elberling, B. Frozen cover actions limiting AMD from mine waste deposited on land in Arctic Canada. Cold Reg. Sci. Technol. 2001, 32, 133–142. [Google Scholar] [CrossRef]
- Boulanger-Martel, V.; Bussière, B.; Cote, J.; Gagnon, P. Design, construction, and preliminary performance of an insulation cover with capillary barrier effects at Meadowbank mine, Nunavut. In Proceedings of the 70th Canadian Geotechnical Conference, Ottawa, ON, Canada, 1–4 October 2017; p. 354. [Google Scholar]
- Boulanger-Martel, V.; Bussière, B.; Côté, J. Insulation covers with capillary barrier effects to control sulfide oxidation in the Arctic. Can. Geotech. J. 2020. [Google Scholar] [CrossRef]
- Bussière, B. Colloquium 2004: Hydrogeotechnical properties of hard rock tailings from metal mines and emerging geoenvironmental disposal approaches. Can. Geotech. J. 2007, 44, 1019–1052. [Google Scholar] [CrossRef]
- Bussière, B.; Aubertin, M.; Mbonimpa, M.; Molson, J.W.; Chapuis, R.P. Field experimental cells to evaluate the hydrogeological behaviour of oxygen barriers made of silty materials. Can. Geotech. J. 2007, 44, 245–265. [Google Scholar] [CrossRef]
- Bussière, B.; Benzaazoua, M.; Aubertin, M.; Mbonimpa, M. A laboratory study of covers made of low-sulphide tailings to prevent acid mine drainage. Environ. Geol. 2004, 45, 609–622. [Google Scholar] [CrossRef]
- Benzaazoua, M.; Bouzahzah, H.; Taha, Y.; Kormos, L.; Kabombo, D.; Lessard, F.; Bussière, B.; Demers, I.; Kongolo, M. Integrated environmental management of pyrrhotite tailings at Raglan Mine: Part 1 challenges of desulphurization process and reactivity prediction. J. Clean. Prod. 2017, 162, 86–95. [Google Scholar] [CrossRef]
- Bussière, B.; Lelièvre, J.; Ouellet, J.; Bois, D. Utilisation de résidus miniers désulfurés comme recouvrement pour prévenir le DMA: Analyse technico-économique sur deux cas réels. In Proceedings of the Sudbury ’95 Conference on Mining and the Environment, Sudbury, ON, Canada, 28 May–1 June 1995; pp. 59–68. [Google Scholar]
- Aubertin, M.; Aachib, M.; Monzon, M.; Joanes, A.M.; Bussière, B.; Chapuis, R.P. Étude de Laboratoire sur L’efficacité des Barrières de Recouvrement Construites à Partir de Résidus Miniers; Ecole Polytechnique de Montréal: Montreal, QC, Canada, 1997. [Google Scholar]
- Aachib, M.; Mbonimpa, M.; Aubertin, M. Measurement and Prediction of the Oxygen Diffusion Coefficient in Unsaturated Media, with Applications to Soil Covers. Water Air Soil Pollut. 2004, 156, 163–193. [Google Scholar] [CrossRef]
- Bussière, B. Etude du Comportement Hydrique de Couvertures avec Effets de Barrieres Capillaires Inclinees a L’aide de Modelisations Physiques et Numeriques; Ecole Polytechnique de Montreal: Montreal, QC, Canada, 1999. [Google Scholar]
- Dagenais, A.-M. Techniques de Contrôle du Drainage Minier Acide Basées sur les Effets Capillaires; Ecole Polytechnique de Montreal: Montreal, QC, Canada, 2005. [Google Scholar]
- Nastev, M.; Aubertin, M. Hydrogeological modelling for the reclamation work at the Lorraine mine site Québec. In Proceedings of the 1st Joint IAH-CNC-CGS Groundwater Specialty Conference, Montreal, QC, Canada, 15–18 October 2000; pp. 311–318. [Google Scholar]
- Gosselin, M. Étude de l’influence des Caractéristiques Hydrogéochimiques des Résidus Miniers Réactifs sur la Diffusion et la Consommation de L’oxygène, Polytechnique de Montréal; Département des Génies Civil, Géologique et des Mines, Polytechnique Montréal: Montreal, QC, Canada, 2007. [Google Scholar]
- ASTM Standard Test Method for Particle-Size Analysis of Soils (D422-63); ASTM International: West Conshohocken, PA, USA, 2007.
- Coulombe, V. Performance de Recouvrements Isolants Partiels Pour Contrôler L’oxydation de Résidus Miniers Sulfureux; Université du Québec en Abitibi-Témiscamingue: Rouyn-Noranda, QC, Canada, 2012. [Google Scholar]
- Bouzahzah, H. Modification et Amélioration des Tests Statiques et Cinétiques pour une Prédiction Fiable du Drainage Minier acide. Ph.D. Thesis, Université du Québec en Abitibi-Témiscamingue (UQAT), Rouyn-Noranda, QC, Canada, 2013. [Google Scholar]
- CENTRE D’EXPERTISE EN ANALYSE ENVIRONNEMENTALE DU QUÉBEC. Determination du Carbone et du Soufre: Methode par Combustion et Dosage par Spectrophotometrie Infrarouge; MA. 310 e CS 1.0, Rev. 3; Ministere du Developpement durable, de l’Environnement, de la Faune et des Parcs du Quebec: Quebec City, QC, Canada, 2013.
- Moncur, M.C.; Ptacek, C.J.; Lindsay, M.B.J.; Blowes, D.W.; Jambor, J.L. Long-term mineralogical and geochemical evolution of sulfide mine tailings under a shallow water cover. Appl. Geochem. 2015, 57, 178. [Google Scholar] [CrossRef]
- Ravel, B.; Newville, M. ATHENA, ARTEMIS, HEPHAESTUS: Data analysis for X-ray absorption spectroscopy using IFEFFIT. J. Synchrotron Radiat. 2005, 12, 537–541. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Sobek, A.; Schuller, W.; Freeman, J.; Smith, R. Field and Laboratory Methods Applicable to Overburdens and Minesoils; U.S. Environmental Protection Agency: Washington, DC, USA, 1978.
- Lawrence, R.W.; Scheske, M. A method to calculate the neutralization potential of mining wastes. Environ. Geol. 1997, 32, 100–106. [Google Scholar] [CrossRef]
- Boulanger-Martel, V.; Bussière, B.; Côté, J.; Mbonimpa, M. Laboratory column experiment to evaluate oxygen diffusion through covers with capillary barrier effects subjected to freeze-thaw cycles. In Proceedings of the 16th International Conference on Cold Regions Engineering, Salt Lake City, UT, USA, 19–22 July 2015; Volume 19. [Google Scholar]
- McCarthy, D.F. Essentials of Soil Mechanics and Foundations: Basic Geotechnics; Pearson/Prentice Hall: London, UK, 2007; ISBN 9780131145603. [Google Scholar]
- Aubertin, M.; Chapuis, R.P.; Aachib, M.; Bussière, B.; Ricard, J.F.; Tremblay, L. Évaluation en Laboratoire de Barrières Sèches Construites à Partir de Résidus Miniers; Ecole Polytechnique de Montréal: Montreal, QC, Canada, 1995. [Google Scholar]
- Pedroza, F.R.C.; Aguilar, M.D.J.S.; Treviño, T.P.; Luévanos, A.M.; Castillo, M.S. Treatment of sulfide minerals by oxidative leaching with ozone. Miner. Process. Extr. Metall. Rev. 2012, 33, 269–279. [Google Scholar] [CrossRef]
- Larochelle, C.G.; Bussière, B.; Pabst, T. Acid-Generating Waste Rocks as Capillary Break Layers in Covers with Capillary Barrier Effects for Mine Site Reclamation. Water Air Soil Pollut. 2019, 230, 57. [Google Scholar] [CrossRef]
- Éthier, M.-P. Évaluation du Comportement Géochimique en Conditions Normale et Froides de Différents Stériles Présents sur le Site de La mine Raglan; Université du Québec en Abitibi-Témiscamingue: Rouyn-Noranda, QC, Canada, 2011. [Google Scholar]
- Vaughan, D.J. Minerals|Sulphides. Ref. Modul. Earth Syst. Environ. Sci. 2013. [Google Scholar] [CrossRef]

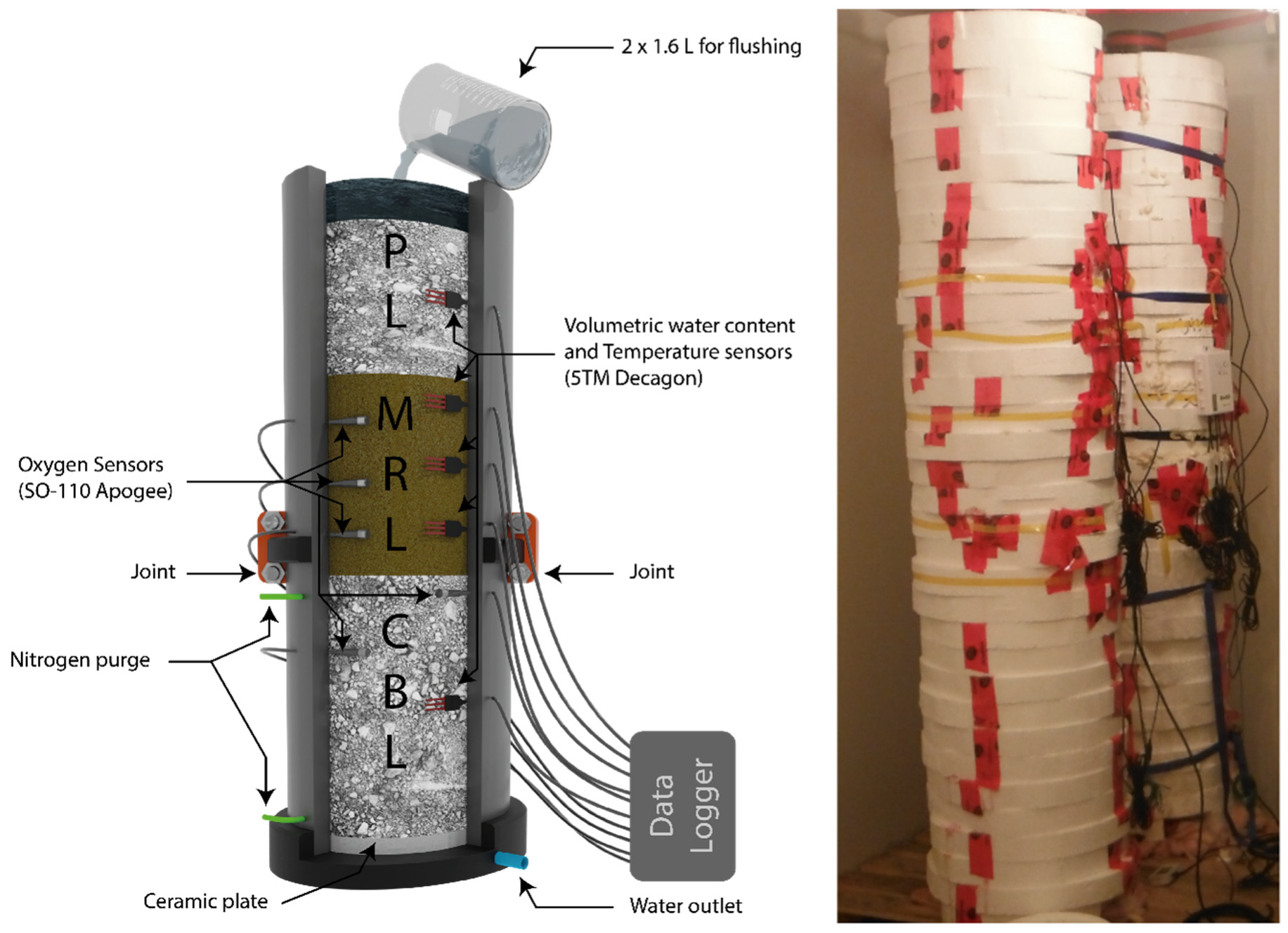

Column Designation | Details |
---|---|
ICCBE-DST1 | Column with ICCBE: ~0.50 m support layer from non-acid generating WRs, 0.70 m MRL layer from DST 1, 0.40 m protective layer from non-acid generating WRs. Total height 2.10 m and 0.14 m diameter. |
ICCBE-DST2 | Column with ICCBE: ~0.50 m support layer from non-acid generating WRs, 0.70 m MRL layer from DST 2, 0.40 m protective layer from non-acid generating WRs. The total height of 2.10 m and 0.14 m diameter. |
DST1 | Column without ICCBE: 0.70 m single layer of DST 1. The total height of 0.80 m and 0.14 m diameter. |
DST2 | Column without ICCBE: 0.70 m single layer of DST 2. The total height of 0.80m and 0.14 m diameter. |
RT | Column without ICCBE: 0.70 m single layer of RT. The total height of 0.80 m and 0.14 m diameter. |
Material | D10 (mm) | D30 (mm) | D50 (mm) | D60 (mm) | CC a | CU b | Classification c |
---|---|---|---|---|---|---|---|
RT | 0.00256 | 0.0084 | 0.0238 | 0.0398 | 0.69 | 15.6 | ML d |
DST1 | 0.0028 | 0.0095 | 0.0268 | 0.0430 | 0.75 | 15.3 | ML d |
DST2 | 0.0026 | 0.0086 | 0.0243 | 0.0395 | 0.71 | 15.0 | ML d |
WRs * | 0.104 | 3.4 | 8.0 | 10.0 | 11.14 | 96.2 | GW e |
Mineral (% by Weight) | Chemical Formula | RT a | DST1 | DST2 | WRs b |
---|---|---|---|---|---|
Actinolite | Ca2(Mg,Fe)5Si8O22(OH)2 | 14.0 | 29.75 | 30 | 33.6 |
Albite | NaAlSi3O8 | – | 2.76 | 3.86 | 14.4 |
Anorthite | CaAl2Si2O8 | – | – | – | 11.2 |
Calcite | CaCO3 | – | 2.17 | 2.17 | – |
Chalcopyrite | CuFeS2 | 0.46 | 0.25 | 0.25 | – |
Chamosite | (Fe,Mg)5Al(Si3Al)O10(OH,O) | 8.0 | – | – | – |
Clinochlore | (Mg,Fe)5Al(Si3,Al)O10(OH)8 | – | 26.48 | 26.12 | 14.7 |
Dolomite | CaMg(CO3)2 | 1.90 | – | – | – |
Epidote | Ca2(Fe,Al)Al2(SiO4)(Si2O7)O(OH) | – | – | – | 17.5 |
Hornblende | (Ca,Na,K)2(Mg,Fe2+,Fe3+,Al)5[Si6(Al,Si)2O22](OH,F)2 | 7.17 | – | – | – |
Lizardite | Mg3Si2O5(OH)4 | 32.0 | 31.81 | 30.9 | – |
Magnetite | Fe3O4 | 5.0 | 2.56 | 2 | – |
Orthoclase | KAlSi3O8 | – | 1.37 | 1.3 | – |
Pentlandite | (Fe,Ni)9S8 | 1.2 | 0.29 | 0.4 | – |
Pyrite | FeS2 | 0.14 | – | – | – |
Pyrrhotite | Fe1-xS (x = 0–0.17) | 20.0 | 0.64 | 1.55 | – |
Quartz | SiO2 | 1.0 | 1.60 | 1.12 | 8.3 |
Rutile | TiO2 | – | 0.30 | 0.3 | 0.5 |
Talc | Mg3Si4O10(OH)2 | 7.0 | – | – | – |
Titanite | CaTiSiO5 | 2.13 | – | – | – |
Property | RT a | DST1 | DST2 | WRs b |
---|---|---|---|---|
AP (kg CaCO3 ton−1) | 255.63 | 14.44 | 25.16 | N.D. |
NP (kg CaCO3 ton−1) | 27.49 | 28 | 28 | 26.66 |
NNP (kg CaCO3 ton−1) | −223.96 | 13.56 | 2.84 | N.D. |
NPR (−) | 0.11 | 1.94 | 1.12 | N.D. |
Chemical composition (mg kg−1) | ||||
Al | 15,580 | 33,010 | 30,160 | 65,300 |
As | <5.0 | 5.83 | <5.0 | <10 |
Ca | 10,120 | 33,790 | 30,060 | 64,900 |
Cr | 1817 | 1840 | 1789 | 180 |
Cu | 1353 | 861.5 | 1024 | 170 |
Fe | 124,700 | 83,260 | 77,570 | 72,900 |
K | 550 | 1950 | 1840 | N.D. |
Mg | 168,700 | 151,900 | 141,800 | 41,200 |
Mn | 771 | 1199 | 1219 | 1080 |
Na | 1730 | 3780 | 4030 | 10,700 |
Ni | 2372 | 1042 | 1398 | 170 |
S | 39,750 | 4039 | 8041 | N.D. |
Ti | 917 | 2118 | 1940 | N.D. |
Zn | 58 | 78.14 | 69 | 70 |

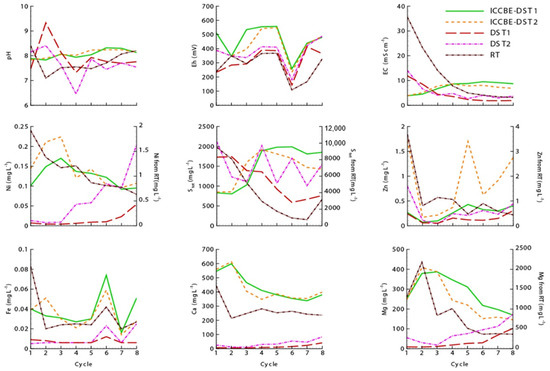

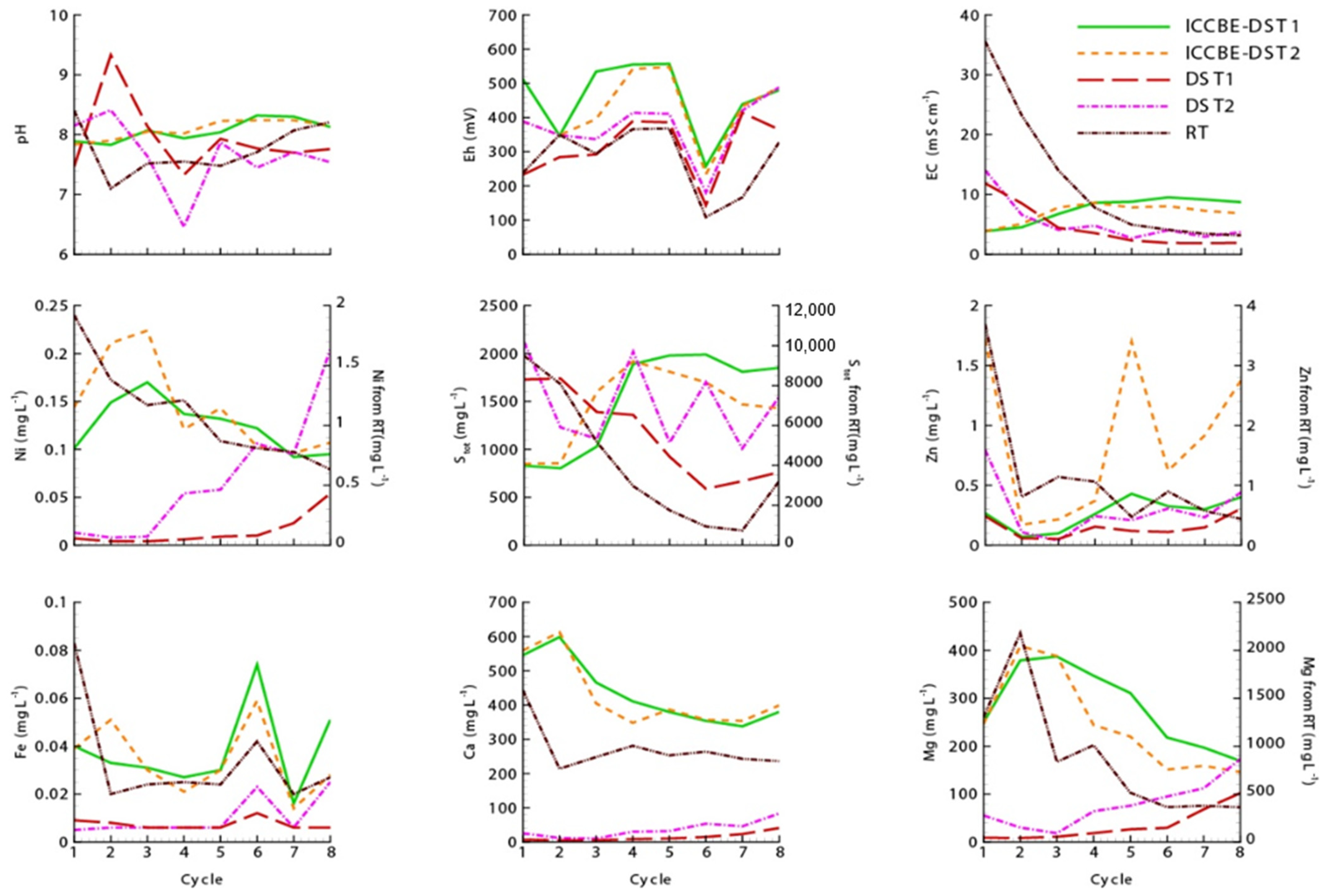

Property | ICCBE-DST1 | ICCBE-DST2 | DST1 | DST2 | RT | |||||
---|---|---|---|---|---|---|---|---|---|---|
Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | |
pH (–) | 7.83 | 8.32 | 7.84 | 8.24 | 7.33 | 9.33 | 6.46 | 8.41 | 7.1 | 8.4 |
Eh (mV) | 258 | 557 | 234 | 548 | 144 | 414 | 181 | 488 | 109 | 368 |
EC (mS cm−1) | 3.86 | 9.53 | 3.9 | 8.59 | 1.89 | 11.86 | 2.71 | 14.03 | 3.18 | 35.6 |
Chemical composition (mg L−1) | ||||||||||
Al | 0.01 | 0.04 | 0.01 | 0.06 | 0.01 | 0.09 | 0.01 | 0.06 | 0.01 | 0.026 |
Ca | 338 | 599 | 348 | 613 | 4.88 | 40 | 9.95 | 83 | 214 | 443 |
Cu | 0.00 | 0.03 | 0.02 | 0.24 | 0.25 | 3.23 | 0.19 | 2.90 | 0.97 | 4.85 |
Fe | 0.02 | 0.07 | 0.01 | 0.06 | 0.01 | 0.01 | 0.01 | 0.03 | 0.02 | 0.08 |
K | 4.54 | 8.80 | 4.11 | 10.40 | 57.50 | 188 | 66 | 232 | 24.8 | 464 |
Mg | 169 | 387 | 146 | 409 | 8.31 | 102 | 18.20 | 173 | 361 | 2180 |
Na | 52 | 1750 | 46 | 1660 | 180 | 2380 | 341 | 2850 | 25.4 | 5250 |
Ni | 0.09 | 0.17 | 0.10 | 0.22 | 0.00 | 0.05 | 0.01 | 0.20 | 0.63 | 1.92 |
Stot | 803 | 1990 | 848 | 1920 | 588 | 1740 | 1010 | 2120 | 736 | 9490 |
Si | 52.30 | 110 | 56.30 | 104 | 7.82 | 47.40 | 6.77 | 45 | 10.20 | 47 |
Zn | 0.07 | 0.43 | 0.17 | 1.72 | 0.05 | 0.31 | 0.04 | 0.80 | 0.44 | 3.69 |

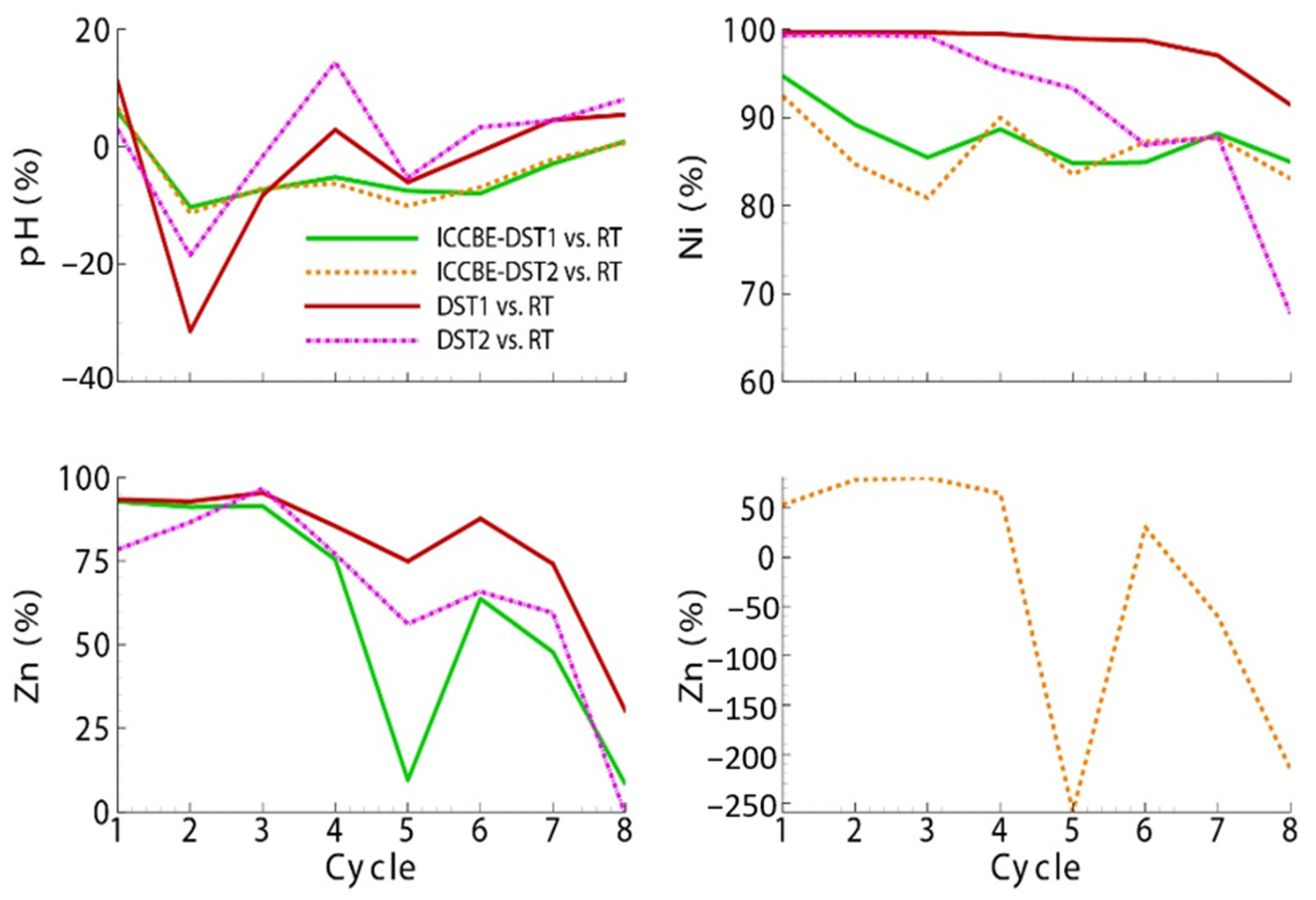

Sample | Element | Ni (mg L−1) | Zn (mg L−1) | ||||
---|---|---|---|---|---|---|---|
Total Cycles | Total | Average | Depletion (%) | Total | Average | Depletion (%) | |
ICCBE-DST1 | 8 Cycles | 1.00 | 0.12 | 0.004 | 2.15 | 0.27 | 0.08 |
7 Cycles * | 0.90 | 0.13 | – | 1.88 | 0.27 | – | |
ICCBE-DST2 | 8 Cycles | 1.15 | 0.13 | 0.004 | 7.10 | 0.89 | 0.27 |
7 Cycles * | 1.01 | 0.14 | – | 5.38 | 0.77 | – | |
DST1 | 8 Cycles | 0.12 | 0.01 | 0.002 | 1.19 | 0.15 | 0.27 |
7 Cycles * | 0.11 | 0.02 | – | 0.95 | 0.14 | – | |
DST2 | 8 Cycles | 0.55 | 0.07 | 0.006 | 2.37 | 0.30 | 0.36 |
7 Cycles * | 0.53 | 0.08 | – | 1.58 | 0.23 | – | |
RT | 8 Cycles | 8.77 | 1.10 | 0.05 | 9.08 | 1.13 | 0.78 |
7 Cycles * | 6.85 | 0.98 | – | 5.39 | 0.77 | – |
