Innovative Reuse of Electric Arc Furnace Slag as Filler for Different Polymer Matrixes
Abstract
:1. Introduction
- Cost of the raw material: steel producers are willing to provide the slag free of charge as this would save them from incurring disposal costs;
2. Materials and Methods
2.1. Materials and Compounds Preparation
2.1.1. Filler: EAF Slag
2.1.2. Polypropylene (PP)
2.1.3. Epoxy Resin
2.1.4. Nitrile Butadiene Rubber (NBR)
2.1.5. End of Life Tires (ELT)
2.2. Methods
2.2.1. EAF Slag Characterization
2.2.2. Compound Characterization
Leaching Test
Tensile Test
Flexural Test
Compression Test
Hardness Test
SEM Analysis
3. Results
3.1. EAF Slag Chemical Composition

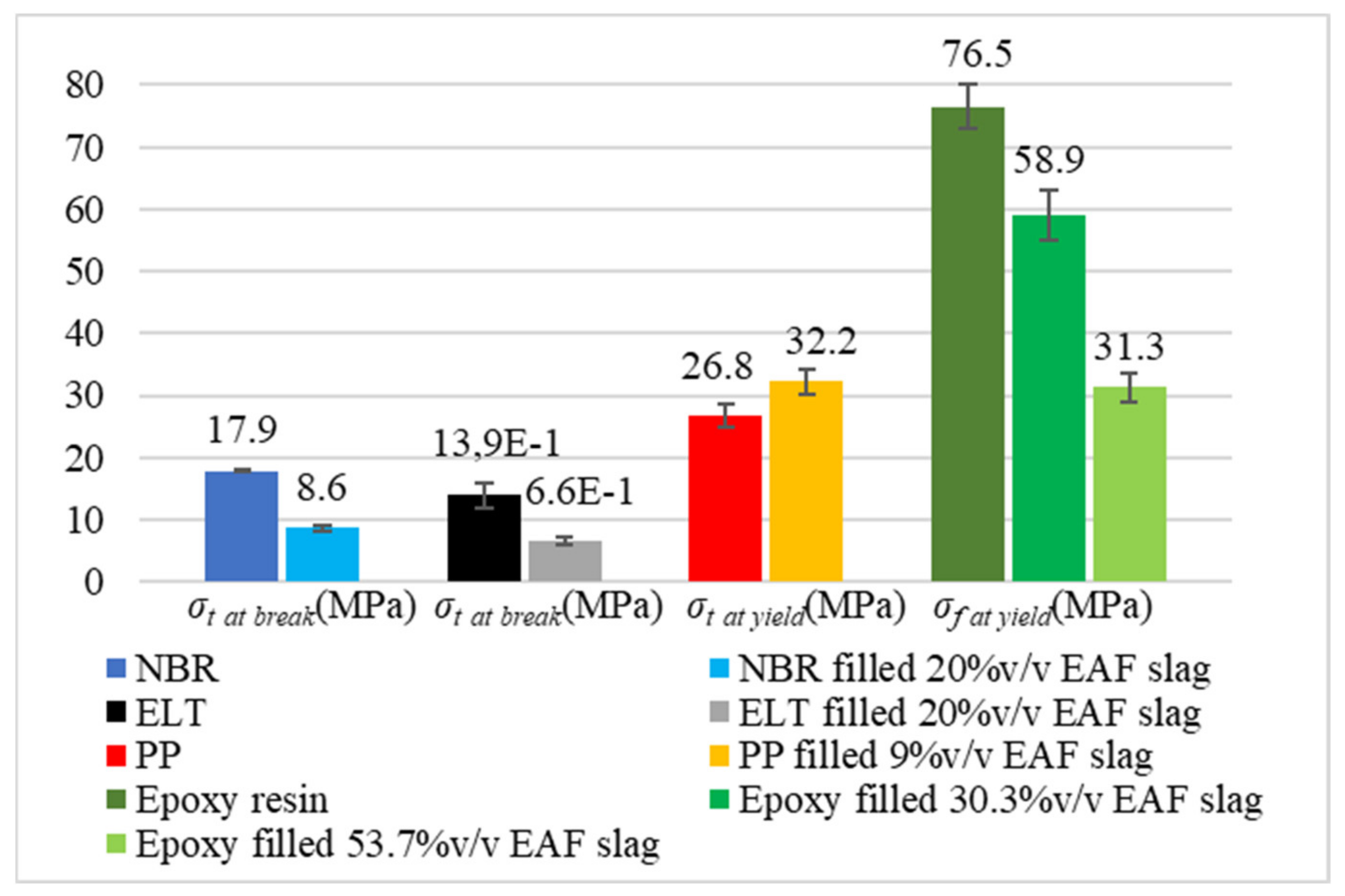

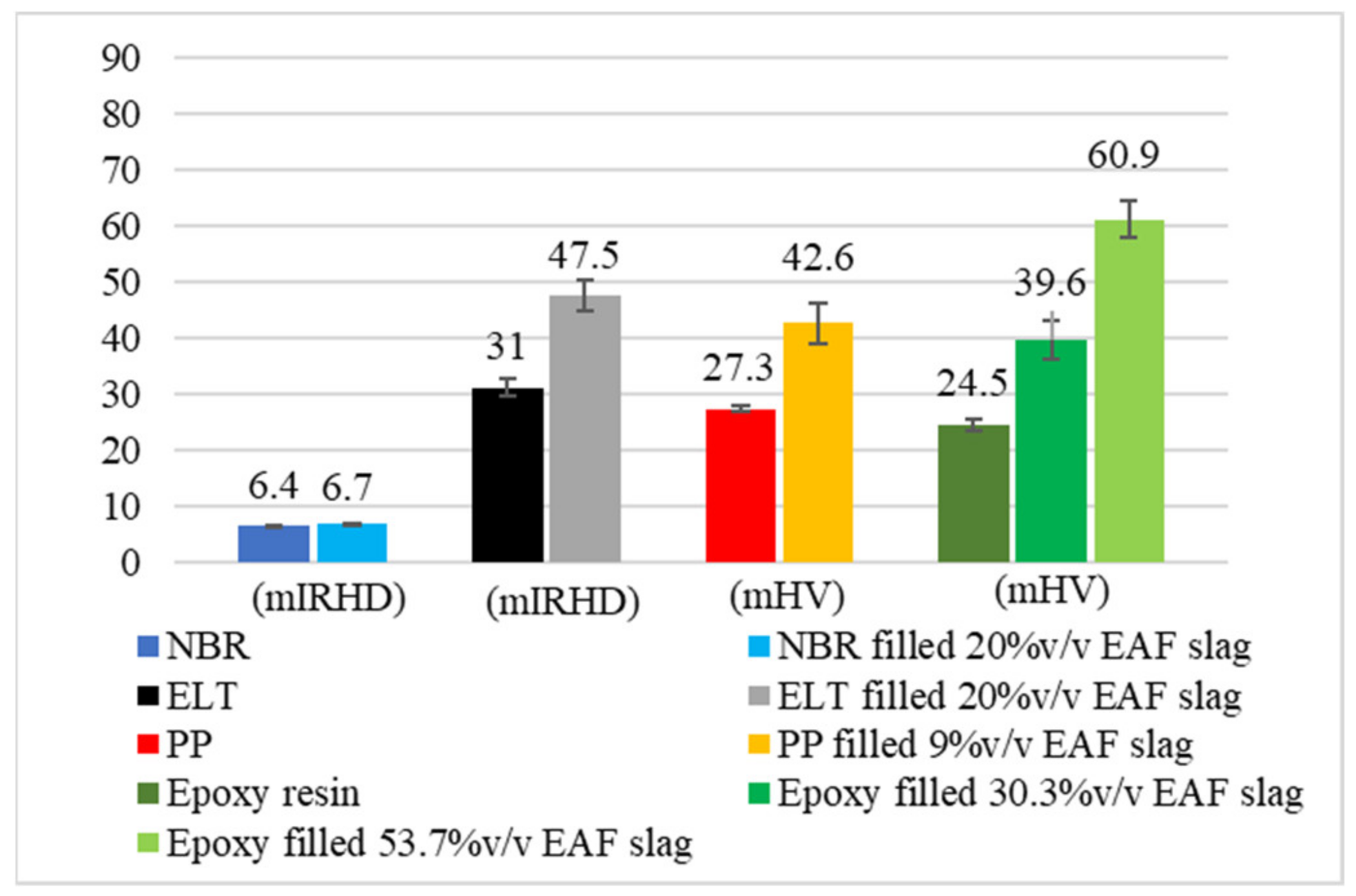

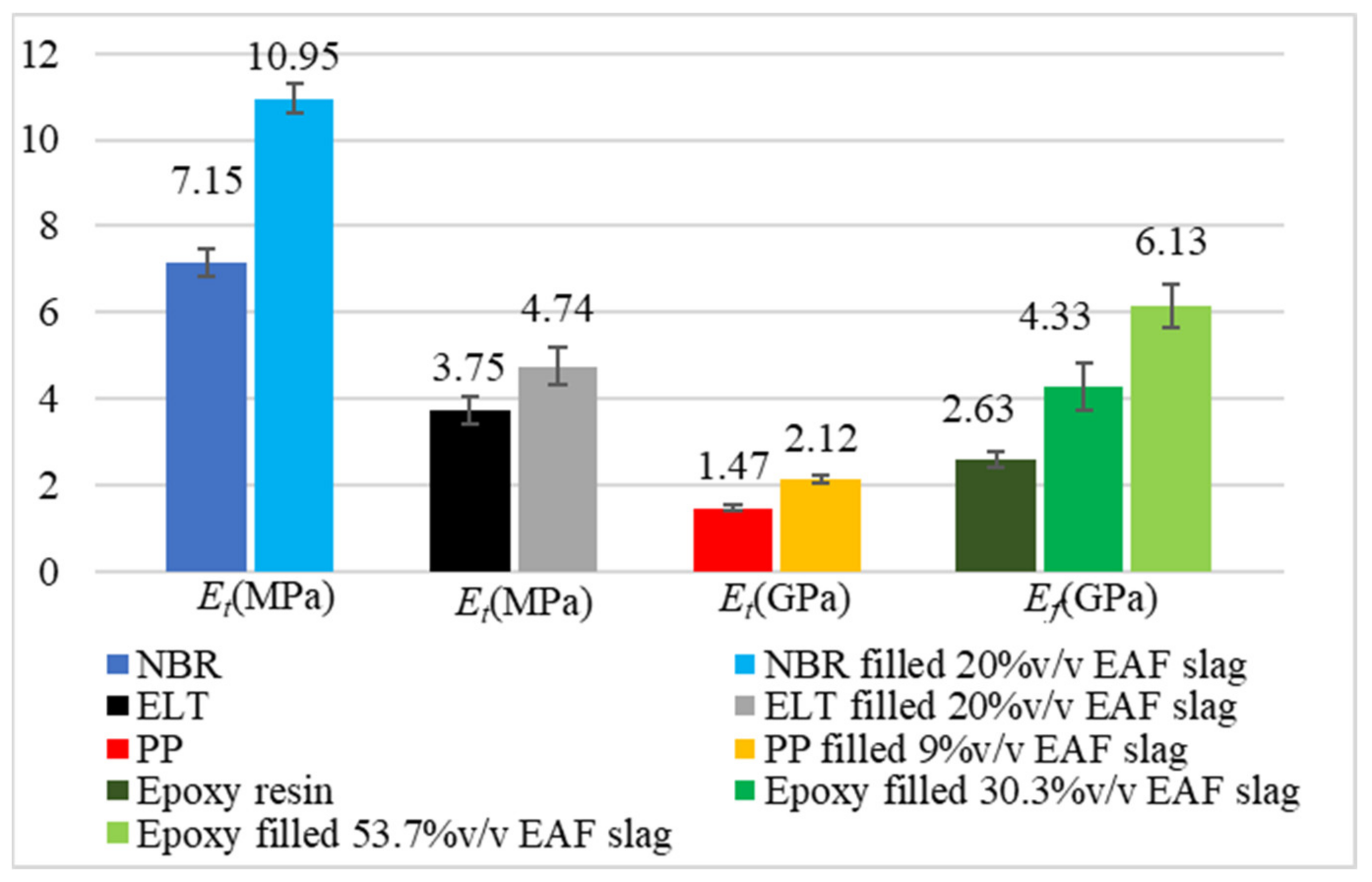

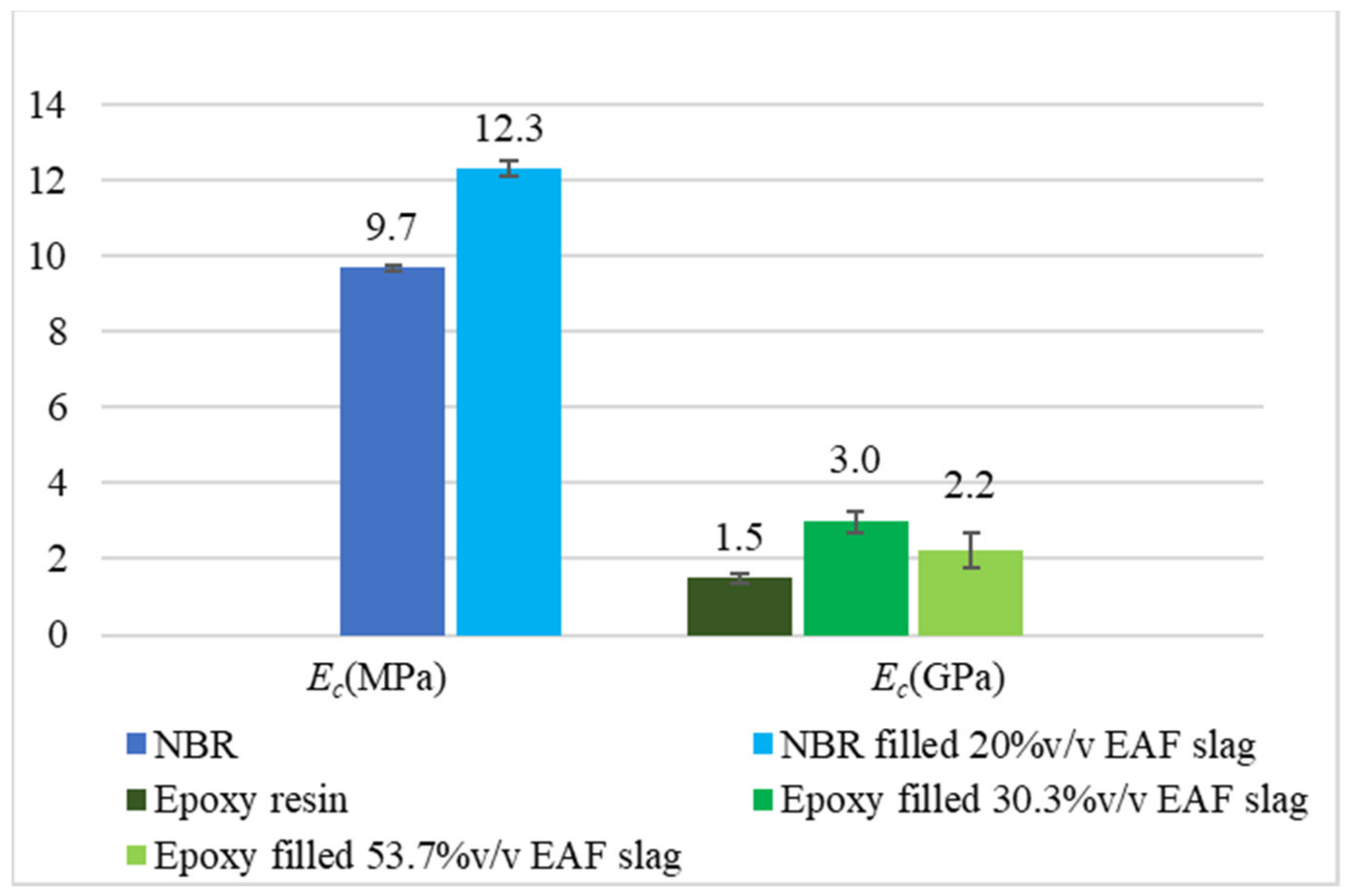

3.2. Mechanical Tests

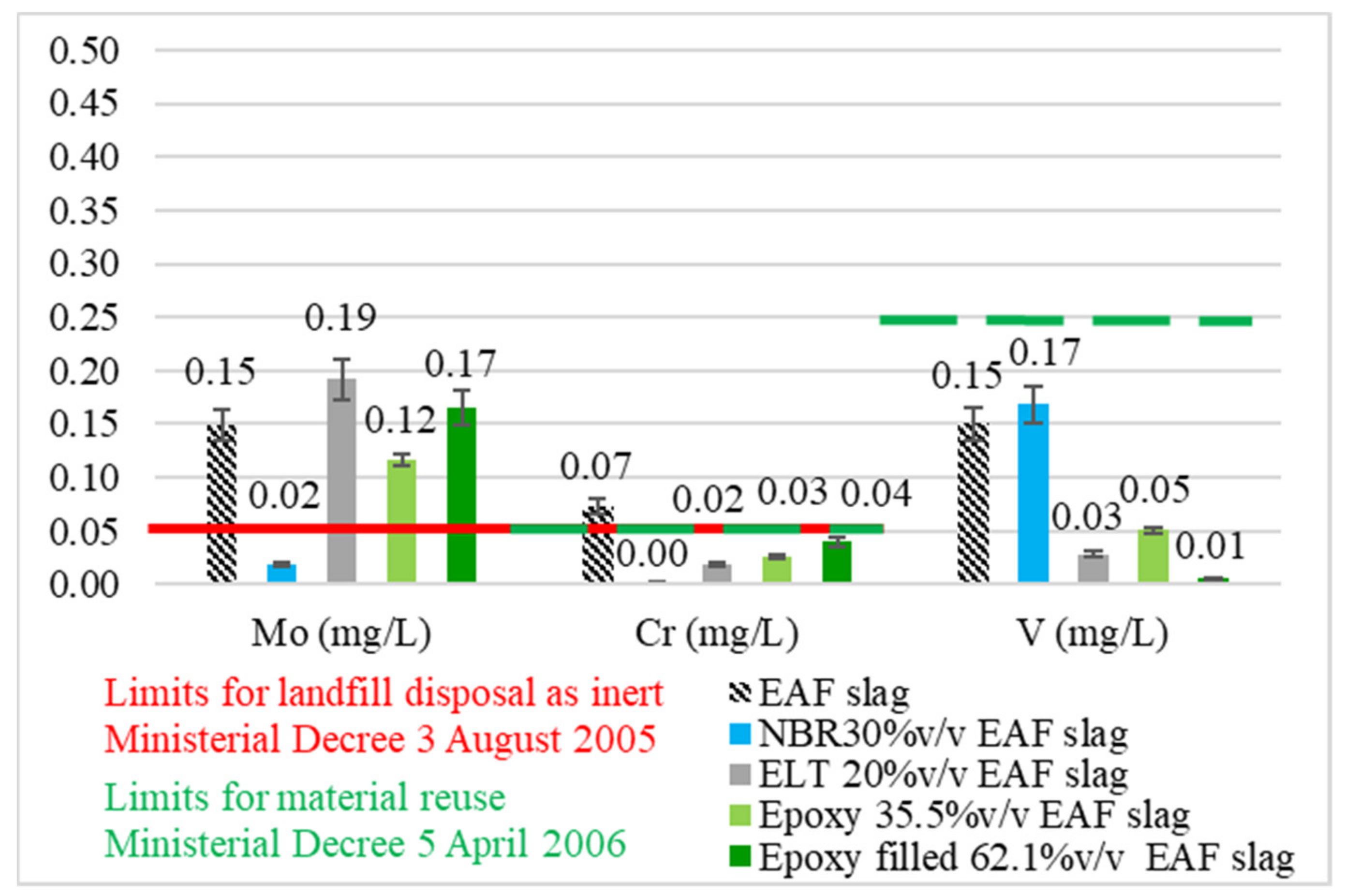

3.3. Leaching Test

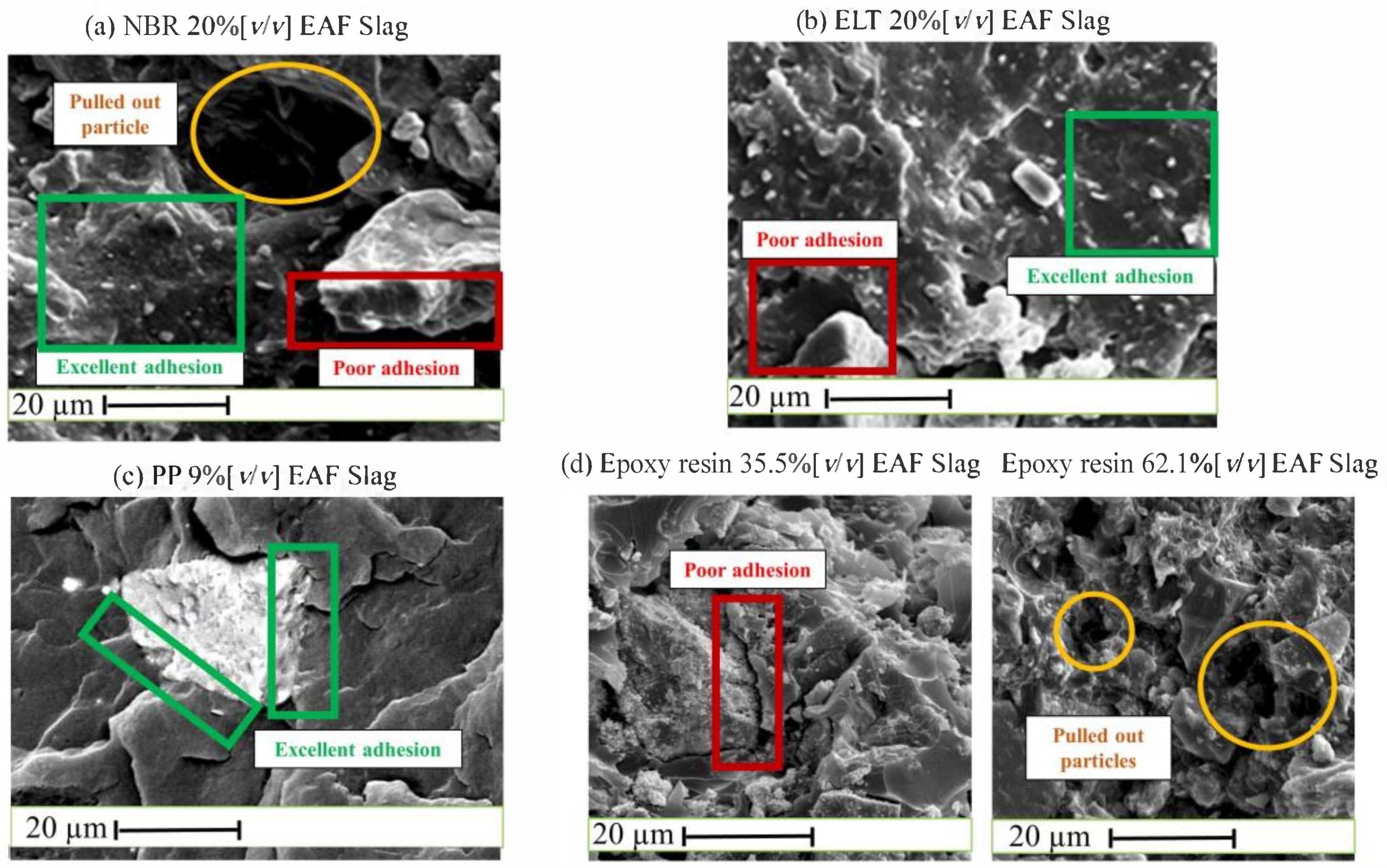

3.4. SEM Observations
4. Discussion
5. Conclusions
- The distribution and the dispersion of EAF slag particles in the different polymer matrixes is homogeneous and good adhesion between filler and matrix is observed;
- The incorporation of EAF slag particles in a polymer matrix reduces heavy metals leaching:
- The influence on Cr, and V leaching makes the polymer composites compliant for reuse, according to the Italian Ministerial Decree 5 April 2006 [29];The influence on Cr and Mo makes NBR and PP composites compliant to be disposed of as inert waste, according to the Italian Ministerial Decree 3 August 2005 [30]; For ELT and Epoxy composites Mo leaching exceeds the limit of 0.05 mg/L,
- The presence of EAF slag as filler increases the elastic modulus and the hardness of polymer composites although it reduces the ultimate properties (except for PP);
- The reasons behind the mechanical behavior of the tested composites are to be found in the different nature and production processes of the polymeric matrices.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- European Commission directive 2008/98/EC of the European Parliament and of the Council. Available online: https://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2008:312:0003:0030:en:PDF (accessed on 24 April 2021).
- European Commission. European Commission Communication from the Commission—Towards a circular economy: A zero waste programme for Europe. Eur. Comm. 2014. [Google Scholar] [CrossRef]
- Federacciai. L’Industria Siderurgica Italiana; Federacciai: Milan, Italy, 2019. [Google Scholar]
- Teo, P.T.; Zakaria, S.K.; Salleh, S.Z.; Taib, M.A.A.; Sharif, N.M.; Seman, A.A.; Mohamed, J.J.; Yusoff, M.; Yusoff, A.H.; Mohamad, M.; et al. Assessment of electric arc furnace (EAF) steel slag waste’s recycling options into value added green products: A review. Metals 2020, 10, 1347. [Google Scholar] [CrossRef]
- Eurofer. European Steel in Figures 2020; Eurofer: Brussels, Belgium, 2020. [Google Scholar]
- Yi, H.; Xu, G.; Cheng, H.; Wang, J.; Wan, Y.; Chen, H. An overview of utilization of steel slag. Procedia Environ. Sci. 2012. [Google Scholar] [CrossRef] [Green Version]
- Pasetto, M.; Baldo, N. Experimental evaluation of high performance base course and road base asphalt concrete with electric arc furnace steel slags. J. Hazard. Mater. 2010. [Google Scholar] [CrossRef]
- Yaragal, S.C.; Chethan Kumar, B.; Jitin, C. Durability studies on ferrochrome slag as coarse aggregate in sustainable alkali activated slag/fly ash based concretes. Sustain. Mater. Technol. 2020, 23. [Google Scholar] [CrossRef]
- Kolawole, J.T.; Babafemi, A.J.; Paul, S.C.; du Plessis, A. Performance of concrete containing Nigerian electric arc furnace steel slag aggregate towards sustainable production. Sustain. Mater. Technol. 2020, 25. [Google Scholar] [CrossRef]
- Zannerni, G.M.; Fattah, K.P.; Al-Tamimi, A.K. Ambient-cured geopolymer concrete with single alkali activator. Sustain. Mater. Technol. 2020, 23. [Google Scholar] [CrossRef]
- El-Gamal, S.M.A.; Selim, F.A. Utilization of some industrial wastes for eco-friendly cement production. Sustain. Mater. Technol. 2017, 12, 9–17. [Google Scholar] [CrossRef]
- Shaikh, F.U.A.; Hosan, A. Effect of nano silica on compressive strength and microstructures of high volume blast furnace slag and high volume blast furnace slag-fly ash blended pastes. Sustain. Mater. Technol. 2019, 20. [Google Scholar] [CrossRef]
- Carvalho, S.Z.; Vernilli, F.; Almeida, B.; Demarco, M.; Silva, S.N. The recycling effect of BOF slag in the portland cement properties. Resour. Conserv. Recycl. 2017. [Google Scholar] [CrossRef]
- Skaf, M.; Manso, J.M.; Aragón, Á.; Fuente-Alonso, J.A.; Ortega-López, V. EAF slag in asphalt mixes: A brief review of its possible re-use. Resour. Conserv. Recycl. 2017, 120, 176–185. [Google Scholar] [CrossRef]
- Poh, H.Y.; Ghataora, G.S.; Ghazireh, N. Soil stabilization using basic oxygen steel slag fines. J. Mater. Civ. Eng. 2006. [Google Scholar] [CrossRef]
- Gelfi, M.; Cornacchia, G.; Conforti, S.; Roberti, R. Caratterizzazione di scorie di acciaieria e studio del rilascio di cromo. In Proceedings of the Atti di Convegno 33 Convegno Nazionale AIM, Brescia, Italy, 10–12 November 2010; AIM—Associazione Italiana di Metallurgia: Milano, Italy, 2010. [Google Scholar]
- Roberti, R.; Uberto, F.; Svanera, M.; Altenburger, G.; Cabra, F. The SLAG-REC ® project for an innovative direct dry granulation of EAF slag. In Proceedings of the 5th Global Slag Conference Pro Global Media Ltd., Brussels, Belgium, 23–24 November 2009; Pro Global Media: Epsom, UK, 2009. [Google Scholar]
- Mombelli, D.; Mapelli, C.; Barella, S.; Di Cecca, C.; Le Saout, G.; Garcia-Diaz, E. The effect of microstructure on the leaching behaviour of electric arc furnace (EAF) carbon steel slag. Process Saf. Environ. Prot. 2016. [Google Scholar] [CrossRef] [Green Version]
- Mombelli, D.; Gruttadauria, A.; Barella, S.; Mapelli, C. The influence of slag tapping method on the efficiency of stabilization treatment of electric arc furnace carbon steel slag (EAF-C). Minerals 2019, 9, 706. [Google Scholar] [CrossRef] [Green Version]
- Riboldi, A.; Cornacchia, G.; Gelfi, M.; Borgese, L.; Zacco, A.; Bontempi, E.; Boniardi, M.V.; Casaroli, A.; Depero, L.E. Grain size effect in elution test of electric arc furnace slag. Appl. Sci. 2020, 10, 477. [Google Scholar] [CrossRef] [Green Version]
- Menad, N.E.; Kana, N.; Seron, A.; Kanari, N. New eaf slag characterization methodology for strategic metal recovery. Materials 2021, 14, 1513. [Google Scholar] [CrossRef] [PubMed]
- Yildirim, I.Z.; Prezzi, M. Chemical, mineralogical, and morphological properties of steel slag. Adv. Civ. Eng. 2011. [Google Scholar] [CrossRef] [Green Version]
- Pellegrino, C.; Gaddo, V. Mechanical and durability characteristics of concrete containing EAF slag as aggregate. Cem. Concr. Compos. 2009. [Google Scholar] [CrossRef]
- European Committee for Standardization. CEN EN 12457-1 Characterisation of Waste—Leaching—Compliance Test for Leaching of Granular Waste Materials and Sludges—Part 1: One Stage Batch Test at a Liquid to Solid Ratio of 2 1/kg for Materials with High Solid Content and With Particle Size below 4 mm; European Committee for Standardization: Brussels, Belgium, 2002. [Google Scholar]
- European Committee for Standardization. CEN CEN EN 12457-2 Characterisation of Waste—Leaching—Compliance Test for Leaching of Granular Waste Materials and Sludges—Part 2: One Stage Batch Test at a Liquid to Solid Ratio of 10 l/kg for Materials with Particle Size below 4 mm; European Committee for Standardization: Brussels, Belgium, 2002. [Google Scholar]
- European Committee for Standardization. CEN EN 12457-3 Characterisation of Waste Leaching Compliance Test for Leaching of Granular Waste Materials and Sludges Part 3: Wo Stage Batch Test at a Liquid to Solid Ratio of 2 l/kg and 8 l/kg for Materials with a High Solid Content and with a Particle Size; European Committee for Standardization: Brussels, Belgium, 2002. [Google Scholar]
- European Committee for Standardization. CEN EN 12457-4 Characterisation of Waste Leaching Compliance Test for Leaching of Granular Waste Materials and Sludges Part 4: One Stage Batch Test at a Liquid to Solid Ratio of 10 l/kg for Materials with Particle Size below 10 mm (without or with Size Reduct); European Committee for Standardization: Brussels, Belgium, 2002. [Google Scholar]
- Rodgers, K.J.; Hursthouse, A.; Cuthbert, S. The potential of sequential extraction in the characterisation and management of wastes from steel processing: A prospective review. Int. J. Environ. Res. Public Health 2015, 12, 11724–11755. [Google Scholar] [CrossRef] [Green Version]
- Ministero della Tutela dell’Ambiente e del Territorio. Gazzetta Ufficiale 19 Maggio 2006, n. 115 Individuazione dei Rifiuti non Pericolosi Sottoposti alle Procedure Semplificate di Recupero, ai Sensi Degli Articoli 31 e 33 del Decreto Legislativo 5 febbraio 1997, n. 22; Ministero della Tutela dell’Ambiente e del Territorio: Rome, Italy, 1997.
- Ministero della Tutela dell’Ambiente e del Territorio. Gazzetta Ufficiale del 30 Agosto 2005, n. 201 Definizione dei Criteri di Ammissibilità dei Rifiuti in Discarica; Ministero della Tutela dell’Ambiente e del Territorio: Rome, Italy, 2005.
- Cornacchia, G.; Agnelli, S.; Gelfi, M.; Ramorino, G.; Roberti, R. Reuse of EAF slag as reinforcing filler for polypropylene matrix composites. JOM 2015, 67, 1370–1378. [Google Scholar] [CrossRef]
- Grammelis, P.; Margaritis, N.; Dallas, P.; Rakopoulos, D.; Mavrias, G. A review on management of end of life tires (ELTs) and alternative uses of textile fibers. Energies 2021, 14, 571. [Google Scholar] [CrossRef]
- Battista, M.; Gobetti, A.; Agnelli, S.; Ramorino, G. Post-consumer tires as a valuable resource: Review of different types of material recovery recovery. Environ. Technol. Rev. 2021. [Google Scholar] [CrossRef]
- Martín-Cortés, G.R.; Esper, F.J.; Santana de Araujo, A.J.; Hennies, W.T.; Silva Valenzuela, M.G.; Valenzuela-Díaz, F.R. Replacement of Carbon Black on Natural Rubber Composites and Nanocomposites—Part 1; Springer: Cham, Switzerland, 2016; ISBN 9783319481913. [Google Scholar]
- Peterson, S.C.; Chandrasekaran, S.R.; Sharma, B.K. Birchwood biochar as partial carbon black replacement in styrene-butadiene rubber composites. J. Elastomers Plast. 2016, 48, 305–316. [Google Scholar] [CrossRef]
- Li, C.; Huang, F.; Wang, J.; Liang, X.; Huang, S.; Gu, J. Effects of partial replacement of carbon black with nanocrystalline cellulose on properties of natural rubber nanocomposites. J. Polym. Eng. 2018, 38, 137–146. [Google Scholar] [CrossRef]
- Yuvaraj, P.; Rao, J.R.; Fathima, N.N.; Natchimuthu, N.; Mohan, R. Complete replacement of carbon black filler in rubber sole with CaO embedded activated carbon derived from tannery solid waste. J. Clean. Prod. 2018, 170, 446–450. [Google Scholar] [CrossRef]
- Jumahat, A.; Soutis, C.; Mahmud, J.; Ahmad, N. Compressive properties of nanoclay/epoxy nanocomposites. Procedia Eng. 2012, 41, 1607–1613. [Google Scholar] [CrossRef]
- Al-Namie, I.; Ibrahim, A.A.; Hassan, M.F. Study the Mechanical Properties of Epoxy Resin Reinforced With silica (quartz) and Alumina Particles. Iraqi J. Mech. Mater. Eng. 2011, 11, 486–506. [Google Scholar]
- Ilyushechkin, A.Y.; Roberts, D.G.; French, D.; Harris, D.J. IGCC Solids Disposal and Utilisation, Final Report for ANLEC Project 5-0710-0065; Technical Report; Commonwealth Scientific and Industrial Research Organisation (CSIRO): Canberra, Australia, 2012. [Google Scholar]
- Petrík, J.; Blaško, P.; Mikloš, V.; Pribulová, A.; Futaš, P.; Vasilňaková, A.; Šolc, M. The load dependence of the micro-hardness of the blast furnace slag. Metall. Mater. Eng. 2020, 26. [Google Scholar] [CrossRef]
- Engström, F.; Adolfsson, D.; Yang, Q.; Samuelsson, C.; Björkman, B. Crystallization behaviour of some steelmaking slags. Steel Res. Int. 2010. [Google Scholar] [CrossRef]
- Tossavainen, M.; Engstrom, F.; Yang, Q.; Menad, N.; Lidstrom Larsson, M.; Bjorkman, B. Characteristics of steel slag under different cooling conditions. Waste Manag. 2007, 27, 1335–1344. [Google Scholar] [CrossRef] [PubMed]
- ASTM E11-17, Standard Specification for Woven Wire Test Sieve Cloth and Test Sieves. In Book of Standards; ASTM International: West Conshohocken, PA, USA, 2017.
- ISO. ISO 527:2012 Plastics—Determination of Tensile Properties; ISO: Geneva, Switzerland, 2006. [Google Scholar]
- ISO. ISO 178:2019 Plastics—Determination of Flexural Properties; ISO: Geneva, Switzerland, 2019. [Google Scholar]
- ISO. ISO 14544:2016 Fine Ceramics (Advanced Ceramics, Advanced Technical Ceramics)—Mechanical Properties of Ceramic Composites at high Temperature—Determination of Compression Properties (ISO 14544:2013); ISO: Geneva, Switzerland, 2016. [Google Scholar]
- ISO. ISO 37 Rubber, Vulcanized or Thermoplastic—Determination of Tensile Stress-Strain Properties; ISO: Geneva, Switzerland, 2017. [Google Scholar]
- Çoruh, S.; Elevli, S.; Ergun, O.N.; Demir, G. Assessment of leaching characteristics of heavy metals from industrial leach waste. Int. J. Miner. Process. 2013, 123, 165–171. [Google Scholar] [CrossRef] [Green Version]
- Król, A.; Mizerna, K. The effect of particle size reduction of waste material on heavy metals release. Chemik 2015, 69, 670–673. [Google Scholar]
- Guo, Z.; Zhang, L.; Cheng, Y.; Xiao, X.; Pan, F.; Jiang, K. Effects of pH, pulp density and particle size on solubilization of metals from a Pb/Zn smelting slag using indigenous moderate thermophilic bacteria. Hydrometallurgy 2010, 104, 25–31. [Google Scholar] [CrossRef]
- ISO. ISO 48 Rubber, Vulcanized or Thermoplastic—Determination of Hardness—Part 4: Indentation Hardness by Durometer Method (Shore Hardness); ISO: Geneva, Switzerland, 2018. [Google Scholar]
- Broitman, E. Indentation hardness measurements at macro-, micro-, and nanoscale: A critical overview. Tribol. Lett. 2017, 65, 1–18. [Google Scholar] [CrossRef] [Green Version]
- Dannhauser, W. Polymeric materials (Winding, Charles, C.; Hiatt, Gordon, D.). J. Chem. Educ. 1962, 39. [Google Scholar] [CrossRef] [Green Version]
- Pegoretti, A.; Dorigato, A. Polymer composites: Reinforcing fillers. In Encyclopedia of Polymer Science and Technology; John and Wiley and Sons: Hoboken, NJ, USA, 2019. [Google Scholar]
- Leong, Y.W.; Abu Bakar, M.B.; Ishak, Z.A.M.; Ariffin, A.; Pukanszky, B. Comparison of the mechanical properties and interfacial interactions between talc, kaolin, and calcium carbonate filled polypropylene composites. J. Appl. Polym. Sci. 2004, 91, 3315–3326. [Google Scholar] [CrossRef]
- Nurdina, A.K.; Mariatti, M.; Samayamutthirian, P. Effect of filler surface treatment on mechanical properties and thermal properties of single and hybrid filler-filled PP composites. J. Appl. Polym. Sci. 2011, 120, 857–865. [Google Scholar] [CrossRef]
- Liang, J.-Z.; Ruan, J.-Q.; Li, B. Effects of the surface treatment of wollastonite on the tensile and flow properties for reinforced polypropylene composites. J. Polym. Eng. 2014, 34, 649–655. [Google Scholar] [CrossRef]
- Pukánszky, B. Influence of interface interaction on the ultimate tensile properties of polymer composites. Composites 1990, 21, 255–262. [Google Scholar] [CrossRef]
- Švehlová, V.; Polouček, E. Mechanical properties of talc-filled polypropylene. Influence of filler content, filler particle size and quality of dispersion. Die Angew. Makromol. Chem. 1994, 214, 91–99. [Google Scholar] [CrossRef]
- Budiyantoro, C.; Sosiati, H.; Kamiel, B.P.; Fikri, M.L.S. The effect of CaCO3 filler component on mechanical properties of polypropylene. In Proceedings of the IOP Conference Series: Materials Science and Engineering, Yogyakarta, Indonesia, 8–12 October 2018; Volume 432. [Google Scholar]
- Roland, C.M. Reinforcement of elastomers. Ref. Modul. Mater. Sci. Mater. Eng. 2016. [Google Scholar] [CrossRef]
- Wang, Q.; Yang, F.; Yang, Q.; Chen, J.; Guan, H. Study on mechanical properties of nano-Fe3O4 reinforced nitrile butadiene rubber. Mater. Des. 2010. [Google Scholar] [CrossRef]
- Wang, Q.; Yang, F.; Yang, Q.; Guan, H.; Chen, J.; Zhao, B. Study on magnetic and physical mechanical properties of NBR composites filled with nano-Sro·6Fe2O3. J. Elastomers Plast. 2011. [Google Scholar] [CrossRef]
- Teh, P.L.; Mariatti, M.; Akil, H.M.; Yeoh, C.K.; Seetharamu, K.N.; Wagiman, A.N.R.; Beh, K.S. The properties of epoxy resin coated silica fillers composites. Mater. Lett. 2007, 61. [Google Scholar] [CrossRef]
- European Parliament; Council of the European Union Directive 2000/53/EC of the European Parliament and of the Council of 18 September 2000 on end-of life vehicles—Commission Statements. Off. J. Eur. Union 2000, 269, 56–70.
SiO2 | Al2O3 | Fe2O3 | MnO | CaO | MgO | P2O5 | TiO2 | Cr2O3 | S | Na2O | K2O | F |
---|---|---|---|---|---|---|---|---|---|---|---|---|
9.452 | 7.609 | 40.19 | 5.575 | 29.83 | 3.640 | 0.48 | 0.381 | 2.301 | 0.091 | 0.440 | 0.013 | 0.000 |
Sum | Basicity | CaO/Al2O3 | Al2O3/SiO2 | IB2 | IB4 | |||||||
101.3024 | 0.6177 | 3.9224 | 0.8050 | 3.1574 | 1.9627 |
Element | Concentration [mg/L] | Limits for Landfill Disposal as Inert Ministerial Decree 3 August 2005 [mg/L] | Limits for Material Reuse Ministerial Decree 5 April 2006 [mg/L] |
---|---|---|---|
Mo | 0.15 | 0.05 | - |
Cr | 0.07 | 0.05 | 0.05 |
V | 0.15 | - | 0.25 |
Cu | 0.01 | 0.05 | 0.05 |
As | 0.005 | 0.05 | 0.05 |
Cd | 0.0005 | 0.005 | 0.005 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Gobetti, A.; Cornacchia, G.; Ramorino, G. Innovative Reuse of Electric Arc Furnace Slag as Filler for Different Polymer Matrixes. Minerals 2021, 11, 832. https://doi.org/10.3390/min11080832
Gobetti A, Cornacchia G, Ramorino G. Innovative Reuse of Electric Arc Furnace Slag as Filler for Different Polymer Matrixes. Minerals. 2021; 11(8):832. https://doi.org/10.3390/min11080832
Chicago/Turabian StyleGobetti, Anna, Giovanna Cornacchia, and Giorgio Ramorino. 2021. "Innovative Reuse of Electric Arc Furnace Slag as Filler for Different Polymer Matrixes" Minerals 11, no. 8: 832. https://doi.org/10.3390/min11080832
