Spectral Characteristics, Rare Earth Elements, and Ore-Forming Fluid Constrains on the Origin of Fluorite Deposit in Nanlishu, Jilin Province, China

by
Xiaomeng Ye
and
Feng Bai
*
School of Gemmology, China University of Geosciences, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Minerals 2022, 12(10), 1195; https://doi.org/10.3390/min12101195
Submission received: 26 August 2022 / Revised: 13 September 2022 / Accepted: 16 September 2022 / Published: 23 September 2022
(This article belongs to the Section Mineral Deposits)
Browse Figures
Versions Notes

Abstract

:
Nanlishu fluorite has had an annual output of nearly 10,000 tons since its discovery and mining in 1987. At present, few studies have been undertaken on the genesis of the Nanlishu fluorite deposit. Microscopy, Fourier transform infrared (FTIR) spectroscopy, Raman microprobe spectroscopy, and ultraviolet–visible (UV–Vis) spectroscopy were used to study the mineral composition, mineral structure, and spectral characteristics, and fluid inclusion and rare earth element (REE) geochemistry studies were conducted to discuss the characteristics and evolution of the ore-forming fluids and the mineralization process. The Nanlishu fluorite ore rock is composed mainly of fluorite, with minor amounts of quartz, pyrite, and apatite, and trace amounts of calcite. The purple in the fluorite is caused by the Ca colloids. The homogenization temperatures of fluid inclusions in Nanlishu fluorite vary from 116 to 179 °C, while the salinity ranges from 0.35 to 4.03 wt% NaCl equiv, and the density varies from 0.90 to 1.00 g/cm3. Ore-forming fluids were derived from heated meteoric water characterized by low temperature, low salinity, and low density. The total rare earth element (∑REE, excluding Y) content of the ore ranged from 8.072 to 27.230 ppm. The light/heavy REE ratio (LREE/HREE) varies from 0.971 to 1.513. The δEu value is 1.010–1.074 and the δCe value is 0.893–1.048. Compared with other deposits, the Nanlishu fluorite has lower ∑REE content, no obvious enrichment of LREEs or HREEs, and no anomalies in δEu and δCe. Water/rock reaction is the main mechanism for Nanlishu fluorite precipitation. The Nanlishu fluorite is a fault-controlled, low-temperature hydrothermal, fracture-filling deposit.

1. Introduction

Fluorite, also known as fluorspar, is composed mainly of calcium fluoride (CaF2), in which Ca can be replaced by the isomorphism of Y, U, Th, or Sr. It is commonly colorless, green, blue, purple, or pink, and is the mineral with the most color varieties in nature. Fluorite from many origins has been studied, and the main chromogenic mechanisms are color centers [1,2,3,4], rare earth element (REE) impurities [5,6,7], and Ca colloids [8,9,10].
The REEs in fluorite can represent the elemental composition of the ore-forming fluid and contain geochemical information about the mineralization process, which makes it possible to trace geological and geochemical processes [11,12,13,14,15]. Fluid inclusions, the direct samples of remaining ore-forming fluids, are the key to studying the physicochemical conditions of the ore-forming fluids and metallogenesis [16,17,18,19,20,21].
Nanlishu fluorite, the main mineral in the deposit, has had an annual output of nearly 10,000 tons since it entered production in 1987. It sells for a high price and the global supply of fluorite ore is tight. The economic benefits are considerable. At present, few studies have been undertaken on the genesis of the Nanlishu fluorite deposit. In combination with field observations, Liu believes that the Nanlishu fluorite ore-forming fluid is a late magmatic hydrothermal solution (intrusion of the quartz syenite porphyry) [22]. In China, however, fluorite in magmatic hydrothermal deposits is often associated with other main minerals [23,24,25,26,27,28,29]. Only in deposits with meteoric water as the main ore-forming fluid, fluorite can be the main mineral [30,31,32,33].
In this work, microscopy, Fourier transform infrared (FTIR) spectroscopy, Raman microprobe spectroscopy, and ultraviolet-visible (UV-Vis) spectroscopy were used to study the mineral composition, mineral structure, and spectral characteristics, while fluid inclusion and REE geochemistry analyses were conducted to discuss the characteristics and evolution of the ore-forming fluids and the mineralization process.

2. Regional Geologic Background

Surface outcrops in the study area comprise the Carboniferous, Jurassic, and Quaternary strata (Figure 1). North–northwest trending Carboniferous strata are distributed in the northern and eastern parts of the mining area. The main lithologies are metamorphic sandstone, limestone, slate, siliceous rock, and tuff, which are closely related to mineralization and are the direct surrounding rock of the Nanlishu fluorite ore bodies. The Jurassic strata are located in the northwest of the mining area, unconformably overlying the Carboniferous strata, and the main lithologies are intermediate-felsic volcanic rocks. The Quaternary strata are mainly gravel, sand, and loam.
The structure in the study area is complicated. Folds and faults are directly related to mineralization. The Carboniferous strata were affected by the early Indosinian tectonic movement and formed linear folds. The compressional torsional Lishugou fault is the largest and traverses the whole area. Due to its influence, two sets of secondary faults were produced that are oriented north–east and north–west. The NW-trending faults are oriented at 320–340°; fluorite is mainly developed in this fault system. The NE-trending faults are small in scale, unstable in strikes, and have dip angles of 50–84°. In addition to these faults, NNE-trending faults and NW-trending compressive fracture belts are also developed in the area.
The intrusive magmatic rocks in the area are mainly Jurassic quartz syenite porphyry and granite porphyry veins. These crop out in a wide area. The quartz syenite porphyry intrudes into the Carboniferous and Jurassic strata, and the granite porphyry intrudes into the quartz syenite porphyry in the form of veins.
The parallel, vein-type, and lens-type ore bodies are controlled by the faults. The top of the ore bodies is tuff, which partially surrounds the ore bodies, while the bottom of the ore bodies is mainly quartz syenite porphyry. Other ore bodies are hosted in the interlayer fracture belt in limestone and argillaceous limestone. Tuff in direct contact with the ore bodies underwent silicification and pyritization [22].

3. Materials and Methods

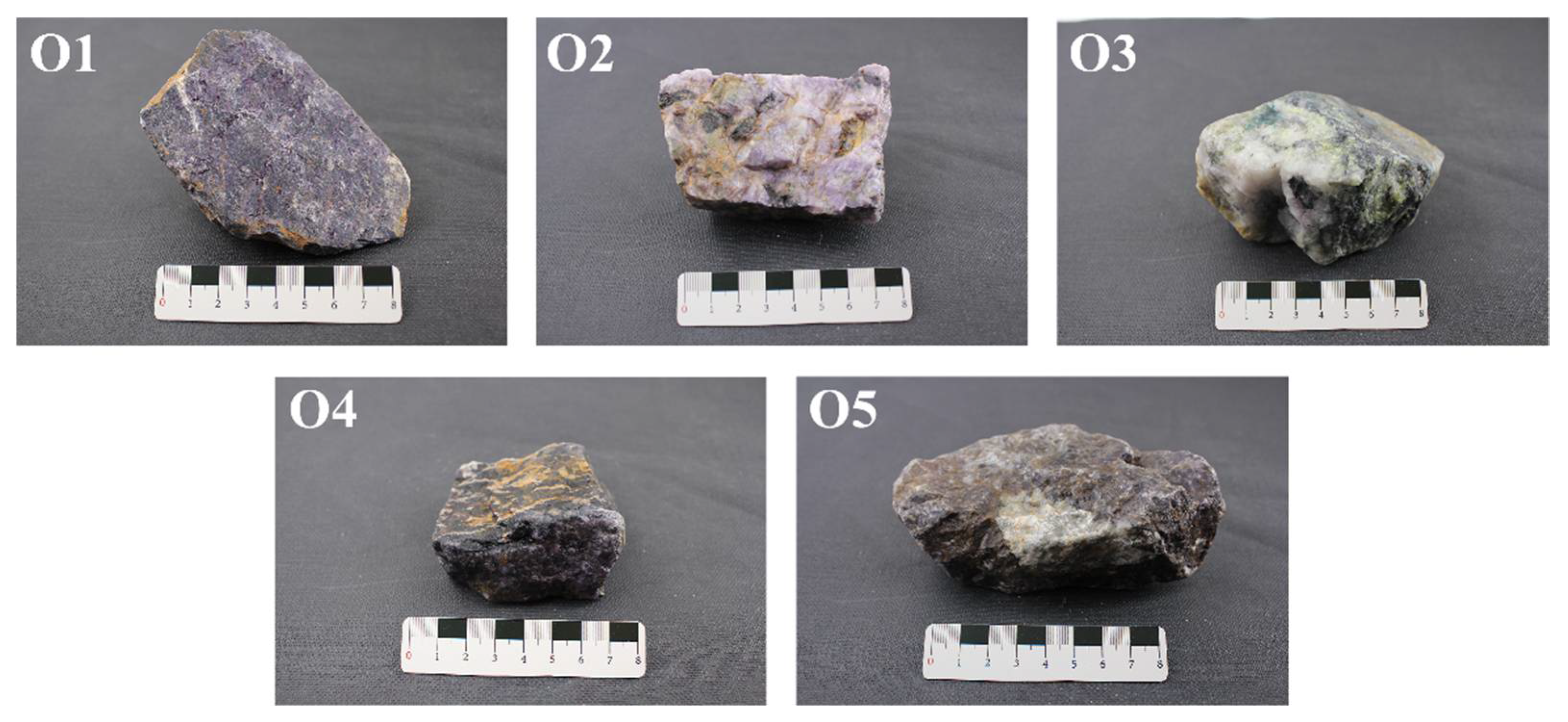

The granular, massive Nanlishu fluorite ore is mainly purple in color, accompanied by gray and white. For this study, five samples were selected and used as the raw material (O1, O2, O3, O4, O5). O1, O2, and O3 are mainly composed of fluorite. O4 is filled with white vein-type quartz and O5 includes gray–green breccia (Figure 2). Parts with purple, gray, and white color were selected from each sample to prepare petrographic polished slices and thin sections. The polished slices and thin sections were observed and photographed using a BX51 polarized light microscope (PLM) at the Experimental Teaching Center of Jewelry and Mineral Materials, China University of Geosciences, Beijing.
Fourier transform infrared (FTIR) spectra, Raman microprobe spectra, and UV–Vis spectra were acquired at the Experimental Teaching Center of Jewelry and Mineral Materials, China University of Geosciences, Beijing. The FTIR spectra for the five samples were recorded in transmission mode using a Bruker Tensor 27 FTIR spectrometer. The ore was ground into 200-mesh powder using an agate mortar, and the powder was mixed with KBr in a ratio of 1:150 and compressed into a tablet. The analytical conditions used for measurement included a resolution of 4 cm−1, a scan range of 400–2000 cm−1, and a run time of 30 s per scan.
Based on the PLM observations, petrographic thin sections corresponding to different color samples were selected and measured using a Horiba Scientific Raman microprobe spectrometer. Analysis conditions included an excitation wavelength of 532 nm, a scan range of 100–1200 cm−1, a resolution of 4 cm−1, and a spot size of 5 μm; each spectrum was scanned three times for 5 s.
Each purple sample was polished and cut into square sections of 1 cm × 1 cm × 1 cm to further explore the origin of purple generation. The UV–Vis spectra were measured using a UV-3600 spectrophotometer with operating conditions of reflection mode, scanning range of 300–800 nm, a sampling interval of 0.5 s, and high-speed scan mode.
Microthermometry of fluid inclusions was performed using a Linkam MDSG 600 heating–freezing system attached to a ZEISS PLM at the State Key Laboratory of Geological Processes and Mineral Resources, China University of Geosciences, Beijing. The measurable temperature range was −100 to +398 °C. Most of the tests were kept at a rate of 5–30 °C/min, but the rate was controlled at 0.1–1 °C/min near the phase transition point. Concurrently, the fluid inclusion component analyses were measured using a Horiba Scientific Raman microprobe spectrometer. Analysis conditions included an excitation wavelength of 532 nm, a scan range of 100–5000 cm−1, a resolution of 4 cm−1, and a spot size of 1–5 μm; each spectrum was scanned three times for 5 s.
The rare earth elements were analyzed by the acid solution method [17]. The ore was ground into 200-mesh powder. Then, 25 mg of powder, 0.5 mL of nitric acid, and 1.5 mL of hydrofluoric acid were placed into the digestion vessel and heated at 220 °C for 24 h. After cooling, they were placed on an electric heating plate and evaporated at 165 °C. Next, 1 mL of nitric acid was added and evaporated twice. Then, 3 mL of nitric acid (50%) was added, and they were heated in the digestion vessel at 165 °C for 5 h. Finally, the capacity was determined to be 25 mL. The analysis of rare earth elements was acquired using an Agilent 7500a inductively coupled plasma mass spectrometer at the National Research Center for Geoanalysis, Beijing.

4. Results

4.1. Structure and Components

Figure 3 shows some microphotographs of polished slides of samples of fluorite from the Nanlishu deposit. O1 and O2 consisted mainly of fluorite, which was frequently filled with vein-type quartz (Figure 3a). The distribution of small particles of pyrite was uneven, forming colloidal aggregates in association with quartz (Figure 3b). Some hypidiomorphic–xenomorphic pyrite had grain sizes of approximately 5–20 μm in association with quartz (Figure 3c). There was xenomorphic granular apatite with grain sizes of approximately 5–10 μm in association with quartz along the edges of fluorite (Figure 3d). O3 was composed of only fractured fluorite with no quartz or other minerals, suggesting that the fluorite in O3 formed later than the fluorite in O1 and O2 (Figure 3e). O4 was composed of fluorite filled with quartz (Figure 3f).
Figure 4 shows some microphotographs of thin sections of samples of fluorite from the Nanlishu deposit. O1 and O2 consisted mainly of fluorite. In combination with the hand specimen observations, it was concluded that the fluorite formation in O1 and O2 can be divided into two stages: All early fluorite had more developed fractures, dark purple, small grains, and a massive appearance filled with quartz (Figure 4a,b). The late fluorite had light purple, white or gray, large grains, and crystallized along the crystallographic planes of the early fluorite. It was not filled with quartz (Figure 4c). O3 was composed of late, light-colored fluorite with purple stripes or corrugations and was not filled with quartz (Figure 4d). O4 was composed of the early fluorite and quartz, and the vein-type quartz included the early fluorite (Figure 4e). The breccia mineral in O5 was colorless and transparent, with obvious rhombic cleavage, which suggested that it was calcite (Figure 4f).

4.2. Spectroscopy

4.2.1. FTIR Spectra

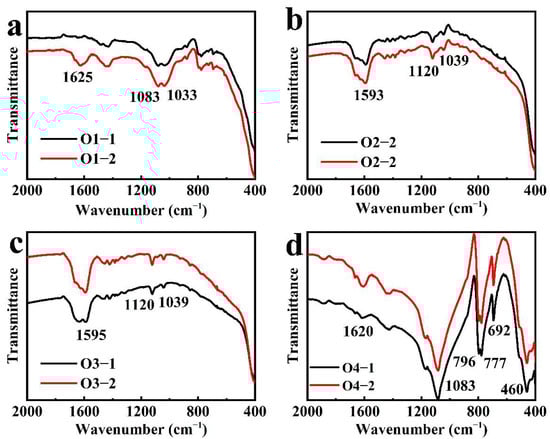

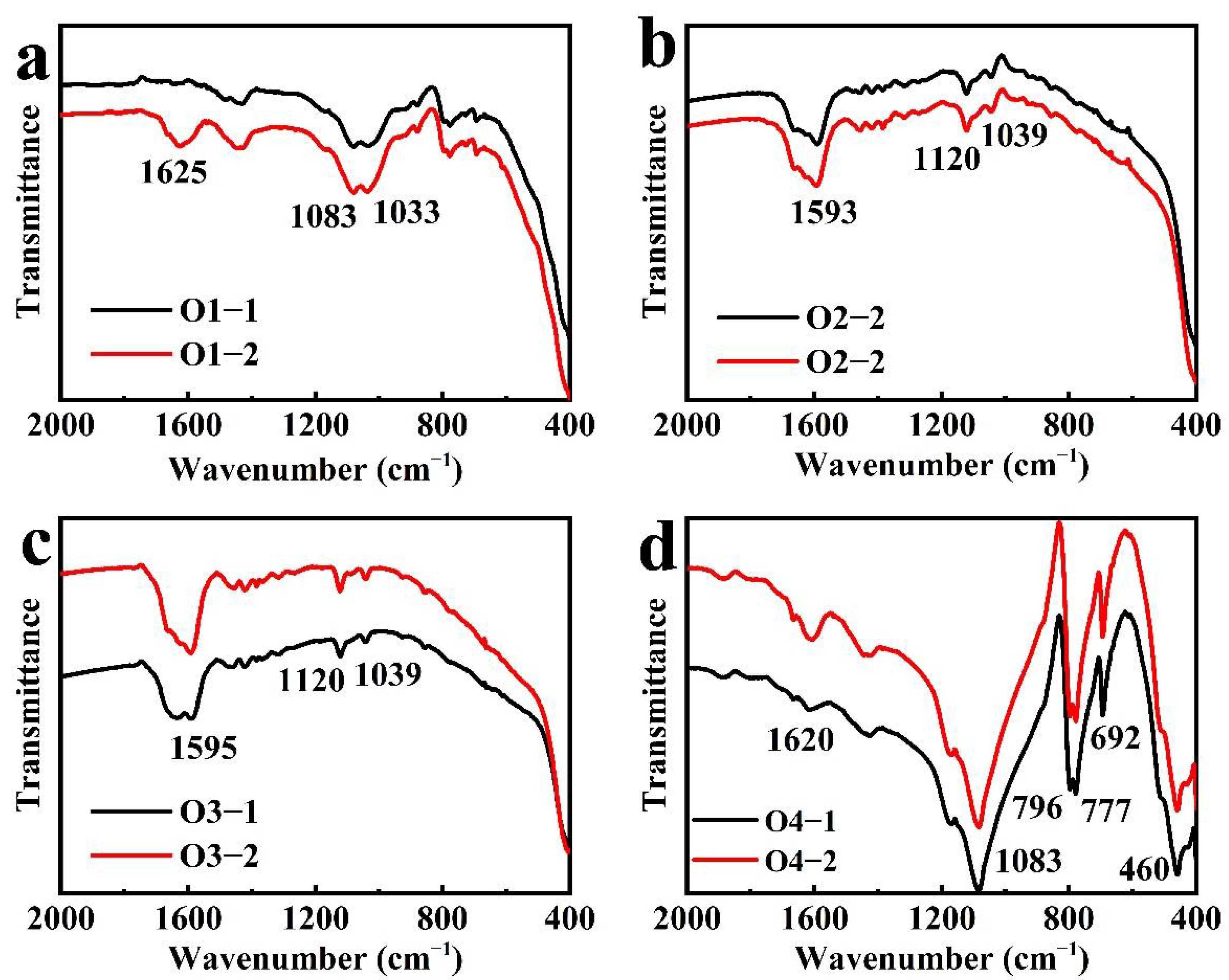

The FTIR transmissive spectra for the samples are all quite similar, and the transmission peaks can be divided into three groups: (1) 1033–1020 cm−1, (2) 1589–1637 cm−1, and (3) 460–796 cm−1 (Figure 5a–d). The bands at 1033, 1039, 1083, and 1120 cm–1 and at 1593, 1595, 1620, and 1625 cm−1 are due to the CO32− stretching modes [34]. There are small deviations in the FTIR bands for the different samples, which is caused by the CO32– and other impurity ions. The bands at 460–796 cm−1 only appear in sample O4, which was filled with white vein-type quartz; therefore, these bands are related to the quartz. The band at 460 cm−1 is ascribed to the Si–O bending mode, and the bands at 692, 777, and 796 cm−1 are attributed to the Si–O symmetrical stretching mode [35,36,37].
The main mineral of the ore is fluorite. The transmission peaks caused by the CO32− stretching mode appear in all measured samples, indicating that the Nanlishu fluorite ore contains carbonate minerals. In combination with PLM observations, the carbonate mineral is calcite from the surrounding rock, which can provide the Ca required for fluorite mineralization. The strong bending and stretching Si–O bands are related to the quartz formed by hydrothermal solution deposition.

4.2.2. Raman Spectra

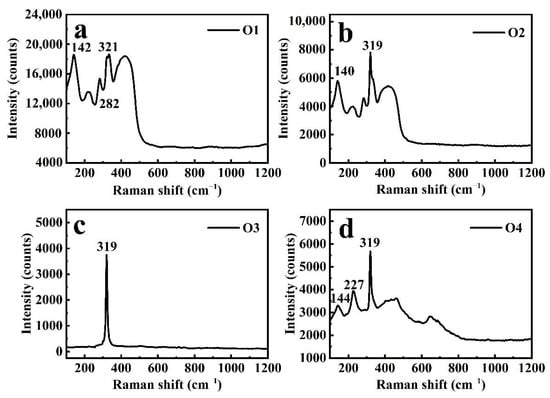

The only band ascribable to fluorite’s ideal structure is positioned at 319 or 321 cm−1 (Figure 6a–d). The weak bands at 140, 142, 144, 227, and 282 cm−1 in O1, O2, O3, and O4 are assigned to the lattice modes [38,39,40]. Based on measurements of the petrographic thin sections at selected regions of interest, the Raman microprobe spectra for quartz, apatite, pyrite, and calcite were also analyzed (Figure 7a–d). The assignments of the Raman shifts are listed in Table 1.

4.2.3. UV–Visible Spectra

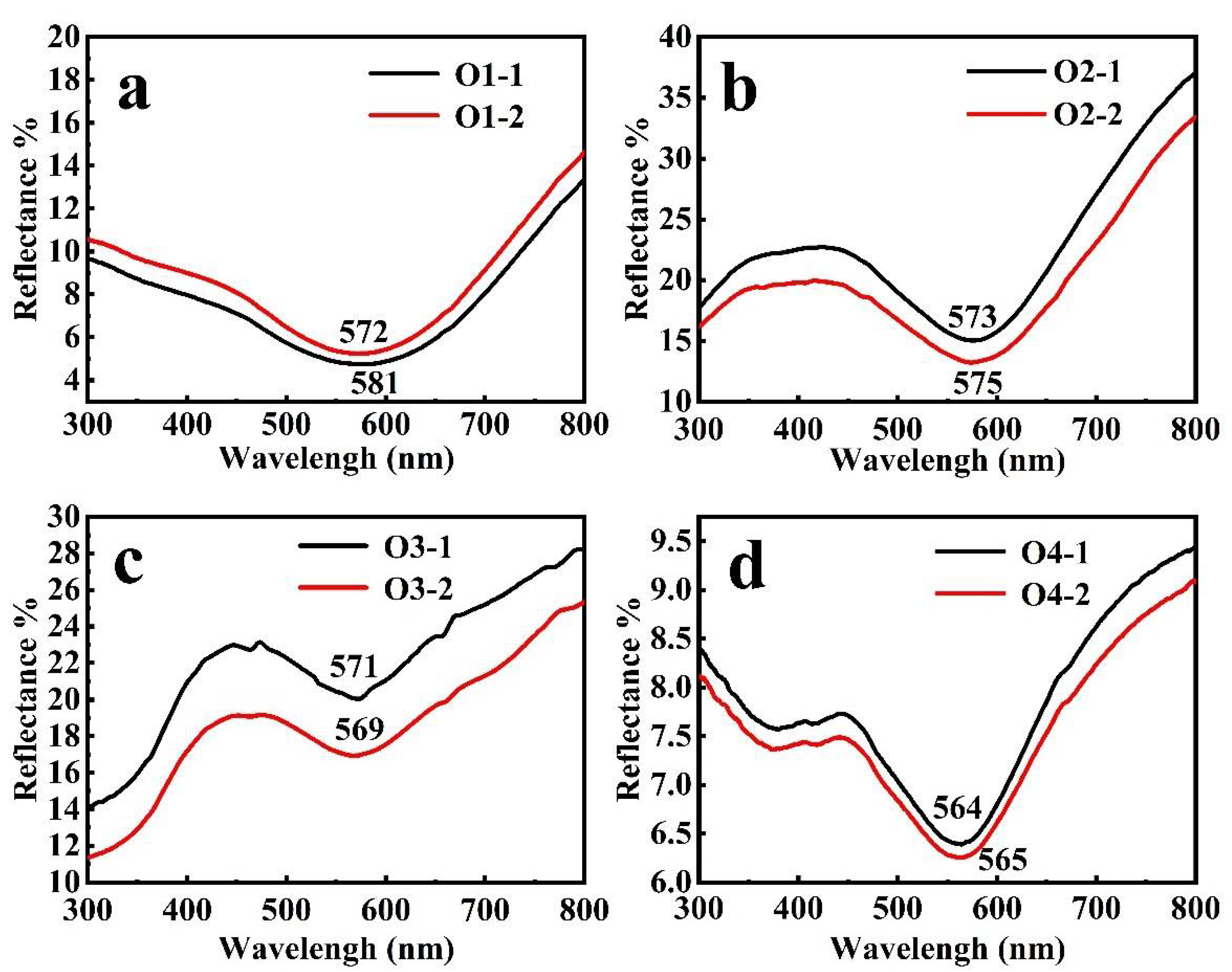

The UV–Visible spectra for the purple fluorites are quite similar (Figure 8a–d). The wide and strong bands in the range of 564 to 585 nm, which appear in different samples, correspond to Ca colloids. After long-term irradiation of radioelement in fluorite or surrounding rock, F− will lose electrons, and Ca2+ captures these electrons to form Ca colloids. The Ca colloids absorb visible light at 560–580 nm, which makes the fluorite appear purple [48,49].

4.3. Characteristics of Fluid Inclusions

The abundant small fluid inclusions in the Nanlishu fluorite are elliptical (Figure 9a), drop shaped (Figure 9b), fasciculate, or triangular, mainly distributed in groups or in isolation. They have two (liquid–vapor) phases and the primary fluid inclusions are 3–5 μm in size.

4.3.1. Micro thermometry Results

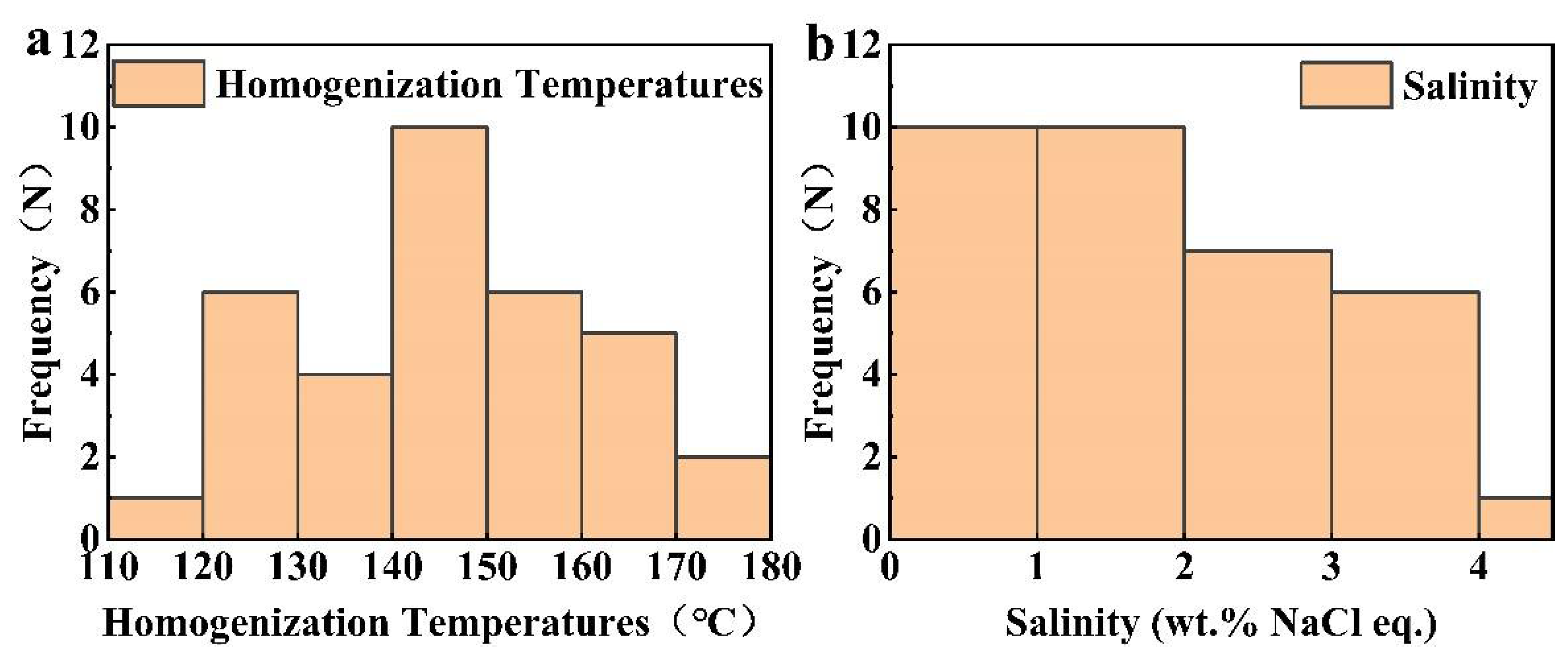

A total of 34 fluid inclusions within fluorite from O2 were analyzed for homogenization and freezing temperatures (Table A1). The homogenization temperatures vary from 116–179 °C and the salinity ranges from 0.35 to 4.03 wt% NaCl equiv. Their distributions are relatively even, with no obvious peaks or phases (Figure 10a,b). Density is calculated using the standard formula after Liu and varies from 0.90–1.00 g/cm3 [50].

4.3.2. Fluid Inclusion Composition

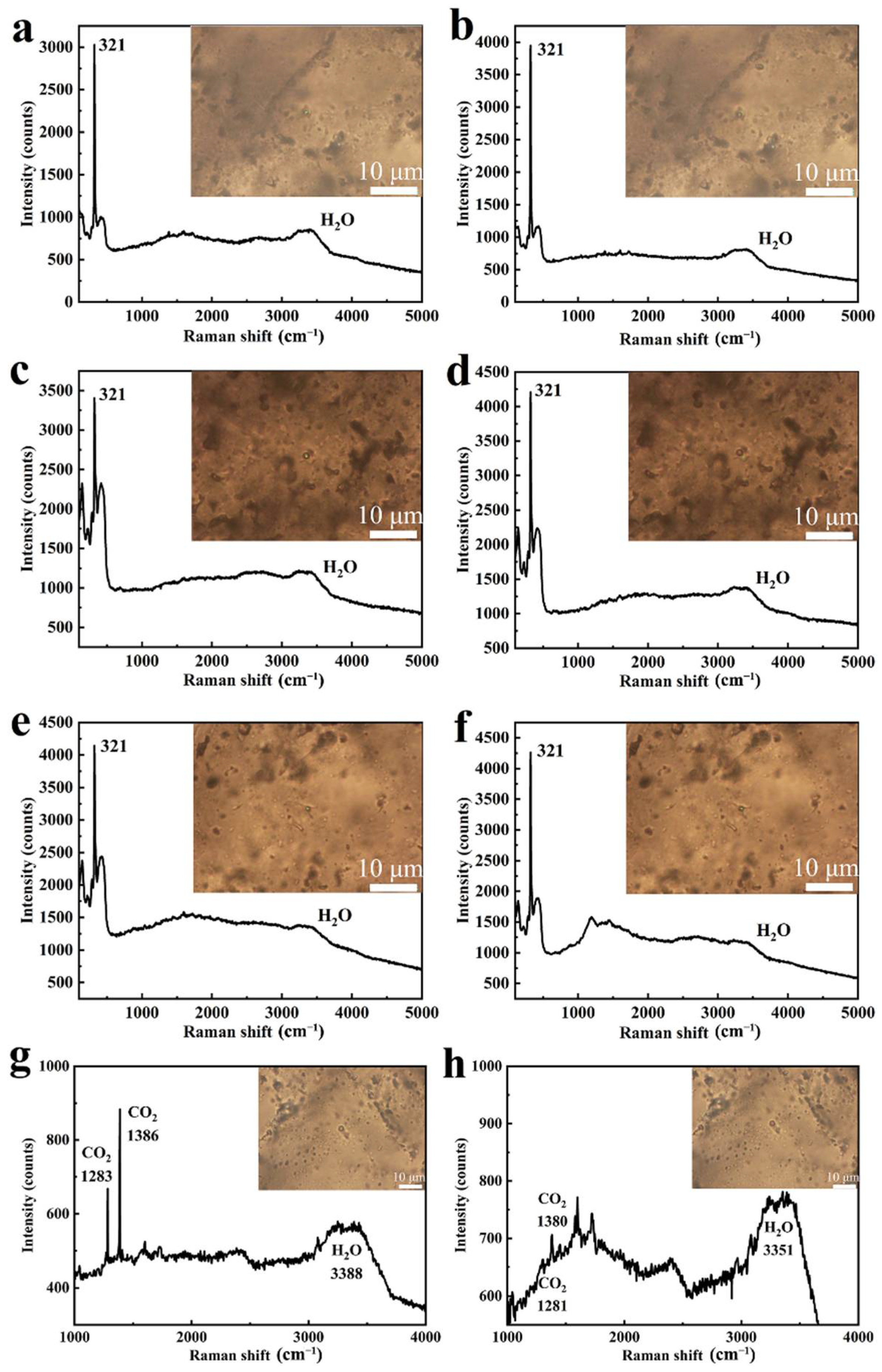

The Raman spectra of individual fluid inclusions are presented in Figure 11. The liquid–vapor phase composition of fluid inclusions in the Nanlishu fluorite is mainly H2O, which produces bands at 3050–3736 cm−1 related to the O–H stretching modes (Figure 11a–f). A small quantity of CO2 was detected in one fluid inclusion; the two bands at 1283 and 1386 cm–1 in the vapor phase and two bands at 1281 and 1380 cm−1 in the liquid phase are all assigned to the CO2 symmetrical stretching modes (Figure 11g,h) [51].

4.4. REE Geochemistry

4.4.1. REE Characteristics

In combination with PLM observation, O1, O2, and O3, which represent the ore in different mineralization stages, were selected to discuss the REE characteristics of the Nanlishu fluorite. The REE characteristics of Nanlishu fluorite are listed in Table 2. The total rare earth element (∑REE, excluding Y) contents of samples O1–O3 ranged from 8.072 to 27.230 ppm, which are relatively lower than those of fluorite from other regions in China [52,53,54,55,56,57,58,59,60,61,62,63,64,65,66]. The light/heavy REE ratio (LREE/HREE) varies from 0.971 to 1.513, which is not obviously enriched in LREEs or HREEs. There are almost no anomalies in δEu (1.010–1.074) and δCe (0.893–1.048). The ionic radii of Eu3+ and Ce3+ are closer to that of Ca2+ than other rare earth elements, and they more easily enter the lattice in isomorphism. Compared with the fluorite from other origins in China, Nanlishu fluorite has lower ∑REE content, no obvious enrichment in LREEs or HREEs, and no anomalies in δEu or δCe (Table A2) [52,53,54,55,56,57,58,59,60,61,62,63,64,65,66].

4.4.2. Chondrite-Normalized REE Patterns

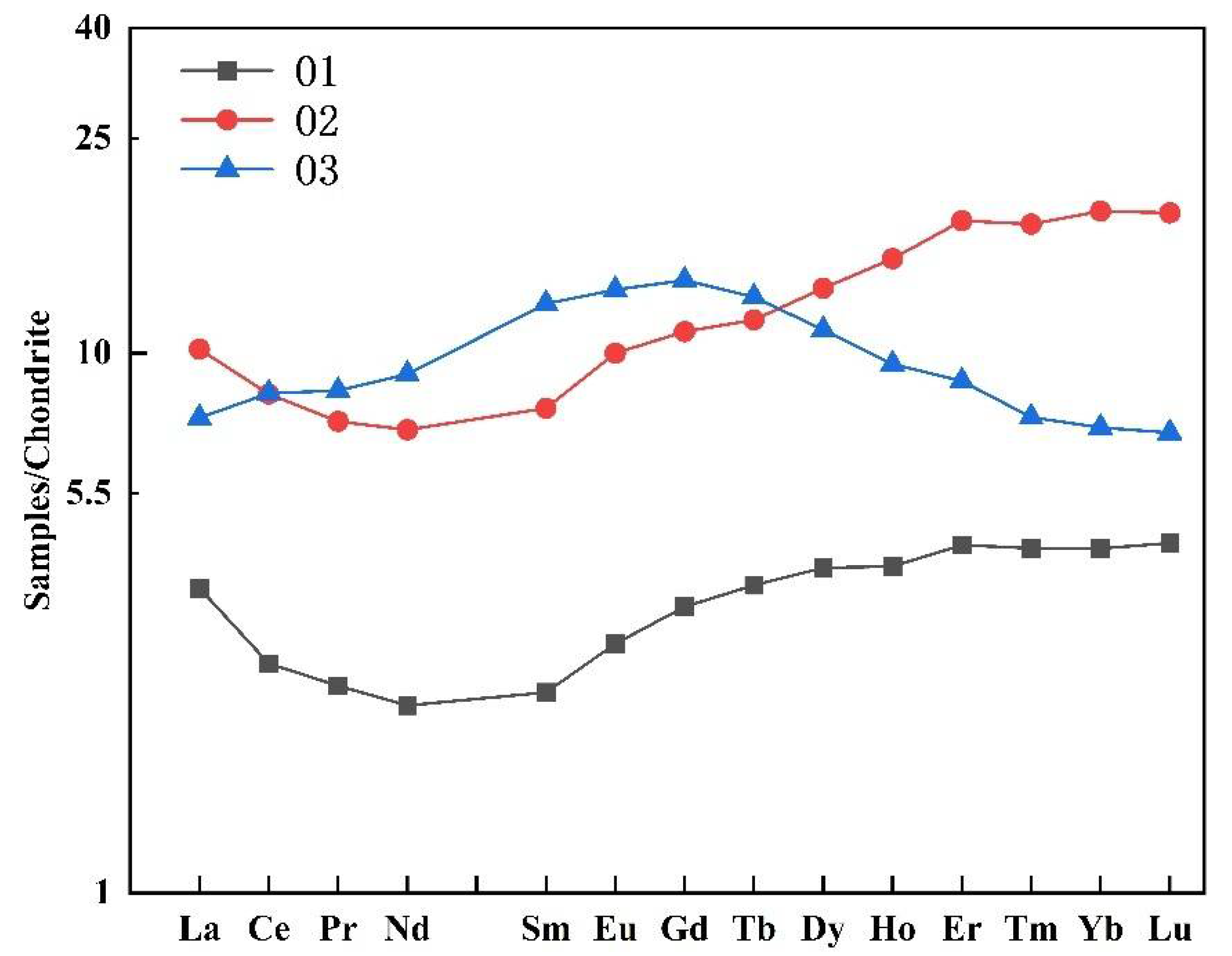

An REE/chondrite normalized distribution pattern is constructed (Figure 12), and the chondrite values are taken from Sun [67]. The distribution curves of O1 and O2 have similar characteristics but are different from O3. Combined with PLM observation, it is suggested that O1 and O2 formed from the early ore-forming fluid, and O3 is formed from the late ore-forming fluid. A small quantity of late ore-forming fluid precipitated and crystallized along the crystallographic planes of the early fluorite (Figure 4c).

4.4.3. The Tb/Ca–Tb/La Diagram

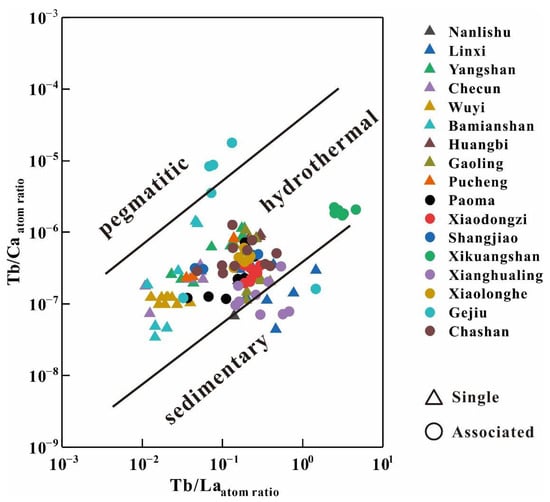

Based on the analysis of more than 150 fluorite samples from various regions of the world, Möller proposed a Tb/Ca–Tb/La diagram, which divided fluorite deposit genesis into three types: pegmatitic, hydrothermal, and sedimentary [68]. When calculating the Tb/Ca atomic ratio in this work, n(Ca) adopts the theoretical value (51.3328%) in CaF2 (Table A3). Taking the Tb/La atomic ratio in Nanlishu fluorite as the abscissa and the Tb/Ca atomic ratio as the ordinate, the data were mainly projected in the hydrothermal genesis area, similar to the fluorite in different deposits in China (Figure 13) [53,54,55,56,57,58,59,60,61,62,63,64,65,66].

5. Discussion

5.1. Origin of Ore-Forming Fluids

Previous studies indicated that the magmatic rocks in the Nanlishu mining area were mostly intrusive rocks, among which the quartz syenite porphyry is the direct source rock of fluorite mineralization. Magmatism provides a significant heat source and hydrothermal fluid containing fluorine, encouraging fluorite mineralization. The surrounding rock provides abundant calcium for fluorite mineralization. Therefore, it is concluded that the Nanlishu fluorite ore-forming fluid is a late magmatic hydrothermal solution (intrusion of the quartz syenite porphyry) [22].
Based on previous studies, this work summarizes the characteristics of fluid inclusions in fluorite from hydrothermal filling type and associated type deposits in China (Table A4) [23,24,25,26,27,28,29,30,31,32,33]. The maximum ore-forming temperatures of fluorite with magmatic water as the main ore-forming fluid exceeds 200 °C. The ore-forming temperatures of fluorite with meteoric water as the main ore-forming fluid are often lower than 220 °C (Table A4). The salinity of magmatic water is generally higher than that of meteoric water. The homogenization temperatures of fluid inclusions in the Nanlishu fluorite vary from 116 to 179 °C and do not fit with magmatic water or late magmatic hydrothermal solution as the ore-forming fluid. The salinity ranges from 0.35 to 4.03 wt% NaCl equiv, which corresponds to the range of meteoric water. The density varies from 0.90 to 1.00 g/cm3 and is distributed evenly. Therefore, the ore-forming fluids are derived from heated meteoric water characterized by low temperature, low salinity, and low density.
In addition, the mineral compositions of late magmatic hydrothermal deposits are usually oxides, sulfides, and oxysalts, and the metallogenic elements are complex. In this work, the Nanlishu fluorite ore rock is composed mainly of fluorite with minor amounts of quartz, pyrite, and apatite and trace amounts of calcite, which is different from late magmatic hydrothermal fluorite deposits. The surrounding rock, which is silicified and pyritized, is characteristic of meteoric water alteration [23]. Therefore, the conclusion that the Nanlishu fluorite ore-forming fluid was a late magmatic hydrothermal solution is invalid.

5.2. Origin of the Deposit

The mechanisms of fluorite precipitation are mainly changes in temperature, pressure, or pH of ore-forming fluids rich in Ca and F; mixing of two brines of different chemical compositions, and water/rock reaction of F-rich ore-forming fluid metasomatizing the surrounding calcareous rocks [69]. In addition to quartz syenite porphyry, the surrounding rock of the ore bodies is mainly tuff with argillaceous limestone and siliceous rock, among which the limestone can provide a large quantity of Ca for fluorite mineralization. F could be from the biotite in the quartz syenite porphyry or leached and extracted from the Carboniferous strata during the ascent and migration of meteoric water. Therefore, water/rock reaction is suggested as the main mechanism for Nanlishu fluorite precipitation.
In combination with PLM observation and chondrite-normalized REE patterns, the mineralization of fluorite can be divided into two stages: the early fluorite is small-grained and dark in color, while the late fluorite is large-grained and light in color. The early fluorite was frequently filled with vein-type quartz and sociated with quartz, pyrite, and apatite, suggesting that the early fluorite has undergone quartz–sulfide mineralization stage, which could be related to the late magmatism of the quartz syenite porphyry intrusion.

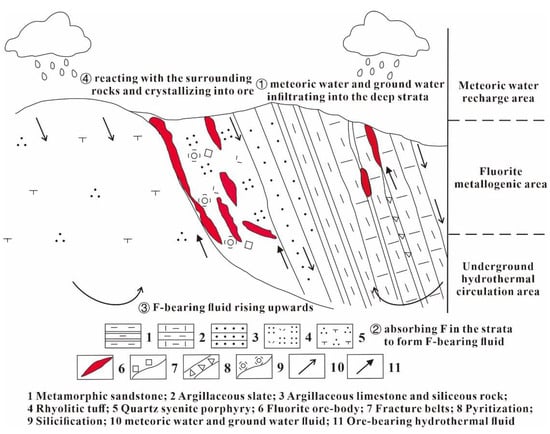

The developed fractures and folds in the area were conducive to fluorite mineralization. The NW-oriented secondary faults influenced by the Lishugou fault were the main faults controlling the ore belt and ore bodies. Meteoric water infiltrated into the deep strata due to gravity and sedimentary compaction and was heated by geothermal warming and magmatism (intrusion of the quartz syenite porphyry), absorbing F from the strata through convection to form F-bearing fluid. As a result of late tectonism, the F-bearing fluid rose from the deep strata to the shallow surface along the faults. F in the surrounding rock was continuously leached and extracted and migrated in the fluid in the form of ion complexes [19,24]. After reaching the surface, the ore-forming fluid reacted with the surrounding rocks, replacing the calcium in the limestone, enriching in metallogenic elements, and finally crystallizing into ore (Figure 14). The vein-type and lens-type ore bodies are strictly controlled by the fault belt. The Nanlishu fluorite deposit is a fault-controlled, low-temperature hydrothermal, fracture-filling deposit.

6. Conclusions

In this research, mineral composition, mineral structure, spectral characteristics, fluid inclusion, and rare earth element geochemistry were conducted to discuss the constraints on the metallogenic mechanism of the Nanlishu fluorite deposit. More methods to measure the origin of ore-forming fluid directly, such as isotopic analysis, should be undertaken in future research.
The Nanlishu fluorite ore rock is composed mainly of fluorite with minor amounts of quartz, pyrite, and apatite, and trace amounts of calcite. The early fluorite was small-grained and dark in color, while the late fluorite was large-grained and light in color. The purple color of the fluorite is caused by the Ca colloids.
The homogenization temperatures of fluid inclusions vary from 116 to 179 °C, the salinity ranges from 0.35 to 4.03 wt% NaCl equiv, and the density varies from 0.90 to 1.00 g/cm3. Ore-forming fluids were derived from heated meteoric water characterized by low temperature, low salinity, and low density.
The metallogenic mechanism of the Nanlishu fluorite deposit is water/rock reaction, which is related to the meteoric water and the surrounding limestone. Dark-colored fluorite formed in the early ore-forming fluids, and light-colored fluorite formed in late ore-forming fluids. The ore bodies are vein type and lens type, strictly controlled by the fault belt. The Nanlishu fluorite deposit is a fault-control, low-temperature hydrothermal, fracture-filling type deposit.

Author Contributions

Conceptualization, X.Y. and F.B.; methodology, X.Y. and F.B.; software, X.Y.; validation, X.Y.; formal analysis, X.Y.; investigation, X.Y.; resources, F.B.; data curation, X.Y.; writing—original draft preparation, X.Y.; writing—review and editing, F.B.; visualization, X.Y.; supervision, F.B.; project administration, F.B.; funding acquisition, F.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

Thanks to the Experimental Teaching Center of Jewelry and Mineral Materials, China University of Geosciences, Beijing for the experimental equipment.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table
Table A1. Microthermometry results of primary fluid inclusions in Nanlishu fluorite.
Table A1. Microthermometry results of primary fluid inclusions in Nanlishu fluorite.
Host
Mineral		Size (μm)Steam
Volume (%)		Tm (°C)Tm, Ice (°C)Salinity
(wt% NaCl Equiv)		Density (g/cm3)
Fluorite510128−2.33.870.97
Fluorite510141−2.13.550.95
Fluorite430136−1.11.910.95
Fluorite210120−0.71.220.96
Fluorite420168−0.40.700.91
Fluorite430161−1.93.230.93
Fluorite320174−0.71.220.91
Fluorite325148−1.32.240.94
Fluorite440155−0.40.700.92
Fluorite335143−0.20.350.93
Fluorite320148−1.52.570.94
Fluorite420142−0.81.400.94
Fluorite330179−0.30.530.90
Fluorite210152−1.11.910.93
Fluorite640168−1.93.230.93
Fluorite415125−1.22.070.96
Fluorite330124−1.11.910.96
Fluorite425129−1.62.740.96
Fluorite515129−1.11.910.96
Fluorite520130−0.71.220.95
Fluorite520156−0.40.700.92
Fluorite425153−0.40.700.93
Fluorite335136−1.42.410.95
Fluorite320141−0.20.350.94
Fluorite515154−1.52.570.94
Fluorite420134−0.50.880.95
Fluorite415145−1.11.910.94
Fluorite410116−0.40.700.96
Fluorite410143−0.30.530.94
Fluorite820153−2.44.030.95
Fluorite515169−1.01.740.92
Fluorite640140−1.32.240.95
Fluorite520162−2.13.550.93
Fluorite530145−2.03.390.95
Tm, homogenization temperature; Tm, ice, final ice-melting temperature.
Table
Table A2. Rare earth elements contents of fluorite in different deposits in China [52,53,54,55,56,57,58,59,60,61,62,63,64,65,66].
Table A2. Rare earth elements contents of fluorite in different deposits in China [52,53,54,55,56,57,58,59,60,61,62,63,64,65,66].
DepositsDeposit TypeMain Minerals in the DepositREE (ppm)LREE/HREEδEuδCe
NanlishuSingleFl, Qtz, Py8.072–27.2300.971–1.5131.010–1.0740.893–1.048
Stunt Qagan OboSingleFl, Qtz, Cal, Py10.080–207.0000.640–2.9600.540–2.1200.270–0.680
ShuitouSingleFl, Qtz, Kln4.370–158.0000.240–1.8000.570–1.6000.810–0.980
YangshanSingleFl, Qtz41.910–147.2500.710–2.2100.630–0.7000.840–0.940
ChecunSingleFl, Qtz, Kln, Chl17.100–239.2001.080–1.7800.320–1.9500.960–2.190
WuyiSingleFl, Qtz, Kln, Ser11.800–192.2800.260–4.2600.360–0.9100.680–0.960
BamianshanSingleFl, Cal, Qtz 3.620–38.4008.160–17.1900.450–1.3000.890–1.140
HuangbiSingleFl, Cal, Qtz75.240–84.2400.880–1.1100.430–0.4600.990–1.000
GaolingSingleFl, Qtz, Cal, Sti, Py11.400–105.0000.790–1.6500.910–1.2000.510–0.900
PuchengSingleFl, Qtz, Cal, Py, Ser12.220–154.4401.100–4.6700.550–1.0500.730–0.950
PaomaAssociatedGn, Sph, Py, Fl, Qtz,9.230–60.8500.920–5.3000.800–2.9400.580–1.000
XiaodongziAssociatedGn, Sph, Qtz, Fl17.140–68.3401.280–5.0601.310–2.0100.740–4.510
ShangjiaoAssociatedUr, Fl, Qtz41.870–68.9700.950–4.3300.630–0.6501.120–1.230
XikuangshanAssociatedSti, Qtz, Cal, Fl100.090–139.3800.813–1.1900.770–0.8300.920–1.060
XianghualingAssociatedCst, Ars, Sh, Dol, Fl298.950–3135.4200.400–3.3300.020–0.1100.940–2.060
XiaolongheAssociatedCst, Mu, Bit, Toz, Fl12.860–1420.8000.240–2.5400.200–0.4300.890–0.980
GejiuAssociatedPy, Ars, Cp Qtz, Fl7.000–1277.0000.502–3.2630.010–0.1900.440–1.050
ChashanAssociatedSti, Qtz, Fl4.030–77.5301.530–2.8401.480–2.9400.760–0.870
Single, fluorite is the main mineral in these deposits; Associated, fluorite is the associated mineral in these deposits. Fl, fluorite; Qtz, quartz; Py, pyrite; Ap, apatite; Cal, calcite; Chl, chlorite; Ser, sericite; Sti, stibnite; Gn, galena; Spn, sphalerite; Ur, Uraninite; Cst, cassiterite; Ars, arsenopyrite; Sh, scheelite; Dol, dolomite; Mu, muscovite; Bit, biotite; Toz, Topaz; Cp, chalcopyrite.
Table
Table A3. Tb/La and Tb/Ca atomic ratios of ore samples.
Table A3. Tb/La and Tb/Ca atomic ratios of ore samples.
SamplesO1O2O3
La0.8702.4101.800
Tb0.1390.4310.475
n(Tb/La)0.1400.1560.231
n(Tb/Ca)0.0680.2110.232
Table
Table A4. Characteristics of fluid inclusions in different fluorite deposits in China [23,24,25,26,27,28,29,30,31,32,33].
Table A4. Characteristics of fluid inclusions in different fluorite deposits in China [23,24,25,26,27,28,29,30,31,32,33].
DepositDeposit TypeOre-Forming
Temperature (°C)		Salinity (wt% NaCl Equiv)Ore-Forming Fluid
NanlishuSingle116–1790.35–8.41Meteoric water
LinxiSingle140–2200.4–2.8Meteoric water
WuyiSingle84–1301.7–5.2Meteoric water
HuangshuanglingSingle150–2000.18–3.06Meteoric water
BamianshanSingle120–2500.18–4.18Meteoric water, magmatic water, metamorphic water
BancangSingle93–1860.35–9.28Meteoric water
NankengSingle150–1600.5–4.0Meteoric water
HuitanSingle114–1600.88–13.82Meteoric water
ChizhuyuanAssociated250–3002–9.21Magmatic water, meteoric water
XihuashanAssociated140–2951.4–7.7Magmatic water, meteoric water
HuangshapingAssociated135–3130.88–19.13Magmatic water, meteoric water
BeiluAssociated90–2880.18–13.45Magmatic water, metamorphic water, meteoric water
Single, fluorite is the main mineral in these deposits; Associated, fluorite is the associated mineral in these deposits.

References

  1. Bill, H. Origin of the coloration of yellow fluorites: The O3− center structure and dynamical aspects. J. Chem. Phys. 1982, 76, 219–224. [Google Scholar] [CrossRef]
  2. Gaft, M.; Waychunas, G.A.; Rossman, G.R.; Nagli, L.; Panczer, G.; Cheskis, D.; Raichlin, Y. Red photoluminescence and purple color of naturally irradiated fluorite. Phys. Chem. Miner. 2020, 47, 45–56. [Google Scholar] [CrossRef]
  3. Aoki, T.; Garvie, L.A.J.; Rez, P. Observation of color center peaks in calcium fluoride. Ultramicroscopy 2015, 153, 40–44. [Google Scholar] [CrossRef] [PubMed]
  4. Gu, H.; Ma, D.; Chen, W.; Zhu, R.; Li, Y.; Li, Y. Electrolytic coloration and spectral properties of natural fluorite crystals containing oxygen impurities. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2011, 82, 327–331. [Google Scholar] [CrossRef] [PubMed]
  5. Bill, H.; Calas, G. Color centers, associated rare-earth ions and the origin of coloration in natural fluorites. Phys. Chem. Miner. 1978, 3, 117–131. [Google Scholar] [CrossRef]
  6. Dill, H.G.; Weber, B. Variation of color, structure and morphology of fluorite and the origin of the hydrothermal F-Ba deposits at Nabburg-Wolsendorf, SE Germany. Neues Jahrb. Mineral. Abh. 2010, 187, 113–132. [Google Scholar] [CrossRef]
  7. Kempe, U.; Plötze, M.; Brachmann, A.; Böttcher, R. Stabilisation of divalent rare earth elements in natural fluorite. Miner. Petrol. 2002, 76, 213–234. [Google Scholar] [CrossRef]
  8. Mackenzie, K.J.D.; Green, J.M. The cause of coloration in Derbyshire Blue John banded fluorite and other blue banded fluorites. Mineral. Mag. 1971, 38, 459–470. [Google Scholar] [CrossRef]
  9. Braithwaite, R.S.W.; Flowers, W.T.; Haszeldine, R.N.; Russell, M. The cause of the colour of Blue John and other purple fluorites. Mineral. Mag. 1973, 39, 401–411. [Google Scholar] [CrossRef]
  10. Galwey, A.K.; Jones, K.A.; Reed, R.; Dollimore, D. The blue coloration in banded fluorite (Blue John) from Castleton, Derbyshire, England. Mineral. Mag. 1979, 43, 243–250. [Google Scholar] [CrossRef]
  11. Sasmaz, A.; Kryuchenko, N.; Zhovinsky, E.; Suyarko, V.; Konakci, N.; Akgul, B. Major, trace and rare earth element (REE) geochemistry of different coloredfluorites in the Bobrynets region, Ukraine. Ore Geol. Rev. 2018, 102, 338–350. [Google Scholar] [CrossRef]
  12. Mondillo, N.; Boni, M.; Balassone, G.; Spoleto, S.; Stellato, F.; Marino, A.; Santoro, L.; Spratt, J. Rare earth elements (REE)–Minerals in the Silius fluorite vein system (Sardinia, Italy). Ore Geol. Rev. 2016, 74, 211–224. [Google Scholar] [CrossRef]
  13. Öztürk, H.; Altuncu, S.; Hanilçi, N.; Kasapçı, C.; Goodenough, K.M. Rare earth element-bearing fluorite deposits of Turkey: An overview. Ore Geol. Rev. 2019, 105, 423–444. [Google Scholar] [CrossRef]
  14. Eppinger, R.G.; Closs, L.G. Variation of trace elements and rare earth elements in fluorite; a possible tool for exploration. Econ. Geol. 1990, 85, 1896–1907. [Google Scholar] [CrossRef]
  15. Duan, Z.; Jiang, S.; Su, H.; Zhu, X.; Zou, T.; Cheng, X.; Jiang, S.; Su, H.; Zhu, X.; Zou, T.; et al. Trace and rare earth elements, and Sr isotopic compositions of fluorite from the Shihuiyao rare metal deposit, inner Mongolia: Implication for its origin. Minerals 2020, 10, 882. [Google Scholar] [CrossRef]
  16. Haschke, S.; Gutzmer, J.; Wohlgemuth-Ueberwasser, C.; Kraemer, D.; Burisch, M. The Niederschlag fluorite-(barite) deposit, Erzgebirge/Germany—a fluid inclusion and trace element study. Miner. Depos. 2021, 56, 1071–1086. [Google Scholar] [CrossRef]
  17. Kraemer, D.; Viehmann, S.; Banks, D.; Sumoondur, A.; Koeberl, C.; Bau, M. Regional variations in fluid formation and metal sources in MVT mineralization in the Pennine Orefield, UK: Implications from rare earth element and yttrium distribution, Sr-Nd isotopes and fluid inclusion compositions of hydrothermal vein fluorites. Ore Geol. Rev. 2019, 107, 960–972. [Google Scholar] [CrossRef]
  18. Li, X.; Wang, G.; Mao, W.; Wang, C.; Xiao, R.; Wang, M. Fluid inclusions, muscovite Ar–Ar age, and fluorite trace elements at the Baiyanghe volcanic Be–U–Mo deposit, Xinjiang, northwest China: Implication for its genesis. Ore Geol. Rev. 2015, 64, 387–399. [Google Scholar] [CrossRef]
  19. Pei, Q.; Zhang, S.; Santosh, M.; Cao, H.; Zhang, W.; Hu, X.; Wang, L. Geochronology, geochemistry, fluid inclusion and C, O and Hf isotope compositions of the Shuitou fluorite deposit, Inner Mongolia, China. Ore Geol. Rev. 2017, 83, 174–190. [Google Scholar] [CrossRef]
  20. Hein, U.F.; Lüders, V.; Dulski, P. The fluorite vein mineralization of the southern Alps: Combined application of fluid inclusions and rare earth element (REE) distribution. Mineral. Mag. 1990, 54, 323–333. [Google Scholar] [CrossRef]
  21. Sasmaz, A.; Yavuz, F. REE geochemistry and fluid-inclusion studies of fluorite deposits from the Yaylagozu area (Yildizeli-Sivas) in Central Turkey. Neues Jahrb. Mineral. Abh. 2008, 183, 215–226. [Google Scholar] [CrossRef]
  22. Yang, L. Geological characteristics and genesis of the Nanlishu fluorite deposit in Mingcheng Town, Panshi City, Jilin Province. Jilin Geol. 2019, 38, 49–51. (In Chinese) [Google Scholar]
  23. Zhang, S.; Cao, H.; Zheng, G.; Ma, Y.; Fang, Y.; Zou, H. Characteristics of ore-forming fluids and mineralization processes of the Shuitou fluorite deposit in Linxi, Inner Mongolia Autonomous region. Earth Sci. Front. 2014, 21, 31–40. (In Chinese) [Google Scholar]
  24. Zeng, Z.; Cao, H.; Gao, F.; Gao, Y.; Zou, H.; Li, D. Fluid inclusion study of fluorite deposits in Linxi region, Inner Mongolia. Geochimica 2013, 42, 73–81. (In Chinese) [Google Scholar]
  25. Ma, J. Study on mineral inclusions of fluorite deposits in Wuyi, Zhejiang province. Resour. Surv. Environ. 1990, 11, 13–24. (In Chinese) [Google Scholar]
  26. Lu, W.; Yang, S.; Zhang, P. Isotopic investigation of Huangshuangling Fluorite deposit in Sheng county, Zejiang. J. Chengdu Coll. Geol. 1991, 18, 103–111. (In Chinese) [Google Scholar]
  27. Wang, X.; Wang, S.; Yuan, Y.; Li, Y. Characteristics of geological and metallogenic fluids on Bancang fluorite mine in Dawu, Hubei. Miner. Explor. 2019, 10, 2256–2260. (In Chinese) [Google Scholar]
  28. Wen, H.; Wang, J. The characteristics of fluorite inclusions and genesis of Nankeng Fluorite deposit. Mineral. Petrol. 1992, 12, 74–79. (In Chinese) [Google Scholar]
  29. Li, Z. Geological characteristics and genesis of Huitan fluorite deposit in Jianyang city, Fujian province. Geol. Fujian 2021, 40, 13–23. (In Chinese) [Google Scholar]
  30. Wang, L.; Ni, P.; Dai, B.; Li, W.; Pan, J.; Cui, J.; Gao, Y. Fluid inclusion study of the ore-bearing stockwork greisen at Shizhuyuan W-Sn-Mo-Bi deposit, Hunan. J. Nanjing Univ. 2020, 56, 653–665. (In Chinese) [Google Scholar]
  31. Huang, H.; Chang, H.; Tan, J.; Li, F.; Zhang, C.; Zhou, Y. Contrasting infrared microthermometry study of fluid inclusions in coexisting quartz, wolframite and other minerals: A case study of Xihuashan quartz-vein tungsten deposit, China. Acta Petrol. Sin. 2015, 31, 925–940. (In Chinese) [Google Scholar]
  32. Huang, C.; Li, X.; Wang, L.; Liu, F. Fluid inclusion study of the Huangshaping polymetallic deposit, Hunan Province, South China. Acta Petrol. Sin. 2013, 29, 4232–4244. (In Chinese) [Google Scholar]
  33. Suo, Z.; Wang, S.; Yu, Z.; Li, Y.; Yuan, Y.; Wang, X. Hydrogen, oxygen, lead and sulfur isotopic and geochemical characteristics of fluorite deposits in the North Dabie Mountains. Miner. Resour. Geol. 2020, 34, 41–47. (In Chinese) [Google Scholar]
  34. Campbell, S.; Dusseault, M.; Xu, B.; Michaelian, K.H.; Poduska, K.M. Photoacoustic detection of weakabsorption bands in infrared spectraof calcite. Appl. Spectrosc. 2021, 75, 795–801. [Google Scholar] [CrossRef]
  35. Zhang, M.; Moxon, T. Infrared absorption spectroscopy of SiO2–moganite. Am. Mineral. 2014, 99, 671–680. [Google Scholar] [CrossRef]
  36. Kučírková, A.; Navrátil, K. Interpretation of infrared transmittance spectra of SiO2 thin films. Appl. Spectrosc. 1994, 48, 113–120. [Google Scholar] [CrossRef]
  37. Jin, R.; Hu, S.; Tan, Y. Preparation of ultrafine SiO2 powder from rice husk and properties of its infrared spectrum. J. Meas. Sci. Instrum. 2011, 2, 262–269. [Google Scholar] [CrossRef]
  38. Čermáková, Z.; Bezdička, P.; Němec, I.; Hradilová, J.; Šrein, V.; Blažekf, J.; Hradila, D. Naturally irradiated fluorite as a historic violetpigment: Raman spectroscopic and X-ray diffraction study. J. Raman Spectrosc. 2015, 46, 236–243. [Google Scholar] [CrossRef]
  39. Keramidas, V.G.; White, W.B. Raman spectra of oxides with the fluorite structure. J. Chem. Phys. 1973, 59, 1561–1562. [Google Scholar] [CrossRef]
  40. Srivastava, R.; Lauer, H.V.; Chase, L.L.; Bron, W.E. Raman frequencies of fluorite crystals. Phys. Lett. A 1971, 36, 333–334. [Google Scholar] [CrossRef]
  41. Sato, R.K.; McMillan, P.F. An infrared and Raman study of the isotopic species of α-quartz. J. Phys. Chem. 1987, 91, 3494–3498. [Google Scholar] [CrossRef]
  42. Zu, E.; Li, S.; Zou, Y.; Zhao, X.; Sun, Y.; Lin, Y.; Li, H. Study of natural and synthetic quartz by Raman spectra. Key Eng. Mater. 2011, 492, 341–344. [Google Scholar] [CrossRef]
  43. Xu, B.; Kou, G.; Etschmann, B.; Liu, D.; Brugger, J. Spectroscopic, Raman, EMPA, Micro-XRF and Micro-XANES analyses of sulphur concentration and oxidation state of natural apatite crystals. Crystals 2020, 10, 1032. [Google Scholar] [CrossRef]
  44. Wang, M.; Qian, R.; Bao, M.; Gu, C.; Zhu, P. Raman, FT-IR and XRD study of bovine bone mineral and carbonated apatites with different carbonate levels. Mater. Lett. 2018, 210, 203–206. [Google Scholar] [CrossRef]
  45. Chen, C.; Li, H.; Yuan, Y.; Zhang, M.; Shuai, S.; Wan, J. Raman spectroscopic studies of pyrite at high pressure and high temperature. Minerals 2022, 12, 332. [Google Scholar] [CrossRef]
  46. Zhang, H.; Qian, G.; Cai, Y.; Gibson, C.; Pring, A. Crystal chemistry of arsenian pyrites: A Raman spectroscopic study. Am. Mineral. 2022, 107, 274–281. [Google Scholar] [CrossRef]
  47. Ishida, K.; Hawthorne, F.C. Raman characterization of synthetic magnesian calcites. Am. Mineral. 2016, 101, 2525–2538. [Google Scholar] [CrossRef]
  48. McLaughlan, S.D.; Evans, H.W. Production of colloidal calcium by electron irradiation of CaF2 crystals. Phys. Status Solidi B 1968, 27, 695–700. [Google Scholar] [CrossRef]
  49. LeBret, J.B.; Norton, M.G.; Dickinson, J.T.; Cramer, L.P. Colloid formation and laser-induced bleaching in fluorite. Appl. Phys. Lett. 2005, 85, 4382–4384. [Google Scholar] [CrossRef]
  50. Liu, B.; Duan, G. The density and isochoric formulae for NaCl–H2O fluid inclusions (salinity ≤25 wt%) and their applications. Acta Mineral. Sin. 1987, 7, 345–352. (In Chinese) [Google Scholar]
  51. Frezzotti, M.L.; Tecce, F.; Casagli, A. Raman spectroscopy for fluid inclusion analysis. J. Geochem. Explor. 2012, 112, 1–20. [Google Scholar] [CrossRef]
  52. Xu, D.; Nie, F.; Qian, M.; Liu, Y.; Yun, F.; Zhang, W. REE geochemistry and genesis of Sumochagan Obo superlarge fluorite deposit. Miner. Depos. 2009, 28, 29–41. (In Chinese) [Google Scholar]
  53. Cao, H.; Zhang, S. REE geochemistry of fluorite from Linxi fluorite deposit and its geological implications, Inner Mongolia Autonomous Region. Geochimica 2014, 43, 131–140. (In Chinese) [Google Scholar]
  54. Feng, S.; Wang, J.; Liu, Y.; Liang, X.; Huang, L.; Zhang, Z.; Xiao, H. Geochemical characteristics, and indicative significance of rareearth elements in Yangshan fluorite deposit in western Henan province. Chin. Rare Earths 2020, 41, 50–58. (In Chinese) [Google Scholar]
  55. Dong, W.; Pang, X.; Si, Y.; Liang, Z.; Li, W. REE geological characteristics of Checun fluorite deposit in Song county, Henan province. J. Chin. Soc. Rare Earths 2020, 38, 706–714. (In Chinese) [Google Scholar]
  56. Xia, X.; Han, Y.; Lian, W.; Yuan, C.; Xu, S.; Yan, F.; Liang, Z. Genesis discussion and REE geochemistry characters in Bamianshan fluorite deposit in Zhejiang province. Geol. Chem. Miner. 2009, 31, 193–200. (In Chinese) [Google Scholar]
  57. Huang, H.; Luo, P.; Chang, S.; Zhang, J.; Wang, C. Characteristics of rare earth elements and the source of mineralization of fluorite deposit in Huangbi, Jiangxi Province. Miner. Resour. Geol. 2018, 32, 641–654. (In Chinese) [Google Scholar]
  58. Jin, S.; Chen, J.; Dai, D.; Yang, D.; Zhou, J.; He, X. Geochemical characteristics of trace elements and REE in the Gaoling fluorite deposit, Southwest Guizhou, China. Acta Mineral. Sin. 2018, 38, 684–692. (In Chinese) [Google Scholar]
  59. Zhu, L.; Jin, S.; Wang, C.; Shang, P.; Gao, L.; Wang, Z. Geochemistry characteristic and genesis of surrounding rock and ore Pucheng Fluorite Deposit district, Fujiang province. Acta Petrogr. Mineral. 2021, 40, 923–938. (In Chinese) [Google Scholar]
  60. Wu, Y.; Zhang, C.; Tian, G. REE geochemistry of fluorite from Paoma lead-zinc deposit in Sichuan province, China and its geological implications. China. Acta Mineral. Sin. 2013, 33, 295–301. (In Chinese) [Google Scholar]
  61. Luo, L.; Tan, H.; Hu, J.; Xie, H.; Zhang, W. REE geochemistry of the Xiaodongzi fluorite deposit in Butuo. Acta Geol. Sichuan 2020, 40, 45–50. (In Chinese) [Google Scholar]
  62. Wu, D.; Pan, J.; Xia, F.; Huang, G.; Zhang, F.; Lan, J.; Qi, J.; Liu, Y. Characteristics and source significance of rare earth elements geochemistry of fluorite from Shangjiao uranium deposit in southern Jiangxi Province. Chin. Rare. Earths 2019, 40, 14–26. (In Chinese) [Google Scholar]
  63. Lin, F.; Peng, J.; Hu, A.; Deng, M. Geochemical study of REE in fluorite from Xikuangshan antimony deposit, central Hunan Province, China. Acta Mineral. Sin. 2015, 35, 214–220. (In Chinese) [Google Scholar]
  64. Cao, H.; Zhang, W.; Pei, Q.; Zhang, S.; Zheng, G. Trace element geochemistry of fluorite and calcite from the Xiaolonghe tin deposits and Lailishan tin deposits in western Yunnan, China. Bull. Mineral. Petrol. Geochem. 2016, 36, 925–935. (In Chinese) [Google Scholar]
  65. Peng, Q.; Jiang, X.; Li, C.; Fan, Z.; Wei, C.; Chen, Y.; Xie, X.; Yu, H. Geochemical characteristics of fluorites from the Xi’ao altered granite type Cu-Sn polymetallic deposit in Gejiu, Yunnan Province and their geological significance. Miner. Depos. 2021, 40, 1182–1198. (In Chinese) [Google Scholar]
  66. Nie, A. REE geochemistry and origin of fluorite from Chashan antimony deposit, Guangxi. Acta Mineral. Sin. 1998, 18, 250–253. (In Chinese) [Google Scholar]
  67. Sun, S.-S.; McDonough, W.F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes. Geol. Soc. Lond. Spec. Publ. 1989, 42, 313–345. [Google Scholar] [CrossRef]
  68. Möller, P.; Parekh, P.P.; Schneider, H.-J. The application of Tb/Ca-Tb/La abundance ratios to problems of fluorspar genesis. Miner. Depos. 1976, 11, 111–116. [Google Scholar] [CrossRef]
  69. Richardson, C.K.; Holland, H.D. Fluorite deposition in hydrothermal systems. Geochimicaica et Cosmochimica. Geochim. Cosmochim. Acta 1979, 43, 1327–1335. [Google Scholar] [CrossRef]
Minerals 12 01195 g001 550
Figure 1. Geological map of the mining area of the Nanlishu fluorite deposit in Mingcheng Town, Panshi City (after Yan, 2019) [22].
Figure 1. Geological map of the mining area of the Nanlishu fluorite deposit in Mingcheng Town, Panshi City (after Yan, 2019) [22].
Minerals 12 01195 g001
Minerals 12 01195 g002 550
Figure 2. Selected samples of Nanlishu fluorite ore (marked in centimeters).
Figure 2. Selected samples of Nanlishu fluorite ore (marked in centimeters).
Minerals 12 01195 g002
Minerals 12 01195 g003 550
Figure 3. Mineral microstructure of the ore samples under reflected light. (a) Fluorite filled with vein-type quartz (O1); (b) colloidal pyrite in association with quartz (O1); (c) pyrite with grain sizes of approximately 5–20 μm (O2); (d) apatite in association with quartz (O1); (e) fluorite with developed fractures (O3); (f) coarse vein-type quartz (O4). Fl, fluorite; Qtz, quartz; Py, pyrite; Ap, apatite.
Figure 3. Mineral microstructure of the ore samples under reflected light. (a) Fluorite filled with vein-type quartz (O1); (b) colloidal pyrite in association with quartz (O1); (c) pyrite with grain sizes of approximately 5–20 μm (O2); (d) apatite in association with quartz (O1); (e) fluorite with developed fractures (O3); (f) coarse vein-type quartz (O4). Fl, fluorite; Qtz, quartz; Py, pyrite; Ap, apatite.
Minerals 12 01195 g003
Minerals 12 01195 g004 550
Figure 4. Mineral microstructures of the ore samples under transmitted light. (a,b) Vein-type quartz filled with early fluorite (O1 and O2, respectively); (c) late fluorite crystallized along the crystallographic planes of the early fluorite (O1); (d) late fluorite with purple stripes or corrugations (O3); (e) the vein-type quartz including the early fluorite (O4); (f) calcite with obvious rhombic cleavage (O5). Fl, fluorite; Qtz, quartz; Cal, calcite.
Figure 4. Mineral microstructures of the ore samples under transmitted light. (a,b) Vein-type quartz filled with early fluorite (O1 and O2, respectively); (c) late fluorite crystallized along the crystallographic planes of the early fluorite (O1); (d) late fluorite with purple stripes or corrugations (O3); (e) the vein-type quartz including the early fluorite (O4); (f) calcite with obvious rhombic cleavage (O5). Fl, fluorite; Qtz, quartz; Cal, calcite.
Minerals 12 01195 g004
Minerals 12 01195 g005 550
Figure 5. Fourier transform infrared FTIR spectra of the ore samples. (a) O1; (b) O2; (c) O3; (d) O4.
Figure 5. Fourier transform infrared FTIR spectra of the ore samples. (a) O1; (b) O2; (c) O3; (d) O4.
Minerals 12 01195 g005
Minerals 12 01195 g006 550
Figure 6. The Raman microprobe spectra for fluorite in the ore samples. (a) O1; (b) O2; (c) O3; (d) O4.
Figure 6. The Raman microprobe spectra for fluorite in the ore samples. (a) O1; (b) O2; (c) O3; (d) O4.
Minerals 12 01195 g006
Minerals 12 01195 g007 550
Figure 7. The Raman microprobe spectra for various minerals in the ore samples. (a) Quartz; (b) apatite; (c) pyrite; (d) calcite.
Figure 7. The Raman microprobe spectra for various minerals in the ore samples. (a) Quartz; (b) apatite; (c) pyrite; (d) calcite.
Minerals 12 01195 g007
Minerals 12 01195 g008 550
Figure 8. UV–Vis spectra for the ore samples. (a) O1; (b) O2; (c) O3; (d) O4.
Figure 8. UV–Vis spectra for the ore samples. (a) O1; (b) O2; (c) O3; (d) O4.
Minerals 12 01195 g008
Minerals 12 01195 g009 550
Figure 9. Fluid inclusions in Nanlishu fluorite. (a) Elliptical fluid inclusion; (b) drop-shaped fluid inclusion. ⟶, The fluid inclusions in the Nanlishu fluorite.
Figure 9. Fluid inclusions in Nanlishu fluorite. (a) Elliptical fluid inclusion; (b) drop-shaped fluid inclusion. ⟶, The fluid inclusions in the Nanlishu fluorite.
Minerals 12 01195 g009
Minerals 12 01195 g010 550
Figure 10. The frequency histograms for homogenization temperature and salinity of the fluid inclusions. (a) Homogenization temperature; (b) salinity.
Figure 10. The frequency histograms for homogenization temperature and salinity of the fluid inclusions. (a) Homogenization temperature; (b) salinity.
Minerals 12 01195 g010
Minerals 12 01195 g011 550
Figure 11. Raman microprobe spectra for liquid–vapor phase fluid inclusions. (a–f) Spectra for liquid–vapor phase with H2O as the main composition; (g,h) spectra for liquid–vapor phase with CO2 as the main composition.
Figure 11. Raman microprobe spectra for liquid–vapor phase fluid inclusions. (a–f) Spectra for liquid–vapor phase with H2O as the main composition; (g,h) spectra for liquid–vapor phase with CO2 as the main composition.
Minerals 12 01195 g011
Minerals 12 01195 g012 550
Figure 12. REE/chondrite normalized distribution pattern of ore samples.
Figure 12. REE/chondrite normalized distribution pattern of ore samples.
Minerals 12 01195 g012
Minerals 12 01195 g013 550
Figure 13. The Tb/Ca–Tb/La diagram of fluorite in different deposits in China [53,54,55,56,57,58,59,60,61,62,63,64,65,66].
Figure 13. The Tb/Ca–Tb/La diagram of fluorite in different deposits in China [53,54,55,56,57,58,59,60,61,62,63,64,65,66].
Minerals 12 01195 g013
Minerals 12 01195 g014 550
Figure 14. Metallogenic model of the Nanlishu fluorite deposit (after Yan, 2019) [22].
Figure 14. Metallogenic model of the Nanlishu fluorite deposit (after Yan, 2019) [22].
Minerals 12 01195 g014
Table
Table 1. The mode assignments of different minerals.
Table 1. The mode assignments of different minerals.
MineralsRaman Shift, cm−1AssignmentReferences
Quartz126E(t) + E(1) modes[41,42]
206, 463A1 mode
Apatite965V1 mode[43,44]
Pyrite342Eg mode[45,46]
380Ag mode
433Tg mode
Calcite154, 280Ca–O[47]
711V4 mode
1084V1 mode
Table
Table 2. Rare earth element contents of ore samples (ppm).
Table 2. Rare earth element contents of ore samples (ppm).
SamplesO1O2O3
La0.8702.4101.800
Ce1.6305.1405.160
Pr0.2300.7100.810
Nd1.0403.3704.270
Sm0.3601.2101.890
Eu0.1680.5800.760
Gd0.6972.2532.804
Tb0.1390.4310.475
Dy1.0173.3492.805
Ho0.2280.8470.540
Er0.7302.9101.470
Tm0.1110.4420.194
Yb0.7393.1161.238
Lu0.1130.4620.181
Y8.48031.23017.590
∑REE8.07227.23024.397
∑LREE4.29813.42014.690
∑HREE3.77413.8109.707
LREE/HREE1.1390.9711.513
δEu1.0251.0741.010
δCe0.8930.9631.048
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ye, X.; Bai, F. Spectral Characteristics, Rare Earth Elements, and Ore-Forming Fluid Constrains on the Origin of Fluorite Deposit in Nanlishu, Jilin Province, China. Minerals 2022, 12, 1195. https://doi.org/10.3390/min12101195

AMA Style

Ye X, Bai F. Spectral Characteristics, Rare Earth Elements, and Ore-Forming Fluid Constrains on the Origin of Fluorite Deposit in Nanlishu, Jilin Province, China. Minerals. 2022; 12(10):1195. https://doi.org/10.3390/min12101195

Chicago/Turabian Style

Ye, Xiaomeng, and Feng Bai. 2022. "Spectral Characteristics, Rare Earth Elements, and Ore-Forming Fluid Constrains on the Origin of Fluorite Deposit in Nanlishu, Jilin Province, China" Minerals 12, no. 10: 1195. https://doi.org/10.3390/min12101195

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
