Article

Simulation Technology Development for Dynamic Analysis of Mechanical System in Deep-Seabed Integrated Mining System Using Multibody Dynamics

by
Jun-Hyun Lim
1,
Hyung-Woo Kim
2,
Sup Hong
2,
Jae-Won Oh
3,* and
Dae-Sung Bae
1
1
Department of Mechanical Engineering, Hanyang University, 222 Wangsimni-ro, Seongdong-gu, Seoul 04763, Korea
2
Ocean System Engineering Research Division, Korea Research Institute of Ships & Ocean Engineering (KRISO), 32, Yuseong-daero 1312beon-gil, Yuseong-gu, Daejeon 34103, Korea
3
Offshore Industries R&BD Center, Korea Research Institute of Ships & Ocean Engineering (KRISO), 1350 Geojebuk-ro, Geoje 53201, Korea
*
Author to whom correspondence should be addressed.
Minerals 2022, 12(5), 498; https://doi.org/10.3390/min12050498
Submission received: 27 March 2022 / Revised: 14 April 2022 / Accepted: 15 April 2022 / Published: 19 April 2022
(This article belongs to the Topic Deep-Sea Mining)
Browse Figures
Versions Notes

Abstract

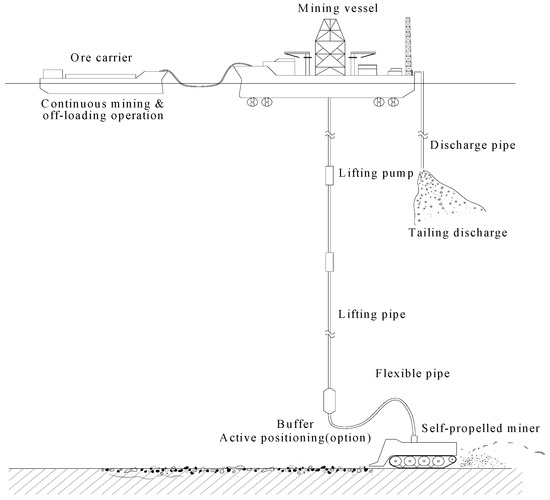

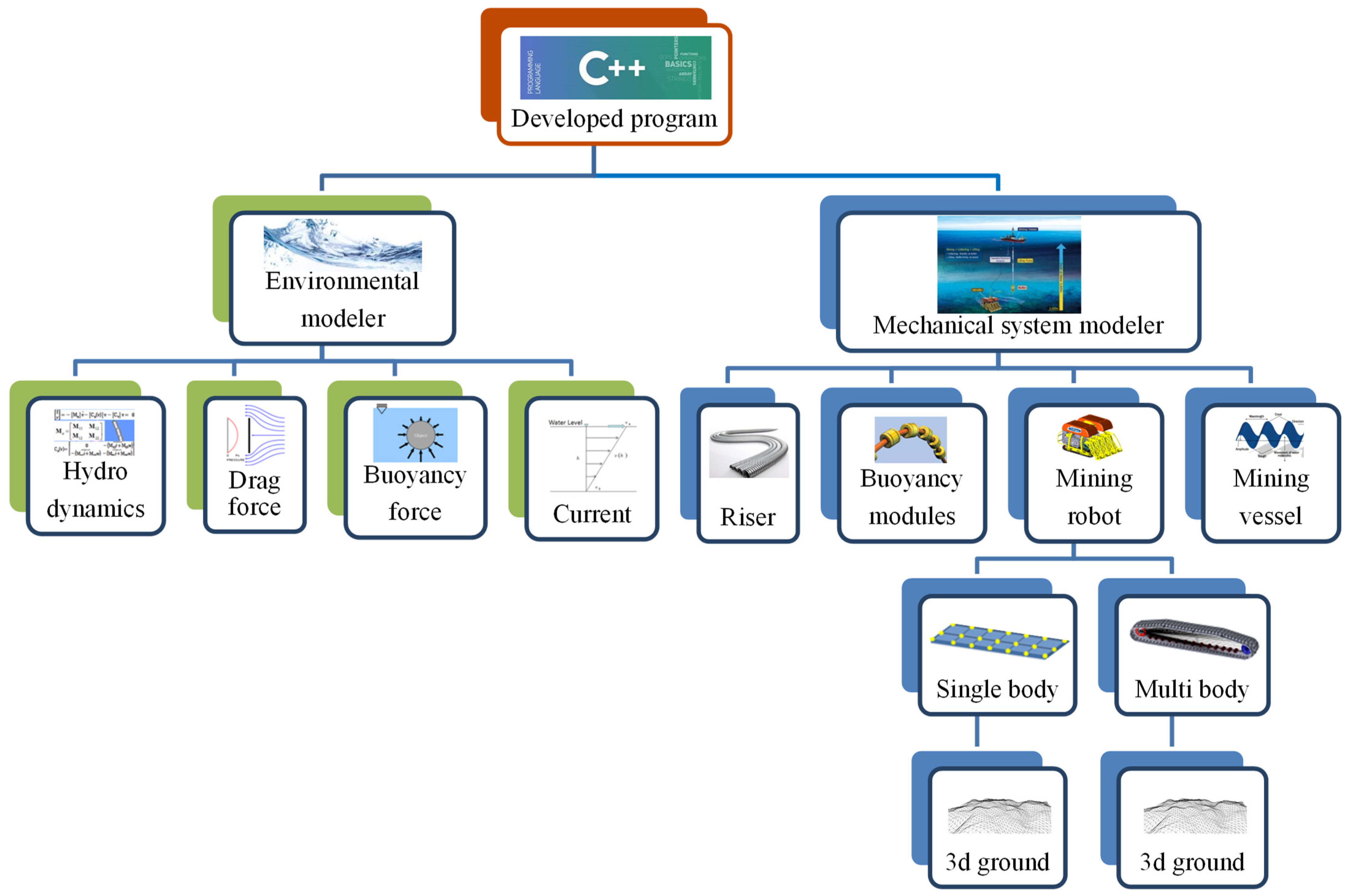

The deep-seabed mining system for mining resources consists of a mining vessel, lifting riser, lifting pump, buffer system, flexible riser, and mining robot. Because this system is exposed to extreme environments such as fluid resistance, high water pressure, and deep water, a considerable amount of time and cost is consumed in the design and test evaluation of equipment. To tackle these problems, the deep-seabed mining system in an extreme environment requires simulation-based technology. In particular, due to the large movement caused by marine energy, vibration caused by the operation of the mechanical system, and driving resistance of mining robot by the subsea soft soil, it is very important in the mining system design to analyze the dynamic effects of the various elements that constitute the deep-seabed mining system in a single integrated environment. This paper introduces the development of an integrated dynamic simulation method for deep-seabed mining systems and discusses the results.
Keywords: deep-seabed mining system; dynamic analysis for integrated mining system; multibody dynamics; 3D soft ground; dynamic simulation for ocean system deep-seabed mining system; dynamic analysis for integrated mining system; multibody dynamics; 3D soft ground; dynamic simulation for ocean system
