Timing, Provenance, and Tectonic Implications of Ore-Hosting Metasedimentary Rocks in the Giant Liba Gold Deposit, West Qinling Belt, China

by
Peng-Cong Zhang
1,2,
Shan-Shan Li
1,*,
Bo Liu
2,
Deng-Yang He
1,
Quan-Sheng Cai
3,
Germain Bishikwabo Kaningu
1,4 and
Xin-Chun Sun
5
1
State Key Laboratory of Geological Processes and Mineral Resources, School of Earth Sciences and Resources, China University of Geosciences, Beijing 100083, China
2
Key Laboratory of Ministry of Education on Safe Mining of Deep Metal Mines, Department of Geology, School of Resources and Civil Engineering, Northeastern University, Shenyang 110819, China
3
Zijin Mining Group Longnan Zijin Mining Co., Ltd., Longnan 746000, China
4
Department of Geology, Université Officielle de Bukavu, Bukavu 6210205, Democratic Republic of the Congo
5
Geological Survey of Gansu Province, Lanzhou 730000, China
*
Author to whom correspondence should be addressed.
Minerals 2022, 12(7), 903; https://doi.org/10.3390/min12070903
Submission received: 1 April 2022 / Revised: 26 June 2022 / Accepted: 28 June 2022 / Published: 19 July 2022
(This article belongs to the Special Issue Understanding Hydrothermal Ore Deposits: Insights from In-situ Analyses)
Browse Figures
Versions Notes

Abstract

:
The closure time of the Shangdan Ocean is critical for understanding the tectonic evolution of the Proto-Tethys Ocean. However, the proposed closure time was prolonged from Ordovician to Devonian. In the present study, detrital zircon from the metasedimentary rocks of the Liba Group in the West Qinling Belt was analyzed to constrain the closure time of the Shangdan Ocean. The three youngest grains from the Liba Group yield a maximum deposition age of 418 ± 13 Ma, indicating the Middle Devonian deposition. Detrital zircon grains show two main U–Pb age peaks of 810 Ma and 440 Ma with εHf(t) values spanning from −24.3 to +8.8 and −6.3 to +4.1, respectively, suggesting that the sediments of the Liba Group were derived from both the North and South Qinling Belts. The Lower Devonian in the South Qinling Belt shows similar provenance to the Liba Group, whereas sediments from the North Qinling Belt are absent in the Silurian strata of the South Qinling Belt. From Late Silurian to Early Devonian, the tectonic setting changed from subduction to collision. This evidence consistently suggests the disappearance of the Shangdan Ocean. The noticeable decrease in magmatism from 510–420 Ma to 420–390 Ma and the shrinking of εHf(t) values from −15.5–+12.8 to −8.4–+4.2 reveal that the Shangdan Ocean, as the eastmost embranchment of the Proto-Tethys Ocean, was closed at ca. 420 Ma.

1. Introduction

The Qinling Belt, the eastmost branch of the Tethys domain, is divided into the North Qinling Belt and the South Qinling Belt by the Shangdan Suture Zone [1,2]. The Shangdan Ocean is the eastmost embranchment of the Proto-Tethys Ocean, which was closed during the Paleozoic and formed the Shangdan Suture Zone; therefore, the closure of the Shangdan Ocean recorded relevant information for understanding the tectonic evolution of the Proto-Tethys Ocean [3,4]. However, the closure time remains disputed, and several models have been proposed. Previous studies investigated S- and I-type granitoids, high Ba–Sr dioritic intrusions, and high-pressure and ultrahigh-pressure rocks, suggesting that the closure time of the Shangdan Ocean spanned from Ordovician to Silurian [5,6,7]. However, detrital zircon grains from the clastic rocks [8], adakitic granitoids [9], and mafic complex [10] indicate that the closure time can be constrained at Devonian.
Detrital zircon geochronology has been widely applied to investigate the orogenic event owing to the abundance of detrital zircon grains in the sedimentary rocks [11]. A routine application is to constrain the maximum depositional age of strata [12,13,14,15]. Moreover, the integration of the multiple-age populations and zircon Lu–Hf isotope is useful for tracing the provenance and tectonic evolution [8,11,16,17,18].
In the present study, representative metasedimentary rocks from the widely distributed Devonian Liba Group, which hosts the giant Liba gold deposit, was selected to investigate the geotectonic setting. Detrital zircon U–Pb geochronology and Lu–Hf isotope analyses were conducted to constrain the maximum depositional age and provenance of the Liba Group. Additionally, this study provides new insights into the tectonic evolution of the Proto-Tethys Ocean.

2. Geological Background

The Qinling Belt stretches across the Chinese mainland, extending several thousand kilometers from the Dabie-Sulu Orogen Belt in the east to the Kunlun Orogen Belt in the west [1,4,19,20,21]. It is tectonically bounded by the North China Block marked by the Lingbao–Lushan–Wuyang fault to the north and the South China Block marked by the Mianlue–Bashan–Xiangguang fault to the south (Figure 1a) [2,8,22]. Three ophiolitic suture zones were formed in the Qinling Belt from north to south, including the Neoproterozoic Kuanping, the Paleozoic Shangdan, and the Triassic Mianlue suture zones [2,3]. The Kuanping Suture Zone separates the southern margin of the North China Block from the North Qinling Belt and it is composed of the greenschist-facies ophiolitic suite [6,23,24,25]. The Shangdan Suture Zone that was formed by the collision between the North and South Qinling Belts is composed of Paleozoic ophiolites, subduction-related volcanics, and sedimentary rocks [26,27]. The Mianlue Suture Zone is the boundary between the South Qinling Belt and the South China Block, which mainly comprises dismembered ophiolitic sequences, ocean-island basalts, and island arc volcanic rocks [4,28].
As the western segment of the Qinling Belt, the West Qinling Belt is contiguous to the East Qinling Belt and is bounded by the Huicheng basin or Foping dome [19,28,29,30]. In the West Qinling Belt, the Precambrian basement is overlain by the Phanerozoic sedimentary rocks and all the strata are intruded by the Triassic granitoid (Figure 1b) [31,32]. The ages of the Phanerozoic sedimentary rocks span from Ordovician to Neogene, including the Cambrian–Silurian limestones and shales, Devonian–Carboniferous clastic rocks with limestone interlayers, and Permian and Lower Triassic sandstones [8,31,33]. The Triassic granitoid magmatism was mainly related to the continental collision between the South Qinling Belt and the South China Block with the formation of quartz diorites, quartz monzonites, granodiorites, and monzogranites [5,26,34,35]. Detailed geological mapping reveals that the Middle Devonian Liba Group was developed in the northern margin of the West Qinling Belt [32,36]. The Liba Group, also named the Shujiaba Group [32], is exposed between the Gaoqiao-Luoba fault to the south and the Shujiaba area to the north, which comprises marine metasedimentary rocks and hosts the giant Liba Gold deposit [32,36]. The Liba Group contains various rock types, including sericitic-chloritic slate, slate, meta-quartz sandstone, and siltstone (Figure 2) [37]. The major fault in the Liba gold deposit is the SW-dipping reverse F1 Fault (Figure 2). Numerous secondary W- to WNW-trending faults related to F1 are presented in the SW domain of the F1 Fault, hosting the major gold resources of the Liba gold deposit (Figure 2). The Liba Group is intruded by the Triassic monzogranite (Figure 2) [32].

3. Samples and Methodology

3.1. Sample Description

Two representative slate samples were collected from the Liba Group for zircon U–Pb and Lu–Hf analyses, namely, 20LB07 (34°21′ 15″ N, 105° 03′ 13″ E) and 20LB29 (34° 22′ 14″ N, 105° 03′ 07″ E) (Figure 2). Detailed sample locations and hand specimen photographs are shown in Figure 2 and Figure 3. The slates (20LB07, 20LB29) show dark gray and greenish colors and slaty structures (Figure 3) and consist of clay minerals and fine-grained quartz and muscovite (Figure 4a,b). Accessory minerals include zircon and pyrite (Figure 4c,d).

3.2. Zircon U–Pb Dating

The separation of zircon grains was carried out at the Langfang Chengxin Geological Service Co., Hebei Province, China. The samples were first broken and crushed to 40–60 mesh, and then the standard heavy liquid and magnetic techniques were used to separate the zircon grains from the clastic grains. Detrital zircon grains without cracks and inclusions were handpicked under a binocular microscope and mounted in epoxy resin. The zircon-grain-mounted samples were subsequently polished to nearly half the original thickness in order to expose the internal structures. The samples were then cleaned in an ultrasonic washer containing a 5% HNO3 bath. Before analysis, cathodoluminescence (CL) images were obtained using a JXA8800 electron microscope at the Institute of Mineral Resources, Chinese Academy of Geological Sciences, Beijing, China, and all zircon grains were checked carefully to identify the internal structure.
Zircon U–Pb analyses were carried out using the LA-MC-ICP-MS at the Isotopic Laboratory, Tianjin Center, China Geological Survey. Laser sampling was performed using a Neptune double-focusing multiple-collector ICP-MS (Thermo Fisher Ltd., Waltham, MA, USA) attached to a NEW WAVE 193 nm-FX ArF Excimer laser ablation system (ESI Ltd., Fremont, CA, USA). The MC–ICP–MS is a double-focusing multi-collector ICP-MS. Two analyses of the standards followed every eight analyses to calibrate the data. The detailed analytical procedure of the laser ablation system, the ICP-MS instrument and the data reduction of zircon can be found in [38,39]. The common Pb corrections used the method of [40]. A laser beam diameter of 30 μm, a repetition rate of 8 Hz, and an energy density of 11 J/cm2 were chosen for all U, Th and Pb analyses. Zircon 91500 [41] and zircon Plešovice [42] were used as standards. The NIST SRM 610 was used as external reference material and 29Si as internal calibrant for calibration of U, Th and Pb concentrations. Probability density distribution curves and concordia diagrams of ages were plotted at the 2σ uncertainty level using the software DensityPlotter [43] and Isoplot software, respectively (version 3.75) [44]. The concordance was calculated for all data, with normal discordance <20% interpreted as geologically meaningful. Discordant data were excluded from the relative probability calculation. Ages of zircon grains inferior to 1.0 Ga are quoted using 206Pb/238U ages, whereas older grains are based upon their 207Pb/206Pb ages [45].

3.3. Zircon Lu–Hf Isotope Analysis

Zircon Lu–Hf isotopic analyses were conducted on the same spots or textural domains as analogous zircon U–Pb analysis. Hafnium isotopic compositions were determined with a Thermo Finnigan Neptune MC-ICP-MS system coupled to a New Wave UP193 nm laser ablation system at the Isotopic Laboratory, Tianjin Center, China Geological Survey. A laser beam diameter of 50 μm and a laser repetition rate of 11 Hz at 100 mJ were used for ablating zircon with helium as the carrier gas for the ablated aerosol. Details about the analytical procedures and the instrument operating conditions for Lu–Hf isotope analyses follow those described in [38]. Zircon GJ-1 was used as the reference standard with a weighted mean 176Hf/177Hf ratio of 0.282004 ± 24 (2σ) during routine analyses, which is significantly consistent with the recommended 176Hf/177Hf ratios of 0.282015 ± 19 (2σ) [46].

4. Results

4.1. Detrital Zircon U–Pb Geochronology

Detrital zircon morphology is illustrated in Figure 5. The two slate samples (20LB07 and 20LB29) show similar zircon morphologies. Cathodoluminescence (CL) images show that most zircon grains from the Liba Group have crystal faces and oscillatory zoning. Some grains exhibit irregular sector zoning and banded zoning textures. The rest of the grains are homogeneous with low to high luminescence. Zircon grains from sample 20LB07 have lengths of 30–120 μm; among them, 70% of the grains show small size (30–40 μm), while 30% have lengths of 60–120 μm (Figure 5a). Zircon grains from sample 20LB29 display lengths of 40–70 μm and length/width ratios ranging from 2:1 to 1:1 (Figure 5b).
Detrital zircon U–Pb ages from the Liba Group are shown in Figure 6 and Table 1, the two samples display similar age spectra. Eighty detrital zircon grains from sample 20LB07 were analyzed, among which seventy show high concordance (concordance > 80%) (Figure 6a), yielding ages ranging from 2912 Ma to 256 Ma. The relative probability density curve plotted by the Density Plotter software [43] yields two major peaks at 803 Ma and 433 Ma and a minor peak at 1.2 Ga (Figure 6b). Forty zircon grains were analyzed from sample 20LB29, and most of them show high concordance (n = 34, concordance > 80%) (Figure 6c). The relative probability density curve shows a main peak at 826 Ma, followed by a second peak at 733 Ma and a minor peak at 1.8 Ga (Figure 6d). The U–Pb age distributions of the two samples are presented in Figure 7a; four age populations are highlighted, including Archean–Mesoproterozoic (2912–1045 Ma), Neoproterozoic (993–631 Ma), and Phanerozoic (517–133 Ma).

4.2. Lu–Hf Isotopic Composition

Twenty-seven spots of the analyzed U-Pb domains or the same textural domains of the zircon grains from the two samples of the Liba Group were analyzed for Lu–Hf isotopic compositions, and the result is shown in Figure 7b and Table 2. Detrital zircon grains of the 2.5–1.0 Ga group are characterized by variable εHf(t) values spanning from −16.7 to +9.1 and TDM2 age of 3.8–1.7 Ga. Zircon grains clustering around 800 Ma show εHf(t) values from −24.3 to +10.4 and TDM2 age of 3.1–1.2 Ga. The 430 Ma population group has εHf(t) values between −6.3 and +5.5 with a median of +2.9 and TDM2 age of 1.8–1.1 Ga.

5. Discussion

5.1. Timing of Deposition of the Liba Group

Detrital zircon ages from the two metasedimentary rocks of the Liba Group are combined to discuss the depositional age owing to their similar age spectra (Figure 5 and Figure 6). Most of the zircon grains show high concordance (>95%) and Th/U ratios of 0.10–1.98 (Figure 8), which, together with the well-developed oscillatory zoning in CL images (Figure 4), indicates the magmatic origin [47,48]. Except the three low-Th/U-ratio grains (21LB29-23: 0.02, 21LB29-29: 0.03, and 21LB07-44: 0.07) (Table 1), the high Th/U ratios of magmatic grains were further discussed. The present study follows the method of “mean age of the youngest two or more grains that overlap in age at 1σ”, which yields a weighted mean age of 418 ± 13 Ma (n = 3, MSWD = 0.111), representing the maximum depositional age of the Liba Group [14]. The calculated youngest age indicates that the deposition of the Liba Group formed after ca. 418 Ma. Combined with the stratigraphic successions of the upper layers of the Late Devonian paleospore fossils and the bottom layers of the early Middle Devonian coral fossils [36,49,50,51], the deposition of the Liba Group is constrained in the Middle Devonian.

5.2. Provenance of the Liba Group

The detrital zircon grains of the Liba Group were presumably sourced from the North Qinling Belt, South Qinling Belt, North China Block, and South China Block (Figure 1a). The U–Pb age and εHf(t) value of the detrital zircon grains from the Liba group and magmatic zircon from surrounding orogenic belts are compared (Figure 9) to trace the provenance of the Liba Group. Detrital zircon U–Pb ages indicate that the metasedimentary rocks of the Liba Group predominantly deposited during the Phanerozoic (440 Ma) and Neoproterozoic (810 Ma) and minimally were during the Archean–Mesoproterozoic (1.2 Ga, 1.8 Ga, and 2.5 Ga) (Figure 9a). The variable age populations of the Liba Group are similar to the zircon distributions of neighboring orogenic belts, suggesting mixed sources (Figure 9a).
The Phanerozoic detrital zircon grains are subhedral to angular (Figure 5), whose ages range from 500 to 400 Ma with a dominant peak at 440 Ma (Figure 9a), implying a short transport distance [14,17]. The Phanerozoic ages are highly consistent with the early Paleozoic magmatism in the North Qinling Belt (Figure 9). The major peak of ca. 440 Ma coincides with the ca. 445 Ma magmatism of the Liuxiangping, Huichizi, and Zaoyuan granitic plutons [7]. The dominant positive and minor negative εHf(t) values from the Liba group generally overlap the available zircon εHf(t) values (−20 to +13) from granitoid and gabbro intrusions in the North Qinling Belt (Figure 9b) [27,53]. Consequently, the early Paleozoic magmatic rocks from the North Qinling Belt might be the main source of the Phanerozoic zircon grains of the Liba Group.
The dominant Neoproterozoic grains display ages ranging from 1000 Ma to 700 Ma with a major peak at 810 Ma and a minor peak at 985 Ma (Figure 9a). In the present study, the major peak of ca. 810 Ma closely matches with the age distribution of the South Qinling Belt and South China Block (Figure 9a). The South Qinling Belt is characterized by significant Neoproterozoic zircon ranging from 1000 to 700 Ma with an age peak at 820 Ma, which was defined by the Yaolinghe volcanic rocks (808–746 Ma), Mihunzhen plutons (885–737 Ma) and Liuba granitic intrusions (868–794 Ma) [27,52]. Additionally, the Neoproterozoic ages (ca. 900–700 Ma) are also widely reported in the South China Block, including the Bikou, Hannan, and Micanshan massif [27,53]. Furthermore, the εHf(t) values (−24.3 to +8.8, Figure 9b) from the ca. 900–700 Ma group of this study generally overlap the zircon εHf(t) values (−30.2 to +17.7) from the magmatic rocks in the South China Block (Figure 9b; [27]) and the negative εHf(t) values from the South Qinling Belt (Figure 10; [27]), which indicates that the two regions could be the potential provenance for the middle Neoproterozoic zircon grains. Moreover, considering that the South China Block and South Qinling Belt were separated by the Mianlue Ocean during the Devonian [3,56], the Neoproterozoic detrital zircon grains (ca. 810 Ma) were probably sourced from the South Qinling Belt. However, the age population of 1000–900 Ma shows different provenance from the ca. 810 Ma population. In contrast to the absence of the Neoproterozoic (ca. 1000–900 Ma) magmatic events in the South China Block or South Qinling Belt, the Neoproterozoic (ca. 1000–900 Ma) magmatism was reported in the North Qinling Belt, represented by the exposed Dehe granite (943–964 Ma), Niujiaoshan granite (929–959 Ma), and the Tianshui granitoid (915–978 Ma) [27,57]. Thus, the Neoproterozoic (1000–900 Ma) zircon grains of the Liba Group were likely sourced from the North Qinling Belt.
The ca. 1.5–1.0 Ga, ca. 1.9–1.7 Ga, and ca. 2.5 Ga age groups were also observed in the present study (Figure 9a). Mesoproterozoic detrital zircon grains whose ages range from 1.5 to 1.0 Ga with a peak at 1.2 Ga are only reported in the Qinling Group and Kuanping Group in the North Qinling Belt [53], indicating that the Mesoproterozoic detrital zircon grains were sourced from the North Qinling Belt. The Archean–Paleoproterozoic gneiss and amphibolite from the North China Block show zircon ages of 3.5–3.1 Ga and 2.8–1.7 Ga with peaks at 2.6–2.4 Ga and 2.0–1.7 Ga [58,59,60], and their εHf(t) values scatter from −10 to +5 and −15 to +10, respectively [54,61]. The South China Block also displays age populations of 2.6–2.4 Ga and 2.0–1.8 Ga with εHf(t) values from −16 to +0 and −30 to +7, respectively [52]. The ages and εHf(t) values from the detrital zircon in this study closely match with those of zircon grains from the North China Block and South China Block (Figure 9); thus, the Archean–Paleoproterozoic detrital zircon grains of the Liba Group mainly originated from the North China Block and South China Block.

5.3. Closure Time of the Shangdan Ocean

The widely distributed Middle Devonian Liba Group in the South Qinling Belt received abundant Phanerozoic sediments from the North Qinling Belt, suggesting that the Shangdan Ocean between the North and South Qinling Belts had closed in the Middle Devonian. The difference between the crystallization and deposition ages (CA-DA) of the detrital zircon grains can be demonstrated (Figure 10) by the method of [17]. Overall, a significant proportion of the youngest detrital zircon (CA-DA < 150 Ma at 5% and CA-DA > 100 Ma at 30% of the zircon population), combined with the overlapping feature of the cumulative proportional curves of the Liba Group in the B (blue) area (Figure 10), consistently supports that the Liba group was formed in a collisional setting. Consequently, the Shangdan Ocean presumably closed in the Middle Devonian during the deposition of the Liba Group.
Based on the early Paleozoic (ca. 450 Ma) and Neoproterozoic (900–700 Ma) age groups and their negative εHf(t) values, previous studies suggest that the Silurian strata in South Qinling Belt received sediments from the South China Block and Ordovician detritus from the South Qinling Belt without the contribution of the North Qinling Belt and the North China Block (Figure 11a,c) [52,62,63]. However, the Lower Devonian in the South Qinling Belt dominantly shows early Paleozoic ages (ca. 450 Ma) with positive εHf(t) values and new Neoproterozoic zircon ages (1000–900 Ma) (Figure 11b,d), suggesting that the North Qinling Belt is the major source [62,64,65]. Furthermore, the detrital zircon grains from the Middle Devonian [66] and Middle–Upper Devonian strata [8,27,65,66,67,68,69,70] show similar provenance to the Lower Devonian (Figure 11b,d), indicating that the tectonic setting remains unchanged. The apparent provenance difference between the Silurian and Lower Devonian strata might be the result of the collision between the North and South Qinling Belts [2]. The cumulative proportion curves also show tectonic settings changed from convergent to collision settings from Upper Silurian to Lower Devonian (Figure 10). Among the youngest zircon grains, the Upper Silurian samples present 42% (more than 30%) detrital grains that have CA-DA < 100 Ma, while lower Devonian samples present 5% zircon grains that show CA-DA < 150 Ma and 30% zircon grains that have CA-DA > 100 Ma, suggesting that the Upper Silurian and Lower Devonian strata formed in convergent and collision settings, respectively (Figure 12). In the South Qinling Belt, the Silurian strata did not originate from the North Qinling Belt, while abundant Lower Devonian sediments were sourced from the North Qinling Belt. Combined with the change of the tectonic setting from subduction to collision, the closure time of the Shangdan Ocean is constrained between Late Silurian and Early Devonian.
As a result of Shangdan Ocean closure, the clastic sediments from the Devonian should record the tectonic evolution. Therefore, detrital zircon grains that formed during Late Silurian to Early Devonian were selected to investigate the closure process, and the ages and εHf(t) values are illustrated in Figure 12. These grains show three main populations of 510–475 Ma, 475–420 Ma, and 420–400 Ma (Figure 12a), with εHf(t) values ranging from −11.6 to +13.2, −17.7 to +14.7, and −14.1 to +4.2, respectively (Figure 12b). The different age populations are genetically related to the northward subduction of the Shangdan Ocean and the subsequent collision between the North and the South Qinling Belts [3,4,57]. Since the closure time of the Shangdan Ocean spans over a wide period ranging from Late Silurian to Early Devonian, the 430–410 Ma group is further discussed (Figure 12). A remarkable magmatism decrease that appears at ca. 420 Ma (Figure 13a) is due to the collision between the North and South Qinling Belts [17]. The notable shrinking of εHf(t) values from −15.5–+12.8 to −8.4–+4.2 related to zircon ages ranging from 510–420 Ma to 420–390 Ma, respectively, reflects the change in the relative contributions of the mantle and crustal sources in their genesis [73]. The significant change in the εHf(t) value at ca. 420 Ma is correlated with plate subduction and collision [16,74,75,76]. Therefore, the closure of the Shangdan Ocean might have occurred at ca. 420 Ma.

5.4. Tectonic Implications

The Proto-Tethys Ocean was formed during the breakup of Rodinia at ca. 750 Ma [77]. Different parts that split up from Rodinia led to the formation of the South China, North China, Alex, Qaidam, and Tarim Blocks before 550 Ma [1,2]. Several branches of the Proto-Tethys Ocean were formed, including the Shangdan Ocean between the North and South China blocks, the Northern and Southern Qilian Oceans between the Alxa, Central Qilian Terranes, and Qaidam Blocks, and the Kunlun Ocean between the Qaidam, Qiangtang, and Tarim Blocks [2]. Those embranchments opened and subducted during ca. 541–485 Ma [2] and gradually closed in the early Paleozoic (500–420 Ma) [1,2].
The Shangdan Ocean, as the eastmost embranchment of the Proto-Tethys Ocean, is critical for reconstructing the evolution of the Proto-Tethys Ocean [4,56,78]. The subduction-related ophiolitic rocks show that the formation time of the Shangdan Ocean can be constrained at ca. 534–470 Ma [28]. Widely distributed ca. 510–420 Ma arc-magmatism and the formation of the gabbroic and granitic intrusions in the North Qinling Belt suggest northward subduction of the Shangdan Ocean underneath the North Qinling Belt during early Paleozoic (Figure 13a) [3]. In contrast to Silurian strata, these magmatic ages are only found in the Devonian strata of the South Qinling (Figure 11 and Figure 13). Furthermore, a large number of detrital zircon grains at 510–420 Ma also supports this hypothesis (Figure 12). At ca. 420 Ma, the noticeable reduction in magmatism and the change in εHf(t) values of the detrital zircons from the Devonian strata in the South Qinling Belt unveil the closure of the Shangdan Ocean as well as the collision between the North and South Qinling Belts (Figure 13b). This is also supported by the metamorphic ages of metamorphic rocks. The amphibolite facies metamorphism of the Qinling Complex is constrained at 420 to 400 Ma, which is correlated to the collision between the North and South Qinling Belts [28,79,80]. The Wushan ductile shear zone as a branch of the Shangdan Suture Zone was intruded by a granitic dyke with the zircon U–Pb age of 403 ± 3.5 Ma, which is regarded as the minimum formation age of the Shangdan Suture Zone [81]. Therefore, the Shangdan Ocean as the eastmost embranchment of the Proto-Tethys Ocean was closed at ca. 420 Ma, and the Shangdan Suture Zone was formed by the collision between the North and the South Qinling Belts (Figure 13b).

6. Conclusions

The maximum deposition age of the Liba Group is constrained at 418 ± 13 Ma, indicating that the strata were deposited during the Middle Devonian. Three age groups and their sources are recognized in the Liba Group, the Phanerozoic detrital zircon grains were sourced from the North Qinling Belt, and the main population represented by Neoproterozoic grains that originated from both the North and South Qinling Belts and the minor Archean–Mesoproterozoic grains came from the North Qinling Belt and the North and South China blocks. Integrated zircon εHf(t) values, sedimentary provenance, magmatism, and tectonic setting changes indicate that the Shangdan Ocean as the eastmost embranchment of the Proto-Tethys was closed at ca. 420 Ma.

Author Contributions

Conceptualization: S.-S.L.; formal analysis: D.-Y.H. and Q.-S.C.; writing: P.-C.Z.; review and editing: B.L. and G.B.K.; investigation: X.-C.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation (42072087), the National Key Research Program (2019YFA0708603), the 111 Project (BP0719021), the Beijing Nova Program (Z201100006820097), and the Chinese Postdoctoral Science Foundation (2021M692995).

Data Availability Statement

All the data is presented in the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhao, G.; Wang, Y.; Huang, B.; Dong, Y.; Li, S.; Zhang, G.; Yu, S. Geological reconstructions of the East Asian blocks: From the breakup of Rodinia to the assembly of Pangea. Earth Sci. Rev. 2018, 186, 262–286. [Google Scholar] [CrossRef]
  2. Dong, Y.; Sun, S.; Santosh, M.; Zhao, J.; Sun, J.; He, D.; Shi, X.; Hui, B.; Cheng, C.; Zhang, G. Central China Orogenic Belt and amalgamation of East Asian continents. Gondwana Res. 2021, 100, 131–194. [Google Scholar] [CrossRef]
  3. Dong, Y.; Santosh, M. Tectonic architecture and multiple orogeny of the Qinling Orogenic Belt, Central China. Gondwana Res. 2016, 29, 1–40. [Google Scholar] [CrossRef]
  4. Li, S.; Zhao, S.; Liu, X.; Cao, H.; Yu, S.; Li, X.; Somerville, I.; Yu, S.; Suo, Y. Closure of the Proto-Tethys Ocean and Early Paleozoic amalgamation of microcontinental blocks in East Asia. Earth Sci. Rev. 2018, 186, 37–75. [Google Scholar] [CrossRef]
  5. Wang, T.; Wang, X.; Tian, W.; Zhang, C.; Li, W.; Li, S. North Qinling Paleozoic granite associations and their variation in space and time: Implications for orogenic processes in the orogens of central China. Sci. China Ser. D Earth Sci. 2009, 52, 1359–1384. [Google Scholar] [CrossRef]
  6. Ren, L.; Liang, H.; Bao, Z.; Zhang, J.; Li, K.; Huang, W. The petrogenesis of early Paleozoic high-Ba–Sr intrusions in the North Qinling terrane, China, and tectonic implications. Lithos 2018, 314–315, 534–550. [Google Scholar] [CrossRef]
  7. Zhang, C.; Liu, L.; Wang, T.; Wang, X.; Li, L.; Gong, Q.; Li, X. Granitic magmatism related to early Paleozoic continental collision in North Qinling. Chin. Sci. Bull. 2013, 58, 4405–4410. [Google Scholar] [CrossRef] [Green Version]
  8. Dong, Y.; Liu, X.; Neubauer, F.; Zhang, G.; Tao, N.; Zhang, Y.; Zhang, X.; Li, W. Timing of Paleozoic amalgamation between the North China and South China Blocks: Evidence from detrital zircon U–Pb ages. Tectonophysics 2013, 586, 173–191. [Google Scholar] [CrossRef]
  9. Qin, Z.; Wu, Y.; Siebel, W.; Gao, S.; Wang, H.; Abdallsamed, M.I.M.; Zhang, W.; Yang, S. Genesis of adakitic granitoids by partial melting of thickened lower crust and its implications for early crustal growth: A case study from the Huichizi pluton, Qinling orogen, central China. Lithos 2015, 238, 1–12. [Google Scholar] [CrossRef]
  10. Chang, H.; Wu, Y.; Zhou, G.; Zhang, W.; He, Y.; Yujie, Z.; Hu, P.; Hu, Z. Zircon U–Pb geochronology and geochemistry of the Lajimiao mafic complex in the Shangdan Suture Zone, Qinling orogen: Petrogenesis and tectonic implications. Lithos 2021, 390–391, 106113. [Google Scholar] [CrossRef]
  11. Gehrels, G. Detrital Zircon U-Pb Geochronology Applied to Tectonics. Annu. Rev. Earth Planet. Sci. 2014, 42, 127–149. [Google Scholar] [CrossRef]
  12. Fedo, C.M. Detrital Zircon Analysis of the Sedimentary Record. Rev. Mineral. Geochem. 2003, 53, 277–303. [Google Scholar] [CrossRef]
  13. Nelson, D.R. An assessment of the determination of depositional ages for precambrian clastic sedimentary rocks by U-Pb dating of detrital zircons. Sediment. Geol. 2001, 141, 37–60. [Google Scholar] [CrossRef]
  14. Dickinson, W.R.; Gehrels, G.E. Use of U–Pb ages of detrital zircons to infer maximum depositional ages of strata: A test against a Colorado Plateau Mesozoic database. Earth Planet. Sci. Lett. 2009, 288, 115–125. [Google Scholar] [CrossRef]
  15. Zhang, J.Y.; Wang, Q.; Liu, X.F.; Zhou, G.F.; Xu, H.P.; Zhu, Y.G. Provenance and ore-forming process of Permian lithium-rich bauxite in central Yunnan, SW China. Ore Geol. Rev. 2022, 145, 104862. [Google Scholar] [CrossRef]
  16. Spencer, C.J.; Kirkland, C.L.; Prave, A.R.; Strachan, R.A.; Pease, V. Crustal reworking and orogenic styles inferred from zircon Hf isotopes: Proterozoic examples from the North Atlantic region. Geosci. Front. 2019, 10, 417–424. [Google Scholar] [CrossRef]
  17. Cawood, P.A.; Hawkesworth, C.J.; Dhuime, B. Detrital zircon record and tectonic setting. Geology 2012, 40, 875–878. [Google Scholar] [CrossRef] [Green Version]
  18. Yu, H.C.; Qiu, K.F.; Pirajno, F.; Zhang, P.C.; Dong, W.Q. Revisiting Phanerozoic evolution of the Qinling Orogen (East Tethys) with perspectives of detrital zircon. Gondwana Res. 2022, 103, 426–444. [Google Scholar] [CrossRef]
  19. Qiu, K.; Yu, H.; Deng, J.; McIntire, D.; Gou, Z.; Geng, J.; Chang, Z.; Zhu, R.; Li, K.; Goldfarb, R. The giant Zaozigou Au-Sb deposit in West Qinling, China: Magmatic- or metamorphic-hydrothermal origin? Mineral. Deposita 2020, 55, 345–362. [Google Scholar] [CrossRef]
  20. Goldfarb, R.J.; Mao, J.W.; Qiu, K.F.; Goryachev, N. The great Yanshanian metallogenic event of eastern Asia: Consequences from one hundred million years of plate margin geodynamics. Gondwana Res. 2021, 100, 223–250. [Google Scholar] [CrossRef]
  21. Qiu, K.F.; Deng, J.; Yu, H.C.; Wu, M.Q.; Wang, Y.; Zhang, L.; Goldfarb, R. Identifying hydrothermal quartz vein generations in the Taiyangshan porphyry Cu-Mo deposit (West Qinling, China) using cathodoluminescence, trace element geochemistry, and fluid inclusions. Ore Geol. Rev. 2021, 128, 103882. [Google Scholar] [CrossRef]
  22. Qiu, K.F.; Yu, H.C.; Hetherington, C.; Huang, Y.Q.; Yang, T.; Deng, J. Tourmaline composition and boron isotope signature as a tracer of magmatic-hydrothermal processes. Am. Mineral. 2021, 106, 1033–1044. [Google Scholar] [CrossRef]
  23. Dong, Y.; Yang, Z.; Liu, X.; Zhang, X.; He, D.; Li, W.; Zhang, F.; Sun, S.; Zhang, H.; Zhang, G. Neoproterozoic amalgamation of the Northern Qinling terrain to the North China Craton: Constraints from geochronology and geochemistry of the Kuanping ophiolite. Precambrian Res. 2014, 255, 77–95. [Google Scholar] [CrossRef]
  24. Hu, F.; Liu, S.; Ducea, M.N.; Chapman, J.B.; Wu, F.; Kusky, T. Early Mesozoic magmatism and tectonic evolution of the Qinling Orogen: Implications for oblique continental collision. Gondwana Res. 2020, 88, 296–332. [Google Scholar] [CrossRef]
  25. Yu, S.; Li, S.; Zhang, J.; Peng, Y.; Somerville, I.; Liu, Y.; Wang, Z.; Li, Z.; Yao, Y.; Li, Y. Multistage anatexis during tectonic evolution from oceanic subduction to continental collision: A review of the North Qaidam UHP Belt, NW China. Earth Sci. Rev. 2019, 191, 190–211. [Google Scholar] [CrossRef]
  26. Dong, Y.; Zhang, G.; Hauzenberger, C.; Neubauer, F.; Yang, Z.; Liu, X. Palaeozoic tectonics and evolutionary history of the Qinling orogen: Evidence from geochemistry and geochronology of ophiolite and related volcanic rocks. Lithos 2011, 122, 39–56. [Google Scholar] [CrossRef]
  27. Liao, X.; Wang, Y.; Liu, L.; Wang, C.; Santosh, M. Detrital zircon U-Pb and Hf isotopic data from the Liuling Group in the South Qinling belt: Provenance and tectonic implications. J. Asian Earth Sci. 2017, 134, 244–261. [Google Scholar] [CrossRef]
  28. Dong, Y.; Zhang, G.; Neubauer, F.; Liu, X.; Genser, J.; Hauzenberger, C. Tectonic evolution of the Qinling orogen, China: Review and synthesis. J. Asian Earth Sci. 2011, 41, 213–237. [Google Scholar] [CrossRef]
  29. Yu, H.C.; Qiu, K.F.; Hetherington, C.J.; Chew, D.; Huang, Y.Q.; He, D.Y.; Geng, J.Z.; Xian, H.Y. Apatite as an alternative petrochronometer to trace the evolution of magmatic systems containing metamict zircon. Contrib. Mineral. Petrol. 2021, 176, 1–19. [Google Scholar] [CrossRef]
  30. Zhang, L.; Qiu, K.; Hou, Z.; Pirajno, F.; Shivute, E.; Cai, Y. Fluid-rock reactions of the Triassic Taiyangshan porphyry Cu-Mo deposit (West Qinling, China) constrained by QEMSCAN and iron isotope. Ore Geol. Rev. 2021, 132, 104068. [Google Scholar] [CrossRef]
  31. Ke, C.; Wand, X.; Nie, Z.; Yang, Y.; Lü, X.; Wang, S.A.; Li, J. Age, geochemistry, Nd-Hf isotopes and relationship between granite and gold mineralization of Zhongchuan granitoid pluton in West Qinling. Chin. Geol. 2020, 47, 1127–1154. [Google Scholar]
  32. Zeng, Q.; McCuaig, T.C.; Hart, C.J.R.; Jourdan, F.; Muhling, J.; Bagas, L. Structural and geochronological studies on the Liba goldfield of the West Qinling Orogen, Central China. Mineral. Deposita 2012, 47, 799–819. [Google Scholar] [CrossRef]
  33. Yu, H.C.; Qiu, K.F.; Nassif, M.T.; Geng, J.Z.; Sai, S.X.; Duo, D.W.; Huang, Y.Q.; Wang, J. Early orogenic gold mineralization event in the West Qinling related to closure of the Paleo-Tethys Ocean–Constraints from the Ludousou gold deposit, central China. Ore Geol. Rev. 2020, 117, 103217. [Google Scholar] [CrossRef]
  34. He, D.Y.; Qiu, K.F.; Santosh, M.; Yu, H.C.; Long, Z.Y.; Wang, J.Y. Inhomogeneous crust-mantle interaction and Triassic tectonic escape of a Proterozoic microplate: A tale of the Bikou Terrane. Lithos 2021, 396, 106227. [Google Scholar] [CrossRef]
  35. Qiu, K.F.; Yu, H.C.; Gou, Z.Y.; Liang, Z.L.; Zhang, J.L.; Zhu, R. Nature and origin of Triassic igneous activity in the Western Qinling Orogen: The Wenquan composite pluton example. Int. Geol. Rev. 2018, 60, 242–266. [Google Scholar] [CrossRef]
  36. Sun, S.; Song, C.; Wu, A.; Yuan, M.; Gao, B. Geochemical characteristics of gold-bearing turbidite formation in Liba Group of Limin gold deposit, West Qinling. Acta Sediment. Sin. 1995, 13, 145–152. [Google Scholar]
  37. Shi, J. Geological Detailed Investigation Report of 87 and 135 Section Lines in the Zhaogou Gold Deposit; Geological Team under Gansu Geological Survey Internal: Lanzhou, China, 2000; pp. 1–80. [Google Scholar]
  38. Geng, J.; Qiu, K.; Gou, Z.; Yu, H. Tectonic regime switchover of Triassic Western Qinling Orogen: Constraints from LA-ICP-MS zircon U–Pb geochronology and Lu–Hf isotope of Dangchuan intrusive complex in Gansu, China. Geochemistry 2017, 77, 637–651. [Google Scholar] [CrossRef]
  39. Qiu, K.; Yu, H.; Wu, M.; Geng, J.; Ge, X.; Gou, Z.; Taylor, R.D. Discrete Zr and REE mineralization of the Baerzhe rare-metal deposit, China. Am. Mineral. 2019, 104, 1487–1502. [Google Scholar] [CrossRef]
  40. Andersen, T. Correction of common lead in U–Pb analyses that do not report 204Pb. Chem. Geol. 2002, 192, 59–79. [Google Scholar] [CrossRef]
  41. Wiedenbeck, M.; Alle, P.; Corfu, F.; Griffin, W.; Meier, M.; Oberli, F.V.; Quadt, A.V.; Roddick, J.; Spiegel, W. Three natural zircon standards for U-Th-Pb, Lu-Hf, trace element and REE analyses. Geostand. Newslett. 1995, 19, 1–23. [Google Scholar] [CrossRef]
  42. Sláma, J.; Košler, J.; Condon, D.J.; Crowley, J.L.; Gerdes, A.; Hanchar, J.M.; Horstwood, M.S.A.; Morris, G.A.; Nasdala, L.; Norberg, N.; et al. Plešovice zircon—A new natural reference material for U–Pb and Hf isotopic microanalysis. Chem. Geol. 2008, 249, 1–35. [Google Scholar] [CrossRef]
  43. Vermeesch, P. On the visualisation of detrital age distributions. Chem. Geol. 2012, 312–313, 190–194. [Google Scholar] [CrossRef]
  44. Ludwig, K. Isoplot 4.15: A Geochronological Toolkit for Microsoft Excel; Berkeley Geochronological Center: Berkeley, CA, USA, 2012; p. 5. [Google Scholar]
  45. Gehrels, G.; Valencia, V.; Pullen, A.J. Detrital zircon geochronology by laser-ablation multicollector ICPMS at the Arizona LaserChron Center. Paleontol. Soc. Pap. 2006, 12, 67–76. [Google Scholar] [CrossRef]
  46. Elhlou, S.; Belousova, E.; Griffin, W.L.; Pearson, N.J.; O’Reilly, S.Y. Trace element and isotopic composition of GJ-red zircon standard by laser ablation. Geochim. Cosmochim. Acta 2006, 70, 158. [Google Scholar] [CrossRef]
  47. Kinny, P.D.; Wijbrans, J.R.; Froude, D.O.; Williams, I.S.; Compston, W. Age constraints on the geological evolution of the Narryer Gneiss Complex, Western Australia. Aust. J. Earth Sci. 1990, 37, 51–69. [Google Scholar] [CrossRef]
  48. Wu, Y.; Zheng, Y. Zircon genetic mineralogy and its constraints on U-Pb age interpretation. Chin. Sci. Bull. 2004, 49, 1589–1604. [Google Scholar] [CrossRef]
  49. Li, J.S.; Chun, H.; Wu, A.; Yuan, M.; Gao, B. Stratigraphy disintegration of shujiaba Formation and its vertical transport model of turbidity current in Liba Group, West Qinling mountains. Acta Geol. Gansu 1996, 5, 33–40. [Google Scholar]
  50. Li, Y.; Jin, H. Trace fossils of devonian system in northern belt of west Qinling and their environmental significance. Chin. Sci 1993, 23, 1322–1330. [Google Scholar]
  51. Ye, X. On the occurrence of spore assemblages from the Shujiaba Region of Tianshui County, Gansu and their stratigraphical significance. Northwest Geosci. 1986, 13, 89–101. [Google Scholar]
  52. Chen, W.; Pei, X.; Liu, C.; Li, R.; Li, Z.; Wei, B.; Xu, X.; Liu, T.; Wang, Y.; Ren, H. U-Pb ages of detrital zircons from Taiyangsi Rock Group in Shujiaba area of West Qinling Mountains and their geological significance. Chin. Geol. 2014, 41, 741–755. [Google Scholar]
  53. Shi, Y.; Yu, J.; Santosh, M. Tectonic evolution of the Qinling orogenic belt, Central China: New evidence from geochemical, zircon U–Pb geochronology and Hf isotopes. Precambrian Res. 2013, 231, 19–60. [Google Scholar] [CrossRef]
  54. Xia, X.; Sun, M.; Zhao, G.; Wu, F.; Xu, P.; Zhang, J.; Luo, Y. U–Pb and Hf isotopic study of detrital zircons from the Wulashan khondalites: Constraints on the evolution of the Ordos Terrane, Western Block of the North China Craton. Earth Planet. Sci. Lett. 2006, 241, 581–593. [Google Scholar] [CrossRef] [Green Version]
  55. Chen, Q.; Sun, M.; Long, X.; Zhao, G.; Wang, J.; Yu, Y.; Yuan, C. Provenance study for the Paleozoic sedimentary rocks from the west Yangtze Block: Constraint on possible link of South China to the Gondwana supercontinent reconstruction. Precambrian Res. 2018, 309, 271–289. [Google Scholar] [CrossRef]
  56. Wu, Y.; Zheng, Y. Tectonic evolution of a composite collision orogen: An overview on the Qinling–Tongbai–Hong’an–Dabie–Sulu orogenic belt in central China. Gondwana Res. 2013, 23, 1402–1428. [Google Scholar] [CrossRef]
  57. Wang, X.; Wang, T.; Zhang, C. Neoproterozoic, Paleozoic, and Mesozoic granitoid magmatism in the Qinling Orogen, China: Constraints on orogenic process. J. Asian Earth Sci. 2013, 72, 129–151. [Google Scholar] [CrossRef]
  58. Santosh, M.; Liu, D.; Shi, Y.; Liu, S.J. Paleoproterozoic accretionary orogenesis in the North China Craton: A SHRIMP zircon study. Precambrian Res. 2013, 227, 29–54. [Google Scholar] [CrossRef]
  59. Santosh, M.; Sajeev, K.; Li, J.H. Extreme crustal metamorphism during Columbia supercontinent assembly: Evidence from North China Craton. Gondwana Res. 2006, 10, 256–266. [Google Scholar] [CrossRef]
  60. Sun, J.; Dong, Y. Stratigraphy and geochronology of Permo-Carboniferous strata in the Western North China Craton: Insights into the tectonic evolution of the southern Paleo-Asian Ocean. Gondwana Res. 2020, 88, 201–219. [Google Scholar] [CrossRef]
  61. Wu, F.; Zhang, Y.; Yang, J.; Xie, L.; Yang, Y. Zircon U–Pb and Hf isotopic constraints on the Early Archean crustal evolution in Anshan of the North China Craton. Precambrian Res. 2008, 167, 339–362. [Google Scholar] [CrossRef]
  62. Duan, L. Detrital Zircon Provenance of the Silurian and Devonian in South Qingling, and the Northwestern Margin of Yangtze Terrane and Its Tectonic Implications. Xi’an Northwest Univ. 2010, 1, 67. [Google Scholar]
  63. Liu, T.; Pei, X.; Liu, C.; Li, Z.; Li, R.; Wei, B.; Wang, Y.; Ren, H.; Xu, X.; Chen, W. LA-ICP-MS U-Pb ages of detrital zircons from the Yangyangsiyan Formation in Liangdang area, Western Qinling: Age and provenance characteristics. Geol. Bull. China 2014, 33, 1028–1040. [Google Scholar]
  64. Ding, Z.; Wen, C.; Guo, A.; Niu, G.; Wang, Z.; Liu, Z. Stratigraphic age and provenance characteristics of the Wujiashan Group in the West Qinling Mountains: Evidence from detrital zircon U-Pb age. J. Earth Sci. Environ 2018, 40, 111–132. [Google Scholar]
  65. Yan, Z.; Aitchison, J.C.; Fu, C.; Guo, X.; Xia, W.; Niu, M. Devonian sedimentation in the Xiqingshan Mountains: Implications for paleogeographic reconstructions of the SW Qinling Orogen. Sediment. Geol. 2016, 343, 1–17. [Google Scholar] [CrossRef]
  66. Li, Z. Research on Detrital Zircons from the Devonian Clatic Sequence in the South Qinling Belt and the Late Neoproterozoic to Early Paleozoic Sedimentary Rocks at the Northern Margin of the Yangtze Block and Its Geological Significancence; Northwest University: Xi’an, China, 2019. [Google Scholar]
  67. Gao, F.; Pei, X.; Li, R.; Li, Z.; Pei, L.; Chen, Y.; Wang, M.; Liu, C.; Li, Z. Detrital zircon U-Pb ages of the Liuling Group in shangdan area, Eastern Qinling Mountains and their geological significance. Earth Sci. 2019, 44, 2519–2535. [Google Scholar]
  68. Gao, X. Geological Features and Geological Significance of Late Paleozoic Depositional Stratum in the Lintan Area of the West Qinling Orogen; Chang’an University: Xi’an, China, 2019. [Google Scholar]
  69. Wang, Y.; Pei, X.; Liu, C.; Li, R.; Li, Z.; Wei, B.; Ren, H.; Chen, W.; Liu, T.; Xu, X. LA-ICP-MS U-Pb age of detrital zircons from devonian Shujiaba Group in the Shujiaba area, Western Qinling: Provenance characteristics and formation age. Geol. Bull. China 2014, 33, 1015–1027. [Google Scholar]
  70. Wu, S.; Pei, X.; Li, Z.; Li, R.; Pei, L.; Chen, Y.; Gao, J.; Liu, C.; Wei, F.; Wang, Y. Provenance of dacaotan Group in the northern margin of west Qinling Orogenic Belt: LA-ICP-MS Detrital zircon U-Pb age evidence. Geol. Bull. China 2012, 31, 1469–1481. [Google Scholar]
  71. Ji, X.; Yang, L.; Santosh, M.; Li, N.; Zhang, C.; Zhang, Z.; Han, R.; Li, Z.; Wu, C. Detrital zircon geochronology of Devonian quartzite from tectonic mélange in the Mianlue Suture Zone, Central China: Provenance and tectonic implications. Int. Geol. Rev. 2016, 58, 1510–1527. [Google Scholar] [CrossRef]
  72. Yang, L.Q.; Ji, X.Z.; Santosh, M.; Li, N.; Zhang, Z.C.; Yu, J.Y. Detrital zircon U–Pb ages, Hf isotope, and geochemistry of Devonian chert from the Mianlue suture: Implications for tectonic evolution of the Qinling orogen. J. Asian Earth Sci. 2015, 113, 589–609. [Google Scholar] [CrossRef]
  73. Goodge, J.W.; Vervoort, J.D. Origin of Mesoproterozoic A-type granites in Laurentia: Hf isotope evidence. Earth Planet. Sci. Lett. 2006, 243, 711–731. [Google Scholar] [CrossRef]
  74. Bruno, H.; Heilbron, M.; Strachan, R.; Fowler, M.; de Morisson Valeriano, C.; Bersan, S.; Moreira, H.; Cutts, K.; Dunlop, J.; Almeida, R.; et al. Earth’s new tectonic regime at the dawn of the Paleoproterozoic: Hf isotope evidence for efficient crustal growth and reworking in the São Francisco craton, Brazil. Geology 2021, 49, 1214–1219. [Google Scholar] [CrossRef]
  75. Kemp, A.I.S.; Hawkesworth, C.J.; Foster, G.L.; Paterson, B.A.; Woodhead, J.D.; Hergt, J.M.; Gray, C.M.; Whitehouse, M.J. Magmatic and Crustal DifferentiationHistory of Granitic Rocks from Hf-OIsotopes in Zircon. Science 2007, 315, 980–983. [Google Scholar] [CrossRef] [PubMed]
  76. Laurent, O.; Zeh, A. A linear Hf isotope-age array despite different granitoid sources and complex Archean geodynamics: Example from the Pietersburg block (South Africa). Earth Planet. Sci. Lett. 2015, 430, 326–338. [Google Scholar] [CrossRef]
  77. Cawood, P.A.; McCausland, P.J.; Dunning, G.R. Opening Iapetus: Constraints from the Laurentian margin in Newfoundland. Geol. Soc. Am. Bull. 2001, 113, 443–453. [Google Scholar] [CrossRef]
  78. Song, S.; Niu, Y.; Su, L.; Xia, X. Tectonics of the North Qilian orogen, NW China. Gondwana Res. 2013, 23, 1378–1401. [Google Scholar] [CrossRef]
  79. Liu, L.; Liao, X.; Wang, Y.; Wang, C.; Santosh, M.; Yang, M.; Zhang, C.; Chen, D. Early Paleozoic tectonic evolution of the North Qinling Orogenic Belt in Central China: Insights on continental deep subduction and multiphase exhumation. Earth Sci. Rev. 2016, 159, 58–81. [Google Scholar] [CrossRef]
  80. Diwu, C.; Sun, Y.; Zhao, Y.; Liu, B.; Lai, S. Geochronological, geochemical, and Nd-Hf isotopic studies of the Qinling Complex, central China: Implications for the evolutionary history of the North Qinling Orogenic Belt. Geosci. Front. 2014, 5, 499–513. [Google Scholar] [CrossRef] [Green Version]
  81. Liang, X.; Sun, S.; Dong, Y.; Yang, Z.; Liu, X.; He, D. Fabrics and geochronology of the Wushan ductile shear zone: Tectonic implications for the Shangdan suture zone in the Qinling orogen, Central China. J. Asian Earth Sci. 2017, 139, 71–82. [Google Scholar] [CrossRef]
Minerals 12 00903 g001 550

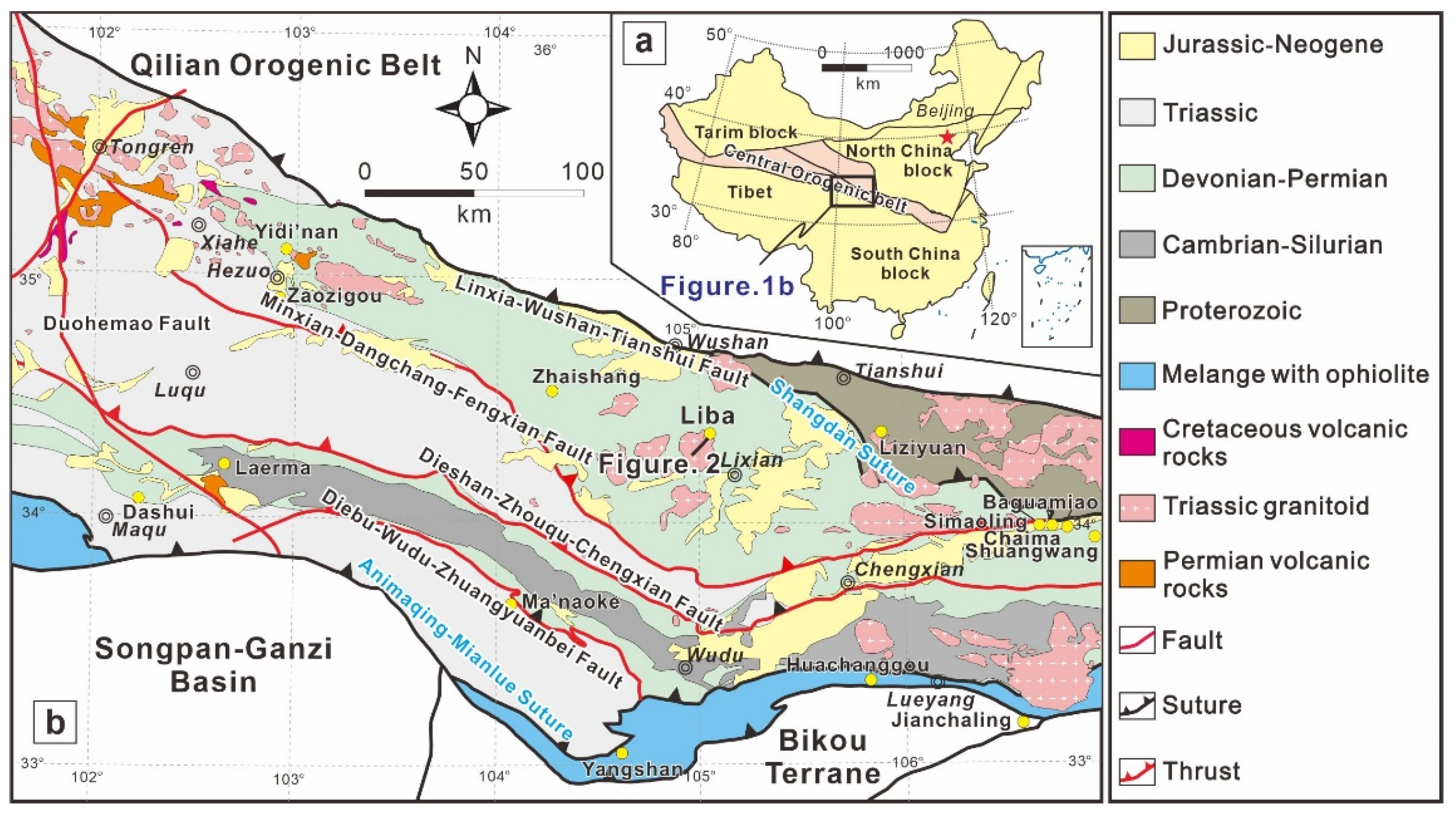

Figure 1. (a) Simplified map showing the location of the West Qinling Belt. (b) Geological map of the West Qinling Belt showing the major geological units (modified after [19]).
Figure 1. (a) Simplified map showing the location of the West Qinling Belt. (b) Geological map of the West Qinling Belt showing the major geological units (modified after [19]).
Minerals 12 00903 g001
Minerals 12 00903 g002 550

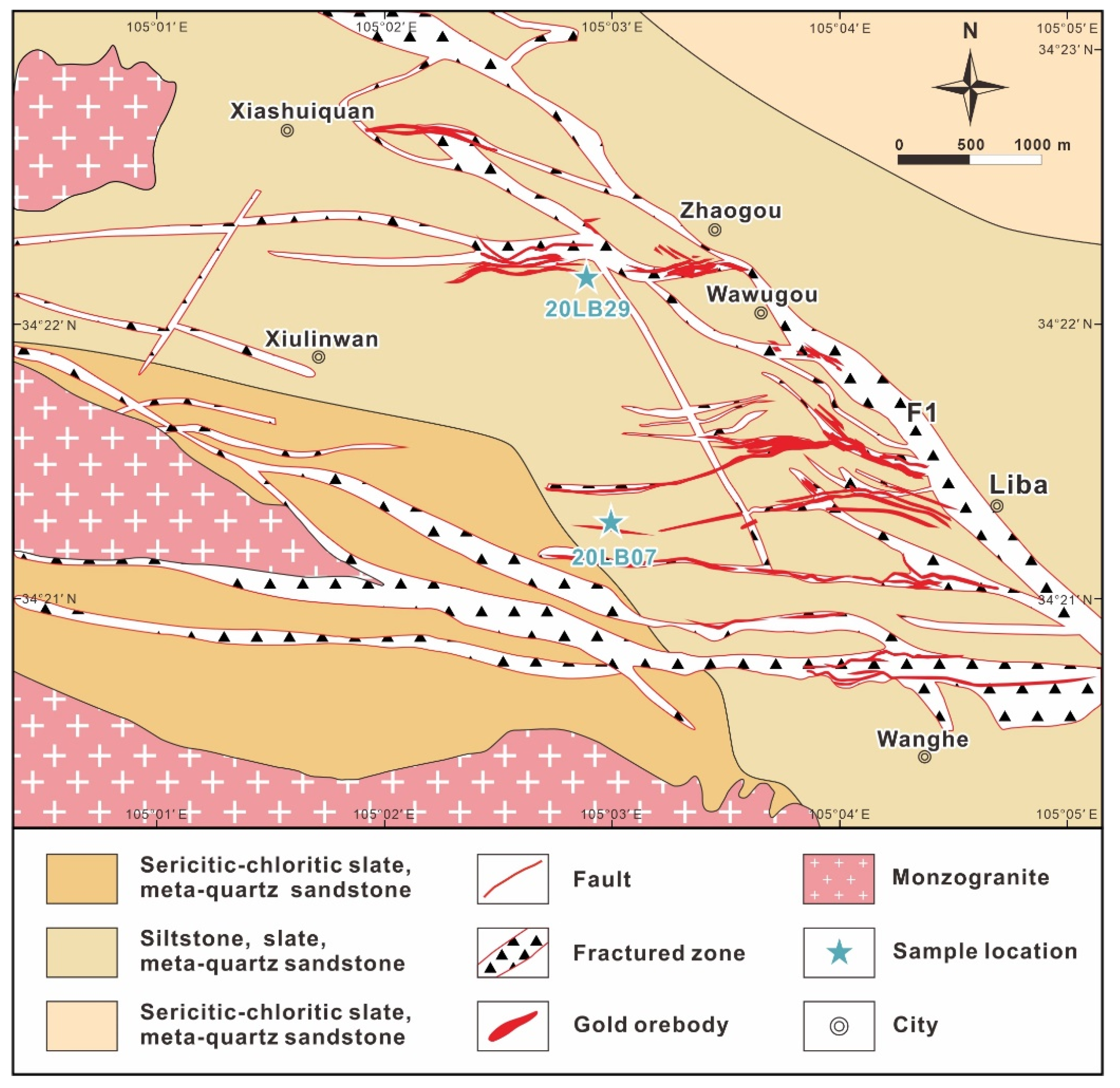

Figure 2. Geological map of the Liba gold deposit showing the major geological units and sample locations.
Figure 2. Geological map of the Liba gold deposit showing the major geological units and sample locations.
Minerals 12 00903 g002
Minerals 12 00903 g003 550
Figure 3. (a,b) Field photographs showing the slaty structure of the Middle Devonian Liba Group. (c,d) Hand specimens of the Middle Devonian Liba Group.
Figure 3. (a,b) Field photographs showing the slaty structure of the Middle Devonian Liba Group. (c,d) Hand specimens of the Middle Devonian Liba Group.
Minerals 12 00903 g003
Minerals 12 00903 g004 550
Figure 4. Photomicrographs showing mineral assemblages of the slates. (a–c) Transmitted cross-polarized light photomicrographs. (d) Reflected light photomicrograph. Ms—muscovite, Qz—quartz, Zrn—zircon, Py—pyrite.
Figure 4. Photomicrographs showing mineral assemblages of the slates. (a–c) Transmitted cross-polarized light photomicrographs. (d) Reflected light photomicrograph. Ms—muscovite, Qz—quartz, Zrn—zircon, Py—pyrite.
Minerals 12 00903 g004
Minerals 12 00903 g005 550
Figure 5. Representative cathodoluminescence (CL) images showing the morphologies and internal textures of zircon grains from the Middle Devonian Liba Group. (a) Sample 20LB07; (b) Sample 20LB29.
Figure 5. Representative cathodoluminescence (CL) images showing the morphologies and internal textures of zircon grains from the Middle Devonian Liba Group. (a) Sample 20LB07; (b) Sample 20LB29.
Minerals 12 00903 g005
Minerals 12 00903 g006 550

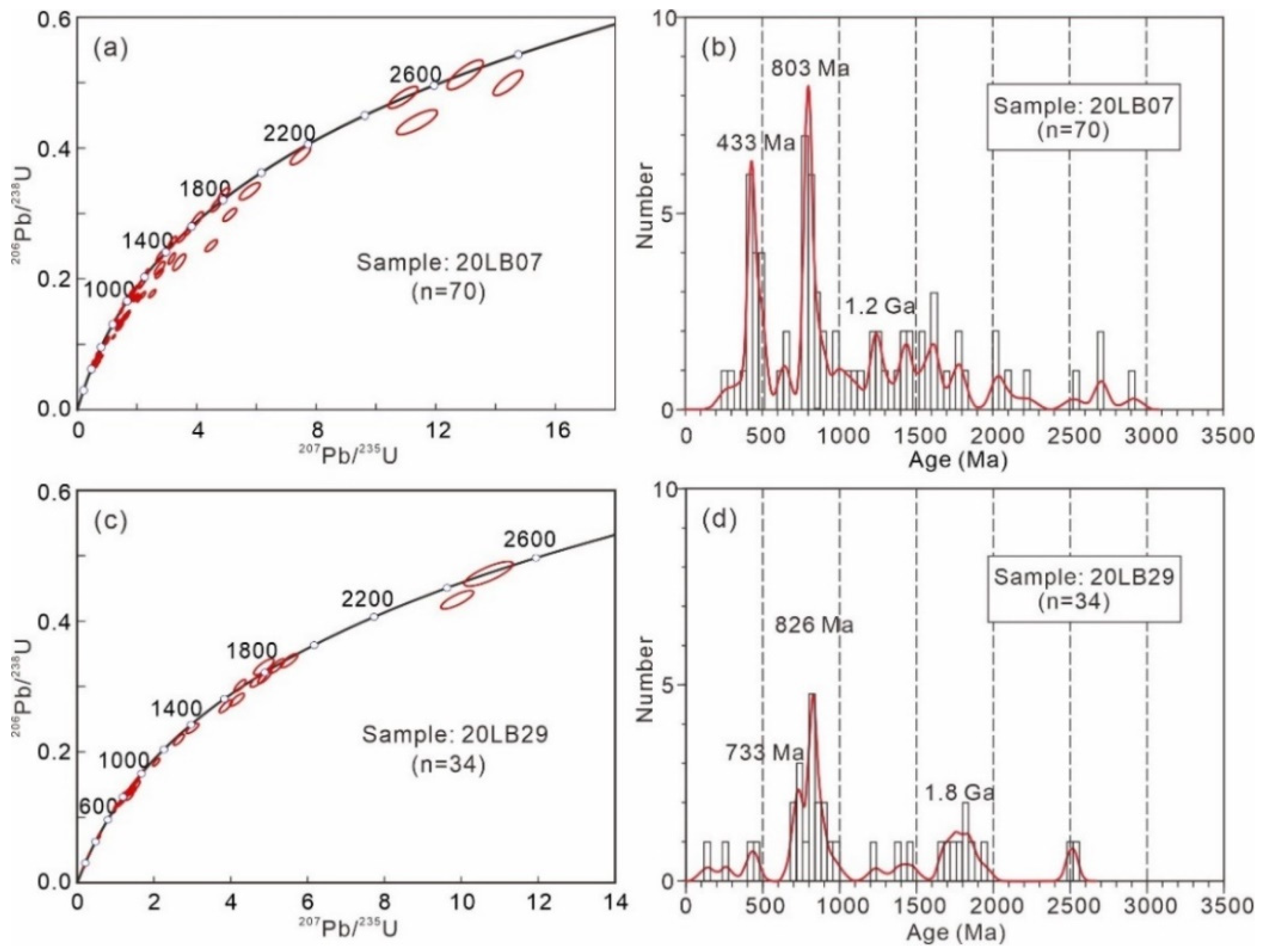

Figure 6. (a,c) Detrital zircon U–Pb concordia diagrams of the Middle Devonian Liba Group slate samples. (b,d) Detrital zircon probability density distribution curves of the Middle Devonian Liba Group slate samples.
Figure 6. (a,c) Detrital zircon U–Pb concordia diagrams of the Middle Devonian Liba Group slate samples. (b,d) Detrital zircon probability density distribution curves of the Middle Devonian Liba Group slate samples.
Minerals 12 00903 g006
Minerals 12 00903 g007 550

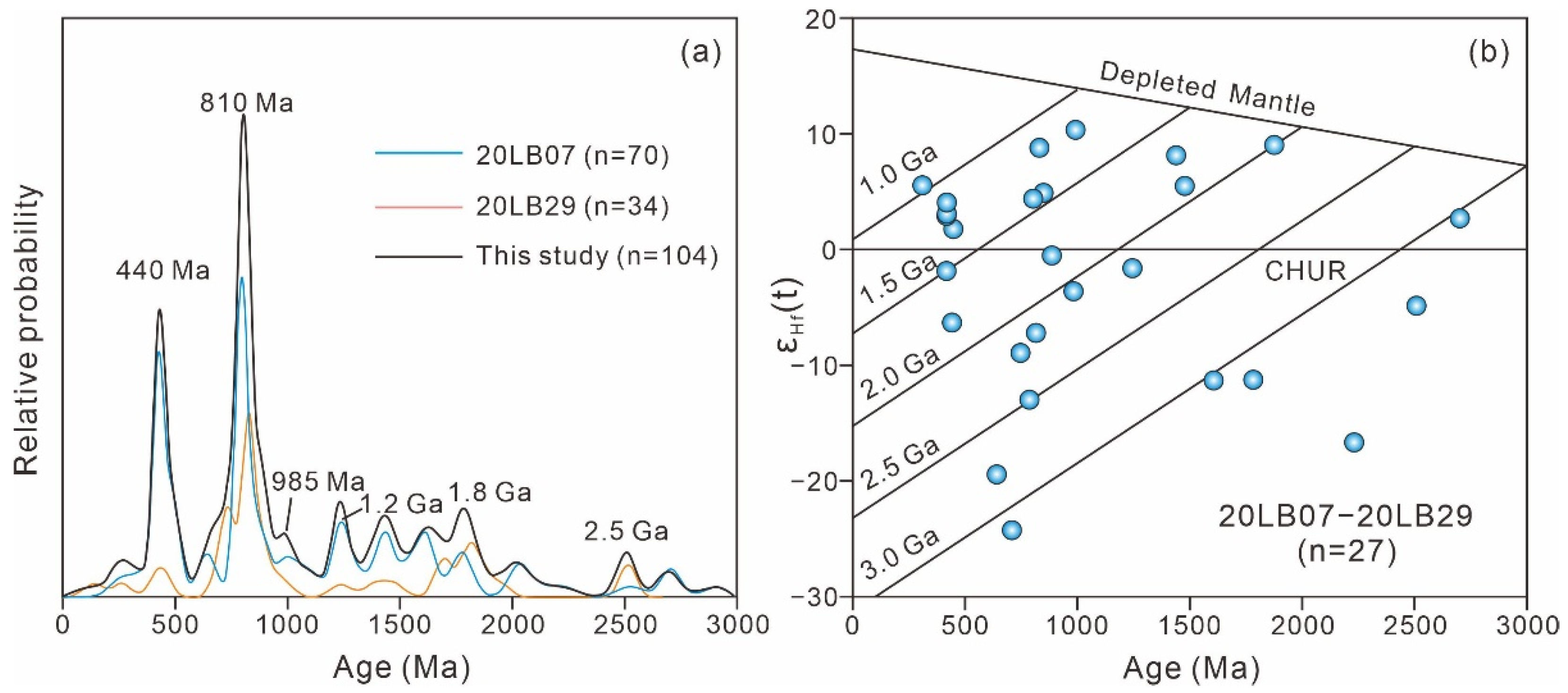

Figure 7. (a) Detrital zircon U–Pb age spectra of sample 20LB07 and 20LB29 from the Liba Group. (b) Detrital zircon εHf(t) values versus U–Pb age diagram of the Liba Group.
Figure 7. (a) Detrital zircon U–Pb age spectra of sample 20LB07 and 20LB29 from the Liba Group. (b) Detrital zircon εHf(t) values versus U–Pb age diagram of the Liba Group.
Minerals 12 00903 g007
Minerals 12 00903 g008 550

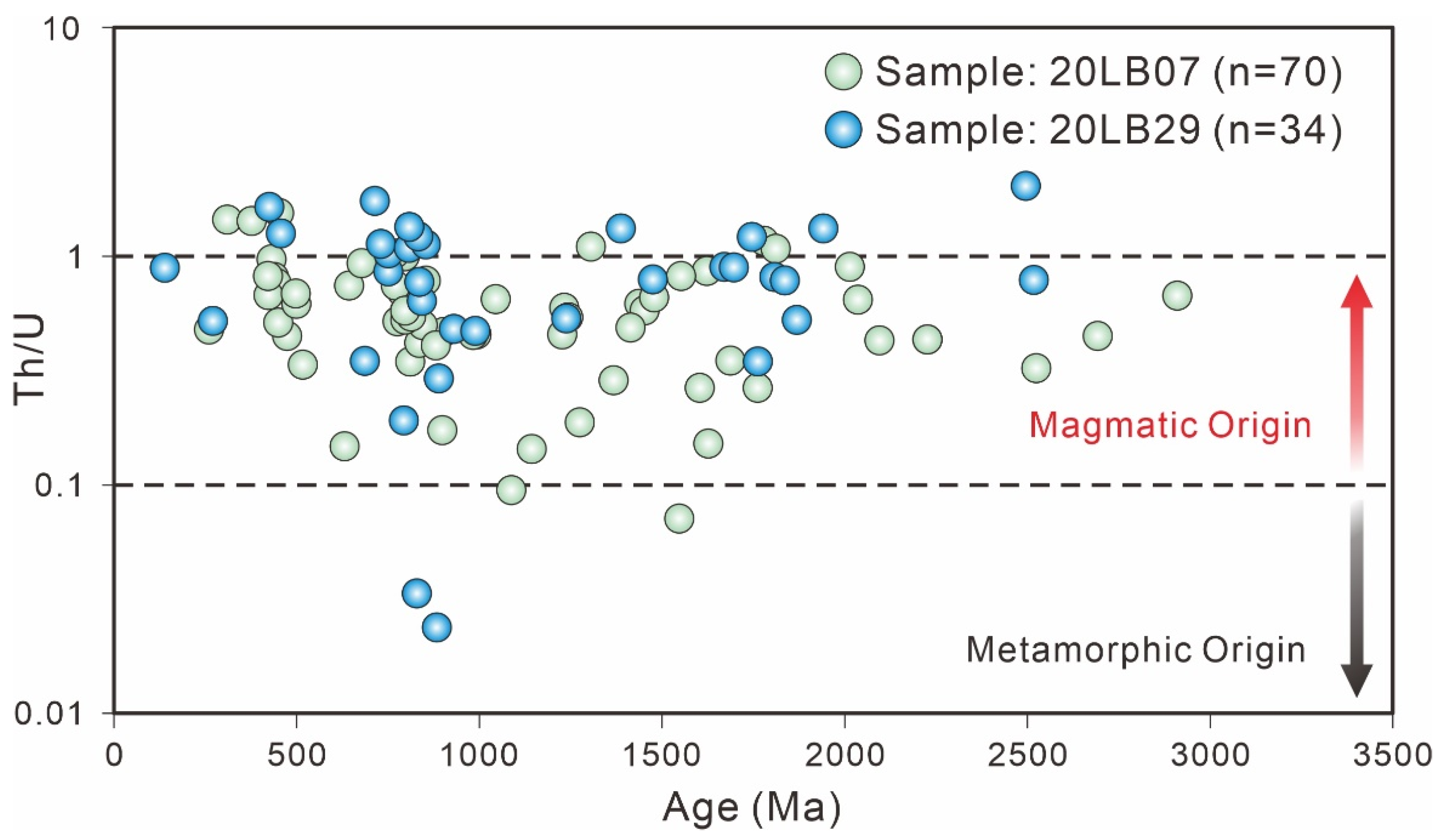

Figure 8. Th/U ratios of the detrital zircon from the Middle Devonian Liba Group.
Figure 8. Th/U ratios of the detrital zircon from the Middle Devonian Liba Group.
Minerals 12 00903 g008
Minerals 12 00903 g009 550

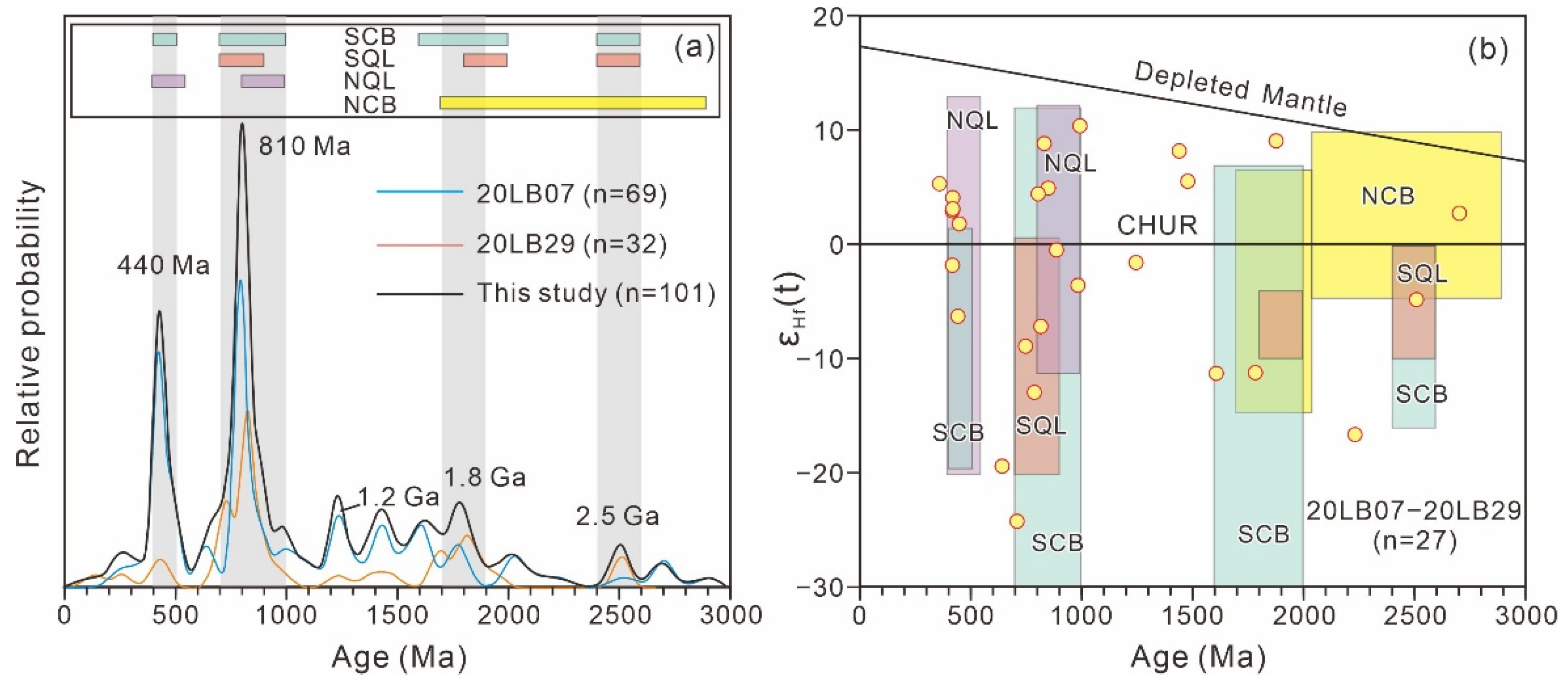

Figure 9. (a) Detrital zircon U–Pb age spectra of the Middle Devonian Liba Group and magmatic zircon distributions from neighboring orogenic belts. (b) Detrital zircon εHf(t) values versus U–Pb age diagram of the Liba Group. Data of North China Block, South China Block, North Qinling Belt and South Qinling Belt are from [27,52,53,54,55]. NCB = North China Block, NQB = North Qinling Belt, SQB = South Qinling Belt, SCB = South China Block.
Figure 9. (a) Detrital zircon U–Pb age spectra of the Middle Devonian Liba Group and magmatic zircon distributions from neighboring orogenic belts. (b) Detrital zircon εHf(t) values versus U–Pb age diagram of the Liba Group. Data of North China Block, South China Block, North Qinling Belt and South Qinling Belt are from [27,52,53,54,55]. NCB = North China Block, NQB = North Qinling Belt, SQB = South Qinling Belt, SCB = South China Block.
Minerals 12 00903 g009
Minerals 12 00903 g010 550

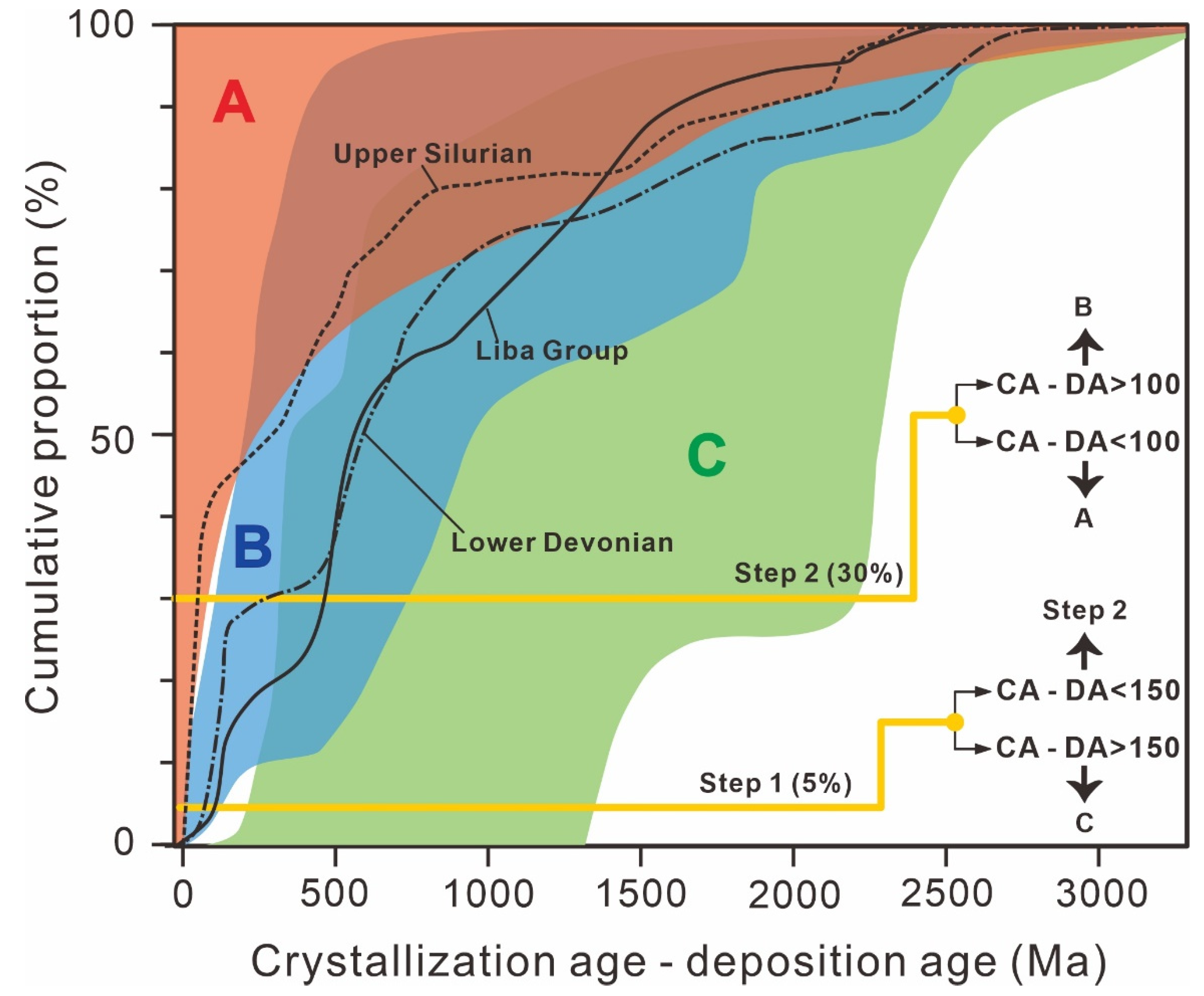

Figure 10. Detrital zircon U–Pb age cumulative probability distributions. Summary plot of the general fields for convergent (A: orange field), collisional (B: blue field), and extensional basins (C: green field). Extensional setting shows CA-DA > 150 Ma in 5% of the youngest zircon grains (step 1), convergent setting shows CA-DA < 100 Ma in 30% of the youngest zircon grains (step 2), and collisional setting shows CA-DA < 150 Ma and CA-DA > 100 Ma in 5% and 30% of the youngest zircon population, respectively (modified after [17]).
Figure 10. Detrital zircon U–Pb age cumulative probability distributions. Summary plot of the general fields for convergent (A: orange field), collisional (B: blue field), and extensional basins (C: green field). Extensional setting shows CA-DA > 150 Ma in 5% of the youngest zircon grains (step 1), convergent setting shows CA-DA < 100 Ma in 30% of the youngest zircon grains (step 2), and collisional setting shows CA-DA < 150 Ma and CA-DA > 100 Ma in 5% and 30% of the youngest zircon population, respectively (modified after [17]).
Minerals 12 00903 g010
Minerals 12 00903 g011 550

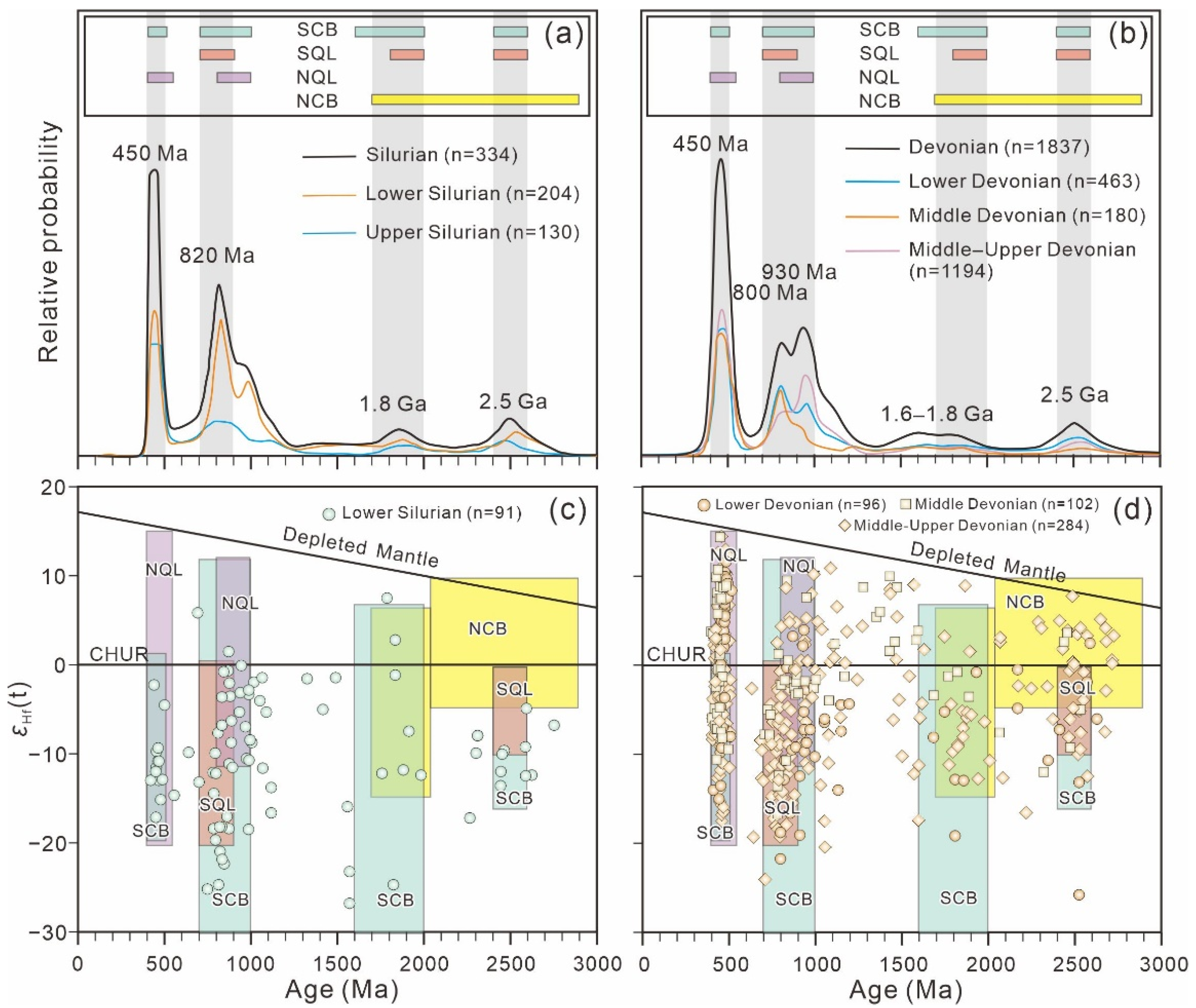

Figure 11. Detrital zircon U–Pb age spectra and εHf(t) values versus U–Pb age diagram from the Phanerozoic strata in the South Qinling Belt and the surrounding potential sources. (a,c) Silurian [52,62,63]; (b,d) Devonian (this study, [8,27,62,64,65,66,67,68,69,70,71,72]). Data for North China Block, South China Block, North Qinling Belt, and South Qinling Belt are from [27,52,53,54,55]. NCB = North China Block, NQB = North Qinling Belt, SQB = South Qinling Belt, SCB = South China Block.
Figure 11. Detrital zircon U–Pb age spectra and εHf(t) values versus U–Pb age diagram from the Phanerozoic strata in the South Qinling Belt and the surrounding potential sources. (a,c) Silurian [52,62,63]; (b,d) Devonian (this study, [8,27,62,64,65,66,67,68,69,70,71,72]). Data for North China Block, South China Block, North Qinling Belt, and South Qinling Belt are from [27,52,53,54,55]. NCB = North China Block, NQB = North Qinling Belt, SQB = South Qinling Belt, SCB = South China Block.
Minerals 12 00903 g011
Minerals 12 00903 g012 550

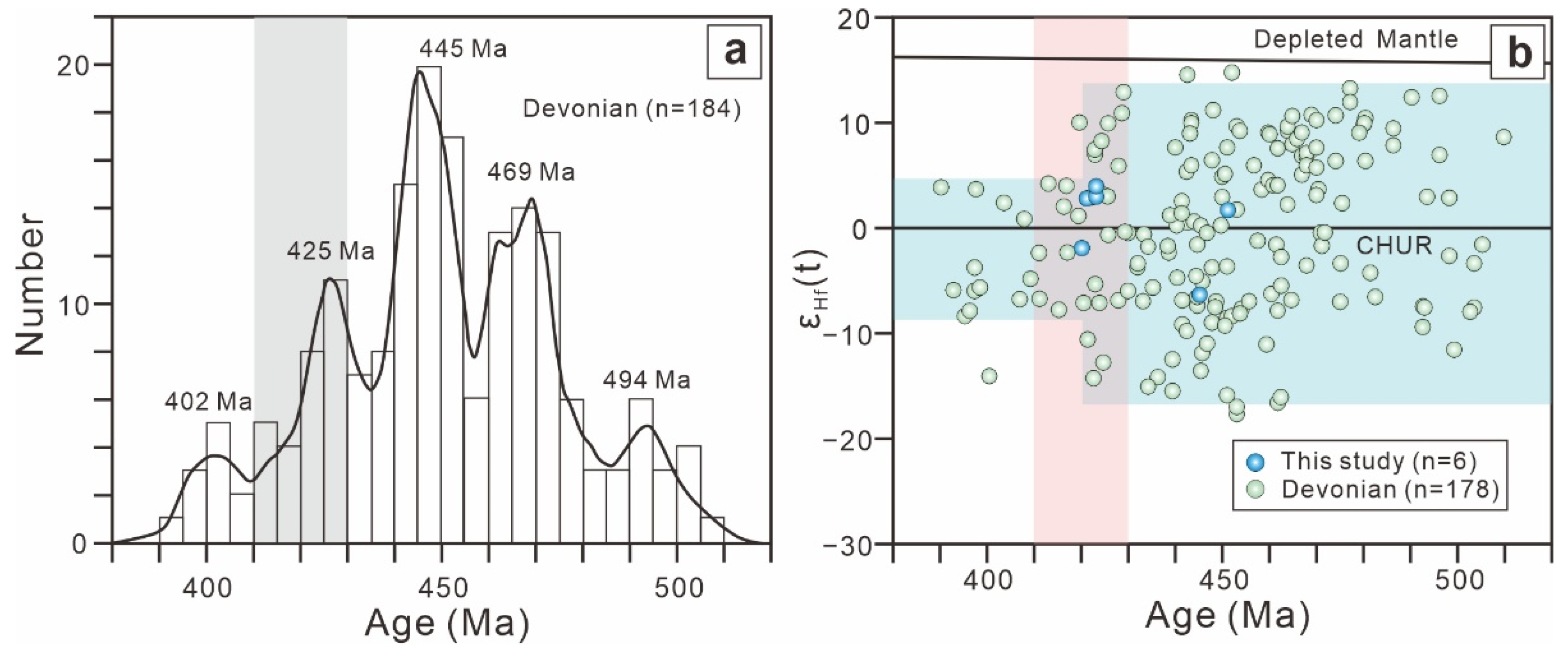

Figure 12. (a) Detrital zircon U–Pb age spectra of Phanerozoic detrital zircon grains from Devonian strata. (b) Detrital zircon εHf(t) values versus U–Pb age diagram of Phanerozoic detrital zircon grains from Devonian strata.
Figure 12. (a) Detrital zircon U–Pb age spectra of Phanerozoic detrital zircon grains from Devonian strata. (b) Detrital zircon εHf(t) values versus U–Pb age diagram of Phanerozoic detrital zircon grains from Devonian strata.
Minerals 12 00903 g012
Minerals 12 00903 g013 550
Figure 13. Schematic cartoon showing the tectonic evolution of the Shangdan Ocean. (a) Subduction of the Shangdan oceanic slab from 510 to 420 Ma. (b) Collision between the North Qinling Belt and South Qinling Belt at ca. 420 Ma. The white arrows show the transport direction of detrital sediments.
Figure 13. Schematic cartoon showing the tectonic evolution of the Shangdan Ocean. (a) Subduction of the Shangdan oceanic slab from 510 to 420 Ma. (b) Collision between the North Qinling Belt and South Qinling Belt at ca. 420 Ma. The white arrows show the transport direction of detrital sediments.
Minerals 12 00903 g013
Table
Table 1. Zircon LA-ICP-MS U–Pb data of the Liba Group. Ages of zircon grains (<1.0 Ga) are quoted using 206Pb/238U ages, whereas older grains are based on their 207Pb/206Pb ages. Zircon ages with low concordance (<80%) were excluded.
Table 1. Zircon LA-ICP-MS U–Pb data of the Liba Group. Ages of zircon grains (<1.0 Ga) are quoted using 206Pb/238U ages, whereas older grains are based on their 207Pb/206Pb ages. Zircon ages with low concordance (<80%) were excluded.
Sample No.Elemental Data (ppm)Th/UIsotopic RatiosAge (Ma)Concordance (%)
207Pb/206Pb207Pb/235U206Pb/238U207Pb/206Pb207Pb/235U206Pb/238UBest age
UThRatio1σRatio1σRatio1σAge1σAge1σAge1σ
20LB07: Slate
20LB07-01102840.820.05810.00140.53600.01470.06750.00115335243610421742197
20LB07-02114920.810.05640.00180.51930.01730.06790.001346970425124238423100
20LB07-03131910.700.06920.00121.23220.02650.13000.002290637815127881278897
20LB07-044012320.580.07010.00151.26000.02980.13110.002893143828137941679496
20LB07-053901770.450.07150.00091.62110.03400.16470.0025973269781398314983100
20LB07-0612776900.540.08190.00112.32230.03640.20680.0030124425121911121216124499
20LB07-071081151.070.11060.00163.41900.08840.22480.0051181027150920130727181087
20LB07-08225640.290.08740.00132.78670.05550.23340.00371369281352151352201369100
20LB07-095332310.430.13990.00177.47830.13980.38820.0057222721217017211526222795
20LB07-1078250.320.16670.002310.91070.20160.47760.00682525242516172517302525100
20LB07-114572040.450.18450.002312.98540.24780.51220.0092269420267918266639269499
20LB07-12307122470.730.07340.00170.58200.01280.05740.00101025464668360636077
20LB07-13288540831.420.06310.00110.52090.01350.05940.0010712374269372637287
20LB07-14187815210.810.08080.00210.67660.01810.06030.000912165052511377537772
20LB07-153483040.870.07270.00130.66210.01540.06620.00101005375169413641380
20LB07-161351310.970.06040.00190.58010.02100.06930.00126196646513432743293
20LB07-1713396770.510.07420.00160.73800.01520.07170.00091046445619446544680
20LB07-18127519681.540.05970.00120.59800.01100.07270.0010591454767452645295
20LB07-194072760.680.07170.00160.79010.02390.07950.00119774559114493649383
20LB07-205113180.620.07450.00140.82210.01650.07970.00121056386099495749581
20LB07-2110403390.330.06670.00090.77380.01390.08320.0009829275828515551589
20LB07-2210043380.340.05790.00090.66700.01310.08350.00115253551985177517100
20LB07-234722640.560.08730.00251.03840.02240.08610.001513685472311533953374
20LB07-24503740.150.07010.00110.98930.01920.10280.00169313369810631963190
20LB07-255604170.740.07000.00131.01190.02750.10490.002392939710146431364391
20LB07-263171730.550.07660.00151.40950.02760.13330.001311103989312807880790
20LB07-272831790.630.06870.00111.28250.02450.13530.00178903383811818981898
20LB07-284272870.670.09580.00181.84160.03470.13800.0016154436106012833983379
20LB07-294333340.770.08420.00171.63740.04090.14110.0023129738985168511385186
20LB07-3012955260.410.08410.00131.69590.03470.14600.00171295301007138781087887
20LB07-31803920.110.10910.00372.16240.06320.14610.00451784621169208792587975
20LB07-328161410.170.07130.00081.47820.02230.14980.0016967249219900990098
20LB07-333731740.470.07110.00101.47410.02280.15040.0017961299209903990398
20LB07-3410581230.120.11880.00242.61460.05340.15920.00181938361305159521095273
20LB07-35175800.460.07800.00171.77620.03950.16650.00251146441037149931499396
20LB07-36544770.140.07780.00161.80870.04240.16970.0029114141104915101016114196
20LB07-372502721.090.08450.00141.98660.04360.16980.0019130432111115101110130491
20LB07-38504930.180.08320.00151.95780.03840.17060.0025127336110113101514127392
20LB07-394272490.580.09090.00122.20630.03740.17450.0021144524118312103712144588
20LB07-403831320.340.10350.00162.52220.04760.17650.0025168729127814104814168782
20LB07-41849800.090.07570.00101.92320.03530.18250.0023108825108912108113108899
20LB07-428503860.450.08120.00182.15720.04240.19160.0030122744116714113016122797
20LB07-434532700.600.08150.00142.18870.04840.19430.0027123333117715114515123397
20LB07-44689480.070.09590.00172.75300.05350.20750.0030154634134314121616154691
20LB07-453872520.650.09250.00132.76740.07080.21550.0042147827134719125822147893
20LB07-466003780.630.18140.00226.24930.10740.24840.0026266620201115143014266671
20LB07-476252640.420.12980.00224.49200.08210.24990.0037209529172915143819209583
20LB07-481981620.820.09630.00133.49700.05740.26190.0028155325152713150014155398
20LB07-493783720.980.12680.00224.71020.09780.26700.0037205431176917152519205474
20LB07-501131881.670.13540.00235.26820.10380.28060.0037216930186417159418216973
20LB07-514473860.860.09990.00134.02490.07830.29110.00451623251639161647231623101
20LB07-52116610350.890.12390.00185.11100.09290.29750.0041201426183815167920201483
20LB07-53323860.270.10780.00134.66990.08020.31280.00441763221762141755221763100
20LB07-54118760.650.12560.00265.78080.14070.33350.0053203737194421185526203791
20LB07-552961770.600.18710.00179.18630.14930.35480.0049271615235715195723271672
20LB07-563611610.450.18680.002511.37310.27910.43940.0077271422255423234835271487
20LB07-574101940.470.06200.00120.34120.00670.04050.0008674412985256525686
20LB07-583374881.450.05230.00100.35520.00720.04930.00083004330953105310101
20LB07-597074780.680.06000.00120.55920.01210.06770.0010604434518423642394
20LB07-601851500.810.05540.00140.53880.01550.07050.001042858438104396439100
20LB07-616384890.770.05490.00080.53870.01120.07150.00124093343874457445102
20LB07-623021350.450.06480.00140.67780.01500.07630.0013768455259474747490
20LB07-634824440.920.08070.00141.22630.02080.11040.00131215348139675867583
20LB07-642642681.020.08220.00151.42900.02700.12630.001312503690111767776785
20LB07-651511110.740.08270.00301.42740.05150.12670.0029126271900227691676985
20LB07-664202180.520.07070.00091.24230.01510.12810.0016950258207777977795
20LB07-672572611.010.06930.00141.25570.02740.13120.002190942826127951279596
20LB07-684482410.540.07040.00101.27330.02020.13140.00189413083497961179695
20LB07-694551550.340.08200.00131.50900.02920.13360.0020124631934128081280887
20LB07-7081510.630.06950.00141.28370.02780.13430.00179144283912812981297
20LB07-714312640.610.06980.00081.28670.02030.13440.00219222584098131281397
20LB07-723051260.410.08130.00141.54960.03430.13780.0022122933950148321283288
20LB07-734922420.490.08190.00081.57010.02560.13970.0023124420958108431384388
20LB07-748764220.480.08940.00112.07980.02920.16980.0024141323114210101113141388
20LB07-756374130.650.07410.00081.77960.03090.17400.00291045231038111034161045100
20LB07-768121210.150.10010.00143.16710.04890.23050.0035162525144912133718162592
20LB07-776714170.620.09060.00163.18710.05770.25490.00391438341454141464201438101
20LB07-784431180.270.09890.00093.76430.05040.27660.0041160417158511157420160498
20LB07-7982961.170.10880.00194.90860.08050.32900.00421779321804141833201779103
20LB07-803552390.670.21080.002114.42260.20180.49950.0078291216277813261233291290
20LB29: Slate
20LB29-0187213131.510.09180.00171.53310.02860.12130.001514653594411738873878
20LB29-02592.000.49480.022738.05792.16800.56460.0225422668372156288693422668
20LB29-034594080.890.05570.00190.15910.00520.02090.0004443761505133213389
20LB29-045684780.840.06910.00111.17260.02360.12300.001890227788117481174895
20LB29-055496791.240.05790.00090.57820.01030.07250.0008524314637451545197
20LB29-062582851.110.07300.00171.42190.03600.14110.001610144689815851985195
20LB29-073652290.630.07020.00111.34380.02320.13910.0017100031865108401084097
20LB29-082972620.880.10260.00134.23570.06150.30000.00381672221681121691191672101
20LB29-098822630.300.08240.00150.92030.03360.07940.0022125534663184921349274
20LB29-102502000.800.11070.00144.71810.08730.30910.0046181024177016173623181096
20LB29-113251730.530.08160.00122.05110.03580.18260.0024123528113312108113123595
20LB29-125338551.610.06060.00100.56220.01050.06730.0008633354537420542093
20LB29-132142551.190.06930.00171.31110.03530.13730.001990955851168291182997
20LB29-14163818211.110.06700.00081.10220.02090.11920.001983726754107261172696
20LB29-151572041.300.11820.00165.51780.09160.33830.0044194429190314187921194497
20LB29-16650.820.38260.014921.18430.87720.40820.0107384258314740220749384257
20LB29-174292000.470.07290.00111.66040.02940.16530.0023101330994119861398699
20LB29-183021570.520.11440.00155.20320.08090.33030.0045187224185313184022187298
20LB29-192282431.070.07040.00141.28990.03000.13290.001994338841138041180496
20LB29-2079650.820.13450.00511.22450.04400.06720.001221576181220419841952
20LB29-213531210.340.10810.00154.15890.07720.27850.0040176526166615158420176590
20LB29-223682850.770.16660.00279.90430.17280.43190.0058252426242616231426252492
20LB29-231420340.020.07100.00091.43580.02010.14650.0016967259048881988197
20LB29-245692700.480.07220.00101.54290.02530.15470.001999129948109271092798
20LB29-251421871.310.06570.00161.20430.02860.13310.0018798558031380510805100
20LB29-2664771.190.10690.00194.85970.10900.32890.00501748331795191833241748105
20LB29-275481040.190.07540.00181.35710.03870.13030.0025108048871177891578991
20LB29-282052651.290.08820.00162.63830.05650.21690.0034138736131116126518138796
20LB29-298730.030.07320.00231.39130.05190.13670.002396961885228261382693
20LB29-306575760.880.10400.00143.86530.07040.26840.0039169824160615153320169890
20LB29-3113084520.350.06280.00090.97020.01710.11180.00167023068996831068399
20LB29-322163681.700.06400.00171.02830.02930.11640.001773959718157101071099
20LB29-335635691.010.06760.00131.14720.02530.12280.0020852118776127471274796
20LB29-341531200.780.09240.00172.99430.06540.23440.0032147635140617135717147697
20LB29-353152390.760.06850.00121.30660.02650.13780.001789832849128321083298
20LB29-3678011531.480.14440.00185.77250.09360.28930.0040228119194214163820228172
20LB29-378206340.770.11260.00114.88610.07360.31410.0042183919180013176121183996
20LB29-388142360.290.07560.00111.54200.03340.14750.0026108335947138871588794
20LB29-393851990.520.05300.00130.30500.00840.04170.0006309552707263326397
20LB29-40861691.980.16430.002410.72470.25990.47150.00772502252500232490342502100
Table
Table 2. Zircon Lu–Hf data of the Liba Group.
Table 2. Zircon Lu–Hf data of the Liba Group.
Sample No.176Yb/177Hf176Lu/177Hf176Hf/177HfAge
(Ma)		εHf(0)εHf(t)TDM1
(Ma)		TDM2
(Ma)		fLu/Hf
Radio2σRadio2σRadio2σ
20LB07-10.0130740.0001450.0005400.0000050.2825960.000020421−6.222.909171220−0.98
20LB07-20.0083660.0000340.0003630.0000010.2826270.000015423−5.134.088701147−0.99
20LB07-30.0286090.0000650.0010870.0000010.2819280.000021788−29.83−13.0218642497−0.97
20LB07-50.0210340.0000550.0008020.0000020.2820700.000013983−24.83−3.6216552059−0.98
20LB07-60.0535800.0000940.0019540.0000020.2819920.0000131244−27.59−1.6318182134−0.94
20LB07-90.0162930.0000360.0006280.0000010.2809190.0000162227−65.54−16.7232083803−0.98
20LB07-110.0254430.0002770.0010620.0000100.2811900.0000162694−55.932.7128762983−0.97
20LB07-250.0453950.0003870.0018110.0000140.2818420.000031643−32.88−19.5020222790−0.95
20LB07-270.0472380.0007660.0016080.0000240.2820820.000028818−24.42−7.2416752159−0.95
20LB07-350.0285790.0000640.0013210.0000030.2824680.000028993−10.7610.3611181191−0.96
20LB07-580.0533950.0001650.0021030.0000080.2827470.000028310−0.885.51737969−0.94
20LB07-590.0629020.0002610.0024390.0000120.2826150.000124423−5.553.089371210−0.93
20LB07-610.0301300.0001810.0010980.0000060.2823250.000021445−15.80−6.3313121821−0.97
20LB07-770.0426690.0004160.0015810.0000160.2821420.0000201438−22.308.1615891674−0.95
20LB07-780.0285910.0001810.0009950.0000050.2814730.0000261604−45.92−11.3424853007−0.97
20LB07-790.0216560.0000740.0007940.0000020.2813600.0000221779−49.94−11.2826273135−0.98
20LB29-40.0682660.0001930.0025650.0000090.2820880.000066748−24.18−8.9617092213−0.92
20LB29-50.0206100.0001200.0007820.0000040.2825480.000022451−7.921.789901314−0.98
20LB29-60.0131230.0002840.0004500.0000090.2823860.000029851−13.654.9012061424−0.99
20LB29-120.0343500.0003030.0013800.0000130.2824690.000019420−10.72−1.8611181520−0.96
20LB29-180.0273440.0001310.0011590.0000040.2818880.0000151872−31.279.0719241955−0.97
20LB29-250.0568380.0002240.0022160.0000090.2824270.000022805−12.194.4112041419−0.93
20LB29-320.0084420.0002720.0003300.0000100.2816470.000014710−39.79−24.3222093139−0.99
20LB29-340.0430980.0007430.0015650.0000240.2820430.0000231476−25.765.5117261868−0.95
20LB29-350.0670600.0009360.0022220.0000310.2825360.000037832−8.368.8110471163−0.93
20LB29-380.0286170.0000910.0010440.0000040.2822200.000014887−19.50−0.5214561792−0.97
20LB29-400.0295220.0002620.0009970.0000080.2810950.0000162502−59.29−4.8630003295−0.97
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhang, P.-C.; Li, S.-S.; Liu, B.; He, D.-Y.; Cai, Q.-S.; Kaningu, G.B.; Sun, X.-C. Timing, Provenance, and Tectonic Implications of Ore-Hosting Metasedimentary Rocks in the Giant Liba Gold Deposit, West Qinling Belt, China. Minerals 2022, 12, 903. https://doi.org/10.3390/min12070903

AMA Style

Zhang P-C, Li S-S, Liu B, He D-Y, Cai Q-S, Kaningu GB, Sun X-C. Timing, Provenance, and Tectonic Implications of Ore-Hosting Metasedimentary Rocks in the Giant Liba Gold Deposit, West Qinling Belt, China. Minerals. 2022; 12(7):903. https://doi.org/10.3390/min12070903

Chicago/Turabian Style

Zhang, Peng-Cong, Shan-Shan Li, Bo Liu, Deng-Yang He, Quan-Sheng Cai, Germain Bishikwabo Kaningu, and Xin-Chun Sun. 2022. "Timing, Provenance, and Tectonic Implications of Ore-Hosting Metasedimentary Rocks in the Giant Liba Gold Deposit, West Qinling Belt, China" Minerals 12, no. 7: 903. https://doi.org/10.3390/min12070903

APA Style

Zhang, P. -C., Li, S. -S., Liu, B., He, D. -Y., Cai, Q. -S., Kaningu, G. B., & Sun, X. -C. (2022). Timing, Provenance, and Tectonic Implications of Ore-Hosting Metasedimentary Rocks in the Giant Liba Gold Deposit, West Qinling Belt, China. Minerals, 12(7), 903. https://doi.org/10.3390/min12070903

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
