Petrogenesis of the Early Cretaceous Zhouguan Granodiorite in Jiaodong Peninsula: Evidence from Mineralogy, Geochemistry, Geochronology, and Sr-Nd Isotopes
Abstract
:1. Introduction

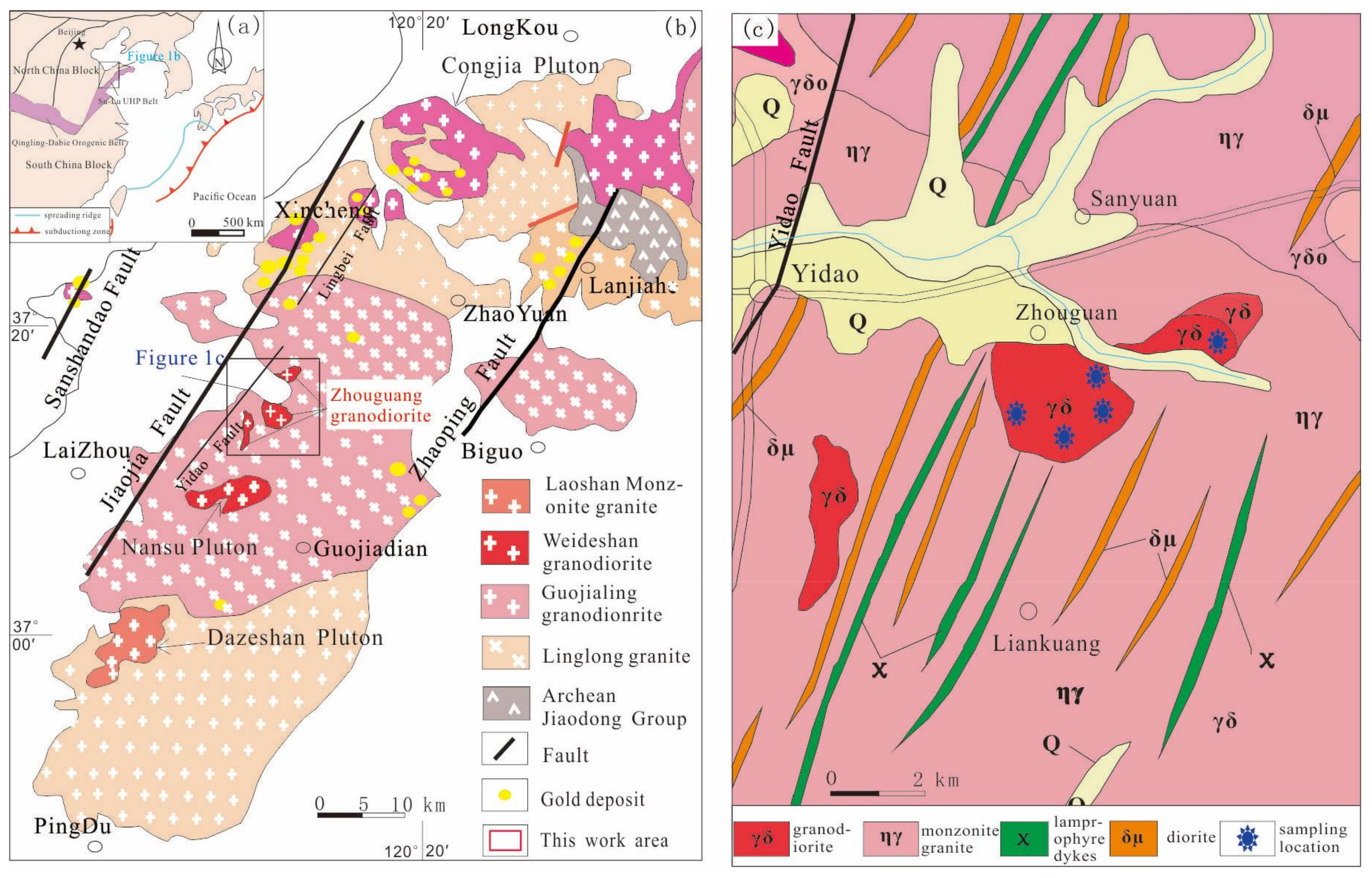

2. Regional Geology

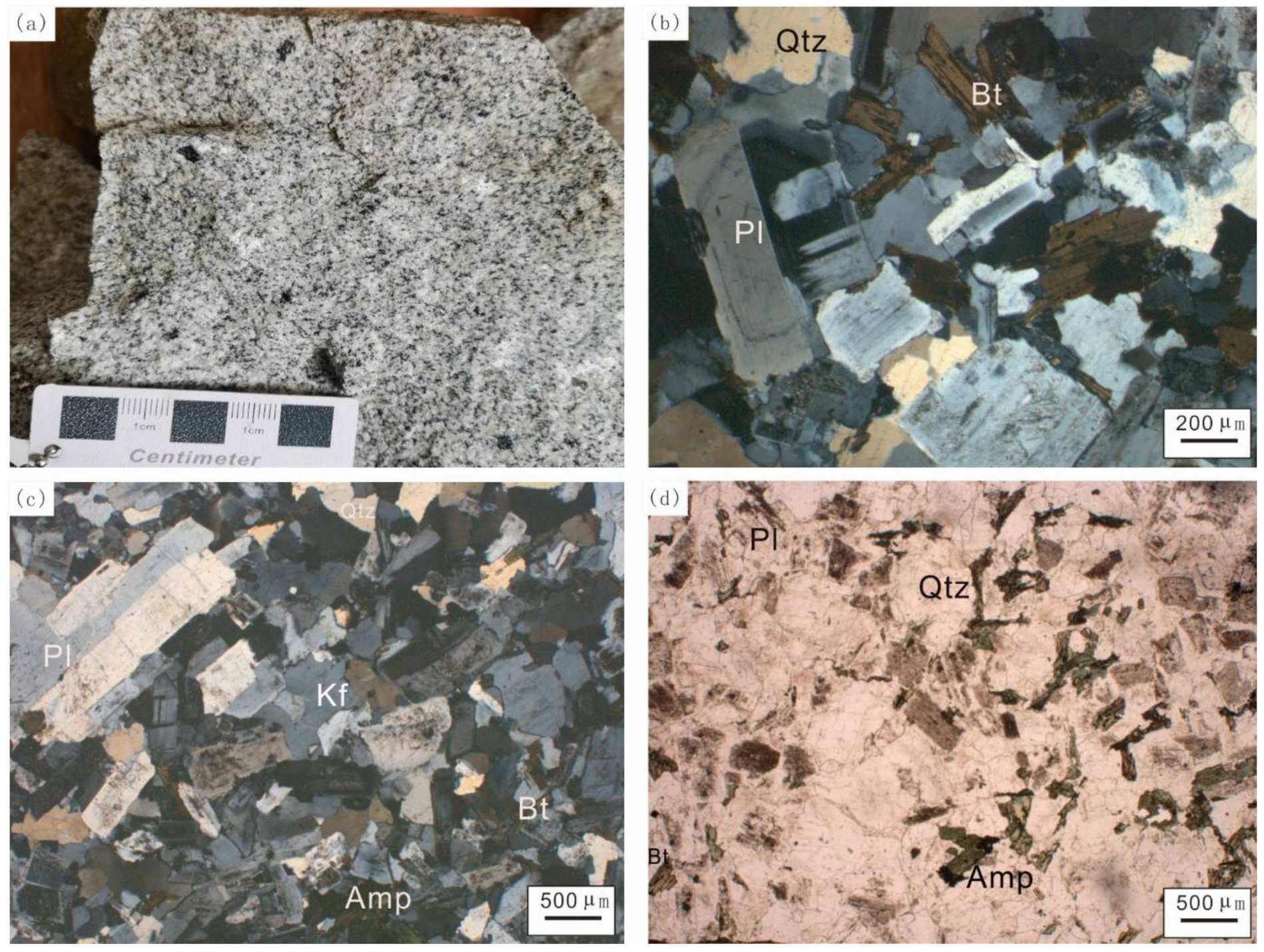

3. Samples and Analytical Methods
3.1. Geochemical Analysis
3.2. Zircon U-Pb Dating
3.3. EPMA Analysis of Biotite and Amphibole
3.4. Sr-Nd Isotopes
4. Results

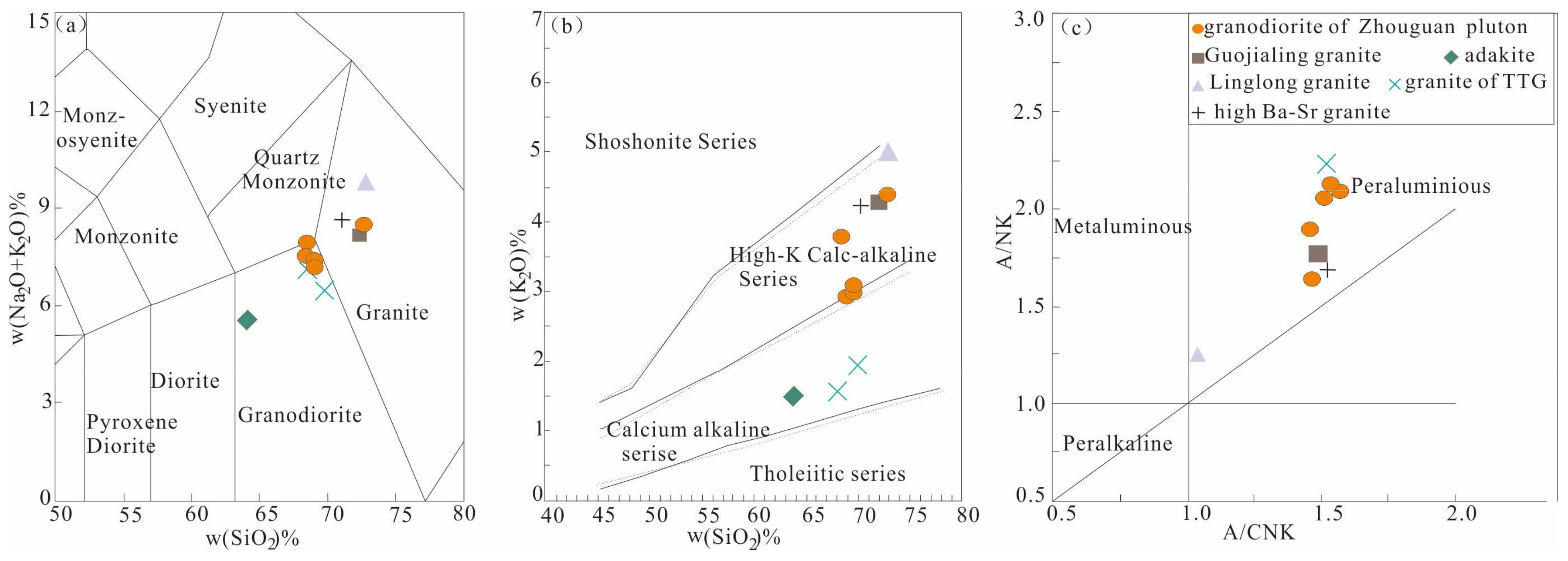

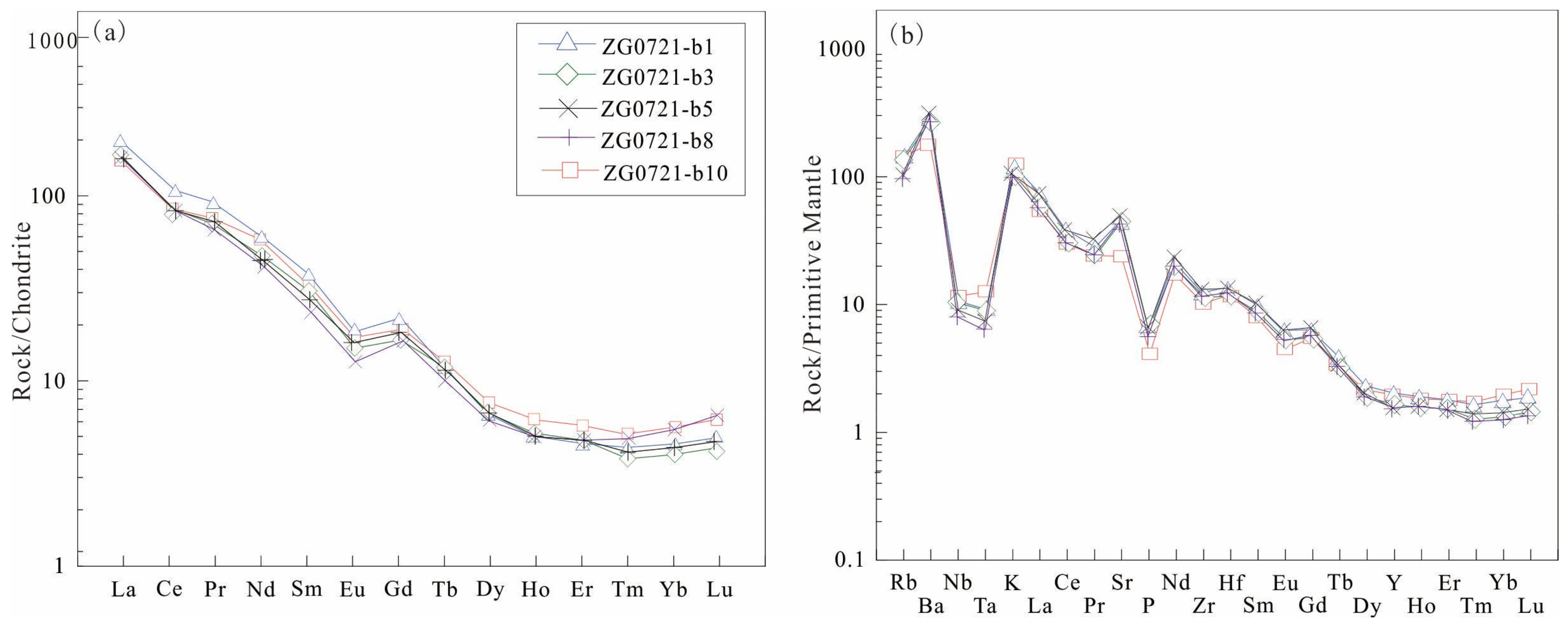

4.1. Characteristics of Whole-Rock Major and Trace Elements of Zhouguan Granodiorite

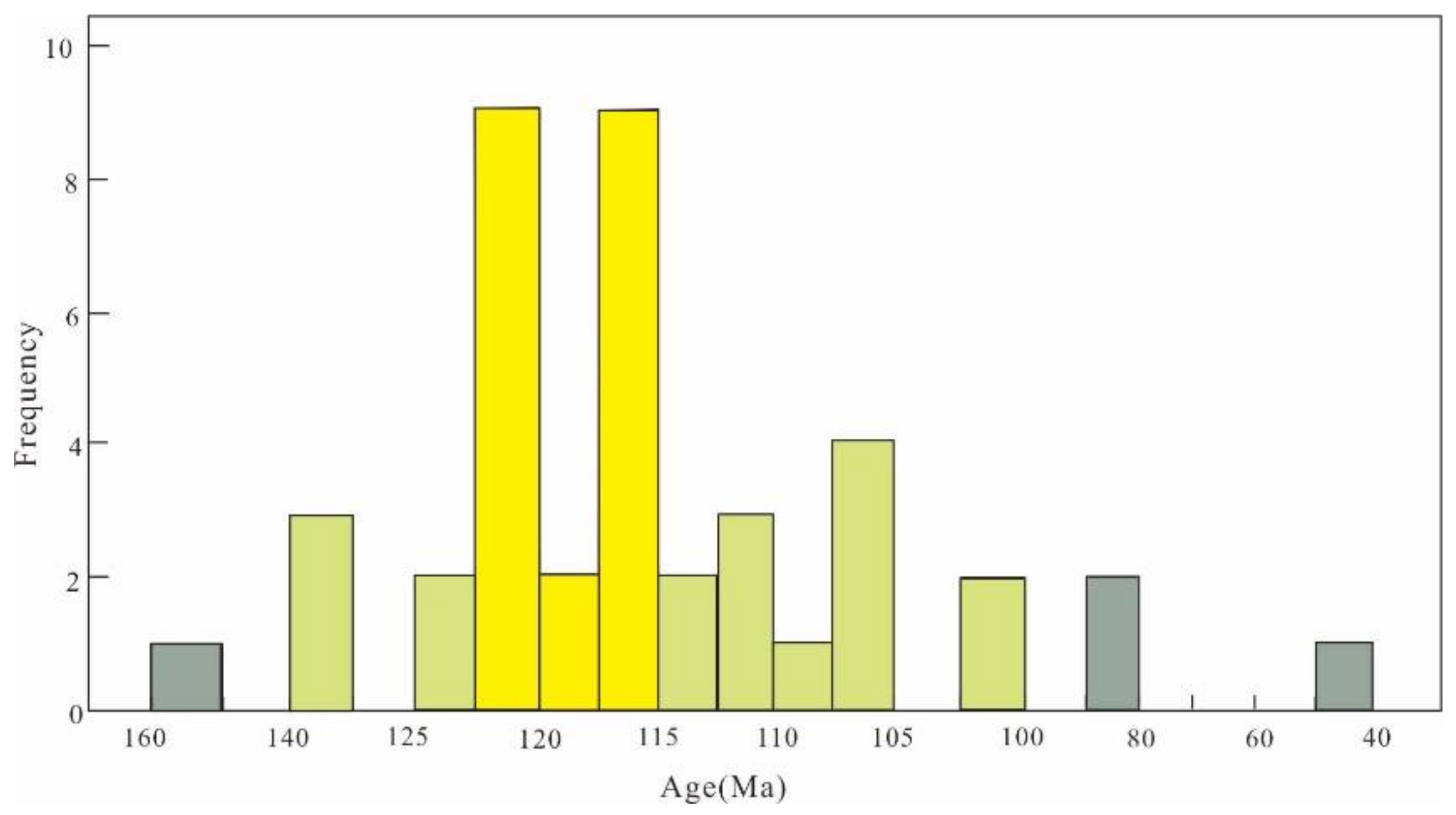

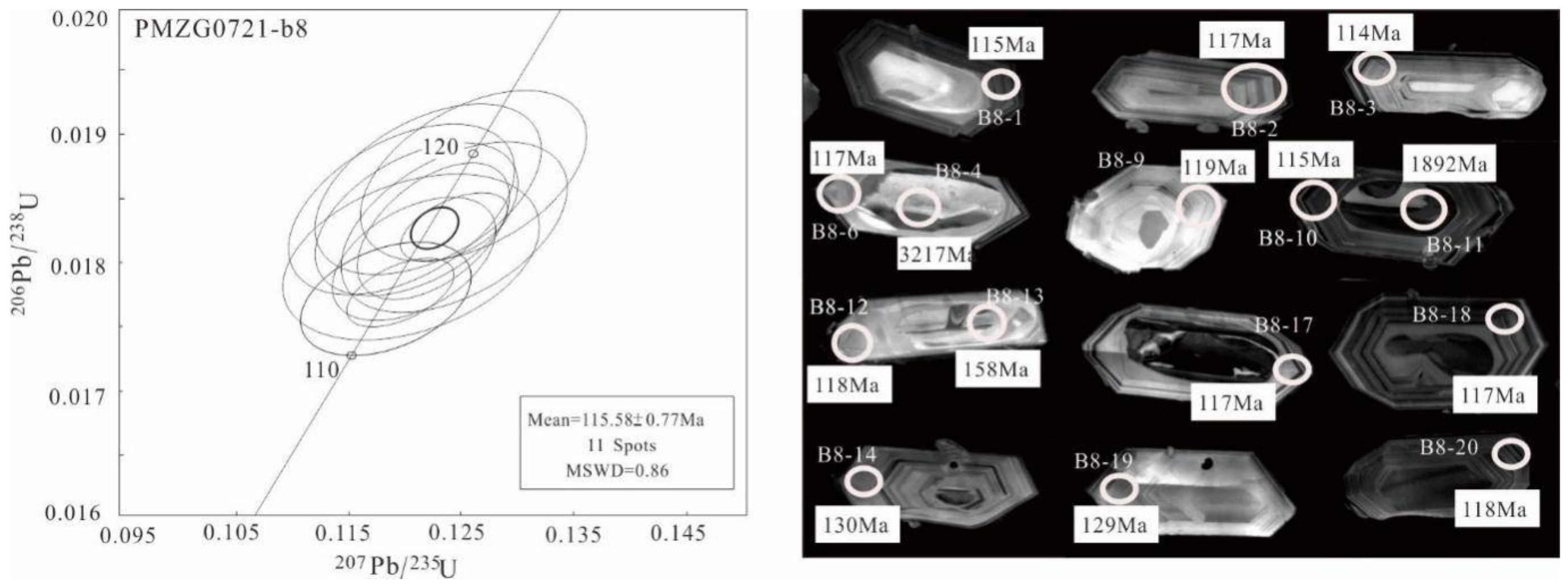

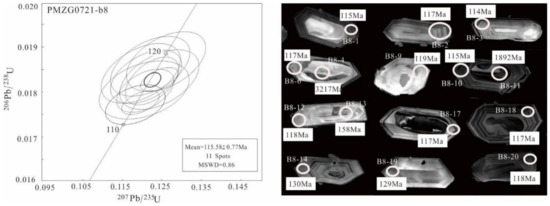

4.2. Zircon U-Pb Age

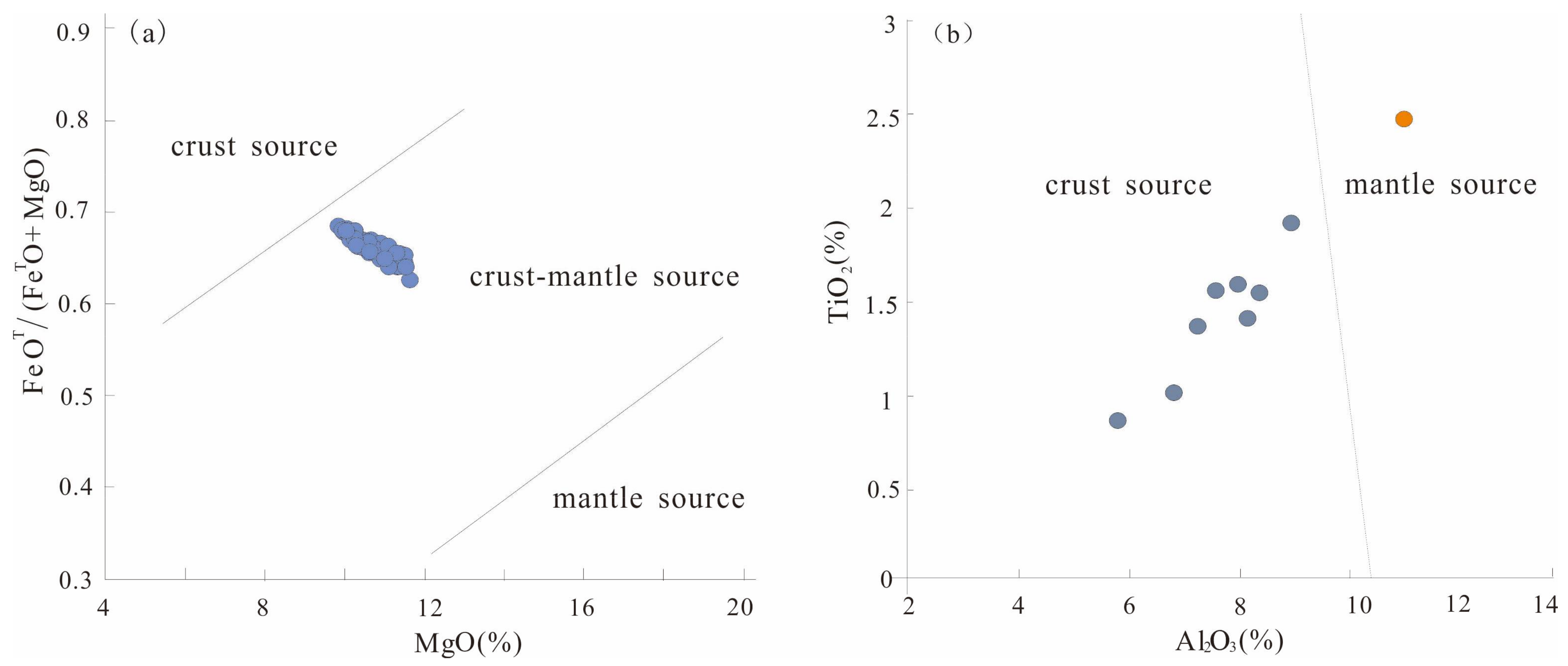

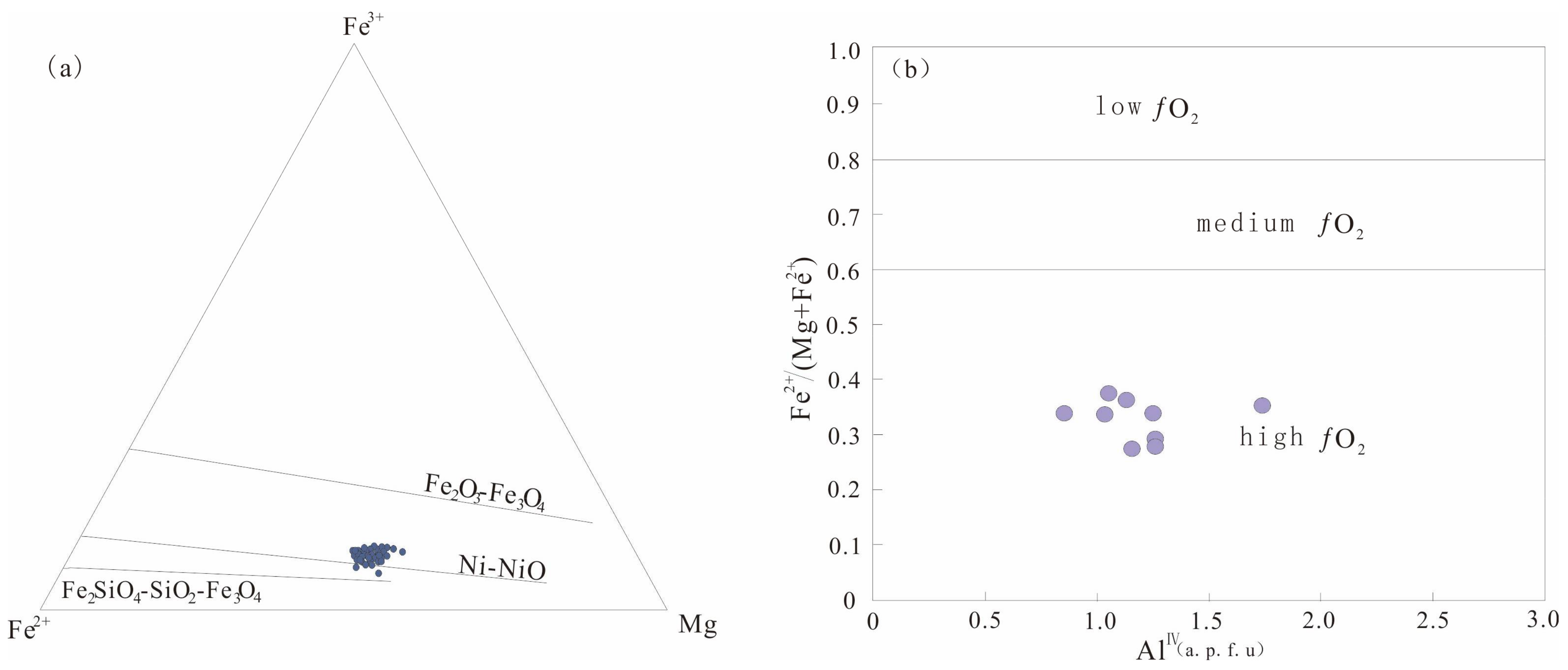

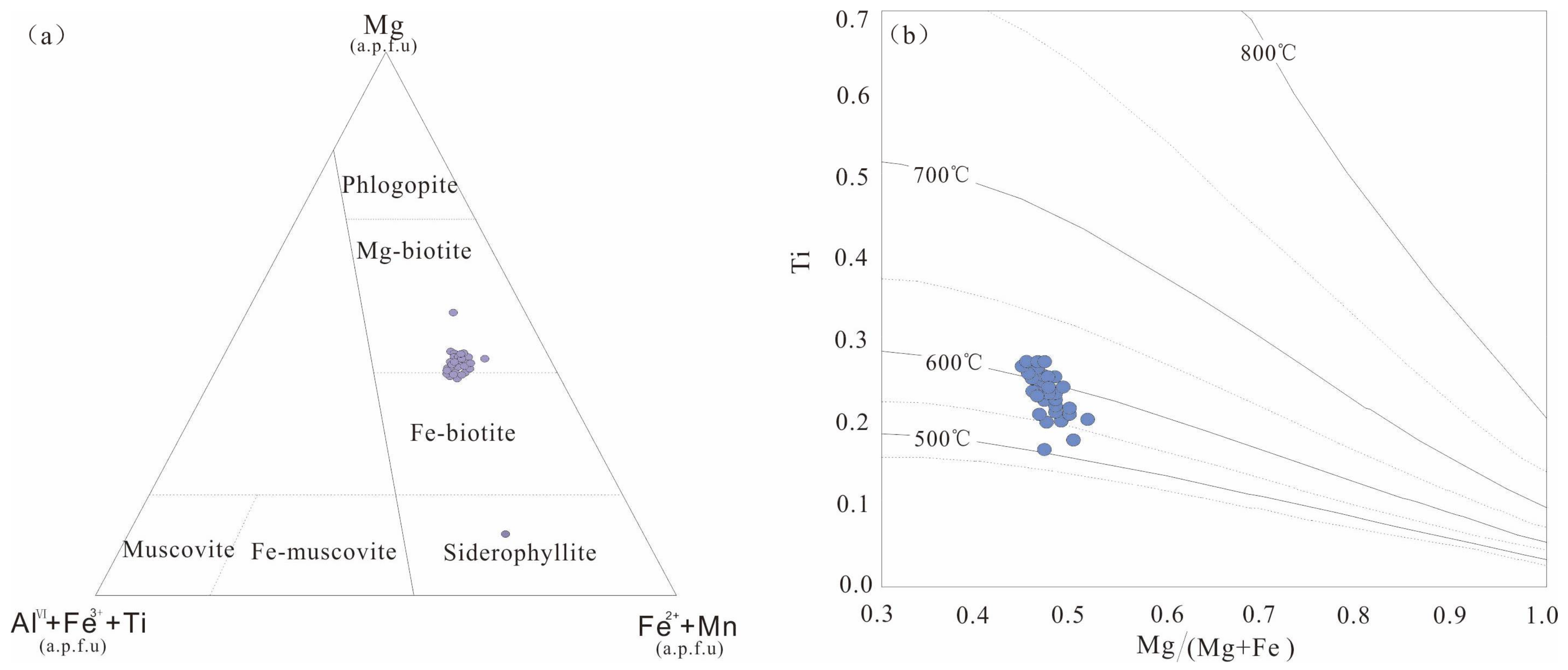

4.3. Biotite Analysis Results

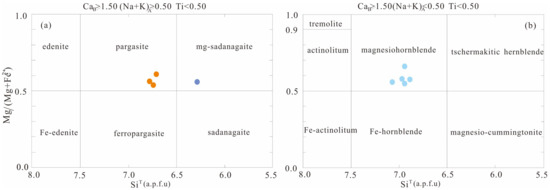

4.4. Amphibole Analysis Results

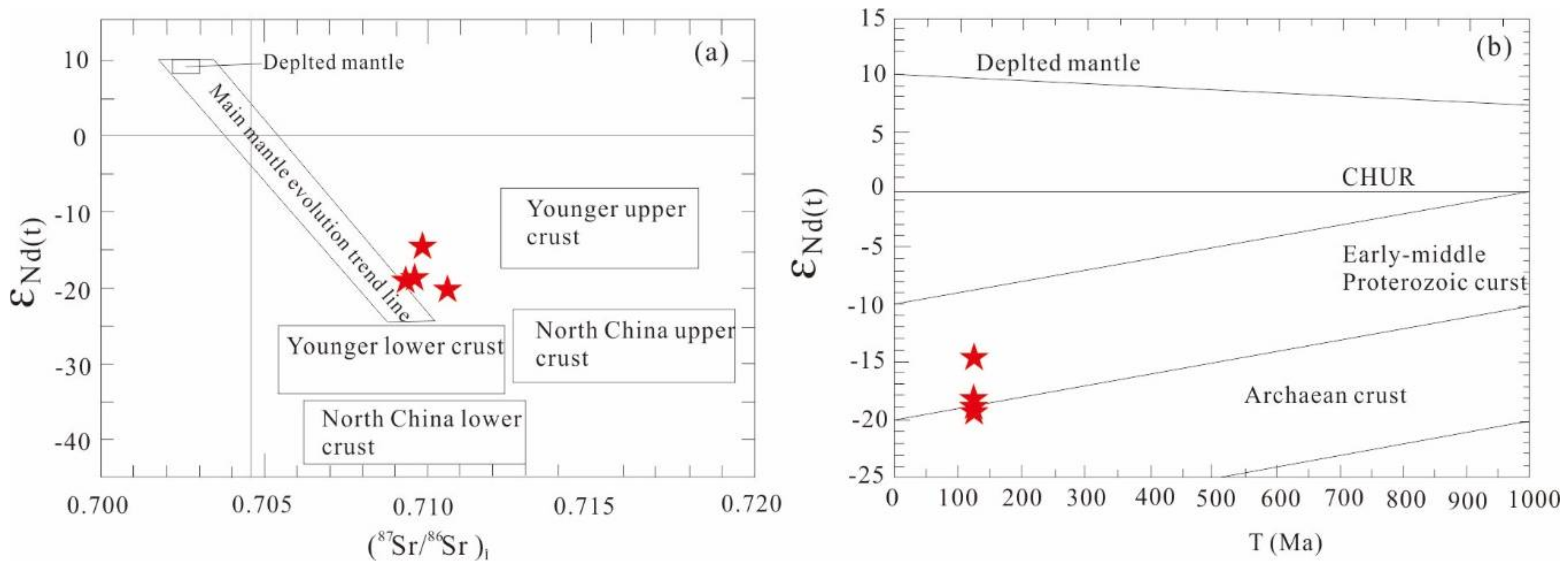

4.5. Whole-Rock Sr-Nd Isotopes
5. Discussion
5.1. Age of Zhouguan Granodiorite
5.2. Geochemical Features and Petrogenesis
5.3. Significance of Amphibole and Biotite to Mineralization

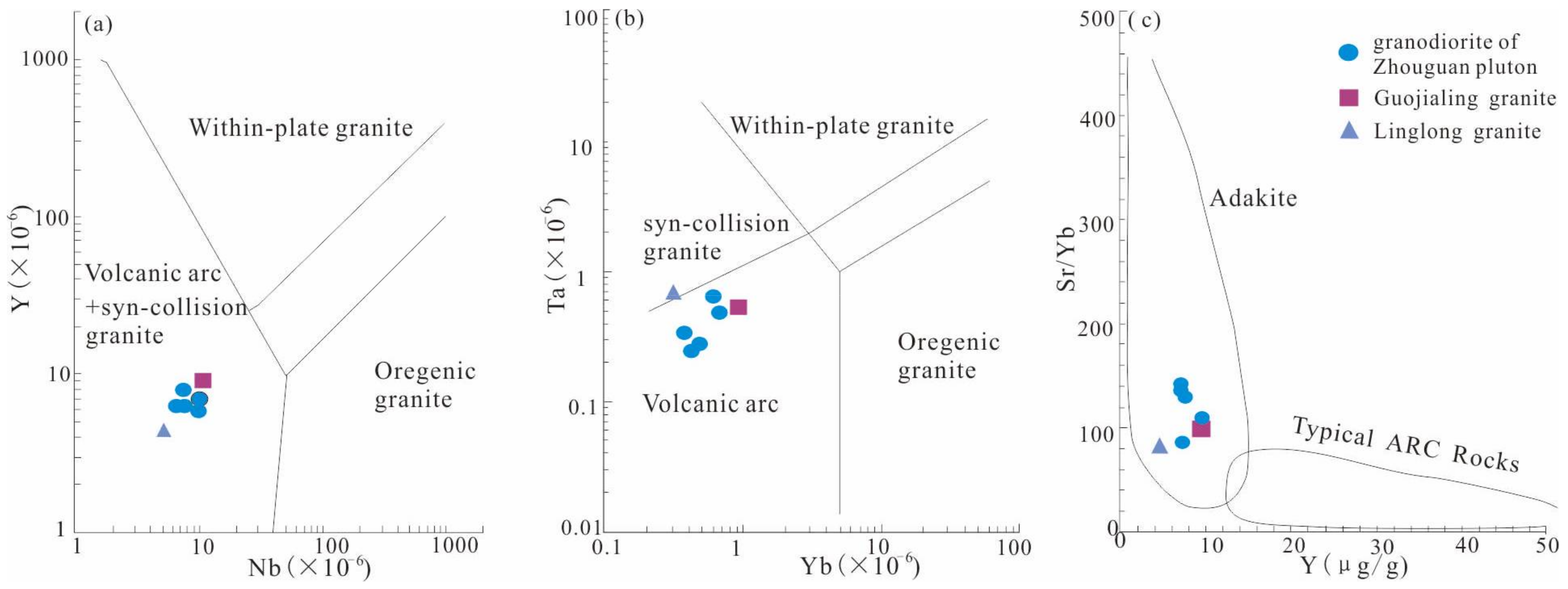

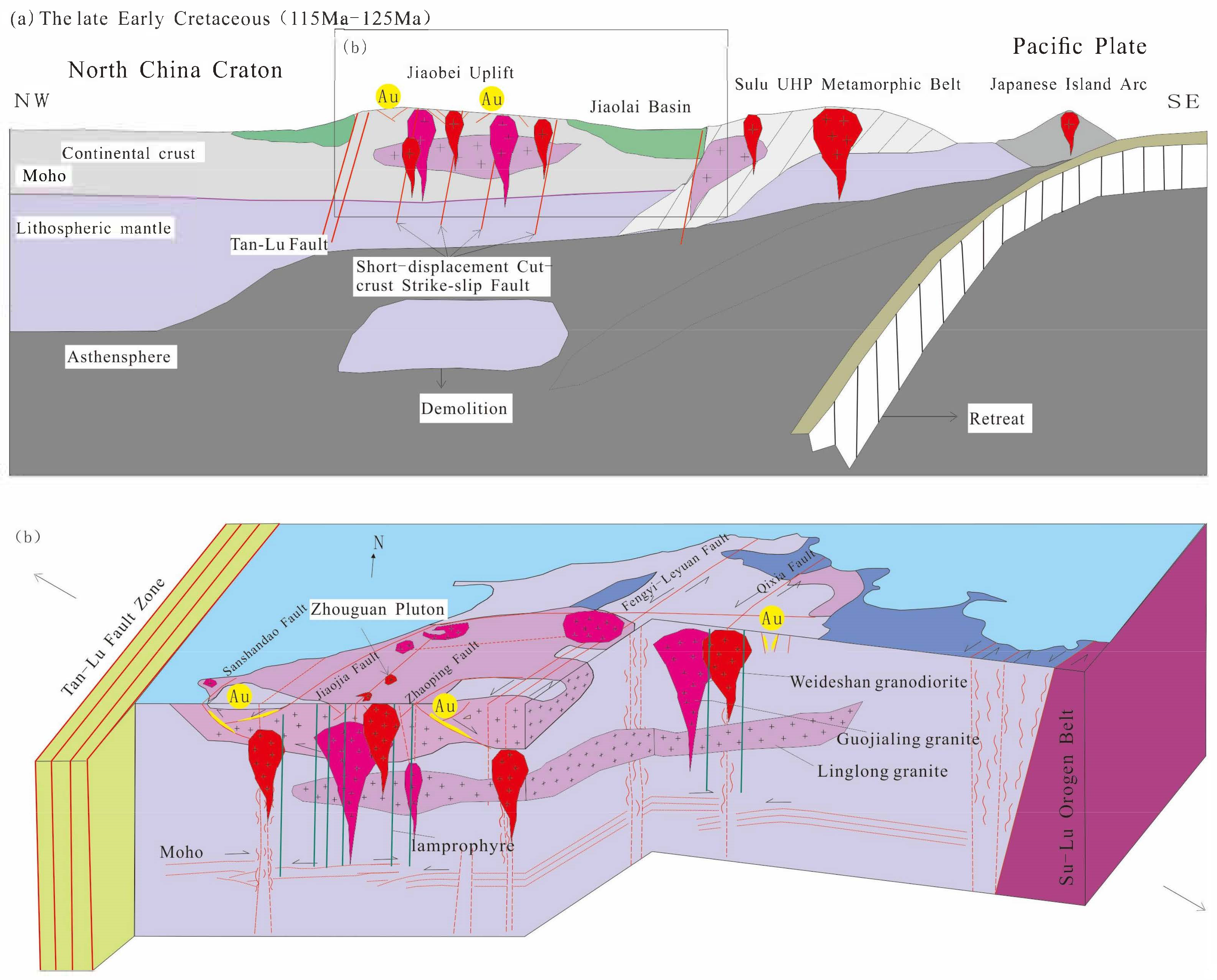

5.4. Analysis of Petrogenetic Tectonic Environment in Relation to Metallogenic Model
6. Conclusions
- (1)
- Through LA-MC-ICP-MS zircon U-Pb dating, the emplacement age of the Zhouguan granodiorite is determined as 115 Ma ± 0.77 Ma, indicating that the granodiorite occurred in the late of the Early Cretaceous.
- (2)
- According to the petro-geochemical analysis, the Zhouguan granodiorite belongs to a high-K calc-alkaline series, metaluminous to weakly peraluminous granite, i.e., a typical crust–mantle mixed granitoids formed in a continental arc environment.
- (3)
- According to an EPMA analysis of biotite and amphibole, the parent magma, which formed the Zhouguan granodiorite, is highly oxidized and hydrous, which is favorable for mineralization.
- (4)
- Based on predecessors’ research, and considering the development of short displacement cut-crust strike-slip faults and the trans-crustal magmatic system in the Jiaodong area, the petrogenesis of the formation model of the Zhouguan granodiorite in the area is proposed in this study.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Deng, J.; Wang, Q.F. Gold mineralization in China: Metallogenic provinces, deposit types and tectonic framework. Gndwana Res. 2016, 36, 219–274. [Google Scholar] [CrossRef]
- Zhang, L.; Reberto, F.W.; Yang, L.Q.; David, I.G.; Sai, S.X.; Erin, M.; David, P.; Barry, P.M.; Liu, Y.; Deng, J. Mesozoic Orogenic Gold Mineralization in the Jiaodong Peninsula, China: A Focused Event at 120 ± 2 Ma During Cooling of Pregold Granit Intrusions. Econ. Geol. 2019, 115, 415–441. [Google Scholar] [CrossRef]
- Song, M.C.; Lin, S.Y.; Yang, L.Q.; Song, Y.X.; Ding, Z.J.; Li, J.; Li, S.Y.; Zhou, M.L. Metallogenic model of Jiaodong Peninsula gold deposits. Miner. Depos. 2020, 39, 215–236. [Google Scholar]
- Sang, L.K.; You, Z.D. Petrogenetic evolution of Linglong granites and their relationship to gold deposits in East Shandong Province. Earth Sci. 1992, 17, 521–529. [Google Scholar]
- Wang, L.G.; Qiu, Y.M.; McNaughton, N.J.; Groves, D.I.; Luo, Z.K.; Huang, J.Z.; Miao, L.C.; Liu, Y.K. Constraints on crustal evolution and gold metallogeny in the northwestern Jiaodong Peninsula, China, from SHRIMP U-Pb zircon studies of granitoids. Ore Geol. Rev. 1998, 13, 275–291. [Google Scholar] [CrossRef]
- Sun, H.S.; Sun, L.; Zhao, X.H.; Yang, K.C.; Cao, X.Z.; Liu, W.S.; Wang, C. Ore-controlling evidence and ore prospecting significance of Guojialing granodiorite in Northwest Jiaodong Peninsula. Gold 2007, 28, 14–18. [Google Scholar]
- Yu, X.F.; Li, H.K.; Shan, W. Study on coupling between Yanshannian tectonic thermal events and gold mineralization in Jiaodong ore concentrating area in Shandong Province. Acta Geol. Sin. 2012, 86, 1946–1956. [Google Scholar]
- Luo, Z.K.; Yang, X.Y.; Duan, L.A.; Sun, W.D. Geochemical and geochronological study of the gold-related Guojialing pluton and Shangzhuang pluton in Jiaobeiblock. Acta Geol. Sin. 2014, 88, 1874–1888. [Google Scholar]
- Tian, J.P.; Tian, J.X.; Guo, R.P.; Wei, C.S.; Wang, L.G.; Yu, X.W.; Li, X.Z.; Huang, Y.B.; Zhang, C.C.; Liu, H.D.; et al. Jiaodong-type gold deposit related to crust source remelting layered granite and crust-mantle nixed granodiorite. Acta Geol. Sin. 2016, 90, 987–996. [Google Scholar]
- Song, M.C.; Deng, J.; Yi, P.H.; Yang, L.Q.; Cui, S.X.; Xu, J.X.; Zhou, M.L.; Huang, T.L.; Song, G.Z.; Song, Y.X. The kiloton class Jiaojia gold deposit in eastern Shandong Province and its genesis. Acta Geol. Sin. 2014, 88, 801–824. [Google Scholar] [CrossRef]
- Song, M.C.; Song, Y.X.; Li, J.; Li, S.Y. Metallogenic series of gold nonferrous metal deposits related to Cretaceous granites in eastern Shandong Peninsula, China. Geotecton. Metallog. 2015, 39, 828–843. [Google Scholar]
- Li, J.W.; Bi, S.J.; Selby, D.; Chen, L.; Vasconcelos, P.; Thiede, D.; Zhou, M.F.; Zhao, X.F.; Li, Z.D.; Qiu, H.N. Giant Mesozoic gold provinces related to the destruction of the North China craton. Earth Planet. Sci. Lett. 2012, 3490350, 26–37. [Google Scholar] [CrossRef]
- Zhang, S.H.; Zhao, Y.; Davis, G.A.; Ye, H.; Wu, F. Temporal and spatial variations of Mesozoic magmatism and deformation in the North Chian Craton: Implications for lithospheric thinning and decratonization. Earth-Sci. Rev. 2014, 131, 49–87. [Google Scholar] [CrossRef]
- Zhao, R.; Wang, Q.F.; Deng, J.; Santosh, M.; Liu, X.F.; Cheng, H.Y. Late Mesozoic magmatism and sedimentation in the Jiaodong Peninsula: New constraints on lithospheric thinning of the North China Craton. Lithos 2018, 322, 312–324. [Google Scholar] [CrossRef]
- Zhao, R.; Wang, Q.F.; Deng, J.; Santosh, M.; Liu, X.F.; Liang, Y.Y.; Cheng, H.Y. Characterizion episodic orogenesis and magmatism in eastern China based on detrital zircon from the Jiaolai Basin. Am. J. Sci. 2019, 319, 500–525. [Google Scholar] [CrossRef]
- Yang, F.; Santosh, M.; Kim, S.W. Mesozoic magmatism in the eastern North China Craton: Insights on tectonic cycles associated with progressive craton destruction. Gondwana Res. 2018, 60, 153–178. [Google Scholar] [CrossRef]
- Chen, Y.J.; Pirajno, F.; Qi, J.P. Origin of gold metallogeny and sources of ore-forming fluids, Jiaodong province, eastern China. Int. Geol. Rev. 2005, 47, 530–549. [Google Scholar] [CrossRef]
- Zong, K.Q.; Liu, Y.S. Carbonate metasomatism in the lithospheric mantle: Implications for cratonic destruction in North China. Sci. China Earth Sci. 2018, 61, 711–729. [Google Scholar] [CrossRef]
- Deng, J.; Yang, L.Q.; Li, R.H.; Groves, D.I.; Santosh, M.; Wang, Z.L.; Sai, S.X.; Wang, S.R. Regional structural control on the distribution of world-class gold deposits: An overview from the Giant Jiaodong Gold Province, China. Geol. J. 2019, 54, 378–391. [Google Scholar] [CrossRef] [Green Version]
- Liang, Y.Y.; Deng, J.; Liu, X.F.; Wang, Q.F.; Ma, Y.; Gao, T.X.; Zhao, L.J. Water contents of Earth Cretaceous mafic dikes in the Jiaodong Peninsula, eastern North China Craton: Insights into an enriched lithospheric mantle source metasomatized by Paleo-Pacific plate subduction-related fluids. J. Geol. 2019, 127, 343–362. [Google Scholar] [CrossRef]
- Wang, Q.F.; Zhao, H.S.; Groves, D.I.; Deng, J.; Zhang, Q.W.; Xue, S.C. The Jurassic Danba hypozonal orogenic gold deposit, western China: Indirect derivation from fertile mantle lithosphere metasomatized during Neoproterozoic subduction. Miner. Depos. 2020, 55, 309–324. [Google Scholar] [CrossRef]
- Deng, J.; Liu, X.F.; Dilek, Y.; Liang, Y.Y. Isotopic characterization and petrogenetic modeling of Early Cretaceous mafic diking-Lithospheric extension in the North China Craton, eastern Asia. GSA Bull. 2017, 129, 1379–1407. [Google Scholar] [CrossRef]
- Deng, J.; Wang, Q.F.; Santosh, M.; Liu, X.F.; Liang, Y.Y.; Yang, L.Q.; Zhao, R.; Yang, L. Remobilization of metasomatized mantle lithosphere: A new model for the Jiaodong gold province, eastern China. Miner. Depos. 2020, 55, 257–274. [Google Scholar] [CrossRef]
- Liang, Y.Y.; Deng, J.; Liu, X.F.; Wang, Q.F.; Qin, C.; Li, Y.; Yang, Y.; Zhou, M.; Jiang, J.Y. Major and trace element, and Sr isotope compositions of clinopyroxene phenocrysts in mafic dykes on Jiaodong Peninsula, southeastern North China Craton: Insights into magma mixing and source metasomatism. Lithos 2018, 302–303, 480–495. [Google Scholar] [CrossRef]
- Groves, D.I.; Santosh, M.; Deng, J.; Wang, Q.F.; Yang, L.Q.; Zhang, L. A holistic model for the origin of orogenic gold deposits and its implications for exploration. Miner. Depos. 2020, 55, 275–292. [Google Scholar] [CrossRef]
- Wang, F.F.; Han, Z.Z.; Zhang, Y.; Lai, Z.Q.; Ai, L.N. Geochemical and petrogenesis of the Yashan granite and its enclaves, Qixia. Contrib. Geol. Miner. Resour. Res. 2019, 34, 393–405. [Google Scholar]
- Xue, F.; Santosh, M.; Tsunogae, T.; Yang, F. Geochemical and isotopic imprints of early cretaceous mafic and felsic dyke suites track lithosphere-asthenosphere interaction and craton destruction in the North China Craton. Lithos 2019, 326–327, 174–199. [Google Scholar] [CrossRef]
- Cui, T.S. Genetic mineralogy Research on hornblende of Shanzhang Guojialing granodiorite, Jiaodong. J. Guilin Coll. Geol. 1994, 14, 396–400. [Google Scholar]
- Cui, T.S. Genetic Mineralgoy of Biotite from Guojialing Granodiorites. Acta Petrol. Mineral. 1995, 14, 179–184. [Google Scholar]
- Lu, L.N.; Fan, H.R.; Hu, F.F.; Yang, K.F.; Lan, T.G. Emplacement depth of the Guojialing granodiorites from the northwestern Jiaodong Peninsula eastern China: Evidences from hornblende thermobarometry and fluid inclusions. Acta Petrol. Sin. 2011, 27, 1521–1532. [Google Scholar]
- Du, J.G.; Shen, J.F.; Liu, C.; Liu, H.M. Study of Minerals in Congjia Granodioritic pluton and dioritic veins of Linglong ore field, eastern Shandong. Miner. Pet. 2014, 34, 40–47. [Google Scholar]
- Sai, S.X.; Zhao, T.M.; Wang, Z.L.; Huang, S.Y.; Zhang, L. Petrogenesis of Linglong biotite granite: Constraints from mineralogical characteristics. Acta Petrol. Sin. 2016, 32, 2477–2493. [Google Scholar]
- Yang, Y.; Wang, X.X.; Yu, X.W.; Ke, C.H.; Wang, L.M.; Guo, R.P.; Wang, S.A.; Li, X.X. Chemical composition of biotite and amphibole from Mesozoic granites in northwestern Jiaodong Peninsula, China, and their implications. Acta Petrologica Sin. 2017, 33, 3123–3136. [Google Scholar]
- Chen, G.Y.; Sun, D.S.; Zhou, X.R.; Shao, W.; Gong, R.T.; Shao, Y. Genetic Mineralogy and Gold Mineralization of Guojialing Granodiorite from Eastren Shandong China; Beijing Publishing House of China University of Geolosciences: Beijing, China, 1993; pp. 1–130. [Google Scholar]
- Li, H.L.; Bi, X.W.; Tu, G.Z.; Hu, R.Z.; Peng, J.T.; Wu, K.X. Mineral chemistry of biotite from Yanbeipluton: Implication for metallogeny. Miner. Pet. 2007, 27, 49–54. [Google Scholar]
- Wones, D.R.; Eygster, H.P. Stability of biotite: Experment, theory, and application. Am. Mineral. 1965, 50, 1228–1272. [Google Scholar]
- Butkhard, D.J.M. Temperature and redox path of biotite-bearing intrusives: A nethod of estimation applied to S- and I-type granites from Australia. Earth Planet. Sci. Lett. 1991, 104, 89–98. [Google Scholar] [CrossRef]
- Kesler, S.E.; Issigonis, M.J.; Brownlow, A.H. Geochemistry of biotites from mineralized and barren intrusive systems. Econ. Geol. 1975, 70, 559–567. [Google Scholar] [CrossRef]
- Hammarstrom, J.M.; Zen, E. Aluminum in hornblende: An empirical igneous geobarometer. Am. Mineral. 1986, 71, 1297–1313. [Google Scholar]
- Chen, G.Y.; Sun, D.S.; Yin, H.A. Genetic Mineralogy and Prospecting Mineralogy; Chongqing Publishing House: Chongqing, China, 1988; pp. 555–647. [Google Scholar]
- Zhou, Z.X. Application of chemical composition, trace elements, Ree, Cu, Cl, F, etc. of Mg, Fe mica in identifying petrogenetic types. In Two types of Mesozoic porphyry deposits in Eastern China; Wu, L., Li, B., Eds.; Science Press: Beijing, China, 1991; pp. 76–82. [Google Scholar]
- Ridolfi, F.; Renzulli, A.; Puerini, M. Stability and chemical equilibrium of amphibole in calc-alkaline magmas: Au overview, new thermobarometric formulations and application to subduction-related volcanoes. Contrib. Mineral. Petrol. 2009, 160, 45–66. [Google Scholar] [CrossRef]
- Zhang, Z.Q.; Zhang, C.J.; Wang, S.J.; Liu, S.C.; Wang, L.M.; Du, S.X.; Song, Z.Y.; Zhang, S.K.; Yang, E.X.; Cheng, G.S.; et al. View on classicication and Contrast of tectonic units in strata in Shandong Province. Shandong Land RTsources 2014, 30, 1–23. [Google Scholar]
- Yang, L.Q.; Deng, J.; Wang, Z.L. Ore-controlling structural pattern of Jiaodong gold deposits: Geological-geophysical integration constraints. In The Deep-Seated Strucutres of Earth in China; Chen, Y.T., Jin, Z.M., Shi, Y.L., Eds.; Sciences Press: Beijing, China, 2014; pp. 1006–1030. [Google Scholar]
- Martin, H. Theadakiticmagmas: Modern analogue of Archean granitoids. Lithos 1999, 46, 411–429. [Google Scholar] [CrossRef]
- Smithes, R.H. The Archaeantonalite-trondhjemite-granodiorite(TTG) series is not an analogue of Cenozoic adakite. Earth Planet. Sci. Lett. 2000, 182, 115–125. [Google Scholar] [CrossRef]
- Wang, Z.L.; Zhao, R.X.; Zhang, Q. Magma mixing for the high Ba-Sr Guojialing-type granitoids in Northwest Jiaodong Peninsula: Constraints from petrogeochemistry and Sr-Ndisotopes. Acta Petrol. Sin. 2015, 30, 2595–2608. [Google Scholar]
- Song, S.G.; Niu, Y.L.; Wei, C.J. Metamorphism, anatexis, zircon ages and tectonic evolution of the Gongshan block inthe northern Indochina continent: An eastern extension of the Lhasa Block. Lithos 2010, 120, 327–346. [Google Scholar] [CrossRef]
- Wang, Z.L.; Gong, Q.J.; Sun, X. LA-ICP-MSzircon U-Pb geochronology of quartz porphyry from the Niutougou gold deposit in Songxian County, Henan Province. Acta Geol. Sin. 2012, 86, 370–382. [Google Scholar]
- Lin, W.W.; Peng, L.J. The estimation of Fe3+ and Fe2+ contents in amphibole and biotite from empa data. J. Chang. Univ. Earth Sci. 1994, 24, 155–162. [Google Scholar] [CrossRef]
- Jacobsen, S.B.; Wasserburg, G.J. Sm-Nd isotopic evolution of chondrites. Earth Planet. Sci. Lett. 1980, 50, 139–155. [Google Scholar] [CrossRef]
- Sun, S.S.; Mcdonough, W.F. Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and processes. In Magmatism in the Ocean Basins; Saunders, A.D., Norry, M.J., Eds.; Geological Society Special Publication: London, UK, 1989; pp. 313–345. [Google Scholar]
- Foster, M.D. Interpretation of the Composition of Trioctahedral Micas; USGS: Reston, VA, USA, 1960; pp. 11–40. [Google Scholar]
- Henry, D.J.; Guidotti, C.V.; Thomson, J.A. The Ti-saturation surface for low-to-medium pressure metapelitic biotites: Implications for geothermometry and Ti-substituton mechanisms. Am. Mineral. 2005, 90, 316–328. [Google Scholar] [CrossRef]
- Stone, D. Temperature and pressure variations in suites of Archean felsic plutonic rocks, Berens river area, northwest superior province Ontario, Canada. Can. Mineral. 2000, 38, 455–470. [Google Scholar] [CrossRef]
- Buddington, A.F.; Lindsley, D.H. Iron-titanium oxide minerals and synthetic equivalents. J. Perrology 1964, 5, 310–357. [Google Scholar] [CrossRef]
- Albuquerque, C.A.R.D. Geochemistry of biotites from granitoids rocks, northern Portugal. Geochim. Cosmochim. Acta 1973, 37, 1779–1802. [Google Scholar] [CrossRef]
- Uchida, E.; Endo, S.; Makino, M. Relationship between solidification depth of tranitic rocks and formation of hydrothermal ore deposits. Resour. Geol. 2007, 57, 47–56. [Google Scholar] [CrossRef]
- Leake, B.E.; Woolley, A.R.; Arps, C.E.S. Nomenclature of amphiboles: Report of the Subcommittee on Amphiboles of the International Mineralogical Association, Commission on New Minerals and Mineral Names. Can. Mineral. 1997, 35, 219–246. [Google Scholar]
- Hollister, L.S.; Grissom, G.C.; Peters, E.K.; Stowell, H.H. Confirmation of the empirical correlation of Al in hornblende with pressure of solidification of calc-alkaline plutons. Am. Mineral. 1987, 72, 231–239. [Google Scholar]
- Johnson, M.C.; Rutherford, M.J. Experimental calibration of the aluminium in hornblende geobarometer with application to long valley caldera(California). Volcan. Rocks 1989, 17, 837–841. [Google Scholar]
- Schmidet, M.W. Amphibole composition in tonalite as a function of pressure: Au experimental calibration of the Al-in-hornblende barometer. Contrib. Mineral. Petrelogy 1992, 110, 304–310. [Google Scholar] [CrossRef]
- Ridolfi, F.; Puerini, M.; Renzuilli, A. The magmatic feeding system of El Reventador volcano (Sub-Andean zone, Ecuador) constrained by texture, mineralogy and thermobarometry of the 2002 erupted products. J. Volcanol. Geotherm. Res. 2008, 176, 94–106. [Google Scholar] [CrossRef]
- Kelley, K.Y.; Cottrell, E. Water and the oxidation state of sub-duction zone magmas. Science 2009, 325, 605–607. [Google Scholar] [CrossRef] [Green Version]
- Liu, Y.; Deng, J.; Wang, Z.L.; Zhang, L.; Liu, X.; Zheng, X.; Wang, X.; Zhang, C. Ziron U-Pb age, Lu-Hf isotopes and petrogeochemistry of the monzogranites from Xincheng gold deposit, northwestern Jiaodong Peninsula, China. Acta Petrol. Sin. 2014, 30, 2559–2573. [Google Scholar]
- Zhu, R.X.; Chen, L.; Wu, F.Y.; Liu, J.L. Timing scale and mechanism of the destruction of the North China Craton. Sci. China Earth Sci. 2011, 54, 789–797. [Google Scholar] [CrossRef]
- Xie, H.Q.; Wan, Y.S.; Wang, S.J.; Liu, D.Y.; Xie, S.W.; Liu, S.J.; Dong, C.Y.; Ma, M.Z. Geology and zircon dating of trondhjemitic gneiss and amphibolite in the Tangezhuang area, eastern Shandong. Acta Petrol. Sin. 2013, 29, 619–629. [Google Scholar]
- Wang, S.J.; Wang, L.M.; Wan, Y.S.; Zhang, C.J.; Song, Z.Y.; Wang, J.G. Study on Intrusibe Rocks Forming Period and Stages Division in Ludong Area. Shandong Land RTsources 2009, 25, 8–22. [Google Scholar]
- Ren, T.L.; Wang, L.M.; Zhu, X.Q.; Yu, X.W.; Yang, Z.Y.; Liu, H.D.; Guo, R.D.; Tao, Y.B. Early Cretaceous Weideshan Period Granite in Jiaodong Area. Shandong Land RTsources 2021, 37, 1–12. [Google Scholar]
- Deng, J.; Fang, Y.; Zhou, X.Q. Inversion of ore-forming structural stress field and its ore-controlling effect in the gold ore zone in Northwest Jiaodong, Shandong. Reg. Geol. China 1995, 3, 253–260, (In Chinese with English abstract). [Google Scholar]
- Li, H.M.; Mao, J.W.; Shen, Y.C. Ar-Ar Ages of K-feldspar and Quartz from Dongji Gold Deposit‚ Northwest Jiaodong‚ and Their Significance. Miner. Depos. 2003, 1, 72–77. [Google Scholar]
- Luo, W.C.; Wu, Q.S. Using Altered Minerals to Determine the Metallogenic Age of Jiaodong Gold Deposit. Chin. Sci. Bull. 1987, 16, 1245–1248. [Google Scholar]
- Li, H.Q.; Liu, J.Q.; Wei, L. Chronology of Fluid Inclusions in Hydrothermal Deposits and Their Geological Applications; Geological Publishing House: Beijing, China, 1993; pp. 1–126. [Google Scholar]
- Mao, J.W.; Li, H.M.; Wang, Y.T. Hydrogen, oxygen, carbon and sulfur isotopic evidence for the involvement of mantle fluids in the mineralization of the Jiaodong gold deposit. Acta Geol. Sin. 2005, 79, 839–857. [Google Scholar]
- Yang, J.H.; Zhou, X.H. Rb-Sr, Sm-Nd, and Pb isotope systematics of pyrite: Implications for the age and genesis of lode gold deposits. Geology 2001, 29, 711–714. [Google Scholar] [CrossRef]
- Wang, Y.W.; Zhu, F.S.; Gong, R.T. Study on the Metallogenic Chronology of Gold Deposits in Jiaodong Gold Deposit Concentration Area. Gold Geol. 2002, 8, 48–55, (In Chinese with English abstract). [Google Scholar]
- Chen, Y.-J.; Pirajno, F.; Lai, Y.; Li, C. Metallogenic time and tectonic setting of the Jiaodong gold province, eastern China. Acta Petrol. Sin. 2004, 20, 907–922. [Google Scholar]
- Feng, K.; Fan, H.R.; Hu, F.-F.; Yang, K.F.; Liu, X.; Shangguan, Y.N.; Cai, Y.C.; Jiang, P. Involvement of anomalously As-Au-rich fluids in the mineralization of Heilan’gou gold deposit, Jiaodong, China: Evidence from trace element mapping and in-situ sulfur isotope composition. J. Asian Earth Sci. 2018, 160, 304–321. [Google Scholar] [CrossRef]
- Jiang, C.Y.; An, S.Y. On Chemical Characteristics of calcic amphiboles from igneous rocsk and their petrogenesis significance. Miner. Rock 1984, 1, 1–9. [Google Scholar]
- Zhou, Z.X. The origin of intrusive mass in fengshandong, Hubei Province. Acta Petrol. Sin. 1986, 2, 59–70. [Google Scholar]
- He, X.H.; Liu, Y.S.; Zhao, Z.F. Inproved in situ Hf isotope ratio analysis of zircon using newly designed X skimmer cone and jet sample cone in combination with the addition of nitrogen by laser ablation multiple collector ICP-MS. J. Anal. At. Spectrom. 2012, 27, 1391–1399. [Google Scholar]
- Song, Y.X.; Yu, X.F.; Li, D.P.; Gen, K.; Wei, P.F.; Zuo, X.M.; Wang, X.F. Petrogenesis of the Beijie pluton from thenorthwestern Jiaodong Peninsula: Constraints from zircon U-Pb age, petrogeochemistry and Sr-Nd-Pb isotopes. Acta Petrol. Sin. 2020, 36, 1477–1500. [Google Scholar] [CrossRef]
- Zhang, L.; Weinberg, R.; Yang, L.; Groves, D.I.; Sai, S.-X.; Matchan, E.; Phillips, D.; Kohn, B.P.; Miggins, D.P.; Liu, Y.; et al. Mesozoic orogenic gold mineralization in the Jiaodong Peninsula, China: A focused event at 120±2 Ma during cooling of pregold granite intrusions. Econ. Geol. 2020, 115, 415–441. [Google Scholar] [CrossRef]
- Feng, K.; Fan, H.; Groves, D.I.; Yang, K.-F.; Liu, X.; Cai, Y.-C.; Hu, F.-F. Geochronological and sulfur isotopic evidence for the genesis of the post-magmatic, deeply sourced, and anomalously gold-rich Daliuhang orogenic deposit, Jiaodong, China. Miner. Depos. 2020, 55, 293–308. [Google Scholar] [CrossRef]
- Spark, R.S.J.; Annen, C.; Blundy, J.D.; Cashman, K.V.; Rust, A.C.; Jackson, M.D. Formation and dynamics of magma reservoirs. Philos. Trans. R. Soc. A 2019, 377, 2139. [Google Scholar] [CrossRef] [Green Version]
- Xie, Y.H.; Shan, W.; Yu, X.F.; Chi, N.J.; Wang, F.Y.; Li, D.P.; Zhang, Y.; Li, X.W. Identification of clinopyroxene antecrysts in Cretaceous lamprophyre dykes from the Jiaodong Peninsula and their geological significance. Acta Petrol. Sin. 2021, 37, 2203–2233. [Google Scholar]
- Zhou, Z.H.; Mao, J.W.; Lyckberg, P. Geochronology and isotopic geochemistry of the A-type granites from the Huanggang Sn-Fe deposit, southern Great Hinggan Range, NE China: Implication for their origin and tectonic setting. J. Asian Earth Sci. 2012, 49, 272–286. [Google Scholar] [CrossRef]
- Jahn, B.M.; Wu, F.Y.; Chen, B. Massive granitoid generation in Central Asia: Nd isotope evidence and implication for continental growth in the Phanerozoic. Episodes 2011, 23, 82–92. [Google Scholar] [CrossRef] [Green Version]
- Qiu, K.F.; Deng, J. Petmgenesis of granitoids in the Dewulu skarn copper deposit: Implications for the evolution of the Paleotethys ocean and mineralization in westen Qinling, China. Ore Geol. Rev. 2017, 90, 1078–1098. [Google Scholar] [CrossRef]
- Dada, O.A. Application of amphibole chemistry in determining the petrogenesis of hornblende-biotite granites from Toro comples, north central, Nigeria. Cont. J. Earth Sci. 2013, 8, 1–11. [Google Scholar]
- Pearce, J.A.; Harris, N.B.; Tiindle, A.G. Trace element discrimination diagrams for the tectonic interpretation of granitoids. J. Petrol. 1984, 25, 956–983. [Google Scholar] [CrossRef] [Green Version]
- Martin, H.; Henney, P.J.; Rapp, R. An overview of adakite, tonalite-trondhjemite-granodiorite (TTG), and sanukitoid: Relationships and some implications for crustal evolution. Lithos 2005, 79, 1–24. [Google Scholar] [CrossRef]
- Fowler, M.B.; Henney, P.J.; Darbyshire, D.F. Petrogenesis of high Ba-Sr granites: The Rogart pluton, Sutherland. J. Geol. Soc. 2001, 158, 521–534. [Google Scholar] [CrossRef]
- Menzies, M.A.; Fan, W.M.; Zhang, M. Palaeozoic and Cenozoic lithoprobes and the loss of >120 km of Archaean lithosphere, Sino-Korean craton, China. In: Prichard HM, Alabaster T, Harris NBWand Neary CR. Magmatic Processes and Plate Tectonics. Geol. Soc. Lond. Spec. Publ. 1993, 76, 71–81. [Google Scholar] [CrossRef]
- Gao, S.; Rudnick, R.L.; Carlson, R.W. Re-Os evidence for replacement of ancient mantle lithosphere beneath the North China Craton. Earth Planet. Sci. Lett. 2002, 198, 307–322. [Google Scholar] [CrossRef]
- Xu, X.S.; Fan, Q.C.; O’Reilly, S.Y. U-Pb dating of zircons from quartz diorite and its enclaves at Tongguanshan in Anhui and its petrogenetic implication. Chin. Sci. Bull. 2004, 49, 2073–2082. [Google Scholar] [CrossRef]
- Yang, K.F.; Fan, H.R.; Santosh, M. Reactivation of the Archean lower crust: Implications for zircon geochronology, elemental and Sr-Nd-Hf isotopic geochemistry of Late Mesozoic granitoids from northwestern Jiaodong terrane, the North China Craton. Lithos 2012, 146–147, 112–127. [Google Scholar] [CrossRef]
- Zhai, M.G.; Liu, W.J.; Yang, J.H. Large-scale gold ore concentration area and large-scale mineralization in Jiaodong. Sci. China (Ser. D) 2001, 31, 545–552. [Google Scholar]
- Yu, X.F.; Shan, W.; Xiong, Y.X.; Geng, K.; Sun, Y.Q.; Chi, N.J.; Guo, B.K.; Li, D.P.; Li, H.K.; Song, Y.X.; et al. Deep structural framework and genetic analysis of gold concentration areas in the Northwestern Jiaodong Peninsula, China: A new understanding based on high-resolution reflective seismic survey. Acta Geol. Sin. 2018, 92, 1823–1840, (English Edition). [Google Scholar] [CrossRef]
Liths | Granodiorite | Granite Porphyry | Guojialing Granite | Linglong Granite | Adakite | TTG | High Sr-Ba Granite | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
Number | ZG0721-b1 | ZG0721-b3 | ZG0721-b5 | ZG0721-b8 | ZG0721-b10 | GJL-1 | LL-1 | AI-1 [48] | TTG-1 [48] | TTG-2 [48] | Sr-1 [48] |
SiO2 | 68.09 | 68.72 | 68.07 | 68.24 | 73 | 72.26 | 72.74 | 63.89 | 70.2 | 68.53 | 71.14 |
Al2O3 | 15.22 | 15.82 | 15.78 | 16.07 | 14.23 | 14.46 | 12.32 | 17.4 | 15.74 | 15.91 | 15.06 |
Fe2O3 | 2.48 | 2.57 | 2.67 | 2.53 | 1.52 | 1.67 | 1.05 | 4.68 | 2.84 | 2.49 | 1.02 |
K2O | 3.77 | 3.05 | 3.08 | 3.16 | 4.34 | 4.29 | 4.96 | 1.52 | 1.88 | 1.56 | 4.22 |
Na2O | 4.11 | 4.18 | 4.16 | 4.23 | 3.88 | 3.9 | 4.83 | 4.09 | 4.87 | 5.57 | 4.35 |
CaO | 2.73 | 2.96 | 2.65 | 2.99 | 1.51 | 1.63 | 2.03 | 5.23 | 3.17 | 3.36 | 1.46 |
MgO | 1.36 | 1.39 | 1.32 | 1.21 | 0.66 | 0.28 | 0.39 | 2.2 | 1.09 | 1.41 | 0.26 |
TiO2 | 0.33 | 0.37 | 0.38 | 0.4 | 0.2 | - | - | - | - | - | - |
MnO | 0.043 | 0.042 | 0.04 | 0.034 | 0.022 | - | 0.2 | 0.08 | 0.04 | 0.04 | 0.01 |
P2O5 | 0.16 | 0.15 | 0.13 | 0.15 | 0.09 | 0.04 | 0.06 | 0.19 | 0.12 | 0.11 | 0.06 |
LOI | 1.42 | 0.89 | 1.92 | 0.82 | 0.68 | 0.48 | 0.81 | - | - | - | - |
Total | 99.713 | 100.142 | 100.2 | 99.834 | 100.132 | 99.01 | 99.39 | 99.28 | 99.95 | 98.98 | 97.58 |
Contents of Au element (ppb) of Zhouguan granodiorite | |||||||||||
Au | ˂0.5 | 0.8 | ˂0.5 | ˂0.5 | ˂0.5 | - | - | - | - | - | - |
No. | ZG0721-b1 | ZG0721-b3 | ZG0721-b5 | ZG0721-b8 | ZG0721-b10 | No. | ZG0721-b1 | ZG0721-b3 | ZG0721-b5 | ZG0721-b8 | ZG0721-b10 |
---|---|---|---|---|---|---|---|---|---|---|---|
Liths | Granodiorite | Granite Porphyry | Liths | Granodiorite | Granite Porphyry | ||||||
Rb | 86.6 | 66.4 | 65.5 | 61.1 | 104 | Ce | 68.5 | 56.9 | 54.5 | 70 | 56.6 |
K | 31,296.61 | 25,319.54 | 25,568.58 | 26,232.70 | 36,028.46 | Pr | 9.09 | 7.4 | 7.13 | 9.14 | 7.09 |
Ba | 2091 | 1941 | 2052 | 2116 | 1458 | Nd | 31.8 | 26.4 | 25.8 | 32.5 | 24.1 |
Th | 14.5 | 9.91 | 9.37 | 12 | 18.9 | Sm | 4.77 | 4.08 | 3.94 | 4.81 | 3.57 |
U | 2.15 | 1.34 | 1.46 | 1.7 | 2.13 | Eu | 1.08 | 0.95 | 0.91 | 1.13 | 0.75 |
Nb | 7.8 | 6.13 | 5.78 | 6.75 | 8.64 | Gd | 4.08 | 3.57 | 3.54 | 4.12 | 3.14 |
La | 51 | 40.1 | 38.2 | 50 | 40.9 | Tb | 0.45 | 0.38 | 0.38 | 0.42 | 0.35 |
Ce | 68.5 | 56.9 | 54.5 | 70 | 56.6 | Dy | 1.84 | 1.57 | 1.55 | 1.65 | 1.47 |
Sr | 900 | 953 | 928 | 1042 | 531 | Ho | 0.34 | 0.29 | 0.29 | 0.29 | 0.28 |
Nd | 31.8 | 26.4 | 25.8 | 32.5 | 24.1 | Er | 0.94 | 0.78 | 0.78 | 0.78 | 0.81 |
P | 698.21 | 654.57 | 567.29 | 654.57 | 392.74 | Tm | 0.13 | 0.1 | 0.11 | 0.099 | 0.12 |
Zr | 154 | 133 | 136 | 148 | 115 | ΣREE | 175.12 | 143.34 | 138.01 | 175.72 | 140.22 |
Hf | 4.31 | 3.79 | 4.09 | 4.38 | 3.73 | LREE | 166.24 | 135.83 | 130.48 | 167.58 | 133.01 |
Sn | 0.65 | 0.64 | 0.73 | 0.52 | 0.6 | HREE | 8.88 | 7.51 | 7.53 | 8.139 | 7.21 |
Ti | 1589 | 1742 | 1765 | 1930 | 939 | LREE/ HREE | 18.72 | 18.08 | 17.32 | 20.58 | 18.44 |
Y | 9.98 | 8.13 | 7.69 | 7.78 | 8.5 | LaN/YbN | 38.51 | 40.51 | 36.05 | 53.52 | 32.96 |
Yb | 0.95 | 0.71 | 0.76 | 0.67 | 0.89 | δEu | 0.75 | 0.76 | 0.74 | 0.77 | 0.68 |
Lu | 0.15 | 0.11 | 0.12 | 0.11 | 0.15 | δCe | 0.78 | 0.81 | 0.81 | 0.81 | 0.81 |
La | 51 | 40.1 | 38.2 | 50 | 40.9 |
No. | Pb | Th | U | Th/U | 207Pb/235U | 206Pb/238U | 207Pb/235U | 206Pb/238U | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
10−6 | 10−6 | 10−6 | Ratio | Error | Ratio | Error | Age/Ma | Error | Age/Ma | Error | ||
B8-1 | 62.93 | 347.59 | 378.88 | 0.92 | 0.1192 | 0.0011 | 0.0180 | 0.0001 | 114 | 1.0 | 115 | 0.5 |
B8-2 | 44.96 | 73.82 | 155.15 | 0.48 | 0.1321 | 0.0029 | 0.0184 | 0.0001 | 126 | 2.6 | 117 | 0.9 |
B8-3 | 37.75 | 29.45 | 176.80 | 0.17 | 0.1185 | 0.0016 | 0.0178 | 0.0001 | 114 | 1.4 | 114 | 0.7 |
B8-4 | 1046.01 | 176.06 | 243.82 | 0.72 | 25.2427 | 0.2491 | 0.6471 | 0.0050 | 3318 | 9.9 | 3217 | 19.7 |
B8-5 | 31.27 | 129.25 | 121.52 | 1.06 | 0.1610 | 0.0032 | 0.0200 | 0.0001 | 152 | 2.8 | 127 | 0.7 |
B8-6 | 22.26 | 100.70 | 127.15 | 0.79 | 0.1201 | 0.0018 | 0.0183 | 0.0001 | 115 | 1.7 | 117 | 0.6 |
B8-7 | 23.85 | 107.41 | 147.50 | 0.73 | 0.1297 | 0.0018 | 0.0197 | 0.0001 | 124 | 1.6 | 125 | 0.7 |
B8-8 | 22.37 | 94.06 | 119.58 | 0.79 | 0.1319 | 0.0020 | 0.0196 | 0.0001 | 126 | 1.8 | 125 | 0.7 |
B8-9 | 40.34 | 206.52 | 180.14 | 1.15 | 0.1253 | 0.0016 | 0.0187 | 0.0001 | 120 | 1.5 | 119 | 0.6 |
B8-10 | 77.78 | 371.35 | 778.64 | 0.48 | 0.1201 | 0.0011 | 0.0177 | 0.0001 | 115 | 1.0 | 113 | 0.7 |
B8-11 | 240.50 | 23.14 | 661.91 | 0.03 | 5.4479 | 0.0313 | 0.3428 | 0.0018 | 1892 | 5.1 | 1900 | 8.7 |
B8-12 | 29.81 | 155.85 | 163.41 | 0.95 | 0.1226 | 0.0015 | 0.0184 | 0.0001 | 117 | 1.3 | 118 | 0.6 |
B8-13 | 18.42 | 67.82 | 55.38 | 1.22 | 0.1630 | 0.0039 | 0.0248 | 0.0002 | 153 | 3.4 | 158 | 1.3 |
B8-14 | 47.66 | 229.04 | 279.48 | 0.82 | 0.1367 | 0.0014 | 0.0204 | 0.0001 | 130 | 1.3 | 130 | 0.7 |
B8-15 | 26.13 | 85.98 | 282.75 | 0.30 | 0.1607 | 0.0016 | 0.0236 | 0.0001 | 151 | 1.4 | 151 | 0.8 |
B8-16 | 921.68 | 201.31 | 322.03 | 0.63 | 12.7009 | 0.0766 | 0.4862 | 0.0024 | 2658 | 6.0 | 2554 | 10.7 |
B8-17 | 15.20 | 66.86 | 64.35 | 1.04 | 0.1217 | 0.0030 | 0.0181 | 0.0001 | 117 | 2.7 | 115 | 0.9 |
B8-18 | 81.13 | 451.50 | 320.42 | 1.41 | 0.1226 | 0.0013 | 0.0182 | 0.0001 | 117 | 1.2 | 116 | 0.6 |
B8-19 | 83.12 | 395.23 | 414.09 | 0.95 | 0.1359 | 0.0013 | 0.0200 | 0.0001 | 129 | 1.1 | 128 | 0.7 |
B8-20 | 30.66 | 149.85 | 169.12 | 0.89 | 0.1229 | 0.0019 | 0.0183 | 0.0001 | 118 | 1.7 | 117 | 0.7 |
Oxide | Samples | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
H-1 | H-2 | H-3 | H-4 | H-5 | H-6 | H-7 | H-8 | H-9 | H-10 | H-11 | H-12 | H-13 | H-14 | H-15 | |
SiO2 | 34.767 | 34.248 | 35.282 | 34.889 | 34.922 | 35.412 | 34.96 | 34.783 | 35.45 | 35.3 | 35.635 | 34.879 | 35.599 | 34.857 | 35.692 |
TiO2 | 4.133 | 4.396 | 4.663 | 2.852 | 4.071 | 3.571 | 4.172 | 3.444 | 4.161 | 3.881 | 4.18 | 4.555 | 4.391 | 4.506 | 3.573 |
Al2O3 | 13.949 | 14.206 | 13.621 | 15.02 | 14.174 | 13.704 | 13.882 | 15.126 | 13.787 | 14.608 | 13.826 | 13.905 | 13.957 | 14.005 | 14.145 |
FeO | 20.764 | 20.918 | 20.884 | 21.805 | 20.742 | 21.368 | 20.709 | 21.39 | 20.756 | 20.244 | 20.245 | 21.652 | 20.262 | 21.51 | 20.392 |
MnO | 0.261 | 0.328 | 0.309 | 0.286 | 0.37 | 0.289 | 0.294 | 0.313 | 0.321 | 0.266 | 0.32 | 0.334 | 0.273 | 0.381 | 0.311 |
MgO | 10.217 | 9.943 | 10.328 | 10.811 | 10.172 | 11.137 | 10.36 | 11.505 | 10.556 | 10.619 | 10.742 | 9.868 | 10.546 | 9.833 | 11.189 |
CaO | 0.174 | 0.051 | 0.014 | 0.066 | 0.071 | 0.017 | 0.164 | 0.641 | 0.258 | 0.025 | 0.126 | 0.221 | 0.049 | 0.046 | 0.065 |
Na2O | 0.146 | 0.225 | 0.194 | 0.159 | 0.104 | 0.096 | 0.333 | 0.169 | 0.121 | 0.061 | 0.283 | 0.119 | 0.203 | 0.21 | 0.05 |
K2O | 9.147 | 9.453 | 8.685 | 8.106 | 9.404 | 8.547 | 9.232 | 6.838 | 8.759 | 9.249 | 8.961 | 8.788 | 9.037 | 8.941 | 8.881 |
Si | 2.7436 | 2.7079 | 2.7618 | 2.7293 | 2.7434 | 2.7684 | 2.7441 | 2.6943 | 2.7679 | 2.7493 | 2.7733 | 2.7356 | 2.7696 | 2.7353 | 2.7737 |
AlIV | 1.2564 | 1.2921 | 1.2382 | 1.2707 | 1.2566 | 1.2316 | 1.2559 | 1.3057 | 1.2321 | 1.2507 | 1.2267 | 1.2644 | 1.2304 | 1.2647 | 1.2263 |
AlVI | 0.0409 | 0.0317 | 0.0184 | 0.1142 | 0.0556 | 0.0311 | 0.0284 | 0.0753 | 0.0366 | 0.0902 | 0.0414 | 0.0209 | 0.0493 | 0.0305 | 0.0693 |
Ti | 0.2454 | 0.2615 | 0.2746 | 0.1678 | 0.2406 | 0.2100 | 0.2464 | 0.2007 | 0.2444 | 0.2274 | 0.2447 | 0.2688 | 0.2570 | 0.2660 | 0.2089 |
Fe3+ | 0.1660 | 0.1373 | 0.2163 | 0.1731 | 0.1610 | 0.1763 | 0.1451 | 0.2349 | 0.2013 | 0.1831 | 0.1859 | 0.1983 | 0.2027 | 0.1854 | 0.1864 |
Fe2+ | 1.2043 | 1.2459 | 1.1508 | 1.2535 | 1.2018 | 1.2208 | 1.2144 | 1.1507 | 1.1540 | 1.1355 | 1.1318 | 1.2219 | 1.1157 | 1.2262 | 1.1389 |
Mn | 0.0174 | 0.0220 | 0.0205 | 0.0190 | 0.0246 | 0.0191 | 0.0195 | 0.0205 | 0.0212 | 0.0175 | 0.0211 | 0.0222 | 0.0180 | 0.0253 | 0.0205 |
Mg | 1.2019 | 1.1720 | 1.2052 | 1.2608 | 1.1912 | 1.2980 | 1.2123 | 1.3286 | 1.2287 | 1.2329 | 1.2463 | 1.1538 | 1.2231 | 1.1503 | 1.2963 |
Ca | 0.0147 | 0.0043 | 0.0012 | 0.0055 | 0.0060 | 0.0014 | 0.0138 | 0.0532 | 0.0216 | 0.0021 | 0.0105 | 0.0186 | 0.0041 | 0.0039 | 0.0054 |
Na | 0.0223 | 0.0345 | 0.0294 | 0.0241 | 0.0158 | 0.0146 | 0.0507 | 0.0254 | 0.0183 | 0.0092 | 0.0427 | 0.0181 | 0.0306 | 0.0320 | 0.0075 |
K | 0.9209 | 0.9535 | 0.8673 | 0.8090 | 0.9424 | 0.8524 | 0.9245 | 0.6757 | 0.8725 | 0.9190 | 0.8897 | 0.8793 | 0.8969 | 0.8951 | 0.8805 |
Total | 7.8340 | 7.8627 | 7.7837 | 7.8269 | 7.8390 | 7.8237 | 7.8549 | 7.7651 | 7.7987 | 7.8169 | 7.8141 | 7.8017 | 7.7973 | 7.8146 | 7.8136 |
OH− | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 |
MF | 0.4641 | 0.4548 | 0.4648 | 0.4659 | 0.4620 | 0.4782 | 0.4678 | 0.4858 | 0.4716 | 0.4799 | 0.4821 | 0.4444 | 0.4779 | 0.4446 | 0.4906 |
AlVI + Fe3+ + Ti | 0.4523 | 0.4305 | 0.5093 | 0.4551 | 0.4572 | 0.4174 | 0.4198 | 0.5109 | 0.4824 | 0.5007 | 0.4721 | 0.4879 | 0.5089 | 0.4819 | 0.4645 |
Fe2+ + Mn | 1.2218 | 1.2679 | 1.1713 | 1.2725 | 1.2264 | 1.2399 | 1.2339 | 1.1713 | 1.1753 | 1.1531 | 1.1528 | 1.2441 | 1.1337 | 1.2516 | 1.1594 |
Ti/(Mg + Fe + Ti + Mn) | 0.0865 | 0.0921 | 0.0958 | 0.0584 | 0.0853 | 0.0718 | 0.0868 | 0.0684 | 0.0858 | 0.0813 | 0.0865 | 0.0938 | 0.0913 | 0.0932 | 0.0733 |
Al/(Al + Mg + Fe + Ti + Mn + Si) | 0.1883 | 0.1926 | 0.1825 | 0.1980 | 0.1907 | 0.1815 | 0.1867 | 0.1955 | 0.1837 | 0.1946 | 0.1843 | 0.1862 | 0.1863 | 0.1881 | 0.1871 |
Oxide | Samples | ||||||||||||||
H-16 | H-17 | H-18 | H-19 | H-20 | H-21 | H-22 | H-23 | H-24 | H-25 | H-26 | H-27 | H-28 | H-29 | H-30 | |
SiO2 | 35.128 | 36.675 | 36.23 | 35.187 | 35.242 | 35.758 | 35.362 | 36.126 | 35.67 | 35.042 | 35.502 | 35.482 | 35.629 | 35.308 | 35.188 |
TiO2 | 4.398 | 3.539 | 3.077 | 4.027 | 4.395 | 4.032 | 3.381 | 4.355 | 4.344 | 4.63 | 4.369 | 4.355 | 4.22 | 4.116 | 4.738 |
Al2O3 | 14.032 | 13.498 | 13.091 | 14.349 | 14.139 | 13.338 | 14.873 | 13.669 | 14.463 | 14.079 | 13.86 | 14.279 | 14.129 | 14.678 | 14.189 |
FeO | 21.127 | 19.473 | 20.494 | 20.651 | 21.249 | 21.205 | 21.19 | 20.596 | 20.686 | 21.042 | 21.232 | 20.856 | 20.73 | 20.857 | 20.736 |
MnO | 0.252 | 0.297 | 0.324 | 0.3 | 0.275 | 0.286 | 0.336 | 0.298 | 0.261 | 0.363 | 0.251 | 0.321 | 0.327 | 0.292 | 0.258 |
MgO | 9.865 | 11.635 | 11.465 | 10.701 | 10.232 | 10.739 | 10.533 | 10.69 | 10.188 | 10.058 | 10.302 | 10.249 | 10.736 | 10.121 | 10.365 |
CaO | 0.031 | 0.329 | 0.188 | 0.12 | 0.017 | 0 | 0.092 | 0 | 0.076 | 0.098 | 0.078 | 0.02 | 0.086 | 0.003 | 0 |
Na2O | 0.077 | 0.117 | 0.41 | 0.107 | 0.096 | 0.222 | 0.091 | 0.126 | 0.095 | 0.531 | 0.186 | 0.113 | 0.077 | 0.116 | 0.088 |
K2O | 9.509 | 8.872 | 9.25 | 9.087 | 9.01 | 9.152 | 8.927 | 8.876 | 9.02 | 9.032 | 9.026 | 9.229 | 8.967 | 9.446 | 9.435 |
Si | 2.7514 | 2.8302 | 2.8217 | 2.7391 | 2.7453 | 2.7857 | 2.7452 | 2.7952 | 2.7616 | 2.7295 | 2.7613 | 2.7531 | 2.7582 | 2.7414 | 2.7315 |
AlIV | 1.2486 | 1.1698 | 1.1783 | 1.2609 | 1.2547 | 1.2143 | 1.2548 | 1.2048 | 1.2384 | 1.2705 | 1.2387 | 1.2469 | 1.2418 | 1.2586 | 1.2685 |
AlVI | 0.0467 | 0.0578 | 0.0233 | 0.0556 | 0.0434 | 0.0103 | 0.1060 | 0.0417 | 0.0813 | 0.0220 | 0.0318 | 0.0588 | 0.0474 | 0.0845 | 0.0296 |
Ti | 0.2592 | 0.2055 | 0.1803 | 0.2358 | 0.2576 | 0.2363 | 0.1975 | 0.2535 | 0.2530 | 0.2713 | 0.2556 | 0.2542 | 0.2458 | 0.2404 | 0.2767 |
Fe3+ | 0.1773 | 0.2040 | 0.1123 | 0.1739 | 0.1970 | 0.1627 | 0.1742 | 0.2244 | 0.2219 | 0.1582 | 0.1903 | 0.1949 | 0.2000 | 0.1768 | 0.1835 |
Fe2+ | 1.2066 | 1.0528 | 1.2225 | 1.1705 | 1.1873 | 1.2188 | 1.2016 | 1.1083 | 1.1175 | 1.2125 | 1.1907 | 1.1585 | 1.1421 | 1.1775 | 1.1627 |
Mn | 0.0167 | 0.0194 | 0.0214 | 0.0198 | 0.0181 | 0.0189 | 0.0221 | 0.0195 | 0.0171 | 0.0239 | 0.0165 | 0.0211 | 0.0214 | 0.0192 | 0.0170 |
Mg | 1.1519 | 1.3385 | 1.3311 | 1.2418 | 1.1882 | 1.2472 | 1.2190 | 1.2331 | 1.1759 | 1.1679 | 1.1945 | 1.1855 | 1.2390 | 1.1715 | 1.1995 |
Ca | 0.0026 | 0.0272 | 0.0157 | 0.0100 | 0.0014 | 0.0000 | 0.0077 | 0.0000 | 0.0063 | 0.0082 | 0.0065 | 0.0017 | 0.0071 | 0.0002 | 0.0000 |
Na | 0.0117 | 0.0175 | 0.0619 | 0.0161 | 0.0145 | 0.0335 | 0.0137 | 0.0189 | 0.0143 | 0.0802 | 0.0280 | 0.0170 | 0.0116 | 0.0175 | 0.0132 |
K | 0.9501 | 0.8734 | 0.9191 | 0.9024 | 0.8954 | 0.9096 | 0.8841 | 0.8761 | 0.8909 | 0.8975 | 0.8956 | 0.9135 | 0.8856 | 0.9356 | 0.9343 |
Total | 7.8227 | 7.7960 | 7.8877 | 7.8261 | 7.8030 | 7.8373 | 7.8258 | 7.7756 | 7.7781 | 7.8418 | 7.8097 | 7.8051 | 7.8000 | 7.8232 | 7.8165 |
OH− | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 |
MF | 0.4513 | 0.5119 | 0.4953 | 0.4765 | 0.4587 | 0.4711 | 0.4658 | 0.4769 | 0.4643 | 0.4558 | 0.4608 | 0.4631 | 0.4761 | 0.4603 | 0.4681 |
AlVI + Fe3+ + Ti | 0.4831 | 0.4672 | 0.3160 | 0.4654 | 0.4980 | 0.4093 | 0.4777 | 0.5196 | 0.5562 | 0.4515 | 0.4778 | 0.5079 | 0.4931 | 0.5017 | 0.4898 |
Fe2+ + Mn | 1.2234 | 1.0722 | 1.2439 | 1.1903 | 1.2055 | 1.2377 | 1.2237 | 1.1278 | 1.1346 | 1.2365 | 1.2073 | 1.1796 | 1.1636 | 1.1967 | 1.1797 |
Ti/(Mg + Fe + Ti + Mn) | 0.0922 | 0.0729 | 0.0629 | 0.0830 | 0.0904 | 0.0819 | 0.0702 | 0.0893 | 0.0908 | 0.0957 | 0.0898 | 0.0903 | 0.0863 | 0.0863 | 0.0975 |
Al/(Al + Mg + Fe + Ti + Mn + Si) | 0.1888 | 0.1778 | 0.1740 | 0.1906 | 0.1883 | 0.1776 | 0.1964 | 0.1812 | 0.1920 | 0.1883 | 0.1845 | 0.1899 | 0.1868 | 0.1955 | 0.1890 |
Oxide | Samples | ||||||||||||||
H-31 | H-32 | H-33 | H-34 | H-35 | H-36 | H-37 | H-38 | H-39 | H-40 | H-41 | H-42 | H-43 | H-44 | ||
SiO2 | 35.381 | 35.458 | 35.266 | 35.649 | 36.541 | 35.565 | 36.081 | 36.435 | 36.727 | 35.316 | 35.079 | 35.683 | 36.72 | 35.997 | |
TiO2 | 3.777 | 4.298 | 4.708 | 4.29 | 3.497 | 3.92 | 4.171 | 3.632 | 3.565 | 3.565 | 4.056 | 4.177 | 3.786 | 4.338 | |
Al2O3 | 14.344 | 14.314 | 14.231 | 13.896 | 13.78 | 14.776 | 13.865 | 13.937 | 13.786 | 14.968 | 15.249 | 14.356 | 13.993 | 14.503 | |
FeO | 21.012 | 21.358 | 21.497 | 20.558 | 20.736 | 20.838 | 20.264 | 20.391 | 20.42 | 21.318 | 21.368 | 20.76 | 20.155 | 20.641 | |
MnO | 0.283 | 0.351 | 0.294 | 0.283 | 0.283 | 0.243 | 0.251 | 0.27 | 0.371 | 0.332 | 0.309 | 0.256 | 0.286 | 0.243 | |
MgO | 10.772 | 10.246 | 9.797 | 10.812 | 11.026 | 10.357 | 10.998 | 11.063 | 10.993 | 10.393 | 9.981 | 10.608 | 11.27 | 10.382 | |
CaO | 0.08 | 0.164 | 0.034 | 0.128 | 0.08 | 0.032 | 0.014 | 0.166 | 0.092 | 0.114 | 0.011 | 0 | 0.119 | 0 | |
Na2O | 0.082 | 0.103 | 0.178 | 0.141 | 0.128 | 0.132 | 0.115 | 0.127 | 0.084 | 0.163 | 0.125 | 0.118 | 0.135 | 0.09 | |
K2O | 9.372 | 8.816 | 9.124 | 9.383 | 9.07 | 9.317 | 9.36 | 9.187 | 9.293 | 9.082 | 9.186 | 9.367 | 8.946 | 9.311 | |
Si | 2.7443 | 2.7463 | 2.7389 | 2.7590 | 2.8164 | 2.7487 | 2.7832 | 2.8045 | 2.8236 | 2.7332 | 2.7131 | 2.7542 | 2.8101 | 2.7664 | |
AlIV | 1.2557 | 1.2537 | 1.2611 | 1.2410 | 1.1836 | 1.2513 | 1.2168 | 1.1955 | 1.1764 | 1.2668 | 1.2869 | 1.2458 | 1.1899 | 1.2336 | |
AlVI | 0.0556 | 0.0530 | 0.0415 | 0.0266 | 0.0681 | 0.0946 | 0.0437 | 0.0688 | 0.0728 | 0.0984 | 0.1032 | 0.0602 | 0.0722 | 0.0801 | |
Ti | 0.2204 | 0.2504 | 0.2751 | 0.2498 | 0.2028 | 0.2279 | 0.2421 | 0.2103 | 0.2062 | 0.2076 | 0.2360 | 0.2426 | 0.2180 | 0.2508 | |
Fe3+ | 0.1505 | 0.2068 | 0.1999 | 0.1688 | 0.1896 | 0.1804 | 0.1864 | 0.1864 | 0.1924 | 0.1628 | 0.1816 | 0.1798 | 0.2124 | 0.2109 | |
Fe2+ | 1.2125 | 1.1766 | 1.1964 | 1.1618 | 1.1471 | 1.1665 | 1.1209 | 1.1262 | 1.1205 | 1.2170 | 1.2006 | 1.1603 | 1.0775 | 1.1157 | |
Mn | 0.0186 | 0.0230 | 0.0193 | 0.0186 | 0.0185 | 0.0159 | 0.0164 | 0.0176 | 0.0242 | 0.0218 | 0.0202 | 0.0167 | 0.0185 | 0.0158 | |
Mg | 1.2456 | 1.1831 | 1.1343 | 1.2475 | 1.2669 | 1.1933 | 1.2647 | 1.2694 | 1.2599 | 1.1991 | 1.1508 | 1.2206 | 1.2857 | 1.1894 | |
Ca | 0.0066 | 0.0136 | 0.0028 | 0.0106 | 0.0066 | 0.0026 | 0.0012 | 0.0137 | 0.0076 | 0.0095 | 0.0009 | 0.0000 | 0.0098 | 0.0000 | |
Na | 0.0123 | 0.0155 | 0.0268 | 0.0212 | 0.0191 | 0.0198 | 0.0172 | 0.0190 | 0.0125 | 0.0245 | 0.0187 | 0.0177 | 0.0200 | 0.0134 | |
K | 0.9274 | 0.8711 | 0.9040 | 0.9264 | 0.8918 | 0.9186 | 0.9211 | 0.9021 | 0.9115 | 0.8967 | 0.9064 | 0.9224 | 0.8734 | 0.9129 | |
Total | 7.8495 | 7.7932 | 7.8001 | 7.8312 | 7.8104 | 7.8196 | 7.8136 | 7.8136 | 7.8076 | 7.8372 | 7.8184 | 7.8202 | 7.7876 | 7.7891 | |
OH− | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | 2.0000 | |
MF | 0.4741 | 0.4569 | 0.4448 | 0.4804 | 0.4832 | 0.4668 | 0.4886 | 0.4883 | 0.4851 | 0.4611 | 0.4507 | 0.4736 | 0.4956 | 0.4698 | |
AlVI + Fe3+ + Ti | 0.4265 | 0.5103 | 0.5165 | 0.4452 | 0.4605 | 0.5029 | 0.4722 | 0.4656 | 0.4714 | 0.4688 | 0.5208 | 0.4825 | 0.5026 | 0.5418 | |
Fe2+ + Mn | 1.2311 | 1.1997 | 1.2157 | 1.1804 | 1.1655 | 1.1824 | 1.1373 | 1.1438 | 1.1447 | 1.2387 | 1.2208 | 1.1771 | 1.0961 | 1.1315 | |
Ti/(Mg + Fe + Ti + Mn) | 0.0774 | 0.0882 | 0.0974 | 0.0878 | 0.0718 | 0.0819 | 0.0855 | 0.0748 | 0.0736 | 0.0739 | 0.0846 | 0.0860 | 0.0775 | 0.0901 | |
Al/(Al + Mg + Fe + Ti + Mn + Si) | 0.1898 | 0.1892 | 0.1896 | 0.1841 | 0.1814 | 0.1956 | 0.1833 | 0.1834 | 0.1815 | 0.1974 | 0.2016 | 0.1898 | 0.1831 | 0.1914 |
Component | Granodioriate | ||||||||
---|---|---|---|---|---|---|---|---|---|
H-1 | H-2 | H-3 | H-4 | H-5 | H-6 | H-7 | H-8 | H-9 | |
SiO2 | 46.49 | 46.36 | 46.19 | 46.25 | 42.27 | 45.64 | 45.75 | 46.38 | 48.75 |
Al2O3 | 6.79 | 7.56 | 8.13 | 7.21 | 10.93 | 8.31 | 8.92 | 7.95 | 5.79 |
K2O | 0.62 | 0.56 | 0.72 | 0.83 | 1.22 | 0.72 | 0.63 | 0.72 | 0.62 |
P2O5 | 0.01 | 0.07 | 0.00 | 0.02 | 0.07 | 0.02 | 0.02 | 0.02 | 0.05 |
CaO | 11.21 | 11.02 | 11.01 | 11.15 | 10.74 | 11.31 | 11.01 | 11.00 | 11.51 |
TiO2 | 0.98 | 1.53 | 1.38 | 1.34 | 2.44 | 1.52 | 1.88 | 1.56 | 0.83 |
Cr2O3 | 0.02 | 0.03 | 0.02 | 0.00 | 0.07 | 0.00 | 0.01 | 0.07 | 0.00 |
MnO | 0.55 | 0.38 | 0.41 | 0.55 | 0.49 | 0.42 | 0.43 | 0.42 | 0.48 |
FeO | 16.75 | 14.46 | 16.19 | 17.76 | 17.31 | 16.48 | 14.88 | 15.73 | 17.13 |
Na2O | 1.23 | 1.81 | 1.70 | 1.45 | 1.97 | 1.74 | 1.98 | 1.82 | 1.21 |
MgO | 11.72 | 13.35 | 11.62 | 11.23 | 10.44 | 11.81 | 12.55 | 12.78 | 12.23 |
Total | 96.36 | 97.11 | 97.38 | 97.78 | 97.93 | 97.94 | 98.07 | 98.44 | 98.58 |
Based on 23 oxygen atoms and 16 cations, chemical analysis is based on (O + OH + F + Cl) = 24 | |||||||||
Si | 6.93 | 6.79 | 6.82 | 6.85 | 6.28 | 6.72 | 6.67 | 6.73 | 7.11 |
AlIV | 1.07 | 1.21 | 1.18 | 1.15 | 1.72 | 1.28 | 1.33 | 1.27 | 0.89 |
Ti | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
T bit | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 | 8.00 |
AlVI | 0.13 | 0.10 | 0.24 | 0.10 | 0.20 | 0.16 | 0.20 | 0.09 | 0.10 |
Ti | 0.11 | 0.17 | 0.15 | 0.15 | 0.27 | 0.17 | 0.21 | 0.17 | 0.09 |
Cr | 0.00 | 0.00 | 0.00 | 0.00 | 0.01 | 0.00 | 0.00 | 0.01 | 0.00 |
Fe3+ | 0.66 | 0.70 | 0.53 | 0.64 | 0.75 | 0.59 | 0.60 | 0.76 | 0.56 |
Mg | 2.60 | 2.91 | 2.56 | 2.48 | 2.31 | 2.59 | 2.73 | 2.77 | 2.66 |
Fe2+ | 1.43 | 1.07 | 1.47 | 1.56 | 1.40 | 1.44 | 1.21 | 1.15 | 1.53 |
Mn | 0.07 | 0.05 | 0.05 | 0.07 | 0.06 | 0.05 | 0.05 | 0.05 | 0.06 |
C bit | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 | 5.00 |
Fe2+ | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
Ca | 1.79 | 1.73 | 1.74 | 1.77 | 1.71 | 1.78 | 1.72 | 1.71 | 1.80 |
Na | 0.21 | 0.27 | 0.26 | 0.23 | 0.29 | 0.22 | 0.28 | 0.29 | 0.20 |
B bit | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
Na | 0.15 | 0.24 | 0.23 | 0.18 | 0.28 | 0.28 | 0.28 | 0.22 | 0.14 |
K | 0.12 | 0.10 | 0.14 | 0.16 | 0.23 | 0.13 | 0.12 | 0.13 | 0.11 |
A bit | 0.27 | 0.35 | 0.37 | 0.34 | 0.51 | 0.42 | 0.40 | 0.35 | 0.25 |
Si | 6.93 | 6.79 | 6.82 | 6.85 | 6.28 | 6.72 | 6.67 | 6.73 | 7.11 |
Mg/(Mg + Fe2+) | 0.65 | 0.73 | 0.63 | 0.61 | 0.62 | 0.64 | 0.69 | 0.71 | 0.63 |
CaB | 1.79 | 1.73 | 1.74 | 1.77 | 1.71 | 1.78 | 1.72 | 1.71 | 1.80 |
(Na + K)A | 0.27 | 0.35 | 0.37 | 0.34 | 0.51 | 0.42 | 0.40 | 0.35 | 0.25 |
(Ca + Na)B | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 | 2.00 |
NaB | 0.21 | 0.27 | 0.26 | 0.23 | 0.29 | 0.22 | 0.28 | 0.29 | 0.20 |
Ti | 0.11 | 0.17 | 0.15 | 0.15 | 0.27 | 0.17 | 0.21 | 0.17 | 0.09 |
AlT | 1.19 | 1.31 | 1.41 | 1.26 | 1.91 | 1.44 | 1.53 | 1.36 | 0.99 |
Si* | 8.31 | 8.07 | 8.11 | 8.23 | 7.50 | 7.99 | 7.88 | 8.05 | 8.52 |
Samples | Rb (ppm) | Sr (ppm) | 87Rb/86Sr | 87Sr/86Sr | ±2σ | (87Sr/86Sr)i | Sm (ppm) | Nd (ppm) | 147Sm/144Nd | 143Nd/144Nd | ±2σ | (143Nd/144Nd)i | εNd(t) | TDM (Ma) | T2DM (Ma) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PMZG0721-b1 | 222.8 | 1455.9 | 0.44 | 0.710424 | 0.000004 | 0.709669 | 8.87 | 60.20 | 0.088975 | 0.511605 | 0.000010 | 0.511535 | −18.51 | 1885 | 3555 |
PMZG0721-b2 | 444.3 | 2343.7 | 0.55 | 0.710804 | 0.000003 | 0.709868 | 30.13 | 174.90 | 0.104086 | 0.511808 | 0.000008 | 0.511726 | −14.78 | 1864 | 3106 |
PMZG0721-b8 | 149.3 | 1620.4 | 0.27 | 0.711074 | 0.000005 | 0.710619 | 7.60 | 52.53 | 0.087393 | 0.511530 | 0.000009 | 0.511461 | −19.95 | 1951 | 3727 |
PMZG0721-b10 | 284.5 | 832.9 | 0.99 | 0.711055 | 0.000004 | 0.709370 | 5.99 | 40.40 | 0.089644 | 0.511600 | 0.000008 | 0.511530 | −18.61 | 1901 | 3568 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2022 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Chi, N.; Han, Z.; Tian, R.; Liu, C.; Shan, W.; Xiong, Y.; Li, Z.; Xie, Y.; Li, M.; Wang, X. Petrogenesis of the Early Cretaceous Zhouguan Granodiorite in Jiaodong Peninsula: Evidence from Mineralogy, Geochemistry, Geochronology, and Sr-Nd Isotopes. Minerals 2022, 12, 962. https://doi.org/10.3390/min12080962
Chi N, Han Z, Tian R, Liu C, Shan W, Xiong Y, Li Z, Xie Y, Li M, Wang X. Petrogenesis of the Early Cretaceous Zhouguan Granodiorite in Jiaodong Peninsula: Evidence from Mineralogy, Geochemistry, Geochronology, and Sr-Nd Isotopes. Minerals. 2022; 12(8):962. https://doi.org/10.3390/min12080962
Chicago/Turabian StyleChi, Naijie, Zuozhen Han, Ruicong Tian, Chuan’e Liu, Wei Shan, Yuqiang Xiong, Zengsheng Li, Yufeng Xie, Min Li, and Xiufeng Wang. 2022. "Petrogenesis of the Early Cretaceous Zhouguan Granodiorite in Jiaodong Peninsula: Evidence from Mineralogy, Geochemistry, Geochronology, and Sr-Nd Isotopes" Minerals 12, no. 8: 962. https://doi.org/10.3390/min12080962
