1. Introduction
As an important part of the mine production, the auxiliary transportation system of the coal mine undertakes important transportation tasks such as pulling gangue, feeding, coal transportation, and transporting people. In recent years, with the rapid development of technology, China’s open-pit coal mines have significantly increased the level of informatization, intelligence, and automation in the transportation link. However, most complex geological underground coal mine enterprises still use manual scheduling methods for transportation scheduling. The development of intelligent and less humanized levels is relatively flat, which has become a key link limiting the intelligent construction of underground coal mines. In 2019, the State Administration of Coal Mine Safety included handling robots and underground unmanned transport vehicles in the ‘Key R & D Catalogue for Coal Mine Robots’, rapidly promoting the intelligent construction of mine transport robots. The research and development of the unmanned underground transportation robot provide a guarantee for the intelligent development of the auxiliary transportation of underground mining. Studying the intelligent scheduling technology of the whole mine material, taking the demand as the guide, scientifically organizing the transportation activities, optimizing the material loading strategy, and arranging the distribution robot reasonably can reduce the waste of resources, improve labor productivity, increase income, and accelerate the transformation of mining enterprises.
At present, the material loading method and loading sequence are mainly obtained by manual experience. This manual loading is often loaded one by one according to the materials on the loading list. The operation workload is large, the loading efficiency is low, the safety is low, and the space utilization rate of the standard container is low. Since the emergence of the cutting inventory problem in the 1960s, the solution to the three-dimensional loading problem has developed rapidly. Many researchers have proved that the hybrid genetic algorithm, heuristic method, and differential evolution (DE) algorithm can solve the heterogeneous material loading problem [
1,
2,
3]. To increase the practicability of the loading algorithm, some scholars have studied the relationship between the constraints related to the box direction, load stability, and box separation, which greatly reduces the variables and constraints contained in the mathematical model and increases the solution efficiency [
4,
5,
6]. Jamrus et al. [
7] developed an extended priority-based hybrid genetic algorithm (EP-HGA) to determine the loading mode for the problem of transporting a small number of items that cannot fully utilize the container space. At present, most of the three-dimensional loading problems use heuristic algorithms to provide solutions, but most of the research focuses on single-container loading of strong heterogeneous items or multi-container loading of large-scale weak heterogeneous items, and there are few studies on three-dimensional loading algorithms for large-scale heterogeneous items.
Vehicle scheduling usually plays an important role in intelligent transportation and vehicle route planning [
8,
9]. In the distribution process, first of all, ensuring that vehicles operate without conflict [
10] and the realization of transport equipment sharing can greatly improve the efficiency of distribution and the scheduling cost savings [
11]. Vehicle route planning usually solves the shortest distance to reduce time and fuel costs, but the increase in the number of vehicles on demand will greatly increase the total cost. The scheduling optimization based on unmanned transport robots needs to optimize two objectives, namely, the shortest distance and the minimum number of vehicles. This can be considered a multi-objective programming model. The key to solving such problems is to find Pareto optimality [
12]. Wang Yd’s hybrid NSGA-II, Wang Y’s IR-NSGA-III, Deng S’s AGPSO, and E. Jiang’s decomposition-based multi-objective evolutionary algorithm are more efficient than general optimization algorithms [
13,
14,
15,
16]. Hybrid particle swarm optimization and NSGA2 algorithms are effective methods for solving multi-objective programming problems [
17]. Zhang [
18] introduced a replication strategy based on immune density in the DPSO algorithm, which avoided the premature convergence problem and improved the ability to search for the global optimal solution. Gao [
19] integrated the strategy of an artificial fish swarm algorithm into the position update process of particle swarm optimization (PSO), which reduced the total execution time of the application. Kang [
20] integrated weight aggregation into MOPSO, which improved the efficiency of generating the Pareto frontier. Z. Yuming [
21] combined a fast non-dominated genetic algorithm and time-varying multi-objective particle swarm optimization for global optimization and discussed the influence of particle numbers on optimization results by changing the population size. S. Nguyen [
22] introduced the idea of multivariate multi-objective co-evolution on the basis of multi-objective genetic programming to deal with multiple scheduling decisions at the same time. X. Liang [
23] used the weight aggregation method to constrain the multi-objective mathematical model on the basis of the NSGA-II algorithm to obtain the Pareto optimal solution set faster. W. Wenjing [
24] used the k-nearest neighbor algorithm to improve the genetic algorithm to achieve dynamic multi-objective programming. G. Wang [
25] proposed a hybrid multi-objective genetic algorithm based on a two-generation and elite strategy to improve computational efficiency.
Scheduling is the process of adding start and finish information to the job order specified by the order [
26]. An intelligent scheduling system usually includes three-dimensional loading and path planning. It is usually identified as a three-dimensional loading capacity vehicle routing problem, which is a kind of high complexity and difficult problem to solve. Scholars have used numerical experiments to prove that the hybrid method of genetic algorithm and tabu search, the adaptive large neighborhood search of routing and the different packing heuristic algorithms for the loading part, the tabu search algorithm and the tree search algorithm for loading, the improved minimum waste heuristic algorithm, the improved genetic algorithm, ant colony optimization algorithm, branch cutting algorithm, tabu search, and multi-starting point evolution strategy can give a feasible solution to the three-dimensional loading capacity vehicle routing problem [
27,
28,
29,
30,
31,
32,
33,
34,
35]. Most of the data used in most studies are benchmark instances in daily life. Since the benchmark instances mostly conform to the law of open-air loading and distribution, it is still unknown whether the method in the study is feasible for underground material scheduling in coal mines.
Aiming at the problems being multipoint and having long length, low intelligent distribution, high working intensity, and high risk of underground coal mine auxiliary transportation system, an intelligent scheduling strategy for whole mine materials is proposed. Based on the demand information, auxiliary transportation equipment, and line status, a multi-objective and multi-object scheduling optimization model is established. With the help of dynamic topology technology, the intelligent distribution and auxiliary transportation path optimization of the whole mine materials are realized. Firstly, combined with the characteristics of materials and standard containers, a three-dimensional loading model is established with the goal of maximizing the space utilization of standard containers, and a three-dimensional space segmentation heuristic algorithm is used to solve the material loading scheme. Then, the multi-objective optimization model of distribution parameters is established with the goal of the shortest delivery distance, the shortest delay time, and the fewest number of delivery vehicles, and the dual-layer genetic algorithm is used to solve the distribution scheme. Finally, the solution time of the dual-layer genetic algorithm is optimized. Based on the task list attribute, the spatiotemporal conversion coefficient is designed to solve the task list by hierarchical clustering.
2. Description of Mine Material Scheduling Problem
Coal mine material inventory management is generally divided into three levels, the first level of inventory for the coal mine group, the group according to the production plan to the supply section distribution of materials, the second level of inventory for the mining area supply section, the supply section according to the production plan to the mining area distribution of materials, the supply section distribution of materials stored in the mining area industrial square, the third level of inventory for the mining area, the mining area according to the production plan to the working face distribution of materials, this is the planned distribution. The planned distribution of materials can meet the production needs of most working faces. It is often difficult to take into account the materials needed for special working conditions. The mining captain’s working face must propose material requirements such as demand distribution.

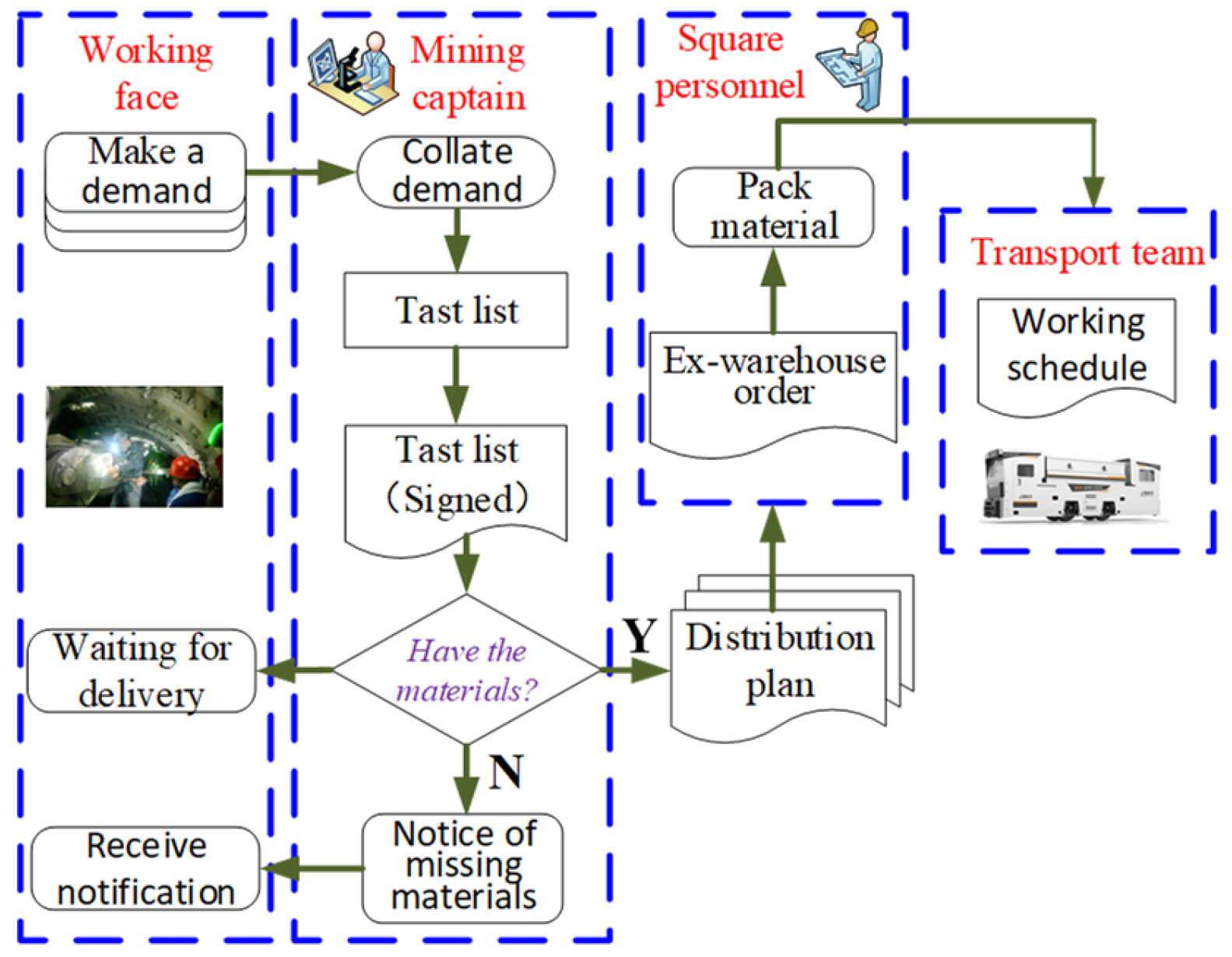

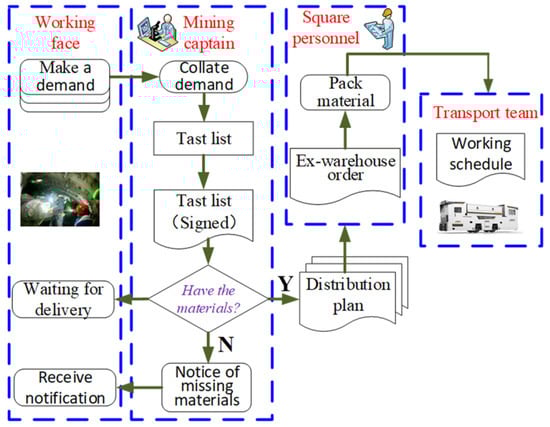

The material delivery process is shown in
Figure 1. Working face to fill in the required material information submitted to take the mining captain for approval. Approval by the demand can be directly collated, approval does not pass the need to fill out the reasons for rejection. The working face checked the reasons for rejection and modified the material application form. After the modification was completed, the material application form was submitted to the mining captain for approval. Take the mining captain to audit all requirements after the formation of the task list and signed. The mining captain confirms whether the materials of the industrial square meet the requirements of the task list. When the materials in the industrial square meet the requirements of the task list, the distribution plan is formulated, and the working face waits for the delivery. The square personnel loads the materials into the standard container according to the Ex-warehouse order. After the loading is completed, the transport team transports according to the working schedule. When the material in the industrial square does not meet the requirements of the task list, the mining captain sends a material shortage notice to the working face, and the working face accepts the material shortage notice and modifies the application.

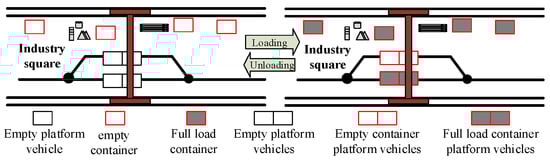

The material loading takes the intelligent loading vehicle of the industrial square as the starting point. The equipment layout of the industrial square is shown in

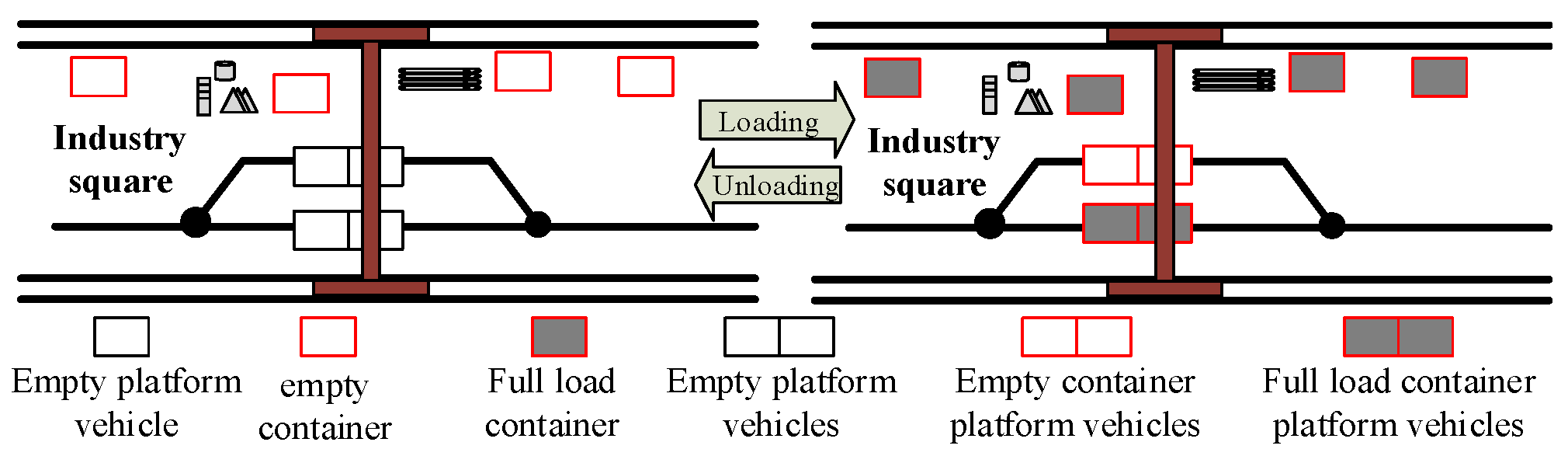

Figure 2. In order to facilitate the loading and unloading of materials and standard containers, the transportation track is designed as a double track, with platform vehicles consisting of two platform vehicles. First of all, the square personnel puts the materials to be delivered according to the task list in advance, then the intelligent loading vehicle puts the materials into the empty standard container, and finally, the intelligent loading vehicle grabs the full standard container and fixes it on the empty platform vehicles after loading is completed by the transport robot in accordance with the planned route distribution. When the robot carries the empty standard container platform vehicles back, the intelligent loading vehicle grabs the empty standard container and puts it in the specified position.
For the coal mine auxiliary transportation system, the types of distribution materials are complicated, as shown in

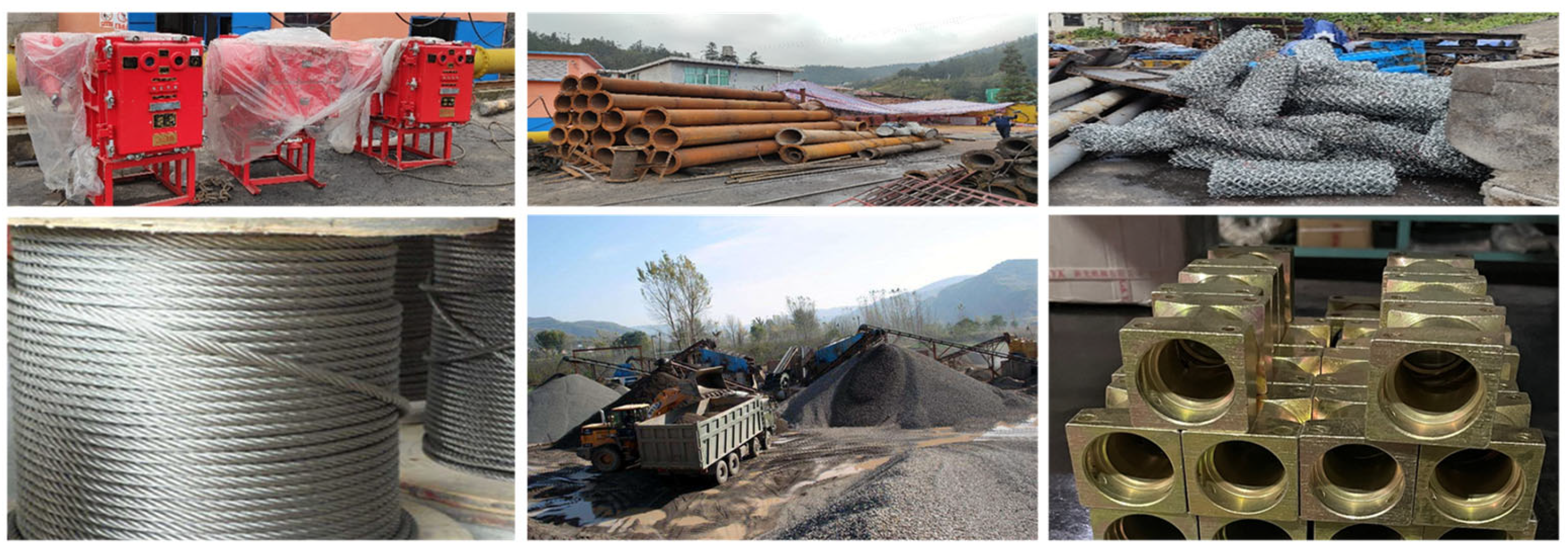

Figure 3. These types of distribution materials include mechanical and electrical products (including wire and cable, high and low voltage electrical appliances, instruments and meters, lighting appliances, electronic components, etc.), metal materials (including ferrous metal materials, metal processing parts, non-ferrous metal materials, etc.), non-metallic materials (including wood, sand, asbestos products, refractory materials, glass, bricks and tiles, rubber and plastic products, etc.), labor protection products (including labor protection protective clothing, head protective equipment, labor toolkit, respiratory protective equipment, hand protective equipment, etc.), chemical products (including ultra-high molecular weight polyethylene, polyvinyl chloride pipe, polyethylene pipe, grease, coolant, etc.), coal washing accessories (including screening machinery, sorting machinery, dehydration machinery, etc.), fully mechanized mining accessories (including shearer, hydraulic support, winch, etc.), and fully mechanized mining equipment (including coal mining machine, coal mining machine, etc.). These materials (some up to a few meters and some only a few centimeters) have size differences. Some are solid, some are liquid, and some have different forms. Measuring units have weight units, length units, and quantity units, which are difficult to unify. In different types of work, the district team received materials may vary, the district team received a large number of personnel materials.
3. Establishment of Coal Mine Material Multi-Objective Scheduling Mathematical Model
3.1. Symbol Definition
The working face puts forward the material application according to the production demand, and forms
i task list. The task list contains the basic characteristics of the material, and the material is loaded into the standard container according to the material characteristics. A three-dimensional rectangular coordinate system is established with the left, back, and bottom vertices of the standard container as the origin. The position decision variables
represent the coordinate values of the left, rear, and lower vertices of the material c in the standard container k in the X, Y, and Z directions, respectively. Let (
) be the coordinates of another vertex of the body diagonal connected to the vertex, then the values can be calculated by the position decision variable and the relative length, width, and height, respectively. The materials are arranged in standard containers according to their length, width, and height {

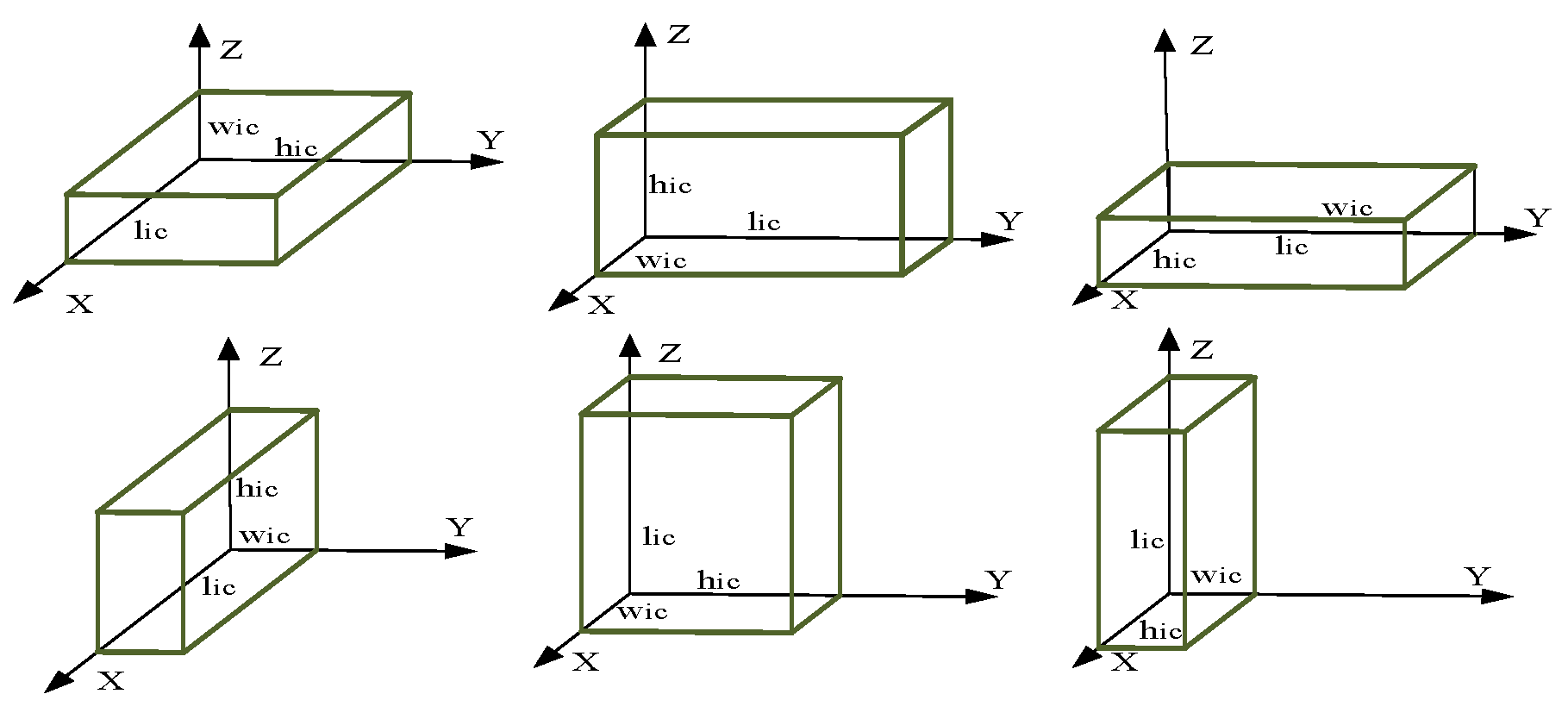

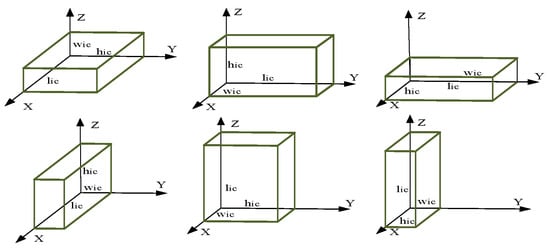

}. There are six orthogonal placements, represented by the direction number
, as shown in
Figure 4. The side of the material box parallel to the X-axis is relatively long, represented by
; correspondingly, the material box is parallel to the edges of the Y and Z axes, which are relatively wide
and relatively high
, respectively, as shown in
Table 1.
After the materials are loaded, the delivery process is described as a graph
, where
is the set of industrial squares and n working faces,
is the set of all edges between the working faces. The distance between vertices
is represented by
. The robot carries a standard container from the industrial square to distribute materials to all working faces and returns to the industrial square after distribution. In the process of distribution, in order to improve the utilization rate of distribution resources and help the green development of coal mine transportation, it is necessary to minimize the use of robots and optimize the distribution path reasonably. The model involves mathematical parameter definitions as shown in
Table 2.
3.2. Model Construction
For ease of calculation, the following assumptions are made:
All materials are packed in a cuboid box, called a material box.
Single material does not exceed the standard container-rated load and volume.
The material box must be placed inside the standard container (that is, in the three-dimensional coordinate system established in this paper, the coordinates of the upper right front corner of the material box cannot exceed the three-dimensional properties of the standard container).
The two material boxes in the standard container cannot be spatially overlapped.
The material box placed in the standard container needs to be placed parallel to the standard container, which is reflected in the three-dimensional coordinate system.
Weight constraint: the total required weight of all working faces on one path cannot exceed the rated vehicle loading weight Gm.
Direction constraint: some types of material boxes placed in the standard container direction cannot be arbitrarily rotated, only by some fixed edge as a high attribute.
Support constraints: All bins placed need to have a support area. All the bottom areas of the bins need to be other bins or need to have a standard container bottom support.
All the materials required for the working face are in the industrial square; that is, all the robots are hoisted from the industrial square.
All robot types are consistent.
Each working face can only be distributed by one robot; that is, the demand is inseparable.
The number of robots is related to the number of paths. A robot distributes a working face on a path, and it cannot be sent or leaked.
The ‘first in and then out’ constraint. In the same path, the materials that serve the working face first need to be unloaded first, and the unloading process cannot be hindered by the materials of other working faces.
Priority sorting. The working face requires urgent priority delivery.
Three two-valued variables , , are defined. If the material c is completed by the standard container k, then , otherwise, ; if the material of the standard container k is completed by the robot m, then , otherwise, ; if the robot m runs from i to j, then , otherwise, .
In this paper, the robot path optimization model with the highest three-dimensional loading rate of standard containers is established with the minimum number of delivery vehicles and the shortest delivery path as the research objectives.
In Formula (1), K denotes the number of standard containers. In Formula (2), denotes the total distance from all materials to the working face. In Formula (3), denotes the total number of robots starting from the industrial square. In Formula (4), denotes the delayed delivery time of the robot.
Constraint conditions:
when
and
,
for
, there exists
such that the following conditions are satisfied:
The Formula (5) represents the length-width-height constraint; that is, the three-dimensional size of the container for a single material is smaller than that of the standard container. The Formula (6) represents the load constraint, the container weight of a single material is less than the maximum load-bearing weight of the standard container. Equation (7) represents the volume constraint, the container volume of a single material is less than the standard container volume. The Formula (8) represents the value of the relative length, width, and height of the material container in different directions. Equation (9) represents the calculation method of the upper right corner of the material container and also suggests that the container must be placed parallel to the standard container. The Formula (10) denotes the non-overlapping constraints of c and d in the container space. Equation (11) represents the support constraint, c material container must have a standard container bottom or material container d support. Equation (12) indicates that the robot’s running speed is 1 m/s; that is, the spatiotemporal conversion coefficient is 1, and the space and time values are equal. Equation (13) represents the data initialization of the industrial square. The time at which the robot first reaches the industrial square and the working time in the industrial square are both 0. Equation (14) indicates that each working face is accessed and only accessed once. Equation (15) means that the weight of the standard container carried by the robot does not exceed its rated load. Equations (16)–(18) indicate that all robots start from the industrial square and return to the industrial square after several non-repetitive working faces.
5. Application Analysis
Twelve task orders in the third mining area were randomly selected for research, and the reloading yard was used as the origin to measure the task list destination coordinates. The specific working face distribution is shown in
Figure 10.
Table 3 shows the task list parameter information of a specific working face, including the task list code, the ideal delivery time of the material, and the coordinates of the working face. The ideal delivery time of the material is determined when the working face applies to the material. The materials and related information required in the task list are shown in
Table 4. The material coding column in
Table 4 contains information about the number of materials and the number of omitted individual materials. The parameter unit of material length, width, and height is a millimeter, and the parameter unit of weight is the kilogram. It can be seen from the table that material types are quite different and heterogeneous. Now it is necessary to load the materials in the task list into standard containers with a length of 3 m, a width of 1 m, and a height of 1 m, and calculate the number of standard containers required.
The three-dimensional space segmentation heuristic algorithm is used to solve the 12 task list loading schemes, and the number of standard containers required for each task list and the space utilization rate of each standard container in a single task list are calculated. The number of standard containers and the maximum space utilization rate of standard containers in a single task list are shown in
Table 5. It can be seen from the intelligent loading results in
Table 5 that when there are few materials on the task list, only a standard container is needed, which can be called a single-container task list. The loading rate of a single-container task list container is the sum of the volume of all materials in the task list and the volume of the standard container. When there are many materials on the task list, two or more standard containers are needed to complete the material, which can be called a multi-container task list. The maximum space utilization rate of the standard container in the multi-container task list is smaller than that of the single-container task list. The difference is mainly caused by the strength of the material heterogeneity. The stronger the material heterogeneity, the lower the maximum space utilization rate of the standard container.
Statistical manual loading results are shown in

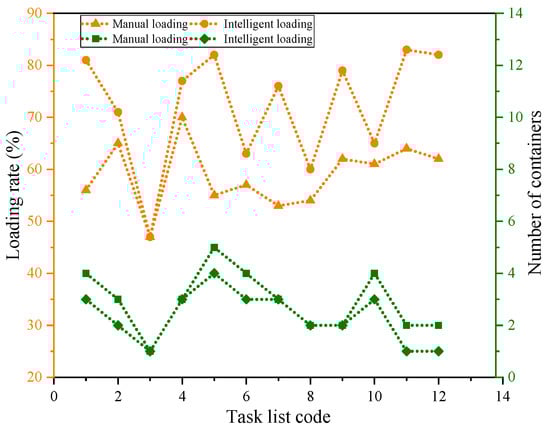

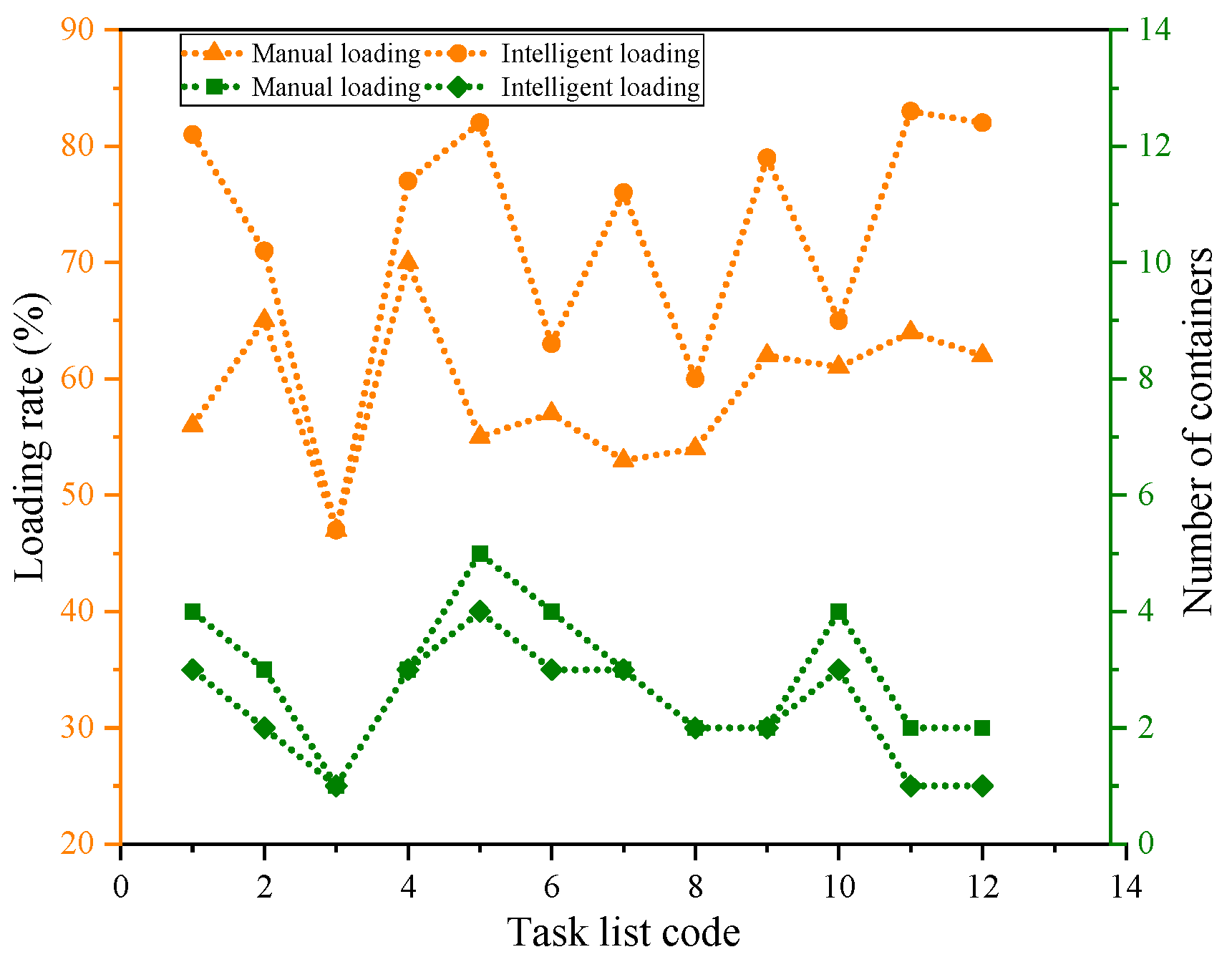

Table 6. The performance diagrams of different loading modes are drawn according to the loading results, as shown in
Figure 11. The manual loading results of a single-container task list are less, the multi-container task list standard container maximum space utilization difference is small, and, overall, they are full of subjectivity. Comparing the two loading methods, from the perspective of the maximum space utilization rate of the standard container, the average space utilization rate of the maximum space utilization rate of the manual loading standard container is 59%, the average space utilization rate of the maximum space utilization rate of the intelligent loading standard container is 72%, and the intelligent loading is 18% higher than the average space utilization rate of the manual loading. From the number of standard containers, 12 task lists are manually loaded using 35 standard containers, and 12 task lists are intelligently loaded using 28 standard containers. Intelligent loading reduces the use of standard containers by 20% compared with manual loading. In general, intelligent loading has better performance than manual loading.
The electric locomotive robot is grouped into 4 groups with a maximum load of 20 t. The electric locomotive is manually scheduled to be loaded and dispatched according to the task list. If the task list material is within the carrying range of the electric locomotive, the task list is distributed by an electric locomotive. If the task list material is larger than the carrying range of the electric locomotive, the electric locomotive will carry out multiple distributions. The electric locomotive that distributes the task list does not accept the distribution of other task list materials. Under this delivery rule, the scheduling scheme is shown in
Table 7, and the path planning is shown in

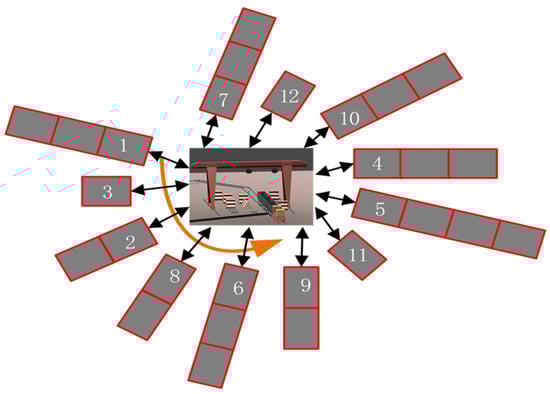

Figure 12. The yellow arrows represent the delivery task list, which is in the task list of (0,1,0), (0,3,0), (0,2,0), (0,8,0), (0,8,0), (0,9,0), (0,11,0), (0,5,0), (0,4,0), (0,10,0), (0,12,0), (0,7,0). If there is only one electric locomotive robot on site, the total delivery distance under manual scheduling is 31,178.01 m, regardless of loading and unloading time. There are five delivery delay task lists (task list two, task list three, task list eight, task list six, and task list nine), as shown in

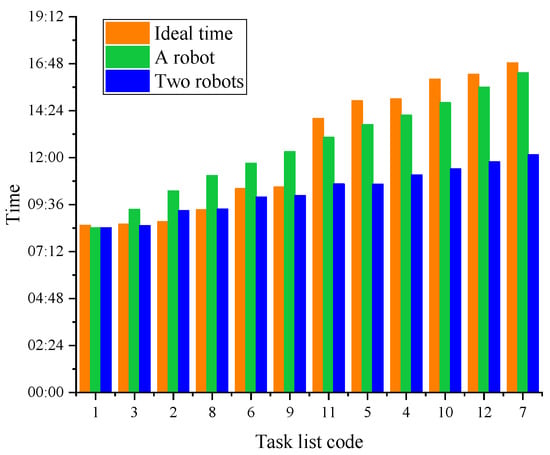

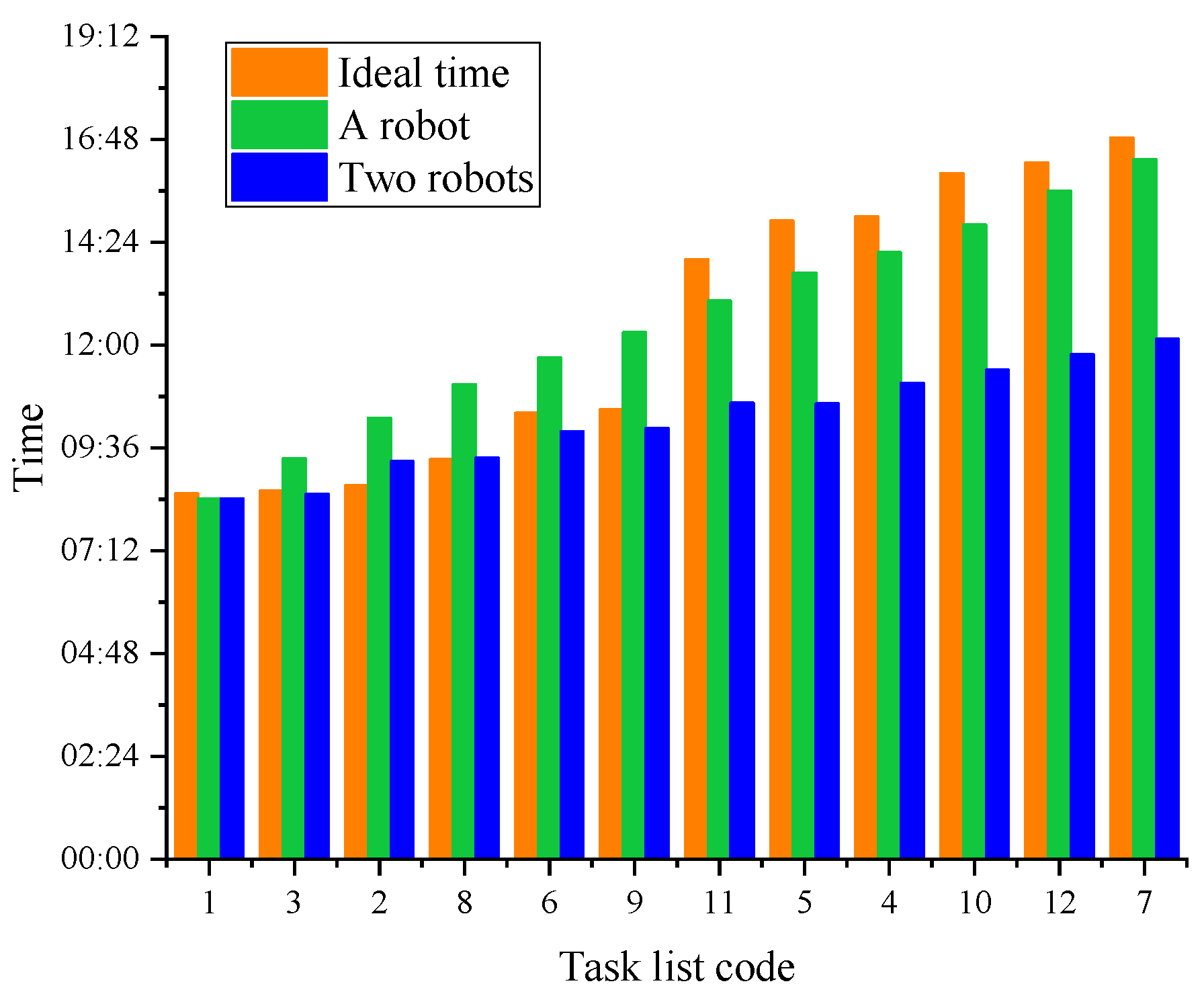

Figure 13. The delay time is 15,772 s; if there are two electric locomotive robots available on site, regardless of the loading and unloading time, the number of delivery delay task lists is two (task list 2 and task list 8), and the delay time is 2088 s.
The experiment was carried out on a computer with a hardware configuration of AMD Ryzen 7 5800X 8-Core Processor 3.79 GHz, 32.0 GB, 3.79 GHz frequency, and the development environment was PyCharm2020.1 x64. The specific parameters are set as follows: population size pop size = 100, crossover probability Pc = 0.6, mutation probability Pm = 0.2.
The standard genetic algorithm optimizes the shortest delivery distance of 20,680.63 m, with a total of 8 deliveries. The NSGA-II algorithm is used to solve the problem. The result is that 2 transport robots are needed, all task lists are not delayed, and the delay time is reduced by 100%. When the intelligent algorithm is used for robot scheduling, the path planning is shown in

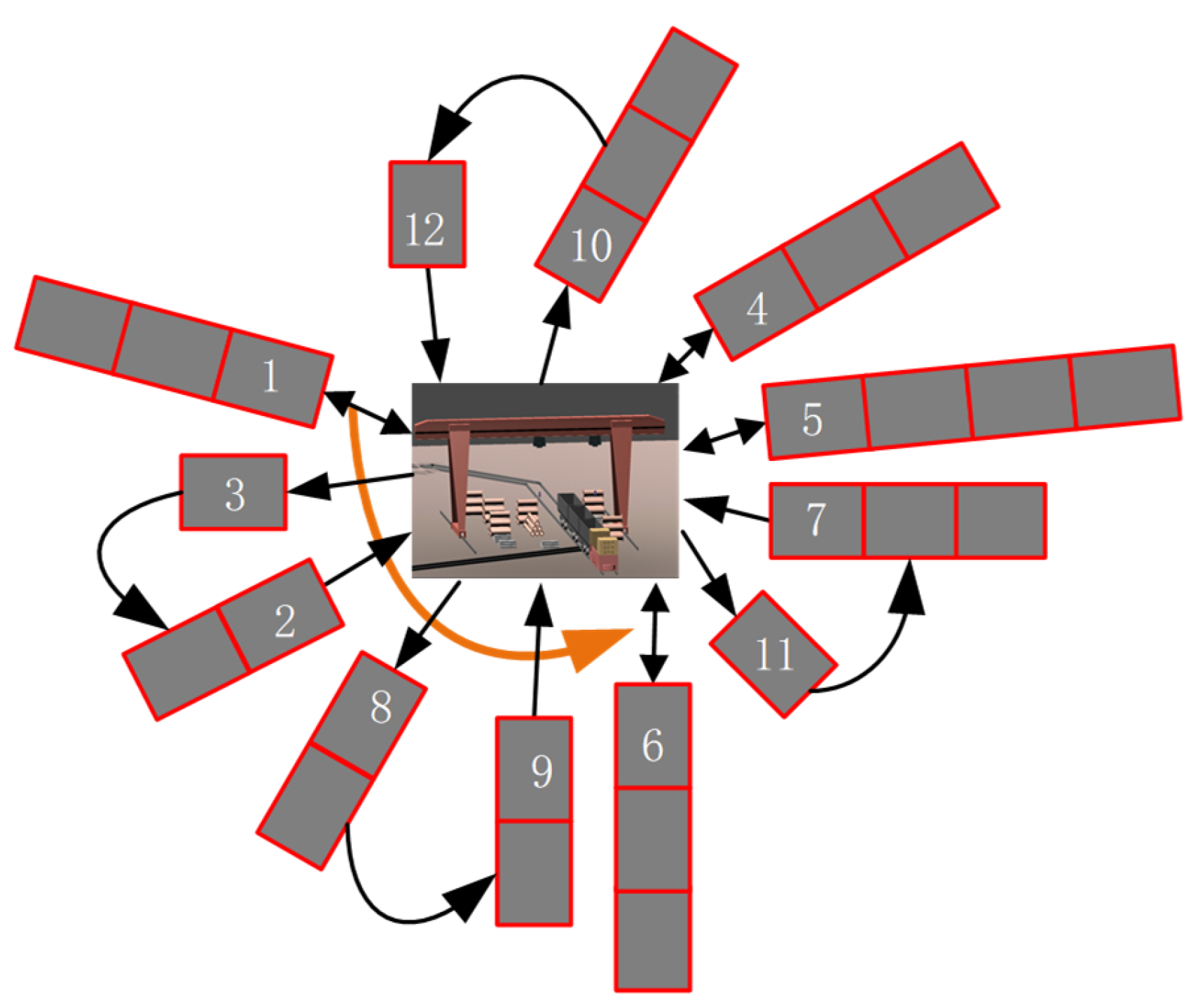

Figure 14. The yellow arrows represent the delivery task list, which is (0,1,0), (0,3,2,0), (0,8,9,0), (0,6,0), (0,11,7,0), (0,5,0), (0,4,0), and (0,10,10,12,0) on the task list. When a single robot performs delivery, as shown in

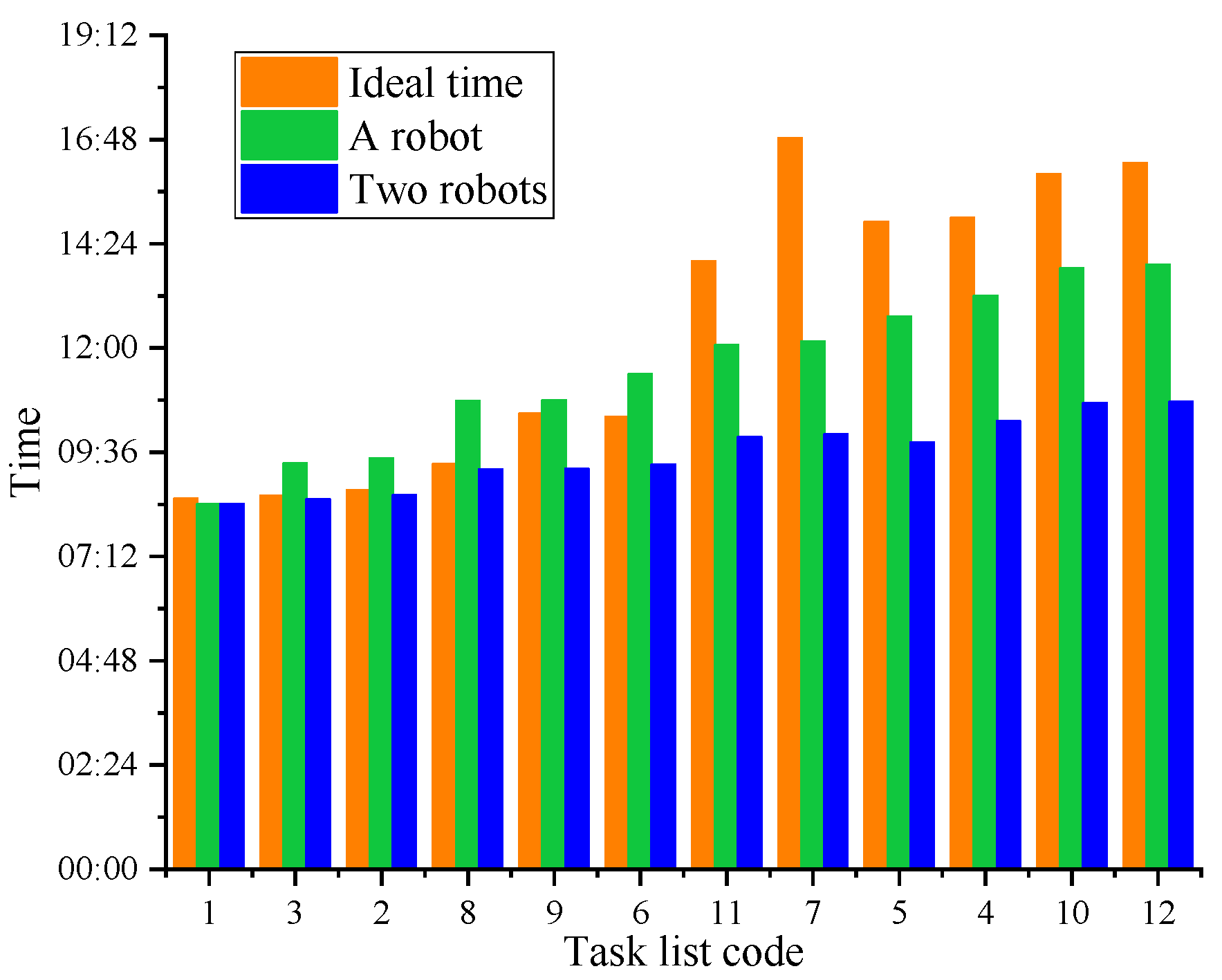

Figure 15, there are 5 delivery delay task lists (task list 2, task list 3, task list 8, task list 6, task list 9), and the delay time is 15,194 s. Compared with manual scheduling, the delay time is reduced by 3.7%. According to the calculated data, the relationship between the delay time and the number of robots under different scheduling modes is drawn (

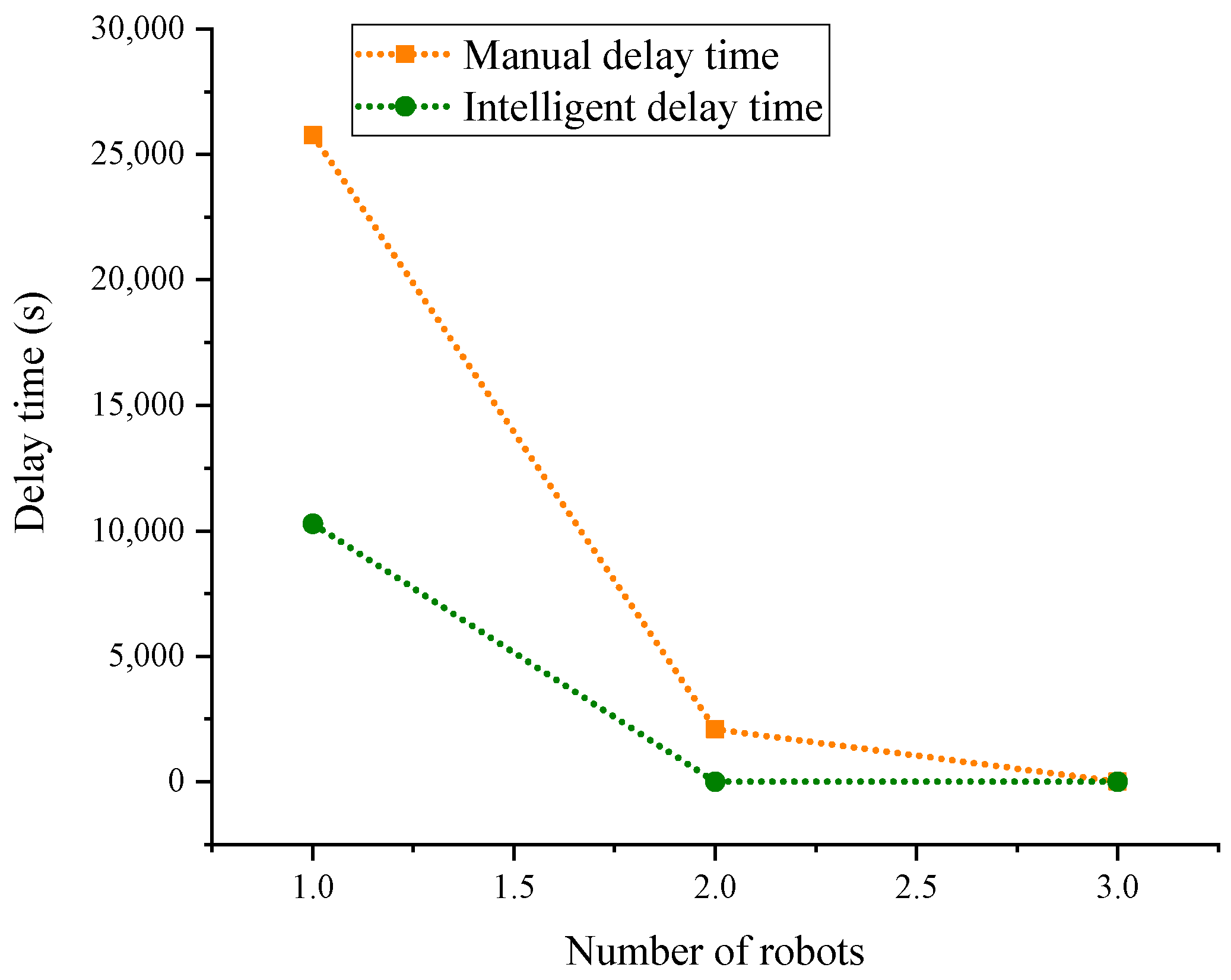

Figure 16). It can be seen from the Figure that under the same delay condition, more robots are needed to complete the task list manually; when the number of robots is the same, manual scheduling takes longer to complete the task list.
In the actual scheduling application, because the task list information is constantly updated and the real-time performance is strong, the scheduling scheme is also constantly updated and transformed. In the solution process, the accuracy of the scheduling scheme is at the expense of the solution time. The solution time is an important index that affects the engineering application of the algorithm. We hope that the process of obtaining the scheduling scheme is fast and efficient. Statistics dual-layer genetic algorithm to solve the time 20 times, draw a scatter diagram as shown in

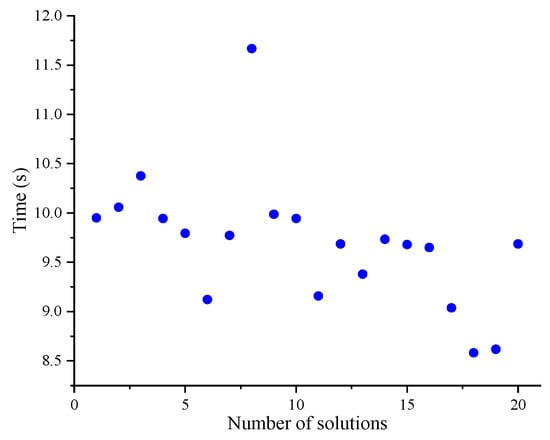

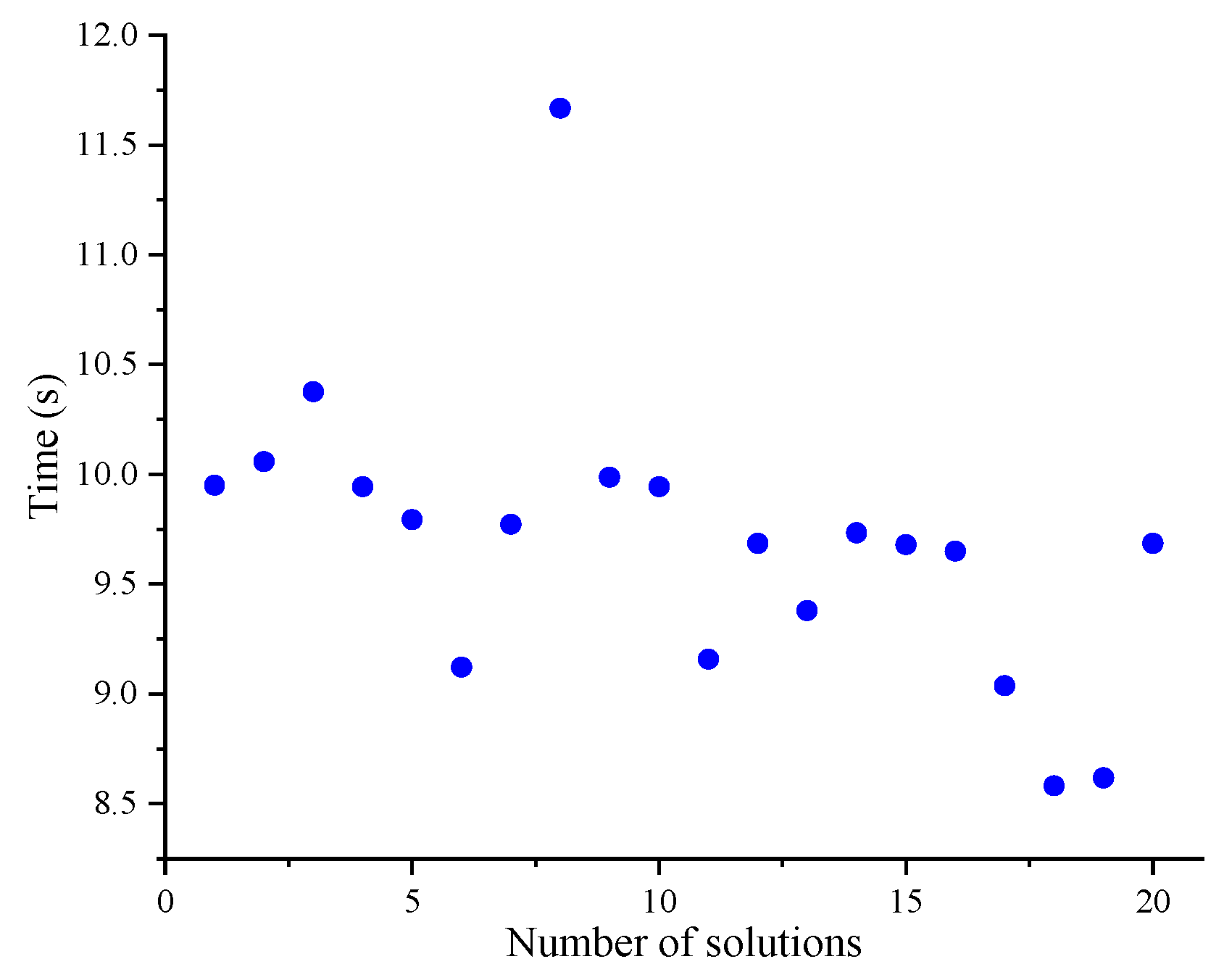

Figure 17, can be seen from the Figure, the solution time is more evenly distributed in the vicinity of 10 s, take the average of 9.7 s.
6. Working Face Spatiotemporal Clustering Based on Hierarchical Clustering

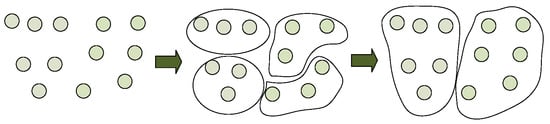

Working face clustering solution can reduce the solution time, to ensure efficient path planning methods. Hierarchical clustering is a clustering algorithm that creates a hierarchical nested clustering tree by calculating the similarity between data points in different categories. In a clustering tree, the original data points of different categories are the lowest layer of the tree, and the top layer of the tree is a clustering root node. There are two methods to create clustering trees: bottom-up merging and top-down splitting. In this paper, a bottom-up merging algorithm is used to cluster the output hierarchical structure, which is more informative than the unstructured clustering set returned by planar clustering. The hierarchical clustering algorithm is traditionally based on Single Linkage, Complete Linkage, and Average Linkage to calculate the similarity of data. The Single Linkage and Complete Linkage methods are easily affected by extreme values. Based on the traditional hierarchical clustering algorithm, this paper designs a time-space data conversion coefficient ω based on the coordinates of the working face and the required delivery time of the working face. The Average Linkage formula is used to cluster the spatiotemporal data, and the working face is clustered together according to its similarity, as shown in

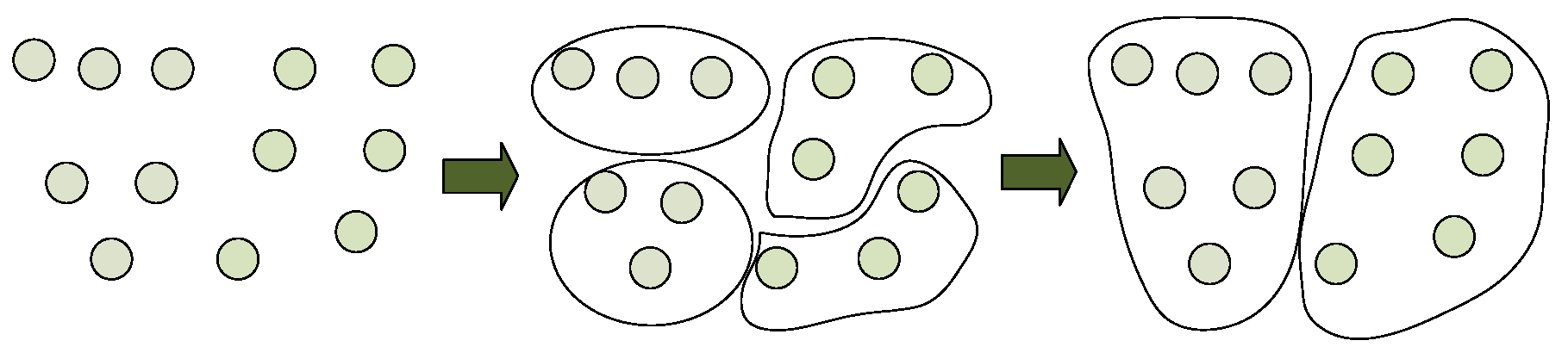

Figure 18.
Taking , it is proved that if the robot starts from the industrial square and arrives at the working face i at the required time, then , , .
Use the Average Linkage formula to calculate the distance from data points (
A,
F) to (
B,
C):

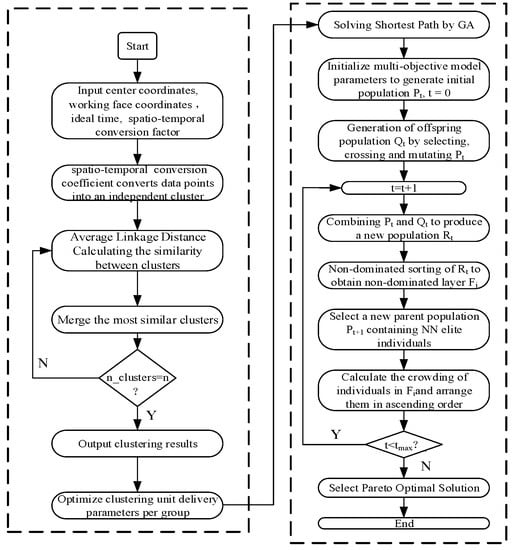

The overall process of intelligent scheduling strategy based on hierarchical clustering dual-layer genetic algorithm is shown in
Figure 19. First, input the initial parameters of the distribution, including the distribution center coordinates, working face coordinates, expected delivery time, and spatiotemporal conversion coefficient; then, the data are normalized by using the spatiotemporal conversion coefficient, and the spatial two-dimensional coordinates and the time one-dimensional coordinates are regarded as three-dimensional data points. Each data point is an independent cluster; finally, the Average Linkage formula is used to calculate the similarity between clusters, and the clusters with the highest similarity are merged until the cluster category is consistent with the set parameter n, and the clustering result is output. The distribution parameters are optimized inside the clustering unit. Firstly, the basic genetic algorithm is used to solve the shortest path inside the unit. Then, the NSGA-II framework is used to solve the minimum robot and the shortest delay time dual-objective model, and the population P
t is initialized. The selection, crossover, and mutation operations are performed on P
t to generate the offspring population Q
t. The P
t and Q
t are merged to generate a new population R
t. The non-dominated sorting is performed on R
t to obtain the non-dominated layer F
i. The new parent population P
t+1 containing NN elite individuals is selected to calculate the crowding degree of individuals in Fi and arrange them in ascending order. Finally, when the number of iterations reaches the set value, the Pareto optimal solution is selected. Output delivery path parameters.
Set the number of categories n = 2, and use hierarchical clustering to cluster task lists. The results are shown in

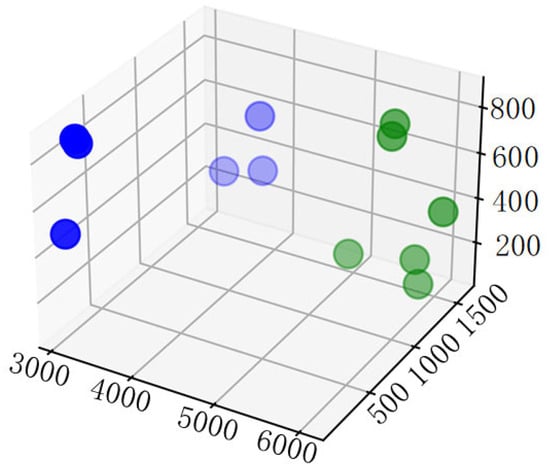

Figure 20. The blue dots represent task list 1, task list 2, task list 3, task list 6, task list 8, and task list 9 as a group. The green dots represent task list 4, task list 5, task list 7, task list 10, task list 11, and task list 12 as a group. The intelligent scheduling algorithm is used to solve each group of task lists, respectively. The solution path planning is shown in

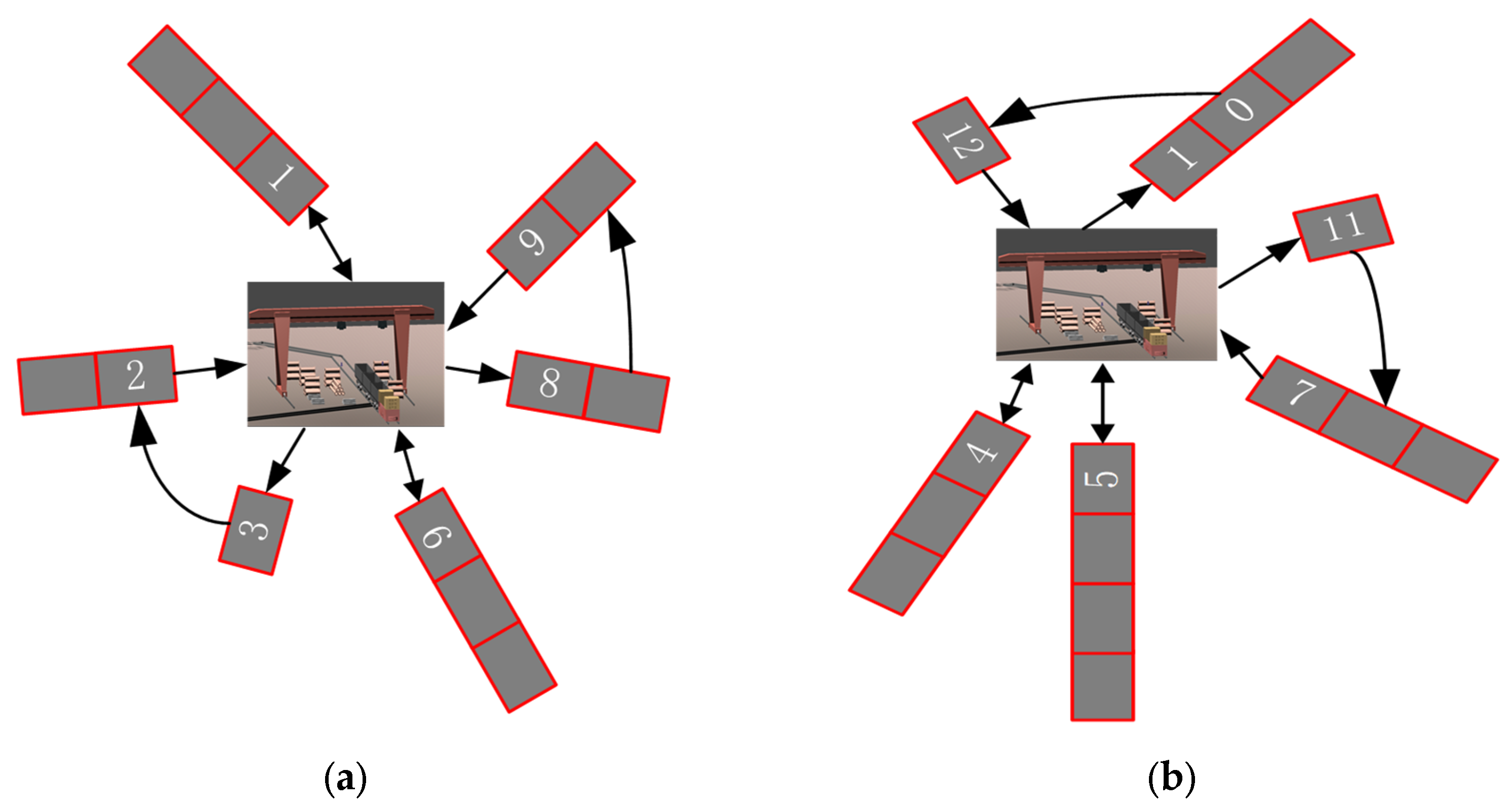

Figure 21, and the result is consistent with the result of the non-grouping solution. The 20 times solution time in the group of dual-layer genetic algorithm based on hierarchical clustering is counted, and the scatter diagram is drawn as shown in

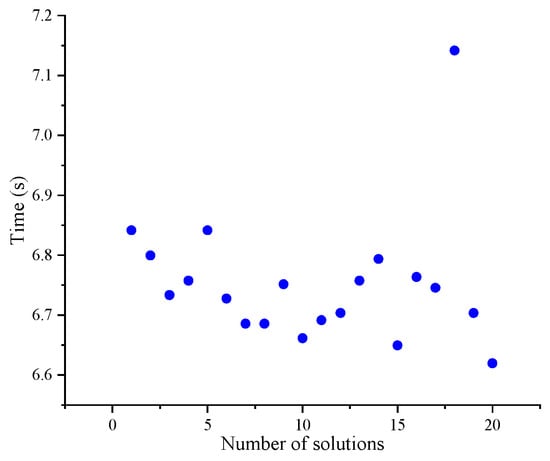

Figure 22. It can be seen from the diagram that the solution time is evenly distributed in the vicinity of 6.7~6.9 s, with an average value of 6.8 s. Compared with the dual-layer genetic algorithm, the solution time is reduced by 30%. In the actual distribution, the task list information is always updated in real time, so each time, one only needs to pay attention to the first set of results of the delivery time.
7. Conclusions
In an attempt to solve the problems of the low intelligent distribution degree and high working intensity of auxiliary transportation systems, an intelligent distribution strategy of coal mine auxiliary transportation materials is proposed based on the application of the unmanned driving technology of auxiliary transportation robots. Firstly, combined with the characteristics of materials and standard containers, a three-dimensional loading model is established with the goal of maximizing the space utilization of standard containers. The three-dimensional space segmentation heuristic algorithm is used to solve the material loading scheme. Compared with manual random loading, the maximum space utilization of standard containers increases by 18%, and the standard container occupancy decreases by 20%. Then, the multi-objective optimization model of distribution parameters is established with the shortest distribution distance, the shortest delay time, and the least distribution vehicles as the objectives, and the dual-layer genetic algorithm is used to solve the distribution scheme. The results show that in the case of having 2 robots available, compared with manual scheduling, the total distribution distance is reduced by 34% and the delay time is reduced by 100%, which has better performance. Finally, the spatiotemporal conversion coefficient is designed to solve the task list by hierarchical clustering, and the solution time is reduced by 30%, which improves the efficiency of real-time task list dynamic programming.
There are many kinds of materials and different forms in the distribution of auxiliary transportation systems. This paper mainly takes rectangular materials as the research object, and the next step is to study the combination loading method of round materials, such as oil and air ducts and rectangular materials. In addition, the dual-layer genetic algorithm based on hierarchical clustering is insufficient for the analysis of engineering applicability, such as robot failure, traffic congestion, and roof collapse. The decision-making results of the algorithm are still unknown and still need to be explored.
