1. Introduction
Induced polarization effects have been documented in induced sources since the late 1980s [
1,
2]. In 1996, Smith and Klein [
3] first identified these effects in airborne data. At that time, they were regarded as a special case and not to be generally considered when interpreting airborne EM data. Since that time, airborne systems have evolved, and system signal-to-noise ratios have dramatically increased so that induced polarization effects are routinely observed in the raw data ([
4,
5,
6,
7,
8], etc.). Indeed, we are now to the point where it has been shown that quantitative interpretation or inversion cannot be conducted accurately without including these effects [
9,
10].
The current topic of research is not whether there are IP effects in AEM data but how best to incorporate them into the interpretation schemes. For a zero offset time domain system, induced polarization is the only mechanism that can cause the vertical component of the response to become negative. Because of this, various metrics, such as the first channel to become negative or the integral of the negative part of the transients, have been used to estimate the magnitude of the induced polarization. These types of data space metrics can be used as a quick and dirty first look at the data to determine if induced polarization effects are present. Still, the lack of negative transients does not preclude polarizable media. Several methods that extend the interpretations to the model space include Kwan [
11], who presents a method where a global search is conducted for a best fit resistive and chargeable half-space, essentially developing maps of apparent resistivity and chargeability. Chen [
12] decomposes the observed decay curves into a resistive and a chargeable part to identify locations where IP is likely contained in the data. Macnae [
13] uses a set of thin sheets as basis functions to recover all Cole-Cole parameters and includes superparamagnetism as a bonus.
As with conductivity-only interpretation, much of the thrust has been moving towards the one-dimensional (1D) approximation, where for each transmitter–receiver location, the approximation is made that the Earth is laterally invariant for forward modeling and sensitivity calculations. This speeds up and simplifies the computations and is a form of regularization (stabilization) since the class of models recovered by the inversion is greatly simplified. Works conducted by [
7,
14,
15,
16] have all demonstrated the effectiveness of these inversion methods with good case histories. However, it is known that conductivity-only 1D inversions can create spurious results [
17], and including induced polarization will not change this. Additionally, the inline component of the dB/dt field, which has been shown to greatly reduce non-uniqueness and improve resolution in inversion results, cannot be used with the 1D approximation.
The first demonstration of using a full, rigorous 3D inversion of airborne data for IP parameters was given by Goold et al. [
18]. Using a numerical modeling study and field data inversion, the authors of this paper demonstrated the possibility of developing an airborne version of the spectral IP method. Kang and Oldenburg [
19] also used full three-dimensional models of the electric fields for recovering distributed IP information from an inductive source. This method produced excellent results over a known kimberlite [
8]. However, it is a multi-step process that uses early time data to build a conductivity model, which is forward modeled to synthesize the full decay, removes this decay from the observed data, and then inverts the residual for pseudo-changeability. This approach is robust, but the resistivity and chargeability are not truly separable, and early times are often influenced by polarizable media.
The paper by [
9] is an excellent overview of the effects of varying Cole-Cole parameters on the measured airborne response from a 1D perspective. For inversion purposes, the takeaway from this paper is that the inversion problem is highly non-linear and non-unique, more so than conductivity-only airborne inversion problems. Therefore, a knowledgeable processor, robust workflow, and reconciling the results with geology are of the utmost importance [
20]. This study of 1D modeling and inversion also shows that because of the limited bandwidth of airborne EM systems, the recovered time constant of chargeability is between 1 × 10
−2 and 1 × 10
−4 s. This result is in general agreement with [
13] and our personal experience.
The aforementioned papers make approximations with the modeling physics, dimensionality, or both to recover a subsurface physical parameter model. Cox et al. [
10] developed a method of full 3D simultaneous inversion for conductivity and other IP parameters based on the generalized effective medium theory of the IP effect GEMTIP [
21]. In that paper, the integral equation (IE) method was used for 3D modeling. Here, we extend the modeling and inversion code to use a hybrid finite difference (FD) and IE modeling scheme and develop a new methodology to reduce the chance of being trapped in a local minimum in the parametric functional. We create a more robust result by building up the model dimensionality step-by-step. Our workflow progresses from apparent resistivities and polarization parameters to 1D inversion and to full 3D inversion. If the 1D results are sufficient to fit all components of the data, the 3D modeling will reveal this. If the model does not fit the data, as is nearly always the case, the 3D inversion will adjust the model to fit the data, but with a minimum departure from the 1D inversion results to accomplish this, as dictated by the stabilizer. All data from the AEM system, including all time channels and components (inline and vertical), contribute to this 3D modeling and inversion process and are fitted in this methodology.
The recently developed TargetEM active airborne EM system data are used for the case history. This system was developed to image discrete conductors and layering. The system prioritizes precise, detailed analysis through a combination of low noise, robust power, and a zero-offset transmitter–receiver setup. By using cutting-edge electronic components and incorporating a sophisticated suspension system within the receiver complemented by a bucking coil designed to compensate for the direct impact of the primary field, the system achieves a higher than ordinary signal-to-noise ratio. The transmitting pulse features a rectangular waveform with a short turn-off time providing a clean secondary field response.
2. Methods
2.1. TargetEM System Description
TargetEM represents an innovative airborne electromagnetics system currently under patent review. It employs full waveform recording at a rate of 73,728 Hz. The system achieves a maximum dipole moment of 700,000 NIA (number of turns multiplied by the peak current and multiplied by the transmitter area), depending on the transmitter loop’s diameter and the number of turns. Typically, the loop diameter ranges from 21 m to 31 m, with a base frequency of either 25 or 30 Hz, depending on the local powerline frequency. The system measures inline, crossline, and vertical dB/dt data (with processed B-field data also provided), within a time range spanning from 40 µs to 14 ms post-turn-off, varying with the base frequency and transmitter pulse width. It operates with a triaxial dB/dt receiver located in the center of the horizontal transmitter loop, with a bucking coil collecting both VLF and AFMAG data alongside the time-domain EM data [
22].For this survey, a loop of 21 m was used. The data were processed to 37 Z component channels from 41 μs to 8.2 ms and 21 X component channels from 514 μs to 8.2 ms (centers after waveform turn off). The waveform is a trapezoid with a peak current of 240 A. The turn-off time is 1.0 ms. All time channels and components were used in the inversion. The units of the system are pV/Am
4. This is the same as pT/sAm
2, or equivalently, the time derivative of the magnetic field normalized by the transmitter dipole moment.
2.2. Induced Polarization Parameterization
For apparent model parameters, 1D inversion and 3D inversion, modeling occurs in the frequency domain. The fields are transformed to the time domain with a cosine transform and then convolved with the time derivative of the instrument’s current waveform to arrive at the time domain response [
23]. This approach facilitates the inclusion of flexible induced polarization (IP) parameterization within the modeling and inversion processes. The simplified GEMTIP model [
21] is used, which is similar to the Cole-Cole model [
24] and is utilized to parameterize induced polarization effects:
where
is the DC conductivity (S/m),
ω is the angular frequency (rad/s),
τ is the time constant;
is the intrinsic chargeability, and
C is the dimensionless relaxation parameter. The dimensionless intrinsic chargeability, η, characterizes the intensity of the IP effect.
2.3. Model Discretization
For both 1D and 3D methods, a 3D model is discretized into voxels horizontally and vertically. Typically, 25 m cells are used in the inline direction, and 25–50 m cells are used in the crossline direction. Vertically, around 20 cells are logarithmically spaced from 3 m to 70 m. The discretization of the model can, of course, be adjusted with varying systems, geology, time gates, line spacings, etc., to capture the full resolution of the system. It can also be changed on each increase in modeling dimensionality with interpolation, but the important fact is that a 3D volume of stabilized model parameters is used during each step, ensuring a coherent model.
2.4. Global Search for Apparent Parameters
A global search is first performed on the vertical component decay of each sounding location to find the best fitting GEMTIP parameters (conductivity, chargeability, time constant, relaxation coefficient) for each location. These are equivalent to “apparent” parameters. The best-fit determination uses weighted data, where each datum is weighted by the inverse of the estimated error:
where
is the total error,
is the estimated percent error, and
is the estimated absolute error. Data with a magnitude less than 1/3rd of the error floor are rejected completely. For this survey, the data errors were estimated to be 10% of the observed value plus 0.003 pV/Am
4 for the Z channel and 0.01 pV/Am
4 for the X channel. These should not necessarily be taken as actual data error but estimates that produce the best inverse images and visual data fit at an RMS = 1. These errors include system noise and errors from sources such as incorrect altitude and instrument tilt. The best-fit parameters are interpolated onto the discretized 3D grid. This forms the starting and reference model for the 1D inversion.
2.5. Inversion Method
Both the 1D and 3D inversions attempt to minimize the parametric functional [
25]:
where
is the data weighting matrix,
is the forward modeling operator,
is a stabilizing functional, and
is the regularization parameter. Equation (3) is minimized with the reweighted regularized conjugate gradient (RRCG) method, as described in [
26]. The practical implementation of the RRCG method requires effective algorithms for forward modeling and sensitivity (Fréchet derivative) calculations. Below, we discuss the corresponding techniques used for 1D and 3D inversions.
2.6. One-Dimensional Modeling and Inversion
The 1D modeling uses the layered Earth expressions from [
27] to find the vertical component of the frequency domain field (the inline and crossline components are null and cannot be used in 1D inversion). The 1D sensitivities for inversion are found via perturbation of the DC conductivity, and then the sensitivities for the GEMTIP parameters are found via the chain rule from the analytical derivatives of Equation (1), so almost no additional computation time is required to fully include induced polarization in the modeling and sensitivity calculation [
10]. While the sensitivities are 1D, the mesh on which the inversion operates is 3D. Hence, the stabilizers are 3D, which is similar to the laterally or spatially constrained inversion of [
28]. A variety of stabilizers
could be used in any combination, including minimum norm, first or second derivatives, and focusing [
25]. Here, we are using a second derivative stabilizer for all inversions.
The 1D inversion is run to the approximate error level in the data (normalized RMS = 1). As with all inverse problem solutions, many inversions are run with different parameters to determine the robustness of the model and to select the parameters that best allow data fit, convergence, and a geologically reasonable model. For example, between 16 and 30 layers are used in the 1D inversion. The exact number depends on the target (e.g., is resolving variable overburden thickness important?), the system resolution (how early are instrument time samples valid?), and what is required to fit the data properly.
2.7. Three-Dimensional Modeling and Inversion Using Hybrid Finite Difference and Integral Equation Method
We use the 1D inversion results to create a starting and reference model for the 3D inversion. The model from the 1D inversion undergoes a smoothing process through convolution using a boxcar function, which matches the lateral extent of the instrument’s sensitivity domain (footprint). This approach is rooted in the idea that within the instrument’s footprint, where the Earth displays lateral uniformity, the 1D approximation generates reasonable models. Consequently, smoothing in these regions does not significantly alter the model. However, when the lateral variations are pronounced, the 1D inversion tends to present artifacts and inaccurate geometry and conductivity differences that are too weak. In such instances, smoothing the 1D model establishes general regional conductivity, serving as a background and starting model for the subsequent 3D inversion.
The 3D modeling and sensitivity calculations are based on the hybrid finite difference (FD) and integral equation (IE) method [
29,
30]. This technique employs an anomalous field formulation where the total field is split into background and anomalous fields,
The anomalous electric field,
in the frequency domain is related to the background electric field,
according to the following second-order differential equation:
where
and
represent the total and anomalous electric conductivities of the medium, respectively.
Equation (5) is discretized on the staggered grid and is solved using the conventional finite difference technique [
30,
31]. Calculating the anomalous field with an equivalent source, represented by the right side of Equation (5), sidesteps issues linked to discretization problems from discrete sources. This method also streamlines the process of using complex sources, such as a loop versus a vertical dipole or an arbitrarily oriented dipole. Widely referenced in EM modeling literature, this approach is adaptable across various methods like FD, finite volume, finite element, or IE methods [
32].
We employ the Paradiso direct solver [
33] to solve for multiple sources and their adjoint counterparts efficiently. The advantage of a direct solver is that the left-hand side of Equation (5), which is independent of the source, can be decomposed once, and then solutions for multiple right-hand sides can be solved with little additional effort. This is especially advantageous for airborne EM modeling and inversion because there are a very large number of sources (transmitter positions) and adjoint sources (receiver positions and components), each with a unique right-hand side. Solving these iteratively has proved challenging from a computation time perspective because each source requires a completely independent solving run.
Once the anomalous field is calculated, the fields at the receivers must be found. To speed up and stabilize the computations, we use the approach generally reserved for the IE method to calculate the magnetic fields at the receivers. The anomalous magnetic fields at the receiver position,
, can be expressed as an integral over the excess currents in the inhomogeneous domain
D:
where
is the magnetic Green’s tensor defined for an unbounded conductive medium with the background (horizontally layered) anisotropic conductivity;
is the total electric field at the point
inside the domain, and
is the anomalous (scattered) magnetic field at receiver
.
The inversion is run using the RRCG method for conductivity, chargeability, time constant, and relaxation parameter, as outlined by [
10]. The sensitivities are found using reciprocity for the DC conductivity, and then the sensitivities for the GEMTIP parameters are found using the chain rule (analytic derivatives of Equation (1)).
In summary, the methodology for the 3D inversion of airborne data consists of the following steps:
- 1.
Determine the best-fit polarizable half-space for each transmitter–receiver pair, including conductivity, chargeability, time constant, and relaxation coefficient;
- 2.
Grid the best-fit half-spaces into a 3D voxel model;
- 3.
Use this as a starting point for inversion based on a one-dimensional (1D) approximation;
- 4.
Smooth the 1D inversion results;
- 5.
Run the 3D inversion using the smoothed 1D inversion results as a starting and reference model.
All inversions in this example were run on a standard desktop with 64 GB of RAM and an Intel 3.7 GHz Quad Core I7. The main language is MATLAB R2023b, utilizing the parallel computing toolbox to speed up certain blocks. Generally, using a relatively polished workflow, the full inversion process takes a few hours from start to finish.
4. Discussion
The inverse problem of recovering conductivity models from time domain AEM data is an ill-posed problem, meaning that it is non-unique and unstable [
32,
35]. With the inclusion of the IP effect, up to three more unknown parameters (chargeability, time constant, relaxation coefficient) are added to the inverse problem, exacerbating the ill-posedness. Performing the inversion in 3D also expands the subset of models that will fit the data. In this case, including a polarizable model was required to fit the data to the noise level, with RMS values of only 1.5 being reached (instead of 1) when a non-polarizable conductivity was used. A 3D model was also required to fit the X component data and extract information from this component.
One-dimensional inversion, typically used because it simplifies the forward modeling and decreases computational time and memory requirements of inversion, is also a form a regularization. This helps to reduce the model space and non-uniqueness of the inversion. It also allows more efficient exploration of the 1D class of models, data error levels, and regional conductivity structures. Conductive overburden, layering, and regional background conductivities are well developed with the 1D model. There are two major drawbacks to the 1D inversion method: (1) no inline (or crossline) component data is used, which essentially ignores the half of the collected data that offers the best lateral resolution, and (2) a comparison of the synthesized data to the observed data is not a measure of the correctness of the model [
17]. In other words, the data synthesized from the 1D inversion do not accurately represent the model portrayed as a stitched 3D section. Three-dimensional modeling must be performed to see an accurate representation of the stitched 3D model response.
The developed methodology builds the 3D conductivity and polarizable model in a series of steps, which optimize the use of apparent values and 1D inversions, then takes the final step of including inline data in the inversion. For example, in our case study, we believe the western anomaly would not be properly resolved with any method using only the vertical component of the data. Many local minimums in the model recovery process are avoided by starting with a smoothed model from 1D inversion. By virtue of the 3D modeling, the synthesized data can be used to evaluate the validity of the final recovered model. While the inversion attempts to fit all collected data within the noise level, deviations are often seen, such as near 493,700 mE in the late time inline component of the final inversion (

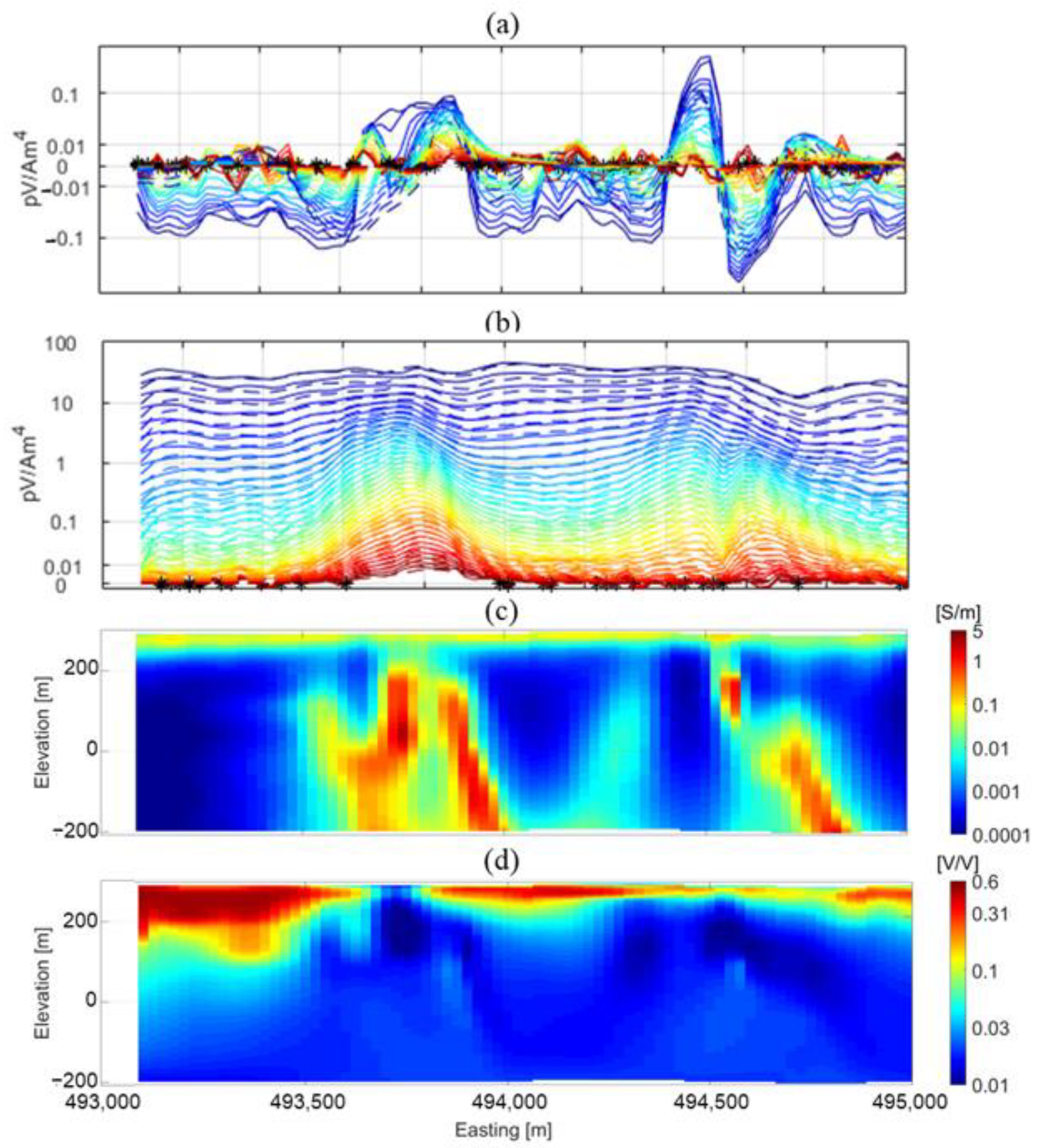

Figure 5a). This allows quantitative evaluation of the developed model, and if the data do not fit adequately, one can perform additional inversions to fit the data better or at least realize that the model is incomplete.
