Copper, Zinc, and Lead Recovery from Jarosite Pb–Ag Tailings Waste (Part 2)

Abstract

The present paper describes the technological solution for obtaining Cu, Zn, Pb, and Ag from jarosite waste raw material, with its simultaneous separation from In and Fe. By roasting at low temperatures, iron was transformed from the Fe₂(SO₄)₃ form into Fe₂O₃, which is insoluble in water and slightly soluble in acid. Copper sulfate and zinc sulfate are present in jarosite as sulfates. During temperature roasting, the copper and zinc were still in the form of CuSO₄ and ZnSO₄, i.e., they were easily dissolved in water. This procedure led to good selectivity of Cu and Zn compared to Fe. After water leaching, PbSO₄ and Ag₂SO₄ remained in the solid residue. By treating jarosite with a content of 0.7% Cu, 5.39% Zn, and 5.68% Pb, products of commercial quality were obtained. By roasting jarosite in an electric furnace and leaching the roasted sample in water, leaching degrees of 91.07%, 91.97%, and 9.60% were obtained for Cu, Zn, and Fe, respectively. Using 1 M NaOH in the leaching solution, 99.93% Fe was precipitated to pH = 4. Cu in the form of CuSO₄ was further treated by cementation with Zn, after which cement copper was obtained as a commercial product. Zn in the form of ZnSO₄ was further treated by precipitation with Na₂CO₃ to obtain ZnCO₃ concentrate of commercial grade. The total recovery of Pb and Ag, which were treated by chloride leaching, was 96.05% and 87.5%, respectively. The resulting NaPbCl₃ solution was further treated with Na₂CO₃ solution, whereby PbCO₃ was obtained as a commercial product. The produced PbCO₃ could be further subjected to roasting to obtain soluble PbO. In these investigations, PbCO₃ was smelted where a Pb anode was obtained; this was electrolytically refined to a Pb cathode. The proposed process does not pollute the environment with As and Cd.

1. Introduction

The demand for increasing metal production and decreasing grades of primary mineral deposits has led researchers to seek alternative methods of pyrometallurgical processing. There has been an increasing share of hydroprocessing plants for secondary raw material treatment since the 1990s [1]. One of these secondary raw materials is jarosite which, in its precipitation process, loses significant amounts of copper, zinc, lead, and silver [2]. The first three are widely used in various branches of the industry. Lead and zinc play important roles in human lives and are widely used in lead–acid batteries, galvanization, rolled and extruded products, alloys, pigments, brass and bronze, and chemicals [3,4,5]. Erdem et al. [6] and Turan et al. [7] conducted important studies on jarosite (zinc plant residue) as a raw material, with the main goal being the recovery of Pb and Zn from jarosite. The demand for lead and zinc increases every year, and by 2050, it will be measured in millions of tons [8]. New lead–zinc deposits have not been discovered in recent years, and exploring the new sources of these metals will be a challenge. Considering that primary ore deposits have been exhausted, secondary raw materials have been gaining increasing importance. The uncertainty surrounding the behavior of jarosite waste has spurred the implementation of metallurgical procedures. Lead is a toxic metal and is discharged as a by-product from different types of industries [9,10,11]. The presence of lead in water resources can cause diseases such as hepatitis and anemia [12,13,14,15]. Researchers have proposed diverse methodologies for recovering valuable minerals from these wastes. Where pyrometallurgical treatment was the primary treatment of such kinds of waste in the past, ecological hydro- and biotechnological procedures are now being increasingly applied. The advantages of the hydrometallurgical technique include high metal recovery, higher tolerance towards impurities, modularity, flexibility, lower energy consumption, and lower capital and operative costs. Several attempts have been made to decompose jarosites using sulfuric acid, hydrochloric acid with the addition of calcium chloride, ammonia, and sodium or calcium hydroxides [16,17,18,19]. Obtaining metal from waste of any kind, solid or liquid, is of great importance [20,21]. Obtaining useful metals from waste can be more energy efficient, economical, and ecological. The opening of new mines requires large investment (connection to infrastructure, excavation, transport, etc.), and, considering that the reserves of useful metals have been depleted in existing mines (low concentrations of metals in the ore) and that their exploitation is unprofitable, the world is increasingly tending to use available resources, such as tailings and other waste.

Various studies have been conducted on the treatment of jarosite, including the following: the co-precipitation of copper and zinc with lead jarosite [22]; the cyanidation of argentian potassium jarosite in alkaline media [23]; sodium arsenojarosite decomposition in alkaline media [24]; the release of arsenic and antimony in alunite–jarosite and beudantite group minerals [25]; the alkaline decomposition of ammonium–sodium jarosite with arsenic [26]; and the thermal decomposition of jarosites with potassium, sodium, and lead [27].

Considering that waste contains harmful and useful metals, and because it is important to add value to useful metals, a new, environmentally acceptable method for the extraction of these useful metals should be proposed.

Our initial studies were focused on the application of different types and conditions of leaching [28], where, in addition to the metals Cu, Zn, and In, more than 80% of Fe was leached. For this reason, further experiments were carried out to convert Fe into insoluble hematite through roasting and water leaching, and to selectively extract Cu, Zn, and In in this way. The roasting and leaching conditions, with selected parameters, are presented in the paper “Indium Recovery from Jarosite Pb–Ag Tailings Waste Part 1” [29].

The roasting of jarosite was conducted at three different temperatures: 530 °C, 570 °C, and 630 °C. The results show that almost all the iron was transformed into hematite in the sample fired at 630 °C, whereas in the samples fired at 530 °C and 570 °C, part of the iron remained in the form of magnetite. Subsequent leaching of the precipitates revealed that the greatest leaching of useful metals was achieved by leaching the precipitates obtained at 530 °C. Copper sulfate and zinc sulfate are present in jarosite as sulfates. They decomposed at 600 °C and 740 °C, respectively. For this reason, at the selected drying temperature, they remained in the form of sulfates that are easily leached in water.

Jarosite Pb–Ag sludge was formed at the Elixir Zorka factory in Šabac, Serbia, and is a valuable residue obtained by leaching with hot acid.

This work represents significant technical support for the valorization of Cu, Zn, Pb, and Ag from jarosite waste and for obtaining products (cement Cu, ZnCO₃, PbCO₃, and Pb) of commercial quality.

2. Materials and Methods

Analytical Determinations

The acidity of the leach solution was measured using a combined pH electrode Aqua Lytic SD300, produced in Germany. The concentration of zinc, copper, iron, lead, and silver in solution was measured using absorption spectrometry (Perkin-Elmer 403) with a spectrometer produced in the USA. An optical laser particle size analyzer (MASTERSIZER 2000, Hydro2000MU, UK) was used to determine the particle size distribution of the products.

XRD analysis was performed using a “PHILIPS” X-ray diffractometer (Netherlands, model PW-1710/1820, with a curved graphite monochromator and a scintillation counter. The intensities of diffracted CuKα X-ray radiation (λ = 1.54178 Å) were measured at room temperature in intervals of 0.02° (2θ), with a time of 1 s, over a range from 4 to 65° (2θ).

Electron microscopy method: The sample was coated with gold (20 nm layer, density 2.25 g/cm³). The textual part was accompanied by electron micrographs and SEM chemical spectra. SEM model: JEOL JSM-7001F—Magnification X 5-1,000,000 (Japan).

The reduction melting of PbCO₃ was performed in the electric furnace by FIOA, Italy.

3. Results and Discussion

3.1. Chemical and Mineralogical Analysis of Jarosite

Homogenization was performed and a representative sample was sent for chemical and mineralogical analysis. The chemical analysis of the sample is shown in

Table 1. Chemical analysis of the Pb–Ag jarosite sample.

Element	Cu %	Zn %	Fe %	Ag %	Pb %	In %	S %	N2 %	H2 %	C %
Content	0.7	5.39	30.61	0.034	5.68	0.0343	9.61	1.315	1.670	0.126

.

The diffractogram obtained from the XRD analysis of the jarosite waste sample is shown in [29]. The presented minerals are jarosite in the form of NH₄Fe₃(SO₄)₂(OH)₆, magnetite in the form of Fe₃O₄, and anglesite in the form of PbSO₄.

There is a possibility that Zn is in the jarosite structure. The detection limit is about 1%. Jarosite and magnetite raise the baseline of the diffractogram because they contain a large proportion of Fe, which creates secondary fluorescent radiation that is scattered everywhere. As a result, the detection limit is higher than 3–5%, meaning that crystalline phases containing Zn may be below the detection threshold.

There is a possibility that zinc is present in the form of an amorphous substance that cannot be detected.

Magnetite belongs to the spinel group, so the presence of other minerals from the spinel group that have peaks that coincide with magnetite is also possible. Therefore, there is a possibility that zinc minerals in the sample may be present in the form of zinc-ferrite, franklinite, and granite.

3.2. Roasting and Leaching of Jarosite Pb–Ag Deposits

Detailed laboratory tests of the combined process, which includes roasting the jarosite Pb–Ag sample and leaching the resulting product (calcine), were performed. The results are presented in [29]. The accepted treatment parameters for Pb–Ag jarosite sample include roasting for 4 h at a temperature of 530 °C and leaching of the calcine with water at a solid–liquid phase ratio of 1:5 for 1 h, during which high leaching of the examined metals and low iron leaching obtained Cu and Zn. The conditions of the combined process and the obtained results of percentage metal leaching are shown in

Table 2. Conditions for the jarosite roasting and leaching process.

Roasting Time 4 h			Leaching with H2O (Solid–Liquid = 1:5), t = 1 h and pH after Leaching	Recovery
Sample Mass (g)		Roasting Temperature (°C)	pH	Cu %	Zn %	Fe %
1.	100	530	2.25	91.07	91.97	9.60

.

From Table 2, it can be seen that under the applied conditions of roasting and leaching, the recovery amounts of Cu, Zn, and Fe were 91.07%, 91.97%, and 9.6%, respectively. It can also be observed from the results that after the roasting of jarosite and the leaching of the calcine in water, the measured pH of the solution was 2.25.

After leaching, Pb and Ag remained in the solid leach residue.

3.3. Treatment of Sulfate Solution

A sulfate solution containing Cu, Zn, Fe, and In was treated to separate the metals. During the precipitation phase, the pH level was controlled and maintained at 4 using a concentrated NaOH solution. The detailed procedure is described in [29].

3.4. Cementation of Cu from the Solution after the Precipitation of Fe

After precipitation, the macro-components Cu and Zn remained in the solution, which were present in the solution in the form of sulfates, specifically CuSO₄ and ZnSO₄, respectively. To selectively extract copper from the solution, cementation was performed at a pH of 2 with zinc powder, a metal that is more electronegative than copper. The necessary amount of zinc for the cementation process was calculated based on the stoichiometrically required amount with 50% excess. The process of cementation, during which copper is converted into cement slurry, takes place according to reaction (1).

CuSO₄ + Zn↓ → ZnSO₄ + Cu↓

(1)

The obtained cement copper was washed, dried, and subjected to chemical analysis. Characterization of the obtained cement copper showed that the metal content in it was as follows: Cu = 75.97%, Zn = 7.31%, Fe = 0.005%, In < 0.095%, S = 1.9%, Ga < 0.002%, Ge < 0.002%, Ag = 0.042%, and Pb = 0.06%.

In the leaching phase, copper was not completely leached but was recovered at 91.07%, which means that the loss in this phase was 8.93%.

Copper losses occurred during indium precipitation and copper cementation, amounting to 11.3%. During the precipitation process, approximately two-thirds of the total 11.3% of Cu remained trapped (occluded) in the precipitate and the remaining one-third of the total 11.3% was not fully cemented because the cementation process was never completed.

The product Cem Cu was offered to the ZiJin Copper Bor Srbija smelter. The limiting factors for product quality were as follows: 3% moisture content, up to 5% Pb, up to 8% Zn, and granulometric composition for treatment in the smelter.

The offered product was accepted by the company for further processing and to obtain cathodic copper.

3.4.1. Granulometric Analysis of Cement Copper

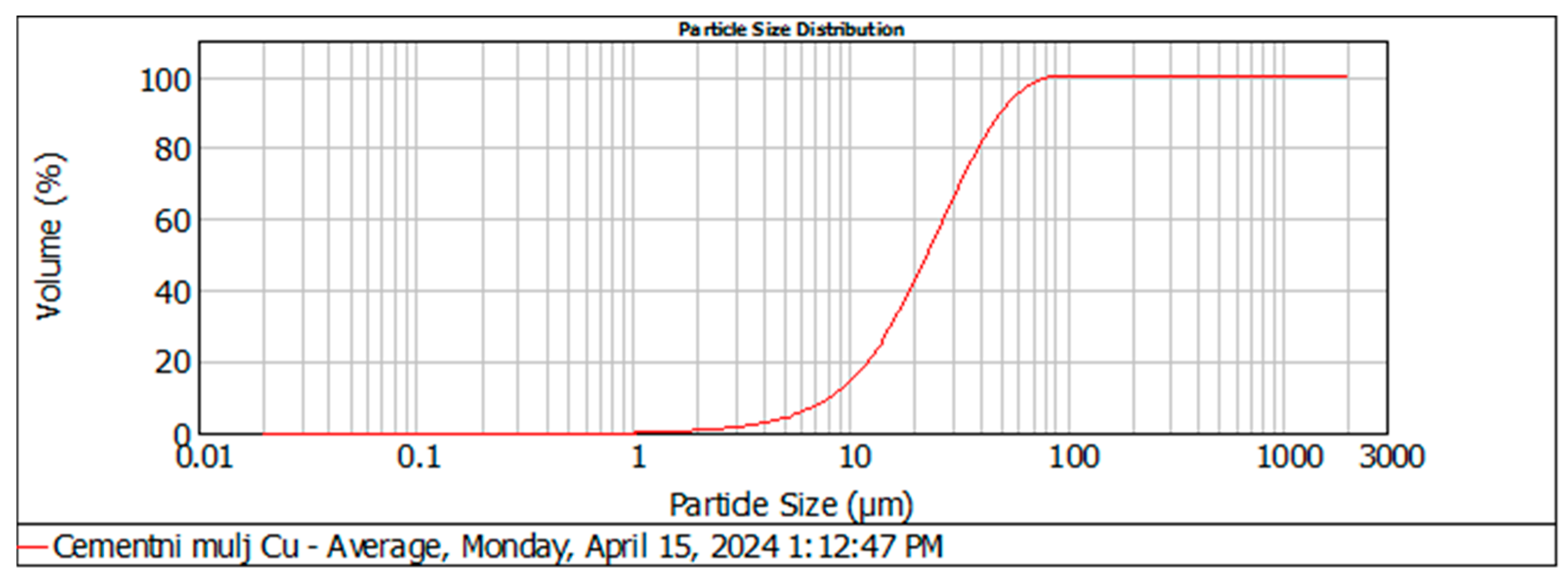

A granulometric analysis of cement copper was performed, and the results are shown in Figure 1.

From the results of the granulometric composition of the sample, it can be observed that the size class of 50.258 μm is represented by 90%, the size class of 23.019 μm is represented by 50%, and the size class of 8.157 μm is represented by 10%.

3.4.2. SEM-EDS Analysis of Cement Copper

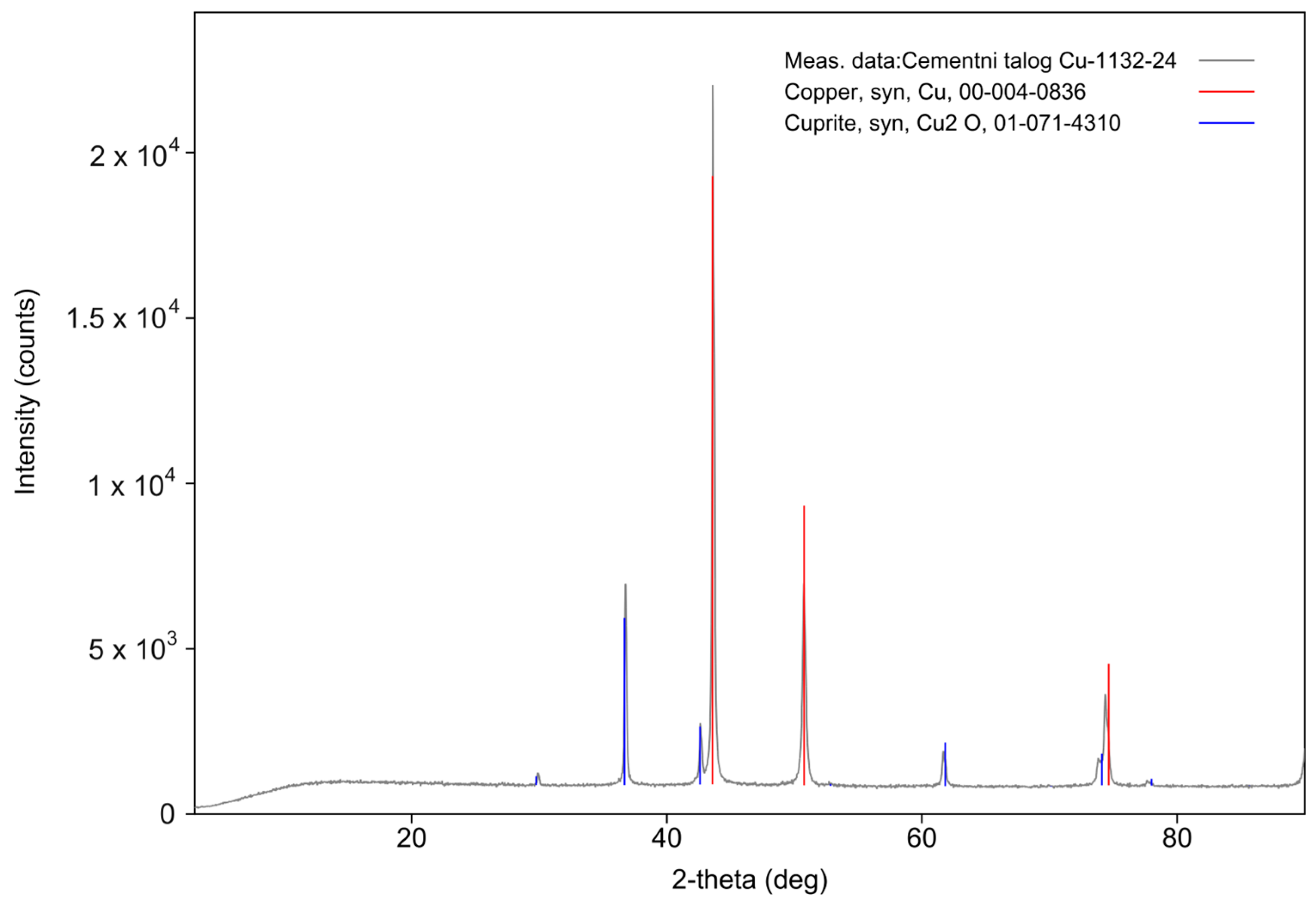

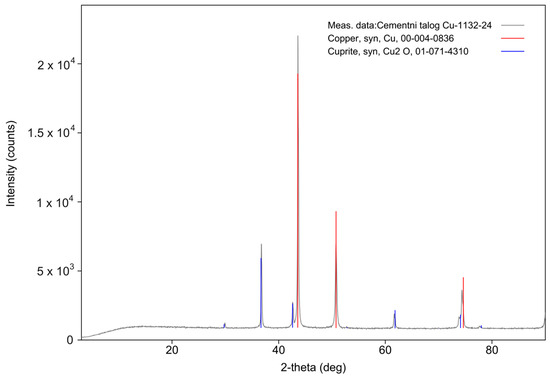

The diffractogram of Cu cement samples is shown in Figure 2. Copper (Cu) and cuprite (Cu₂O) crystalline phases were identified in the Cu cement sample. Copper is more present in the sample than cuprite.

The presence of the elemental copper crystalline phase was determined in the analyzed sample. The sample was very homogeneous. The elemental copper content was much more present, whereas the rest was copper oxide. Photomicrographs of the tested sample are shown in Figure 3.

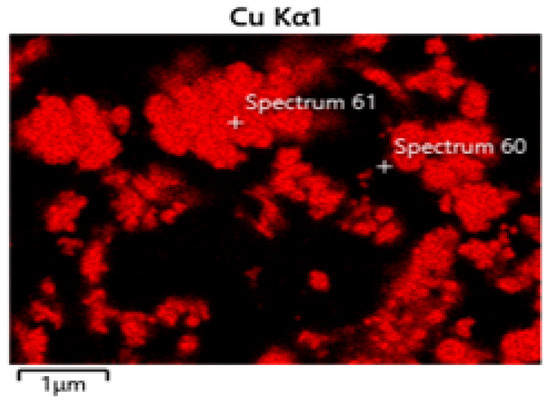

Figure 4 shows the chemical spectrum of spectrum 61, which was mapped using photomicrograph 3.

Table 3. Chemical composition from Figure 4 (spectrum 61).

Spectrum 61
Element	Line Type	Weight %	Weight % Sigma
Cu	K series	100.00	0.00
Total		100.00

presents the results of the chemical analysis of the summary spectrum of the cement copper sample.

Figure 5 presents the mapping of the entire surface of the sample, highlighting the distribution of the copper element.

3.5. Precipitation of ZnCO₃ from the Solution after the Cementation of Cu

After copper cementation, the solution was filtered and prepared to obtain ZnCO₃ from ZnSO₄. The pH value of the solution after Cu cementation was measured as 2.84. The precipitation of Zn as ZnCO₃ was achieved by adding 10% Na₂CO₃ solution until the pH reached 8. The precipitation process of Zn as ZnCO₃ occurs according to reaction (2).

ZnSO₄ + Na₂CO₃ → ZnCO₃↓ + Na₂SO₄

(2)

The resulting zinc carbonate was washed, dried, and subjected to chemical analysis. Characterization of the obtained zinc carbonate showed the following composition: Zn = 52.22%, Cu = 0.26%, Fe = 0.84%, Pb = 0.002%, Ag < 0.001%, S = 2.24%, and In < 0.002%.

The obtained ZnCO₃ product, along with the presented analysis, was offered to KCM Bulgaria Company. The company itself analyzed the product and determined that the content of As and Cd metals was <0.001% and 0.14%, respectively, and that the quality of the product met their needs. The offered product was accepted by the company for further processing and to obtain cathodic zinc.

3.5.1. Granulometric Analysis of ZnCO₃

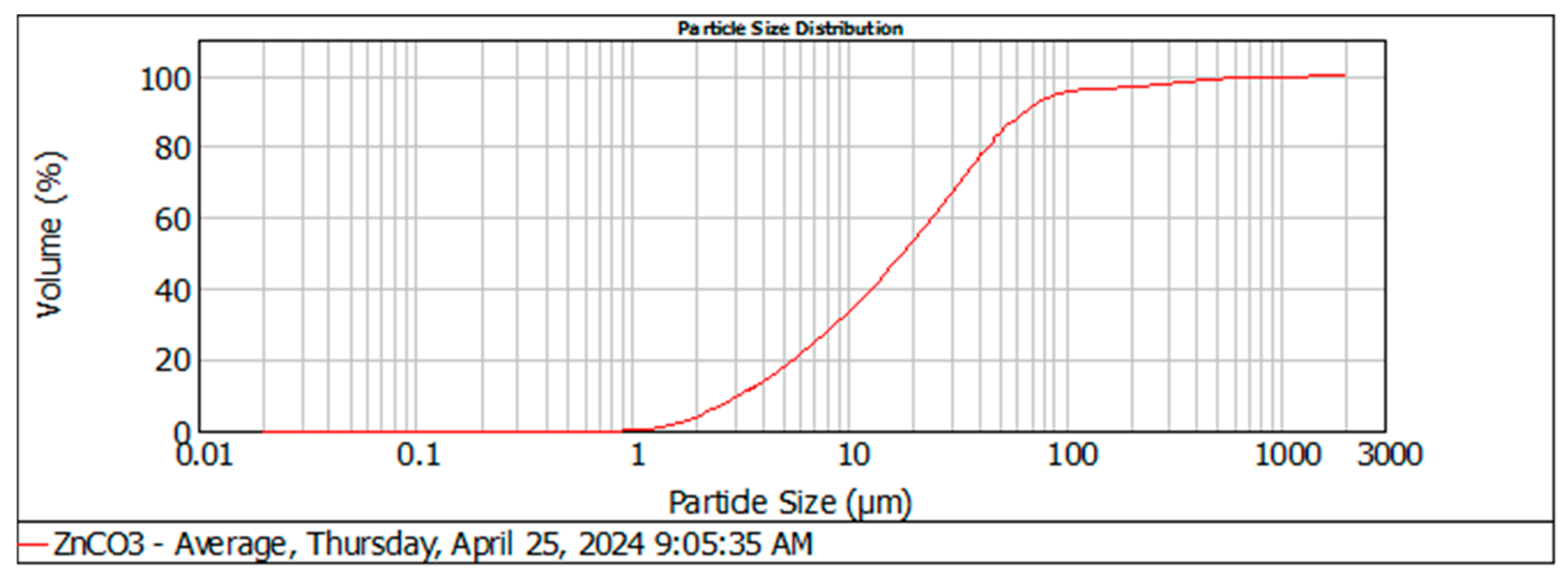

A granulometric analysis of zinc carbonate was performed, and the results are shown in Figure 6.

From the results of the granulometric composition of the sample, it can be observed that the size class of 65.035 μm is represented by 90%, the size class of 18.052 μm is represented by 50%, and the size class of 3.214 μm is represented by 10%.

3.5.2. SEM-EDS Analysis of ZnCO₃

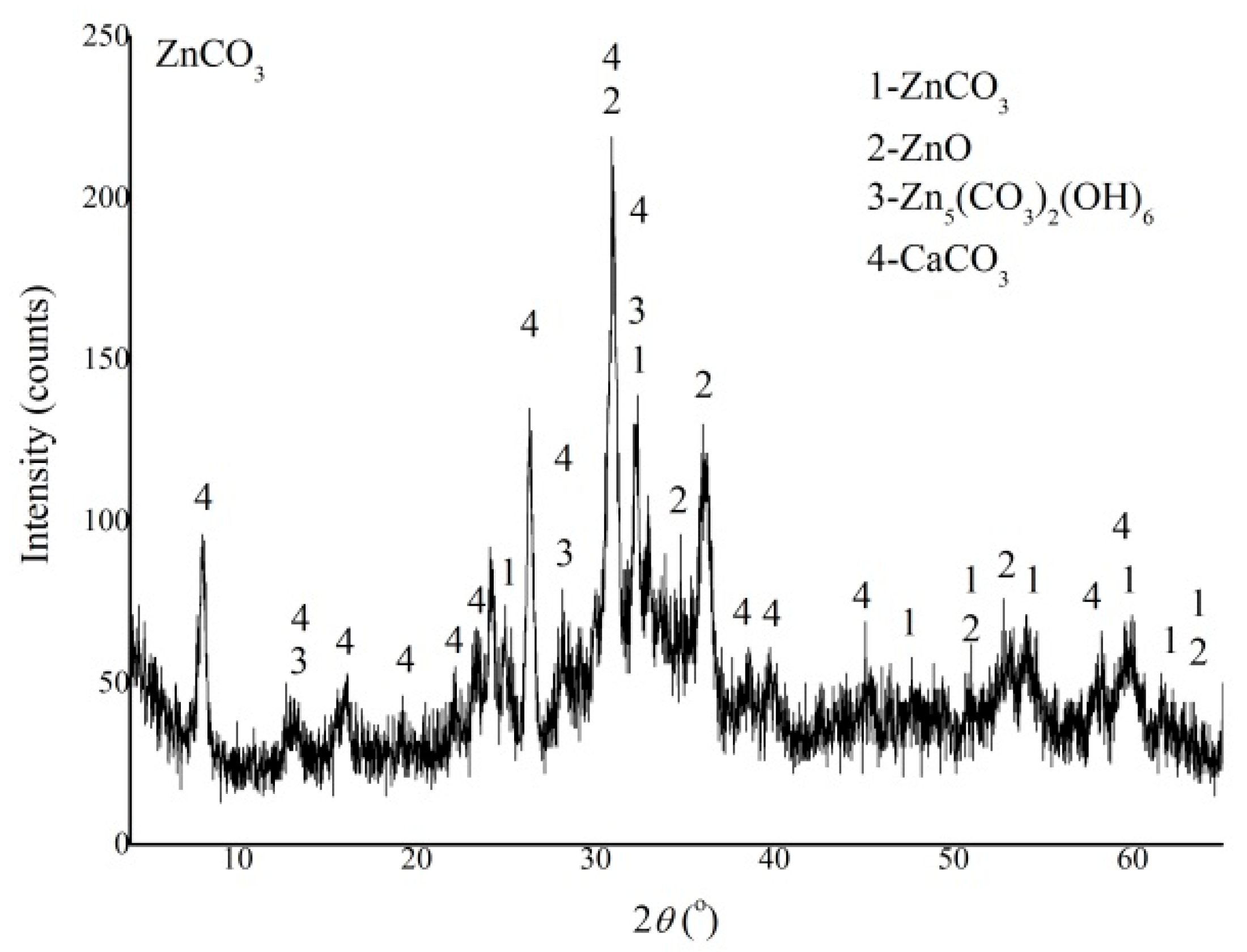

The diffractogram of the following crystalline phases was determined in the analyzed sample and is presented in Figure 7, including ZnCO₃, ZnO, Zn5(CO₃)₂(OH)₆, and CaCO₃.

A photomicrograph of the tested sample is shown in Figure 8.

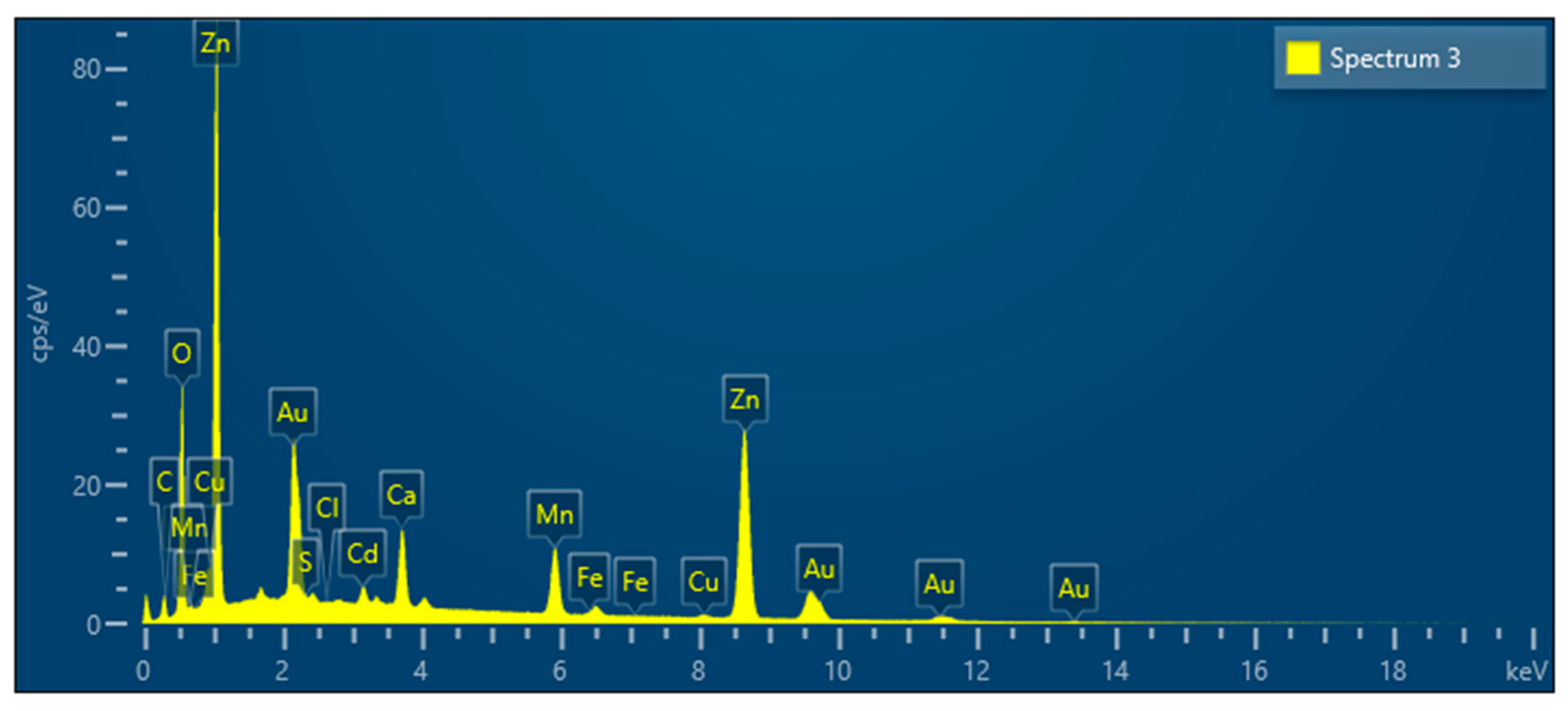

Figure 9 shows the chemical spectrum of spectrum 3, which was mapped using photomicrograph 8 of the analyzed sample.

Table 4. Chemical composition from Figure 9 (spectrum 3).

Spectrum 3
Element	Line Type	Weight %	Weight % Sigma
C	K series	15.73	0.67
O	K series	29.15	0.28
S	K series	0.07	0.03
Cl	K series	0.02	0.02
Ca	K series	2.92	0.04
Mn	K series	5.37	0.07
Fe	K series	0.05	0.03
Cu	K series	0.51	0.05
Zn	K series	44.66	0.39
Cd	L series	1.52	0.06
Total		100.00

shows the results of the chemical analysis of the spectrum of the zinc carbonate sample.

3.6. Characterization of the Solution after the Precipitation of ZnCO₃

The characterization of wastewater after ZnCO₃ precipitation is shown in

Table 5. Characterization of wastewater after ZnCO₃ precipitation.

Parameter	Unit of Measure	Test Result	Emission Limit Value
pH		8.0	6.5–9.5
Chemical consumption of oxygen	mg/L	7.34	1000
Biochemical consumption of oxygen	mg/L	24	500
Total inorganic nitrogen N (NH3-N, NO3-N, NO2-N)	mg/L	1.15	120
Total nitrogen, N	mg/L	1.472	150
Ammonia, NH4-N	mg/L	0.37	100
Precipitable substances after 10 min	mg/L	<0.2	150
Phosphorus, P	mg/L	<0.03	20
Extract with organic solvents	mg/L	<0.05	50
Mineral oils	mg/L	<0.05	30
Total salts	mg/L	142	5000
Phenols	mg/L	<0.1	50
Sulfates, SO42−	mg/L	83.7	400
Chlorides, Cl−	mg/L	9.47	30
Fluorides, F−	mg/L	1.30	50
Sulfides, S2−	mg/L	<0.005	5
Arsenic, As	mg/L	<0.02	0.2
Copper, Cu	mg/L	0.009	2
Barium, Ba	mg/L	<0.009	0.5
Zinc, Zn	mg/L	0.196	2
Iron, Fe	mg/L	<0.007	200
Chrome, Cr	mg/L	<0.005	1
Chrome, Cr6+	mg/L	<0.005	0.5
Cadmium, Sd	mg/L	0.045	0.1
Tin, Sn	mg/L	<0.05	2
Cobalt, Co	mg/L	0.062	1
Manganese, Mn	mg/L	0.006	5
Molybdenum, Mo	mg/L	<0.007	0.5
Nickel, Ni	mg/L	0.037	1
Lead, Pb	mg/L	<0.02	0.2
Silver, Ag	mg/L	<0.005	0.2
Mercury, Hg	mg/L	<0.0005	0.05

.

Based on the results shown in Table 5, it can be concluded that the emission limit values of polluting substances in the technological wastewater, before their discharge into the public sewage system, meet the limit values.

The resulting wastewater can be returned to the process as technical return water and used for leaching the calcine.

3.7. Chloride Leaching of the Solid Residue with NaCl

After calcine leaching in water, a solid residue containing PbSO₄ was subjected to chloride leaching in NaCl in order to leach Pb. The leaching conditions were as follows: a salt concentration of 250 g/L NaCl, a solid–liquid phase ratio of 1:20, a temperature of 80 °C, and a leaching time of 20 min. These conditions were determined in our earlier research when polymetallic raw material was leached [30]. The results of metal leaching are shown in

Table 6. Percentage of metal recovery in the process of chloride leaching of the solid residue.

Metal Recovery	Pb %	Ag %	Fe %	Cu %	Zn %
	96.05	87.50	0.02	6.22	7.51

.

After chloride leaching, a solution of NaPbCl₃ was obtained. The measured pH value of the solution was 6.86. The precipitation of Pb in the form of PbCO₃ was achieved by adding 10% Na₂CO₃ solution until the pH reached 8.

The precipitation of PbCO₃ takes place according to reaction (3).

NaPbCl₃ + Na₂CO₃ → PbCO₃↓ + 3NaCl

(3)

Characterization of the obtained lead carbonate showed the following content: Pb = 67.50%, Ag = 0.47%, Cu = 0.55%, Zn = 5.63%, Fe = 0.08%, S = 0.14%, and In < 0.06%.

3.7.1. Granulometric Analysis of PbCO₃

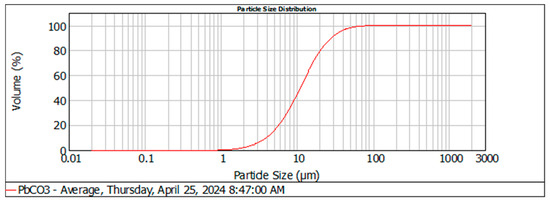

A granulometric analysis of lead carbonate was performed, and the results are shown in Figure 10.

From the results of the granulometric composition of the sample, it can be observed that the size class of 28.629 μm is represented by 90%, the size class of 10.976 μm is represented by 50%, and the size class of 3.966 μm is represented by 10%.

3.7.2. SEM-EDS Analysis of PbCO₃

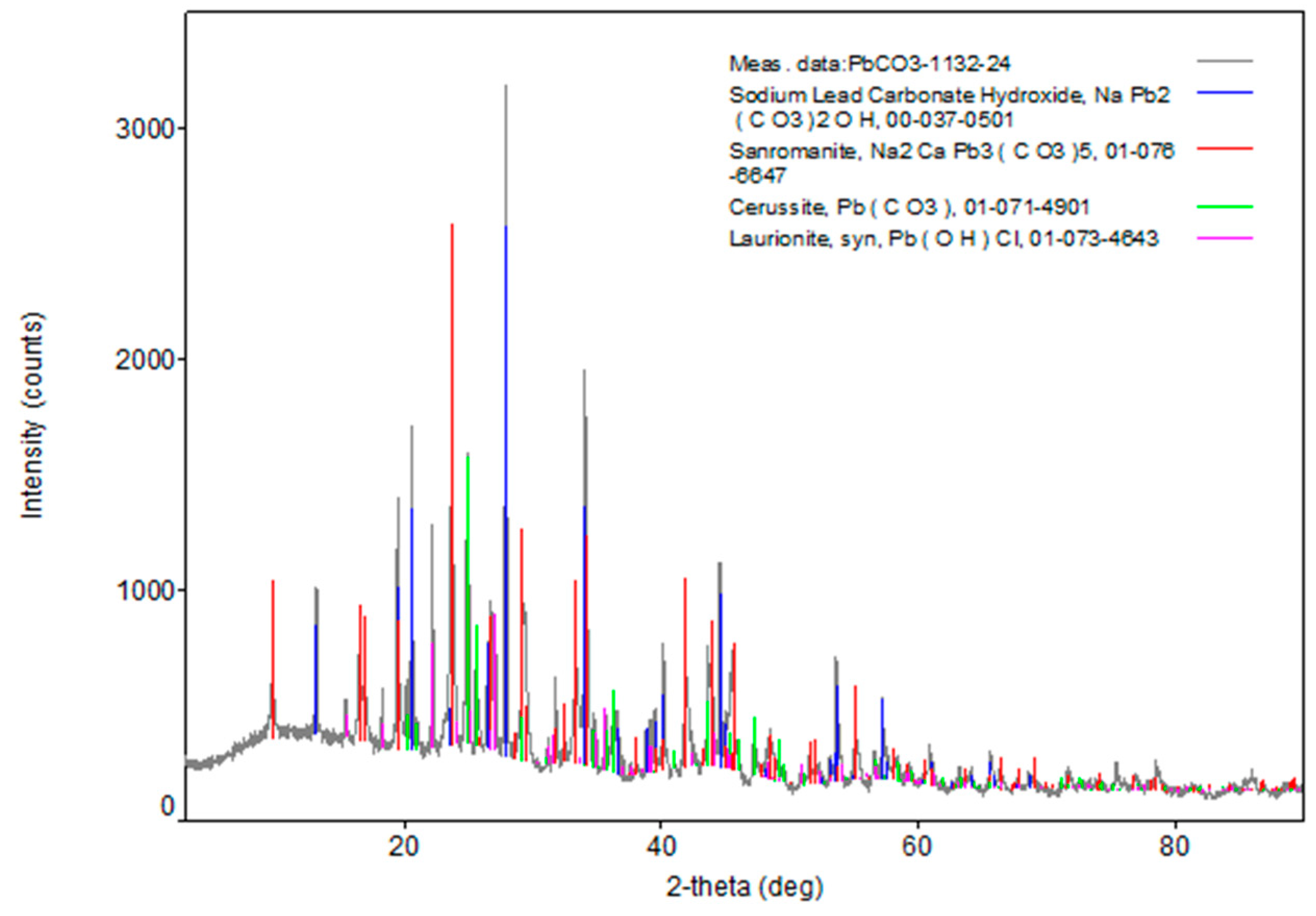

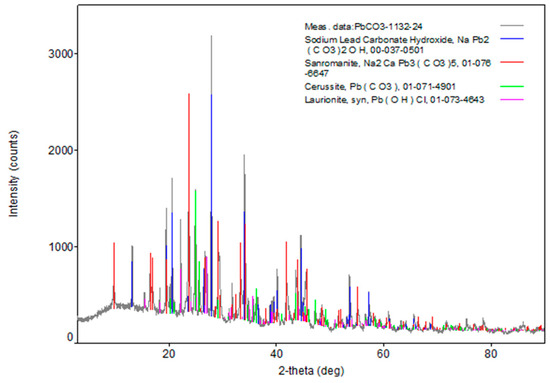

The diffractogram of PbCO₃ samples is shown in Figure 11. In the PbCO₃ sample, the crystalline phases are sodium–lead–carbonate–hydroxide (NaPb₂(CO₃)₂OH), sanromanite (Na₂CaPb₃(CO₃)₅), cerusite (PbCO₃), and lauronite (Pb(OH)Cl). Sodium–lead–carbonate–hydroxide and sanromanite are more abundant in the sample than cerusite and lauronite.

Photomicrographs of the tested sample are shown in Figure 12.

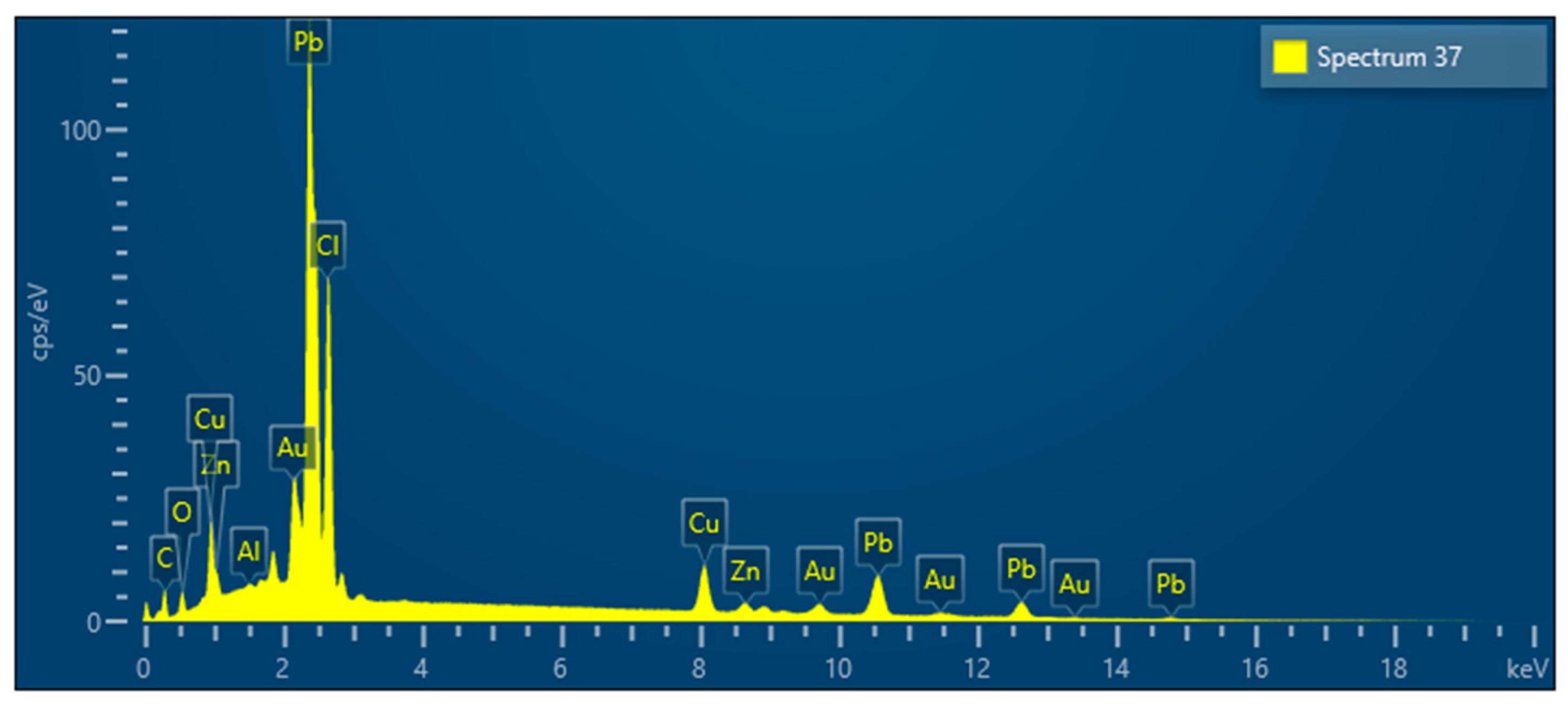

Figure 13 shows the chemical spectrum of spectrum 37, which was mapped using photomicrograph 12 of the analyzed sample.

Table 7. Chemical composition from Figure 13 (spectrum 37).

Spectrum 37
Element	Line Type	Weight %	Weight % Sigma
C	K series	21.32	0.39
O	K series	4.45	0.12
Al	K series	0.12	0.02
Cl	K series	12.07	0.09
Cu	K series	8.16	0.09
Zn	K series	1.99	0.07
Pb	M series	51.89	0.29
Total		100.00

shows the results of the chemical analysis of spectrum 37 of the lead carbonate sample.

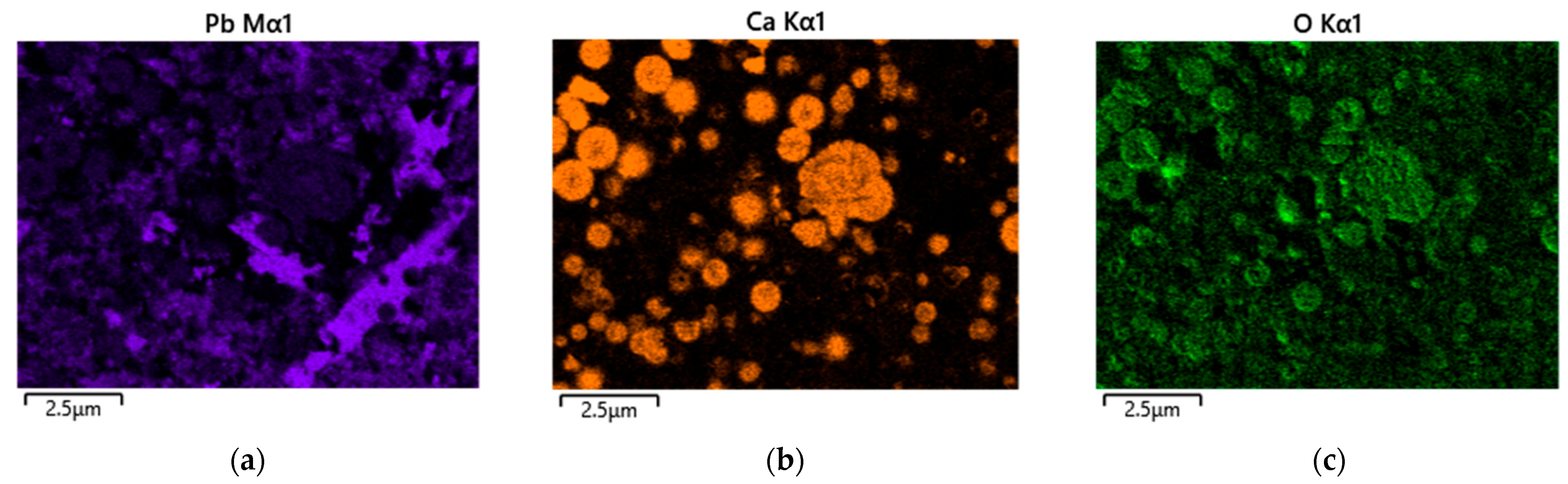

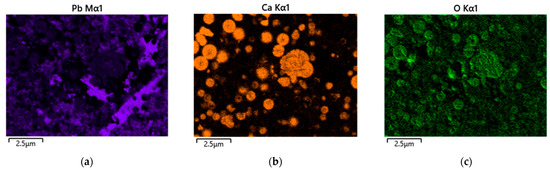

Figure 14 presents the mapping of the entire surface of the sample, showing the distribution of lead, calcium, and oxygen elements.

XRD shows the crystalline phase of the product and the form in which it is present. SEM-EDS was performed to unequivocally confirm the presence of Cucem, ZnCO₃, and PbCO₃. The percentage content on the spectra does not show the metal content in the analyzed sample; yet, based on the percentage ratios in the spectrum, it indicates the phase ratio and shows the compound.

The copper content in the cement suspension was determined using the electrogravimetric method. The content of Zn in ZnCO₃ and Pb in PbCO₃ was determined by dissolving them and determining the metal content using volumetric titration. Based on the calculations, the metal content in the products was determined. Chemical analysis is a precise quantitative analysis that shows the exact composition of the product.

The appearance of Au in the spectra is due to the steam up of samples using gold during the preparation process for SEM-EDS analysis.

The practical importance of determining the granulometric composition of the obtained products is that it allows the future customer to understand in which part of the production process can be applied, considering that these are commercial products.

3.8. Processing of PbCO₃

PbCO₃ can be roasted at 550 °C to obtain PbO, which can be sold. However, in our investigation, PbCO₃ was melted at 950 °C to produce the Pb anode. This Pb anode was further treated through electro-refining to obtain the Pb cathode (Figure 15).

The mixtures for reduction melting were as follows: 81 g of PbCO₃, 66 g of Na₂CO₃, 33 g of Borax, and 16 g of carbon. When melting PbCO₃, the following reactions occur:

PbCO₃ → PbO + CO₂↑

(4)

2PbO + C → Pb + CO₂↑

(5)

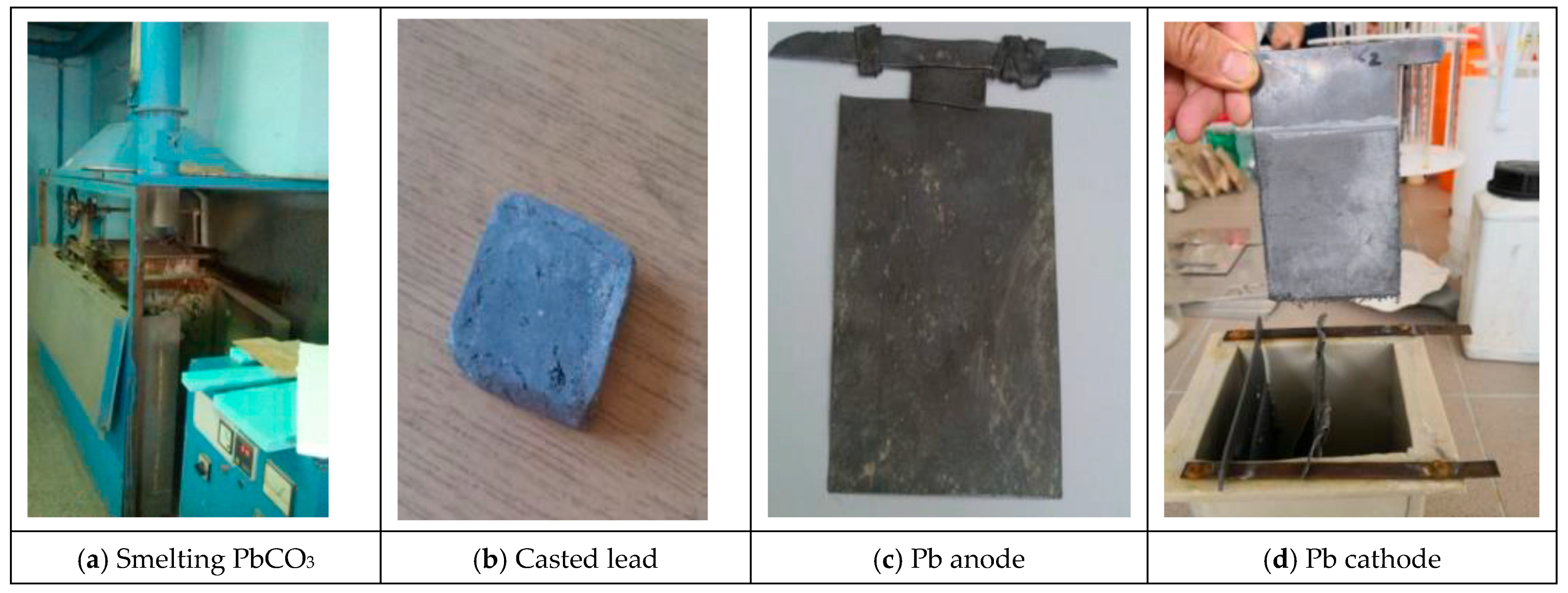

Raw lead (lead anode) was obtained through the reduction smelting of lead oxide. After melting, the raw lead was poured and a seal was made, which was rolled into the anode. The rolled Pb anode was further subjected to electrolytic refining.

Electrolytic Refining of the Pb Anode

Cathodic lead is obtained through the electrolysis of raw lead, according to the following reactions:

Cathode: Pb(CH₃SO₃)₂ + 2e⁻→PbO + 2CH₃SO₃

(6)

Anode: H₂O → ½O₂ + 2H⁺ + 2e⁻

(7)

The electrolyte for electrolytic lead refining is obtained by dissolving lead oxide or lead carbonate in methane-sulfonic acid, according to the following reactions:

PbO + 2CH₃SO₃H → Pb(CH₃SO₃)₂ + H₂O

(8)

PbCO₃ + 2CH₃SO₃H → Pb(CH₃SO₃)₂ + H₂O + CO₂↑

(9)

The conditions for anode lead refining were as follows: methane-sulfonic acid at 100 g/L, Pb at 200 g/L, organic additive (polyethylene glycol) at 0.25 g/L, a temperature of 20–30 °C, and a Dk of 1.5–3 A/dm².

Commercial-quality lead with 99.95% purity was obtained through the electrolytic refining of lead anodes.

Pb was further used in MMI Bor as a collector during cupellation for the analytical determination of Au and Ag in the samples.

3.9. TCLP and LP Test of Solid Residue after Pb and Ag Leaching

After Pb and Ag leaching, the LP test of the solid residue and the TCLP (Toxicity Characteristic Leaching Procedure) test were performed. The solid residue was examined for disposal. The waste was examined using a leachability test and a toxicity test. The results of the LP test are shown in

Table 8. Results of the chemical test of the solid residue: LP test.

Parameter	Unit	Found Value	Reference Value for Inert Waste	Reference Value for Non-Hazardous Waste	Reference Value for Hazardous Waste
Antimony, Sb	mg/kg × dm	<0.11	0.06	0.7	5
Arsenic, As	mg/kg × dm	<0.2	0.5	2	25
Copper, Cu	mg/kg × dm	0.07	2	50	100
Barium, Ba	mg/kg × dm	0.13	20	100	300
Cadmium, Cd	mg/kg × dm	<0.08	0.04	1	5
Molybdenum, Mo	mg/kg × dm	<0.15	0.5	10	30
Nickel, Ni	mg/kg × dm	<0.07	0.4	10	40
Lead, Pb	mg/kg × dm	0.20	0.5	10	50
Selenium, Se	mg/kg × dm	<0.33	0.1	0.5	7
Chrome, Cr	mg/kg × dm	<0.05	0.5	10	70
Zinc, Zn	mg/kg × dm	0.6	4	50	200
Mercury, Hg	mg/kg × dm	<0.005	0.01	0.2	2
SO42−	mg/kg × dm	900	1000	20,000	50,000
Cl−	mg/kg × dm	120	800	15,000	25,000
F−	mg/kg × dm	<8	10	150	500

. The results of the TCLP test are shown in

Table 9. Results of the physical and chemical tests for the toxic characteristics of the solid residue intended for disposal: TCLP test.

Parameter	Unit	Found Value	Reference Value for Non-Hazardous Waste
Antimony, Sb	mg/L	<0.011	15
Barium, Ba	mg/L	0.09	100
Chrome, Cr	mg/L	<0.005	5
Molybdenum, Mo	mg/L	<0.007	350
Nickel, Ni	mg/L	<0.036	20
Selenium, Se	mg/L	<0.033	1
Zinc, Zn	mg/L	1.72	250
Copper, Cu	mg/L	<0.005	25
Arsenic, As	mg/L	<0.020	5
Cadmium, Cd	mg/L	0.72	1
Lead, Pb	mg/L	<0.020	5
Mercury, Hg	mg/L	<0.0005	0.2
Vanadium, V	mg/L	<0.008	24
Silver, Ag	mg/L	<0.005	5

.

The results of the leachability test (LP test) showed that the waste was non-hazardous. The TCLP test showed that the waste had no toxic characteristics and could be disposed of in landfill as non-hazardous waste.

3.10. Treatment of the Solution After PbCO₃ Precipitation

After PbCO₃ precipitation, the precipitation solution was adjusted to a concentration of 250 g/L of NaCl for reuse in PbSO₄ leaching.

If the solution contained increased concentrations of impurities (Fe, Cu, Zn, Ag, SO₄²⁻, etc.), it could be treated with NaOH solution until a pH of 10 was reached to precipitate residual silver in the form of Ag₂O. The Ag₂O precipitate can be further reduced with hydrazine and melted to obtain pure Ag.

The filtrate is chloride wastewater, which is then further purified at a chloride wastewater treatment plant.

3.11. Proposal for a Technological Scheme for the Treatment of Jarosite Pb–Ag Tailings

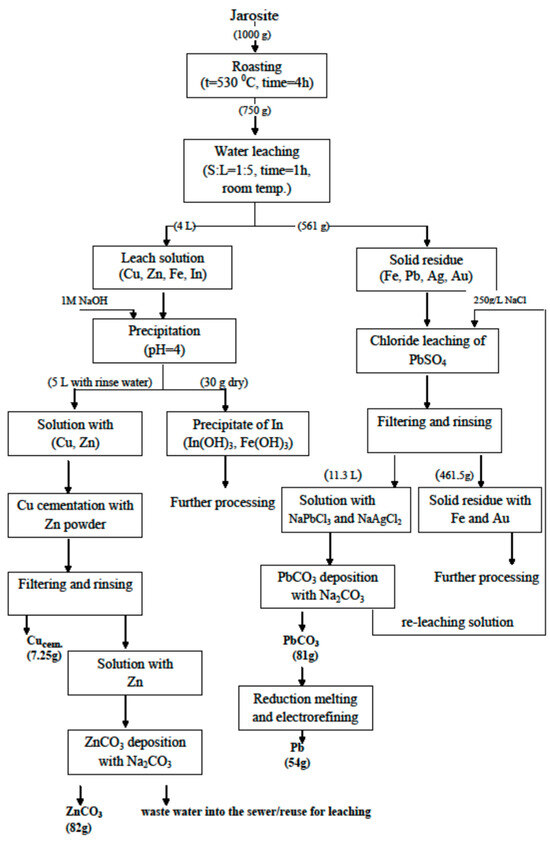

The proposed technological scheme for obtaining Cu, Zn, and Pb from jarosite waste, including a material balance, is shown in Figure 16.

4. Conclusions

Copper, zinc, lead, and silver from jarosite tailings waste were extracted through the following treatment phases: (I) the roasting of jarosite to convert ferric sulfate to water-insoluble hematite and (II) leaching Cu and Zn with water to obtain a CuSO₄ + ZnSO₄ solution.

There was also insignificant dissolution of Fe because the following stages were conducted: (III) the precipitation of Fe from the leach solution with 1 M NaOH, (IV) the cementation of Cu with zinc from the CuSO₄ + ZnSO₄ solution, (V) the precipitation of Zn from the ZnSO₄ solution with Na₂CO₃, (VI) leaching of the solid residue obtained after water leaching with NaCl to dissolve Pb and its precipitation as PbCO₃ with Na₂CO₃, and (VII) PbCO₃ was further melted to obtain a Pb anode, which was then converted into a Pb cathode by electrolytic refining.

This work shows that the combination of roasting and leaching provides a promising process for obtaining Cu cement, ZnCO₃, PbCO₃, and Pb in the form of commercial products.

The total recovery of Cu and Zn after roasting, leaching, Fe precipitation, cementation, and carbonate precipitation was 79.73% and 86.64%, respectively. The total recovery of Pb and Ag after chloride leaching was 96.05% and 87.5%, respectively. The technological scheme, along with the material balance, is presented in this paper.

The quality of the obtained products was as follows:

The composition of Cu cement was Cu = 75.97%, Zn = 7.31%, Fe = 0.005%, In < 0.095%, S = 1.9%, Ga < 0.002%, Ge < 0.002%, Ag = 0.042%, and Pb = 0.06%.

The composition of ZnCO₃ was Zn = 52.22%, Cu = 0.26%, Fe = 0.84%, Pb = 0.002%, Ag < 0.001%, S = 2.24%, and In < 0.002%.

The composition of PbCO₃ was Pb = 67.50%, Ag = 0.47%, Cu = 0.55%, Zn = 5.63%, Fe = 0.08%, S = 0.14%, and In < 0.06%.

Pb = 99.95%.

The obtained results were confirmed at an enlarged pilot level, after which the design of the plant was initiated by Elixir Company in Šabac, Serbia.
