Applied Mechatronics: On Mitigating Disturbance Effects in MEMS Resonators Using Robust Nonsingular Terminal Sliding Mode Controllers

Abstract

This investigation attempts to study a possible controller in improving the dynamic stability of capacitive microstructures through mitigating the effects of disturbances and uncertainties in their resultant dynamic behavior. Consequently, a nonsingular terminal sliding mode control strategy is suggested in this regard. The main features of this particular control strategy are its high response speed and its non-reliance on powerful controller forces. The stability of the controller was investigated using Lyapunov theory. For this purpose, a suitable Lyapunov function was introduced to prove the stability of a controller, and the singularity conditions and methods to overcome these conditions are presented. The achieved results proved the high capability of the applied technique in stabilizing of the microstructure as well as mitigating the effects of disturbances and uncertainties.

1. Introduction

The industry of Micro Electro Mechanical System (MEMS) has been among the most significant businesses in the recent last decades, gaining the attention of numerous researchers all over the world. MEMS structures, such as micro-switches [1,2,3,4], micro-capacitors [5,6,7], micro-gyroscopes [8,9,10,11], micro-sensors [12,13,14], and micro-actuators [15,16,17,18,19], are essentially used in various industrial fields, such as aerospace, micro-electronics, telecommunication, and medical [20,21]. Their wider scopes of applications and popularity comes principally from their small-scale features, their low energy/power consumption, their ability of batch fabrication, and their high response speed.

The development and progress for these tiny structures depend on their suitable design and correct prediction of their respective electro-mechanical behaviors and characteristics. One of the primary challenges of these structures are their variant dynamic characteristics, useful in certain applications but limiting their use in others. One can observe a significant increase in the study of the mechanical and dynamical behaviors of these structures [22,23,24,25,26] in the recently published literature.

One of the important concerns concerning the dynamic behavior analysis of these structures are the effects of external disturbances and uncertainties. As for most microstructures, the governing dynamic equation is nonlinear; this nonlinearity can lead to numerous dynamic instabilities, such as dynamic pull-in [27,28,29,30], bifurcations, dynamic hysteresis, fractal and chaotic behaviors [31,32,33,34,35,36]. Disturbances and uncertainties, in addition to nonlinearity, drastically intensify such instabilities.

Reducing disturbances requires altering the microstructure packaging and its isolation; however, such adjustments/modifications cannot cancel all the unwanted disturbances at all ranges of frequencies. Moreover, reducing uncertainties requires improved fabrication processes [37,38], including lithography, etching, and others, but this would significantly increase the manufacturing costs of these tiny structures. Bearing in mind these challenges, it was proven that uncertainties and disturbances cannot be completely eliminated from macro-scale structures [39,40,41]; thus, their elimination is even more challenging in microstructures.

The common studies on examining microstructure dynamical behavior do not include disturbance and uncertainty effects [42,43,44,45]. For example, dynamical analysis of MEM structures incorporating micro-beams have been studied without considering uncertainties or disturbances [4,46,47,48,49]. Some studies in the case of vibration analysis of micro-plates that neglect uncertainties and disturbances have been provided in references [50,51,52,53,54]. Additional to the abovementioned works, some relevant vibration analysis of micro gyroscopes without considering uncertainty and disturbances are available in [55,56,57,58].

Contrary to these works, few studies have investigated such effects and attempted their mitigation. As an example, the robust active control method is an efficient technique for reducing and eliminating the effects of disturbance and uncertainty effects [59,60]. Furthermore, the Sliding Mode Control (SMC) is one of the primary robust control strategies offering a particularly strong robustness against disturbances and uncertainties [61,62,63,64,65,66]. This control method has also the merit of being computationally cheap and simple as compared to other robust control methods, and it can be combined with fuzzy and artificial intelligent methods [67,68,69,70,71].

Rahmani et al. [72] studied dynamic analysis of MEMS gyroscopes using a sliding mode controller. They considered external disturbances as an unwanted factor that disturbs the vibration of the structure and used a Lyapunov function to extract the control parameters. Robust dynamic analysis of MEMS Probing was presented in ref. [73]. In this work, H-infinity method was employed to mitigate uncertainties and noises. He and Geng [74] studied the dynamics and robust control of a torsional gyroscope subjected to electrostatic force with considering structural uncertainties.

They applied an observer-based robust controller on the basis of linear matrix inequalities to fulfilment of this work. The stability of a micro gyroscope, including model uncertainties and external disturbances, was investigated in ref. [75]. The implemented strategy was based on applying of a robust adaptive fuzzy controller. Qin et al. [76] applied a nonlinear feedback control method with integral sliding mode to alleviate the effects of external disturbance of micro ultrasonic transducer. They used particle swarm optimization for tuning the control parameters.

Darbasi et al. [77] investigated the dynamic analysis of a micro ultrasonic transducer subjected to external disturbances and uncertainty. They applied sliding model control to stabilize the microstructure. Robust dynamic analysis and disturbance rejection of an electrostatically micro-tunable capacitor was studied in ref. [78] by means of an adaptive sliding mode controller.

Among the SMC methods, Nonsingular Terminal SMC (NTSMC) represents the most efficient control technique offering fast or finite-time convergence without requiring a strong controlling force [79,80,81,82]. Considering the reputation and effectiveness of this method, there have been significant studies to improve it in controlling the dynamic response of mechanical structures [83,84,85]. Contrary to the majority of studies on control of mechanical structures, there have been few studies on microstructure control and eliminating the effects of disturbance and uncertainty.

Owing to the importance of controlling the responses of microstructure and the efficiency of the NTSMC control strategy as well as its high response speed, this study investigates the stabilization of micro-capacitors in the presence of disturbances and uncertainties. For this purpose, a dynamical system that covers the dynamic equations of most microstructures is considered. This equation includes uncertainty and disturbance terms, and, in reality, these terms may not be negligible.

However, as mentioned before, most of the studies did not take these factors into account. In the continuation of the study, a suitable sliding surface for the design of NTSMC is presented, and the existence conditions for singularity are also discussed in detail. The relation of the control inputs are presented and based on the presented Lyapunov function. The stability of the Lyapunov function and, consequently, the stability of the NTSMC are examined. The Lyapunov function and its derivative in the singular and nonsingular regions are investigated.

Additionally, we aims to examine the effect of the main controller parameters on the dynamic behavior of the micro-capacitors. The main controlling parameters consist of the electrostatic forces applied to the microstructure to possibly overcome the disturbance effects in the neighborhood of the fixed-point and prevent its distancing from this zone. The major findings of this study are then summarized in indicating the vast potential of the NTSMC method in controlling the dynamic behavior of capacitive microstructures under the effects of disturbances and uncertainties.

The effects of controller and microstructure parameters on the amplitude of vibration, phase plane associated with the sliding surface, the magnitude of the control parameter or the applied voltages are fully investigated. In addition, the ability of the controller to stabilize the microstructure in the presence of uncertainty and noise is investigated, and the effect of noise intensity on the dynamic behavior of the system, extent of the phase plane and its effects on applied voltages are discussed in detail.

The present study is structured as follows: The next section discusses the NTSMC controller and its stabilizing based on Lyapunov theory. In Section 2.1, the studied microstructure and its governing dynamic equations are presented. The obtained results related to dynamic behavior, stabilization, and the control of microstructure are presented in Section 3. Section 4 presents the concluding remarks of this paper.

2. Nonsingular Terminal Sliding Mode Control

Below, the NTSMC design process for a dynamical system governed by a second order differential equation [86] is presented. Equation (1) shows the general form of governing differential equation of the examined system:

$$\begin{array}{l}{\dot{x}}_1=x_2\\ {\dot{x}}_2=f(x)+\Delta F\left(x\right)+d(t)+b(x)u\left(t\right)\end{array}$$

(1)

where $x={\left[x_1{x}_2\right]}^T\in R^2$ represents the vector of state space; $f\left(x\right)$ and $b\left(x\right)\ne 0$ both express the smooth functions, respectively; $\Delta F\left(x\right)$ and $d\left(t\right)$ represent the uncertainty and the external factor of disturbance; and $u\left(t\right)$ denotes the controlling factor. For the investigated case, it is assumed that $\left|d\left(t\right)\right|+\left|\Delta F\left(x\right)\right|\le l_d$ where $l_d>0$. The purpose of designing a NTSMC is to determine the control law of $u\left(t\right)$ so that the dynamic system of Equation (1) is stable in the vicinity of $x={\left[00\right]}^T$. Therefore, the NTSMC manifold for the mentioned design is considered as follows [86,87]:

$$s=x_2+\beta x_1^{\frac{q}{p}}$$

(2)

where $\beta >0$ is the controller parameter, and $p$ and $q$ are positive odd numbers satisfying the following condition $1<\frac{p}{q}<2$. A control law determination is based on the fulfilment of the following condition: $\frac{1}{2}\frac{d}{dt}{s}^2\le -\eta \left|s\right|$. In fact, for this particular case, a Lyapunov function is considered as $V=\frac{s^2}{2}$, and $\frac{1}{2}\frac{d}{dt}{s}^2\le -\eta \left|s\right|$ representing the condition of stability of Lyapunov function or $\dot{V}=s\dot{s}<0$. Given the equations of (1) and (2), we have:

$$\dot{s}={\dot{x}}_2+\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{\dot{x}}_1=f(x)+\Delta F\left(x\right)+d(t)+b(x)u+\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2$$

(3)

Considering $\frac{q}{p}-1<0$, for $x_1=0$ and $x_2\ne 0$, there is a singularity situation for $\dot{s}$, and it can be written as follows:

$$\begin{array}{l}\lim x_1^{\frac{q}{p}-1}{x}_2=\infty \\ x_1\to 0\\ x_2\cancel{\to }0\end{array}$$

(4)

The above state cannot occur in the neighborhood of $x_1=0$ and $x_2=0$, and therefore:

$$\begin{array}{l}\lim x_1^{\frac{q}{p}-1}{x}_2=0\\ x_1\to 0\\ x_2\to 0\end{array}$$

(5)

The purpose of the NTSMC controller is to assure a control condition that does not cause a singularity on $\dot{s}$. For this reason, and according to [86], the control law can be expressed as follows:

$$u=b^{-1}\left(x\right)\left[-f(x)+sat(u_f,u_s)-\lambda sign(s)\right]$$

(6)

where $\lambda =l_d+\eta$, $sat\left(u_f,u_s\right)$ represents the saturation function considering $u_f=-\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2$, and $\eta$ is a positive number.

In the continuation of this section, the stability of the Lyapunov function is discussed. As previously said, $\dot{V}$ should be negative ($\dot{V}=s\dot{s}<0$) in order for the system to be stable. If this condition is satisfied, the Lyapunov function and, consequently, the controller, will be stable.

The term $x_1^{\frac{q}{p}-1}{x}_2$ in Equation (3) is important, and this element may result in singularity. Figure 1 and Figure 2 illustrate the fluctuation of $g\left(x_1\right)=x_1^{\frac{q}{p}-1}$ and $F\left(x_1,x_2\right)=x_1^{\frac{q}{p}-1}{x}_2$ versus $x_1$.

The following conclusions can be found from these figures.

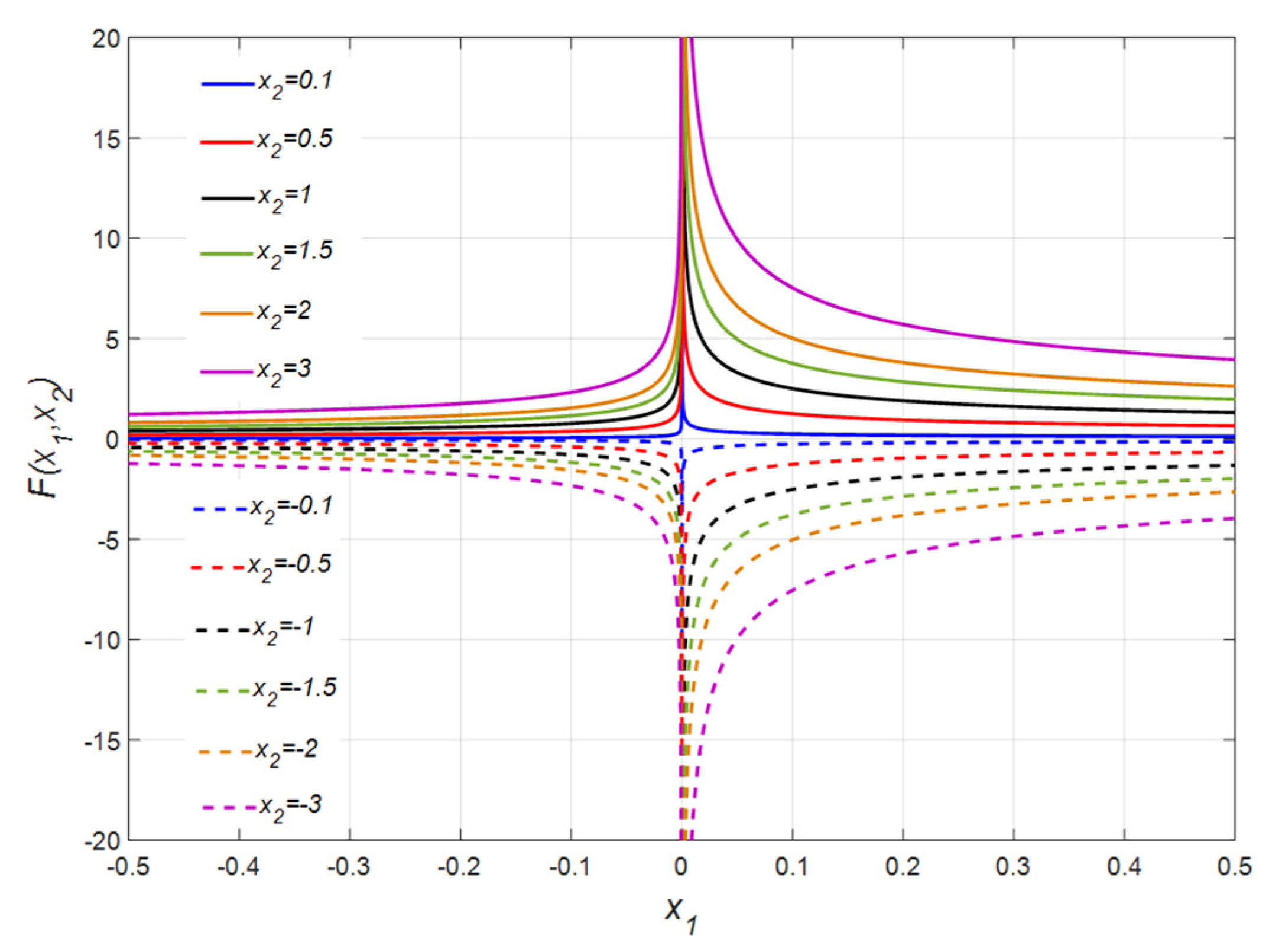

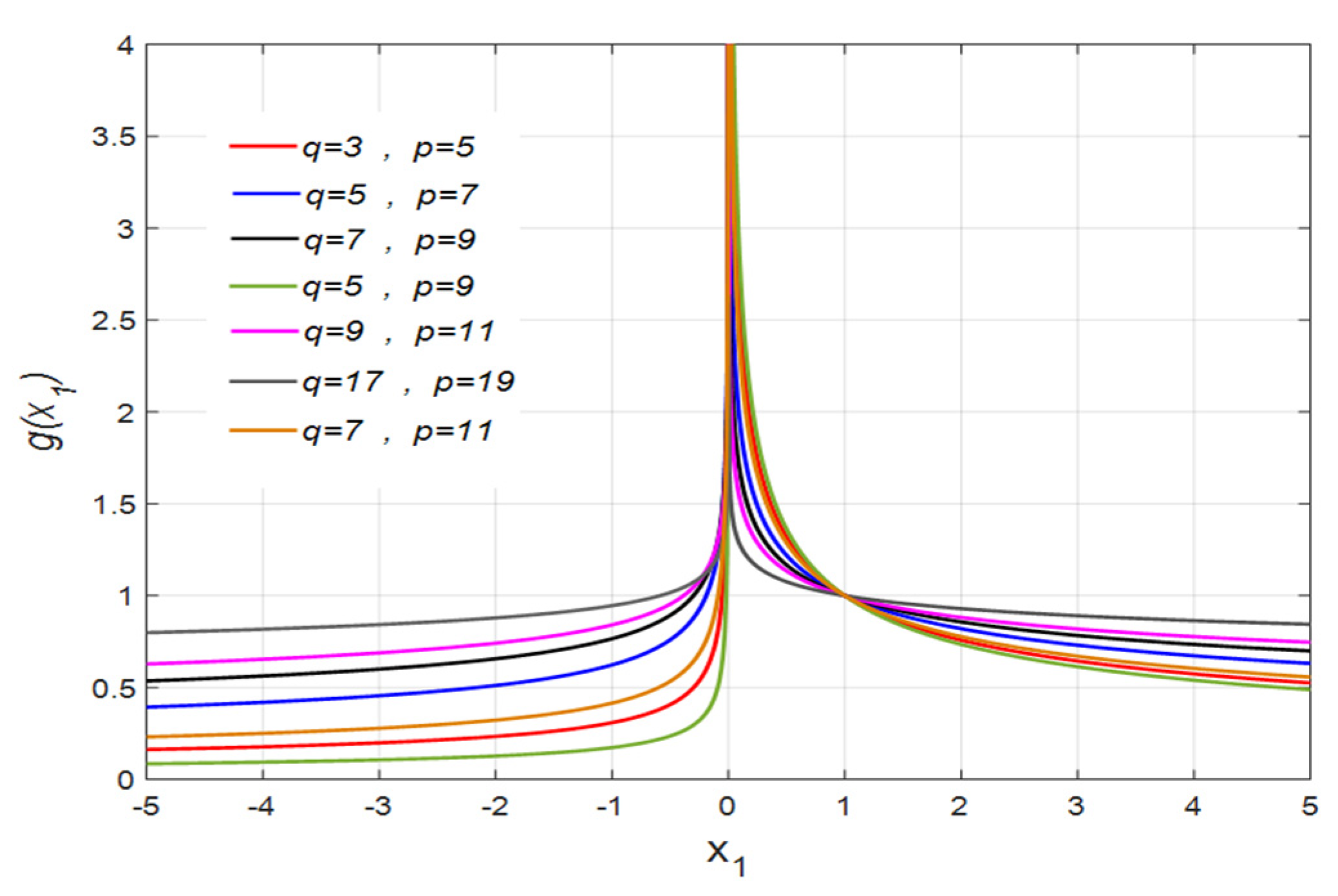

• As illustrated in Figure 1, $g\left(x_1\right)=x_1^{\frac{q}{p}-1}$ is never less than zero for any $x_1$.
• As a result, the sign of $F\left(x_1,x_2\right)=x_1^{\frac{q}{p}-1}{x}_2$ is independent of $x_1$ and is reliant only on $x_2$. Thus, $\mathrm{sgn}\left(x_1^{\frac{q}{p}-1}{x}_2\right)=\mathrm{sgn}\left(x_2\right)$. Additionally, this point can be deduced from Figure 2.
• As it is clear from Figure 2:$\underset{\begin{array}{l}{x}_1\to 0\\ x_2\ne 0\end{array}}{\lim }{x}_1^{\frac{q}{p}-1}{x}_2\to \infty$. Where, this term indicates singularity.
• The term of $F\left(x_1,x_2\right)=x_1^{\frac{q}{p}-1}{x}_2$ for $x_2\ne 0$ is always nonzero.
• $\underset{\begin{array}{l}{x}_1\to 0\\ x_2\to 0\end{array}}{\lim }{x}_1^{\frac{q}{p}-1}{x}_2=0$

It is important to thoroughly analyze the term $sat\left(u_f,u_s\right)$. To facilitate the examination of the Lyapunov function’s stability, we focus on the following two areas on the $x_1-x_2$ plane.

$$A=\left\{\left(x_1,x_2\right):\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}\left|x_2\right|\le u_s\right\}$$

$$B=\left\{\left(x_1,x_2\right):\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}\left|x_2\right|>u_s\right\}$$

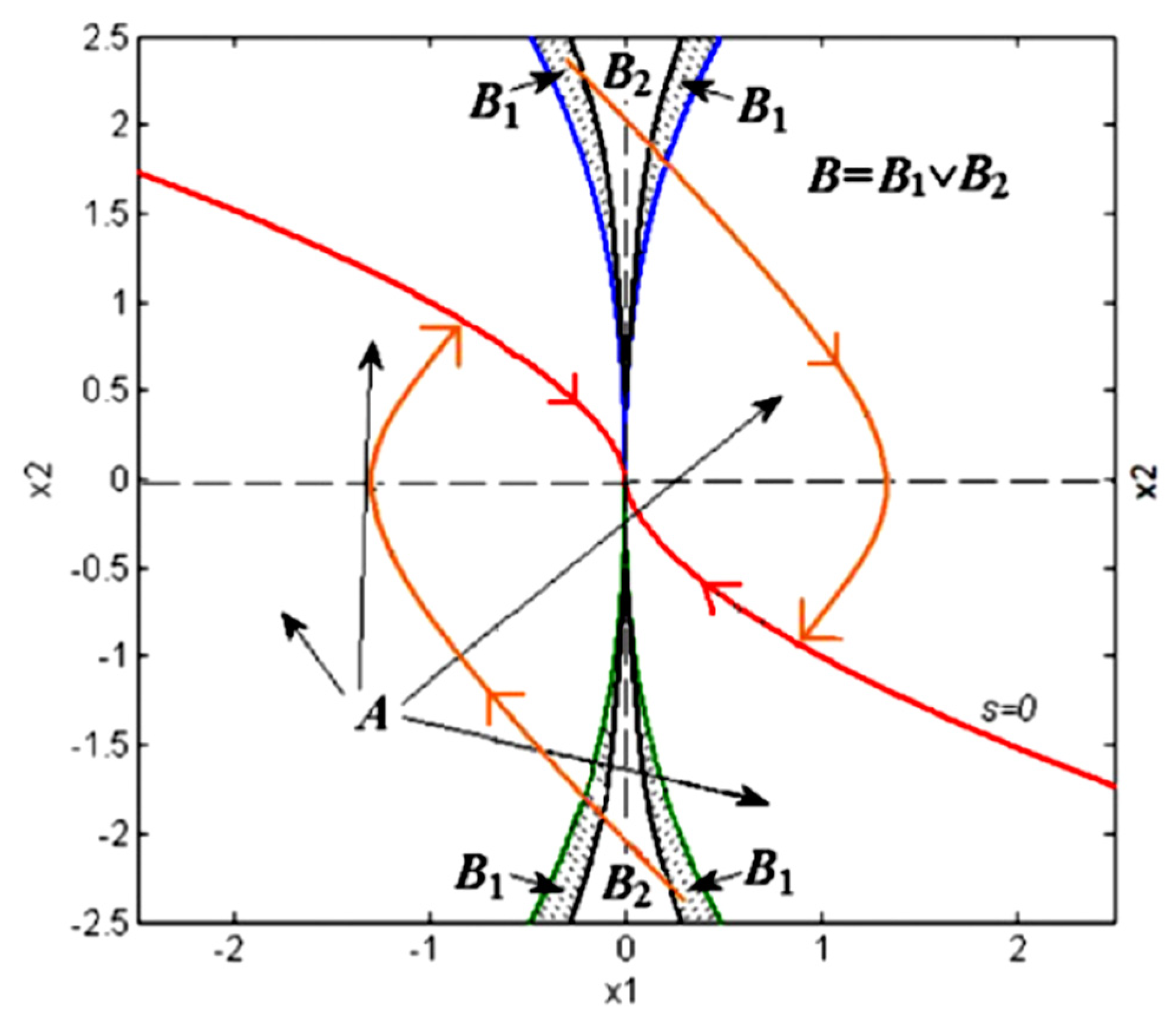

As previously stated, $u_s>0$. The regions of A and B, as well as the $s=0$ curve, are represented in Figure 3.

As can be seen in the illustration, $s=0$ is always in the district of A. As a result, there is no singularity on the $s=0$ diagram.

If state $\left(x_1,x_2\right)$ is in the area $A$. Then the condition $\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}\left|x_2\right|\le u_s$ is met. Thus: $sat\left(u_f,u_s\right)=-\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}\left|x_2\right|=u_f$. In this case, and by substituting the preceding term in Equation (6), $\dot{s}$ can be obtained as (see Equation (3)):

$$\begin{gathered} \dot{s}=\Delta F\left(x\right)+d(t)-\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2-\lambda \mathrm{sgn}\left(s\right)+\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2 \\ \dot{s}=\Delta F\left(x\right)+d(t)-\lambda \mathrm{sgn}\left(s\right) \end{gathered}$$

(7)

Considering Equation (7) and according to $\left|d\left(t\right)\right|+\left|\Delta F\left(x\right)\right|\le l_d$ and $\lambda =l_d+\eta$, the following relation can be extracted for $\dot{V}$:

$$\dot{V}=s\dot{s}=s\left[\Delta F\left(x\right)+d(t)\right]-\lambda \left|s\right|\le -\eta \left|s\right|<0$$

(8)

Therefore, for the area of $A$, the stability condition holds true.

For the area of $B$, the following relation is valid.

$$sat\left(u_f,u_s\right)=u_s\mathrm{sgn}\left(u_f\right)=-u_s\mathrm{sgn}\left(x_2\right)$$

(9)

According to Equation (6) and substituting Equation (9) in it, and using Equation (3) we have:

$$\dot{s}=\Delta F\left(x\right)+d\left(t\right)-u_s\mathrm{sgn}\left(x_2\right)-\lambda \mathrm{sgn}\left(s\right)+\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2$$

(10)

As shown in Figure 3, the $B$ is union of $B_1$ and $B_2$. If the state $\left(x_1,x_2\right)$ is placed in the area of $B$, the $sat\left(u_f,u_s\right)$ is equal with $-u_s\mathrm{sgn}\left(x_2\right)$. For the region of $B_1$; Given that $\left|d\left(x\right)\right|+\left|\Delta F\left(x\right)\right|\le l_d$, $\eta >0$, and considering that the gain $\lambda$ generally has some margin; therefore, in the area $B_1$, as the same as area of A, $\dot{V}=s\dot{s}<0$ still holds true [86]. If $\left(x_1,x_2\right)$ passes from $B_1$ to $B_2$, the condition of $\dot{V}<0$ is disturbed, and, in the area $B_2$, for $x_1\to 0$ while $x_2\ne 0$, singularity happens.

Calculating the boundaries of $B_1$ and $B_2$ is difficult and requires an in-depth understanding of the bounds of uncertainties and disturbances [86]. However, significant here is that the area of $B_2$ is a transition region in which the state $\left(x_1,x_2\right)$ does not persist indefinitely. Furthermore, as illustrated below, the state $\left(x_1,x_2\right)$ passes through this transient situation and reaches the stability region of A [86].

Using ${\dot{x}}_1=x_2$ in Equation (1) and integrating from there, we find:

$$x_1\left(t\right)=x_1\left(0\right)+{\displaystyle \underset{0}{\overset{t}{\int }}{x}_2\left(t\right)dt}$$

(11)

If $\left(x_1,x_2\right)$ is in the $B_2$, there are two scenarios.

In case (1) for $x_2\left(t\right)>0$, according to the Equation (11), $x_1\left(t\right)$ increases monotonically until crossing the border of $B$ and entering the $A$ region in a finite time (see Figure 3). As mentioned before $A$ is a stable region, where satisfies the stability of the Lyapunov condition.

For case (2), if $x_2\left(t\right)<0$, then $x_1\left(t\right)$ decreases monotonically to enter the region of $A$, and the scenario presented in case 1 is repeated, and the stability of the Lyapunov function is guaranteed, and the state $\left(x_1,x_2\right)$ reaches $s=0$.

For such design, $u_s$ should be considered in the following range [86]:

$${\beta }^2\left(\frac{q}{p}\right)x_{1\max }^{\frac{2q}{p}-1}<u_s<f_{\max }+\lambda +b_{\max }{u}_{\max }$$

(12)

The saturation function can be expressed as follows:

$$sat\left(u_f,u_s\right)=\{\begin{array}{ll}{u}_s& -\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2>u_s\\ -\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2& -u_s<-\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2<u_s\\ -u_s& -\beta \frac{q}{p}{x}_1^{\frac{q}{p}-1}{x}_2<-u_s\end{array}$$

(13)

2.1. Micro-Capacitor Dynamic Model Governing Equation

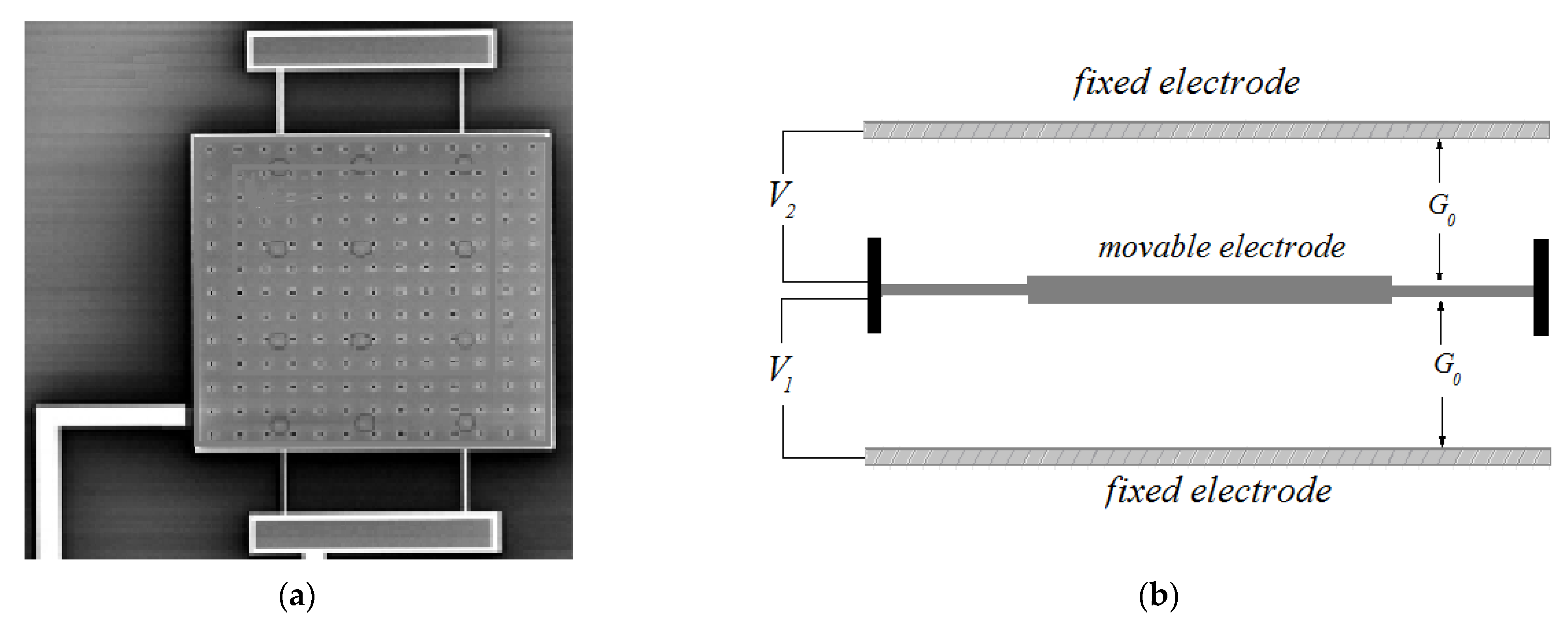

In this part, the schematic view of studied micro-capacitor is presented consisting of a conductive movable plate suspended between two conductive upper and lower fixed plates, Figure 4. The top view of the moving plate is shown in Figure 4a, consisting of a rectangular plate detained by four carrier beams. Given the length l, thickness h and width b of each rectangular beam, their respective equivalent stiffness coefficients can be calculated as follows: $k=12\frac{EI}{l^3}$ and $k_{eq}=4k$, where $I=\frac{b{h}^3}{12}$ symbolizes the rectangular beam second moment of inertia.

Correspondingly, the front view of the structure shown in Figure 4b, illustrates the moving electrode, which is located at a distance $G_o$ from its fixed upper and lower electrodes, and two electrical potentials $V_1$ and $V_2$ are applied to the moving electrode from both lower and upper actuating electrodes. The material of the moving electrode is considered to be homogeneous with a Young’s modulus E, mass density $\rho$, and cross section area $A$. In this investigation, we considered $A=150 \mathsf{\mu }\mathrm{m}\times 150 \mathsf{\mu }\mathrm{m}$, $h=0.2 \mathsf{\mu }\mathrm{m}$, $b=5 \mathsf{\mu }\mathrm{m}$, $G_0=4 \mathsf{\mu }\mathrm{m}$, $l=100 \mathsf{\mu }\mathrm{m}$, $E=169\mathrm{Gpa}$, and $\rho =2300\raisebox{1ex}{$\mathrm{kg}$}\!\left/ \!\raisebox{-1ex}{${\mathrm{m}}^3$}\right.$.

The simple one-degree of freedom mathematical model governing the dynamic behavior of the above micro-capacitor can be written as follows [88]:

$$m\frac{d^{2}z}{d{\tau }^2}+c^{\prime }\frac{dz}{d\tau }+k_{eq}z=q_{elec}+d(\tau )+\Delta F^{\prime }(z)$$

(14)

where $m$, $c^{\prime }$, $q_{elec}$, $d\left(\tau \right)$, and $\Delta F^{\prime }\left(z\right)$ denote the equivalent mass of the movable electrode, damping coefficient, electrostatic force, external disturbance, and inherent uncertainty, respectively. Moreover, $\tau$ denotes time, and $z$ is the displacement of the movable plate with respect to the lower electrode. The resultant electrostatic force on the movable plate can be expressed as follows assuming a parallel-plates theory with negligible fringing-fields effects [88]:

$$q_{elec}=\frac{{\epsilon }_{0}S{V}_1^2}{2{\left(G_0-z\right)}^2}-\frac{{\epsilon }_{0}S{V}_2^2}{2{\left(G_0+z\right)}^2}$$

(15)

where ${\epsilon }_0$ designates the air permittivity in the vacuum.

For the sake of normalizing the above dynamic equation, we consider the following non-dimensional parameters $w=\frac{z}{G_0}$ and $t=\frac{\tau }{t^{*}}$. Therefore, the dynamic equation, Equation (14) can be written as follows:

$$\frac{d^{2}w}{d{t}^2}+c\frac{dw}{dt}+w=\frac{\alpha V_1^2}{{\left(1-w\right)}^2}-\frac{\alpha V_2^2}{{\left(1+w\right)}^2}+\gamma d\left(t\times t^{\ast }\right)+\gamma \Delta F^{\prime }\left(G_0\times w\right)$$

(16)

where $t^{*}$, $c$, and $\alpha$ are parameters defined as follows:

$$t^{*}=\sqrt{\frac{m}{k_{eq}}},c=\frac{c^{\prime }}{k_{eq}{t}^{*}},\alpha =\frac{{\epsilon }_{0}S}{2k_{eq}{G}_0^3},\gamma =\frac{1}{k_{eq}{G}_0}$$

(17)

Now considering $x_1=w$ and $x_2=\frac{dw}{dt}$, Equation (16) can be re-written in state space form as follows:

$$\begin{array}{l}{\dot{x}}_1=x_2\\ {\dot{x}}_2=-x_1-c{x}_2+F_{elec}+\delta (t)+\phi (x)\end{array}$$

(18)

where

$$\begin{gathered} F_{elec}=\frac{\alpha V_1^2}{{\left(1-x_1\right)}^2}-\frac{\alpha V_2^2}{{\left(1+x_1\right)}^2} \\ \delta \left(t\right)=\gamma d\left(t\times t^{\ast }\right) \\ \phi \left(t\right)=\gamma \Delta F^{\prime }\left(G_0\times x_1\right) \end{gathered}$$

(19)

Comparing Equation (18) with standard form of the presented state space form of Equation (1), we have:

$$\begin{array}{l}f\left(x\right)=-x_1-c{x}_1\\ \Delta F\left(x\right)=\phi \left(x\right)\\ d\left(t\right)=\delta \left(t\right)\\ F_{elec}=b\left(x\right)u\end{array}$$

(20)

An important point in designing of controller is that the nonlinear term is expressed in the form of electrostatic force or $F_{elec}$. According to Equation (19), it is clear that Equation (18) becomes nonlinear due to the presence of terms $\frac{1}{{\left(1-x_1\right)}^2}$ and $\frac{1}{{\left(1+x_1\right)}^2}$. It should also be considered that electrostatic force is inherently attractive and applied voltages create attractive forces. As mentioned in Section 2.1; applying a voltage of $V_1$ causes the movable electrode to move towards the lower electrode.

Given that the positive direction $z$ and $x_1$ are toward the lower electrode; therefore, applying $V_1$ causes more instability of the structure and moves the electrode away from the fixed point. Therefore, in these conditions, $V_2$ must be applied to attract the movable electrode towards a fixed point or stability region. Therefore, depending on the position of the moving electrode, the $F_{elec}$ can be $\frac{\alpha V_1^2}{{\left(1 - x_1\right)}^2}$ or $\frac{\alpha V_2^2}{{\left(1 + x_1\right)}^2}$.

In other words, $V_1$ and $V_2$ do not act simultaneously. As will be presented in the results section; at any given time, only one of the voltages is non-zero. According to the above explanations and depending on the position of the movable electrode, the nonlinear term $b\left(x\right)$ is $\frac{\alpha }{{\left(1 - x_1\right)}^2}$ or $\frac{\alpha }{{\left(1 + x_1\right)}^2}$ and also the control factor $u$ means $V_1^2$ or $V_2^2$.

3. Results and Discussions

In this section, the generated results for controlling the above micro-capacitor are presented and discussed. It is assumed next that the micro-plate capacitor is first subjected to a disturbance of the following form: $\delta \left(t\right)=0.1\sin \left(12\times {10}^3\times \pi t\times t^{\ast }\right)$ and with an inherent uncertainty represented by the following function $\phi \left(t\right)=0.05x_1$. The simulation is for a span of $0<\tau <3s$, and, in some cases, for more clear trends, we present the results with a shorter timing range. The purpose of this motion is to reduce the effects of disturbance on the dynamic behavior of the microstructure. It is worth noting that, due to the fact that the disturbance is permanent without any decaying, it is not possible to completely eliminate its effects, and the controller can only mitigate them.

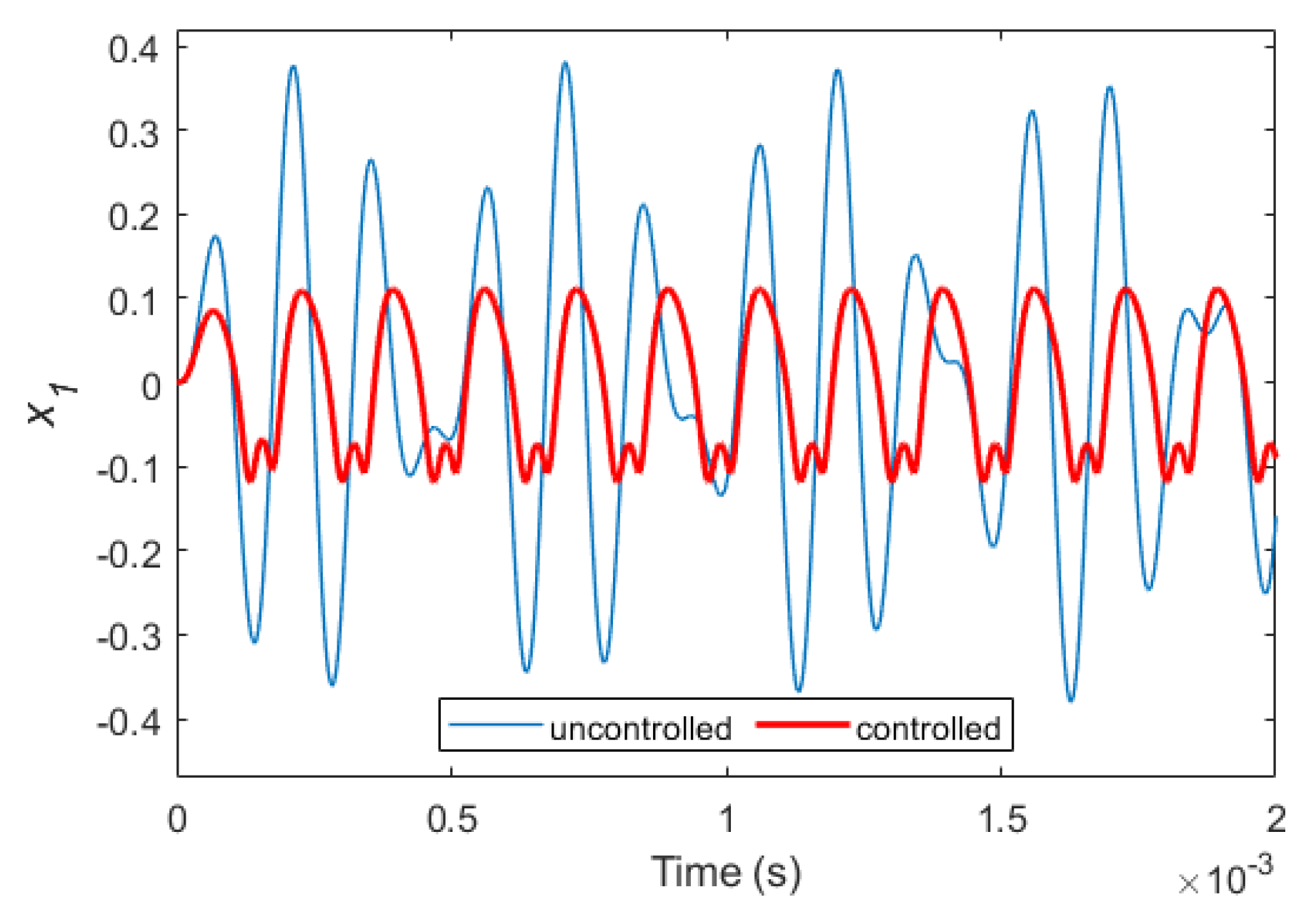

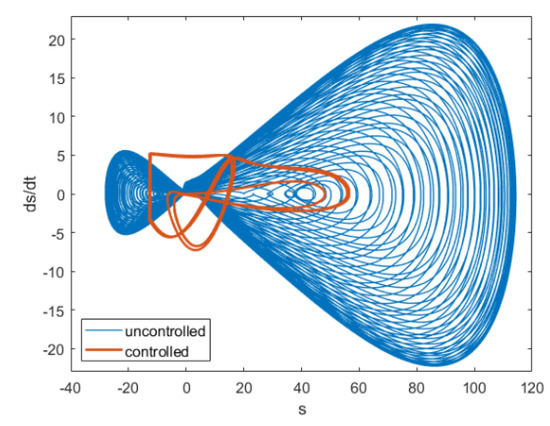

Figure 5 shows the variation of $x_1$ versus time for both controlled and uncontrolled situations. As it is clear from this figure; the controller is able to significantly reduce the effects of disturbance. The specifications of the controller for this simulation are $p=19$, $q=11$, and $\beta =200$. The phase portrait for a manifold of $s$ and its time derivative variation is drawn in Figure 6. As can be seen from this figure, with the application of the control law, the phase limit becomes significantly more compacted.

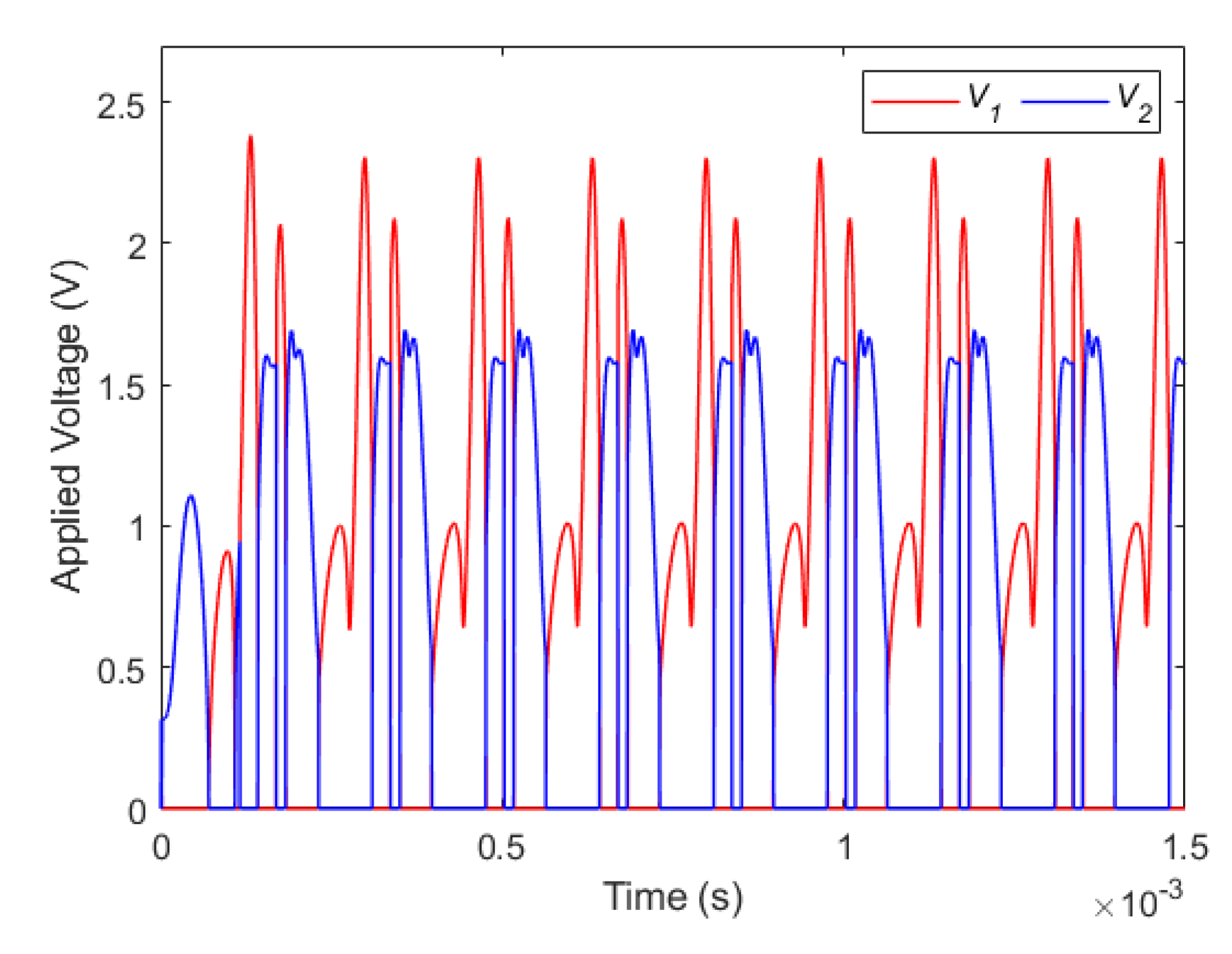

Correspondingly, the variation of control parameters $V_1$ and $V_2$ are both depicted in the Figure 7. As can be seen from this figure, the control voltage does not exceed 2.5 volts, which is a reasonable applied DC load amplitude for MEMS capacitors.

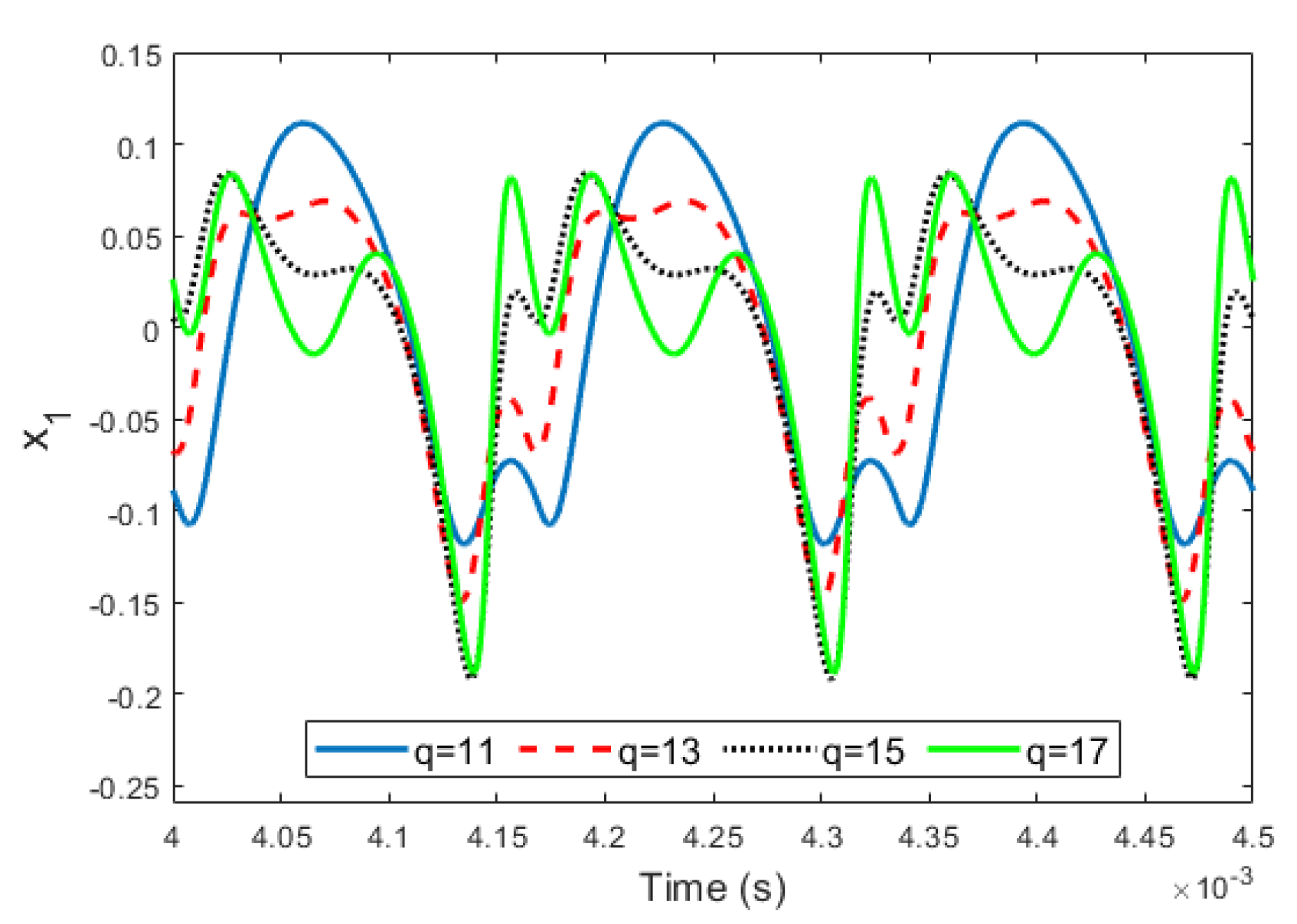

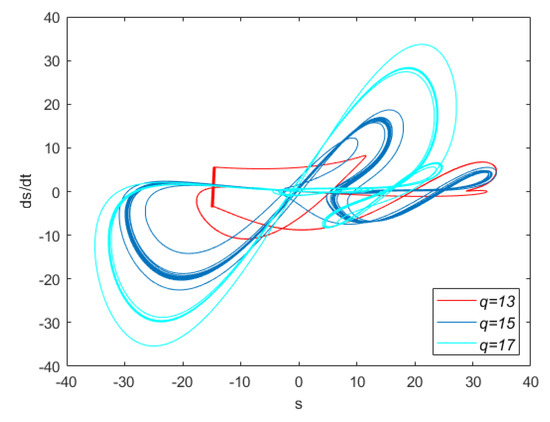

The variation of the $x_1$ parameter versus time for various amounts of $q$ was extracted and is shown in Figure 8. From this figure, the upper and lower amplitudes of $x_1$ decrease with increase of $q$, and the structure tends to oscillate near the fixed point. For instance, for $q=17$, $x_1$ varies in range of $-0.19<x_1<0.08$, but for $q=11$, $x_1$ vibrates in the $-0.11<x_1<0.12$ domain. Furthermore, the phase diagrams for different values of $q$ are illustrated in Figure 9. It is clear from this figure that, with the increase of $q$, the relevant phase plane expands.

In this paper, the main purpose of robustness is to keep $x_1$ around a fixed-point or $x_1=0$. As shown in this section, this is possible by applying a control process to improve the stability of the system around a fixed-point. As shown, by changing the control parameters, the phase portrait can be contracted. Therefore, robustness can be considered from two perspectives. (1) System stabilization around fixed-point or $x_1=0$. (2) In the controlled mode, robustness can be considered as limiting the phase portrait on the $s-\dot{s}$ plane.

More explanations and results in this field are provided in the continuation of this section. On the other hand, a noteworthy point in this design is the absence of the chatting phenomenon. As presented in this section, the chatting phenomenon, which is a problem in the design of sliding mode controllers, does not appear here. However, as can be seen in studies related to MEMS structure control, such phenomena are clearly visible [78].

Similarly, the maximum applied voltages $V_1$ and $V_2$ for different $q$ are presented in

Table 1. The maximum applied voltages $V_1$ and $V_2$ for various amounts of $q$, $p=19$, and $\beta =200$.

	$\mathit{q} = 11$	$\mathit{q} = 13$	$\mathit{q} = 15$	$\mathit{q} = 17$
$V_{1\max }$	2.3	3.23	4.78	6.11
$V_{2\max }$	1.69	2.27	3.61	5.32

. From this table, the values of the applied voltages increase with the increase of $q$, and $\frac{p}{q}$ approaches 2. According to the results presented in this table as well as Figure 8 and Figure 9, the controller design is preferable to choosing less $q$ or choosing $\frac{p}{q}$ close to one.

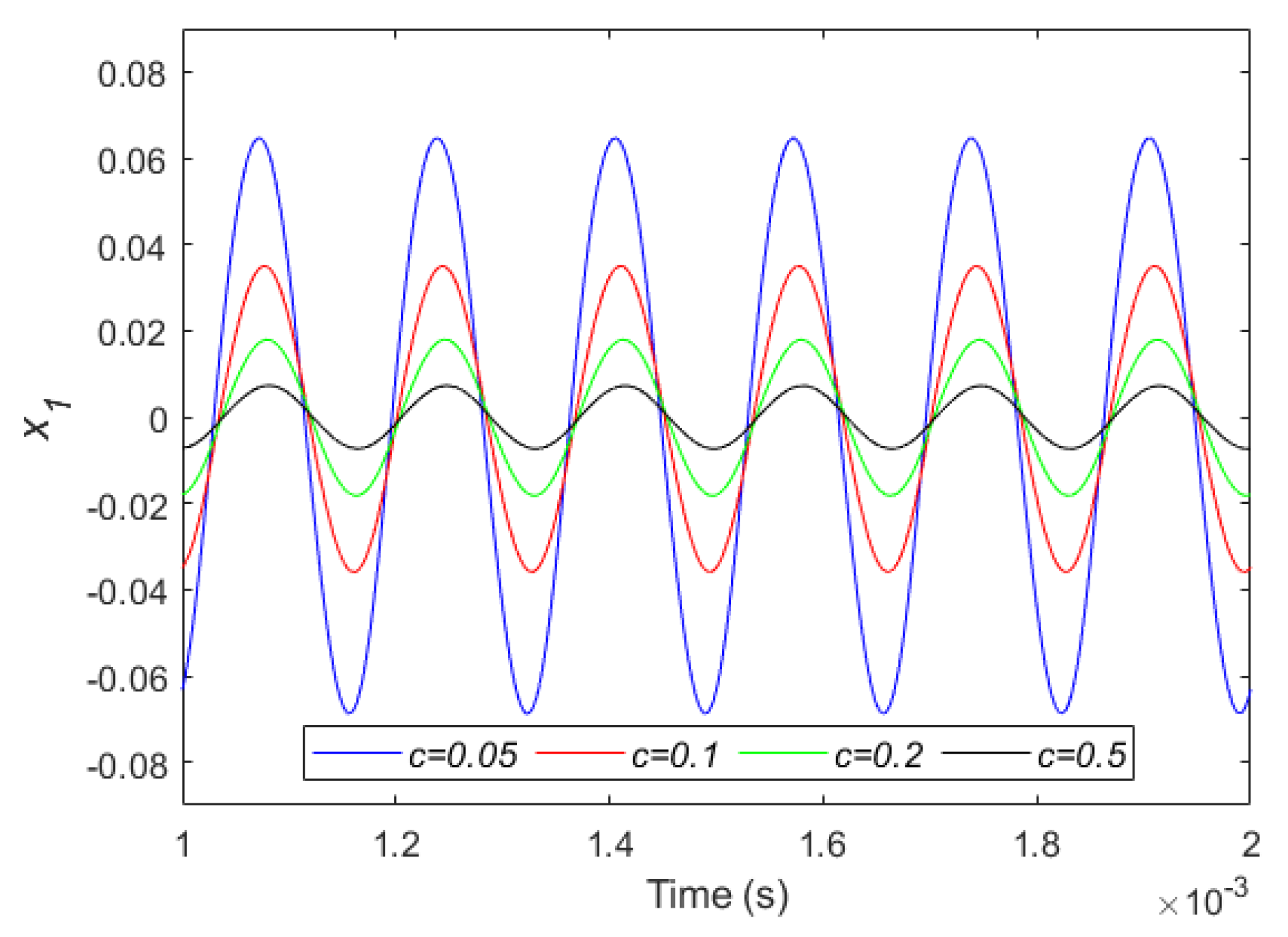

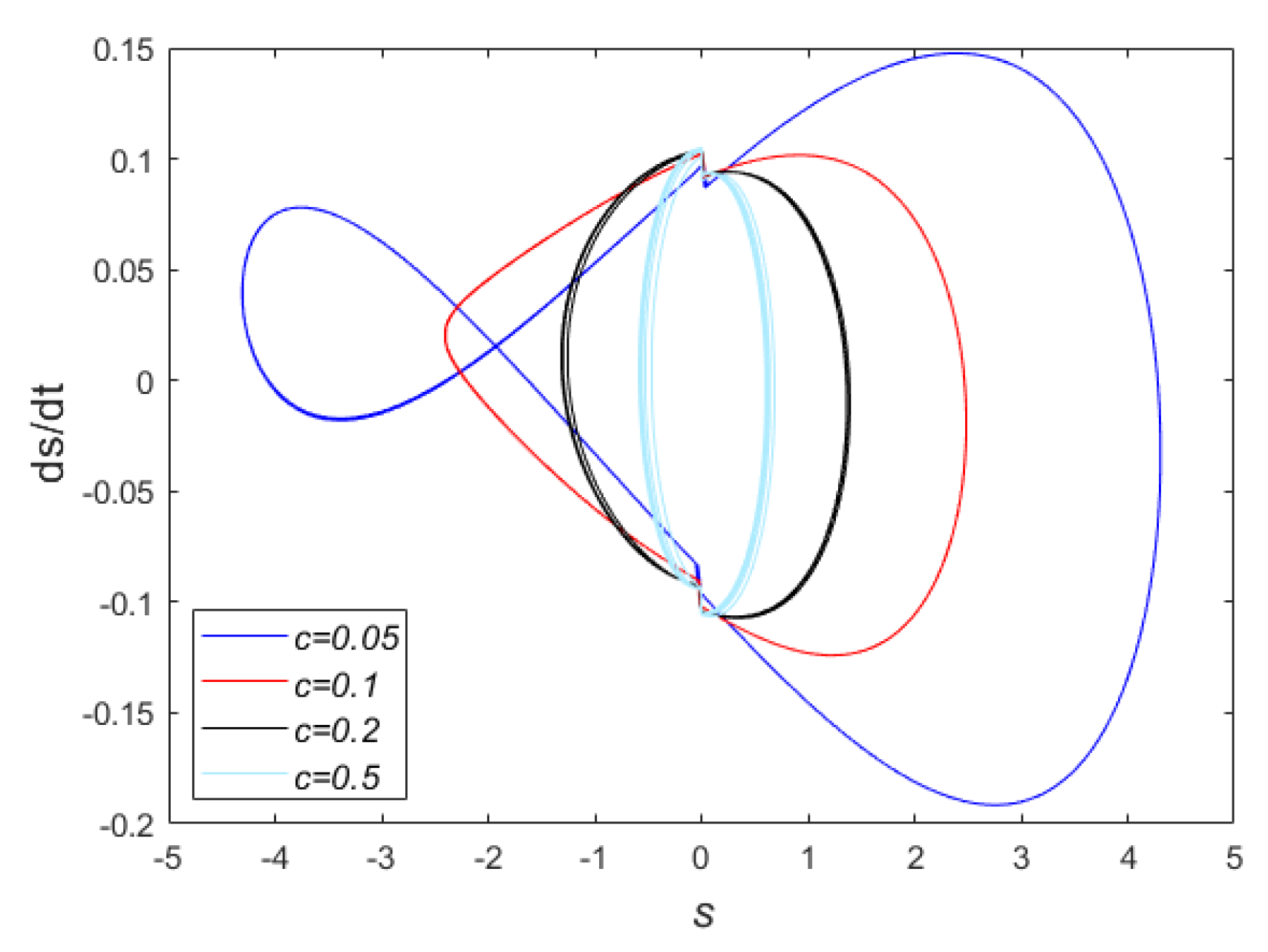

Subsequently, the effects of the damping coefficient on the control of the micro-capacitor are investigated. For this case, we considered $p=19$, $q=17$, and $\beta =50$. The diagram of $x_1$ for various damping coefficients is demonstrated in Figure 10. As can be seen from this figure, the amplitude decreases with the increase of the damping coefficient. Correspondingly, the phase plane is also depicted for this simulation in Figure 11. This figure shows, with an increase of $c$, that the related phase diagram considerably constricts in the vicinity of origin.

The maximum values of the applied voltages for this simulation are summarized in

Table 2. The maximum applied voltages $V_1$ and $V_2$ for various amounts of $c$ and considering $p=19$, $q=17$, and $\beta =50$.

	$\mathit{c} = 0.05$	$\mathit{c} = 0.1$	$\mathit{c} = 0.2$	$\mathit{c} = 0.5$
$V_{1\max }$	0.54	0.4	0.35	0.32
$V_{2\max }$	0.52	0.41	0.36	0.33

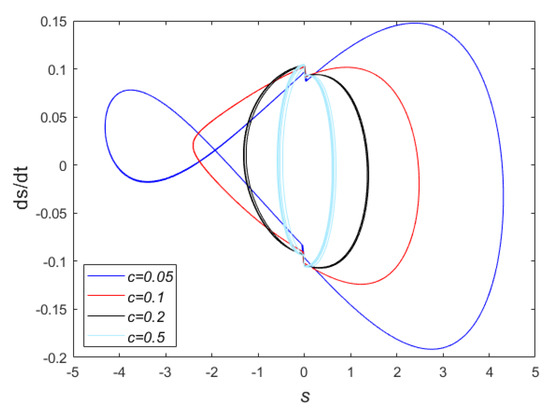

. As can be seen from the table, with the increase of the damping coefficient, the maximum values of the applied voltages become smaller. Moreover, the effect of the $\beta$ parameter on the control of the microstructure is also studied, and the phase trajectories are drawn for different $\beta$. For this case, the damping coefficient is $c=0.05$. It is clear from Figure 12 that, with increase of $\beta$, the amplitudes of $s$ and $\dot{s}$ are increased. The maximum values of $V_1$ and $V_2$ are shown in

Table 3. The maximum applied voltages $V_1$ and $V_2$ for various amounts of $\beta$ and considering $p=19$, $q=17$, and $c=0.05$.

	$\mathit{\beta } = 100$	$\mathit{\beta } = 50$	$\mathit{\beta } = 25$
$V_{1\max }$	0.66	0.54	0.48
$V_{2\max }$	0.59	0.52	0.47

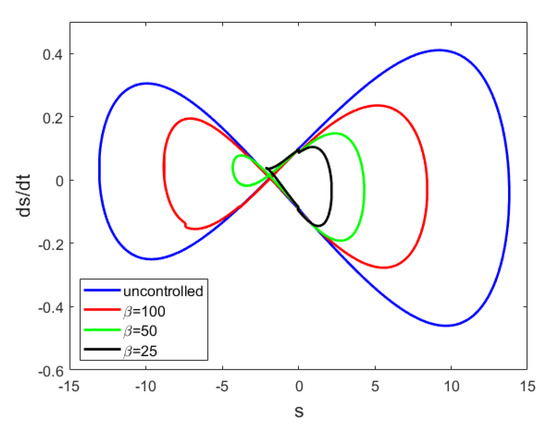

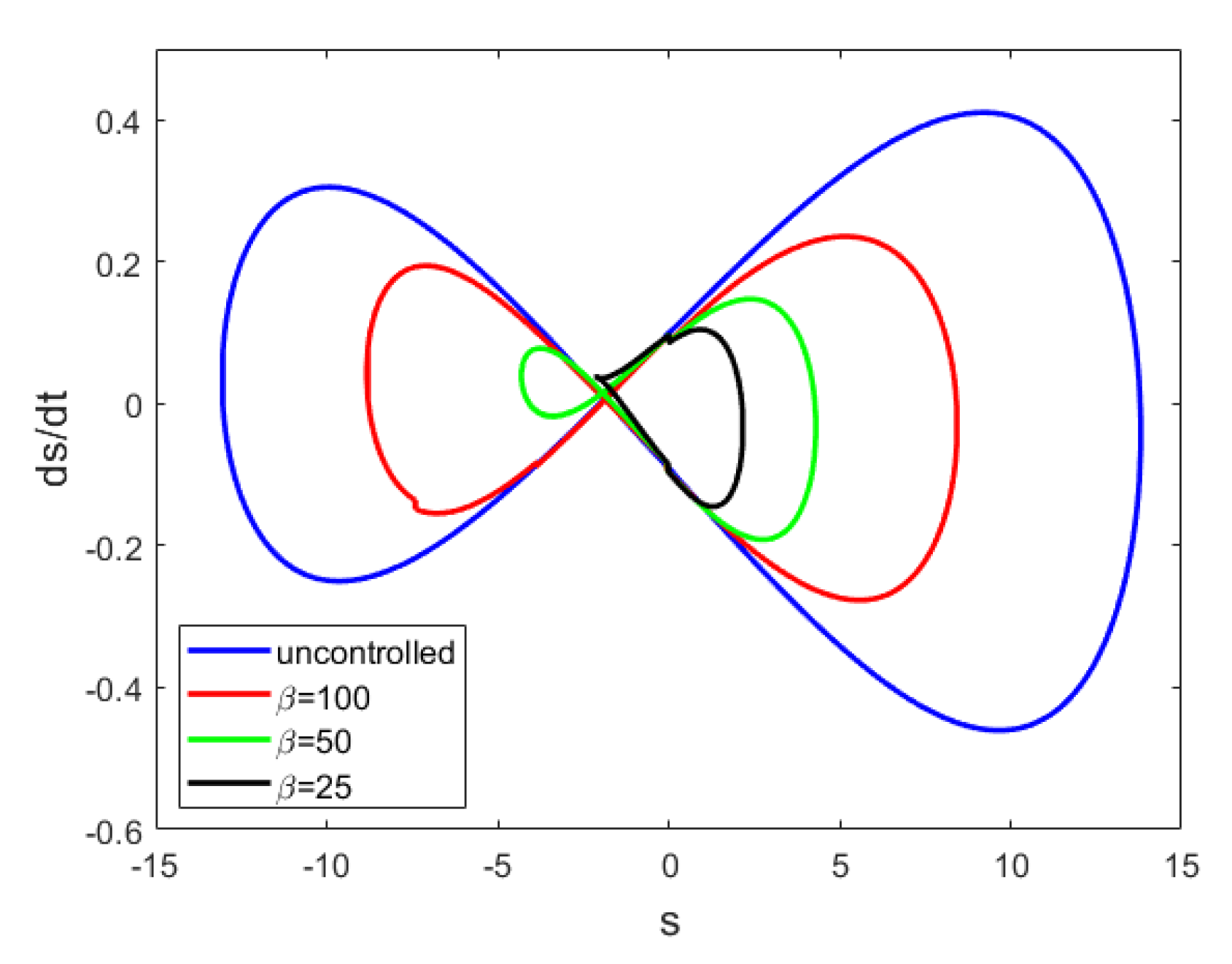

. As it is clear from this table, increasing $\beta$ causes an increase in the maximum amount of applied voltage. Therefore, in identical conditions, the preference is to choose a small $\beta$.

In the continuation of this section, the effects of disturbance on the robustness of the controller and the existence region of the sliding mode controller are explored. The noise under consideration is $\delta \left(t\right)=\epsilon \sin \left(12\times {10}^3\times \pi t\times t^{\ast }\right)$, where $\epsilon$ denotes the noise’s amplitude. This analysis takes into account the specifications $p=19$, $q=17$ and $\beta =50$. The maximum applicable $\epsilon$ for the designed controller is 1.05.

This means that $\epsilon >1.05$ will be followed by $\left|x_1\right|>1$, and the moving electrode will make contact with one of the stationary electrodes.

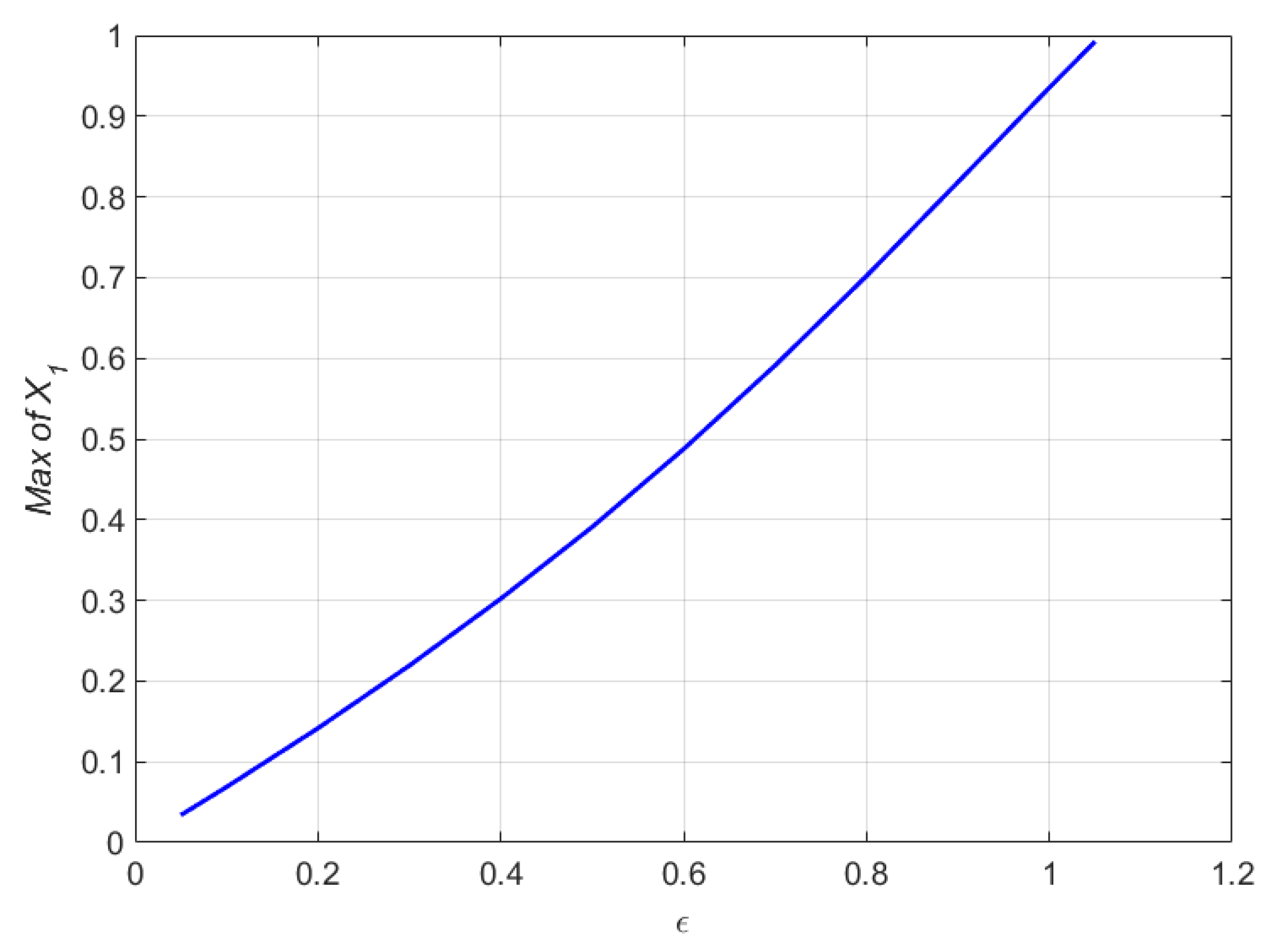

Figure 13 illustrates the highest variance in $x_1$ vs. $\epsilon$. As can be seen from the graph, raising $\epsilon$ raises the maximum value of $x_1$, while increasing $\epsilon =1.05$ raises the maximum value of $x_1$ to 1. As a result, the sliding mode controller’s stability region is established for $0<\epsilon \le 1.05$. For $\epsilon >1.05$, the controller is unable to maintain the microstructure’s stability.

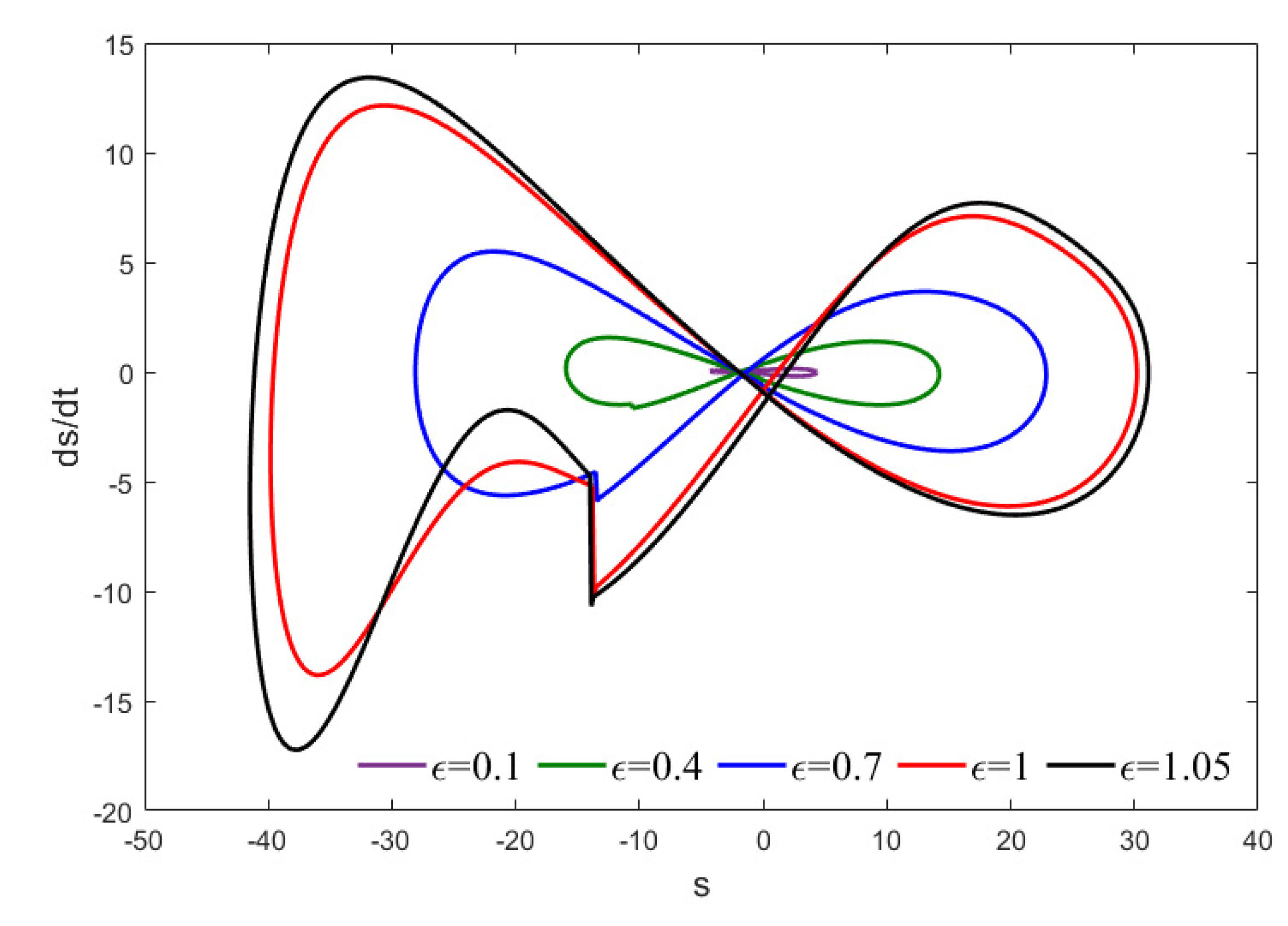

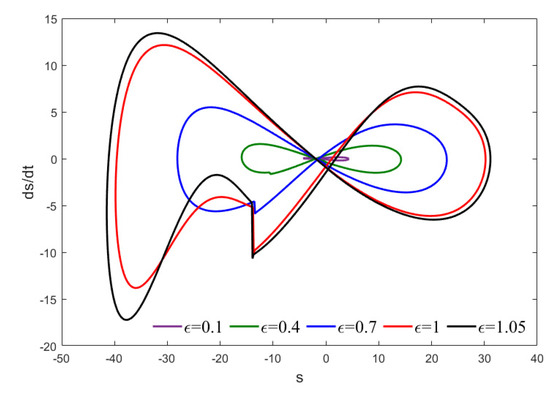

Figure 14 depicts $s-\dot{s}$ phase images for various $\epsilon$ values. As illustrated in this figure, as $\epsilon$ increases, the associated phase diagram also expands dramatically. Additionally, the phase diagrams take on a distinct shape as a result of the nonlinear character of the applied electrostatic field.

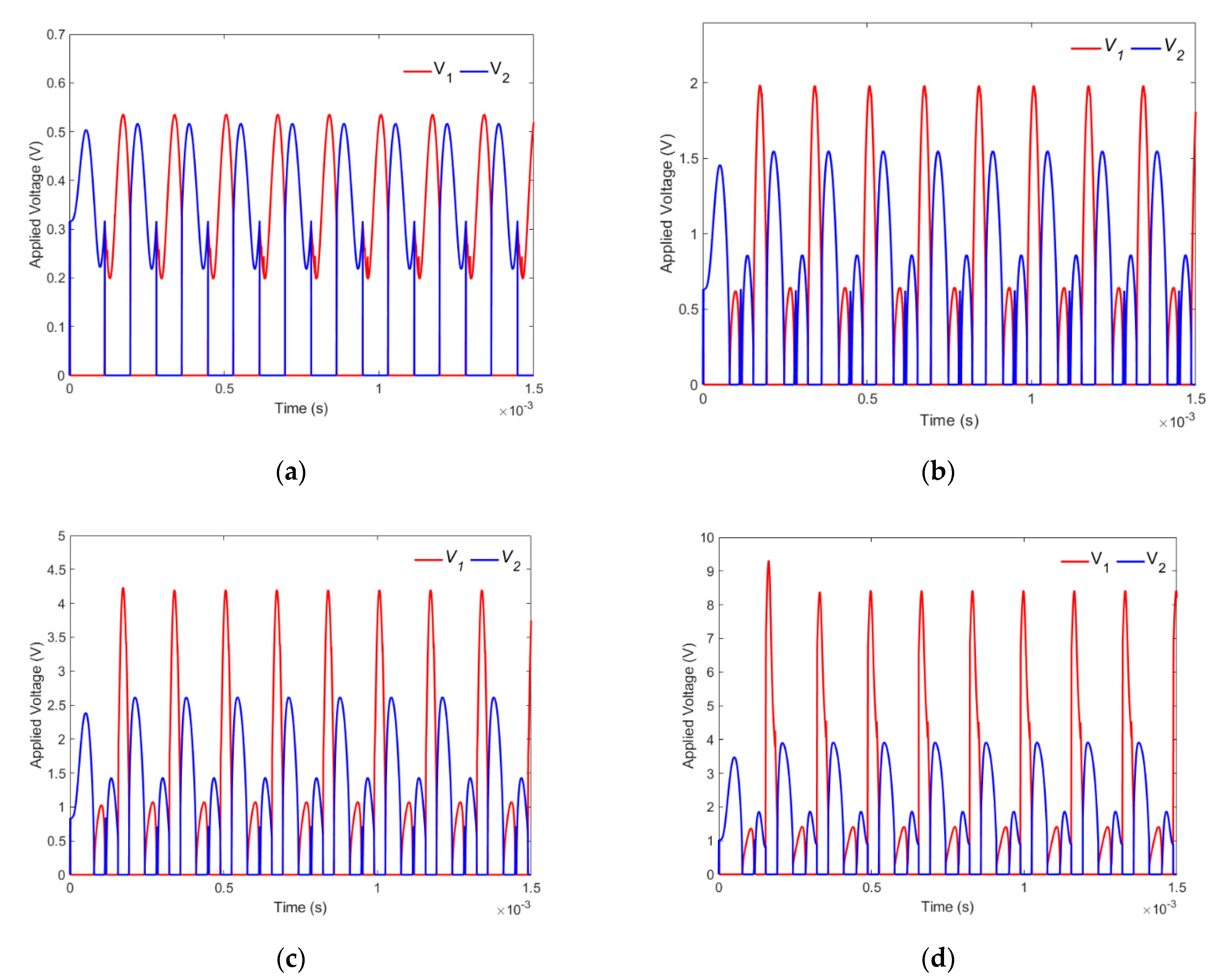

Now, we will explore the influence of $\epsilon$ on the quantity of applied voltage. Figure 15a–d illustrates the applied voltages $V_1$ and $V_2$ for various $\epsilon$. $\epsilon$ increases the voltage amplitude greatly, although the pace of this amplitude increase for $V_1$ is more than that for $V_2$, as demonstrated in these figures. For example, whereas the $V_1$ and $V_2$ amplitudes are about similar for $\epsilon =0.1$, it is clear from Figure 15b,c that the $V_1$ amplitude is much greater than the $V_2$ amplitude for $\epsilon =0.4$, $\epsilon =0.7$, and $\epsilon =1.05$.

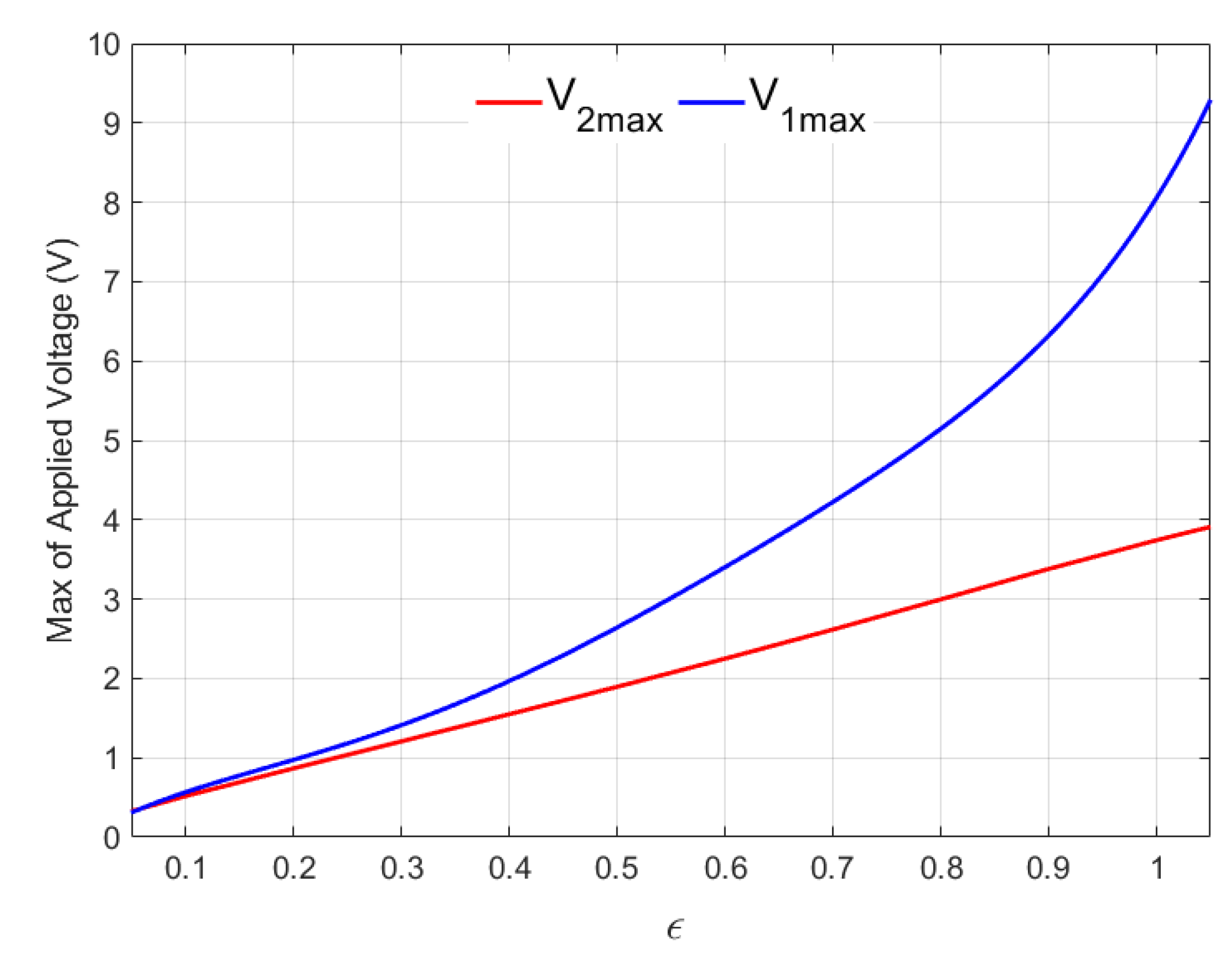

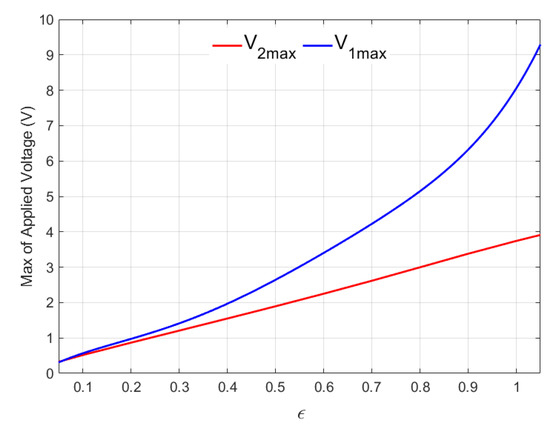

Figure 16 depicts the variances of $V_{1\max }$ and $V_{2\max }$ for $0.05\le \epsilon \le 1.05$ for further examination. As may be seen in this diagram, for $\epsilon =0.05$, $V_{1\max }\simeq V_{2\max }$. However, with higher levels of $\epsilon$, the $V_{1\max }$ exceeds the $V_{2\max }$. Additionally, as illustrated in this figure, increases in $V_{2\max }$ are nearly linear, whereas changes in $V_{1\max }$ are nonlinear, and the rate of increase of $V_{1\max }$ is more noticeable with greater $\epsilon$.

4. Conclusions

Given the importance of active control of microstructures as well as mitigating the unwanted effects of disturbances and uncertainties in such tiny structures, this study investigated a control strategy seeking mainly their stabilization in the vicinity of a fixed point. Indeed, the nonsingular TSMC was considered in this regard, which is an efficient and fast method with high robustness.

In addition to the aforementioned advantages, the lack of need for a strong control force is another respectable feature of this particular control strategy. This controller is of a second-order type, where determination of its control law in mitigating the effects of disturbances and uncertainties were examined for the case of a micro-capacitor. The control forces in such a capacitor were performed through the electrostatic forces regulated by the assumed electric potentials.

The effects of control parameters on the dynamic behavior and the control forces as well as the phase trajectory of the sliding surface manifold were studied. The obtained results showed high capability of the control method in stabilizing the microstructure as well as considerably reducing the effects of disturbances and uncertainties. The results also showed a significant contraction of the phase portrait for the controlled system compared to uncontrolled system.

Furthermore, we confirmed that, with increasing $\frac{p}{q}$, the phase diagram became more contracted, and the level of control force was significantly reduced. Moreover, the effect of the damping coefficient on the active control together with dynamic behavior of the system was studied. The results showed that, through increasing the damping coefficient, the phase diagram became more compact, and the maximum control force decreased. We also demonstrated that changing the $\beta$ parameter had a significant effect on the behavior of the controlled system and increasing $\beta$ caused expansion in the phase diagram and a decrease of the maximum level of control force.
