New Anti-Derailment System in Railway Crossings

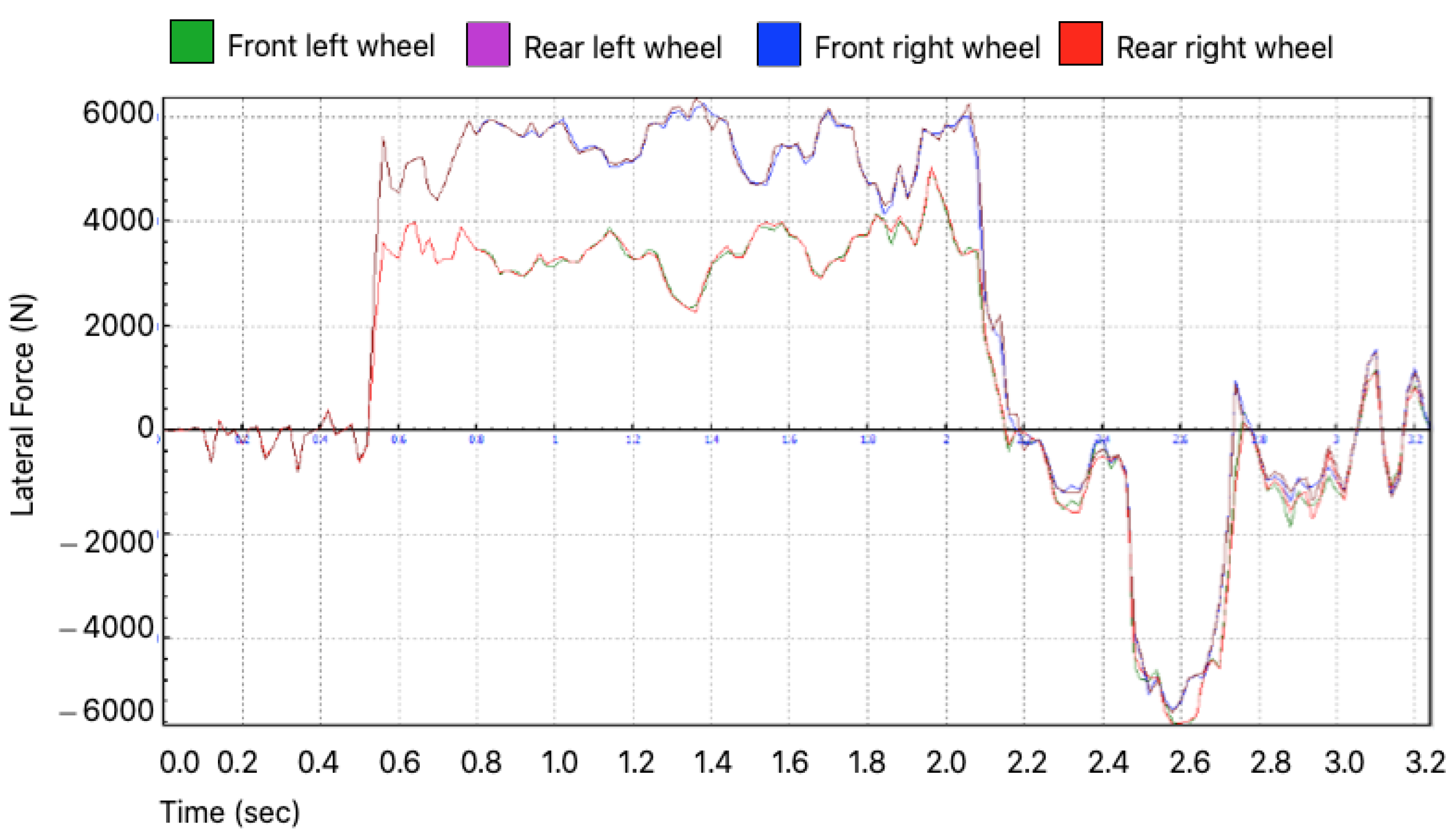

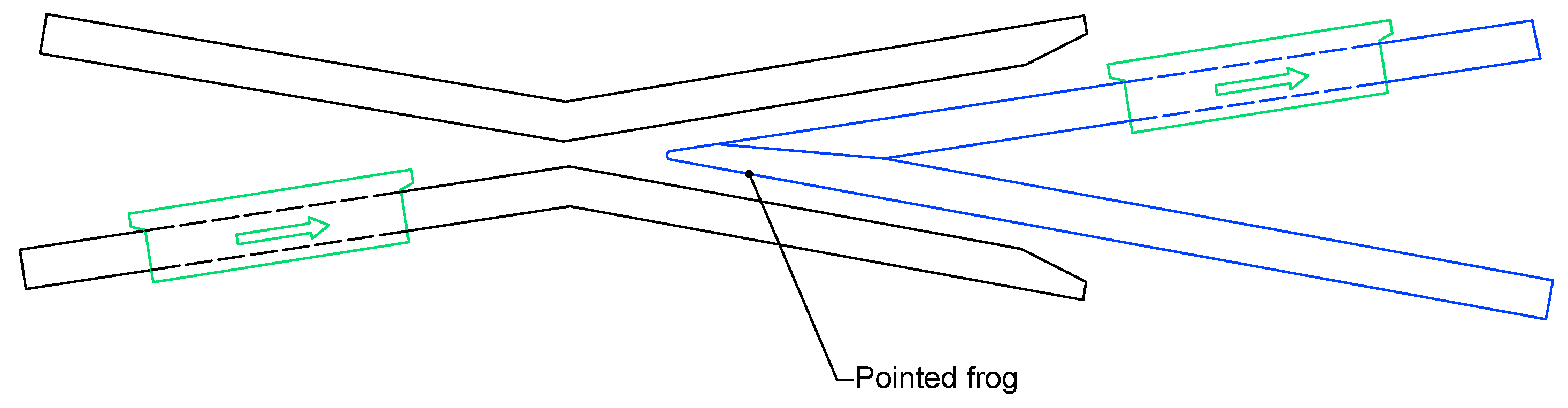

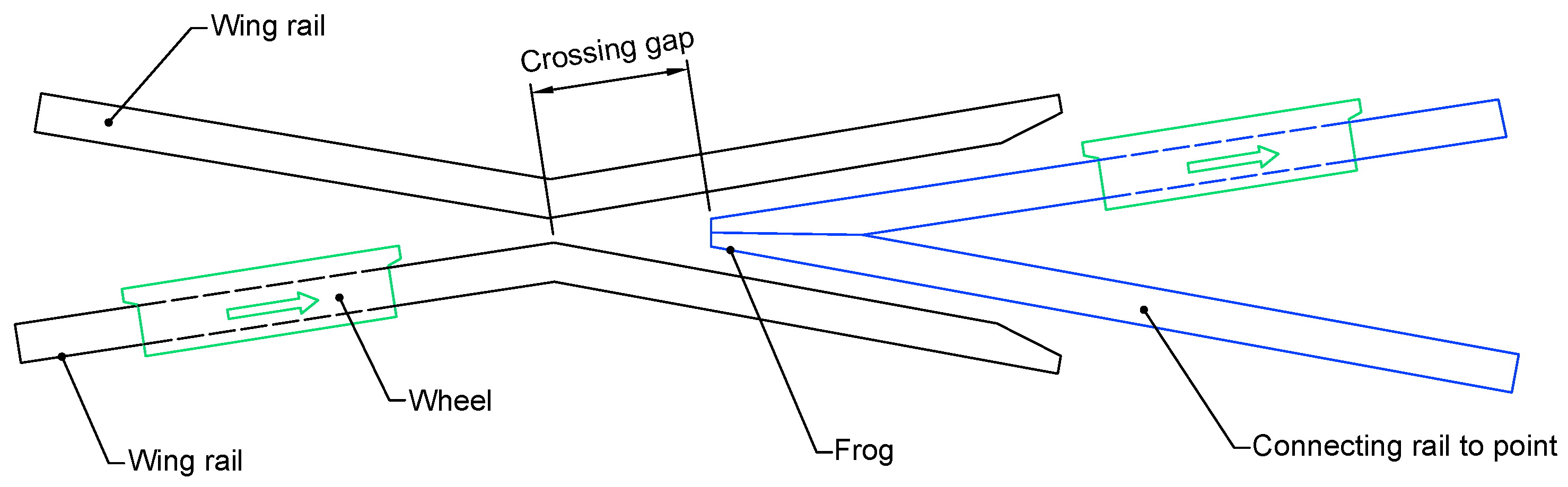

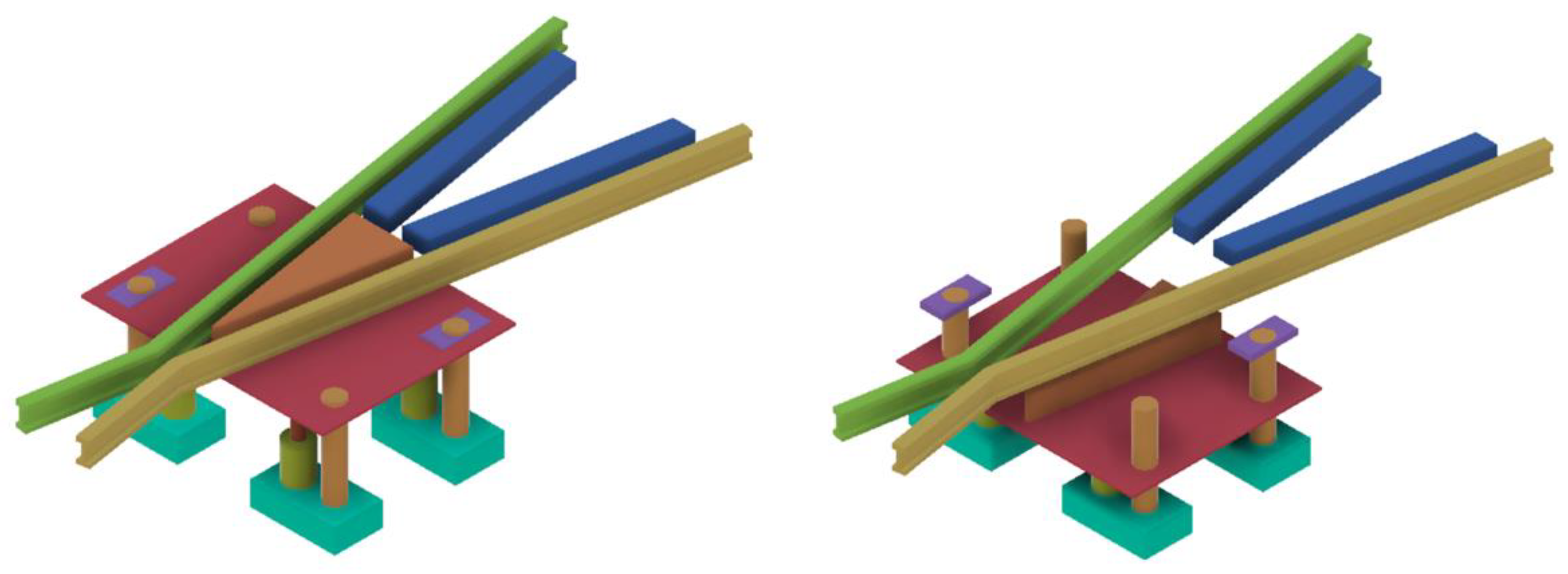

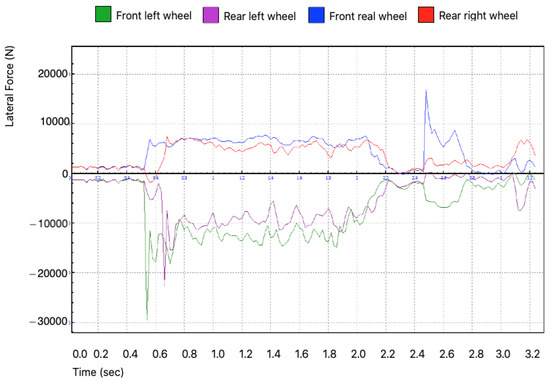

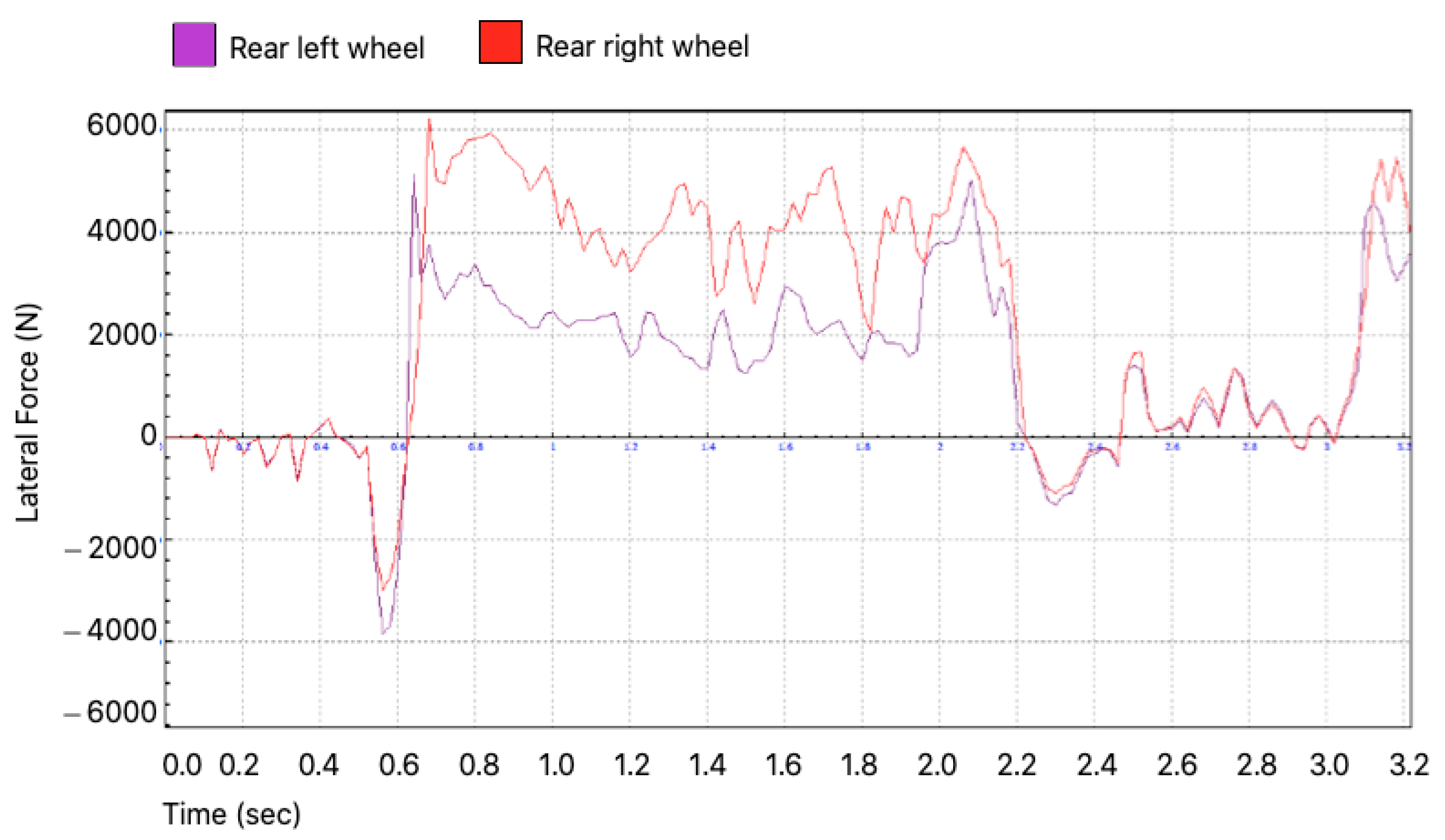

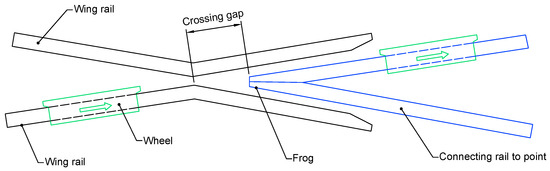

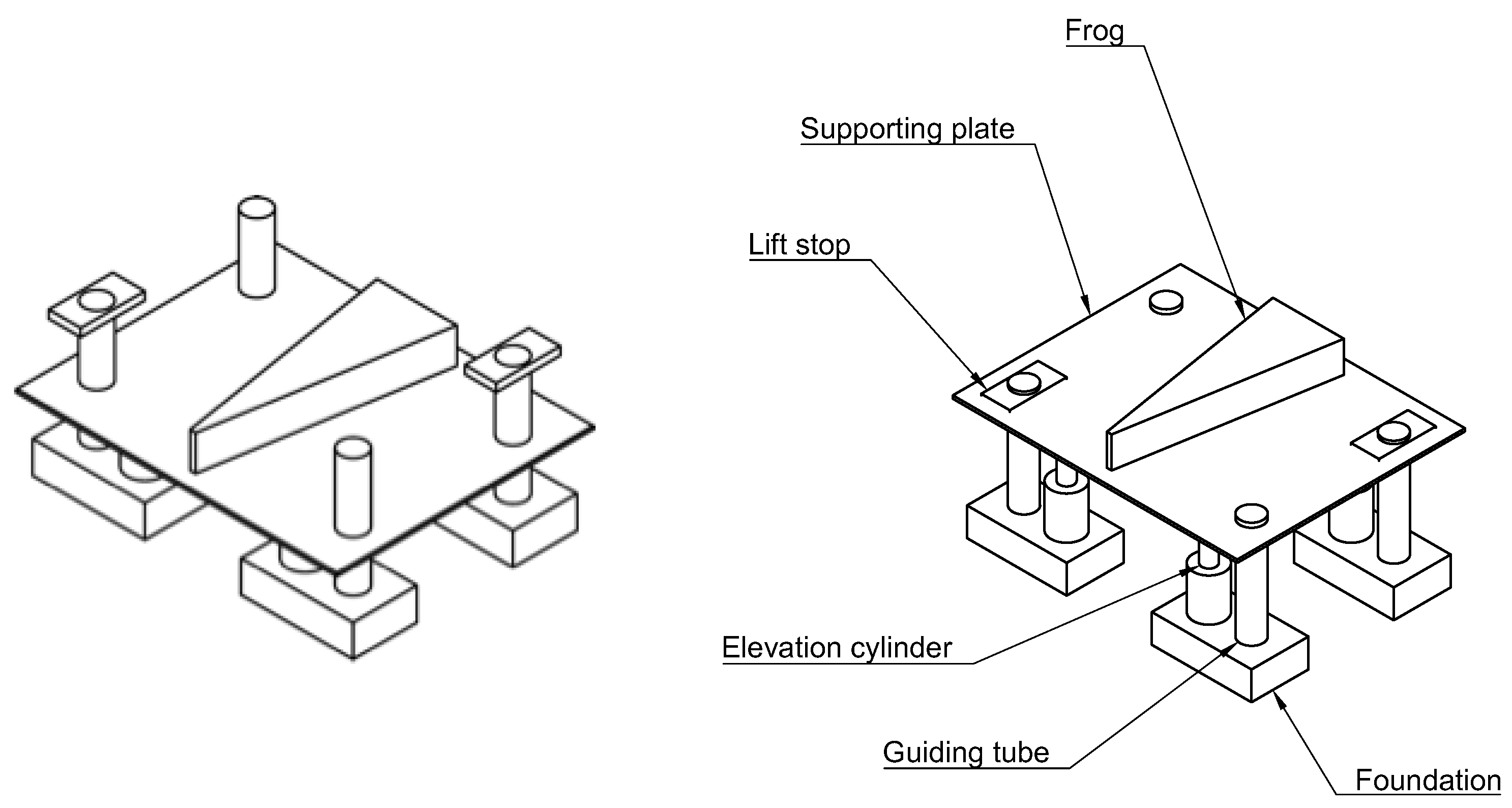

The objective of this paper is to design a new system to reduce the risk of derailment at crossings, which are critical points in railway lines. Crossings are a common element in conventional lines of current railway systems and are the only point on the track where there is a discontinuity. Our proposal is based on adding an element to the crossing that occupies part of the crossing gap, providing a larger support surface next to the wing rail, such that the wheel does not fall into the gap. The lateral force—which is the most influential parameter in derailments—is substantially decreased, thus reducing the risk of derailment due to lifting on the rail. The proposed approach also increases the safety of the dynamic behaviour, which has a direct impact on passenger comfort and influences the service life of both the rolling stock and the track, thus reducing the cost and even increasing safety at higher speeds. It has a simple structure that is easy to assemble and does not interrupt traffic during installation. The results of simulations using this innovative solution indicate a significant reduction in lateral stresses and strains on the track, which undoubtedly produces an improvement in traffic safety; however, the results cannot be fully quantified in terms of accident reduction with only the data obtained from simulations. Therefore, it was concluded that implementation of the new crossing design provides better conditions for rolling stock to run on turnouts, increasing safety by reducing the risk of derailment. Nevertheless, it will be necessary to carry out a program of experimental tests, which we intend to make the subject of future research.
