1. Introduction
Gears are the key components of modern industry and have been widely employed in automotive, machinery, wind turbine, and aviation fields [
1]. The operational reliability of a geared transmission system is mainly associated with its mechanical structure and life, which can be easily affected by internal and external factors [
2]. Due to material defects and imperfect manufacturing procedures (e.g., machining error), insufficient lubrication, and harsh running environments, the gears are prone to local defects [
3,
4]. According to the statistics, around 60% of total gearbox faults originate from individual gear errors [
5]. In addition to that, it has also been reported that approximately 19.1% of helicopter powertrain system failures are caused by gearbox systems [
6]. Typically, the main gear failure modes include tooth root cracks, pitting, spalling, and tooth surface wear. With this in mind, the literature review confirms that the early diagnosis of tooth root cracks is considerably valuable in modern industry in terms of predictive maintenance since the tooth cracks tend to have a more rapid failure (e.g., complete tooth breakage) compared to other listed major failure modes [
7,
8]. The presence of a tooth root crack can deteriorate the dynamic responses, for example, vibration and transmission error (TE), of a gear pair and may threaten the machines’ safety. To avoid unscheduled shutdowns, massive economic (for example, maintenance and repair costs) losses, and even human casualties, the matter of gear condition monitoring (CM) has drawn attention during the last decade with the wide availability of sensors and ever-increasing computation power. From this standpoint, CM of gear health status emerges as a vital and up-to-date research topic, considering its contribution to ensuring reliable operations and increasing cost savings.
Convenient and rapid diagnosis of an incipient fault is key to improving service safety. In this regard, the time-varying mesh stiffness (TVMS) is addressed as a primary consideration to interpret the dynamic behavior of a gearbox [
9] and can also be utilized as a valuable parameter for understanding the damage severity [
10,
11]. Meshing stiffness is basically defined as a gear tooth’s ability to withstand deformation during the meshing cycle and can be incorporated with the finite element (FE) model or gear-lumped parameter model in order to predict the dynamic response (e.g., vibration and TE) of a geared transmission system. Plus, the fluctuations in TVMS of a gear pair are among the main sources of the periodic TE fluctuations and, therefore, changes in vibration response [
12]. With this in mind, many scholars have investigated the influence of major failure modes (for example, tooth root cracks and pitting) and geometrical modifications on TVMS and TE. For instance, Chaari et al. [
13] endeavored to quantify the reduction in TVMS through a developed analytical model by emphasizing the impact of an incurred tooth root crack fault on TVMS and vibration characteristics. The study benefited from an FE model in order to validate the findings acquired through the analytical model, and a good correlation was observed. Fernandez del Rincon et al. [
14] portrayed a model to assess the TVMS of a spur gear transmission system, aiming to provide better insights regarding dynamics characteristics. The researchers presented a numerical example to achieve this end and further demonstrated the effects of different transmitted torque levels and mounting distances on meshing stiffness. Later, Liang et al. [
15] pointed out that the TVMS is among the primary sources of vibration of a gearbox and investigated the influence of a tooth root crack on the meshing stiffness based on this motivation. Their study considered five different faulty (i.e., crack level) conditions, namely, (1) 10%, (2) 25%, (3) 50%, (4) 75%, and (5) tooth missing. As a result, it was reported that TVMS reduced considerably as the crack length (i.e., level) increased. Recently, Yu et al. [
16] presented an analytical mathematical approach in order to identify meshing stiffness utilizing gearbox housing vibration signals. The effects of pitting and surface wear faults, other than healthy conditions, on the meshing stiffness were also evaluated under variable operational (i.e., torque and shaft speed) circumstances. Supplementary to the numerical simulations, the experimental findings confirmed that the proposed analytical approach would help achieve gear CM and fault diagnosis tasks.
Mechanical systems are expected to put forth high performance for longer cycles under excessive service loads with regard to more competitive industry requirements. Therefore, the CM of geared transmission systems is, in turn, even more essential to diagnose any potential failure before it becomes a functional failure that may further threaten the availability of the whole system. Under this predictive maintenance philosophy, the main approaches generally employed in CM include (1) vibration analysis, (2) motor current signature analysis, (3) particle wear analysis, and (4) oil analysis [
17]. Among them, vibration-based analysis techniques have stood out in achieving gearbox early fault diagnosis tasks due to their advantages, for instance, low cost and fast measurement [
18]. However, the effect of tooth root cracks on the mechanical systems’ vibration response could be limited (i.e., slight) in the early stages, or background noises may have submerged the fault features. From this point of view, an intelligent method that can automatically extract fault features from the vibration signals would be precious since failing in early diagnosis of root cracks may result in a rapidly broken tooth.
Under the circumstances, modeling the tooth root crack fault and simulating its influence on dynamic behavior (for example, vibration and TE) can provide a theoretical basis to detect outliers and achieve early fault diagnosis tasks [
4]. In this regard, dynamic modeling of a geared transmission system offers an opportunity to better understand the system’s dynamic characteristics before starting a measurement campaign. The primary consideration in dynamic modeling is to produce a model with an acceptable trade-off between simplicity and reality. In this way, a sufficient amount of fault data can be collected under variable operational conditions (e.g., load and shaft speed) without needing a costly and physical experimental dataset [
19]. For example, Howard et al. [
20] endeavored to put forth a simplified dynamic model to ascertain the vibration responses of a geared transmission system by emphasizing its value for CM. In addition to that, the study also comparatively presented the effect of a tooth root crack fault on TVMS and frequency spectrum. Mohammed et al. [
12] recorded the variation in two statistical indicators, considering three different crack propagation scenarios in order to understand the effects on vibration signals. To this end, a six-degrees-of-freedom (DOF) dynamic model of a geared transmission system was established. The researchers reported that the changes in statistical indicators were enhanced as the crack level increased, thus making fault detection easier. Ren et al. [
21] aimed to evaluate the time domain vibration signals in a geared transmission system in the presence of a tooth root crack and developed a multi-DOF dynamic model to achieve this. Their research first parameterized the crack angle and depth and then indicated that the influence of tooth cracks on vibration impulses was amplified due to the crack propagation. Recently, Yang et al. [
22] pointed out that finding major failure modes (e.g., tooth crack) under variable operational circumstances is challenging. Therefore, the researchers proposed a dynamic model, inducing frequency and amplitude modulations into gearbox vibration signals. The findings were verified through a test rig, and good agreement was observed.
Identifying a fault (or its location) through the CM of a gearbox is of great engineering significance. This way, the maintenance strategies can be optimized, and valuable support regarding safe decision making can be provided. The geared transmission system diagnosis by utilizing vibration-based approaches mainly consists of two stages, namely, (1) feature extraction and (2) classification. One type of mainstream for gearbox CM is extracting relevant fault (e.g., tooth root crack) features from the time or frequency domain of the vibration signal to decide the fault’s presence. With this in mind, traditional mechanism-based fault diagnosis techniques generally depend on advanced user knowledge regarding feature extraction and fault mechanism, a subjective and labor-oriented duty that limits its use (i.e., inspection and maintenance) in the field [
23]. To overcome the dependency on expert knowledge, the other genre of mainstream approaches is designing neural networks where the computer can automatically extract implicit fault features from raw vibration signals. Artificial neural networks have recently been utilized in many diverse applications for (1) classification, (2) optimization, (3) clustering, and (4) pattern recognition [
24,
25]. Their implementation fields include CM of gearboxes [
26], motor vehicles (e.g., race cars and motorcycles) [
27,
28], mining (e.g., thrust and moment prediction) [
29], etc. However, machine learning (ML) algorithms, such as the k-nearest neighbor, support vector machines, and decision tree classifiers, comprise shallow structures, making learning pertinent hidden faults (for example, tooth root crack) features more compelling [
19]. Recently, a deep learning (DL) technique called convolutional neural network (CNN) achieved great success in the field [
7] thanks to its advantages, such as (1) automated fault extraction and (2) minimal engagement of signal processing. In addition to that, the CNN algorithm is also increasingly popular owing to its local shared weighted unique structure that reduces computational burden [
7,
19].
Sun et al. [
26] emphasized that fault (e.g., tooth crack) signatures might be submerged in overwhelming environmental conditions and proposed an intelligent diagnosis approach based on the CNN algorithm to overcome this limitation. Their study gave vibration signals collected through a physical test rig in addition to numerical simulations into a CNN-based algorithm and obtained average classification accuracy of 99.58% (simulation) and 99.79% (experiment), respectively. Liu et al. [
30] combined the CNN algorithm with singular value decomposition and variable-mode decomposition to achieve gear fault diagnosis tasks. The study considered three different faulty conditions (i.e., label), namely, (1) wear fault, (2) tooth crack, and (3) tooth breakage. As a result, an overall recognition accuracy of 100% was reached with fewer training times than other tested approaches. Kim and Choi [
7] aimed to diagnose tooth cracks and spalling faults using vibration signals collected through a physical test rig. To this end, the researchers proposed a CNN-based algorithm to classify healthy and faulty (i.e., cracked and spalled) vibration signals and prove the developed method’s applicability to real-life practices. Gecgel [
19] utilized simulated vibration data obtained through an established 6-DOF dynamic model to perform gear diagnostics tasks. In this regard, the success of a one-dimensional CNN (1-D CNN) was compared with (1) long short-term memory, (2) decision tree classifiers, (3) support vector machines, and (4) random forest classifiers. As a result, it was reported that the 1-D CNN was superior to other algorithms tested within the scope of the study. Azamfar et al. [
31] fed the two-dimensional CNN algorithm with multisensor data in order to classify different gear faults under variable shaft speeds. In this regard, the researchers tested the effectiveness of their algorithm under shaft speeds of (1) 250 rpm, (2) 500 rpm, (3) 1000 rpm, and (4) 1500 rpm. In addition to that, the classification success of the proposed two-dimensional CNN method was compared with some traditional ML approaches, for example, k-nearest neighbor and support vector machines. As a result, it was reported that the two-dimensional CNN model outperformed all other ML-based approaches evaluated within the scope of research work in terms of classification accuracy.
The competitive industry requirements have boosted the need and awareness regarding new gear designs that can offer high performance under tough running conditions [
32]. Based on this motivation, an asymmetric tooth profile in which the drive-side pressure angle (DSPA) (
αd) and coast-side pressure angle (
αc) of the involute tooth profile are adjusted differently should be addressed comprehensively [
33,
34,
35,
36,
37]. Evidence in the literature confirms that using an asymmetric tooth profile instead of a standard (symmetric) involute tooth profile could provide advantages in terms of (1) vibration [
33], (2) bending strength [
34], (3) impact resistance [
35], and (4) fatigue crack propagation life [
8]. For example, Kapelevich [
33] emphasized that the asymmetric profiled gears hold promise for reducing size and vibration while enhancing load-carrying capacity. The research work, therefore, presented a design methodology to obtain gears with asymmetric teeth and further demonstrated that asymmetric gears could reduce vibration levels significantly through an experimental test campaign. Shuai et al. [
34] modeled internal helical gears with four different DSPAs: (1) 20°, (2) 25°, (3) 30°, and (4) 35°. Afterward, the researchers comparatively interpreted the influence of DSPA on maximum stress through FE simulations and reported that the asymmetric profiled internal helical gears outperformed the standard profiled counterparts. Later, Kalay et al. [
35] developed a novel experimental procedure to measure the impact resistance of asymmetric spur gears and evaluated the influence of DSPA on peak force energy. To this end, test samples with DSPAs of 20° and 30° were manufactured, and then the experiments were performed for two different drop heights and DSPA. The study indicated that the peak force energy could be increased up to 25.8% by utilizing DSPA of 30° instead of 20°. Doğan et al. [
8] compared the spur gears in terms of (1) fatigue propagation life and (2) tooth root stresses. The researchers considered four different backup ratios and DSPAs to achieve this. As a result, it was reported that utilizing an asymmetric tooth profile could have decreased the tooth root stresses by circa 66% while increasing the fatigue propagation life around fifteen-times. Recently, Mo et al. [
37] put forth an analytical model in order to calculate TVMS and TE characteristics of an asymmetric gear pair. Their study considered four DSPAs and revealed that the meshing stiffness increased as the DSPA of an involute profile increased. In addition to all of its superiorities against standard designs, the asymmetric profiled gears also have three main disadvantages, namely, (1) operation for a single sense of rotation [
35], (2) lower contact ratio [
36], and (3) higher manufacturing costs [
8,
9]. With this in mind, it should be highlighted that, even so, the asymmetric gears still hold great promise compared to standard profiled gears in many aspects if utilized in appropriate implementation fields [
33,
34,
35,
36,
37].
In summary, a great deal of research put forth the superiority of gears with asymmetric teeth against standard designs. Plus, it is known that ML- and DL-based methods have become valuable tools for predictive maintenance with the wide availability of sensors and ever-increasing computation power. With this in mind, the available literature either investigated the effects of asymmetric tooth profiles on dynamic behavior or utilized ML- or DL-based approaches to detect faults in gears with symmetric tooth profiles. However, no research study in the literature examined whether an advantage is provided by using an asymmetric tooth profile to facilitate fault detection with artificial intelligence to add to the improvements it affords in terms of bending strength, impact resistance, and fatigue propagation life. The motivation of the present study is to fill this gap by utilizing a DL-based approach to detect tooth root cracks in asymmetric spur gear pairs and investigating whether tooth asymmetry would provide an advantage to boost the DL-based algorithm’s classification accuracy. We hypothesize that since the meshing stiffness of an asymmetric gear pair is higher than standard designs, the fluctuation in the vibration signals will be stronger (i.e., more pronounced) in the presence of a tooth crack and facilitating fault detection.
The present study investigated the vibration responses of standard (
αd = 20°) and asymmetric (

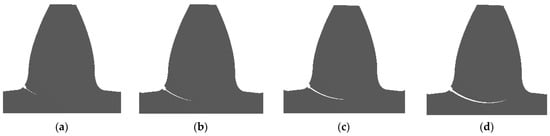

αd = 25° and 30°) involute spur gear pairs in the presence of a tooth crack and whether tooth asymmetry would provide an advantage to facilitate the early fault diagnosis tasks. In this regard, a 1-D CNN model was proposed in order to solve a multi-class classification problem. This research introduced the crack propagation paths, which we obtained through ANSYS
® Workbench (ANSYS, Inc., Canonsburg, PA, USA) SMART Crack-Growth Module in our previous study [
8] and whose reliability was confirmed with the available experimental data in the literature [

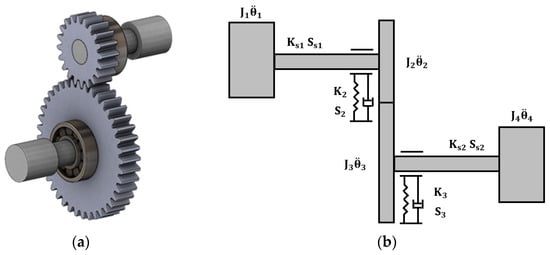

38] to the created 3-D CAD models. Afterward, the FE approach was employed in order to compute the single-tooth stiffness values of healthy and cracked (25%–50%–75%–100%) spur gear pairs and, accordingly, the TVMS data. A 6-DOF dynamic model of a one-stage spur gear transmission was established through MATLAB
® (MathWorks Inc., Natick, MA, USA) software to simulate vibration responses of standard and asymmetric spur gear pairs. In addition to that, three different signal-to-noise ratios (SNRs) were added to the simulated vibration signals to approximate reality since the data collected through a dynamic model are perfect, meaning they are noise-free. The main objective of this paper is to examine whether tooth profiles yield an advantage in detecting toot cracks early through a DL-based method. The effect of tooth asymmetry on TVMS and, therefore, vibration responses of a spur gear transmission was also evaluated. No similar study has been reported using a DL-based approach for fault detection in asymmetric involute spur gears and whether tooth asymmetry yields an advantage in detecting tooth cracks in the literature.
3. Results

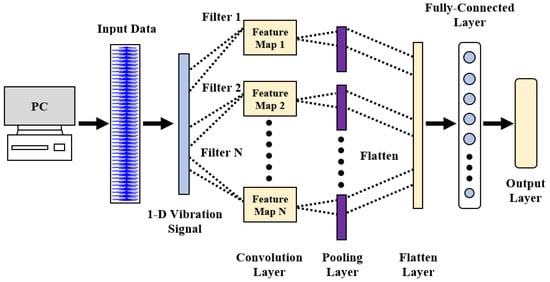

The present study developed a 1-D CNN-based method to classify different gear health conditions, considering three different DSPAs. To this end, first, single-tooth stiffness and TVMS of healthy and cracked (25%–50%–75%–100%) standard and asymmetric spur gear pairs were computed using an FE-based method. Afterward, a 6-DOF dynamic model of a one-stage spur gear transmission was established to simulate vibration responses in the case of a tooth crack. The next step was to add Gaussian noise to the simulated vibration data to complicate the early fault diagnosis task, considering three different SNRs [
19]. Finally, the overall classification accuracy rates acquired for three different tooth profiles (20°/20°, 20°/25°, and 20°/30°) through the developed 1-D CNN model were compared among themselves. The aim was to explore the influence of DSPA on the spur gear pairs’ dynamic behavior and investigate whether tooth asymmetry could provide an advantage to facilitate crack diagnosis to add to the improvements it affords in terms of bending strength, impact resistance, and fatigue life. As a supplementary finding, the present research also benefited from three statistical indicators, namely, (1) RMS, (2) kurtosis, and (3) CF, to investigate whether the configuration of DSPA would provide an advantage in detecting tooth root cracks.

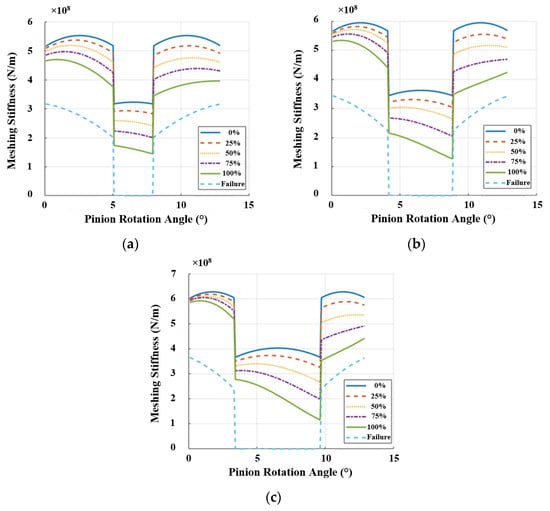

Figure 5 depicts the meshing stiffness results obtained for three different tooth profiles, considering four different crack levels (25%–50%–75%–100%). Next, the acquired TVMS results will be utilized in order to obtain vibration responses through the 6-DOF dynamic model of a one-stage spur gear transmission. As highlighted earlier, the details regarding the methods used to compute both single-tooth and meshing stiffness values are provided in our previous research works [
9,
41].
Figure 5 provides three significant findings regarding the influence of DSPA (i.e., tooth asymmetry) on the meshing stiffness of spur gear pairs.
The meshing stiffness enhances with an increment of DSPA from 20° to 30°. In this regard, the tooth root thickens as the DSPA increases; thereby, the tooth behaves in a stiffer manner compared to standard (20°/20°) designs (see

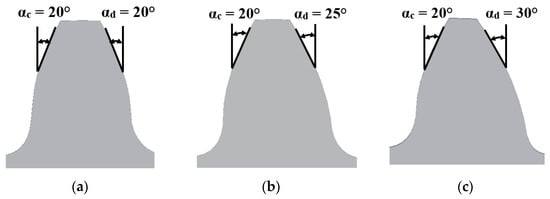

Figure 1) [
8,
35];
The TVMS of a spur gear pair decreases in the presence of a tooth crack. In this regard, the reduction in TVMS proportionally enhances as the crack level increases;
A reduction in TVMS decreases as the DSPA increases. This finding is also compatible with the available literature [
9];
The single-tooth contact region enlarges as DSPA increases, resulting in longer load transmission with a single gear pair.

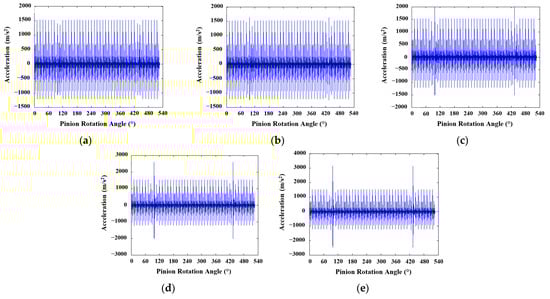

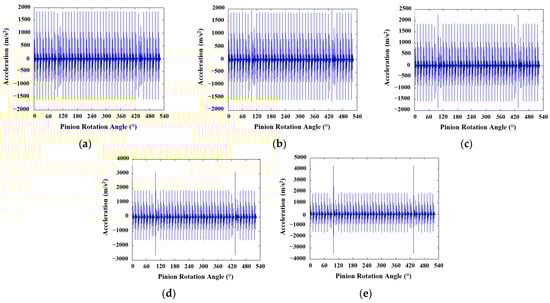

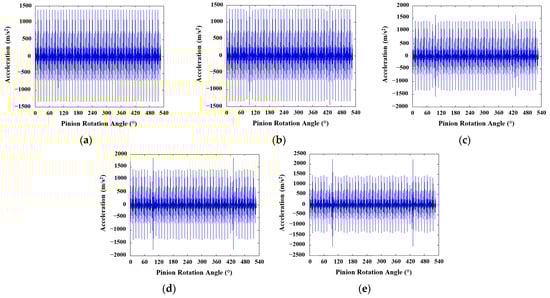

The vibration signals collected for three DSPAs through the established 6-DOF dynamic model are presented in
Figure 6,
Figure 7 and
Figure 8, respectively. Herein, first, the noise-free signals are depicted to interpret the effect of DSPA (i.e., tooth asymmetry) on the vibration responses of a spur gear pair in the presence of a tooth crack. Later, three levels of Gaussian noise (SNR = 5, 10, and 15) were added to the vibration data obtained through the 6-DOF dynamic model. Finally, the noise-added signals were used for fault classification tasks through the developed 1-D CNN model.
The maximum vibration level for the healthy condition was measured as 1385 m/s2, 1530 m/s2, and 1840 m/s2 for DSPAs of 20°, 25°, and 30°, respectively. These values were also measured for 100% crack level as 2224 m/s2, 3153 m/s2, and 4268 m/s2, respectively, for 20°/20°, 20°/25°, and 20°/30° tooth profiles. As a result, it was noted that the vibration responses of asymmetric spur gear pairs were stronger than the standard (20°/20°) designs due to their higher stiffness.
The findings obtained regarding the influence of tooth asymmetry on the vibration response are listed below, considering
Figure 6,
Figure 7 and
Figure 8. Herein, it should be highlighted that the fluctuations in the meshing stiffness are a primary source of the changes in vibration responses of a transmission system [
12]. Therefore, it is expected that the effects of DSPA on TVMS and vibration response will be compatible.
The amplitude of the vibration response increases with the increment in DSPA from 20° to 30° (see
Figure 6,
Figure 7 and
Figure 8);
In the presence of a tooth crack, a peak (i.e., anomaly) in the vibration response is observed as the faulty tooth enters the meshing;
In this regard, the impact of tooth cracks on the vibration signals becomes more pronounced as DSPA increases. This finding holds promise in terms of detecting tooth cracks more easily through a DL-based method.
As can be seen from
Figure 6,
Figure 7 and
Figure 8, the vibration responses collected through the 6-DOF dynamic model are perfect, meaning noise-free signals. Therefore, the present study added three levels of Gaussian noise to the simulated signals in order to complicate the early fault diagnosis task. In this regard, SNRs of 5, 10, and 15 were added to vibration signals in accordance with the available literature [

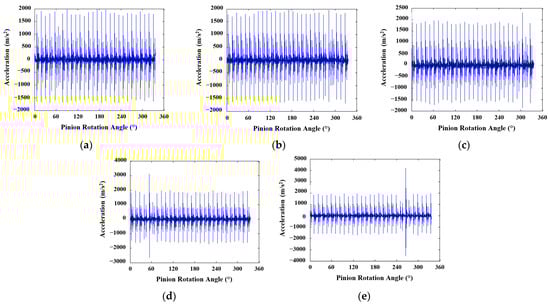

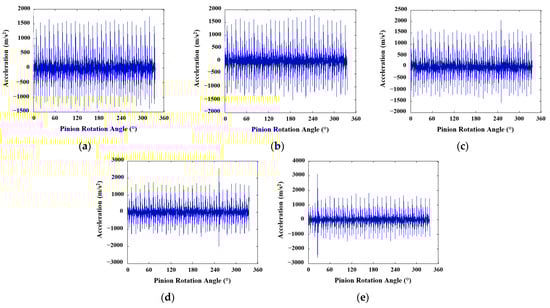

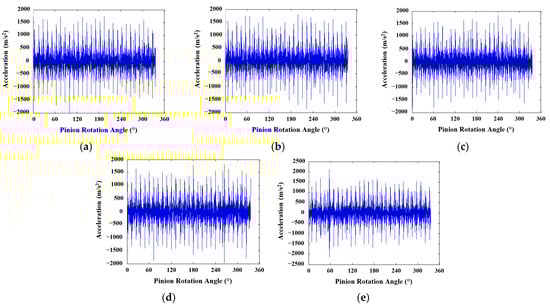

19]. Herein, an example of vibration signals with one SNR level for each tooth profile is depicted in
Figure 9,
Figure 10 and
Figure 11, respectively, considering the conciseness.
The present research work comparatively examined the influence of DSPA (i.e., tooth asymmetry) on the fault classification accuracy of the developed 1-D CNN model, considering three SNRs. To interpret the model stability, the tests were repeated three times (i.e., number of trials), and the standard deviation (SD) values were computed for each case identified within the scope of the present study.
After three tests, the average fault classification accuracies for the standard (20°/20°) profiled involute spur gears were obtained as 79.854%, 91.274%, and 95.100% for SNR values of 5, 10, and 15, respectively. Accordingly, the present study acquired overall classification accuracies for the 20°/25° tooth profile as 88.323%, 95.804%, and 99.195% under the same circumstances (i.e., SNR), respectively. Finally, the average classification accuracies for the 20°/30° tooth profile were obtained as 90.068%, 96.476%, and 99.251% for SNR values of 5, 10, and 15, respectively.
Table 7 summarizes the findings obtained for three DSPAs and SNRs using the developed 1-D CNN model.
In this regard, the findings presented in
Table 7 can be interpreted as follows.
As expected, the classification accuracy decreased in all scenarios identified within the scope of research work as the noise level increased, meaning SNR value decreased (see Equation (8));
In all cases, the highest accuracy was obtained for SNR 15 (i.e., lowest noise level), while the lowest accuracy rates were obtained for SNR 5 (i.e., highest noise level);
It was observed that the average classification accuracy rates were improved as DSPA increased. This finding confirms the hypothesis that tooth asymmetry could provide an advantage in detecting tooth cracks more easily;
The average classification accuracy could be improved by 12.8% by using an asymmetric (20°/30°) tooth profile instead of a standard (20°/20°) design for high noise levels (i.e., SNR = 5);
Based on the calculated SD values, it was observed that the variability between the tests performed for each condition was small and acceptable, and the findings were consistent.

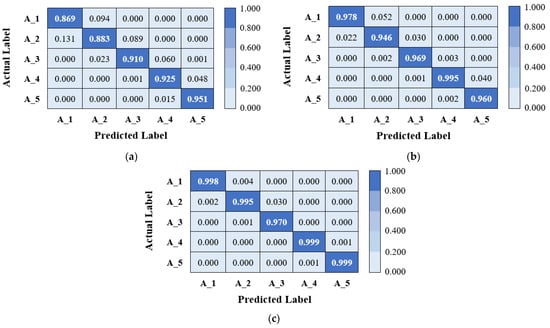

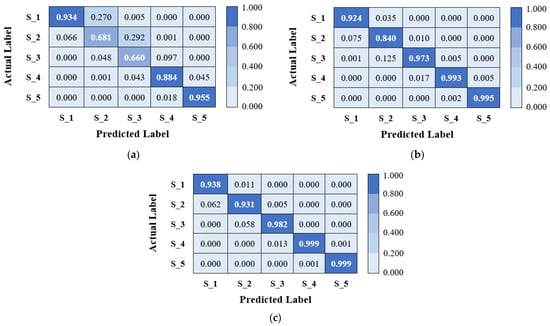

The present research plotted the confusion matrixes for three DSPAs and SNRs in order to interpret the obtained results, as presented in
Figure 12,
Figure 13 and
Figure 14. Herein, the confusion matrixes of the highest performance (i.e., classification accuracy) among the three tests performed for each SNR were plotted. For example, a confusion matrix is presented for “Test-3,” where the highest classification accuracy was achieved for SNR 5 and 20°/20° tooth profile in
Figure 12a. The findings obtained through the confusion matrixes were divided into three parts for effective interpretation, considering three DSPAs. First, for the 20°/20° tooth profile, it was observed that the developed 1-D CNN model performed relatively poorly in classifying the healthy state (S_1) and 25% crack level (S_2), and 25% crack level (S_2) and 50% crack level (S_3) for an SNR of 5. For an SNR value of 5, the model classified the healthy state (S_1) and 100% crack level (S_5) with acceptable recognition accuracy. In this regard, the classification accuracies were considerably improved for SNR values of 10 and 15 compared to SNRs of 5 (see
Table 7 and
Figure 12). The average classification accuracy rates reached 91.274% and 95.100% for SNRs of 10 and 15, respectively. This value was recorded as 79.854% for an SNR value of 5. Similar to findings obtained for SNR 5, the developed 1-D CNN model performed relatively poorly in classifying the healthy condition (S_1) and 25% crack level (S_2), and 25% crack level (S_2) and 50% crack level (S_3) for other SNR values.
Second, for the 20°/25° tooth profile, it was observed that the model was confused in classifying the healthy state (A_1) and 25% crack level (A_2), and 25% crack level (A_2) and 50% crack level (A_3) among themselves for an SNR value of 5. With this in mind, it needs to be highlighted that the proposed 1-D CNN model’s performance significantly improved compared to the 20°/20° tooth profile for SNR 5, where fault detection is most difficult. In this regard, the overall classification accuracy was enhanced from 79.854% to 88.323% with an increment of DSPA from 20° to 25°. It was also reported that the proposed model showed great success for SNR 15 conditions, with an average classification accuracy of 99.195% (see
Table 7).
Finally, for the 20°/30° tooth profile, the model performs relatively poorly in classifying the healthy state (AS_1) and 25% crack level (AS_2) for SNR of 5 but with an acceptable error compared to other cases evaluated within the present study. The average classification accuracy for an SNR value of 5 was recorded as 90.068% for the 20°/30° tooth profile. This finding also indicates that using an asymmetric tooth profile instead of a symmetric (20°/20°) one holds promise in facilitating early crack diagnosis tasks, especially under high noise levels.

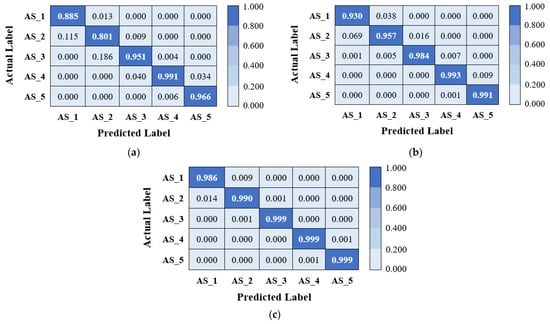

Figure 14 depicts that the developed 1-D CNN model also successfully classified the healthy state and four different crack levels (25%–50%–75%–100%) for SNR values of 10 and 15. The average classification accuracies were noted as 96.476% and 99.251% for these circumstances (i.e., SNR), respectively.

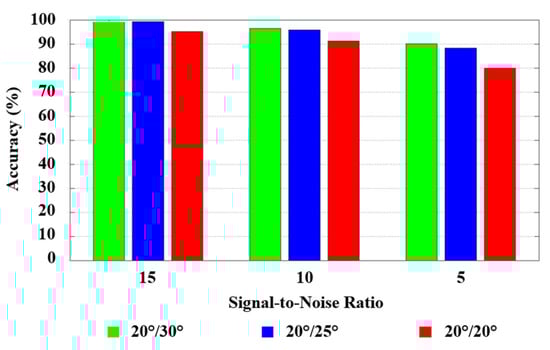

For a better understanding of the obtained results, the average classification accuracies acquired for standard (20°/20°) and asymmetric (20°/25° and 20°/30°) profiled involute spur gear pairs are presented together in
Figure 15.

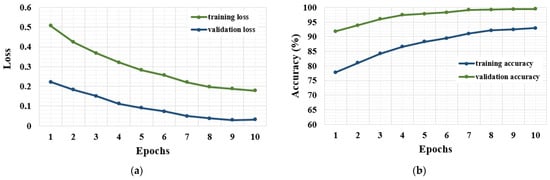

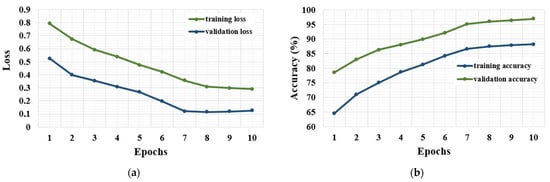

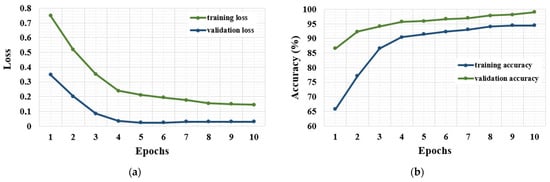

Examples of the training and validation loss and accuracy curves obtained for the cases where the highest classification rates were achieved (i.e., SNR = 15) for all tooth profiles evaluated within the present research work are presented in
Figure 16,
Figure 17 and
Figure 18. It was observed that the training and validation accuracies were enhanced as the number of epochs increased, resulting in less variation in accuracy (i.e., training and validation) values.
Figure 16,
Figure 17 and
Figure 18 also depict that the developed 1-D CNN model converged after ten epochs for all tooth profiles. In this regard, the proposed model exhibited good robustness and stability characteristics.

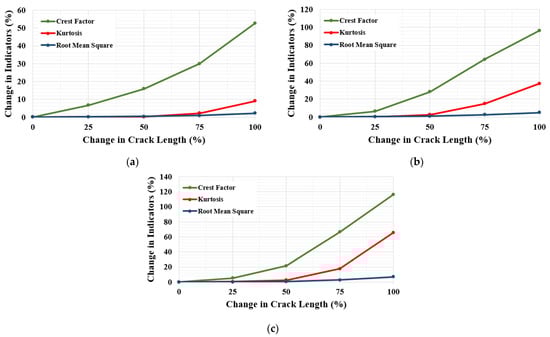

The present study also computed three statistical indicators, namely, (1) RMS, (2) kurtosis, and (3) CF, to provide supplementary findings in addition to the 1-D CNN algorithm’s classification results. In this regard, the primary consideration was to supply additional information regarding whether tooth asymmetry is advantageous in detecting tooth crack faults. The percentage change in statistical indicators evaluated within the present research work corresponding to the different crack levels is presented for all tooth profiles in
Figure 19. Herein, the present study identified the indicator values acquired for the healthy condition as reference values while calculating the percentage change in a statistical indicator.
The findings obtained regarding the percentage change in statistical indicators can be listed as follows.
The statistical indicator values increase as the crack level is proportionally enhanced for all tooth profiles evaluated within the present study;
The sensitivity of RMS and kurtosis is relatively low for low crack levels, meaning 25% and 50% crack levels. In this regard, the kurtosis performed well compared to RMS for relatively high crack levels;
CF was found to be the most sensitive fault diagnosis indicator for all tooth profiles. This finding is also compatible with the available literature [
9,
46];
The percentage change in statistical indicators was increased as the DSPA increased for all crack levels. This finding supports the proposed DL-based model’s results that the tooth asymmetry could yield an advantage in detecting tooth cracks more easily;
The percentage change in the most sensitive indicator, i.e., CF, reached 52.75%, 96.4%, and 116.27% for DSPAs of 20°, 25°, and 30°, respectively, for 100% crack level.
Fault Classification with Residual Signals
The present study also attempted to improve the classification accuracy of the proposed 1-D CNN under high SNR levels. In this regard, the “residual signals” obtained as a result of taking the difference between the vibration signal of a cracked (for example, 25% crack level) gear and a reference signal (e.g., healthy condition) were provided as input data to the developed 1-D CNN model, considering different SNRs. In this way, we aimed to provide more fault features by clarification of the anomalies (i.e., peaks) formed when the faulty tooth enters meshing. Herein, the vibration signals acquired for the healthy condition were determined as reference values. The proposed approach was only applied to the standard (20°/20°) tooth profile with the lowest classification accuracies acquired within the present research work (see
Table 7).

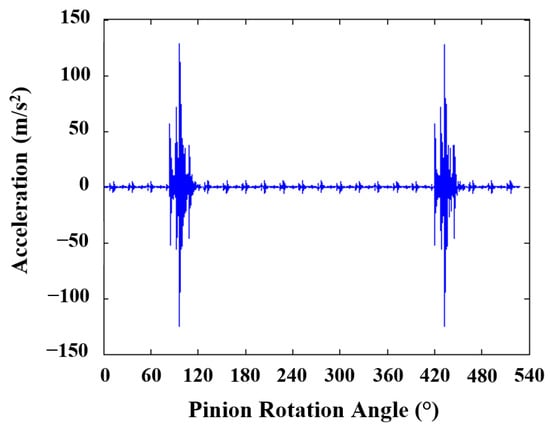

Figure 20 presents an example of residual signals obtained for the 20°/20° tooth profile.
After implementing the proposed method, the developed 1-D CNN model achieved an average classification accuracy of 97.312%, 99.600%, and 99.989% for SNRs of 5, 10, and 15, respectively. These values were obtained as 79.854%, 91.274%, and 95.100% for the 20°/20° tooth profile under the same circumstances (i.e., SNR). In this regard, it was observed that the average classification accuracy could be improved by 25.08% by giving the residual signals as input data to the proposed 1-D CNN model (see
Table 3 and
Table 7).
The influence of residual signals on the frequency spectrum was also evaluated in the present research work. In this regard, Fourier transform was applied to the simulated time-sequence acceleration data in the time domain. Herein, the frequency spectra acquired for the healthy condition and 100% crack level were compared among themselves to demonstrate the influence of using a residual signal.

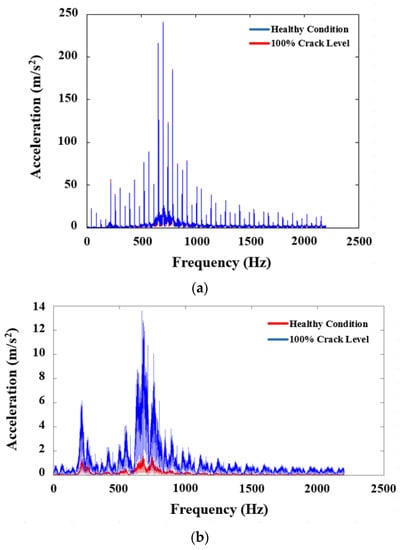

Figure 21 shows the obtained frequency spectra of vibration signals.
Figure 21a depicts the frequency spectrum obtained using the original vibration signals, while
Figure 21b presents the frequency spectrum obtained using residual signals. In
Figure 21a, the blue lines represent the healthy condition, while the red lines represent the 100% crack level. In
Figure 21b, the red lines represent the healthy condition, while the blue lines represent the 100% crack level. As a result, it was observed that the influence of faults (i.e., tooth crack) became more pronounced in the frequency domain by using residual signals.
4. Discussion
High load-carrying capacity and prolonged fatigue propagation life are expected from geared transmission systems in an increasingly competitive modern industry. With this in mind, gears are prone to local defects due to harsh operational environments and material defects. In this regard, improving gears’ stiffness, impact resistance, and fatigue propagation life through geometry modifications is still an important research area. The researchers have, so far, investigated the effects of DSPA on gear dynamics characteristics, such as TVMS and TE. For example, Yang et al. [
4] pointed out that an incurred tooth crack (root and surface) fault could change the meshing stiffness and, consequently, the vibration responses of a spur gear transmission. In this regard, the researchers developed an analytical model to calculate TVMS and benefited from an FE-based approach to validate their findings. It was reported that TVMS decreased proportionally, and the effects of tooth cracks became more pronounced as the crack level increased. Yu et al. [
11] identified a spatial crack propagation scenario and investigated the variation in TVMS due to crack propagation. Their study also addressed the influence of different gear design parameters, for instance, (1) number of teeth, (2) pressure angle, and (3) module, on TVMS. As a result, it was concluded that the presence of a tooth crack reduces the meshing stiffness. Mohammed et al. [
12] considered three crack propagation scenarios and evaluated the variation in the meshing stiffness and vibration responses of a geared transmission system. The research reports that the influence of faults becomes more pronounced on the vibration signals as the crack length, for example, increases from 0.8 mm to 1.8 mm. Yang [
47] emphasized the significance of understanding a gearbox’s vibration characteristics in order to judge damage severity. Based on this motivation, the study established a multi-DOF dynamic model to simulate the dynamic responses of a spur gear transmission under variable operational circumstances. The vibration responses were acquired for multiple (nonadjacent and adjacent) crack scenarios and further validated experimentally.
Karpat et al. [
36] pointed out the necessity of new gear designs to meet modern industry’s high-performance demands. In this regard, the research work parameterized the DSPA and evaluated the impact of tooth asymmetry on spur gears’ dynamic characteristics. It was reported that TVMS of a spur gear transmission could be improved as DSPA increased. Pedersen [
39] benefited from shape optimization for redesigning a cutting tool geometry and attempted to explore the influence of tooth asymmetry on bending strength. As a result, it was observed that using an asymmetric tooth profile holds promise to enhance bending strength since the tooth root thickens as DSPA increases. Doğan and Karpat [
9] evaluated the impact of DSPA on TVMS and dynamic TE response of standard and asymmetric spur gear pairs. In this regard, two DSPAs, namely, (1) 20° and (2) 35°, were employed to achieve this end. Their research benefited from a 4-DOF dynamic model to ascertain dynamic TE responses. In addition to that, statistical indicators were used in order to judge the damage severity. As a result, it was concluded that the impact of tooth root cracks becomes more potent on the dynamic TE response as DSPA increases.
With the wide availability of sensors, ML- and DL-based fault diagnosis approaches have become valuable tools for predictive maintenance in engineering practice [
48]. For example, Ravikumar et al. [
49] collected vibration signals from cracked spur gears through a physical experimental test setup. To this end, a deep neural network comprising (1) 1-D CNN, (2) residual learning, and (3) long short-term memory was proposed. Their research benefited from 70% of the total data for training and 30% for testing. In addition to that, the Adam version of stochastic gradient descent was employed in order to optimize the network. As a result, an average classification accuracy of 94.33% was reported. Yuan et al. [
50] proposed a novel framework combining digital image processing and CNN methods to identify crack locations precisely. The researchers then developed a crack-tip-detection algorithm to generate the data needed to calculate the crack length. Later, Mohammed et al. [
51] introduced three levels of tooth cracks to their samples and collected vibration data through a physical experimental test setup, considering five shaft speeds and load scenarios. Afterward, the researchers benefited from an ML-based approach to classify tooth root crack faults. The study reported an overall recognition rate of 80.41%. Recently, Wang et al. [
52] developed a 6-DOF dynamic model of a spur gear transmission aiming to simulate a sufficient amount of faulty data to classify three different gear faults, namely, (1) tooth crack, (2) surface spall, and (3) tooth broken. The efficacy of 1-D CNN, recurrent neural networks, and long short-term memory in classifying different failure modes was compared. As a result, a classification accuracy of circa 100% was achieved by using simulated training data. However, these research works all used a standard (symmetric) tooth profile. No similar study has been reported using a DL-based approach for fault detection in asymmetric involute spur gears and whether tooth asymmetry provides an advantage in detecting tooth cracks more easily in the literature.
If handled individually, it can be concluded that the results of the present research work are compatible with the available literature in terms of the influence of (1) tooth root cracks [
4,
11,
12,
15] and (2) DSPA [
33,
34,
35,
36,
37] on gear meshing stiffness and vibration responses. With this in mind, the available literature either addressed the impact of DSPA on gears’ dynamic characteristics or utilized ML- or DL-based approaches to detect faults in gears with symmetric tooth profiles. However, no research study in the literature examined whether an advantage is provided by using an asymmetric tooth profile to facilitate fault detection with artificial intelligence to add to the improvements it affords in terms of impact resistance, bending strength, and fatigue life.
From this standpoint, the major contributions of the present research work can be summarized as follows:
The meshing stiffness of standard and asymmetric spur gear pairs was evaluated comparatively in the case of a tooth crack fault. As a result, it was observed that as DSPA increased, the reduction in TVMS decreased. This finding revealed the superiority of asymmetric tooth profiles over the standard (symmetric) designs in terms of gear meshing stiffness;
It was demonstrated that the effect of faults (i.e., tooth crack) on vibration signals became more pronounced as DSPA increased;
The available literature only used ML- or DL-based methods in order to detect faults in gears with a symmetric tooth profile. However, no research study in the literature examined whether an advantage is provided by using an asymmetric tooth profile to facilitate fault detection with ML- or DL-based approaches to add to the improvements it affords in terms of impact resistance, bending strength, and fatigue life. The present research work aims to explore the impact of DSPA (i.e., tooth asymmetry) on a DL-based algorithm’s fault classification accuracy for the first time and make a novel contribution to knowledge in this field;
The findings demonstrated that the classification accuracy could be improved by up to 12.8% as DSPA increased from 20° to 30°. This result revealed that an advantage could be provided in detecting tooth cracks by using an asymmetric tooth profile instead of a symmetric design. No similar study has been reported using a DL-based approach for fault detection in asymmetric spur gear pairs and whether tooth asymmetry provides an advantage in detecting tooth cracks more easily in the literature.
