Synechococcus elongatus PCC 7942 as a Platform for Bioproduction of Omega-3 Fatty Acids

by
María Santos-Merino
1,*,†,
Raquel Gutiérrez-Lanza
1,
Juan Nogales
2,3,
José Luis García
3,4 and
Fernando de la Cruz
1
1
Instituto de Biomedicina y Biotecnología de Cantabria, Universidad de Cantabria—CSIC, 39011 Santander, Spain
2
Department of Systems Biology, Centro Nacional de Biotecnología (CSIC), 28049 Madrid, Spain
3
Interdisciplinary Platform for Sustainable Plastics towards a Circular Economy, Spanish National Research Council (SusPlast-CSIC), 28040 Madrid, Spain
4
Department of Microbial and Plant Biotechnology, Centro de Investigaciones Biológicas Margarita Salas (CSIC), 28040 Madrid, Spain
*
Author to whom correspondence should be addressed.
†
Current address: MSU-DOE Plant Research Laboratory, Michigan State University, East Lansing, MI 48824, USA.
Life 2022, 12(6), 810; https://doi.org/10.3390/life12060810
Submission received: 11 May 2022 / Revised: 25 May 2022 / Accepted: 27 May 2022 / Published: 29 May 2022
(This article belongs to the Special Issue Molecular Genetics of Cyanobacteria)
Browse Figures
Versions Notes

Abstract

:
Alpha-linolenic acid and stearidonic acid are precursors of omega-3 polyunsaturated fatty acids, essential nutrients in the human diet. The ability of cyanobacteria to directly convert atmospheric carbon dioxide into bio-based compounds makes them promising microbial chassis to sustainably produce omega-3 fatty acids. However, their potential in this area remains unexploited, mainly due to important gaps in our knowledge of fatty acid synthesis pathways. To gain insight into the cyanobacterial fatty acid biosynthesis pathways, we analyzed two enzymes involved in the elongation cycle, FabG and FabZ, in Synechococcus elongatus PCC 7942. Overexpression of these two enzymes led to an increase in C18 fatty acids, key intermediates in omega-3 fatty acid production. Nevertheless, coexpression of these enzymes with desaturases DesA and DesB from Synechococcus sp. PCC 7002 did not improve alpha-linolenic acid production, possibly due to their limited role in fatty acid synthesis. In any case, efficient production of stearidonic acid was not achieved by cloning DesD from Synechocystis sp. PCC 6803 in combination with the aforementioned DesA and DesB, reaching maximum production at 48 h post induction. According to current knowledge, this is the first report demonstrating that S. elongatus PCC 7942 can be used as an autotrophic chassis to produce stearidonic acid.

1. Introduction

Alpha-linolenic acid (ALA, 18:3n-3) and stearidonic acid (SDA, 18:4n-3) are omega-3 fatty acids (FAs) with considerable potential as dietary supplements to improve human health [1,2]. They are essential precursors of long-chain omega-3 polyunsaturated FAs, docosahexaenoic acid (DHA), and eicosapentaenoic acid (EPA). ALA and SDA are readily converted into EPA and DHA upon consumption, so they could be used as dietary sources of omega-3 FAs [3]. Many epidemiological reports have emphasized the importance of omega-3 FAs in the prevention of cardiovascular mortality due to myocardial infarction, cardiac arrest, sudden death, and stroke [4]. Furthermore, the consumption of large amounts of omega-3 is linked to a beneficial effect on the nervous system, such as a reduced risk of depression and suicide [5,6] and a delay of the neurological degeneration produced by aging [7,8].
Microbial production of omega-3 FAs gained major attention in the last years as an alternative source in commercial production [9,10]. Currently, omega-3 FAs are obtained from fish oils [11] or certain plants [12,13]. Continuous overfishing of the seas, the ever-increasing world population, as well as the limited number of plants containing significant amounts of omega-3 FAs have motivated a search for alternative sources that are both sustainable and economical. The main efforts in engineering microbial cells to produce omega-3 FAs focused on the genetic engineering of Escherichia coli, which demonstrated a great potential to produce high levels of these FAs [14,15,16,17,18]. However, omega-3 FA production by heterotrophic microbial cultures is expensive, mostly due to the high costs of the carbon sources, accounting for 60–75% of total expenses [10,19]. Microalgae and cyanobacteria are promising candidates for omega-3 FA production due to their ability to convert atmospheric carbon dioxide into FAs [10]. Moreover, the culture of these photosynthetic organisms does not compete with arable land use [20] and can use wastewater as a culture medium [21]. A series of advantages make cyanobacteria a preferred organism to produce FAs rather than eukaryotic microalgae, including a simpler genetic background that eases manipulation and the availability of genetic tools that allow cyanobacterial genetic engineering [20].
Short-chain omega-3 FAs, ALA, and SDA are naturally synthesized in cyanobacteria [22]. Their biosynthetic pathway involves several complex reaction steps, including initiation, elongation, and desaturation enzymatic activities (Figure 1) [10]. Cyanobacteria accumulate omega-3 FAs in their thylakoid membranes, especially in response to cold [23] and salt stress conditions [24], albeit not large amounts of omega-3 FAs are accumulated. Thus, different approaches have been used to boost the production of omega-3 FAs in cyanobacteria. The main strategy consists of the overexpression of endogenous and exogenous desaturases and enzymes involved in the introduction of a double bond in a specific position of long-chain FAs (Figure 1) [21,25,26,27,28]. Modification of culture conditions, such as increasing the light intensity or/and decreasing the temperature during cyanobacterial culture, have been successfully used to improve omega-3 FA yields [29,30,31,32]. In addition, our group has previously demonstrated that omega-3 FA levels may be also increased by targeting some FA biosynthesis (fab) genes (Figure 1) [33]. In a recent report, the expression of the vesicle-inducing protein in plastids (Vipp1), a thylakoid membrane formation enhancer, led to high yields of omega-3 FAs in several cyanobacterial species [34].
The limited information available about the function and regulation of fab genes [35] complicates engineering efforts to improve FA production in cyanobacteria. To address this issue, this work identifies the function of two enzymes (FabG and FabZ) involved in the elongation cycle of the FA synthesis pathway (Figure 1) by overexpressing the corresponding genes. FA elongation represents the major pathway defining the chain length of saturated and unsaturated FAs and, consequently, determining the yield of omega-3 FAs in cells. Moreover, the overexpression of endogenous fabG and fabZ in combination with DesAB desaturases of Synechococcus sp. PCC 7002 (hereafter, Ss7002) in ALA production was investigated, showing a negative impact on the accumulation of omega-3 FAs in Synechococcus elongatus PCC 7942 (hereafter, Se7942). On the other hand, SDA was successfully produced in Se7942 when using desaturase DesD of Synechocystis sp. PCC 6803 (hereafter, Ss6803). We establish that longer post-induction times were necessary to obtain higher yields of SDA.

2. Materials and Methods

2.1. Strains and Cultivation Conditions

All cyanobacterial strains used in this study were cultivated at 30 °C by bubbling 3% CO2 under continuous light at 60 µmol photons m−2 s−1 in BG11 medium [36] supplemented with 10 mM NaHCO3. The antibiotics used for selecting cyanobacterial transformants were neomycin at 5 or 25 µg/mL (Neo5 or Neo25), spectinomycin at 10 or 20 µg/mL (Sp10 or Sp20) and chloramphenicol at 5 or 10 µg/mL (Cm5 or Cm10). The strains used are depicted in Supplementary Table S1.
E. coli DH5α cells were employed for transformation with recombinant plasmids. Bacterial cultures were grown on Luria-Bertani (LB) medium at 37 °C at 150 rpm. When required, LB was supplemented with antibiotics: spectinomycin at 100 µg/mL (Sp100), ampicillin at 100 µg/mL (Ap100), kanamycin at 50 µg/mL (Kn50), and chloramphenicol at 25 µg/mL (Cm25).

2.2. Plasmid Constructions

All plasmids used in this work are described in Supplementary Table S2. Primers used to clone genes and verify the mutant strains are listed in Supplementary Tables S3 and S4, respectively. All constructions were checked by PCR and DNA sequencing.
Gene encoding the Δ6 desaturase (D6D) from Ss6803, desD, and trc promoter were synthesized by ATG:biosynthetics (Merzhausen, Germany) after codon optimization for Se7942 expression. The 3-ketoacyl-ACP reductase and 3-hydroxyacyl-ACP dehydratase genes fabG and fabZ were amplified from the genomic DNA of Se7942 colonies. To overexpress the desaturase gene desD of Ss6803 (sll0262; GenBank Accession Number: NC_020286), plasmid pMSM278 was generated. For its construction, the trc promoter and desD gene were excised from the pGH-D6D vector (provided by ATG:biosynthetics, Merzhausen, Germany) at the KpnI and NotI sites and cloned in the same sites of the pMSM253 vector [33]. To overexpress the fabG gene of Se7942 (Synpcc7942_0684; GenBank Accession Number: NC_007604) in two neutral chromosomal regions, NS1 and NS2, plasmids pMSM310 and pMSM317 were constructed. Gene fabG was amplified with primer pair 380–381, digested with EcoRI and AvaI, and ligated to the same sites of pUAGC280, producing plasmid pMSM310. To generate pMSM317, the Ptrc::fabG fragment was amplified from pMSM310 plasmid DNA using primers 364 and 384. The amplicon was digested with KpnI/NotI and cloned in the same sites of pMSM249, rendering plasmid pMSM317. We performed the construction of pMSM319 to co-overexpress fabF and fabG genes of Se7942 (Synpcc7942_0537 and Synpcc7942_0684; GenBank Accession Number: NC_007604) in the neutral chromosomal region, NS2. To generate pMSM319, the Ptrc::fabG fragment was amplified from pMSM310 plasmid DNA using primers 364 and 384. The amplicon was digested with KpnI/NotI and cloned in the same sites of pMSM253, rendering plasmid pMSM319. For overexpressing the Se7942 fabZ gene (Synpcc7942_0930; GenBank Accession Number: NC_007604), the coding sequence was amplified by PCR using primers 382 and 383, digested with EcoRI and BamHI, and ligated to the same sites of pUAGC280 to produce pMSM311. We performed the construction of pMSM321 to co-overexpress fabF and fabZ genes of Se7942 (Synpcc7942_0537 and Synpcc7942_0930; GenBank Accession Number: NC_007604) in the neutral chromosomal region, NS2. To generate pMSM321, the Ptrc::fabZ fragment was amplified from pMSM311 plasmid DNA using primers 385 and 386. The amplicon was digested with XbaI/XhoI and cloned in the same sites of pMSM253, rendering plasmid pMSM321.

2.3. Natural Transformation of Se7942

Transformation of Se7942 was performed according to a protocol described earlier [37]. Briefly, cyanobacterial strains were transformed by incubating cultures at OD720 ≤ 0.5 with 500 ng plasmid DNA for 24 h in the dark at 30 °C. Cell-DNA mixed cultures were spread on nitrocellulose filters (Millipore) on BG11 plates and incubated for 24 h at 30 °C with continuous light. BG11 plates supplemented with appropriate antibiotics were used for selecting recombinant strains. Mutant segregation was achieved by repeatedly transferring individual transformant colonies to fresh selective plates. PCR was used to verify chromosomal integration of targets, followed by DNA sequencing using oligonucleotides listed in Supplementary Tables S2 and S4.

2.4. Culture of Engineered Cyanobacterial Strains for Fatty Acid Production

Liquid cultures of Se7942 were grown at 30 °C and 3% CO2 in tubes containing 60 mL of BG11 without antibiotics in a Multi-Cultivator MC 1000-OD (Photon Systems Instruments, Drasov, Czech Republic) using cool white light (60 µmol photons m−2 s−1). Cultures were inoculated at an initial OD720 ~ 0.05. The temperature was shifted to 22 °C when cultures reached OD720 ~ 0.5–0.6, and 1 mM IPTG (to induce trc promoter) was added. Samples were taken 24 h post induction unless indicated otherwise.

2.5. Fatty Acid Analysis

Cyanobacterial FA composition was carried out by gas chromatography flame ionization detection (GC-FID) analysis using pelleted cells. Preparation of FA methyl esters (FAMEs) was performed as previously described [38]. Briefly, 60 mL of cyanobacterial cultures were pelleted by centrifugation at 4500× g for 30 min at 4 °C. The supernatant was removed, and the cell pellets were frozen at −80 °C for storage and to facilitate cell lysis. FA methyl esters (FAMEs) were prepared as previously described [38]. Saponification of FAMEs was conducted by adding 1 mL of saponification reagent (45 g NaOH, 150 mL methanol, 150 mL deionized H2O), vortexing for 10 s, heating the samples for 5 min at 100 °C, vortexing for 10 s, and heating again for 25 min. Samples were then rapidly cooled to room temperature. Methylation was performed by adding 2 mL of methylation reagent (325 mL 6 N HCl, 275 mL methanol), vortexing for 10 s, and heating for 10 min at 80 °C. After cooling to room temperature, FAMEs were removed from the acidic aqueous phase and transferred to an organic phase by adding 1.25 mL extraction solvent (hexane:methyl tert-butyl ether (MTBE) 1:1), mixing in a laboratory rotator for 10 min, and removing the lower aqueous phase. The organic phase was washed in 3 mL base wash (10.8 g NaOH, 900 mL distilled water) for 5 min with end-over-end mixing. Two-thirds of the upper solvent phase was removed for FAME analysis, and the rest was stored at −20 °C. Concentrated FAMEs were analyzed on a gas chromatograph (model 7890A, Agilent) equipped with a capillary column DB-23 (Agilent Technologies, Santa Clara, CA, USA) and a flame ionization detector using helium as a carrier gas at 52.248 psi constant pressure. The initial oven temperature was set at 130 °C and programmed up to 215 °C at a rate of 2.75 °C/min and up to 230 °C at a rate of 40 °C/min. The injector temperature was set at 270 °C, and the FID detector at 280 °C. FAMEs were identified by comparing the retention time with the commercial standard Supelco® 37 component FAME mix (Sigma Aldrich, St. Louis, MO, USA).

2.6. Statistical Analysis

All presented results are representative of at least three replicate experiments. As appropriate for the experimental design, data are reported as the mean value + SD. Statistical analyses were conducted using GraphPad Prism 8 (GraphPad Software Inc., San Diego, CA, USA) and Minitab (MiniTab Inc., State College, PA, USA) software. Comparisons between multiple groups were made using one-way analysis of variance (ANOVA) followed by Tukey’s multiple comparison test or by an unpaired Student’s t-test. A minimal level of statistical significance for differences in values was considered to be p < 0.05.

3. Results

3.1. Modification of the Lipid Profile of Se7942 by Overproduction of Enzymes Involved in the Elongation Cycle of the Fatty Acid Synthesis Pathway

FabG, a β-ketoacyl-ACP reductase, catalyzes the first of the two reduction steps in the elongation cycle of the FA synthesis pathway (Figure 1). In this reversible reaction, β-ketoacyl-ACP is reduced to β-hydroxyacyl-ACP at the concomitant expense of NADPH [39]. Homologous expression of the fabG gene in E. coli increased the content of C16:0 and C18:0 by 2- or 3-fold, respectively [40].
To test the effect of fabG overexpression in Se7942, MSM_FG strain harboring Ptrc::fabG cassette installed in neutral site 1 (NS1) was constructed (Figure 2). The fabG overexpression led to an increase in the content of C18:0 and C16:0 FAs and a decrease in C16:1 FA (Figure 3A). In E. coli, the reduction in the C16:1 level was not observed when fabG was overexpressed, whereas an increase in C18:0 was also detected [40]. Our results demonstrate that although the regulation of FA synthesis is different in these two bacteria, fabG overexpression led to similar changes in the FA profile in both organisms.
The next reaction in the FA elongation cycle is catalyzed by FabZ, a β-hydroxyacyl-ACP dehydratase (Figure 1), which performs the dehydration of β-hydroxyacyl-ACP to trans-2-enoyl-ACP [41]. In E. coli, two genes codify for two different β-hydroxyacyl-ACP dehydratases, fabA and fabZ. In addition to its dehydration activity, FabA has a second function related to the isomerization of trans-2-decenoyl-ACP into cis-3-decenoyl-ACP, which is the first reaction toward the synthesis of unsaturated FAs [42]. Many cyanobacterial species lack a recognizable FabA homolog since the unsaturated FA synthesis is performed by desaturases [43]. The homologous overexpression of the fabZ gene in E. coli resulted in an about 2-fold increase in C16:0 and C18:0 levels [40]. The activity of FabZ is inhibited by high levels of (p)ppGpp in this organism [44,45], but no regulators have been described for FabZ in cyanobacteria.
To analyze the function of FabZ in Se7942, this gene was overexpressed using trc promoter in NS1 of Se7942 in the strain MSM_FZ. This mutant showed a significant decrease in C14:0 and C16:1 FAs and a significant increase in C16:0, C18:0, and C18:1 FAs (Figure 3B). These results indicate that high levels of FabZ activity improved the transformation of C14:0 and C16:1 into C18 species. Moreover, FabZ in Se7942 seems to perform a similar function to the same enzyme in E. coli since the FA profile was similar when FabZ activity was increased [40].

3.2. Overproduction of FabG or FabZ Has a Detrimental Effect in the Production of Alpha-Linolenic Acid in Se7942

In cyanobacteria, three desaturation reactions convert oleic acid (OA) into ALA, catalyzed by DesC (Δ9 desaturase), DesA (Δ12 desaturase), and DesB (Δ15 desaturase) [46] (Figure 1). Se7942 only possesses the desC gene and lacks the remainders [22], not naturally producing omega-3 FA. We have previously demonstrated that the overexpression of desA and desB genes from Ss7002 in Se7942 led to ALA production [33]. In addition, ALA yield was increased by fabF overexpression and fadD deletion, modifications that increased C18:0 FA levels. As we showed above, the individual overexpression of fabG and fabZ also led to increases in C18:0 species. Thus, we hypothesized that the combined overexpression of fabG and fabZ with desAB might lead to an improvement in ALA yield. Therefore, considering these assumptions, we decided to co-overexpress fabG, fabZ, and desAB desaturase genes.
To examine the effect of fabG overexpression in ALA synthesis, MSM_DAB_FG and MSM_DAB_FFG overproducing strains were developed (Figure 2). The effect of fabG overexpression in ALA production was compared with two control strains: MSM_DAB and MSM_DAB_FF (Figure 4). Both strains are able to produce ALA since they express DesAB, but MSM_DAB_FF produces a large amount due to the positive effect of fabF [33]. Contrary to our expectations, we found that the combined overexpression of fabG with desA and desB in MSM_DAB_FG strain did not lead to an increase in ALA levels, suggesting that FabG overproduction is detrimental to ALA production. In the same way, when fabF, fabG, desA, and desB genes were combined in the strain MSM_DAB_FFG, higher levels of ALA were obtained but still lower than the ones found in MSM_DAB_FF. It might indicate that the positive effect due to fabF overexpression was largely diminished by the overexpression of fabG. Interestingly, MSM_DAB_FFG showed a decrease in C16:0 contents and an increase in C18:0 levels compared to MSM_DAB_FG (Table 1). The increase in C18:0 could be caused for the overexpression of fabG since this change was also detected in MSM_DAB_FG. On the other hand, the decrease in C16:0 was only detected in MSM_DAB_FFG, suggesting that this change is due to the effect of fabF overexpression, as previously described [33]. Taking all these results together, we suggest that fabG overexpression has a negative effect on ALA production in Se7942.
Following the same strategy, the MSM_DAB_FFZ strain was developed to test the effect of fabZ overexpression in ALA synthesis (Figure 2). This strain co-overexpresses fabZ and fabF genes from NS2. The co-overexpression of fabZ, fabF, and desaturase genes (desA and desB) did not lead to an increase in ALA levels (Figure 4). In fact, the amount of ALA produced by MSM_DAB_FFZ was the lowest reported in all strains analyzed in this work (0.66%) (Figure 4). This result indicates that the overexpression of the fabZ gene, as in the case of fabG, has a negative effect on ALA production. Similar to the MSM_DAB_FFG strain, the MSM_DAB_FFZ strain showed a decrease in C16:0 FA content and an increase in C18:0 FA levels compared to the MSM_DAB_FF strain, and an increase in C18:1 FA level was not detected in MSM_DAB_FFG (Table 1).

3.3. Overproduction of FabF and DesABD in a Se7942 Derivative Strain Leads to High Stearidonic Acid Yields

To produce SDA in Se7942, three desaturases need to be heterologously expressed: DesA (Δ12 desaturase), DesB (Δ15 desaturase), and DesD (Δ6 desaturase) [46] (Figure 1). To test the ability of Se7942 to produce SDA, we used a previously engineered ALA-producer strain expressing desA and desB genes from Ss7002 [33], in which we expressed the desD gene from Ss6803 generating MSM_DAB_FFDD that should be able to transform ALA into SDA (Figure 2). As expected, these modifications led to the production of SDA up to 5.73% (Figure 5). In addition, other changes were observed in the FA profile of MSM_DAB_FFDD in comparison to the profile shown by MSM_DAB_FF as follows (i) a significant reduction in C16:0 FA, suggesting that this FA is used in the production of SDA; (ii) a significant rise in C14:0, C18:0, and C18:2 FAs, indicating that elongation reactions are highly active in MSM_DAB_FFDD; (iii) an absence of γ-linolenic acid (GLA), another product of DesD activity can be used to produce SDA; (iv) no statistical changes in C18:3 (ALA) levels between both strains, indicating that DesD has greater affinity to linoleic acid (LA) than to ALA as substrate.
Our previous results demonstrated that fadD deletion improves ALA production in Se7942 [33]. To test if this deletion might have a beneficial effect on SDA production, this modification was introduced in the MSM_DAB_FFDD strain, generating MSM_DAB_FFDD_ΔD (Figure 2). The amounts of SDA decreased significantly in the new strain, albeit no other significant changes were observed in the FA profile of this strain (Table 2). These results might indicate that fadD deletion has a detrimental effect on SDA production, but the nature of this negative effect is unclear.

3.4. Stearidonic Acid Production Is Improved by Increasing the Induction Time of the Genes Involved in Its Synthesis

Since the synthetic pathway for SDA production implemented in Se7942 requires the overproduction of several enzymes, we hypothesized that longer post-induction times could yield increased production of SDA. To test this hypothesis, we analyzed the SDA produced at various times after induction (i.e., 24 h, 48 h, 72 h, and 96 h). Interestingly, SDA levels were significantly higher at 48 h post induction compared to 24 h (14.8% vs. 5.7%, respectively) (Figure 6). Higher post-induction times (>48 h) did not increase SDA production. In addition, cells presented significantly lower levels of C16:0 and C16:1 FAs. A significant increase in C18:0 was detected at 48 h post induction, coinciding with the induction time where SDA reached its highest level but was not maintained after this time point (Figure 6). Thus, we can suggest that SDA production stimulates two main changes in the FA profile: (i) a decrease in C16:0 and C16:1 FAs and (ii) an increase in C18:0 levels. SDA can be produced through DesD desaturation of ALA or through DesB desaturation of GLA (Figure 1). Since GLA was not detected and ALA levels did not change at any post-induction times (Figure 6), we hypothesize that SDA is produced by the desaturation of GLA by DesB rather than the desaturation of ALA by DesD.

4. Discussion

Cyanobacteria are promising microorganisms for sustainable bioproduction since they directly convert CO2 and light into fuels, chemicals, and other value-added products [20]. Moreover, these organisms naturally synthesize omega-3 FAs with different degrees of unsaturation, depending on the expression of the desaturase enzymes involved in the FA synthesis pathway. Biosynthesis of omega-3 FAs has been thoroughly studied in three models of unicellular cyanobacteria, Ss6803 [32,47,48,49,50], Ss7002 [29,30,31,47], and Synechococcus sp. NKBG 15041c [51]. Four desaturases are involved in the synthesis of omega-3 FAs in cyanobacteria: DesC (Δ9 desaturase), DesA (Δ12 desaturase), DesB (Δ15 or ω-3 desaturase), and DesD (Δ6 desaturase) (Figure 1). In addition, it was demonstrated that only four cyanobacterial species naturally produce SDA (Ss6803, Tolypothrix tenuis, Lyngbya sp. PCC 8106, and Nodularia spumigena [22]). Nevertheless, only in Ss6803, the activity of the enzymes was characterized [32,47,48,49,50]. Se7942 does not naturally produce omega-3 FAs since it lacks these three desaturases, although it was previously engineered with desaturases from Ss6803 [47] and from Ss7002 [33] to produce variable yields of ALA. To our knowledge, SDA production has not been reported in Se7942. In addition, there is little information available related to the FA synthesis and regulation in cyanobacteria in general, making it difficult to achieve higher levels of production.
Overexpression of bottleneck enzymes and deletion of competing pathways are the most common strategies used to increase the production of valuable compounds in cyanobacteria [44]. The ALA production yield was improved in Se7942 by overexpressing FabF, an enzyme that participates in the cycle of FA elongation, and by removing the activity of FadD, involved in the competitive FA degradation pathway [33]. Both modifications have in common that result in an increase in C18 species, as we report in this work with fabG and fabZ overexpression. However, these new genetic constructs did not improve ALA synthesis (Figure 4 and Table 1). Whereas fabF overexpression and fadD deletion have in common a pronounced increase in C18:1 [33], this raise was not observed when fabG and fabZ were overexpressed (Figure 3). These results suggest that higher levels of C18:1 are required for an improvement in omega-3 FA production. In fact, a previously published report concluded that FabF, mainly involved in the extension of C16:1 into C18:1, is the key-limiting reaction in the synthesis of unsaturated fatty acids in this cyanobacterium [52]. In addition, SDA only improved when FabF was overexpressed (Figure 5 and Table 2), but not when FadD was eliminated (Table 2). In Ss6803, fadD deletion results in down-regulation of DesD protein expression, but it did not have any effect on DesA and DesB protein levels [53]. Although we are expressing DesD from Ss6803 in Se7942, we speculate that this unknown mechanism of regulation could be maintained between cyanobacterial species. Taken together, our results indicate that the first step in the elongation reaction catalyzed by FabF seems to determine the ability of the cells to produce omega-3 FAs in Se7942. In addition, the reactions of reduction and dehydration catalyzed by FabG and FabZ, respectively, seem to have less influence on the biosynthesis of FAs.
Production of SDA by overexpressing desaturases was previously used as a strategy in several cyanobacterial species, reaching SDA levels up to 12% of the total FA content in Ss7002 [20] and up to 13% of total FAs in Ss6803 [19]. Here, we report SDA levels up to 5.7% at 24 h post induction, increasing to 14.8% at 48 h (Figure 5 and Figure 6). To reach these levels, besides overexpression of desaturases, we manipulated the FA synthesis pathway by modifying the dosage of what looks like the limiting step in Se7942, the FabF reaction. Above 48 h post induction, SDA yields did not further improve, suggesting that we could have reached the maximum level of SDA that can be accumulated in Se7942 membranes. In a recent publication, SDA levels higher than the above were obtained using a new strategy: overproduction of Vipp1 (vesicle-inducing protein in plastids) [34]. These authors reported SDA yields of 10%, 17%, and 27% of total lipids in Anabaena sp. PCC 7120, Ss7002, and Leptolyngbya sp. strain BL0902, respectively. In cyanobacteria, Vipp1 promotes thylakoid membrane biogenesis and maintenance [54], and its overexpression in Ss6803 increases the thylakoid membrane abundance [55]. It is tempting to speculate that Vipp1 overexpression may allow an additional increase in SDA production in the strains described in this work by increasing the number of thylakoid membranes where omega-3 FAs could be accumulated.
In cyanobacteria, DesD, also known as Δ6 desaturase, is the enzyme that catalyzes the addition of a double bond at the 6th carbon–carbon bond position in FAs [56]. This enzyme is required for the conversion of ALA into SDA or LA into GLA (Figure 1) [57]. In human cells, it is well established that ALA is the preferred substrate for Δ6 desaturase, and its affinity for ALA is 2–3 times greater than for LA [58]. In Ss6803, on the contrary, Δ6 desaturase displays a higher affinity for LA than for ALA, favoring the production of GLA [57], as demonstrated by heterologously expressing DesD in Ss7002 [27] in Anabaena sp. PCC 7120 [57] or in Se7942 (by also coexpressing DesA) [57]. In our experiments, we did not detect GLA when SDA was produced by DesABD coexpression (Figure 6), supporting the idea that Ss6803 DesD has a higher affinity for LA rather than for ALA. Taken together, our data suggest that synthesis of SDA in Se7942 is accomplished by Δ15-desaturation of GLA, not by Δ6-desaturation of ALA. Thus, we propose that the sequence of desaturation reactions to produce SDA in Se7942 would be SA → OA → LA → GLA → SDA (catalyzed by DesC, DesA, DesD, and DesB, respectively) (Figure 1).

5. Conclusions

In this study, the effects of the FabG and FabZ enzymes involved in the elongation step of the FA synthesis pathway in Se7942 were examined by overexpressing the corresponding genes and analyzing the resulting FA profiles. Although the genetically engineered strains increased the C18 FA levels, which in principle should lead to an increase in ALA production, unexpectedly, they did not. Combined overexpression of desA and desB from Ss7002, desD from Ss6803, and fabF from Se7942, on the other hand, was a useful strategy to produce SDA in Se7942, which was maximal at long post-induction times. This work establishes a new strategy for improving the production of SDA in cyanobacteria

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/life12060810/s1, Table S1. List of cyanobacterial strains used in this study, Table S2. Plasmids used in this study, Table S3. Oligonucleotides used to clone genes in this study, Table S4. Oligonucleotides used to verify mutants in this study. References [33,59,60] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, M.S.-M. and F.d.l.C.; methodology, M.S.-M. and R.G.-L.; validation, M.S.-M. and R.G.-L.; formal analysis, M.S.-M. and R.G-L.; investigation, M.S.-M. and R.G.-L.; resources, J.N., J.L.G. and F.d.l.C.; data curation, M.S.-M.; writing—original draft preparation, M.S.-M.; writing—review and editing, J.N., J.L.G. and F.d.l.C.; visualization, M.S.-M.; supervision, J.N., J.L.G. and F.d.l.C.; funding acquisition, J.N., J.L.G. and F.d.l.C.; project administration, J.N., J.L.G. and F.d.l.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been funded by grants PID2020-117923GB-I00 from the Spanish Ministry of Science and Innovation (MICINN) to F.d.l.C., RobExplode PID2019-108458RB-I00 (AEI/10.13039/501100011033) from MICINN to J.N., and ALGATEC-CM project S2018/BAA-4532 from the Comunidad de Madrid, co-financed by the European Social Fund and the European Regional Development Fund to J-L.G. M.S-M. was the recipient of a Ph.D. fellowship (BES-2012-057387) from Spanish Ministry of Economy and Competitiveness (MINECO).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank the Pasteur Culture Collection (Institute Pasteur, Paris, France) for supplying Se7942 and Asunción Contreras for kindly sharing pUAGC280. We are also grateful to Antonion Fernández and Francisco Romero for GC-FID analysis performed at Biomar Microbial Technologies, León, Spain.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Saini, R.K.; Prasad, P.; Sreedhar, R.V.; Akhilender Naidu, K.; Shang, X.; Keum, Y.S. Omega-3 polyunsaturated fatty acids (PUFAs): Emerging plant and picrobial sources, oxidative stability, bioavailability, and health benefits-a review. Antioxidants 2021, 10, 1627. [Google Scholar] [CrossRef] [PubMed]
  2. Shahidi, F.; Ambigaipalan, P. Omega-3 polyunsaturated fatty acids and their health benefits. Annu. Rev. Food Sci. Technol. 2018, 9, 345–381. [Google Scholar] [CrossRef] [PubMed]
  3. Prasad, P.; Anjali, P.; Sreedhar, R.V. Plant-based stearidonic acid as sustainable source of omega-3 fatty acid with functional outcomes on human health. Crit. Rev. Food Sci. Nutr. 2021, 61, 1725–1737. [Google Scholar] [CrossRef] [PubMed]
  4. Elagizi, A.; Lavie, C.J.; O’Keefe, E.; Marshall, K.; O’Keefe, J.H.; Milani, R.V. An update on omega-3 polyunsaturated fatty acids and cardiovascular health. Nutrients 2021, 13, 204. [Google Scholar] [CrossRef] [PubMed]
  5. Deacon, G.; Kettle, C.; Hayes, D.; Dennis, C.; Tucci, J. Omega 3 polyunsaturated fatty acids and the treatment of depression. Crit. Rev. Food Sci. Nutr. 2017, 57, 212–223. [Google Scholar] [CrossRef] [PubMed]
  6. Liao, Y.; Xie, B.; Zhang, H.; He, Q.; Guo, L.; Subramanieapillai, M.; Fan, B.; Lu, C.; McIntyre, R.S. Efficacy of omega-3 PUFAs in depression: A meta-analysis. Transl. Psychiatry 2019, 9, 190. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Cutuli, D. Functional and structural benefits induced by omega-3 polyunsaturated fatty acids during aging. Curr. Neuropharmacol. 2017, 15, 534–542. [Google Scholar] [CrossRef] [Green Version]
  8. Joffre, C.; Dinel, A.L.; Chataigner, M.; Pallet, V.; Laye, S. n-3 polyunsaturated fatty acids and their derivates reduce neuroinflammation during aging. Nutrients 2020, 12, 647. [Google Scholar] [CrossRef] [Green Version]
  9. Kannan, N.; Rao, A.S.; Nair, A. Microbial production of omega-3 fatty acids: An overview. J. Appl. Microbiol. 2021, 131, 2114–2130. [Google Scholar] [CrossRef]
  10. Galán, B.; Santos-Merino, M.; Nogales, J.; de la Cruz, F.; García, J.L. Microbial oils as nutraceuticals and animal feeds. In Health Consequences of Microbial Interactions with Hydrocarbons, Oils, and Lipids; Goldfine, H., Ed.; Springer International Publishing: Cham, Switzerland, 2019; pp. 1–45. [Google Scholar]
  11. Venugopalan, V.K.; Gopakumar, L.R.; Kumaran, A.K.; Chatterjee, N.S.; Soman, V.; Peeralil, S.; Mathew, S.; McClements, D.J.; Nagarajarao, R.C. Encapsulation and protection of omega-3-rich fish oils using food-grade delivery systems. Foods 2021, 10, 1566. [Google Scholar] [CrossRef]
  12. Lane, K.; Derbyshire, E.; Li, W.; Brennan, C. Bioavailability and potential uses of vegetarian sources of omega-3 fatty acids: A review of the literature. Crit. Rev. Food Sci. Nutr. 2014, 54, 572–579. [Google Scholar] [CrossRef] [PubMed]
  13. Saini, R.K.; Keum, Y.S. Omega-3 and omega-6 polyunsaturated fatty acids: Dietary sources, metabolism, and significance-A review. Life Sci. 2018, 203, 255–267. [Google Scholar] [CrossRef] [PubMed]
  14. Amiri-Jami, M.; Abdelhamid, A.G.; Hazaa, M.; Kakuda, Y.; Griffths, M.W. Recombinant production of omega-3 fatty acids by probiotic Escherichia coli Nissle 1917. FEMS Microbiol. Lett. 2015, 362, fnv166. [Google Scholar] [CrossRef] [Green Version]
  15. Amiri-Jami, M.; Griffiths, M.W. Recombinant production of omega-3 fatty acids in Escherichia coli using a gene cluster isolated from Shewanella baltica MAC1. J. Appl. Microbiol. 2010, 109, 1897–1905. [Google Scholar] [CrossRef]
  16. Peng, Y.F.; Chen, W.C.; Xiao, K.; Xu, L.; Wang, L.; Wan, X. DHA production in Escherichia coli by expressing reconstituted key genes of polyketide synthase pathway from marine bacteria. PLoS ONE 2016, 11, e0162861. [Google Scholar] [CrossRef]
  17. Thiyagarajan, S.; Khandelwal, P.; Senthil, N.; Vellaikumar, S.; Arumugam, M.; Dubey, A.A.; Kathiresan, S. Heterologous production of polyunsaturated fatty acids in E. coli using Δ5-desaturase gene from microalga Isochrysis sp. Appl. Biochem. Biotechnol. 2021, 193, 869–883. [Google Scholar] [CrossRef]
  18. Giner-Robles, L.; Lazaro, B.; de la Cruz, F.; Moncalian, G. fabH deletion increases DHA production in Escherichia coli expressing Pfa genes. Microb. Cell Factories 2018, 17, 88. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Finco, A.M.O.; Mamani, L.D.G.; Carvalho, J.C.; de Melo Pereira, G.V.; Thomaz-Soccol, V.; Soccol, C.R. Technological trends and market perspectives for production of microbial oils rich in omega-3. Crit. Rev. Biotechnol. 2017, 37, 656–671. [Google Scholar] [CrossRef]
  20. Santos-Merino, M.; Singh, A.K.; Ducat, D.C. New applications of synthetic biology tools for cyanobacterial metabolic engineering. Front. Bioeng. Biotechnol. 2019, 7, 33. [Google Scholar] [CrossRef] [Green Version]
  21. Prabha, S.; Vijay, A.K.; Paul, R.R.; George, B. Cyanobacterial biorefinery: Towards economic feasibility through the maximum valorization of biomass. Sci. Total Environ. 2022, 814, 152795. [Google Scholar] [CrossRef]
  22. Los, D.A.; Mironov, K.S. Modes of fatty acid desaturation in cyanobacteria: An update. Life 2015, 5, 554–567. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Mironov, K.S.; Sidorov, R.A.; Trofimova, M.S.; Bedbenov, V.S.; Tsydendambaev, V.D.; Allakhverdiev, S.I.; Los, D.A. Light-dependent cold-induced fatty acid unsaturation, changes in membrane fluidity, and alterations in gene expression in Synechocystis. Biochim Biophys Acta 2012, 1817, 1352–1359. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Yang, W.; Wang, F.; Liu, L.N.; Sui, N. Responses of membranes and the photosynthetic apparatus to salt atress in cyanobacteria. Front Plant Sci 2020, 11, 713. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, G.; Chen, J.; He, Q.; Zhang, Y.; Peng, Z.; Fan, Z.; Bian, F.; Yu, J.; Qin, S. Functional expression of the Arachis hypogaea L. Acyl-ACP thioesterases AhFatA and AhFatB enhances fatty acid production in Synechocystis sp. PCC6803. Energies 2017, 10, 2093. [Google Scholar] [CrossRef] [Green Version]
  26. Chen, G.; Qu, S.; Wang, Q.; Bian, F.; Peng, Z.; Zhang, Y.; Ge, H.; Yu, J.; Xuan, N.; Bi, Y.; et al. Transgenic expression of delta-6 and delta-15 fatty acid desaturases enhances omega-3 polyunsaturated fatty acid accumulation in Synechocystis sp. PCC6803. Biotechnol. Biofuels 2014, 7, 32. [Google Scholar] [CrossRef] [Green Version]
  27. Dong, X.; He, Q.; Peng, Z.; Yu, J.; Bian, F.; Li, Y.; Bi, Y. Production of γ-linolenic acid and stearidonic acid by Synechococcus sp. PCC7002 containing cyanobacterial fatty acid desaturase genes. Chin. J. Oceanol. Limnol. 2016, 34, 772–780. [Google Scholar] [CrossRef]
  28. Yoshino, T.; Kakunaka, N.; Liang, Y.; Ito, Y.; Maeda, Y.; Nomaguchi, T.; Matsunaga, T.; Tanaka, T. Production of omega3 fatty acids in marine cyanobacterium Synechococcus sp. strain NKBG 15041c via genetic engineering. Appl. Microbiol. Biotechnol. 2017, 101, 6899–6905. [Google Scholar] [CrossRef]
  29. Sakamoto, T.; Bryant, D.A. Synergistic effect of high-light and low temperature on cell growth of the Delta12 fatty acid desaturase mutant in Synechococcus sp. PCC 7002. Photosynth. Res. 2002, 72, 231–242. [Google Scholar] [CrossRef]
  30. Sakamoto, T.; Higashi, S.; Wada, H.; Murata, N.; Bryant, D.A. Low-temperature-induced desaturation of fatty acids and expression of desaturase genes in the cyanobacterium Synechococcus sp. PCC 7002. FEMS Microbiol. Lett. 1997, 152, 313–320. [Google Scholar] [CrossRef]
  31. Sakamoto, T.; Shen, G.; Higashi, S.; Murata, N.; Bryant, D.A. Alteration of low-temperature susceptibility of the cyanobacterium Synechococcus sp. PCC 7002 by genetic manipulation of membrane lipid unsaturation. Arch. Microbiol. 1998, 169, 20–28. [Google Scholar] [CrossRef]
  32. Wada, H.; Murata, N. Temperature-induced changes in the fatty acid composition of the cyanobacterium, Synechocystis PCC6803. Plant Physiol. 1990, 92, 1062–1069. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Santos-Merino, M.; Garcillan-Barcia, M.P.; de la Cruz, F. Engineering the fatty acid synthesis pathway in Synechococcus elongatus PCC 7942 improves omega-3 fatty acid production. Biotechnol. Biofuels 2018, 11, 239. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Poole, L.B.; Parsonage, D.; Sergeant, S.; Miller, L.R.; Lee, J.; Furdui, C.M.; Chilton, F.H. Acyl-lipid desaturases and Vipp1 cooperate in cyanobacteria to produce novel omega-3 PUFA-containing glycolipids. Biotechnol. Biofuels 2020, 13, 83. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, L.; Chen, L.; Yang, S.; Tan, X. Photosynthetic conversion of carbon dioxide to oleochemicals by byanobacteria: Recent advances and future perspectives. Front. Microbiol. 2020, 11, 634. [Google Scholar] [CrossRef]
  36. Rippka, R.; Deruelles, J.; Waterbury, J.B.; Herdman, M.; Stanier, R.Y. Generic assignments, strain histories and properties of pure cultures of cyanobacteria. Microbiology 1979, 111, 1–61. [Google Scholar] [CrossRef] [Green Version]
  37. Golden, S.S.; Brusslan, J.; Haselkorn, R. Genetic engineering of the cyanobacterial chromosome. Methods Enzymol. 1987, 153, 215–231. [Google Scholar] [CrossRef]
  38. Miller, L.; Berger, T. Bacteria identification by gas chromatography of whole cell fatty acids. In Hewlett—Packard Application Note; Hewlett-Packard: Avondale, PA, USA, 1985; pp. 228–241. 228p. [Google Scholar]
  39. Lai, C.Y.; Cronan, J.E. Isolation and characterization of beta-ketoacyl-acyl carrier protein reductase (fabG) mutants of Escherichia coli and Salmonella enterica serovar Typhimurium. J. Bacteriol. 2004, 186, 1869–1878. [Google Scholar] [CrossRef] [Green Version]
  40. Jeon, E.; Lee, S.; Lee, S.; Han, S.O.; Yoon, Y.J.; Lee, J. Improved production of long-chain fatty acid in Escherichia coli by an engineering elongation cycle during fatty acid synthesis (FAS) through genetic manipulation. J. Microbiol. Biotechnol. 2012, 22, 990–999. [Google Scholar] [CrossRef] [Green Version]
  41. Heath, R.J.; Rock, C.O. Roles of the FabA and FabZ beta-hydroxyacyl-acyl carrier protein dehydratases in Escherichia coli fatty acid biosynthesis. J. Biol. Chem. 1996, 271, 27795–27801. [Google Scholar] [CrossRef] [Green Version]
  42. Kass, L.R.; Bloch, K. On the enzymatic synthesis of unsaturated fatty acids in Escherichia coli. Proc. Natl. Acad. Sci. USA 1967, 58, 1168–1173. [Google Scholar] [CrossRef] [Green Version]
  43. Beld, J.; Abbriano, R.; Finzel, K.; Hildebrand, M.; Burkart, M.D. Probing fatty acid metabolism in bacteria, cyanobacteria, green microalgae and diatoms with natural and unnatural fatty acids. Mol. Biosyst. 2016, 12, 1299–1312. [Google Scholar] [CrossRef] [PubMed]
  44. Alper, H.S.; Avalos, J.L. Metabolic pathway engineering. Synth. Syst. Biotechnol. 2018, 3, 1–2. [Google Scholar] [CrossRef] [PubMed]
  45. Stein, J.P., Jr.; Bloch, K.E. Inhibition of E. coli beta-hydroxydecanoyl thioester dehydrase by ppGpp. Biochem. Biophys. Res. Commun. 1976, 73, 881–884. [Google Scholar] [CrossRef]
  46. Tocher, D.R.; Leaver, M.J.; Hodgson, P.A. Recent advances in the biochemistry and molecular biology of fatty acyl desaturases. Prog. Lipid Res. 1998, 37, 73–117. [Google Scholar] [CrossRef]
  47. Sakamoto, T.; Los, D.A.; Higashi, S.; Wada, H.; Nishida, I.; Ohmori, M.; Murata, N. Cloning of omega 3 desaturase from cyanobacteria and its use in altering the degree of membrane-lipid unsaturation. Plant Mol. Biol. 1994, 26, 249–263. [Google Scholar] [CrossRef]
  48. Wada, H.; Avelange-Macherel, M.H.; Murata, N. The desA gene of the cyanobacterium Synechocystis sp. strain PCC6803 is the structural gene for delta 12 desaturase. J. Bacteriol. 1993, 175, 6056–6058. [Google Scholar] [CrossRef] [Green Version]
  49. Wada, H.; Gombos, Z.; Murata, N. Enhancement of chilling tolerance of a cyanobacterium by genetic manipulation of fatty acid desaturation. Nature 1990, 347, 200–203. [Google Scholar] [CrossRef]
  50. Wada, H.; Murata, N. Synechocystis PCC6803 mutants defective in desaturation of fatty acids. Plant Cell Physiol. 1989, 30, 971–978. [Google Scholar] [CrossRef]
  51. Yu, R.; Yamada, A.; Watanabe, K.; Yazawa, K.; Takeyama, H.; Matsunaga, T.; Kurane, R. Production of eicosapentaenoic acid by a recombinant marine cyanobacterium, Synechococcus sp. Lipids 2000, 35, 1061–1064. [Google Scholar] [CrossRef]
  52. Gong, Y.; Miao, X. Short chain fatty acid biosynthesis in microalgae Synechococcus sp. PCC 7942. Mar. Drugs 2019, 17, 255. [Google Scholar] [CrossRef] [Green Version]
  53. Gao, Q.; Tan, X.; Lu, X. Enzymatic and physiological characterization of fatty acid activation in Synechocystis sp. PCC6803. J. Basic Microbiol. 2013, 53, 848–855. [Google Scholar] [CrossRef]
  54. Bryan, S.J.; Burroughs, N.J.; Shevela, D.; Yu, J.; Rupprecht, E.; Liu, L.N.; Mastroianni, G.; Xue, Q.; Llorente-Garcia, I.; Leake, M.C.; et al. Localisation and interactions of the Vipp1 protein in cyanobacteria. Mol. Microbiol. 2014, 94, 1179–1195. [Google Scholar] [CrossRef] [Green Version]
  55. Vermaas, W.F. Modified cyanobacteria. U.S. Patent 8,753,840, 17 June 2014. [Google Scholar]
  56. Lee, J.M.; Lee, H.; Kang, S.; Park, W.J. Fatty acid desaturases, polyunsaturated fatty acid regulation, and biotechnological advances. Nutrients 2016, 8, 23. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Reddy, A.S.; Nuccio, M.L.; Gross, L.M.; Thomas, T.L. Isolation of a delta 6-desaturase gene from the cyanobacterium Synechocystis sp. strain PCC 6803 by gain-of-function expression in Anabaena sp. strain PCC 7120. Plant Mol. Biol. 1993, 22, 293–300. [Google Scholar] [CrossRef] [PubMed]
  58. Pender-Cudlip, M.C.; Krag, K.J.; Martini, D.; Yu, J.; Guidi, A.; Skinner, S.S.; Zhang, Y.; Qu, X.; He, C.; Xu, Y.; et al. Delta-6-desaturase activity and arachidonic acid synthesis are increased in human breast cancer tissue. Cancer Sci. 2013, 104, 760–764. [Google Scholar] [CrossRef]
  59. Matsuoka, M.; Takahama, K.; Ogawa, T. Gene replacement in cyanobacteria mediated by a dominant streptomycin-sensitive rps12 gene that allows selection of mutants free from drug resistance markers. Microbiology 2001, 147, 2077–2087. [Google Scholar] [CrossRef] [Green Version]
  60. Moronta-Barrios, F.; Espinosa, J.; Contreras, A. Negative control of cell size in the cyanobacterium Synechococcus elongatus PCC 7942 by the essential response regulator RpaB. FEBS Lett. 2013, 587, 504–509. [Google Scholar] [CrossRef] [Green Version]
Life 12 00810 g001 550

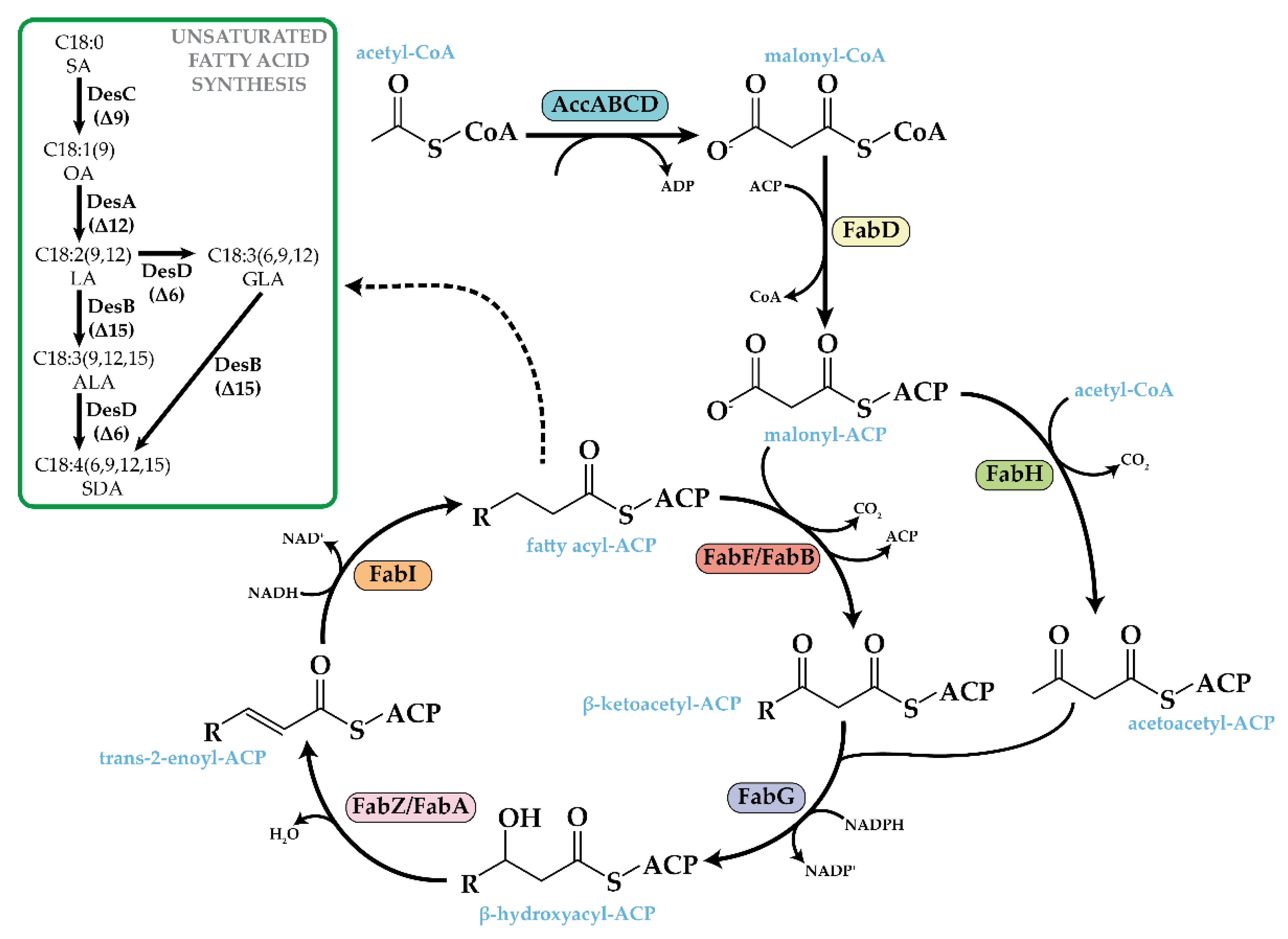

Figure 1. Omega-3 FA synthesis pathway in cyanobacteria. AccABCD (acetyl-CoA carboxylase) catalyzes the formation of malonyl-CoA using two molecules of acetyl-CoA. The malonyl moiety is transferred to the acyl-carrier protein (ACP) by FabD (malonyl-CoA ACP transacylase. The initial condensation reaction is catalyzed by FabH (β-ketoacyl-ACP synthase III), reducing acetyl-CoA and malonyl-ACP to form acetoacetyl-ACP. AccABCD, FabD, and FabH are enzymes that perform reactions in the initiation step. The next reaction in the elongation cycle is catalyzed by FabG (β-ketoacyl-ACP reductase), which reduces acetoacetyl-ACP to form β-hydroxyacil-ACP, which is dehydrated by FabZ/FabA (β-hydroxyacyl-ACP dehydratase) to produce trans-2-enoyl-ACP. The final step in the cycle is catalyzed by FabI (trans-2-enoyl-ACP reductase). The resulting fatty acyl-ACP can be elongated further by FabF/FabB (β-ketoacyl-ACP synthase II/I) or if the fatty acyl-ACP contains 16 or 18 carbon atoms (C16:0-ACP or C18:0-ACP, respectively) can be unsaturated by the action of desaturases. FabF, FabG, FabZ, and FabI are enzymes that perform reactions in the elongation cycle. In the desaturation step, four consecutive desaturases (DesC or Δ9, DesA or Δ12, DesB or Δ15, and DesD or Δ6) catalyzed the conversion of stearic acid (SA) into stearidonic acid (SDA). OA, oleic acid; LA, linoleic acid; GLA, γ-linolenic acid; ALA, α-linolenic acid.
Figure 1. Omega-3 FA synthesis pathway in cyanobacteria. AccABCD (acetyl-CoA carboxylase) catalyzes the formation of malonyl-CoA using two molecules of acetyl-CoA. The malonyl moiety is transferred to the acyl-carrier protein (ACP) by FabD (malonyl-CoA ACP transacylase. The initial condensation reaction is catalyzed by FabH (β-ketoacyl-ACP synthase III), reducing acetyl-CoA and malonyl-ACP to form acetoacetyl-ACP. AccABCD, FabD, and FabH are enzymes that perform reactions in the initiation step. The next reaction in the elongation cycle is catalyzed by FabG (β-ketoacyl-ACP reductase), which reduces acetoacetyl-ACP to form β-hydroxyacil-ACP, which is dehydrated by FabZ/FabA (β-hydroxyacyl-ACP dehydratase) to produce trans-2-enoyl-ACP. The final step in the cycle is catalyzed by FabI (trans-2-enoyl-ACP reductase). The resulting fatty acyl-ACP can be elongated further by FabF/FabB (β-ketoacyl-ACP synthase II/I) or if the fatty acyl-ACP contains 16 or 18 carbon atoms (C16:0-ACP or C18:0-ACP, respectively) can be unsaturated by the action of desaturases. FabF, FabG, FabZ, and FabI are enzymes that perform reactions in the elongation cycle. In the desaturation step, four consecutive desaturases (DesC or Δ9, DesA or Δ12, DesB or Δ15, and DesD or Δ6) catalyzed the conversion of stearic acid (SA) into stearidonic acid (SDA). OA, oleic acid; LA, linoleic acid; GLA, γ-linolenic acid; ALA, α-linolenic acid.
Life 12 00810 g001
Life 12 00810 g002 550
Figure 2. Genealogy of sequential modifications performed in Se7942 for omega-3 production. The complete description of each strain is shown in Supplementary Table S1.
Figure 2. Genealogy of sequential modifications performed in Se7942 for omega-3 production. The complete description of each strain is shown in Supplementary Table S1.
Life 12 00810 g002
Life 12 00810 g003 550

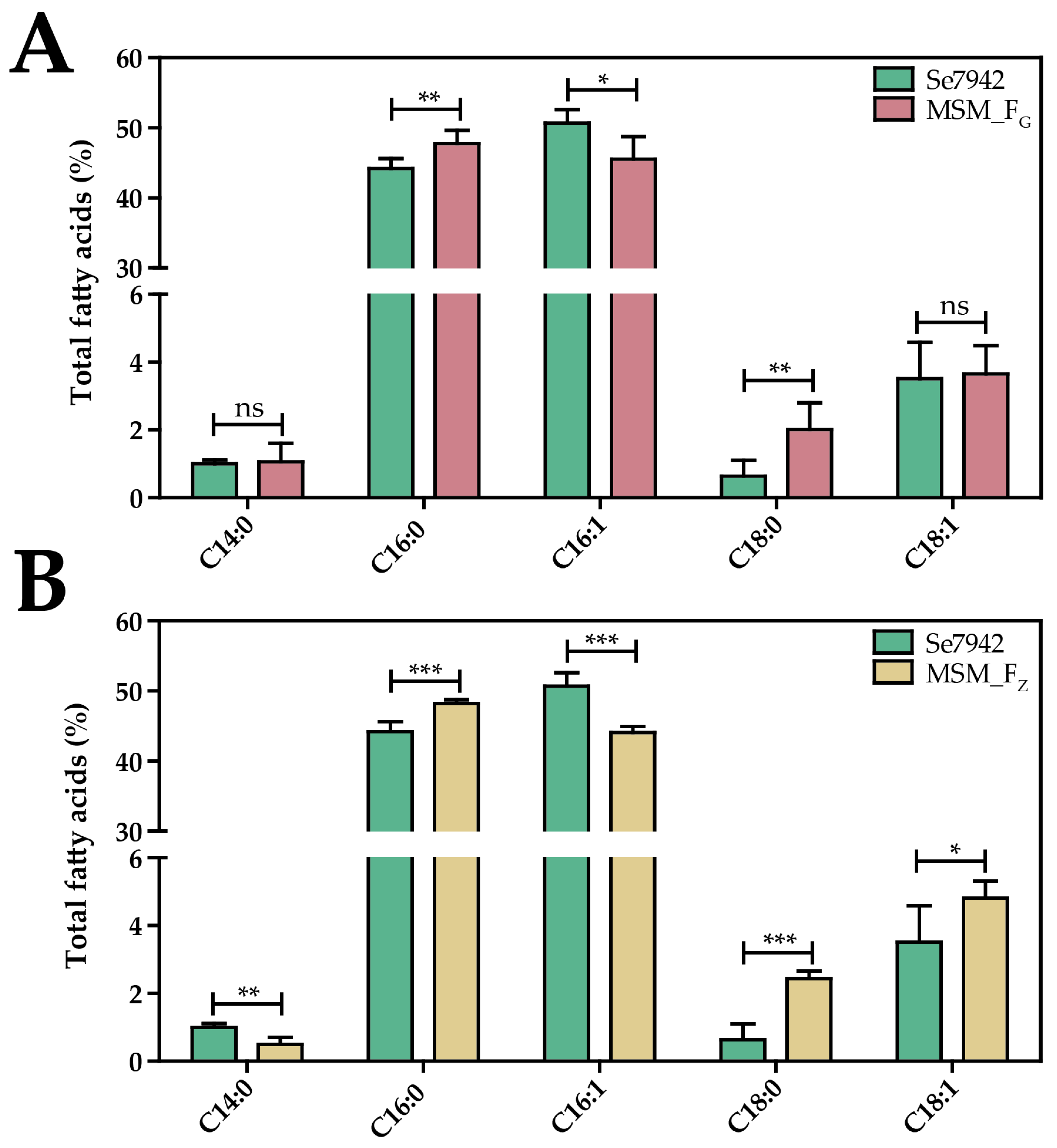

Figure 3. Effect of fabG and fabZ overexpression on FA composition. (A) FA content of wt Se7942 (green bars) and the fabG mutant derivative, MSM_FG (red bars). (B) FA content of wt Se7942 (green bars) and the fabZ mutant derivative, MSM_FZ (yellow bars). In both graphs, the different FA species are shown along the x-axis. The y-axis shows the percentage of each FA with respect to the total amount of FAs analyzed. Data are the average of at least three independent biological replicates and are represented as the mean + SD. ns (not significant), p > 0.05; * p < 0.05, ** p < 0.01, *** p < 0.001, by unpaired Student’s t-test.
Figure 3. Effect of fabG and fabZ overexpression on FA composition. (A) FA content of wt Se7942 (green bars) and the fabG mutant derivative, MSM_FG (red bars). (B) FA content of wt Se7942 (green bars) and the fabZ mutant derivative, MSM_FZ (yellow bars). In both graphs, the different FA species are shown along the x-axis. The y-axis shows the percentage of each FA with respect to the total amount of FAs analyzed. Data are the average of at least three independent biological replicates and are represented as the mean + SD. ns (not significant), p > 0.05; * p < 0.05, ** p < 0.01, *** p < 0.001, by unpaired Student’s t-test.
Life 12 00810 g003
Life 12 00810 g004 550

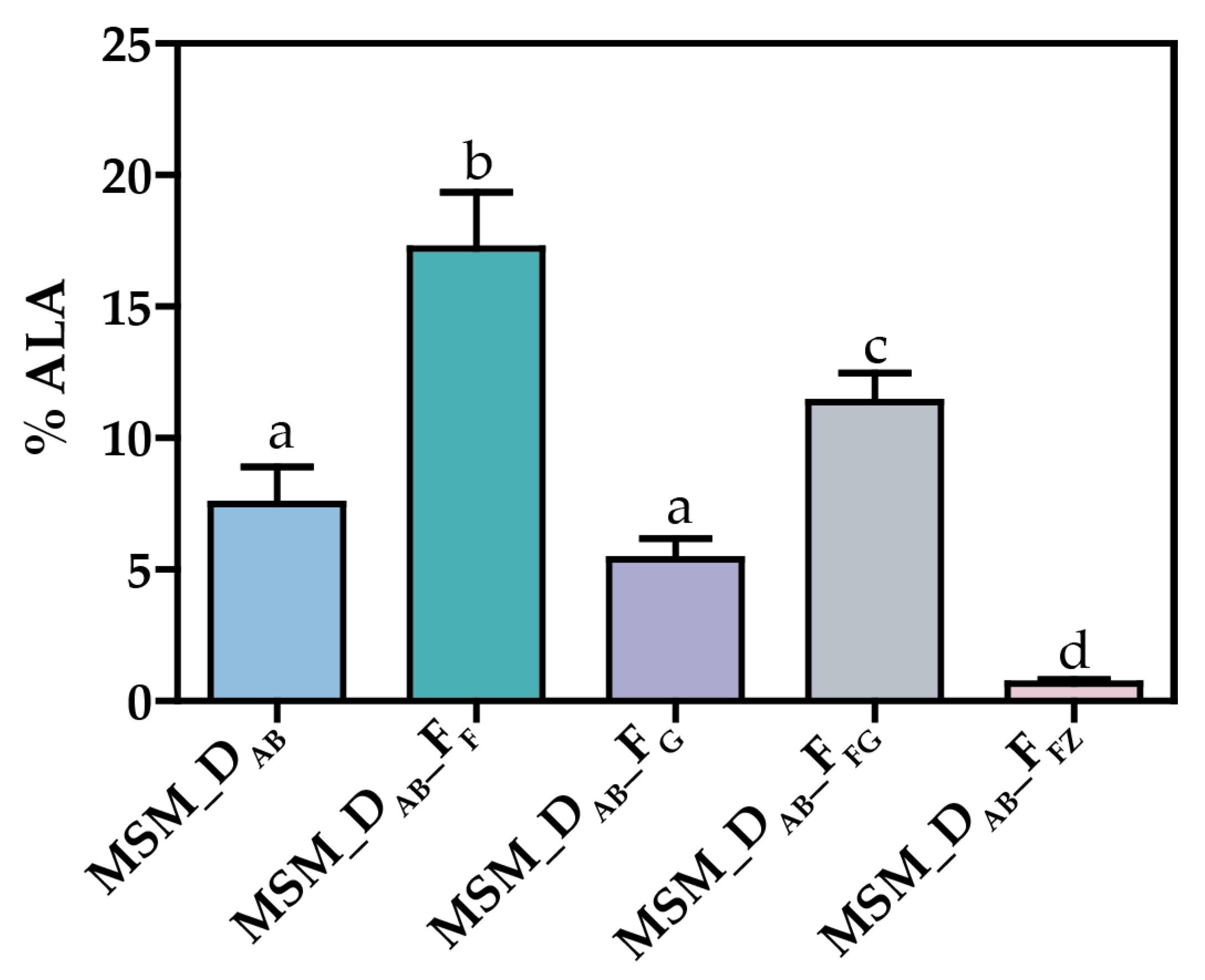

Figure 4. ALA production in Se7942 derivative strains containing the overexpression of fabF, fabG, and fabZ genes. Data are the average of at least three independent biological replicates and are represented as the mean + SD. Significance was calculated by one-way ANOVA followed by Tukey’s multiple comparison test. Bars labeled with different letters are significantly different (p < 0.05).
Figure 4. ALA production in Se7942 derivative strains containing the overexpression of fabF, fabG, and fabZ genes. Data are the average of at least three independent biological replicates and are represented as the mean + SD. Significance was calculated by one-way ANOVA followed by Tukey’s multiple comparison test. Bars labeled with different letters are significantly different (p < 0.05).
Life 12 00810 g004
Life 12 00810 g005 550
Figure 5. SDA production in Se7942. Effect of ALA production in the FA Profile. MSM_DAB_FF and MSM_DAB_FFDD, ALA mutant producers, are represented by green and orange bars, respectively. Data are the average of at least three independent biological replicates and are represented as the mean + SD. ns (not significant), p > 0.05, * p < 0.05, *** p < 0.001, by unpaired Student’s t-test.
Figure 5. SDA production in Se7942. Effect of ALA production in the FA Profile. MSM_DAB_FF and MSM_DAB_FFDD, ALA mutant producers, are represented by green and orange bars, respectively. Data are the average of at least three independent biological replicates and are represented as the mean + SD. ns (not significant), p > 0.05, * p < 0.05, *** p < 0.001, by unpaired Student’s t-test.
Life 12 00810 g005
Life 12 00810 g006 550
Figure 6. FA profile of MSM_DAB_FFDD strain at different post-induction times. Data are the average of at least three independent biological replicates and are represented as the mean + SD. Significance was calculated by one-way ANOVA followed by Tukey’s multiple comparison test. Bars labeled with different letters are significantly different (p < 0.05).
Figure 6. FA profile of MSM_DAB_FFDD strain at different post-induction times. Data are the average of at least three independent biological replicates and are represented as the mean + SD. Significance was calculated by one-way ANOVA followed by Tukey’s multiple comparison test. Bars labeled with different letters are significantly different (p < 0.05).
Life 12 00810 g006
Table
Table 1. FA profile of ALA-producer strains.
Table 1. FA profile of ALA-producer strains.
FA (%) 1MSM_DABMSM_DAB_FFMSM_DAB_FGMSM_DAB_FFGMSM_DAB_FFZ
C14:01.56 ± 0.40 a0 ± 0 b1.03 ± 0.15 c0.53 ± 0.06 d0.82 ± 0.05 c
C16:070.44 ± 4.14 a65.19 ± 2.58 a69.17 ± 6.52 a57.68 ± 1.16 b50.46 ± 1.50 b
C16:116.22 ± 2.95 a13.04 ± 2.43 a16.4 ± 1.41 a14.90 ± 1.81 a42.33 ± 2.16 b
C18:02.73 ± 0.47 a0 ± 0 b4.94 ± 0.63 c13.65 ± 0.93 d2.46 ± 0.52 a
C18:10 ± 0 a0 ± 0 a0.06 ± 0.03 a0.07 ± 0.07 a3.29 ± 0.28 b
C18:20 ± 0 a0 ± 0 a0.28 ± 0.06 a0.60 ± 0.30 b0 ± 0 a
C18:37.49 ± 1.43 a17.9 ± 2.18 b4.99 ± 1.20 a11.58 ± 1.12 c0.64 ± 0.18 c
1 Expressed as mean ± standard deviation. Significance was calculated by one-way ANOVA followed by Tukey’s multiple comparison test. Values for each FA labeled with different letters are significantly different (p < 0.05).
Table
Table 2. FA profile of SDA-producer strains.
Table 2. FA profile of SDA-producer strains.
FA (%) 1MSM_DAB_FFDDMSM_DAB_FFDD_ΔD
C14:00.14 ± 0.240.71 ± 0.39
C16:056.57 ± 0.7355.65 ± 5.82
C16:114.39 ± 1.9618.29 ± 4.07
C18:02.22 ± 0.940.71 ± 0.78
C18:11.67 ± 1.453.38 ± 1.03
C18:21.16 ± 0.440.95 ± 0.76
C18:318.12 ± 3.4019.40 ± 4.26
C18:45.73 ± 0.580.92 ± 1.08 ***
1 Expressed as mean ± standard deviation. Significance was calculated by unpaired Student’s t-test, *** p < 0.001.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Santos-Merino, M.; Gutiérrez-Lanza, R.; Nogales, J.; García, J.L.; de la Cruz, F. Synechococcus elongatus PCC 7942 as a Platform for Bioproduction of Omega-3 Fatty Acids. Life 2022, 12, 810. https://doi.org/10.3390/life12060810

AMA Style

Santos-Merino M, Gutiérrez-Lanza R, Nogales J, García JL, de la Cruz F. Synechococcus elongatus PCC 7942 as a Platform for Bioproduction of Omega-3 Fatty Acids. Life. 2022; 12(6):810. https://doi.org/10.3390/life12060810

Chicago/Turabian Style

Santos-Merino, María, Raquel Gutiérrez-Lanza, Juan Nogales, José Luis García, and Fernando de la Cruz. 2022. "Synechococcus elongatus PCC 7942 as a Platform for Bioproduction of Omega-3 Fatty Acids" Life 12, no. 6: 810. https://doi.org/10.3390/life12060810

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
