Acaricidal Potential and Ecotoxicity of Metallic Nano-Pesticides Used against the Major Life Stages of Hyalomma Ticks

by
Tean Zaheer
1,*,†,
Mahmoud Kandeel
2,3,*,†,
Rao Zahid Abbas
1,
Shanza Rauf Khan
4,
Tauseef ur Rehman
5 and
Amjad Islam Aqib
6
1
Department of Parasitology, University of Agriculture, Faisalabad 38040, Pakistan
2
Department of Biomedical Sciences, College of Veterinary Medicine, King Faisal University, Al-Hofuf 31982, Saudi Arabia
3
Department of Pharmacology, Faculty of Veterinary Medicine, Kafrelshikh University, Kafrelshikh 33516, Egypt
4
Department of Chemistry, University of Agriculture, Faisalabad 38040, Pakistan
5
Department of Parasitology, The Islamia University Bahawalpur, Bahawalpur 63100, Pakistan
6
Department of Medicine, Cholistan University of Veterinary and Animal Sciences, Bahawalpur 63100, Pakistan
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Life 2022, 12(7), 977; https://doi.org/10.3390/life12070977
Submission received: 18 May 2022 / Revised: 21 June 2022 / Accepted: 27 June 2022 / Published: 29 June 2022
(This article belongs to the Special Issue Advances in Livestock and Human Parasites)
Browse Figures
Versions Notes

Abstract

:
Ticks (Acari: Ixodidae) are blood-feeding parasites capable of transmitting diseases to animals (Piroplasmosis) and humans (Congo fever, Lyme disease). The non-judicious use of chemical acaricides has led to the development of acaricide-resistant ticks, making the control of ticks and tick-borne diseases difficult. This study reports the efficacy of magnesium oxide (MgO), iron oxide (Fe2O3), and zinc oxide (ZnO) nanoparticles (NPs) as alternatives to traditional acaricides/pesticides using in vitro tests against major representative stages of Hyalomma ticks. Nanopesticides were chemically synthesized as rods (Fe2O3), stars (ZnO), and spheres (MgO) and were characterized by XRD and SEM analysis. The in vitro bioassays included adult immersion, larval immersion, and larval packet tests. Non-target effects of the nanopesticides were evaluated using snails. The LC90 values of Fe2O3 NPs (4.21, 2.83, 0.89 mg/L) were lowest followed by MgO (4.27, 2.91, 0.93 mg/L) and ZnO (4.49, 3.05, 0.69 mg/L), for the tick adult, larval and egg stages, respectively. Fe2O3 NPs were capable of arresting oviposition and larval hatching in the study ticks in vitro. The snail toxicity experiments revealed minimum to mild off-target effects for all nanopesticides tested. This study is the first to report the comparative efficacy of magnesium, iron, and zinc nanomaterials for toxicity in egg, adult and larval stages of Hyalomma ticks. Further studies of NPs on establishing the efficacy against ticks and safety at host-human-environment interface could lead to promising nanopesticde applications.

1. Introduction

Ticks are blood-feeding arthropods known to transmit lumpy skin disease, Q fever, rickettsiosis, ehrlichiosis, Boutonneuse fever and Lyme disease [1,2]. Livestock species in developing countries such as Pakistan face threats from multiple tick-related diseases [3,4], and estimated economic losses in Brazil and Mexico due to tick epidemics, prevention and treatment range from $573.61 million to $3.24 billion annually [5]. Although the transmission of these diseases affects livestock and threatens caretakers and pet animals [6,7], the widespread use of conventional therapies has led to drug resistance.
Hyalomma ticks are one of the most significant disease-transmitting genera of Ixodidae due to their vector potential for livestock and impact on public health [8]. A growing tide of acaricidal resistance in ticks, combined with the slow development of chemical acaricide design and implementation, reveals the need for alternative options. Alternative control measures, alone or in combination with chemical acaricides, constitute an integrated vector management approach shown to be effective in controlling ticks and tick-borne diseases [9]. To this end, the use of management strategies including rotational grazing, spelt pastures, alternative grazing, improved floor design, and the use of footbaths have been applied in combination with other methods for moderately effective tick control [10].
Metallic and non-metallic nanoparticles (NPs) have shown great promise for rapidly inducing toxicity and reducing lethal concentrations at various stages of the parasite’s life cycle [11]. NPs have been found to induce toxicity against some endoparasites and ectoparasites [12,13,14]. Magnesium, zinc, and iron, among other metals, are known to regulate cellular mechanisms in arthropods. MgO NPs have shown promising lethality via cell membrane permeability, nervous conduction and excitability, and intermediary metabolism. Similarly, zinc is crucial to DNA synthesis, mitosis, cell proliferation and as an intracellular antioxidant in arthropods [15]. Iron is crucial in preventing oxidative stress within arthropods [16]. Given the pivotal roles of these metals in arthropod physiology, the current study evaluates the comparative acaricidal activity of ZnO, MgO, and Fe2O3 NPs against the major stages of Hyalomma ticks and determines their toxicity in snails (being one of suitable candidates for pesticide and ecotoxicology testing).

2. Materials and Methods

2.1. NP Synthesis and Characterization

Magnesium chloride (MgCl2·6H2O), sodium dodecyl sulfate (SDS), sodium hydroxide (NaOH), zinc acetate dihydrate (Zn(CH3COO)2·2H2O), polyethylene glycol (PEG), urea (NH2CONH2), iron chloride tetrahydrate (FeCl2·4H2O) and ammonia were purchased from Sigma-Aldrich USA.
Synthesis of MgO NPs: MgO NPs were prepared hydrothermally in the presence of surfactant [17]. The MgCl2·6H2O solution was prepared by dissolving 4 g MgCl2·6H2O in 40 mL distilled water. Four grams of SDS were added to the MgCl2 solution with constant magnetic stirring for 4 h at room temperature. Twenty mL of 2.5 M NaOH was dropwise added into the reaction mixture to maintain a pH of 12. The resulting white suspension was transferred into a stainless-steel-lined solvothermal autoclave reactor and heated at 140 °C for 6 h. The white precipitates obtained were washed with distilled water and collected by centrifugation. The precipitates were dried at 60 °C for 24 h in a thermoelectric oven, ground, then calcinated at 450 °C for 3 h.
Synthesis of ZnO NPs: Three grams Zn(CH3COO)2·2H2O and 1 g urea were dissolved in 65 mL distilled water to prepare solution A. One gram of urea and 3 g PEG were dissolved in 65 mL distilled water to prepare solution B. Solutions A and B were mixed, and 13 mL of concentrated ammonia was dropwise added to maintain a pH of 12. The solution was poured into a Teflon vessel and heated in an autoclave reactor at 110 °C for 5 h. The product was washed, dried, ground to a fine powder, and calcinated at 550 °C for 5 h.
Synthesis of Fe2O3 NPs: Two grams of FeCl2·4H2O were dissolved in 6 mL distilled water, and 42 mL of concentrated ammonia was added. The reaction mixture was heated in an autoclave at 140 °C for 3 h. The product was washed, dried, and ground to a fine powder before application.
NP characterization: A Rigaku D/max Ultima III X-ray powder diffractometer operated at 40 kV and 0.130 A current and equipped with a Cu-Kα radiation source (wavelength 0.15406 nm) was used for the XRD analysis of NP products. An SEM Quanta 250 operated at 30 kV was used to scan the NPs.

2.2. Tick Collection and Identification

Engorged ticks were collected from the ears, eyelids, lips, and tails of bovines (cattle and buffalo) with no reported history of acaricidal exposure within the previous 30 days [18]. Ticks were collected in untreated vials from the animals irrespective of animal gender, age, or species and were identified using a stereomicroscope (IM-SZ-210, Irmeco, Lütjensee, Germany) following an identification key developed by Walker et al. [19]. Tick anatomical features of the mouth, basis capitulum, coxa, scutum, and other features were assessed for identification at the genus level.

2.3. Tick Bioassays

We evaluated the efficacy of various concentrations of NPs against egg, larval and adult stages of collected Hyalomma ticks using the following bioassays: egg immersion (EIT), larval packet (LPT), larval immersion (LIT) and adult immersion (AIT). All tick rearing and bioassays were performed within a biological oxygen demand incubator, at a temperature of 28–30 °C and 80–90% relative humidity, for the required time [20,21]. Briefly, partially fed and fully engorged female ticks were moved to separate tubes for incubation and subsequent ovipositioning [22]. After 11–35 days, females had laid eggs, and the shriveled and dead females were separated from the eggs to avoid microbial contamination. The eggs were then incubated until larval hatching. Mortality data was subject to the formula proposed by [23].

2.4. Contact Toxicity in Garden Snails

For the toxicity evaluation, 120 apparently healthy and active land snails were collected regardless of gender from the organic garden at the University of Agriculture, Faisalabad, Pakistan, where chemicals and pesticides had not been used in the previous 30 days. There were seven groups of snails, including two control (negative and positive) and five treatment groups. The seven groups were designated as follows: Group 1 (negative control, distilled water), Group 2 (cypermethrin), Group 3 (deltamethrin), Group 4 (MgO NPs), Group 5 (ZnO NPs), Group 6 (Fe2O3 NPs), and Group 7 (positive control, DMSO). The five treatment groups (all groups except 1 and 7) were further divided into four sub-groups receiving the following NP concentrations: 0.01 mg/mL, 0.1 mg/mL, 1 mg/mL, and 10 mg/mL, with n = 5 snails randomly assigned to each subgroup. A 50 µL of solution from each of 0.01 mg/mL, 0.1 mg/mL, 1 mg/mL, and 10 mg/mL NPs solution was poured onto the anterior mouth portion side of each snail, using the method described by Radwan et al. [24] with some modifications. The snails were transferred to Petri plates instead of plastic bottles to improve aeration. The top of each plate was covered with organza netting secured with rubber bands. The final dose received by each snail was 0.5 µg, 5 µg, 50 µg, and 500  µg for the four NP concentration subgroups within each treatment group. Snails were kept off-feed for 5 days, and dead snails were analyzed by histopathology. Percentage mortality on the 1st, 3rd, and 5th days was calculated based on the number of dead snails divided by the total number of snails tested.
Formulae applied:
C o r r e c t e d   M o r t a l i t y = %   t r e a t e d   m o r t a l i t y − %   c o n t r o l   m o r t a l i t y   100 − %   c o n t r o l   m o r t a l i t y × 100
% M o r t a l i t y   o f   s n a i l s   a t   “ x ”   t i m e   i n t e r v a l = N u m b e r   o f   s n a i l s   d i e d   a t   “ x ” t i m e   i n t e r v a l T o t a l   n u m b e r   o f   s n a i l s   u s e d   i n   t h e   t r i a l × 100
x = 1st day (24 h); 3rd day (48 h); and 5th day (120 h)
Histopathology: The digestive glands of the snails were processed for dissection and fixation using Bouin’s fluid. Fixed sections were deparaffinized in 5  µm-thick sections, then hydrated and stained in hematoxylin for fifteen minutes. After washing with water, sections were stained with 1% eosin solution for two minutes. The samples were dehydrated with alcohol, cleared in xylene, mounted on clean slides using Canada balsam and covered with thin coverslips [25]. Salient pathological indicators included call disintegration, bizarre nuclei ranging from karyolysis to severe karyorrhexis, complete pyknosis, numerous vacuolations, frequent dark granulation, and hemocyte infiltration.

2.5. Statistical Analysis

The LC50 and LC99 values and their associated confidence intervals were estimated from 24 h mortality/survivability data using Probit analysis by SPSS (SPSS for Windows, version 22; IBM, Armonk, NY, USA) with probability ≤0.05 considered as significant.

3. Results

3.1. XRD Analyses of MgO, ZnO, and Fe2O3 NPs

XRD patterns of the synthesized products were plotted as 2 theta (θ) values vs. intensity (Figure 1). Miller indices of Fe2O3 for diffraction peaks at 2 theta (θ) 22°, 33°, 35°, 46°, and 56° were (012), (104), (110), (124), and (116), respectively (JCPDS # 33-0664) [26]. The set of 2 theta (θ) values and corresponding indices indicate that the synthesized product was Fe2O3 NPs. The XRD pattern showed that the peaks were not sharp, indicating that the product was not completely crystalline. Figure 1b shows the diffraction peaks at 2 theta (θ) 32°, 34°, 36°, 45°, 56°, 62°, and 68° with Miller indices of (100), (012), (101), (102), (110), (103), and (200), respectively, confirming that the synthesized product was ZnO NPs (JCPDS # 36-1451) [27]. For ZnO, the peaks were sharp, indicating a crystalline ZnO product. Figure 1c shows diffraction peaks at 2 theta (θ) 42°, 62°, and 66°, corresponding to (200), (220), and (311) Miller indices, respectively (MgO, JCPDS # 75-1525) [28]. All peaks were sharp, indicating that the synthesized product was crystalline. Overall, the ZnO NPs were purer and provided the sharpest peaks among all the synthesized products.

3.2. SEM Analyses of MgO, ZnO, and Fe2O3 NPs

An SEM image of MgO NPs synthesized hydrothermally is provided in Figure 2. The product is comprised of fully dispersed spherical/oval-shaped NPs. Aggregation was not observed in this image. MgO NPs were 30–80 nm in size. A contrast was not observed, indicating that the particles were compact and not hollow. An SEM image of the ZnO NPs is shown in Figure 2. Polygonal, randomly oriented, unfused star-like particles were observed. The boundaries of particles were clear, and every particle consisted of many spikes joined at the center. The spike lengths were not equal. The size of every star-like particle was approximately 4–8 µm, and the terminal ends of spikes were blunt rather than pointed. Urea acted as the directing morphology template; primary particles were formed initially and stabilized by urea molecules. Due to calcination, urea molecules decomposed into carbon dioxide and ammonia, forming star-like particles. The rod-shaped NPs of Fe2O3 are shown in Figure 2. These rod-shaped particles were randomly aligned, approximately 2 μm long and 100 nm wide. The terminal ends of rods were not pointed. The rods appeared to have emerged from spherical NPs because few spherical-shaped minute particles adhered to the surface of the rods. As the rods were not aggregated, their surface was available for many interactions with the environment.

3.3. Tick Bioassays

The preliminary stereomicrographs showing adult, larval and egg stages of Hyalomma ticks are shown in Figure 3. Iron oxide NPs demonstrated superior acaricidal activity against ovipositioning, larval emergence, and egg hatching than MgO and ZnO NPs, and ZnO NPs showed the least activity. Similarly, adult and larval mortality, regardless of NP concentration, was higher in ticks exposed to Fe2O3 NPs (Table 1). The mortality results of the packet and immersion tests were not significantly different. Adult female ovipositioning is expressed in percentages, divided into three major categories: egg-laying within 20 days, egg-laying from 21–28 days and egg-laying after 28 days (Figure 4). The egg mass from which no larvae emerged even after 35 days post-treatment was considered dead due to the NP treatment. The color of egg masses that desiccated without larval emergence changed to dark brown/black (Figure 5a). The egg-laying of Fe2O3 NP treatment groups was approximately 80%, and the lowest lethal Fe2O3 NP concentration required to arrest larval hatching was LC90 = 1.68 mg/L. Mortality data in terms of LC50 and LC90 along with associated confidence intervals have been mentioned in Table 1.

3.4. Ecotoxicity Analysis

As a preliminary investigation, all three NPs demonstrated minimum to mild off-target effects on the snails (Table 2). The highest mortality in the starved snails was detected in the cypermethrin treatment group, followed by deltamethrin, Fe2O3 NPs, MgO NPs, and ZnO NPs. Mortality was directly proportional to NPs concentrations. All the snails exposed to ZnO NPs survived for 24 h against all four concentrations. In the control group, only one of the snails was dead on the fifth day of the trial. Most snails died on day 3 of the trial.
Histopathology: Snails exposed to metallic NPs were found to be illustrating pathologies at various sites of digestive glands (Figure 6). The glands were denatured, calcium and excretory cells were developing slight vacuolation, and granules were released upon the denaturation of digestive cells. Moreover, basophilic infiltration was evident. Some connective tissue was denatured, and the lumen was widened and later disfigured. Pyknotic nuclei were observed due to the packing of calcium cells with larger calcium spherules. Excretory cells were evident at some sites with debris.

4. Discussion

ZnO NPs are one of the safest nanomaterials and have been successfully applied in the areas of food, textiles, medicine and healthcare, agriculture, and engineering [29,30]. In one previous study of Fe2O3 NPs, researchers determined that the LC50 was 50 µg/mL at 60 min and the LC99 was 150 µg/mL at 30 min against Hyalomma spp. The authors also showed 85.7% Hyalomma mortality in 0 min exposure to 250 µg/mL of Fe2O3 NPs [31]. In our previous study, neem plant-based ZnO NPs and lemongrass-based ZnO NPs demonstrated LC50 values of 4.76 mg/L and 4.92 mg/L and LC90 values of 8.87 mg/L and 9.1 mg/L, respectively, against Hyalomma ticks [32]. Mortality data from these tests are consistent with other studies of NP-induced toxicity in ticks [33,34]. Previous research has shown that Fe2O3 NPs and ZnO NPs are safer and more effective NPs nickel NPs than titanium NPs [33,35] against the larvae of the Hyalomma tick. Similarly, the LC50 for plant-derived ZnO NPs tested in Rhichichephalus ticks was 6.87 mg/L.
It has been proposed that NPs induce toxicity by accelerating or slowing certain cellular mechanisms within host cells [36]. The unique physicochemical surface properties of nanomaterials make them more suitable for downstream functionalization applications [9]. Moreover, ZnO NPs are listed as “generally recognized as safe” by the U.S. Food and Drug Administration (FDA), making them one of the safest NPs in biomedical applications [37]. The safety of ZnO NPs during in vivo testing was demonstrated via the biochemical analysis of subject animal sera [18]. Similarly, in humans, ZnO NPs failed to induce toxicity or bypass the dermal layers 5 days after exposure [30].
MgO NPs have been declared relatively safe materials by the FDA. They are also easier to procure and versatile [38]. Although the exact mechanism by which MgO NPs cause toxicity in insects is still unknown, their anti-pathogenic action has been attributed to the liberation of reactive oxygen species, leading to DNA and (eventual) cell wall damage due to increased alkalinity [39].
Snails are considered model animals for ecotoxicity assessment of nanomaterials due to their propensity to bioaccumulate and their importance in land and aquatic ecosystems [40]. Snail digestive glands consist of several tubules lined by epithelial cells, digestive cells, calcium cells, excretory cells, thin cells, and digestive tubules. One previous study revealed that exposing snails to ultraviolet-A for 3 h per day for 2 days resulted in digestive lumen widening and disintegration of all cells except calcium cells, while the same exposure over 3 days disintegrated all cells lining the tubules and dramatically increased the number of vacuoles and stained granules [25]. Excessive fluid excretion from the snail’s body may lead to death [41]. Metals have been shown to provoke excretory activity that leads to changes in cell-type composition, expressed as an increase in the relative number or density of basophilic cells. Moreover, cell hypertrophy has also been reported after metal exposure. Therefore, an increase in basophilic cells indirectly indicates digestive cell loss, as these cells are otherwise (under normal conditions) the most abundant. Digestive cells in snails are thus considered general responders to metal exposure.

5. Conclusions

Zinc oxide, magnesium oxide, and iron oxide nanopesticides demonstrated significant anti-tick activity in vitro against Hyalomma ticks. Iron oxide demonstrated the lowest lethal concentrations, followed by magnesium oxide and then zinc oxide nanopesticides. The results of toxicity assays in snails indicate minimal ecotoxicity compared to commonly used acaricides. Further study is recommended for exploring in vivo effects of applying nanopesticides on the tick hosts and environment.

Author Contributions

All authors contributed to the study conception and design. Material preparation, data collection and analysis were performed by T.Z., M.K. and R.Z.A. The first draft of the manuscript was written by T.Z. and all authors commented on previous versions of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Deanship of Scientific Research, King Faisal University, Saudi Arabia [grant number NA000258].

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zeb, J.; Szekeres, S.; Takács, N.; Kontschán, J.; Shams, S.; Ayaz, S.; Hornok, S. Genetic diversity, piroplasms and trypanosomes in Rhipicephalus microplus and Hyalomma anatolicum collected from cattle in northern Pakistan. Exp. Appl. Acarol. 2019, 79, 233–243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Ceylan, O.; Uslu, A.; Ceylan, C.; Sevinc, F. Predominancy of Rhipicephalus turanicus in tickinfested sheep from turkey: A large-scale survey. Pak. Vet. J. 2021, 41, 429–433. [Google Scholar]
  3. Ali, A.; Khan, M.A.; Zahid, H.; Yaseen, P.M.; Khan, M.Q.; Nawab, J.; Rehman, Z.U.; Ateeq, M.; Khan, S.; Ibrahim, M. Seasonal Dynamics, Record of Ticks Infesting Humans, Wild and Domestic Animals and Molecular Phylogeny of Rhipicephalus microplus in Khyber Pakhtunkhwa Pakistan. Front. Physiol. 2019, 10, 793. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Rasool, M.F.; Ahmad, N.; Akbar, H.; Aaqub, T.; Ashraf, K.; Anjum, A.A.; Hafeez, M.A.; Ali, M.M. Bm86 Genetic Diversity of Indigenous Tick Population from Punjab Province Pakistan. Kafkas. Univ. Vet. Fak. Derg. 2021, 27, 173–181. [Google Scholar] [CrossRef]
  5. Rodriguez-Vivas, R.I.; Grisi, L.; Pérez de León, A.A.; Silva Villela, H.; Torres-Acosta, J.F.J.; Fragoso Sánchez, H.; Romero Salas, D.; Rosario Cruz, R.; Saldierna, F.; García-Carrasco, D. Potential economic impact assessment for cattle parasites in Mexico review. Rev. Mex. Cienc. Pec. 2017, 8, 61–74. [Google Scholar] [CrossRef]
  6. Shoaib, M.; Rahman, S.U.; Aqib, A.I.; Ashfaq, K.; Naveed, A.; Kulyar, M.F.-A.; Bhutta, Z.A.; Younas, M.S.; Sarwar, I.; Naseer, M.A. Diversified Epidemiological Pattern and Antibiogram of mecA Gene in Staphylococcus aureus Isolates of Pets, Pet Owners and Environment. Pak. Vet. J. 2020, 40, 2074–7764. [Google Scholar]
  7. Sarwar, I.; Ashar, A.; Mahfooz, A.; Aqib, A.I.; Saleem, M.I.; Butt, A.A.; Bhutta, Z.A.; Shoaib, M.; Kulyar, M.F.-A.; Ilyas, A. Evaluation of Antibacterial Potential of Raw Turmeric, Nano-Turmeric, and NSAIDs against Multiple Drug Resistant Staphylococcus aureus and E. coli Isolated from Animal Wounds. Pak. Vet. J. 2021, 41, 209–214. [Google Scholar]
  8. Peter, S.G. Zoonotic Anaplasma and Ehrlichia Infections and their Potential Reservoirs: A Review. Int. J. Vet. Sci. 2020, 9, 1–9. [Google Scholar]
  9. Zaheer, T.; Ali, M.M.; Abbas, R.Z.; Atta, K.; Amjad, I.; Suleman, A.; Khalid, Z.; Aqib, A.I. Insights into Nanopesticides for Ticks: The Superbugs of Livestock. Oxidative Med. Cell. Longevity 2022, 18, 7411481. [Google Scholar] [CrossRef]
  10. Ndeledje, N.; Bouyer, J.; Stachurski, F.; Grimaud, P.; Belem, A.M.; Molélé Mbaïndingatoloum, F.; Bengaly, Z.; Oumar Alfaroukh, I.; Cecchi, G.; Lancelot, R. Treating cattle to protect people? Impact of footbath insecticide treatment on tsetse density in Chad. PLoS ONE 2013, 8, e67580. [Google Scholar] [CrossRef]
  11. Benelli, G.; Maggi, F.; Romano, D.; Stefanini, C.; Vaseeharan, B.; Kumar, S.; Canale, A. Nanoparticles as effective acaricides against ticks—A review. Ticks Tick-Borne Dis. 2017, 8, 821–826. [Google Scholar] [CrossRef] [PubMed]
  12. Benelli, G.; Pavela, R.; Canale, A.; Mehelhorn, H. Tick repellents and acaricides of botanical origin: A green roadmap to control tick-borne diseases? Parasitol. Res. 2016, 115, 2545–2560. [Google Scholar] [CrossRef] [PubMed]
  13. Albanna, L.; Salem, N.; Ghrair, A.M.; Habash, S.S. Impact of silicon carbide nanoparticles on hatching and survival of soil nematodes Caenorhabditis Elegans and Meloidogyne incognita. Appl. Ecol. Environ. Res. 2018, 16, 2651–2662. [Google Scholar] [CrossRef]
  14. Esmaeilnejad, B.; Samiei, A.; Mirzaei, Y.; Farhang-Pajuh, F. Assessment of oxidative/nitrosative stress biomarkers and DNA damage in Haemonchus contortus, following exposure to zinc oxide nanoparticles. Acta Parasitol. 2018, 63, 563–571. [Google Scholar] [CrossRef]
  15. Whiten, S.R.; Eggleston, H.; Adelman, Z.N. Ironing out the Details: Exploring the Role of Iron and Heme in Blood-Sucking Arthropods. Front. Physiol. 2018, 8, 1134. [Google Scholar] [CrossRef] [Green Version]
  16. Philpott, C.C.; Ryu, M.S.; Frey, A.; Patel, S. Cytosolic iron chaperones: Proteins delivering iron cofactors in the cytosol of mammalian cells. J. Biol. Chem. 2017, 292, 12764–12771. [Google Scholar] [CrossRef] [Green Version]
  17. Ding, Y.; Zhang, G.; Wu, H.; Hai, B.; Wang, L.; Qian, Y. Nanoscale Magnesium Hydroxide and Magnesium Oxide Powders:  Control over Size, Shape, and Structure via Hydrothermal Synthesis. Chem. Mater. 2001, 13, 435–440. [Google Scholar] [CrossRef]
  18. Arafa, W.M.; Mohammed, A.N.; El-Ela, F.I.A. Acaricidal efficacy of deltamethrin-zinc oxide nanocomposite on Rhipicephalus (Boophilus) annulatus tick. Vet. Parasitol. 2019, 268, 36–45. [Google Scholar] [CrossRef]
  19. Walker, A.R.; Bouattour, A.; Camicas, J.L.; Estrada-Pena, A.; Horak, I.G.; Latif, A.; Pegram, R.G.; Preston, P.M. Ticks of Domestic Animals in Africa: A Guide to Identification of Species; Biosciences Report: London, UK, 2003; pp. 74–221. [Google Scholar]
  20. FAO. Ticks: Acaricide Resistance: Diagnosis Management and Prevention in: Guidelines Resistance Management and Integrated Parasite Control in Ruminants; FAO Animal Production and Health Division: Rome, Italy, 2004. [Google Scholar]
  21. Banumathi, B.; Vaseeharan, B.; Rajasekar, P.; Prabhu, N.M.; Ramasamy, P.; Murugan, K.; Canale, A.; Benelli, G. Exploitation of chemical, herbal and nanoformulated acaricides to control the cattle tick, Rhipicephalus (Boophilus) microplus—A review. Vet. Parasitol. 2017, 244, 102–110. [Google Scholar] [CrossRef]
  22. Elhachimi, L.; Valcárcel, F.; Olmeda, A.S.; Elasatey, S.; Khattat, S.E.; Daminet, S.; Sahibi, H.; Duchateau, L. Rearing of Hyalomma marginatum (Acarina: Ixodidae) under laboratory conditions in Morocco. Exp. Appl. Acarol. 2021, 84, 785–794. [Google Scholar] [CrossRef]
  23. Abbot, W.S. A method of computing the effectiveness of an insecticide. J. Econ. Entomol. 1925, 18, 265–266. [Google Scholar] [CrossRef]
  24. Radwan, M.A.; Essawy, A.E.; Abdelmeguied, N.E.; Hamed, S.S.; Ahmed, A.E. Biochemical and histochemical studies on the digestive gland of Eobania vermiculata snails treated with carbamate pesticides. Pestic. Biochem. Physiol. 2018, 90, 154–167. [Google Scholar] [CrossRef]
  25. Sharaf, H.M.; Salama, M.A.; Abd El-Att, M.S. Biochemical and Histological Alterations in the Digestive Gland of the Land Snail Helicella vestalis (Locard, 1882) Exposed to Methiocarb and Chlorpyrifos in the Laboratory. J. Cytol. Histol. 2015, 6, 327. [Google Scholar] [CrossRef]
  26. Khan, S.R.; Abid, S.R.; Jamil, S.; Aqib, A.I.; Faisal, M.N.; Janjua, M.R.S.A. Layer by layer assembly of zinc oxide nanotubes and nanoflowers as catalyst for separate and simultaneous catalytic degradation of dyes and fuel additive. ChemistrySelect 2019, 4, 5548–5559. [Google Scholar] [CrossRef]
  27. Khan, S.R.; Jamil, S.; Janjua, M.R.S.A.; Khera, R.A. Synthesis of ferric oxyhydroxide nanoparticles and ferric oxide nanorods by reflux assisted coprecipitation method and comparative study of their thermal properties. Mater. Res. Exp. 2017, 4, 115019–115025. [Google Scholar] [CrossRef]
  28. Dercz, G.; Prusik, K.; Pajak, L.; Pielaszek, R.; Malinowski, J.J.; Pudło, W. Structure studies on nanocrystalline powder of MgO xerogel prepared by sol-gel method. Mater. Sci. 2009, 27, 201–207. [Google Scholar]
  29. Siddiqi, K.S.; Ur Rahman, A.; Tajuddin Husen, A. Properties of Zinc Oxide Nanoparticles and Their Activity Against Microbes. Nanoscale Res. Lett. 2018, 8, 141. [Google Scholar] [CrossRef] [PubMed]
  30. Mohammed, Y.H.; Holmes, A.; Haridass, I.N.; Sanchez, W.Y.; Studier, H.; Grice, J.E. Support for the safe use of zinc oxide nanoparticle sunscreens: Lack of skin penetration or cellular toxicity after repeated application in volunteers. J. Investig. Dermatol. 2019, 139, 308–315. [Google Scholar] [CrossRef] [Green Version]
  31. Norouzi, R.; Kazemi, F.; Siyadatpanah, A. Acaricidal effect of Iron nanoparticles against Hyalomma spp. in vitro. J. Zoonotic Dis. 2020, 4, 44–53. [Google Scholar] [CrossRef]
  32. Zaheer, T.; Imran, M.; Pal, P.; Sajid, M.S.; Abbas, R.Z.; Aqib, A.I.; Hanif, M.A.; Khan, S.R.; Khan, M.K.; Sindhu, Z.U.D.; et al. Synthesis, characterization and acaricidal activity of green-mediated ZnO nanoparticles against Hyalomma ticks. J. Mol. Struct. 2021, 1227, 129652. [Google Scholar] [CrossRef]
  33. Rajakumar, G.; Rahuman, A.A.; Roopan, S.M.; Chung, I.M.; Anbarasan, K.; Karthikeyan, V. Efficacy of larvicidal activity of green synthesized titanium dioxide nanoparticles using Mangifera indica extract against blood-feeding parasites. Parasitol. Res. 2015, 114, 571–581. [Google Scholar] [CrossRef] [PubMed]
  34. Karthik, L.; Kumar, G.; Kirthi, A.V.; Rahuman, A.A.; Rao, K.V.B. Streptomyces sp. LK3 mediated synthesis of silver nanoparticles and its biomedical application. Bioprocess Biosyst. Eng. 2014, 37, 261–267. [Google Scholar] [CrossRef] [PubMed]
  35. Rajakumar, G.; Rahuman, A.A.; Jayaseelan, C.; Santhoshkumar, T.; Marimuthu, S.; Kamaraj, C.; Bagavan, A.; Zahir, A.A.; Kirthi, A.V.; Elango, G.; et al. Solanum trilobatum extractmediated synthesis of titanium dioxide nanoparticles to control Pediculus humanus capitis, Hyalomma anatolicum anatolicum and Anopheles subpictus. Parasitol. Res. 2014, 113, 469–479. [Google Scholar] [CrossRef] [PubMed]
  36. Elsaesser, A.; Howard, C.V. Toxicology of nanoparticles. Adv. Drug Deliv. Rev. 2012, 64, 129–137. [Google Scholar] [CrossRef]
  37. Rasmussen, J.W.; Martinez, E.; Louka, P.; Wingett, D.G. Zinc oxide nanoparticles for selective destruction of tumor cells and potential for drug delivery applications. Exp. Opin. Drug Del. 2010, 7, 1063–1077. [Google Scholar] [CrossRef] [Green Version]
  38. Cai, L.; Chen, J.; Liu, Z.; Wang, H.; Yang, H.; Ding, W. Magnesium Oxide Nanoparticles: Effective Agricultural Antibacterial Agent against Ralstonia solanacearum. Front. Microbiol. 2018, 9, 790. [Google Scholar] [CrossRef]
  39. Yamamoto, O.; Ohira, T.; Alvarez, K.; Fukuda, M. Antibacterial characteristics of CaCO3–MgO composites. Mater. Sci. Eng. B 2010, 173, 208–212. [Google Scholar] [CrossRef]
  40. Caixeta, M.R.; Araújo, P.S.; Gonçalves, B.B.; Silva, L.D.; Grano-Maldonado, M.I.; Rocha, T.L. Toxicity of engineered nanomaterials to aquatic and land snails: A scientometric and systematic review. Chemosphere 2020, 260, 127654. [Google Scholar] [CrossRef]
  41. Genena, M.A.M. Studies on the Terrestrial Gastropods at Dakahlia Governorate. M.Sc. Thesis, Faculty of Agriclture, Massoura University, Massoura, Egypt, 2003. [Google Scholar]
Life 12 00977 g001 550

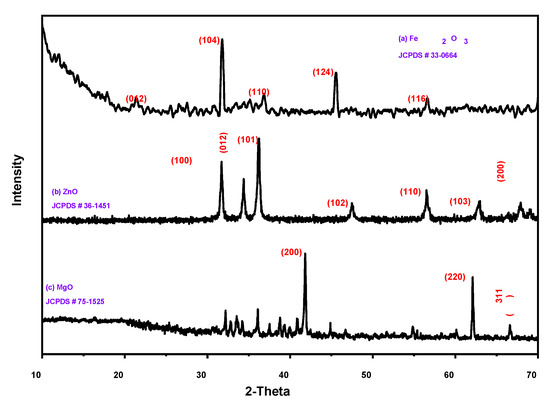

Figure 1. XRD pattern of synthesized (a) Fe2O3, (b) ZnO and (c) MgO nanoparticles.
Figure 1. XRD pattern of synthesized (a) Fe2O3, (b) ZnO and (c) MgO nanoparticles.
Life 12 00977 g001
Life 12 00977 g002 550

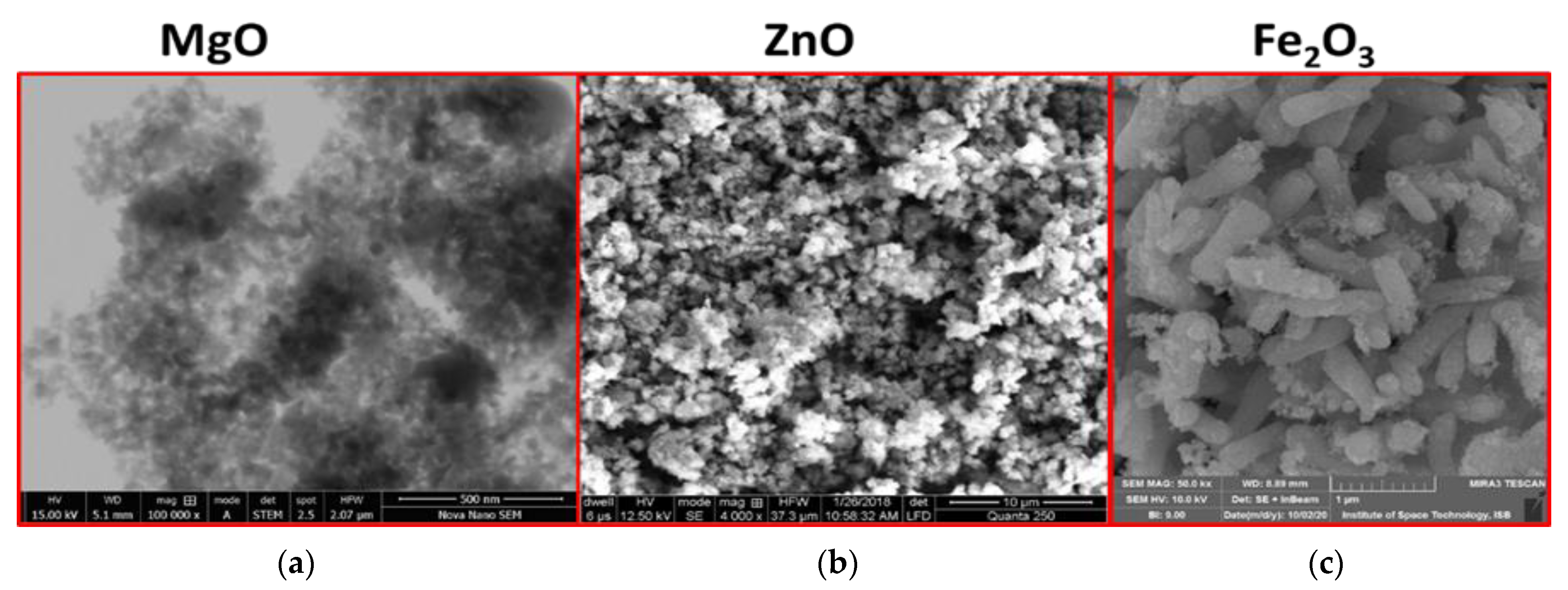

Figure 2. SEM images of nanoparticles: (a) MgO, (b) ZnO and (c) Fe2O3.
Figure 2. SEM images of nanoparticles: (a) MgO, (b) ZnO and (c) Fe2O3.
Life 12 00977 g002
Life 12 00977 g003 550
Figure 3. Stereomicrographs of Hyalomma (A) male adult (B) Partially fed female (C) Un fed female (D) Eggs.
Figure 3. Stereomicrographs of Hyalomma (A) male adult (B) Partially fed female (C) Un fed female (D) Eggs.
Life 12 00977 g003
Life 12 00977 g004 550

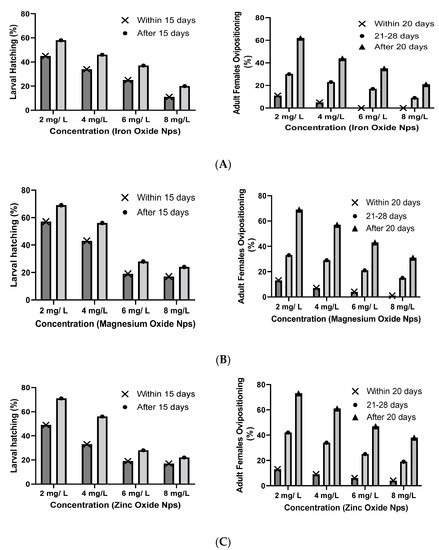

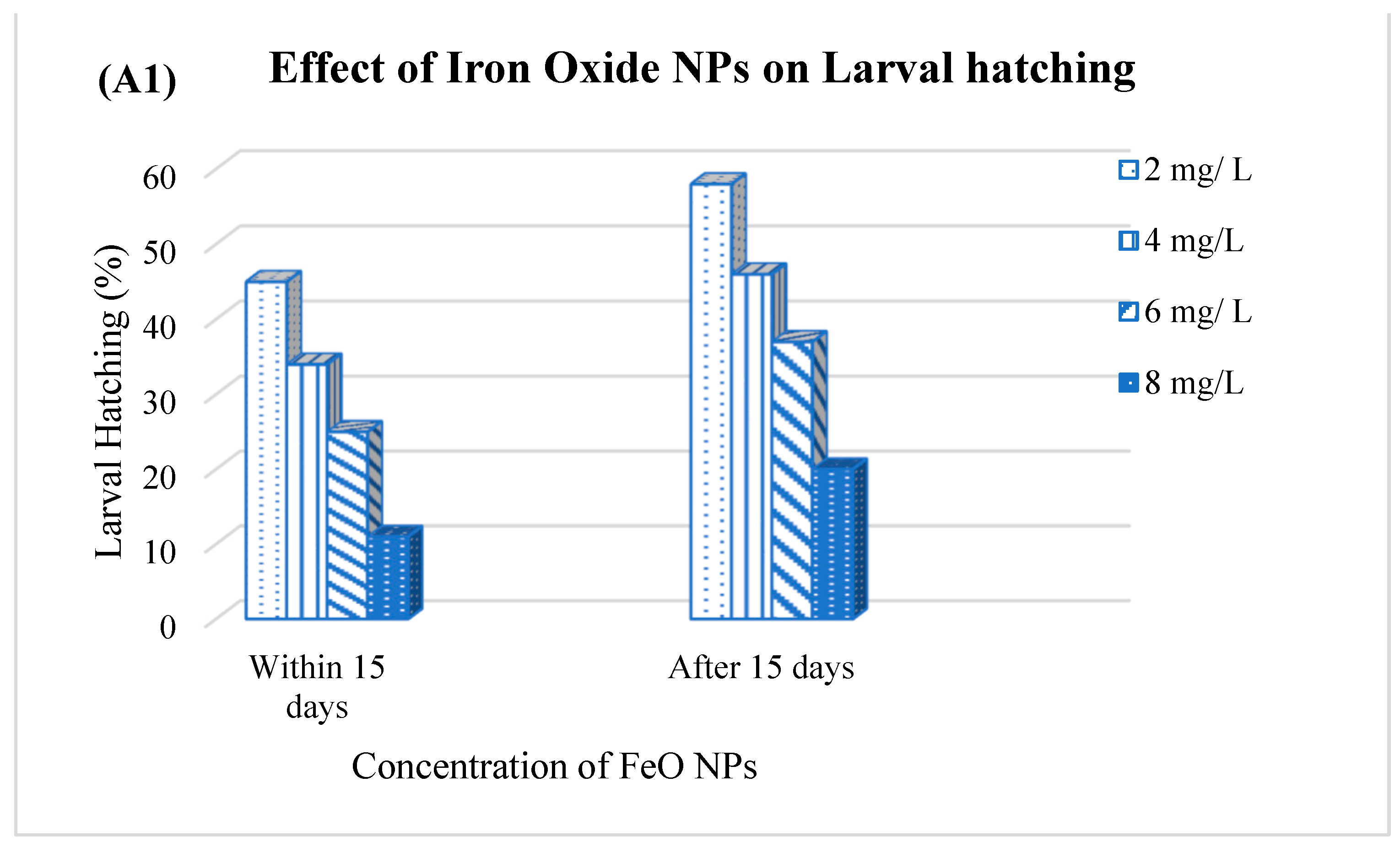

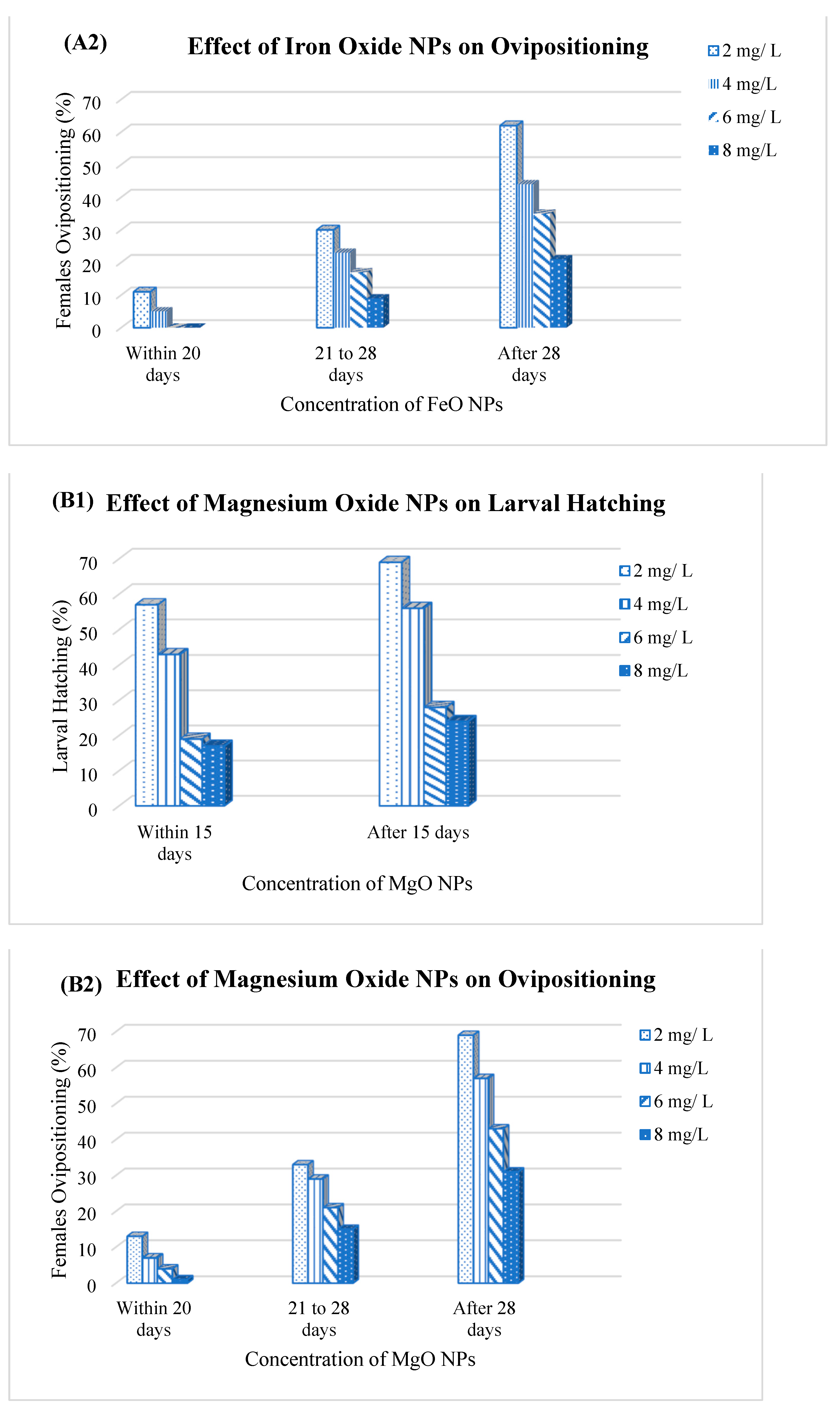

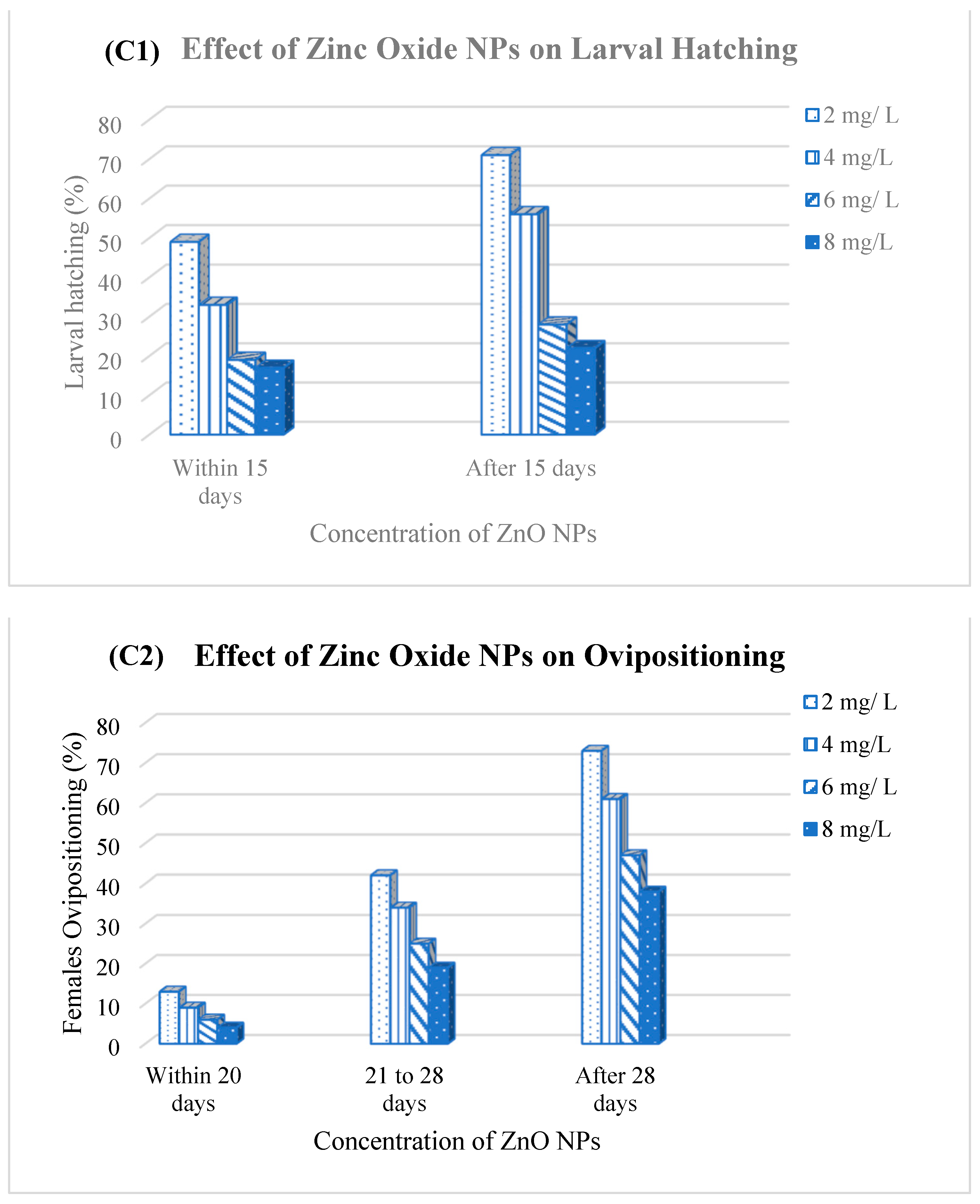

Figure 4. Percentage larval hatching and adult female oviposition of ticks under the effect of iron oxide (A), magnesium oxide (B) and zinc oxide nanopesticides (C). NPs = nanopesticides/nanoparticles.
Figure 4. Percentage larval hatching and adult female oviposition of ticks under the effect of iron oxide (A), magnesium oxide (B) and zinc oxide nanopesticides (C). NPs = nanopesticides/nanoparticles.
Life 12 00977 g004
Life 12 00977 g005 550
Figure 5. Hyalomma ticks subject to nanopesticides (A) Desiccated egg mass having no larval hatching (B) Larval hatching from eggs (C) Dead Male ticks (D) Dead female without ovipositioning (E) Ovipositioning in control group.
Figure 5. Hyalomma ticks subject to nanopesticides (A) Desiccated egg mass having no larval hatching (B) Larval hatching from eggs (C) Dead Male ticks (D) Dead female without ovipositioning (E) Ovipositioning in control group.
Life 12 00977 g005
Life 12 00977 g006 550
Figure 6. Comparison of normal and nanopesticides treated digestive glands of snail. (a) Control/Untreated group (100×): Normal secretory cells (black arrows). (b) Nanopesticides treated digestive gland (400×): Pyknotic nuclei (red arrows) and vacuolar degeneration (black arrows).
Figure 6. Comparison of normal and nanopesticides treated digestive glands of snail. (a) Control/Untreated group (100×): Normal secretory cells (black arrows). (b) Nanopesticides treated digestive gland (400×): Pyknotic nuclei (red arrows) and vacuolar degeneration (black arrows).
Life 12 00977 g006
Table
Table 1. Lethal concentrations owing to application of Fe2O3, MgO and ZnO nano-pesticides against Hyalomma ticks.
Table 1. Lethal concentrations owing to application of Fe2O3, MgO and ZnO nano-pesticides against Hyalomma ticks.
AcaricideTick StageLC50CILC90CI
Iron OxideEgg0.890.04–0.921.690.7–1.9
Larva2.831.9–3.55.582.2–5.9
Adult4.212.7–4.68.345.3–9.4
Magnesium OxideEgg0.930.1–0.931.741.2–1.9
Larva2.911.7–3.25.773.7–6.2
Adult4.273.6–5.18.496.4–9.3
Zinc OxideEgg0.960.05–0.191.802.7–3.4
Larva 3.051.1–4.75.935.1–7.7
Adult4.493.2–6.28.886.3–10.1
Table
Table 2. Topical application induced toxicity (Mortality%) in snails at 24-, 72-, and 120-h post exposure.
Table 2. Topical application induced toxicity (Mortality%) in snails at 24-, 72-, and 120-h post exposure.
Preparation NameConcentration
(Stock)		Dose per Snail
(50 µL)		No. of SnailsMortality until Day 1 (24 h)Mortality until Day 3
(72 h)		Mortality until Day 5 (120 h)
Ratio%Ratio%Ratio%
Cypermethrin
(Group 1) 		10 mg/mL500 µg52/5404/5805/5100
1 mg/mL50 µg52/5402/5403/560
0.1 mg/mL5 µg51/5202/5403/560
0.01 mg/mL0.5 µg51/5201/5203/560
Deltamethrin
(Group 2)		10 mg/mL500 µg51/5203/5604/580
1 mg/mL50 µg51/5202/5203/560
0.1 mg/mL5 µg50/501/5203/560
0.01 mg/mL0.5 µg50/501/5202/540
MgO
(Group 3)		10 mg/mL500 µg51/5202/5403/560
1 mg/mL50 µg50/500/502/540
0.1 mg/mL5 µg50/500/501/520
0.01 mg/mL0.5 µg50/500/501/520
ZnO
(Group 4)		10 mg/mL500 µg50/501/5203/560
1 mg/mL50 µg50/501/5201/520
0.1 mg/mL5 µg50/500/501/520
0.01 mg/mL0.5 µg50/500/500/50
Fe2O3
(Group 5)		10 mg/mL500 µg51/5202/5404/580
1 mg/mL50 µg51/5201/5202/540
0.1 mg/mL5 µg50/500/501/520
0.01 mg/mL0.5 µg50/500/500/50
Control DMSO
(Group 6)		-50 µL1000001/1010
Control Distilled water (Group 7)-50 µL1000000/100
NB: 50 µL was given once directly to the mouth end of snails in that 500, 50, 5, and 0.5 µg per snail was applied from stock concentrations of 10, 1, 0.1, and 0.01 mg/mL. Percentage mortality at 1st, 3rd, and 5th day was calculated based on number of snails died divided by total number of snails tested at each of time.
