Bactericidal Properties of Proline-Rich Aedes aegypti Trypsin Modulating Oostatic Factor (AeaTMOF)

by
Dov Borovsky
1,*,
Pierre Rougé
2 and
Robert G. Shatters, Jr.
3
1
Department of Biochemistry and Molecular Genetics, University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USA
2
Faculte des Sciences Pharmaceutiques, 3106 Toulouse, France
3
USDA-ARS, Horticultural Research Laboratory, Ft. Pierce, FL 34945, USA
*
Author to whom correspondence should be addressed.
Life 2023, 13(1), 19; https://doi.org/10.3390/life13010019
Submission received: 11 November 2022 / Revised: 16 December 2022 / Accepted: 19 December 2022 / Published: 21 December 2022
(This article belongs to the Section Microbiology)
Browse Figures
Versions Notes

Abstract

:
The antimicrobial properties of proline-rich Aedes aegypti decapeptide TMOF (AeaTMOF) and oncocin112 (1–13) were compared. Incubations with multidrug-resistant Escherichia coli cells showed that AeaTMOF (5 mM) was able to completely inhibit bacterial cell growth, whereas oncocin112 (1–13) (20 mM) partially inhibited bacterial growth as compared with bacterial cells that were not multidrug-resistant cells. AeaTMOF (5 mM) was very effective against Acinetobacter baumannii and Pseudomonas aeruginosa, completely inhibiting cell growth during 15 h incubations. AeaTMOF (5 mM) completely inhibited the Gram-positive bacteria Staphylococcus aureus and Bacillus thurengiensis sups. Israelensis cell growth, whereas oncocin112 (1–13) (10 and 20 mM) failed to affect bacterial cell growth. E. coli cells that lack the SbmA transporter were inhibited by AeaTMOF (5 mM) and not by oncocin112 (1–13) (10 to 20 mM), indicating that AeaTMOF can use other bacterial transporters than SbmA that is mainly used by proline-rich antimicrobial peptides. Incubation of E. coli cells with NaAzide showed that AeaTMOF does not use ABC-like transporters that use ATP hydrolysis to import molecules into bacterial cells. Three-dimensional modeling and docking of AeaTMOF to SbmA and MdtM transporters showed that AeaTMOF can bind these proteins, and the binding location of AeaTMOF inside these protein transporters allows AeaTMOF to be transported into the bacterial cytosol. These results show that AeaTMOF can be used as a future antibacterial agent against both multidrug-resistant Gram-positive and -negative bacteria.

Graphical Abstract

1. Introduction

Antibiotics have enhanced the treatment against bacterial infections preventing bacterial epidemics. This accomplishment, however, is now challenged by increase of bacterial resistance that has allowed bacteria to overcome almost all currently used antibiotics [1]. Although a partial success has been reported against Gram-positive pathogens that are methicillin-resistant Staphylococcus aureus (MRSA) [2], growing concerns exist for Gram-negative pathogens that are resistant, such as Escherichia coli, Klebsiella pneumoniae, Enterobacter cloacae, Acinetobacter baumannii, and Pseudomonas aeruginosa [1]. Therefore, novel compounds are needed for clinical treatment. Antimicrobial peptides are a promising alternatives for pharmaceutical use. Proline-rich antimicrobial peptides (PrAMPs) that do not employ lytic mechanisms but bind to specific bacterial targets, avoiding human targets, are particularly promising [3]. PrAMPs, that are expressed in mammals and insects, either in their native or as chemically optimized forms have been investigated [4]. Although PrAMPs show low sequence homology, their sequence contains proline (about 30%) and many have Pro–Arg–Pro motifs and use similar mechanisms to kill bacteria [3]. They enter the outer membrane freely before being transported by a polypeptide transporter (SbmA) into the bacterial cytosol [5]. The World Health Organization (WHO) has identified antimicrobial resistance as a major threat to human health [6]. Because bacterial cells are efficient in synthesizing and sharing genes involved in antibiotic resistance, this adverse property causes failure in the treatment of bacterial infections [7,8]. Global antibiotic resistance, along with the misuses of these antibiotic drugs, makes drug design an urgent and paramount research-field [9].
Antimicrobial peptides (AMPs) and PrAMPs are alternatives to current conventional antibacterial treatments [10]; they are synthesized by the host’s innate immune system during an infection [11] by many tissues and cell types by plants, invertebrates, vertebrates, fungi, and bacteria [12]. The majority of AMPs and PrAMPS are small peptides (<10 kDa) that are cationic and amphipathic molecules of 6 to 50 amino acids [13]. Moreover, AMPs and PrAMPs have diverse antimicrobial activities [14]. Members of PrAMPs are found in the hemolymph of several insect species and crustaceans and are also found in the neutrophils of many mammals [15]. They exhibit antimicrobial activities against many Gram-negative bacteria and are potential future antimicrobial agents [16]. Insect PrAMPs include apidaecins (GNNRPVYIPQPRPPHPRL) that are produced by bees (Apis melifera) and wasps (Apis Vespidae), pyrrhocoricin (VDKGSYLPRPTPPRPIYNRN) produced by firebugs (Pyrrhocoris apterus), drosocins (GKPRPYSPRPTSHPRPIRV) produced by fruit flies (Drosophila), metalnikowins (VDKPDYRPRRPRPPNM) produced by the green shield bug (Palomena prasina) and the milkweed bug (Oncopeltus fasciatus) oncocins (VDKPPYLPRPRPPRRIYNR-NH2) [15,17,18]. The insect-derived PrAMPs apidaecin and oncocin, and the mammalian Bac7, enter the bacterial cytosol using the SbmA transporter found in many Gram-negative bacteria [19,20]. Apidaecin, oncocin, and Bac7 bind to the ribosome and inhibit protein translation [21,22]. The crystal structure of the oncocin derivative onc112 (VDKPPYLPRPRPPR(D-R)IYN(D-R)-NH2) in complex with the bacterial 70S ribosome showed that onc112 binds to the ribosomal exit tunnel blocking the binding of the aminoacyl-tRNA to the A-site and stopping protein translation [23,24]. AeaTMOF is a proline-rich amphipathic decapeptide (YDPAPPPPPP) analogous to the PrAMP that was reported in insects and mammals that use the SbmA transporter to enter the bacterial cell, bind to the bacterial ribosome, and inhibit protein translation [21,22,23,24]. Because AeaTMOF is a proline-rich peptide and like onc112 also affects the translation of the mRNA by the ribosomes [25], we tested the possibility that AeaTMOF can be used as a novel antimicrobial agent against Gram-negative and -positive bacterial cells. We report here for the first-time in vivo studies and 3D modeling showing that AeaTMOF inhibits both Gram-positive and Gram-negative bacterial cell growth using SbmA as well as MdtM transporters [19,20].

2. Materials and Methods

2.1. Bacterial Strains, and Chemicals

E. coli CGSC strain7636: F− Δ(araD-araB)567, ΔlacZ4787(::rrnB-3), l−, rph-1, Δ(rhaD-rhaB)568, hsdR514, and E. coli CGSC strain 8547:
F− Δ(araD-araB)567, ΔlacZ4787(::rrnB-3), ΔsbmA742::kan, l−, rph-1, Δ(rhaD-rhaB)568, hsdR514 were obtained from CGSC Yale University (http://cgsc.biology.yale.edu/StrainRpt.php (accessed on 11 November 2022)). E. coli Strain GC10 amp was transformed with plasmid BM4283 tet, kan into E. coli amp, tet, kan. Staphylococcus aureus HG001, AH2183, Acinetobacter baumannii AH 8119 ATCC 196061 and Pseudomonas aeruginosa PA01, AW5132 were provided by Professor Alexander Horsewill at the University of Colorado Anschutz Medical School Department of Microbiology and Immunology. Bacillus thuringiensis subsp. Israelensis was provided by Professor Arieh Zaritsky at the Ben Gurion University of the Negev Department of Life Sciences, Israel. The bacterial strains were grown in Luria–Bertani (LB) at 37 °C under aerobic conditions with the addition, when required, of the following antibiotics at concentrations of 100 μg/mL for ampicillin, 50 μg/mL for kanamycin and tetracycline. Sodium azide (NaAzide) was purchased from Sigma-Aldrich (St. Louis, MO, USA). Synthetic AeaTMOF (H-YDPAPPPPPP-OH) and a short oncocin112(1–13) (H-VDKPPYLPRPRPP-OH) were purified by HPLC [26]. After HPLC purifications, the TFA ions were exchanged with phosphate ions.

2.2. Bacterial Growth in the Presence of AeaTMOF and Oncocin112 (1–13)

E. coli cells CGSC strain7636 (SbmA+), E. coli cells CGSC strain 8547 (SbmA−), Staphylococcus aureus cells HG001, AH2183, A. baumannii cells AH 8119 ATCC 196061, P. aeruginosa cells PA01, AW5132, and B. thuringiensis subsp. Israelensis (106 cpu/mL) were each incubated in 96-well plate containing 100 μL/well of LB medium and different concentrations of AeaTMOF and oncocin112 (1–13) in different wells. The plates were incubated at 37 °C for 15 h and bacterial growth were followed at 1 h intervals using absorbance at 630 nm and a Biotech ElX808 microplate reader. Control wells contained bacterial cells without AeaTMOF or oncocin112 (1–13). To find out if AeaTMOF used ABC transporter in E. coli cells that lack the SbmA transporter, E. coli (SbmA−) cells were incubated for 18 h at 37° in LB medium as above in the presence of NaAzide (25 and 250 μM) and AeaTMOF (5 mM) and the absorbance at 630 nm was determined. At the end of the incubation period, aliquots (0.5 μL) were removed from each well and spread on LB agar plates that were incubated overnight at 37 °C and viable colonies were counted. Incubations were performed in triplicates and the experiments were repeated twice. Results are expressed as averages of three determinations + SEM.

2.3. Molecular Modeling and Docking of AeaTMOF

2.3.1. SbmA Transporter

Homology modeling of the ABC transporter corresponding to the sbmA gene of Escherichia coli K-12 (accession number WP_001304845.1) was conducted with the YASARA Structure program [27]. The SbmA model was built from the X-ray coordinates of the Staphylococcus aureus ABC transporter (PDB code 2HYD) [28] as a template. The geometric quality of the model was assessed using PROCHECK [29]. The residues of SbmA were correctly assigned to the allowed regions in the Ramachandran plot except for H229 and A290, which occupy a non-allowed region of the plot. Using ANOLEA [30] to evaluate the model, only 10 residues of SbmA out of 402 exhibited an energy over the threshold value. These residues are located in the loop region connecting α-helices and β-sheets. The calculated QMEAN score for the SbmA model is −3.92 [31,32]. Atomic coordinates of the E. coli ABC transporter MalFGK2 (PDB code 4KHZ) [33], and E. coli ABC transporter McjD (PDB code 5OFP) [34], were obtained from the PDB [35].
The hydrophilic and hydrophobic regions distributed on the surface of SbmA were identified using Chimera [36]. The coulombic charges on the surface of SbmA were calculated using the classic values for the inner and outer dielectric constants obtained from to the proteins and the solvent (4.0 and 80.0, respectively).
The decapeptide AeaTMOF (YDPAPPPPPP) was built as a left-handed α-helix [37] using Chimera [36], and the structure was minimized by 1000 steps of steepest descent and 100 steps of conjugated gradient. Docking of AeaTMOF to SbmA was performed by using YASARA [27]. Additional docking experiments were also submitted to the GRAMM_X [38,39] web server. Molecular cartoons were drawn and rendered using YASARA Structure, Chimera, and ChimeraX programs [36].

2.3.2. MdtM Transporter

The E. coli membrane transporter MdtM was modeled using YASARA [27], and the following templates: E. coli multidrug transporter MtdA in complex with deoxycholate (PDB code 4ZP0) [40], the E. coli multidrug transporter Emrd (PDB code 2GFP) [41], the YajR transporter from E. coli (PDB code 3WDO) [42], and the E. coli POT transporter (PDB code 6EI3) [43]. A hybrid model was built and used as the final model for the E. coli MdtM transporter. PROCHECK [28] was used to assess the geometric quality of the model. All the residues of the modeled MdtM were correctly assigned in the allowed regions in the Ramachandran plot except for two residues, H8 and A195, which occur in a non-allowed region of the plot. The calculated QMEAN score for the MdtM model has an acceptable value of 0.71 [31,32]. Atomic coordinates of the E. coli transporters were retrieved from the PDB [35]. The decapeptide AeaTMOF (YDPAPPPPPP) was built as a left-handed α-helix as was described above (Section 2.3.1). Docking of AeaTMOF to MdtM and POT (proton coupled) transporters was performed with YASARA. Additional docking experiments were submitted to the GRAMM_X [38,39] web server. Molecular cartoons were drawn and rendered as was described above for the SbmA transporter (Section 2.3.1) [44].

2.4. Statistical Analysis

Statistical analyses were conducted using GraphPad Prism and two-tailed unpaired student’s t-test. Results were considered significant when p < 0.05. Each experimental point is an average of 3 determinations ± SEM.

3. Results

3.1. Gram Negative Bacteria

3.1.1. Effect on E. coli (AmpR, TetR, KanR)

E. coli cells (106 cpu/mL) that exhibit multi drug resistance were grown in 100 μL of LB medium containing ampicillin (100 μg/mL), kanamycin, and tetracycline (50 μg/mL/each) in a 96 well-plate at 37 °C for 15 h. Incubation of the bacterial cells with different concentrations of TMOF (0.1 to 5 mM) showed that AeaTMOF (5 mM) completely stopped bacterial growth and caused 99.9% cell death; 1–2 cpu were detected at 15 h as compared with 106 cpu/mL that were inoculated into each well. Lower concentrations of TMOF (0.1 and 1 mM, respectively) were not effective (Figure 1A). On the other hand, oncocin112 (1–13) concentrations of 5, 10, and 20 mM were not effective, although 20 mM oncocin112 (1–13) stopped bacterial growth for 8 h; however, after 15 h the cells stated to rapidly grow. Cell growth, however, was 1.9-, 1.4-, and 1.2-fold lower for concentrations of 20 mM, 10 mM, and 5 mM oncocin112 (1–13), respectively, when compared with cells that were grown without oncocin112 (1–13) (Figure 1B). Oncocin112 (1–13) was much more effective when incubated with E. coli cells that were not multi-drug resistant. It completely stopped bacterial growth at 20 mM, causing 90% inhibition at 10 mM and 50% inhibition at 5 mM after 15 h incubations as compared with control cells that were incubated without onconcin112 (1–13) (Figure 1C).

3.1.2. Effect on A. baumannii

To find out if AeaTMOF inhibits the growth of A. baumanni, a bacterial pathogen that is primarily associated with hospital-acquired infection exhibiting multidrug resistance. A. baumanni cells (106 cpu/mL) were incubated with different concentrations of AeaTMOF (0.2, 1 and 5 mM). Control cells were incubated without AeaTMOF. Bacterial cells that were incubated with AeaTMOF did not grow and 99.9% of the cells were dead at 15 h. AeaTMOF concentrations (0.2 mM and 1 mM) were not effective, and bacterial cells that were incubated with these AeaTMOF concentrations grew at a similar rate as control cells that were not treated with AeaTMOF (Figure 2A).

3.1.3. Effect on P. aeruginosa

To find out if AeaTMOF inhibits the growth of P. aeruginosa, a multidrug-resistant pathogen associated with serious hospital-acquired infections. P. aeruginosa cells (106 cpu/mL) were incubated with AeaTMOF (0.1 mM, 1 mM, and 5 mM) for 15 h. AeaTMOF (5 mM) completely stopped bacterial growth, and at the end of the incubation period (15 h), 99.9% of the bacterial cells were dead. Lower concentrations, however, of 0.1 mM and 1 mM did not inhibit bacterial growth and cells grew at a similar rate to control cells that were not incubated with AeaTMOF (Figure 2B).

3.2. Gram Positive Bacteria

3.2.1. Effect on S. aureus

To find out if AeaTMOF affects S. aureus, a bacterium that causes wide variety of clinical disease including the drug resistant MRSA (Methicillin Resistant S. aureus) strains that invade internal tissues or the blood stream, S. aureus (106 cpu/mL) were grown in the presence of AeaTMOF (0.2, 1, and 5 mM) and in the absence of the peptide for 15 h. AeaTMOF (5 mM) inhibited bacterial growth, killing 99.9% of the cells. On the other hand, lower concentration of AeaTMOF (0.2 and 1 mM) did not inhibit bacterial growth when compared with control cells that were incubated without AeaTMOF (Figure 3A). Incubation of oncocin112 (1–13) (5 and 10 mM) with S. aureus cells (106 cpu/mL) did not inhibit bacterial growth as compared with controls that were incubated without oncocin112 (1–13). However, between 6 to 9 h there was a slight reduction in cell growth. At 15 h, however, a non-significant difference in the growth rate was observed when compared with control cells that were incubated in the absence of oncocin112 (1–13) (Figure 3B).

3.2.2. Effect on B. thuringiensis subsp. Israelensis

To find out whether AeaTMOF can inhibit the growth of B. thurengiensis subsp. Israelenis, a bacterium that produces Cry and Cyt toxins for the control of mosquito larvae, different concentrations of AeaTMOF (1 and 5 mM) were incubated with the bacterial cells (106 cpu/mL). A control was incubated without AeaTMOF for 15 h. Bacterial cells that were incubated in the presence of AeaTMOF (5 mM) did not grow, and 99.9% of the initial bacterial cells were dead. On the other hand, cells that were incubated in the presence of AeaTMOF (1 mM) or without AeaTMOF grew at a similar growth-rate, and at 15 h the number of bacterial cells grown with AeaTMOF and control cells were not significantly different (Figure 4A). To find out if oncocin112 (1–13) also affects the bacterial cell growth, B. thuringiensis subsp. israelensis (106 cpu/mL) were incubated with different concentrations of oncocin112 (1–13) (10 and 20 mM) and bacterial growth was monitored at 1 h intervals as above. Bacterial cells that were incubated without oncocin112 (1–13) served as a control group. Although there was a slight growth inhibition initially when onconcin112 (1–13) (20 mM) was incubated with the bacterial cells, at 15 h all the cells grew similarly as compared with the control group that was incubated without oncocin112 (1–13) (Figure 4B). These results indicate that oncocin112 (1–13) does not affect this bacterium’s growth, as was shown for S. aureus (see above Section 3.2.1).

3.3. The Role of the E. coli SbmA Transporter

SbmA is a bacterial inner membrane protein that forms a dimer and imports into the cytoplasm of E. coli peptides, proline-rich peptides, nucleic acids, antisense peptides, and several oligomers [45]. To find out if E. coli sbmA− cells lacking the transporter gene are affected by AeaTMOF and oncocin112 (1–13), E. coli CGSC strain 8547 sbmA− (106 cpu/mL) was incubated with different concentrations of AeaTMOF (1, 3, and 5 mM) or without TMOF (control) for 15 h, and at 1 h intervals cell growth was determined at 630 nm. AeaTMOF (5 mM) completely inhibited bacterial growth and partially inhibited cells growth (23%) at AeaTMOF (3 mM) as compared with control cells that were not incubated with AeaTMOF, indicating that other importers aside from SbmA transport AeaTMOF into the bacterium cell (Figure 5A). On the other hand, incubations with higher concentrations of oncocin112 (1–13) (20 mM) were needed to achieve 43% inhibition in bacterial cell growth after 15 h incubation, and no inhibition was noted at a lower concentration of 10 mM (Figure 5B), indicating that oncocin112 (1–13) is mainly imported into bacterial cells by the SbmA transporter.

3.4. E. coli sbmA− Cell Growth in the Presence of AeaTMOF and NaAzide

Our results indicate that AeaTMOF is imported into E. coli cells that lack an SbmA importer (Figure 5A). To find out if AeaTMOF uses an ABC importer like the AeaTMOF receptor/importer in Ae. aegypti [46], E. coli CGSC strain 8547 sbmA− (106 cpu/mL) was incubated for 18 h with AeaTMOF in the presence of NaAzide (25 and 250 mM) in order to inhibit ATPase activity that is associated with ABC importers. Controls were incubated without AeaTMOF and with NaAzide (50 and 250 mM) or without NaAzide. E. coli sbmA− cells that were incubated in the presence of AeaTMOF (5 mM) and in the presence of NaAzide (50 and 250 mM) or without NaAzide did not grow and were significantly inhibited as compared with controls (p < 0.0001), whereas controls that were incubated without AeaTMOF in the presence of NaAzide (50 and 250 mM) or in the absence of NaAzide grew normally and no significant difference was found when the three controls were compared (Figure 6). These results suggest that in the absence of SbmA, AeaTMOF is using another transporter to enter the bacterial cells.

3.5. Docking of AeaTMOF to SbmA and MdtM Transporters

Our results indicate that AeaTMOF is imported into bacterial cells using transporters that are not ABC importers. To show that AeaTMOF uses SbmA and MdtM importers, both do not use ATP to import proline rich molecules into bacterial cells, we docked AeaTMOF to these importers.

3.5.1. SbmA

The modeled α-helical domain (α-Hd) of the proline-rich peptide transporter (SbmA) of E. coli exhibits a typical V-shaped structure (Figure 7(Aa)), embedded in the membrane lipid bilayer (MLB) via a highly hydrophobic region (Figure 7(Ab)), which extends the α-Hd into an intracellular domain, and linked with a smaller extracellular domain (Figure 7(A(a,b)). Both domains are located on the sides of a hydrophobic α-helical region and are mainly hydrophilic (Figure 7(Ab)), displaying electropositive and electronegative charged patches on their surfaces (Figure 7(Ac)). Docking experiments performed with the AeaTMOF decapeptide as a ligand resulted in optimal position of the decapeptide in the substrate-binding cavity located at the fork of the V-shaped α-Hd structure (Figure 7(Ad–f)). The binding-site accommodating the AeaTMOF decapeptide exhibits electrostatic, hydrophilic, hydrophobic, and stacking interactions, including a few hydrogen bonds that participate in anchoring AeaTMOF to the binding site (Figure 7(Af)). The α-helices and loops at the top of the extracellular α-helical domain are sufficiently open to allow flexibility that allows access to AeaTMOF and subsequent anchoring of the molecule to the binding site located in the intracellular part of E. coli SbmA, at the fork of α-Hd (Figure 7(Ad–f)).

3.5.2. MdtM

The modeled membrane transporter of E. coli MdtM exhibits a canonical organization of membrane transporters and consists of 12 α-helices spanning the lipid bilayer (Figure 7(Bg)). The α-helices delineate a central channel that allows transport of peptides across the bacterial membrane (Figure 7(Bh)). Docking experiments show that AeaTMOF readily interacts with the transporter via hydrogen bonds and stacking interactions with aromatic residues surrounding the central channel of MdtM (Figure 7(Bj)). Anchoring of AeaTMOF to MdtM involves a network of hydrogen bonds to Y26, A118, T119, Y122, Y227, M230, and M231. Additional stacking interactions between the proline and tyrosine rings of AeaTMOF and aromatic residues Y26, Y122, Y227, F259, F326, and F330 of MdtM strengthen the anchoring of TMOF to MdtM (Figure 7(Bj)). The modeling results show that AeaTMOF has high affinity for both SbmA and MdtM indicating that they could be used to transport AeaTMOF into bacterial cells.

3.5.3. AeaTMOF and Oncocin112 (1–13) Binding

The positions of MdtM and SbmA in the bilayer lipid inner membrane of E. coli and the binding of AeaTMOF to the transporters and oncocin112 (1–13) to SbmA indicate that both peptides bind the importers inside the membrane at positions that are dictated by charge, hydrophobic, and stacking interactions with the transporters (Figure 8(b,e,f)). Although AeaTMOF and oncocin112 (1–13) are bound in the same active site, the binding is different (Figure 8(Be,f)): oncocin112 (1–13) extends towards the top of the bacterial bilayer membrane because of a different 3D conformation, whereas TMOF exhibiting a left-handed helix is more compact binding in the middle of the active pocket at the end of the bacterial bilayer membrane, which is also observed in binding MdtM (Figure 8(Ab,Be,f)).

4. Discussion

AeaTMOF (YDPAPPPPPP), oncocin (VDKPPYLPRPRPPRRIYNR-NH2), and oncocin112 (VDKPPYLPRPRPPR(D-R)IYN(D-R)-NH2), where R15 and R19 have been substituted with D-amino acids, belong to a family of proline-rich peptides that inhibit the translation of proteins by bacterial ribosomes such as oncocin112 [21,23,24]. To compare the decapeptide (AeaTMOF) with oncocin112 (1–19), we used a shorter peptide of 13 amino acids oncocin112 (1–13) that was shown by X-ray crystallography to occupy the bacterial ribosomal exit tunnel at its entrance blocking tRNA movement, mRNA translation, and protein biosynthesis [23,24]. To test the inhibitory effect of AeaTMOF and oncocin112 (1–13) on bacterial growth, different concentrations of the peptides were incubated in the presence of antibiotic-resistant (AmpR, KanR, and TetR) E. coli cells (106 cpu/mL). TMOF at 5 mM completely stopped E. coli growth, whereas oncocin112 (1–13) was not effective at 5 mM, and even at 20 mM failed to stop bacterial growth (Figure 1A,B). On the other hand, oncocin112 (1–13) was much more effective in stopping E. coli cell growth at 20 mM and 10 mM and less effective when 5 mM concentrations were used, showing that AeaTMOF is better in stopping antibiotic resistant E. coli growth than oncocin112 (1–13). (Figure 1 A–C).
Because antibiotic resistance is a problem in many hospitals in the USA and beyond, AeaTMOF could perhaps be used in the future to control bacterial-resistant strains [1,2]. We also tested the effect of AeaTMOF on two medically important Gram-negative bacteria A. baumannii and P. aeruginosa. The first causes outbreaks infection in hospital intensive care units (ICUs) and healthcare settings affecting very ill or disabled patients causing pneumonia symptoms, bloodstream infection, wound infection, and urinary tract infection. The second bacterial species causes infections in the blood, lungs (pneumonia), or other parts of the body after surgery. Both bacterial species are known to acquire antibiotic resistance and can become multi-drug resistant [47,48].
A. baumannii and P. aeruginosa growth was completely inhibited in the presence of AeaTMOF (5 mM), and lower concentrations (0.1, 0.2, and 1 mM) were not effective. At 15 h only one or two colonies were found, indicating that AeaTMOF is very effective in stopping the growth of these bacterial cells (Figure 2). One explanation why P. aeruginosa was not inhibited by oncocin112 (1–13) is because this bacterial species is known to lack the SbmA transporter that is required to import PrAMP including oncocin112 (1–13) [49], whereas AeaTMOF apparently can use other transporters and was not affected. S. aureus, a Gram-positive bacterium, is a major human pathogen causing a wide range of clinical infections. It plays a major role in bacteremia and infective endocarditis, as well as skin and soft tissue and pleuropulmonary infections that are caused by virulent strains that exhibit β-lactam antibiotics resistance [50]. AeaTMOF incubation with these bacterial cells caused 99.9% inhibition of bacterial growth during a 15 h incubation period when AeaTMOF (5 mM) was used, lower concentrations (0.2 and 1 mM) were not effective (Figure 3A). Although we did not test the bacterial cells for antibiotic resistance, most of the S. aureus strains are currently β-lactam resistant. On the other hand, onconcin112 (1–13) did not affect the bacterial cells’ growth even at high concentration (10 mM) (Figure 3B). Because Gram-positive bacteria generally lack an SbmA transporter, PrAMP peptides such as oncocin112 (1–13) do not enter the bacterial cells and do not affect their growth; on the other hand, AeaTMOF, a proline-rich decapeptide, can use other transporters to enter the bacterial cells and affect their growth [51]. Similar results were obtained when Gram-positive B. thuringiensis subsp. israelensis were grown in the presence of AeaTMOF and onconcin112 (1–13). Only AeaTMOF (5 mM) was able to completely inhibit bacterial cell growth, whereas onconcin112 (1–13) failed to inhibit bacterial cell growth even at high concentration (20 mM) (Figure 4A,B), indicating that this bacterium lacks a SbmA transporter and thus preventing oncocin112 (1–13) from entering the bacterial cell, whereas AeaTMOF uses other transporter(s) to enter the bacterial cells [51]. Indeed, E. coli cells, lacking the SbmA transporter, that were incubated with AeaTMOF and oncocin112 (1–13) were inhibited only in the presence of AeaTMOF (5 mM and 3 mM, respectively) (Figure 5A), whereas concentrations of oncocin112 (1–13) (10 mM and 20 mM) failed to fully inhibit the growth of these bacterial cells (Figure 5B) indicating that oncocin112 (1–13) uses SbmA exclusively to enter the E. coli cells, whereas AeaTMOF in the absence of SbmA can use other transporters such as MdtM, YjiL, or YgdD to enter the bacterial cells [20]. Our earlier reports [25,46] show that AeaTMOF is transported into the midgut epithelial cells of Ae. Aegypti by an ABC importer that uses ATP hydrolysis to transport AeaTMOF into the mosquito gut epithelial cells before it binds the mosquito ribosome, stopping trypsin biosynthesis [25,46]. To eliminate the possibility that AeaTMOF uses a similar transporter to enter E. coli cells, we incubated E. coli cells lacking the SbmA transporter in the presence of NaAzide (25 and 250 mM) to inhibit ATPase activity, thus inhibiting AeaTMOF-like ABC transporters in E. coli. Our results show that AeaTMOF (5 mM) significantly (p < 0.0001) inhibited E. coli cell growth in the presence of NaAzide (50 and 250 mM), whereas the growth of bacterial cells (control) that were incubated without AeaTMOF and in the presence of NaAzide were not inhibited (Figure 6). These results indicate that AeaTMOF in the absence of SbmA uses different transporter(s) [20], although several genes are alleged to be alternative transporters for PrAMP, including the yjiL-mdtM gene cluster, which aside from its role as an efflux pump can also be used to import PrAMP into bacterial cells [20]. YjiL is a putative ATPase activator of (R)-hydroxyglutaryl-CoA dehydratase (Gene ID 948837) (www.ncbi.nlm.nih.gov/gene/ (accessed on 10 November 2022)), and its function, although unknown, could possibly facilitate ABC transporters [51]. On the other hand, SbmA and MdtM can each form a channel through the bacterial cytoplasmic membrane to transport proline-rich peptides such as AeaTMOF. SbmA 3D modeling shows that it has high similarity to the ABC transporters except for nucleotide binding sites (Figure 7(Aa)) and uses electrochemical gradient and not ATP hydrolysis to import PrAMP into the bacterial cells [5]. Our docking results show that AeaTMOF binds SbmA at a specific binding cavity using electrostatic interactions, hydrophilic and hydrophobic interactions, stacking interactions, and a few hydrogen bonds (Figure 7(Ad–f)). The α-helices and the loops at the top of the extracellular part of the α-Hd that extend outside the inner membrane are sufficiently loose and flexible and allow AeaTMOF to enter and anchor at the binding site in the fork of the a-HD (Figure 7(Ad,e)), indicating that AeaTMOF uses SbmA to enter E. coli cells. Similarly, a 3D modeling of MdtM and docking of AeaTMOF show that the decapeptide binds the central channel of MdtM using network of hydrogen bonds and stacking interactions between Pro and Tyr rings of AeaTMOF and the aromatic residues of MdtM (Figure 7B). AeaTMOF exhibited low hemolytic activity when different concentrations of AeaTMOF (0–6.5 mM) were tested by Professor Robert Hodges (university of Colorado Anschutz School of Medicine, department of Biochemistry and Molecular Genetics) using females’ (ages 20 to 40 years old) blood samples that were obtained at the University of Colorado Anschutz Medical School Hospital (results not shown). Therefore, in future work we will clone and express SbmA and MdtM and determine the AeaTMOF KD for both transporters as was performed for the AeaTMOF ABC receptor [45]. To make AeaTMOF more amenable for animal and clinical work, it will be necessary in the future to alter the peptide as was achieved for oncocin112 [21], reducing the effective bactericidal concentrations from millimolar to micromolar range. For future clinical work, the peptide should be encapsulated to allow a slow release into the circulation of test animals.

5. Conclusions

AeaTMOF is a mosquito decapeptide hormone that is synthesized by female mosquito ovaries after the blood meal and secreted into the hemolymph binds a AeaTMOF ABC gut receptor and is imported into the gut epithelial cells regulating trypsin biosynthesis by binding the gut ribosomes stopping the translation of the trypsin transcript after the blood meal. Because of this unique property of AeaTMOF, we explored the possibility that bacterial transporters SbmA and MdtM can also import AeaTMOF into the bacterial cytosol, allowing the peptide to stop protein translation by the bacterial ribosome and cause bacterial death. We first used 3D molecular modeling to show that SbmA and MdtM importers bind and could transport AeaTMOF by comparing it with oncocin112 (1–13), a proline-rich peptide that is transported by SbmA into the bacterial cytosol. Oncocin112 (1–13) was shown by X-ray crystallography to bind the bacterial ribosome at the protein exit tunnel blocking mRNA translation. Indeed, incubation of both Gram-negative and -positive bacterial cells in the presence of AeaTMOF caused bacterial death. Because AeaTMOF exhibits low hemolytic activity, it could be used to control bacterial infections in future.

Author Contributions

Conceptualization, D.B. and R.G.S.J.; methodology, D.B. and P.R.; validation, D.B. and P.R.; formal analysis, D.B. and P.R.; investigation, D.B., P.R. and R.G.S.J.; project administration, D.B.; funding acquisition, D.B. and R.G.S.J.; writing-original draft, D.B and P.R.; writing-review and editing, D.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data was provided in the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nolte, O. Antimicrobial Resistance in the 21st Century: A Multifaceted Challenge Protein. Pept. Lett. 2014, 21, 330–335. [Google Scholar] [CrossRef] [PubMed]
  2. Kumar, K.; Chopra, S.J. New drugs for methicillin-resistant Staphylococcus aureus: An update. Antimicrob. Chemother. 2013, 68, 1465–1470. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Otvos, L. The short proline-rich antibacterial peptide family. Cell. Mol. Life Sci. 2002, 59, 1138–1150. [Google Scholar] [CrossRef] [PubMed]
  4. Ostorhazi, E.; Nemes-Nikodem, E.; Knappe, D.; Hoffmann, R. In vivo Efficacy and Pharmacokinetics of Optimized Apidaecin Analogs Protein. Pept. Lett. 2014, 21, 368–373. [Google Scholar] [CrossRef] [PubMed]
  5. Runti, G.; Lopez Ruiz, M.C.; Stoilova, T.; Hussain, R.; Jennions, M.; Choudhury, H.G.; Benincasa, M.; Gennaro, R.; Beis, K.; Scocchi, M. Functional characterization of SbmA, a bacterial inner membrane transporter required for importing the antimicrobial peptide Bac7(1-35). J. Bacteriol. 2013, 195, 5343–5351. [Google Scholar] [CrossRef] [Green Version]
  6. Shrivastava, S.; Shrivastava, P.; Ramasamy, J. World health organization releases global priority list of antibiotic-resistant bacteria to guide research, discovery, and development of new antibiotics. J. Med. Soc. 2018, 32, 76. [Google Scholar] [CrossRef]
  7. El-Halfawy, O.M.; Valvano, M.A. Antimicrobial heteroresistance: An emerging field in need of clarity. Clin. Microbiol. Rev. 2015, 28, 191–207. [Google Scholar] [CrossRef] [Green Version]
  8. Nicoloff, H.; Hjort, K.; Levin, B.R.; Andersson, D.I. The high prevalence of antibiotic heteroresistance in pathogenic bacteria is mainly caused by gene amplification. Nat. Microbiol. 2019, 4, 504–514. [Google Scholar] [CrossRef]
  9. Boucher, H.W.; Talbot, G.H.; Bradley, J.S.; Edwards, J.E.; Gilbert, D.; Rice, L.B.; Scheld, M.; Spellberg, B.; Bartlett, J. Bad bugs, no drugs: No ESKAPE! An update from the Infectious Diseases Society of America. Clin. Infect. Dis. 2009, 48, 1334. [Google Scholar] [CrossRef] [Green Version]
  10. Lai, Y.; Gallo, R.L. AMPed up immunity: How antimicrobial peptides have multiple roles in immune defense. Trends Immunol. 2009, 30, 131–141. [Google Scholar] [CrossRef]
  11. Hancock, R.E.; Diamond, G. The role of cationic antimicrobial peptides in innate host defenses. Trends Microbiol. 2000, 8, 402–410. [Google Scholar] [CrossRef] [PubMed]
  12. Brogden, K.A. Antimicrobial peptides: Pore formers or metabolic inhibitors in bacteria? Nat. Rev. Microbiol. 2005, 3, 238–250. [Google Scholar] [CrossRef] [PubMed]
  13. Bradshaw, J.P. Cationic antimicrobial peptides. BioDrugs 2003, 17, 233–240. [Google Scholar] [CrossRef] [PubMed]
  14. Izadpanah, A.; Gallo, R.L. Antimicrobial peptides. J. Am. Acad. Dermatol. 2005, 52, 381–390. [Google Scholar] [CrossRef] [PubMed]
  15. Scocchi, M.; Tossi, A.; Gennaro, R. Proline-rich antimicrobial peptides: Converging to a non-lytic mechanism of action. Cell. Mol. Life Sci. 2011, 68, 2317–2330. [Google Scholar] [CrossRef] [PubMed]
  16. Li, W.; Tailhades, J.; O’Brien-Simpson, N.M.; Separovic, F.; Otvos, L., Jr.; Hossain, M.A.; Wade, J.D. Proline-rich antimicrobial peptides: Potential therapeutics against antibiotic-resistant bacteria. Amino Acids 2014, 46, 2287–2294. [Google Scholar] [CrossRef]
  17. Ebbensgaard, A.; Mordhorst, H.; Overgaard, M.T.; Nielsen, C.G.; Aarestrup, F.M.; Hansen, E.B. Comparative evaluation of the antimicrobial activity of different antimicrobial peptides against a range of pathogenic bacteria. PLoS ONE 2015, 10, e0144611. [Google Scholar] [CrossRef] [Green Version]
  18. Chernysh, S.; Cociancich, S.; Briand, J.P.; Hetru, C.; Bulet, P. The inducible antibacterial peptides of the Hemipteran insect Palomena prasina: Identification of a unique family of proline rich peptides and of a novel insect defensin. J. Insect Physiol. 1996, 42, 81–89. [Google Scholar] [CrossRef]
  19. Mattiuzzo, M.; Bandiera, A.; Gennaro, R.; Benincasa, M.; Pacor, S.; Antcheva, N.; Scocchi, M. Role of the Escherichia coli SbmA in the antimicrobial activity of proline-rich peptides. Mol. Microbiol. 2007, 66, 151–163. [Google Scholar] [CrossRef]
  20. Krizsan, A.; Knappe, D.; Hoffmann, R. Influence of yjiL and upstream genes on the antibacterial activity of proline-rich antimicrobial peptides overcoming Escherichia coli resistance induced by the missing SbmA transporter system. Antimicrob. Agents Chemother. 2015, 59, 5992–5998. [Google Scholar] [CrossRef]
  21. Krizsan, A.; Volke, D.; Weinert, S.; Strater, N.; Knappe, D.; Hoffmann, R. Insect-derived proline-rich antimicrobial peptides kill bacteria by inhibiting bacterial protein translation at the 70 S ribosome. Angew. Chem. Int. Ed. 2014, 53, 12236–12239. [Google Scholar] [CrossRef] [PubMed]
  22. Mardirossian, M.; Grzela, R.; Giglione, C.; Meinnel, T.; Gennaro, R.; Mergaert, P.; Scocchi, M. The host antimicrobial peptide Bac7(1–35) binds to bacterial ribosomal proteins and inhibits protein synthesis. Chem. Biol. 2014, 21, 1639–1647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Roy, R.N.; Lomakin, I.B.; Gagnon, M.G.; Steitz, T.A. The mechanism of inhibition of protein synthesis by the proline-rich peptide oncocin. Nat. Struct. Mol. Biol. 2015, 22, 466–469. [Google Scholar] [CrossRef] [Green Version]
  24. Seefeldt, A.C.; Nguyen, F.; Antunes, S.; Perebaskine, N.; Graf, M.; Arenz, S.; Inampudi, K.K.; Douat, C.; Guichard, G.; Wilson, D.N.; et al. The proline-rich antimicrobial peptide Onc112 inhibits translation by blocking and destabilizing the initiation complex. Nat. Struct. Mol. Biol. 2015, 22, 470–475. [Google Scholar] [CrossRef]
  25. Borovsky, D.; Rougé, P.; Shatters, R.G., Jr. The Ribosome Is the Ultimate Receptor for Trypsin Modulating Oostatic Factor (TMOF). Biomolecules 2022, 12, 577. [Google Scholar] [CrossRef]
  26. Borovsky, D.; Carlson, D.A.; Griffin, P.R.; Shabanowitz, J.; Hunt, D.F. Mass Spectrometry and characterization of Aedes aegypti trypsin modulating oostatic factor (TMOF) and its analogs. Insect Biochem. Mol. Biol. 1993, 23, 703–712. [Google Scholar] [CrossRef] [PubMed]
  27. Krieger, E.; Koraimann, G.; Vriend, G. Increasing the precision of comparative models with YASARA NOVA–a self-parameterizing force field. Proteins 2002, 47, 393–402. [Google Scholar] [CrossRef] [PubMed]
  28. Dawson, R.J.; Locher, K.P. Structure of a bacterial multidrug ABC transporter. Nature 2006, 443, 180–185. [Google Scholar] [CrossRef]
  29. Laskowski, R.A.; MacArthur, M.W.; Moss, D.S.; Thornton, J.M. PROCHECK: A program to check the stereochemistry of protein structures. J. Appl. Cryst. 1993, 26, 283–291. [Google Scholar] [CrossRef]
  30. Melo, F.; Feytmans, E. Assessing protein structures with a non-local atomic interaction energy. J. Mol. Biol. 1998, 277, 1141–1152. [Google Scholar] [CrossRef]
  31. Benkert, P.; Biasini, M.; Schwede, T. Toward the estimation of the absolute quality of individual protein structure models. Bioinformatics 2011, 27, 343–350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Arnold, K.; Bordoli, L.; Kopp, J.; Schwede, T. The SWISS-MODEL workspace: A web-based environment for protein structure homology modelling. Bioinformatics 2006, 22, 195–201. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Oldham, M.M.; Chen, S.; Chen, J. Structural basis for substrate specificity in the Escherichia coli maltose transport system. Proc. Natl. Acad. Sci. USA 2013, 110, 18132–18137. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Bountra, K.; Hagelueken, G.; Choudhury, H.G.; Corradi, V.; El Omari, K.; Wagner, A.; Mathavan, I.; Zirah, S.; Wahlgren, W.Y.; Tieleman, D.P.; et al. Structural basis for antibacterial peptide self-immunity by the bacterial ABC transporter McjD. EMBO J. 2017, 36, 3062–3079. [Google Scholar] [CrossRef]
  35. Berman, H.M.; Westbrook, J.; Feng, Z.; Gilliland, G.; Bhat, T.N.; Weissig, H.; Shindyalov, I.N.; Bourne, P.E. The protein data bank. Nucleic Acids Res. 2000, 28, 235–242. [Google Scholar] [CrossRef] [Green Version]
  36. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. UCSF Chimera—A visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef] [Green Version]
  37. Curto, E.V.; Jarpe, M.A.; Blalock, J.B.; Borovsky, D.; Krishna, N.R. Solution structure of trypsin modulating oostatic factor is a left-handed helix. Biochem. Biophys. Res. Commun. 1993, 193, 688–693. [Google Scholar] [CrossRef]
  38. Tovchigrechko, A.; Vakser, I.A. Development and testing of an automated approach to protein docking. Proteins 2005, 60, 296–301. [Google Scholar] [CrossRef]
  39. Tovchigrechko, A.; Vakser, I.A. GRAMM-X public web server for protein-protein docking. Nucleic Acids Res. 2006, 34, W310–W314. [Google Scholar] [CrossRef]
  40. Heng, J.; Zhao, Y.; Liu, M.; Liu, Y.; Fan, J.; Wang, X.; Zhao, Y.; Zhang, X.C. Substrate-bound structure of the E. coli multidrug resistance transporter MdfA. Cell Res. 2015, 25, 1060–1073. [Google Scholar] [CrossRef]
  41. Yin, Y.; He, X.; Szewczyk, P.; Nguyen, T.; Chang, G. Structure of the multidrug transporter EmrD from Escherichia coli. Science 2006, 312, 741–744. [Google Scholar] [CrossRef] [PubMed]
  42. Jiang, D.; Zhao, Y.; Wang, X.; Fan, J.; Heng, J.; Liu, X.; Feng, W.; Kang, X.; Huang, B.; Liu, J.; et al. Structure of the YajR transporter suggests a transport mechanism based on the conserved motif A. Proc. Natl. Acad. Sci. USA 2013, 110, 14664–14669. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Parker, J.L.; Li, C.; Brinth, A.; Wang, Z.; Vogeley, L.; Solcan, N.; Ledderboge-Vucinic, G.; Swanson, J.M.J.; Caffrey, M.; Voth, G.A.; et al. Proton movements and coupling in the POT family of peptide transporters. Proc. Natl. Acad. Sci. USA 2017, 114, 13182–13187. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Meng, E.C.; Couch, C.S.; Croll, T.I.; Morris, J.H.; Ferrin, T.E. UCSF ChimeraX: Structure viszualization for researchers, educators, and developers. Protein Sci. 2021, 30, 70–82. [Google Scholar] [CrossRef] [PubMed]
  45. Corbalan, N.; Runti, G.; Adler, C.; Covaceuszach, S.; Ford, R.C.; Lamba, D.; Beis, K.; Scocchi, M.; Vincenta, P.A. Functional and Structural Study of the Dimeric Inner Membrane Protein SbmA. J. Bacteriol. 2013, 195, 5352–5361. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Borovsky, D.; Deckers, K.; Vanhove, A.C.; Verstraete, M.; Rouge, P.; Shatters, R.G., Jr.; Powel, C.A. Cloning and Characterization of Aedes aegypti Trypsin Modulating Oostatic Factor (TMOF) Gut-Receptor. Biomolecules 2021, 11, 934. [Google Scholar] [CrossRef]
  47. Howard, A.; O’Donoghue, M.; Audrey Feeney, A.; Sleator, R.D. Acinetobacter baumannii an emerging opportunistic pathogen. Virulence 2012, 3, 243–250. [Google Scholar] [CrossRef] [Green Version]
  48. Centers for Disease Control and Prevention. Antibiotic Resistance Threats in the United States; Centers for Disease Control and Prevention: Atlanta, GA, USA, 2019. [CrossRef] [Green Version]
  49. Runti, G.; Benincasa, M.; Giuffrida, G.; Devescovi, G.; Venturi, V.; Gennaro, R.; Scocchi, M. The mechanism of killing by the prolinerich peptide Bac 7(1–35) against clinical strains of Pseudomonas aeruginosa differs from that against other gram-negative bacteria. Antimicrob. Agents Chemother. 2017, 61, e01660-16. [Google Scholar] [CrossRef] [Green Version]
  50. Tong, S.Y.C.; Davis, J.S.; Eichenberger, E.; Holland, T.L.; Fowler, V.G., Jr. Staphylococcus aureus infections: Epidemiology, pathophysiology, clinical manifestations, and management. Clin. Microbiol. Rev. 2015, 28, 603–661. [Google Scholar] [CrossRef]
  51. Frimodt-Moller, J.; Campion, C.; Nielsen, P.E.; Lobner-Olesen, A. Translocation of non-lytic antimicrobial peptides and bacteria penetrating peptides across the inner membrane of the bacterial Envelope. Curr. Genet. 2022, 68, 83–90. [Google Scholar] [CrossRef]
Life 13 00019 g001 550

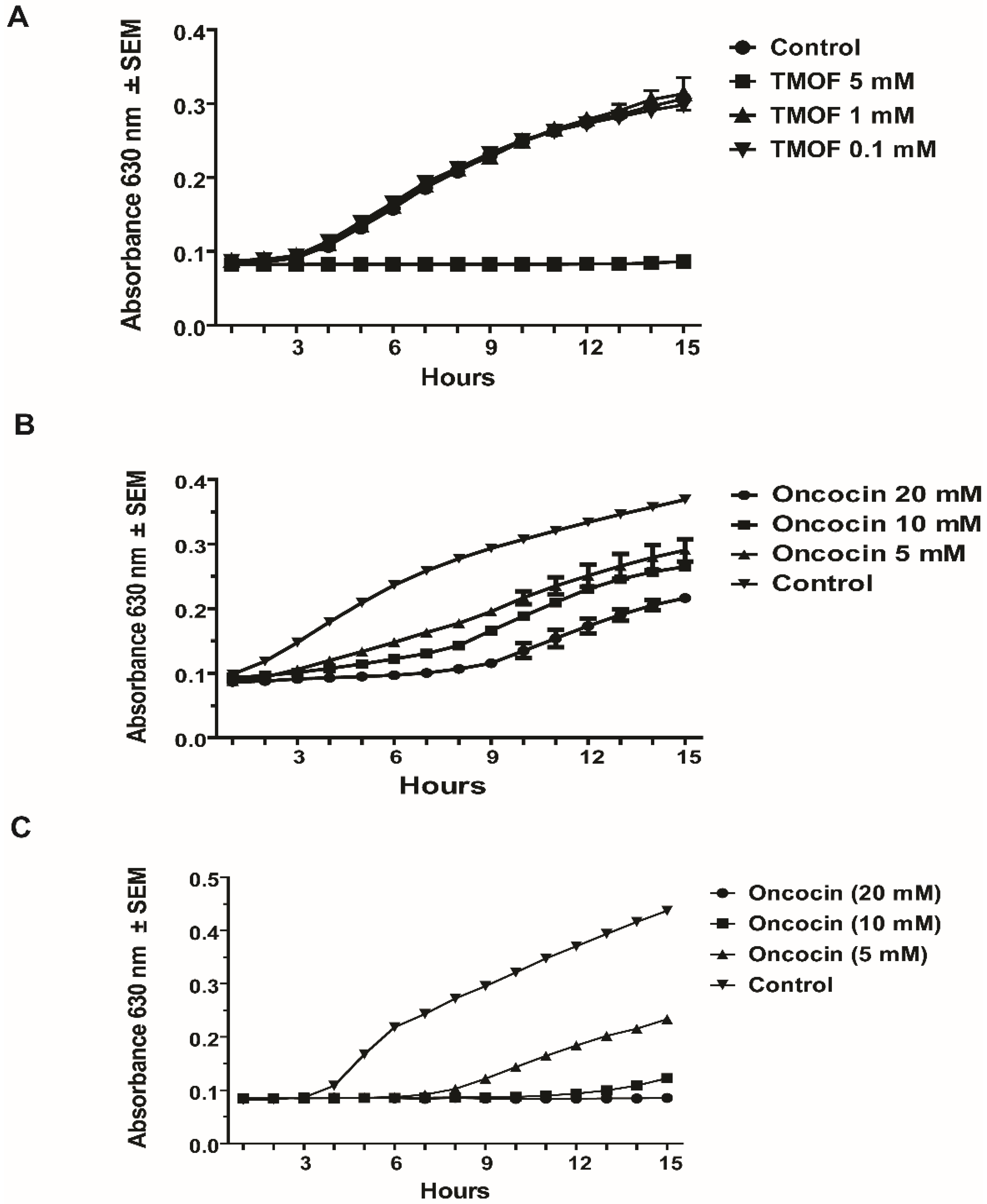

Figure 1. Multidrug-resistant E. coli AmpR, KanR, TetR (106 cpu/mL) cell growth in the presence of different concentrations of (A). AeaTMOF, (B). oncocin112 (1–13), (C). growth of E. coli (not drug resistant) (106 cpu/mL) in the presence of oncocin112 (1–13).
Figure 1. Multidrug-resistant E. coli AmpR, KanR, TetR (106 cpu/mL) cell growth in the presence of different concentrations of (A). AeaTMOF, (B). oncocin112 (1–13), (C). growth of E. coli (not drug resistant) (106 cpu/mL) in the presence of oncocin112 (1–13).
Life 13 00019 g001
Life 13 00019 g002 550

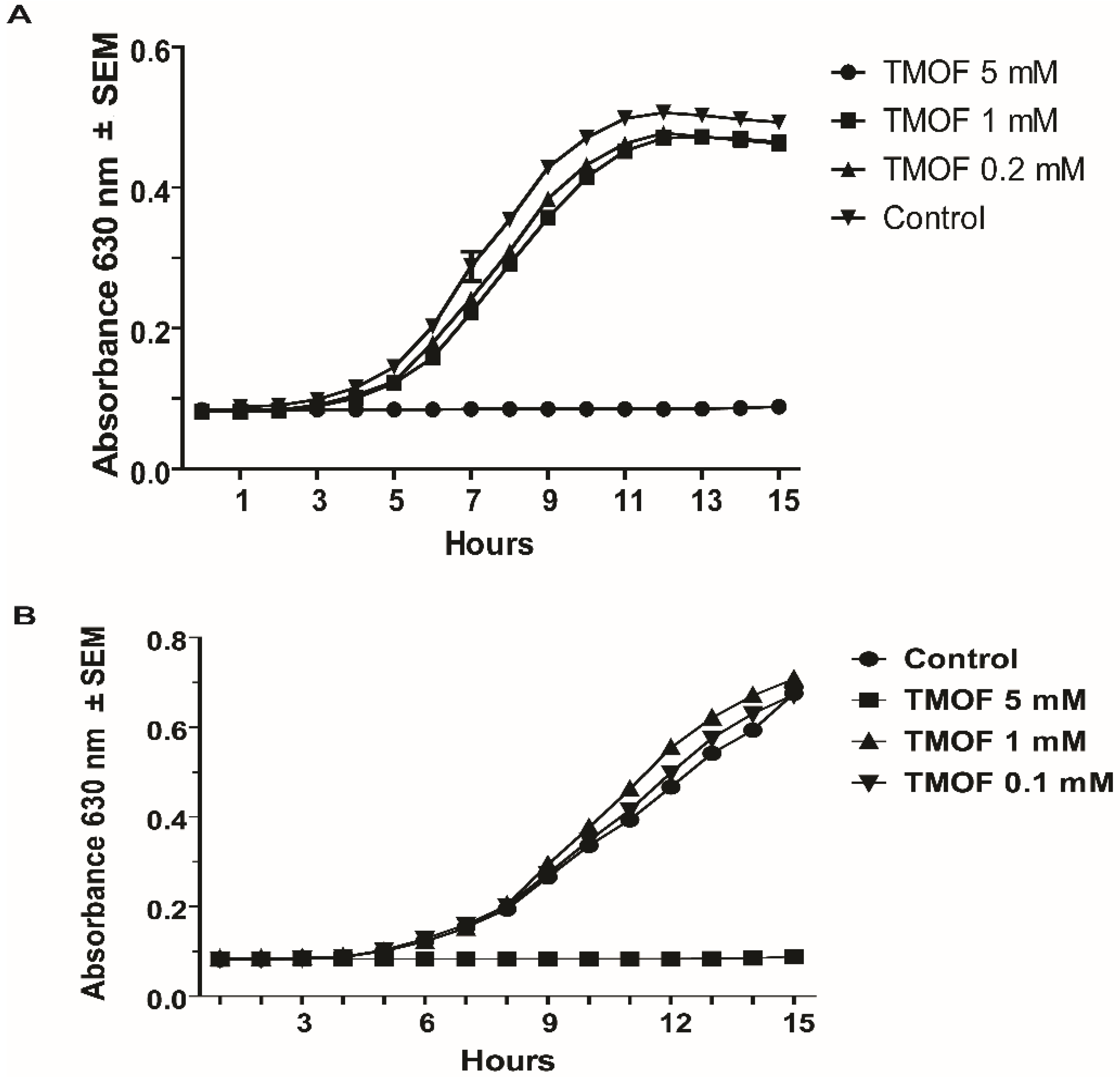

Figure 2. Effect of different concentrations of AeaTMOF on (A) A. baumannii (106 cpu/mL) cell growth, and (B) P. aeruginosa (106 cpu/mL) cell growth.
Figure 2. Effect of different concentrations of AeaTMOF on (A) A. baumannii (106 cpu/mL) cell growth, and (B) P. aeruginosa (106 cpu/mL) cell growth.
Life 13 00019 g002
Life 13 00019 g003 550

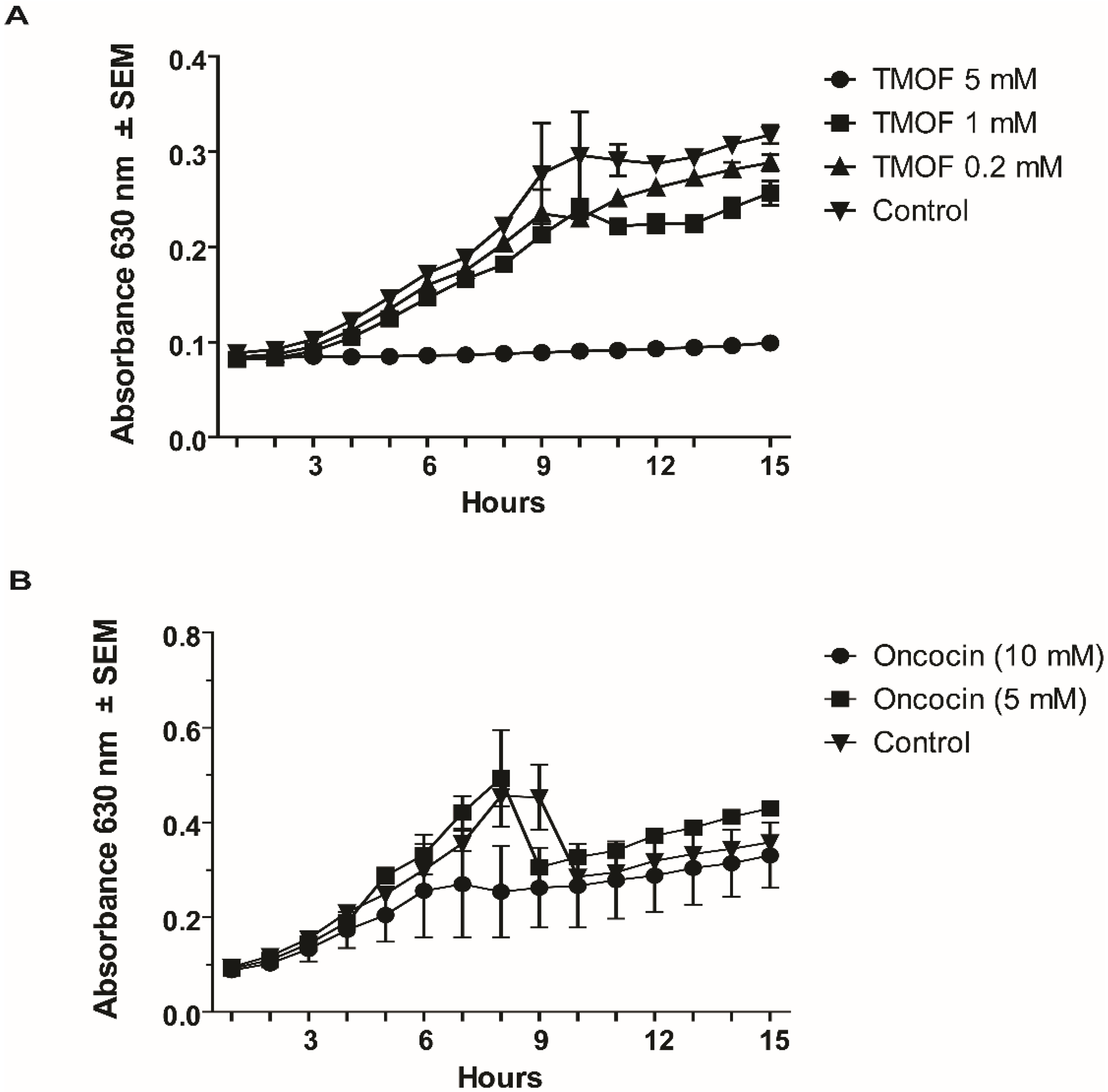

Figure 3. Effect on Gram-positive S. aureus (106 cpu/mL) cell growth by different concentrations of (A) AeaTMOF and (B) oncocin112 (1–13).
Figure 3. Effect on Gram-positive S. aureus (106 cpu/mL) cell growth by different concentrations of (A) AeaTMOF and (B) oncocin112 (1–13).
Life 13 00019 g003
Life 13 00019 g004 550

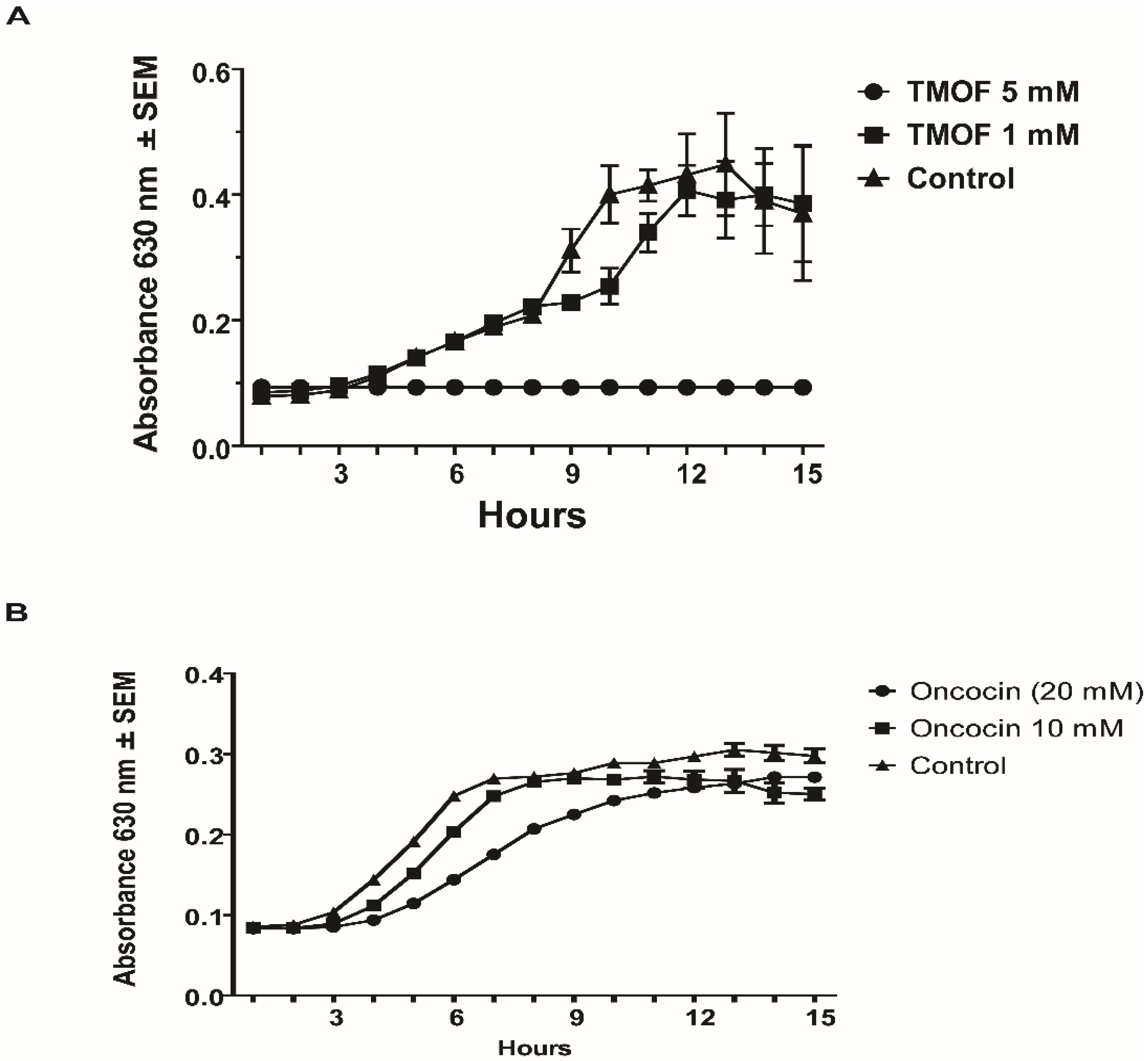

Figure 4. Effect on Gram-positive B. thuringiensis subsp. Israelensis (106 cpu/mL) cell growth by different concentrations of (A) AeaTMOF and (B) oncocin112 (1–13). AeaTMOF (0.2 mM) is not shown in A, as it is similar to the control.
Figure 4. Effect on Gram-positive B. thuringiensis subsp. Israelensis (106 cpu/mL) cell growth by different concentrations of (A) AeaTMOF and (B) oncocin112 (1–13). AeaTMOF (0.2 mM) is not shown in A, as it is similar to the control.
Life 13 00019 g004
Life 13 00019 g005 550

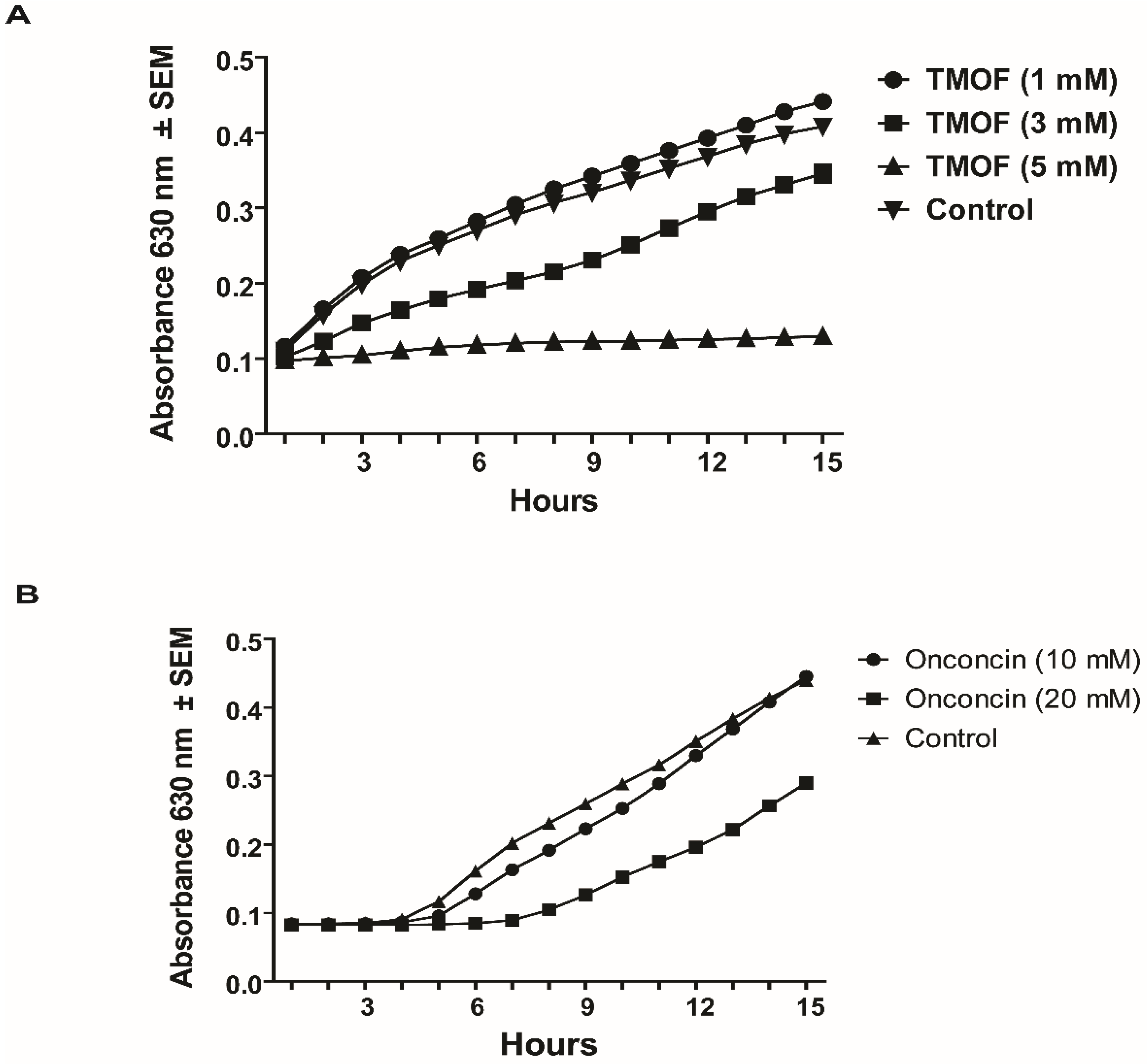

Figure 5. Effect on E. coli sbmA− (106 cpu/mL) cell growth by different concentrations of (A) AeaTMOF and (B) oncocin112 (1–13). AeaTMOF (0.1 mM) is not shown in A, as it is similar to the control.
Figure 5. Effect on E. coli sbmA− (106 cpu/mL) cell growth by different concentrations of (A) AeaTMOF and (B) oncocin112 (1–13). AeaTMOF (0.1 mM) is not shown in A, as it is similar to the control.
Life 13 00019 g005
Life 13 00019 g006 550

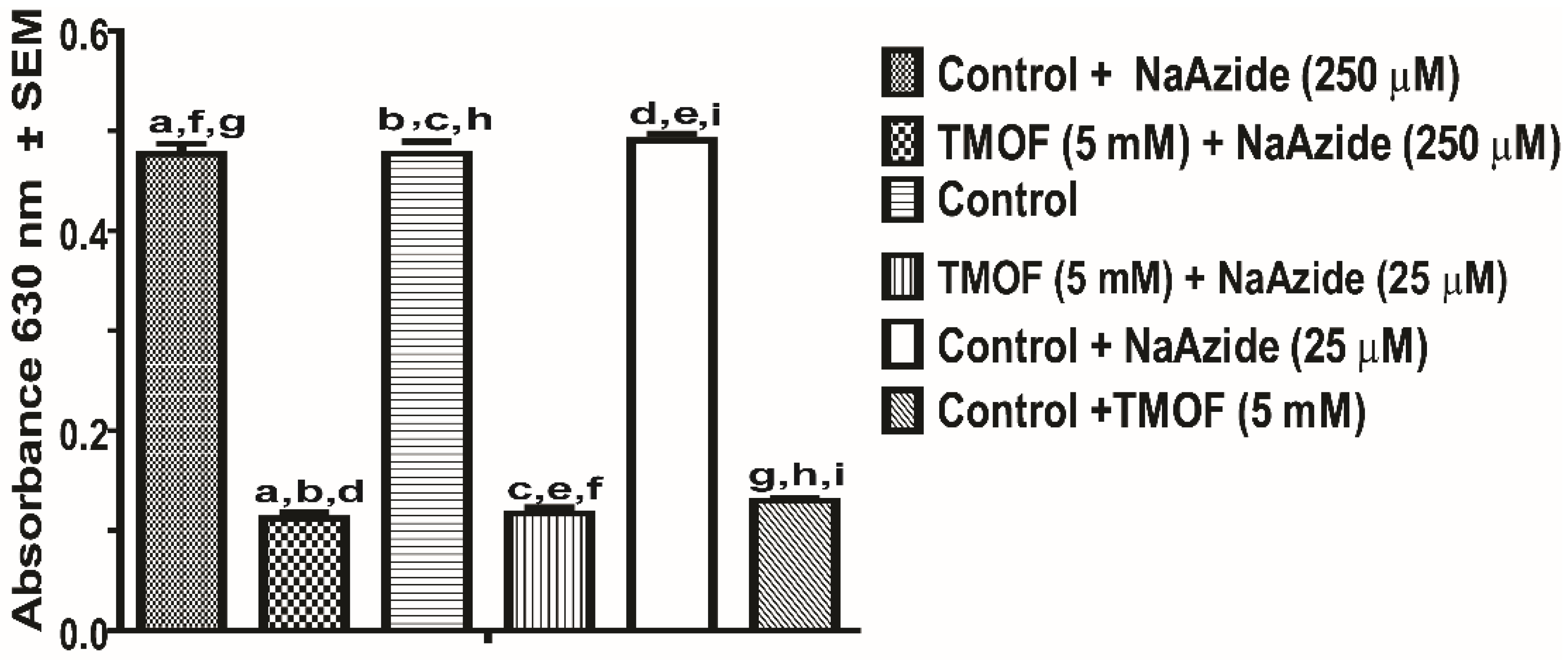

Figure 6. Effect of AeaTMOF (5 mM) on E. coli sbmA− (106 cpu/mL) cell growth in the presence and absence of NaAzide (25 and 250 mM). Control cells were incubated without AeaTMOF and with NaAzide (25 and 250 mM) or without NaAzide and in the presence of AeaTMOF (5 mM). Results are expressed as means of three determinations ± SEM. a–i Significantly different (p > 0.0001).
Figure 6. Effect of AeaTMOF (5 mM) on E. coli sbmA− (106 cpu/mL) cell growth in the presence and absence of NaAzide (25 and 250 mM). Control cells were incubated without AeaTMOF and with NaAzide (25 and 250 mM) or without NaAzide and in the presence of AeaTMOF (5 mM). Results are expressed as means of three determinations ± SEM. a–i Significantly different (p > 0.0001).
Life 13 00019 g006
Life 13 00019 g007 550

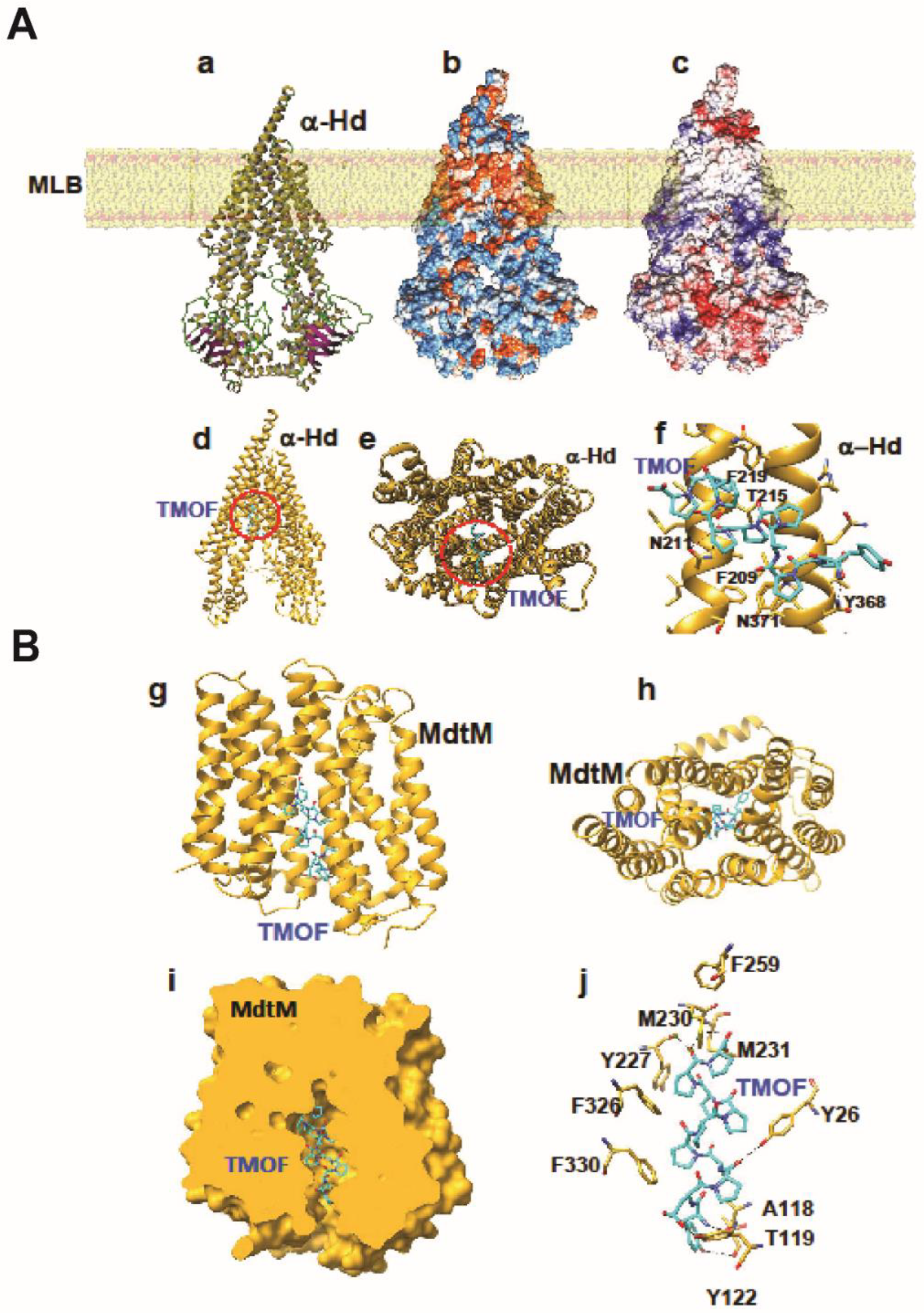

Figure 7. (A) Three-dimensional modeling and docking of AeaTMOF to E. coli SbmA. (a) Ribbon diagram of the three-dimensional model built for sbmA inserted in the membrane lipid bilayer (MLB). (b) Hydrophilic (colored blue) and hydrophobic (colored orange) patches distributed on the molecular surface of SbmA. The hydrophobic character of α-helices allowing α-Hd to become embedded into the membrane lipid bilayer (MLB). (c) Distribution of coulombic charges (electronegative and electropositive charged regions are colored red and blue, respectively; neutral regions are white) on the molecular surface of α-Hd. (d) Ribbon diagram showing the upper part of E. coli SbmA and the position of AeaTMOF (cyan-colored sticks) docked into the binding-site located in the fork of the α-Hd. (e) Front view of α-Hd containing the docked position (red dashed circle) of AeaTMOF (cyan-colored sticks). (f) Position of AeaTMOF (colored cyan) in the binding-cavity in the α-helical domain α-Hd of SbmA. Hydrogen bonds anchoring AeaTMOF to N211, T215, and N371 of the α-Hd are represented by black dashed lines. Aromatic residues (F209, F219, Y368) participating in the stacking interaction between AeaTMOF and α-Hd are shown as broken black lines. (B) Three-dimensional modeling and docking of AeaTMOF to E. coli MdtM. (g) Lateral view of the ribbon diagram of MdtM showing TMOF (colored cyan) inserted in the central channel of the receptor. (h) Upper view of the ribbon diagram of MdtM showing the insertion of TMOF in the central channel. (i) A cut plane of the molecular surface of MdtM with AeaTMOF inserted in the central channel. (j) Network of hydrogen bonds (broken black lines) anchoring TMOF to residues Y26, A118, T119, Y122, Y227, M230, and M231 of the MdtM receptor. Aromatic residues Y26, Y122, Y227, F259, F326, and F330 participate in stacking interactions with TMOF.
Figure 7. (A) Three-dimensional modeling and docking of AeaTMOF to E. coli SbmA. (a) Ribbon diagram of the three-dimensional model built for sbmA inserted in the membrane lipid bilayer (MLB). (b) Hydrophilic (colored blue) and hydrophobic (colored orange) patches distributed on the molecular surface of SbmA. The hydrophobic character of α-helices allowing α-Hd to become embedded into the membrane lipid bilayer (MLB). (c) Distribution of coulombic charges (electronegative and electropositive charged regions are colored red and blue, respectively; neutral regions are white) on the molecular surface of α-Hd. (d) Ribbon diagram showing the upper part of E. coli SbmA and the position of AeaTMOF (cyan-colored sticks) docked into the binding-site located in the fork of the α-Hd. (e) Front view of α-Hd containing the docked position (red dashed circle) of AeaTMOF (cyan-colored sticks). (f) Position of AeaTMOF (colored cyan) in the binding-cavity in the α-helical domain α-Hd of SbmA. Hydrogen bonds anchoring AeaTMOF to N211, T215, and N371 of the α-Hd are represented by black dashed lines. Aromatic residues (F209, F219, Y368) participating in the stacking interaction between AeaTMOF and α-Hd are shown as broken black lines. (B) Three-dimensional modeling and docking of AeaTMOF to E. coli MdtM. (g) Lateral view of the ribbon diagram of MdtM showing TMOF (colored cyan) inserted in the central channel of the receptor. (h) Upper view of the ribbon diagram of MdtM showing the insertion of TMOF in the central channel. (i) A cut plane of the molecular surface of MdtM with AeaTMOF inserted in the central channel. (j) Network of hydrogen bonds (broken black lines) anchoring TMOF to residues Y26, A118, T119, Y122, Y227, M230, and M231 of the MdtM receptor. Aromatic residues Y26, Y122, Y227, F259, F326, and F330 participate in stacking interactions with TMOF.
Life 13 00019 g007
Life 13 00019 g008 550

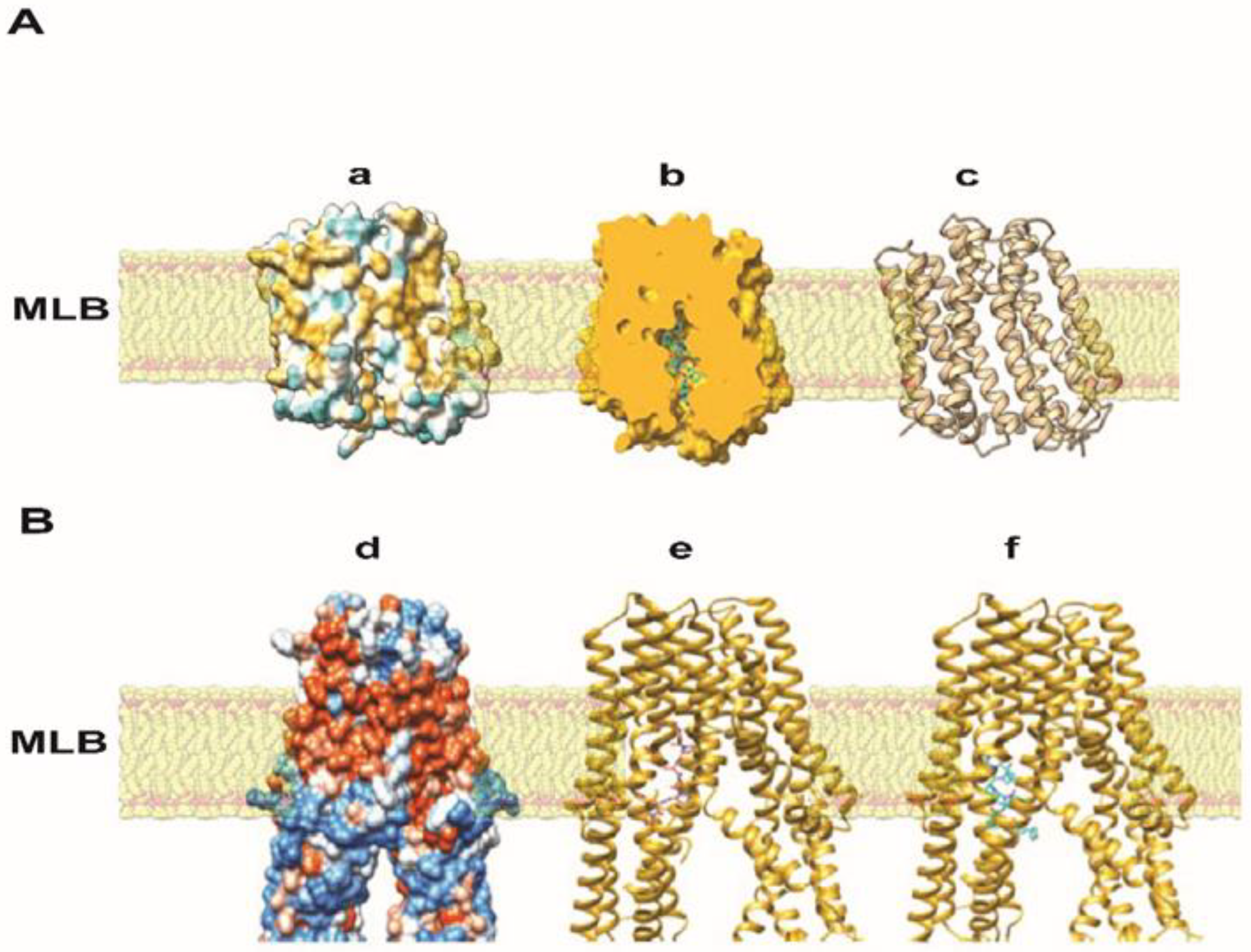

Figure 8. Insertion of MdtM and SbmA into the lipid bilayer of E. coli (A). (a). Upper and lower parts of MdtM are hydrophobic (colored blue) whereas the central region in contact with the membrane lipid bilayer (MLB) is hydrophobic (colored orange); (b). cut plane of MdtM, showing the binding of TMOF to the central hydrophobic region of the transporter. (c). Ribbon diagram of MdtM showing where the N- and C-termini are located. The MdtM signal sequence allows the transporter to become inserted into the lipid bilayer, which is linked to the N-terminus of the MdtM. (B) (d). Insertion of SbmA into the MLB of E. coli showing the upper part of the molecule through the MLB hydrophilic (colored blue) and hydrophobic (colored orange) patches’ distribution of the molecular surface of sbmA (only upper and middle part are shown); (e). docking of oncocin112 (1–13) (colored pink) and (f) AeaTMOF (colored cyan) to SbmA (colored gold) involves different networks of hydrogen bonds and hydrophobic interactions, which account for the specific binding of both ligands to SbmA because of differences in their structure and positioning towards the SbmA α-helices.
Figure 8. Insertion of MdtM and SbmA into the lipid bilayer of E. coli (A). (a). Upper and lower parts of MdtM are hydrophobic (colored blue) whereas the central region in contact with the membrane lipid bilayer (MLB) is hydrophobic (colored orange); (b). cut plane of MdtM, showing the binding of TMOF to the central hydrophobic region of the transporter. (c). Ribbon diagram of MdtM showing where the N- and C-termini are located. The MdtM signal sequence allows the transporter to become inserted into the lipid bilayer, which is linked to the N-terminus of the MdtM. (B) (d). Insertion of SbmA into the MLB of E. coli showing the upper part of the molecule through the MLB hydrophilic (colored blue) and hydrophobic (colored orange) patches’ distribution of the molecular surface of sbmA (only upper and middle part are shown); (e). docking of oncocin112 (1–13) (colored pink) and (f) AeaTMOF (colored cyan) to SbmA (colored gold) involves different networks of hydrogen bonds and hydrophobic interactions, which account for the specific binding of both ligands to SbmA because of differences in their structure and positioning towards the SbmA α-helices.
Life 13 00019 g008
