The UV Perspective of Low-Mass Star Formation

Abstract

The formation of low-mass ($M_{★}\lesssim 2M_{\odot }$) stars in molecular clouds involves accretion disks and jets, which are of broad astrophysical interest. Accreting stars represent the closest examples of these phenomena. Star and planet formation are also intimately connected, setting the starting point for planetary systems like our own. The ultraviolet (UV) spectral range is particularly suited for studying star formation, because virtually all relevant processes radiate at temperatures associated with UV emission processes or have strong observational signatures in the UV range. In this review, we describe how UV observations provide unique diagnostics for the accretion process, the physical properties of the protoplanetary disk, and jets and outflows.

1. Introduction

Stars form in molecular clouds. When these clouds fragment, localized cloud regions collapse into groups of protostars. Stars with final masses between $0.08M_{\odot }$ and $2M_{\odot }$, broadly the progenitors of Sun-like stars, start as cores deeply embedded in a dusty envelope, where they can be seen only in the sub-mm and far-IR spectral windows (so-called class 0 sources). The collapse into a central condensation is not spherically symmetric due to angular momentum conservation. Instead, an accretion disk forms while the remaining envelope still hides the inner core from view in all but the mid/far-IR (class I sources). These young objects also typically drive powerful jets that propagate through the envelope, pierce the cloud, and are often the earliest signs of a forming star. After some time, the envelope dissipates and the stars become visible in the optical. This marks the transition to class II sources, also called classical T Tauri stars (CTTSs). The period of time between disk formation and the end of the CTTS phase is highly interesting, as it is the time when planet formation is thought to take place. Afterwards, the circumstellar disk disperses, planet formation halts, and accretion ceases, typically within a few Myrs. Stars in this stage are called class III sources or weak-line T Tauri stars (WTTSs). They move along Hayashi tracks towards the main sequence, where they will stay for most of their lifetimes. If we want to understand star and planet formation, including those of the Sun and the solar system, “we must unravel all the mysteries of [CTTSs]” [1]. Of the different evolutionary steps, the CTTS stage is the earliest evolutionary step where ultraviolet (UV) observations can provide detailed information about the physical conditions in the disk, mass accretion onto the forming protostar, and outflow activity central to the star-formation process.

1.1. A Short History of CTTSs

CTTSs were initially identified as a new class of objects due their optical variability. Very early on, it was realized that they also show signs of enhanced chromospheric activity, i.e., “emission lines resembling those of the solar chromosphere” [2]. These emission lines are superposed on a photospheric spectrum similar to main-sequence stars of late spectral type. Initially, the source of emission in excess of a normal photosphere was speculated to be circumstellar or chromospheric in origin [3].

The discovery that CTTSs are above and to the right of the main sequence in an HR-diagram demonstrated, in conjunction with theoretical work [4], that these objects must be young and, thus, the progenitors of the large main-sequence population [5,6]. This notion is corroborated by the presence of strong Li absorption, which requires $\sim 100\times$ the Li abundance of the Sun (e.g., [7]). Because Li is depleted quickly in stellar interiors, the amount of surface lithium decreases with time in convective stars. Therefore, strong Li absorption can only be found in young stars and, thus, CTTSs must be young (e.g., review by [8]).

Meanwhile, the number of peculiarities found in CTTSs grew, but their established youth alone was insufficient to explain those peculiarities, and the “mysteries” of CTTSs remained. Many features, like the origin of the “chromospheric emission” remained unexplained until the early 1980s, when a large variety of models were proposed to explain features of CTTSs, including envelopes, outflows, infall, and dust disks.

Specifically, the “ultraviolet excess” (measured around 3700 Å) and the “blue continuum”, which go along with a weakening of photospheric absorption lines due to veiling [9,10], were shown to correlate with the strength of H$\alpha$ [11,12]. Such a correlation indicates a common origin of both features, as observed for chromospheric emission on the Sun. Thus, it was natural to ascribe the excess continuum emission at short wavelengths to a Balmer continuum, i.e., emission following the capture of a free electron by an ionized hydrogen atom. While that finding pinpoints neither the physical origin nor location of the emitting material, it paved the way for explanations involving a suitably tuned chromosphere for producing the observed (Balmer and Ca II H+K) line fluxes in CTTSs. Quantitative models of deep-lying chromospheres by Cram [13] using ad hoc temperature profiles, so-called deep chromosphere models, were able to reproduce the fluxes except for H$\alpha$.

These static chromospheric models, however, had difficulties in explaining the kinematic line profiles observed in CTTSs [14], and additional emitting regions were required [15,16] to explain the suite of line properties and overall flux characteristics. In fact, the existence of infalling or outflowing material was already postulated by Walker [17] in 1963. The emission lines observed in CTTSs often show P Cygni profiles that were initially interpreted in terms of a hot ($\sim {10}^4$ K) outflow [18]—somewhat contradictory to the general infall during the cloud contraction phase [19]. Interestingly, the mass-loss rates that go along with this shell expanding at around 300 km s${}^{-1}$ were estimated to a few times ${10}^{-8}{M}_{\odot }$ yr${}^{-1}$, similar to modern-day mass-loss estimates (though not in the form of a spherical mass-loss).

The outflow explanation, however, was not entirely satisfactory, although the presence of P Cygni profiles was thought to conclusively demonstrate the existence of mass-loss in CTTSs. Notwithstanding the question why CTTSs should be surrounded by a shell of hot gas, the inverse P Cygni profiles expected for mass-infall are mainly seen in YY Ori stars, a class of objects that share many similarities with CTTSs. The notion that mass accretion onto the central star also plays a key role in CTTSs was proposed when it was discovered that the line profiles can cycle between the inverse P Cygni profile of “typical” CTTSs and the inverse P Cygni profile of YY Ori objects within a few days [10,20], and it was suggested that a flattened disk, by analogy with the solar system, exists around CTTSs. In fact, the IR excess of CTTSs was soon to be found with the advent of IR instruments and correctly ascribed to relatively cold ($T\sim 700$ K) dust; the alternative of an optically thin gaseous envelope would produce booming Balmer continuum emission that is not observed [21]. This dust, or rather the flared protoplanetary disk around the star, is of exceptional importance for the study of CTTSs. In this article, however, we treat the disk just as a reservoir of material close to the central star and refer the interested reader to recent reviews for more details on protoplanetary disks [22,23].

The disk hypothesis has the great property of leaving a large fraction of the stellar photosphere with its absorption lines visible, provided that the “ultraviolet excess” emission is roughly comparable in luminosity. Walker [20] postulated a shock forming at the interface between material falling onto the star and the stellar photosphere as the source of the continuum emission and the disk as the source of the Balmer line emission—the first mention of the CTTS accretion paradigm, which is still largely accepted. Notably, it is still believed that the Balmer lines do not originate in the same region as the continuum emission, although the disk itself is not considered the dominant emission region anymore. The disk accretion scenario was subsequently put on solid theoretical grounds by Lynden-Bell and Pringle [24] and Shakura and Sunyaev [25]. The accretion scenario was then specifically applied to CTTSs for explaining the line profiles, including blue-shifted absorption [26]. Ulrich [26] already noted that soft X-ray emission from the post-shock plasma is expected.

1.2. The First FUV Observations of Young, Accreting Stars

With protoplanetary disks, accretion, and outflows in the form of winds and jets recognized as significant processes for CTTSs, essentially all major features of CTTS systems were identified [27] and required observational support/constraints with the “…ultraviolet spectral region [holding] promise in helping to resolve many of the issues connected with the T Tauri stars.” [28]. This statement still holds, as demonstrated, e.g., by the inception of a Hubble Ultraviolet Legacy program using HST Director’s Discretionary time, the “UV Legacy Library of Young Stars as Essential Standards” (ULLYSES) survey, which is anticipated to dedicate ∼ 500 HST orbits to study low-mass star formation in the ultraviolet.

Three features make the UV spectral range particularly interesting to study CTTS: (a) Emission from hot plasma related to the accretion shock should emit most of its energy in the UV range (already mentioned in [29]), (b) disk features seen as fluorescently excited H${}_2$ and CO emissions [30,31] and in absorption against the star [32], and (c) bright atomic emission lines from the hot post-shock region of protostellar jets and fluorescent emission from wide-angle outflows [33].

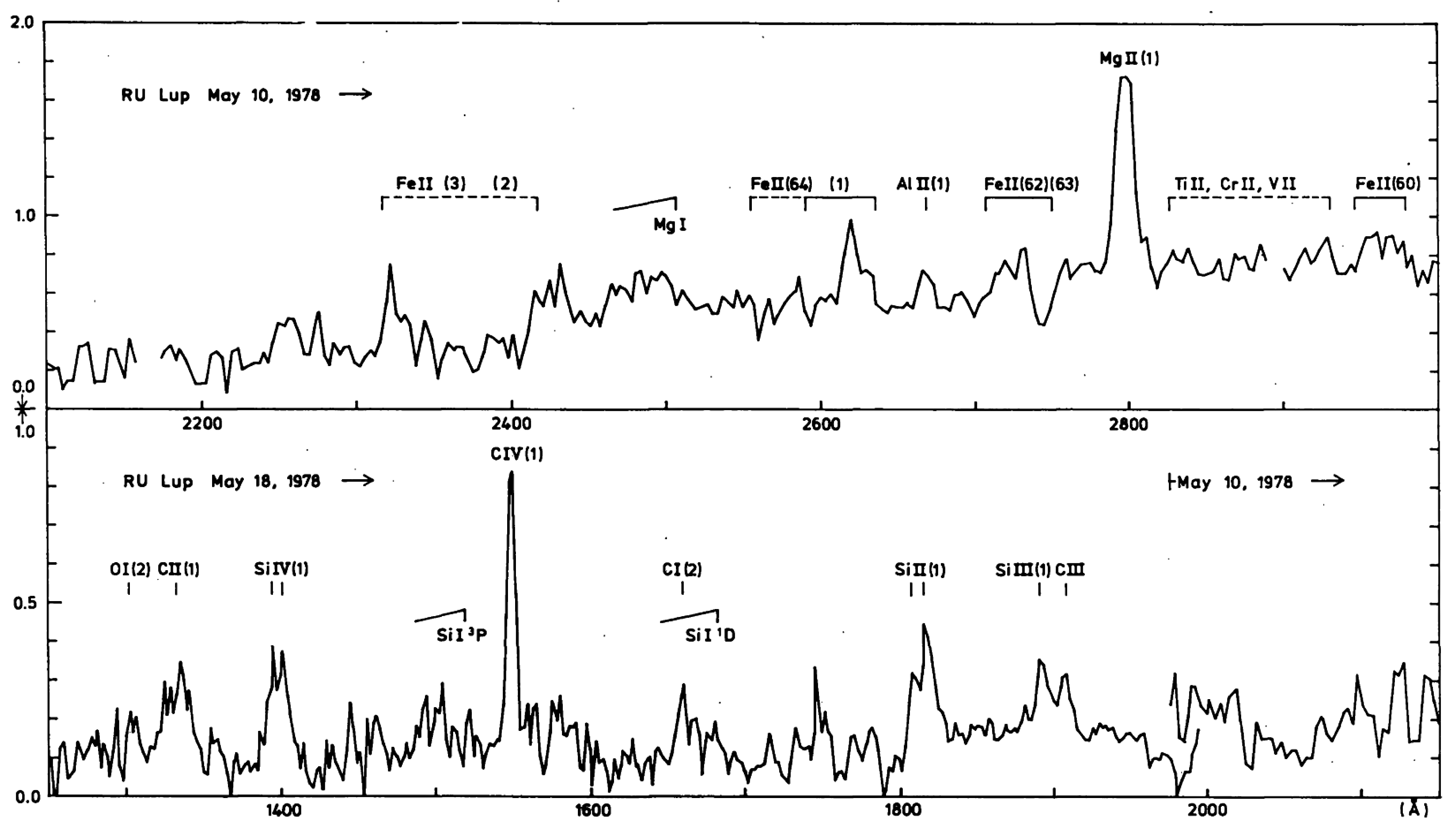

The first FUV (1550, 1800 Å) to NUV (2200, 2500, 3300 Å) photometric data of CTTSs were obtained by the ultraviolet experiment onboard the Astronomical Netherlands Satellite (ANS, [34]). Targeting seven of the “most prominent” CTTSs, three were detected [35]. In the discovery paper, de Boer [35] specifically discusses the FUV properties of V 380 Ori, which showed excess emission that they associate with the Balmer continuum produced by dense gas. Interestingly, the paper already includes a statement saying that dereddening FUV fluxes of CTTSs is subject to comparably large uncertainties, still one of the unsolved uncertainties when studying CTTSs (see discussion in France et al. [36]).

A big step forward for FUV studies of CTTSs was the launch of the IUE satellite [37], which provided the opportunity to measure individual lines in larger samples of CTTSs. Figure 1 shows an IUE spectrum of the CTTS RU Lup [38], still representative for most CTTSs’ FUV spectra. The spectrum is dominated by strong emission lines from ionized species with the presence of C iv, Si iv, and Mg ii and Gahm et al. [38] suggested regions with $logT\approx 4.5–5.0$ “around” the star, a notion that essentially holds today, as most of the hot lines are thought to arise from material somehow influenced by accretion.

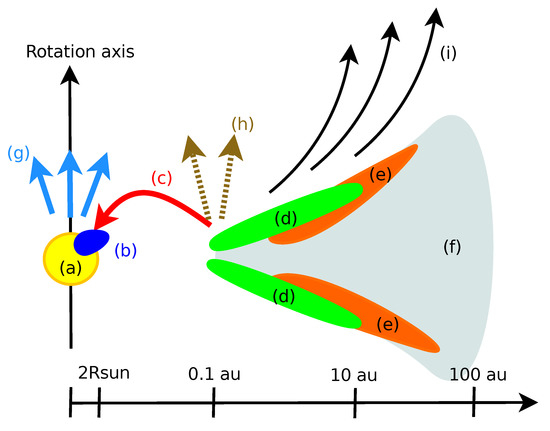

Figure 2 provides a sketch of the most relevant FUV emission regions in CTTSs. In the next sections, we successively describe how FUV studies continue to provide key information for the physical processes in CTTSs. We begin with the intrinsic FUV emission of the star due to enhanced magnetic activity, then move successively outwards, i.e., we then discuss the emission thought to arise from accretion, the disk features, and emission from outflows and jets. We close with a quick prospectus on future UV disk studies.

2. Stellar UV Emission of CTTSs from Magnetic Activity

Young stars are rapid rotators with typical rotation periods of a few days [39,40,41,42], because the stars retain some of the angular momentum from their natal cloud during the contraction phase. In addition, T Tauri stars possess largely convective interiors while moving from the birth line towards the zero age main sequence (ZAMS) so that they are able to generate kiloGauss magnetic fields [43]. As a result, T Tauri stars show all signs of enhanced magnetic activity in the form of strong chromospheric and coronal emission, in comparison with their main-sequence siblings [44,45].

In non-accreting stars, chromospheric activity causes emission in excess of that expected from the stellar photosphere, and particularly WTTSs are highly magnetically active [46]. This enhanced magnetic activity is due to extended outer rarefied layers of the atmosphere, with temperatures between about $T={10}^4$ and ${10}^7$ K. Above the photosphere, one finds the chromosphere ($T\sim {10}^4$) and a transition region (TR, $T\sim {10}^5$ K) connecting the chromosphere with the corona ($T\sim {10}^{6-7}$ K). As a rule of thumb, chromospheric and TR emission is most prominent in the UV range, while the corona emits mostly in the X-ray regime.

For the study of genuine star-formation-related processes, e.g., accretion, the enhanced magnetic activity of T Tauri stars is a nuisance, because the chromospheric and TR emission from magnetic activity must be carefully separated/subtracted. WTTSs are excellent templates for the emission caused by magnetic activity because they lack accretion and gas-rich disks, but share internal structure and rotation with the CTTSs. Using a magnetically inactive dwarf as a template for the UV emission instead of a WTTS may result in the erroneous conclusion that a particular star is accreting at a significant rate ($\dot{M}\sim {10}^{-8.5}{M}_{\odot }$ yr${}^{-1}$, [47]).

It is therefore not surprising that many large observing programs studying CTTSs included a number of WTTSs as templates to distinguish emission from magnetic activity and, e.g., accretion ([48] and Figure 3). Any emission in excess of the chromospheric to coronal flux of WTTSs is, as a starting hypothesis, thought to be attributable to star formation processes such as accretion, disks, or jets. Therefore, we define the term “excess emission” in the context of this article as the emission not seen in comparable WTTSs, although we note that WTTSs show some spread in their UV properties [49].

3. Accretion

CTTSs possess strong stellar magnetic fields in the kG range [51], compared to just a few G average surface fields on solar-mass main-sequence stars. The strong magnetic field truncates the protoplanetary disk at a few stellar radii so that accretion proceeds along magnetic field lines connecting the star and the inner disk [52]. This leads to a strong shock, where the infalling material impacts the stellar atmosphere (see Figure 2). Since typical free-fall velocities are around 300 km s${}^{-1}$, the post shock temperature is in the MK range and the plasma cools predominately through X-ray emission, which is then partly reprocessed into UV and optical radiation [53,54]. The accretion hot spot covers on the order of 1% of the stellar surface, so that the densities in the accretion funnel should be around ${10}^{12}$ cm${}^{-3}$ to provide the accretion rates in the observed ${10}^{-8}{M}_{\odot }$ yr${}^{-1}$ range [53]. This accretion-driven high-energy emission represents the main ionizing agent at the surface of the protoplanetary disk, where material that is eventually accreted onto the star moves inwards (from large to smaller and smaller radii) [55]. There is general consensus that the main features of this picture are correct, but key processes remain uncertain—especially when it comes to attributing FUV emission to individual processes.

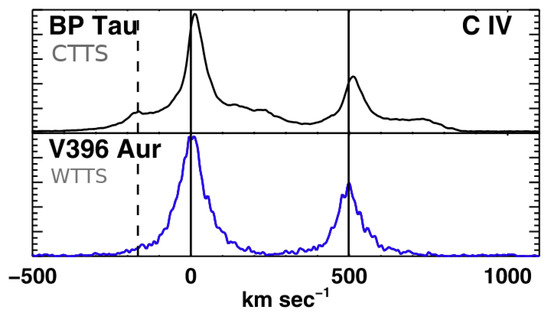

At FUV wavelengths, the main diagnostics of accretion are enhanced fluxes in hot ion lines like C iv (Figure 3). Three properties demonstrate that accretion indeed is the root cause of the excess in these lines:

• Monitoring campaigns of individual objects such as BP Tau show that the FUV fluxes vary in conjunction with optical excess emission [56,57,58].
• Line fluxes exceed those of WTTSs and other magnetically active stars [59]; still, the luminosity in, e.g., C iv is only a tiny fraction ($\sim 0.1$%) of the accretion luminosity [60].
• The lines are broader in CTTSs than in WTTSs [61].

In particular, Johns-Krull et al. [59] find that the “emission line luminosity in the high ionization lines …correlates well with the mass accretion rate”. However, these authors also noted that the existence of the correlation depends critically on the source of their extinction values. A significant correlation results only for a certain set of extinction values, and this strong dependence on the often-uncertain UV extinction is still relevant today.

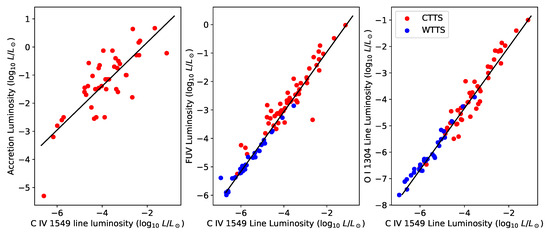

Later, the relation between FUV fluxes in hot ion lines and accretion was confirmed by Yang et al. [62] using a large set of 91 stars with data from HST ACS, STIS, and GHRS (see Figure 4), lending further support to the notion that accretion is indeed responsible for the bright emission in hot ion lines. Interestingly, the ratio between fractional line luminosities of different ions, e.g., C iv and O i $\lambda 1304$, is the same in CTTSs as in WTTSs, although the respective peak line formation temperatures are very different ($logT\sim 4$ vs. 5) and although CTTS line fluxes are one to two orders of magnitude higher than those of comparable WTTSs (cf. Figure 4 right and [62]).

Pinpointing the origin of the hot ion lines is challenging and currently an open issue; different scenarios for the accretion column have been proposed (cf. Figure 5). Most of the accretion funnel has only $T\sim 10,000$ K [63,64]; therefore, only two regions may generate the accretion contribution to the hot ion emission. The material of the funnel immediately above the shock (the radiative precursor) or postshock material are the only likely sources of the hot ion line excess [50].

The relative importance of pre- and post-shock regions depends mainly on shock velocity and density [65]. Both components should have red-shifted velocities: Material in the funnel should have velocities of a few 100 km s${}^{-1}$, while the shocked material will be at velocities of just tens of km s${}^{-1}$, and the expected line profile is rather narrow (e.g., for the typical $v_{in}=300$km s${}^{-1}$, $v_{post}=70$km s${}^{-1}$). However, in the Goddard High Resolution Spectrograph (GHRS) spectra ($R\sim 20,000$) of eight CTTS presented by Ardila et al. [66], one finds broad emission lines from hot ions (C iv, Si iv, etc.) with a range of centroid velocities (from blue-shifted to centrally peaked to red-shifted). In addition, higher excitation lines like O vi show a great variety of line profiles, again including peaks that are blue- and red-shifted from the stellar rest velocity [67]. Later studies using STIS [68] as well as COS data [50] confirm these trends, revealing sometimes complex line profiles that may be modified through absorption or emission by outflowing material. When the Si iv line profile can be measured under the H${}_2$ emission, the C iv line shapes agree relatively well. However, the line ratios between the blue and red members of the doublets agree with the ratio expected from optical thin emission only (generally) for C iv and not for Si iv, which is puzzling, given that the radiative precursor should be optically thin to both Si iv and C iv [65] (although this implicitly assumes that the lines are predominately collisionally excited). Furthermore, the C iv line shape agrees with that of Si iii], which is thought to come from the radiative precursor [69].

In a comprehensive analysis of FUV lines from CTTSs using HST COS data, Ardila et al. [50] demonstrate that most hot ion lines, particularly Si iv, C iv, and N v, share one kinematic profile and can be decomposed into a narrow and broad component. The ratio between these two components depends on the accretion rate with the narrow component’s contribution increasing with accretion rate.

It is interesting to note that the conversion from FUV line fluxes to stellar accretion rate is based on empirical correlations between the FUV line fluxes and other, perhaps more traditional, accretion tracers like H$\alpha$ equivalent width (EW) or veiling measurements [59]. Application of the Calvet and Gullbring [53] shock models by Ingleby et al. [70] to the NUV to optical spectrum of CTTSs revealed that the same accretion column (specified by their energy flux) cannot simultaneously reproduce the UV and optical ranges of the spectrum; these authors require the existence of multiple accretion columns with different F-values, i.e., different densities for the same infall velocity. With this prescription, the emission of the different funnels peaks at different wavelengths and a more precise (but not necessarily accurate) description of the excess flux is achieved, which also modifies the derived accretion rate by roughly a factor of two ([70,71]). Such a scenario with different densities is highly appealing because it may explain (a) that UV line ratios indicate rather low densities in the emitting region (${10}^{10}$cm${}^{-3}$) based on ratios between the He ii and C iv lines [50], as well as ratios of semi-forbidden lines that should be optically thin [72]. In addition, (b) this could explain the varying ratio between the narrow and broad components because part of the post-shock material may be buried in the photosphere, and a varying ratio of the pre- and post-shock plasma is seen depending on the exact accretion geometry [50].

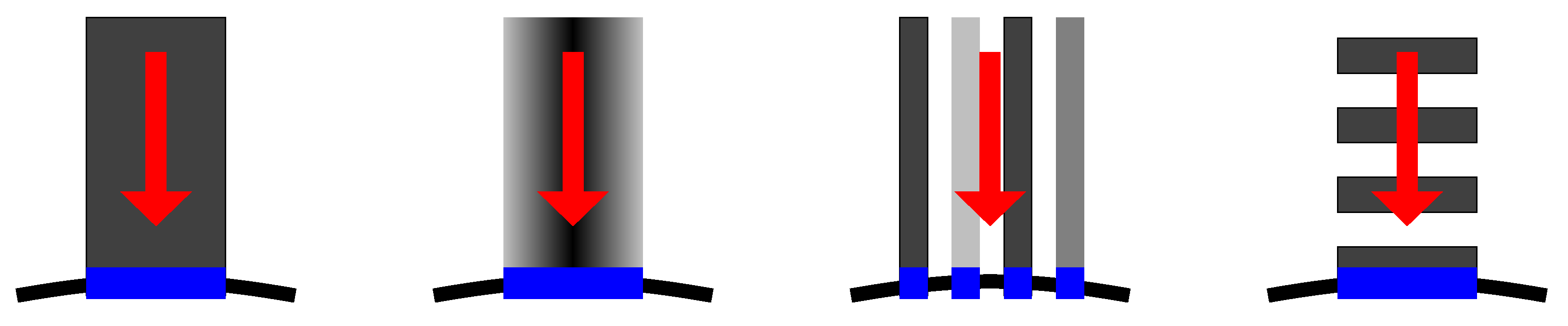

We suggest that the different observable signatures do not necessarily represent different accretion funnels, but, rather, one column with a density stratification (see the sketch in Figure 5 and [54]). In this picture, the individual funnels with different densities are replaced by a single column, but with a continuum of densities so that the description of the excess emission as a sum of different density columns is just a simplification of the true column structure, and the accretion column may also possess some structure along the flow direction. In summary, our picture of the accretion funnel evolved over the last two decades from a single monolithic column to a structure that is stratified in density with an additional density modulation along the infall direction. As of 2020, however, there is no quantitative model that simultaneously reproduces the optical/NUV/FUV features of accretion emission (including the C iv velocity structure). We need both simultaneous observations from the X-ray to the optical range as well as theoretical work to self-consistently describe the accretion process of CTTSs.

4. Protoplanetary Disks

Circumstellar accretion disks are essential components of CTTS systems. They are typically studied at infrared-to-mm wavelengths, as those are the wavelengths where most of the energy received from the central star is re-radiated [23]. These so-called protoplanetary disks are not only the sites of ongoing planet formation, but are also highly structured and dynamic objects with features like warps, (dust) gaps, and spirals (e.g., [73]). It is currently debated if these features can be ordered into a sequence in time; in particular, if so-called transitional disks (TDs), which harbor significant (dust) gaps, are more evolved disks compared to full gas and dust disks.

Protoplanetary disks are thought to consist mainly of gas with just about one percent of the mass in dust, like the interstellar medium (ISM). The local physical properties such as temperature and density depend, to the first order, mainly on radius and height within the disk (see the sketch in Figure 2). One would like to study both the disk gas and dust, since gas controls the disk dynamics, while the dust is highly relevant for the formation of planetary cores. Observationally, the dust is more readily accessible compared to the gas because of its continuum emission at sub-mm wavelengths, while observing protoplanetary disk gas requires more challenging spectroscopic line measurements.

The dominant species of protoplanetary disks, molecular hydrogen, is difficult to observe directly because the electric dipole transitions between rotational and vibrational states are forbidden, as H${}_2$ has no net dipole moment. H${}_2$ can undergo quadrupole rotational transitions that produce weak emission lines in the mid-IR due to low oscillator strengths. The large spacing between even the lowest energy levels makes it, however, difficult to excite the molecules via collisions in cold gas of the disk midplane. Therefore, the IR-H${}_2$ lines are weak, and most sample surveys find a relatively low detection rate with accordingly tight constraints on the amount of warm ($\gtrsim 500$K) molecular hydrogen in the disks [74,75]. Carbon monoxide (CO) is often used as a tracer for the disk’s gas content, especially with the advent of ALMA. However, the interpretation of the CO emission is challenging, since CO may freeze-out on dust grains, and detailed models are required to convert the measured emission line fluxes into gas disk masses [76]. Therefore, complementary diagnostics of the disk’s gas are highly desired.

On first sight, it may appear surprising that gas disk diagnostics reside in the FUV because equilibrium temperatures in the disk are very low (tens to hundreds of K) compared to the peak formation temperatures of prominent atomic emission lines (like C iv at $\sim {10}^5$K). Nevertheless, FUV observations of (i) fluorescently excited molecular emission lines, (ii) the 1600 Å bump, and (iii) disk absorption features provide unique information on disk chemistry and dispersal.

4.1. Fluorescently Excited Molecular Emission Lines

In contrast to the weak IR-H${}_2$ lines, the FUV transitions of H${}_2$ have large oscillator strengths. These lines result from electronic Lyman- and Werner-band transitions, which break symmetries in the molecular structure and enable dipole-allowed transitions. The UV-H${}_2$ features originate from a population of vibrationally excited gas “pumped” from the ground electronic state into the low-lying excited electronic states by Ly$\alpha$ photons, the strongest stellar emission line in the FUV [31]. Depending on the pumping wavelength, molecular hydrogen is excited into the Lyman ($2p\sigma B^1{\mathsf{\Sigma }}_u^{+}$, [77]) or Werner ($2p\pi C^1{\mathsf{\Pi }}_u$, [78]) electronic bands. Each excited state emits a characteristic spectrum, called progression, with known ratios between the individual lines for each progression. The dipole-allowed transitions have large Einstein coefficients ($A_{ul}\sim {10}^8$s${}^{-1}$) so that these electronic states will decay instantaneously in a fluorescent cascade down to one of many different ro-vibrational levels in the ground electronic state ($X^1{\mathsf{\Sigma }}_u^{+}$, [30]).

In protoplanetary disks, the UV-H${}_2$ emission originates in the inner regions ($0.1<\sim r\lesssim 10$ au) [30,79,80,81], where gas temperatures can reach the 1500 K threshold required for Ly$\alpha$ fluorescence to take place [82]. A large number of fluorescent UV-H${}_2$ emission lines are observed in the 1050–1700 Å wavelength range [30,79] accessible by HST observations (see Figure 6). The UV-H${}_2$ fluxes correlate with hot ion line fluxes like C iv, which suggests that one mechanism controls the FUV spectrum [59]—and accretion appears as the most probable candidate, because higher accretion rates imply more Ly$\alpha$, with a resulting higher excitation rate of the UV-H${}_2$ lines. The existence of UV-H${}_2$ and CO strongly suggests that both the CO and H${}_2$ in the inner disk are shielded by very little neutral hydrogen [31,83].

Herczeg et al. [30] measured 146 UV-H${}_2$ emission lines from TW Hya with HST-STIS and find that the features are coincident with the star in velocity space and not spatially extended beyond the 0.05” resolution of the instrument, as would be expected for emission from an outflow. These observations indicate that the emitting H${}_2$ is located in the inner regions of the protoplanetary disk (within $r\sim 1.4$ AU at the distance of 56 pc to TW Hya). Nevertheless, some contribution from an outflow may be present, as the H${}_2$ line centroids are generally slightly blue-shifted [68] and do not typically show the double-peaked profiles expected from a pure disk emission model [81], as also seen in Section 5.

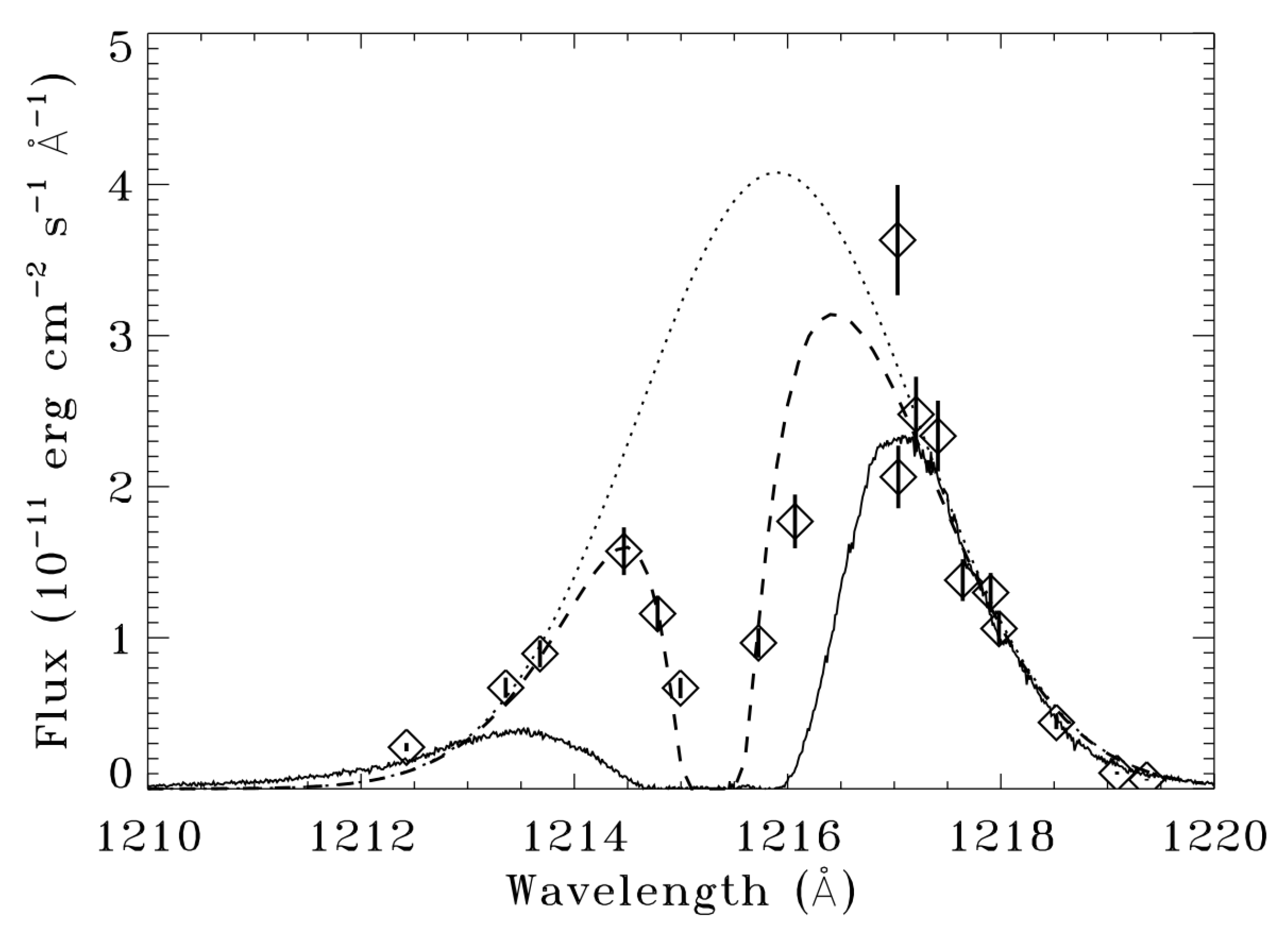

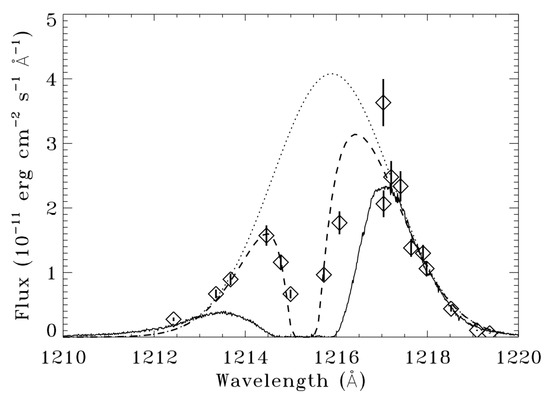

In CTTSs, one observes a number of H${}_2$ absorption features against the wings of the stellar Ly$\alpha$ line. The relative depths of these H${}_2$ absorption features depend on the respective absorbing column density $N(H_2,\nu ,J)$. The relative population of these states depends on the total column density and the excitation temperature (assuming a single, thermal population of absorbing molecular hydrogen [85]). Measuring numerous absorption features for 22 CTTSs, Hoadley et al. [86] find that (a) the low-energy states follow the pattern expected for $T\sim 2000$ K while the high-energy states of H${}_2$ show higher occupancies than expected. These authors speculate that the non-thermal populations arise in a diffuse molecular disk atmosphere where level populations are driven out of thermal equilibrium by Ly$\alpha$ photon pumping.

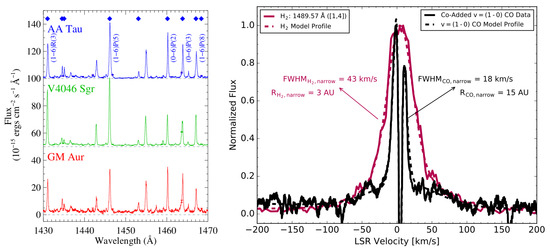

Kinematic modeling is another powerful technique to derive spatial information from the UV-H${}_2$ emission lines, as the spectral resolution of the UV instruments onboard HST is sufficient given the velocities expected in the inner disk region [81,87]. Assuming that the emission at each radius has a Keplerian profile, the radial profile of the molecular hydrogen emission can be reconstructed (see Figure 6). The emission is confined to $r<10$au for most sources with a characteristic emission radius of just about 1 au, which agrees with the upper limits imposed by the spatial analysis of STIS data [88]. The UV-H${}_2$ emission can also be used to study the evolution of disk gas with system age, as described in more detail in Section 4.5.

The second-most abundant species in protoplanetary disks, CO, also emits in the FUV. Photo-excited CO gas traces cooler disk regions compared to those of H${}_2$ (UV-CO; $T\sim 200–500$ K). Its emission originates from several ro-vibrational bands of the $A^1\mathsf{\Pi }-X^1{\mathsf{\Sigma }}^{+}$ (Fourth Positive) electronic transition system. Similarly to the UV-H${}_2$, the UV-CO emission is pumped by stellar (accretion-driven) Ly$\alpha$ and partly by C iv photons. Schindhelm et al. [31] detect UV-CO emission from $T\sim 500$K gas in roughly half of the FUV disk spectra (see Figure 7 left), i.e., a different population from that of the warmer CO gas ($T\sim 300–1500$ K) well-studied in the strong fundamental band ro-vibrational emission lines at 4.7–5 $\mathsf{\mu }$m [89,90,91]. These differences may be attributed to the FUV CO population residing more distantly from the star than either the IR-CO or UV-H${}_2$ emitting gas [31]. Compared to UV-H${}_2$, the signal of the UV-CO lines is weaker and kinematic modeling is subject to larger uncertainties. Generally, however, the UV-CO emission correlates with the stellar Ly$\alpha$ emission, i.e., mainly with accretion rate. The second-strongest parameter controlling the the UV-CO emission may be the dust and gas opacity of the inner disk, or in other words, observations of UV-CO emission are more indicative of the dispersal of cooler gas than observations of UV-H${}_2$ emission.

4.2. The “1600 Å Bump”

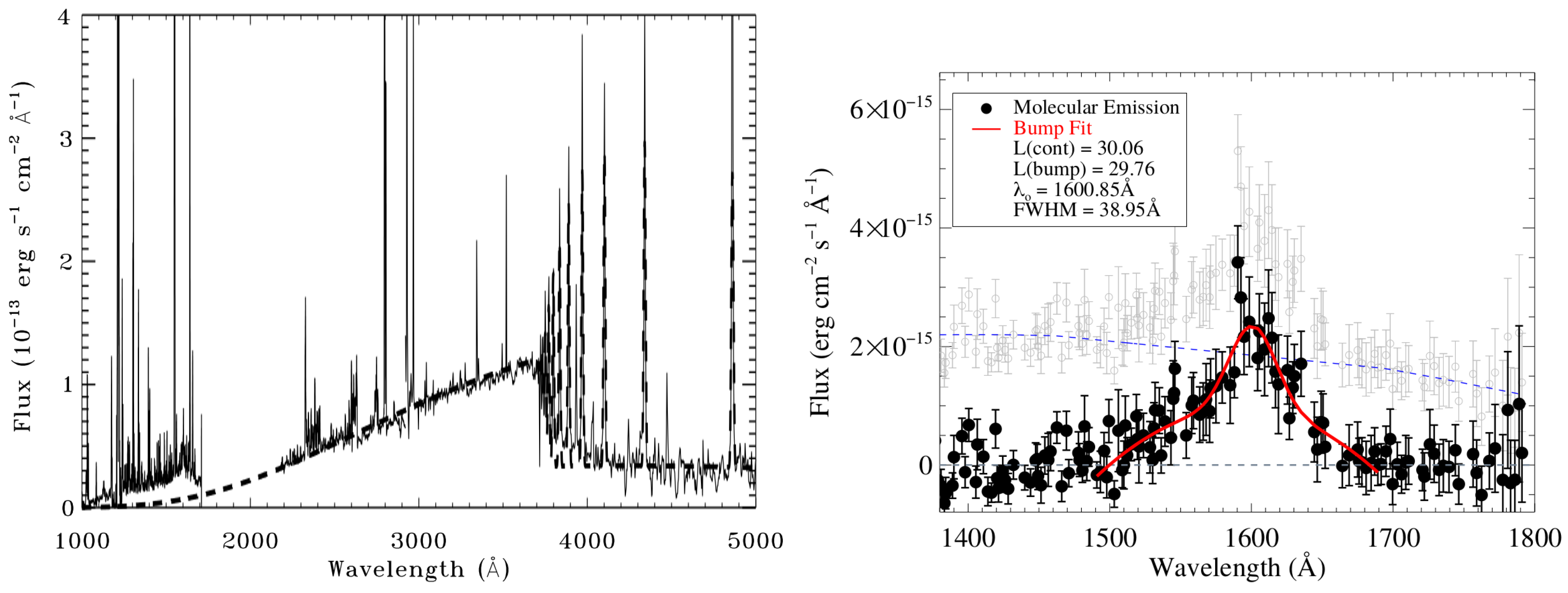

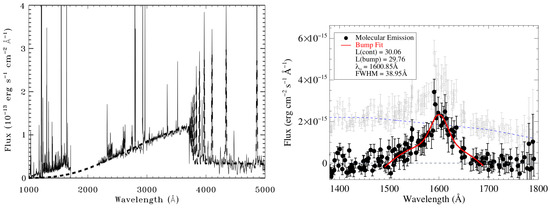

The FUV continuum emission of CTTSs is comparably weak, because both the stellar and the accretion continuum decline towards shorter wavelengths; in contrast, the accretion continuum is readily detected in the NUV [70]. Therefore, good continuum measurements require high S/N, and the discovery of a broad (50–200 Å) emission feature, roughly centered on 1600 Å in the FUV continuum of CTTSs was somewhat surprising (see Figure 8 and Refs. [80,92,93]). In fact, the dominant bump formation is still not entirely clear, but most likely results from line and continuum emission from vibrationally excited H${}_2$.

France et al. [36] detect the 1600 Å-Bump in 19 out of the 37 CTTSs surveyed. The detection rate is 100% in transition disks, compared to about one third in primordial or non-transition disk sources. Because the integrated flux of the 1600 Å-Bump is a significant fraction of the entire H${}_2$ and continuum flux, France et al. [36] suggest that the bump draws its energy from the Ly$\alpha$ radiation field. Specifically, these authors suggest that the Ly$\alpha$-driven dissociation of water in the inner disk generates a population of highly non-thermal H${}_2$, and emission from this population then produces the 1600 Å-Bump, i.e., efficient water dissociation by Ly$\alpha$ photons during the later stages of disk dispersal [36]. This scenario is supported by the lack of a correlation between the 1600 Å-Bump and stellar X-ray luminosity [94]. Another cause for large 1600 Å-Bump luminosities may be high photo-electron densities (presumably driven by stellar X-rays; [92,93]).

4.3. Disk Absorption

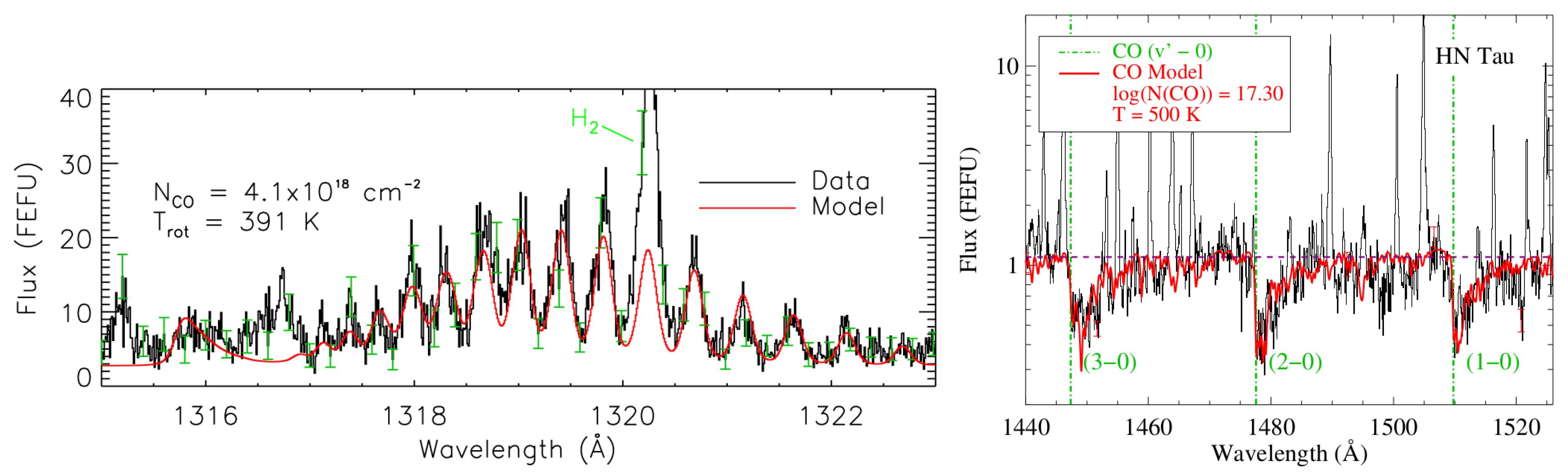

For moderately inclined disks ($i\gtrsim {70}^{\circ }$), the line of sight towards the central star passes through the upper disk regions. The observed spectrum then contains absorption features from the disk. In the FUV, the two most abundant species in protoplanetary disks, H${}_2$ and CO, have strong absorption bands, which allow the measurements of column densities and ro-vibrational temperatures. The absorption profile depends on (1) an (assumed) turbulent velocity (typically small, $\sim 0.1$km${}^{-1}$), (2) a column density, and (3) a rotational temperature.

While FUV-CO absorption is an established technique in many fields of astronomy, e.g., for the study of the interstellar medium (ISM, see [95] and references therein) or planets [96], its use for protoplanetary disks was first proven in 2011 by France et al. [32], who measure absorption by the ground vibrational state ($\nu$–0) of CO against the backlight of the FUV accretion continuum of the central star. In their analysis of 34 T Tauri stars, McJunkin et al. [97] find CO absorption in about one quarter of the sources. For these sources, the FUV-CO absorption velocities are compatible with the radial velocity of the target star within the instrumental velocity calibration uncertainty of about 15–20 km s${}^{-1}$. The data imply rotational temperatures around 500 K, which may be reached out to radii of 0.2–2 au, assuming thermal equilibrium with the stellar radiation field. Compared to the IR-CO emission, the temperatures of the UV-CO absorption are lower, perhaps because FUV-CO absorption traces a gas population at larger disk radii than the IR data. When combined with estimates for the conditions required for a thermal equilibrium between the rotational states and the radiation field from disk models [98], McJunkin et al. [97] suggest that the CO absorbing gas resides in the disk layer at a height of $z/r\sim 0.6$ and 0.7, i.e., the flared upper disk atmosphere.

In the FUV spectra of CTTSs, H${}_2$ absorption is seen both against the continuum and against the Ly$\alpha$ line. For estimating a CO/H${}_2$-ratio, however, one should compare the respective absorption features seen against the continuum (see the discussion in [99]). In the best-characterized CO and H${}_2$ absorption system, RW Aur, the CO/H${}_2$ ratio is found to be $\approx {10}^{-4}$, which is compatible with the value for the ISM. Since the CO/H${}_2$ is of fundamental importance for disk chemistry and disk mass estimates, future studies using FUV absorption will provide unique information not attainable with, e.g., ALMA observations and disk modeling. Therefore, future mission concepts like NASA’s LUVOIR specifically aim at high-sensitivity, high-resolution absorption line spectroscopy through moderately inclined disks [100].

4.4. Disk Chemistry and the UV SED

The strength and shape of the FUV radiation field has a strong influence on the chemical abundances of the disk, both at planet-forming radii ($r<10$ au; [92,101]) and at larger radii ($r>50$au), where the majority of the disk mass resides [102]. The stellar FUV continuum controls the dissociation of the most abundant disk molecules (H${}_2$ and CO; [103,104]). The propagation of the FUV continuum is mainly regulated by dust grains [105]; the processes of grain-growth and settling likely allow these photons to penetrate deeper into the disk as the protoplanetary environment evolves [106].

Bergin et al. [92] first emphasized the importance of accretion-generated H i Ly$\alpha$ to the disk chemistry, and, more recently, it has been shown that the FUV spectral energy distribution of all CTTSs is overwhelmingly dominated (≳ 80%) by Ly$\alpha$ emission [31,99]. Unlike the FUV continuum emission, the radiative transfer of Ly$\alpha$ photons is controlled mainly by resonant scattering in the upper atomic disk atmosphere [107]. Subsequent detailed disk modeling has demonstrated the importance of properly accounting for Ly$\alpha$ radiation from the central star, finding significant ($\gtrsim 1$ order of magnitude) depletions in the abundances of C${}_2$H${}_4$, CH${}_4$, HCN, NH${}_3$, and SO${}_2$ when Ly$\alpha$ is included [108]. Interestingly, some species with large photo-absorption cross-sections in the region around Ly$\alpha$, such as H${}_2$O, do not show significant depletion, because the enhanced dissociation rate is balanced by Ly$\alpha$-driven photodesorption of water molecules from dust grains. It is clear now that Ly$\alpha$ is a mandatory component of FUV radiation fields used for chemical modeling. Historically, the large CTTS spectral atlases do not cover Ly$\alpha$ [62], or are dominated by geocoronal emission, such as archival IUE data. Reconstructing the Ly$\alpha$ radiation field impinging the inner disk region requires measurements of a large number of UV-H${}_2$ lines (see Figure 9); the largest such atlas of high-resolution FUV spectra of CTTSs is provided by France et al. [99] with high-level data available for download.

Deriving accurate FUV fluxes is challenging because extinction estimates are typically based on the comparison between a stellar template (augmented by a suitable accretion spectrum for CTTSs) and observed colors or flux-calibrated spectra, plus an assumed shape of the extinction curve. It is known that the extinction values derived from optical and NIR data can differ, but this effect is mild compared to the extrapolation into the FUV, where the correction factors are large. Specifically, it was found that the intrinsic, de-reddened UV-H${}_2$ luminosity is correlated with the assumed extinction values, which is not physically expected and suggests that the large extinction corrections, or rather errors in them, dominate over the intrinsic variations between the systems [36]. In an attempt to remedy this situation, McJunkin et al. [109] performed detailed modeling of the UV-H${}_2$ lines including self-absorption, and used the known branching ratios to recover the shape of the FUV extinction curve. Although the line of sight towards the UV-H${}_2$ emitting region in the inner disk may be subject to a different extinction from that of the central star, McJunkin et al. [109] find a number of sources for which this and more traditional methods agree, but they also find systems for which both methods strongly disagree, and more investigation on the subject of FUV extinction curves relevant for CTTSs is needed.

4.5. Disk Dispersal

Primordial gas disks are known to dissipate on timescales of $\lesssim 10$ Myr, at which point mass accretion onto the central star halts [110]. At some time in the evolution of protoplanetary disks, thermal winds carry away more mass than is transported inwards, which leads to the dispersal of the disk from the inside out [111]. Inner gas disks may survive longer than the typical $\sim 3$ Myr lifetime of inner dust disks (e.g., [83,89]). The detailed physical process that clears the inner disk is not yet established. Among the proposed mechanisms are photoevaporation [111,112] and dynamical clearing by exoplanetary systems [113], possibly aided by the magnetorotational instability [114].

Models that simultaneously treat FUV, EUV, and X-ray irradiation from the central star have shown that the FUV illumination can control the total evaporation rate (and hence the disk lifetime) by driving the heating at intermediate ($r\sim 3–30$au) and large radii ($r\ge 100$au, [112]). FUV radiation also controls the gas temperature at the base of the evaporative flows through the generation of photoelectrons released by FUV-illuminated dust grains. Grain-growth and dust settling during the first stages of the planet formation process enable deeper penetration of the FUV radiation.

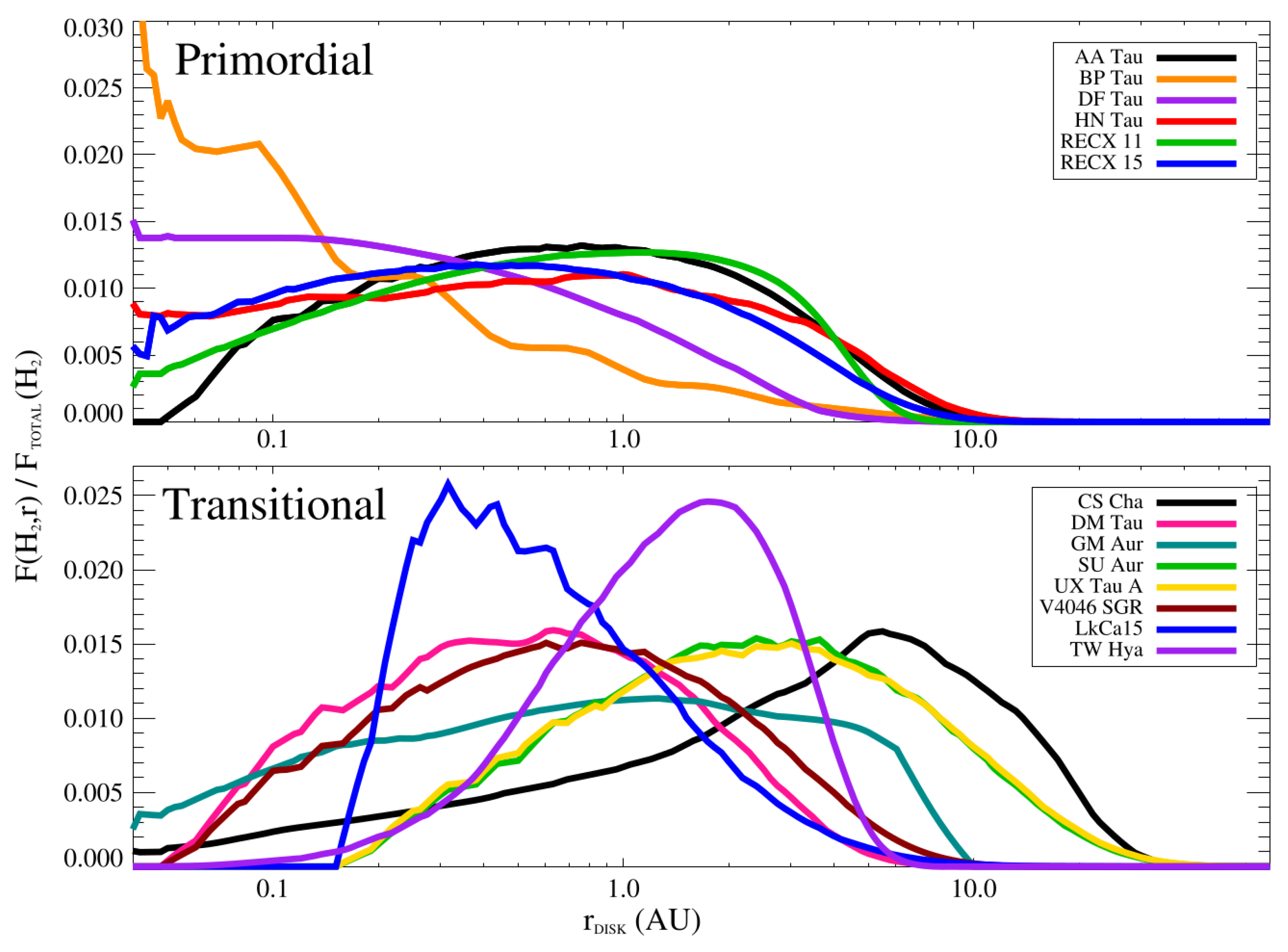

UV photons not only regulate disk dispersal, but are also powerful diagnostics thereof. For example, UV-H${}_2$ emission is sensitive to gas surface densities lower than ${10}^{-6}$ g cm${}^{-2}$ [79], making them an extremely useful probe of remnant gas during the late stages of disk dispersal. Hoadley et al. [81] study the radial distribution of the UV-H${}_2$ using kinematic modeling of the H${}_2$ profiles. In particular, these authors compare the radial distributions of full and transitional disks (Figure 10), finding that the distribution in transitional disks is shifted towards larger radii. The H${}_2$ and CO gas populations decline with dust disk dissipation [86,115], but the H${}_2$ depletion lags behind the CO for disks with large inner dust cavities [84].

5. Jets and Outflows

CTTSs and their younger siblings, the class 0 and I sources, drive outflows and jets (collimated outflows, see Frank et al. [116] for a recent review). The origin of the various outflow components is not clear, and different parts of the young stellar system may contribute with varying fractions depending on the actual tracer (Figure 2). Specifically, the star itself may drive a stellar wind [117], the region (magnetically) connecting the star and the disk may eject a so-called X-wind [118], and the disk may launch a disk wind [119].

Outflows and jets are traditionally studied in forbidden emission lines tracing thin ($logn\sim 2\dots 4$ in units of cm${}^{-3}$) plasma with temperatures around ${10}^4$K, and spectacular jet images exist which show beautiful phenomena such as bow shocks, wiggling, and precession (e.g., [120]). The jet emission is usually concentrated in so-called knots, where the jet material has been shock-heated and is now seen in emission lines. These knots move along the jet axis away from the driving source. Cooler jet components are seen as molecular emission lines, which can be studied at radio-frequencies even for highly embedded sources [121,122]. In recent years, the observing window for jet studies opened significantly and now spans from the highest photon energies in the X-ray regime [123,124,125] down to m-wavelength radiation [126].

Despite this large arsenal of observing opportunities, FUV observations of jets are highly powerful because they allow us to measure (a) the molecular content through H${}_2$ emission lines ($T\sim {10}^3$ K) and (b) kinematically resolve the hot jet in high excitation lines like C iv ($T\sim {10}^5$ K) with very high angular resolution below 0.1 arcsec [33]. Often, there is indirect evidence for an outflow component in, e.g., C iv. Dupree et al. [127] suggest that a hot ($\sim {10}^5$ K) wind exists in TW Hya based on a roughly P Cygni-like asymmetry observed in hot lines like C iii, C iv, and O vi. The absorption extends out to blue-shifted velocities of up to 400 km s${}^{-1}$, and Dupree et al. [127] estimate that a mass-loss rate of roughly 10% of the accretion rate may be sufficient to cause the observed absorption signals. This interpretation, however, heavily relies on the assumption that the intrinsic line profiles are symmetric and that the asymmetry is indeed caused by absorption. Johns-Krull Herczeg [128] dispute this assumption and show that other features in the line profiles that would be expected in a hot wind scenario are not present. They suggest that there is no indication for absorption by a hot wind in TW Hya, only for absorption in low ionization lines by a comparably cold wind is seen.

While these arguments address a hot stellar wind, jet emission in C iv is directly observed, and there is often also indirect evidence for such a hot jet, e.g., strong emission seen in IUE data, but not in smaller-aperture HST data, or the hot lines exhibit a similar kinematic morphology as forbidden lines that trace the jet rather than accretion. Studies using long-slit data were initiated based on these indirect indications.

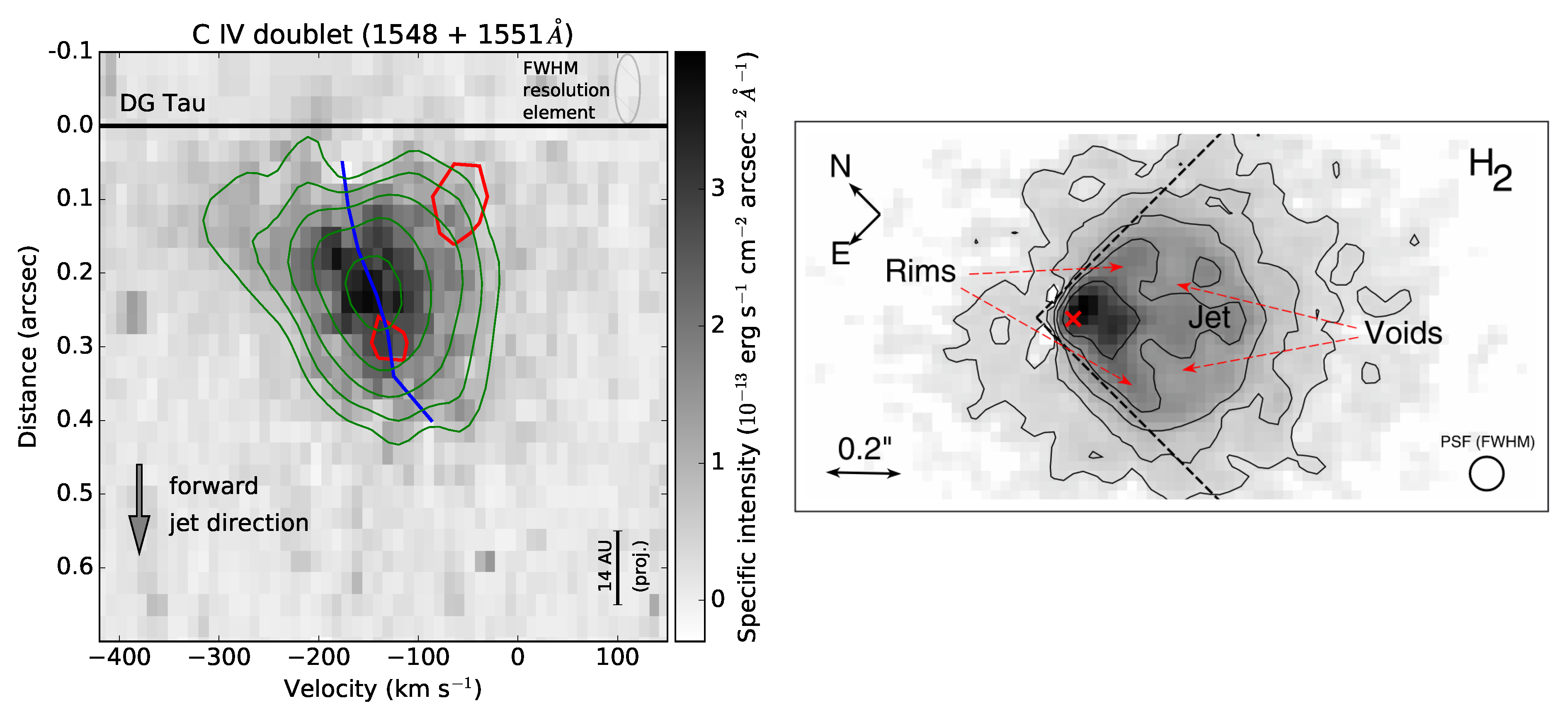

It was found that the jet’s C iv emission is typically observed to be offset from the star along the forward facing (approaching) jet by tens of au (see Figure 11). Since C iv and X-ray emission spatially overlap, it is natural to assume that they probe the same jet component [33]. The mass-loss associated with the C iv emission is somewhere between total mass-loss and the mass-loss related to the X-ray emission [129].

Both the X-ray and the C iv emission were not predicted by models, and there is no consensus on their origin. There are, however, a number of observational constraints that set these jet features apart from the well-known optical jet. First, the C iv and X-ray emission are stationary so that heating by the same shocks that cause the optical knots is unlikely [130]. Second, adiabatic cooling would have lowered the temperature of outflowing material with any reasonable initial temperature ($T<{10}^7$K) below C iv emitting temperatures so that local heating is required to power the C iv and X-ray emission at the measured distance of tens of au. Third, the velocity of the C iv emission is comparable to that of the bulk of the optical jet but spatially offset, indicating a different heating mechanism from that of shocks. Schneider et al. [33] speculate that magnetic heating similar to processes in the stellar coronae may be responsible for the C iv and X-ray emission. In addition, a velocity just slightly higher than the optical jet suggests that this outflow originates in the inner disk region, i.e., extends the jet’s onion-like velocity structure to the innermost regions very close to the star where stellar and disk magnetic fields interact. C iv from protostellar jets may therefore be a powerful probe of the magnetic field in a accretion funnel region.

In addition to the very hot jet, FUV observations also trace the jet’s molecular hydrogen emission [131,132]. This UV-H${}_2$ emission is caused by the very same processes that cause UV-H${}_2$ disk emission (cf. Section 4.1), i.e., fluorescent emission pumped by Ly$\alpha$ photons. The wide-angle structure seen in UV-H${}_2$ (Figure 11 right) appears stationary and agrees very well with the spatial morphology of the H${}_2$ emission seen in the NIR with AO-equipped IFUs [133]. The molecular outflow appears stationary in time, in contrast to the moving knots seen in optical data of protostellar jets. Thus, the UV-H${}_2$ likely arises in a wind region heated by ambipolar diffusion with subsequent pumping by stellar Ly$\alpha$ photons, and likely traces probably the outermost regions of the MHD wind [132].

6. Variability

In the previous sections, we described how FUV emission can originate from chromospheric activity, from accretion, and from outflows or jets. All of these sources are variable, just on different time scales. Given the general sparsity of FUV observations (since space-based instrumentation is required) and the fact that, compared with other wavebands, relatively low column densities of intervening material absorb nearly all intrinsic signal, variability in the FUV band is not well-studied.

One characteristic time scale in stars is the rotation period. Active regions or accretion spots rotate in and out of view. This accounts partially for observed changes in the accretion rate with time [134]. Early IUE monitoring of DI Cep and BP Tau shows that this holds true in the UV. FUV line fluxes in DI Cep associated with the accretion hot spot change over the course of a rotational cycle, and, additionally, line and continuum fluxes change as the accretion rate changes when comparing spectra taken more than a decade apart. These changes are correlated with the V band magnitude [57]. Similarly, in BP Tau emission lines that are formed through recombination, i.e., in the accretion shock, such as O i and He ii, vary with stellar phase, while lines that can be formed both in the accretion shock and in the transition region, such as the C iv doublet at 1548 and 1550 Å, show less-pronounced phase variation [58,135]. In a more recent observation of GM Aur, the model fits allow the disentanglement of the accretion rate and spot area, indicating that, at least on this star, it is in fact the density of the accretion stream that changes, not the size of the shock [136].

It is worth noting that the shock is also invoked as the source of soft X-ray emission [137,138,139], yet X-ray and FUV flux appear uncorrelated [94]. This might be related to another key finding, namely that accretion rates derived from X-rays fall short of those derived from UV/optical tracers by an order of magnitude [140]. Conceptually, the FUV and the soft X-rays should be the best tracers for the accretion rate, because both the FUV and the X-ray emission is produced very close to the accretion shock, where the energy budget is dominated by the kinetic energy of the infalling mass. The X-ray emission is formed right after the material passes through the shock front. Models successfully reproduce line ratios in the spectrum [137,141], although they do not describe the full temperature range of the shock accurately [139]. The FUV emission is formed at the bottom of the accretion column and in the gas around it [53,71], and yet, X-ray and FUV variability seem uncorrelated or even anti-correlated [142]. This finding clearly points to a fundamental problem in our current understanding of the accretion shock.

What is the impact of this variability on the FUV emission from the disk? Section 4.2 discusses the 1600 Å bump, which is most likely due to emission from excited H${}_2$, i.e., it originates in the disk. In a sample of five CTTSs observed five times each with HST/STIS, the flux of this feature correlates with the accretion luminosity determined from the UV continuum [94], but not with the X-ray flux. This is consistent with the idea that the H${}_2$ is excited by the stellar Ly$\alpha$ emission.

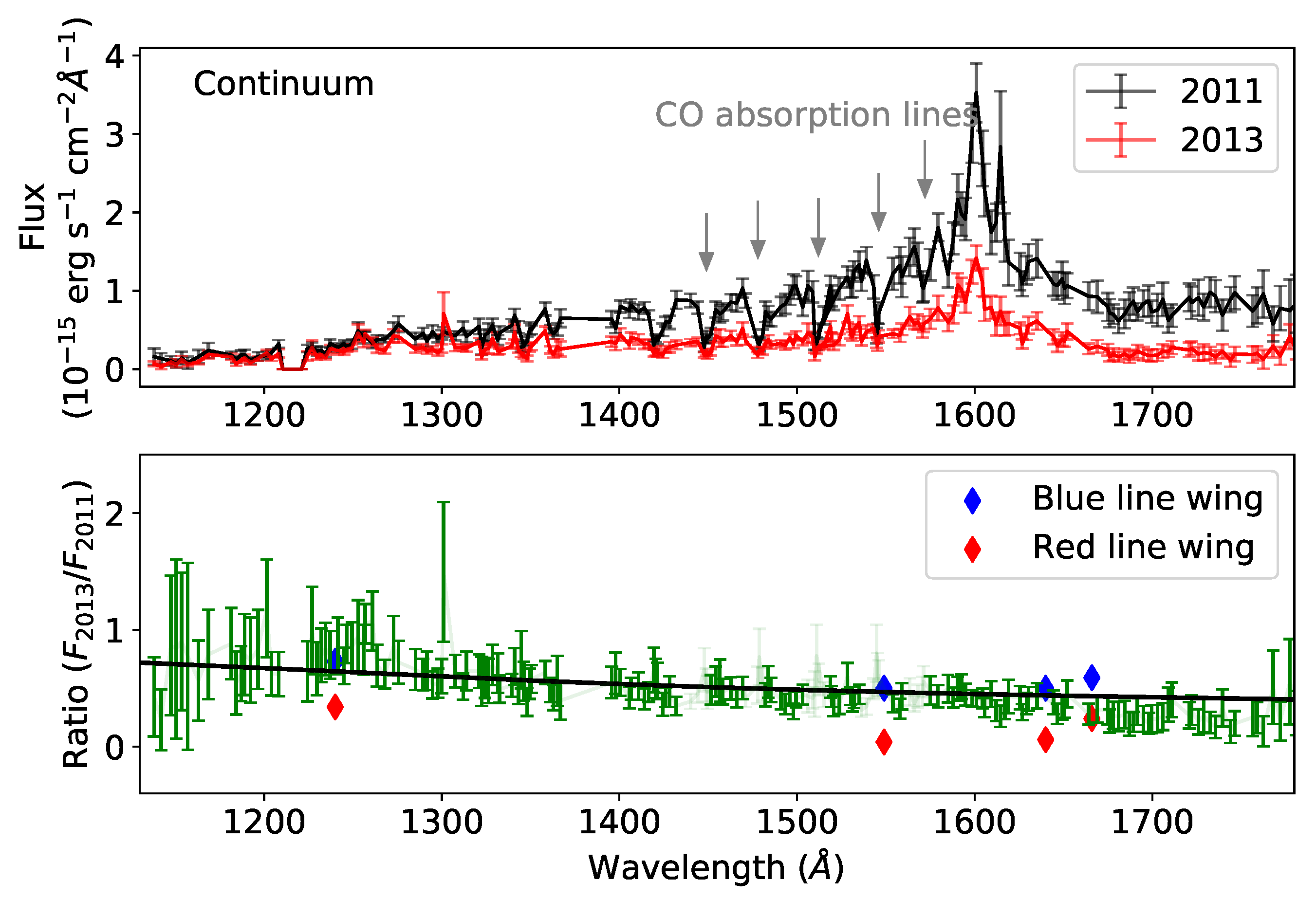

Another disk-related feature that has a great impact on the FUV appearance of CTTSs includes long-lasting dimming events such as the one observed for AA Tau [143]. During such dimming events, the optical brightness of the system decreases by a few magnitudes for months to years, i.e., they are significantly dimmer for a longer time-period than typically observed. While the precise cause for the dimming is not clear, it is likely caused by changes in the inner disk structure, precisely the disk region traced by UV-H${}_2$ emission (see Section 4.1). Therefore, comparison of the UV-H${}_2$ emission before and during a dimming event provides key information on the disk regions that take part in the dimming event. Schneider et al. [87] find that the observed UV-H${}_2$ line profiles lack emission from regions within 2 au from the star, while emission originating at larger radii is unaffected (also [81]). Furthermore, Schneider et al. [87] find that the flux ratio between the dim and bright state cannot be explained by simply adding extra absorption for both the continuum and the red line wings of hot ion lines (see Figure 12). These authors suggest that scattering is the most plausible explanation, because other scenarios require uncomfortable fine-tuning, e.g., anomalous dust requires not only a very peculiar dust size distribution, but also an exchange of a precise fraction of dust obscuring the system during the bright state with a special dust column. Lastly, the blue line wings of hot ion lines are only weakly affected by the dimming suggesting that they have strong outflow/jet contributions already in the bright state. Such dimming events therefore provide unique information, as the central star is hidden behind a natural coronograph. Unfortunately, these dimming events are rare and unpredictable, so following each new discovery would be highly valuable.

Young stars also exhibit much longer lasting and more consequential outbursts, where the disk structure changes dramatically and the accretion rate increases by several orders of magnitude. The longest and brightest of these outbursts are called “FU Ori outbursts”, and it can take decades or centuries until the accretion rate settles back to the previous stable state (see review in [144]). In FU Ori outbursts, the system is totally dominated by the accretion luminosity. The UV spectrum looks very different from a CTTS: It appears to be a superposition of a hot (9000 K), geometrically thick inner disk and a cooler outer component (5000 K), dominated by a dense forest of absorption lines from disk outflows [145,146].

In outflows and jets, we see temporal variability in the mass launching. In the jets, distinct emission regions, called “knots”, can be seen, which are either blobs of mass launched from the star over periods of years or shock fronts traveling along the slower-moving material of the jet. One of the best examples of this in the FUV is the jet of HD 163296, a Herbig Ae star. This star shares many characteristics with CTTSs, but because it is more massive, and thus brighter, the accretion and jet features can be observed with comparably higher signal-to-noise ratios. Repeated observations of Ly$\alpha$ emission in the jets shows that knots observed at one period fade away, and new knots emerge from the source of the jet [147,148]. Similar observations have been made for CTTSs in other bands (e.g., in DG Tau, four knots have been tracked for two decades in the optical, X-ray, and radio [149]), so it is likely that a time-series of Ly$\alpha$ images would show the flow of the knots along the jets in CTTSs, too, if they were observed with a sufficiently sensitive instrument.

7. Conclusions and Outlook

Young stars are strong UV emitters compared to their older siblings. This emission is mostly due to processes that are intrinsic to star formation, namely, protostellar mass accretion, enhanced stellar activity, and emission from surrounding disks and outflows. In addition, the UV radiation field controls the conditions in the planet forming region of protoplanetary disks and is thought to drive or contribute to the eventual dispersal of the disks. Therefore, UV observations are critical to painting the complete picture of star- and planet-formation.

In this review, we have discussed, first, that the chromospheric and transition region emission is particularly strong in CTTSs due to enhanced magnetic activity, as young stars are generally fast rotators. Second, we showed that the accretion processes release most of the energy in the UV range as continuum and Ly$\alpha$ emission. Accretion also causes strong emission lines from hot ions (e.g., C iv), which provide detailed accretion kinematics not available in other wavelength ranges. Their study suggests that accretion funnels are not homogeneous structures, but rather stratified in density so that optical depth effects are important and probably only a fraction of the accretion funnel is seen depending on inclination angle. Third, UV observations provide important, complementary diagnostics for the structure and evolution of protoplanetary disks, and, fourth, jets and outflows are also seen in the UV regime, where new observations revealed jet components not seen in traditional jet tracers, namely a hot, stationary jet component close to the central star. Fifth, young stars are highly variable, and monitoring campaigns combining X-ray, UV, and optical data are beginning to disentangle how the individual features are causally related. Despite all this success, there is no theory that can self-consistently explain all features. The coming years will see increasingly sophisticated models, incorporating, e.g., a more detailed treatment of the radiative effects of the accretion funnel, including the reprocessing of the primary X-ray photons.

While most of the contributions to the system’s FUV emission have now been identified, there are still potentially large uncertainties that need to be addressed by future observations. First, scattering may be important in more obscured sources or sources seen under high inclination angles [87]; it is currently unknown how much scattering contributes to the observed UV spectrum of a CTTS. This is important, because the de-reddening corrections that apply to the central star may not apply to other FUV emission components. High-sensitivity two-dimensional imaging spectroscopy (e.g., an IFU or MSA-enabled instrument) would allow us to simultaneously measure the inner disk region as a function of wavelength, spatial location, and velocity, allowing us to quantify the relative importance of scattering and the temporal variability of different disk components individually. Second, jets can contribute to the FUV emission and, because their emission is located close to the star, their emission can be mistaken as stellar; note that there are not necessarily kinematic signatures like highly blue-shifted emission, as the blue- and red-shifted jet lobe may both emit, resulting in a net velocity shift close to zero. Future high-resolution imaging spectroscopy observations are needed to constrain the importance of scattering and jet emission in “typical” samples of CTTSs.

The next major step for understanding the UV emission of CTTSs will be the Hubble Space Telescope’s ULLYSES program. The ULLYSES program will dedicate ∼ 500 orbits to the study of low-mass star formation in the UV. ULLYSES will include a spectral atlas of ∼ 60 new sources and a dedicated, multi-wavelength monitoring program for high-priority targets. On intermediate time scales, however, neither ESA nor NASA are committed to building a space mission with dedicated UV instrumentation within the next decade. The Russian Spektr-UV mission may be the next dedicated UV mission, and is currently scheduled to launch in the mid-2020s. With a 1.7 m mirror, it will be somewhat comparable to HST, also in its spectroscopic and imaging capabilities (low- and high-resolution UV spectroscopy). The next opportunity to launch a large space mission with sensitive UV spectroscopic capabilities may be the LUVOIR mission concept [100,150], to be launched in the late 2030s. In fact, LUVOIR’s science goals specifically include the questions of low-mass star formation that we discussed in the review.
