Identification and Expression Analysis of Four Small Heat Shock Protein Genes in Cigarette Beetle, Lasioderma serricorne (Fabricius)

by
Wen-Jia Yang
,
Kang-Kang Xu
,
Yu Cao
,
Yong-Lu Meng
,
Yan Liu
and
Can Li
*
Guizhou Provincial Key Laboratory for Rare Animal and Economic Insect of the Mountainous Region, College of Biology and Environmental Engineering, Guiyang University, Guiyang 550005, China
*
Author to whom correspondence should be addressed.
Insects 2019, 10(5), 139; https://doi.org/10.3390/insects10050139
Submission received: 17 April 2019 / Revised: 8 May 2019 / Accepted: 12 May 2019 / Published: 15 May 2019
Browse Figures
Versions Notes

Abstract

:
Small heat shock proteins (sHsps) are molecular chaperones that play crucial roles in the stress adaption of insects. In this study, we identified and characterized four sHsp genes (LsHsp19.4, 20.2, 20.3, and 22.2) from the cigarette beetle, Lasioderma serricorne (Fabricius). The four cDNAs encoded proteins of 169, 180, 181, and 194 amino acids with molecular weights of 19.4, 20.2, 20.3, and 22.2 kDa, respectively. The four LsHsp sequences possessed a typical sHsp domain structure. Quantitative real-time PCR analyses revealed that LsHsp19.4 and 20.3 transcripts were most abundant in pupae, whereas the transcript levels of LsHsp20.2 and 22.2 were highest in adults. Transcripts of three LsHsp genes were highly expressed in the larval fat body, whereas LsHsp20.2 displayed an extremely high expression level in the gut. Expression of the four LsHsp genes was dramatically upregulated in larvae exposed to 20-hydroxyecdysone. The majority of the LsHsp genes were significantly upregulated in response to heat and cold treatments, while LsHsp19.4 was insensitive to cold stress. The four genes were upregulated when challenged by immune triggers (peptidoglycan isolated from Staphylococcus aureus and from Escherichia coli 0111:B4). Exposure to CO2 increased LsHsp20.2 and 20.3 transcript levels, but the LsHsp19.4 transcript level declined. The results suggest that different LsHsp genes play important and distinct regulatory roles in L. serricorne development and in response to diverse stresses.

1. Introduction

Heat shock proteins (Hsps), a group of molecular chaperones, play important roles in promoting correct refolding and blocking aggregation of denatured proteins [1]. Hsps represent a large gene superfamily and are universally present in the majority of living organisms ranging from bacteria to mammals. Hsps are stress-related proteins that are highly expressed in response to external stresses, including exposure to extreme temperatures [2,3], ultraviolet radiation [4], heavy metals [5], parasitic infection [6], and chemicals [7], as well as in response to starvation [8] and oxidation [9]. In addition, Hsps exhibit a variety of biological functions in early embryogenesis, diapause, and morphogenesis [10]. On the basis of their molecular mass and sequence similarities, Hsps have been classified into six families: Hsp100, Hsp90, Hsp70, Hsp60, Hsp40, and small Hsps [11,12]. Among these families, small Hsps are probably the most diverse protein family and show the greatest variation in sequence, size, and function [13].
Small heat shock proteins (sHsps) range in molecular mass from approximately 12 to 43 kDa [14]. Typically, sHsps are relatively conserved in amino acid structure and composition. The sequence generally contains an α-crystallin domain of 80–100 amino acids located near the C-terminal region, a disorganized N-terminus, and a variable C-terminus [15,16]. Most sHsps display chaperone-like activities, preventing aggregation and facilitating the correct refolding of denatured proteins [17,18]. Apart from their fundamental functions in stressful conditions, sHsps also participate in other physiological processes, including cell growth, differentiation, apoptosis [19], membrane fluidity [20], lifespan [21], and diapause [22]. At present, several sHsp cDNA sequences have been identified in numerous insect species. For example, 10 sHsp genes are known in Apis mellifera, seven in Anopheles gambiae, 11 in Drosophila melanogaster, 10 in Tribolium castaneum, and 16 in Bombyx mori [23], 14 in Plutella xylostella [24], 15 in Choristoneura fumiferana [25], and five in Bemisia tabaci [26]. Multiple sHsp genes have diverse and variable functions during insect growth and development. Previous studies have demonstrated that sHsps play essential roles in insect development and in defense against a variety of stresses. For instance, sHsps contribute to thermal tolerance in Laodelphax striatellus [27]. The expression of three sHsp genes in flesh fly (Sarcophaga crassipalpis) is upregulated during overwintering pupal diapause [28]. In D. melanogaster, overexpression of hsp22 increases resistance to oxidative stress and aging [29]. RNA-interference experiments in T. castaneum indicate that knockdown of Tchsp18.3 affects pupal-adult metamorphosis and reduces adult reproduction [30]. In Apis cerana, silencing of sHsp22.6 significantly decreases temperature tolerance, and the recombinant sHsp22.6 protein exhibits remarkable temperature tolerance, antioxidation, and molecular chaperone activities [31].
The cigarette beetle, Lasioderma serricorne (Fabricius) (Coleoptera: Anobiidae), is a destructive and economically important storage pest worldwide [32]. Outbreaks of this species constitute a severe threat to many stored products, including cereals, tobacco, dry foods, and traditional Chinese medicinal materials [33,34]. After egg hatching, L. serricorne larvae bore tunnels into the stored materials and spend their larval stage inside host products [35,36]. Control of L. serricorne has depended heavily on the application of chemical insecticides. Methyl bromide, phosphine, pyrethrin, and organophosphorus are the primary compounds used for cigarette beetle management [37,38]; however, the excessive use of chemicals has resulted in resistance development and environmental contamination [39,40]. Extreme temperature treatments and low-oxygen controlled atmospheres have previously shown promise as ecologically friendly alternatives to conventional control methods [41,42]; however, L. serricorne has developed substantial tolerances to extreme temperatures and oxygen-deficit conditions [43]. The high adaptability of L. serricorne in response to various stresses renders it difficult to control. However, insect sHsps could be used to modify the biological responses elicited by external abiotic stresses. To date, no study has investigated the effects of stresses on sHsps in L. serricorne at the molecular level.
In the present study, we identified and cloned the full-length open reading frame (ORF) sequences of four sHsp genes in L. serricorne. We analyzed the expression patterns of the sHsps in different developmental stages and tissues, and in response to 20-hydroxyecdysone (20E) treatment. In addition, we evaluated the responses of the four sHsps to diverse stresses, comprising thermal stress, immune challenges, and CO2 stress.

2. Materials and Methods

2.1. Insect and Sample Preparation

The laboratory stock colony of L. serricorne, originally collected in 2014 from a tobacco warehouse in Guizhou Province, China, was reared on Chinese medicinal material (Angelica sinensis) and maintained at 28 ± 1 °C and 40% ± 5% relative humidity under a scotoperiod of 24 h.
Samples at different developmental stages, including early larvae (EL, <24 h post-hatching), late larvae (LL, older than fourth instar larvae and before prepupae), pupae (PU, >48 h post-pupation), early adults (EA, <24 h post-eclosion), and late adults (LA, one week old) were collected separately and stored at −80 °C. In the tissue-specific experiment, the fifth instar larvae were used for tissue isolation. The integument, fat body, gut, and carcass of L. serricorne were dissected under a stereomicroscope (Olympus SZX12, Tokyo, Japan). Each tissue type was placed in a 1.5-mL centrifuge tube containing RNA storage reagent (Tiangen, Beijing, China). Pools of 30 individuals of larvae were used to prepare the integument, gut, and carcass, and 50 individuals were pooled to collect the fat body tissue. All tissue samples were immediately frozen in liquid nitrogen and stored at −80 °C. Each sample was replicated three times.

2.2. 20E and Temperature Treatment

For the 20E (Sigma-Aldrich, St. Louis, MO, USA) treatment, a 10 μg/μL stock solution of 20E dissolved in 95% ethanol was diluted to 1 μg/μL with distilled water and used as the working solution. For the treatment group, fourth instar larvae were injected at a dose of 120 ng/larva using a Nanoliter 2010 injector (World Precision Instruments, Sarasota, FL, USA). The control group was injected with an equivalent volume of distilled water containing 0.1% ethanol. At 4, 8, and 12 h after injection, the whole bodies of surviving insects were frozen in liquid nitrogen and stored at −80 °C. For the temperature treatment, the early female and male adults were placed in small glass tubes and exposed to a range of temperatures (5, 40, 42, 44, and 46 °C) for 2 h in a temperature-controlled chamber (DC-3100, Ningbo, China). After exposure, adults were allowed to recover at 28 °C for 2 h, and survivors were frozen in liquid nitrogen and stored at −80 °C. A set of adults maintained at 28 °C was used as a control. At least 30 insects were randomly collected per replication, and three independent biological replications were performed.

2.3. Immune Challenge and Controlled Atmosphere Treatment

For the immune challenge, peptidoglycan from Staphylococcus aureus (PGN-SA; InvivoGen, San Diego, CA, USA) and peptidoglycan from Escherichia coli 0111:B4 (PGN-EB; InvivoGen) were diluted with sterile endotoxin-free water to a final concentration of 1.0 μg/μL. The fourth instar larvae were injected with 200 nL of PGN-SA solution, PGN-EB solution, or sterile endotoxin-free water. The control group was handled in the same manner but without injection. Thirty individuals were randomly selected from each group after 3, 6, and 9 h post-injection. For the controlled atmosphere (CA) treatment, adults were exposed to air containing 70% CO2 for 6 h. The treated insects were then transferred to natural atmospheric conditions for 6 h, and the mortality rate was recorded as 35.81%. The control group was maintained under natural atmospheric conditions. Approximately 40 surviving individuals were randomly selected from each group. Each of the above-mentioned treatments included three biological replications. All samples were frozen in liquid nitrogen and stored at −80 °C for RNA extraction.

2.4. RNA Extraction and cDNA Synthesis

Total RNA was extracted from each sample using the MiniBEST Universal RNA Extraction Kit (TaKaRa, Dalian, China) and treated in a gDNA Eraser spin column for genomic DNA removal. The RNA quantity was measured using a NanoDrop 2000C spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) with absorbance levels of 260 nm and 280 nm. The RNA integrity was verified by 1% agarose gel electrophoresis. The cDNA for cloning and quantitative real-time PCR (qPCR) was synthesized using 1 μg RNA from each sample using the PrimeScript® RT Reagent Kit (TaKaRa) with random hexamer and oligo (dT) primers.

2.5. Identification and Sequencing of LsHsp cDNAs

Based on the L. serricorne transcriptome database (unpublished data), four unigene cDNAs encoding sHsps were obtained. The full-length ORFs of the four genes were confirmed by PCR with the corresponding pair of specific primers (Table 1). The PCR reaction was as follows: 95 °C for 3 min; followed by 35 cycles at 95 °C for 30 s, 55–65 °C (depending on the gene-specific primers) for 30 s, and 72 °C for 1 min, and then a final extension for 10 min at 72 °C. The PCR products were separated by 1% agarose gel electrophoresis and sub-cloned into the pGEM-T Easy vector (Promega, Madison, WI, USA) for sequencing.

2.6. Bioinformatics and Phylogenetic Analyses

The ORFs were predicted with ORF finder (http://www.ncbi.nlm.nih.gov/gorf/gorf.html). DNAMAN 6.0 (LynnonBiosoft, Vaudreuil, Quebec, Canada) was used to generate a multiple-sequence alignment. Sequence similarities and the presence of conserved domains were determined using the Basic Local Alignment Search Tool algorithm-based programs available on the National Center for Biotechnology Information website (http://www.blast.ncbi.nlm.nih.gov/Blast). The molecular weights and isoelectric points were predicted with ExPASy (http://us.expasy.org/tools/protparam.html). Secondary structure predictions were performed with PHD software accessed through the NPS@Web server (http://npsa-pbil.ibcp.fr) [44]. A phylogenetic analysis was performed by MEGA 6.06 [45] using the neighbor-joining method with 1000 bootstrap replicates and pairwise deletion.

2.7. Quantitative Real-Time PCR

The qPCR analysis was performed using the CFX-96 real-time PCR System (Bio-Rad, Hercules, CA, USA) in a total reaction volume of 20 μL, including 10 μL of GoTaq® qPCR Master Mix (Promega), 1 μL of cDNA template, 1 μL of each of the gene-specific primers, and 7 μL of nuclease-free water. All primers used for qPCR were designed using Primer 3 (version 0.4.0) software (http://fokker.wi.mit.edu/primer3/) (Table 1). The reaction procedure was performed as follows: 95 °C for 2 min, followed by 40 cycles of 95 °C for 30 s and 60 °C for 30 s. A melting curve analysis from 60 °C to 95 °C was applied to all reactions to ensure the specificity and consistency of the generated products. All experiments were performed in triplicate, with two technical replicates each. The 18S ribosomal RNA (18S) gene was used as an internal reference gene. The relative expression level of the sHsp genes was calculated using the 2−ΔΔCt method [46].

2.8. Data Analyses

For all statistical analyses, IBM SPSS Statistics version 20.0 software (IBM Corporation, Armonk, NY, USA) was used. The expression data were presented as the mean ± standard error. Significant differences among treatments were analyzed by one-way analysis of variance (ANOVA) followed by a least significant difference test for multiple comparisons or a two-tailed, unpaired t-test for comparisons of two means.

3. Results

3.1. Identification and Characterization of Four LsHsp Genes

Four LsHsp genes, namely LsHsp19.4, 20.2, 20.3, and 22.2 (GenBank accession numbers: MK395540, MK395541, MK395542, and MK395543) were cloned from L. serricorne. Sequencing analysis revealed that the cDNAs included ORFs of 510, 543, 546, and 585 bp, respectively, encoding proteins of 169, 180, 181, and 194 amino acids, respectively. The predicted molecular weights of the LsHsps ranged from 19.4 to 22.2 kDa, with theoretical isoelectric points of 5.94 to 6.60 (Table 2).
The amino acid residue identities were 20%–63% among the four LsHsps. Multiple alignments of the deduced amino acid sequences revealed that the four sHsp proteins contained a typical α-crystallin domain, which consisted of approximately 100 amino acids and six β-strands (Figure 1).
To analyze the relatedness of the four LsHsps with sHsps from other insect species, we constructed a phylogenetic tree using the neighbor-joining method. The four LsHsps (LsHsp19.4, 20.2, 20.3, and 22.2) showed high sequence similarity to each other and were grouped into one cluster (Figure 2).

3.2. Expression Levels of Four LsHsp Genes at Different Developmental Stages

The expression levels of the four LsHsp genes at different developmental stages (early larvae, late larvae, pupae, early adults, and late adults) were estimated by qPCR. Generally, the four genes were consistently expressed at all tested stages, but exhibited different developmental expression patterns (Figure 3). The highest expression levels of LsHsp19.4 and 20.3 were observed in pupae and were respectively 8.49- and 12.2-fold greater than those at other stages. The maximum expression level of LsHsp20.2 was recorded in late adults and was 24.1-fold greater than those at other stages. LsHsp22.2 transcripts were most abundant in early adults and were 26.9-fold higher than those at other stages.

3.3. Expression Levels of Four LsHsp Genes in Different Tissues

All four LsHsp genes were expressed in the four tissue types analyzed. Gene expression varied significantly with tissue type except for LsHsp22.2. Interestingly, the highest expression levels of LsHsp19.4 and LsHsp20.3 were detected in the fat body, while the lowest expression levels were recorded for the carcass (Figure 4). Additionally, the maximum expression level of LsHsp20.2 was observed in the gut, which was 6.17-fold greater than that detected in the other tissues.

3.4. Effects of 20E Treatment on the Expression Levels of Four LsHsp Genes

To determine whether 20E induces LsHsp expression in vivo, the mRNA levels of the four LsHsp genes in the fourth instar larvae were quantified in response to 20E treatment. The transcript levels of LsHsp20.2 and 20.3 increased significantly after injection of 20E at all three time points, but the response of LsHsp20.3 was much more intense than that of LsHsp20.2. Compared with the control specimens, the expression level of LsHsp22.2 dramatically increased in larvae injected with 20E at 8 and 12 h. However, 20E-induced expression was not observed for LsHsp19.4 (Figure 5).

3.5. Expression Levels of Four LsHsp Genes in Response to Thermal Stress

The expression patterns of the four LsHsp genes in response to thermal stress differed substantially. During cold-shock treatment, the expression levels of three LsHsp genes were remarkably upregulated, whereas that of LsHsp19.4 was not significantly altered. During heat-shock treatment, the expression levels of all four LsHsp genes were significantly increased, and the greatest induced expression of LsHsp20.3 was observed in response to the 42 °C treatment (Figure 6). For LsHsp20.3, the response patterns initially increased and then decreased as the temperature increased. The other three LsHsp genes exhibited similar expression patterns that increased in a temperature-dependent manner.

3.6. Expression Levels of Four LsHsp Genes in Response to Immune Challenges

To evaluate the responses of the LsHsp genes to immune challenges, the larvae were exposed to PGN-SA and PGN-EB at three time intervals (Figure 7). After PGN-EB exposure, expression levels of the four LsHsp genes were significantly increased by 1.34- to 119.1-fold. The maximum induced expression occurred in LsHsp20.2 at 6 h after injection with PGN-EB. Injection of PGN-SA also significantly induced expression of LsHsp genes at 3, 6, and 9 h post-treatment. In addition, the induced expression levels of LsHsp19.4 and 20.2 were greater in PGN-EB-treated groups than those in PGN-SA-treated groups.

3.7. Effects of CO2 Exposure on the Expression Levels of Four LsHsp Genes

To investigate the effects of CO2 exposure on LsHsps expression, adults were exposed to air containing 70% CO2 for 6 h. The expression levels of LsHsp22.2 and 20.2 were significantly upregulated by 2.66- and 5.84-fold, respectively. However, the expression level of LsHsp20.3 decreased by 4.2-fold after exposure to the CO2 treatment compared with that of the control (Figure 8). No difference in LsHsp22.2 expression was observed in the CO2-treated group compared with that of the control.

4. Discussion

Insects possess different types of sHsps, which differ in structure and function among species [23,24,27,47]. The sHsps are known to play major roles in cell response to different stresses [48]. Analyses of these sHsps would provide valuable information for further functional studies in different insects. In the current study, we identified and cloned four sHsp genes (LsHsp19.4, 20.2, 20.3, and 22.2) in L. serricorne based on our previous transcriptome data. Sequence analysis indicated that the four sHsps showed high similarity with other insect sHsps. The deduced amino acid sequences of four LsHsps contained a conserved α-crystalline domain consisting of common β-strands, which agrees with previous studies of sHsps in other insect species [47,49,50,51].
Insect sHsps play important roles in the regulation of development. In the current study, we observed that the expression of four LsHsps occurred in tested developmental stages, but these LsHsps showed distinct expression patterns. The mRNA levels of LsHsp19.4 and 20.3 increased greatly when larvae molted into the pupal stage, suggesting that these two sHsps may have crucial functions in pupal formation. Similar expression patterns have been observed in other insect species, for example, Hsp23, 26, and 27 in D. melanogaster [52], Hsp19.5 in P. xylostella [53], Hsp19.5, 20.8, and 21.7 in Liriomyza sativae [54], and Hsp20.4 and 20.8 in Spodoptera litura [55]. In addition, LsHsp 20.2 and 22.2 showed high expression levels during the adult stages. This finding is consistent with previous studies in which sHsp genes were upregulated in adults of Chilo suppressalis [49], Cydia pomonella [56], and Harmonia axyridis [57]. In Sesamia inferens, large quantities of Hsp19.6 and 20.6 transcripts were observed in the egg [58]. Interestingly, Hsp21.4 in S. litura and Hsp21.6 in Bactrocera dorsalis exhibit constitutive expression patterns during all developmental stages [47,51]. Collectively, the diverse expression patterns of sHsp genes indicate that they might fulfill different roles during the developmental progression of insects.
The expression of insect sHsps shows distinct tissue specificity. In B. mori, Hsp19.1 and 22.6 were highly expressed in the integument, head, and midgut, whereas Hsp20.1, 20.4, and 27.4 exhibited high expression levels in the ovary and testis [23]. In Oxya chinensis, Hsp19.1, 20.4, 20.7, and 21.1 were selectively expressed in the ovary and testis, whereas Hsp19.8 and 23.8 were mainly expressed in the muscle [50]. Previous studies showed that the Malpighian tubules are the primary site of sHsp expression, such as in S. litura [47], C. suppressalis [49], and C. fumiferana [25]. In the present study, LsHsp19.4 and 20.3 were highly expressed in the fat body. Similar findings have been reported for other insect species, such as B. mori [59] and B. dorsalis [51]. The insect fat body is an important organ involved in diverse biological processes, including detoxification, immunity, energy metabolism, and nutrient storage. However, it remains unclear why sHsps were highly expressed in the fat body, and further studies are required to clarify their precise roles in L. serricorne. Similar to four sHsp genes (Hsp19.5, 20.1, 21.6, and 21.8) from P. xylostella [24], LsHsp20.2 showed a higher expression level in the gut than in other tissues analyzed. Interestingly, LsHsp22.2 exhibited a constitutive expression pattern in the four tested tissues, suggesting that it may play fundamental roles in in vivo activities.
There is a functional correlation between hormones and heat-shock regulatory systems [60]. The expression of sHsp genes can be regulated by 20E in numerous insect species. Here, we found 20E upregulated mRNA levels of three sHsp genes in L. serricorne at different time points. This observation is in agreement with studies of B. dorsalis in which the expression levels of BdHsp18.4, 20.4, and 20.6 were induced by 20E [51]. Similarly, significant upregulation of SlHsp20.4 and SlHsp20.8 by 20E was observed in the larval midgut and cell line of S. litura [47,55]. There is strong evidence for a connection between ecdysone and insect sHsps. For example, upregulation of Hsp27 in D. melanogaster and Ceratitis capitata by 20E is mediated by a canonic ecdysone response element (EcRE) located in the promoter region [61,62]. Binding sites for the ecdysone-responsive transcription factor Broad-Complex (BR-C) were detected in the 5′-flanking regions of Drosophila Hsp23 [63], AccHsp23.0, and AccHsp24.2 in A. cerana [64]. Epidermis culture experiments showed that the expression of two AccHsp genes could be regulated by 20E [64]. Interestingly, expression of SlHsp20.4 and SlHsp20.8 was also induced by the juvenile hormone (JH), and the responses of two sHsp genes to JH induction were greater than that to 20E induction [55].
Studies of many sHsp genes in insects have demonstrated upregulated expression after thermal stress exposure. In the present study, three LsHsp genes were dramatically upregulated in response to cold treatment. Cold shock induces upregulation of sHsp genes, including Hsp21.4, 20.6, and 19.6 in S. inferens [58], Hsp20.4 and 20.8 in S. litura [47], and Hsp19.8, 21.5, and 21.7b in C. suppressalis [49]. Heat stress also induced the expression of four sHsp genes in L. serricorne, indicating their potential roles in heat resistance. Similar situations have been observed in several insects, including B. mori [23], P. xylostella [24], B. dorsalis [51], and C. fumiferana [25]. The sHsp bind to other cellular proteins under thermal stress and provide protection from denaturation. Different response patterns were observed for the four sHsp genes of L. serricorne in response to heat or cold treatment. Furthermore, LsHsp19.4 was insensitive to cold stress, which is consistent with the responses of Hsp20 and 21.4 in S. litura [47], and Hsp17.7 and 21.6 in B. dorsalis [51]. Thus, different sHsps may have different mechanisms of action for adaptation to thermal stress.
It was reported that sHsp expression could be regulated by immune challenge in many insects. In A. cerana, for example, AccsHsp22.6 expression was significantly increased by inoculation with the fungal pathogen Ascosphaera apis [31]. AccsHsp27.6 expression was induced by exposure to S. aureus and Micrococcus luteus and suppressed by Bacillus subtilis and Pseudomonas aeruginosa. These results indicate that sHsps participate in the host immune response to different microbes, and additional analysis of recombinant Hsp27.6 protein provides antimicrobial evidence [9]. Treatment of B. mori larvae with cytoplasmic polyhedrosis virus (CPV) significantly increased the expression of sHsp23.7, suggesting its involvement in anti-BmCPV immunity [65]. Zhang et al. [66] reported that sHsp20.8 expression in Chinese oak silkworm (Antheraea perny) was substantially upregulated after bacterial and viral infection. Recent studies of T. castaneum show that silencing of Hsp18.7 amplifies the serine protease signaling pathway to regulate innate immunity of red flour beetles [67]. In the present study, the expression levels of four LsHsp genes were upregulated after treatment with Gram-positive peptidoglycan (PGN-SA) and Gram-negative peptidoglycan (PGN-EB), indicating that the LsHsps might play important roles in responses to different immune reactions. In addition, the expression of multiple insect sHsp genes is regulated by immune challenge. These effects are indirect and might be due to immune response elements [9,31].
Controlled atmosphere treatments using high CO2 (hypercapnia) and low oxygen (hypoxia) have been applied commercially to control the cigarette beetle [34,68]. However, several populations are reported to have developed substantial tolerance to evaluated CO2 [34]. Hypercapnia may cause many physiological consequences to insects, including the reduction of metabolic rate and initiation of anaerobic respiration [69]. Our previous studies showed that the specific activity of carboxylesterase in L. serricorne was increased following exposure to CO2-enriched atmosphere [34]. The expression of two glutathione S-transferase genes (LsGSTt1 and LsGSTs1) could also be markedly induced by CO2 [70]. We concluded that detoxification enzymes may be critical for tolerance to CO2 stress. It has been demonstrated that sHsps are rapidly synthesized in cells after exposure to environmental stressors and develop protective functions. The sHsps are reported to be the best candidates for adaptation to various stresses. Studies of A. cerana show that AccHsp27.6 expression is suppressed by CO2 treatment [9], which corresponds with the expression of LsHsp20.3 observed in the present study. However, we found that transcription of LsHsp20.2 and 20.3 responded differentially to CO2 treatment. These results suggest that different sHsps may play distinct roles in response to CO2 stress.

5. Conclusions

We identified and characterized four sHsp genes from L. serricorne. The putative sHsp proteins contained the typical structural and conserved domains of sHsps. The expression levels of these sHsp genes differed among various developmental stages and tissues. The expression levels of the four LsHsp genes were upregulated by 20E exposure. Induction of these genes in response to diverse stresses indicated that the genes play important roles in stress-adaptation mechanisms. Further studies are needed to clarify the precise roles and physiological mechanisms of the sHsp genes in L. serricorne.

Author Contributions

W.-J.Y. and C.L. conceived and designed the experiments; K.-K.X., Y.C., and Y.-L.M. contributed materials and performed the experiments; W.-J.Y. and Y.L. analyzed the data; W.-J.Y., K.-K.X., and C.L. wrote the paper.

Funding

This work was supported in part by the National Natural Science Foundation of China (31501649), the Program for Science & Technology Outstanding Talents in Higher Learning Institution of Guizhou Province (2017083), the Program for First-class University Construction in Guizhou Province (2017158322), the Discipline and Master’s Site Construction Project of Guiyang University by Guiyang City Financial Support Guiyang University (SH-2019), the Science and Technology Foundation of Guizhou Province (20142002), the Program for Academician Workstation in Guiyang University (20195605), and the Program for First-class Discipline Construction in Guizhou Province (201785).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Johnston, J.A.; Ward, C.L.; Kopito, R.R. Aggresomes: A cellular response to misfolded proteins. J. Cell Biol. 1998, 143, 1883–1898. [Google Scholar] [CrossRef] [PubMed]
  2. Hu, F.; Ye, K.; Tu, X.F.; Lu, Y.J.; Thakur, K.; Wei, Z.J. Identification and expression analysis of four heat shock protein genes associated with thermal stress in rice weevil, Sitophilus oryzae. J. Asia-Pac. Entomol. 2018, 21, 872–879. [Google Scholar] [CrossRef]
  3. Xu, Q.; Zou, Q.; Zheng, H.; Zhang, F.; Tang, B.; Wang, S.G. Three heat shock proteins from Spodoptera exigua: Gene cloning, characterization and comparative stress response during heat and cold shocks. Comp. Biochem. Physiol. B Biochem. Mol. Biol. 2011, 159, 92–102. [Google Scholar] [CrossRef]
  4. Sang, W.; Ma, W.H.; Qiu, L.; Zhu, Z.H.; Lei, C.L. The involvement of heat shock protein and cytochrome P450 genes in response to UV-A exposure in the beetle Tribolium castaneum. J. Insect Physiol. 2012, 58, 830–836. [Google Scholar] [CrossRef]
  5. Zhang, Y.P.; Liu, Y.M.; Zhang, J.Z.; Guo, Y.P.; Ma, E.B. Molecular cloning and mRNA expression of heat shock protein genes and their response to cadmium stress in the grasshopper Oxya chinensis. PLoS ONE 2015, 10, e0131244. [Google Scholar] [CrossRef] [PubMed]
  6. Wang, H.; Li, K.; Zhu, J.Y.; Fang, Q.; Ye, G.Y. Cloning and expression pattern of heat shock protein genes from the endoparasitoid wasp, Pteromalus puparum in response to environmental stresses. Arch. Insect Biochem. Physiol. 2012, 79, 247–263. [Google Scholar] [CrossRef]
  7. Planelló, R.; Herrero, O.; Martínez-Guitarte, J.L.; Morcillo, G. Comparative effects of butyl benzyl phthalate (BBP) and di (2-ethylhexyl) phthalate (DEHP) on the aquatic larvae of Chironomus riparius based on gene expression assays related to the endocrine system, the stress response and ribosomes. Aquat. Toxicol. 2011, 105, 62–70. [Google Scholar] [CrossRef] [PubMed]
  8. Hao, X.M.; Zhang, S.; Timakov, B.; Zhang, P. The Hsp27 gene is not required for Drosophila development but its activity is associated with starvation resistance. Cell Stress Chaperones 2007, 12, 364–372. [Google Scholar] [CrossRef]
  9. Liu, Z.H.; Xi, D.M.; Kang, M.J.; Guo, X.Q.; Xu, B.H. Molecular cloning and characterization of Hsp27.6: The first reported small heat shock protein from Apis cerana cerana. Cell Stress Chaperones 2012, 17, 539–551. [Google Scholar] [CrossRef]
  10. Hendrick, J.P.; Hartl, F.U. Molecular chaperone functions of heat-shock proteins. Annu. Rev. Biochem. 1993, 62, 349–384. [Google Scholar] [CrossRef] [PubMed]
  11. Kim, K.K.; Kim, R.; Kim, S.H. Crystal structure of a small heat-shock protein. Nature. 1998, 394, 595–599. [Google Scholar] [CrossRef] [PubMed]
  12. Garrido, C.; Paul, C.; Seigneuric, R.; Kampinga, H.H. The small heat shock proteins family: The long forgotten chaperones. Int. J. Biochem. Cell. Biol. 2012, 44, 1588–1592. [Google Scholar] [CrossRef]
  13. Franck, E.; Madsen, O.; van Rheede, T.; Ricard, G.; Huynen, M.A.; de Jong, W.W. Evolutionary diversity of vertebrate small heat shock proteins. J. Mol. Evol. 2004, 59, 792–805. [Google Scholar] [CrossRef] [PubMed]
  14. Basha, E.; Friedrich, K.L.; Vierling, E. The N-terminal arm of small heat shock proteins is important for both chaperone activity and substrate specificity. J. Biol. Chem. 2006, 281, 39943–39952. [Google Scholar] [CrossRef] [PubMed]
  15. Bagnéris, C.; Bateman, O.A.; Naylor, C.E.; Cronin, N.; Boelens, W.C.; Keep, N.H.; Slingsby, C. Crystal structures of alpha-crystallin domain dimers of alphaB-crystallin and Hsp20. J. Mol. Biol. 2009, 392, 1242–1252. [Google Scholar] [CrossRef]
  16. Kostenko, S.; Moens, U. Heat shock protein 27 phosphorylation: Kinases, phosphatases, functions and pathology. Cell. Mol. Life Sci. 2009, 66, 3289–3307. [Google Scholar] [CrossRef] [PubMed]
  17. MacRae, T.H. Structure and function of small heat shock/α-crystallin proteins: Established concepts and emerging ideas. Cell. Mol. Life Sci. 2000, 57, 899–913. [Google Scholar] [CrossRef] [PubMed]
  18. Reineke, A. Identification and expression of a small heat shock protein in two lines of the endoparasitic wasp Venturia canescens. Comp. Biochem. Physiol. A Mol. Integr. Physiol. 2005, 141, 60–69. [Google Scholar] [CrossRef] [PubMed]
  19. Arrigo, A.P. sHsp as novel regulators of programmed cell death and tumorigenicity. Pathol. Biol. 2000, 48, 280–288. [Google Scholar]
  20. Tsvetkova, N.M.; Horvath, I.; Torok, Z.; Wolkers, W.F.; Balogi, Z.; Shigapova, N.; Crowe, L.M.; Tablin, F.; Vierling, E.; Crowe, J.H.; et al. Small heat-shock proteins regulate membrane lipid polymorphism. Proc. Natl. Acad. Sci. USA 2002, 99, 13504–13509. [Google Scholar] [CrossRef] [Green Version]
  21. Morrow, G.; Battistini, S.; Zhang, P.; Tanguay, R.M. Decreased lifespan in the absence of expression of the mitochondrial small heat shock protein Hsp22 in Drosophila. J. Biol. Chem. 2004, 279, 43382–43385. [Google Scholar] [CrossRef] [PubMed]
  22. Gkouvitsas, T.; Kontogiannatos, D.; Kourti, A. Differential expression of two small Hsps during diapause in the corn stalk borer Sesamia nonagrioides (Lef.). J. Insect Physiol. 2008, 54, 1503–1510. [Google Scholar] [CrossRef] [PubMed]
  23. Li, Z.W.; Li, X.; Yu, Q.Y.; Xiang, Z.H.; Kishino, H.; Zhang, Z. The small heat shock protein (sHSP) genes in the silkworm, Bombyx mori, and comparative analysis with other insect sHSP genes. BMC Evol. Biol. 2009, 9, 215. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, X.E.; Zhang, Y.L. Identification of multiple small heat-shock protein genes in Plutella xylostella (L.) and their expression profiles in response to abiotic stresses. Cell Stress Chaperones 2015, 20, 23–35. [Google Scholar] [CrossRef] [PubMed]
  25. Quan, G.X.; Duan, J.; Ladd, T.; Krell, P.J. Identification and expression analysis of multiple small heat shock protein genes in spruce budworm, Choristoneura fumiferana (L.). Cell Stress Chaperones 2018, 23, 141–154. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, X.R.; Wang, C.; Ban, F.X.; Zhu, D.T.; Liu, S.S.; Wang, X.W. Genome-wide identification and characterization of HSP gene superfamily in whitefly (Bemisia tabaci) and expression profiling analysis under temperature stress. Insect Sci. 2019, 26, 44–57. [Google Scholar] [CrossRef]
  27. Wang, L.H.; Zhang, Y.L.; Pan, L.; Wang, Q.; Han, Y.C.; Niu, H.T.; Shan, D.; Hoffmann, A.; Fang, J.C. Induced expression of small heat shock proteins is associated with thermotolerance in female Laodelphax striatellus planthoppers. Cell Stress Chaperones 2018. [Google Scholar] [CrossRef]
  28. Yocum, G.D.; Joplin, K.H.; Denlinger, D.L. Upregulation of a 23 kDa small heat shock protein transcript diapause in the flesh fly, Sarcophaga crassipalpis. Insect Biochem. Mol. Biol. 1998, 28, 677–682. [Google Scholar] [CrossRef]
  29. Morrow, G.; Samson, M.; Michaud, S.; Tanguay, R.M. Overexpression of the small mitochondrial Hsp22 extends Drosophila life span and increases resistance to oxidative stress. FASEB J. 2004, 18, 598–599. [Google Scholar] [CrossRef] [PubMed]
  30. Xie, J.; Hu, X.X.; Zhai, M.F.; Yu, X.J.; Song, X.W.; Gao, S.S.; Wu, W.; Li, B. Characterization and functional analysis of hsp18.3 gene in the red flour beetle, Tribolium castaneum. Insect Sci. 2017. [Google Scholar] [CrossRef]
  31. Zhang, Y.Y.; Liu, Y.L.; Guo, X.L.; Li, Y.L.; Gao, H.R.; Guo, X.Q.; Xu, B.H. sHsp22.6, an intronless small heat shock protein gene, is involved in stress defence and development in Apis cerana cerana. Insect Biochem. Mol. Biol. 2014, 53, 1–12. [Google Scholar] [CrossRef] [PubMed]
  32. Ashworth, J.R. The biology of Lasioderma serricorne. J. Stored Prod. Res. 1993, 29, 291–303. [Google Scholar] [CrossRef]
  33. Mahroof, R.M.; Phillips, T.W. Life history parameters of Lasioderma serricorne (F.) as influenced by food sources. J. Stored Prod. Res. 2008, 44, 219–226. [Google Scholar] [CrossRef]
  34. Li, C.; Li, Z.Z.; Cao, Y.; Zhou, B.; Zheng, X.W. Partial characterization of stress-induced carboxylesterase from adults of Stegobium paniceum and Lasioderma serricorne (Coleoptera: Anobiidae) subjected to CO2-enriched atmosphere. J. Pest Sci. 2009, 82, 7–11. [Google Scholar] [CrossRef]
  35. Minor, M.F. Do adult cigarette beetle feed? Tob. Sci. 1979, 23, 61–64. [Google Scholar]
  36. Riudavets, J.; Salas, I.; Pons, M.J. Damage characteristics produced by insect pests in packaging film. J. Stored Prod. Res. 2007, 43, 564–570. [Google Scholar] [CrossRef]
  37. Allahvaisi, S. Controlling Lasioderma serricorne F. (Col.: Anobiidae) by fumigation and packaging. World Appl. Sci. J. 2013, 28, 1983–1988. [Google Scholar]
  38. Kim, M.; Yang, J.; Lee, H. Phototactic behavior: Repellent effects of cigarette beetle, Lasioderma serricorne (Coleoptera: Anobiidae), to light-emitting diodes. J. Korean Soc. Appl. Biol. Chem. 2013, 56, 331–333. [Google Scholar] [CrossRef]
  39. Rajendran, S.; Narasimhan, K.S. Phosphine resistance in the cigarette beetle Lasioderma serricorne (Coleoptera: Anobiidae) and overcoming control failures during fumigation of stored tobacco. Int. J. Pest Manag. 1994, 40, 207–210. [Google Scholar] [CrossRef]
  40. Sağlam, Ö.; Edde, P.A.; Phillips, T.W. Resistance of Lasioderma serricorne (Coleoptera: Anobiidae) to fumigation with phosphine. J. Econ. Entomol. 2015, 108, 2489–2495. [Google Scholar] [CrossRef] [PubMed]
  41. Collins, D.; Conyers, S. The effect of sub-zero temperatures on different lifestages of Lasioderma serricorne (F.) and Ephestia elutella (Hübner). J. Stored Prod. Res. 2010, 46, 234–241. [Google Scholar] [CrossRef]
  42. Yu, C.; Subramanyam, B.; Flinn, P.W.; Gwirtz, J.A. Susceptibility of Lasioderma serricorne (Coleoptera: Anobiidae) life stages to elevated temperatures used during structural heat treatments. J. Econ. Entomol. 2011, 104, 317–324. [Google Scholar] [CrossRef]
  43. Imai, T. The additive effect of carbon dioxide on mortality of the cigarette beetle Lasioderma serricorne (Coleoptera: Anobiidae) in low-oxygen atmospheres. Appl. Entomol. Zool. 2015, 50, 11–15. [Google Scholar] [CrossRef]
  44. Combet, C.; Blanchet, C.; Geourjon, C.; Deléage, G. NPS@: Network protein sequence analysis. Trends Biochem. Sci. 2000, 291, 147–150. [Google Scholar] [CrossRef]
  45. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular evolutionary genetics analysis version 6.0. Mol Biol Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef]
  46. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2-ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  47. Shen, Y.; Gu, J.; Huang, L.H.; Zheng, S.C.; Liu, L.; Xu, W.H.; Feng, Q.L.; Kang, L. Cloning and expression analysis of six small heat shock protein genes in the common cutworm, Spodoptera litura. J. Insect Physiol. 2011, 57, 908–914. [Google Scholar] [CrossRef] [PubMed]
  48. Zhang, B.; Zheng, J.; Peng, Y.; Liu, X.; Hoffmann, A.A.; Ma, C.S. Stress responses of small heat shock protein genes in Lepidoptera point to limited conservation of function across phylogeny. PLoS ONE 2015, 10, e0132700. [Google Scholar] [CrossRef]
  49. Lu, M.X.; Hua, J.; Cui, Y.D.; Du, Y.Z. Five small heat shock protein genes from Chilo suppressalis: Characteristics of gene, genomic organization, structural analysis, and transcription profiles. Cell Stress Chaperones 2014, 19, 91–104. [Google Scholar] [CrossRef] [PubMed]
  50. Kou, L.H.; Wu, H.H.; Liu, Y.M.; Zhang, Y.P.; Zhang, J.Z.; Guo, Y.P.; Ma, E.B. Molecular characterization of six small heat shock proteins and their responses under cadmium stress in Oxya chinensis (Orthoptera: Acridoidea). Environ. Entomol. 2016, 45, 258–267. [Google Scholar] [CrossRef] [PubMed]
  51. Dou, W.; Tian, Y.; Liu, H.; Shi, Y.; Smagghe, G.; Wang, J.J. Characteristics of six small heat shock protein genes from Bactrocera dorsalis: Diverse expression under conditions of thermal stress and normal growth. Comp. Biochem. Physiol. B Biochem. Mol. Biol. 2017, 213, 8–16. [Google Scholar] [CrossRef] [PubMed]
  52. Mason, P.J.; Hall, L.M.C.; Gausz, J. The expression of heat shock genes during normal development in Drosophila melanogaster (heat shock/abundant transcripts/developmental regulation). Mol. Gen. Genet. 1984, 194, 73–78. [Google Scholar] [CrossRef]
  53. Sonoda, S.; Ashfaq, M.; Tsumuki, H. Cloning and nucleotide sequencing of three heat shock protein genes (hsp90, hsc70, and hsp19.5) from the diamondback moth, Plutella xylostella (L.) and their expression in relation to developmental stage and temperature. Arch. Insect Biochem. Physiol. 2006, 62, 80–90. [Google Scholar] [CrossRef] [PubMed]
  54. Huang, L.H.; Wang, C.Z.; Kang, L. Cloning and expression of five heat shock protein genes in relation to cold hardening and development in the leafminer. Liriomyza sativa. J. Insect Physiol. 2009, 55, 279–285. [Google Scholar] [CrossRef]
  55. Gu, J.; Huang, L.X.; Shen, L.H.; Feng, Q.L. Hsp70 and small Hsps are the major heat shock protein members involved in midgut metamorphosis in the common cutworm, Spodoptera litura. Insect Mol. Biol. 2012, 21, 535–543. [Google Scholar] [CrossRef] [PubMed]
  56. Graczynski, S.F.; Unruh, T.R.; Guédot, C.; Neven, L.G. Characterization of three transcripts encoding small heat shock proteins expressed in the codling moth, Cydia pomonella (Lepidoptera: Tortricidae). Insect Sci. 2011, 18, 473–483. [Google Scholar] [CrossRef]
  57. Wang, H.J.; Shi, Z.K.; Shen, Q.D.; Xu, C.D.; Wang, B.; Meng, Z.J.; Wang, S.G.; Tang, B.; Wang, S. Molecular cloning and induced expression of six small heat shock proteins mediating cold-hardiness in Harmonia axyridis (Coleoptera: Coccinellidae). Front. Physiol. 2017, 8, 60. [Google Scholar] [CrossRef] [PubMed]
  58. Sun, M.; Lu, M.X.; Tang, X.T.; Du, Y.Z. Characterization and expression of genes encoding three small heat shock proteins in Sesamia inferens (Lepidoptera: Noctuidae). Int. J. Mol. Sci. 2014, 15, 23196–23211. [Google Scholar] [CrossRef] [PubMed]
  59. Wang, H.; Fang, Y.; Bao, Z.Z.; Jin, X.; Zhu, W.J.; Wang, L.P.; Liu, T.; Ji, H.P.; Wang, H.Y.; Xu, S.Q.; et al. Identification of a Bombyx mori gene encoding small heat shock protein BmHsp27.4 expressed in response to high-temperature stress. Gene 2014, 538, 56–62. [Google Scholar] [CrossRef]
  60. Lezzi, M. Chromosome puffing: Supramolecular aspects of ecdysone action. In Metamorphosis: Post-Embryonic Reprogramming of Gene Expression in Amphibian and Insect Cells; Gilbert, L.I., Tata, J.R., Atkinson, B.G., Eds.; Academic Press: New York, NY, USA, 1996; pp. 145–173. [Google Scholar]
  61. Antoniewski, C.; Laval, M.; Lepesant, J.A. Structural features critical to the activity of an ecdysone receptor binding site. Insect Biochem. Mol. Biol. 1993, 23, 105–114. [Google Scholar] [CrossRef]
  62. Kokolakis, G.; Tatari, M.; Zacharopoulou, A.; Mintzas, A.C. The hsp27 gene of the Mediterranean fruit fly, Ceratitis capitata: Structural characterization, regulation and developmental expression. Insect Mol. Biol. 2008, 17, 699–710. [Google Scholar] [CrossRef] [PubMed]
  63. Dubrovsky, E.B.; Dubrovskaya, V.A.; Berger, E.M. Selective binding of Drosophila BR-C isoforms to a distal regulatory element in the hsp23 promoter. Insect Biochem. Mol. Biol. 2001, 3, 1231–1239. [Google Scholar] [CrossRef]
  64. Liu, Z.H.; Yao, P.B.; Guo, X.Q.; Xu, B.H. Two small heat shock protein genes in Apis cerana cerana: Characterization, regulation, and developmental expression. Gene 2014, 545, 205–214. [Google Scholar] [CrossRef]
  65. Wu, P.; Wang, X.; Qin, G.X.; Liu, T.; Jiang, Y.F.; Li, M.W.; Guo, X.J. Microarray analysis of the gene expression profile in the midgut of silkworm infected with cytoplasmic polyhedrosis virus. Mol. Biol. Rep. 2011, 38, 333–341. [Google Scholar] [CrossRef] [PubMed]
  66. Zhang, C.F.; Dai, L.S.; Wang, L.; Qian, C.; Wei, G.Q.; Li, J.; Zhu, B.J.; Liu, C.L. Eicosanoids mediate sHSP 20.8 gene response to biotic stress in larvae of the Chinese oak silkworm Antheraea pernyi. Gene 2015, 562, 32–39. [Google Scholar] [CrossRef] [PubMed]
  67. Xiong, W.F.; Xie, J.; Wei, L.T.; Zhang, S.S.; Song, X.W.; Gao, S.S.; Li, B. Transcriptome analysis of hsp18.3 functions and regulatory systems using RNA-sequencing in the red flour beetle, Tribolium castaneum. J. Integr. Agric. 2018, 17, 1040–1056. [Google Scholar] [CrossRef]
  68. Gunasekaran, N.; Rajendran, S. Toxicity of carbon dioxide to drugstore beetle Stegobium paniceum and cigarette beetle Lasioderma serricorne. J. Stored Prod. Res. 2005, 41, 283–294. [Google Scholar] [CrossRef]
  69. Kennington, G.S.; Cannel, S. Biochemical correlates of respiratory and developmental changes in anoxic Tribolium confusum pupae. Physiol. Zool. 1967, 40, 403–408. [Google Scholar] [CrossRef]
  70. Xu, K.K.; Ding, T.B.; Yan, Y.; Li, C.; Yang, W.J. Expression analysis of glutathione S-transferase genes in Lasioderma serricorne (Coleoptera: Anobiidae) subjected to CO2-enriched atmosphere. J. Zhejiang Univ. Agric. Life Sci. 2017, 43, 599–607. [Google Scholar]
Insects 10 00139 g001 550

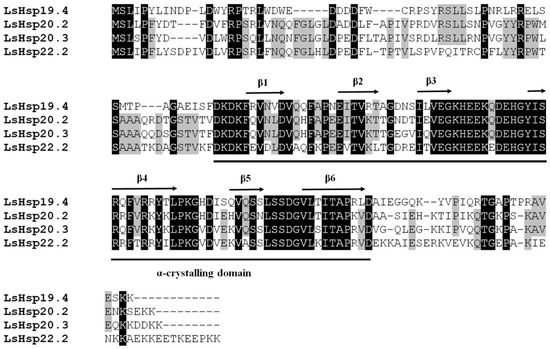

Figure 1. Alignment of the deduced amino acid sequences of four LsHsp genes in L. serricorne. Amino acids with >50% identities are shaded in gray. Sequences above the black lines are regions of α-crystallin domain. Six β-strands with the α-crystallin domain are indicated with black arrows.
Figure 1. Alignment of the deduced amino acid sequences of four LsHsp genes in L. serricorne. Amino acids with >50% identities are shaded in gray. Sequences above the black lines are regions of α-crystallin domain. Six β-strands with the α-crystallin domain are indicated with black arrows.
Insects 10 00139 g001
Insects 10 00139 g002 550

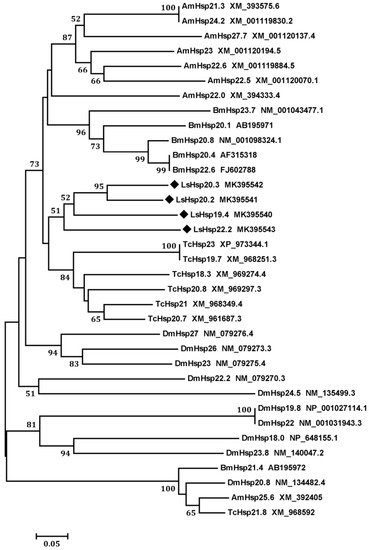

Figure 2. Phylogenetic analysis of small heat shock proteins (sHsps) in L. serricorne and other insects. The tree was generated with MEGA6.06 using the neighbor-joining method. Nodes with >50% bootstrap values (1000 replications) are indicated on branches. The following insect sHsp sequences were used: Apis mellifera (Am), Bombyx mori (Bm), Drosophila melanogaster (Dm), Lasioderma serricorne (Ls), Tribolium castaneum (Tc). The GenBank accession number for each sequence is specified in the terminal label. The sHsp sequences determined in this study are labeled with a black diamond.
Figure 2. Phylogenetic analysis of small heat shock proteins (sHsps) in L. serricorne and other insects. The tree was generated with MEGA6.06 using the neighbor-joining method. Nodes with >50% bootstrap values (1000 replications) are indicated on branches. The following insect sHsp sequences were used: Apis mellifera (Am), Bombyx mori (Bm), Drosophila melanogaster (Dm), Lasioderma serricorne (Ls), Tribolium castaneum (Tc). The GenBank accession number for each sequence is specified in the terminal label. The sHsp sequences determined in this study are labeled with a black diamond.
Insects 10 00139 g002
Insects 10 00139 g003 550

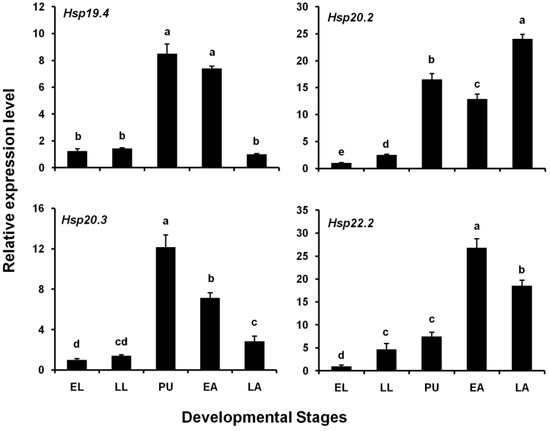

Figure 3. Relative expression levels of four LsHsp genes at different developmental stages of L. serricorne. EL, early larvae; LL, late larvae; PU, pupae; EA, early adults; LA, late adults. Different letters above bars indicate a significant difference among developmental stages based on one-way ANOVA followed by a least significant difference test (p < 0.05).
Figure 3. Relative expression levels of four LsHsp genes at different developmental stages of L. serricorne. EL, early larvae; LL, late larvae; PU, pupae; EA, early adults; LA, late adults. Different letters above bars indicate a significant difference among developmental stages based on one-way ANOVA followed by a least significant difference test (p < 0.05).
Insects 10 00139 g003
Insects 10 00139 g004 550
Figure 4. Relative expression levels of four LsHsp genes in different tissues of L. serricorne. IN, integument; FB, fat body; GU, gut; CA, carcass. Different letters above bars indicate a significant difference among tissues based on one-way ANOVA followed by a least significant difference test (p < 0.05).
Figure 4. Relative expression levels of four LsHsp genes in different tissues of L. serricorne. IN, integument; FB, fat body; GU, gut; CA, carcass. Different letters above bars indicate a significant difference among tissues based on one-way ANOVA followed by a least significant difference test (p < 0.05).
Insects 10 00139 g004
Insects 10 00139 g005 550
Figure 5. Relative expression levels of four LsHsp genes in L. serricorne in response to 20E induction. Larvae were collected for qPCR analysis at 4, 8, and 12 h after injection with 20E. The corresponding amount of distilled water containing 0.1% ethanol was used as a control. Significant differences between treatment and control were determined using a t test and indicated by * (p < 0.05) or ** (p < 0.01).
Figure 5. Relative expression levels of four LsHsp genes in L. serricorne in response to 20E induction. Larvae were collected for qPCR analysis at 4, 8, and 12 h after injection with 20E. The corresponding amount of distilled water containing 0.1% ethanol was used as a control. Significant differences between treatment and control were determined using a t test and indicated by * (p < 0.05) or ** (p < 0.01).
Insects 10 00139 g005
Insects 10 00139 g006 550

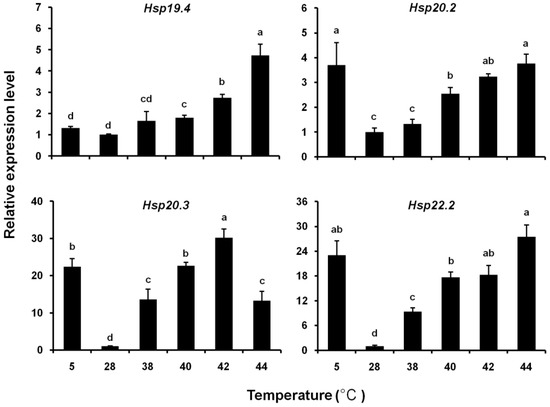

Figure 6. Relative expression levels of four LsHsp genes in L. serricorne in response to thermal stress. Different letters above bars indicate a significant difference based on one-way ANOVA followed by a least significant difference test (p < 0.05).
Figure 6. Relative expression levels of four LsHsp genes in L. serricorne in response to thermal stress. Different letters above bars indicate a significant difference based on one-way ANOVA followed by a least significant difference test (p < 0.05).
Insects 10 00139 g006
Insects 10 00139 g007 550

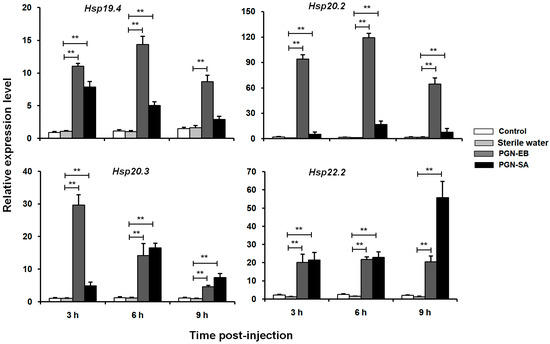

Figure 7. Relative expression levels of four LsHsp genes in L. serricorne after PGN-EB and PGN-SA challenges. Control: pricked with the micro-injection needle without injection; Sterile Water: injected with 200 nL sterile endotoxin-free water; PGN-SA: injected with 200 nL peptidoglycan from Staphylococcus aureus (PNA-SA) solution; PGN-EB: injected with 200 nL peptidoglycan from Escherichia coli 0111:B4 (PNA-EB) solution. Significant differences were determined using a t test and indicated by ** (p < 0.01).
Figure 7. Relative expression levels of four LsHsp genes in L. serricorne after PGN-EB and PGN-SA challenges. Control: pricked with the micro-injection needle without injection; Sterile Water: injected with 200 nL sterile endotoxin-free water; PGN-SA: injected with 200 nL peptidoglycan from Staphylococcus aureus (PNA-SA) solution; PGN-EB: injected with 200 nL peptidoglycan from Escherichia coli 0111:B4 (PNA-EB) solution. Significant differences were determined using a t test and indicated by ** (p < 0.01).
Insects 10 00139 g007
Insects 10 00139 g008 550

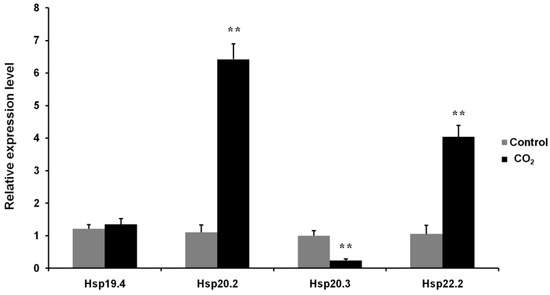

Figure 8. Relative expression levels of four LsHsp genes in L. serricorne in response to CO2 stress. Adults were collected for qPCR analysis at 6 h after exposure to air containing 70% CO2. The control group was maintained under natural atmospheric conditions. Significant differences between the treatment and control were determined using a t test and indicated by ** (p < 0.01).
Figure 8. Relative expression levels of four LsHsp genes in L. serricorne in response to CO2 stress. Adults were collected for qPCR analysis at 6 h after exposure to air containing 70% CO2. The control group was maintained under natural atmospheric conditions. Significant differences between the treatment and control were determined using a t test and indicated by ** (p < 0.01).
Insects 10 00139 g008
Table
Table 1. Primers used in this study.
Table 1. Primers used in this study.
Application of PrimersGenePrimer Sequence (5′ to 3′)
Full-length confirmationLsHsp19.4F: TGATAAACGACCCTCTGGAT
R: ATGTACCCGTGTTCGTCTTG
LsHsp20.2F: CATTCTACGACACCTTTGAC
R: AATGGAAGCTGCATCAACTT
LsHsp20.3F: TTGTCTCCATTCTACGACGT
R: CCTTTTGGCAACTTATACTT
LsHsp22.2F: TTCCTATATTCCGACCCCAT
R: TGATCTTCAACACACCATCA
qPCR analysisLsHsp19.4F: CTGGGAGGATGATGACGACT
R: ACATCGACGTTCACACGAAA
LsHsp20.2F: ATTTCCAGGCGATTTGTGAG
R: CTTTGCTTGGCTTTCCAGTC
LsHsp20.3F: AAACACGAGGAGAAGCAGGA
R: CTGGTTTCCCAGTTTGCTGT
LsHsp22.2F: AAAGACGCTGGCTCAACTGT
R: TCCTTTCGGCAGAATGTACC
18SF: GTTGATCACGTCGCAAGCTA
R: AGGTTTCCCTCTGGCTTGTT
Table
Table 2. Characteristics of sHsp mRNAs in Lasioderma serricorne.
Table 2. Characteristics of sHsp mRNAs in Lasioderma serricorne.
GeneSequence Length (bp)Protein Length (aa)Molecular Weight (kDa)Isoelectric PointGenBank Accession Number
LsHsp19.451016919.45.94MK395540
LsHsp20.254318020.26.60MK395541
LsHsp20.354618120.36.32MK395542
LsHsp22.258519422.26.04MK395543

Share and Cite

MDPI and ACS Style

Yang, W.-J.; Xu, K.-K.; Cao, Y.; Meng, Y.-L.; Liu, Y.; Li, C. Identification and Expression Analysis of Four Small Heat Shock Protein Genes in Cigarette Beetle, Lasioderma serricorne (Fabricius). Insects 2019, 10, 139. https://doi.org/10.3390/insects10050139

AMA Style

Yang W-J, Xu K-K, Cao Y, Meng Y-L, Liu Y, Li C. Identification and Expression Analysis of Four Small Heat Shock Protein Genes in Cigarette Beetle, Lasioderma serricorne (Fabricius). Insects. 2019; 10(5):139. https://doi.org/10.3390/insects10050139

Chicago/Turabian Style

Yang, Wen-Jia, Kang-Kang Xu, Yu Cao, Yong-Lu Meng, Yan Liu, and Can Li. 2019. "Identification and Expression Analysis of Four Small Heat Shock Protein Genes in Cigarette Beetle, Lasioderma serricorne (Fabricius)" Insects 10, no. 5: 139. https://doi.org/10.3390/insects10050139

APA Style

Yang, W. -J., Xu, K. -K., Cao, Y., Meng, Y. -L., Liu, Y., & Li, C. (2019). Identification and Expression Analysis of Four Small Heat Shock Protein Genes in Cigarette Beetle, Lasioderma serricorne (Fabricius). Insects, 10(5), 139. https://doi.org/10.3390/insects10050139

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
