Molecular Identification and Immunity Functional Characterization of Lmserpin1 in Locusta migratoria manilensis

by
Beibei Li
1,2,
Hongmei Li
3,
Ye Tian
1,4,
Nazir Ahmed Abro
5,
Xiangqun Nong
1,2,
Zehua Zhang
1,2 and
Guangjun Wang
1,2,*
1
State Key Laboratory of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Science, Beijing 100081, China
2
Scientific Observation and Experimental Station of Pests in Xilingol Rangeland, Ministry of Agriculture and Rural Affairs, Xilinhot 026000, China
3
MARA-CABI Joint Laboratory for Bio-safety, Institute of Plant Protection, Chinese Academy of Agricultural Science, Beijing 100193, China
4
College of Plant Protection, Hebei Agricultural University, Baoding 071001, China
5
Department of Entomology, Sindh Agriculture University, Tando Jam 70060, Pakistan
*
Author to whom correspondence should be addressed.
Insects 2021, 12(2), 178; https://doi.org/10.3390/insects12020178
Submission received: 4 January 2021 / Revised: 10 February 2021 / Accepted: 12 February 2021 / Published: 18 February 2021
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

Insect serpins play a vital role in the defense mechanism of insects, especially in the Toll pathway and PPO (prophenoloxidase) cascade. In this study, we provided an answer to the open question of whether serpin1 was involved in the humoral immune responses of Locusta migratoria manilensis. We identified a new Lmserpin1 gene from L. migratoria manilensis and investigated its expression profiles in all examined stages and tissues. Meanwhile, by interfering with Lmserpin1 gene, we examined the mortality of L. migratoria manilensis under Metarhizium anisopliae infection, as well as the activities of protective enzymes and detoxifying enzymes and the expression level of three immune-related genes (PPAE (prophenoloxidase-activating enzyme), PPO, and defensin). The results indicated that Lmserpin1 gene up-regulated the immune responses of L. migratoria manilensis and inhibited the infection of M. anisopliae. Our results are of great importance for better understanding of the mechanism characterization of Lmserpin1 in L. migratoria manilensis.

Abstract

Serine protease inhibitors (Serpins) are a broadly distributed superfamily of proteins that exist in organisms with the role of immune responses. Lmserpin1 gene was cloned firstly from Locusta migratoria manilensis and then was detected in all tested stages from eggs to adults and six different tissues through qRT-PCR analysis. The expression was significantly higher in the 3rd instars and within integument. After RNAi treatment, the expression of Lmserpin1 was significantly down-regulated at four different time points. Moreover, it dropped significantly in the fat body and hemolymph at 24 h after treatment. The bioassay results indicated that the mortality of L. migratoria manilensis treated with dsSerpin1 + Metarhizium was significantly higher than the other three treatments. Furthermore, the immune-related genes (PPAE, PPO, and defensin) treated by dsSerpin1 + Metarhizium were significantly down-regulated compared with the Metarhizium treatment, but the activities of phenoloxidase (PO), peroxidase (POD), superoxide dismutase (SOD), glutathione S-transferase (GST), and multifunctional oxidase (MFO) were fluctuating. Our results suggest that Lmserpin1 plays a crucial role in the innate immunity of L. migratoria manilensis. Lmserpin1 probably took part in regulation of melanization and promoted the synthesis of antimicrobial peptides (AMPs).

1. Introduction

Host and pathogens are an interactive relationship locked in a perpetual evolutionary marathon due to the evolving microorganisms and adaptable host immune system [1,2]. Innate immunity is a fundamental self-protection system that evolved in all animals to protect against exogenous pathogenic signal. Unlike mammals, insects rely solely on innate immune mediators to prevent infection [3,4]. Pathogen-associated molecular patterns (PAMPs) activate host cell-surface receptors (pathogen-recognition receptors or PRRs) when infection occurs. These signal cascades activate both cellular and humoral innate immune mechanisms [5,6,7].
Innate humoral immune responses are initiated through Toll and IMD(immune deficiency) signaling pathways during the early invasion period leading to the synthesis and secretion of antimicrobial peptides (AMPs) [8]. Once insects are invaded by external microorganisms, prophenoloxidase-activating enzyme (PPAE) activate the prophenoloxidase cascade reaction (PPO cascade), and specific serine protease activate the phenoloxidase (PO) which, together, with tyrosine hydroxylase then catalyze blood coagulation and melanin formation, participating in the immune defense response of the body [9]. Extracellular parts of both the Toll signaling pathway and PPO activation system employ cascades of serine proteinases to amplify the initial invading signal, ultimately resulting in rapid and efficient responses to threats. However, to avoid excessive inflammation and immunopathology, this signaling cascade must be well-regulated. Serine protease inhibitors (serpins), as serine or cysteine protease inhibitors, can regulate serine protease cascades to maintain homeostasis in the organisms [10].
Serpins are the largest and most widely distributed superfamily of protease inhibitors, presenting in animals, plants, and microorganisms [11,12,13]. To date, at least 23 different families of serpins have been described and at least 12 studied in insects, such as Drosophila melanogaster [14], Maduca sexta [15], Bombyx mori [16], and Choristoneura fumiferna [17]. Serpins are 40–50 kDa plasma proteins with approximately 400 amino acid residues in length. The majority of arthropod serpins regulate many innate immune responses, including the hemolymph serine protease cascade [18,19,20,21]. Their main function is to prevent excessive inflammation and immunopathology through irreversibly regulating the activity of serine proteases or inactivating proteases by forming covalent complexes [22]. For example in M. sexta, Msserpin4, and Msserpin5, PPO activation is inhibited by inhibiting the upstream hemolymph phase, and Msserpin6 inhibits PPO activation via the regulation of prophenoloxidase-activation protease 3 (PAP3) and hemolymph protease 8 (HP8) [23,24]. In D. melanogaster, Dmserpin43Ac regulates Toll and PPO pathways in response to fungal and bacterial infections [25]. It has been described that 13 serpins (1–7, 11–13, 21, 28, and 32) in B. mori, as protease inhibitors, can regulate extracellular serine proteases involved in innate immune responses such as PPO activation, spätzle processing, and embryonic development by Toll pathway activation [26,27,28].
The migratory locust, L. migratoria manilensis is an economically important insect pest that causes serious crop losses and pasture damage in China, South-East Asia, and the Pacific region [29]. A previous study found that the M. anisopliae strains had a strong virulence to L. migratoria manilensis [30]. To better understand the immune mechanisms of L. migratoria manilensis and examine their response to a variety of pathogen challenges, transcriptome sequencing and analysis were performed on migratory locusts. A total amino acid sequences of seven serpin genes (serpin1 to serpin7) were obtained [31]. Phylogenetic tree analysis showed that Lmserpin1 was similar to serpinB9, which was involved in the immune response [32]. It is speculated that Lmserpin1 may be involved in the immunity of the migratory locust through structural prediction. The expression pattern of Lmserpin1 and its function in L. migratoria manilensis were analyzed. This study will promote further exploration of the immune mechanism of the Lmserpin1 gene in L. migratoria manilensis.

2. Materials and Methods

2.1. Insect Rearing

Eggs of L. migratoria manilensis were collected from Cangzhou in Hebei Province, China. Eggs mixed with soil were incubated under 27 ± 0.5 °C, 60 ± 5% RH in growth cabinets (PRX-350B-30) until hatching. Freshly emerged locust hoppers were transferred into wooden boxes (60 cm × 50 cm × 60 cm, 27 ± 0.5 °C, 14:10 L:D photoperiod), and fed on wheat seedlings.

2.2. Expression Analysis of Lmserpin1 Gene in Different Tissues and Developmental Stages

Total RNA was extracted from different tissues (midgut, testis, integument, metapedes (the leaping feet), fat body, and hemolymph) and developmental stages (egg, 1st, 2nd, 3rd, 4th, 5th, and adult) using the Trizol reagent (Invitrogen Corp., Carlsbad, CA, USA) according to the manufacturer’s instructions. The concentration and integrity of RNA were measured at an absorbance ratio of A260/280 and A260/230 using a NanoDrop 2000 spectrophotometer (Thermo Scientific TM, Waltham, MA, USA), and by 1.0% agarose gel electrophoresis, respectively. The first-strand cDNA was synthesized using PrimeScript™ One Step RT-PCR Kit Ver. 2 (Takara, Dalian, China) according to the manufacturer’s instructions. cDNA preparations from different samples were used as templates for qRT-PCR analysis of the Lmserpin1 gene expression level using a specific primer pair, qPCR-serpin1-F and qPCR-serpin1-R (Table 1). qRT-PCR reactions were performed with the SYBR Premix ExTaq™ (TaKaRa, Dalian, China) in 20 μL of reaction volume with 1μL of cDNA, 10 μL of SsoFast SYBR-Green Mix, 1 μL of each primer (20 μM), and 7 μL of double distilled water (ddH2O), on the ABI 7500 Real-Time PCR System (Applied Biosystems, Foster City, CA, USA). qRT-PCR conditions were as follows: Denaturation at 95 °C 60 s, followed by 40 cycles of amplification (95 °C 15 s, 60 °C 50 s). Actin was used as an external reference control. Each plate was repeated three times in independent runs for all reference and selected genes. Gene expression was evaluated by the 2−ΔΔCT method [33]. The relative expression of developmental stages was calculated and normalized to the expression at the egg stage, of which different tissues were calculated and normalized to the expression at the hemolymph [34].

2.3. Cloning of the Lmserpin1 Gene and RNA Interference

Using cDNA of 3rd instars as the templates and serpin1-R and serpin1-F as gene-specific primers (Table 1), the open reading frame (ORF) of Lmserpin1 was amplified by PCR under the following protocol: 95 °C for 5 min; 35 cycles of 95 °C for 30 s; 56 °C for 30 s; 72 °C for 90 s; and 72 °C for 10 min. The PCR products were recovered on 1% agarose gel and purified using a DNA purification Kit (Tiangen Biotech, Beijing, China). Purified PCR products were cloned into the pMD19-T vector and sequenced by the Shanghai Sangon Biological Co. LTD to verify the cloned fragments.
RiboMAXTM System-T7 (Promega, Madison, WI, USA) was used to generate double-stranded serpin1 (dsSerpin1) RNA by in vitro transcription following the manufacturer’s instructions with dsSerpin1-F and dsSerpin1-R (Table 1) as primers and plasmid DNA containing the Lmserpin1 gene as the template. The PCR reaction conditions were as follows: 94 °C for 10 min; 35 cycles of 94 °C for 30 s; 58 °C for 30 s; 72 °C for 90 s; and 72 °C for 10 min. dsSerpin1 RNA was then diluted to appropriate concentration using ddH2O and stored at −80 °C for later use.
3rd instars were starved for 12 h in advance, dsSerpin1 RNA (5 μg) was then injected into the ventral area between the second and third abdominal segments [35], and ddH2O was used as the control. There were three replicates and 20 individuals for each replicate. Lmserpin1 transcript levels in the whole body were tested at 6 h, 24 h, 48 h, and 72 h after injection and in different tissues (fat body, midgut, testis, and hemolymph) at 24 h through qRT-PCR with the specific primer pair, qPCR-serpin1-F, and qPCR-serpin1-R (Table 1).

2.4. Expression Analysis of Lmserpin1 after Metarhizium Anisopliae Infection

To determine the expression of Lmserpin1 after Metarhizium anisopliae infection, the total RNA was extracted and cDNA was prepared as described above at 6, 12, 24, 48, and 72 h after infection. The mRNA level of Lmserpin1 was analyzed by qRT-PCR. The transcriptional level of Lmserpin1 was normalized to L. migratoria manilensis actin. The experiment was conducted in triplicate.

2.5. Bioassay

Conidia of M. anisopliae was from the Institute of Plant Protection, Chinese Academy of Agricultural Sciences. The concentration of conidia was adjusted to 2.5 × 108 spores/g using control bait which was prepared with sterile wheat bran containing 5% vegetable oil, and then used as the treatment bait [36]. dsSerpin1 RNA (l μg/μL) was prepared as for as step 2.3. The four different treatments were (1) inject 5 μL of ddH2O with the treatment bait, (2) inject 5 μL of dsSerpin1 RNA with the control baits, (3) inject 5 μL of dsSerpin1RNA with the treatment baits, and (4) inject 5μL of ddH2O with the control baits (Table 2). All of the 3rd instars were starved for approximately 12 h before treatments. For each treatment, there were five replicates and 30 individuals for each replicate. All baits were replaced by fresh wheat seedlings after 24 h, and dead instars were recorded daily for 12 days.

2.6. Enzyme Activity Assay

3rd instars L. migratoria manilensis were treated using the method described above, and samples were taken for 5 days continuously after treatments. The samples of the L. migratoria manilensis body were homogenized with 2 mL of 0.1 moL/L phosphate buffer solution (PBS), and then centrifuged at 11,000 rpm for 10 min at 4 °C. Resulting supernatants were transferred to a clean eppendorf tube and centrifuged again at 11,000 rpm for 15 min at 4 °C. The final supernatants were used for proteins and enzyme detection.
The activities of phenoloxidase (PO), multifunctional oxidase (MFO), and glutathione transferase (GSTs) were measured according to previously described protocol using Softmax Pro 6.1 software [37,38,39]. Superoxide dismutase (SOD) and peroxidase (POD) activities were measured by the manufacturer’s instruction (Nanjing Jiancheng Biochemical Institute, Nanjing, China). Moreover, protein content was measured using the Bradford method [40], with bovine serum albumin (BSA) as the standard.

2.7. Quantitative Analysis of Immune Related Gene Expression

To determine the expression of the immune-related gene (PPAE, PPO, and defensin), fat body was collected from 3rd instars of L. migratoria manilensis at 24 h after the treatments. Total RNA was extracted and cDNA was prepared as described above. The mRNA level of PPAE, PPO, and defensin was analyzed by qRT-PCR using a specific primer pair (Table 1). Each sample was analyzed by the threshold cycle (CT). The data were shown as means ± standard deviations. Actin was used as an external reference control. The experiment was conducted in triplicate.

2.8. Statistical Analysis

Statistical analysis was done using the independent samples t-test and one-way ANOVA followed by post hoc test (Duncan’s new multiple range test). p < 0.05 was considered statistically significant, and the abc and asterisks on the bars in the figures represent significant differences among the treatments and control. All the studied traits and data were analyzed using SPSS, version 19.0 (SPSS Inc., Chicago, IL, USA) and PRISM, version 6.01 (GraphPad Software Inc., San Diego, CA, USA).

3. Result

3.1. Expression of Lmserpin1 in Different Tissues and Developmental Stages of L. migratoria manilensis

A full-length cDNA representing a putative L. migratoria manilensis serpin was identified and named Lmserpin1. The full-length cDNA of Lmserpin1 consists of 1228 bp containing 1040 bp open reading frame (ORF) and translates into a 347 amino acids protein with a single serpin domain (spanning from residues 21–343). The calculated molecular mass of the Lmserpin1 protein is 35.6 kDa with an estimated pI of 6.19.
The tissue distribution and developmental stages expression of Lmserpin1 in L. migratoria manilensis were analyzed by qRT-PCR (Figure 1). The results indicated that Lmserpin1 was consistently expressed in all life stages (Figure 1A), and its expression level increased with the development of L. migratoria manilensis, reaching peak at 3rd instars. The Lmserpin1 expression levels at the 1st, 2nd, and 3rd instar were 1.224, 1.607, and 1.841 times of that in egg respectively. Moreover, Lmserpin1 expression at 3rd instars was significantly higher than the other stages (p < 0.05). While Lmserpin1 expression at 4th instars and adults was significantly lower than other stages (p < 0.05), and their expression levels was only 0.175 and 0.597 times that in the egg, respectively. Lmserpin1 expression at 5th instars was 1.122 times that in the egg respectively, which was no significantly different with egg. Therefore, we selected 3rd instars as the target stage to show the response to pathogenic bacteria.
Furthermore, the tissues distribution of Lmserpin1 was also observed in midgut, testis, integument, metapedes, fat body, and hemolymph, respectively (Figure 1B). The results indicated that the transcriptional level of Lmserpin1 in integument was the highest, with 28.825 times that of the hemolymph, meanwhile in metapedes and fat body it was 11.996 and 21.256 times that of the hemolymph (p < 0.05), respectively. While the expression level of Lmserpin1 in testis and midgut had no difference with the hemolymph (p > 0.05).

3.2. The Expression of Lmserpin1 of L. migratoria manilensis in 3rd Instars after RNAi

Analysis of variance revealed significant differences for the relative expression of Lmserpin1 in L. migratoria manilensis. The expression of Lmserpin1 was significantly lower in treated samples compared to that of the control (inject ddH2O) at 6 h, 24 h, 48 h, and 72 h after treatment, and it was only 0.160 times of that of the control at 24 h (Figure 2A, p < 0.05). Therefore, we selected 24 h after treatment as the point in time to show the response of different tissue to Lmserpin1 RNAi.
Moreover, the expression of Lmserpin1 in different tissue, after it was silenced through RNAi, was significantly down-regulated at 24 h after treatment, in particular in fat body and hemolymph, it was only 0.0101 and 0.0171 times that of the control (p < 0.05). The result showed that the Lmserpin1 gene was interfered efficiently in fat body. Therefore, we selected fat body as the target tissues to show the response to pathogenic bacteria.

3.3. The Expression of Lmserpin1 with Application of M. anisopliae

After infection with M. anisopliae spores, the expression of Lmserpin1 of L. migratoria manilensis was significantly higher than the control group in the early stage (Figure 3). It was 6.285, 5.483, and 1.558 times that of the control at 6 h, 12 h, and 24 h after treatment, respectively. While there was no significant difference between the control and treatment at 48 h and 72 h.

3.4. Mortality Comparison under Different Bioassay Treatments

With the application of M. anisopliae, the mortality of L. migratoria manilensis increased to 67.78% at the 12th day after infection, and from the 5th to 12th day, all of them were significantly higher than that of the control (p < 0.05) (Figure 4). Injection of dsSerpin1 RNA killed only 18.32% of the L. migratoria manilensis, with no difference with the control which was only 8.77% at the 12th day. The maximum mortality (94.31%) was recorded when dsSerpin1RNA and Metarhizium was applied in combination, and it was significantly higher than that of Metarhizium used alone and the control from day 5 (p < 0.05). Moreover, the mortality was consistently increased in all the treatments with extending the time, from 5 to 12 days of treatment, the mortality of Metarhizium group was substantially significantly higher than the control group, while significantly lower than the dsSerpin1 + Metarhizium group (p < 0.05).

3.5. The Enzyme Activity of L. migratoria manilensis among Different Treatment Groups

3.5.1. Effects of Different Treatment Groups on PO Activity of L. migratoria manilensis

The activity of PO treated by Metarhizium showed a trend of increasing then decreasing with days, while that treated by the dsSerpin1 + Metarhizium showed a trend of decreasing then increasing with days (Figure 5). Treated by Metarhizium, the activity of PO was significantly lower than that of the control, with the exception of the 3rd day of sampling (p < 0.05), and was not significantly different from the control on the 3rd day of sampling. Treated by dsSerpin1 + Metarhizium, the activity of PO was significantly higher than that of the control on the 4th day while lower than that of the control on the other days of sampling (p < 0.05). Moreover, it significantly higher than the Metarhizium treatment group on the 4th day, and was significantly lower than the Metarhizium treatment group on the 2nd and 3rd days (p < 0.05), which is not significantly different from the Metarhizium treatment group on other days.

3.5.2. Effects of Different Treatment Groups on POD Activity of L. migratoria manilensis

The activity of POD treated by Metarhizium or by the dsSerpin1 + Metarhizium showed a trend of decreasing then increasing and then decreasing with the days (Figure 6). Treated by Metarhizium, the activity of POD was significantly higher than that of the control on the 1st day, but significantly lower than that of the control on the 2nd and 5th day of sampling (p < 0.05), and it was not significantly different from the control on other days. Treated by dsSerpin1 + Metarhizium, the activity of POD was significantly higher than that of the control on the 1st day while lower than that of the control on the 2nd, 4th, and 5th days (p < 0.05). Moreover, it was significantly higher than the Metarhizium treatment group on the 1st and 5th days, and was significantly lower than the Metarhizium treatment group on the 4th day (p < 0.05), which not significantly different from the Metarhizium on other days.

3.5.3. Effects of Different Treatment Groups on SOD Activity of L. migratoria manilensis

The activity of SOD treated by Metarhizium or by the dsSerpin1 + Metarhizium decreased with days (Figure 7). Treated by Metarhizium, the activity of SOD was significantly higher than that of the control on the 1st day, but significantly lower than that of the control on the 5th day (p < 0.05), and it was not significantly different from the control on other days. Treated by dsSerpin1 + Metarhizium, the activity of SOD on the first two days were significantly higher than that of the control and the Metarhizium, but was significantly lower than that of the two group on the 4th day (p < 0.05). There was no significantly difference found among them on the 3rd and 5th day (p > 0.05).

3.5.4. Effects of Different Treatment Groups on MFO Activity of L. migratoria manilensis

The MFO activity of the group treated with the Metarhizium showed a trend of increasing then decreasing with days, while the activity of MFO in the dsSerpin1 + Metarhizium treatment group showed a trend of decreasing then increasing with days (Figure 8). Treated by Metarhizium, the activity of MFO was significantly higher than that of the control on the 2nd and 3rd days of sampling, but significantly lower than that of the control on the 4th and 5th days of sampling (p < 0.05), and was not significantly different from the control he 1st day (p > 0.05). Treated by dsSerpin1 + Metarhizium, the activity of MFO was significantly lower than that of the control on the 4th and 5th days, and was not significantly different from the control on other days (p < 0.05). Moreover, it was significantly lower than the Metarhizium treatment group on the on the 2nd, 3rd, and 4th days of sampling, and was not significantly different from the Metarhizium treatment group on other days (p > 0.05).

3.5.5. Effects of Different Treatment Groups on GSTs Activity of L. migratoria manilensis

The activity of GSTs in the Metarhizium treatment group showed a trend of decreasing then increasing with days, while that in the dsSerpin1 + Metarhizium treatment group showed a trend of decreasing then increasing, then decreasing with days (Figure 9). Treated by Metarhizium, the activity of GSTs was significantly lower than that of the control on the 3rd and 5th days of sampling (p < 0.05), and was not significantly different from the control on other days (p > 0.05). Treated by dsSerpin1 + Metarhizium, the activity of GSTs was significantly higher than that of the control on the 1st and 4th days while lower than that of the control on the 3rd and 5th day (p <0.05), and was not significantly different from the control on the 2nd day. Moreover, the activity of GSTs in the dsSerpin1 + Metarhizium treatment group was significantly higher than the Metarhizium treatment group on the 1st and 4th days, and was significantly lower than the Metarhizium treatment group on the 5th day (p < 0.05), and was not significantly different from Metarhizium treatment group on other days.

3.6. Effect of RNAi on mRNA Levels of Immune Related Pathway Gene

Analysis of variance revealed that the relative expression levels of PPAE, PPO, and defensin mRNA in L. migratoria manilensis treated by dsSerpin1 + Metarhizium showed a decreased trend compared to that treated by Metarhizium alone (Figure 10). The expression level of PPAE treated by the Metarhizium was significantly higher than that of other three treatments, while that treated by dsSerpin1 + Metarhizium was significantly lower than the dsSerpin1 treatment and there was no significantly difference found comparing with the control (Figure 10A, p < 0.05).
The expression level of PPO treated by the Metarhizium was significantly higher than that of other three groups, while treated by dsSerpin1 + Metarhizium, L. migratoria manilensis sharply suppressed the expression of PPO, so that there were no significant differences observed between the dsSerpin1 + Metarhizium treatment and the dsSerpin1 treatmeat as well as the control treatment respectively (Figure 10B, p < 0.05).
For the expression level of defensin, when treated by the Metarhizium group, it was significantly higher than that of the control, while treated by dsSerpin1 + Metarhizium, it was significantly lower than that of the independent treatment of Metarhizium, while no such significant differences were observed with the control treatment (Figure 10C, p < 0.05).

4. Discussion

When infected by M. anisopliae, we found that Lmserpin1 was expressed with a higher level at 6 h, 12 h, and 24 h after treatment, which means that Lmserpin1 gene was involved in the immune response of migratory locusts (Figure 3). To gain a better understanding of the expression profile of Lmserpin1 in different instars of L. migratoria manilensis, we cloned the Lmserpin1 gene from L. migratoria manilensis and investigated its transcription by qRT-PCR. The results showed that the Lmserpin1 gene was expressed in all stages with the highest expression level in 3rd instars (Figure 1A). Serpins had been found to be associated with the innate immune system [11], thus we inferred that the nymph of L. migratoria manilensis in the 3rd instars had the highest resistance to pathogens, and we selected the 3rd instars as the optimal stage to show the response to pathogenic bacteria. Furthermore, we found that Lmserpin1 was expressed with a higher level in integument and fat body (Figure 1B). The higher expression level of Lmserpin1 in the integument might be due to direct contact between the tissue and M. anisopliae, which was helpful for successfully preventing the infection of fungi. Meanwhile, a higher expression level in the fat body may be due to the main tissue of innate immune in L. migratoria manilensis. When the Lmserpin1 gene was interfered with, the expression level was the lowest at 24 h after treatment, with a relative level no more than 20% compared to the control, which indicated that Lmserpin1 was successfully interfered (Figure 2A). In addition, the interference efficiency was the highest in fat body and hemolymph (Figure 2B). Previous studies have shown that the fat body and hemolymph were mediators of cellular immunity in arthropods and contributed to the humoral branch by expressing a large number of secreted immune factors [41]. Thus we chose the fat body as the optimal tissue to detect the effect of Lmserpin1 interferrence in the immune response. M. anisopliae is the most important entomopathogenic fungus with potential use against many insect pests, including locusts and grasshoppers [42]. Previous studies have shown that the Metarhizium adhesion-like protein 1(Mad1) with Metarhizium can cause a higher mortality in migratory locusts than Metarhizium alone [43]. In our study, the mortality of L. migratoria manilensis treated with dsSerpin1 + Metarhizium was 94.31%, while being treated with Metarhizium alone was 67.78% (Figure 4). This result indicated that interfering with Lmserpin1 could effectively enhance the infection of Metarhizium and increase the mortality of L. migratoria manilensis, however, it means that Lmserpin1 can inhibit the infection of M. anisopliae. For all we know, extracellular proteinase, which is a kind of main virulence factor, plays a vital role during the infection of M. anisopliae. We inferred that Lmserpin1, as a serine protease inhibitor, may have inhibited the activity of extracellular proteinase from M. anisopliae, decreased its virulence, ultimately reducing the insecticidal efficiency of locusts caused by M. anisopliae infection.
When pathogens invade, humoral immunity will stimulate the synthesis of melanin to remove foreign pathogens [44]. PO is an important factor in catalyzing melanization [45]. Serpins acting as regulators of melanization response have been reported in various insects [21]. Such as in M. sexta, Mxserpin3, Mxserpin4, Mxserpin5, and Mxserpin6 has been found to be involved in the regulation of PPO cascade [23,24,46]. This study showed that PPAE and PPO genes were significantly enhanced following M. anisopliae infection (Figure 10A,B), while interference with the Lmserpin1 gene significantly reduced this two gene expression in the immune-related pathway when a locust is infected. Additionally, the activity of PO in the dsSerpin1 + Metarhizium combined treatment group was significantly reduced than the Metarhizium group in the early stage (Figure 5). Those results showed that interference of the Lmserpin1 gene could effectively inhibit the expression of melanization-related pathway genes and the activity of PO, ultimately decreasing the ability of locust to resist pathogenic bacteria infection, which means Lmserpin1 could enhance the melanization reaction of L. migratoria manilensis. It has been described that the Dmserpin27A of D. melanogaster can inhibit the activities of PPAE and PO at the site of injury or infection to prevent the insect from excessive melanization [14], and Dmserpin8 can inhibit the PO activity in the hemolymph of Penaeus Monodon and participates in its own melanization [47]. The function of Lmserpin1 was different from that of Dmserpin27A and Dmserpin8 to a certain extent, further research is needed.
The invasion of M. anisopliae leads to changes of different enzyme activities in migratory locusts, which destroys the balance of the enzyme system. When the destruction of homeostasis reaches a certain degree, the migratory locust begins to die [48]. SOD and POD can scavenge superoxide anion free radicals (O2−) and hydrogen peroxide (H2O2), which plays an important role in insect resistance to pathogenic bacteria. It has been reported that the invasion of Metarhizium can induce the increasing of O2− concentration from locusts, enhancing the activity of SOD and POD to clear massive O2− and excess H2O2 [49,50]. In our experiment, the activity of SOD and POD in the prior period was significantly increased when locusts were treated with M. anisopliae, and after interference of the Lmserpin1 gene, the SOD enzyme activity was significantly higher than that without interference in the early stage of infection (Figure 6 and Figure 7), which indicated that the balance of the protective enzyme system of L. migratoria manilensis was damaged after Lmserpin1 interference, it induced that the activity of the protective enzyme was over-increased, and ultimately mortality increased. It indicated that Lmserpin1 could regulate the protective enzyme system of the insect body and regulate the resistance of L. migratoria manilensis to pathogenic bacteria. MFO and GSTs are two important families of enzymes in insects that participate in the detoxification of various xenobiotics and insecticides and play important roles in the resistance of insects to various insecticides [51]. Compared with Metarhizium, the dsSerpin1 + Metarhizium combined treatment could effectively reduce the activity of MFO and weaken the detoxification ability of L. migratoria manilensis (Figure 8). It indicated that the Lmserpin1 gene could reduce the infection of M. anisoplia. By enhancing the detoxifying enzyme system and immunity response in migratory locusts. GSTs play a pivotal role in cellular antioxidant defenses against oxidative stress [52,53,54]. However, after the dsSerpin1 + Metarhizium combined treatment, the activity of GSTs is irregular, and further study is needed (Figure 9).
The effector AMPs produced from fat body constitute the humoral immune system in the fat body. It has been described that Bmserpin15 protein in B. mori can reduce the transcript levels of the AMPs cecropin D, gloverin2, and moricin significantly [55]. The Bmserpin28 in fat body of B. mori can inhibit significantly the transcription of AMPs [34]. While our qRT-PCR analysis result showed that after L. migratoria manilensis was infected by M. anisopliae, the expression of the defensin gene significantly decreased when the Lmserpin1 gene was interfered with (Figure 10C). This result suggested that interference of the Lmserpin1 gene could effectively inhibit the production of AMPs, which indicates that Lmserpin1 could enhance the expression of AMPs genes to improve host humoral immune defensing.
In summary, after the Lmserpin1 gene was interfered with, the activities of protective enzymes (SOD and POD), detoxification enzymes (GSTS and MFO), and PO in L. migratoria manilensis were fluctuating, and the expression levels of immune response related genes (PPAE, PPO, and defensin) decreased. These results show that Lmserpin1 could increase immune responses in L. migratoria manilensis to resist the infection of M. anisopliae. However, there are many questions that remain to be answered. The mechanisms of Lmserpin1’s interaction with its target protease remain to be discovered. Future studies should focus on evaluating these signaling mechanisms to provide a clearer understanding of its possible functions in L. migratoria manilensis.

5. Conclusions

In this study, we monitored the activities of SOD, POD, PO, GSTs, and MFO, and evaluated the expression levels of immune-related genes of L. migratoria manilensis treated with dsSerpin1, Metarhizium, and dsSerpin1 + Metarhizium respectively to identify the immunity mechanism of Lmserpin1. Our results showed that the interference of Lmserpin1 caused the activity of the protective enzyme over-increased and the detoxification enzyme suppressed and effectively reduced the expression of immune-related genes in L. migratoria manilensis which ultimately promoted the infection of Metarhizium, resulting in the L. migratoria manilensis to die acceleratively. These results indicated that Lmserpin1 could increase the immune responses of L. migratoria manilensis to resist the infection of M. anisopliae.

Author Contributions

B.L. contributed to planning the experimental design, sampling populations, conducting laboratory tests, data analysis, and writing of the manuscript. Y.T. assisted with data analysis. N.A.A., G.W., X.N., H.L., and Z.Z. contributed to editing the manuscript, provided suggestions and comments for manuscript improvement, and approved the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Key Research and Development Project (No. 2017YFD0200402), Modern Agricultural Industry Technology System (No. CARS-34-07B), and Central Public-interest Scientific Institution Basal Research Fund (No. S2020XM17; Y2020XC18).

Institutional Review Board Statement

Not applicable.

Acknowledgments

We are grateful to Xiongbing Tu for his guidance on the molecular experiments. We are deeply indebted to Shuang Li for their guidance and suggestions on the experimental design and who helped to check the text. We also would like to express our appreciation to the anonymous reviewers for their valuable suggestions and comments on our manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Celli, J.; Finlay, B.B. Bacterial avoidance of phagocytosis. Trends. Microbiol. 2002, 10, 232–237. [Google Scholar] [CrossRef]
  2. Nielsen-LeRoux, C.; Gaudriault, S.; Ramarao, N.; Lereclus, D.; Givau-dan, A. How the insect pathogen bacteria Bacillus thuringiensis and Xenorhabdus/Photorhabdus occupy their hosts. Curr. Opin. Microbiol. 2012, 15, 220–231. [Google Scholar] [CrossRef] [PubMed]
  3. Hultmark, D.; Engström, A.; Andersson, K.; Steiner, H.; Bennich, H.; Boman, H.G. Insect immunity. attacins, a family of antibacterial proteins from hyalophora cecropia. Embo. J. 1983, 2, 571–576. [Google Scholar] [CrossRef]
  4. Iwona, W.; Małgorzata, C.; Agnieszka, Z.B.; Jakub, K. Insect Defense Proteins and Peptides. Subcell. Biochem. 2020, 94, 81–121. [Google Scholar]
  5. Cerenius, L.; Söderhäll, K. The prophenoloxidase-activating system in invertebrates. Immunol. Rev. 2004, 198, 116–126. [Google Scholar] [CrossRef]
  6. Jiravanichpaisal, P.; Lee, B.L.; Söderhäll, K. Cell-mediated immunity in arthropods: Hematopoiesis, coagulation, melanization and opsonization. Immunobiology 2006, 211, 213–236. [Google Scholar] [CrossRef] [PubMed]
  7. Olson, S.T.; Richard, B.; Izaguirre, G.; Schedin-Weiss, S.; Gettins, P.G. Molecular mechanisms of antithrombin-heparin regulation of blood clotting proteinases. A paradigm for understanding proteinase regulation by serpin family proteinproteinase inhibitors. Biochimie 2010, 92, 1587–1596. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Lemaitre, B.; Hoffmann, J. The host defense of Drosophila melanogaster. Annu. Rev. Immunol. 2007, 25, 697–743. [Google Scholar] [CrossRef] [Green Version]
  9. Satoh, D.; Horii, A.; Ochiai, M.; Ashida, M. Prophenoloxidase-activating enzyme of the silkworm, Bombyx mori. Purification, characterization, and cDNA cloning. J. Biol. Chem. 1999, 274, 7441–7453. [Google Scholar] [CrossRef] [Green Version]
  10. Kanost, M.R. Serine proteinase inhibitors in arthropod immunity. Dev. Comp. Immunol. 1999, 23, 291–301. [Google Scholar] [CrossRef]
  11. Silverman, G.A.; Bird, P.L.; Carrell, R.W.; Church, F.C.; Coughlin, P.B.; Gettins, P.G. The serpins are an expanding uperfamily of structurally similar but functionally diverse proteins. Evolution mechanism of inhibition, novel functions, and a revised nomenclature. J. Biol. Chem. 2001, 276, 33293–33296. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Law, R.H.; Zhang, Q.; Mcgowan, S.; Buckle, A.M.; Silverman, G.A.; Wong, W.; Rosado, C.J.; Langendorf, C.G.; Pike, R.N.; Bird, P.I.; et al. An overview of the serpin superfamily. Genome Biol. 2006, 7, 216. [Google Scholar] [CrossRef] [Green Version]
  13. Laskowski, M.; Kato, I. Protein inhibitors of proteinases. Annu. Rev. Biochem. 1980, 49, 593–626. [Google Scholar] [CrossRef] [PubMed]
  14. Gregorio, E.D.; Han, S.J.; Lee, W.J.; Baek, M.J.; Osaki, T.; Kawabata, S.I.; Lee, B.L.; Iwanaga, S.; Lemaitre, B.; Brey, P.T. An immune-responsive serpin regulates the melanization cascade in drosophila. Dev. Cell. 2002, 3, 581–592. [Google Scholar] [CrossRef] [Green Version]
  15. Jiang, H.; Kanost, M.R. Characterization and functional analysis of 12 naturally occurring reactive site variants of serpin-1 from Manduca sexta. J. Biol. Chem. 1997, 272, 1082–1087. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Zhao, P.; Dong, Z.; Duan, J.; Wang, G.; Wang, L.; Li, Y.; Xiang, Z.; Xia, Q. Genome-wide identification and immune response analysis of serine protease inhibitor genes in the silkworm, Bombyx mori. PLoS ONE 2012, 7, e31168. [Google Scholar] [CrossRef]
  17. Zheng, Y.P.; He, W.Y.; Béliveau, C.; Nisole, A.; Stewart, D.; Zheng, S.C.; Douceta, D.; Cusson, M.; Fengb, Q.L. Cloning, expression and characterization of four serpin-1 cDNA variants from the spruce budworm, Choristoneura fumiferana. Comp. Biochem. Physiol. B Biochem. Mol. Biol. 2009, 154, 165–173. [Google Scholar] [CrossRef]
  18. Iwanaga, S.; Kawabata, S.; Muta, T. New types of clotting factors and defense molecules found in horseshoe crab hemolymph: Their structures and functions. J. Biochem. 1998, 123, 1–15. [Google Scholar] [CrossRef] [PubMed]
  19. Yang, L.Z.; Keyhani, N.O.; Tang, G.; Tian, C.; Fan, Y.H. Expression of a toll signaling regulator serpin in a mycoinsecticide for increased virulence. Appl. Environ. Microb. 2014, 80, 4531–4539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Tong, Y.; Kanost, M.R. Manduca sexta serpin-4 and serpin-5 inhibit the prophenoloxidase activation pathway: cDNA cloning, protein expression, and characterization. J. Biol. Chem. 2005, 280, 14923–14931. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. An, C.; Jiang, H.; Kanost, M.R. Proteolytic activation and function of the cytokine Spätzle in the innate immune response of a lepidopteran insect, Manduca sexta. FEBS J. 2010, 277, 148–162. [Google Scholar] [CrossRef] [Green Version]
  22. Chen, H.; Davids, J.A.; Zheng, D.; Bryant, M.; Bot, I.; Theo, J.C.V.B.; Biessen, E.; Pepine, C.; Ryman, K.; Progulski-Fox, A.; et al. The serpin solution; targeting thrombotic and thrombolytic serine proteases in inflammation. Cardiovasc. Hematol. Disord. Drug Targets 2013, 13, 99–110. [Google Scholar] [CrossRef]
  23. Zhu, Y.; Wang, Y.; Gorman, M.J. Manduca sexta serpin-3 regulates prophenoloxidase activation in response to infection by inhibiting prophenoloxidase-activating proteinases. J. Biol. Chem. 2003, 278, 46556–46564. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Tong, Y.; Kanost, H.J.; Identiiang, M. Identification of plasma proteases inhibited by Manduca sexta serpin-4 and serpin-5 and their association with components of the prophenoloxidase activation pathway. J. Biol. Chem. 2005, 280, 14932–14942. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Nappi, A.J.; Frey, F.; Carton, Y. Drosophila serpin 27A is a likely target for immune suppression of the blood cell-mediated melanotic encapsulation response. J. Insect Physiol. 2005, 51, 197–205. [Google Scholar] [CrossRef]
  26. Zou, Z.; Picheng, Z.; Weng, H.; Mita, K.; Jiang, H. A comparative analysis of serpin genes in the silkworm genome. Genomics 2009, 93, 367–375. [Google Scholar] [CrossRef] [Green Version]
  27. Kim, C.H.; Kim, S.J.; Kan, H.; Kwon, H.M.; Roh, K.B.; Jiang, R.; Park, J.W.; Lee, H.H.; Ha, N.C.; Kang, H.J.; et al. A three-step proteolytic cascade mediates the activation of the peptidoglycan-induced toll pathway in an insect. J. Biol. Chem. 2008, 283, 7599–7607. [Google Scholar] [CrossRef] [Green Version]
  28. Zhong, X.; Xu, X.X.; Yi, H.Y.; Lin, C.; Yu, X.Q. A toll-spatzle pathway in the tobacco hornworm, Manduca sexta. Insect Biochem. Mol. Biol. 2012, 42, 514–524. [Google Scholar] [CrossRef] [Green Version]
  29. COPR (Centre of Overseas Pest Research). The Locust and Grasshopper Agricultural Manual; ACIAR: Canberra, Australia, 1982; pp. 449–467.
  30. Cao, G.; Jia, M.; Zhao, X.; Wang, L.; Zhang, Z. Different effects of metarhizium anisopliae strains IMI330189 and IBC200614 on enzymes activities and hemocytes of Locusta migratoria L. PLoS ONE 2016, 11, e0155257. [Google Scholar] [CrossRef]
  31. Chen, J.; Cui, D.; Ullah, H.; Hao, K.; Tu, X.; Zhang, Z. Serpin7 controls egg diapause of migratory locust (locusta migratoria) by regulating polyphenol oxidase. FEBS Open Bio 2020, 10, 707–717. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Rowshani, A.T.; Strik, M.C.M.; Rosalie, M.; Si-La, Y.; Wolbink, A.M.; Bemelman, F.J. The granzyme b inhibitor serpinb9 (protease inhibitor 9) circulates in blood and increases on primary cytomegalovirus infection after renal transplantation. J. Infect. Dis. 2006, 192, 1908–1911. [Google Scholar] [CrossRef] [Green Version]
  33. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2 −ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  34. Gao, Q.; Yang, L.; Dai, J.; Yuan, G.; Wang, L.; Qian, C.; Zhu, B.; Liu, C.; Wei, G. Characterization and functional analysis of serpin-28 gene from silkworm, bombyx mori. J. Inverteb. Pathol. 2018, 159, 18–27. [Google Scholar] [CrossRef]
  35. Hao, K.; Ullah, H.; Jarwar, A.R.; Nong, X.; Tu, X.; Zhang, Z. Molecular identification and diapause-related functional characterization of a novel dual-specificity kinase gene, MPKL, in Locusta migratoria. FEBS Lett. 2019, 593, 3064–3074. [Google Scholar] [CrossRef]
  36. Mullen, L.M.; Goldsworthy, G.J. Immune responses of locusts to challenge with the pathogenic fungus Metarhizium or high doses of laminarin. J. Insect Physiol. 2006, 52, 389–398. [Google Scholar] [CrossRef] [PubMed]
  37. Xue, C.B.; Luo, W.C.; Jiang, L.; Xie, X.Y.; Xiao, T.; Yan, L. Inhibition kinetics of cabbage butterfly (Pieris rapae L.) larvae phenoloxidase activity by 3-hydroxy-4-methoxybenzaldehyde thiosemicarbazone. Appl. Biochem. Biotechnol. 2007, 143, 101–114. [Google Scholar] [CrossRef] [PubMed]
  38. Han, Z.; Moores, G.D.; Denholm, I.; Devonshire, A.L. Association between biochemical markers and insecticide resistance in the cotton aphid, aphis gossypiiglover. Pestic. Biochem. Phys. 1998, 62, 164–171. [Google Scholar] [CrossRef]
  39. Oppenoorth, F.J.; Welling, W. Biochemistry and physiology of resistance. In Wilkinson CF. Insecticide Biochemistry and Physiology; Springer: New York, NY, USA, 1976; pp. 507–551. [Google Scholar]
  40. Bradford, M.M. A rapid and sensitive method for the quantitation of microgram quantities of protein utilizing the principle of protein–dye binding. Nature 1976, 72, 248–254. [Google Scholar] [CrossRef]
  41. Shia, A.K.H.; Glittenberg, M.; Thompson, G.; Weber, A.N.; Reichhart, J.; Ligoxygakis, P. Toll-dependent antimicrobial responses in Drosophila larval fat body require Spätzle secreted by haemocytes. J. Cell Sci. 2009, 122, 4505–4515. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. De Faria, M.R.; Wraight, S.P. Mycoinsecticides and mycoacaricides: A comprehensive list with worldwide coverage and international classification of formulation types. Biol. Control. 2007, 43, 237–256. [Google Scholar] [CrossRef]
  43. Abro, N.A.; Wang, G.; Ullah, H.; Long, G.L.; Hao, K.; Nong, X.; Cai, N.; Tu, X.; Zhang, Z. Influence of Metarhizium anisopliae (IMI330189) and Mad1 protein on enzymatic activities and Toll-related genes of migratory locust. Environ. Sci. Pollut. R. 2019, 26, 17797–17808. [Google Scholar] [CrossRef] [PubMed]
  44. Dan, S.; Akio, H.; Masanori, O.; Masaaki, A. Prophenoloxidase-activating enzyme of the silkworm, Bombyx mori Purification, characterization and cDNA cloning. J. Biol. Inorg. Chem. 2007, 274, 7441–7453. [Google Scholar]
  45. Duan, L.; Otvosi, S. Influence of larval age and virus concentration on mortality and sublethal effects of a nucleopolyhedrovirus on the west spruce budworm (Lepidoptera: Tortricidae). Environ. Entomol. 2001, 30, 136–146. [Google Scholar] [CrossRef]
  46. Zou, Z.; Jiang, H. Manduca sexta serpin-6 regulates immune serine proteinases PAP-3 and HP8. cDNA cloning, protein expression, inhibition kinetics, and function elucidation. J. Biol. Chem. 2005, 280, 14341–14348. [Google Scholar] [CrossRef] [Green Version]
  47. Somnuk, S.; Tassanakajon, A.; Rimphanitchayakit, V. Gene expression and characterization of a serine proteinase inhibitor pmserpin8 from the black tiger shrimp penaeus monodon. Fish Shellfish Immunol. 2012, 33, 332–341. [Google Scholar] [CrossRef]
  48. Wang, Z.H. Virulence of Metarhizium anisopliae extracellular proteinases in midgut of Locusta migratoria manilensis Meyen. Master’s Thesis, Gansu Agricultural University, Lanzhou, Gansu, 2016. (In Chinese). [Google Scholar]
  49. Chen, E.H.; Wei, D.; Wei, D.D.; Yuan, G.R.; Wang, J.J. The effect of dietary restriction on longevity, fecundity, and antioxidant responses in the oriental fruit fly, Bactrocera dorsalis (Hendel) (Diptera: Tephritidae). J. Insect Physiol. 2013, 59, 1008–1016. [Google Scholar] [CrossRef]
  50. Felton, G.W.; Summers, C.B. Antioxidant systems in insects. Arch. Insect Biochem. Physiol. 1995, 29, 187–197. [Google Scholar] [CrossRef] [PubMed]
  51. Li, X.; Schuler, M.A.; Berenbaum, M.R. Molecular mechanisms of metabolic resistance to synthetic and natural xenobiotics. Annu. Rev. Entomol. 2007, 52, 231–253. [Google Scholar] [CrossRef]
  52. Feyereisen, R. Insect cytochrome P450. In Comprehensive Molecular Insect Science; Gilbert, L.I., Latrou, K., Gill, S.S., Eds.; Elsevier: Oxford, UK; pp. 1–77.
  53. Enayati, A.A.; Ranson, H.; Hemingway, J. Insect glutathione transferases and insecticide resistance. Insect Mol. Biol. 2005, 14, 3–8. [Google Scholar] [CrossRef] [Green Version]
  54. Lumjuan, N.; McCarroll, L.; Prapanthadara, L.; Hemingway, J.; Ranson, H. Elevated activity of an epsilon class glutathione transferase confers DDT resistance in the dengue vector, Aedes aegypti. Insect Biochem. Mol. Biol. 2005, 35, 861–871. [Google Scholar] [CrossRef]
  55. Liu, D.; Wang, L.; Yang, L.; Qian, C.; Wei, G.; Dai, L.; Li, J.; Zhu, B.; Liu, C. Serpin-15 from Bombyx mori inhibits prophenoloxidase activation and expression of antimicrobial peptides. Dev. Comp. Immunol. 2015, 51, 22–28. [Google Scholar] [CrossRef] [PubMed]
Insects 12 00178 g001 550
Figure 1. Expression of Lmserpin1 in the different tissue and developmental stages of L. migratoria manilensis. (A) Relative mRNA level of the Lmserpin1gene in the development stages of L. migratoria manilensis, Lmserpin1 mRNA level in the egg was attributed a value of 1. (B) Relative mRNA level of the Lmserpin1 gene in the different tissue of L. migratoria manilensis, Lmserpin1 mRNA level in the hemolymph was attributed a value of 1. Bars represent mean ± S.E. (n = 3). Bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Figure 1. Expression of Lmserpin1 in the different tissue and developmental stages of L. migratoria manilensis. (A) Relative mRNA level of the Lmserpin1gene in the development stages of L. migratoria manilensis, Lmserpin1 mRNA level in the egg was attributed a value of 1. (B) Relative mRNA level of the Lmserpin1 gene in the different tissue of L. migratoria manilensis, Lmserpin1 mRNA level in the hemolymph was attributed a value of 1. Bars represent mean ± S.E. (n = 3). Bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Insects 12 00178 g001
Insects 12 00178 g002 550
Figure 2. Relative quantitative expression of Lmserpin1 mRNA in different time and different tissue of L. migratoria manilensis after RNAi. (A) Relative mRNA level of the Lmserpin1gene in the bodies of 3rd instars L. migratoria manilensis under treatment for 6 h, 24 h, 48 h, and 72 h. (B) Relative mRNA level of the Lmserpin1 gene in the body, midgut, fat body, testis, and hemolymph after treatment by 24 h. Error probability of p < 0.05 by Student’s t-test, ** indicates a significant difference between the two groups; * indicates no significant difference between the two groups (Duncan’s method for multiple comparisons).
Figure 2. Relative quantitative expression of Lmserpin1 mRNA in different time and different tissue of L. migratoria manilensis after RNAi. (A) Relative mRNA level of the Lmserpin1gene in the bodies of 3rd instars L. migratoria manilensis under treatment for 6 h, 24 h, 48 h, and 72 h. (B) Relative mRNA level of the Lmserpin1 gene in the body, midgut, fat body, testis, and hemolymph after treatment by 24 h. Error probability of p < 0.05 by Student’s t-test, ** indicates a significant difference between the two groups; * indicates no significant difference between the two groups (Duncan’s method for multiple comparisons).
Insects 12 00178 g002
Insects 12 00178 g003 550
Figure 3. Relative quantitative expression of Lmserpin1 mRNA of L. migratoria manilensis after being treated by M. anisopliae. Error probability of p < 0.05 by Student’s t-test, ** indicates a significant difference between the two groups; * indicates no significant difference between the two groups (Duncan’s method for multiple comparisons).
Figure 3. Relative quantitative expression of Lmserpin1 mRNA of L. migratoria manilensis after being treated by M. anisopliae. Error probability of p < 0.05 by Student’s t-test, ** indicates a significant difference between the two groups; * indicates no significant difference between the two groups (Duncan’s method for multiple comparisons).
Insects 12 00178 g003
Insects 12 00178 g004 550
Figure 4. The mortality of L. migratoria manilensis days across 12 days after treatment, each treatments were 150 individuals. Bars represent mean ± S.E. (n = 3). Bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Figure 4. The mortality of L. migratoria manilensis days across 12 days after treatment, each treatments were 150 individuals. Bars represent mean ± S.E. (n = 3). Bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Insects 12 00178 g004
Insects 12 00178 g005 550

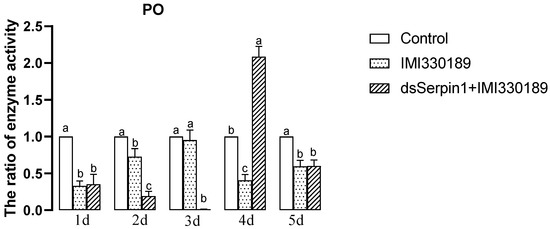

Figure 5. The phenoloxidase (PO) activity of L. migratoria manilensis on the 3rd instars after the application of different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Figure 5. The phenoloxidase (PO) activity of L. migratoria manilensis on the 3rd instars after the application of different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Insects 12 00178 g005
Insects 12 00178 g006 550
Figure 6. The peroxidase (POD) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Figure 6. The peroxidase (POD) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Insects 12 00178 g006
Insects 12 00178 g007 550
Figure 7. Superoxide dismutase (SOD) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Figure 7. Superoxide dismutase (SOD) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Insects 12 00178 g007
Insects 12 00178 g008 550
Figure 8. Multifunctional oxidase (MFO) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Figure 8. Multifunctional oxidase (MFO) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Insects 12 00178 g008
Insects 12 00178 g009 550
Figure 9. Glutathione S-transferase (GST) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Figure 9. Glutathione S-transferase (GST) activity of L. migratoria manilensis from different treatments. Bars represent mean ± S.E. (n = 3). The letters a, b, and c denote the differences between treatments, bars labeled with different letters are significantly different (one-way ANOVA followed by Duncan’s test, p < 0.05).
Insects 12 00178 g009
Insects 12 00178 g010 550
Figure 10. The relative quantitative expression of immune related genes of L. migratoria manilensis. (A) The expression of PPAE in different treatments. (B) The expression of PPO in different treatments. (C) The expression of defensin in different treatments. The letters a, b, and c denote the differences between treatments, values are expressed as means ± standard error (SE) of the number of treatments. Bars marked by different lowercase letters are significantly different based on least-significant difference (LSD) analysis at p < 0.05.
Figure 10. The relative quantitative expression of immune related genes of L. migratoria manilensis. (A) The expression of PPAE in different treatments. (B) The expression of PPO in different treatments. (C) The expression of defensin in different treatments. The letters a, b, and c denote the differences between treatments, values are expressed as means ± standard error (SE) of the number of treatments. Bars marked by different lowercase letters are significantly different based on least-significant difference (LSD) analysis at p < 0.05.
Insects 12 00178 g010
Table
Table 1. The information of nucleotide sequences of the primers used in this study, and the purpose of corresponding genes. Prophenoloxidase-activating enzyme (PPAE); prophenoloxidase (PPO).
Table 1. The information of nucleotide sequences of the primers used in this study, and the purpose of corresponding genes. Prophenoloxidase-activating enzyme (PPAE); prophenoloxidase (PPO).
GenePrimersPurposeSequence (5′–3′)
serpin1serpin1-FExpressionCGCGGATCC GATGCCAGTCCGCGCCTTCTC
serpin1-RExpressionCCC AAGCTT TTGCGGAGGC CTTTGTGG
qPCR-serpin1-FReal-Time PCRTACGCAGGCAAAGGAAAG
qPCR-serpin1-RReal-Time PCRATGGGTTTACGGTGCTC
dsSerpin1-FRNAiTAATACGACTCACTATAGGATCAGCACAGCCAGGAAAC
dsSerpin1-RRNAiTAATACGACTCACTATAGGCGGCATCGGAGAAGTATTG
Actinactin-FReal-Time PCRGTTACAAACTGGGACGACAT
actin-RReal-Time PCRAGAAAGCACAGCCTGAATAG
PPAEPPAE-FReal-Time PCRCACCAGCACAAATGAATGAC
PPAE-RReal-Time PCRCAACGACAATGAGGCACAG
PPOPPO-FReal-Time PCRAAAGACCGCAGAGGAGAA
PPO-RReal-Time PCRCCAACGATAGAACACAGGA
defensindefensin-FReal-Time PCRCCAGAAAGCGATGATGCCACTA
defensin-RReal-Time PCRCACCACAAATCAACGCCAAAGT
Table
Table 2. The components and concentration of baits from different treatments.
Table 2. The components and concentration of baits from different treatments.
No.TreatmentsThe Concentration of M. anisonliae (Spore/g Bran)Dosage of ds Serpin1 RNA (mL)
(1)Metarhizium2.50 × 1080
(2)dsSerpin105
(3)Metarhizium + dsSerpin12.50 × 1085
(4)Control00
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Li, B.; Li, H.; Tian, Y.; Abro, N.A.; Nong, X.; Zhang, Z.; Wang, G. Molecular Identification and Immunity Functional Characterization of Lmserpin1 in Locusta migratoria manilensis. Insects 2021, 12, 178. https://doi.org/10.3390/insects12020178

AMA Style

Li B, Li H, Tian Y, Abro NA, Nong X, Zhang Z, Wang G. Molecular Identification and Immunity Functional Characterization of Lmserpin1 in Locusta migratoria manilensis. Insects. 2021; 12(2):178. https://doi.org/10.3390/insects12020178

Chicago/Turabian Style

Li, Beibei, Hongmei Li, Ye Tian, Nazir Ahmed Abro, Xiangqun Nong, Zehua Zhang, and Guangjun Wang. 2021. "Molecular Identification and Immunity Functional Characterization of Lmserpin1 in Locusta migratoria manilensis" Insects 12, no. 2: 178. https://doi.org/10.3390/insects12020178

APA Style

Li, B., Li, H., Tian, Y., Abro, N. A., Nong, X., Zhang, Z., & Wang, G. (2021). Molecular Identification and Immunity Functional Characterization of Lmserpin1 in Locusta migratoria manilensis. Insects, 12(2), 178. https://doi.org/10.3390/insects12020178

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
