Article

Intraguild Interactions of Three Biological Control Agents of the Fall Armyworm Spodoptera frugiperda (JE Smith) in Florida

by
Jermaine D. Perier
1,2,
Muhammad Haseeb
1,*,
Lambert H. B. Kanga
1,
Robert L. Meagher
3 and
Jesusa C. Legaspi
4
1
Center for Biological Control, College of Agriculture and Food Sciences, Florida A&M University, Tallahassee, FL 32307, USA
2
Department of Entomology, University of Georgia, Tifton, GA 31794, USA
3
Insect Behavior and Biocontrol Research Unit, ARS-CMAVE, USDA, Gainesville, FL 32608, USA
4
Insect Behavior and Biocontrol Research Unit, Center for Medical, Agricultural and Veterinary Entomology, Agricultural Research Service, United States Department of Agriculture, Tallahassee, FL 32308, USA
*
Author to whom correspondence should be addressed.
Insects 2022, 13(9), 815; https://doi.org/10.3390/insects13090815
Submission received: 15 July 2022 / Revised: 1 September 2022 / Accepted: 4 September 2022 / Published: 7 September 2022
(This article belongs to the Special Issue Recent Advances in Fall Armyworm Research)
Browse Figure
Review Reports Versions Notes

Abstract

:

Simple Summary

Spodoptera frugiperda is a native noctuid pest of the Western Hemisphere with a growing global distribution. It is polyphagous by nature and is the primary insect pest attacking maize in Florida. Larval feeding damage has resulted in crop yield losses of up to 20% or more in the United States. In other parts of the world, it causes maize yield losses of between 17–72%. Consequently, regular pesticide applications have led to insecticide-resistant strains of S. frugiperda. Herein, we propose using biological control agents as an alternative pest management strategy. Augmentative biological control allows for the strategic release of these agents where they are sparse or absent in open fields. However, insects are complex organisms with an array of intraguild interactions that might contradict such an effort. Therefore, the goal of improving these agents’ use for alternative pest control requires evaluating their interactions as expressed in the same guild.

Abstract

The fall armyworm, Spodoptera frugiperda (J.E. Smith) (Lepidoptera: Noctuidae), is a maize pest worldwide. Its host range comprises more than 350 reported plant species, and it is the primary insect pest attacking maize in Florida. Global trade has not only assisted but accelerated its invasion into the Eastern Hemisphere. Regular pesticide use promotes resistance in the species; therefore, there is an urgent need for alternative pest management strategies. This study evaluated the interactions of biological control agents within a similar guild. Some of the reported interactions could potentially lead to the integration of these agents within the same niche to increase biological control efficiency against the fall armyworm. We evaluated three biocontrol agents that are natural enemies of Lepidopteran pests, the true bugs Podisus maculiventris and Euthyrhynchus floridanus (Hemiptera: Pentatomidae) and a parasitoid, Cotesia marginiventris (Hymenoptera: Braconidae). Depending on their intraguild interactions, these agents could potentially be useful for biological control of the fall armyworm. The study investigated these three biocontrol agents and concluded that integrating these agents to control the fall armyworm is a possibility; however, only under certain conditions. Investigations were focused on evaluating the predator–parasitoid and devised pairing interactions. Predator response to prey in a choice or no-choice scenario and choices based on olfaction or other bodily cues were studied under experimental laboratory conditions.

1. Introduction

The fall armyworm, Spodoptera frugiperda (J.E. Smith, 1797) (Lepidoptera: Noctuidae), is an important pest of crops in the Western Hemisphere, with a regional distribution range from southern Canada to Argentina [1]. In Florida, USA, the fall armyworm is the primary pest attacking the ears of sweet maize (Zea mays L.) [2]. Additional reports have also indicated significant economic damage to sorghum (Sorghum vulgare Pers.) and turf grass across the United States [3,4,5]. The fall armyworm is polyphagous and feeds on more than 350 plant species globally, with a preference for maize and rice [1,6,7]. Maize production in the United States accounts for 55% of global production [8], with Florida contributing 24% (USD 160 million) of the total U.S. value [9,10]. Given the importance of host crops such as maize globally [8,11] and the recent spread of the fall armyworm to other continents and new U.S. states [12]. this insect has become a pest of global concern [13]. Different countries have reported varying yield losses, such as 17–72% in South America [14,15] and up to 20% in the United States [1]. All larval stages of the fall armyworm cause considerable feeding damage to host plants, especially at high infestation levels [2,16], with most of the damage occurring in the final larval instar [1]. Pest feeding drastically impacts the plant’s growth [17] and reduces ear marketability significantly [18]. Damage mitigation frequently involves the extensive use of insecticides and transgenic crops [19,20]. Consequently, the heavy reliance on insecticides produced insecticide-resistant strains within the species [21], resulting in the further application of larger volumes of insecticides [22]. Ultimately, these actions increase the risk of environmental pollution and potential impacts on non-target organisms [23].
Biological control agents are vital components in many integrated pest management programs due to their natural ability to regulate pest populations [24]. Most natural enemies of the fall armyworm are generalist predators and parasitoids that also attack other pest species in agricultural ecosystems [1]. Including multiple biological control agents could perhaps improve the effectiveness of biological control programs targeting the fall armyworm [13,25]. However, any attempt to integrate multiple generalist natural enemies to control agricultural pests poses concerns about competition and intraguild predation, amongst others [26,27,28]. Moreover, competition amongst biological control agents involves more complex interactions [26]. This study highlights the results of interactions among biological control agents when used simultaneously in a guild. We evaluated two predators, Podisus maculiventris (Say, 1832) and Euthyrhynchus floridanus (L., 1767) (Hemiptera: Pentatomidae), along with a parasitoid, Cotesia marginiventris (Cresson, 1865) (Hymenoptera: Braconidae), for their roles as biological control agents against the fall armyworm. All three biocontrol agents are native to the neotropical regions of the U.S., including Florida [29,30,31]. However, reports on their control efforts against economic pests are not consistent for all three species. This is perhaps a result of the difference in the durations of life cycles (28 days and 60 days, P. maculiventris and E. floridanus respectively), despite the similarities in size of each instar and adult among the pentatomid predators (head capsule widths: first = 0.6–0.7 mm, second = 0.9 mm, third = 1.2–1.3 mm, fourth = 1.7 mm, fifth = 2.1–2.2 mm instar and adult = 2.3 mm for P. maculiventris; and male = 2.3 mm, female = 7.2 mm for E. floridanus) [29,32]. The study aimed to understand the response of these three agents, and multiple experiments were conducted under controlled conditions to determine the responses of predators toward the prey.

2. Materials and Methods

The experiment was conducted in a laboratory at the Center for Biological Control, Florida Agricultural and Mechanical University, in Tallahassee, Florida. All colonies were established and reared onsite for the experiments. All colonies were reared for one to three generations before initiating experiments.

2.1. Colony Establishment

Colonies of Podisus maculiventris and Euthyrhynchus floridanus were established using adults and eggs obtained from laboratory cultures (originally from Florida) at the USDA-ARS-CMAVE laboratory in Tallahassee, Florida. Three generations were established for each species before experimentation. Colonies were reared in incubators maintained at 26 ± 2 °C, 65 ± 5% relative humidity and with a 14:10 (L:D) h photoperiod. Additional rearing procedures for both species followed those described by Legaspi and Legaspi [33].
Larvae of the fall armyworm and Cotesia marginiventris (henceforth called Cotesia) were obtained from existing laboratory cultures (started with Florida field collections) at USDA-ARS-CMAVE in Gainesville, Florida. Due to the different rearing requirements for the life stage of both species, different confinements were prepared.
Adult fall armyworm moths were held in cylindrical rearing mesh cages (20 cm in diameter, 23 cm in height, and 3 mm wire mesh) on shelves in an enclosed insect-rearing room. The tops of the cages were covered with paper towels secured with rubber bands for female moths’ oviposition. Paper towels were collected (and replaced) within 24 h of eggs being laid and placed in labeled bags until larvae were eclosed. Moths were provided a honey/sucrose water solution (10%) in a 60 mL acrylic cup for feeding. Larvae of the fall armyworm were reared in 30 mL cups and provided a store-bought diet (Multiple Species Diet, Southland Products Inc. Lake Village, Arkansas) modified to include 2.87 mL linseed oil/L. All fall armyworm life stages were incubated at 26 ± 2 °C ansd 65 ± 5% R.H. with a 14:10 (L:D) h photoperiod according to the methods described by Perkins [34].
Adult Cotesia wasps were transferred to a plastic-framed 20.5 × 20.5 × 20.5 cm container with organdy screen walls and provided a 10% honey/sucrose water solution in a 60 mL cup upon emergence. Wasps were reared at 23 ± 2 °C and 65 ± 5% relative humidity with a 13:11 (L:D) h photoperiod. Mated adults were offered newly molted fall armyworm second or third instar larvae for oviposition. Parasitism of larvae was confirmed visually, and parasitized larvae were held separately in 30 mL cups at 26 ± 2 °C and 65 ± 5% R.H. with a 14:10 (L:D) h photoperiod and fed Multiple Species Diet.

2.2. Biological Control Agents’ Interactions

2.2.1. Predator vs. Predator (without Prey)

A no-choice experiment evaluating predation between Podisus maculiventris and Euthyrhynchus floridanus involved 240 Petri dishes (9 cm diameter, 1.5 cm depth) that were prepared by lining the base dish with filter paper and inserting a cotton ball (presoaked in water). Each Petri dish was a replicate arena for the experiment and contained one adult true bug. Twenty replicate arenas were prepared for each competitive pairing per species (Table 1). In each arena, one adult was paired with either a nymph or an adult (approximately two days after molting) of the other species. Competitive interactions in each arena were then recorded. Food was withheld from all insects used in the experiment 24 h prior to commencement. The arena was observed for 1 h at 25.6 ± 3 °C. Afterward, observations on feeding (if any) were recorded in binary format (1—yes, 0—no).

2.2.2. Predator vs. Predator (with Prey)

The scenario described in Section 2.2.1 was repeated with the addition of the fall armyworm larvae. A third instar fall armyworm larva (one to two days after molting) was added to each Petri dish arena. Only a single pairing was evaluated: adult vs. third instar nymph in the presence of the fall armyworm. All observations were recorded at 20 min intervals. Food was withheld from the predators (pentatomid) for 24 h prior, and observations were made for 1 h at 25.6 ± 3 °C. “Feeding” was defined as the predator actively consuming an insect for more than 40 s. “Probing” (predator inserting beak into an insect) was not considered feeding, especially if it lasted less than 40 s. Feeding behavior data included four responses: pentatomids fed together on the fall armyworm larva; no feeding of any kind occurred; only one predator fed on the fall armyworm larva; one predator fed on the other pentatomid in the arena. Pentatomid preference for the fall armyworm larva was confirmed by establishing a control experiment that involved one adult predator (only) released into an arena with a third instar fall armyworm for 1 h at (26 ± 3 °C). This was repeated for both predators (every ten replicates).

2.2.3. Predators’ Behavior toward Parasitized and Non-Parasitized Larvae

Predatory behavior toward Cotesia parasitized fall armyworm larvae were evaluated using parasitized and non-parasitized larvae. In a no-choice experiment, third instar fall armyworm larvae (one to two days after a molt) were used in both trials. In an arena, one pentatomid predator was offered either a parasitized (within 24 h) or a non-parasitized larva as food. Eighty experimental units (90 cm Petri dishes, 1.5 cm depth) were prepared similarly to those described in Section 2.2.1, and food was withheld from the predators for 24 h prior. Third instar predator nymphs were used, and only one predator per experimental unit. Predators were given 20 min to acclimate before the experiment began, after which a random assignment of parasitized and non-parasitized larvae occurred per predator species. Twenty replications were conducted for each larval type. The experimental conditions were 26 ± 3 °C and 55 ± 5% R.H. with a 14:10 (L:D) h photoperiod for 24 h. Larvae mortality (1—dead, 0—alive) was recorded after 24 h. Any surviving parasitized fall armyworm larvae (if any) were placed under rearing conditions (see Section 2.1) to assess C. marginiventris survivorship after predation. All larvae were confirmed dead after an additional 24 h exposure.

2.3. Predator–Prey Preference

The prey preference of both pentatomid predators was studied using two different techniques. The first was an olfactory method using a Y-tube olfactometer, and the other was a close-contact method using 15 cm Petri dishes as arenas (1.5 cm depth). Both methods were used to evaluate the behavior of the pentatomid when making a prey choice. Each experiment was replicated 20 times per technique per species and lasted 10 min at 26 ± 3 °C. Replicates evaluated second instar nymphs only, one to two days after a molt. Controls for both methods (ten replications each) involved offering a non-parasitized third instar fall armyworm larva only to a second instar nymph. This meant leaving an empty chamber for the olfactometer method, while only the predator and the fall armyworm larva were placed in the Petri dish for the close-contact method.

2.3.1. Olfactometer

Continuous airflow for the olfactometer was maintained using a two-port air delivery system (ADS) (model OLFM-ADS-2AFM2C, Analytical Research Systems, Micanopy, FL, USA) at 0.4 liters per minute (LPM) for all replicates (experimental and controls). Air input and output were maintained at 20 psi. Parasitized and non-parasitized third instar fall armyworm larvae (newly molted, parasitized within 24 h) were loaded into separate air chambers. Before the release of each predator (second instar nymph only) into the Y-tube of the olfactometer, the chambers were allowed two minutes to fill with air. Nymphs were then released into the long leg of the Y-tube. Responses were scored in binary (1—parasitized/0—non-parasitized), with results confirmed if a nymph crawled more than 3 cm into a short arm of the Y-tube within 10 min. The equipment was cleaned thoroughly before repeating the experiment using the other predator species. Cleaning was done by submerging the removable parts of the olfactometer (air chambers and Y-tube) into a non-fragrant soap and lukewarm water bath. Chambers were scrubbed using a soft sponge, while each arm of the Y-tube was cleaned using a 7.62 cm tube brush (polyester bristles). Afterward, both parts were rinsed thoroughly, partially dried with Kimtech® dry wipes (Kimwipes, Neenah, WI, USA) and placed on a rack to air dry. At the time of use, both parts were wiped with Kimwipes to remove any remaining debris.

2.3.2. Petri Dish Arena

Forty 150 mm Petri dishes (depth 1.5 cm) were prepared as described in Section 2.2.1. Additionally, one parasitized (within 24 h) and one non-parasitized fall armyworm larvae were placed at opposite ends of the arena. A second instar predator nymph was released into the designated center of the Petri dish at an equal distance from both larval types (larvae and predators moved freely in the arena, but larva designation was visually confirmed at all times). Observations were made for 10 min after placing the predator, with confirmed prey choice (1—parasitized/0—non-parasitized) being recorded if feeding lasted longer than 40 s to confirm the predator choices. Twenty replicates were performed for each predator species.

2.4. Data Analysis

The hypothesized biological control agents’ relationships were analyzed using the logistic procedures of SAS® (Stockholm, Sweden). Maximum likelihood analyses were conducted on binary response data fitted for logistic models. A binomial logistic regression model was fitted to the data to estimate the maximum likelihood of predation between these predators, mortality of the fall armyworm larvae due to predation and prey preference per predator species. Comparisons were drawn based on the larval mortality of each predator species.
A multinomial logistic regression model was fitted to estimate the likelihood of both predators co-existing within the same guild (=in the absence of competition) [35]. This model allows for the calculation of predictive values (probabilities) that can then be used to discern the possibility of one event occurring over another (S.A.S. Institute 2013) [32]. Similarly, the analysis compared prey preference by predator species on armyworm larvae type (non-parasitized or parasitized). Reference points for the analysis were designated as: time = 20 min and no feeding of any kind (D.N.F.). All statistical analyses were performed using SAS® software (S.A.S. Institute 2013) [36].

3. Results

3.1. Predator vs. Predator, Intraguild Predation

3.1.1. Without Fall Armyworm

Predation amongst the first (β = −2.16; df = 1; p = 0.0008) and second (β = −1.09; df = 1; p = 0.0194) nymphal life stages of both pentatomid species was not significant. In contrast, late nymphal life stages—fourth and fifth instar—were heavily preyed and found significant within these competitive pairings, (β = 1.276; df = 1; p = 0.0015) and (β = 1.10; df = 1; p = 0.0053), respectively. Overall, predation was not uniform across the competitive pairings. It was significantly different from the third instar reference point (Table 2, Figure 1). Similarly, predation across species was not uniform, as predation of E. floridanus life stages was less likely to occur (β = −1.52; df = 1; p < 0.0001) when compared to P. maculiventris life stages. As a result, survivorship of E. floridanus life stages was significantly higher than that of P. maculiventris life stages.

3.1.2. With Fall Armyworm

A total of 60 fall armyworm larvae were provided to the pentatomid predators. Observed feeding behavior revealed that with the introduction of the fall armyworm, no feeding of any kind was more likely to occur than any other hypothesized feeding behavior (Table 3). As for the remaining behaviors, solitary predation (only one pentatomid fed on the fall armyworm) and intraguild predation (one predator fed on the pentatomid) were twice as likely to occur (β1 = −0.59; df = 1; p = 0.2920 and β2 = −0.59; df = 1; p = 0.2920, respectively) than both pentatomids sharing the fall armyworm larva (β = −2.20; df = 1; p = 0.0371) (both fed on the fall armyworm) (Table 3).

3.2. Predator vs. Parasitoid

When parasitized larvae of fall armyworm (n = 20) were provided to E. floridanus, 11 larvae were killed and 9 were left alive; similarly, for 20 non-parasitized larvae, 12 were killed and 8 larvae were left alive. Of the 20 parasitized larvae provided to P. maculiventris, 11 were killed and 9 larvae were left alive. In contrast, among the non-parasitized fall armyworm larvae were provided to P. maculiventris, 17 were killed by the predator and 3 were left alive. Mortality of non-parasitized fall armyworm larvae (β = 0.39; df = 1; p = 0.1034) was higher than for parasitized larvae, but the differences were not statistically significant. This indicates that predators were likely to feed on either parasitized or non-parasitized larvae. Podisus maculiventris displayed a preference for non-parasitized larvae (see also Section 3.3). In addition, fall armyworm mortality was more likely to occur in experiments using P. maculiventris, given it was less likely to occur with E. floridanus (β = −0.28; df = 1; p = 0.2390) (Table 4). Nevertheless, both species could produce the same level of fall armyworm mortality.

3.3. Predator–Prey Preference

In choice tests using an olfactometer with E. floridanus, no parasitized larvae of fall armyworm (n = 20) were chosen; for non-parasitized larvae, 2 were chosen and 18 were not. For similar tests with 20 larvae of P. maculiventris, 7 were chosen and 13 were not; for non-parasitized larvae, 13 were chosen and 7 were not. When parasitized larvae of fall armyworm (n = 20) were provided in Petri dishes to E. floridanus, none were chosen; similarly, for 20 non-parasitized larvae, 2 were chosen and 18 larvae were not. Four of the twenty parasitized larvae provided to P. maculiventris were chosen and sixteen were not. Non-parasitized larvae of fall armyworm were provided to P. maculiventris, and 8 larvae were chosen and 12 were not. Euthyrhynchus floridanus was significantly less likely to decide between parasitized and non-parasitized larvae (β = −1.17; df = 1; p = 0.0035) during the olfactory experiment. Nevertheless, the choice of non-parasitized over parasitized fall armyworm larvae (β = 0.18; df = 1; p = 0.5474) was found to be more likely. Non-parasitized larvae were more likely to have be chosen by both predator species (Table 5) based on olfaction only. Similar results were obtained with the use of Petri dish arenas (Table 5), as preference was shown for non-parasitized larvae (β = 0.62; df = 1; p = 0.0695) and distinct prey choice was less likely with E. floridanus (β = −1.09; df = 1; p = 0.0076). Predation of the fall armyworm was as expected, despite the lack of differentiation between parasitized and non-parasitized larvae. Both methods produced similar conclusions, as analyses revealed no significant difference (Table 6).

4. Discussion

4.1. Predator Competition

Predation rates and their efficacy for biological control (as exhibited by predators sharing a guild) may suffer due to the competition between these species [37,38], especially when the common prey source is scarce or at low population numbers. The complex relationship between predators within the same guild is still not known. However, the competitive pairings were established to mimic a new dynamic among hunting generalist predators within a single guild [37,39]. The study confirmed antagonistic behavior amongst two Asopinae species, Podisus maculiventris and Euthyrhynchus floridanus, commonly found in the southeast of the United States. In this laboratory setting, adult E. floridanus preyed on all offered life stages of P. maculiventris. However, this was not consistent when the roles were reversed, given the difference in the mortalities. We believe that E. floridanus would be an intraguild predator of P. maculiventris within any given guild [40,41].
Nevertheless, the exact reason for neglecting immature instars is unknown. Nymphal agility and evasion ability are good prospects for evaluation. Moreover, prior predatory behavior reports indicate that P. maculiventris will feed on small prey, despite needing larger prey to accelerate development [42]. It is, therefore, possible that the results of this experiment were influenced by the nutritional requirements of both species, given that the insects used were recent molts.
When fall armyworm larvae were used in a similar experimental setup, predatory behavior became more complex. Upon release, predators were observed lacking any decision to feed on the fall armyworm and instead circled the arena while trying to avoid each other. When feeding did begin, E. floridanus was observed feeding first. Earlier observations reported that a phenomenon of predators deterring their competitors using bodily fluids is possible [27]. In doing so, these predators often faced no competition or disturbance while feeding and hunting. The phenomenon explained by McLain [27] could explain the behavior of both predators once released in the arena. When or how quickly this phenomenon occurs still needs testing. However, with such proximity and the 24 h starvation period before the experiment, the influence of the phenomenon may fade. This became evident throughout the experiment. Initial feeding behavior was not consistent and appeared more fluid with time. According to an earlier study [43], using temporal overlaps may reduce predator antagonism, thereby reducing competition. With the overlapping of the life stages of the predators, there is limited interaction between the life stages of the different species, whether due to size, agility, or dispersal ability. Therefore, they can exist in the same niche. Considering the inconsistency of predation across the different life stages and the impact of time and proximity on feeding behavior displayed under this study, future studies must confirm their roles under open field conditions. The studies will have to evaluate the impact of the differences in life cycles. After all, P. maculiventris matures from egg to an adult in as little as 28 days, while E. floridanus requires at least 60 days [29,32]. As a result, any augmentative release would eventually lead to interaction between different life stages—for example, an adult E. floridanus and P. maculiventris nymph.

4.2. Prey Preference

Olfactory cues (olfactometer) and direct proximity (Petri dish arena) played a role in both predators’ larval type choice, parasitized and non-parasitized. However, the results were consistent with a study [44] in which chemical (olfactory) cues had a higher response. Similarly, an earlier study confirmed the importance of chemical cues in tracking prey for both P. maculiventris and E. floridanus; however, chemical (olfactory cues) had a higher response [44]. Despite this, the ultimate choice between parasitized or non-parasitized fall armyworm larvae was more apparent using bodily cues (Petri dish bioassay). It is, therefore, possible that other potential cues (vision, body movements) and chemical cues might have influenced the response seen in the Petri dish arena.
Insect predators have occasionally disrupted parasitism rates in open fields [45]. Nevertheless, generalist predators are needed for biological control to supplement the efforts of specific biological control agents [36] in open fields. In this study, E. floridanus predation on the different larval types was less indecisive. Additionally, P. maculiventris preferred non-parasitized larvae, similar to earlier reports [46] on pyralid eggs parasitized by Trichogramma brassicae. The chemical cues may play a role in identifying parasitized prey. However, as stated earlier, the exact process needs more research in this area.

5. Conclusions

The study revealed various feeding behaviors that evolved with time and prey exposure. The competition and aggressive behaviors were apparent between both predators. E. floridanus was found to be an intraguild predator of P. maculiventris. Intraguild predation was present amongst the biological control agents tested. However, antagonism by competitors was not consistent for all life stages used in this study. When integrating multiple biological control agents, the timing might decide between cooperation and competition between the insect species. However, all three species observed under controlled conditions in this study are present in open fields of maize in Florida. However, their numbers are low. Pest managers seek to improve augmentative biological control to achieve effective I.P.M. of the S. frugiperda. Feeding behavior varied with the length of exposure to the food source, and not all predatory life stages of both predators were predated. Finally, the higher mortality seen in non-parasitized fall armyworm larvae for both predator species, despite feeding on parasitized larvae, shows promise and should be further studied. We believe these results can provide insights for biological control practitioners, who should pay attention to these agents while using augmentative biological control for the fall armyworm in Florida. In addition, future studies should target other predators and parasitoids that are critical in different ecological zones where this pest is invading and causing challenges to growers and food industry.

Author Contributions

Conceptualization, J.D.P., M.H., J.C.L. and R.L.M.; methodology, J.D.P.; formal analysis, L.H.B.K.; writing—original draft preparation, J.D.P. and M.H.; writing—review and editing, J.D.P., M.H., L.H.B.K., J.C.L. and R.L.M.; supervision, M.H. and J.C.L.; funding acquisition, M.H. All authors have read and agreed to the published version of the manuscript.

Funding

Funding for this study provided by the USDA, NIFA, CPPM Program (award number: 2017-70006-27290) is greatly appreciated.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data supporting this study’s findings are available from the corresponding author, Muhammad Haseeb, upon reasonable request.

Acknowledgments

Authors are grateful to Neil Miller and Amy Rowley of the USDA, A.R.S., for their respective helps with the insect colony development and laboratory logistics. Authors are also grateful for the internal review provided by Janice Peters and statistical review provided by Gilbert Queeley, Florida A&M University.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Capinera, J.L. Fall Armyworm, Spodoptera frugiperda (J.E. Smith) (Insecta: Lepidoptera: Noctuidae), 2020. IFAS Extension. Available online: https://edis.ifas.ufl.edu/publication/in255 (accessed on 12 December 2020).
  2. Foster, R.E. Strategies for protecting sweet corn ears from damage by fall armyworms (Lepidoptera: Noctuidae) in Southern Florida. Fl. Entomol. 1989, 72, 146–151. [Google Scholar] [CrossRef]
  3. Meagher, R.L., Jr.; Gallo-Meagher, M. Identifying host strains of fall armyworm (Lepidoptera: Noctuidae) in Florida using mitochondrial markers. Fl. Entomol. 2003, 84, 450–455. [Google Scholar] [CrossRef]
  4. Nagoshi, R.N.; Meagher, R.L. Seasonal distribution of fall armyworm (Lepidoptera: Noctuidae) host strains in agricultural and turfgrass habitats. Environ. Entomol. 2004, 33, 881–889. [Google Scholar] [CrossRef]
  5. Pashley, D.P. Current status of fall armyworm host strains. Fl. Entomol. 1988, 71, 227–234. [Google Scholar] [CrossRef]
  6. Montezano, D.G.; Specht, A.; Sosa-Gómez, D.R.; Roque-Specht, V.F.; Sousa-Silva, J.C.; Paula-Moraes, S.D.; Peterson, J.A.; Hunt, T.E. Host plants of Spodoptera frugiperda (Lepidoptera: Noctuidae) in the Americas. Afri. Entomol. 2018, 26, 286–300. [Google Scholar] [CrossRef]
  7. Sparks, A.N. A Review of the biology of the fall armyworm. Fl. Entomol. 1979, 62, 82–87. [Google Scholar] [CrossRef]
  8. García-Lara, S.; Serna-Saldivar, S.O. Corn History and Culture. Corn: Chemistry and Technology; Serna-Saldivar, S.O., Ed.; Woodhead Publishing and AACC International: Elsevier, The Netherlands, 2019; pp. 1–18. [Google Scholar]
  9. Li, Y.C.; Klassen, W.; Lamberts, M.; Olczyk, T. Sweet Corn Production in Miami-Dade County, Florida. Available online: https://edis.ifas.ufl.edu/publication/TR013 (accessed on 20 February 2019).
  10. Florida Department of Agriculture and Consumer Service. Florida agriculture by numbers. Proc. Fla. Agric. Stat. Bull. 2016, 178. [Google Scholar]
  11. Anonymous. The Biology of Zea mays L. ssp mays (maize or corn). In DoHa Aging; Office of the Gene Technology Regulator, Australian Government: Phillip, ACT, Australia, 2008; pp. 1–80. Available online: https://www.ogtr.gov.au/resources/publications/biology-zea-mays-l-ssp-mays-maize-or-corn (accessed on 5 September 2022).
  12. Nagoshi, R.N.; Koffi, D.; Agboka, K.; Tounou, K.A.; Banerjee, R.; Jurat-Fuentes, J.L.; Meagher, R.L. Comparative molecular analyses of invasive fall armyworm in Togo reveal strong similarities to populations from the eastern United States and the Greater Antilles. PLoS ONE 2017, 12, e0181982. [Google Scholar] [CrossRef]
  13. Koffi, D.; Kyerematen, R.; Eziah, V.Y.; Agboka, K.; Adom, M.; Meagher, R.L. Natural enemies of the fall armyworm, Spodoptera frugiperda (JE Smith) (Lepidoptera: Noctuidae) in Ghana. Fl. Entomol. 2020, 103, 85–90. [Google Scholar] [CrossRef]
  14. Juárez, M.L.; Murúa, M.G.; García, M.G.; Ontivero, M.; Vera, M.T.; Groot, A.T.; Castagnaro, A.P.; Gastaminza, G.; Willink, E. Host association of Spodoptera frugiperda (Lepidoptera: Noctuidae) corn and rice strains in Argentina, Brazil, and Paraguay. J. Econ. Entomol. 2012, 105, 573–582. [Google Scholar] [CrossRef] [PubMed]
  15. Murúa, G.; Molina-Ochoa, J.; Coviella, C. Population dynamics of the fall armyworm, Spodoptera frugiperda (lepidoptera: Noctuidae) and its parasitoids in northwestern argentina. Fla. Èntomol. 2006, 89, 175–182. [Google Scholar] [CrossRef]
  16. Santos, L.M.; Redaelli, L.R.; Diefenbach, L.M.G.; Efrom, C.F.S. Larval and pupal stage of Spodoptera frugiperda (J.E. Smith) (Lepidoptera: Noctuidae) in sweet and field corn genotypes. Braz. J. Biol. 2003, 63, 627–633. [Google Scholar] [CrossRef] [PubMed]
  17. Marenco, R.J.; Foster, R.E.; Sanchez, C.A. Sweet Corn Response to Fall Armyworm (Lepidoptera: Noctuidae) Damage During Vegetative Growth. J. Econ. Èntomol. 1992, 85, 1285–1292. [Google Scholar] [CrossRef]
  18. Nuessly, G.S.; Webb, S.E. Insect Management for Sweet Corn. UF/IFAS Extension. 2017. Available online: https://edis.ifas.ufl.edu/ig158 (accessed on 5 May 2018).
  19. Ozores-Hampton, M.; Kanissery, R.; Mcavoy, E.J.; Raid, R.N.; Beuzelin, J. Sweet corn production, Gainesville. In IFAS Extension; University of Florida Institute of Food and Agricultural Sciences: Gainesville, FL, USA, 2016; p. HS737. [Google Scholar]
  20. Wiseman, B.R.; Davis, F.M. Plant Resistance to the Fall Armyworm. Fla. Èntomol. 1979, 62, 123. [Google Scholar] [CrossRef]
  21. Carvalho, R.A.; Omoto, C.; Field, L.M.; Williamson, M.S.; Bass, C. Investigating the molecular mechanisms of organophosphate and pyrethroid resistance in the fall armyworm Spodoptera frugiperda. PLoS ONE 2013, 8, e62268. [Google Scholar] [CrossRef] [PubMed]
  22. Togola, A.; Meseka, S.; Menkir, A.; Badu-Apraku, B.; Boukar, O.; Tamò, M.; Djouaka, R. Measurement of Pesticide Residues from Chemical Control of the Invasive Spodoptera frugiperda (Lepidoptera: Noctuidae) in a Maize Experimental Field in Mokwa, Nigeria. Int. J. Environ. Res. Public Health 2018, 15, 849. [Google Scholar] [CrossRef]
  23. Belfroid, A.C.; Van Drunen, M.; Beek, M.A.; Schrap, S.M.; Van Gestel, C.A.M.; Van Hattum, B. Relative risks of transformation products of pesticides for aquatic ecosystems. Sci. Total Environ. 1998, 222, 167–183. [Google Scholar] [CrossRef]
  24. Cock, M.J.W.; Biesmeijer, J.C.; Cannon, R.J.C.; Gerad, P.J.; Gillespie, D.; Jimenez, J.J.; Lavelle, P.M.; Raina, S.K. The positive contribution of invertebrates to sustainable agriculture and food security. CABI Rev. 2012, 2012, 1–27. [Google Scholar] [CrossRef]
  25. Gross, H.R.; Pair, S.D. The Fall Armyworm: Status and Expectations of Biological Control with Parasitoids and Predators. Fla. Èntomol. 1986, 69, 502. [Google Scholar] [CrossRef]
  26. De Clercq, P. Dark clouds and their silver linings: Exotic generalist predators in augmentative biological control. Neotropical Èntomol. 2002, 31, 169–176. [Google Scholar] [CrossRef]
  27. McLain, D.K. Responses of predatory pentatomid bugs to the excrement of the predator Euthyrhynchus floridanus (Hemiptera: Pentatomidae). J. Ga. Entomol. Soc. 1981, 16, 535–537. [Google Scholar]
  28. Perier, J.D. Integration of two predaceous stinkbugs and a larval parasitoid to manage the fall armyworm Spodoptera frugi-perda (Lepidoptera: Noctuidae). Doctoral Dissertation, Florida Agricultural and Mechanical University, Tallahassee, FL, USA, 2019. [Google Scholar]
  29. Mead, F.W.; Richman, D.B. Florida Predatory Stink Bug, Euthyrhynchus floridanus (Linnaeus) (Insecta: Hemiptera: Pentatomidae). 2019. Available online: https://edis.ifas.ufl.edu/publication/IN314 (accessed on 13 June 2022).
  30. Herrick, J.N.; Reitz, S.T.; Carpenter, J.E.; O’Brien, C.W. Predation by Podisus maculiventris (Hemiptera: Pentatomidae) on Plutella xylostalla (Lepidoptera: Plutellidae) parasitized by Cotesia plutellae (Hymenoptera: Braconidae) and its impact on cabbage. Biol. Control 2008, 45, 386–395. [Google Scholar] [CrossRef]
  31. Meagher, R.L., Jr.; Nuessly, G.S.; Nagoshi, R.N.; Hay-Roe, M.M. Parasitoids attacking fall armyworm (Lepidoptera: Noctuidae) in sweet corn habitats. Biol. Control 2016, 95, 66–72. [Google Scholar] [CrossRef]
  32. Richman, D.B.; Mead, F.W. Common Name: Spined Soldier Bug, Scientific Name: Podisus maculiventris (Say) (Insecta: Hemip-tera: Petatomidae). 2020. Available online: https://entnemdept.ufl.edu/creatures/beneficial/podisus_maculiventris.htm (accessed on 30 August 2022).
  33. Legaspi, J.C.; Legaspi, B.C. Does a Polyphagous Predator Prefer Prey Species That Confer Reproductive Advantage?: Case Study ofPodisus maculiventris. Environ. Èntomol. 2004, 33, 1401–1409. [Google Scholar] [CrossRef]
  34. Perkins, W.D. Laboratory Rearing of the Fall Armyworm. Fla. Èntomol. 1979, 62, 87. [Google Scholar] [CrossRef]
  35. Hedeker, D. A mixed-effects multinomial logistic regression model. Stat. Med. 2003, 22, 1433–1446. [Google Scholar] [CrossRef] [PubMed]
  36. S.A.S. Institute. SAS 9.2 for Windows; S.A.S. Institute: Cary, NC, USA, 2013. [Google Scholar]
  37. A Rosenheim, J.; Kaya, H.K.; Ehler, L.; Marois, J.; Jaffee, B. Intraguild Predation Among Biological-Control Agents: Theory and Evidence. Biol. Control 1995, 5, 303–335. [Google Scholar] [CrossRef]
  38. Rosenheim, J.A.; Wilhoit, L.R.; Armer, C. Influence of intraguild predation among generalist insect predators on the sup-pression of an herbivore population. Oecologia 1993, 96, 439–449. [Google Scholar] [CrossRef] [PubMed]
  39. Polis, G.A.; Myers, C.A.; Holt, R.D. The ecology and evolution of intraguild predation. Potential competitors that eat each other. Annu. Rev. Ecol. Syst. 1989, 20, 297–330. [Google Scholar] [CrossRef]
  40. De Clercq, P.; Peeters, I.; Vergauwe, G.; Thas, O. Interaction between Podisus maculiventris and Harmonia axyridis, two preda-tors used in augmentative biological control in greenhouse crops. BioControl 2003, 48, 39–55. [Google Scholar] [CrossRef]
  41. Mukerji, M.K.; LeRoux, E.J. A quantitative study of food consumption and growth of Podisus maculiventris (Hemiptera: Pen-tatomidae). Can. Entomol. 1969, 101, 387–403. [Google Scholar] [CrossRef]
  42. Welch, K.D.; Harwood, J. Temporal dynamics of natural enemy–pest interactions in a changing environment. Biol. Control 2014, 75, 18–27. [Google Scholar] [CrossRef]
  43. Yasuda, T.; Wakamura, S. Behavioral responses in prey location of the predatory stink bug, Eocanthecona furcellata, to chemical cues in the larvae of Spodoptera litura. Èntomol. Exp. Appl. 1996, 81, 91–96. [Google Scholar] [CrossRef]
  44. McLain, D.K. Terrestrial Trail-Following by Three Species of Predatory Stink Bugs. Fla. Èntomol. 1979, 62, 152. [Google Scholar] [CrossRef]
  45. Snyder, W.E.; Ives, A.R. Generalist predators disrupt biological control by a specialist parasitoid. Ecology 2001, 82, 705–716. [Google Scholar] [CrossRef]
  46. Oliveira, H.N.; De Clercq, P.; Zanuncio, J.C.; Pratissoli, D.; Pedruzzi, E.P. Nymphal development and feeding preference of Podisus maculiventris (Heteroptera: Pentatomidae) on eggs of Ephestia kuehniella (Lepidoptera: Pyralidae) parasitised or not by Trichogramma brassicae (Hymenoptera: Trichogrammatidae). Braz. J. Biol. 2004, 64, 459–463. [Google Scholar] [CrossRef] [Green Version]
Insects 13 00815 g001 550

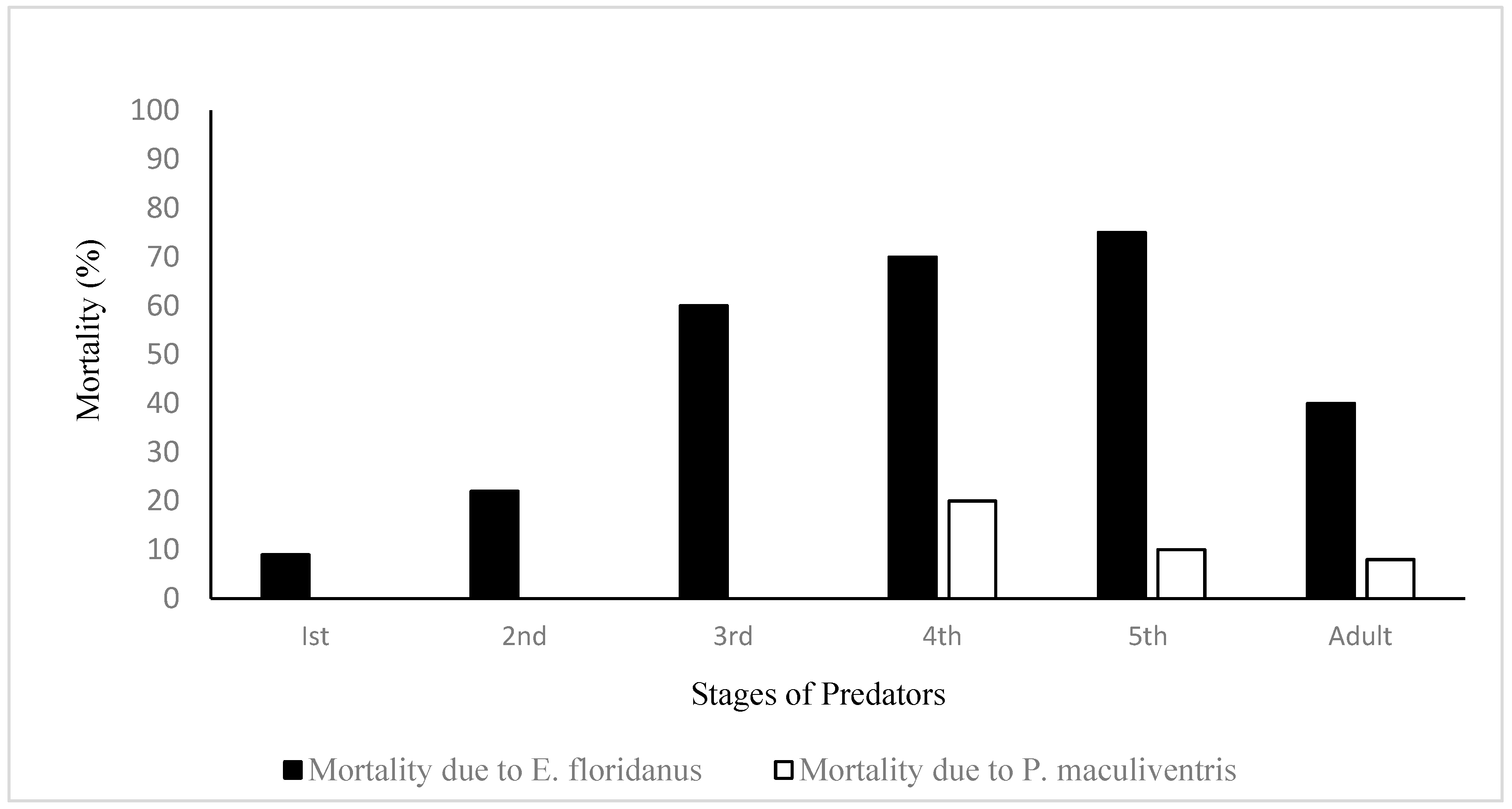

Figure 1. Mortality of two predators’ life stages without fall armyworm offered as prey.
Figure 1. Mortality of two predators’ life stages without fall armyworm offered as prey.
Insects 13 00815 g001
Table
Table 1. Predation pairings of adults and nymphal instars of Podisus maculiventris and Euthyrhynchus floridanus.
Table 1. Predation pairings of adults and nymphal instars of Podisus maculiventris and Euthyrhynchus floridanus.
Life StagesLife Stages
P. maculiventrisE. floridanusP. maculiventrisE. floridanus
adultinstar 1instar 1adult
adultinstar 2instar 2adult
adultinstar 3instar 3adult
adultinstar 4instar 4adult
adultinstar 5instar 5adult
adultadultadultadult
Head capsule widths (n = 20) were about 0.35, 0.45, 0.75, 1.3, 2.0, and 2.6 mm, respectively, for instars 1 to 5 and adults, respectively.
Table
Table 2. Maximum likelihood estimates for all stages of one species being preyed on by adults of the other species.
Table 2. Maximum likelihood estimates for all stages of one species being preyed on by adults of the other species.
VariablesParameter Estimates (β) ± S.Edfp
SpeciesE. floridanus−1.5184 ± 0.22271<0.0001 ***
P. maculiventrisReference point
Life stage
First instars−2.1636 ± 0.642110.0008 ***
Second instars−1.0872 ± 0.465010.0194 ***
Third instarsReference point
Fourth instars1.2705 ± 0.400010.0015 ***
Fifth instars1.1025 ± 0.395210.0053 ***
Adult0.6045 ± 0.388710.1198 ns
ns = indicates no significant differences (p > 0.05). *** indicates highly significant differences (p ≤ 0.001).
Table
Table 3. Likely feeding behavior of Podisus maculiventris and Euthyrhynchus floridanus for fall armyworm larva 1.
Table 3. Likely feeding behavior of Podisus maculiventris and Euthyrhynchus floridanus for fall armyworm larva 1.
VariablesCounts 2Parameter Estimates (β) ± S.Edfp
Observed behavior60
One fed alone on the pray23−0.5878 ± 0.557810.2920 ns
Fed on each other11−0.5878 ± 0.557810.2920 ns
No feeding20Reference point
Both fed on prey6−2.1972 ± 1.054110.0371 *
1 Likelihood ratio test = 0.2165. Score test = 0.2654. Wald test = 0.3474. 2 Observed counts. * = indicates significant differences (p ≤ 0.05). ns = indicates no significant differences (p > 0.05).
Table
Table 4. Mortality maximum likelihood estimates of fall armyworm larval type (parasitized and non-parasitized) due to predation.
Table 4. Mortality maximum likelihood estimates of fall armyworm larval type (parasitized and non-parasitized) due to predation.
VariablesCounts 1Parameter Estimates (β) ± S.E.dfp
SpeciesE. floridanus23−0.2821 ± 0.239610.2390 ns
P. maculiventris28Reference point
Treatment
(larval type)		Non-parasitized290.3913 ± 0.240310.1034 ns
Parasitized22Reference point
1 Mortality of fall armyworm. ns = indicates no significant differences (p > 0.05).
Table
Table 5. Maximum likelihood estimates for fall armyworm larval choice (parasitized or non-parasitized) by predators Podisus maculiventris and Euthyrhynchus floridanus.
Table 5. Maximum likelihood estimates for fall armyworm larval choice (parasitized or non-parasitized) by predators Podisus maculiventris and Euthyrhynchus floridanus.
Test MethodVariablesParameter Estimates (β) ± S.E.dfp
OlfactometerSpeciesE. floridanus−1.1677 ± 0.399710.0035 ***
P. maculiventrisReference point
Treatment
(larval type)		Non-parasitized0.1826 ± 0.303610.5474 ns
ParasitizedReference point
Petri dish arenaSpeciesE. floridanus−1.0918 ± 0.409310.0076 ***
P. maculiventrisReference point
Treatment
(larval type)		Non-parasitized0.6163 ± 0.339510.0695 ns
ParasitizedReference point
*** = indicates highly significant differences (p ≤ 0.001). ns = indicates no significant differences (p > 0.05).
Table
Table 6. Maximum likelihood estimates for olfactometer and Petri dish methods for prey preference study on fall armyworm 1.
Table 6. Maximum likelihood estimates for olfactometer and Petri dish methods for prey preference study on fall armyworm 1.
VariablesParameter Estimates (β) ± S.E.dfp
SpeciesE. floridanus−1.1276 ± 0.28551<0.0001 ***
P. maculiventrisReference point
MethodOlfactometer0.0964 ± 0.219810.6611 ns
Petri dishReference point
TreatmentNon-parasitized larvae0.3833 ± 0.223510.0864 ns
Parasitized larvaeReference point
*** = indicates highly significant differences (p ≤ 0.001). ns = indicates no significant differences (p > 0.05). 1 A total of 160 fall armyworm larvae were tested, and the predators reacted preferentially to 30 of them.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Perier, J.D.; Haseeb, M.; Kanga, L.H.B.; Meagher, R.L.; Legaspi, J.C. Intraguild Interactions of Three Biological Control Agents of the Fall Armyworm Spodoptera frugiperda (JE Smith) in Florida. Insects 2022, 13, 815. https://doi.org/10.3390/insects13090815

AMA Style

Perier JD, Haseeb M, Kanga LHB, Meagher RL, Legaspi JC. Intraguild Interactions of Three Biological Control Agents of the Fall Armyworm Spodoptera frugiperda (JE Smith) in Florida. Insects. 2022; 13(9):815. https://doi.org/10.3390/insects13090815

Chicago/Turabian Style

Perier, Jermaine D., Muhammad Haseeb, Lambert H. B. Kanga, Robert L. Meagher, and Jesusa C. Legaspi. 2022. "Intraguild Interactions of Three Biological Control Agents of the Fall Armyworm Spodoptera frugiperda (JE Smith) in Florida" Insects 13, no. 9: 815. https://doi.org/10.3390/insects13090815

APA Style

Perier, J. D., Haseeb, M., Kanga, L. H. B., Meagher, R. L., & Legaspi, J. C. (2022). Intraguild Interactions of Three Biological Control Agents of the Fall Armyworm Spodoptera frugiperda (JE Smith) in Florida. Insects, 13(9), 815. https://doi.org/10.3390/insects13090815

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
