Article

Evaluation of Reference Genes for Quantitative Real-Time PCR Analysis in the Bean Bug, Riptortus pedestris (Hemiptera: Alydidae)

by
Liuyang Wang
1,
Qingyu Liu
1,
Pei Guo
2,
Zhanlin Gao
2,
Dan Chen
2,
Tao Zhang
2,* and
Jun Ning
1,*
1
State Key Laboratory for Biology of Plant Diseases and Insect Pests, Institute of Plant Protection, Chinese Academy of Agricultural Sciences, Beijing 100193, China
2
Institute of Plant Protection, Hebei Academy of Agriculture and Forestry Sciences, Integrated Pest Management Center of Hebei Province, Key Laboratory of IPM on Crops in Northern Region of North China, Ministry of Agriculture, Baoding 071000, China
*
Authors to whom correspondence should be addressed.
Insects 2023, 14(12), 960; https://doi.org/10.3390/insects14120960
Submission received: 23 October 2023 / Revised: 14 December 2023 / Accepted: 15 December 2023 / Published: 18 December 2023
(This article belongs to the Section Insect Molecular Biology and Genomics)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

Reference genes serve as a foundation for investigating the functionality of target genes in insects. Nevertheless, the selection of reference genes is highly dependent upon particular experimental circumstances. Recently, the bean bug, Riptortus pedestris (Hemiptera: Alydidae), has attracted increasing attention due to its damage on yield losses of soybean crops. However, there is a dearth of literature regarding the evaluation of reference genes for quantitative real-time PCR (qRT-PCR) in R. pedestris. The current study aimed to assess the stability of expression levels in 16 candidate reference genes in R. pedestris across six experimental conditions. This evaluation was conducted using ΔCt method, GeNorm, NormFinder, BestKeeper, and RefFinder. Our results indicate that the optimum reference genes were as follows: RPL7A and EF1 for the developmental stage, α−tubulin and EF1 for adult tissues, RPL32 and RPL7A for adult age, RPL32 and SOD for nymph age, RPS23 and RPL7A for temperature, and HSP70 and GAPDH for mating status. These findings will provide a basis for future investigations into the expression and function of target genes in bean bugs.

Abstract

Quantitative real-time PCR (qRT-PCR) is widely accepted as a precise and convenient method for quantitatively analyzing the expression of functional genes. The data normalization strongly depends upon stable reference genes. The bean bug, Riptortus pedestris (Hemiptera: Alydidae), is a significant pest of leguminous crops and broadly distributed across Southeast Asia. In this study, a total of 16 candidate reference genes (RPL32, RPS23, SDHA, UBQ, UCCR, GST, TATA−box, HSP70, GAPDH, RPL7A, SOD, RPS3, Actin, α−tubulin, AK, and EF1) were carefully chosen in R. pedestris, and their expression levels were assessed across various conditions, including different developmental stages, diverse tissues, temperature treatments, adult age, molting time, and mating status. Following this, the stability of these reference genes was evaluated using four algorithms (ΔCt, GeNorm, NormFinder, and BestKeeper). Ultimately, the comprehensive rankings were determined using the online tool RefFinder. Our results demonstrate that the reference gene for qRT-PCR analysis in R. pedestris is contingent upon the specific experimental conditions. RPL7A and EF1 are optimal reference genes for developmental stages. Furthermore, α−tubulin and EF1 exhibit the most stable expression across various adult tissues. RPL32 and RPL7A exhibit the most stable expression for adult age. For nymph age, RPL32 and SOD display the most stable expression. For temperature conditions, RPS23 and RPL7A were identified as the most suitable for monitoring gene expression. Lastly, we verified the practicability of evaluating expression levels of odorant-binding protein 37 (RpedOBP37) and cytochrome P450 6a2 (RpedCYP6) throughout developmental stages, tissues, and temperature conditions. These findings are a significant addition to the qRT-PCR analysis studies on R. pedestris, serving as a fundamental groundwork for future investigations on stable reference genes in R. pedestris as well as other organisms.

1. Introduction

Quantitative real-time PCR (qRT-PCR) is a highly valuable molecular technique for measuring and evaluating gene expression due to its high sensitivity, specificity, reproducibility, reliability, and capacity for high-throughput analysis [1,2]. The process of data normalization in qRT-PCR assays, to some extent, is influenced by variations in the amount of starting material, the quality and integrity of template RNA samples, the efficiency of reverse transcription, the recovery and integrity of mRNA, as well as the design of primers and transcription efficiency [3,4]. These factors influence the variation of the data and the data analysis; therefore, the normalization method should be chosen to account for all of these variables. Suitable reference genes are commonly introduced to normalize and standardize the experimental samples. These reference genes should remain unaffected by external factors and exhibit stable expression across diverse tissues or cells [5]. In addition, the stability of reference genes alters in response to different experimental circumstances [6]. Thus, it is necessary to ascertain and assess the stability of reference genes across diverse experimental conditions to attain precise and dependable experimental outcomes.
A suitable reference should exhibit consistent and robust expression across all samples, and not co-regulate with the target gene [7]. Historically, reference genes have been considered as housekeeping genes that are presumed to maintain stable and constitutive expression regardless of the physiological conditions in various samples or treatments being investigated [8,9]. In the past decade, many traditional reference genes have been widely utilized as standard markers to evaluate the expression patterns of functional genes, including alpha−tubulin (α−tubulin), glutathione S-transferase (GST), succinate dehydrogenase complex subunit A (SDHA), heat shock protein (HSP20, HSP40, HSP70, and HSP90), arginine kinase (AK), elongation factor 1 (EF1), Actin, and glyceraldehyde-3-phosphate dehydrogenase (GAPDH) [9,10,11,12,13,14]. These reference genes exhibit a high degree of conservation and are implicated in diverse cellular processes, encompassing the cytoskeleton, energy metabolism, protein synthesis, cell differentiation, and so on [10,11,15].
The bean bug, Riptortus pedestris Fabricius (Hemiptera: Alydidae), is widely distributed in Asia and other regions, encompassing China, Japan, India, South Korea, Sri Lanka, Myanmar, and Malaysia [16,17,18]. Both nymphs and adults of R. pedestris acquire nutrients and water through the insertion of their sucking mouthparts from leaves, stems, pods, and seeds of plants. This feeding behavior leads to significant reductions in crop yields and seed quality [16,19]. Several studies have indicated that R. pedestris is a significant contributor to the occurrence of soybean “Staygreen Syndrome” in the Huang-Huai-Hai region of China [20,21,22]. In recent times, the advancement of next-generation sequencing technologies and transcriptome analysis has yielded a substantial volume of genetic data. For instance, Huang et al. reported a considerable number of genes that possess the ability to induce cell death, reactive oxygen species (ROS) burst, and hormone signal alterations in R. pedestris [19]. Fu et al. identified numerous differentially expressed genes implicated in wing formation through a comparative analysis of the transcriptomes of R. pedestris eggs, first-, second-, third-, fourth-, and fifth-instar nymphs, as well as adults [23]. Moreover, Liu et al. [24] and Li et al. [25] conducted a transcriptional analysis of gene expression in the antennae of R. pedestris and identified several genes potentially involved in olfactory and taste transduction. The quantitative assessment of gene expression not only enhances the comprehension of the molecular mechanisms associated with insect development, stress response, and behavioral regulation in R. pedestris but also holds the potential to reveal novel targets for effective pest control.
Actin, EF1, and GAPDH have been employed as reference genes to normalize the expression of target genes implicated in the development, odor perception, odor discrimination, and behaviors (such as feeding and mating) of R. pedestris [23,24,25,26]. Nevertheless, the aforementioned studies did not assess the appropriateness of these genes in experimental conditions. To screen optimal reference genes for gene expression analyses in R. pedestris, we evaluated 16 reference genes which are commonly utilized in insect qRT-PCR studies, including ribosomal protein L32 (RPL32), ribosomal protein S23 (RPS23), SDHA, ubiquitin-conjugating protein (UBQ), ubiquinol-cytochrome-c reductase (UCCR), GST, TATA−box binding protein (TATA−box), Hsp70, GAPDH, ribosomal protein L7A (RPL7A), superoxide dismutase (SOD), ribosomal protein S3 (RPS3), AK, Actin, EF1, and α−tubulin. We also assessed the impact of developmental stages, tissues, adult age, nymph age, temperature, and mating status on reference gene expression. Our results will contribute to the development of a more reliable approach to normalizing R. pedestris qRT-PCR data.

2. Materials and Methods

2.1. Insect Rearing and RNA Extraction

The bean bug cultures were reared in an insectary of 24 ± 2 °C, 60 ± 10% humidity, and 14:10 L:D photoperiod. Both nymphs and adults were fed with fresh green bean pods (Phaseolus vulgaris L.). Total RNA was extracted using TRIzol (TransGen Biotech, Beijing, China). First-strand cDNA was synthesized from 1 mg of total RNA using the All-in-One Super Mix for qPCR Reagent Kit (TransGen Biotech, Beijing, China) according to the manufacturer’s recommendations.

2.2. Candidate Reference Genes Selection and Primer Design

The sequences of 16 candidate reference genes (RPL32, RPS23, SDHA, UBQ, UCCR, GST, TATA−box, HSP70, GAPDH, RPL7A, SOD, RPS3, Actin, α−tubulin, AK and EF1), which have been frequently employed in Hemiptera insects, were obtained from the genome data of R. pedestris (GenBank accessions: GCA_019009955.1). Primers for candidate reference genes were designed using Primer 6 software and subsequently synthesized by Sangon Biotechnology Co., Ltd. (Shanghai, China). The purified PCR products were used as the initial template for constructing the standard curve, which allowed for the determination of primer amplification efficiency. Each gradient was diluted by a factor of 2, resulting in a total of five gradients.

2.3. qRT-PCR Analysis

qRT-PCR tests were performed on a QuantStudio 3 Real-Time PCR System (Thermo Fisher Scientific Inc., Waltham, MA, USA). The qRT-PCR was conducted by using 1 μL of the cDNA template and 10 μL 2 × TransStart Tip Green qPCR SuperMix (TransGen Biotech, Beijing, China), with 0.5 μL forward and reverse primers (10 μM) and 8 μL ddH2O. The thermal cycling conditions consisted of an initial cycle at 94 °C for 30 s, followed by 40 cycles of 5 s at 94 °C, 15 s at 55 °C, and 10 s at 72 °C. Subsequently, a melting curve analysis ranging from 60 °C to 95 °C was performed to ensure the amplified product’s consistency and specificity. For each reaction, three biological replicates and three technical replicates were established.

2.4. Determination of Reference Gene Expression Stability

The stability of 16 candidate reference genes was assessed using the ΔCt method [27], as well as the GeNorm [2,28], NormFinder [28], and BestKeeper [5] software programs. The BestKeeper and ΔCt method employ raw quantification cycle (Cq) values, whereas NormFinder and GeNorm utilize expression values calculated as 2(−ΔCq). Ultimately, the online tool RefFinder (https://www.heartcure.com.au/reffinder/, accessed on 8 October 2023) was employed to determine the weighted geometric means in the form of stability values derived from the aforementioned algorithms. This allowed for the establishment of a consensus ranking regarding the stability of the reference genes [29,30,31]. Moreover, the GeNorm algorithm was used to determine the most suitable quantity of reference genes by evaluating pairwise variance values (V). If the ratio (Vn/Vn+1) is below 0.15, the optimal number of reference genes is n [2].

2.5. Experimental Treatments and Sample Collection

2.5.1. Developmental Stages

In this study, R. pedestris samples of various developmental stages were collected, including eggs (100), the first instar nymph (10 individuals), the second instar nymph (five individuals), the third instar nymph (three individuals), the fourth instar nymph (one individual), the fifth instar nymph (one individual), and 2-day-old adults (one male and one female). There were a total of 21 samples comprising seven development stages with three biological replicates each.

2.5.2. Adult Tissues

In a pre-cooled PBS solution, 3-day-old adults were dissected to collect various tissues, including heads (10 individuals), thoraxes (two individuals), abdomens (two individuals), legs (20 individuals), wings (20 individuals), female antennae (30 pairs), and male antennae (30 pairs).

2.5.3. Adult Age

Adults of different age were collected on the 1st, 3rd, 6th, 10th, 15th, and 20th day post-emergence and subsequently preserved at a temperature of −80 °C until RNA extraction. There were a total of 18 samples comprising six treatments with three biological replicates each.

2.5.4. Nymph Age

We collected 5-instar nymphs of post-molt 3, 6, 9, and 12 h, treated in liquid nitrogen and stored at −80 °C until further utilization. There were a total of 15 samples comprising five treatments with three biological replicates each.

2.5.5. Temperature

The 3-day-old females were maintained at temperatures of 15, 18, 20, 25, 28, and 32 °C for two hours. After that, the specimens were quick-frozen in liquid nitrogen and stored at −80 °C. There were a total of 18 samples comprising six temperature treatments with three biological replicates each.

2.5.6. Mating Status

In a plastic vial measuring 4 cm in diameter and 12 cm in height, paired adults were housed until they mated. Meanwhile, individual females or males housed in the vial at the same time were used as unmated samples. Subsequently, we collected mated adults (one male and one female) and unmated adults (one male and one female) for evaluating the influence of mating status, respectively. There were a total of 12 samples comprising mated and unmated adults with three biological replicates each.

2.6. Validation of the Candidate Reference Genes

We selected odorant-binding protein 37 (RpedOBP37) [25] and cytochrome P450 6a2 (RpedCYP6) [26] for the validation of the most stable reference genes (EF1 and Actin) and a variable one (SDHA). The forward primer and reverse sequences for RpedOBP37 were 5′-ATGGGAGCGATTTCTGAT-3′ and 5′-ATAGCGGTTTCACATCCA-3′, while the primer pairs for RpedCYP6 were 5′-TACGGTCGAGGTTATCTG-3′ and 5′-GGGCTGGTTATCCTTACT-3′. The study examined the variations in the expression levels of the target genes across different developmental stages, adult tissues, and temperature treatments. The 2−ΔΔCT method was employed to analyze the relative mRNA expression data of target genes [32].

3. Results

3.1. Amplification Performance of Primers

Prior to assessing the appropriateness of the reference genes, it is imperative to validate the specificity and efficiency of PCR amplification. Each PCR product subjected to detection using a 1.2% agarose gel presented as a solitary band of the anticipated size. Furthermore, the melting curves of each primer pair’s PCR amplification exhibited a single peak (Figure S1). The amplification efficiency of each primer pair ranged from 95.8% to 115.8%, while all regression coefficients surpassed the threshold of 0.990 (Table 1, Figure S2). Consequently, the primers were suitable for quantitative determination.

3.2. Expression Profiles of Candidate Reference Genes

EF1 was identified as the most highly expressed reference gene, followed by AK, RPL7A, GAPDH, RPS3, SOD, RPS23, TATA−box, GST, HSP70, UBQ, RPL32, Actin, UCCR, SDHA, and α−tubulin. Among these genes, SDHA, UCCR, and α−tubulin exhibited the highest variation in expression, while the other 13 genes demonstrated lower variation (EF1 > RPS23 > GST > UBQ > SOD > Actin > RPL32 > AK > RPL7A > GAPDH > HSP70 > RPS3 > TATA−box; Figure 1). Furthermore, the extent of variation in the expression of certain reference genes was influenced by experimental treatments. For instance, α−tubulin displayed lower variation (~1 cycle) for diverse tissues and adult age, but exhibited higher variation (>5 cycles) in other experimental treatments such as different developmental stages, temperature fluctuations, molting time treatment, and mating status (Figure 1).

3.3. Stability of Candidate Reference Genes

To determine the most suitable reference genes for six experimental conditions (development stages, adult tissues, adult age, nymph age, temperature, and mating status), the expression stabilities were assessed using ΔCt method, GeNorm, BestKeeper, and NormFinder. Subsequently, RefFinder was employed to compute an all-encompassing stability ranking.

3.3.1. Developmental Stages

ΔCt method and GeNorm analysis revealed that RPL7A exhibited the highest stability across various developmental stages, while BestKeeper and NormFinder analyses identified RPS23 and EF1 as the most appropriate reference genes (Figure 2). Based on the RefFinder analysis, the expression stability was ranked as follows: RPL7A > EF1 > UCCR > RPS23 > Actin > GAPDH > HSP70 > TATA−box > UBQ > SOD > GST > RPL32 >AK > RPS3 > α−tubulin > SDHA (Figure 3). According to the analysis using GeNorm software (Figure 4), the pairwise variation value V2/3 (0.113) did not exceed the predetermined threshold of 0.15, suggesting that the most suitable reference genes for normalization across developmental stages were RPL7A and EF1 (Figure 3).

3.3.2. Adult Tissues

According to ΔCt method and NormFinder analysis, α−tubulin and EF1 were identified to be the most stable reference genes (Figure 2). Likewise, the GeNorm and BestKeeper programs indicated that EF1 and α−tubulin were the most stable reference genes, respectively, while SDHA displayed the least stability (Figure 2). Based on the RefFinder program, the stability of reference genes was as follows: α−tubulin > EF1 > Actin > SOD > RPS3 > RPL32 > UBQ > RPS23 > GST > UCCR > GAPDH > TATA−box > RPL7A > HSP70 >AK > SDHA (Figure 3). The analysis conducted with the GeNorm program revealed that the pairwise variation value V2/3 (0.127) fell below a threshold of 0.15 (Figure 4), indicating that both α−tubulin and EF1 were suitable for normalization in the various adult tissues of R. pedestris.

3.3.3. Adult Age

GeNorm and NormFinder analysis revealed that RPL32 was the most stable gene for adult age. ΔCt method analysis, on the other hand, identified RPL32 and RPS23 as the most stable genes, while BestKeeper analysis preferred EF1 and AK (Figure 2). RefFinder analysis further confirmed the stability ranking, with UBQ being the most stable gene followed by RPL32 > RPL7A > RPS23 > GAPDH > RPS3 > EF1 > AK > TATA−box > HSP70 > UBQ > SOD > GST > Actin > α−tubulin >UCCR > SDHA (Figure 3). Additionally, GeNorm pairwise variation analysis indicated that RPL32 and RPL7A were sufficient to normalize target genes in the context of adult age (Figure 4). Therefore, we recommend the combination of RPL32 and RPL7A as the optimal reference genes for adult age.

3.3.4. Nymph Age

For nymph age, GeNorm and NormFinder analysis revealed that the genes with the highest stability in expression were RPL32 and SOD. ΔCt method analysis indicated that RPL32 and RPL7A exhibited the greatest expression stability. According to BestKeeper analysis, EF1 emerged as the most stable reference gene (Figure 2). Conversely, all four methods consistently demonstrated that SDHA had the lowest expression stability (Figure 2). The RefFinder program generated a comprehensive ranking of the expression stability of candidate reference genes, with RPL32 being the most stable, followed by SOD, RPS3, RPL7A, RPS23, GAPDH, EF1, UBQ, Actin, AK, GST, TATA−box, UCCR, HSP70, α−tubulin, and SDHA (Figure 3). Additionally, GeNorm analysis showed that the V2/3 value (0.09) was less than 0.15 (Figure 4), further supporting the selection of RPL32 and SOD as the optimal combination of reference genes for nymph age.

3.3.5. Temperature

RPS23 was determined as the most stable gene for different temperature treatments according to ΔCt method and NormFinder. Additionally, Actin and RPL7A were identified as the most stable genes based on GeNorm. Finally, BestKeeper analysis revealed that RPL7A and RPS23 were the optimal reference genes (Figure 2). The RefFinder ranking indicated that the stability followed the order RPS23 > RPL7A > Actin > EF1 > RPS3 > RPL32 > GST > HSP70 > GAPDH > UCCR > SOD > TATA−box > UBQ > AK > SDHA > α−tubulin (Figure 3). Additionally, GeNorm pairwise variation analysis demonstrated that the normalization of target genes for different temperature treatments could be adequately achieved using two reference genes (Figure 4). Consequently, the optimal combination of reference genes for R. pedestris among temperature treatments was RPL7A and RPS23.

3.3.6. Mating Status

GAPDH was identified as the most stable reference gene according to the NormFinder method and the GeNorm program (Figure 2). RPS23 and UBQ emerged as the most stable reference genes when analyzed using BestKeeper software. Additionally, HSP70 and RPS23 were identified as the most stable genes based on ΔCt method (Figure 2). Furthermore, RefFinder program analysis revealed the stability ranking was as follows: HSP70 > GAPDH > RPS23 > UBQ > SOD > Actin > RPL32 > EF1 > AK > RPS3 > RPL7A > TATA−box > GST > UCCR > SDHA > α−tubulin (Figure 3). Consequently, both HSP70 and UBQ can be confidently selected and employed for normalization purposes in the mating status of R. pedestris, as indicated by the GeNorm and RefFinder programs.

3.4. Validation of Candidate Reference Genes in Different Conditions

The target genes tested in this study were RpedOBP37 and RpedCYP6, while three candidate genes (EF1, Actin, and SDHA) were utilized as reference genes to assess their expression level across different developmental stages, various tissues, and different temperature. When normalized with EF1, Actin, or a combination of EF1 and Actin, RpedOBP37 and RpedCYP6 exhibited comparable expression patterns under different conditions (Figure 5). However, they showed more variations when gene expression was assessed by using the unstable gene, SDHA. Specifically, when SDHA was employed as the reference gene, a discernible disparity in the expression level of RpedOBP37 was observed between the male and female antennae (Figure 5). Intriguingly, the male antennae exhibited a higher content of RpedOBP37 compared to the female antennae, contradicting the findings for the other three groups.

4. Discussion

The quantification of qRT-PCR highly depends on the implementation of robust normalization techniques utilizing reference genes, which can mitigate the influence of variations in experimental data [33]. Nevertheless, an inappropriate reference gene potentially obscures or amplifies genuine biological alterations as a result of fluctuations in reference gene expression [34]. Additionally, relying solely on a single endogenous control can significantly impact the statistical outcomes and potentially result in erroneous data interpretation [35]. Numerous reports have focused on the evaluation of reference genes under diverse abiotic and biotic conditions in various insects, including R. prolixus [36], Apolygus lucorum [30], Leptocybe invasa [37], Halyomorpha halys [38], Nezara viridula [39], Dichelops melacanthus [40], and Cnaphalocrocis medinalis [13]. These studies have revealed that conventional reference genes generate substantial variations in the expression levels across different insect species and have no consistent expression patterns across all conditions. Consequently, the identification of suitable reference genes through careful screening becomes imperative for quantitative research conducted under specific conditions.
The genomic and transcriptomic data of R. pedestris have been published to study its development, chemosensory genes, and insecticide resistance [20,23,24,25,41,42]. Previous qRT-PCR studies on R. pedestris commonly employed universal reference genes for insect species [23,24,25,26]. Nevertheless, the use of inappropriate ones may result in misinterpretation of data. Hence, in this present study, we employed five software programs to evaluate the expression stability of 16 potential reference genes in R. pedestris across six distinct experimental conditions. The final evaluation results of RefFinder indicated that the selection of stably expressed reference genes exhibited variability across various developmental stages, adult tissues, adult ages, nymph ages, temperatures, and mating status.
There is no stable expression observed among reference genes, even the most commonly used ones, demonstrating variable expression levels are universal in different circumstances within the same insect species or across different insects under the same experimental conditions [9]. For instance, Actin, an extensively utilized reference gene, did not exhibit consistent expression stability in R. pedestris across all sample sets (Figure 3). The observation of significant variations in the expression levels of commonly used reference genes has been documented in multiple reports [10,29,30]. SDHA, which is commonly employed as an internal reference gene in animals, insects, and plants, exhibited inadequate expression stability in R. pedestris (Figure 2 and Figure 3). This notable disparity in expression stability has been consistently documented in numerous prior investigations [43,44]. α−tubulin, a traditional reference gene, exhibited significant expression stability exclusively in adult tissues, while displaying either low or the lowest expression stability in the remaining five experimental conditions. Comparable studies have been documented in investigating reference genes in Hemiptera, Coleoptera, and Lepidoptera species [10,29,45,46]. Previous research has shown that genes encoding ribosomal proteins consistently display stable expression and are widely used as reference genes in molecular studies of insects in the past decade [47]. The ribosomal protein family, including RPS23 and RPL32, is also identified as the most suitable reference genes in insects [30,46] and other organisms [48,49,50], and it was ranked sixth by the ICG website (https://ngdc.cncb.ac.cn/icg/, accessed on 12 October 2023). In the present study, RPS23 was assessed as the most stable gene in both nymph age and temperature treatments. Furthermore, RPS23 demonstrated a relatively high level of stability in other treatments involving R. pedestris. Similarly, RPL7A and RPL32 exhibited the highest degree of stability in both nymph age and temperature treatments, respectively (Figure 3). Additionally, these genes displayed a notable level of stability in other treatments. Prior studies have also demonstrated that ribosomal protein genes are commonly employed as reference genes across various Hemiptera insect species. For example, RPL13A and RPS3A are suitable for developmental stages and sexes of Helopeltis theivora [51]; RPL27 and RPL32 are suitable for different life stages and tissues of A. lucorum [30]; RPL8 is suitable for various conditions of C. hemipterus, including developmental stage, adult tissue, adult sex, gas stimulation, and temperature [10]; RPL29 was the most stable reference gene for various biotic conditions (host plant, acquisition of plant virus, developmental stage, and tissue) of Bemisia tabaci [52]. Nevertheless, ribosomal protein genes’ stability is not universally observed in all insect species [53].
The combination of multiple reference genes for normalizing gene expression in qRT-PCR analysis has garnered widespread acceptance due to its ability of yielding more precise and dependable expression patterns compared to a single gene [12,14]. Conversely, if the pairwise variation values exceed 0.15, we can select the three most stable reference genes as combinations based on the trend of the pairwise variation value [29,31]. In the current investigation, it was noted that the pairwise variation value for V2/3 under all conditions remained below the established threshold of 0.15 (Figure 4). As a result, it is advised to employ a combination of two internal references of R. pedestris for all treatment conditions. For example, RPL7A and EF1 were optimal reference genes for different developmental stages, and α−tubulin and EF1 were demonstrated as having the highest level of expression stability across diverse tissues. In the case of adult age, RPL32 and RPL7A exhibited the most consistent expressions. RPL32 and SOD displayed the most stable expression under various nymph age treatments. For temperature conditions, RPS23 and RPL7A were identified as the most appropriate reference genes for monitoring gene expression. Finally, HSP70 and GAPDH were recognized as the most dependable reference genes for assessing genes between mating status (Figure 3).
The practice of incorporating multiple reference genes to standardize the levels of target-gene expression has been widely accepted due to its ability to mitigate diverse errors and guarantee the precision of experimental outcomes [54,55]. Nevertheless, an inadequate or unreliable reference gene may result in an erroneous depiction of the target gene’s expression pattern, consequently leading to flawed interpretations [56,57]. The OBP gene plays a crucial role in the initial recognition processes of semiochemical perception and frequently exhibits expression patterns specific to certain tissues [58,59]. In the current study, notable variations in the expression level of RpedOBP37 were observed across different tissues when normalized to the most stable reference genes (EF1 and Actin) as well as an unstable reference gene (SDHA) (Figure 3). The detoxifying protein CYP6, which plays important roles in the response to oxidative stress in insects, demonstrates a wide distribution across various insect species [26]. When the expression levels of target genes were normalized using the most stable reference genes (EF1 and/or Actin), RpedCYP6 exhibited a consistent expression pattern. However, when the most unstable reference gene (SDHA) was utilized for normalization, the expression patterns of RpedCYP6 did not align with those observed using the stable reference gene (Figure 5). Consequently, it is crucial to select and validate the most reliable reference genes for specific species under particular conditions.

5. Conclusions

In summary, this study employed five reputable algorithms to assess the stability of 16 candidate reference genes across diverse experimental conditions. The findings revealed that the combination of RPL7A and EF1 exhibited the highest stability for developmental stages; α−tubulin and EF1 for adult tissues; RPL32 and RPL7A for adult age; RPL32 and SOD for nymph age. Moreover, RPS23 and RPL7A were the most stable reference genes under temperature treatments, while HSP70 and GAPDH showed optimal stability for mating status. These results provide the suitable reference genes to conduct standardized qRT-PCR analysis on R. pedestris. This study offers a set of methodologies for the accurate normalization of qRT-PCR data, thereby establishing a fundamental basis for conducting functional investigations of target genes in R. pedestris.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects14120960/s1, Figure S1: Melting curve analysis of sixteen candidate reference genes; Figure S2: Standard curves of the sixteen candidate reference genes.

Author Contributions

Conceptualization, L.W., T.Z. and J.N.; methodology, L.W. and T.Z.; software, L.W.; validation, L.W., Q.L. and P.G.; formal analysis, L.W.; investigation, P.G., Z.G. and J.N.; resources, D.C.; data curation, T.Z.; writing—original draft preparation, L.W.; writing—review and editing, T.Z.; visualization, L.W.; supervision, J.N.; project administration, T.Z. and J.N.; funding acquisition, J.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (2021YFD1400700), Basic Research Funds of Hebei Academy of Agriculture and Forestry Sciences (2021120203), Hebei Soybean Industry Technology System (HBCT2019190205), and S&T Program of Hebei (22326513D).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bustin, S.A. Developments in real-time PCR research and molecular diagnostics. Expert Rev. Mol. Diagn. 2010, 10, 713–715. [Google Scholar] [CrossRef]
  2. Vandesompele, J.; De Preter, K.; Pattyn, F.; Poppe, B.; Van Roy, N.; De Paepe, A.; Speleman, F. Accurate normalization of real-time quantitative RT-PCR data by geometric averaging of multiple internal control genes. Genome Biol. 2002, 3, research0034.0031. [Google Scholar] [CrossRef]
  3. Bustin, S.A.; Benes, V.; Nolan, T.; Pfaffl, M.W. Quantitative real-time RT-PCR—A perspective. J. Mol. Endocrinol. 2005, 34, 597–601. [Google Scholar] [CrossRef]
  4. Bustin, S.A.; Benes, V.; Garson, J.A.; Hellemans, J.; Huggett, J.; Kubista, M.; Mueller, R.; Nolan, T.; Pfaffl, M.W.; Shipley, G.L. The MIQE Guidelines: Minimum Information for Publication of Quantitative Real-Time PCR Experiments. Clin. Chem. 2009, 55, 611–622. [Google Scholar] [CrossRef]
  5. Pfaffl, M.W.; Tichopad, A.; Prgomet, C.; Neuvians, T.P. Determination of stable housekeeping genes, differentially regulated target genes and sample integrity: BestKeeper—Excel-based tool using pair-wise correlations. Biotechnol. Lett. 2004, 26, 509–515. [Google Scholar] [CrossRef]
  6. Chapuis, M.-P.; Tohidi-Esfahani, D.; Dodgson, T.; Blondin, L.; Ponton, F.; Cullen, D.; Simpson, S.J.; Sword, G.A. Assessment and validation of a suite of reverse transcription-quantitative PCR reference genes for analyses of density-dependent behavioural plasticity in the Australian plague locust. BMC Mol. Biol. 2011, 12, 7. [Google Scholar] [CrossRef]
  7. Thellin, O.; Zorzi, W.; Lakaye, B.; De Borman, B.; Coumans, B.; Hennen, G.; Grisar, T.; Igout, A.; Heinen, E. Housekeeping genes as internal standards: Use and limits. J. Biotechnol. 1999, 75, 291–295. [Google Scholar] [CrossRef]
  8. Bustin, S.A.; Beaulieu, J.-F.; Huggett, J.; Jaggi, R.; Kibenge, F.S.B.; Olsvik, P.A.; Penning, L.C.; Toegel, S. MIQE précis: Practical implementation of minimum standard guidelines for fluorescence-based quantitative real-time PCR experiments. BMC Mol. Biol. 2010, 11, 74. [Google Scholar] [CrossRef]
  9. Lü, J.; Yang, C.; Zhang, Y.; Pan, H. Selection of Reference Genes for the Normalization of RT-qPCR Data in Gene Expression Studies in Insects: A Systematic Review. Front. Physiol. 2018, 9, 1560. [Google Scholar] [CrossRef]
  10. Kong, D.; Shi, D.; Wang, C.; Zhai, R.; Lyu, L.; He, Y.; Wang, D. Identification and Validation of Reference Genes for Expression Analysis Using qRT-PCR in Cimex hemipterus (Hemiptera: Cimicidae). Insects 2022, 13, 784. [Google Scholar] [CrossRef]
  11. Pan, Y.-N.; Zhao, R.-N.; Fu, D.; Yu, C.; Pan, C.-N.; Zhou, W.; Chen, W.-L. Assessment of Suitable Reference Genes for qRT-PCR Normalization in Eocanthecona furcellata (Wolff). Insects 2022, 13, 773. [Google Scholar] [CrossRef]
  12. Shen, C.-H.; Peng, L.-J.; Zhang, Y.-X.; Zeng, H.-R.; Yu, H.-F.; Jin, L.; Li, G.-Q. Reference Genes for Expression Analyses by qRT-PCR in Phthorimaea operculella (Lepidoptera: Gelechiidae). Insects 2022, 13, 140. [Google Scholar] [CrossRef]
  13. Zhao, X.; Guo, J.; Lu, Y.; Sun, T.; Tian, J.; Huang, J.; Xu, H.; Wang, Z.; Lu, Z. Reference Genes for Expression Analysis Using RT-qPCR in Cnaphalocrocis medinalis (Lepidoptera: Pyralidae). Insects 2022, 13, 1046. [Google Scholar] [CrossRef]
  14. Zhao, X.; Geng, Y.; Hu, T.; Zhao, Y.; Yang, S.; Hao, D. Evaluation of Optimal Reference Genes for qRT-PCR Analysis in Hyphantria cunea (Drury). Insects 2022, 13, 97. [Google Scholar] [CrossRef]
  15. He, Y.; Zhong, Y.; Bao, Z.; Wang, W.; Xu, X.; Gai, Y.; Wu, J. Evaluation of Angelica decursiva reference genes under various stimuli for RT-qPCR data normalization. Sci. Rep. 2021, 11, 18993. [Google Scholar] [CrossRef]
  16. Li, W.; Gao, Y.; Hu, Y.; Chen, J.; Zhang, J.; Shi, S. Field Cage Assessment of Feeding Damage by Riptortus pedestris on Soybeans in China. Insects 2021, 12, 255. [Google Scholar] [CrossRef]
  17. Wei, Z.; Guo, W.; Jiang, S.; Yan, D.; Shi, Y.; Wu, B.; Xin, X.; Chen, L.; Cai, Y.; Zhang, H.; et al. Transcriptional profiling reveals a critical role of GmFT2a in soybean staygreen syndrome caused by the pest Riptortus pedestris. N. Phytol. 2023, 237, 1876–1890. [Google Scholar] [CrossRef]
  18. Zhang, H.; Wang, Y.; Wang, Z.; Ding, W.; Xu, K.; Li, L.; Wang, Y.; Li, J.; Yang, M.; Liu, X.; et al. Modelling the current and future potential distribution of the bean bug Riptortus pedestris with increasingly serious damage to soybean. Pest Manag. Sci. 2022, 78, 4340–4352. [Google Scholar] [CrossRef]
  19. Huang, H.-J.; Yan, X.-T.; Wei, Z.-Y.; Wang, Y.-Z.; Chen, J.-P.; Li, J.-M.; Sun, Z.-T.; Zhang, C.-X. Identification of Riptortus pedestris Salivary Proteins and Their Roles in Inducing Plant Defenses. Biology 2021, 10, 753. [Google Scholar] [CrossRef]
  20. Huang, H.-J.; Ye, Y.-X.; Ye, Z.-X.; Yan, X.-T.; Wang, X.; Wei, Z.-Y.; Chen, J.-P.; Li, J.-M.; Sun, Z.-T.; Zhang, C.-X. Chromosome-level genome assembly of the bean bug Riptortus pedestris. Mol. Ecol. Resour. 2021, 21, 2423–2436. [Google Scholar] [CrossRef]
  21. Li, K.; Zhang, X.; Guo, J.; Penn, H.; Wu, T.; Li, L.; Jiang, H.; Chang, L.; Wu, C.; Han, T. Feeding of Riptortus pedestris on soybean plants, the primary cause of soybean staygreen syndrome in the Huang-Huai-Hai river basin. Crop J. 2019, 7, 360–367. [Google Scholar] [CrossRef]
  22. Li, J.; Liu, X.; Wang, Q.; Huangfu, J.; Schuman, M.C.; Lou, Y. A group D MAPK protects plants from autotoxicity by suppressing herbivore-induced defense signaling. Plant Physiol. 2019, 179, 1386–1401. [Google Scholar] [CrossRef]
  23. Fu, S.; Duan, Y.; Wang, S.; Ren, Y.; Bu, W. Comparative Transcriptomic Analysis of Riptortus pedestris (Hemiptera: Alydidae) to Characterize Wing Formation across All Developmental Stages. Insects 2021, 12, 226. [Google Scholar] [CrossRef]
  24. Liu, P.; Guo, J.; Wei, H.; Feng, L.; Gao, Z.; Zhang, T. Genome-wide identification of candidate chemosensory receptors in the bean bug Riptortus pedestris (Hemiptera: Alydidae) and the functional verification of its odorant receptor co-receptor (Orco) in recognizing aggregation pheromone. Front. Physiol. 2023, 14, 1224009. [Google Scholar] [CrossRef]
  25. Li, J.-B.; Yin, M.-Z.; Yao, W.-C.; Ma, S.; Dewer, Y.; Liu, X.-Z.; Wang, Y.-Y.; Wang, C.-W.; Li, B.-P.; Zhu, X.-Y. Genome-Wide Analysis of Odorant-Binding Proteins and Chemosensory Proteins in the Bean bug Riptortus pedestris. Front. Physiol. 2022, 13, 949607. [Google Scholar] [CrossRef]
  26. Zhang, Z.-L.; Wang, X.-J.; Lu, H.-B.; Huang, H.-J. Comparative Transcriptomic Analysis Reveals Adaptation Mechanisms of Bean Bug Riptortus pedestris to Different Food Resources. Insects 2023, 14, 739. [Google Scholar] [CrossRef]
  27. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative CT method. Nat. Protoc. 2008, 3, 1101–1108. [Google Scholar] [CrossRef]
  28. Andersen, C.L.; Jensen, J.L.; Ørntoft, T.F. Normalization of real-time quantitative reverse transcription-PCR data: A model-based variance estimation approach to identify genes suited for normalization, applied to bladder and colon cancer data sets. Cancer Res. 2004, 64, 5245–5250. [Google Scholar] [CrossRef]
  29. Han, S.; Qin, Q.; Wang, D.; Zhou, Y.; He, Y. Selection and evaluation of reference genes for qRT-PCR in Spodoptera frugiperda (Lepidoptera: Noctuidae). Insects 2021, 12, 902. [Google Scholar] [CrossRef]
  30. Luo, J.; Wang, A.; Cheng, Y.; Rong, H.; Guo, L.; Peng, Y.; Xu, L. Selection and validation of suitable reference genes for RT-qPCR analysis in Apolygus lucorum (Hemiptera: Miridae). J. Econ. Entomol. 2020, 113, 451–460. [Google Scholar] [CrossRef]
  31. Yang, A.-P.; Wang, Y.-S.; Huang, C.; Lv, Z.-C.; Liu, W.-X.; Bi, S.-Y.; Wan, F.-H.; Wu, Q.; Zhang, G.-F. Screening Potential Reference Genes in Tuta absoluta with Real-Time Quantitative PCR Analysis under Different Experimental Conditions. Genes 2021, 12, 1253. [Google Scholar] [CrossRef]
  32. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  33. Schmittgen, T.D.; Zakrajsek, B.A. Effect of experimental treatment on housekeeping gene expression: Validation by real-time, quantitative RT-PCR. J. Biochem. Biophys. Methods 2000, 46, 69–81. [Google Scholar] [CrossRef]
  34. VanGuilder, H.D.; Vrana, K.E.; Freeman, W.M. Twenty-five years of quantitative PCR for gene expression analysis. BioTechniques 2008, 44, 619–626. [Google Scholar] [CrossRef]
  35. Ferguson, B.S.; Nam, H.; Hopkins, R.G.; Morrison, R.F. Impact of Reference Gene Selection for Target Gene Normalization on Experimental Outcome Using Real-Time qRT-PCR in Adipocytes. PLoS ONE 2010, 5, e15208. [Google Scholar] [CrossRef]
  36. Majerowicz, D.; Alves-Bezerra, M.; Logullo, R.; Fonseca-de-Souza, A.L.; Meyer-Fernandes, J.R.; Braz, G.R.C.; Gondim, K.C. Looking for reference genes for real-time quantitative PCR experiments in Rhodnius prolixus (Hemiptera: Reduviidae). Insect Mol. Biol. 2011, 20, 713–722. [Google Scholar] [CrossRef]
  37. Liu, Y.; Zhou, J.; Qiu, Z.; Hu, P.; Chen, X.; Yang, Z. Identification and Validation of Reference Genes for Expression Analysis Using RT-qPCR in Leptocybe invasa Fisher and La Salle (Hymenoptera: Eulophidae). Insects 2023, 14, 456. [Google Scholar] [CrossRef]
  38. Mogilicherla, K.; Howell, J.L.; Palli, S.R. Improving RNAi in the Brown Marmorated Stink Bug: Identification of target genes and reference genes for RT-qPCR. Sci. Rep. 2018, 8, 3720. [Google Scholar] [CrossRef]
  39. Gurusamy, D.; Howell, J.L.; Chereddy, S.C.R.R.; Mogilicherla, K.; Palli, S.R. Improving RNA interference in the southern green stink bug, Nezara viridula. J. Pest Sci. 2021, 94, 1461–1472. [Google Scholar] [CrossRef]
  40. Pinheiro, D.H.; Moreira, R.O.; Leite, N.A.; Redoan, A.C.; Xavier, A.d.S.; Barros, B.d.A.; Carneiro, N.P. Suitable reference genes for RT-qPCR analysis in Dichelops melacanthus (Hemiptera: Pentatomidae). Mol. Biol. Rep. 2020, 47, 4989–5000. [Google Scholar] [CrossRef]
  41. Sato, Y.; Jang, S.; Takeshita, K.; Itoh, H.; Koike, H.; Tago, K.; Hayatsu, M.; Hori, T.; Kikuchi, Y. Insecticide resistance by a host-symbiont reciprocal detoxification. Nat. Commun. 2021, 12, 6432. [Google Scholar] [CrossRef]
  42. Song, Y.; Dong, J.; Chen, Q.; Hu, Z.; Sun, H. Analysis of the antennal transcriptome and chemoreception-related genes of the bean bug, Riptortus pedestris (Hemiptera: Alydidae). Acta Entomol. Sin. 2017, 60, 1120–1128. [Google Scholar] [CrossRef]
  43. Hu, K.; Chen, K.; Fu, B.; Liu, J.; Li, Y.; Pan, Q.; Liu, F. Reliable reference genes for qPCR normalization in females of the mirid predator, Cyrtorhinus lividipennis (Hemiptera: Miridae). Biologia 2022, 77, 2383–2392. [Google Scholar] [CrossRef]
  44. Shi, C.; Yang, F.; Zhu, X.; Du, E.; Yang, Y.; Wang, S.; Wu, Q.; Zhang, Y. Evaluation of Housekeeping Genes for Quantitative Real-Time PCR Analysis of Bradysia odoriphaga (Diptera: Sciaridae). Int. J. Mol. Sci. 2016, 17, 1034. [Google Scholar] [CrossRef]
  45. Bassan, M.M.; Angelotti-Mendonça, J.s.; Alves, G.R.; Yamamoto, P.T.; Mourão Filho, F.d.A.A. Selection of Reference Genes for Expression Studies in Diaphorina citri (Hemiptera: Liviidae). J. Econ. Entomol. 2017, 110, 2623–2629. [Google Scholar] [CrossRef]
  46. Xie, J.; Liu, T.; Khashaveh, A.; Yi, C.; Liu, X.; Zhang, Y. Identification and Evaluation of Suitable Reference Genes for RT-qPCR Analysis in Hippodamia variegata (Coleoptera: Coccinellidae) Under Different Biotic and Abiotic Conditions. Front. Physiol. 2021, 12, 669510. [Google Scholar] [CrossRef]
  47. Vilcinskas, A.; Mukherjee, K.; Vogel, H. Expansion of the antimicrobial peptide repertoire in the invasive ladybird Harmonia axyridis. Proc. R. Soc. B Biol. Sci. 2013, 280, 20122113. [Google Scholar] [CrossRef]
  48. Yadav, P.; Deepak Singh, D.; Mukesh, M.; Kataria, R.S.; Yadav, A.; Mohanty, A.K.; Mishra, B.P. Identification of suitable housekeeping genes for expression analysis in mammary epithelial cells of buffalo (Bubalus bubalis) during lactation cycle. Livest. Sci. 2012, 147, 72–76. [Google Scholar] [CrossRef]
  49. Mitra, T.; Bilic, I.; Hess, M.; Liebhart, D. The 60S ribosomal protein L13 is the most preferable reference gene to investigate gene expression in selected organs from turkeys and chickens, in context of different infection models. Vet. Res. 2016, 47, 105. [Google Scholar] [CrossRef]
  50. Liu, Q.; Lei, K.; Ma, Q.; Qiao, F.; Li, Z.-c.; An, L.-h. Ribosomal protein L7 as a suitable reference gene for quantifying gene expression in gastropod Bellamya aeruginosa. Environ. Toxicol. Pharmacol. 2016, 43, 120–127. [Google Scholar] [CrossRef]
  51. Wang, Z.; Meng, Q.; Zhu, X.; Sun, S.; Gao, S.; Gou, Y.; Liu, A. Evaluation and Validation of Reference Genes for Quantitative Real-Time PCR in Helopeltis theivora Waterhouse (Hemiptera: Miridae). Sci. Rep. 2019, 9, 13291. [Google Scholar] [CrossRef]
  52. Li, R.; Xie, W.; Wang, S.; Wu, Q.; Yang, N.; Yang, X.; Pan, H.; Zhou, X.; Bai, L.; Xu, B.; et al. Reference Gene Selection for qRT-PCR Analysis in the Sweetpotato Whitefly, Bemisia tabaci (Hemiptera: Aleyrodidae). PLoS ONE 2013, 8, e53006. [Google Scholar] [CrossRef]
  53. Yang, X.-J.; Zheng, H.-L.; Liu, Y.-Y.; Li, H.-W.; Jiang, Y.-H.; Lin, L.-B.; Deng, X.-Y.; Zhang, Q.-L. Selection of reference genes for quantitative real-time PCR in Aquatica leii (Coleoptera: Lampyridae) under five different experimental conditions. Front. Physiol. 2020, 11, 555233. [Google Scholar] [CrossRef]
  54. Kozera, B.; Rapacz, M. Reference genes in real-time PCR. J. Appl. Genet. 2013, 54, 391–406. [Google Scholar] [CrossRef]
  55. Shi, C.-h.; Hu, J.-r.; Zhang, Y.-j. Research Progress on Reference Genes of Insect for Quantitative Real-time Reverse Transcription PCR (RT-qPCR). Univ. J. Agric. Res. 2015, 3, 211–219. [Google Scholar] [CrossRef]
  56. Nestorov, J.; Matić, G.; Elaković, I.; Tanić, N. Gene expression studies: How to obtain accurate and reliable data by quantitative real-time RT PCR. J. Med. Biochem. 2013, 32, 325–338. [Google Scholar] [CrossRef]
  57. Arya, S.K.; Jain, G.; Upadhyay, S.K.; Sarita; Singh, H.; Dixit, S.; Verma, P.C. Reference genes validation in Phenacoccus solenopsis under various biotic and abiotic stress conditions. Sci. Rep. 2017, 7, 13520. [Google Scholar] [CrossRef]
  58. Zhang, H.; Chen, J.-L.; Lin, J.-H.; Lin, J.-T.; Wu, Z.-Z. Odorant-binding proteins and chemosensory proteins potentially involved in host plant recognition in the Asian citrus psyllid, Diaphorina citri. Pest Manag. Sci. 2020, 76, 2609–2618. [Google Scholar] [CrossRef]
  59. Cai, L.-J.; Zheng, L.-S.; Huang, Y.-P.; Xu, W.; You, M.-S. Identification and characterization of odorant binding proteins in the diamondback moth, Plutella xylostella. Insect Sci. 2021, 28, 987–1004. [Google Scholar] [CrossRef]
Insects 14 00960 g001

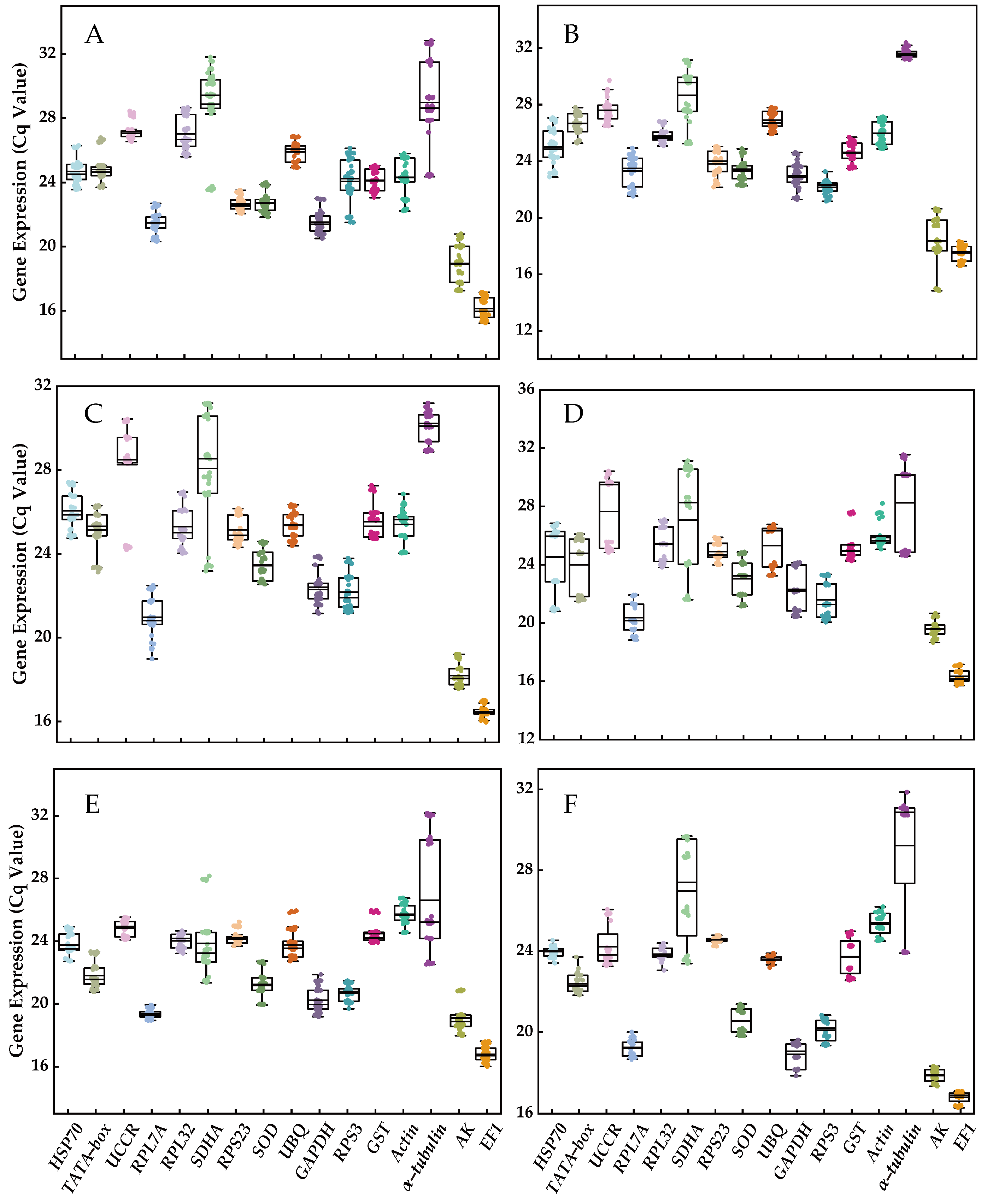

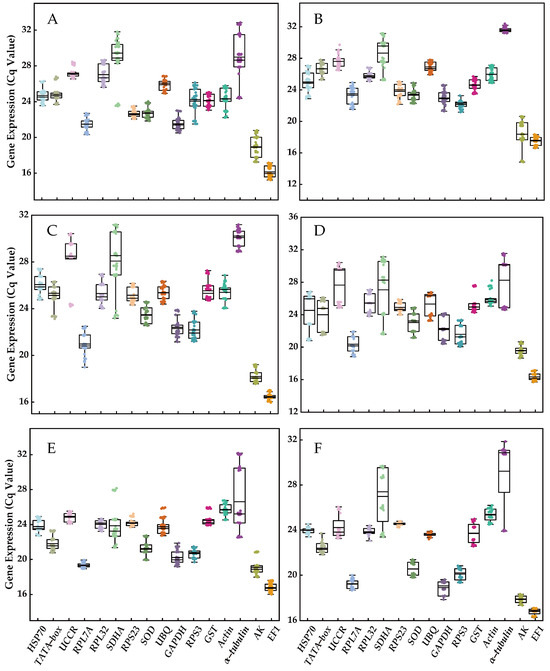

Figure 1. The expression profiles of the 16 candidate reference genes under various experimental conditions. (A) Developmental stage, (B) different tissue, (C) adult age, (D) nymph age, (E) temperature, and (F) mating status. The expression levels of candidate reference genes were quantified using Cq values. The box plot displays the distribution of Cq values, with the box representing the interquartile range (25th to 75th percentiles), the line within the box indicating the median, and the whiskers representing the minimum and maximum Cq values.
Figure 1. The expression profiles of the 16 candidate reference genes under various experimental conditions. (A) Developmental stage, (B) different tissue, (C) adult age, (D) nymph age, (E) temperature, and (F) mating status. The expression levels of candidate reference genes were quantified using Cq values. The box plot displays the distribution of Cq values, with the box representing the interquartile range (25th to 75th percentiles), the line within the box indicating the median, and the whiskers representing the minimum and maximum Cq values.
Insects 14 00960 g001
Insects 14 00960 g002

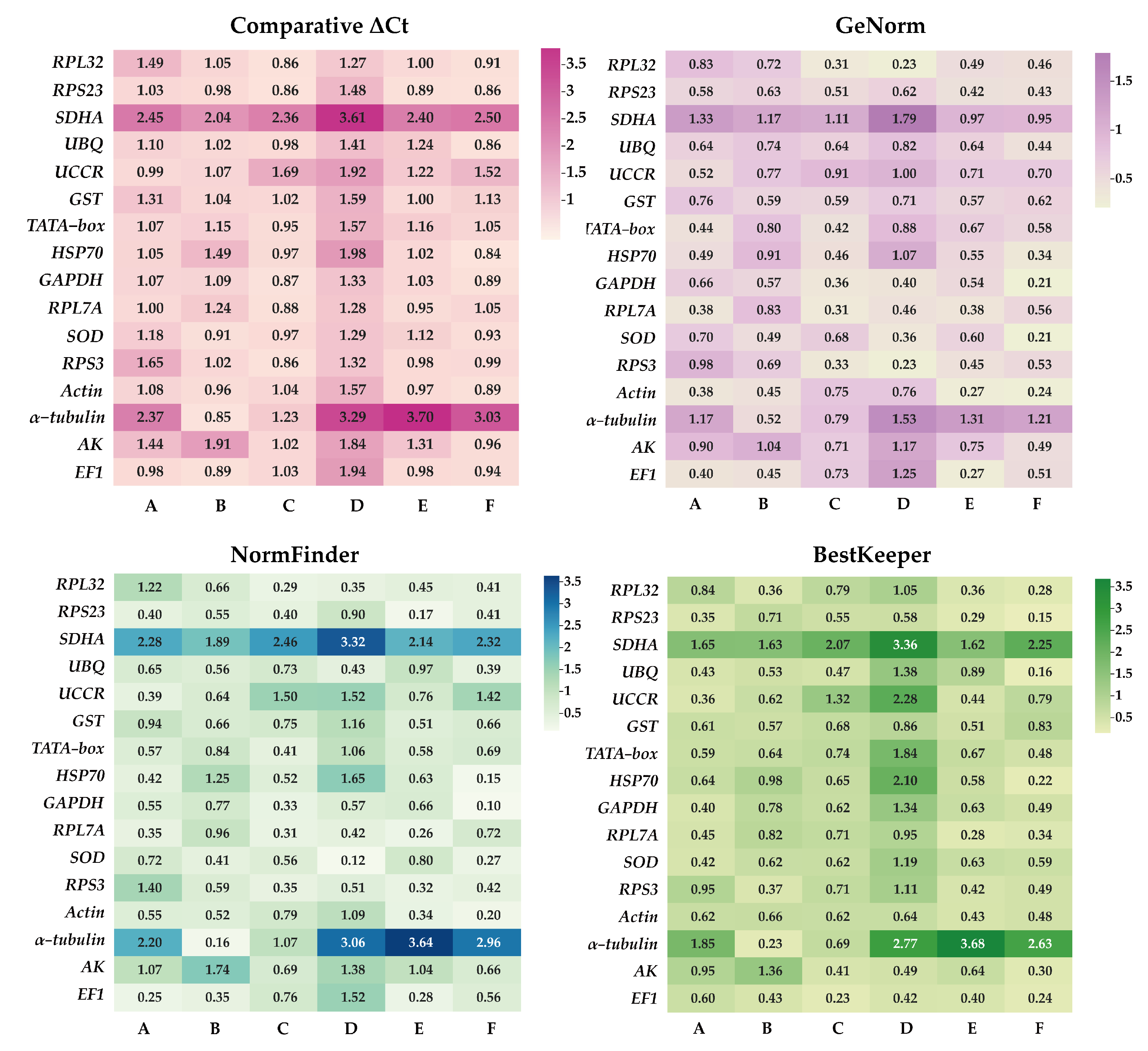

Figure 2. The stability of candidate reference genes assessed by NormFinder, BestKeeper, comparative ΔCt, and GeNorm. The candidate gene’s stability is indicated by the smaller value and lighter hues on the pane. A: Development stage, B: adult tissue, C: adult age, D: nymph age E: temperature, and F: mating status.
Figure 2. The stability of candidate reference genes assessed by NormFinder, BestKeeper, comparative ΔCt, and GeNorm. The candidate gene’s stability is indicated by the smaller value and lighter hues on the pane. A: Development stage, B: adult tissue, C: adult age, D: nymph age E: temperature, and F: mating status.
Insects 14 00960 g002
Insects 14 00960 g003

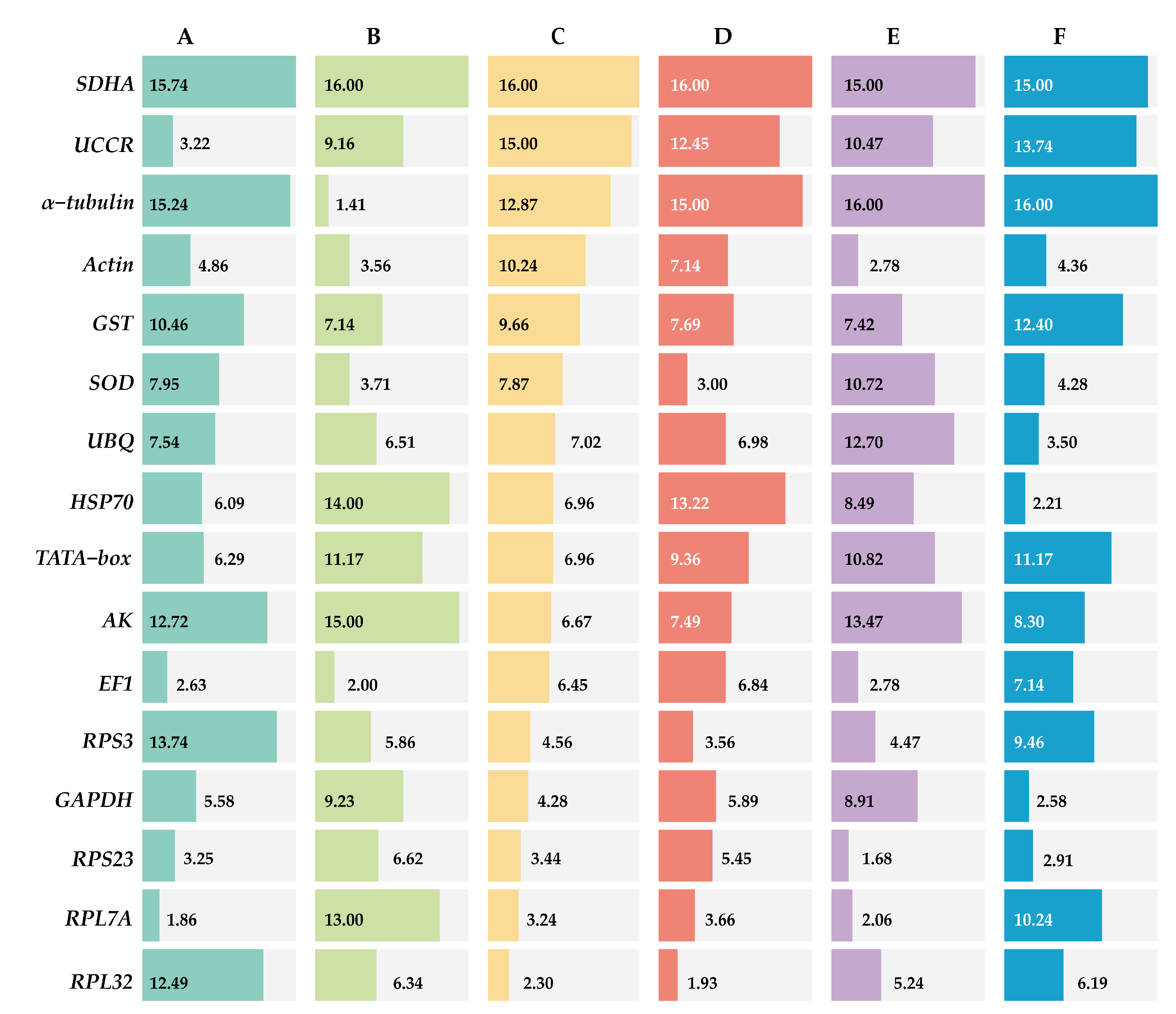

Figure 3. Expression stability of 16 candidate reference genes of R. pedestris in different treatments by RefFinder. A: Development stage, B: adult tissue, C: adult age, D: nymph age, E: temperature, and F: mating status.
Figure 3. Expression stability of 16 candidate reference genes of R. pedestris in different treatments by RefFinder. A: Development stage, B: adult tissue, C: adult age, D: nymph age, E: temperature, and F: mating status.
Insects 14 00960 g003
Insects 14 00960 g004

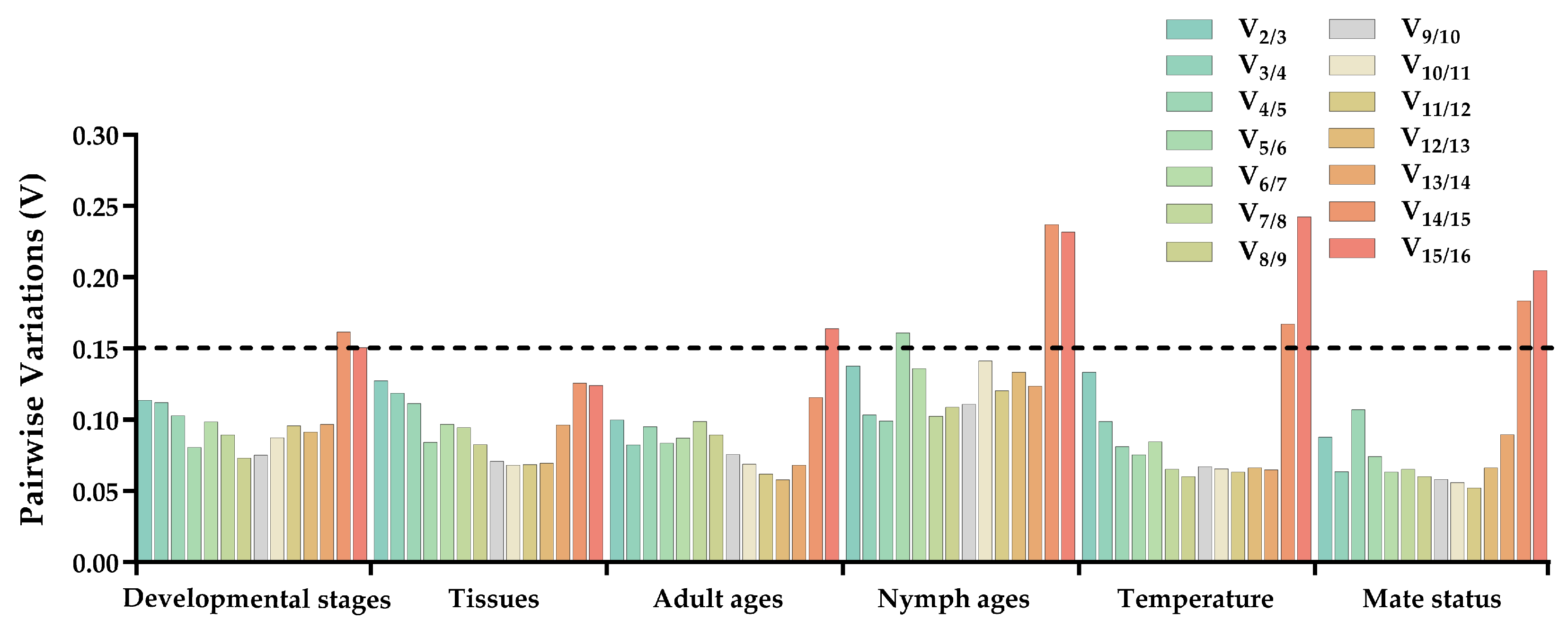

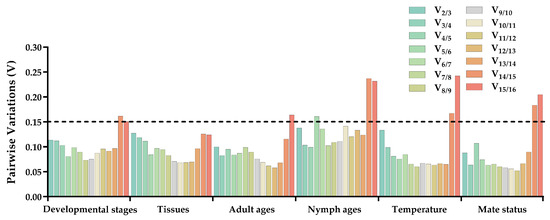

Figure 4. Optimal number of reference genes for normalization in qRT-PCR of R. pedestris under different conditions. GeNorm software was employed to analyze the pairwise variation (Vn/n+1, where n represents the number of reference genes) in order to ascertain the appropriate number of reference genes necessary for precise normalization. The threshold for paired variation values (Vn/n+1 = 0.15) is denoted by black dotted lines. A Vn/n+1 < 0.15 signifies that the optimal number of reference genes for normalization is n, while a Vn/n+1 > 0.15 indicates that the optimal number is n+1.
Figure 4. Optimal number of reference genes for normalization in qRT-PCR of R. pedestris under different conditions. GeNorm software was employed to analyze the pairwise variation (Vn/n+1, where n represents the number of reference genes) in order to ascertain the appropriate number of reference genes necessary for precise normalization. The threshold for paired variation values (Vn/n+1 = 0.15) is denoted by black dotted lines. A Vn/n+1 < 0.15 signifies that the optimal number of reference genes for normalization is n, while a Vn/n+1 > 0.15 indicates that the optimal number is n+1.
Insects 14 00960 g004
Insects 14 00960 g005

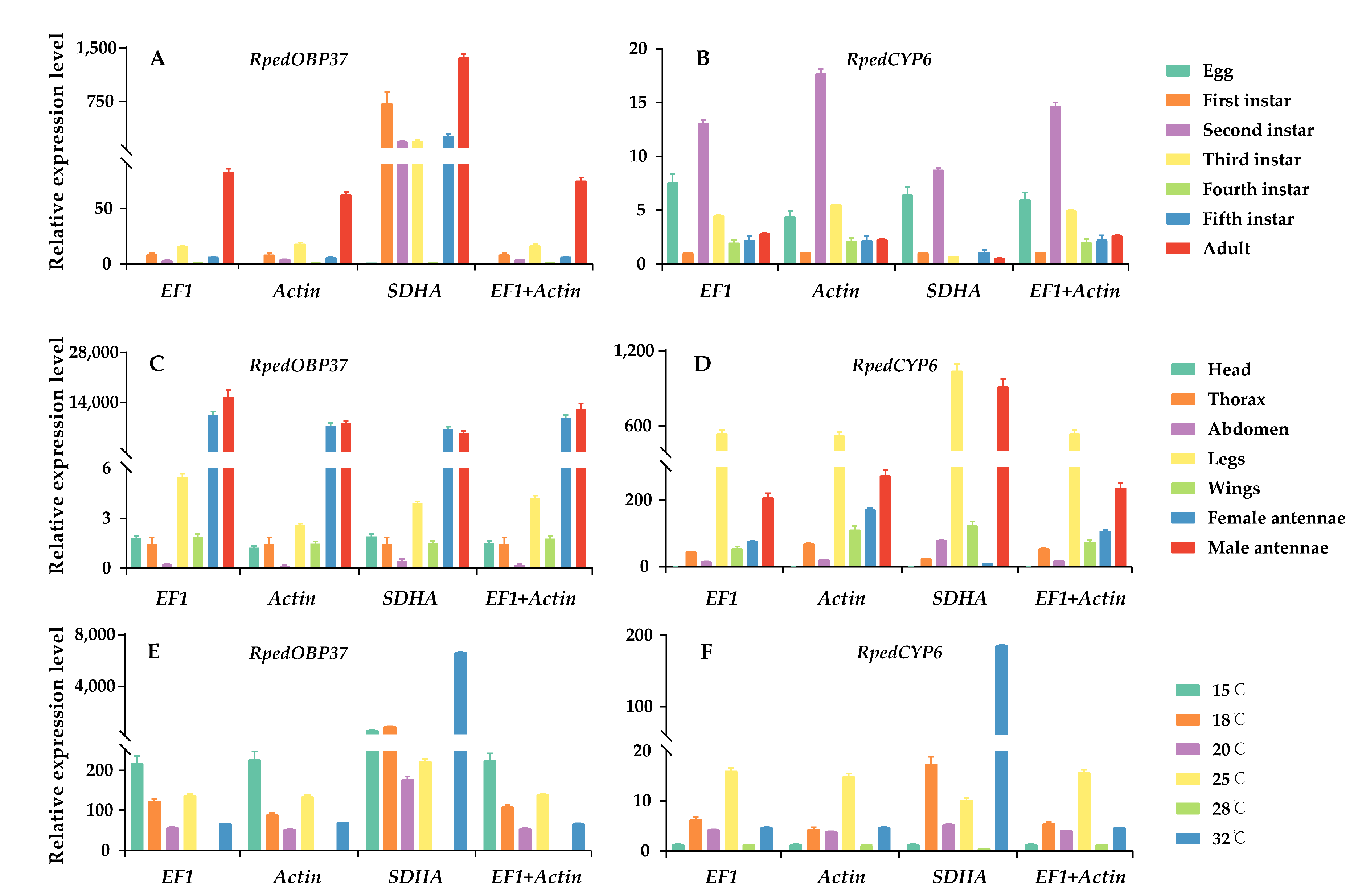

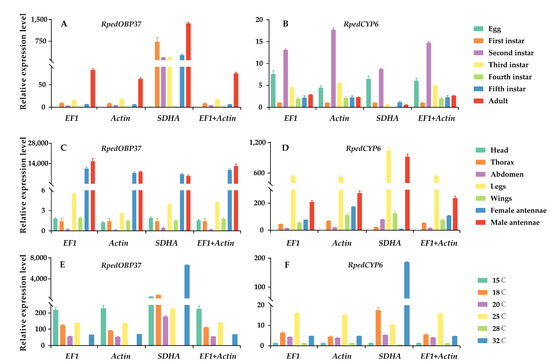

Figure 5. Expression level of RpedOBP37 and RpedCYP6 under different conditions in R. pedestris. The relative expression level of RpedOBP37 and RpedCYP6 were standardized using the most appropriate reference genes (EF1 and Actin) and an unsuitable reference gene (SDHA). (A,B) RpedOBP37 and RpedCYP6 expression levels in developmental stages; (C,D) RpedOBP37 and RpedCYP6 expression levels in various tissues; (E,F) RpedOBP37 and RpedCYP6 expression levels in different temperature conditions. The standard errors (±SE) were calculated from three biological replicates.
Figure 5. Expression level of RpedOBP37 and RpedCYP6 under different conditions in R. pedestris. The relative expression level of RpedOBP37 and RpedCYP6 were standardized using the most appropriate reference genes (EF1 and Actin) and an unsuitable reference gene (SDHA). (A,B) RpedOBP37 and RpedCYP6 expression levels in developmental stages; (C,D) RpedOBP37 and RpedCYP6 expression levels in various tissues; (E,F) RpedOBP37 and RpedCYP6 expression levels in different temperature conditions. The standard errors (±SE) were calculated from three biological replicates.
Insects 14 00960 g005
Table 1. Reference genes and specific primers used for qRT-PCR analysis in R. pedestris.
Table 1. Reference genes and specific primers used for qRT-PCR analysis in R. pedestris.
GeneAccession No.Primer Sequences (5′-3′, F/R)Amplicon Length (bp)Tm (°C)Efficiency (%)R2
ActinRped008782.1AGTGGAGATGGCGTAACA3195599.40.998
GTGCTTCAGGTGCTTCAA
AKRped016502.1CCTTCCTTGTCTGGTGTAAT3865596.60.998
TCCGTCGTTCATCTCCTT
EF1Rped011851.1TTGCCAACGGTTACACTC13555104.40.995
CGCCAGACTTGATAGACTTA
α−tubulinRped009391.1CCTCTGGCTATGCTCATC29255101.90.999
CGTTGCTCAGTTCCTCAT
RPL32Rped002411.1GTTGTTGTACTGTATGAAGGAG16755108.10.999
TCAGGTGGCTTGATATTCTT
RPS23Rped002697.1GGTATCAGAACTGCTAGGAA38955113.00.994
TTGTATAACGCCAGAAGAGA
SDHARped003372.1GCTACTAGACTTCCAGGTATT29055115.80.990
TCACAGGCAATGGTCATAG
UBQRped005095.1AACAGAGAACCAAGAATGC27055108.20.995
GAAGGACCCAAATGTAGAAC
UCCRRped011417.1TGATGGCAAGGCTAATGG39455110.30.997
TATGGAGGAAGGCTGGTT
GSTRped012521.1AACCAGTTCGCCTAATGT2315595.80.999
CAACAGTTATATCCGCAAGA
TATA−boxRped001691.1GAGGTTGAAGATGGTGGAA36955109.50.999
AGCCGCAAGAACTGAATT
HSP70Rped013173.1TGTCCTCCTTGTTGATGTG14755109.80.990
GTTACTGCTGATTGGTTGTC
GAPDHRped016319.1GTTGTAGACCTCACTGTTAAG24055113.50.992
CGAATATCCGCACTCATTG
RPL7ARped006873.1CTAAGATCAAGCAGAAGGATG15555108.20.999
TGGCAGGAACAGAACAAG
SODRped004572.1CAAGATGGTCCTACTTCTGA2835596.20.999
TCCTTCCAATGATGCTGAG
RPS3Rped018266.1GTTGTGAAGTTGTTGTGTCT20255102.90.997
GGTCCATTCTTGCCAGTT
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, L.; Liu, Q.; Guo, P.; Gao, Z.; Chen, D.; Zhang, T.; Ning, J. Evaluation of Reference Genes for Quantitative Real-Time PCR Analysis in the Bean Bug, Riptortus pedestris (Hemiptera: Alydidae). Insects 2023, 14, 960. https://doi.org/10.3390/insects14120960

AMA Style

Wang L, Liu Q, Guo P, Gao Z, Chen D, Zhang T, Ning J. Evaluation of Reference Genes for Quantitative Real-Time PCR Analysis in the Bean Bug, Riptortus pedestris (Hemiptera: Alydidae). Insects. 2023; 14(12):960. https://doi.org/10.3390/insects14120960

Chicago/Turabian Style

Wang, Liuyang, Qingyu Liu, Pei Guo, Zhanlin Gao, Dan Chen, Tao Zhang, and Jun Ning. 2023. "Evaluation of Reference Genes for Quantitative Real-Time PCR Analysis in the Bean Bug, Riptortus pedestris (Hemiptera: Alydidae)" Insects 14, no. 12: 960. https://doi.org/10.3390/insects14120960

APA Style

Wang, L., Liu, Q., Guo, P., Gao, Z., Chen, D., Zhang, T., & Ning, J. (2023). Evaluation of Reference Genes for Quantitative Real-Time PCR Analysis in the Bean Bug, Riptortus pedestris (Hemiptera: Alydidae). Insects, 14(12), 960. https://doi.org/10.3390/insects14120960

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
