Out of East Asia: Early Warning of the Possible Invasion of the Important Bean Pest Stalk-Eyed Seed Bug Chauliops fallax (Heteroptera: Malcidae: Chauliopinae)

by
Yanfei Li
1,†,
Juhong Chen
1,†,
Shujing Wang
1,
Kun Jiang
1,
Jiayue Zhou
1,
Runqi Zhu
1,
Cuiqing Gao
2,
Wenjun Bu
1,* and
Huaijun Xue
1,*
1
Institute of Entomology, College of Life Sciences, Nankai University, Tianjin 300071, China
2
Co-Innovation Center for the Sustainable Forestry in Southern China, College of Forestry, Nanjing Forestry University, Nanjing 210037, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this paper.
Insects 2023, 14(5), 433; https://doi.org/10.3390/insects14050433
Submission received: 29 March 2023 / Revised: 23 April 2023 / Accepted: 28 April 2023 / Published: 1 May 2023
(This article belongs to the Section Insect Ecology, Diversity and Conservation)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

The stalk-eyed seed bug Chauliops fallax is an important agricultural pest of soybean and was first reported to occur outside East Asia. Here, the native evolutionary history, recent invasion history, and potential invasion threats of C. fallax were reported for the first time based on population genetic methods and ecological niche modelling. Four native genetic groups (EA, WE, TL, and XZ) and an east–west differentiation pattern consistent with the geographical characteristics of three-step landforms were well supported in China. The Kashmir sample was found to come from a recent invasion event, and the invasive source was determined to be the populations of the coastal areas of southern China. North America might have high a risk of invasion, which poses a serious threat to local soybean production. Our results provided new insights into the monitoring and management of Chauliops fallax in the early invasion stage.

Abstract

The short stay at the beginning of the invasion process is a critical time for invasive species identification and preventing invasive species from developing a wider distribution and significant economic impact. The stalk-eyed seed bug Chauliops fallax is an important agricultural pest of soybean and was first reported to occur outside East Asia. Here, we reported the native evolutionary history, recent invasion history, and potential invasion threats of C. fallax for the first time based on population genetic methods and ecological niche modelling. The results showed that four native East Asian genetic groups (EA, WE, TL, and XZ) were well supported, showing an east-west differentiation pattern consistent with the geographical characteristics of three-step landforms in China. Two main haplotypes existed: Hap1 might have experienced a rapid northwards expansion process after the LGM period, and Hap5 reflected local adaptation to the environment in southeastern China. The Kashmir sample was found to come from the recent invasion of populations in the coastal areas of southern China. Ecological niche modelling results suggested that North America has a high risk of invasion, which might pose a serious threat to local soybean production. In addition, with future global warming, the suitable habitat in Asia will move towards the higher latitude region and gradually deviate from the soybean planting area, which indicates the threat of C. fallax to soybean production in Asia will decrease in the future. The results could provide new insights into the monitoring and management of this agricultural pest in the early invasion stage.

1. Introduction

With the intensification of the global integration process, trade exchanges between different regions are increasing, and there are increasing opportunities for species to be transported beyond their native range, therefore becoming invasive species [1]. Biological invasion is one of the main causes of global biodiversity loss and global ecosystem function erosion [2,3]. At the same time, it also leads to negative impacts on human life and health [4,5], agriculture [6], and food security [7]. Studies on the history of many invasions have shown that species experience a short stay in their initial invasion sites before forming a large invasion threat, eventually producing a bridgehead effect [8,9,10,11] or an overt bottleneck effect [12,13,14,15,16]. These effects will then trigger a self-accelerating process of invasion [1]. Additionally, it is controversial whether it is due to mutations that have gained a strong invasive ability or due to multiple admixture events [1,17]. However, it is worth noting that whichever reasons enhance the invasion ability, the short stay at the beginning of the invasion process exists for many invasive species [18,19]. Therefore, we believe that this period will be a critical time for invasive species identification to prevent invasive species from developing a wider distribution and significant economic impact.
If we want to be more precise about invasive species, we need to start with two important questions: where do they come from and where will they go [20]? For the first question, we need to clarify the invasion history of the species that have been invaded and clarify the source and process of invasion. This will help us eliminate it from the source and avoid invasion leakage at each early invasion site. The population genetics method has been widely applied to the study of species and population-level evolutionary history [14,21,22,23]. By combining population genetics with invasion biology, the source population of invasive species can be accurately identified, and the invasion history can be clearly explained, providing a solid evolutionary biological basis for the early identification of invasive species and avoidance of further invasion [23,24,25]. For the second question, we need to understand where invasive species are more likely to invade to strengthen quarantine and prevention and control to prevent the entry of invasive species. The ecological niche model (ENM) is based on the conservative nature of a species’ ecological niche, and information on the current climatic environment of that species’ distribution is used to predict what other possible invaded areas exist globally under the current climatic conditions of the species and the future distribution trends of the species under future climate change conditions [26,27,28,29]. To date, ENM has played a good role in the early warning of the invasion of many invasive species [30,31].
The stalk-eyed seed bug Chauliops fallax (Scott, 1874) is an important legume pest that mainly feeds on legumes such as kudzu and soybeans [32,33,34,35]. Studies have shown that it can act throughout the growth period of the crop, causing a 10–30% yield reduction in legumes [32,33]. Scott established C. fallax in 1874 based on specimens from the Japanese region. According to the literature, it is mainly naturally distributed in East Asia (mainly in China, Korea, and Japan) (Catalogue of the Palaearctic Heteroptera: https://catpalhet.linnaeus.naturalis.nl/linnaeus_ng/app/views/introduction/topic.php?id=9&epi=1, accessed on 20 January 2023) [35]. Through field collection, we also found C. fallax in Thailand. C. fallax has also been recorded in the Indian subcontinent by Chopra & Rustagi, 1982, but it was corrected by Sweet & Schaefer, 1985, according to the obvious morphological difference between Indian and East Asian specimens, and was described as a separate species: C. choprai. Therefore, no credible distribution record was available for C. fallax outside East Asia until Ashika et al. uploaded a cytochrome c oxidase subunit I (COI) molecular fragment of C. fallax from Kashmir on NCBI (GenBank: MN584895) in 2020 [35,36,37]. According to the preliminary judgment of the sequence data, the record is the real C. fallax. This aroused our vigilance to determine whether the stalk-eyed seed bug was originally found in this area or whether it was the result of a recent invasion.
In this study, we first reconstructed its population evolution history in its native range through the population genetics method based on COI (in order to match the Kashmir sample, we chose COI as the molecular marker). Then, we analyzed the source of the Kashmir sample (local distribution or recent invasion) and the possible invasion history. Finally, we used ENM to predict the current and future potential distribution areas of C. fallax and explored its potential threat to soybean production by overlapping with soybean-planted areas.

2. Materials and Methods

2.1. Molecular Data Acquisition and Analysis

2.1.1. Sampling and Laboratory Procedures

A total of 113 samples from 18 populations of C. fallax from China and Thailand were used for molecular experiments (Figure 1A and Table 1). Samples were preserved in 100% ethanol and stored at −20 °C until used. DNA was extracted from muscle tissue using the Universal Genomic DNA Kit (CWBIO, Beijing, China). Polymerase chain reaction (PCR) was used to amplify the COI gene barcoding region. The primers (Cfal1315F: 5′-AACATTGACTATAAAGCCTTGATAAGAGGT-3′; Cfal3044R: 5′-AATATTGATAGTTGTTCTATTACTGGCGAT-3′) were designed based on the mitochondrial genome of C. fallax (GenBank: NC_020772). The PCR procedure included an initial denaturation at 94 °C for 2 min, followed by 31–33 cycles of 30 s at 92 °C, 30 s at 53 °C and 1.5 min at 72 °C, ending with a final extension at 72 °C for 8 min. PCR products were checked with 1% agarose gel electrophoresis and sent to the Beijing Genomics Institute (BGI) for Sanger sequencing in both directions using an ABI3730XL Sequencer. One COI dataset from Kashmir was downloaded from NCBI (GenBank: MN584895). Sequences were visually proofread in BioEdit v7.2.5 and aligned in Mafft v7.037 [38].

2.1.2. Species Identification, Genetic Polymorphism, Phylogenetic Analysis and Population Genetic Structure

The sample of Kashmir only has molecular data, without any morphological pictures or descriptions; therefore, we need to use the barcoding method to identify the species first. The genetic distance estimations based on COI were calculated in MEGA X [39] using the Kimura 2-Parameter (K2P) substitution model, 1000 bootstrap replicates, and the “pairwise deletion” option for missing data.
Genetic diversity was estimated for each location and the entire sample as the number of haplotypes (Hn), haplotype diversity (Hd), and nucleotide diversity (π), which were calculated in DNASP v5.1 [40]. Phylogenetic analysis was performed based on COI using the neighbour-net method implemented in SplitsTree v4.14.5 [41]. A haplotype network was constructed in PopART v1.7 [42] with the option “Median Joining network”.
The 18 native populations were used for the analysis of the population genetic structure. Two approaches were applied to gain further insight into the population genetic structure. First, a Bayesian analysis of population structure was represented in BAPS v6.0 [43] with the option “Spatial clustering of groups”, which combined sample locations with the likelihood of the genetic data and estimated the best K values (maximum number of genetically diverged groups). Second, the Spatial Analysis of Molecular Variance was implemented in SAMOVA v2.0 [44]. This method is based on a simulated annealing procedure that aims at maximizing the proportion of total genetic variance due to differences between groups of populations. SAMOVA v2.0 [44] was run using 100 simulated annealing processes for K = 2–10 clusters. The genetic differentiation between the populations and the groups (defined by phylogenetic analysis) was calculated based on the pairwise difference method in ARLEQUIN v3.5.2.2 [45].

2.1.3. Historical Population Dynamics

The historical population dynamics were estimated in BEAST v2.5 [46] using a Bayesian coalescent-based method (Bayesian Skyline Plot, BSP) based on the native samples. This method was used to reconstruct the effective population size fluctuations since the time of the most recent common ancestor (TMRCA). The MCMC chains were run for 1000 million generations until the ESS value was larger than 200. A relaxed uncorrelated lognormal molecular clock with a mutation rate of 0.6–1%/per million years [47] was used. Demographic history was reconstructed in Tracer v1.7 [48]. In addition, two neutrality tests, i.e., Tajima’s D and Fu and Li’s D were calculated in DNASP v5.1 [40].

2.2. Distribution Data Acquisition and Analysis

2.2.1. Species Occurrence Data and Climate Data

Chauliops fallax occurrence data were collected from (1) collection records: the College of Life Sciences, Nankai University (NKU, Tianjin, China) has more than 70 years’ worth of specimens in its collection; (2) the Global Biodiversity Information Facility (GBIF, https://www.gbif.org/, accessed on 20 January 2023); (3) Integrated Digitized Biocollections (iDigBio, https://www.idigbio.org/, accessed on 20 January 2023) and (4) iNaturalist (iNaturalist, https://www.inaturalist.org/, accessed on 20 January 2023). The occurrence records were cleaned by removing duplicate observations and observations without latitudes and longitudes. The geographic coordinates were filtered out by enforcing a distance of 30 km between records by the Wallace package in R [49], as ecological niche models are sensitive to sample bias [50]. Finally, 83 unique records of C. fallax were obtained (Table S1).
A total of 19 bioclimatic variables with a spatial resolution of 2.5 min were obtained from the WorldClim (https://worldclim.org/, accessed on 20 January 2023) website for both historical (1970–2000) and future conditions [51]. The cross-correlations among the bioclimatic variables and the results of the analysis of variable contributions were combined to select bioclimatic variables for C. fallax. Multicollinearity among the bioclimatic variables was reduced by selecting only one variable that ranked first in the analysis of variable contributions from a set of highly correlated variables (|r| ≥ 0.8). Finally, 10 bioclimatic variables were selected for further analysis: mean diurnal range (BIO2), isothermality (BIO3), temperature seasonality (BIO4), max temperature of warmest month (BIO5), minimum temperature of coldest month (BIO6), mean temperature of wettest quarter (BIO8), annual precipitation (BIO12), precipitation seasonality (BIO15), precipitation of warmest quarter (BIO18), and precipitation of coldest quarter (BIO19). We used datasets of bioclimatic variables for current (1970–2000), 2050 (2041–2060) and 2070 (2081–2100) scenarios to predict the current and future spread of C. fallax. Future distribution climate projections were evaluated from three earth system models (ESMs) that were part of the Coupled Model Intercomparison Project Phase 6 (CMIP6): (a) the Canadian Earth System Model v5 (CanESM5); (b) the Institute Pierre-Simon Laplace coupled model v6 (IPSL-CM6A-LR) and (c) the Max Planck Institute for Meteorology Earth System Model (MPI-ESM1-2-LR), using two different emissions scenarios (shared socioeconomic pathway: SSP): SSP126 and SSP585 in 2041–2060 (2060), 2061–2080 (2080), and 2081–2100 (2100), respectively. SSP126 and SSP585 have the lowest greenhouse gas emissions [52] and highest greenhouse gas emissions [53].

2.2.2. Ecological Niche Modelling

We used maximum entropy niche modelling (MaxEnt v3.4.3) [54] to model the potential distribution of C. fallax under present and future climate change scenarios. Before modelling, the model-tuning procedure was performed using the R packages “ENMeval” [55]. The model with the lowest delta Akaike information criterion (delta AIC) value was selected as the best model for the modelling. In this study, output format = logistic, random test percentage = 25, regularization multiplier = 2, convergence threshold = 0.0001, and maximum number of background points = 10,000, which all were default parameter settings in MaxEnt except maximum iterations (default: 500). Seventy-five percent of the data were used for training, and 25% were used to test the model. We ran 15 replicates (regularization multiplier = 2; maximum number of background points: 10,000) involving the 10 environmental layers selected above.
We mapped the global potential distribution of C. fallax in Arcgis v10.8 software to produce a suitability map under present and future (i.e., 2060 and 2100) climate change conditions with two different emissions scenarios (SSP126 and SSP585). First, we removed the areas where the standard deviation was higher than the largest standard deviation of C. fallax occurrence to ensure conservative projected results. Then, the probabilities of habitat suitability for C. fallax were divided into the following four categories: 0.0-0.177681 as unsuitable habitat, 0.177681–0.34739 as poorly suitable habitat, 0.34739–0.404495 as moderately suitable habitat, and 0.404495–1 as highly suitable habitat. Categories were generated by extracting logistic values where species occurred, and the logistic value of the last 5% of locations was set as the threshold between unsuitable and poor suitability, which was 0.177681. In the same way, we obtained the thresholds between poor and moderate suitability and moderate and high suitability by sorting the last 10% (0.34739) and 15% (0.404495). The coverage area (in km2) of the potential distribution of C. fallax under the present climatic conditions was computed for each continent (Africa, Asia, Europe, North America, Oceania, and South America), taking into account the categories.

3. Results

3.1. The Phylogeographical Pattern and Demographic History of C. fallax in East Asia

The dataset was built using 633 bp COI and containing 114 samples from 19 populations. The 41 polymorphic sites included 16 singleton variable sites and 25 parsimony informative sites. A total of 30 unique haplotypes were derived. High haplotype diversity (>0.5) was observed in nine populations, and the JSNJ population had the highest haplotype diversity (0.933). The nucleotide diversities ranged from 0.00000 to 0.00274 (Table 1).
Four independent genetic groups (Figure 1) were identified by phylogenetic analysis, and these were named according to the area where the population was located: the east group (EA), west group (WE), Thailand group (TL), and Xizang group (XZ). The EA group was mainly located in the third step region of China, the WE group was located on the southern edge of the Sichuan Basin of the second step region of China, the XZ group was located in the first step region in China, and the TL group was located in the southeastern peninsula. The haplotype network showed that there was no shared haplotype among the groups (Figure 2A). There were two main haplotypes in the EA group: Hap1 and Hap5. Hap1 was mainly located in the North China Plain (Figure 2B) and appeared in seven populations (including AHFX, AHQM, JSNJ, SXQL, TJJX, ZJNB, and ZJQZ) (Figure 2B). Furthermore, Hap1 has formed a typical star-shaped haplotype network with the main haplotype as the core and with many derived haplotypes (Figure 2A). Hap5 was mainly located in the hilly areas of Southeast China and appeared in six populations (including AHQM, HBWH, HNYL, JSNJ, JXJL, and JXYF) (Figure 2C). There was one main haplotype in the WE group that appeared in four populations, including GZSY, GZZY, YNCX, and YNQJ (Figure 2D). FST values among the 19 populations ranged from −0.86339 to 1.00000 (Table S2 and Figure S1). FST values among the four groups ranged from 0.68597 to 0.81682 (Table S3 and Figure S2). In addition, the Kashmir sample had the lowest genetic difference from the Zhejiang samples (ZJNB & ZJQZ), and the genetic distance was only 0.37%. Additionally, the sample from Kashmir was clustered into the EA group and had a closer genetic relationship with Hap1 (with 2 mutated steps) (Figure 2A).
BAPS identified six clusters across 18 native populations (Figure 1A and Table S4). Populations in the EA group were clustered into two clusters located in the south and north. The populations in the WE group were also grouped into two clusters, with SCLD alone becoming one. The TL and XZ groups emerged as separate clusters. According to the SAMOVAs (Figure S3 and Table S5), FCT continued to rise from K = 2 clusters to K = 10 clusters; FSC continued to decrease from K = 2 clusters to K = 10 clusters. Therefore, a reliable K value was not obtained by the SAMOVAs.
The values of Tajima’s D and Fu and Li’s D* are not significant (Tajima’s D = −0.95545, p > 0.10; Fu and Li’s D* = −2.13766, 0.10 > p > 0.05), which supported the neutral evolution of the populations. BSP reconstructions showed that the population size of C. fallax remained stable during the last glacial period, rapid demographic growth began approximately 5000 years ago, and a slight downward trend followed (Figure 3A). The population size of the EA group remained stable during the last glacial period, and the demographic slight growth occurred between approximately 10,000 years ago and 2500 years ago and has remained stable since then (Figure S4). The population size of the WE group remained stable during the LGM period, and slight demographic growth began approximately 2500 years ago (Figure S5).

3.2. Ecological Niche Modelling

3.2.1. Model Performance and Influence of Bioclimatic Variables

A higher mean training AUC value of 0.8274 and a test AUC value of 0.8128 indicated a high accuracy of the MaxEnt model to predict the potential distribution of C. fallax (Table S6). The most important bioclimatic variables for C. fallax prediction were BIO4 (39.9%), followed by BIO6 (18.5%), BIO5 (11.3%), and BIO8 (10.6%) (Figure 4 and Figure S6). These four variables were the strongest predictors of C. fallax distribution and contributed 80.3%. The model also showed that BIO18 (contributing 7.7%) is also important (Figure 4). When omitted, BIO18 was the environmental variable that decreased the gain the most and therefore appeared to have most of the information that was not present in the other variables. (Figure S6). Overall, the temperature was the main factor limiting the distribution of C. fallax.

3.2.2. Current Potential Distribution of C. fallax

The map with habitat suitability scores for the occurrence of C. fallax at the global scale is shown in Figure 5. The MaxEnt model predictions showed that the global suitability of C. fallax is concentrated in Africa, Asia, Europe, North America, Oceania and South America, covering an area of approximately 11.30% of the globally available land. According to the modelling, the highly suitable habitat for C. fallax was found to be 3.26 × 106 km2 (Table S7). Asia and North America have the most favorable climatic conditions for C. fallax (Figure 5 and Table S7). The greatest optimum suitable habitats were recorded in Asia and North America and were approximately 2.53 × 106 km2 and 6.59 × 105 km2, respectively. Moderately and poorly suitable habitat for C. fallax was found to be 1.91 × 106 km2 and 1.17 × 107 km2, respectively.
The overlapped map result (Figure S7 and Table 2) indicated that the overlapped area was approximately 9.14 × 107 km2 and was mainly located in Asia and North America (Figure 4). Asia, as the origin of C. fallax, has the highest overlapping area (3.71 × 106 km2, Table 2) and the greatest optimum suitable habitat area overlapped with soybean planted area (2.04 × 106 km2). Although Europe has an approximately 1.23 × 106 km2 overlapping area between suitable C. fallax habitat areas and soybean planted areas, the moderate (2.32 × 104 km2) and high (7.53 × 103 km2) suitable habitats of C. fallax were low compared with those of North America (7.58 × 105 km2, 4.87 × 105 km2). Oceania has the lowest overlapping area (1.93 × 105 km2).

3.2.3. Predicted Future Potential Distribution of C. fallax

The results of the MaxEnt model under future climate change scenarios SSP126 and SSP585 for 2060 and 2100 are presented in Figure 6 (CanESM5), Figure S8 (IPSL-CM6A-LR) and Figure S9 (MPI-ESM1-2-LR). Suitable habitat for C. fallax was found to be moved poleward in the future for both the SSP126 and SSP585 emission scenarios. The suitable habitat area would increase by 2.67 × 105 km2 (average results of the three models) and 4.88 × 105 km2 for the SSP126 and SSP585 emission scenarios, respectively, in 2060 compared to the present suitable habitat area (Table S8). However, the suitable habitat area for C. fallax would decrease by 1.57 × 105 km2 and 9.85 × 106 km2 for the SSP126 and SSP585 emission scenarios in 2100, respectively, relative to the present climate conditions.

4. Discussion

4.1. Population Structure and Population Dynamics History in the Native Range

East Asia has complex terrain with mountainous terrain structure characteristics, and the mountain environment provides an important geographical barrier for species differentiation in this area [56,57]. The consistency between the genetic group and the geographical features indicated the significant phylogeographical structure of C. fallax in East Asia. The obvious east-west differentiation pattern formed along the three-step landforms in China [57] indicated that mountains were an important geographical barrier promoting the genetic differentiation of C. fallax. The two main haplotypes (Hap1 and Hap5) presented a north-south differentiation pattern with the Yangtze River and the middle and lower reaches of the Yangtze River plain as the boundary. The population in this area showed typical characteristics of high Hd and low π (Table 1), indicating that the population of Hap1 has experienced a rapid diffusion process in North China. Hap5 was different from Hap1, with characteristics of low Hd and low π of populations, and the derived haplotypes were rare, which showed that Hap5 had strong adaptability to the environment of Southeast China and was dominant here.
The terrain environment in Southeast China is dominated by low mountains and hills, which provided important refuge for many creatures during the ice age [57,58]. Additionally, the ENM showed that the highly suitable region was mainly located in the hilly area of Southeast China during the LGM period. The historical dynamics of the population also showed that the population size of the species was stable during the LGM period. Therefore, we speculated that the ancestral population of the EA group was mainly distributed in Southeast China during the LGM period, and the mountain environment protected it from the climatic shock of the ice age [57,58,59].
Genetic diversity analysis showed that the HBWH population located at the junction of North China and Southeast China had the highest nucleotide diversity. Additionally, the nucleotide diversity of the population north of the Yangtze River decreased gradually from south to north. ENM also showed the continued northward expansion of the suitable area after the ice age. Therefore, we speculated that the Hap1 haplotype derived from the ancestral population (mainly located near the HWBH population) had strong adaptability and diffusion ability. After the LGM period, the Hap1 haplotype rapidly extended to North China, and many haplotypes were derived to adapt to environmental changes during the diffusion process. Hap5, which was also derived from the ancestral population, was more suited to the local hilly environment, so it formed a dominant haplotype in southeastern China. However, our speculation was only based on limited geographic populations (note especially the lack of samples from Korea and Japan) and COI fragments, which should be supported by a larger sample size and more molecular evidence in the future.

4.2. Invasion History Reconstruction of the Kashmir Sample

According to the genetic distance analyses, the Kashmir sample had the lowest genetic difference from the Zhejiang samples (ZJNB & ZJQZ), and the genetic distance was only 0.37%, indicating that the Kashmir sample was C. fallax. The Kashmir sample was clustered into the EA group and not with the geographically closer Thailand or Tibet and had no significant genetic differentiation with East Asian samples, and there were only two mutation sites different from Hap1. According to previous literature records, Sweet & Schaefer (1985) described the Indian “C. fallax” as a new species “C. choprai” and believed that there was no C. fallax outside East Asia [35,36,37]. In combination with molecular results and literature evidence, we believe that the Kashmir sample should represent the latest colonization rather than the original distribution. Additionally, according to haplotype and genetic difference analysis, we speculated that the introduced sample could have come from Zhejiang and surrounding coastal areas in China. This region was an important coastal city, with developed ports and frequent maritime trade, which could provide a good opportunity for its introduction [60,61]. In addition, Hap1 and its derived haplotypes have recently experienced rapid diffusion and have high environmental adaptability, which provides a good genetic basis for the colonization of this species after introduction [62]. Additionally, recent studies have suggested that genetic changes could underlie the greater invasiveness of bridgehead populations [63,64]. The Kashmir sample has already experienced unique genetic adaptive variation with a unique genotype (no haplotype shared with native samples), which indicated that they might be going through the process of establishing the bridgehead effect. However, this still needs further support from more samples and more molecular data. In combination with the results of ENM under the current conditions, we found that the suitable region of this species in Asia is mainly located in the second and third ladder regions of China, the Korean Peninsula, and Japan, and there is a banded highly suitable region on the southern edge of the Himalayas (Figure 5). The sample came from the Kashmir region, which is located on the southern edge of the Himalayas. Therefore, a suitable environment might provide good conditions for the survival of C. fallax in Kashmir.
In summary, we believe that C. fallax might have recently colonized Kashmir through trade or other accidental events. The introduction of highly adaptable genotypes and a locally friendly environment might together help with successful colonization in Kashmir. At the same time, the unique adaptive variation might help further establish the bridgehead effect and accelerate the invasion process.

4.3. Early Warning of Possible Invasion around the World

C. fallax is oligotrophic to legumes and has been recorded as a serious soybean pest in East Asia [32,33,34,37,65]. Therefore, the study of population dynamics and prediction of suitable habitats for this species will provide us with a direction for precise prevention and control of its invasion.
Most invasive species largely conserve their climatic niche, which has prominent implications for predicting future invasion risks [30]. The ENM results showed that except for East Asia, there is a wide range of highly suitable areas in southeastern North America, which could provide good environmental conditions for the survival of C. fallax. Additionally, this region is one of the main soybean-producing areas in the world [66], which indicates that it would provide an adequate food source for the invasion of C. fallax. Therefore, C. fallax presents a dramatically high invasion risk in southeastern North America. We suggest that the region should pay more attention to C. fallax in recent trade exchanges, especially for populations from North China and coastal areas that have had successful colonization experiences.
In addition, in the case of future global climate change, the ENM results showed that the predicted suitable habitat of the stalk-eyed seed bug will continue to move towards the poles, especially in the case of global warming, which will promote its movement process. The highly suitable area in Asia will increase significantly in the future, but the overlapping area with the soybean planted area showed a predicted decline. Therefore, we speculated that with the polar movement of the high-fitness area, the threat to soybean production in Asia by C. fallax will probably decrease in the future.

5. Conclusions

Here, we used population genetic methods and ecological niche modelling to reconstruct the invasion history of C. fallax and to predict its current and future potential distribution areas. We demonstrated that C. fallax has recently invaded Kashmir, and the invasive source has been identified as Zhejiang Province and the surrounding coastal areas in China. At the same time, C. fallax also showed a high risk of invasion in southeastern North America and might seriously threaten local soybean production. Our analysis suggested that the quarantine of C. fallax should be strengthened in highly suitable areas beyond its natural range to avoid it becoming the next globally invasive pest. Our study will help us deepen our understanding of the species and provide new insights into the monitoring and management of this agricultural pest.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/insects14050433/s1. Figure S1: Pairwise FST among populations; Figure S2: Pairwise FST among four groups; Figure S3: SAMOVA clustering; Figure S4: Historical demographic trends of EA group represented by Bayesian skyline plot (BSP); Figure S5: Historical demographic trends of WE group represented by Bayesian skyline plot (BSP); Figure S6: Jackknife of regularized training gain of environmental variables for Chauliops fallax; Figure S7: The overlapped map between global potential distribution of Chauliops fallax and world soybean cropland; Figure S8: Global potential distribution of Chauliops fallax predicted by MaxEnt model at future IPSL-CM6A-LR climate conditions; Figure S9: Global potential distribution of Chauliops fallax predicted by MaxEnt model at future MPI-ESM1-2-LR climate conditions; Table S1: 82 unique records of Chauliops fallax for ENM; Table S2: Pairwise FST among populations; Table S3: Pairwise FST among four groups; Table S4: Marginal likelihood of optimal partition of different K value; Table S5: SAMOVA results; Table S6: MaxEnt results with percentage contribution (C) and permutation importance (P) of each variable predictor (with AUC values) for Chauliops fallax; Table S7: Predicted coverage area (km2) of the potential distribution of Chauliops fallax under the present climatic conditions; Table S8: Predicted coverage area change (km2) of the potential distribution of Chauliops fallax under the future climatic compared to present climate condition; Table S9: Predictions of the overlap coverage area (km2) between the soybean planted area and potential distribution of Chauliops fallax in the future compared to present climate condition.

Author Contributions

H.X.: methodology, data curation, writing—review and editing. W.B.: funding acquisition, writing—review and editing. Y.L.: data curation, methodology, visualization, writing—original draft. S.W.: methodology, writing—original draft, writing—review and editing. J.C.: data curation, methodology, visualization, writing—original draft. K.J.: data curation, methodology. J.Z. and R.Z.: visualization, data curation. C.G.: data curation, methodology. All authors have read and agreed to the published version of the manuscript.

Funding

This project is supported by the National Natural Science Foundation of China (No. 31820103013 and No. 32130014).

Data Availability Statement

The dataset was deposited in Figshare (https://doi.org/10.6084/m9.figshare.22722388, accessed on 20 January 2023).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bertelsmeier, C.; Keller, L. Bridgehead Effects and Role of Adaptive Evolution in Invasive Populations. Trends Ecol. Evol. 2018, 33, 527–534. [Google Scholar] [CrossRef] [PubMed]
  2. Kumschick, S.; Gaertner, M.; Vilà, M.; Essl, F.; Jeschke, J.M.; Pyšek, P.; Ricciardi, A.; Bacher, S.; Blackburn, T.M.; Dick, J.T.A.; et al. Ecological Impacts of Alien Species: Quantification, Scope, Caveats, and Recommendations. BioScience 2014, 65, 55–63. [Google Scholar] [CrossRef]
  3. Diagne, C.; Leroy, B.; Vaissière, A.-C.; Gozlan, R.E.; Roiz, D.; Jarić, I.; Salles, J.-M.; Bradshaw, C.J.A.; Courchamp, F. High and rising economic costs of biological invasions worldwide. Nature 2021, 592, 571–576. [Google Scholar] [CrossRef] [PubMed]
  4. Seebens, H.; Blackburn, T.M.; Dyer, E.E.; Genovesi, P.; Hulme, P.E.; Jeschke, J.M.; Pagad, S.; Pysek, P.; van Kleunen, M.; Winter, M.; et al. Global rise in emerging alien species results from increased accessibility of new source pools. Proc. Natl. Acad. Sci. USA 2018, 115, E2264–E2273. [Google Scholar] [CrossRef] [PubMed]
  5. Seebens, H.; Bacher, S.; Blackburn, T.M.; Capinha, C.; Dawson, W.; Dullinger, S.; Genovesi, P.; Hulme, P.E.; van Kleunen, M.; Kuehn, I.; et al. Projecting the continental accumulation of alien species through to 2050. Glob. Chang. Biol. 2021, 27, 970–982. [Google Scholar] [CrossRef]
  6. Paini, D.R.; Sheppard, A.W.; Cook, D.C.; De Barro, P.J.; Worner, S.P.; Thomas, M.B. Global threat to agriculture from invasive species. Proc. Natl. Acad. Sci. USA 2016, 113, 7575–7579. [Google Scholar] [CrossRef]
  7. Popp, J.; Pető, K.; Nagy, J. Pesticide productivity and food security. A review. Agron. Sustain. Dev. 2013, 33, 243–255. [Google Scholar] [CrossRef]
  8. Lombaert, E.; Guillemaud, T.; Cornuet, J.-M.; Malausa, T.; Facon, B.; Estoup, A. Bridgehead Effect in the Worldwide Invasion of the Biocontrol Harlequin Ladybird. PLoS ONE 2010, 5, e9743. [Google Scholar] [CrossRef]
  9. Correa, M.C.G.; Palero, F.; Malausa, T.; Crochard, D.; Zaviezo, T.; Lombaert, E. European bridgehead effect in the worldwide invasion of the obscure mealybug. Biol. Invasions 2019, 21, 123–136. [Google Scholar] [CrossRef]
  10. Lesieur, V.; Lombaert, E.; Guillemaud, T.; Courtial, B.; Strong, W.; Roques, A.; Auger-Rozenberg, M.A. The rapid spread of Leptoglossus occidentalis in Europe: A bridgehead invasion. J. Pest Sci. 2019, 92, 189–200. [Google Scholar] [CrossRef]
  11. Mutitu, E.K.; Hoareau, T.B.; Hurley, B.P.; Garnas, J.R.; Wingfield, M.J.; Slippers, B. Reconstructing early routes of invasion of the bronze bug Thaumastocoris peregrinus (Hemiptera: Thaumastocoridae): Cities as bridgeheads for global pest invasions. Biol. Invasions 2020, 22, 2325–2338. [Google Scholar] [CrossRef]
  12. Tsutsui, N.D.; Suarez, A.V.; Holway, D.A.; Case, T.J. Reduced genetic variation and the success of an invasive species. Proc. Natl. Acad. Sci. USA 2000, 97, 5948–5953. [Google Scholar] [CrossRef] [PubMed]
  13. Zepeda-Paulo, F.; Dion, E.; Lavandero, B.; Maheo, F.; Outreman, Y.; Simon, J.C.; Figueroa, C.C. Signatures of genetic bottleneck and differentiation after the introduction of an exotic parasitoid for classical biological control. Biol. Invasions 2016, 18, 565–581. [Google Scholar] [CrossRef]
  14. Burne, A.R.; Ritchie, P.A.; Gruber, M.A.M.; Lester, P.J. A genetic bottleneck in populations of a New Zealand endemic ant associated with density of an invasive predatory wasp. Insectes Soc. 2017, 64, 65–74. [Google Scholar] [CrossRef]
  15. Xue, D.-X.; Graves, J.; Carranza, A.; Sylantyev, S.; Snigirov, S.; Zhang, T.; Liu, J.-X. Successful worldwide invasion of the veined rapa whelk, Rapana venosa, despite a dramatic genetic bottleneck. Biol. Invasions 2018, 20, 3297–3314. [Google Scholar] [CrossRef]
  16. Flanagan, B.A.; Krueger-Hadfield, S.A.; Murren, C.J.; Nice, C.C.; Strand, A.E.; Sotka, E.E. Founder effects shape linkage disequilibrium and genomic diversity of a partially clonal invader. Mol. Ecol. 2021, 30, 1962–1978. [Google Scholar] [CrossRef]
  17. Bras, A.; Lombaert, E.; Kenis, M.; Li, H.; Bernard, A.; Rousselet, J.; Roques, A.; Auger-Rozenberg, M.-A. The fast invasion of Europe by the box tree moth: An additional example coupling multiple introduction events, bridgehead effects and admixture events. Biol. Invasions 2022, 24, 3865–3883. [Google Scholar] [CrossRef]
  18. Abram, P.K.; Hoelmer, K.A.; Acebes-Doria, A.; Andrews, H.; Beers, E.H.; Bergh, J.C.; Bessin, R.; Biddinger, D.; Botch, P.; Buffington, M.L.; et al. Indigenous arthropod natural enemies of the invasive brown marmorated stink bug in North America and Europe. J. Pest Sci. 2017, 90, 1009–1020. [Google Scholar] [CrossRef]
  19. Alves, J.M.; Carneiro, M.; Day, J.P.; Welch, J.J.; Duckworth, J.A.; Cox, T.E.; Letnic, M.; Strive, T.; Ferrand, N.; Jiggins, F.M. A single introduction of wild rabbits triggered the biological invasion of Australia. Proc. Natl. Acad. Sci. USA 2022, 119, e2122734119. [Google Scholar] [CrossRef]
  20. Ricciardi, A.; Iacarella, J.C.; Aldridge, D.C.; Blackburn, T.M.; Carlton, J.T.; Catford, J.A.; Dick, J.T.A.; Hulme, P.E.; Jeschke, J.M.; Liebhold, A.M.; et al. Four priority areas to advance invasion science in the face of rapid environmental change. Environ. Rev. 2021, 29, 119–141. [Google Scholar] [CrossRef]
  21. Guillemaud, T.; Ciosi, M.; Lombaert, E.; Estoup, A. Biological invasions in agricultural settings: Insights from evolutionary biology and population genetics. Comptes Rendus Biol. 2011, 334, 237–246. [Google Scholar] [CrossRef] [PubMed]
  22. Lombaert, E.; Guillemaud, T.; Thomas, C.E.; Handley, L.J.L.; Li, J.; Wang, S.; Pang, H.; Goryacheva, I.; Zakharov, I.A.; Jousselin, E.; et al. Inferring the origin of populations introduced from a genetically structured native range by approximate Bayesian computation: Case study of the invasive ladybird Harmonia axyridis. Mol. Ecol. 2011, 20, 4654–4670. [Google Scholar] [CrossRef] [PubMed]
  23. Vallejo-Marin, M.; Friedman, J.; Twyford, A.D.; Lepais, O.; Ickert-Bond, S.M.; Streisfeld, M.A.; Yant, L.; van Kleunen, M.; Rotter, M.C.; Puzey, J.R. Population genomic and historical analysis suggests a global invasion by bridgehead processes in Mimulus guttatus. Commun. Biol. 2021, 4, 327. [Google Scholar] [CrossRef] [PubMed]
  24. Javal, M.; Lombaert, E.; Tsykun, T.; Courtin, C.; Kerdelhue, C.; Prospero, S.; Roques, A.; Roux, G. Deciphering the worldwide invasion of the Asian long-horned beetle: A recurrent invasion process from the native area together with a bridgehead effect. Mol. Ecol. 2019, 28, 951–967. [Google Scholar] [CrossRef]
  25. Blumenfeld, A.J.; Eyer, P.-A.; Husseneder, C.; Mo, J.; Johnson, L.N.L.; Wang, C.; Grace, J.K.; Chouvenc, T.; Wang, S.; Vargo, E.L. Bridgehead effect and multiple introductions shape the global invasion history of a termite. Commun. Biol. 2021, 4, 196. [Google Scholar] [CrossRef]
  26. Ziter, C.; Robinson, E.A.; Newman, J.A. Climate change and voltinism in Californian insect pest species: Sensitivity to location, scenario and climate model choice. Glob. Chang. Biol. 2012, 18, 2771–2780. [Google Scholar] [CrossRef]
  27. Kaky, E.; Nolan, V.; Alatawi, A.; Gilbert, F. A comparison between Ensemble and MaxEnt species distribution modelling approaches for conservation: A case study with Egyptian medicinal plants. Ecol. Inf. 2020, 60, 101150. [Google Scholar] [CrossRef]
  28. Ramasamy, M.; Das, B.; Ramesh, R. Predicting climate change impacts on potential worldwide distribution of fall armyworm based on CMIP6 projections. J. Pest Sci. 2021, 95, 841–854. [Google Scholar] [CrossRef]
  29. Zhu, G.; Gutierrez Illan, J.; Crowder, D.W. The use of insect life tables in optimizing invasive pest distributional models. Ecography 2021, 44, 1501–1510. [Google Scholar] [CrossRef]
  30. Liu, C.; Wolter, C.; Xian, W.; Jeschke, J.M. Most invasive species largely conserve their climatic niche. Proc. Natl. Acad. Sci. USA 2020, 117, 23643–23651. [Google Scholar] [CrossRef]
  31. Zhu, G.; Gutierrez Illan, J.; Looney, C.; Crowder, D.W. Assessing the ecological niche and invasion potential of the Asian giant hornet. Proc. Natl. Acad. Sci. USA 2020, 117, 24646–24648. [Google Scholar] [CrossRef]
  32. Zhao, X. A preliminary report on occurrence and control of the Chauliops fallax. J. Mt. Agric. Biol. 2000, 19, 321–324. [Google Scholar]
  33. Hu, W.-Y.; Pan, Y.-F.; Zheng, M.-X.; Xia, S.-H. Preliminary study on the occurrence rules and control techniques of Chauliops fallax. Crops 2003, 6, 26–28. [Google Scholar]
  34. Suzaki, Y.; Koizumi, U.; Miyatake, T. Seasonal abundance and reproductive season of Chauliops fallax (Heteroptera: Malcidae) on kudzu Pueraria lobata. Appl. Entomol. Zool. 2011, 46, 429–433. [Google Scholar] [CrossRef]
  35. Li, Y.-F.; Wang, S.-J.; Zhou, J.-Y.; Gao, C.-Q.; Zheng, C.-G.; Xue, H.-J.; Bu, W.-J. Integrative taxonomy of the stalk-eyed bug genus Chauliops (Heteroptera: Malcidae: Chauliopinae) reveals orogeny-driven speciation. J. Syst. Evol. 2022; Early View. [Google Scholar] [CrossRef]
  36. Chopra, N.P.; Rustagi, K.B. The subfamily Chauliopinae of India and Sri Lanka (Hemiptera: Malcidae). Orient. Insects 1982, 16, 19–28. [Google Scholar] [CrossRef]
  37. Sweet, M.H.; Schaefer, C.W. Systematic Status and Biology of Chauliops fallax Scott, with a Discussion of the Phylogenetic Relationships of the Chauliopinae (Hemiptera: Malcidae). Ann. Entomol. Soc. Am. 1985, 78, 526–536. [Google Scholar] [CrossRef]
  38. Katoh, K.; Standley, D.M. MAFFT Multiple Sequence Alignment Software Version 7: Improvements in Performance and Usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef]
  39. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  40. Librado, P.; Rozas, J. DnaSP v5: A software for comprehensive analysis of DNA polymorphism data. Bioinformatics 2009, 25, 1451–1452. [Google Scholar] [CrossRef]
  41. Huson, D.H.; Bryant, D. Application of phylogenetic networks in evolutionary studies. Mol. Biol. Evol. 2006, 23, 254–267. [Google Scholar] [CrossRef]
  42. Leigh, J.W.; Bryant, D. POPART: Full-feature software for haplotype network construction. Methods Ecol. Evol. 2015, 6, 1110–1116. [Google Scholar] [CrossRef]
  43. Cheng, L.; Connor, T.R.; Siren, J.; Aanensen, D.M.; Corander, J. Hierarchical and Spatially Explicit Clustering of DNA Sequences with BAPS Software. Mol. Biol. Evol. 2013, 30, 1224–1228. [Google Scholar] [CrossRef] [PubMed]
  44. Dupanloup, I.; Schneider, S.; Excoffier, L. A simulated annealing approach to define the genetic structure of populations. Mol. Ecol. 2002, 11, 2571–2581. [Google Scholar] [CrossRef] [PubMed]
  45. Excoffier, L.; Lischer, H.E.L. Arlequin suite ver 3.5: A new series of programs to perform population genetics analyses under Linux and Windows. Mol. Ecol. Resour. 2010, 10, 564–567. [Google Scholar] [CrossRef] [PubMed]
  46. Bouckaert, R.; Vaughan, T.G.; Barido-Sottani, J.; Duchene, S.; Fourment, M.; Gavryushkina, A.; Heled, J.; Jones, G.; Kuehnert, D.; De Maio, N.; et al. BEAST 2.5: An advanced software platform for Bayesian evolutionary analysis. PLoS Comput. Biol. 2019, 15, e1006650. [Google Scholar] [CrossRef]
  47. Liu, H.-X.; Liang, J.-Y.; Zhou, J.-Y.; Wang, S.-J.; Bu, W.-J. Vicariance and ecological adaptation drive genetic and morphological diversification of a widely distributed bug, Carbula crassiventris (Insecta: Hemiptera: Pentatomidae), in South China. Ecol. Entomol. 2020, 46, 368–382. [Google Scholar] [CrossRef]
  48. Rambaut, A.; Drummond, A.J.; Xie, D.; Baele, G.; Suchard, M.A. Posterior Summarization in Bayesian Phylogenetics Using Tracer 1.7. Syst. Biol. 2018, 67, 901–904. [Google Scholar] [CrossRef]
  49. Team, R.C. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2021; Available online: https://www.R-project.org/ (accessed on 25 April 2023).
  50. Warren, D.L.; Seifert, S.N. Ecological niche modeling in Maxent: The importance of model complexity and the performance of model selection criteria. Ecol. Appl. 2011, 21, 335–342. [Google Scholar] [CrossRef]
  51. Fick, S.E.; Hijmans, R.J. WorldClim 2: New 1km spatial resolution climate surfaces for global land areas. Int. J. Climatol. 2017, 37, 4302–4315. [Google Scholar] [CrossRef]
  52. Van Vuuren, D.P.; Stehfest, E.; den Elzen, M.G.J.; Kram, T.; van Vliet, J.; Deetman, S.; Isaac, M.; Klein Goldewijk, K.; Hof, A.; Mendoza Beltran, A.; et al. RCP2.6: Exploring the possibility to keep global mean temperature increase below 2 °C. Clim. Chang. 2011, 109, 95. [Google Scholar] [CrossRef]
  53. Riahi, K.; Rao, S.; Krey, V.; Cho, C.; Chirkov, V.; Fischer, G.; Kindermann, G.; Nakicenovic, N.; Rafaj, P. RCP 8.5—A scenario of comparatively high greenhouse gas emissions. Clim. Chang. 2011, 109, 33. [Google Scholar] [CrossRef]
  54. Phillips, S.J.; Anderson, R.P.; Schapire, R.E. Maximum entropy modeling of species geographic distributions. Ecol. Modell. 2006, 190, 231–259. [Google Scholar] [CrossRef]
  55. Kass, J.M.; Muscarella, R.; Galante, P.J.; Bohl, C.L.; Pinilla-Buitrago, G.E.; Boria, R.A.; Soley-Guardia, M.; Anderson, R.P. ENMeval 2.0: Redesigned for customizable and reproducible modelling of species’ niches and distributions. Methods Ecol. Evol. 2021, 12, 1602–1608. [Google Scholar] [CrossRef]
  56. Liang, Z.-Q.; Chen, W.-T.; Wang, D.-Q.; Zhang, S.-H.; Wang, C.-R.; He, S.-P.; Wu, Y.-A.; He, P.; Xie, J.; Li, C.-W.; et al. Phylogeographic patterns and conservation implications of the endangered Chinese giant salamander. Ecol. Evol. 2019, 9, 3879–3890. [Google Scholar] [CrossRef]
  57. Luo, D.; Xu, B.; Li, Z.-M.; Sun, H. Biogeographical divides delineated by the three-step landforms of China and the East China Sea: Insights from the phylogeography of Kerria japonica. J. Biogeogr. 2021, 48, 372–385. [Google Scholar] [CrossRef]
  58. Tian, S.; Kou, Y.; Zhang, Z.; Yuan, L.; Li, D.; Lopez-Pujol, J.; Fan, D.; Zhang, Z. Phylogeography of Eomecon chionantha in subtropical China: The dual roles of the Nanling Mountains as a glacial refugium and a dispersal corridor. BMC Evol. Biol. 2018, 18, 20. [Google Scholar] [CrossRef] [PubMed]
  59. Cheng, R.; Han, H.; Xue, D.; Zhu, C.; Jiang, N. Shennongjia-Wushan Mountains-One cryptic glacial refugium introduced by the phylogeographical study of the Geometridae moth Ourapteryx szechuana Wehrli. Ecol. Evol. 2021, 11, 10066–10076. [Google Scholar] [CrossRef]
  60. Blumenfeld, A.J.; Vargo, E.L. Geography, opportunity and bridgeheads facilitate termite invasions to the United States. Biol. Invasions 2020, 22, 3269–3282. [Google Scholar] [CrossRef]
  61. Gargan, L.M.; Brooks, P.R.; Vye, S.R.; Ironside, J.E.; Jenkins, S.R.; Crowe, T.P.; Carlsson, J. The use of environmental DNA metabarcoding and quantitative PCR for molecular detection of marine invasive non-native species associated with artificial structures. Biol. Invasions 2022, 24, 635–648. [Google Scholar] [CrossRef]
  62. Zhu, G.-P.; Ye, Z.; Du, J.; Zhang, D.-L.; Zhen, Y.-h.; Zheng, C.-g.; Zhao, L.; Li, M.; Bu, W.-J. Range wide molecular data and niche modeling revealed the Pleistocene history of a global invader (Halyomorpha halys). Sci. Rep. 2016, 6, 23192. [Google Scholar] [CrossRef]
  63. Zepeda-Paulo, F.A.; Simon, J.C.; Ramirez, C.C.; Fuentes-Contreras, E.; Margaritopoulos, J.T.; Wilson, A.C.C.; Sorenson, C.E.; Briones, L.M.; Azevedo, R.; Ohashi, D.V.; et al. The invasion route for an insect pest species: The tobacco aphid in the New World. Mol. Ecol. 2010, 19, 4738–4752. [Google Scholar] [CrossRef] [PubMed]
  64. De Kort, H.; Mergeay, J.; Jacquemyn, H.; Honnay, O. Transatlantic invasion routes and adaptive potential in North American populations of the invasive glossy buckthorn, Frangula alnus. Ann. Bot. 2016, 118, 1089–1099. [Google Scholar] [CrossRef] [PubMed]
  65. Li, J.-F.; Tian, M.-Y.; Gu, D.-J.; Sun, J.-H. Composition of arthropods and population dynamics of main insect groups on Pueraria lobata. J. South China Agric. Univ. 2004, 25, 56–58. [Google Scholar]
  66. Vivek Voora, C.L.A.S.B. Global Market Report: Soybeans. Available online: http://www.jstor.org/stable/pdf/resrep26554.pdf (accessed on 19 April 2022).
Insects 14 00433 g001 550

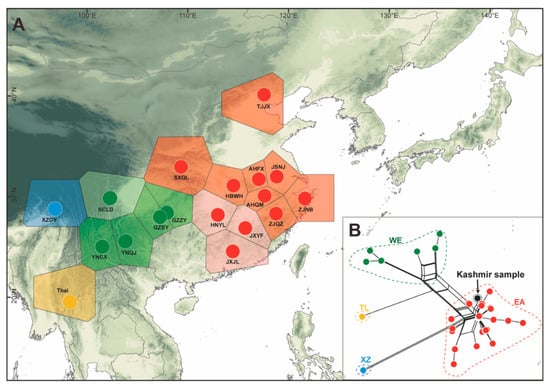

Figure 1. (A) Tessellation illustration of Bayesian analysis of population structure based on COI. Different colored dots represent different phylogenetic groups (red-EA; green-WE; yellow-TL; Blue-XZ). The detailed descriptions of site location abbreviations have been shown in Table 1. (B) Phylogenetic topology based on COI by the neighbour-net method. The dotted lines and arrow indicate C. fallax from Kashmir.
Figure 1. (A) Tessellation illustration of Bayesian analysis of population structure based on COI. Different colored dots represent different phylogenetic groups (red-EA; green-WE; yellow-TL; Blue-XZ). The detailed descriptions of site location abbreviations have been shown in Table 1. (B) Phylogenetic topology based on COI by the neighbour-net method. The dotted lines and arrow indicate C. fallax from Kashmir.
Insects 14 00433 g001
Insects 14 00433 g002 550

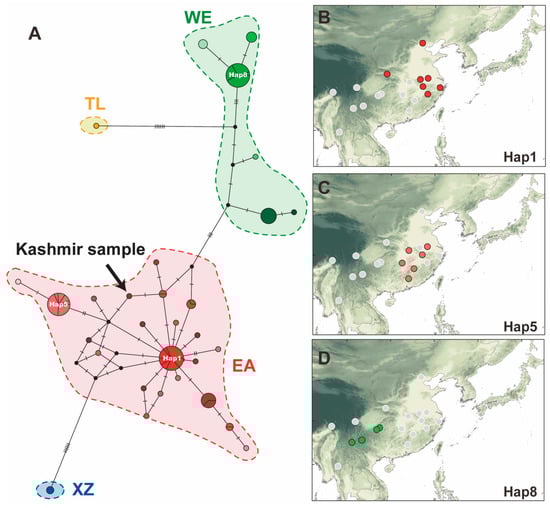

Figure 2. (A) Haplotype network of Chauliops fallax. Different dotted lines correspond to four phylogenetic groups (red-EA; green-WE; yellow-TL; blue-XZ). The arrow indicates C. fallax from Kashmir. (B) Geographical distribution of Haplotype 1. (C) Geographical distribution of Haplotype 5. (D) Geographical distribution of Haplotype 8.
Figure 2. (A) Haplotype network of Chauliops fallax. Different dotted lines correspond to four phylogenetic groups (red-EA; green-WE; yellow-TL; blue-XZ). The arrow indicates C. fallax from Kashmir. (B) Geographical distribution of Haplotype 1. (C) Geographical distribution of Haplotype 5. (D) Geographical distribution of Haplotype 8.
Insects 14 00433 g002
Insects 14 00433 g003 550

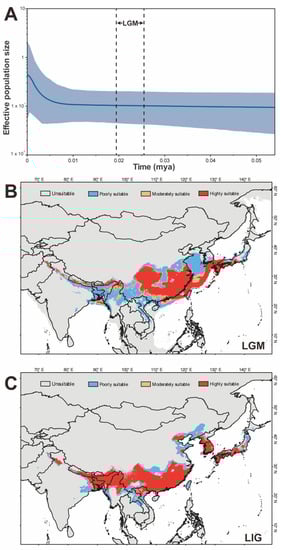

Figure 3. (A) Historical demographic changes in Chauliops fallax. Dark grey and lines represent 95% pseudo-confidence intervals. The X-axis represents time (millions of years ago), and the Y-axis represents the estimated scaled effective population size. The solid blue lines indicate the median value of the effective population size. The upper and lower limits of the light blue trend line represent 95% confidence intervals. (B) Modelled suitable areas of C. fallax in the LGM period. Colors indicate the probabilities of habitat suitability: unsuitable (0–0.177681), poorly suitable (0.177681–0.34739), moderately suitable (0.34739–0.404495), and highly suitable (0.404495–1), as below. (C) Modelled suitable areas of C. fallax in the LIG period.
Figure 3. (A) Historical demographic changes in Chauliops fallax. Dark grey and lines represent 95% pseudo-confidence intervals. The X-axis represents time (millions of years ago), and the Y-axis represents the estimated scaled effective population size. The solid blue lines indicate the median value of the effective population size. The upper and lower limits of the light blue trend line represent 95% confidence intervals. (B) Modelled suitable areas of C. fallax in the LGM period. Colors indicate the probabilities of habitat suitability: unsuitable (0–0.177681), poorly suitable (0.177681–0.34739), moderately suitable (0.34739–0.404495), and highly suitable (0.404495–1), as below. (C) Modelled suitable areas of C. fallax in the LIG period.
Insects 14 00433 g003
Insects 14 00433 g004 550

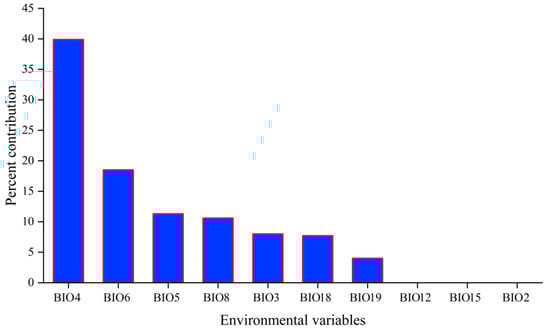

Figure 4. Relative contributions of different bioclimatic variables to the MaxEnt model for Chauliops fallax. (BIO2: mean diurnal range, BIO3: isothermality, BIO4: temperature seasonality, BIO5: max temperature of warmest month, BIO6: minimum temperature of coldest month, BIO8: mean temperature of wettest quarter, BIO12: annual precipitation, BIO15: precipitation seasonality, BIO18: precipitation of warmest quarter, BIO19: precipitation of coldest quarter).
Figure 4. Relative contributions of different bioclimatic variables to the MaxEnt model for Chauliops fallax. (BIO2: mean diurnal range, BIO3: isothermality, BIO4: temperature seasonality, BIO5: max temperature of warmest month, BIO6: minimum temperature of coldest month, BIO8: mean temperature of wettest quarter, BIO12: annual precipitation, BIO15: precipitation seasonality, BIO18: precipitation of warmest quarter, BIO19: precipitation of coldest quarter).
Insects 14 00433 g004
Insects 14 00433 g005 550

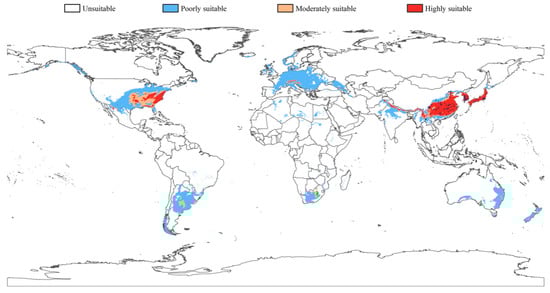

Figure 5. Global potential distribution of Chauliops fallax predicted by the MaxEnt model under present climate conditions with 83 occurrence records (blue points).
Figure 5. Global potential distribution of Chauliops fallax predicted by the MaxEnt model under present climate conditions with 83 occurrence records (blue points).
Insects 14 00433 g005
Insects 14 00433 g006 550

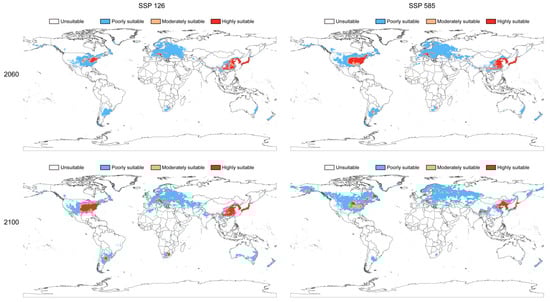

Figure 6. Global potential distribution of Chauliops fallax predicted by the MaxEnt model under future CanESM5 climate conditions. All six continents (Africa, Asia, Europe, North America, Oceania, and South America) would have potentially suitable habitat areas in the future. The overlapping area between the C. fallax greatest optimum suitable habitat area overlapped with the soybean planted area and decreased in the future for both SSP126 and SSP585 compared to the present climate conditions (Table S9).
Figure 6. Global potential distribution of Chauliops fallax predicted by the MaxEnt model under future CanESM5 climate conditions. All six continents (Africa, Asia, Europe, North America, Oceania, and South America) would have potentially suitable habitat areas in the future. The overlapping area between the C. fallax greatest optimum suitable habitat area overlapped with the soybean planted area and decreased in the future for both SSP126 and SSP585 compared to the present climate conditions (Table S9).
Insects 14 00433 g006
Table
Table 1. Nucleotide polymorphisms in each geographical population of Chauliops fallax for COI.
Table 1. Nucleotide polymorphisms in each geographical population of Chauliops fallax for COI.
PopulationGroupNLocationLatitude/Longitude (°)HnHdπ
AHFXEA9Zipeng Mountain National Forest Park, Feixi County, Anhui Province, China31.7143/117.001330.4170.00105
AHQMEA10Chiling Village, Qimen County, Anhui Province, China30.0485/117.572960.7780.00274
HBWHEA7Changxuan Mountain, Mulan Mountain, Wuhan City, Hubei Province, China31.0975/114.478340.810.00421
HNYLEA2Yuelu Mountain, Hunan Province, China28.1855/112.9354100
JSNJEA10Ginkgo Villa, Yuhuatai District, Nanjing City, Jiangsu Province, China31.9542/118.755080.9330.0039
JXJLEA9Shrimp and bird pond, Jiulian Mountain, Jiangxi Province, China24.5370/114.418020.2220.00032
JXYFEA5Shangdai Village, Shaxi Town, Yongfeng County, Jiangxi Province, China26.8858/115.6316100
SXQLEA4Qianping Village, Xunyang City, Qinling Mountains, Shaanxi Province, China32.9333/109.301730.8330.00158
TJJXEA6Chenglong Road, Jiulong Mountain, Jixian County, Tianjin, China40.1312/117.508130.7330.0019
ZJNBEA3Yinzhou District, Ningbo City, Zhejiang Province, China29.8172/121.547020.6670.00105
ZJQZEA6Longjingkeng, Jiangshan City, Quzhou City, Zhejiang Province, China28.3227/118.673930.60
KashmirEA1-----
GZSYWE1Suiyang County, Guizhou Province, China27.9591/107.1823---
GZZYWE10Fengle Town, Wuchuan County, Zunyi City, Guizhou Province, China28.3727/107.860240.810.00421
SCLDWE10Wajiao Village, Luding County, Sichuan Province, China29.8371/102.209820.20.00049
YNCXWE9Duojiqiao Imperial Farm, Donghua Town, Chuxiong City, Yunnan Province, China25.0107/101.478420.5560.00088
YNQJWE9Wangsantun Primary School, Sanyan County, Qujing City, Yunnan Province, China25.5378/103.7175100
XZCYXZ2Shangchayu Town, Chayu County, Tibet Province, China28.7146/ 96.78446100
ThaiTL1Soppong, Pangmapha District, Mae Hong Son Province, Thailand19.5123/98.2555---
Note: N, sample size; Hn, number of haplotypes; Hd, haplotype diversity; π, nucleotide diversity. Data Kashmir from NCBI (MN584895).
Table
Table 2. Predicted overlap coverage area (km2) between the soybean planted area and the potential distribution of Chauliops fallax under the present climatic conditions.
Table 2. Predicted overlap coverage area (km2) between the soybean planted area and the potential distribution of Chauliops fallax under the present climatic conditions.
SuitabilityAfricaAsiaEuropeNorth AmericaOceaniaSouth AmericaTotal
Poor2.35 × 1051.25 × 1061.20 × 1061.23 × 1061.85 × 1051.08 × 1065.18 × 106
Moderate6.32 × 1044.14 × 1052.32 × 1047.58 × 1057.71 × 1031.14 × 1051.38 × 106
High4.00 × 1042.04 × 1067.53 × 1034.87 × 1057.48 × 1015.72 × 1022.58 × 106
Total3.38 × 1053.71 × 1061.23 × 1062.48 × 1061.93 × 1051.20 × 1069.14 × 106
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, Y.; Chen, J.; Wang, S.; Jiang, K.; Zhou, J.; Zhu, R.; Gao, C.; Bu, W.; Xue, H. Out of East Asia: Early Warning of the Possible Invasion of the Important Bean Pest Stalk-Eyed Seed Bug Chauliops fallax (Heteroptera: Malcidae: Chauliopinae). Insects 2023, 14, 433. https://doi.org/10.3390/insects14050433

AMA Style

Li Y, Chen J, Wang S, Jiang K, Zhou J, Zhu R, Gao C, Bu W, Xue H. Out of East Asia: Early Warning of the Possible Invasion of the Important Bean Pest Stalk-Eyed Seed Bug Chauliops fallax (Heteroptera: Malcidae: Chauliopinae). Insects. 2023; 14(5):433. https://doi.org/10.3390/insects14050433

Chicago/Turabian Style

Li, Yanfei, Juhong Chen, Shujing Wang, Kun Jiang, Jiayue Zhou, Runqi Zhu, Cuiqing Gao, Wenjun Bu, and Huaijun Xue. 2023. "Out of East Asia: Early Warning of the Possible Invasion of the Important Bean Pest Stalk-Eyed Seed Bug Chauliops fallax (Heteroptera: Malcidae: Chauliopinae)" Insects 14, no. 5: 433. https://doi.org/10.3390/insects14050433

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
