The Effect of Tungstate and Ethanolamines Added in Tap Water on Corrosion Inhibition of Ductile Cast Iron Pipe for Nuclear Power Plants

by
Butaek Lim
1,2,*,
Kitae Kim
1,
Hyunyoung Chang
2,
Heungbae Park
2 and
Youngsik Kim
1,*
1
Materials Research Centre for Energy and Clean Technology, School of Materials Science and Engineering, Andong National University, 1375 Gyeongdongro, Andong 36729, Korea
2
KEPCO Engineering & Construction Company, 269, Hyeoksinro, Gimcheon, Gyeongbuk 39660, Korea
*
Authors to whom correspondence should be addressed.
Metals 2020, 10(12), 1597; https://doi.org/10.3390/met10121597
Submission received: 22 October 2020 / Revised: 25 November 2020 / Accepted: 25 November 2020 / Published: 28 November 2020
(This article belongs to the Special Issue Corrosion and Inhibition Processes)
Browse Figures
Versions Notes

Abstract

:
Cast iron is primarily used in buried piping to transport water in the fire protection system of nuclear power plants; ductile cast iron is generally used for domestic nuclear power plants. In general, the fluid used as fire-extinguishing water in such fire protection systems is tap water, and corrosion inhibitors are not currently added. In this study, the synergistic effect of an adsorption barrier (monoethanolamine) and oxidized film in an environment with a corrosion inhibitor (tungstate) is examined, and the corresponding passivation properties are presented. An immersion corrosion test and electrochemical test in tap water to which only tungstate was added showed suppression of corrosion compared to molybdate at the same concentration. The polarization resistance value of a passivation film in tap water mixed with monoethanolamine and tungstate showed better results than that of the molybdate control. A surface analysis in mixed addition tap water also demonstrated that oxygen ions were sufficiently distributed, including at some spheroidized graphite sites, when tungstate was added compared to molybdate. In addition, the amount of tungsten ions adsorbed on the surface was larger than that of molybdenum ions, and it was confirmed that tungsten ions were evenly distributed over the entire surface.

1. Introduction

Corrosion can be described as a mechanism by which a metal gradually loses its original function and deteriorates through contact with gas or liquid owing to a chemical, biochemical, and/or electrochemical reaction according to changes in the surrounding environment [1]. The main substance that causes corrosion at the inner surface of buried pipes is water (H2O). As the operating time of buried piping in a closed system increases, the prolongation of physical and chemical contact between the inner metal and water increases the likelihood of corrosion. The possibility of such corrosion is determined by temperature, flow rate inside the pipe, etc. In addition, it varies depending on factors including the passivation characteristics of the electrochemical reaction [2]. Buried piping may suffer deterioration not only on the outside (soil effect) but also on the inside (fluid side). Depending on access restrictions (because some pipes have a small diameter), the risk of occurrence of corrosion defects increases preferentially according to the electrochemical reactivity at the interface between the base metal and the internal fluid [3]. In the NUREG-1801 (Generic Aging Lessons Learned Report) R2, a technical standard related to nuclear power plant license renewal in the US, according to safety level and the impact of damage to buried piping, a line for management of the target system is selected, and then an aging management program must be established and periodic inspections must be performed [4,5]. In NUREG-1801, the main buried piping systems that need periodic observation are the component cooling water, service water, condensate transfer, and fire protection systems. In all of these systems, preventing fresh water corrosion damage is an important consideration.
Cast iron is the main material used in buried piping systems to transport water in the fire protection systems of nuclear power plants around the world. In Korean nuclear power plants, ductile cast iron is used, and corrosion inhibitors are not currently added [6]. The mechanisms of corrosion damage in buried pipes in an operational nuclear power plant are more often seen in ductile cast iron pipes than pipes made of carbon steel, and damage also occurs in nuclear power plants that have been operational for about 20 years [7]. In order to inhibit corrosion of carbon steel pipes, nitrates, silicates, molybdate, and hydrazine are mainly used; of these, nitrate is known as the corrosion inhibitor with the best performance [8,9]. Corrosion inhibition studies of nitrate have been conducted for many years. As a result, various types of Fe2O3 formations and oxide films have been developed, and the inhibitory effects of nitrate over time have been clarified [10,11,12,13,14]. Nitrate is an anodic inhibitor that decreases corrosion current by increasing anodic polarization. It rapidly oxidizes the surface of metals with strong oxidizing power to produce Fe2O3 [15,16,17]. Recently, K. T. Kim et al. [18] reported on the mechanism of corrosion inhibition of nitrite ion and its effects on the passivation of carbon steel and ductile cast iron. That study suggested that, in order to have the same level of corrosion resistance, about 100 times more nitrate is required for ductile cast iron compared to carbon steel. Although there have been several studies on the synergistic effect of mixing two corrosion inhibitors, the mechanism of such synergistic effects has not been clearly explained [19,20,21]. Ethanolamine is a representative organic corrosion inhibitor that has an adsorption-type mechanism. There are three (3) kinds of ethanolamine: Monoethanolamine (MEA), diethanolamine (DEA), and triethanolamine (TEA). All three have a good corrosion inhibition effect [22]. Recently, K. T. Kim et al. [23,24] demonstrated the synergistic corrosion inhibition effect of co-addition of nitrite and the three kinds of ethanolamine in ductile cast iron.
Molybdenum is an alloying element that has a beneficial effect on the pitting resistance of stainless steel. Although pure molybdenum does not form a passivation film, it considerably stabilizes a passivation film when added to an alloy [25,26,27]. The addition of molybdenum as an alloying element to 304 stainless steel forms an outer oxide layer consisting of MoO42− that acts as an anion-rejecting layer that helps prevent ingress of Cl− and OH− ions [28,29,30,31]. Based on the above, K. T. Kim and co-authors [32] added molybdate to monoethanolamine with the aim of creating a more environmentally friendly, synergistically effective combination of corrosion inhibitors in ductile cast iron. The authors found that molybdate partially oxidizes the surface of the metal while monoethanolamine adsorbs on the graphite surface, creating a barrier that mitigates galvanic corrosion between the matrix structure.
When tungsten in a metallic state is added to an alloy, such as molybdenum, it greatly improves the corrosion resistance of the alloy and synergistically increases the stability of the passivation film. A previous study investigated the strong passivation characteristics of alloys to which tungsten has been added [33]. In a direct solid-phase reaction, tungsten is directly eluted in an acidic solution to bond with water and form WO3 and the addition of tungstate ion to the solution increases the pitting resistance.
On the other hand, Robertson’s comparative analysis and mechanistic study [34] of corrosion inhibitors showed that, although both molybdate and tungstate are non-oxidizing agents compared to chromate and nitrite, they are efficient corrosion inhibitors. As shown by Pryor and Cohen [35], chromate and nitrite, which are strong oxidizing agents, passivate even in deaerated solutions, whereas tungstate and molybdate, which have weak oxidizing power, have properties similar to those of chromate and nitrite in the presence of dissolved air and form a weak film in deaerated solutions.
A study on corrosion inhibition by tungstate in neutral aqueous solutions showed that ions and dissolved oxygen are required in the solution [36]. Given such research on corrosion inhibition by tungstate in distilled water, researchers went on to explain that the sulfide ions are more aggressive, as shown by a comparison of chloride and sulfide ions at the adsorption barrier between the metal and the solution interface when tungstate is added to NaCl and Na2SO4 solution [37]. Regarding synergy, it has been suggested that a mixed corrosion inhibitor can show a sufficient corrosion inhibition effect at a considerably lower concentration than a single inhibitor alone. However, it has been suggested that there is a related advantage, as the non-oxidizing properties of tungstate indicate that it can be mixed with various organic substances to help inhibit corrosion [38]. Tungstate forms a hydrated oxide film that acts as a passivation layer and provides a barrier for anodic dissolution [39,40]. Practically all organic additives act through adsorption, and the mechanism of corrosion inhibition requires the formation of a mixed oxide film that acts as a barrier to anodic dissolution. Additives that strengthen the oxide film are expected to increase the efficiency of corrosion inhibition. In the present study, tungstate (a type of anodic inhibitor) and ethanolamines (an adsorption inhibitor) in tap water were co-added, and chemical and electrochemical tests were performed. The synergistic effect of co-added inhibitors was elucidated using alternating current impedance measurement and surface analysis.

2. Materials and Methods

2.1. Materials and Corrosive Environment

Ductile cast iron (KS D4311) [41] was used in this work. Table 1 shows the elemental composition of the experimental alloy. The test solution was tap water (Table 2) with or without inhibitors. Tungstate (as Na2WO4, T), monoethanolamine (MEA), diethanolamine (DEA), or triethanolamine (TEA) were added in concentrations on the order of ppm.

2.2. Corrosion Tests

Immersion Corrosion Test: Each specimen was cut to a size of 20 mm × 20 mm × 5 mm and each surface of the specimen was grinded using 120 grit SiC paper [42]. Immersion corrosion tests were conducted in a 500 mL glass flask containing stagnant solution and immersion time was 72 h at room temperature. After the immersion corrosion test, each specimen was ultrasonically cleaned with acetone and ethyl alcohol. Then, the specimen was dried. The mass loss by weighing the specimens before and after immersion was measured using the electronic balance (OHAUS, PAG214C, Parsippany, NJ, USA) in the order of 0.1 mg. Finally, the corrosion rate of the specimen was determined.
Electrochemical Tests: Specimens were cut to a size of 20 mm × 20 mm. The specimens were connected in an electrical circuit and epoxy-mounted. Then, the surface of these specimens was grinded using 600 grit SiC paper [43]. Finally, these specimens were coated with epoxy resin, except for an area of 1 cm2. A polarization test was performed using a potentiostat (Gamry Instruments Inc., Interface 1000, Warminster, PA, USA). The reference electrode was a saturated calomel electrode (SCE), and the counter electrode was Pt wire. The test solution was deaerated using nitrogen gas purged at a rate of 200 mL/min into the solution for 30 min at 30 °C. The scanning rate was 0.33 mV/s and the potential was scanned from ER-20 mV to near 1000 mV(SCE). In order to measure AC impedance at 30 °C, the specimens were grinded using 2000 grit SiC paper [44]. Then, the specimens were polished using a diamond paste (diameter, 3 μm). The test solution was the same as that used in the polarization test. An electrochemical analyzer (Gamry Instruments Inc., EIS 300, Warminster, PA, USA) was used to measure AC impedance. Before measuring AC impedance, passivation was performed on ductile cast iron at 0 mV(SCE) for 30 min and EIS test was conducted at open circuit potential (OCP). AC impedance was measured in the range of 10 kHz to 0.01 Hz (10 points per decade) with an AC voltage amplitude of 10 mV. A Mott–Schottky plot at 30 °C was constructed to determine the semi-conductive properties of the passive film. The specimen preparation procedure was the same as that used in the measurement of AC impedance, and the DC amplitude was 10 mV (peak-to-peak) at an AC frequency of 1580 Hz [45]. The capacitance was measured at a scan rate of 50 mV/s and the potential was varied between +1 V(SCE) to −1 V(SCE).
Surface Analysis: The specimen was cut to a size of 20 × 20 × 5 mm, and it was grinded with 2000 grit SiC paper. Then, it was polished with a diamond paste, which was 3 μm in diameter. Finally, the specimen was cleaned with alcohol using an ultrasonic cleaner. Ductile cast iron was oxidized in 1 k ppm monoethanolamine + 1 k ppm tungstate, 1 k ppm monoethanolamine + 1.5 k ppm molybdate, or 100 k ppm tungstate alone. The immersion process was carried out for 72 h at room temperature and then the surface was immediately analyzed by Electron Probe Micro Analyzer (EPMA, JEOL, JXA-8530F Plus, Tokyo, Japan).

3. Results

First, tungstate was added alone and immersion and electrochemical tests were performed. Figure 1 shows the effect of the addition of the single corrosion inhibitor on the corrosion rate of ductile cast iron (DCI). The corrosion rate of the immersed specimen decreased linearly with increasing tungstate concentration. The corrosion of DCI was inhibited at the concentration of 100 k ppm. Thus, addition of tungstate alone at a high concentration significantly reduced the corrosion rate of DCI compared to addition of molybdate alone, based on data previously reported by K. T. Kim et al. [32]. It is likely that the corrosion rate is relatively high at a low concentration of corrosion inhibitor because the concentration is insufficient to passivate the entire surface of the specimen.
Figure 2 shows the results of the electrochemical anodic polarization test at concentrations of 1 k, 10 k, and 100 k ppm when tungstate was added alone. It was confirmed that passivation occurred to some extent when the concentration was more than 10 k ppm.
Figure 3 presents the passivation current density based on 0 V(SCE); it is 0.775 mA/cm2 in the 0 ppm inhibitor case, and also shows the passivation effect of molybdate as a single corrosion inhibitor according to a previous study [32]. In comparison to molybdate, tungstate was associated with a significantly lower current density of 2.43 × 10−6 A/cm2 at a concentration of 100 k ppm. Even if it is set to an arbitrary value, 0 V(SCE) has been selected as the point where the passivation characteristic of 100 k tungstate was well expressed. The pH of 100 k ppm tungstate’s solution was measured 10.0, and this increased pH may affect the corrosion resistance of DCI but it seems to be not significant.
K. T. Kim et al. [24] studied the efficacy of ethanolamine as a corrosion inhibitor in ductile cast iron. The authors suggested that the passivation properties of monoethanolamine are stable when the concentration of monoethanolamine (added alone) is more than 10 k ppm, and the same results were obtained even when it was mixed with nitrite as a series of MEA > DEA > TEA. Therefore, in this study, triethanolamine (TEA), diethanolamine (DEA), and monoethanolamine (MEA) were mixed with tungstate at the same concentration and the electrochemical anodic polarization test was performed. Figure 4 shows the passivation characteristics upon mixed addition of tungstate and triethanolamine, diethanolamine, and monoethanolamine, respectively. With mixed addition of 1k ppm tungstate plus 1k ppm MEA, the ipassive, passive current density based on 0 V(SCE) was 2.70 × 10−6 A/cm2, which was the best passivation characteristic observed. As shown in Table 3, the transpassive potential on the anodic polarization curve of DCI was almost the same for mixed addition of tungstate plus diethanolamine and monoethanolamine.
Based on the above results, an electrochemical anodic polarization test was carried out in the test solution at a constant concentration of 1 k ppm of monoethanolamine with tungstate at concentrations of 0.25 k, 0.5 k, and 1 k ppm. The results are shown in Figure 5. The test solution with 1 k ppm tungstate and 1 k ppm monoethanolamine showed the best passivation properties, and it had a sufficient corrosion inhibitory effect at considerably lower concentrations than are necessary when either corrosion inhibitor is used alone. To assess the synergistic effect of tungstate as an anodic inhibitor, an immersion corrosion test was conducted based on a study showing that it can be mixed with various organic substances that help inhibit corrosion [38]. The results of mixed addition in tap water are shown in Figure 6. Complete corrosion inhibition was achieved following mixed addition; for comparison, the corrosion rate with the addition of 1 k ppm tungstate alone was 107.1 μm/yr. This is consistent with the results of the anodic polarization curves of ductile cast iron and implies that a mixture of corrosion inhibitors produces a synergistic corrosion inhibition effect at significantly lower concentrations than are necessary for a single inhibitor.

4. Discussion

As discussed above, the results of an immersion corrosion test and an electrochemical experiment confirmed that corrosion can be completely inhibited by co-addition of a 2 k ppm test solution obtained by mixing tungstate and monoethanolamine. K. T. Kim et al. [32] investigated the synergistic effect of mixed addition of molybdate and monoethanolamine as a corrosion inhibitor in ductile cast iron. Therefore, in this study, measured polarization resistance, semi-conductive properties, and the elemental distribution on the surface when tungstate was added to the solution. Figure 7a shows the effect of corrosion inhibition according to AC impedance in a passivation film based on 0 V(SCE) on the specimen surface in a deaerated test solution, and Figure 7b is a Mott–Schottky plot showing semiconductor characteristics. In general, an electrical equivalent circuit (EEC) that includes a finite number of resistors, capacitors, and inductors cannot adequately model experimental impedance data with the desired approximation [46]. In the electrical equivalent circuit of Figure 8, the first time constant in equivalent circuit was associated with solution resistance (Rs), constant phase element (CPEfilm), and film resistance (Rfilm), and the second time constant in equivalent circuit, double layer capacitance, CPEdl, and charge transfer resistance (Rct) were parallel to each other. The summation of Rfilm and Rct gives the polarization resistance (Rp) [47,48]. A CPE is often used instead of an ideal double-layer capacitor (Cdl) to account for the non-ideal capacitance of an actively corroding electrode, and its impedance is given by: ZCPE = (Y)−1(jω)−n, where Y is the admittance (S cm−2 sn), ω is the angular frequency (rad s−1), j is the imaginary number, j2 = (−1), and n is a dimensionless fraction exponent (−1 < n < +1). When n = (+1) the CPE is an ideal capacitor, when n = 0 the CPE is a resistor, when n = (−1) the CPE is an inductor, and finally when n = 0.5 the CPE is the Warburg admittance [49]. As shown in Figure 7a and Table 4, when the concentration of the mixed corrosion inhibitor is lower, polarization resistance is hardly exhibited. A relatively strong oxide film was formed in the test solution of 2 k ppm monoethanolamine mixed with tungstate. This implies that co-addition of ethanolamine and tungstate, a non-oxidizing agent, made the oxide film stronger if added at sufficient concentrations. The Mott–Schottky diagram showing the semiconductor properties in Figure 7b shows that, when 1 k ppm monoethanolamine plus 0.25 k ppm or 0.5 k ppm tungstate are added to tap water, the p-type and n-type semiconductor characteristics coexist weakly. On the other hand, when the concentration of tungstate was increased to 1 k ppm, only n-type semiconductor properties were shown. At this concentration, a hydrated oxide film formed by the addition of tungstate ion acts as a passivation layer and provides a barrier to anodic dissolution [39,40]. In order to inhibit entry of harmful ions to the matrix and movement of Fe2+ ions from the metal surface, tungsten ions as oxide-anions are adsorbed on the outermost side of the hydrated oxide layer [41]; tungstate is needed at sufficient concentrations in tap water to produce this effect.
Figure 9 shows the polarization resistance (Rp = Rfilm + Rct) of the passivation film when different mixtures of corrosion inhibitors are added to tap water, including the polarization resistance effect of monoethanolamine 1 k ppm plus molybdate 1 k ppm, as done in a previous study [32]. These results show that the polarization resistance increased by 21.2-fold when tungstate was added compared to molybdate at the same mixed concentration.
As shown in Figure 1, corrosion was completely suppressed when tungstate alone was added to the tap water at a concentration of 100 k ppm. Figure 10 depicts the elemental distribution on the surface of a specimen immersed for 72 h in test solution with 100 k ppm tungstate at room temperature. Figure 11 shows the elemental distribution on the surface of a specimen immersed for 72 h in a test solution containing 1 k ppm monoethanolamine and 1 k ppm tungstate at room temperature. This result shows a clean surface with clearly visible spheroidized graphite particles. Fe ions are not visible in the graphite region and, instead, carbon, oxygen, and nitrogen are enriched. The mechanism of corrosion inhibition is that tungstate forms a hydrated oxide film acting as a passivation layer [39,40]. At the same time, corrosion inhibition appears to be influenced by monoethanolamine, which aids in adsorption of tungsten ions on the outermost side of the oxide layer [38]. Figure 12 shows the elemental distribution on the surface of a specimen in tap water with monoethanolamine 1 k ppm plus molybdate 1.5 k ppm, for a total of 2500 ppm, which is the condition for complete corrosion inhibition suggested in the previous study [32]. In summary, if monoethanolamine is added to tungstate to inhibit corrosion of ductile cast iron, a synergistic effect can be expected. This synergistic effect by the co-addition of monoethanolamine and tungstate ion was due to the selective adsorption of monoethanolamine on the porous graphite and the passivation of the matrix of cast iron by tungstate ion. Therefore, galvanic corrosion in ductile cast iron can be prevented or mitigated through the interaction of the oxidized film formed by the anodic inhibitor and the adsorption barrier according to the organic inhibitor at relatively low concentrations compared to the high concentrations necessary when a single inhibitor is added alone.

5. Conclusions

Cast iron is the main material used in buried piping to transport water in the fire protection systems of nuclear power plants around the world. In general, the fluid used as fire-extinguishing water in fire protection systems is tap water. In this study, the synergistic effect of ethanolamine and tungstate in tap water on the corrosion resistance is investigated.
(1)
In order to inhibit corrosion of ductile cast iron, a high concentration of tungstate is required when it is used alone, but a synergistic effect is observed when ethanolamines are co-added. Among three kinds of ethanolamines, monoethanolamine addition was very effective.
(2)
Immersion and electrochemical tests in tap water with 1 k ppm tungstate and 1 k ppm monoethanolamine showed that corrosion was completely suppressed. Polarization resistance (Rp) of the passive film formed in the test solution was high due to the formation of oxide film on the matrix of ductile cast iron, and the surface analysis of specimens revealed that oxygen and nitrogen induced from monoethanolamine were mainly detected at porous graphite sites. Therefore, the synergistic effect was due to that tungstate forms an oxide film that acts as a passivation layer by oxidizing the base metal surface, and at the same time, ethanolamine is adsorbed on the spheroidized graphite surface to enhance the corrosion inhibition of ductile cast iron.

Author Contributions

Conceptualization, Y.K.; methodology, B.L. and K.K.; validation, H.C. and Y.K.; investigation, B.L.; data curation, B.L.; writing—original draft preparation, B.L.; writing—review and editing, B.L., K.K. and Y.K.; supervision, Y.K.; funding acquisition, H.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Korea Institute of Energy Technology Evaluation and Planning (KETEP) and the Ministry of Trade, Industry & Energy (MOTIE) of the Republic of Korea (No. 20171520000350).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McCafferty, E. Introduction to Corrosion Science; Springer: New York, NY, USA, 2010; p. 13. [Google Scholar] [CrossRef] [Green Version]
  2. Philip, A.S. Corrosion of Linings and Coatings: Cathodic and Inhibitor Protection and Corrosion Monitoring, Corrosion Engineering Handbook, 2nd ed.; CRC Press: Boca Raton, FL, USA, 2007; pp. 55–57. [Google Scholar]
  3. Clark, B. Recommendations for an Effective Program. to Control. the Degradation of Buried and Underground Piping and Tanks (1016456, Revision 1); EPRI: Palo Alto, CA, USA, 2010. [Google Scholar]
  4. USNRC. Generic Aging Lessons Learned (GALL) Report, NUREG-1801, Rev. 2. In XI.M41 Buried and Underground Piping and Tanks; United States Nuclear Regulatory Commission: Rockville, ML, USA, 2010. [Google Scholar]
  5. USNRC. Inspection Procedure 62002, Inspection of Structures, Passive Components, and Civil. Engineering Features at Nuclear Power Plants; United States Nuclear Regulatory Commission: Rockville, ML, USA, 1996. [Google Scholar]
  6. KHNP. Final Safety Analysis Report for Korean Standard Nuclear Power Plants; Korea Hydro & Nuclear Power Co., Ltd.: Gyeongju-si, Korea, 1998. [Google Scholar]
  7. KHNP. Equipment Failure Report 06-Hanbit4-1: Hanbit #4 Firewater Supply Valve Downstream Buried Piping Leakage of Intake Area; Korea Hydro & Nuclear Power Co., Ltd.: Gyeongju-si, Korea, 2006. [Google Scholar]
  8. Sastri, V.S. Green Corrosion Inhibitors: Theory and Practice, 1st ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2011; pp. 216–222. [Google Scholar]
  9. Mohana, K.N.; Badiea, A.M. Effect of sodium nitrite-borax blend on the corrosion rate of low carbon steel in industrial water medium. Corros. Sci. 2008, 50, 2939–2947. [Google Scholar] [CrossRef]
  10. Cohen, M. Inhibition of steel Corrosion by sodium nitrite in water. J. Electrochem. Soc. 1948, 93, 26–39. [Google Scholar] [CrossRef]
  11. Pyke, R.; Cohen, M. Rate of Breakdown and mechanism of nitrite of steel corrosion. J. Electrochem. Soc. 1948, 93, 63–78. [Google Scholar] [CrossRef]
  12. Cohen, M.; Pyke, R.; Marier, P. The effect of oxygen on inhibition of corrosion by nitrite. J. Electrochem. Soc. 1949, 96, 254–261. [Google Scholar] [CrossRef]
  13. Matsuda, S.; Uhlig, H.H. Effect of pH, sulfates, and chlorides on behavior of sodium chromate and nitrite as passivators for steel. J. Electrochem. Soc. 1964, 111, 156–161. [Google Scholar] [CrossRef]
  14. Karim, S.; Mustafa, C.M.; Assaduzzaman, M.; Islam, M. Effect of nitrite ion on corrosion inhibition of mild steel in simulated cooling water. Chem. Eng. Res. Bull. 2010, 14, 87–91. [Google Scholar] [CrossRef] [Green Version]
  15. Abosrra, L.; Youseffi, M.; Ashour, A.F. Effectiveness of Calcium Nitrite in Retarding Corrosion of Steel in Concrete. Int. J. Concr. Struct. Mater. 2011, 5, 65–73. [Google Scholar] [CrossRef]
  16. Horng, Y.T.; Tsai, Y.L. An Investigation of Mild Steel with Nitrogen-containing Inhibitor in Hydrochloric Acid. Corros. Sci. Tech. 2003, 2, 233–237. [Google Scholar]
  17. Mehra, R.; Soni, A. Inhibition of corrosion of mild steel by nitrite, hydrogen phosphate and molybdate ions in aqueous solution of sodium chloride. Indian J. Eng. Mater. Sci. 2020, 9, 141–146. [Google Scholar]
  18. Kim, K.T.; Chang, H.Y.; Lim, B.T.; Park, H.B.; Kim, Y.S. New Mechanism on Synergistic Effect of Nitrite and Triethanolamine Addition on the Corrosion of Ductile Cast Iron. Adv. Mater. Sci. Eng. 2016, 2016, 4935602. [Google Scholar] [CrossRef] [Green Version]
  19. Okeniyi, J.O.; Popoola, A.P.I.; Loto, C.A.; Omotosho, O.A.; Okpala, S.O.; Ambrose, I.J. Effect of NaNO2 and C6H15NO3 Synergistic Admixtures on Steel-Rebar Corrosion in Concrete Immersed in Aggressive Environments. Adv. Mater. Sci. Eng. 2015, 2015, 540395. [Google Scholar] [CrossRef] [Green Version]
  20. Ridhwan, A.M.; Rahim, A.A.; Shah, A.M. Synergistic Effect of Halide Ions on the Corrosion Inhibition of Mild Steel in Hydrochloric Acid using Mangrove Tannin. Int. J. Electrochem. Sci. 2012, 7, 8091–8104. [Google Scholar]
  21. Vishnudevan, M. Synergistic Influence of Nitrite on Inhibition of Mild Steel Corrosion in Chloride Contaminated Alkaline Solution. Iran. J. Mater. Sci. Eng. 2012, 9, 17–27. [Google Scholar]
  22. Carrillo, I.; Valdez, B.; Zlatev, R.; Stoytcheva, M.; Carrillo, M.; Bäßler, R. Electrochemical Study of Oxyanions Effect on Galvanic Corrosion Inhibition. Int. J. Electrochem. Sci. 2012, 7, 8688–8701. [Google Scholar]
  23. Kim, K.T.; Kim, H.W.; Chang, H.Y.; Lim, B.T.; Park, H.B.; Kim, Y.S. Corrosion Inhibiting Mechanism of Nitrite Ion on the Passivation of Carbon Steel and Ductile Cast Iron for Nuclear Power Plants. Adv. Mater. Sci. Eng. 2015, 2015, 408138. [Google Scholar] [CrossRef] [Green Version]
  24. Kim, K.T.; Chang, H.Y.; Lim, B.T.; Park, H.B.; Kim, Y.S. Effect of Ethanolamines on Corrosion Inhibition of Ductile Cast Iron in Nitrite Containing Solutions. Corros. Sci. Tech. 2016, 15, 171–181. [Google Scholar] [CrossRef] [Green Version]
  25. Olsson, C.O.A.; Landolt, D. Passive films on stainless steels-chemistry structure and growth. Electrochim. Acta 2003, 48, 1093–1104. [Google Scholar] [CrossRef]
  26. Brookes, H.C.; Bayles, J.W.; Graham, F.J. Nucleation and growth of anodic films on stainless steel alloys. I. Influence of minor alloying elements and applied potential on passive film growth. J. Appl. Electrochem. 1990, 20, 223–230. [Google Scholar] [CrossRef]
  27. Ameer, M.; Fakry, A.; Heakal, F. Electrochemical behaviour of passive films on molybdenum-containing austenitic stainless steels in aqueous solutions. Electrochem. Acta. 2004, 50, 43–49. [Google Scholar] [CrossRef]
  28. Brooks, A.R.; Clayton, C.R.; Doss, K.; Lu, Y.C. On the Role of Cr in the Passivity of Stainless Steel. J. Electrochem. Soc. 1986, 133, 2459–2465. [Google Scholar] [CrossRef]
  29. Clayton, C.R.; Lu, Y.C. A bipolar model of the passivity of stainless steels-III. The mechanism of MoO42− formation and incorporation. Corros. Sci. 1989, 29, 881–898. [Google Scholar] [CrossRef]
  30. Kim, Y.S.; Park, Y.S. A Study on Effects of N Addition on the Passivating Mechanism of Stainless Steels. J. Corr. Sci. Soc. Korea 1989, 18, 97–108. [Google Scholar]
  31. Lu, Y.C.; Clayton, C.R.; Brooks, A.R. A bipolar model of the passivity of stainless steels-II. The influence of aqueous molybdate. Corros. Sci. 1989, 29, 863–880. [Google Scholar] [CrossRef]
  32. Kim, K.T.; Chang, H.Y.; Lim, B.T.; Park, H.B.; Kim, Y.S. Synergistic Effect of Molybdate and Monoethanolamine on Corrosion Inhibition of Ductile Cast Iron in Tap Water. Corros. Sci. Tech. 2017, 16, 31–37. [Google Scholar] [CrossRef] [Green Version]
  33. Bui, N.; Irhzo, A.; Dabosi, F.; Limou Zin-Marie, Y. On the Mechanism for improved passivation by additions of tungsten to austenitic stainless steels. Corrosion 1983, 39, 491–496. [Google Scholar] [CrossRef]
  34. Robertson, W.D. Molybdate and tungstate as corrosion inhibitors and the mechanism of inhibition. J. Electrochem. Soc. 1951, 98, 94–100. [Google Scholar] [CrossRef]
  35. Pryor, M.J.; Cohen, M. The inhibition of the corrosion of iron by some anodic inhibitors. J. Electrochem. Soc. 1953, 100, 203–215. [Google Scholar] [CrossRef]
  36. Abd El Kader, J.M.; El Warraky, A.A.; Abd El Aziz, A.M. Corrosion inhibition of mild steel by sodium tungstate in neutral solution Part 1: Behaviour in distilled water. Br. Corros. J. 1998, 33, 139–144. [Google Scholar] [CrossRef]
  37. Abd El Kader, J.M.; El Warraky, A.A.; Abd El Aziz, A.M. Corrosion inhibition of mild steel by sodium tungstate in neutral solution Part 2: Behaviour in NaCl and Na2SO4. Br. Corros. J. 1998, 33, 145–151. [Google Scholar] [CrossRef]
  38. Abd El Kader, J.M.; El Warraky, A.A.; Abd El Aziz, A.M. Corrosion inhibition of mild steel by sodium tungstate in neutral solution Part 3: Co-inhibitors and synergism. Br. Corros. J. 1998, 33, 152–157. [Google Scholar] [CrossRef]
  39. Celeste, R.A.; Vieira, V.A. Localized corrosion inhibition of stainless steel in pure water by oxyanions tungstate and molybdate. Electrochim. Acta 2004, 49, 2779–2785. [Google Scholar] [CrossRef]
  40. Qiang, S.; Xingqi, Q. Study on the complex of sodium tungstate and urotropine as inhibitors against stainless steel corrosion in the NaCl solution. Mater. Sci. Forum 2011, 689, 450–454. [Google Scholar] [CrossRef]
  41. Korean Agency for Technology and Standards. KS D4311, Ductile Iron Pipe; Korean Agency for Technology and Standards: Gyeonggi-do, Korea, 2010. [Google Scholar]
  42. ASTM. G31-2009, Standard Practice for Laboratory Immersion Corrosion Testing of Metals; ASTM International: West Conshohocken, PA, USA.
  43. ASTM. G5-2004, Standard Reference Test Method for Making Potentiostatic and Potentiodynamic Anodic Polarization Measurements; ASTM International: West Conshohocken, PA, USA.
  44. ASTM. G106-2004, Standard Practice for Verification of Algorithm and Equipment for Electrochemical Impedance Measurements; ASTM International: West Conshohocken, PA, USA.
  45. Macdonald, D.D. The Point Defect Model for the Passive State. Int. J. Electrochem. Sci. 1992, 139, 3434–3449. [Google Scholar] [CrossRef]
  46. Bastidas, D.M. Interpretation of Impedance Data for Porous Electrodes and Diffusion Processes. Corrosion 2007, 63, 515–521. [Google Scholar] [CrossRef]
  47. Ganash, A.A. Comparative Evaluation of Anticorrosive Properties of Mahaleb Seed Extract on Carbon Steel in Two Acidic Solutions. Materials 2019, 12, 3013. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Sherif, E.M.; Almajid, A.A.; Bairamov, A.K.; Al-zahrani, E. Corrosion of Monel-400 in Aerated Stagnant Arabian Gulf Seawater after Different Exposure Intervals. Int. J. Electrochem. Sci. 2011, 6, 5430–5444. [Google Scholar]
  49. Fajardo, S.; Llorente, I.; Jiménez, J.A.; Bastidas, J.M.; Bastidas, D.M. Effect of Mn additions on the corrosion behaviour of TWIP Fe-Mn-Al-Si austenitic steel in chloride solution. Corros. Sci. 2019, 154, 246–253. [Google Scholar] [CrossRef]
Metals 10 01597 g001 550

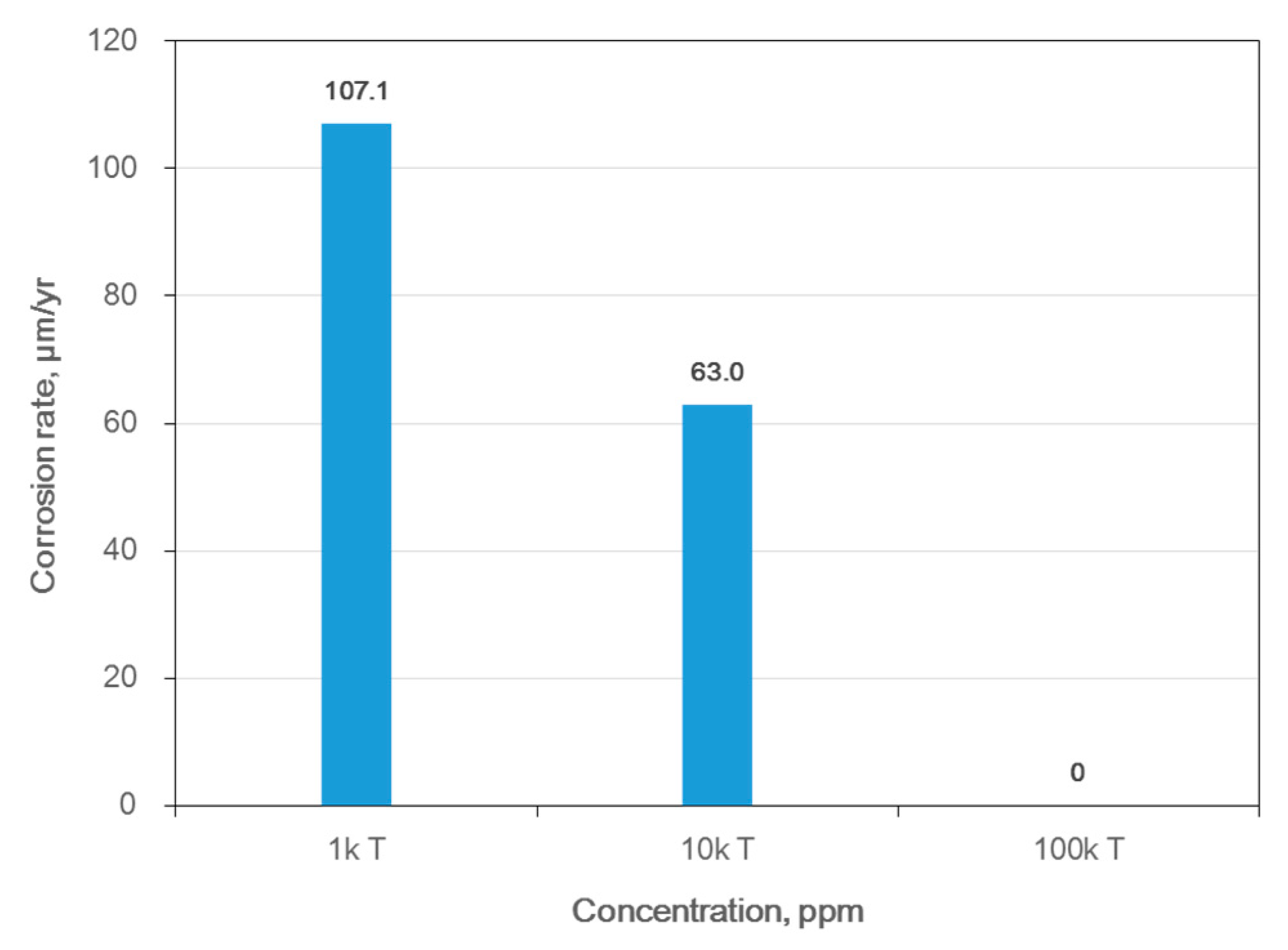

Figure 1. Effect of addition of a single corrosion inhibitor on the corrosion rate of ductile cast iron (DCI) in [tap water + x ppm tungstate (T)] at room temperature.
Figure 1. Effect of addition of a single corrosion inhibitor on the corrosion rate of ductile cast iron (DCI) in [tap water + x ppm tungstate (T)] at room temperature.
Metals 10 01597 g001
Metals 10 01597 g002 550

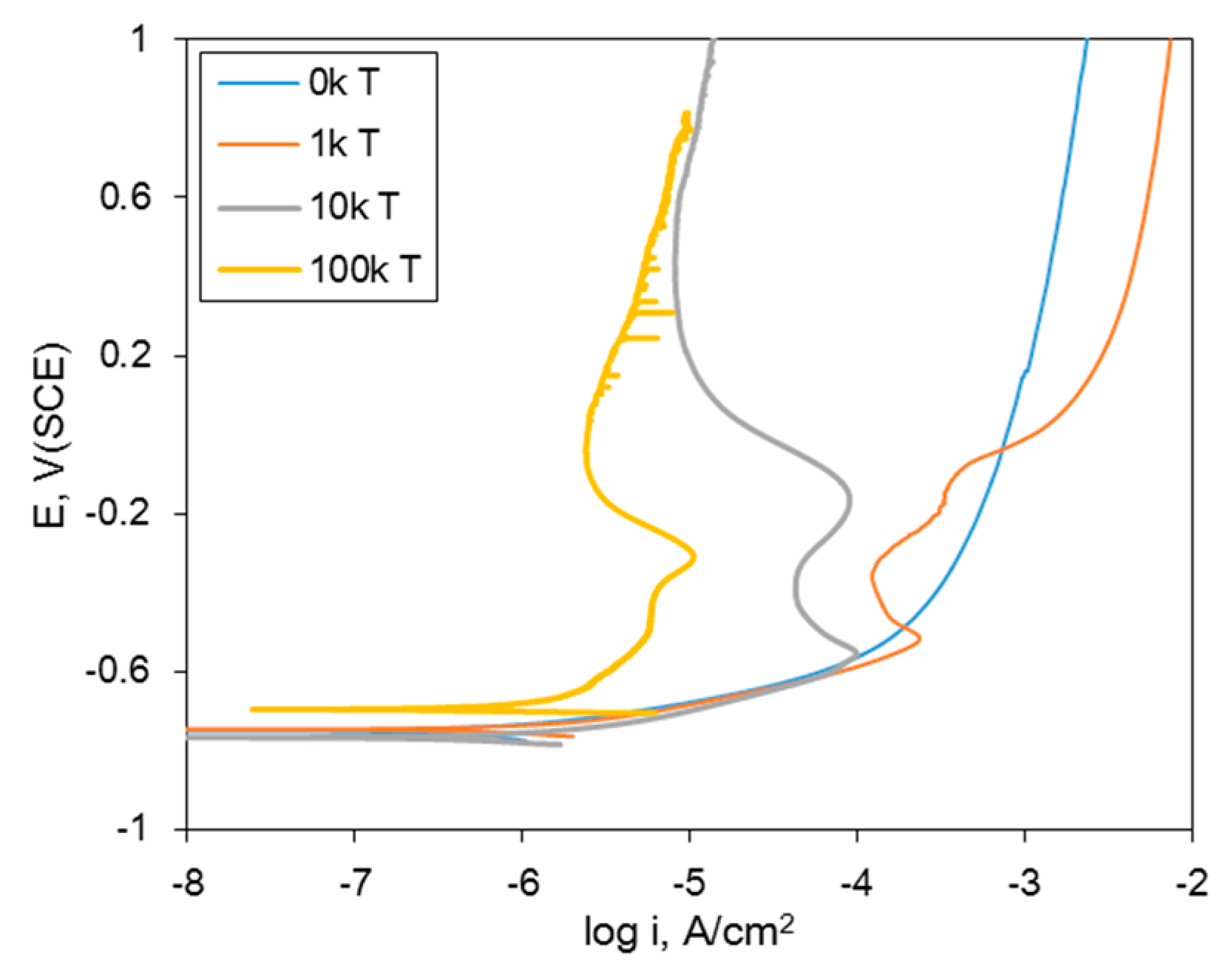

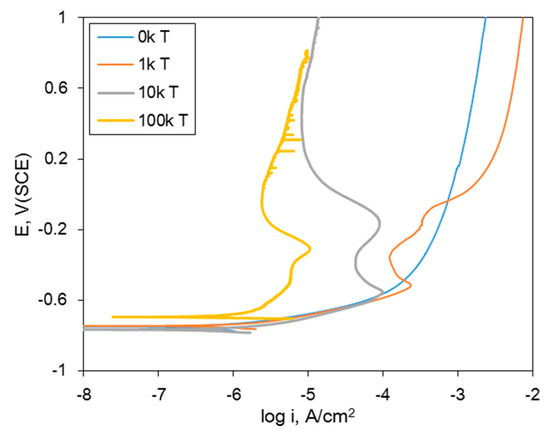

Figure 2. Effect of addition of a single corrosion inhibitor on the anodic polarization curve of DCI in deaerated [tap water + x ppm tungstate (T)] at 30 °C.
Figure 2. Effect of addition of a single corrosion inhibitor on the anodic polarization curve of DCI in deaerated [tap water + x ppm tungstate (T)] at 30 °C.
Metals 10 01597 g002
Metals 10 01597 g003 550

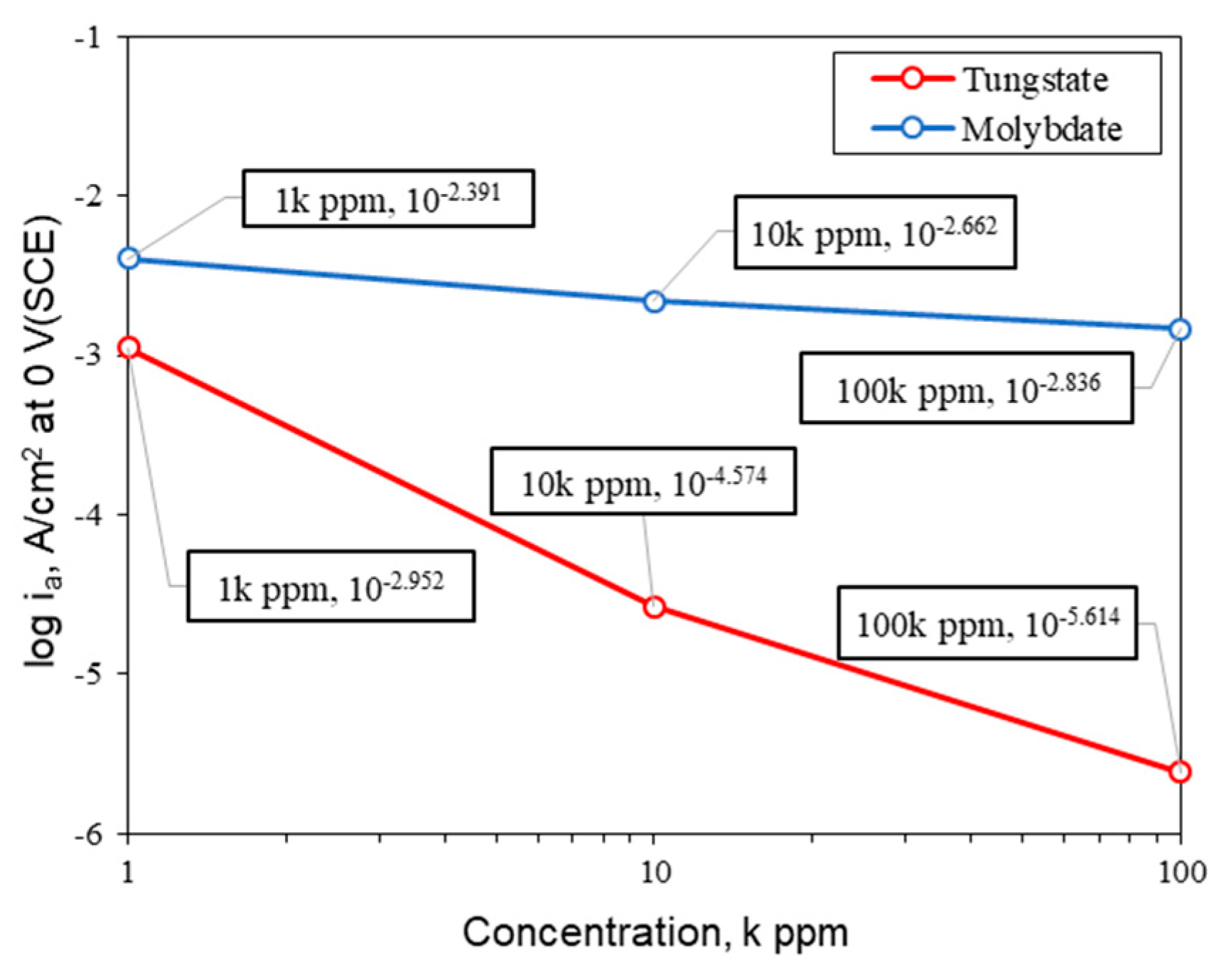

Figure 3. Effect of tungstate and molybdate ions on the anodic current density at 0 V(SCE) obtained from Figure 2.
Figure 3. Effect of tungstate and molybdate ions on the anodic current density at 0 V(SCE) obtained from Figure 2.
Metals 10 01597 g003
Metals 10 01597 g004 550

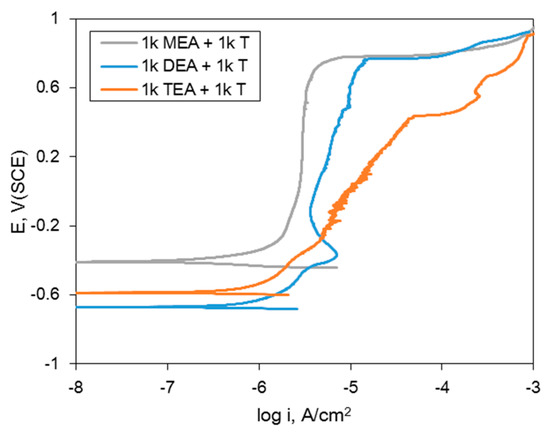

Figure 4. Effect of co-additive corrosion inhibitors on anodic polarization curve of DCI in deaerated [tap water + 1 k ppm tungstate (T) + 1 k ppm triethanolamine (TEA) or diethanolamine (DEA) or monoethanolamine (MEA)] at 30 °C.
Figure 4. Effect of co-additive corrosion inhibitors on anodic polarization curve of DCI in deaerated [tap water + 1 k ppm tungstate (T) + 1 k ppm triethanolamine (TEA) or diethanolamine (DEA) or monoethanolamine (MEA)] at 30 °C.
Metals 10 01597 g004
Metals 10 01597 g005 550

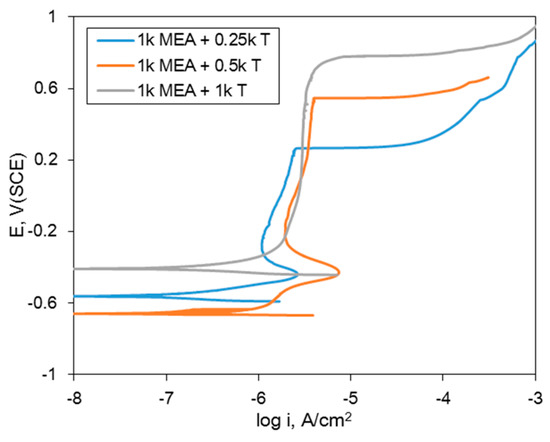

Figure 5. Effect of co-addition of corrosion inhibitors on the anodic polarization curve of DCI in deaerated [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at 30 °C.
Figure 5. Effect of co-addition of corrosion inhibitors on the anodic polarization curve of DCI in deaerated [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at 30 °C.
Metals 10 01597 g005
Metals 10 01597 g006 550

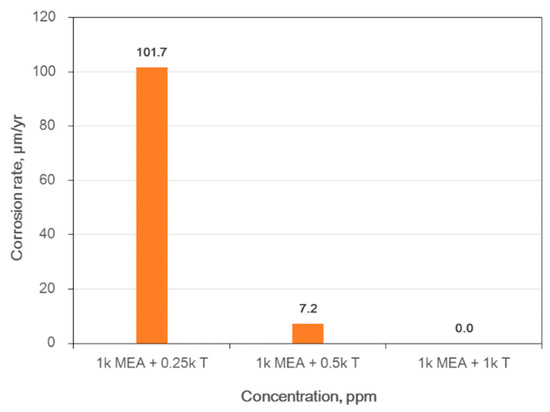

Figure 6. Effect of co-addition of corrosion inhibitors on the corrosion rate of DCI in [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at room temperature.
Figure 6. Effect of co-addition of corrosion inhibitors on the corrosion rate of DCI in [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at room temperature.
Metals 10 01597 g006
Metals 10 01597 g007 550

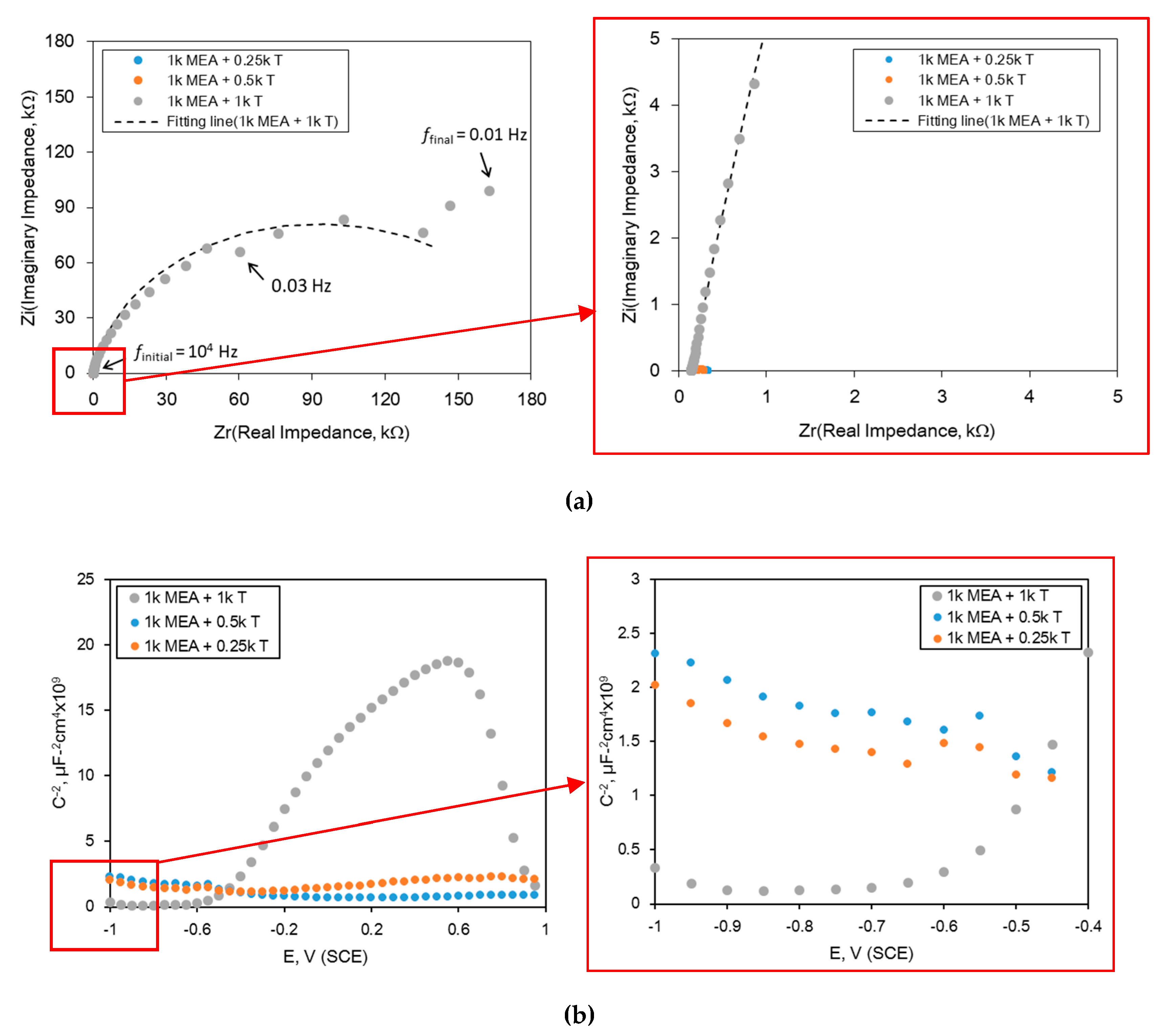

Figure 7. Effect of co-addition of corrosion inhibitors on the (a) Nyquist plot and (b) Mott-Schottky plot of the passive film formed at 0 V(SCE) in deaerated [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at 30 °C.
Figure 7. Effect of co-addition of corrosion inhibitors on the (a) Nyquist plot and (b) Mott-Schottky plot of the passive film formed at 0 V(SCE) in deaerated [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at 30 °C.
Metals 10 01597 g007
Metals 10 01597 g008 550
Figure 8. Electrical equivalent circuit used to fit the AC-impedance data.
Figure 8. Electrical equivalent circuit used to fit the AC-impedance data.
Metals 10 01597 g008
Metals 10 01597 g009 550
Figure 9. Effect of co-addition of corrosion inhibitors on the polarization resistance of the passive film formed at 0 V(SCE) in deaerated [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at 30 °C (This figure included 1 k ppm monoethanolamine (MEA) + 1 k ppm molybdate (MD) [32]).
Figure 9. Effect of co-addition of corrosion inhibitors on the polarization resistance of the passive film formed at 0 V(SCE) in deaerated [tap water + 1 k ppm monoethanolamine (MEA) + x ppm tungstate (T)] at 30 °C (This figure included 1 k ppm monoethanolamine (MEA) + 1 k ppm molybdate (MD) [32]).
Metals 10 01597 g009
Metals 10 01597 g010 550
Figure 10. Elemental distribution analyzed by EPMA on the surface of DCI passivated for 72 h in tap water with 100 k ppm tungstate at room temperature. (a) SEM image, (b) Fe, (c) C, (d) O, (e) W.
Figure 10. Elemental distribution analyzed by EPMA on the surface of DCI passivated for 72 h in tap water with 100 k ppm tungstate at room temperature. (a) SEM image, (b) Fe, (c) C, (d) O, (e) W.
Metals 10 01597 g010
Metals 10 01597 g011 550
Figure 11. Elemental distribution analyzed by EPMA on the surface of DCI passivated for 72 h in tap water with 1 k ppm tungstate + 1 k ppm MEA at room temperature. (a) SEM image, (b) Fe, (c) C, (d) O, (e) W, (f) N.
Figure 11. Elemental distribution analyzed by EPMA on the surface of DCI passivated for 72 h in tap water with 1 k ppm tungstate + 1 k ppm MEA at room temperature. (a) SEM image, (b) Fe, (c) C, (d) O, (e) W, (f) N.
Metals 10 01597 g011
Metals 10 01597 g012 550

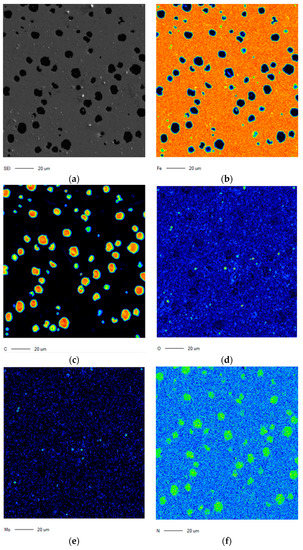

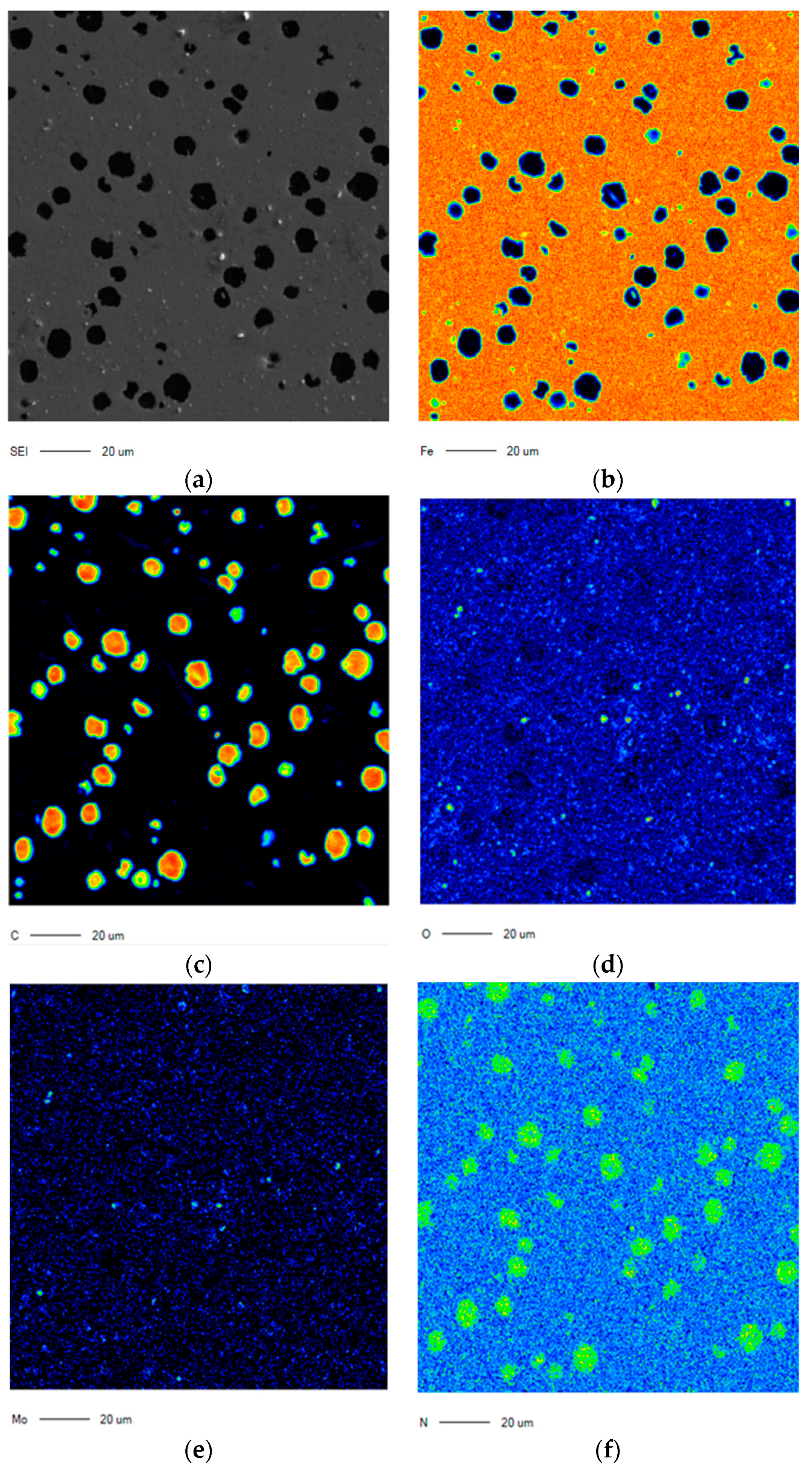

Figure 12. Elemental distribution analyzed by EPMA on the surface of DCI passivated for 72 h in tap water with 1.5 k ppm molybdate + 1 k ppm MEA at room temperature. (a) SEM image, (b) Fe, (c) C, (d) O, (e) Mo, (f) N.
Figure 12. Elemental distribution analyzed by EPMA on the surface of DCI passivated for 72 h in tap water with 1.5 k ppm molybdate + 1 k ppm MEA at room temperature. (a) SEM image, (b) Fe, (c) C, (d) O, (e) Mo, (f) N.
Metals 10 01597 g012
Table
Table 1. Elemental composition of the experimental alloys.
Table 1. Elemental composition of the experimental alloys.
MaterialElemental Composition, wt%
CMnPSSiCuMoNiVFe
Ductile Cast Iron (DCI)4.0080.1730.0220.0261.5280.0230.0280.0590.016balance
Table
Table 2. Quality analysis of tap water in Andong city, South Korea.
Table 2. Quality analysis of tap water in Andong city, South Korea.
Tap WaterQuality Analysis
Residual ChlorineTurbiditypHBacteria
Average0.25 ppm0.09 NTU7.10 CFU/mL
NTU: Nephelometric turbidity unit, CFU: Colony forming unit.
Table
Table 3. Corrosion factors obtained from Figure 4 according to co-inhibitor composition.
Table 3. Corrosion factors obtained from Figure 4 according to co-inhibitor composition.
Corrosion Factors1 k TEA + 1 k T1 k DEA + 1 k T1 k MEA + 1 k T
Ecorr, V(SCE)−0.588−0.671−0.409
Etr, V(SCE)0.4390.7660.779
ipassive at 0 V(SCE), A/cm29.73 × 10−64.11 × 10−62.70 × 10−6
* ipassive means the passive current density.
Table
Table 4. Fitting parameters obtained from Figure 7a according to co-inhibitor composition.
Table 4. Fitting parameters obtained from Figure 7a according to co-inhibitor composition.
RS,
Ω cm2		Rfilm,
Ω cm2		Yfilm,
S cm−2 snfilm		nfilmRct,
Ω cm2		Ydl,
S cm−2 sndl		ndl
1 k MEA + 0.25 k T275.632.8191.08 × 10−60.39729.04611.4 × 10−60.715
1 k MEA + 0.5 k T202.763.3110.03 × 10−30.27151.75153.7 × 10−60.871
1 k MEA + 1 k T142.7185.8 × 10334.80 × 10−60.9149.06569.90 × 10−60.936
