Rapid Annealing Optimizing Magnetic Softness and Thermal Stability of Mn-Substituted Fe-Based Nanocrystalline Alloys

Abstract

Good high-frequency magnetic softness and thermal stability are very important for the wide application of Fe-based nanocrystalline alloys. The present work reports the influence of Mn-doping and rapid annealing on the magnetic softness, nano-structure, and magnetic-microstructure of Fe_76−xSi₁₃B₈Nb₂Cu₁Mn_x (x = 0, 1, 2, 3, and 4) alloys. It was found that the Fe₇₄Si₁₃B₈Nb₂Cu₁Mn₂ alloy exhibits a superior magnetic softness with the high-saturation magnetic induction of 1.32 T and a large permeability at 100 kHz of over 15,000 at a large annealing-temperature region of 120 °C. The microstructure and magnetic domains characterization indicate that the good magnetic softness and thermal stabilization can be ascribed to the superb nano-structural stability caused by the Mn doping and rapid annealing at elongated temperatures, which can maintain a fine and high number density α-Fe(Si) nano-grains and facilitate the formation of regular and wide domains.

1. Introduction

Due to high saturation magnetic induction (B_s), large high-frequency permeability (μ), and small high-frequency loss (P), Fe-based nanocrystalline alloys are gradually replacing permalloy and soft-ferrite and are widely applied in filter inductions, high-frequency transformers/inverters, and leakage short-circuit devices, etc. [1,2]. Finemet ^® alloys (representative composition Fe_73.5Si_13.5B₉Nb₃Cu₁) with an excellent comprehensive magnetic softness were first discovered by Yoshizawa et al. in 1988 [3], and are still the most widely used nanocrystalline alloys so far. However, their low B_s of around 1.24 T is not conducive to the miniaturization and high power of electromagnetic devices. Many efforts have been devoted to improve the B_s of Fe-based nanocrystalline alloys—e.g., increasing the Fe content [4,5,6], adding Co element to increase the magnetic exchange interaction [7,8,9], decreasing the amount non-magnetic and large-sized elements [10,11], and removing Cu element [12,13]. However, these alloys with high B_s suffer from a low amorphous-forming ability and poor high-frequency magnetic softness, which is unable to meet the requirement for mass production and high-frequency applications. Therefore, it is of paramount importance to simultaneously improve their B_s and high-frequency magnetic performance.

Rapid annealing (RA) has been found to be an effective strategy for refining nano-grains, promoting crystallinity and reducing coercivity (H_c) and P in the high-B_s nanocrystalline alloys such as Fe-B-(Cu, Ni) [14,15], Fe-Nb-B-(Cu) [16], and Fe-Si-B-Nb-(Cu) [17,18], as well as Fe-Si-B-P-C-Cu [19]. Despite the longstanding interest in RA for improving static magnetic softness and lowering core loss at a low frequency, there are only few studies on the correction between high-frequency magnetic softness (e.g., μ at 100 kHz) and RA, which needs further investigation and is of great importance in understanding their microstructure–properties relationship.

In our previous work, a representative Fe₇₆Si₁₃B₈Nb₂Cu₁ nanocrystalline alloy with a good magnetic softness and manufacturability was developed [20,21]. Compared with non-magnetic metals, Mn has less negative influence on B_s and can increase the crystalline volume fraction and thermal stability of the nanocrystalline alloys [22,23,24], while the magnetic softness is not improved by normal-annealing (NA). Herein, with aim of improving the soft magnetic performance and thermal stability, the effects of Mn doping and RA on the thermal properties, high-frequency magnetic softness, microstructure, and magnetic domains of Fe₇₆Si₁₃B₈Nb₂Cu₁ nanocrystalline alloy have been investigated in detail. The RA alloy exhibits a high B_s, good high-frequency permeability, and wide annealing-temperature region, making it very suitable for high-power and high-frequency devices.

2. Experimental Procedures

Master alloys with nominal atomic compositions of Fe_76−xSi₁₃B₈Nb₂Cu₁Mn_x (x = 0, 1, 2, 3, and 4) were prepared by induction melting with the mixtures of pure Fe (99.99 mass%), Si (99.99 mass%), B (99.9 mass%), Cu (99.99 mass%), and Mn (99.9 mass%). The as-quenched ribbons with a width of about 1 mm and a thickness of about 26 μm were prepared by a single-roller melt-spinning method at a spinning rate of 45 m/s. Then, the as-quenched ribbons were heat treated at 480~640 °C for 10 min in a rapid annealing (RA) furnace, in which the heating rate was up to 300 °C/min. For comparison, the normal-annealing (NA) was conducted in a tube furnace with a vacuum of about 5 × 10⁻³ Pa.

Thermal parameters such as the onset crystallization temperature (T_x1, T_x2) and the temperature interval (ΔT = T_x2 − T_x1) were examined by differential scanning calorimetry (DSC, NETZSCH 404C, Selb, Germany) at a heating rate of 40 °C/min. Melting and solidification behaviors were observed via the DSC at a heating rate of 40 °C/min and a cooling rate of 4 °C/min, respectively. Magnetic softness, including the H_c, µ, and B_s, was measured via a DC B-H loop tracer (EXPH-100, Riken Deshi Co., Ltd., Saitama, Japan) under the maximum applied field of 800 A/m, an impedance analyzer (Agilent 4294 A, Palo Alto, CA, USA) with an AC magnetic field magnitude (H_m) of 1~50 A/m and a frequency of 1 kHz ~ 100 MHz, as well as a vibrating sample magnetometer (VSM, Lake Shore 7410, Columbus, OH, USA) under the maximum applied field of 800 kA/m, respectively. The microstructure and precipitation phases of the as-quenched and annealed samples were first identified by X-ray diffraction (XRD, Bruker D8 Advance, Karlsruhe, Germany) with Cu-Kα radiation. The nano-structure of the annealed samples was further characterized by transmission electron microscopy (TEM, Talos F200x, Hillsboro, OR, USA), and the TEM samples were prepared by ion-milling (Gatan691, Gatan, Pleasanton, CA, USA). The magnetic domain structure was obtained by magneto-optical Kerr microscopy (4-873K/950MT, Germany).

3. Results and Discussion

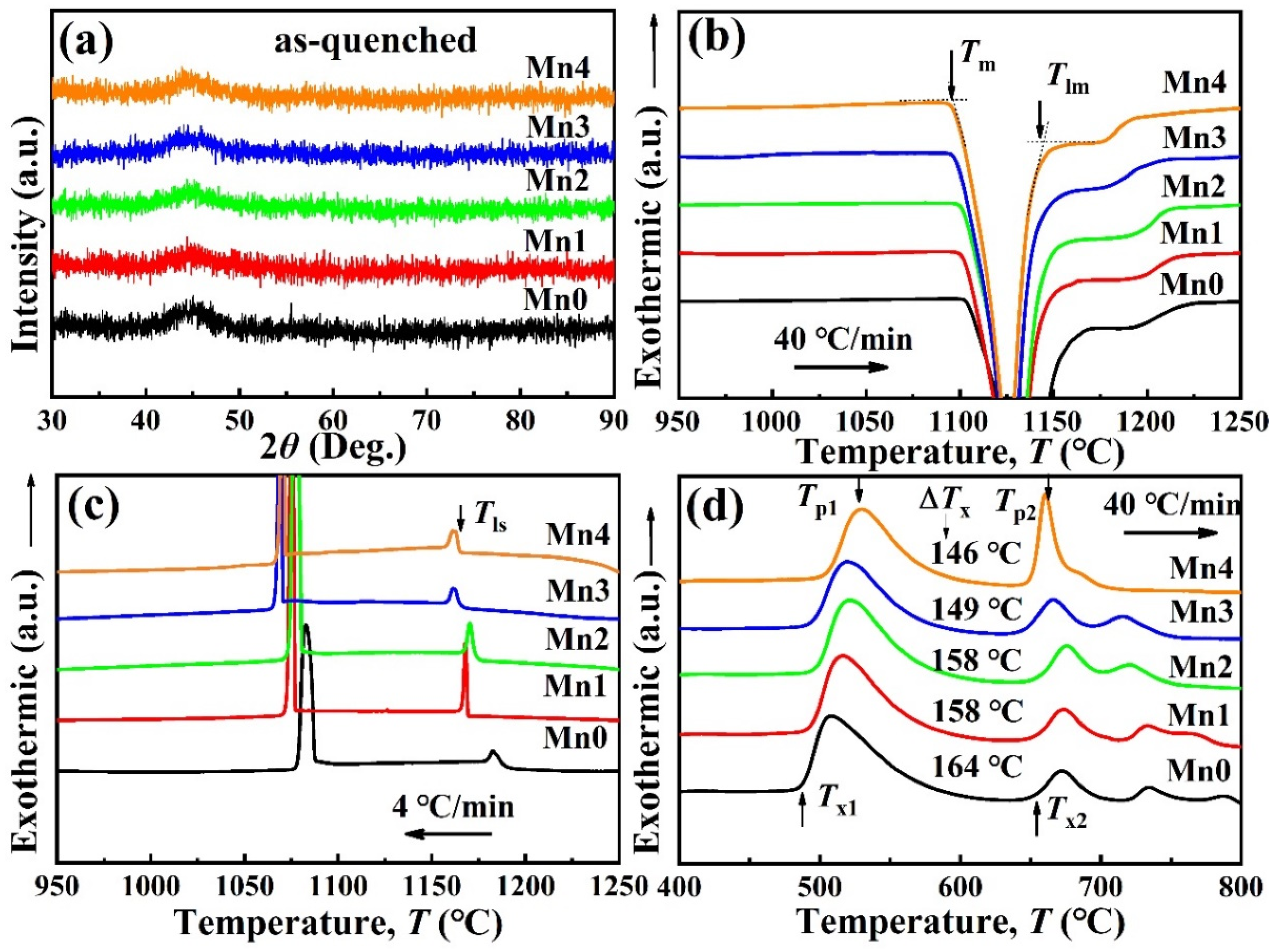

The influences of Mn on the melting and solidification processes, amorphous forming ability, and crystallization characterization of Fe_76−xSi₁₃B₈Nb₂Cu₁Mn_x (x = 0, 1, 2, 3, and 4) alloys were first investigated. The ribbons with x = 0, 1, 2, 3, and 4 are conveniently labeled as Mn0, Mn1, Mn2, Mn3, and Mn4, respectively. As shown in Figure 1a,b, the onset temperature of the melting endothermic peak (T_m) and the solidification exothermic peak (T_ls) slightly shifts to a lower temperature with the increasing Mn content, suggesting that the substitution of Mn (≤4 at.%) for Fe has no obvious influence on the melting and solidification behaviors of FeSiBNbCu master alloys. According to the XRD pattern in Figure 1c, all as-quenched ribbons exhibit a fully amorphous structure characterized by only a halo peak at 2θ of about 45°. Figure 1d displays the DSC curves of the as-quenched ribbons. The crystallization of the ribbons happens in 2~3 stages. The T_x1 and T_x2 corresponding to the onset temperature for the precipitation of the α-Fe(Si) phase and the precipitation of iron borides [25] slightly shifts to a high and low temperature side, respectively. Since the mixing enthalpy between Cu and Fe is positive (13 kJ/mol) while that between Cu and Mn is negative (−6 kJ/mol) [26], the driving force for Cu clustering is thus reduced when replacing Mn for Fe. This would be responsible for the slight improvement in T_x1. It is noteworthy that the Mn-doping alloys exhibit a wide ΔT (= T_x2 − T_x1) above 145 °C, which is comparable to the commercial Finemet^® alloys [27], suggesting the facile formation of α-Fe(Si) nano-grains and good thermal stability of the residual amorphous matrix.

The magnetic softness of Mn0, Mn1, Mn2, Mn3 and, Mn4 annealed in an FA process was investigated by measuring the H_c, μ, and B_s. As shown in Figure 2a, Mn1 and Mn2 exhibit a low H_c of 1.1~1.8 A/m at a large annealing temperature (T_a) region of 480~600 °C, which is better than that of the other alloys. Moreover, as the T_a rises up to 600 °C, the H_c of Mn2 is still below 10 A/m, while that of the other four alloys deteriorates to over 100 A/m. For Mn2, μ at 100 kHz keeps a high value of above 15,000 at a wide T_a range of 480~600 °C and slightly decreases to 9200 at 640 °C. Whereas, the μ at 100 kHz of the other alloys decreases starting from 600 °C, and sharply decreases to below 1000 at 640 °C. These results indicate that Mn2 exhibits a superior thermal stability for obtaining an excellent magnetic softness. The dependence of μ at 1A/m on the frequency and the dependence of μ at 100 kHz on the AC magnetic field magnitude (H_m) of Mn0, Mn1, Mn2, Mn3, and Mn4 annealed at 600 °C were tested to analyze the high-frequency characterization, as presented in Figure 2c,d, respectively. As the frequency increases, μ stays constant at low and medium frequencies, and subsequently reduces at higher frequencies, as shown in Figure 2c. As the frequency increases, the magnetic domain walls and magnetization would become more difficult to move and rotate, which results in a decrease in their contribution, leading to a decrease in μ [28]. The μ at 100 kHz of Mn2 is independent of H_m (Figure 2d), suggesting a good magnetic saturation resistance which is different from that of the other alloys. Therefore, the substitution of Mn with a proper content for Fe could effectively reduce H_c, enhance high-frequency μ, enlarge the optimal T_a range, and improve the magnetic-saturation resistance.

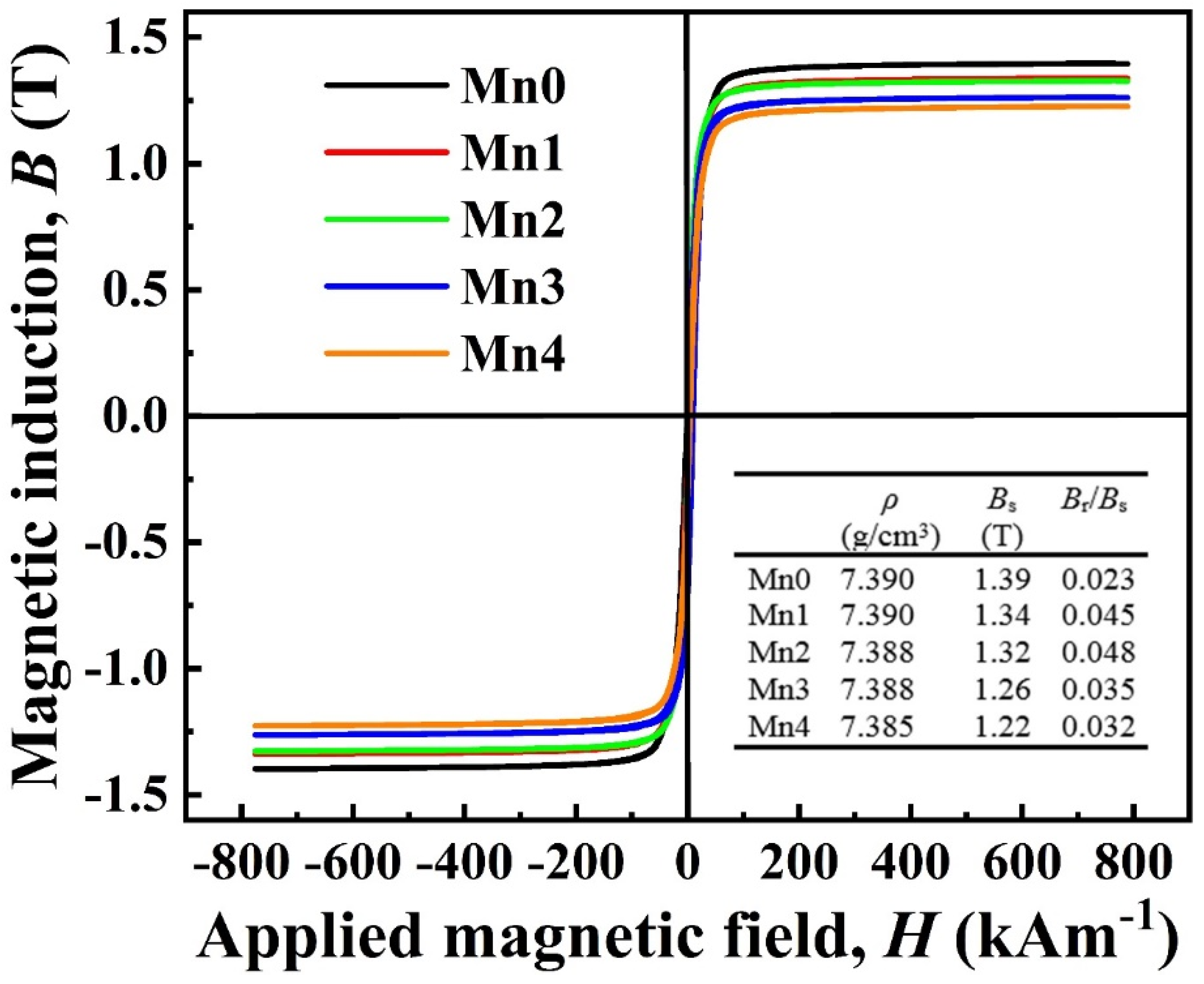

The hysteresis loops of Mn0, Mn1, Mn2, Mn3, and Mn4 annealed at an optimum T_a were then performed via the VSM. As shown in Figure 3, all the alloys depict typical loops of nanocrystalline soft magnetic materials. The B_s decreases with the increase in Mn content, but is still greater than the typical B_s (1.24 T) of the Finemet ^® alloys. For example, the B_s of Mn2 is 1.33 T, which is 7% higher than that of the Finemet ^® alloys. Therefore, the substitution of Mn for Fe does not significantly reduce B_s. The large B_s, good high-frequency magnetic softness, wide ΔT and T_a range, as well as high magnetic-saturation resistance are combined in Mn2, which is beneficial to minimize the size, boost the power density, and improve the efficiency of magnetic devices.

The H_c and high-frequency μ of Mn2 by RA and NA were compared to unveil the effect of the annealing heating rate on the magnetic softness and thermal stability, as shown in

Table 1. μ at 100 kHz and H_c of Mn2 by RA and NA at different T_a.

Annealing	Annealing Temperature (Ta)
	480 °C		520 °C		600 °C		640 °C
	Hc (A/m)	μ @100 kHz	Hc (A/m)	μ @100 kHz	Hc (A/m)	μ @100 kHz	Hc (A/m)	μ @100 kHz
RA	1.3	15,900	1.3	16,000	1.4	15,700	6.0	9200
NA	3.5	4700	2.0	10,200	2.3	10,100	8.4	6400

. Mn2 by RA exhibits a high μ at 100 kHz over 15,000 and a low H_c below 1.5 A/m at a wide T_a range of 480~600 °C. In contrast, the NA sample displays a higher H_c and a much lower μ at 100 kHz at all annealing conditions. In particular, the μ at 100 kHz of the RA sample exhibits an increase of 240% at 480 °C (close to T_x1) as compared with that of the NA sample. Therefore, RA can remarkably enhance high-frequency μ at 100 kHz and reduce H_c at a large annealing temperature window, manifesting the effectiveness of RA in improving the magnetic softness and thermal stability.

To reveal the enhancement mechanism in high-frequency magnetic softness and thermal stability, the microstructures and their evolution processes of Mn2 by RA and NA at different T_a were subsequently investigated, as shown in Figure 4. Annealing at 480 °C (close to T_x1) generates a small peak at around 2θ = 45° for NA, whereas it results in obvious crystallization for RA, identified by the sharp peaks at about 2θ = 45°, 65°, and 83°, respectively, corresponding to the α-Fe(Si) phase. After annealing at 600 °C (between T_x1 and T_x2), both NA and RA cause an obvious crystallization verified by the sharp crystal peaks. According to the Scherrer equation [29], we calculated the average size of the α-Fe(Si) grains of the RA sample, which exhibits a plateau size of around 13 nm for a wide T_a interval of 120 °C. This behavior indicates the excellent thermal stability of Mn2 by RA. When T_a increases to 640 °C (close to T_x2), the Fe₃B phase can be detected for both the NA and RA samples, which is responsible for the deterioration of magnetic softness.

To further analyze the changes in the microstructure, selected TEM bright-field images, SAED patterns, and grain size distributions of Mn2 after annealing at 480, 600, and 640 °C via NA and RA were obtained and are displayed in Figure 5. After annealing close to T_x1, NA causes a low number density of grains with the size of 11~17 nm embedded unevenly in a clearly visible amorphous region (Figure 5a,a₂). However, RA generates a high number density of grains with the size of around 12.5 nm distributed uniformly in a nearly invisible amorphous region (Figure 5b,b₂), demonstrating the effectiveness of RA in obtaining a superb nano-structure. These grains are identified as the α-Fe(Si) phase (Figure 5a₁,b₁), which is consistent with the XRD results. The uncompleted precipitation of α-Fe(Si) grains from the amorphous matrix of NA sample cannot effectively reduce the magneto-crystalline anisotropy by exchange interaction [2,30], which accounts for the inferior magnetic softness. After annealing at 600 °C (between T_x1 and T_x2), both the NA and RA samples precipitate a large number of ultrafine α-Fe(Si) nano-grains from the amorphous matrix (Figure 5c,d). The RA samples annealed at 480 and 600 °C have similar grain size of around 12.6 nm, which is smaller than that of the NA sample annealed at 600 °C. The stable nanocrystalline structure caused by RA leads to the superb magnetic softness of Mn2 in a wide annealing temperature region of 120 °C, since the permeability is inversely proportional to six times the nano-grains size [2]. After annealing at 640 °C (near T_x2), Fe₃B phase with a large magnetic anisotropy precipitates from the amorphous matrix (Figure 5e₁,f₁). The Fe₃B nano-grains can pin magnetic domain walls, which account for the worsening of the magnetic softness [25].

Magnetic domain structures were also investigated to interpret the excellent magnetic softness of Mn2 by RA, as depicted in Figure 6. At 480 °C, irregular and small magnetic domains with many branches appear in the NA sample (Figure 6a), while the FA sample has relatively regular and wide domains (Figure 6c), which can essentially prove the low pinning effect and small magnetic anisotropy of the FA sample. At 600 °C, the NA sample has bent-edged and narrow domains, whereas the FA sample exhibits smooth-edged and wide domains, demonstrating the facile movement of the domain walls. FA generates high density, homogeneous, and ultrafine α-Fe(Si) nano-grains at 480–600 °C (Figure 5b,d), leading to an effective reduction in magnetic anisotropy due to the strong exchange interaction, and finally enabling the formation of regular and wide domains in a large annealing temperature region. This is responsible for the superb magnetic softness and thermal stability of Mn2 by RA.

4. Conclusions

In summary, the effects of the substitution of Mn for Fe as well as rapid annealing on the magnetic softness, thermal stability, microstructure, and magnetic domains of FeSiBNbCu nanocrystalline alloys have been investigated in detail. The addition of 2 at.% Mn and rapid annealing can effectively reduce the H_c and improve the high-frequency μ. The rapid-annealing Fe₇₄Si₁₃B₈Nb₂Cu₁Mn₂ alloy exhibits a superb magnetic softness at a large annealing temperature region from 480 to 600 °C, including the relatively high B_s of 1.32 T and low H_c of 1.3~1.4 A/m, together with a large μ at 100 kHz of over 15,000. The improved magnetic softness and thermal stability can be ascribed to the formation of high number density, uniform and fine α-Fe(Si) nano-grains, as well as the regular and wide magnetic domains induced by rapid annealing.
