Effect of Severe Plastic Deformation on Structure Refinement and Mechanical Properties of the Al-Zn-Mg-Fe-Ni Alloy

Abstract

This paper identifies the mechanisms of phase and structural transformations during severe plastic deformation by shearing under pressure (high-pressure torsion) of an Al-Zn-Mg-Fe-Ni-based aluminum alloy depending on different initial states of the material (an ingot after homogenizing annealing and a rod produced by radial-shear rolling). Scanning and transmission electron microscopy are used to determine the morphological and size characteristics of the structural constituents of the alloy after high-pressure torsion. It has been found that, irrespective of the history under high-pressure torsion, fragmentation and dynamic recrystallization results in a nanostructural alloy with a high microhardness of 2000 to 2600 MPa. Combined deformation processing (high-pressure torsion + radial-shear rolling) is shown to yield a nanocomposite reinforced with dispersed intermetallic phases of different origins, namely Al₉FeNi eutectic aluminides and MgZn₂, Al₂Mg₃Zn₃, and Al₃Zr secondary phases. The results of uniaxial tensile testing demonstrate good mechanical properties of the composite (ultimate tensile strength of 640 MPa, tensile yield strength of 628 MPa, and elongation of 5%).

1. Introduction

At present, Al-based composite materials are known to become increasingly important, for they have essential advantages over conventional commercial alloys due to a favorable combination of practical design characteristics and functional properties [1,2,3,4]. For example, aluminum-matrix composite materials reinforced with silicon carbide are used in automobile industry, aerospace engineering and other industries owing to high wear resistance, high specific strength, and heat conductivity [5,6,7]. It was shown that silicon carbide reinforced aluminum matrix composites are effectively additionally alloyed with the chromium [8]. The authors have found that the aluminum matrix composites with a varying weight percent of chromium (0–3 wt%) and a fixed percentage of silicon carbide (10%) were formed through the vortex casting. It was found that the chromium additive in the Al-SiC composites significantly improved the hardness, friction coefficient, and mechanical properties (strength, abrasion resistance, and wear resistance). Borides, nitrides, and oxides of refractory metals are often used as reinforcement particles for the Al matrix; the disperse phases of these particles reinforce the plastic Al matrix, thus creating barriers for the migration of dislocations and grain boundaries [1,2,3]. Besides artificial composites, which are produced by mechanical alloying or by powder metallurgy, there is a big class of natural aluminum-based eutectic composite materials. Typical examples of such alloys are represented by Al-Si alloys (silumins). New advanced alloys based on Al-Fe, Al-Ni, and Al-Fe-Ni eutectics have lately been developed and termed nickalins [9,10,11]. Well-known compositions of the 7xxx series—i.e., alloys belonging to the Al-Zn-Mg-Cu system—were proposed as the Al matrix of these alloys. Economical Al-Zn-Mg alloys with a total Fe and Ni content of 1 wt% are highly technological due to the eutectic constituent (Al + Al₉FeNi) and have high strength characteristics resulting from a dispersion-hardened Al matrix [10,11].

The state-of-the-art trend in improving the structure and properties of commercial alloys is the application of methods of severe plastic deformation, the best-studied ones being equal-channel angular pressing (ECAP) [12,13,14], equal channel angular extrusion (ECAE) [15,16,17,18], and torsion in Bridgman anvils (HPT) [19,20,21]. New SPD methods have been developed in recent years. For example, there are an accumulative roll bonding (ARB) [22,23] and a differential velocity sideways extrusion (DVSE) [24,25]. DVSE is a novel method for directly forming curved profiles from billets in one extrusion operation using two opposing punches. Modeling the process, authors [24] identified that a curvature of extrudate can be controlled and varied using a difference between the velocities of the two punches, defined by velocity ratio, as well as an extrusion ratio. The effectiveness of the new SPD method was tested during manufacturing a curved AA1050 bar widely used in the transport industry [25]. Due to the severe strains arising in the DVSE process, (greater than that for conventional pass of equal channel angular extrusion), significant grain refinement in the curved bar (grain size ~3 μm) from the original billet (grain size ~357 μm) was achieved in one extrusion operation. On the basis of structural studies, the authors found that grain refinement in the DVSE process is due mainly to continuous dynamic recrystallization. The refinement of the structure led to an increase in mechanical properties. Compared with the billet, the hardness, yield strength, and ultimate tensile strength of the formed curved bar increase by 134.8%, 354.0%, and 116.8% respectively, although the elongation to fracture was decreased by 60.0%. DVSE method includes hot extrusion (DVSE-HE), welding extrusion (DVSE-WE), and co-extrusion (DVSE-CE). DVSE-CE technology used for a forming curved Al/Mg sandwich bar was described in [26].

According to [14,17,18,27,28,29] submicrocrystalline and nanocrystalline alloys of 7XXX series exhibit a good combination of strength and plastic properties resulting from thermal deformation processing under different conditions.

The analysis of the available results on the design of high-strength Al-Zn-Mg-alloy-based composites raises a question of how the shape, size, and amount of Al₉FeNi eutectic aluminides change and how this affects the structure, phase composition, and properties of nickalins as a whole. The first studies along this line have been conducted in the last three years [30,31,32]. The effect of thermal pretreatment on the deformation behavior of nickalin under high-pressure torsion (HPT) was established [30], the sequence and kinetics of post-deformation processes under heating to 400 °C were determined [31], and the dynamic properties of an Al-Zn-Mg-Fe-Ni alloy before and after HPT in a wide range of strain rates, 10³ to 10⁵ s⁻¹, were measured [32]. The results have shown that the principal mechanisms of structure formation in a 7xxx series alloy under HPT remain the same, but the presence of Al₉FeNi eutectic aluminides in the composite structure affects the morphology and kinetics of the precipitation of secondary phases and increases the thermal stability of the composite and its strength.

It was reported in [33] that radial-shear rolling is an effective method for increasing the mechanical properties of nickalin through creating a microscale gradient structure and a uniform distribution of strengthening phases in it.

The purpose of this paper is to continue the study aimed at creating a composite material based on an Al-Zn-Mg-Fe-Ni alloy by combining thermal and deformation processing techniques. Particularly, the effect of complex deformation processing including RSR and HPT on the structural and phase transformations of the Al-Zn-Mg-Fe-Ni alloy and its mechanical properties is discussed. In view of the complex chemical composition of the alloy, it is obvious that the intermetallic phases of different origins make a great contribution to the formation of its structure and properties; therefore, the paper focuses on studying the evolution of their formation mechanisms under HPT with the application of high-resolution TEM methods.

2. Materials and Methods

A high-strength Al-Zn-Mg-Fe-Ni alloy (nickalin) was studied. The chemical composition of the experimental alloy is given in

Table 1. Chemical composition (wt%) of the experimental alloy.

Al	Zn	Mg	Fe	Ni	Zr	Cu
Base	7.22	2.95	0.52	0.57	0.2	0.002

.

The ingot production conditions, and the raw material composition are described in detail in [11,33]. The melting was carried out in an electric resistance furnace in graphite -chased crucible based on high purity Al (99.99%). Zn and Mg were introduced into Al melt in the form of pure metals, whereas Fe, Ni and Zr in the form of binary master alloys (Al-10% Fe, Al-20% Ni, Al-1.5% Zr). The casting was carried out in a metal mold at a temperature of 780 °C (cooling rate during solidification was ~10 K/s). The ingots were subjected to two-stage homogenizing annealing at 450 °C and 540 °C with holding for three hours in each stage. The alloy was studied in the form of ingots, calibrated rods and disks produced by HPT at room temperature.

The ingots were turned to a diameter of 40 mm, heated in an oven to 480 °C, and subjected to two-pass radial shear rolling (RSR) in MiSiS 100 T and 14–40 mills [33]. The total rod elongation ratio was 2.78, the diameter of the initial billet was 31 mm, and the diameter of the resulting rod was 24 mm.

Severe plastic deformation by HPT was performed on 20-mm-diameter and 1-mm-thick specimens cut from an ingot (nickalin 1) and a rod after RSR (nickalin 2). The number of anvil revolutions was n = 5, 10, 15, for the true accumulated strains (with allowance for upsetting) ε = 6.0, 6.7, and 7.1, respectively. The mechanical properties were determined on flat microspecimens (5.7 mm long, 2 mm wide, and 1 mm thick) in a Shimadzu AGX-50 Plus (Kyoto, Japan) universal testing machine. To fix the microspecimens in the grips of the testing machine, we used a special clamping device described in detail in [34]. The strain rate was 5 × 10⁻⁴ s⁻¹.

The mechanical properties were estimated from the values of tensile yield strength YS, ultimate tensile strength UTS, and percentage elongation δ. Microhardness H_v was determined at a load of 0.2 N in a PMT-3 device (Moscow, Russia). The measurement error was at most 10%. Hardness was measured by the Brinell method, with a 5 mm ball, at a load of 250 kg. The specimen structure was studied at different scale levels by means of a Neophot-32 optical microscope (OM, Carl Zeiss, Jena, Germany), a Quanta 200 scanning electron microscope (SEM, FEI Company, Hillsboro, OR, USA), and a Tecnai G² 30 Twin transmission electron microscope (TEM, FEI Company, Oregon, USA) with an accelerating voltage of 300 kV. X-ray diffraction (XRD) analysis was carried out using an Empyrean diffractometer (PANanalytical, Almelo, The Netherlands) at room temperature and Cu Kα radiation. Based on the X-ray diffraction data the lattice parameter of an Al-matrix was calculated. The specimens for ᵃanalysis were made with the use of mechanical polishing on a diamond suspension. Final smoothing was performed on a suspension of colloidal silicon dioxide. The specimens for thin structure examination were made by jet polishing in a Tenupol-5 (Struers, Denmark) in a 20% nitric acid solution and 80% methanol at a temperature of −25 °C and a voltage of 15 to 20 V. The size of the structural constituents was quantitatively analyzed from dark-field images with the use of the SIAMS 700 image analysis program (Russia).

3. Results

3.1. Structure and Phase Composition of the Alloy before HPT

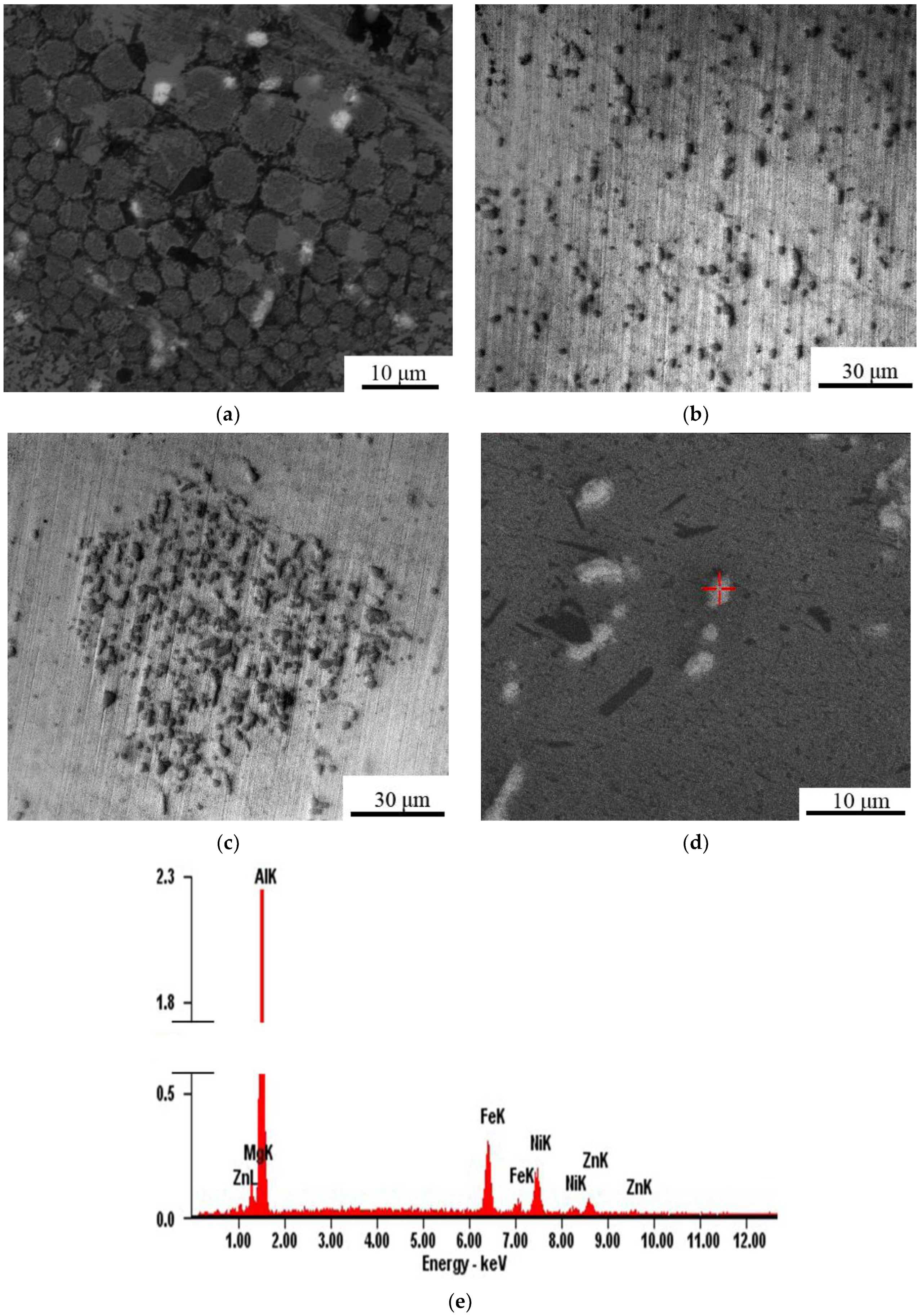

Al-Zn-Mg-Fe-Ni alloy specimens of the same composition but different histories were the initial materials for severe plastic deformation (SPD). Batch I specimens (nickalin 1) were cut from the ingot and annealed in two stages at 450 and 540 °C with a 3 h holding at each stage. Their structure and properties were described in detail in [32]. Heat treatment forms a structure consisting of an Al matrix and Al₉FeNi eutectic aluminides located on the grain boundaries and dendritic cells. The grain size of the Al matrix is 380 μm and that of the eutectic aluminides is 2 to 3.5 μm. Besides, inside the grains of the Al solid solution there are precipitates of the secondary T-phase (Al₂Zn₃Mg₃) resulting from ingot cooling after homogenization.

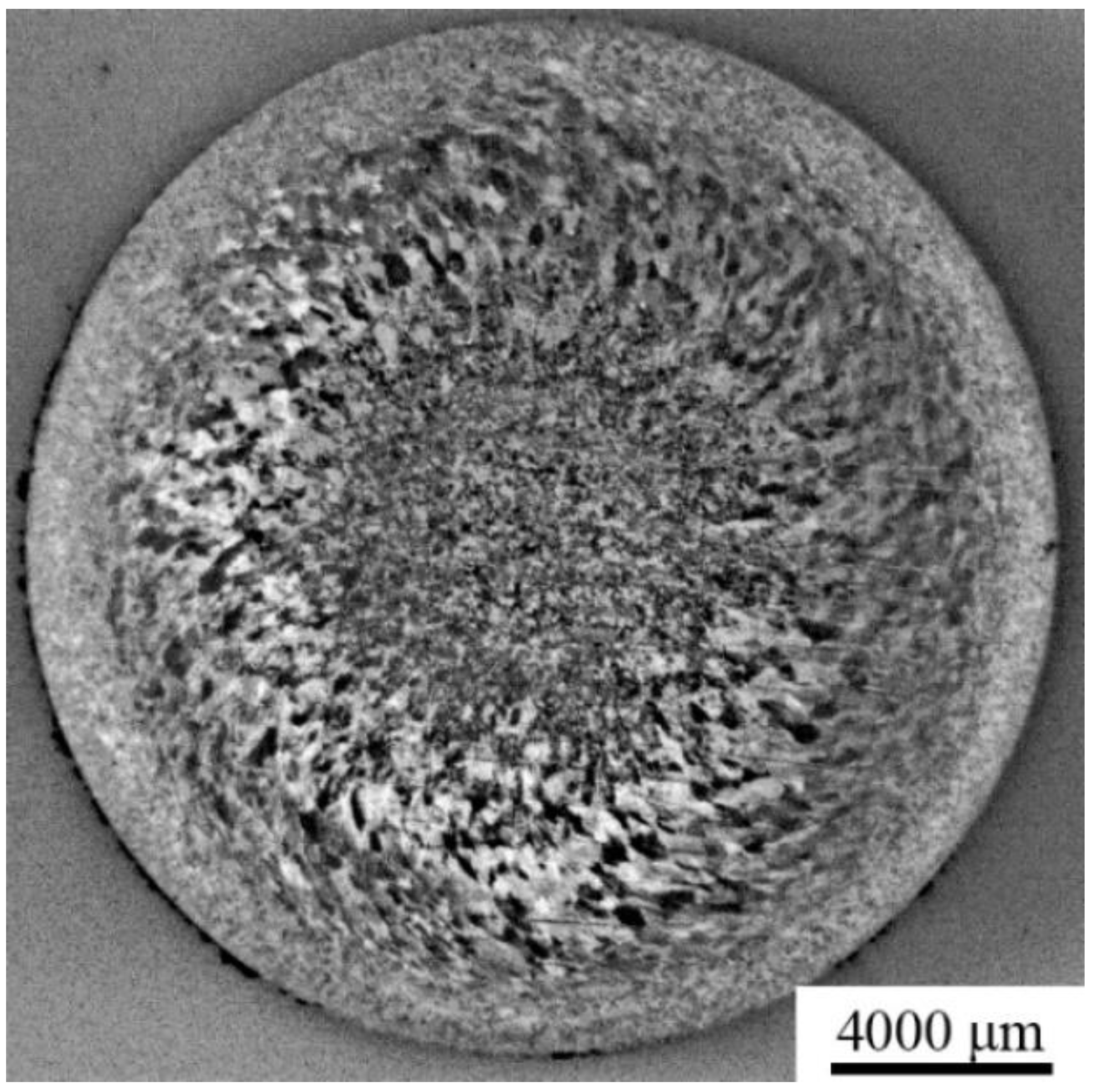

A 24-mm-diameter rod produced by RSR at 480 °C after two passes was an object for HPT of batch II specimens (nickalin 2). Figure 1 shows the rod cross-section structure.

Three zones with a gradient structure typical for this RSR pattern are clearly visible. The width of the SPD zone on the rod periphery is ~2.5 to 3.0 mm; the middle zone at half the radius and the central zone have a width of 4.0 to 4.5 mm each. The gradient structure is characterized by different hardness values. The mid-radius zone has a hardness of 105 HB (105 HV), whereas the hardness in the central zone decreases to 97 HB (97 HV). In the peripheral zone, there is a dynamically recrystallized structure with the grain size increasing from 3 mm at the surface to 8 mm at the boundary with the second zone formed by the hot-deformed structure (Figure 2a). In the peripheral zone, the intermetallic particles become fragmented due to deformation and arrange themselves along the direction of rolling (Figure 2b). Elements of the cast structure of the matrix and eutectic conglomerates are preserved in the central part, the shape and size of aluminides being changed only slightly from the as-cast condition (Figure 2c,d). The EDS element analysis of these crystals has shown that they contain Fe and Ni, i.e., they belong to the Al₉FeNi phase (Figure 2e).

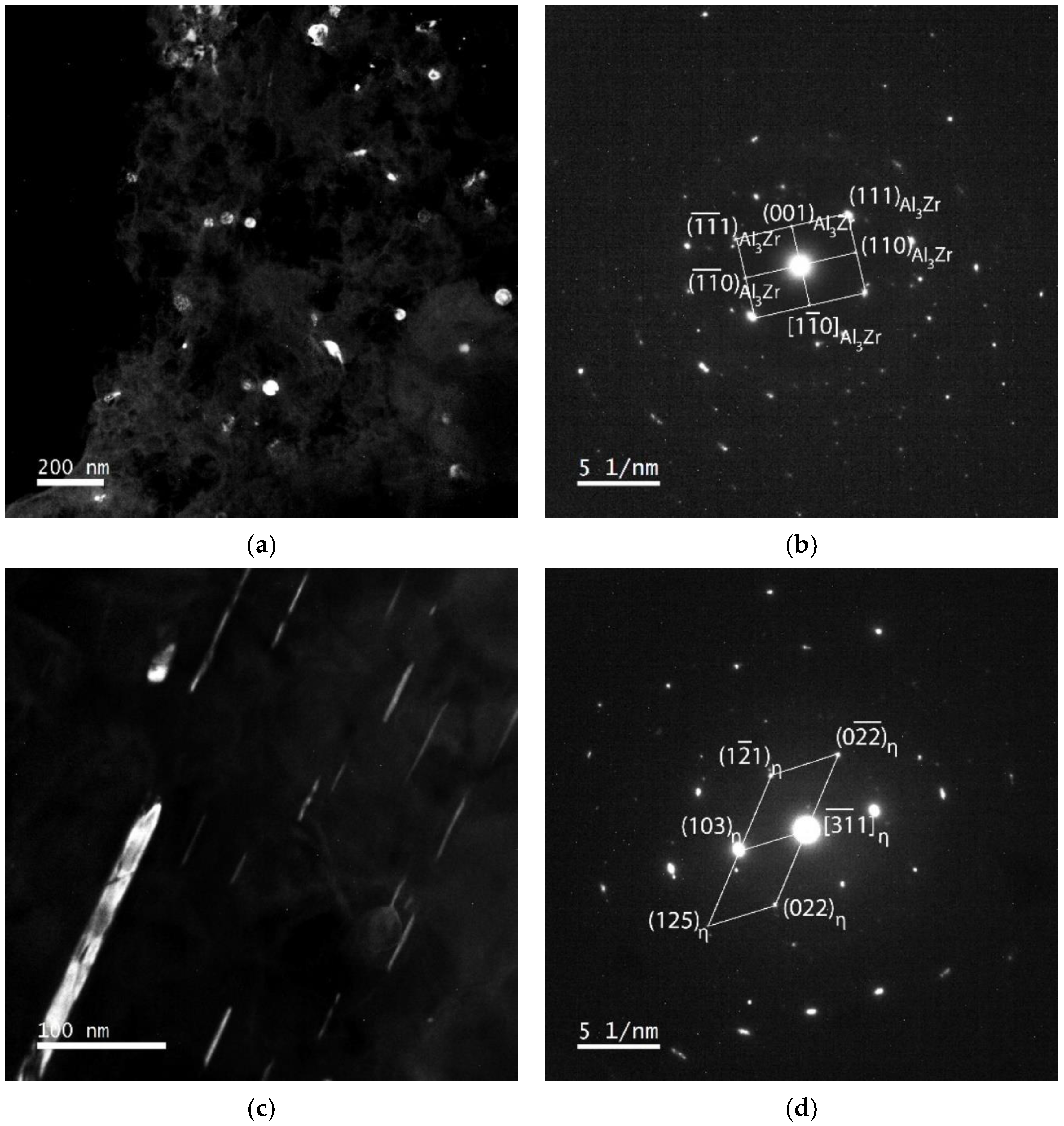

The TEM results testify that, in the deformed region, the rod has a well-developed subgrain structure resulting from polygonization. The subgrains are mainly equiaxial and sized 2 to 6 μm. Along the subgrain boundaries there are disk- or stick-shaped (up to 1–5 μm) Al₉FeNi intermetallics of the crystallization origin. Globular and stick-shaped secondary phases have been found inside the subgrains. According to electron diffraction pattern, equiaxial nanoparticles 30 to 75 nm in diameter are the metastable Al₃Zr phase with an ordered cubic lattice L1₂ (Figure 3a,b). These dispersoids result from hot deformation. Sticks with a diameter of 5 nm and a length ranging between 50 and 100 nm (separate large particles reach a diameter of 20 nm and a length of 250 nm (Figure 3c,d)), belong to the MgZn₂ phase precipitating from the supersaturated Al solid solution during cooling after RSR.

3.2. Structure and Phase Composition after HPT

The Al-Zn-Mg-Fe-Ni alloy in two structural states (nickalin 1 and nickalin 2) discussed in Section 3.1 was taken as macrocrystalline analogs for HPT specimens. The evolution of the structural and phase transformations in nickalin 1 and nickalin 2 was studied on specimens after HPT with different strains by varying the number of anvil revolutions n = 5, 10, and 15 (ε = 6.0, 6.7, and 7.1 respectively). Microhardness was measured in order to characterize the uniformity of their structure along the specimen radius. It follows from the measurements that microhardness variation from the edge to the center does not exceed 150 MPa. However, in order to compare correctly the structure and phase composition of the specimens produced with different numbers of revolutions, all the TEM studies were performed on foils cut from the mid-radius region.

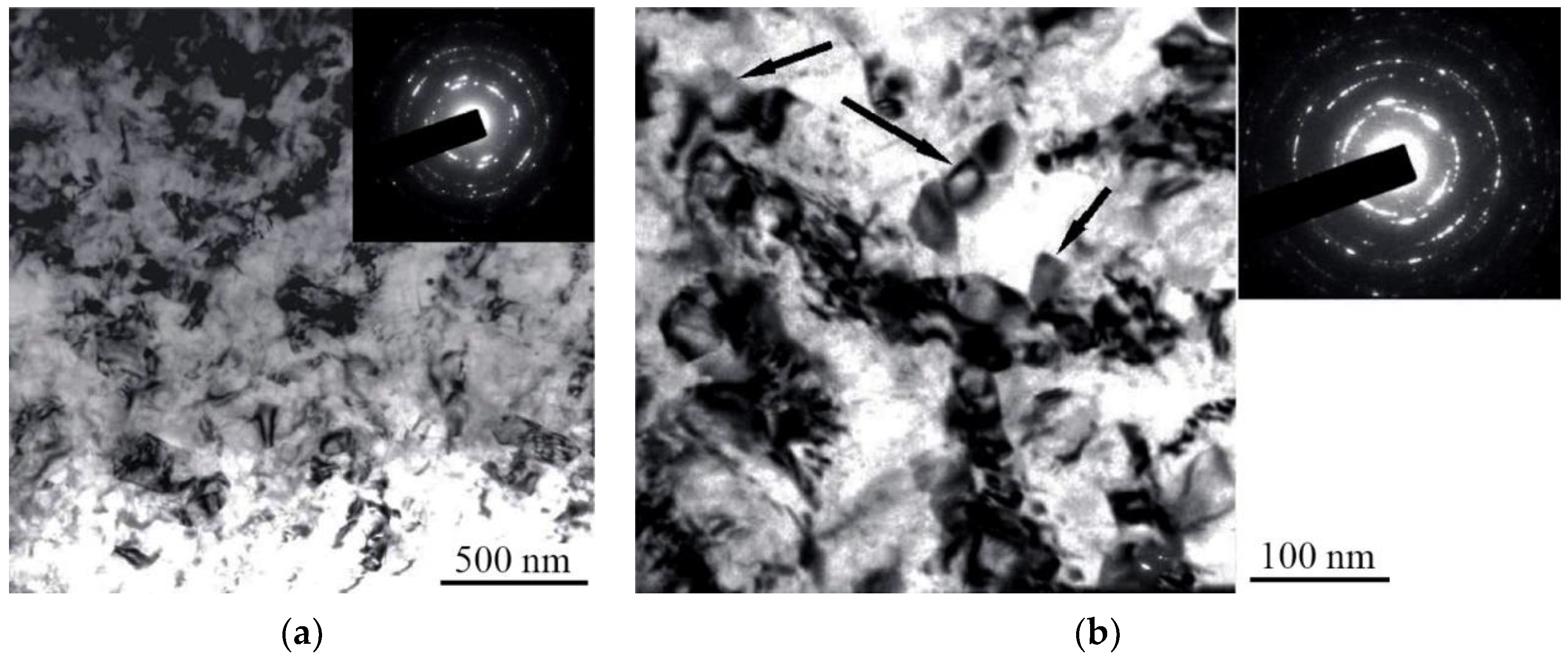

As a result of deformation, coarse eutectic aluminides in nickalin 1 become fragmented, they break into particles sized ~1–2 μm. The Al matrix for n = 5 and 10 is represented by a fragmented structure with grain/subgrain diffusion boundaries and a nonuniform contrast inside the grains/subgrains, which is caused by a high level of internal stresses (Figure 4a). Fragmentation increases with the amount of strain and, according to the results of the quantitative analysis of the EDS element analysis, the average size of the grain/subgrain ranges from 120 to 160 nm at n = 10, with only 20% of them being larger than 200 nm. At n = 15, mainly high-angle boundaries (HABs) are formed in the structure, this being evidenced by the annular electron diffraction pattern with numerous discretely located point-like reflections (Figure 4b). The main array of grains/subgrains retains the strain-induced contrast, but in triple joints there are small (20 to 30 μm) dislocation-free grains formed through dynamic recrystallization. This mixed two-level structure decreases the average grain/subgrain size to the nanoscale (~100 nm).

The phase composition of nickalin 1 changes with the amount of strain. When n = 5 and 10, the volume fraction of the particles of the secondary T-phase decreases due to their deformation dissolution, and when n = 15, there appears a strain-induced Al solid solution supersaturated with zinc and magnesium.

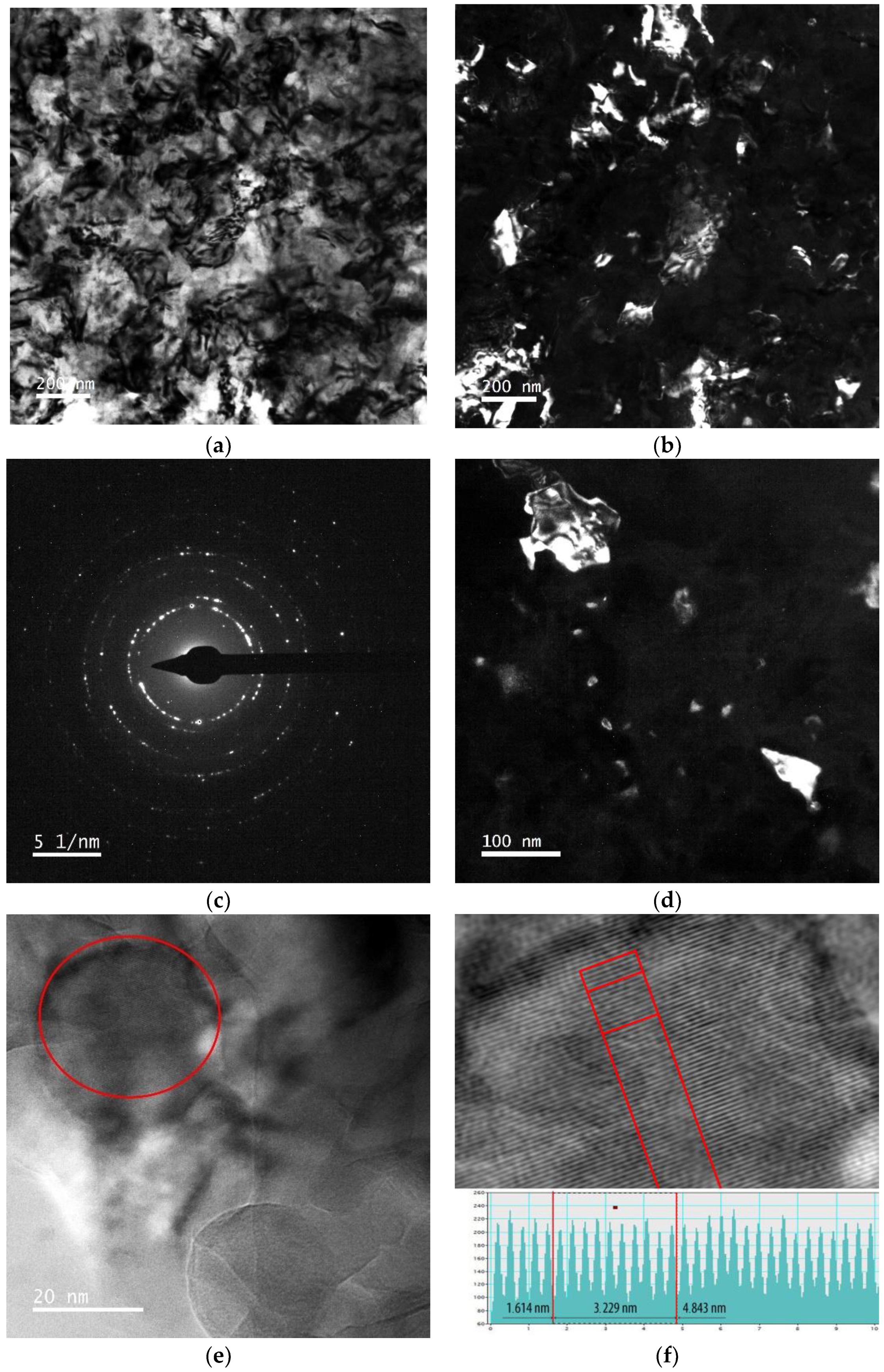

The five-revolution deformation nickalin 2 results in significant fragmentation of the polygonized structure of the alloy. When ε = 6.0, there appear variously sized subgrains, irregularly shaped or elongated. Most of them (~80%) have a size ranging from 50 to 250 nm, with separate large subgrains having a size of up to 500 nm (Figure 5a,b). The annular character of the electron diffraction patterns with diffuse reflexes and the analysis of the dark-field images of the microstructure demonstrate that the fragments are separated by both high- and low-angle boundaries (LABs), Figure 5c. Deformation changes the morphology and average size of intermetallic particles. Fragmentation of Al₉FeNi particles occurs, their characteristic size decreases to 0.6–3.5 μm, and the diameter of the Al₃Zr dispersoid precipitates also decreases to 30–40 nm, possibly, due to partial dissolution during HPT, as was noted in [30].

The analysis of the bright-field and dark-field images has shown that five-revolution deformation causes a complete dissolution of the zinc-magnesium phases, with the appearance of a strain-induced Al solid solution supersaturated with zinc and magnesium. On the other hand, the HPT process causes the decomposition the supersaturated solid solution and the formation of dispersed particles sized up to 20 nm along the boundaries of the matrix fragments (Figure 5d). The high dispersion and low volume fraction of these precipitates prevent them from being identified by electron microdiffraction patterns.

The calculation of the interplanar distances by the direct resolution of the particle lattice allows us to conclude that they are T-phase precipitates (d _(420)T = 0.3222 nm, Figure 5e,f).

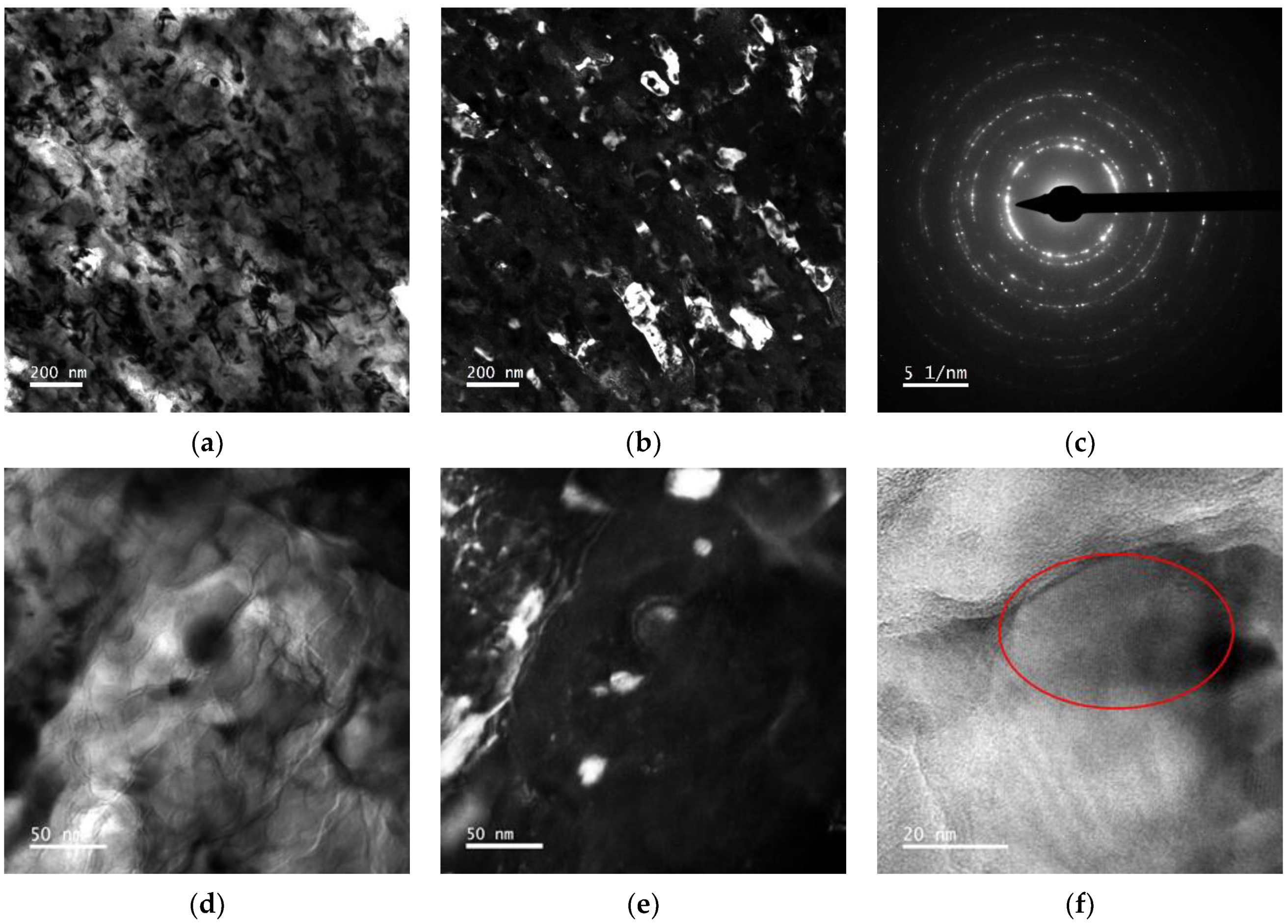

A characteristic feature of the structural state for n = 10 is the formation of a banded structure consisting of 40–120 nm grains/subgrains separated by low-angle and high-angle boundaries (Figure 6a–c).

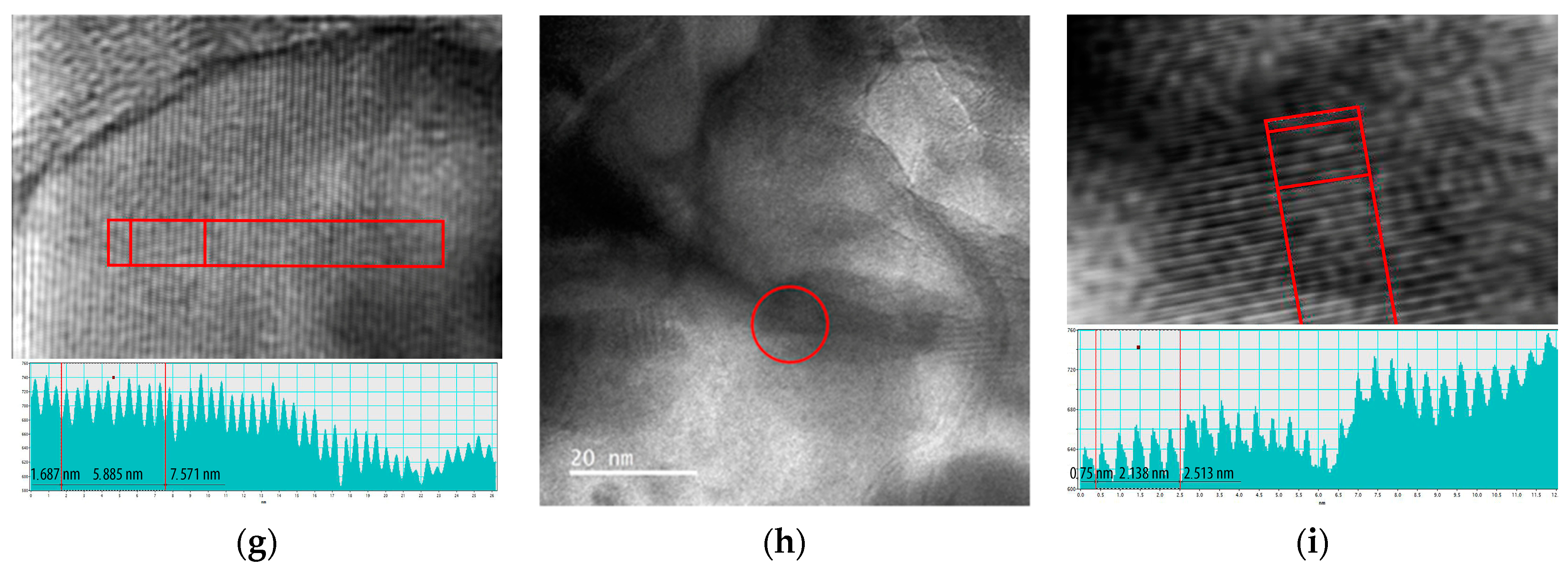

According to the HRTEM data, the growing amount of strain initiates the decomposition of the supersaturated solid solution (Figure 6d,e); besides precipitates along the boundaries of T-phase fragments sized 15 to 40 nm (d_(210)T = 0.5883 nm, Figure 6f,g), more dispersed 10 to 20 nm equiaxial particles of the η or η’-phase (d_(100)η’ = 0.4295 nm, d_(002)η = 0.4283 nm, Figure 6h,i) are detectable inside the grains/subgrains. As the amount of strain increases, large Al₉FeNi inclusions continue decreasing in size to 1–1.5 μm, with individual fragments being nanosized; the Al₃Zr distribution density remains practically unchanged.

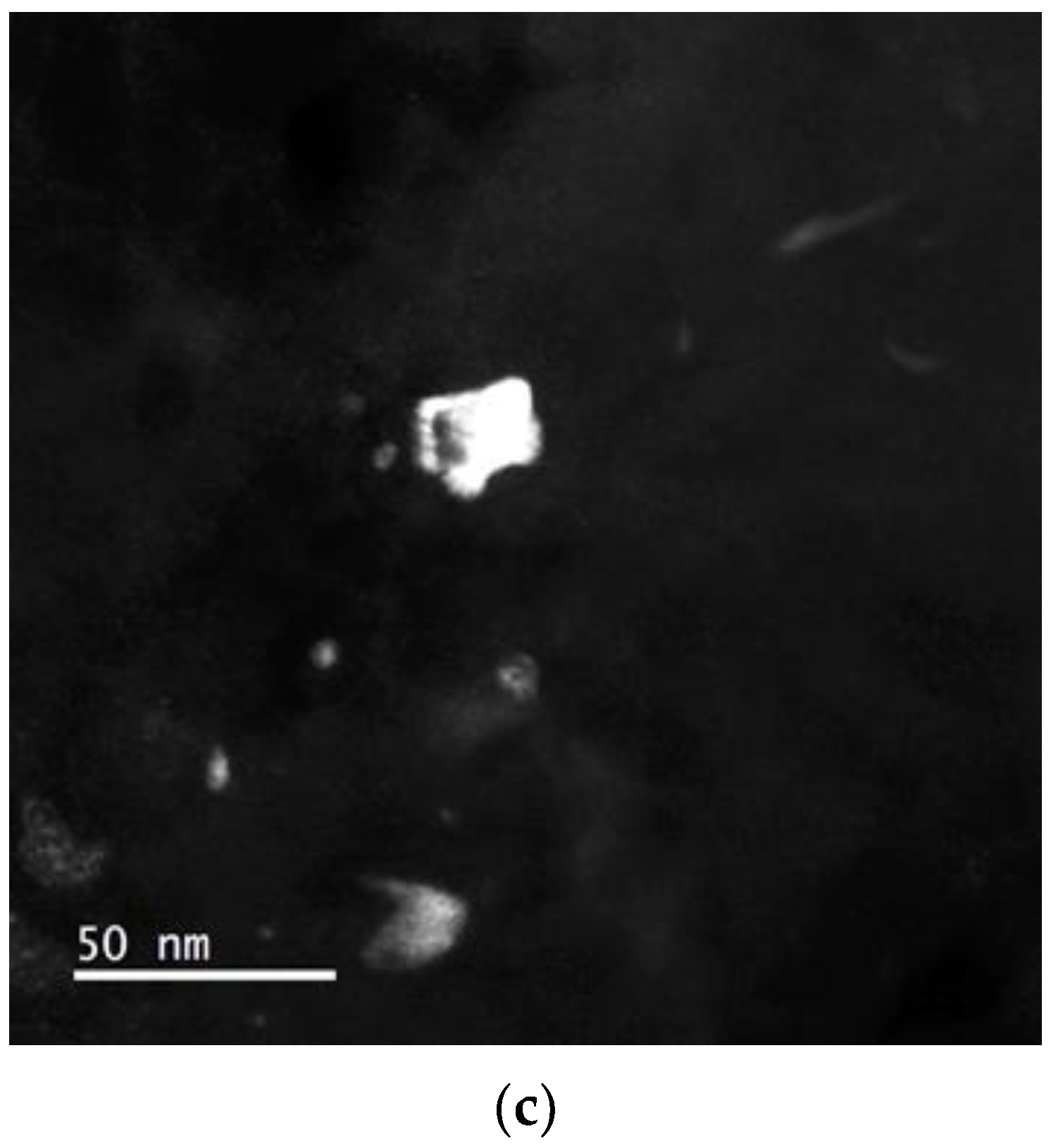

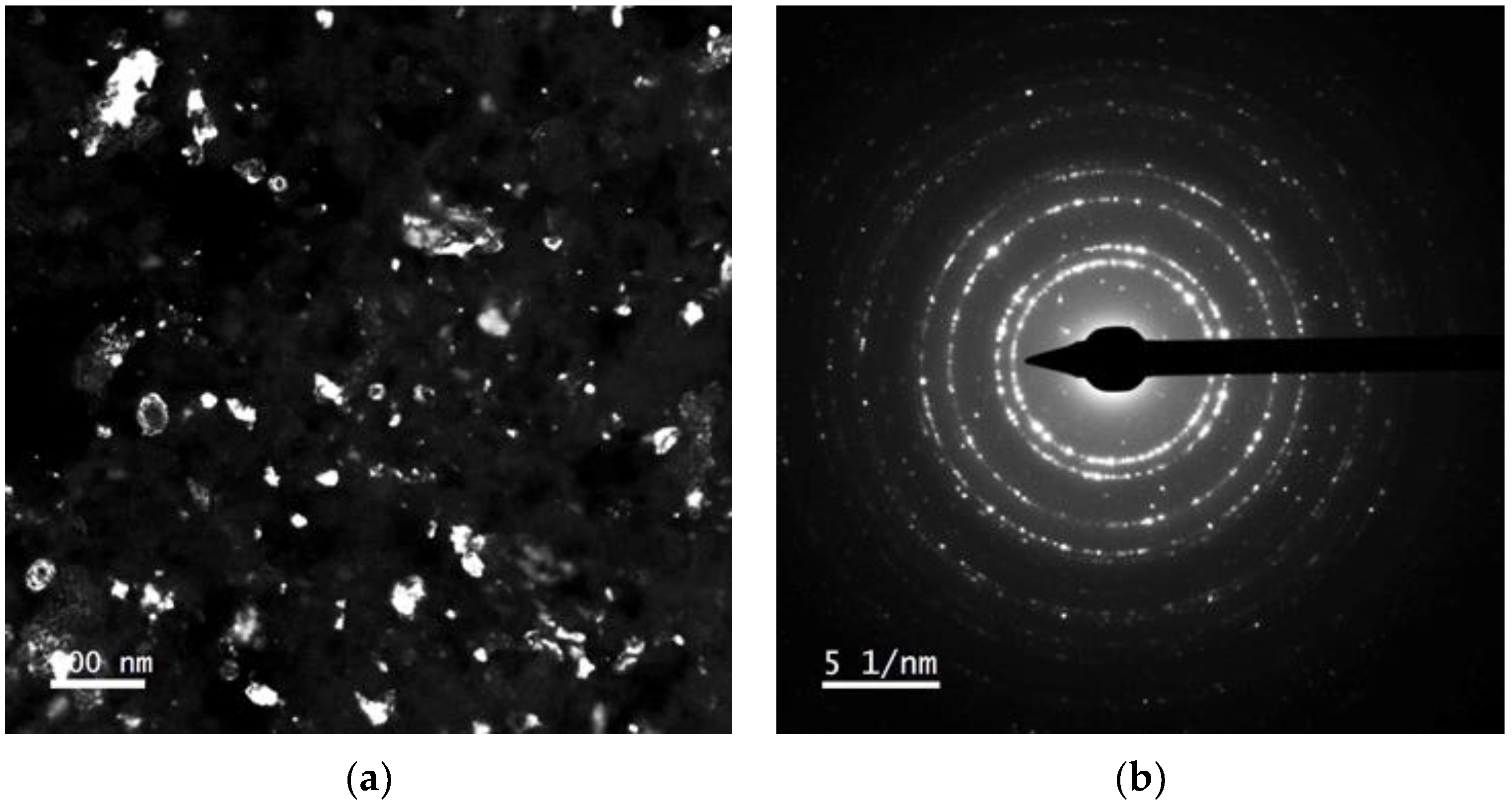

The maximum deformation with 15 revolutions causes results in a further refinement of the submicrocrystalline structure, this being clearly visible from the dark-field image (Figure 7a). The grains/subgrains size distribution becomes more uniform, with the average size reaching 30 to 90 nm, i.e., a nanostructured state is formed and grain misorientation angles increase, as follows from the annular electron diffraction pattern with numerous discrete point-like reflections (Figure 7b). Similarly to the structure of HPT nickalin 1, when n = 15, in the structure of HPT nickalin 2, in the triple joints and on the matrix-intermetallics interphase boundaries, there also appear recrystallized grains, i.e., two structure refinement processes occur simultaneously: fragmentation and in-situ recrystallization. On the background of the nanostructured matrix, there are intermetallic particles of different shapes and sizes, close to those found in HPT nickalin 2 after n = 10. In follows from the results of electron diffraction patterns and direct lattice resolution, they belong to four phases: Al₉FeNi, Al₃Zr, T, and η.

Thus, complex deformation processing, namely RSR + HPT, yields an aluminum-matrix composite reinforced with dispersed intermetallics of different natures.

3.3. Hardness and Mechanical Properties of Nickalin

The size characteristics of the alloy microstructure before and after HPT are vividly demonstrated by hardness testing. It has been found that nanostructured HPT nickalin 2 has a microhardness of 1800 to 2000 MPa, which by a factor of 1.7–1.8 exceeds that measured at the mid-radius of the RSR rod. Nanocrystalline nickalin 1 produced by HPT with the same amount of strain (n = 15) also has double microhardness relative to the macrocrystalline analog.

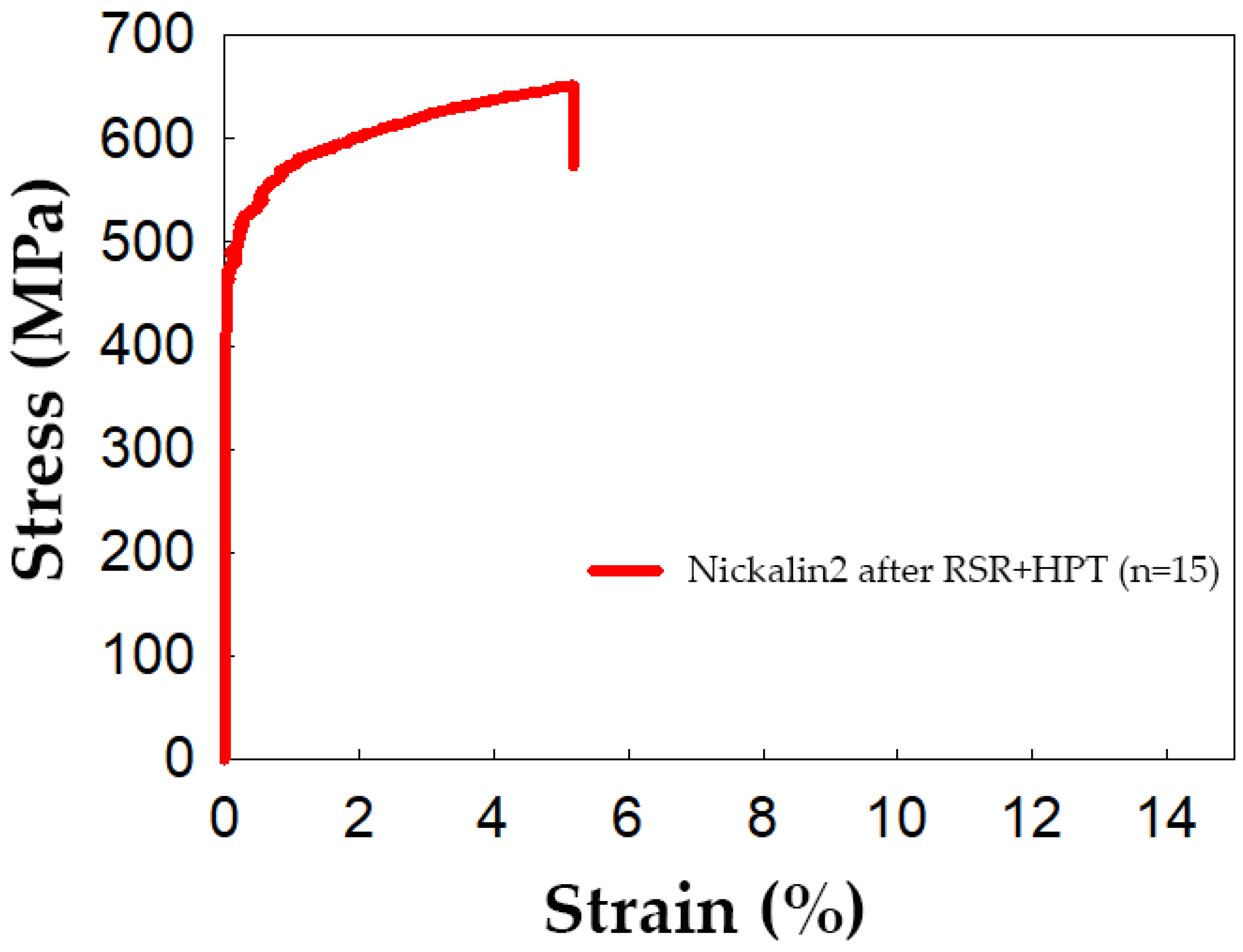

The procedure discussed in Section 2 was used to measure the mechanical properties of nanocrystalline alloys that were obtained by HPT with n = 15. Typical stress–strain diagram is shown in Figure 8. The average values obtained by measuring the mechanical properties of two samples are shown in

Table 2. Uniaxial tensile tests for the nickalins after different treatments.

Condition	Tensile Yield Strength, MPa	Ultimate Tensile Strength, MPa	Elongation, %
Ingot after homogenization	220	350	6
Rod after RSR, two passes, (mid-radius)	264	436	10
Nickalin 1 (ingot) after HPT (n = 15)	450	470	7
Nickalin 2 (rod) after RSR+ HP (n = 15)	628	640	5

in comparison with the properties of macrocrystalline analogs. Let us compare how mechanical characteristics of the cast alloy change depending on the type deformation processing. According to the Table 2, RSR increases the tensile yield strength (YS) of the cast alloy from 240 to 264 MPa. The combined treatment (RSR + HPT) causes an additional increase in YS to 628 MPa, i.e., 2.8 times relative to YS of an ingot and 1.8 times relative to ultimate tensile strength (UTS) of an ingot. It follows from the data that the strength properties of the nanostructured alloys after HPT and the combined treatment (RSR + HPT), exceed those for macrocrystalline analogs (an ingot, a rod). Tensile yield strength increases by a factor of 2.0–2.4 and ultimate tensile strength increases by a factor of 1.3–1.5. The different mechanical characteristics of nickalin 1 and nickalin 2 after HPT are determinates by the different structure, phase composition, and different structural strengthening mechanisms.

The higher values of the strength properties of HPT + RSR nickalin 2 (YS = 628 MPa, UTS = 640 MPa) then the strength properties of nickalin 1 (YS = 450 MPa, UTS = 470 MPa) are associated with a more dispersed structure and additional contribution of the strengthening from the dispersed particles of the secondary phase. The hardening mechanisms are described more detail in Section 4.

4. Discussion

This study shows the evolution of structural and phase transformations in the Al-Zn-Mg-Fe-Ni alloy with different histories during severe plastic deformation. An ingot after homogenization annealing (nickalin 1) and a rod after RSR (nickalin 2) served as initial specimens for HPT.

The microstructural studies, including SEM and high resolution TEM have shown that the structure formation mechanisms in common during HPT are as follows.

HPT results in an intensive refinement of the Al matrix structure to the nanocrystalline state. The formation of a dispersed structure follows two mechanisms: fragmentation at a true strain ε = 6.0 to 6.7 (n = 5, 10) and in-situ low-temperature dynamic recrystallization at ε = 7.1 (n = 15). The fragmented structure is characterized by the diffusion contrast of HABs, high dislocation density and the presence of LABs inside the grains/subgrains. The mixed structure consisting of deformation-induced fragments with LABs and HABs and recrystallized grains separated by HABs is bimodal, and this provides the best combination of strength and plastic properties. The average grain/subgrain size in HPT nickalin 1 is 100 nm, and it is 60 nm in HPT nickalin 2. Such nanostructures exhibit high hardness H_V = 2000 to 2600 MPa. The strengthening mechanisms for various materials after HPT were repeatedly proved in experiments reported in [19,20,21,35,36,37]; namely, according to the Hall–Petch equation, grain-boundary strengthening increases intensely, and the abundance of structural defects is responsible for the high value of the dislocation strengthening component.

The quantitative data obtained by TEM suggest that, during HPT, Al₉FeNi eutectic aluminides crash into fragments whose size becomes commensurate with the secondary phases; the fragments are uniformly distributed in the matrix volume. If the Al₉FeNi particles were micron-sized (2 to 5 μm) in the macrocrystalline analogs (the ingot and the rod), their size does not exceed 1 μm after HPT, and there appear nanoparticles when n = 15.

According to the TEM data, the phase composition of the alloy changes during HPT, the sequence and kinetics of the phase transformations being dependent on the history of the macrocrystalline analogs. As was noted in Section 3.2, during HPT of nickalin 1, at ε = 7.1, a supersaturated Al solid solution is formed due to the strain-induced dissolution of the secondary T-phase. Additional solid-solution hardening combined with grain-boundary and dislocation components provides high hardness to the material, H_V = 2500 MPa.

Additionally, the formation of a supersaturated Al solid solution during HPT can be proved by the results obtained during subsequent post-deformation heat treatment [31,32]. According to this data, low-temperature annealing (T = 120–160 °C) is accompanied by the decomposition of the supersaturated Al solid solution, which occurs simultaneously with the thermal softening of the alloy. Dispersed particles of the T and η strengthening phases precipitate as a result of artificial aging. Due to aging, the hardening achieved under HPT remains high. The presence of the nanostructure significantly reduces the duration of the maximum effect of Al solid solution decomposition from 3–6 h to 0.5–1.0 h. Consequently, the thermal deformation processing of nickalin 1 forms a two-phase material consisting of a nanostructured supersaturated Al solid solution and micron-sized Al₉FeNi aluminides of eutectic origin.

The phase transformations in nickalin 2 under HPT are more diverse. Prior to RSR deformation, the rod had a multiphase composition comprising, besides the Al matrix and Al₉FeNi aluminides, the Al₃Zr and MgZn₂ secondary phases. The conditions of their formation are described in Section 3.1.

Under HPT these phases alter their morphologies and sizes owing to two opposite processes induced by SPD, namely the strain-induced dissolution of intermetallics and the kinetic strain aging of the Al matrix. As a result of HPT (n = 5, ε = 6.0), the MgZn₂ phase dissolves with the accumulation of mobile dislocations, which, while moving, cut the particles and transfer magnesium and zinc atoms into the Al solid solution. An increase in true strain to ε = 6.7–7.1 (n = 10–15) intensifies the subsequent decomposition of the supersaturated solid solution under kinetic strain aging. This inversion of the matrix composition results in that the stick-shaped particles of the η phase disappear and that dispersed (40 nm) globular precipitates of the T-phase appear along the grain/subgrain boundaries of the Al matrix.

One of the possible reasons for the heterogeneous nucleation of secondary phases at the grain/subgrain boundaries is the appearance of abnormal grain-boundary segregations of the atoms of alloying elements under HPT, whose formation was proved theoretically [38] and experimentally [37,39]. In this connection, the precipitation of the secondary phases along the grain boundaries is easier, and they become dominant. Besides, the size of the particles and their discrete arrangement along the boundaries of the nanocrystalline structure does not decrease the alloy plasticity. Note that a distinctive feature of the morphology of the zinc-magnesium phases precipitating at low temperature under SPD is their globular shape.

As deformation with n = 10 increases (ε = 6.7), strain aging further develops, inside the grains/subgrains of the Al matrix there appear nanosized precipitates of the η’ phase, the quantity of which increases with the amount of strain, ε = 7.1 (n = 15). The reasons for the alternation and competition of the T and η’ phase precipitations under dynamic aging can be explained by referring to the results reported in [40], where it was found by atom probe tomography that, at an early stage of aging, clusters form in the Al-Zn-Mg-Cu alloy, with different Zn/Mg atomic ratios depending on Zn content in the supersaturated solid solution. With the atomic ratio Zn/Mg < 1.3, the clusters transform into the T-phase, and when Zn/Mg > 1.3 they turn into the η’-phase. As a result of the nonuniform deformation of the specimen volumes during HPT, the local regions of the strain-induced supersaturated Al solid solution have different combinations of alloying element concentrations. Accordingly, clusters appear with different Zn/Mg atomic ratios, which serve as centers for heterogeneous nucleation of strengthening phase precipitates.

The possibility of the occurrence of the above phase transformations during low-temperature SPD stems from a several orders of magnitude increase in the atomic diffusion coefficients of the alloying elements in the Al matrix due to excess vacancy concentration [41,42]. Besides, the formation of a strain-induced supersaturated solid solution may be due to the pinning and transfer of alloying element atoms on dislocations during their migration.

The XRD analysis confirms the TEM results and based on the change in the matrix lattice parameter before and after HPT from a = 0.4064 ± 0.0001 nm (n = 0) to a = 0.4067 ± 0.0002 nm (n = 15).

The analysis of the structural and strength characteristics of the Al-Zn-Mg-Fe-Ni alloy after HPT shows their interrelation. The difference between the phase compositions of nickalin 1 and nickalin 2 causes the different mechanical characteristics of these materials due to the action of different structural strengthening mechanisms. The total strength of nickalin 1 (YS = 450 MPa, UTS = 470 MPa) is the sum of grain-boundary strengthening by the Hall–Petch mechanism, dislocation strengthening resulting from high dislocation density, and solid-solution strengthening. The higher values of the strength properties of HPT nickalin 2 (YS = 628 MPa, UTS = 640 MPa), which is a multiphase nanocomposite, are caused by the additional contribution of dispersion strengthening from the dispersed particles of the secondary phase through the Orowan mechanism, as well as by the greatest contribution of the grain-boundary mechanism to the total strength due to the formation of smaller (half-size) grains. The comparison of the obtained strength characteristics with the corresponding properties of the Al-Zn-Mg-Fe-Ni alloy after four RSR cycles (YS = 410 MPa, UTS = 430 MPa) [33] shows the advantage of using combined deformation processing. Besides, the mechanical properties are comparable with those of other 7xxx series alloys after SPD and aging. For example, YS = 525 MPa, UTS = 547 MPa in the 7050 alloy after six ECAP passes (route Bc) [27] and YS = 520 MPa in the Al-Zn-Mg alloy after ECAP and aging [28].

5. Conclusions

• The effect of combined deformation processing (RSR + HPT) on the structural and phase transformations and mechanical properties of the Al-Zn-Mg-Cu-Fe-Ni eutectic alloy has been studied. It has been found that severe plastic deformation is accompanied by the formation of a high-strength (Hv = 2000 to 2600 MPa) aluminum-matrix composite reinforced with dispersed intermetallic compounds of different origins.
• With the application of high-resolution TEM methods, the morphological and size characteristics of the Al matrix, Al₉FeNi eutectic aluminides, and secondary phases has been determined. The mixed nanostructure of the matrix is formed by two mechanisms: fragmentation and continuous dynamic recrystallization; the average grain/subgrain size changes from 60 to 100 nm depending on the alloy history. Eutectic aluminides break down into micron-sized fragments and become uniformly distributed in the volume; the strengthening phases precipitate in the form of globules on the grain boundaries and inside the matrix grains.
• The sequence of phase transformations induced by HPT, namely strain-induced dissolution of secondary phases and kinetic strain aging of the Al matrix, has been identified, as well as their evolution at different amounts of strain. The phase transformations induced by HPT are an additional channel of elastic energy relaxation. It has been demonstrated that the strain-induced dissolution of the initial Mg₂Zn phase and the formation of a supersaturated Al solid solution occur at n = 5. At n = 10–15 it is replaced by the decomposition of Al solid solution and the appearance of nanosized strengthening metastable T and η’ phases.
• The mechanical properties of the nanostructured composite (YS = 628 MPa, UTS = 640 MPa) have been determined; their comparison with the properties of 7xxx series alloys after SPD proves the expediency of using combined deformation processing for Al-Zn-Mg-Fe-Ni alloys.
