Article

Electrical Explosion Synthesis, Oxidation and Sintering Behavior of Ti-Al Intermetallide Powders

1
Institute of Strength Physics and Material Science, Siberian Branch of Russian Academy of Science, Av. Akademicheskii 2/4, 634055 Tomsk, Russia
2
Research and Education Center Additive Technologies, National Research Tomsk State University, 36 Lenin Ave., 634050 Tomsk, Russia
*
Author to whom correspondence should be addressed.
Metals 2021, 11(5), 760; https://doi.org/10.3390/met11050760
Submission received: 31 March 2021 / Revised: 30 April 2021 / Accepted: 1 May 2021 / Published: 5 May 2021
(This article belongs to the Special Issue Metals Powders 2021: Synthesis and Processing)

Abstract

:
In this research, Ti-Al powders were produced by electrical explosion of twisted titanium and aluminum wires. The resulting powders were pressed and sintered in a vacuum to obtain bulk composites. Transmission electron microscopy (TEM), energy dispersive spectroscopy (EDS), scanning electron microscopy (SEM), and X-ray diffraction (XRD) studies were performed to analyze synthesized powders and bulk composites. The studies carried out showed the presence of α-Ti, α2-Ti3Al, and γ-TiAl phases, which are formed by coalescence of Ti and Al clusters formed in the process of non-synchronous electrical explosion of twisted wires. Furthermore, an increase in the energy injected into the wires leads to a decrease in the content of micron particles in the powder. During sintering of pressed Ti-Al powder in the range 800–1250 °C, phase transformations occur due to the diffusion of aluminum atoms towards Ti compounds. The research findings can be used to obtain Ti-Al particles and bulk composites with a controllable phase composition.

1. Introduction

Intermetallic compounds, especially titanium aluminides, are promising materials for many technical applications due to their attractive properties. These include high-temperature materials for gas turbines, corrosion-resistant materials, and materials for aerospace and automotive engines [1]. Titanium aluminides are characterized by low density, high strength at elevated temperatures, good oxidation and corrosion resistance, etc. [2,3,4].
Commonly, micron-sized particles of titanium and aluminum are used for the synthesis of Ti-Al-based intermetallics by the sintering of elemental metallic powders. However, the difference in diffusion coefficients between titanium and aluminum is so great that the Kirkendall effect [5,6] occurs where sintering leads to the formation of pores and cracks in the bulk of the material [7,8]. To suppress the formation and growth of the pores and cracks, for example, hot isostatic pressing [8] or spark plasma sintering [9,10] is used, which makes it possible to obtain dense Ti-Al intermetallic compounds. However, pressureless sintering is still a subject of research due to the simplicity and lower cost of the process. For pressureless sintering, it is necessary to suppress the formation and growth of the Kirkendall pores, for example by using synthesized Ti-Al particles.
Thus, Ti-Al intermetallide powders can be obtained by high-energy mechanical milling of a titanium and aluminum elemental powder mixture. Xiao et al. [11] obtained Ti-47% Al (mole fraction) powder by high energy double mechanical milling a mixture of Ti powder (average particle size 150 µm) and Al powder (average particle size 50 µm) under argon. Liu et al. [12] used Ti (size under 0.15 mm) and Al (size under 0.18 mm) powders to get Ti50Al50 (at%) intermetallide. It has been proposed that micron-sized titanium aluminide powders could be obtained by gas atomization of titanium and aluminum melts [10,13]. Mogale et al. [10] demonstrated that the preferred methods to produce titanium aluminide powders are mechanical milling, mechanical alloying, and cryomilling of elemental powders, each of which has its own advantages and disadvantages.
An important disadvantage of γ-TiAl intermetallic compounds is the low plasticity and impact strength at room temperature and low creep resistance at operating temperatures (700–750 °C). Li et al. [14] have shown that a good solution to this problem is the development of fine-grained and nano-structured γ-TiAl materials. Previously, numerous attempts have been made to improve plasticity by refining the grain of alloys to nanoscale [15] or obtaining a fine-grained structure of the intermetallic compound by modifying with boron [16].
A promising way to obtain nanostructured titanium aluminide materials is the consolidation of Ti-Al nanoparticles. Accordingly, it is necessary to develop various methods for the synthesis of Ti-Al intermetallic nanoparticles, which, on the one hand, will avoid the formation of Kirkendall pores, and, on the other hand, will improve the mechanical characteristics of the bulk material. However, as far as we know, methods for the synthesis of γ-TiAl nanoparticles have not been widely studied. Calderon et al. [17] obtained Ti-Al nanoparticles by the mechanical alloying of high purity aluminum and titanium elemental powders (particle sizes less than 200 μm) in a ball mill under an argon atmosphere. Using the spark plasma sintering method of these powders, bulk nano-grained material has been obtained with the chemical compositions of Al41Ti59 and average grain size of 137 ± 15 nm. However, methods for producing nanoparticles based on mechanical grinding of elemental powders take a long time, about 700 h. In addition, it is difficult to control the nanoparticle phase composition when grinding and the powders have a wide size distribution. Nanoparticles consisting of TiAl and Ti3Al phases with an average size of 30 nm were produced by arc melting an Al-Ti ingot in a 50% Ar and 50% H2 0.1 MPa mixture atmosphere. The disadvantage of this method is a higher generation rate of aluminum vapor compared to that of titanium vapor results in a lower Ti content. Al and Ti atoms in a vapor state collide and grow into Al-Ti clusters. The lower Ti content in vapor can lead to low Ti content in the nanoparticles [18]. Flow-levitation technology was used for the synthesis of nanoparticles consisting of γ-TiAl and α2-Ti3Al phases with a size of 5–50 nm [14]. The method makes it possible to produce intermetallic compounds of high purity; however, the disadvantage of this technology is its low productivity 3 g/h.
Electrical explosion of wires is a widely used method for producing nanoparticles of metals and metal oxides [19] and has recently been developed to obtain alloy nanoparticles [20,21].
This paper investigates the synthesis method for the preparation of Ti-Al intermetallide particles by the simultaneous electrical explosion of the twisted titanium and aluminum wires and discusses the mechanism of the formation of Ti-Al particles. The sintering behavior of Ti-Al powders and phase evolution when sintering Ti-Al particles is also examined.

2. Materials and Methods

Ti-Al intermetallide particles were obtained by the simultaneous electrical explosion of twisted wires (EETW) of aluminum (0.35 mm in diameter) and titanium (0.32 mm in diameter) on a setup, the schematic diagram of which is shown in Figure 1. The wires are located in a tight container, which is attached to the setup, evacuated, and filled with argon under a pressure of 0.2 MPa. The productivity of the setup is about 200 g/h.
During the experiment, aluminum (MeA) and titanium (MeB) twisted wires of the length 100 mm (Table 1) are used. The ends of the wires are fixed on a high voltage electrode 1 and two grounded electrodes 2. The high voltage power supply SP charges the capacitor bank C up to a given voltage U, the value of which is monitored by a kilovoltmeter kV. On switching the controlled spark gap D, the energy stored in C is injected into the wires MeA and MeB and the electrical explosion occurs.
The time dependences of voltage U(t) and currents I(t), IMeA(t), and IMeB(t) on the wires were read from the ohmic voltage divider R1-R2 and Rogowski coils R3, R4, and R5 and recorded with a TDS2022B digital oscilloscope. The characteristic times corresponding to different stages of the EETW were determined from the voltage and current oscillograms.
The amount of energy injected into the wires was controlled by the capacitor bank voltage U0. The determination of the energy amount input into each of the wires W was performed based on the time dependences of the current and voltage recorded with the oscilloscope on the current shunt and a voltage divider. Geometrical and energetic parameters of the aluminum and titanium wires used to obtain Ti-Al particles are listed in Table 1. The mass of the wires dispersed approximately corresponded to the ratio of aluminum and titanium in the γ-TiAl intermetallide.
The energy E injected into the wires was evaluated from the oscillograms of the discharge current I(t) and voltage U(t) according to Equation (1) [21,22]
E = t 0 t n U t I t d t
The overheating of the wire metal can be estimated as the E/Es ratio [19,21], where Es is the sublimation enthalpy of each of the dispersed metals as presented in Table 1.
The synthesized Ti-Al particles and bulk sintered samples were characterized by transmission electron microscopy (TEM) using a JEM-2100 electron microscope (JEOL, Tokyo, Japan) integrated with an X-Max energy dispersive spectrometer (Oxford Instruments, Abingdon, UK), X-ray diffractometry (XRD) using Shimadzu XRD-7000 diffractometer (Shimadzu, Kyoto, Japan) and scanning electron microscopy (SEM) using LEO EVO 50 electron microscope (Carl Zeiss AG, Jena, Germany) equipped with an INCA-Energy 450 EDS analyzer (Oxford Instruments, Abingdon, UK). The qualitative and quantitative phase composition of the samples (powders and consolidated materials) was estimated using the XPowder software package (XPowder, Granada, Spain) and the database of crystallographic structures PDF2.
The average particle size (as) was calculated from the data on the specific surface area (Ss) of the powders according to Equation (2) [19]:
a s = 6 ρ S s
The specific surface area of the powders was determined by the nitrogen adsorption-desorption method using the Sorbtometer M (Katakon, Novosibirsk, Russia) apparatus and calculated by the BET method.
The oxidation behavior of the powders was studied using thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) apparatus NETZSCH STA 449F3 (Netzsch, Waldkraiburg, Germany). The samples of 5–10 mg were heated in airflow from ambient temperature to 1500 °C at a heating rate of 10 °C min−1.
Bulk composites were obtained by pressing of Ti-Al powder followed by pressureless sintering. For this, a powder sample weighing 1.0 g was pressed in a steel mold under pressure 500 MPa to obtain pellets with a diameter of 10.05 ± 0.05 mm and a thickness of about 5 mm. Cylindrical samples were sintered in a vacuum furnace in the temperature range 800–1250 °C according to the processing scheme shown in Figure 2. The relative density was calculated based on the geometric dimensions of the sintered samples.

3. Results and Discussion

3.1. Electrical Explosion Phenomenon

According to the data available in the literature (see, for example, [19]), overheating value E/Es is one of the main parameters that determine the properties of the nanoparticles synthesized by the electrical explosion of wire. It can be assumed that this parameter will also play a decisive role in the synthesis of the intermetallide particles by the simultaneous electrical explosion of two wires in close contact.
In EETW, the time dependences I(t) and U(t) are crucial for the fundamental understanding of the explosion process. Figure 3 shows the time dependences of the current IAl(t) and the energy injected into the wire EAl(t) for aluminum, the current ITi(t) and the energy injected ETi(t) for titanium, total voltage U(t), and current I(t) for twisted wires. The explosion points of Ti and Al wires are designated as texp(Ti) and texp(Al), respectively.
As shown in Figure 3, an increase in U0 from 22 to 29 kV makes it possible to increase the energy EAl(t) injected into the aluminum wire from 1.2Es to 2.1Es, and into the titanium wire from 0.82Es to 1.5 Es. At the minimum values of E/Es when U0 = 22 kV (Figure 3a), there is one local maximum on the U(t) curve, corresponding to the electrical explosion of aluminum wire (texp ~ 2.5 μs). The absence of the second local maximum in the U(t) curve allows us to conclude that titanium wire does not undergo dispersion by electrical explosion due to the low E/Es value (E/Es = 0.82). Under such conditions, most of the titanium wire is dispersed in the form of liquid metal droplets of micron and submicron sizes [23].
An increase in the energies injected into the wires (Figure 3b,c) leads to an increase in the fraction of energy ETi(t) injected into the titanium wire and the formation of two sequential local voltage peaks characteristic for the electrical explosion of aluminum and titanium wires [24]. The wires explode sequentially, i.e., non-synchronously. With an increase in E/Es value, the time interval between wire explosions decreases from 0.67 μs to 0.46 μs.

3.2. Ti-Al Particle Characterization

Figure 4 shows images of the particles prepared by EETW of aluminum and titanium twisted wires at different energy injected levels. It follows from the data presented that with increasing energy injected, a decrease in the average particle size (as) calculated from the data on the specific surface area of the powder samples is observed, indicating the increase of the nanoparticle mass fraction. The observed regularity of the decrease in the average size of Ti-Al particles is similar to the typical size of metal particles formed during the electrical explosion of single wires in an inert atmosphere [19]. In addition, with an increase in the energy injected into the wires, a decrease in the number of micron-sized particles is observed in the powders studied.
The phase composition of the powders obtained at different E/Es values is mainly represented by the γ-TiAl phase; the powders also contain α-Ti and α2-Ti3Al (Figure 5). No free aluminum or TiO2 and Al2O3 were found in the powders. According to the Ti-Al phase diagram, the α-Ti phase is a solid solution with an aluminum content of up to 10 at.% [25]. Elemental analysis of Ti-Al particles obtained at various E/Es values shows that, in general, the particles are equally composed of Ti and Al atoms (Figure 6). An increase in the amount of energy injected into the wires does not lead to a significant change in the phase composition of the powders (Table 2). Only in sample 3, obtained at U0 = 29 kV, a decrease in the content of the α-Ti phase and an increase in the content of the γ-TiAl phase are observed.

3.3. Ti-Al Particle Formation

The mechanism of particle formation in the simultaneous electrical explosion of two wires of different metals is determined by the phase state of the explosion products. In the case of the electrical explosion of metals with a high melting point and electrical resistivity (Fe, Ni, Ti, Mo, W), most of the explosion products are in a state of liquid metal droplets of micron and submicron sizes [23]. In the case of the electrical explosion of metals with a low melting point and electrical resistivity (Ag, Cu, Al), the explosion products of wires are represented by a homogeneous mixture of liquid metal clusters and weakly ionized plasma [23,26]. When bimetallic nanoparticles Al-Cu and Al-Ag are obtained using the simultaneous electrical explosion of two wires, homogeneous distribution of the explosion products occurs. Under such conditions, the ratio (in at.%) of metals in a nanoparticle corresponds to the ratio of metals in wires. The phase composition of the particles formed is in accordance with the phase diagram of binary systems [20,27].
The use of the simultaneous electrical explosion of metal wires with high and low electrical resistivity is accompanied by the formation of explosion products with a complex phase composition. Along with weakly ionized plasma and liquid metal clusters, the explosion products contain liquid droplets of metal with a higher melting point and electrical resistivity. This leads to the formation of particles in a state of binary melt with different metal ratios in the explosion products: nano-sized particles with a metal ratio close to that in the wire and micron/submicron particles with a higher content of metal with high electrical resistivity. This feature of the phase state of the metal explosion products with high and low electrical resistivity leads to the formation of a more complex composition phase of particles that does not correspond to the phase diagram of binary systems. These regularities of the phase formation were observed in the Ni-Al samples in [28,29].
The EETW products of titanium and aluminum wires contain micron and submicron titanium particles. Upon coalescence of the explosion products of titanium and aluminum wires, micron titanium particles will be alloyed with aluminum, which creates conditions for the formation of α-Ti and α2-Ti3Al phases. The ratio of metals in nano-sized particles formed is close to that of metals in wires, which creates conditions for the formation of nanoparticles with a γ-TiAl structure. An increase in the energy injected into the wires in the investigated range U0 = 22–29 kV leads to a decrease in the number and size of micron titanium droplets, as a result, the content of α-Ti and α2-Ti3Al phases in the EETW products decreases. A decrease in the content of micron titanium particles can also be achieved by additional heating of the expanding EEW products at the stage of the arc [30]. SEM/EDX elemental map revealed the formation of Ti-Al particles with the homogeneous dispersion of Ti and Al atoms within the particles as shown in Figure 7 as well as the formation of both titanium and aluminum particles.

3.4. Ti-Al Particle Oxidation

The oxidation process of metal powders is a series of sequential stages. The oxidation process is controlled by the diffusion of reactive species through the oxide layer on the surface of the nanoparticles. The transition of the oxidation process to the next stage is due to the recrystallization of the surface oxide phases when the integrity of the oxide layer is disrupted [31,32].
Thermogravimetry is a very versatile technique for studying the oxidation behavior of metallic powders. For the study, the Ti-Al nanopowders with an average particle size of 133 nm were used, the nanoparticles were obtained at U0 = 29 kV. The TGA-DSC curves of the Ti-Al nanopowder are shown in Figure 8. When the nanopowder heating in the temperature range from ambient temperature to ≈290 °C, a negligible change in the sample mass is observed, probably due to the desorption of ambient gases from the surface. Starting from a temperature of 290 °C, the oxidation of nanoparticles is observed, accompanied by continuous heat release, the intensity of which increases with increasing temperature and by an increase in the sample mass.
Above 700 °C, the oxidation rate increases significantly, which follows from a sharp increase in the sample mass and the heat release rate. The maximum oxidation rate is reached at a temperature of about 765 °C. Reaching 1000 °C the oxidation rate is minimal. This temperature is the point of completion of the rapid nanopowder oxidation. Then the next stage of nanopowder oxidation begins, characterized by a second exothermic peak with a maximum at 1352–1378 °C.
The oxidation process is a series of sequential stages and the oxidation process in s single stage can, thus, be assumed to be a simple chemical heterogeneous reaction. The dependence of the conversion degree of the heterogeneous solid-gas reaction on time and accordingly on temperature under the conditions of thermal analysis has an S-shaped character.
Thus, the curve can be divided into a series of S-shaped curves, each of which characterizes the oxidation process at the corresponding stage.
Analyzing the thermogravimetric data [33,34] can describe the sample mass change during the oxidation process by the approximate Equation (3)
M T = M 0 + i = 1 N M i α i T
where N number of process stages; M 0 mass of nanopowder sample; M i sample mass gain at i-th stage; αi—conversion degree; T—absolute temperature.
Conversion degree as a function of temperature can be represented as (4)
α = 1 1 + exp 2 π T T 0 Δ T
depending on two parameters: characteristic temperature T0, the temperature of maximum reaction rate, and reaction temperature range ΔT where the approximately 90% conversion takes place.
As follows from the given curves, good agreement of the data is observed. The calculated parameters are shown in Table 3. Based on the parameter values calculated, the reaction temperature ranges are deduced.
As follows from the data presented the oxidation of Ti-Al powder is a sequence of 4 stages proceeding sequentially. The oxidation reaction at stage I proceeds due to the diffusion of the oxygen through the native oxide layer which determines its low rate. The oxidation reaction at stage II is characterized by a higher rate due to the amorphous oxide-anatase phase transition, while stage III is due to the anatase-rutile phase transition. Most of the powder is oxidized below a temperature of 1000 °C, the contribution of the oxidation process occurring at temperatures above 1000 °C is negligible.

3.5. Characterization of the Sintered Ti-Al Structures

To prevent oxidation of the Ti-Al powders, the sintering of the samples was carried out in a vacuum. To study the sintering behavior of Al-Ti powders in the temperature range 800–1250 °C, the pellets were prepared from the powder obtained at the maximum energy injected into the wires (U0 = 29 kV), and the particles had a minimum average size (as = 133 nm), and the content of γ-TiAl was 78 wt%. The pellets prepared had an average relative density of 0.57 of the theoretical (TD). The pellets were sintered according to the processing scheme shown in Figure 2. The scheme suggests two processing stages. Stage 1 is a degasification process when the removal of adsorbed gases from the particle surface takes place. At stage 2 the particles are directly sintered.
Figure 9 shows the fracture surfaces demonstrating the microstructural evolution of the samples sintered according to the processing scheme at a temperature ranging from 800 to 1250 °C as shown in Figure 2. Figure 9a shows an SEM image of the pristine Al-Ti powder. The data presented reveal that the powder consists of spherical nano- and microparticles. Nanoparticles partly located at the surface of the microparticles are partly aggregated and located among the microparticles forming randomly assembled 3D structures.
Exposure of the sample to 800 °C results in the formation of a continuous network (Figure 9b). Nanoparticles located at the surface of the microparticles are fully fused. The nanoparticle aggregates located in the interparticle space are fused among themselves. The spherical structure of both of the nanoparticles and the microparticles is somewhat conserved. The sample density increases to 0.65 TD. Sintering at 1000 °C, shows deeper transformation (Figure 9c). Particles are mostly fused and the initial particle microstructure is not observable. The polyhedron structure is quite pronounced and the original shape of the particles is not discerned. The density of the sample increases to 0.8 TD. Figure 9d (1250 °C) shows clearly that the sample is actually sintered completely. Microstructure formed is presented with polyhedron-shaped grains but not spherical particles. The particulate structure of the sample disappears, forming a lamellar structure that is well-known [35]. Porosity is still noticeable though the pores are small and rounded with the sample relative density being 0.92 TD.
Figure 10 shows the XRD spectra of the samples sintered according to the processing scheme shown in Figure 2. The quantitative phase composition of the sintered samples is presented in Table 4. The XRD pattern shows that the sample sintered at 800 °C contains γ-TiAl and TiO phases. The presence of the TiO phase is assumed to be a result of the oxidation of the α-Ti phase. The presence of titanium oxide in the sintered sample indicates that the incomplete degassing of the pressed powder occurring as a result of which oxygen at high temperatures diffuses into the titanium lattice to form the TiO phase. However, it is difficult to eliminate the oxygen during the fabrication of Ti powders. Additionally, the existence of a small amount of oxygen results in a strengthening of Ti alloys [36,37].
Sintering the pressed sample at a temperature of 1000 °C leads to a change in the phase composition. This change can be caused by the intensification of diffusion processes when increasing sintering temperature. The lack of titanium oxide XRD peaks suggests that the oxide layer on the surface of micron titanium particles is either absent or is in an X-ray amorphous state. This creates conditions for the diffusion of aluminum in areas depleted in aluminum, which leads to the implementation of the phase transformation α-Ti → α2-Ti3Al. The samples having been calcined at 1000 °C, Ti, and Al distribution characteristics are maintained the same as in pristine powder (Figure 11). A further increase in the sintering temperature of the samples to 1100 and 1250 °C does not lead to a significant change in the phase composition of the sample. The formation of the TiAl3 and TiAl2 phases is most likely the result of diffusion processes in the material. The presence of structural defects in the form of grain boundaries, microcracks, micropores prevents the diffusion of aluminum in the bulk of the material, which leads to the formation of phases enriched with aluminum [38,39,40].

4. Conclusions

The simultaneous electrical explosion of the aluminum and titanium twisted wires leads to the formation of micron, submicron, and nano-sized Ti-Al particles. An increase in the energy injected into the wires at EETW leads to a decrease in the fraction of micron-sized Ti-Al particles, with the average Ti-Al particle size decreasing from 240 to 133 nm. A likely mechanism for the formation of Ti-Al particles is the coalescence and coagulation of Ti and Al clusters with the formation of the α-Ti, α2-Ti3Al, and γ-TiAl phases. The ratio of the phases is determined by the titanium and aluminum diffusion and phase formation rates depending on the cluster sizes.
Ti-Al intermetallic powder is easily oxidized in air, and most of it is oxidized to a temperature of 1000 °C. Therefore, the sintering of pressed samples should be carried out in a vacuum furnace. When sintering pressed samples of Ti-Al particles in the temperature range 800–1250 °C, the Ti2Al, TiAl2, and TiAl3 phases are formed due to the diffusion of Al towards Ti as a result of the higher diffusion coefficient of aluminum compared to that of titanium.
The simultaneous electrical explosion of the twisted metal wires is a productive, versatile, and adaptable method when producing intermetallic compounds suitable for powder metallurgy applications. From the data obtained, it can be concluded that the simultaneous electrical explosion of the aluminum and titanium twisted wires can be used to obtain Ti-Al powder, which is promising for the production of bulk composites.

Author Contributions

Conceptualization, M.L., E.G. and N.R.; methodology, M.L. and E.G.; validation, N.R. and A.P.; investigation, A.P. and N.T.; data curation, N.R., A.P. and N.T.; writing original draft preparation, M.L., E.G. and N.R.; review and editing, E.G. and N.R.; supervision, M.L. and E.G.; project administration, M.L.; funding acquisition, M.L. All authors have read and agreed to the published version of the manuscript.

Funding

The study was supported by a grant Russian Science Foundation (project No. 21-79-30006).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cinca, N.; Lima, C.R.C.; Guilemany, J.M. An overview of intermetallics research and application: Status of thermal spray coatings. J. Mater. Res. Technol. 2013, 2, 75–86. [Google Scholar] [CrossRef] [Green Version]
  2. Brotzu, A.; Felli, F.; Marra, F.; Pilone, D.; Pulci, G. Mechanical properties of a TiAl-based alloy at room and high temperatures. Mater. Sci. Technol. 2018, 34, 1847–1853. [Google Scholar] [CrossRef]
  3. Clemens, H.; Mayer, S. Intermetallic titanium aluminides in aerospace applications–processing, microstructure and properties. Mater. High Temp. 2016, 33, 560–570. [Google Scholar] [CrossRef]
  4. Bewlay, B.P.; Nag, S.; Suzuki, A.; Weimer, M.J. TiAl alloys in commercial aircraft engines. Mater. High Temp. 2016, 33, 549–559. [Google Scholar] [CrossRef]
  5. Wang, G.-X.; Dahms, M. Synthesizing gamma-TiAl alloys by reactive powder processing. JOM 1993, 45, 52–56. [Google Scholar] [CrossRef]
  6. Lee-Sullivan, P. HIP processing of Ti-Al intermetallic using blended elemental powder. J. Mater. Process. Technol. 1993, 38, 1–13. [Google Scholar] [CrossRef]
  7. Wang, G.-X.; Dahms, M. An effective method for reducing porosity in the titanium aluminide alloy Ti52Al48 prepared by elemental powder metallurgy. Scr. Metall. Mater. 1992, 26, 1469–1474. [Google Scholar] [CrossRef]
  8. Dahms, M.; Schmelzer, F.; Seeger, J.; Wildhagen, B. Microstructure and Mechanical Properties of γ Base Titanium Aluminide Produced from Extruded Elemental Powders. Mater. Sci. Technol. 1992, 8, 359–362. [Google Scholar] [CrossRef]
  9. Kennedy, S.; Rao, S.K.T.S. Densification of γ-TiAl Powders by Spark Plasma Sintering. Mater. Sci. Forum 2012, 710, 303–307. [Google Scholar] [CrossRef]
  10. Mogale, N.F.; Matizamhuka, W.R. Spark Plasma Sintering of Titanium Aluminides: A Progress Review on Processing, Structure-Property Relations, Alloy Development and Challenges. Metals 2020, 10, 1080. [Google Scholar] [CrossRef]
  11. Xiao, S.; Tian, J.; Xu, L.; Chen, Y.; Yu, H.; Han, J. Microstructures and mechanical properties of TiAl alloy prepared by spark plasma sintering. Trans. Nonferrous Met. Soc. China 2009, 19, 1423–1427. [Google Scholar] [CrossRef]
  12. Liu, Y.; Liu, W. Mechanical alloying and spark plasma sintering of the intermetallic compound Ti50Al50. J. Alloys Compd. 2007, 440, 154–157. [Google Scholar] [CrossRef]
  13. Gerling, R.; Clemens, H.; Schimansky, F.P. Powder metallurgical processing of intermetallic gamma titanium aluminides. Adv. Eng. Mater. 2004, 6, 23–38. [Google Scholar] [CrossRef]
  14. Li, X.B.; Zhang, J.B.; Ji, X.C.; Wu, X.Q.; Luo, J.S.; Tang, Y.J. A Small Patch Production of γ-TiAl Alloys Nanoparticles via Physical Vapor-phase Method. Integr. Ferroelectr. 2013, 147, 146–153. [Google Scholar] [CrossRef]
  15. Froes, F.H.; Senkov, O.N.; Baburaj, E.G. Synthesis of nanocrystalline materials. Mater. Sci. Eng. A 2001, 301, 44–53. [Google Scholar] [CrossRef]
  16. Wu, X. Review of alloy and process development of TiAl alloys. Intermetallics 2006, 14, 1114–1122. [Google Scholar] [CrossRef]
  17. Calderon, H.A.; Garibay-Febles, V.; Umemoto, M.; Yamaguchi, M. Mechanical properties of nanocrystalline Ti–Al–X alloys. Mater. Sci. Eng. A 2002, 329–331, 196–205. [Google Scholar] [CrossRef]
  18. Liu, T.; Zhang, T.; Zhu, M.; Qin, C. Synthesis and structures of Al–Ti nanoparticles by hydrogen plasma-metal reaction. J. Nanopart. Res. 2012, 14, 738. [Google Scholar] [CrossRef]
  19. Kotov, Y.A. Electric Explosion of Wires as a Method for Preparation of Nanopowders. J. Nanopart. Res. 2003, 5, 539–550. [Google Scholar] [CrossRef]
  20. Pervikov, A.V.; Kazantsev, S.O.; Lozhkomoev, A.S.; Lerner, M.I. Bimetallic Al/Ag, Al/Cu and Al/Zn nanoparticles with controllable phase compositions prepared by the electrical explosion of two wires. Powder Technol. 2020, 372, 136–147. [Google Scholar] [CrossRef]
  21. Pervikov, A.V.; Suliz, K.V.; Lerner, M.I. Nanoalloying of clusters of immiscible metals and the formation of bimetallic nanoparticles in the conditions of non-synchronous explosion of two wires. Powder Technol. 2020, 360, 855–862. [Google Scholar] [CrossRef]
  22. Lerner, M.I.; Pervikov, A.V.; Glazkova, E.A.; Svarovskaya, N.V.; Lozhkomoev, A.S.; Psakhie, S.G. Structures of binary metallic nanoparticles produced by electrical explosion of two wires from immiscible elements. Powder Technol. 2016, 288, 371–378. [Google Scholar] [CrossRef]
  23. Sarkisov, G.S.; Sasorov, P.V.; Struve, K.W.; McDaniel, D.H. State of the metal core in nanosecond exploding wires and related phenomena. J. Appl. Phys. 2004, 96, 1674–1686. [Google Scholar] [CrossRef]
  24. Pervikov, A.; Glazkova, E.; Lerner, M. Energy characteristics of the electrical explosion of two intertwined wires made of dissimilar metals. Phys. Plasmas 2018, 25, 070701. [Google Scholar] [CrossRef]
  25. Kattner, U.R.; Lin, J.C.; Chang, Y.A. Thermodynamic Assessment and Calculation of the Ti-Al system. Metall. Trans. A 1992, 23, 2081–2090. [Google Scholar] [CrossRef]
  26. Romanova, V.M.; Ivanenkov, G.V.; Mingaleev, A.R.; Ter-Oganesyan, A.E.; Tilikin, I.N.; Shelkovenko, T.A.; Pikuz, S.A. On the phase state of thin silver wire cores during a fast electric explosion. Phys. Plasmas 2018, 25, 112704. [Google Scholar] [CrossRef]
  27. Pervikov, A.; Lerner, M. Mechanism of the formation of the structure and phase state of binary metallic nanoparticles obtained by the electric explosion of two wires made of different metals. Curr. Appl. Phys. 2017, 17, 1494–1500. [Google Scholar] [CrossRef]
  28. Ishihara, S.; Koishi, T.; Orikawa, T.; Suematsu, H.; Nakayama, T.; Suzuki, T.; Niihara, K. Synthesis of intermetallic NiAl compound nanoparticles by pulsed wire discharge of twisted Ni and Al wires. Intermetallics 2012, 23, 134–142. [Google Scholar] [CrossRef]
  29. Abraham, A.; Nie, H.; Schoenitz, M.; Vorozhtsov, A.; Lerner, M.; Pervikov, A.; Rodkevich, N.; Dreizin, E. Bimetal Al–Ni nano-powders for energetic formulations. Combust. Flame 2016, 173, 179–186. [Google Scholar] [CrossRef]
  30. Bora, B.; Kausik, S.S.; Wong, C.S.; Chin, O.H.; Yap, S.L.; Soto, L. Observation of the partial reheating of the metallic vapor during the wire explosion process for nanoparticle synthesis. Appl. Phys. Lett. 2014, 104, 223108. [Google Scholar] [CrossRef] [Green Version]
  31. Vorozhtsov, A.B.; Lerner, M.; Rodkevich, N.; Nie, H.; Abraham, A.; Schoenitz, M.; Dreizin, E.L. Oxidation of nano-sized aluminum powders. Thermochim. Acta 2016, 636, 48–56. [Google Scholar] [CrossRef] [Green Version]
  32. Ouyang, P.; Mi, G.; Li, P.; He, L.; Cao, J.; Huang, X. Non-Isothermal Oxidation Behaviors and Mechanisms of Ti-Al Intermetallic Compounds. Materials 2019, 12, 2114. [Google Scholar] [CrossRef] [Green Version]
  33. Vorozhtsov, A.B.; Rodkevich, N.G.; Bondarchuk, I.S.; Lerner, M.I.; Zhukov, A.S.; Glazkova, E.A.; Bondarchuk, S.S. Thermokinetic investigation of the aluminum nanoparticles oxidation. Int. J. Energetic Mater. Chem. Propuls. 2017, 16, 309–320. [Google Scholar] [CrossRef]
  34. Bondarchuk, I.S.; Bondarchuk, S.S.; Borisov, B.V. Identification of kinetic triplets by results of derivatographic analysis. MATEC Web Conf. 2018, 194, 01010. [Google Scholar] [CrossRef] [Green Version]
  35. Jones, S.A.; Kaufman, M.J. Phase equlibria and transformations in intermediate titanium–aluminum alloys. Acta Metall. Mater. 1993, 41, 387–398. [Google Scholar] [CrossRef]
  36. Bahador, A.; Umeda, J.; Yamanoglu, R.; Bakar, T.A.A.; Kondoh, K. Strengthening evaluation and high-temperature behavior of Ti–Fe–O–Cu–Si alloy. Mater. Sci. Eng. A 2021, 800, 140324. [Google Scholar] [CrossRef]
  37. Bahador, A.; Umeda, J.; Ghandvar, H.; Bakar, T.A.A.; Yamanoglu, R.; Issariyapat, A.; Kondoh, K. Microstructure globularization of high oxygen concentration dual-phase extruded Ti alloys via powder metallurgy route. Mater. Charact. 2021, 172, 110855. [Google Scholar] [CrossRef]
  38. Wan, Q.; Li, F.; Wang, W.; Hou, J.; Cui, W.; Li, Y. Study on In-Situ Synthesis Process of Ti–Al Intermetallic Compound-Reinforced Al Matrix Composites. Materials 2019, 12, 1967. [Google Scholar] [CrossRef] [Green Version]
  39. Thiyaneshwaran, N.; Sivaprasad, K.; Ravisankar, B. Nucleation and growth of TiAl3 intermetallic phase in diffusion bonded Ti/Al Metal Intermetallic Laminate. Sci. Rep. 2018, 8, 16797. [Google Scholar] [CrossRef]
  40. Xu, L.; Cui, Y.Y.; Hao, Y.L.; Yang, R. Growth of intermetallic layer in multi-laminated Ti/Al difusion couples. Mater. Sci. Eng. A 2006, 435–436, 638–647. [Google Scholar] [CrossRef]

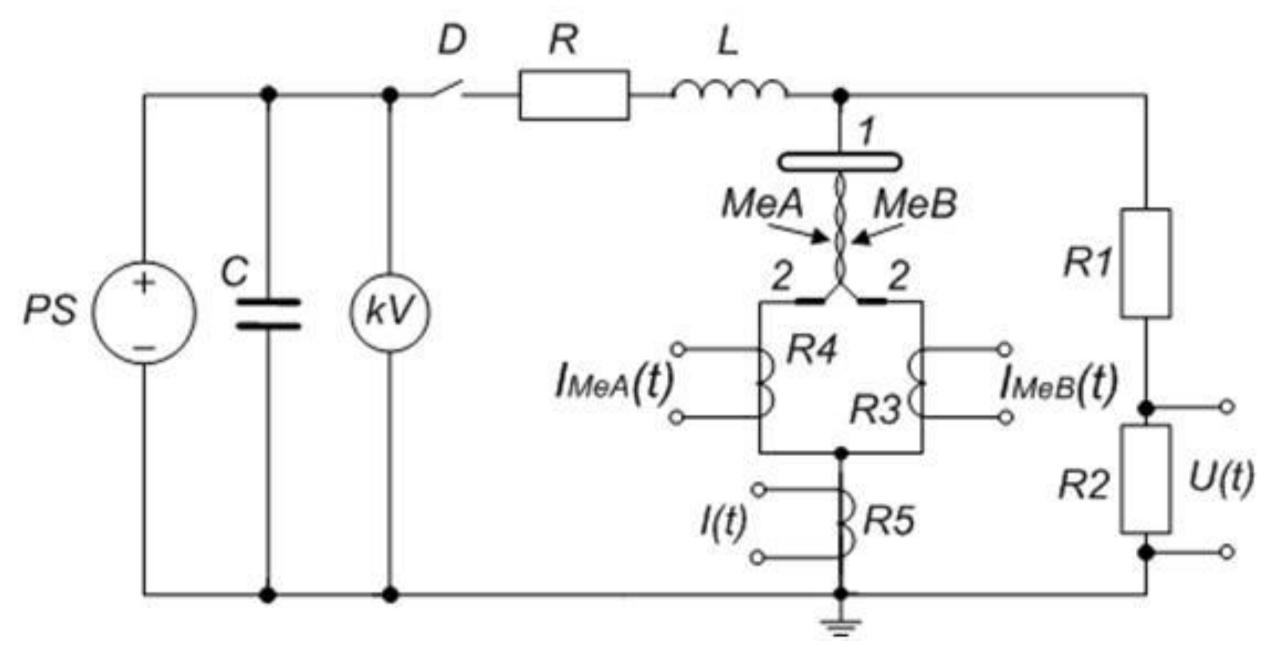

Figure 1. The schematic diagram of the setup for EETW research: R and L–electrical resistance and inductance of the setup: L = 0.75 μH, R = 0.08 Ohm; capacitor bank capacity C = 2.8 μF.
Figure 1. The schematic diagram of the setup for EETW research: R and L–electrical resistance and inductance of the setup: L = 0.75 μH, R = 0.08 Ohm; capacitor bank capacity C = 2.8 μF.
Metals 11 00760 g001

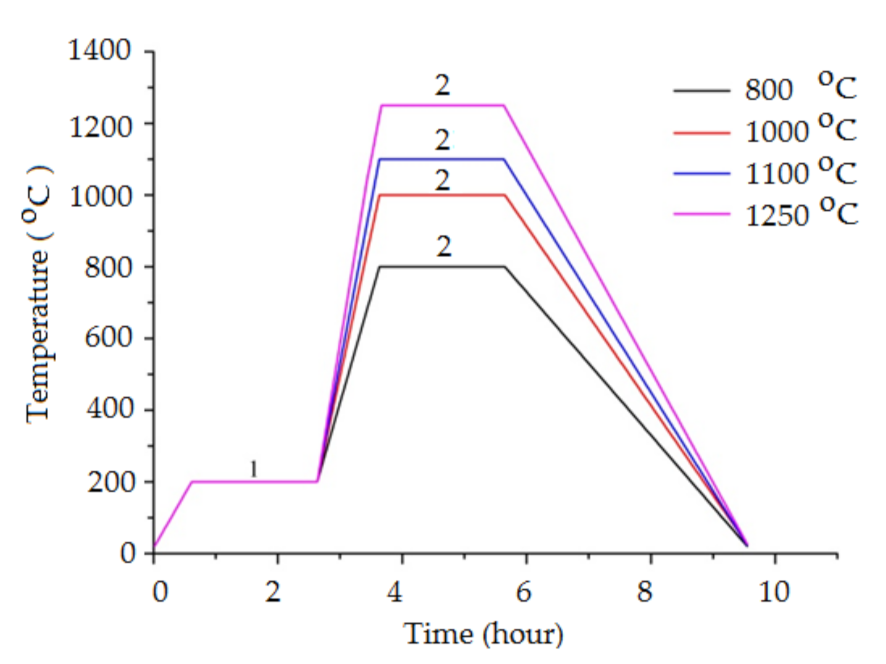

Figure 2. Processing scheme for the sintering of pressed Al-Ti samples.
Figure 2. Processing scheme for the sintering of pressed Al-Ti samples.
Metals 11 00760 g002

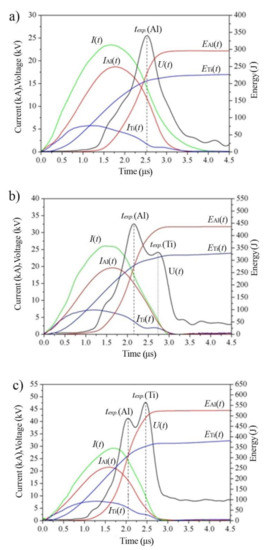

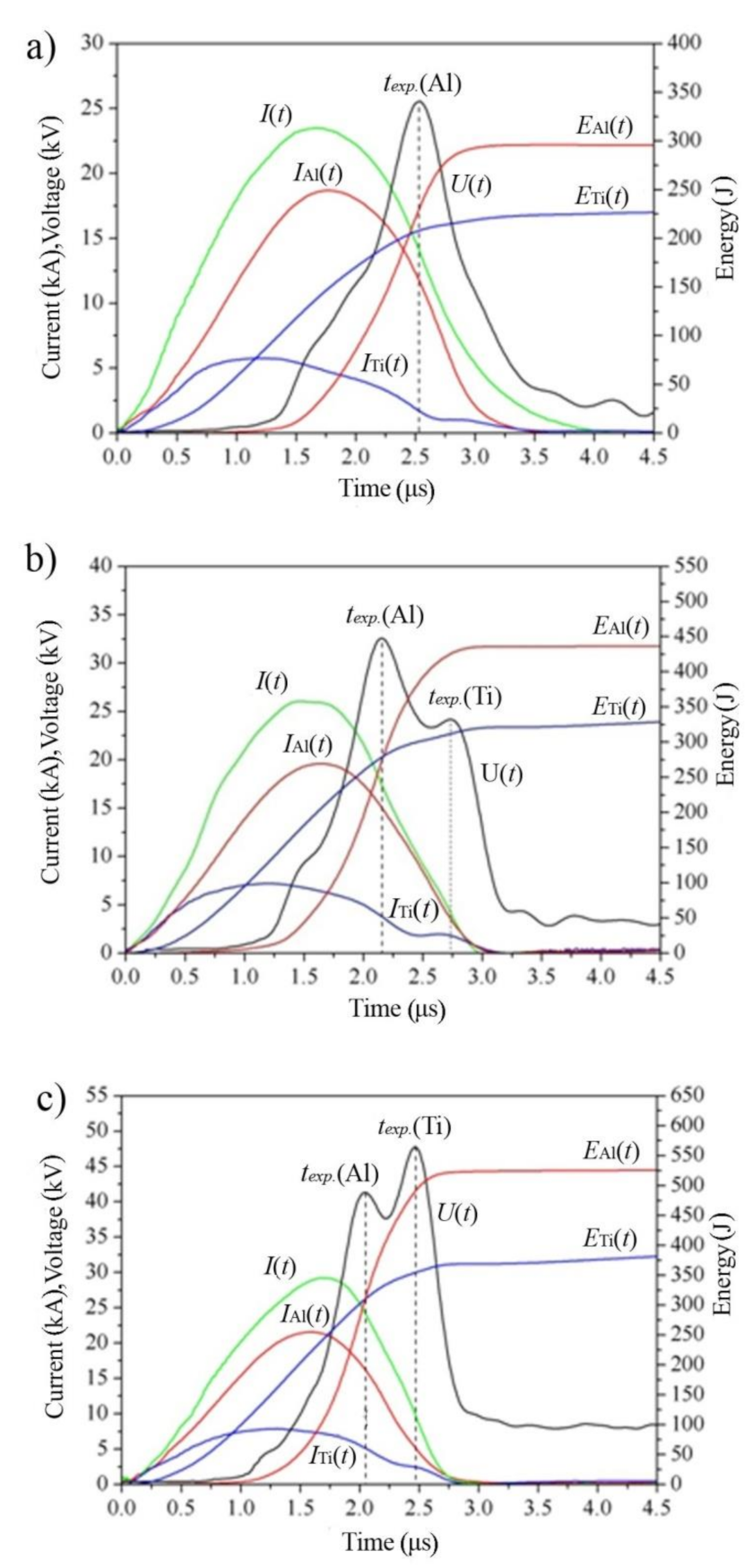

Figure 3. The time dependences of voltage, currents, and energy injected into aluminum and titanium wires for U0 voltage 22 kV (a), 25 kV (b), 29 kV (c).
Figure 3. The time dependences of voltage, currents, and energy injected into aluminum and titanium wires for U0 voltage 22 kV (a), 25 kV (b), 29 kV (c).
Metals 11 00760 g003
Figure 4. Typical images of Ti-Al particles obtained by simultaneous electrical explosion of titanium and aluminum wires: (a,d) U0 = 22 kV, as = 240 nm; (b,e) U0 = 25 kV, as = 178 nm; (c,f) U0 = 29 kV, as = 133 nm.
Figure 4. Typical images of Ti-Al particles obtained by simultaneous electrical explosion of titanium and aluminum wires: (a,d) U0 = 22 kV, as = 240 nm; (b,e) U0 = 25 kV, as = 178 nm; (c,f) U0 = 29 kV, as = 133 nm.
Metals 11 00760 g004

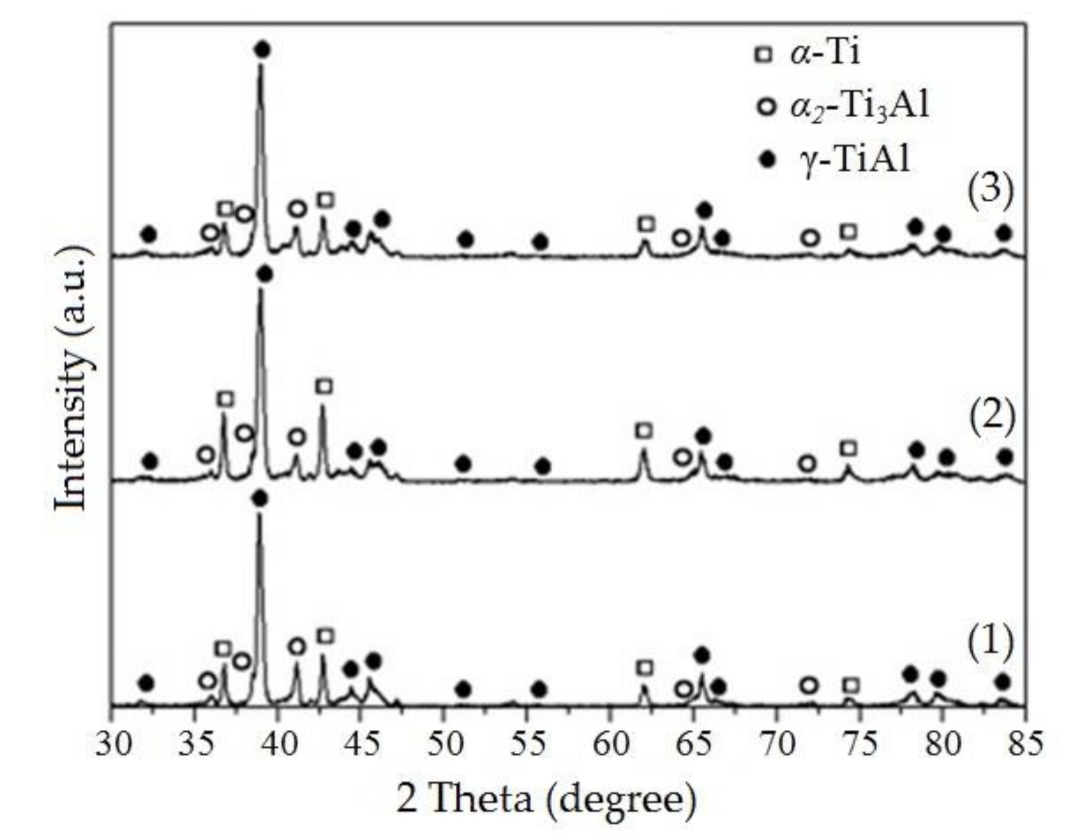

Figure 5. XRD patterns (Cu Kα-radiation) of Ti-Al powders obtained at different energy levels injected into the wires: (1) U0 = 22 kB; (2) U0 = 25 kB; (3) U0 = 29 kB.
Figure 5. XRD patterns (Cu Kα-radiation) of Ti-Al powders obtained at different energy levels injected into the wires: (1) U0 = 22 kB; (2) U0 = 25 kB; (3) U0 = 29 kB.
Metals 11 00760 g005

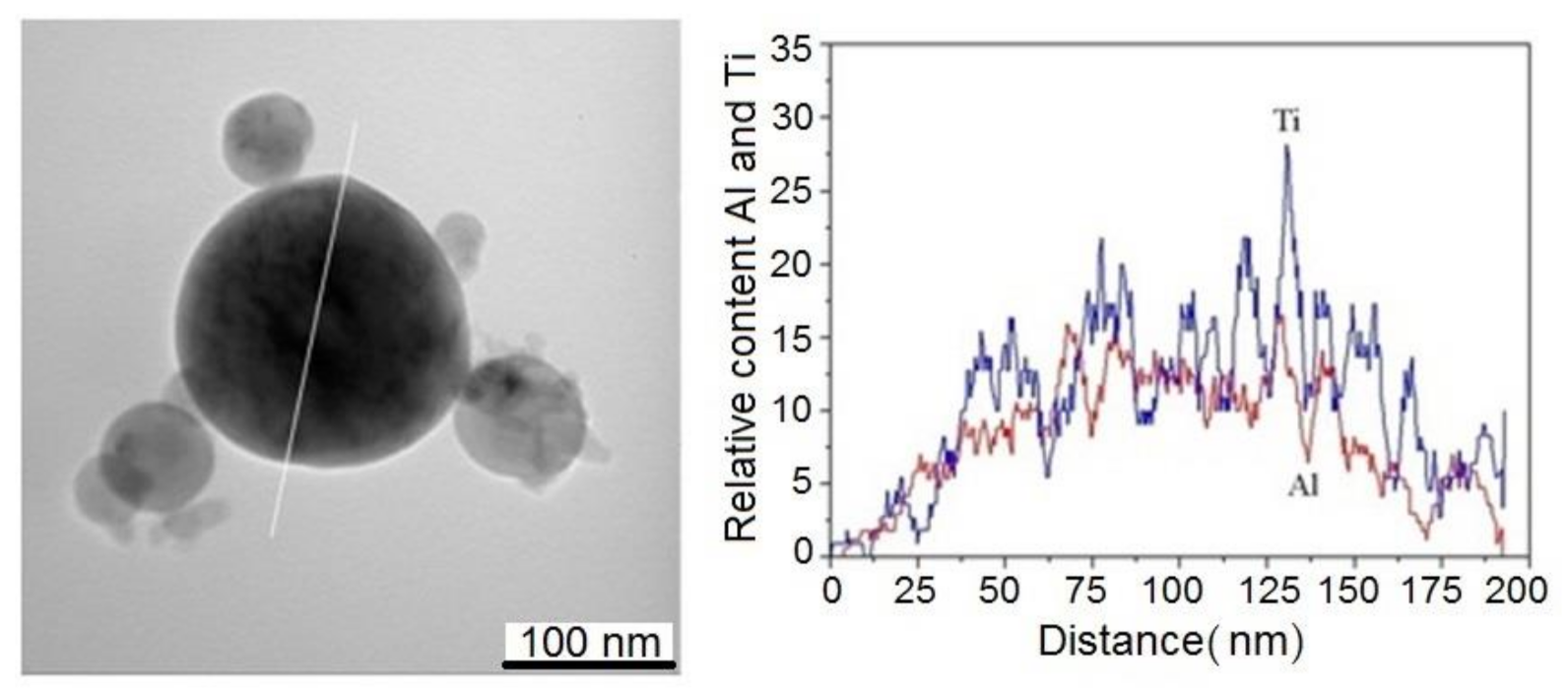

Figure 6. Typical TEM image and line-scan elemental distribution of Ti-Al nanoparticle.
Figure 6. Typical TEM image and line-scan elemental distribution of Ti-Al nanoparticle.
Metals 11 00760 g006

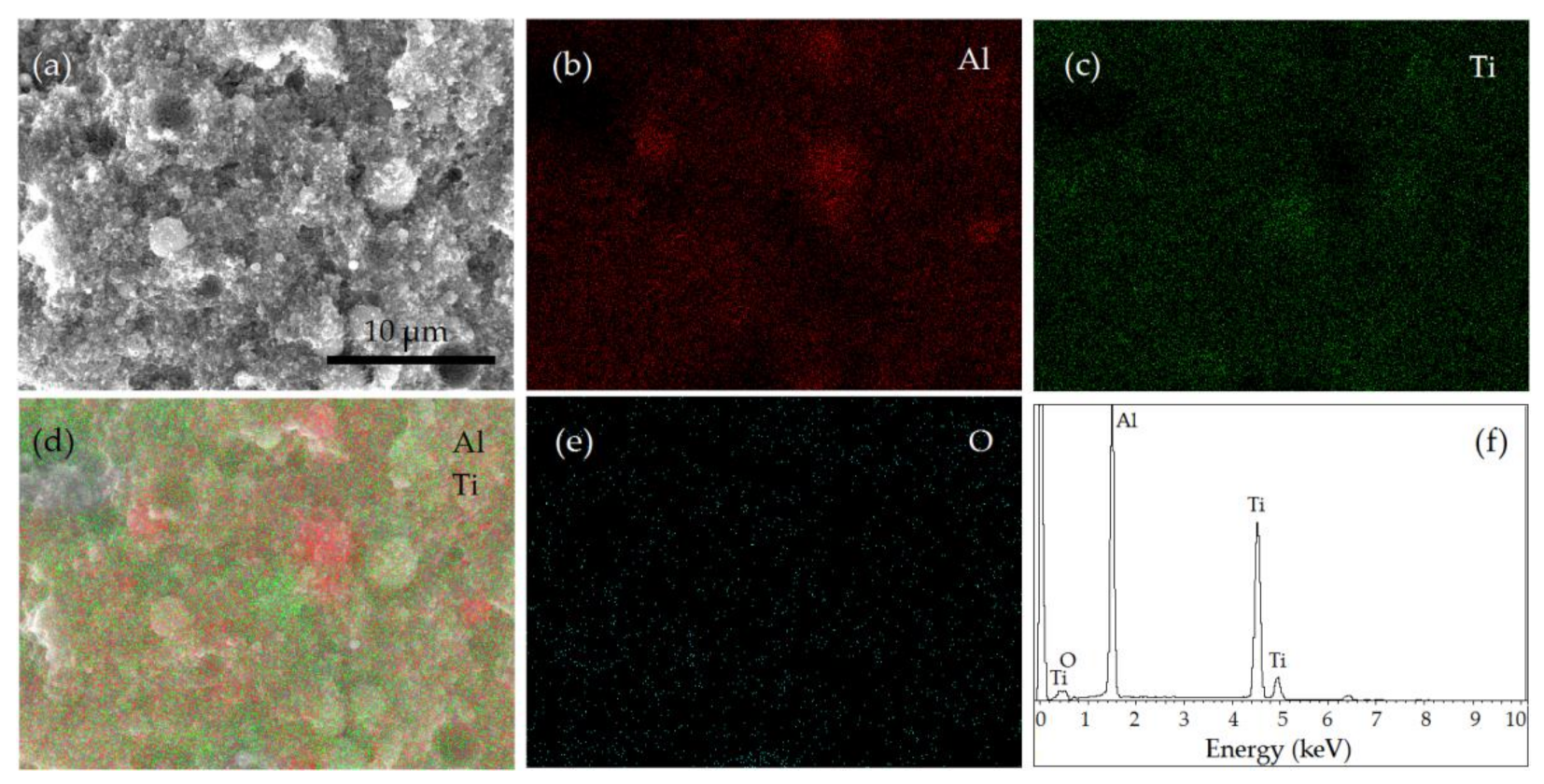

Figure 7. SEM image (a) and SEM/EDX analysis (bf) of Ti-Al powder obtained at U0 = 29 kV.
Figure 7. SEM image (a) and SEM/EDX analysis (bf) of Ti-Al powder obtained at U0 = 29 kV.
Metals 11 00760 g007

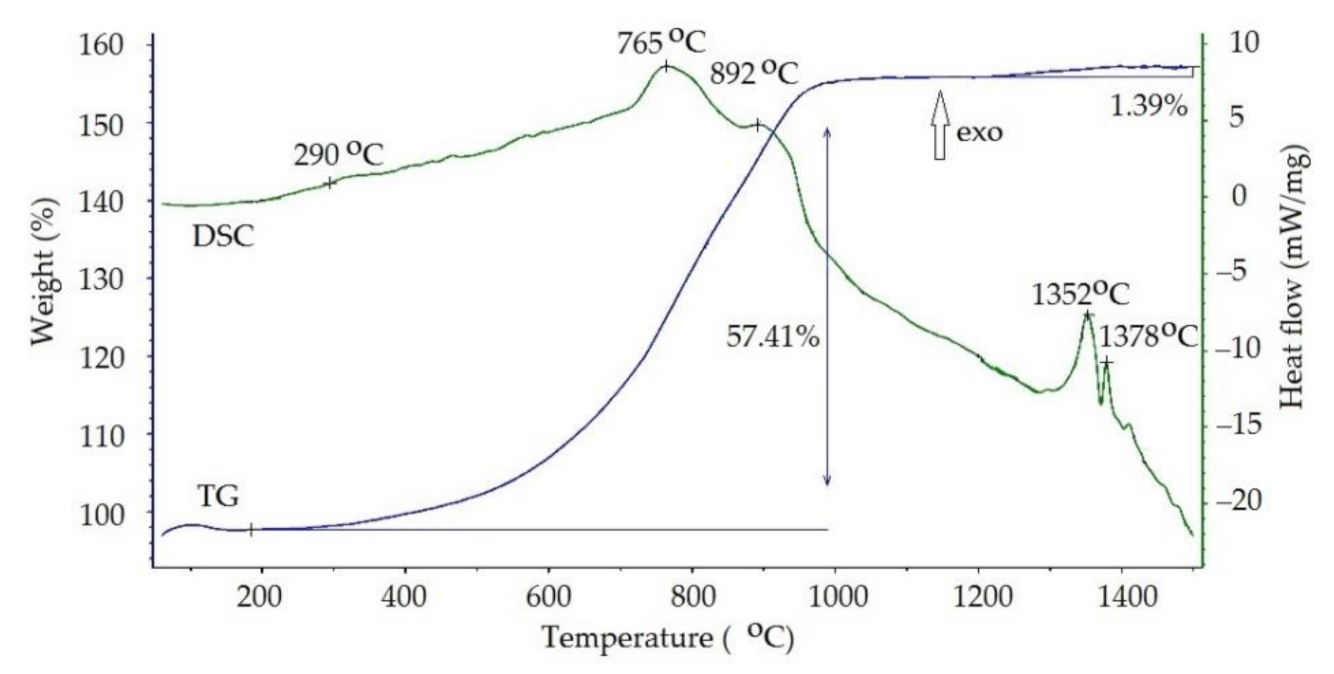

Figure 8. DSC and TG curves of Ti-Al particles.
Figure 8. DSC and TG curves of Ti-Al particles.
Metals 11 00760 g008
Figure 9. Fracture surfaces of specimens sintered at different temperatures: (a) 25 °C, (b) 800 °C, (c) 1000 °C, (d) 1250 °C.
Figure 9. Fracture surfaces of specimens sintered at different temperatures: (a) 25 °C, (b) 800 °C, (c) 1000 °C, (d) 1250 °C.
Metals 11 00760 g009

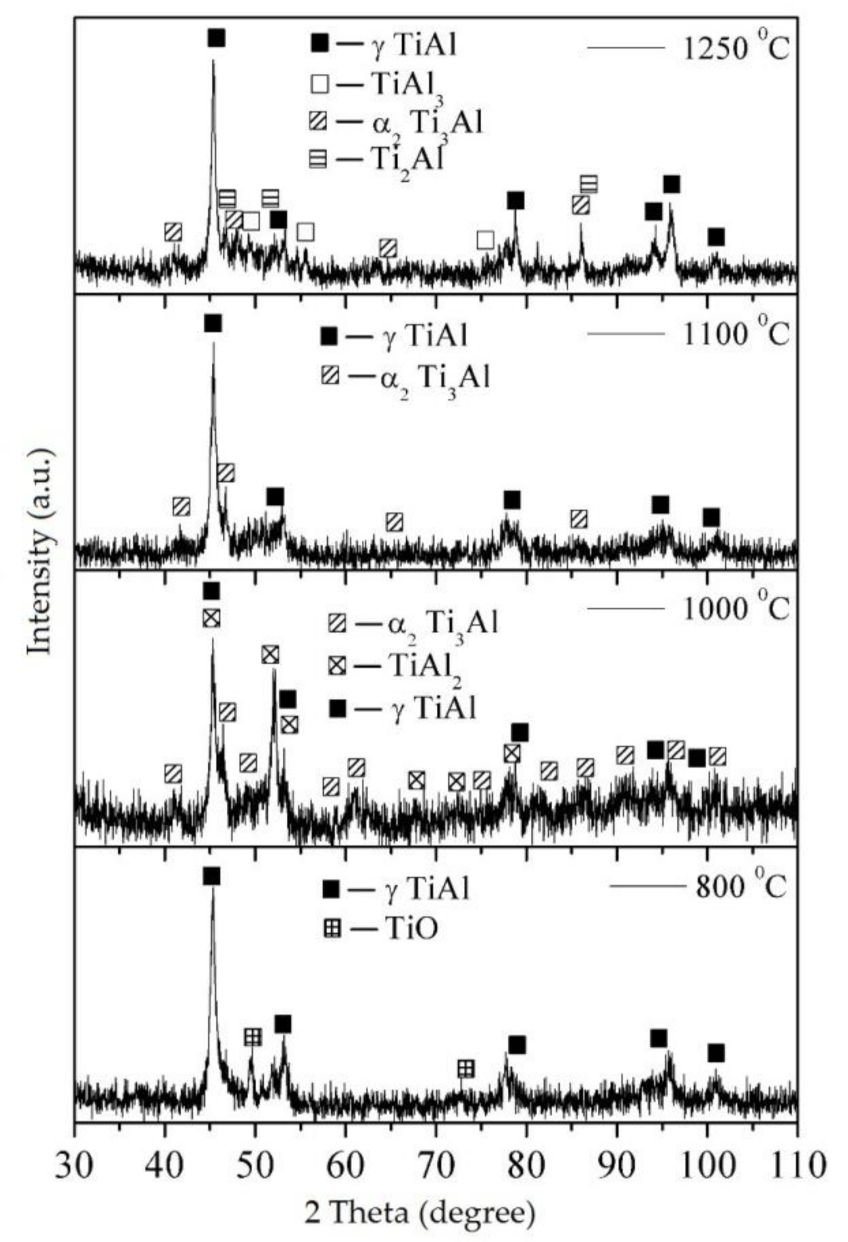

Figure 10. X-ray data for sintering of Ti-Al samples (Co Kα-radiation).
Figure 10. X-ray data for sintering of Ti-Al samples (Co Kα-radiation).
Metals 11 00760 g010

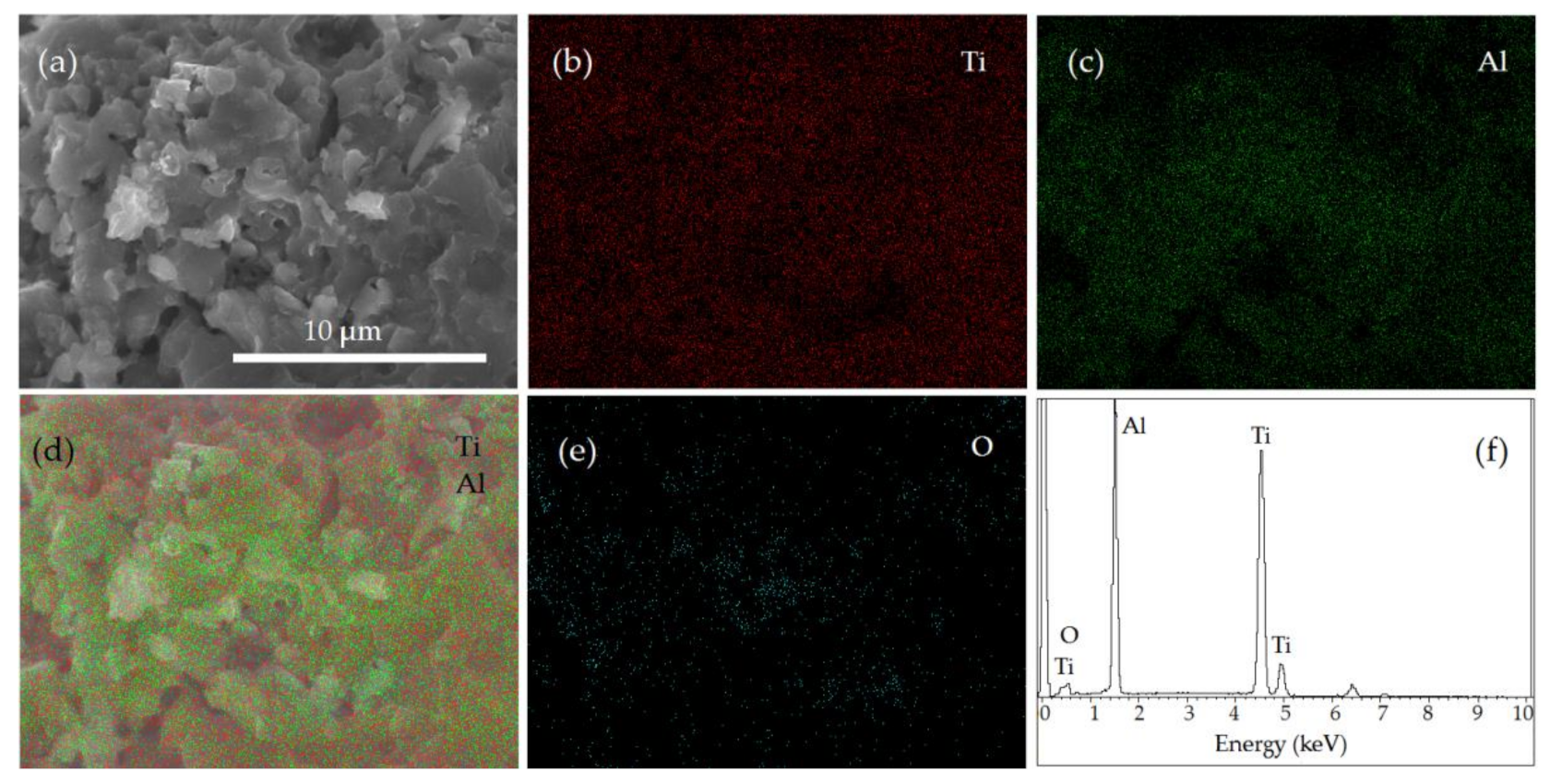

Figure 11. SEM image (a) and SEM/EDX analysis (bf) of Ti-Al sample sintered at 1000 °C.
Figure 11. SEM image (a) and SEM/EDX analysis (bf) of Ti-Al sample sintered at 1000 °C.
Metals 11 00760 g011
Table 1. Summary of experimental details.
Table 1. Summary of experimental details.
WireWire Diameter, mmWire Length, mmSublimation Enthalpy, kJ/gSublimation Heat ( E s A l и   E s T i ), J
Ti0.321008.95326
Al0.3510011285
Table 2. The characteristics of Ti-Al powders depending on energy injected into wires.
Table 2. The characteristics of Ti-Al powders depending on energy injected into wires.
SampleU0, kVAverage Particle Size, nmPhase Composition, wt.%
α-Tiα2-Ti3Alγ-TiAl
122240 ± 2119.4 ± 2.48.1 ± 1.1 72.5 ± 7.1
225178 ± 1622.3 ± 2.79.2 ± 1.368.3 ± 8.2
329133 ± 1314.2 ± 1.47.8 ± 1.178.0 ± 8.7
Table 3. Calculated parameters of the Ti-Al powder oxidation process.
Table 3. Calculated parameters of the Ti-Al powder oxidation process.
StageMass Gain, %T0, °CRange, °CΔT, °C
I19,3614326–903576
II26,8780634–925290
III12,2903824–983159
IV1,512881159–1417257
Table 4. Phase composition of sintered Ti-Al samples.
Table 4. Phase composition of sintered Ti-Al samples.
Sintering Temperature, °CPhase Composition, wt.%
TiOTi2Alα2-Ti3Alγ-TiAlTiAl2TiAl3
80017.3 ± 1.582.7 ± 8.1
100015.5 ± 1.242.4 ± 4.342.1 ± 4.3
110012.4 ± 1.087.6 ± 8.6
125012.1 ± 1.125.6 ± 2.347.0 ± 5.515.3 ± 1.3
