Development of a Moving-Bed Ironmaking Process for Direct Gaseous Reduction of Iron Ore Concentrate

Abstract

A novel horizontal moving-bed ironmaking process has been developed at the University of Utah. This process uses iron concentrate directly without sintering or pelletization and reduces it with hydrogen in the temperature range of 500–1000 °C. The work started with the determination of the particle kinetics, which was then combined with diffusional effects to analyze the reduction rate of a particle bed. Based on the kinetics formulation, a mathematical model of the furnace for the proposed technology was developed for a modest industrial ironmaking operation designed to produce iron at a rate of 0.1 Mtpy.

1. Introduction

In 2019, a total of 1.4 billion metric tons of crude iron was produced worldwide, and about 92% of it was made with a blast furnace (BF) [1]. BF ironmaking that uses iron concentrates requires the sintering/pelletization of iron ore, coke making, and reduction in a shaft furnace. At the current rate of production, BFs are responsible for the largest greenhouse gas emissions of any industry [2], and the demand for steel will rise in the years to come [3]. Alternate processes that consume less energy and emit less CO₂ are being developed [4,5,6,7,8,9]. Some of these processes have been successfully commercialized [10] by replacing the coke making process, lowering energy requirements and CO₂ emissions, and using iron ore fines or concentrates directly without pelletization. In spite of the recent successes in alternative ironmaking, BF technology is still the predominant industrial method.

2. Process Concept

The direct use of iron concentrates was one of the main features of the recently developed Flash Ironmaking Technology (FIT) [4,5,6,7,8,9], which is suitable for a large-scale ironmaking plant [4,5,6,7].

For medium-level steelmaking operations, sponge iron would make a suitable feed. Direct use of iron concentrate with its high reactivity would be advantageous. Based on this reasoning, a moving-bed reactor to directly reduce concentrate has been proposed [11].

3. Configuration of a Horizontal Moving-Bed Furnace

The furnace to be used for the proposed process would continuously carry iron concentrate placed as a layer on a tray or a layer of pellets or blocks on the moving grate. The reducing gas is fed into the reactor in a counter-current flow. The furnace may be designed to accommodate multiple trays or layers stacked on top of each other. A sketch of such a counter-current moving-bed reactor is shown in Figure 1.

In order to evaluate the realistic feasibility of such a moving bed for direct reduction of iron concentrate, a quantitative analysis of its potential performance is necessary. This requires information on the kinetics of reduction of concentrate particles, that of a particle bed (including diffusional effects), and finally, a mathematical model of the moving-bed reactor.

4. Hydrogen Reduction Kinetics of Concentrate Particles

The reduction kinetics of iron ore concentrate particles were measured in the temperature range expected for the proposed process using a home-made thermogravimetric analysis (TGA) unit [12]. The magnetite concentrate used in this work was from the Mesabi Range in the U.S. and had a size of <100 μm. Figure 2 illustrates a SEM picture of these particles.

The magnetite concentrate was provided by ArcelorMittal (East Chicago, USA). The chemical analysis of the concentrate is detailed in

Table 1. Chemical Composition of Magnetite Concentrate Particles.

Component	Wt.%
Total Iron	70.65
SiO2	1.87
Al2O3	0.13
CaO	0.27
MgO	0.13
MnO	0.11
Cr2O3	0.11
K2O	0.01
Na2O	0.1
TiO2	0.01
ZrO2	0.03
P	0.01
S	0.02
C	0.24
Sr	0.01

.

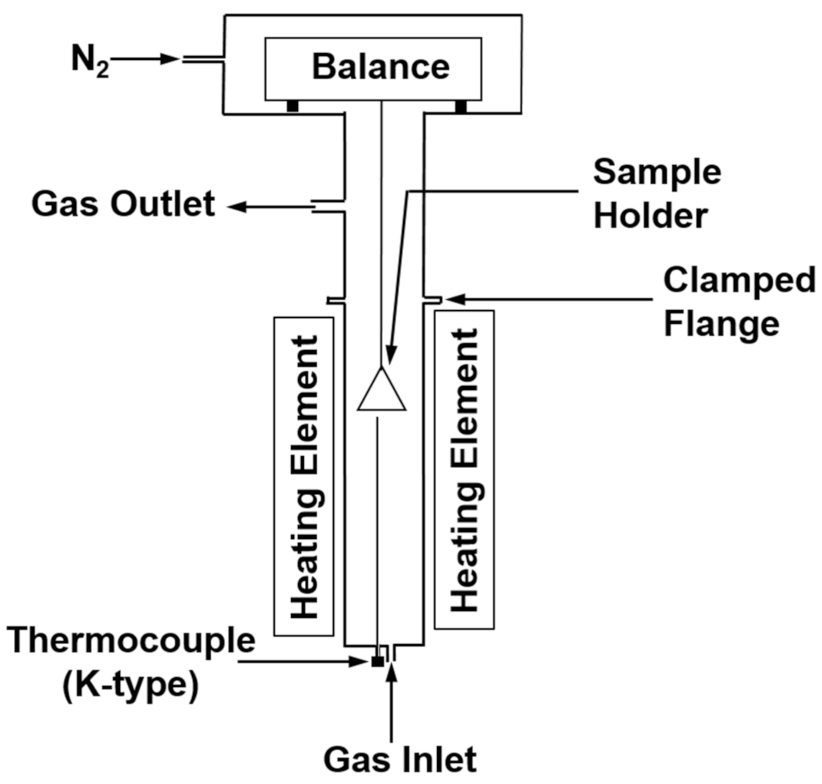

The thermogravimetric analysis (TGA) unit used to measure the rate of reduction is depicted in Figure 3.

A thin layer of particles weighing 190–510 mg was placed on a shallow sample container. The reducing gas mixture was injected at a sufficient rate to eliminate the mass transfer effects.

The rate equations for the hydrogen reduction of iron concentrate, formulated from the experimental data, are given for different temperature ranges as follows:

In the range 800–1000 °C,

$${\left[-\mathrm{Ln}\left(1-X\right)\right]}^{1/1.5}=9.99\times {10}^3\times \exp \left(-\frac{125,100}{\mathrm{RT}}\right)\times \left(p_{H_2}-p_{H_{2}O}/K\right)\times t$$

(1)

In the range 650–800 °C,

$${\left[-\mathrm{Ln}\left(1-X\right)\right]}^{1/1.5}=2.25\times {10}^{-5}\times \exp \left(\frac{6430}{T}\right)\times \left(p_{H_2}-p_{H_{2}O}/K\right)\times t$$

(2)

In the range 500–650 °C,

$${\left[-\mathrm{Ln}\left(1-X\right)\right]}^{1/1.5}=1.79\times \exp \left(-\frac{33,500}{RT}\right)\times \left(p_{H_2}-p_{H_{2}O}/K\right)\times t$$

(3)

where X is fractional conversion of iron oxide, R is 8.314 J∙mol⁻¹K⁻¹, T is in K, p is in atm, and t is in seconds. It should be noted that the rate decreased with temperature in the range 650–800 °C. This phenomenon has been observed previously [13,14,15,16] for iron oxide reduction.

The iron is refined in the steelmaking step, and thus, the iron just needs to be reduced to a degree of 90% or higher. The results of the rate equations were compared with experimental data for 90% conversion, as shown in Figure 4. The agreement is good. Details of the comparison are given elsewhere [12].

5. Incorporation of Interparticle Diffusion in the Rate Analysis

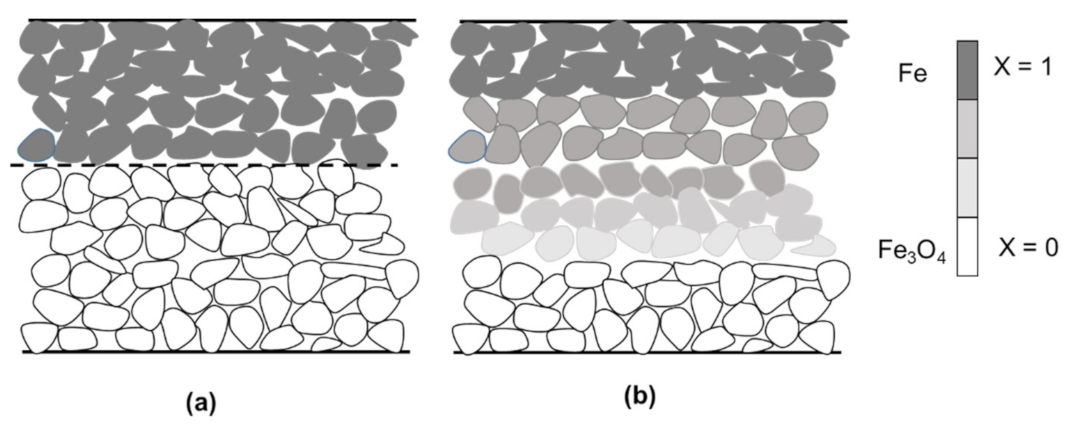

In a particle bed in the moving-bed furnace, the reduction is likely to take place under the effect of diffusion between the particles, as illustrated in Figure 5. It is important to be able to predict the temperature at which mass transfer begins to strongly affect the reduction rate of the particle bed as well as to estimate its quantitative effect.

Figure 5 depicts a reaction under diffusion control or mixed control.

To determine and incorporate such diffusional effects, experiments were performed with deeper beds of concentrate of predetermined depths [12]. The experimental data were converted to a closed-form X-t relation using Sohn’s law of additive reaction times [17,18,19,20], which is applicable under the general conditions of mixed control. Sohn’s law of additive reaction times [17,18,19,20] states that for isothermal reactions, the time needed for a certain degree of conversion is the sum of the time needed in the absence of any diffusional effect and the time needed under the control of pore diffusion and external mass-transfer:

Time required to attain a certain conversion ≅ Time required to attain the same conversion under the condition of rapid interparticle diffusion + Time required to attain the same conversion under the control of interparticle diffusion and external mass transfer

(4)

or mathematically,

$$t\cong {\left.t\left(X\right)\right|}_{fast-diffusion}+{\left.t\left(X\right)\right|}_{diffusion control}$$

(5)

$$t\cong a\times g\left(X\right)+a\times {\widehat{\sigma }}^2\left[p_{F_p}\left(X\right)+\frac{4X}{S{h}^{*}}\right]$$

(6)

where a is a constant related to the rate constant of particle kinetics and ${\widehat{\sigma }}^2$ is a fluid–solid reaction modulus. The expressions of a and g(X) for hydrogen reduction of magnetite concentrate particles can be obtained from the following particle kinetics presented earlier:

In the range 800–1000 °C,

$$g\left(X\right)={\left[-\mathrm{Ln}\left(1-X\right)\right]}^{1/1.5}=\left(1/a\right)t=9.99\times {10}^3\times \exp \left(-\frac{125,100}{\mathrm{RT}}\right)\times \left(p_{H_2}-p_{H_{2}O}/K\right)\times t$$

(7)

In the range 650–800 °C,

$$g\left(X\right)={\left[-\mathrm{Ln}\left(1-X\right)\right]}^{1/1.5}=\left(1/a\right)t=2.25\times {10}^{-5}\times \exp \left(\frac{6430}{T}\right)\times \left(p_{H_2}-p_{H_{2}O}/K\right)\times t$$

(8)

In the range 500–650 °C,

$$g\left(X\right)={\left[-\mathrm{Ln}\left(1-X\right)\right]}^{1/1.5}=\left(1/a\right)t=1.79\times \exp \left(-\frac{33,500}{RT}\right)\times \left(p_{H_2}-p_{H_{2}O}/K\right)\times t$$

(9)

where R is 8.314 J∙mol⁻¹K⁻¹, T is in K, p is in atm, and t is in seconds.

$p_{F_p}\left(X\right)$ as the conversion function for the diffusion-controlled conditions given by

$$p_{Fp}\left(X\right)=1-\frac{F_p{\left(1-X\right)}^{2/F_p }-2\left(1-X\right)}{F_p-2}=\frac{2b{F}_p{D}_e}{{\alpha }_B{\rho }_B} {\left(\frac{A_p}{F_p{V}_p}\right)}^2\left(\frac{K}{K+1}\right)\left(C_{A0}-\frac{C_{C0}}{K}\right)t$$

(10)

where F_p is a shape factor, which has a value of 3 for a sphere and 1 for a flat bed.

The fluid–solid reaction modulus is defined as follows:

$${\widehat{\sigma }}^2=\frac{1}{a}{\left(\frac{F_p{V}_p}{A_p}\right)}^2\frac{{\alpha }_B{\rho }_B}{2b{F}_p{D}_e\left(C_{A0}-\frac{C_{C0}}{K}\right)} \left(1+\frac{1}{K}\right)$$

(11)

Sh* is the modified Sherwood number, defined as follows:

$$S{h}^{*}=Sh\left(D/D_e\right)=\frac{k_m}{D_e}\left(\frac{2F_p{V}_p}{A_p}\right)$$

(12)

where k_m is the mass transfer coefficient.

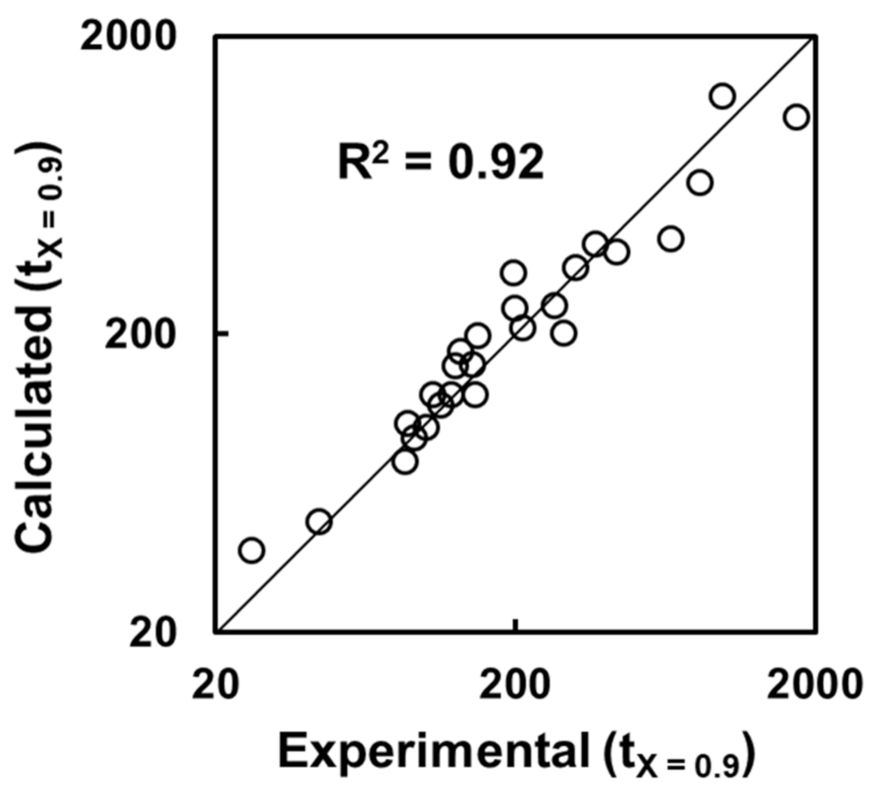

A good agreement was found [12] between the experimental data and the results from the application of Sohn’s Law, which renders unnecessary numerical solution of the differential equations.

6. Design of a Horizontal Moving-Bed Furnace

6.1. Model Formulation

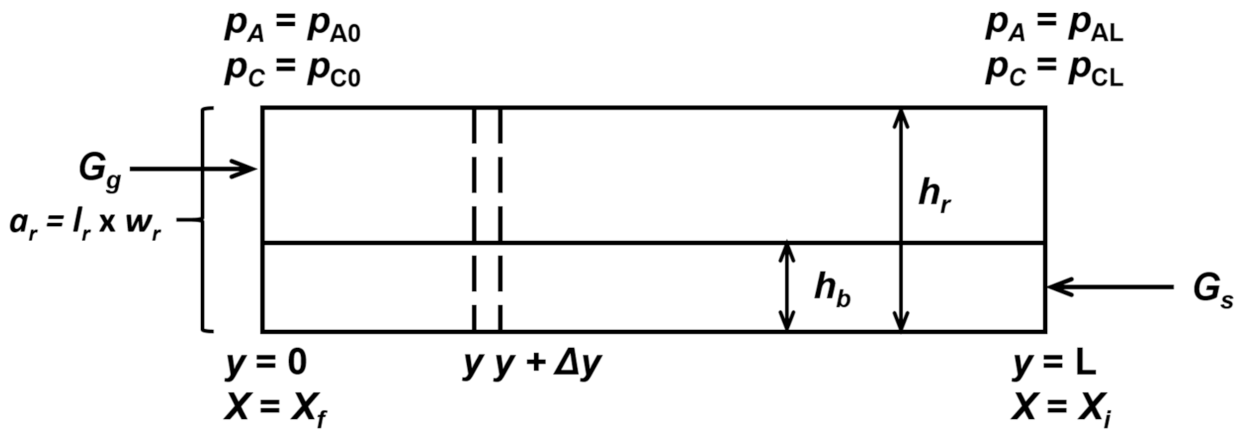

The model has been formulated based on the configuration of the countercurrent moving-bed reactor presented in Figure 1.

The conditions for modeling the counter-current moving bed reactor are as follows:

(a)

The overall reaction is $H_2\left(g\right)+\frac{1}{4} F{e}_3{O}_4\left(s\right)=H_{2}O\left(g\right)+\frac{3}{4}Fe\left(s\right)$, which in general notation is represented by $A\left(g\right)+bB\left(s\right)=cC\left(g\right)+dD\left(s\right)$.

(b)

The reduction occurs under isothermal conditions.

(c)

The solid and reducing gas are in plug flow and steady state.

(d)

The reactor has a uniform cross-sectional area.

(e)

Mass transfer between the gas and the top of the bed is fast.

The details of the model formulation can be found elsewhere [12]. Here, the final result of the formulation that relates the reactor length to all other reactor parameters and operating conditions is presented as follows:

$$L=C_1{C}_4{{\displaystyle \int }}_0^{X_0}\frac{C_2{\left(1-X\right)}^{-1}{\left(-\mathrm{Ln}\left(1-X\right)\right)}^{1/n-1}+C_{3}X}{C_1+X-X_0}dX$$

(13)

where

$$C_1=\frac{G_g}{4G_s}\frac{\left(x_{A0}-x_{C0}/K\right)}{1+1/K}$$

(14)

$$C_2=\frac{1}{n{k}_{0}P\left(x_{A0}-x_{C0}/K\right)}$$

(15)

$$C_3=\frac{4\left(1-{\epsilon }_P\right){\rho }_B}{ D_e} {\left(\frac{V_p}{A_p}\right)}^2\frac{RT\left(1+1/K\right)}{P\left(x_{A0}-x_{C0}/K\right)}$$

(16)

and

$$C_4=\frac{G_s}{{\rho }_B\left(1-{\epsilon }_P\right)\left(1-{\epsilon }_v\right)}$$

(17)

In the above equations, X_o is the final value of X at the gas entrance; G_g and G_s are the total input rate per unit cross-sectional area of the reactor of gas (including hydrogen, water vapor, and inert gas, if any) and the input molar rate per unit cross-sectional area of the reactor of solid B, respectively; K is the equilibrium constant for wüstite reduction; x is the mole fraction of gaseous species; n = 1.5 is the Avrami parameter in the nucleation-and-growth kinetics equation; k_o is the pre-exponential factor in the rate equation; P is the total pressure of the gas phase; ε_p is the porosity of the product iron layer; and ρ_B is the true molar density of B.

The integral in Equation (13) can be evaluated using Simpson’s Rule. At X = 0, the integrand goes to infinity due to the nature of the nucleation-and-growth kinetic equation. Therefore, the integration was carried out starting with a small positive value of X = δ. This small value δ was reduced until the calculated value of the length of the reactor, L, was unaffected by a further decrease in the value of δ.

6.2. Design of Industrial Reactors

An industrial ironmaking reactor—producing 0.1 million metric tons of iron per year (Mtpy), equivalent to 12.66 metric tons/h assuming operation of 24 h/day and 330 days/year—was designed. The reactor will produce iron of X_o = 0.95. The normalized driving force of reducing gas, θ, is set at 0.3 at the gas outlet. The reactor is assumed to have a width of 5 m and a height of 3 m.

From the kinetics of magnetite reduction, it was determined that between 650 and 1000 °C, a bed with a thickness of 1 cm would largely be controlled by diffusion. Thus, this reactor design uses a bed thickness equal to or greater than 1 cm. For the purpose of this work, the reactor will have 10 layers at most. For the dimensions of a horizontal moving-bed reactor to be comparable with other industrial reactors, the length of the reactor should be under 50 m.

For a production rate of 0.1 Mtpy, the effects of temperature and bed thickness on residence time, reactor length, bed speed, and gas velocity are shown in

Table 2. Effect of bed thickness and temperature on residence time, reactor length, speed of bed, and gas velocity for a moving-bed reactor with a production rate of 0.1 Mtpy.

Temperature (°C)	Bed Thickness (cm)	Residence Time (min)	Reactor Length (m)	Bed Speed (cm/min)	Gas Velocity (cm/s)
1000	1	23.5	5.76	24.5	182
	2	92	11.3	12.3	188
	5	571	28.1	4.91	211
900	1	28.7	7.03	24.5	182
	2	108	13.3	12.3	188
	5	661	32.4	4.91	211
850	1	32.1	7.87	24.5	183
	2	118	14.5	12.3	189
	5	718	35.3	4.91	212
650	1	95	23.3	24.5	196
	2	371	45.6	12.3	203
	5	2303	113.1	4.91	227

. For a given bed thickness, the residence time and the reactor length decreased with increasing temperature. The bed speed was unaffected by temperature, as expected from the diffusion-controlled reaction conditions. The gas velocity increased slightly with decreasing temperature. For a given temperature, increasing the bed thickness resulted in a longer residence time, longer reactor length, and slower speed of moving bed. The linear gas velocity also increased with increasing layer thickness as the free board in the reactor decreased. The demand for gas increased with decreasing temperature as the composition of hydrogen–water vapor mixture in equilibrium in a wüstite-iron system became more hydrogen rich.

It was found that a reactor with a bed thickness of 2 cm and length of 45.6 m can operate at a temperature as low as 650 °C. The design parameters and operating conditions of the reactor were calculated at different temperatures for reactors operating with a bed thickness of 2 cm, as shown in

Table 3. Design parameters or operating conditions for horizontal moving-bed reactors (0.1 Mtpy) at different temperatures.

Temperature (°C)	1000	900	850	650
Characteristic Length (cm)	2	2	2	2
Gas Flow Rate (Nm3/h)	20,350	20,400	20,500	21,950
Residence Time (min)	92	108	118	371
Speed of Grate (cm/min)	12.3	12.3	12.3	12.3
Reactor Length (m)	11.3	13.3	14.5	45.6
Reactor Volume (m3)	170	200	218	684

.

7. Concluding Remarks

The work presented in this paper on the development of a horizontal moving-bed reactor based on the proposed technology can be summarized as follows:

(1)

The proposed technology for a modest-scale ironmaking operation with a production rate of 0.1 Mtpy can be operated at temperatures between 650 and 1000 °C.

(2)

The design parameters and the operating conditions for the horizontal moving-bed reactor were established.

(3)

A simple model for a moving-bed reactor that indicated that the proposed ironmaking technology has industrial potential was formulated.
