Effect of Austenite Grain Size on the Bainitic Transformation in a 690 MPa Grade High-Strength Multi-Functional Construction Steel

Abstract

A high-strength low-carbon construction structural steel was investigated in the laboratory. The various austenite grain sizes were obtained by austenitizing the steel at different temperatures. The effect of austenite grain size on bainite transformation was studied by the dilatometer. The results show that the microstructure of high-strength low-carbon structural steels mainly includes granular bainite, lath-like bainite and martensite-austenite (M-A). The microstructure changes from granular bainite to lath-like bainite with the increase in austenitizing temperature or austenite grain size. When the samples were heated at the lower temperature of 860 °C, the bainite starting temperature was relatively high, which was mainly attributed to the promotion of the granular bainitic nucleation and the formation of the solute-depleted regions in the austenite. Compared to 860 and 1260 °C, the bainite transformation rate in the specimen austenitized at 1000 °C is the highest because of the small prior austenite grain size and larger transformation driving force.

1. Introduction

The steel structure has many merits in high strength, high load-bearing capacity, lightweight, good reliability, simple construction and low environmental pollution. Since its birth in Europe in the 1950s, it has been used to replace reinforced concrete structures in many countries, and has become the mainstream of the future development of building structures [1,2,3]. With the advancement of building technology and the escalation in demand, steel structure building has put forward a variety of functions such as high strength, earthquake resistance, fire resistance and corrosion resistance, and there is a tendency to concentrate the multi-function in one type of steel. A hot-rolled low-carbon microalloyed steel with a yield strength of 690 MPa for construction was developed by the authors. This newly developed steel has high strength, low yield ratio, excellent toughness, good fire resistance and corrosion resistance.

The newly developed 690 MPa grade structural steel is a microalloyed steel. One of the advantages of using microalloying elements is the grain refinement caused by the pinning effect of nitrides or carbides of fine microalloys (Nb, V, Ti) [4,5]. Mastering the law of solid-phase transformation is very important for the microstructure design and the optimization of mechanical properties of steels [6,7]. Bainite is a main component in the microstructure of the newly developed 690 MPa grade steel. Therefore, it is necessary to understand the bainite transformation kinetics and related microstructure evolution in the newly developed structural steel. There are many factors affecting the transformation kinetics of bainite, including carbon content, alloy composition, austenite grain size, austenitization temperature and plastic deformation of austenite. Girault et al. [8] pointed out that the total bainitic transformation kinetics is directly related to austenitizing temperature. Umemoto et al. [9] and Lee et al. [10] believed that the bainite reaction rate was inversely proportional to the austenite grain size (AGS). Lan et al. [11] reported that the volume fraction of bainite increases with the decrease of AGS in a 0.06C-0.30Si-1.71Mn-0.22Cr-0.23Cu-0.21Mo-0.32Ni-0.04V-0.028Nb steel, whereas a coarse austenite grain hinders the isothermal bainitic transformation. Li et al. [12] also found that the decrease of AGS reduces the activation energy of bainitic transformation and accelerates the transformation kinetics. However, Xu et al. [13] and Hu et al. [14] emphasized that coarse austenite grains would lead to an increase in the bainite transformation rate. This is because coarse austenite grains provide fewer nucleation sites and create favorable conditions for bainite growth. Hasan et al. [15] also found that the volume fraction of bainite increases with increasing austenitization temperature. In addition, Matsuzaki and Bhadeshia [16] confirmed experimentally that the AGS has opposite effects on bainite reaction rate of different steels. Taking into account the morphology of bainite, they also derived a general equation describing the rate of the reaction. Their study showed that the refinement of AGS accelerates the bainite transformation kinetics when the bainite growth rate is slow. By contrast, the refinement of AGS retards the transformation kinetics when the bainite growth rate is rapid and the nucleation site is limited. Some scholars pointed out that under continuous cooling conditions, austenite grain size has no significant influence on bainite transition temperature [17,18,19,20]. In conclusion, the effect of austenite grain size on bainite transformation kinetics is still controversial.

The purpose of this work is to study the detailed relationship between austenite grain size and bainite transformation dynamics during continuous cooling of high-strength low-carbon construction structural steel.

2. Materials and Methods

The experimental material was a novel 690 MPa grade high-strength multi-functional construction structural steel recently developed by the authors [21]. The chemical composition of the experimental steel is shown in

Table 1. Chemical composition of the experimental steel (wt.%).

C	Si	Mn	Cu + Cr + Ni	Mo	Ti	Nb + V	N + B	P	S	Fe
0.08	0.28	1.1	1.1	0.4	0.04	0.07	0.006	0.007	0.0017	Bal.

. The steel was cast into a 50 kg ingot in a vacuum induction furnace (Shenyang Institute of Vacuum Technology, Shenyang, China) and then hot forged into a square billet with a size of 70 mm × 70 mm × 110 mm. The forged slabs were first reheated to 1230 °C and held for 3.5 h. Then, the two-stage controlled rolling was conducted on a 4-high reversible rolling mill (Wuxi Guancheng Metal Technology Co., Ltd., Wuxi, China). In the first stage of controlled rolling, the slab was rolled 4 passes at 1075–1052 °C. In the second stage, the plate steel was rolled 9 passes in the range of 930–880 °C. Finally, 20 mm thick steel plates were obtained. After hot-rolling, the steel plates were air-cooled to 780 °C, then rapidly cooled to 480 °C by an ultra-fast cooling (UFC) system (Northeastern University, Shenyang, China), and finally air-cooled to the room temperature.

The yield strength, tensile strength, total elongation, and yield ratio of the hot-rolled steel at room temperature are 700 MPa, 878 MPa, 20%, and 0.80, respectively, and this steel possesses good low-temperature toughness. In addition, the steel shows good fire resistance and corrosion resistance. More detailed information on the studied steel can be found in reference [21].

The samples were cut from the center of the steel plate and machined into cylinders of 4 mm in diameter and 10 mm in height. The specimens were heated to the temperatures of 1250 °C, 1000 °C and 860 °C, respectively, with the heating rate of 20 °C/s to obtain different austenite grain sizes. The A_e3 temperature of the experimental steel was calculated to be approximately 840 °C using the JMatPro 9.0 software (Sente Software Ltd., London, UK), so the minimum reheating temperature was selected to be 860 °C. In addition, 1000 and 1250 °C are selected to obtain prior austenite grains with significantly different sizes. Figure 1 shows the detailed simulated heat treatment process of the specimens, which was carried out using the Formastor-FII machine (FUJI KIKO Co., Ltd., Kosai, Japan). Each sample was held at the peak temperature for 5 s to obtain full austenitization. Then, they were cooled from the peak temperature to 800 °C at a rate of 60 °C/s, followed by cooling to room temperature at a rate of 10 °C/s. It is believed that no transformation from austenite occurred during the rapid-cooling stage to 800 °C because of the high cooling rate and the small undercooling. The changes of sample length throughout the heat treatment process were recorded. After the thermal simulation tests, each specimen was cut into three parts. The first part was etched via the saturated aqueous picric acid at 70 °C in a water bath to reveal the austenite grain. The second part was polished and etched in 4 vol% nital solution at room temperature. Then the microstructures of the specimens were observed by an OLYMPUS BX 53 MRF optical microscope (OM, OLYMPUS, Tokyo, Japan). The third part was polished and etched with LePera reagent in order to reveal the morphology of the M-A constituents. The prior austenite grain sizes were quantified using the linear intercept method.

3. Results and Discussion

3.1. Microstructure

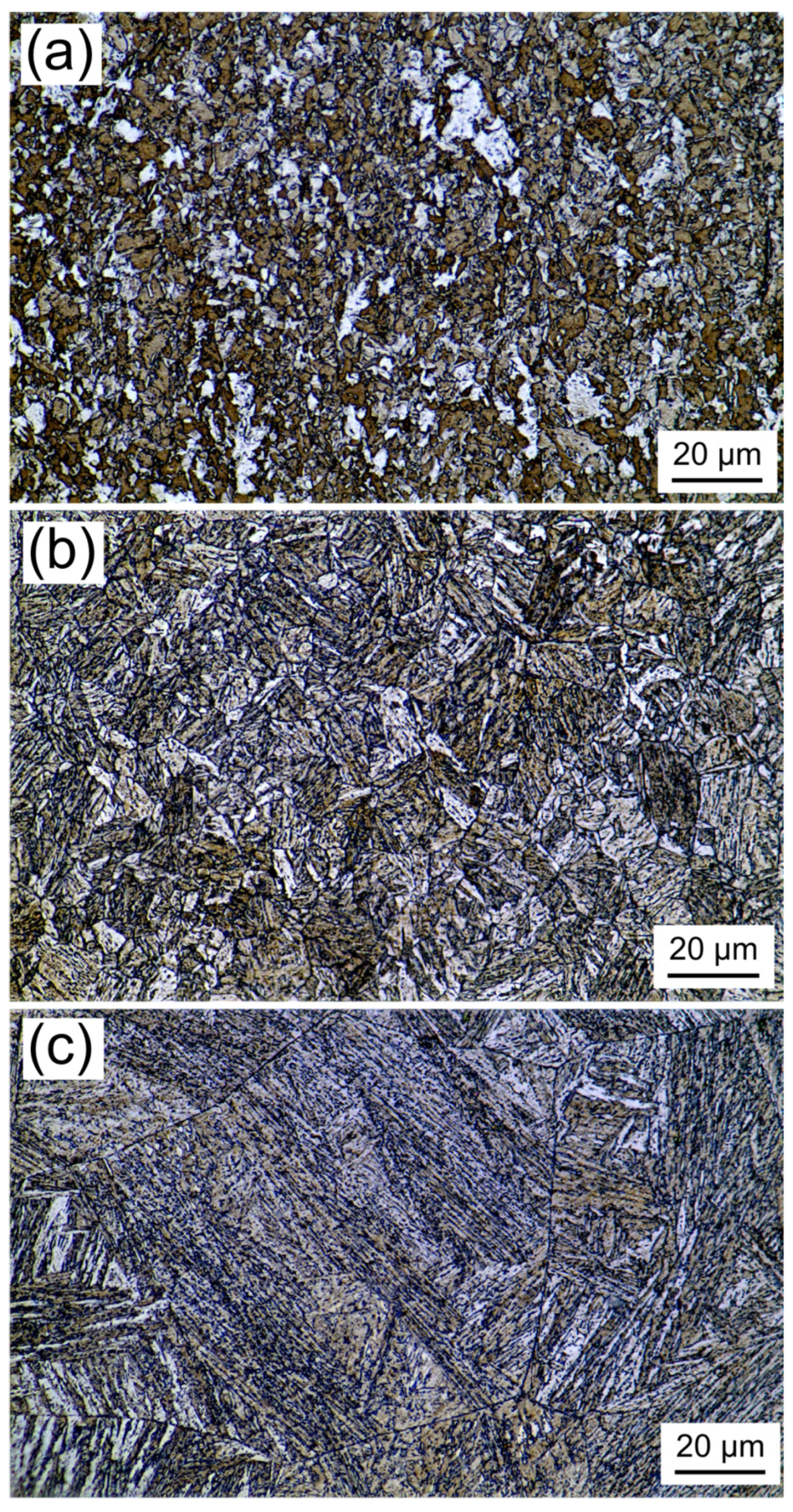

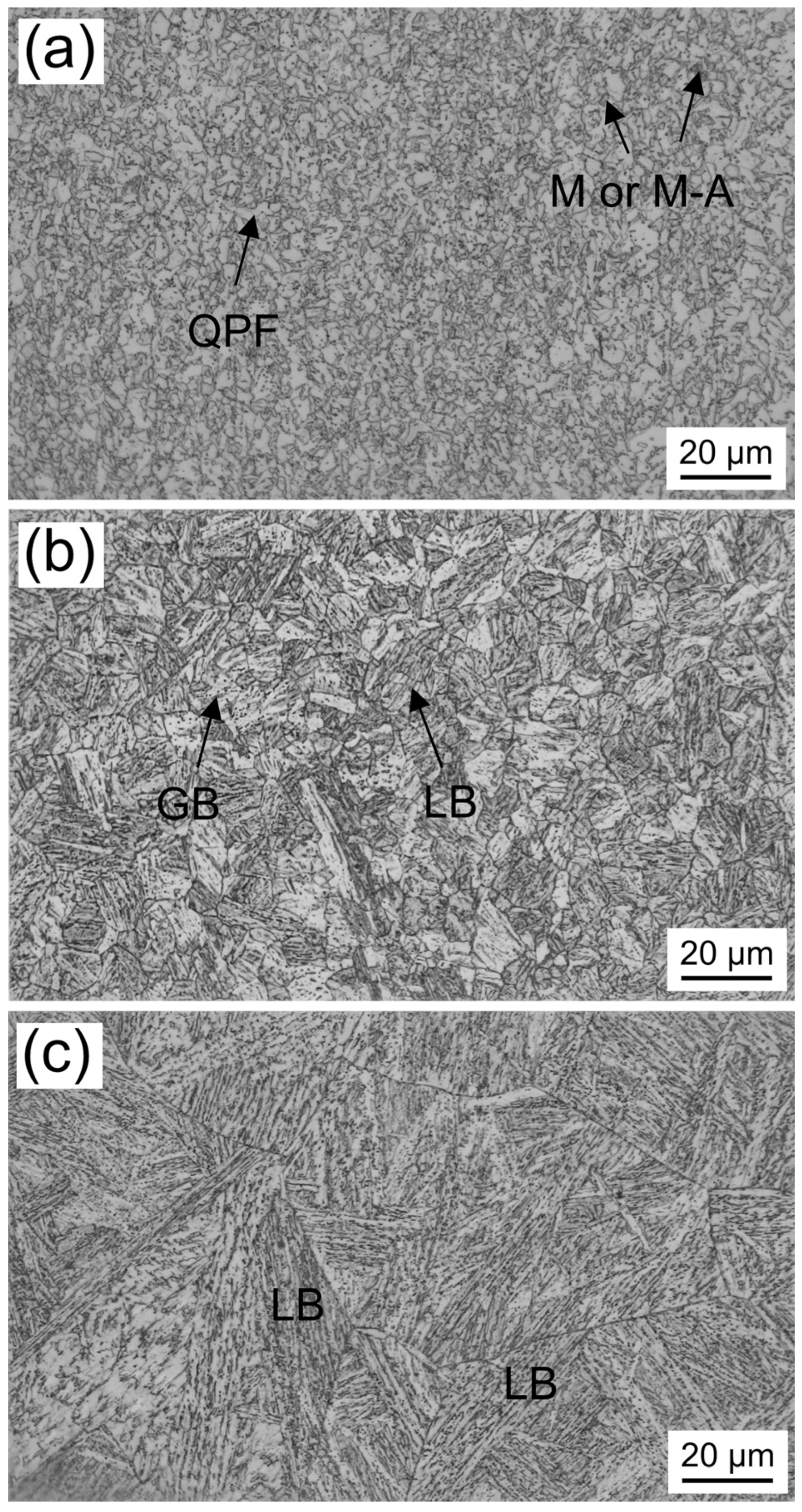

Figure 2 shows the microstructures of the newly designed experimental steel with different austenitization temperatures. The average AGS was increased from 7 to 62 μm as the austenitization temperature increased from 860 °C to 1250 °C. When the experimental steel was austenitized at 860 °C, the microstructure consists of typical granular bainite and a few polygonal ferrite (Figure 2a). As shown in Figure 3a, blocky martensite and small martensite-austenite (M-A) constituents form along grain boundaries and appear white after being etched with LePera reagent. When the austenitization temperature was increased to 1000 °C, a visible number of lath bainite (or bainite ferrite), granular bainite and a small amount of M-A constituents were generated in the microstructure, as shown in Figure 2b and Figure 3b. In addition, compared to the specimen austenitized at 860 °C, the austenite grains do not coarsen significantly at 1000 °C due to the pinning effect of fine precipitates which do not fully dissolve into the matrix. Bainite can only grow inside the austenite grain due to the ledge growth mechanism and displacive mechanism, so the austenite grain boundaries in the microstructure are clear and complete [22,23,24]. When the austenitization temperature was 1250 °C, the microstructure of the sample changed into a mixture of lath bainite and lath martensite, and the prior austenite grains grew abnormally (Figure 2c and Figure 3c). In summary, the morphology of the microstructure changes from polygonal ferrite and granular bainite to lath bainite as the austenitizing temperature is increased from 860 to 1250 °C.

3.2. Expansion Curve

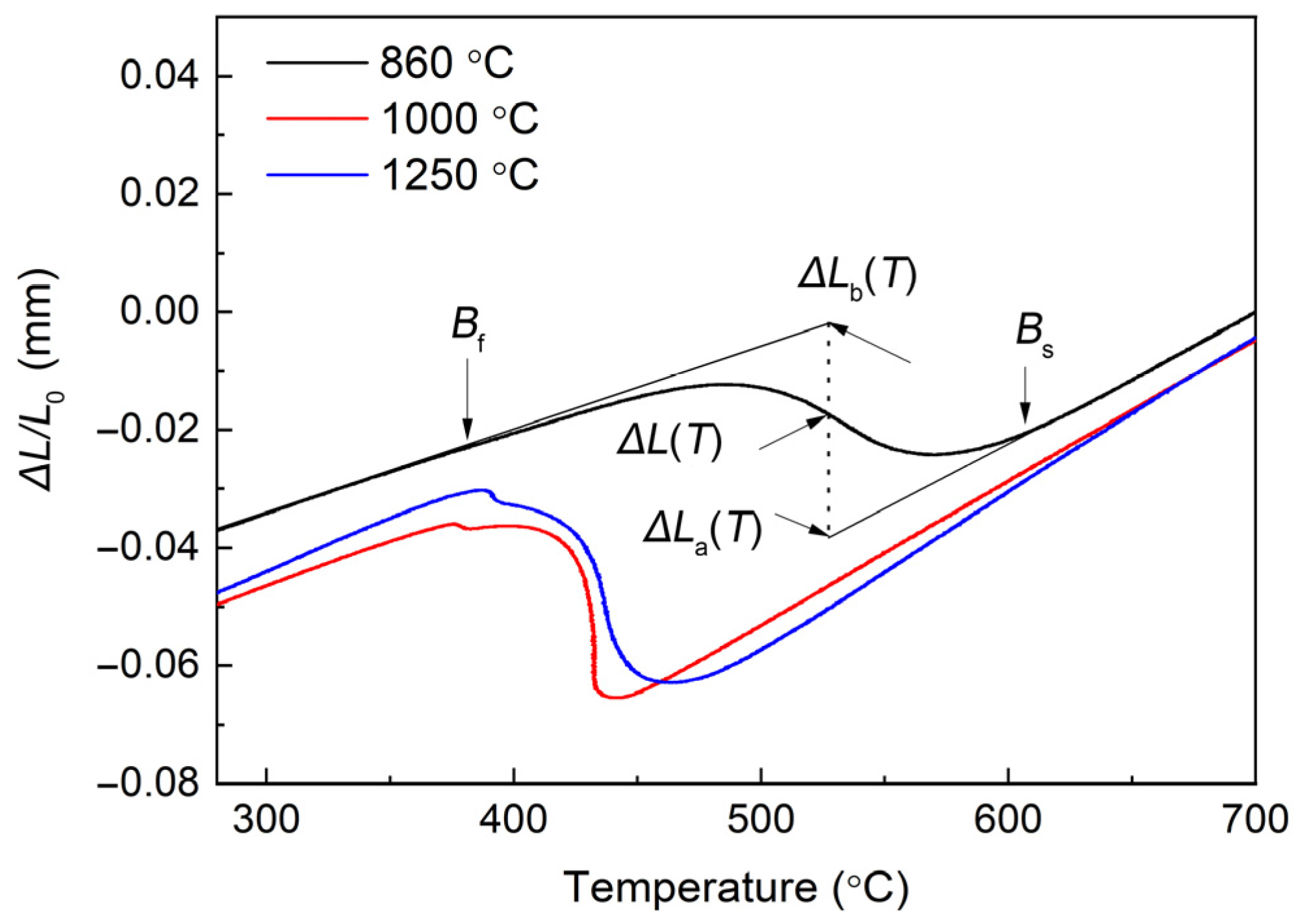

Figure 4 shows the expansion curves for the lengths of the specimens treated with different austenitizing temperatures at a cooling rate of 10 °C/s. The bainite starting (B_s) and bainite finishing (B_f) temperatures were considered to be the temperatures corresponding to the deviation points of the thermal expansion lines of austenite and bainite on the expansion curves [10]. In Figure 4, the arrows show the B_s and B_f temperatures of the sample at the austenitization temperature of 860 °C. The measured B_s temperature in the specimen austenitized at 860 °C is approximately 606 °C. The theoretical B_s was calculated to be about 642 °C using Equation (1) proposed by van Bohemen [25]. The theoretical B_s is higher than the experimentally determined one because incubation is required to start the transformation. It is observed that the austenitizing temperature obviously affects the bainite transformation.

$$\begin{array}{c}{B}_s=839-86x_{Mn}-23x_{Si}-67x_{Cr}-33x_{Ni}-75x_{Mo}\\ -270\left[1-\mathit{exp}\left(-1.33x_C\right)\right]\end{array}$$

(1)

The B_s and B_f temperatures of the specimens treated with an austenitizing temperature of 1000 °C are lower than the specimens treated with 860 °C and 1250 °C. This phenomenon is more pronounced for the B_s temperature than that for the B_f. The austenitizing temperature of 1000 °C is lower than the austenite coarsening temperature of the experimental steel, so the austenitic grains grow without obvious coarsening and the austenite grains are finer. According to the shear mechanism for bainitic transformation, the bainite nucleus are formed by the separation of original dislocations. Fine austenite grains with high density of dislocation retard the bainite nucleation by inhibiting the mobility of incipient crystal with a body-centered cubic (BCC) structure. Consequently, higher supercooling is required to compensate for the higher driving forces associated with the phase transformation of fine austenite grains. This explains why the B_s in the sample austenitized at 1000 °C is lower than in that austenitized at 1250 °C. On the other hand, the relatively high B_s temperature in specimens treated at the lowest austenitizing temperature of 860 °C is due to the inhomogeneous chemical composition in the austenite. The solute-depleted region in austenite can promote the nucleation of the product phase [26]. Combining the information from Figure 2 and Figure 4, polygonal ferrite first forms in the sample with the lowest austenitizing temperature (860 °C). This is because the stability of austenite decreases with the reduction of dissolved elements such as Mn, Si, Cr and Nb. During continuous cooling, the solute-depleted region in austenite may transform into polygonal ferrite. When the austenitizing temperature is 1250 °C, the AGS is coarse, which leads to a reduction in the bainitic nucleation sites. In addition, the complete dissolution and uniform distribution of alloying elements improve the stability of austenite. Therefore, its B_s temperature is relatively low. In summary, the B_s temperature and bainitic transformation temperature range of the specimen austenitized at 1000 °C is lower than those austenitized at 860 and 1250 °C.

3.3. Kinetics of Continuous Cooling Bainite Transformation

The volume fraction of the product phase (f_v(T)) can be calculated by Equation (2) using the classical lever rule and based on the dilatation curve, as shown in Figure 4. In the above equation, ΔL(T) is the actual value of the length change of the specimen at the temperature of T, and ΔL_a(T) and ΔL_b(T) can be obtained by extrapolating the linear thermal expansion of the fully austenite and bainite at the temperature of T, respectively.

$$f_v\left(T\right)=\frac{\mathsf{\Delta }L\left(T\right)-\mathsf{\Delta }{L}_a\left(T\right)}{\mathsf{\Delta }{L}_b\left(T\right)-\mathsf{\Delta }{L}_a\left(T\right)}$$

(2)

Figure 5 illustrates the bainite kinetic curves for the experimental steel. It is assumed that austenite is completely transformed to bainite. Although residual austenite may be present in the transformation products, the volume fraction of residual austenite is small and negligible in the calculations. The shape of the transformation curve is determined by the temperature and driving force of phase transformation. As the temperature of phase transformation decreases, the supercooling degree and driving force increase, but the ability of carbon diffusion decreases. Therefore, the fastest transformation rate of bainitic transformation occurs at the mid-temperature [27].

The effect of AGS on bainitic transformation is non-monotonic. The bainite transformation kinetics of the sample austenitized at 1000 °C was significantly accelerated compared to that austenitized at 860 °C. However, when the austenitising temperature rises to 1250 °C, the transformation kinetics is no longer accelerated further. It is well known that AGS increases with increasing austenitising temperature, so it can be inferred that there is a critical AGS, below which the effect of AGS on the bainitic transformation kinetics is significant, whereas above which this effect is weak. The maximum length of bainite sheaves equals the diameter of prior austenite because the growth of bainite is limited by the prior austenite grains. There are a lot of grain boundary nucleation of bainite and the event of hard impingement is very frequent when the AGS is below the critical value. If the AGS is above the critical value, the nucleation density of bainite decreases and the impingement event between bainite sheaves decreases.

Transformation kinetic curves further indicate that the austenite grain in the sample austenitized at 1000 °C reduces the bainite transformation temperature ranges. And the length of bainite sheaves obtained from the sample austenitized at 1000 °C is close to the diameter of AGS (see Figure 2). Furthermore, the phase transformation rate of the specimen with an austenitizing temperature of 860 °C decreases significantly near the intermediate stage of transformation, which is mainly caused by the enrichment of carbon in austenite discharged from polygonal ferrite. Thus, the phase transformation kinetics are influenced to some extent by the diffusion of carbon at the end of the phase transformation [28,29].

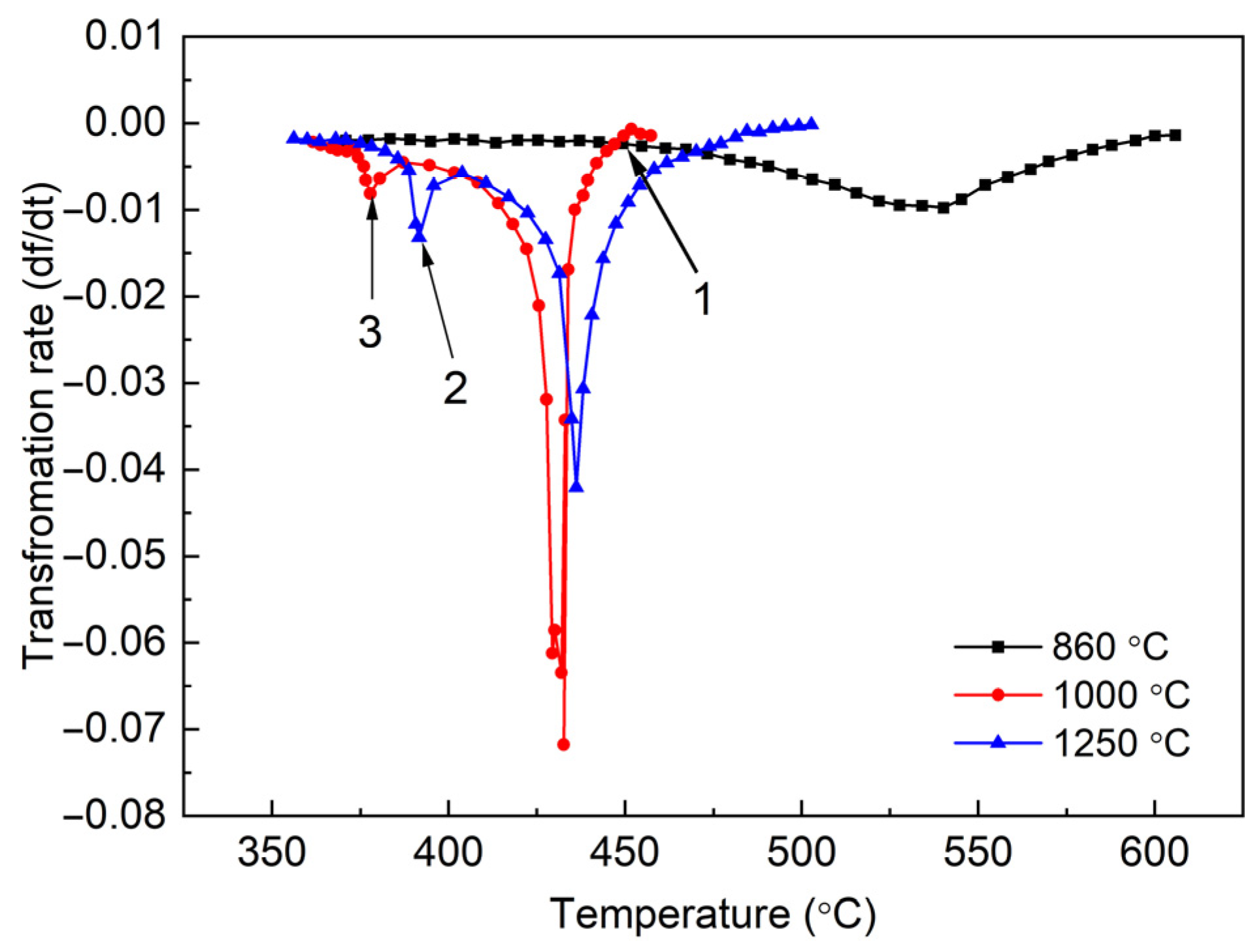

Figure 6 illustrates the variation of the bainite reaction rate with different austenitizing temperatures. It is observed that the effect of AGS on transformation rate is non-monotonic. The reaction rate of the specimen austenitized at 1000 °C is higher than those at 1250 and 860 °C. There was no significant coarsening of the AGS in the 1000 °C austenitized specimen compared to the 860 °C austenitized specimen, as described above, and therefore the nucleation sites of bainite were not significantly reduced. However, the driving force for bainite transformation was obviously larger in the specimen austenitized at 1000 °C due to lower transformation temperature, which results in the acceleration of bainite transformation. On the other hand, the transformation temperature in the specimen austenitized at 1000 °C was slightly lower than that austenitized at 1250 °C, and the preferential nucleation sites are expected to be larger in the former one because AGS obviously coarsens at 1250 °C (Figure 2). In addition, transformation stasis can be observed at the beginning of transformation (marked by arrow 1 in Figure 6) in the specimen austenitized at 1000 °C. This is mainly due to the solid solution drag of elements Ti and Nb at the bainite/austenite interface, inhibiting the bainite nucleation. At the beginning of the bainite transformation, the phase transformation temperature is relatively high and the solid-solution drag effect between atoms Ti, Nb and C is more likely to impede the movement of the phase interface, which can be identified by the reduction of the phase transformation rate. After the precipitation of (Ti, Nb)C, the solid-solution drag effect diminishes or disappears, and the migration of the phase interface is reactivated again. Moreover, another peak in the transformation rate curves occurs at the end stage of the transformation (marked by arrows 2 and 3 in Figure 6). Gupta et al. [30] believes that the formation of interplate precipitates or secondary M-A components leads to the emergence of the second peak. Reisinger et al. [31] also found a two-stage transformation behavior in a CrMoV steel. They stated that the carbon enrichment in austenite led to a stasis of the transformation. As the temperature decreased, the transformation onset again at the second stage. In the present study, the second peak may correspond to the formation of martensite because it appears at low temperatures below 400 °C.

The rate of phase transformation is closely related to the nucleation, growth and impingement of the product phase. Grain boundaries and the already formed bainite lath are the main positions for bainite nucleation, which can be seen from the microstructure in Figure 2. The morphology of the parallel lath structure exhibits a high degree of anisotropy and one-dimensional growth. By contrast, polygonal ferrite tends to transform at a constant nucleation rate and in two-dimensional or three-dimensional growth at a slower cooling rate. Song et al. [32] proposed an analytical model to determine the kinetic information by analyzing the maximum transformation rate and they summarized that the impingement mode of the isochronous phase transition can be determined by the position of the maximum transformation rate.

According to Figure 5 and Figure 6, the location of the peak transformation rate occurs near 50% of the transformation volume fraction at the cooling rate of 10 °C /s, which indicates that the prevalent type of impingement mode is anisotropic growth impingement as the volume fraction of the transformation at the peak rate location is less than 0.632 [32]. Obviously, this result is also well corroborated by the microstructure morphology described above.

4. Conclusions

The effect of austenitizing temperature on the transformation kinetics and microstructure of a low-carbon bainite steel was investigated in the present study. The following conclusions can be drawn.

(1)

The morphology of the microstructure changes from polygonal ferrite and granular bainite to lath bainite as the austenitizing temperature of the multi-functional structural steel is increased from 860 to 1250 °C, and the average grain size of austenite is increased from 7 to 62 μm.

(2)

The B_s temperature and bainitic transformation temperature range of the specimen austenitized at 1000 °C is lower than those austenitized at 860 and 1250 °C.

(3)

Bainite transformatioin rate is influenced by the nucleation and growth of bainite. As the austneite grain size increases, the number of nucleation sites decreases, but the growth of bainite is promoted. It is found that the growth of bainite is more important in determining the transformation rate than the nucleation in the 690 MPa microalloyed multi-functional structural steel.

(4)

For the novel high-strength multi-functional structural steel, there is a critical austenite grain size. Below the critical value, the effect of austenite grain size on the bainitic transformation is significant, whereas this effect is weak above the critical value.
