Electrochemical Behavior and Surface Conductivity of C/TiC Nanocomposite Coating on Titanium for PEMFC Bipolar Plate

Abstract

In this study, a C/TiC nanocomposite coating has been prepared by magnetron sputtering technology and vacuum heat treatment technology on a titanium surface, which is used for bipolar plates (BPs) in a proton exchange membrane fuel cell (PEMFC). This prepared C/TiC nanocomposite coating was characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), X-ray photoelectron spectroscopy (XPS), Raman spectroscopy, electrochemical testing and interfacial contact resistance (ICR). The results show that a C/TiC nanocomposite coating consists of a single C surface layer (~28.88 nm) and TiC interface layer (~19.5 nm). In addition, compared with commercially pure titanium substrate (i_corr = 345.10 μA cm⁻²), the corrosion resistance of a C/TiC nanocomposite coating (i_corr = 0.74 μA cm⁻²) was greatly improved in 0.5 M H₂SO₄ + 5 ppm HF solution at 80 °C. The corrosion current density (i_corr) decreased 3 orders of magnitude in a simulated cathodic environment. Moreover, the interfacial contact resistance of a C/TiC nanocomposite coating is 2.34 mΩ cm² under 1.4 MPa compaction force, which is much lower than that of raw CP Ti (38.66 mΩ cm²).

1. Introduction

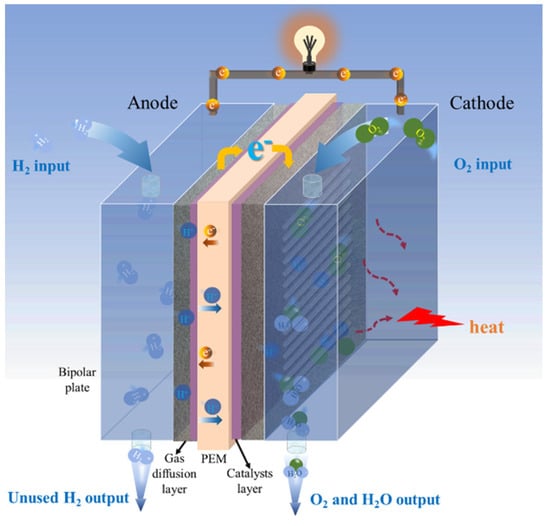

In recent years, the fuel cell has experienced rapid development in various fields, because of its advantages of being pollution-free and highly energy efficient [1,2,3]. Among them, proton exchange membrane fuel cells (PEMFCs) are considered to be the next generation of energy equipment, due to their advantages of high energy conversion efficiency, zero-emissions, fast start-up, as well as low operating noise [2,4,5]. PEMFCs have a sandwich-like structure, which consists of shells, bipolar plates, and membrane electrode components (gas diffusion layer-GDL, proton exchange membrane-PEM and catalyst layer-CL) [6,7], as shown in Figure 1. When PEMFCs are working, hydrogen and oxygen gases are used as fuels, which go into the anode and cathode of the cell, respectively [1,7,8]. Under the action of the catalyst, the H₂ change to H⁺ ions at the anode and then pass through the PEM to react with O₂ at the cathode. The water (H₂O) and energy (electricity and heat) are released after that [2]. In accordance with to several descriptions in the literature [1,2,7,8], the schematic diagram of the working principle is shown in Figure 1.

$${\mathrm{Anode}\mathrm{Reaction}:2\mathrm{H}}_2\to {4\mathrm{H}}^{+}{+4\mathrm{e}}^{-}$$

(1)

$${\mathrm{Cathode}\mathrm{Reaction}:\mathrm{O}}_2{+4\mathrm{H}}^{+}{+4\mathrm{e}}^{-}\to 2{\mathrm{H}}_2\mathrm{O}$$

(2)

$${\mathrm{Summary}\mathrm{Reaction}:2\mathrm{H}}_2{+\mathrm{O}}_2\to {2\mathrm{H}}_2\mathrm{O}$$

(3)

In PEMFCs, bipolar plates contributed 60~80% of the weight of the PEMFC stack, 30~40% of the cost and almost occupied the entire volume of the entire battery [9,10], which is considered to be a key component of PEMFCs. Therefore, the ideal bipolar plate must achieve the characteristics of good air tightness, wettability, mechanical properties, electrical conductivity, corrosion resistance and low cost.

Traditional graphite bipolar plates were usually used as battery plate materials because of their good electrical conductivity and corrosion resistance. However, the many disadvantages of low brittleness, poor air tightness and high manufacturing process costs limited their mass production [11,12]. Compared with graphite bipolar plates, the properties of conductivity and mechanical strength are outstanding for stainless steel bipolar plates [13,14], but their high weight density does not meet the requirements of energy efficiency. In addition, stainless steel has terrible corrosion resistance in an acidic solution; the metal ions Fe²⁺ Cr²⁺ and Ni²⁺ are released from substrate to solution during the working process, which can reduce the membrane performance and poison the catalysts [15]. Although corrosion resistance can be improved by surface modification or adding a coating to stainless steels surfaces [7,14,16,17,18,19,20] using different technology, i.e., PVD [4], CVD [21], arc ion plating technology [19], magnetron sputtering [22,23,24], et al., the complex coating process increases its cost in mass production.

Compared with stainless steel, titanium and titanium [1,25,26] alloy have the obvious advantages of light weight, great corrosion resistance and electrical conductivity. Unfortunately, while the passive film formed on the surface can protect the substrate from corrosion in the PEMFC environment, in the meantime, it will enormously increase the ICR between the surface and gas diffusion layer (GDL) of bipolar plates and further reduce the battery output power [27]. To address this drawback, various types of coating materials, such as noble metals (Au [28], Ag [29,30], Pt), non-noble metals (Zr [31]), metal nitrides (TiN [32], CrN [33], ZrCN [34]), metal carbonitride coating (TiC [8], TiCrC [35], NbCrC [36]) and amorphous carbon (α-C [37]) were prepared by different surface modification technologies. Up to now, there have been no relevant reports on the preparation of nanocomposite coatings through the combination of magnetron sputtering technology and vacuum heat treatment technology. In this work, in order to reduce costs and increase performance for BPs, a C/TiC nanocomposite coated titanium bipolar plate was prepared using a combination of magnetron sputtering technology and vacuum heat treatment technology. It has such characteristics with a single C surface layer using magnetron sputtering technology and a TiC interface layer using magnetron sputtering technology and vacuum heat treatment technology. This prepared C/TiC nanocomposite coating titanium bipolar plate exhibited good electrical conductivity and corrosion resistance in a simulated PEMFC cathodic environment.

2. Experiments Details

2.1. Preparation of the Nanocomposite Coating

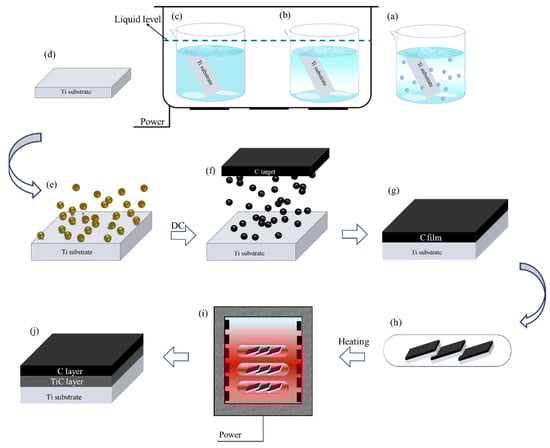

Commercial pure titanium TA1 (CP Ti) was used as the bipolar plate substrate. The CP Ti substrate was cut into pieces with size of 30 mm × 30 mm × 0.1 mm, and was immersed in a 5 vol% HF solution for 30 s in order to remove the oxidized layer. Then the CP Ti substrate was cleaned ultrasonically with deionized water and alcohol for 15 min to remove organic substances, and dried at room temperature. Next, the Ti substrate was put into the vacuum chamber of the deposition system. A DC power source was applied to a graphite target (purity 99.99%) to deposit a single C layer on the CP Ti substrate by magnetron sputtering technology. Prior to the deposition, the vacuum chamber of the deposition system was vacuumized until the pressure was lower than 1 × 10⁻³ Pa, then the pressure was maintained at approximately 0.5 Pa by introducing pure Ar gas. The CP Ti substrate was etched by ion spurring with 300 V negative bias voltage and 2 A current for 15 min to remove the oxide layer of the substrate surface. Finally, A 400 V negative bias voltage and 3 A current was applied to the graphite target to prepare a single C layer, which was maintained for 2000 s. During the C film deposition process, the flow of Ar and duty cycle were maintained at 40 sccm and 20%, respectively. Then, the single C coating specimens were sealed in a quartz tube without oxygen, and were heated in a muffle furnace at 700 °C for 210 s. The schematic illustrations of the preparation process of the nanocomposite coating is shown in Figure 2. In this work, the coating is recorded as a single C coating, and coating + heating is recorded as C/TiC nanocomposite coating.

2.2. Characterization

The phase composition of the as-prepared all-coated Ti bipolar plates were characterized by X-ray diffraction (XRD), and the surface morphologies of coated specimens were observed using scanning electron microscopy (SEM). Raman spectroscopy was recorded with a 532 nm excitation wavelength to analyze the structural arrangements of the C film. In order to characterize the chemical and binding energy states, X-ray photoelectron spectroscopy (XPS) was applied to characterize the chemical and binding energy states.

2.3. Electrochemical Measurements

The electrochemical corrosion test was carried out by a CHI760e electrochemical workstation with a traditional three-electrode system. The BPs specimen was served as the working electrode, the platinum sheet was used as counter electrode and the saturated calomel electrode (SCE) acted as the reference electrode, respectively. The BPs specimen exposed to the electrolyte was a circle with an area of 1 cm², and the electrolyte solution was 0.5 M H₂SO₄ + 5 ppm HF solution and temperature was 80 °C to simulate the aggressive PEMFC environment. Potentiodynamic polarization, a potential scanning rate of 2 mV s⁻¹, was adopted to evaluate the corrosion resistance of CP Ti and coated-Ti substrate. Before potentiodynamic polarization, the open circuit potential (OCP) was operated for 60 min. An Electrochemical Impedance Spectroscopy (EIS) test was carried out at OCP in a frequency from 100 kHz to 0.01 Hz. The EIS measurement results were further analyzed using curve fitting with ZView software.

2.4. Interfacial Contact Resistance

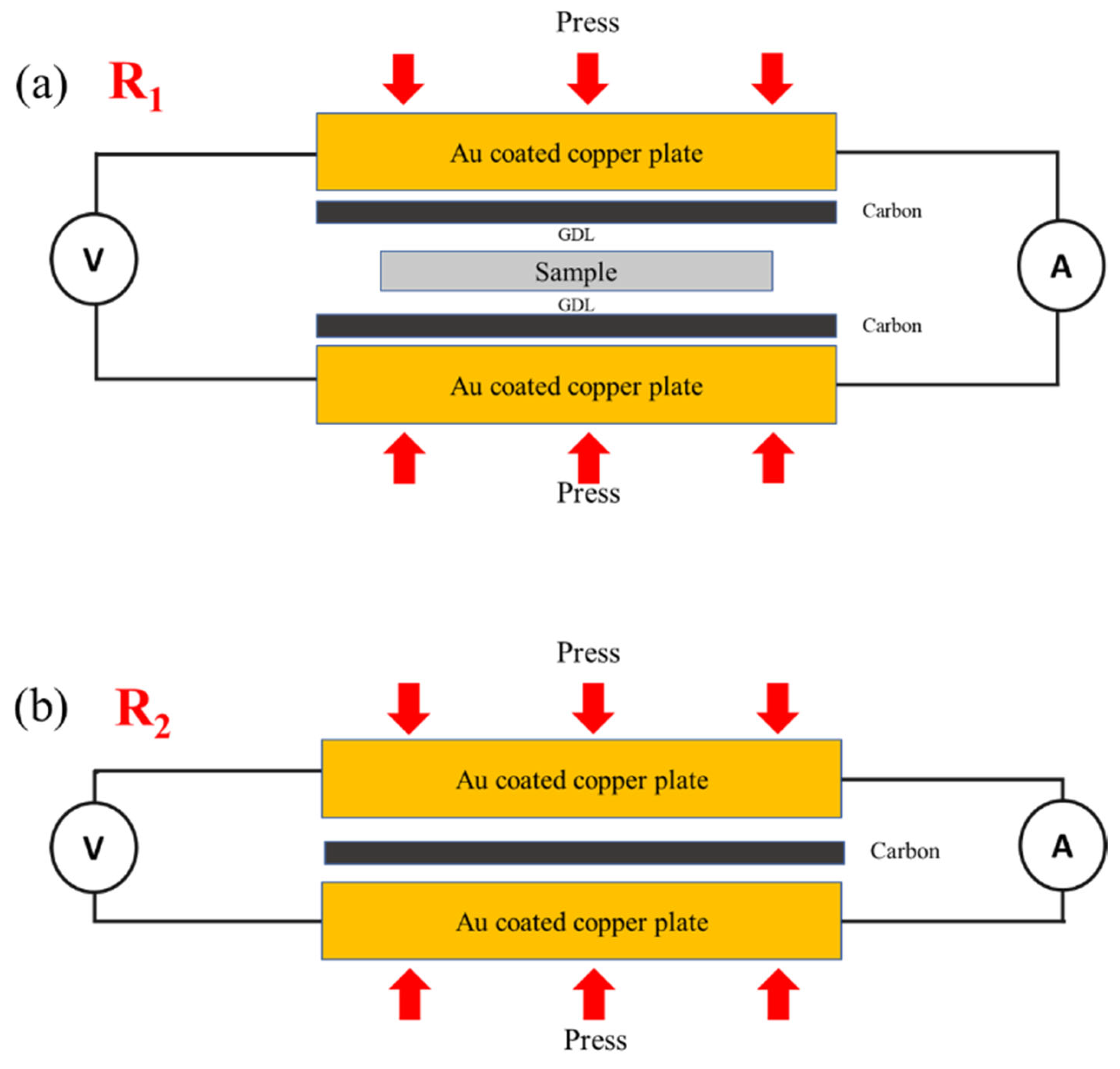

In PEMFC stack, the ICR between the specimen and carbon paper (TGP-H-060, TORAY, Tokyo, Japan) was directly measured using a common method. The schematic diagram of the ICR measurement is shown in Figure 3; the test system is a sandwiched structure which was consists of two pieces of carbon paper, two Au-coated copper electrodes and a bipolar plate specimen [16,38,39]. The total resistance was measured at different pressures from 0.2 MPa to 2.0 MPa, and the ICR value of the typical bipolar plate specimen corresponded with its real value at a loading pressure of 1.4 MPa. The three specimens which had the same preparation conditions were tested to take the average value. The ICR can be calculated according to Equations (4)–(6) [8,16,40,41,42].

$${\mathrm{R}}_1{=2(\mathrm{R}}_{\mathrm{Cu}}{+\mathrm{R}}_{\mathrm{Cu}/\mathrm{C}}{+\mathrm{R}}_{\mathrm{C}/\mathrm{BP}}{+\mathrm{R}}_{\mathrm{C}}{)+\mathrm{R}}_{\mathrm{BP}}{+\mathrm{R}}_0$$

(4)

$${\mathrm{R}}_1{=2(\mathrm{R}}_{\mathrm{Cu}}{+\mathrm{R}}_{\mathrm{Cu}/\mathrm{C}}{+\mathrm{R}}_{\mathrm{C}/\mathrm{BP}}{+\mathrm{R}}_{\mathrm{C}}{)+\mathrm{R}}_{\mathrm{BP}}{+\mathrm{R}}_0$$

(5)

$$\mathrm{ICR}=\frac{\mathrm{S}}{2}{(\mathrm{R}}_1-{\mathrm{R}}_2)$$

(6)

Where R₁ is the total resistance value (shown in Figure 3a), R_Cu and R_C is the bulk resistance of Au-coated copper electrode and carbon paper and R_Cu/C is Contact resistance between them. R_BP and R₀ represent the bulk resistance of bipolar plate and external system resistance, respectively. R_C/BP (ICR) and S is Corresponding for interfacial contact resistance and contact surface area between specimen and carbon paper, respectively. While the R_C and R_BP were neglected because of their slight value.

3. Results and Discussion

3.1. Surface Structure and Morphology

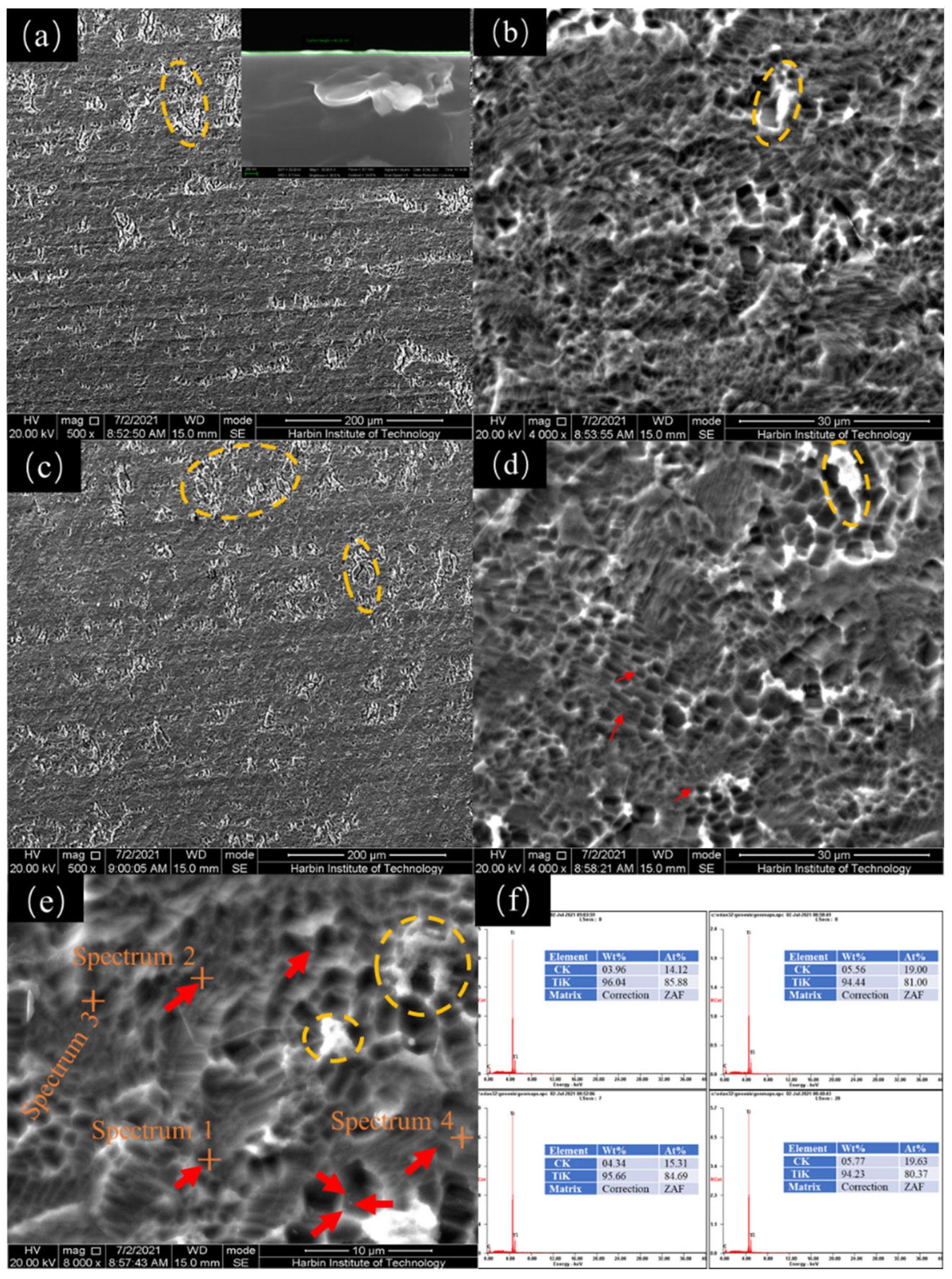

Figure 4 shows the surface morphology of the as-prepared C coating and C/TiC nanocomposite coating on the titanium plate. It can be seen that the thickness of the C film is approximately 48.38 nm (illustration in Figure 4a), and the coating is relatively uniform judging from Figure 4a to Figure 4d. The surface morphology of specimens exhibit honeycomb-like structure, and there are some C nanoparticle clusters on the honeycomb edge (shown in orange dashed circle), which may result in reducing the ICR of bipolar plates because the graphite C possess great conductivity. As shown in Figure 4e, after vacuum heat treatment, it can be seen that some nanoparticles (red arrow) were embedded in the C film, which may be TiC particles.

The composition of the nanoparticles at the orange cross-mark in Figure 4e was analyzed by EDX (Figure 4f). The peak of main ingredients are the minor C peak (~17.02 at.%) and the strong Ti peak without other element signal peaks. Thus, it can be inferred that TiC nanoparticles may exist in the as-prepared specimen, which is formed from the chemical reaction of active titanium atoms and carbon atoms during heat treatment. Additionally, the TiC interface coating thickness is roughly calculated in XPS.

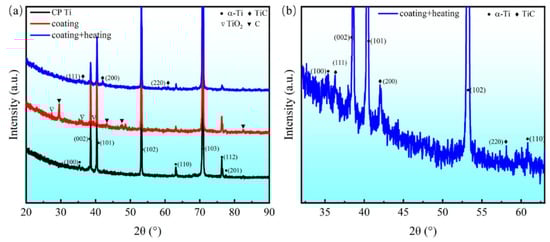

The crystal structure of the CP Ti and the as-prepared film’s titanium bipolar plates were analyzed by X-ray diffraction pattern (XRD). The XRD spectra of CP titanium substrates, deposition single C coating and C/TiC nanocomposite coating titanium substrates are shown in Figure 5. The titanium substrate (CP Ti) has only peaks corresponding to hexagonal α-Ti. The peaks representing Ti, TiO₂ and C can be observed in the spectra of the single C coating. The TiC phase can be detected in the coating after heat treatment, which means the TiC was formed during heat treatment. However, the peak of TiO₂ was not detected after heat treatment in Figure 5, because a carbothermal reduction of TiO₂ happened and titanium carbide was prepared according to the general equation [43,44]:

$${\mathrm{TiO}}_2+3\mathrm{C}\to \mathrm{TiC}+2\mathrm{CO}$$

(7)

3.2. Composition of the Coating

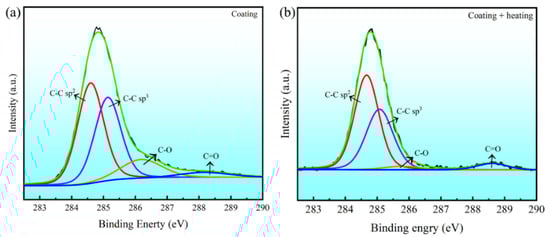

In order to further analyze the film’s composition and the carbon bonding states, the surface coatings before and after heat treatment were characterized by XPS. The XPS results were obtained by fixed 20% Lorentzian and 80% Gaussian [45] using XPS peak 4.1 software, as presented in Figure 6. It can be seen that the spectra were divided into four peaks, i.e., C-C (sp²), C-C (sp³), C-O and C=O [42,45,46]. The sp² bond fraction of the C/TiC nanocomposite coating was higher than sp³; the area ratio of sp² to sp³ in the C coating and C/TiC nanocomposite coating are 1.20 and 1.40, respectively. It can be explained that the sp² content increased due to the graphitization of sp³ in carbon films with an increase in the temperature [47], the metastable carbon atom hybrid transitioned from sp³ to sp², which means that the C/TiC nanocomposite Ti bipolar plate has better conductivity.

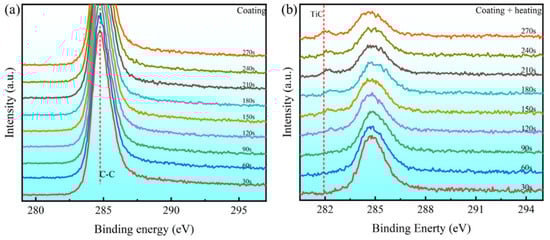

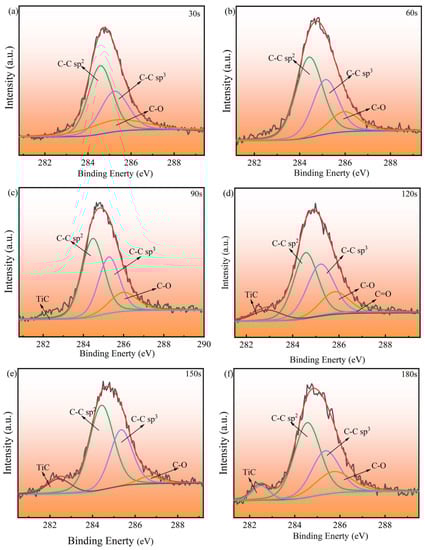

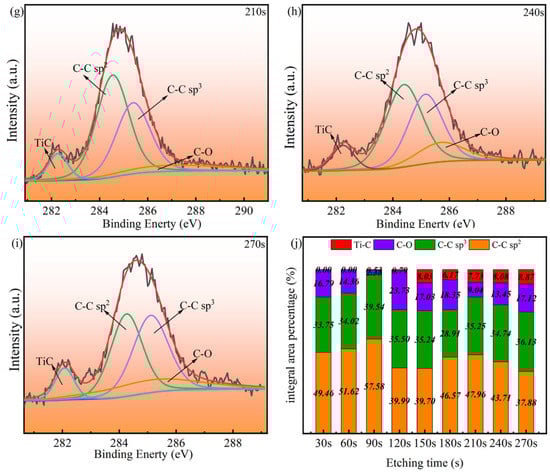

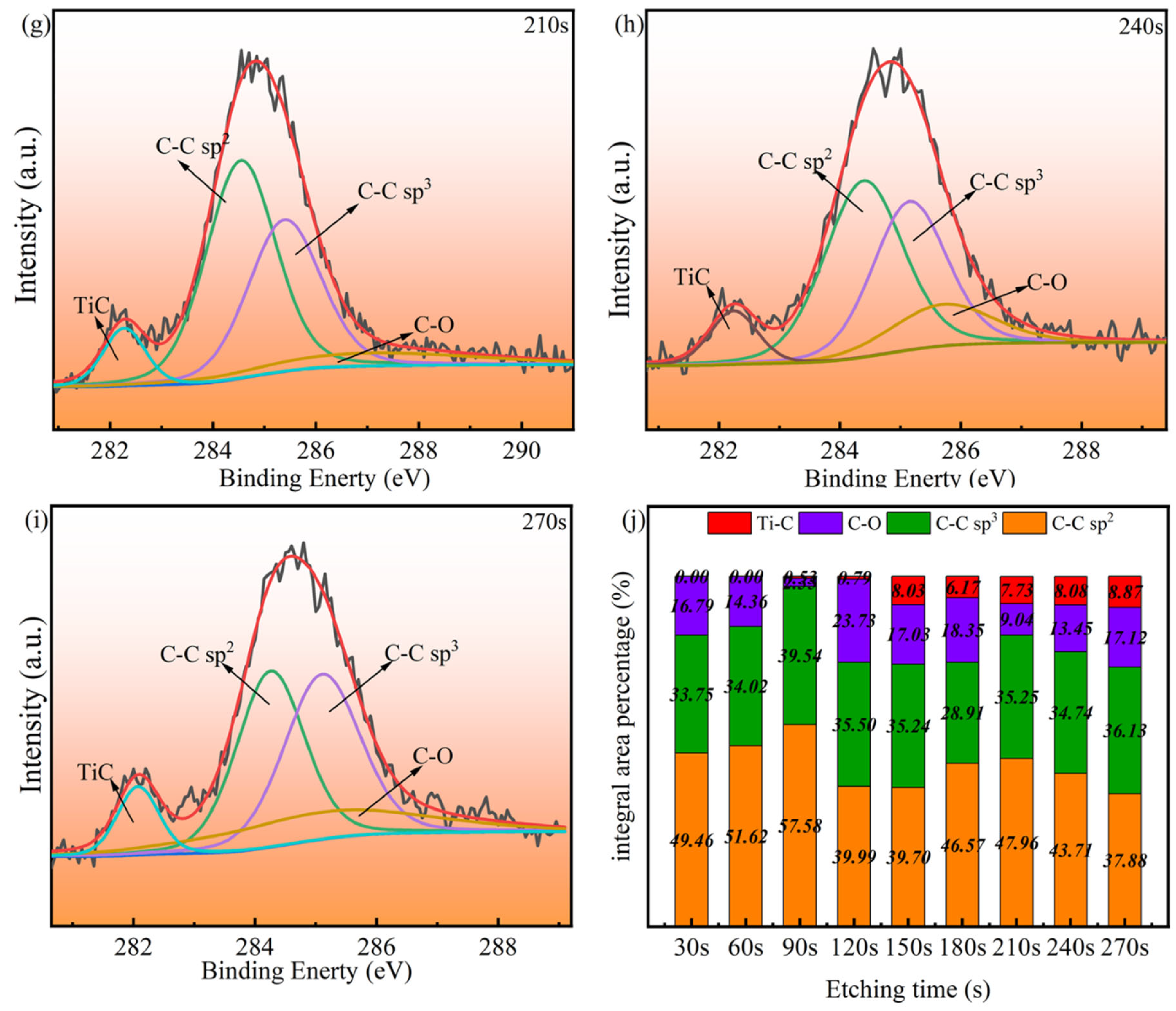

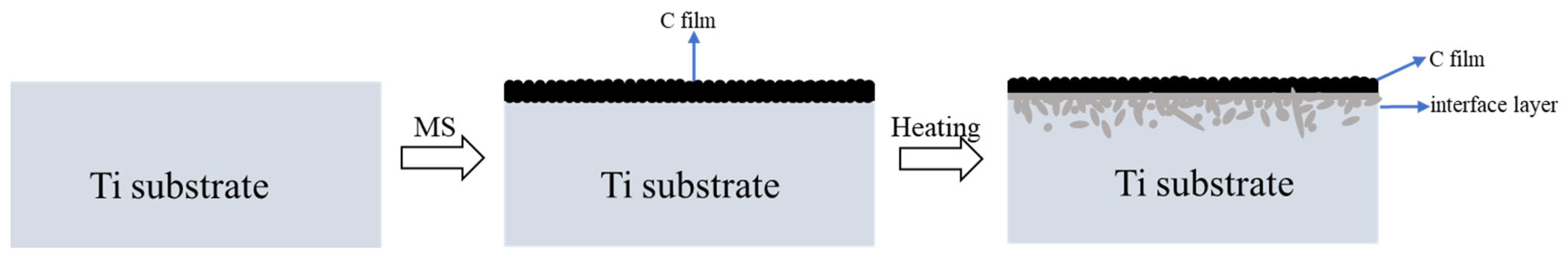

In order to prove the TiC layer formed during vacuum heat treatment, Figure 7 presents the XPS C 1 s depth profile results for coatings before and after vacuum heat treatment. From Figure 7a, no obvious characteristic peaks of TiC could be seen and only C-C peaked before vacuum heat treatment. However, a weak peak of Ti-C bonding appeared at 90 s etching, which corresponded to the bonding energy of 281.8 eV [48], and the peak intensity increased with increasing etching time, as shown in Figure 7b and Figure 8. This indicates that TiC may be formed by activated Ti and C atoms, which absorb external energy during heat treatment [49,50]. We performed analysis for each sputtering level using detail by the XPS spectra of C 1 s, and the fitted depth profiles are shown in Figure 8a–j. It was observed that the Ti-C did not appear at the first two 90 s etching, and appeared at 90 s with a negligible level (0.79%). By increasing the etching time, the Ti-C bonding fractions increased, i.e., 8.03%, 6.17%, 7.03%, 8.08% and 8.87% corresponding to 120 s, 150 s, 180, 210 s, 240 s and 270 s, respectively. And the thickness of the TiC interface layer is approximately 19.5 nm by rough estimation because of its 0.32 nm/s etching rate. A certain thickness of the intermediate layer can improve the adhesion strength between the substrate and the surface C layer [21,51,52,53,54], forming the schematic diagram shown in Figure 9. Moreover, C-O, C-C bonding fractions decreased to varying degrees with increased etching time and show dynamic distribution. Such a thin intermediate layer and bigger sp² bond fraction would improve the adhesion strength and surface conductivity, providing a high binding force and low ICR.

3.3. Raman Spectroscopy

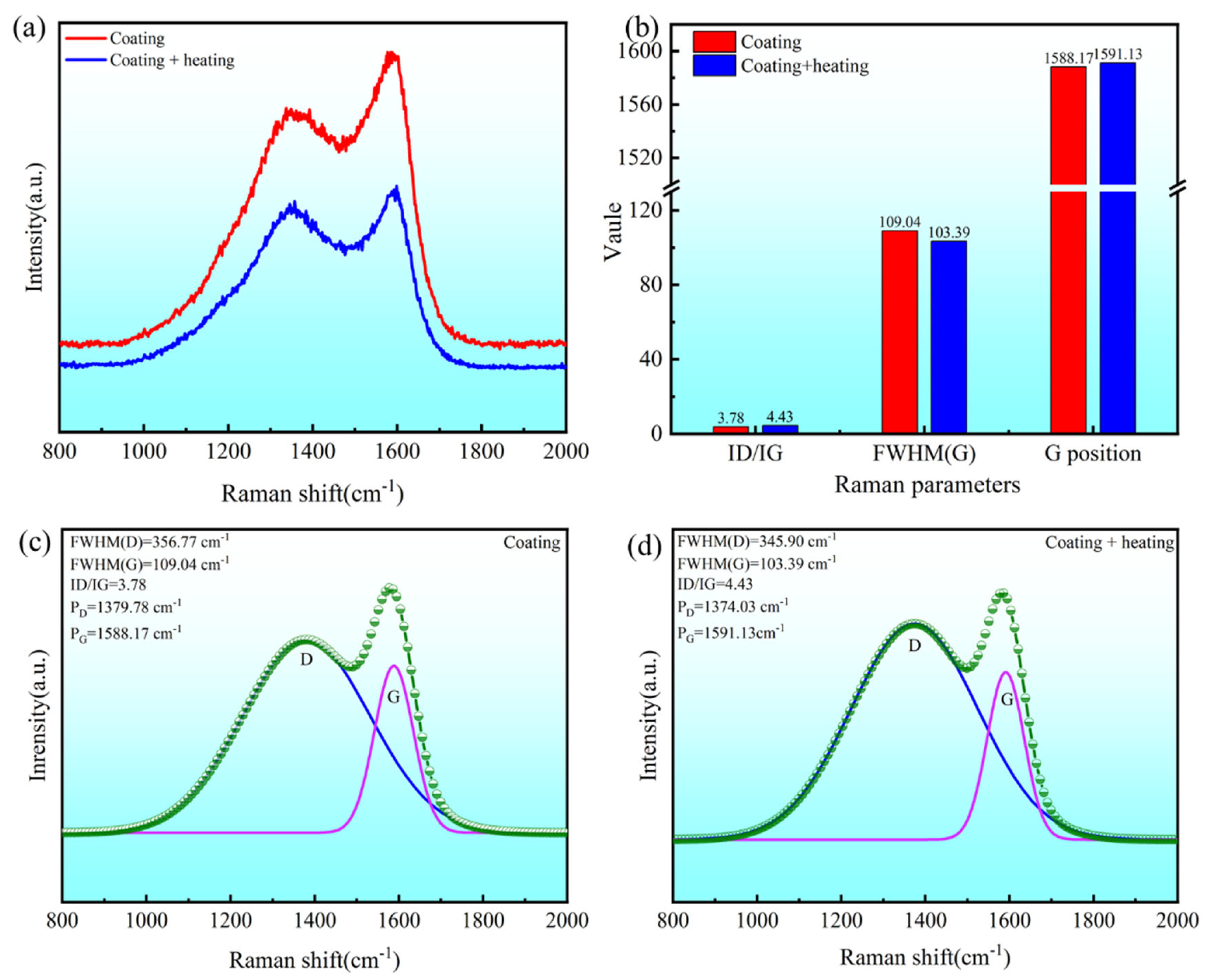

Figure 10 exhibited the Raman spectra of the film before and after vacuum heat treatment. Two asymmetric characteristic peaks, D and G peaks, are seen at wavenumbers in the range 1100 cm⁻¹ to 1800 cm⁻¹, which are centered at ~1380 cm⁻¹ and ~1560 cm⁻¹, respectively. The D-band is caused by sp² ring of defects and impurities from disordered structure in the graphite lattice, and the G-band represents plane stretching vibration sp² hybrid carbon, both rings and chains [55]. As shown in Figure 10c,d, the C film structure was analyzed by Gauss fitting in detail, with the results listed in Figure 10b. Compared to single the C coating, the I_D/I_G value of C/TiC nanocomposite coating (4.43) is higher than the C coating (3.78) and the G peak position moves towards higher wavenumbers; this indicates that the C/TiC nanocomposite coating specimen has a higher ratio of sp²/sp³ and a higher sp² content, and means that the higher sp² content of the coating has lower ICR [22,40]. This result is consistent with Zhang et al. [16] and XPS (Figure 6). In addition, FWHM before and after heat treatment were 109.04 and 103.39 in this work, respectively. After vacuum heat treatment, C atom lattice stress was formed in the C film, leading to an instable film structure. At this time, the C atom will undergo migration and rearrangement to reduce the degree of distortion in the bond angle and bond length of sp² cluster. This is beneficial to release internal stress and to change the instable film structure [56,57], and the lowering of internal stress can promote sp² phase formation and improve conductivity of bipolar plates [58]. That is to say, the lower FWHM, the higher conductivity, corresponding with XPS results.

3.4. Electrochemical Property

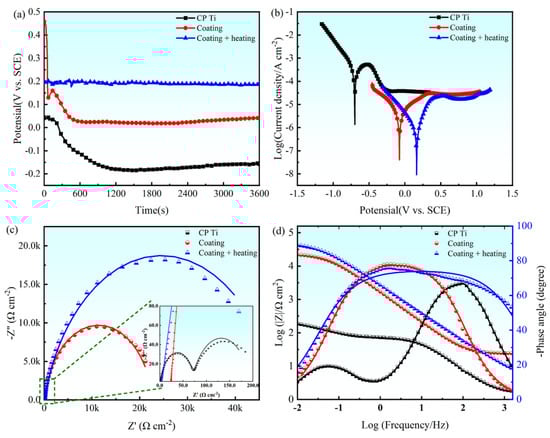

Figure 11a shows the variation of open circuit potential (OCP) of the CP Ti and as-prepared specimens with immersion time in simulated PEMFCs. It can be seen that the OCP of the CP Ti and C coating specimens decreases rapidly during the initial immersion period and then stabilizes at relatively lower potentials. However, compared with the former, the C/TiC nanocomposite coating specimen remains relatively stable throughout the immersion period with a higher potential. The OCP results of the three specimens are listed in

Table 1. Corrosion parameters and EIS fitted results for CP Ti and coated Ti specimen.

Specimen	Rs	Qf	Rf	Qdl	Rct	OCP	Ecorr	icorr
	(Ω cm2)	(Ω−1 sn1 cm2)	(Ω cm2)	(Ω−1 sn1 cm2)	(Ω cm2)	(V)	(V)	(μA cm−2)
CP Ti	1.63	-	71.14	-	69.51	−0.16	−0.70	345.10
C Coating	23.59	1.14 × 10−4	22,736.57	1.14 × 10−4	22,713	0.04	−0.08	3.18
C/TiC Coating	3.56	7.96 × 10−5	49,036.56	7.96 × 10−5	49,033	0.18	0.16	0.74

. The potential of three specimens are −0.16 V, 0.04 V and 0.18 V, respectively, following the order of C/TiC nanocomposite coating > C coating > CP Ti. Thermodynamically, the higher potential represents higher chemical stability [59], which indicates that the C/TiC nanocomposite coating specimens have better corrosion resistance in simulated PEMFCs.

The corrosion current density is one of the most important parameters for evaluating the performance of BPs in a fuel cell environment. Figure 11b shows the potentiodynamic polarization curves of CP Ti and as-prepared specimens (including the C/TiC nanocomposite coating and C coating) Ti bipolar plates. It is clear that the CP Ti substrates undergo an activation–passivation transition region and then enter the passivation region as the potential increases. The transition region may consist of an oxidation process which always occurs at the beginning of passivation and prevents the corrosion from continuing [30]. Furthermore, the polarization curves of the C coating and C/TiC nanocomposite coating specimens show typical Tafel behavior without a transition region, because a dense C film was prepared on the Ti plate surface before corrosion test. As shown in Table 1, the corrosion current density and corrosion potential of the three specimens are 345.10 μA cm⁻², 3.18 μA cm⁻², 0.74 μA cm⁻², −0.7 V, −0.08 V, and 0.16 V, respectively. In the results, the corrosion potential follow the order of C/TiC nanocomposite coating > C coating > CP Ti, and corrosion current density follows the opposite of this sequence.

Table 2. The Ecorr values of various coating for bipolar plate.

Coating	Ecorr/V	Ref.
a-C/316L	0.2~0.3	[54]
a-C/TA2	0.254	[37]
a-C/Ti/316L	0.175~0.355	[40]
(Ti,Zr)N–Ti	0.17	[27]
C/TiC nanocomposite coating	0.16	This work
a-C/316L	0.138	[37]
ZrCN/TC4 (2 ppm)	0.09	[34]
ZrCN/TC4 (4 ppm)	0.06	[34]
ZrCN/TC4 (6 ppm)	0.04	[34]
TiN-316L	0.02	[19]
CrN-316L	−0.018	[19]
TiO2/Ti/Al1050	−0.054	[3]

and

Table 3. The i_corr values of various coating for bipolar plate.

Coating	Electrolyte	icorr (μA cm−2)	Ref.
Zr/TC4	0.5 M H2SO4 + 2 ppm HF, 70 °C	7.46	[31]
SnOx:F	1 M H2SO4 + 2 ppm HF, 70 °C	6.64	[4]
α-C	0.5 M H2SO4 + 5 ppm HF, 70 °C	3.56	[23]
TiN/316L	0.1 M H2SO4 + 2 ppm HF, 80 °C	2.5	[19]
ZnSnOx:F	1 M H2SO4 + 2 ppm HF, 70 °C	1.2	[4]
ZrCN	0.5 M H2SO4 + 6 ppm HF, 70 °C	0.985	[34]
Cr-C/a-C:Cr	0.5 M H2SO4 + 5 ppm HF, 70 °C	0.785	[53]
C/TiC nanocomposite coating	0.5 M H2SO4 + 5 ppm HF, 80 °C	0.74	This work
Zr-C/α-C	0.5 M H2SO4 + 5 ppm HF, 70 °C	0.49	[23]
(Ti,Zr)N–Ti	0.5 M H2SO4 + 3 ppm HF, 60 °C	0.212	[27]
Ag:Cr/α-C	pH = 3, 0.1 ppm HF, 80 °C	0.15~0.38	[16]

show the values of E_corr and i_corr for various coatings. Generally, lower corrosion current density and higher corrosion potential means better chemical inertness and higher corrosion resistance [60]. Moreover, when comparing with CP Ti, corrosion current density of the C/TiC nanocomposite coating specimen enormously decreased by about three orders of magnitude, which met the target requirement of 2020 DOE (1 μA cm⁻²). Comparing the i_corr values between the specimens before and after heat treatment, the C coating is larger than the C/TiC nanocomposite coating specimen; this may be due to the formation of the TiC phase during heating, which has better corrosion resistance. Table 3 shows the i_corr values of various coatings. It can be found that the i_corr value of as-obtained C/TiC nanocomposite coating is higher than for noble metal Ag doped coating [16], metal Nitride- [27] and metal carbide- [23] coating, but is much less than Zr [31], α-C [23], F-doped zinc tin oxide [4], TiN [19] and Cr-C/a-C:Cr coating [53], which indicates that the C/TiC nanocomposite coating in this work shows high corrosion resistance in PEMFCs environment.

Electrochemical Impedance Spectroscopy (EIS) was performed to describe the corrosion process of specimens in 0.5 M H₂SO₄ + 5 ppm HF solution at 80 °C. As shown in Figure 11c–d, EIS was tested under 1 h OCP in a simulated PEMFC environment, which provided a steady state of potential. The Nyquist plot (Figure 11c) of the C coating and C/TiC nanocomposite coating specimens shows a single capacitive arc across the entire frequency range, the C/TiC nanocomposite coating specimens possess a larger impedance gradient and radius, while the two capacitive loops can be observed in the CP Ti. Furthermore, in the bode plot of the three specimens (Figure 11d), the phase angles of the specimens before and after heating approaches 80°, larger than the CP Ti (~65°) from medium to low frequencies. This indicates that a highly stable and compact film forms on the surface which can improve the corrosion resistance under PEMFCs conditions [61]. Generally, the larger impedance gradient, radius and phase angle, the better the corrosion resistance [40]. It can be concluded that the order of corrosion resistance is C/TiC nanocomposite coating > C coating > CP Ti, which is consistent with results of the potentiodynamic polarization test.

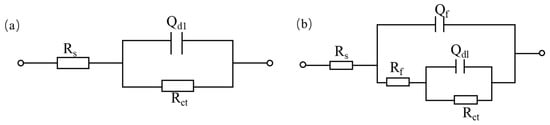

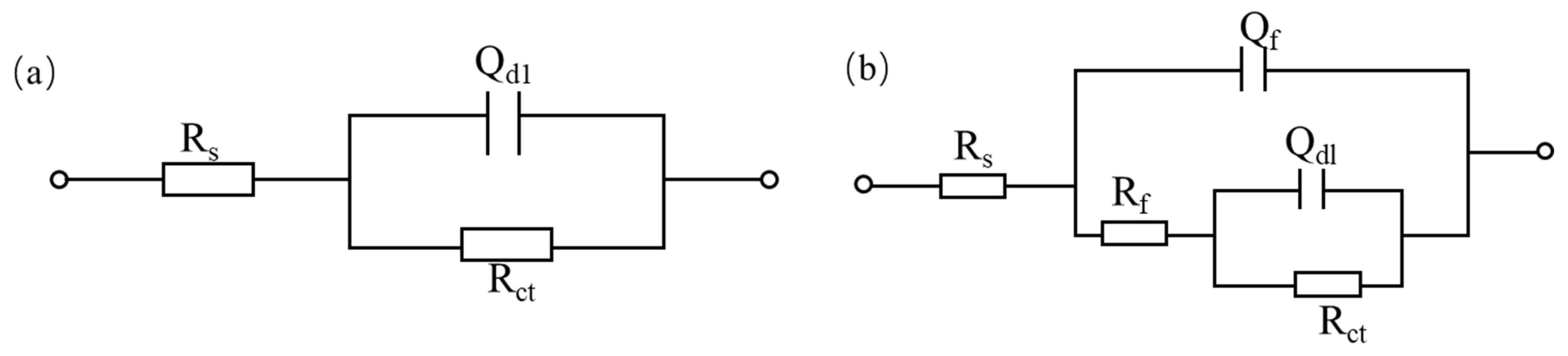

The Electrochemical Impedance Spectroscopy was analyzed by equivalent circuits using the ZView software, as shown in Figure 12. According to the characteristics of the three specimens in this work, the equivalent circuit with one time constant (Figure 12a) was applied to the coating and the C/TiC nanocomposite coating Ti plate, and two time constant (Figure 12b) was applied to CP Ti to analyze their corrosive behavior. Among the equivalent circuits, R_s, R_f and R_ct corresponded to the resistance of the solution, the pore resistance in the film and the charge transfer resistance, respectively [20]. In addition, a constant phase element (CPE) was introduced to describe non-ideal capacitance of passivation film or C film. The Q_dl and Q_f represent electric double layer capacitance and the capacitance of passivation film or C film [59]. The constant phase angle element impedance can be calculated by Equation (8):

$${\mathrm{Z}}_{\mathrm{Q}}{=[\mathrm{Y}}_0{\left(\mathrm{j}\mathsf{\omega }\right)\mathrm{n}]}^{-1}$$

(8)

Z_Q and Y₀ are the impedance and admittance of the constant phase angle element Q, respectively. ω is the angular frequency of the excitation signal, n is the dispersion index. Table 1 shows the fitted results for the three specimens. It is well known that the polarization resistance is inversely proportional to the corrosion rate and is regarded as the sum of R_ct and R_f. The R_p value of the C/TiC nanocomposite coating is 49,036.56 Ω cm², which is larger than the C coating (22,736.59 Ω cm²) and CP Ti (71.14 Ω cm²) descending in order, C/TiC nanocomposite coating, C coating and CP Ti. This indicates that the corrosion resistance of the coating improved after vacuum heat treatment. The results are consistent with the potentiodynamic polarization analysis.

3.5. Conductivity

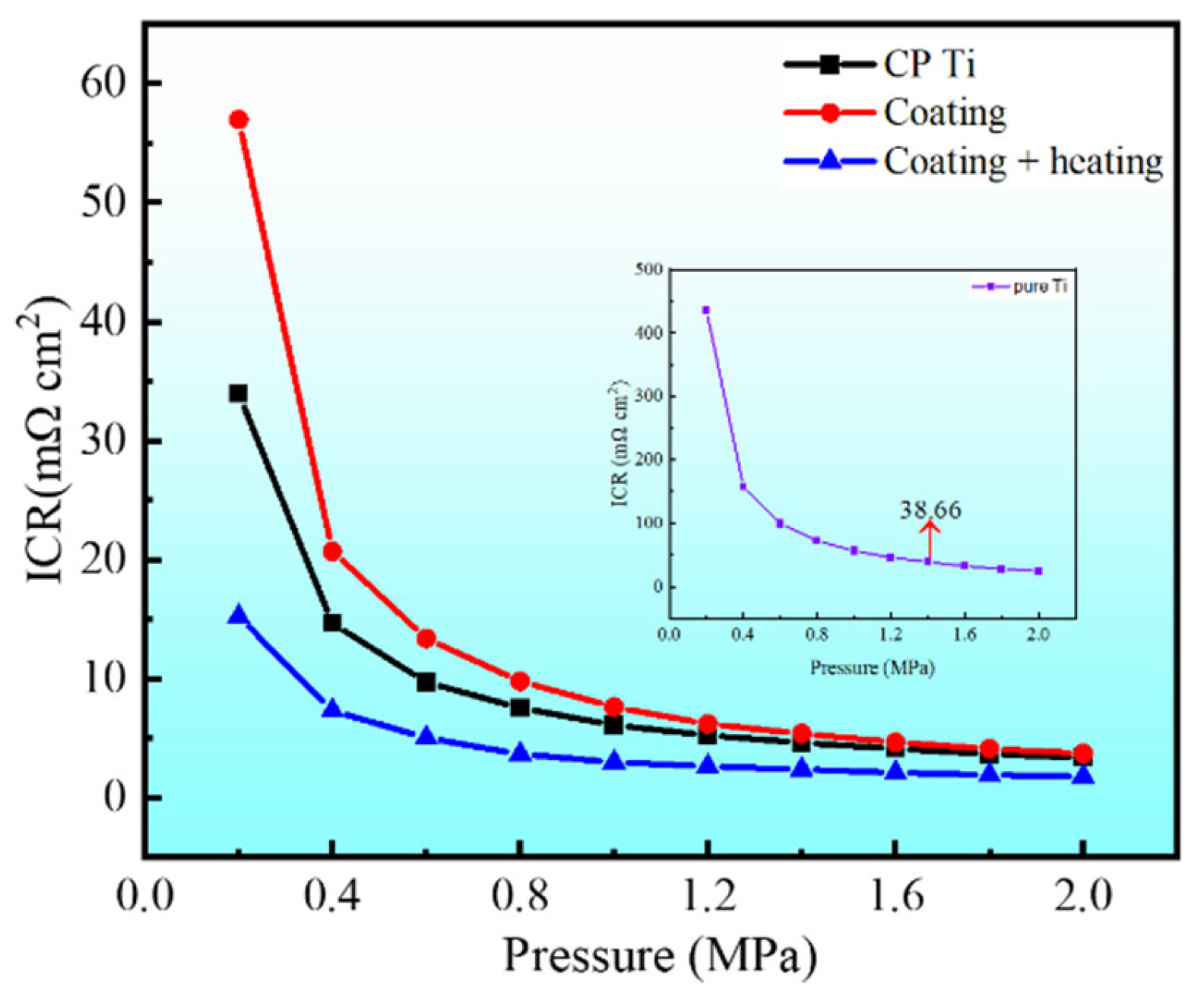

Interfacial contact resistance (ICR) is a key parameter to measure the conductivity of a material that directly affects the output power of the bipolar plate. In general, the ICR between GDL and bipolar plates is inversely proportional to the power density and performance of PEMFC. The ICR, CP Ti, C coating and C/TiC nanocomposite coating specimens were investigated using the method reported by Wang et al. [39] (Figure 3), and it was calculated by Equations (4)–(6); the results of ICR was shown in Figure 13. By increasing the pressure, the ICR value of all tested specimens decreased. The ICR dropped significantly in the low pressure area because the effective contact area between GDL and BPs increased with the compaction force. However, ICR keeps relatively steady at high pressure range; this relates to roughness and chemical components of bipolar plates. It can be observed that the C/TiC nanocomposite coating bipolar plate exhibits lower ICR than a single C coating and CP Ti bipolar plate. Under pressure of 1.4 MPa, the ICR of C/TiC nanocomposite coating and C coating is 2.34 mΩ cm² and 5.34 mΩ cm², respectively. Compared to the single C coating Ti, ICR of C/TiC nanocomposite coating Ti decreased 2 times, which meets 2020 DOE target level (10 mΩ cm²). The result was consistent with Raman and XPS. However, a single C coating had a highest ICR value among the three specimens, and it may have the roughest surface [25,62] and the lowest ID/IG, which could be seen from SEM, Raman and XPS. It must be pointed out that the ICR of the CP Ti (black solid line) is lower, which was pre-treated to remove the surface oxide film (TiO₂). The ICR of raw pure Ti (purple solid line in illustration) is 38.66 mΩ cm², as shown in the inset of Figure 13. It well known that TiO₂ possesses semiconductor properties to increase the ICR of the bipolar plate, and directly affects the conductivity of the battery. Moreover, compared to the ICR values in

Table 4. The ICR values of various coatings for bipolar plates.

Coating	ICR	Ref.
a-C/316L	36.1	[42]
CrN/316L	23	[19]
TiC/Ti	20.9	[35]
a-C:H/316L	17.6	[21]
TiCrC/Ti	16.5	[35]
TDMAT-TiN/316L	15.239	[63]
Carbon-coated 316L	12	[41]
ZrCN/Ti	11.2	[34]
TiN/316L	10	[19]
Nb-N/304	9.26	[38]
Nb-C/304	8.47	[60]
TiC-TA1	7.5	[8]
α-C/TA2	6.52	[37]
α-C/316L	5.64	[37]
a-C/304	5.4	[13]
CrTiN-4A/316L	4.57	[59]
a-C/TiCx/316L (60V)	4.55	[52]
Ti-Ag/Ti	4.1	[29]
a-C/TiCx/316L	3.85~4.27	[40]
Zr-C/a-C/316L	3.63	[23]
Cr-C/a-C:Cr/316L	2.89	[53]
α-C/316L (H7)	2.53	[40]
C/TiC nanocomposite coating	2.34	This work
Ti-Ag-N/Ti	2.3	[30]
a-C/TiCx/316L (60V/300V)	1.85	[52]
a-C/TiCx/316L (300V)	1.92	[52]
a-C/TiCx/316L	1.93	[54]
Nb-Cr-C/TA1	1.15	[36]

, it shows that the ICR value of the as-obtained C/TiC nanocomposite coating is much lower than that for noble-doped metal coating [29], a-C coating [13,20,21,37,40,41,42,52], metal carbide and nitride coating [8,19,23,34,35,38,53,59,60,63], but is less than Ag-doped coating [30], a-C coating [52,54], metal carbide and nitride coating [36]. So, this work is significant to improve the conductivity of bipolar plates in PEMFCs.

4. Conclusions

In this study, the C/TiC nanocomposite coating has been prepared on the surface of titanium metallic by magnetron sputtering technology and vacuum heat treatment technology. This prepared C/TiC nanocomposite coating was characterized by SEM, XRD, XPS, Raman, electrochemical testing and ICR. The result is as follows:

• A C/TiC nanocomposite coating has been successfully prepared on the surface of titanium metallic substrate by combination of magnetron sputtering technology and vacuum heat treatment technology, which consists of a C surface layer (~28.88 nm) and TiC interface layer (~19.5 nm).
• The corrosion resistance of the C/TiC nanocomposite coating titanium bipolar plate was investigated in 0.5 M H₂SO₄ + 5 ppm HF solution at 80 °C. The results show that the corrosion resistance of the C/TiC nanocomposite coating (0.74 μA cm⁻²) was greatly improved compared with that of commercially pure titanium substrate (345.10 μA cm⁻²), and the corrosion current density of the C/TiC nanocomposite coating decreased by 3 orders of magnitude in a simulated cathodic environment.
• Interfacial contact resistance of the C/TiC nanocomposite coating titanium bipolar plate is 2.34 mΩ cm² under 1.4 MPa compaction force, which is much lower than that of raw CP Ti (38.66 mΩ cm²).
