A Study on Friction Stir Processing Parameters of Recycled AA 6063/TiO2 Surface Composites for Better Tribological Performance
Abstract
:1. Introduction
2. Materials and Methods

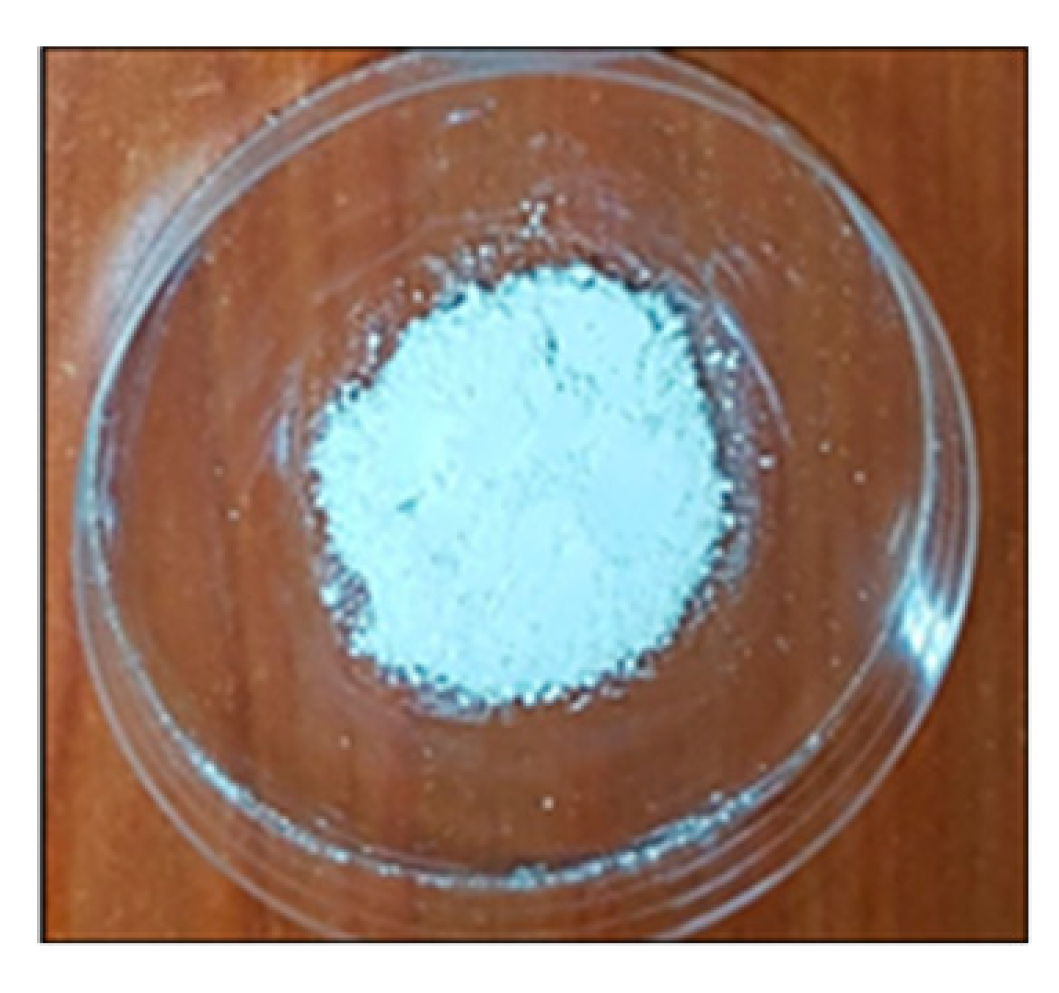

2.1. Substrate Material and Reinforcement Particles

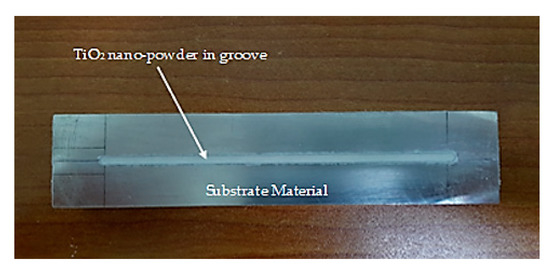

2.2. Groove Cutting and Reinforcement Particles Allocation
2.3. Capping Process

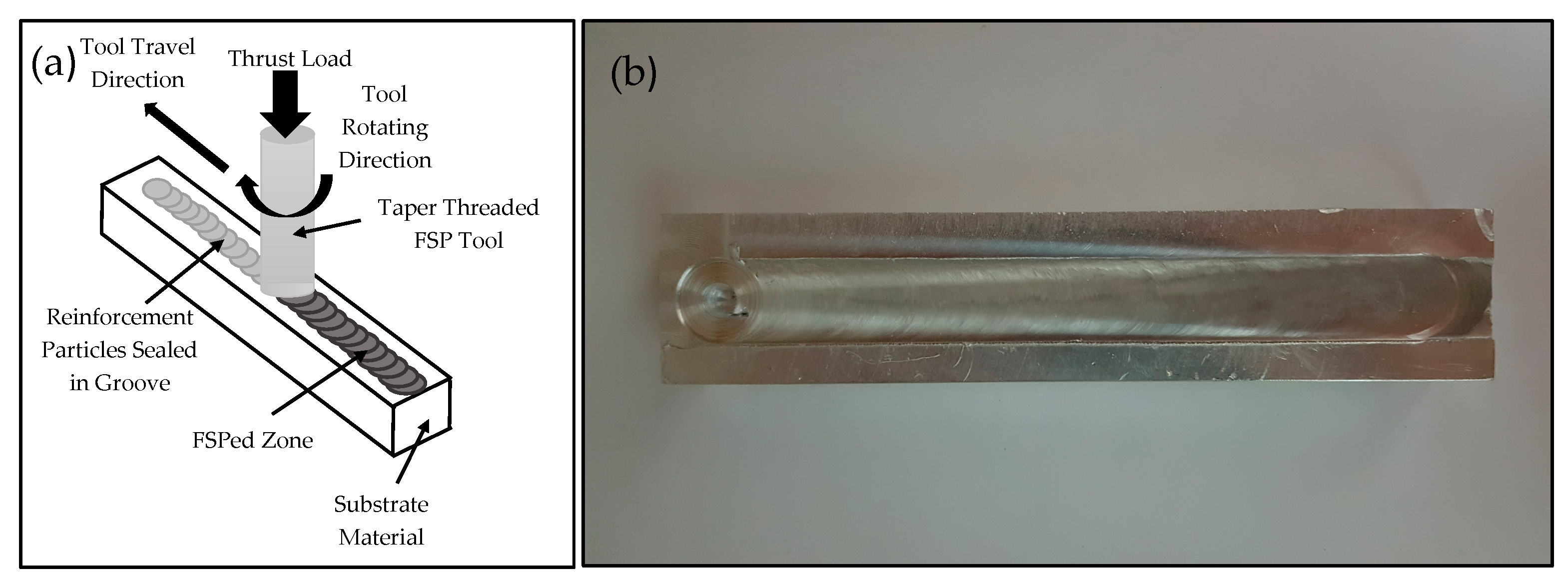

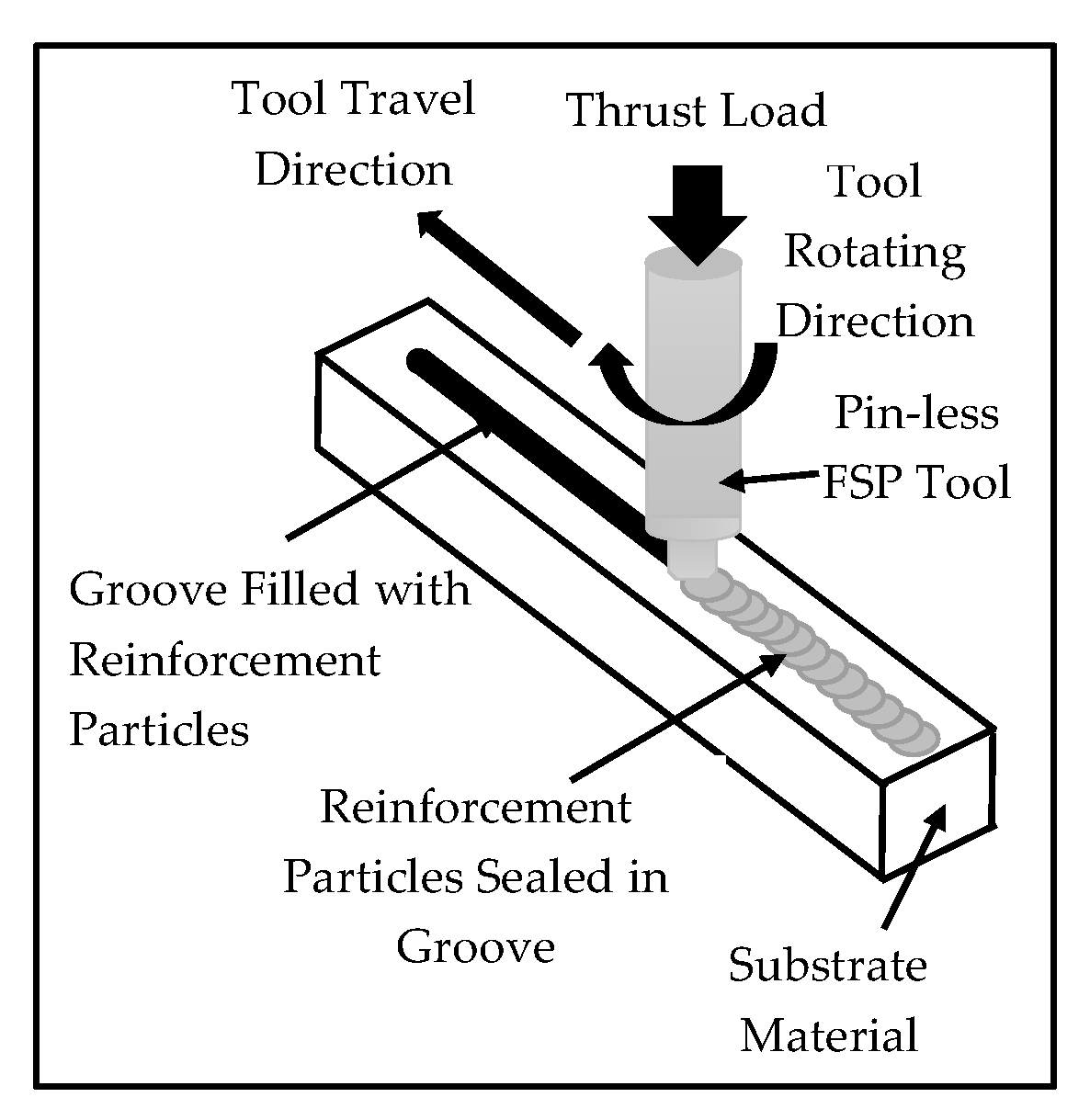

2.4. Friction Stir Processing (FSP)

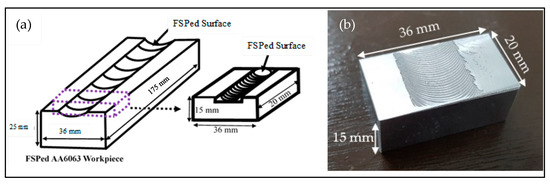

2.5. Surface Roughness Measurement
2.6. Microstructure Analysis

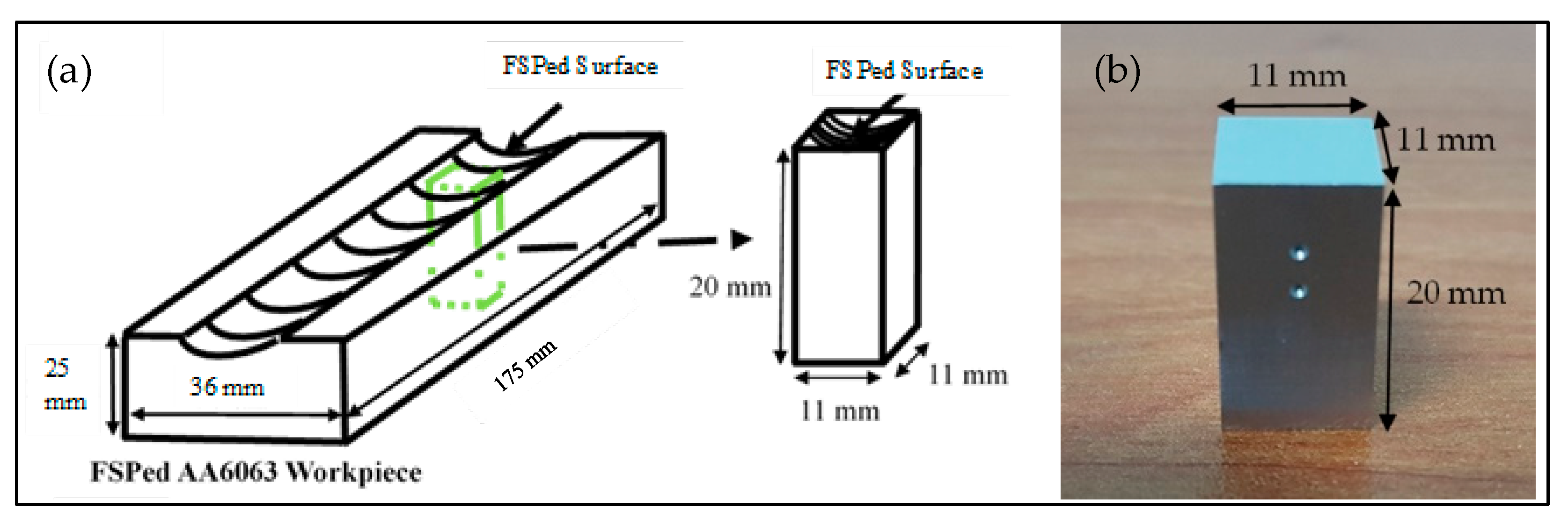

2.7. Surface Microhardness Measurement
2.8. Friction and Wear Tests
3. Results and Discussion
3.1. Microstructure Analysis
3.2. Microhardness Measurement

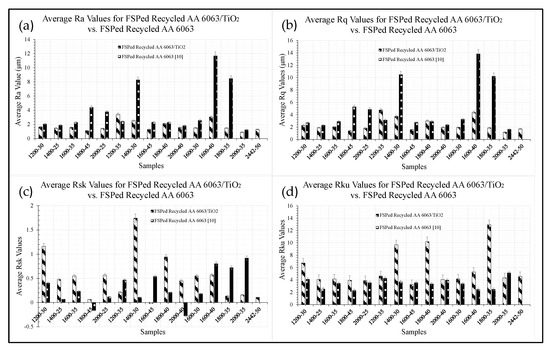

3.3. Surface Roughness Measurement
3.4. Tribological Performance
4. Conclusions

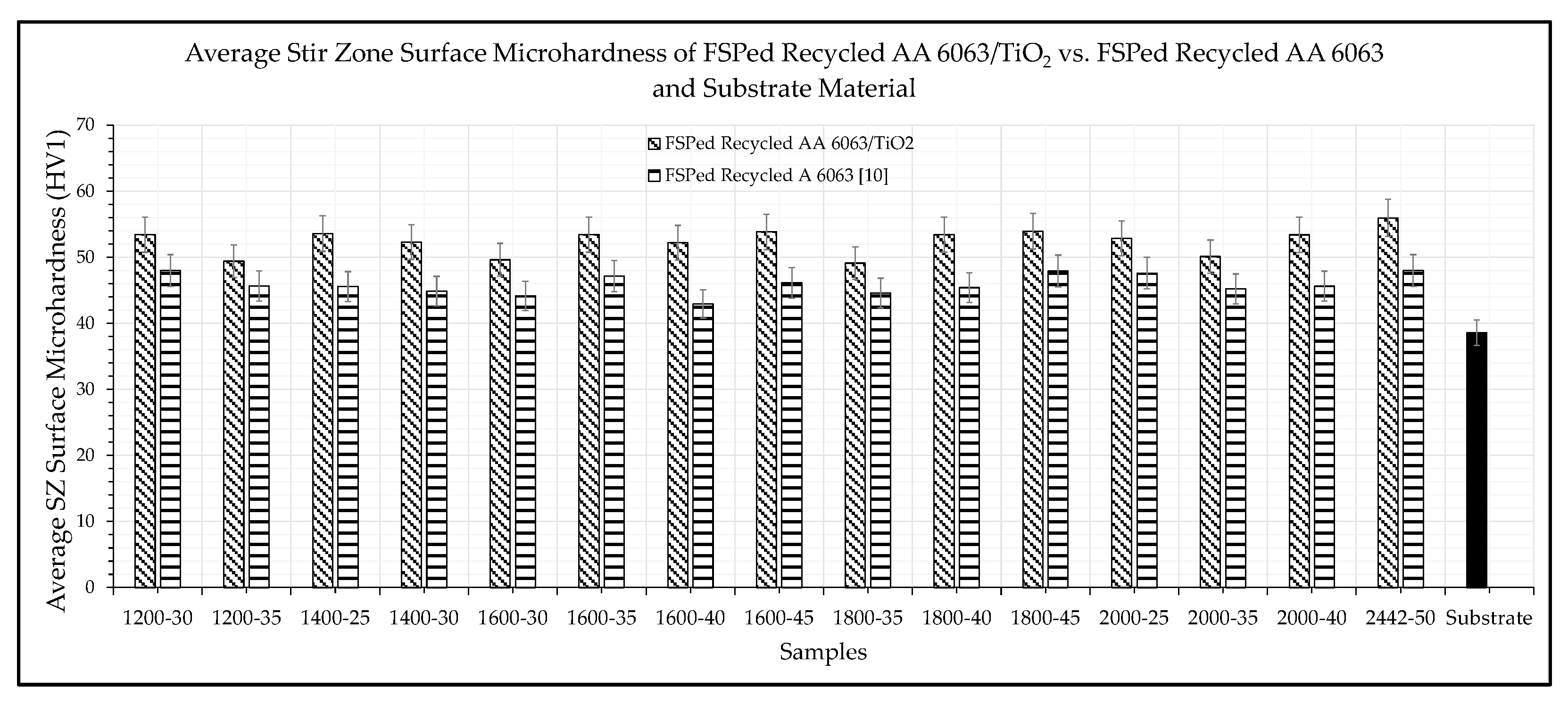

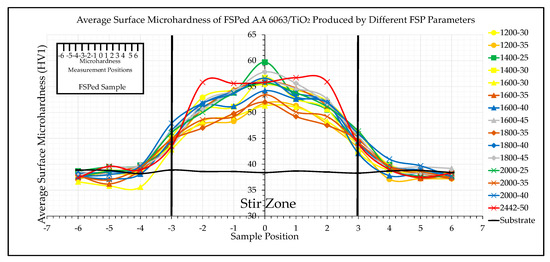

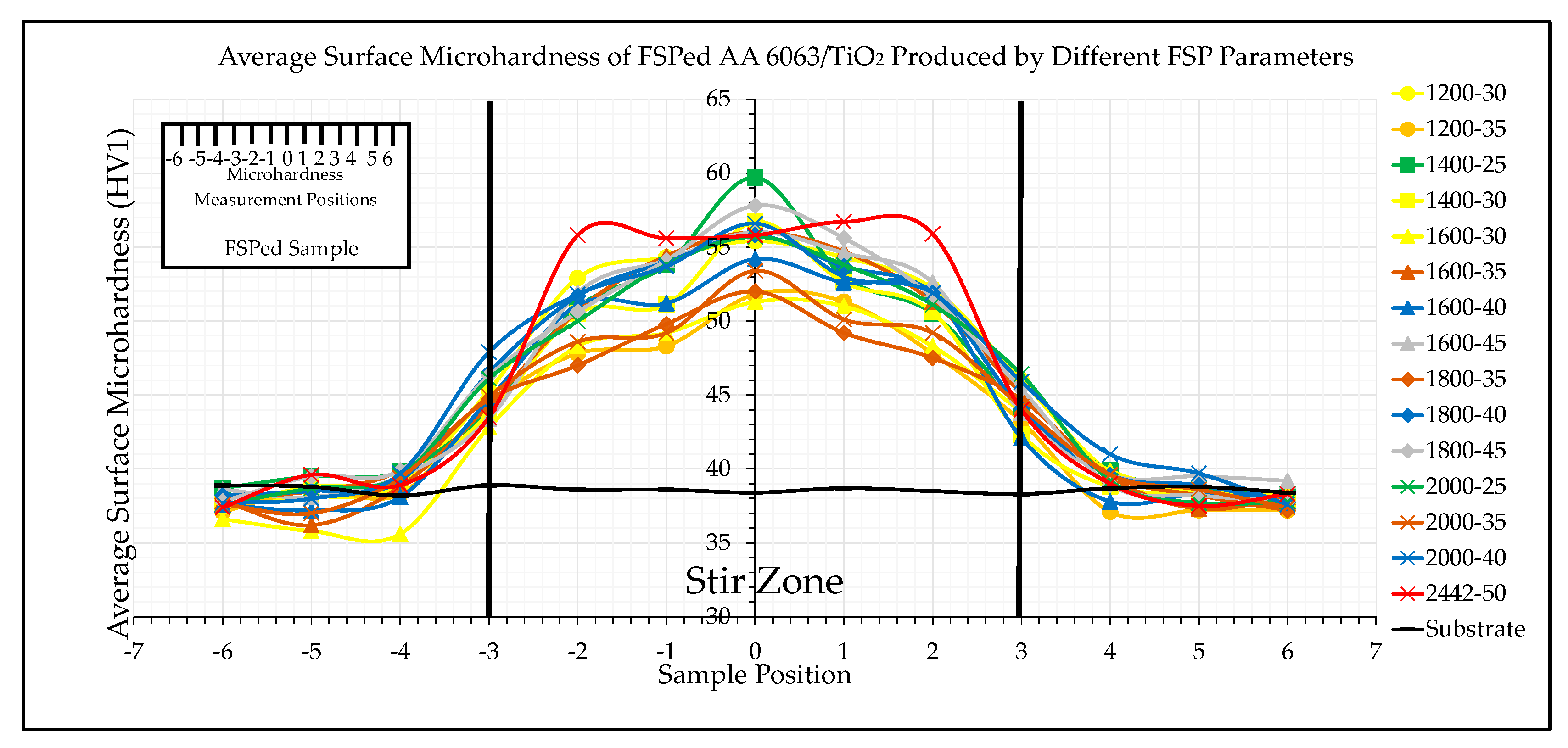

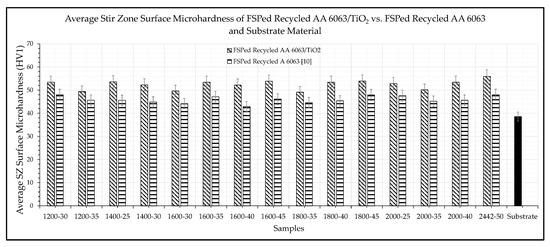

- The highest surface microhardness is achieved by the FSPed recycled AA6063/TiO2 sample produced at 2442 rpm and 50 mm/min: 55.6 HV1. This surface microhardness is 16% higher than FSPed recycled AA 6063 and 45% higher than the substrate material.

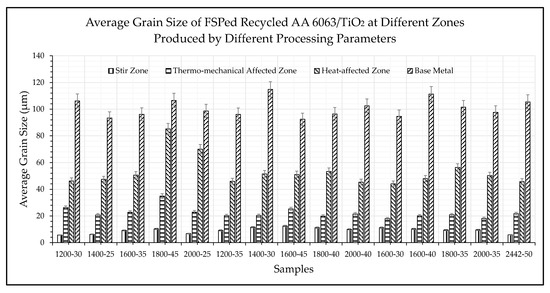

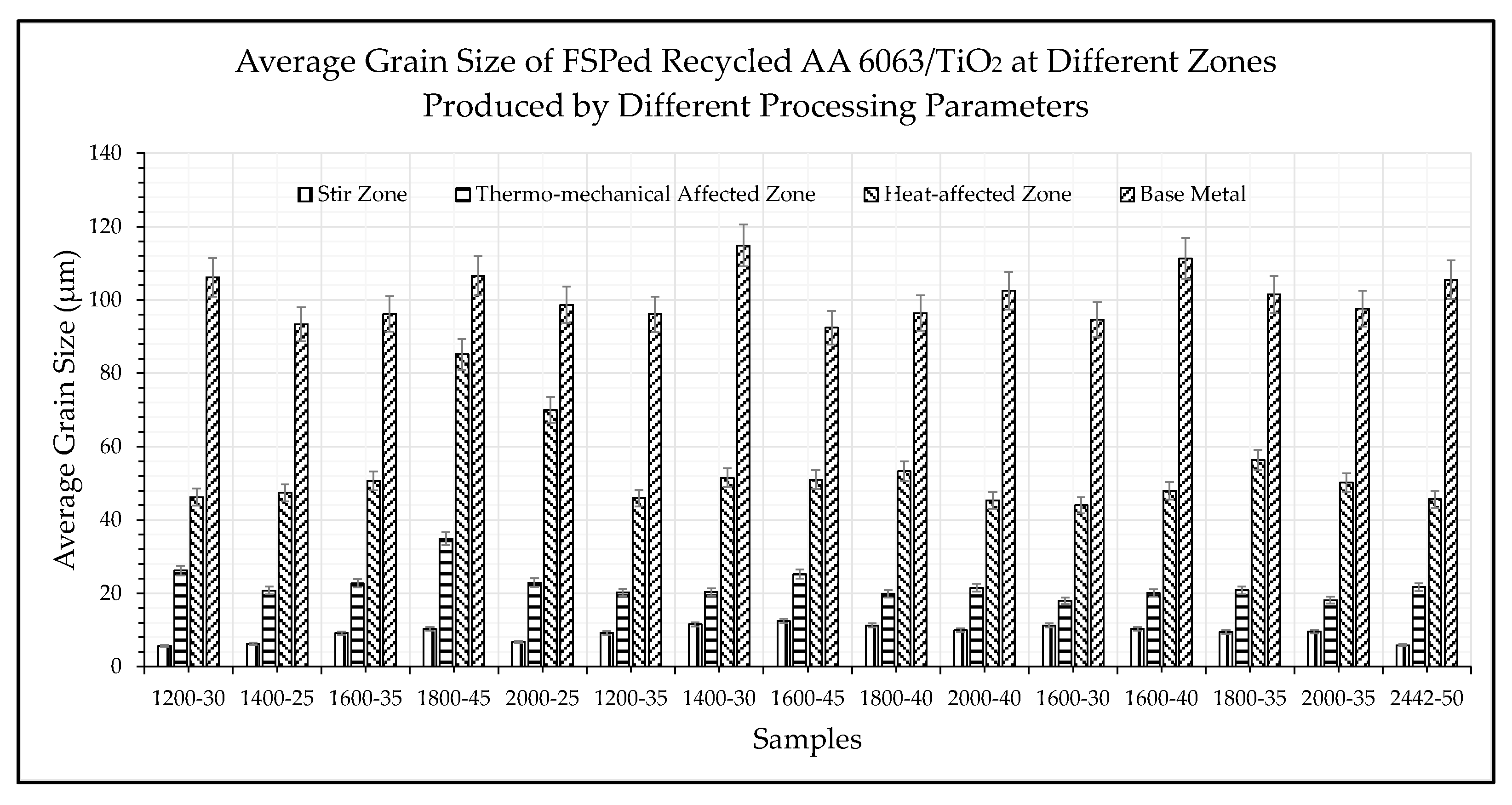

- The microstructure of the FSPed recycled AA6063/TiO2 sample that was produced at 2442 rpm and 50 mm/min exhibits the most uniform distribution of TiO2 and it also achieves the greatest reduction of grain size.

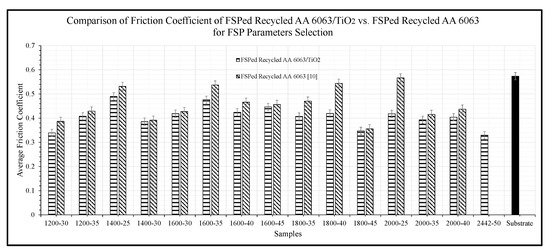

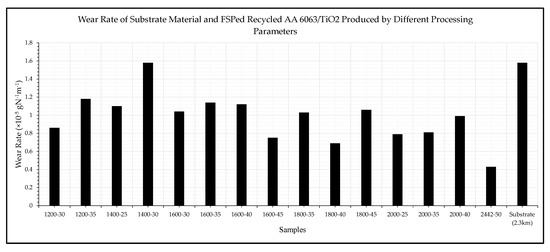

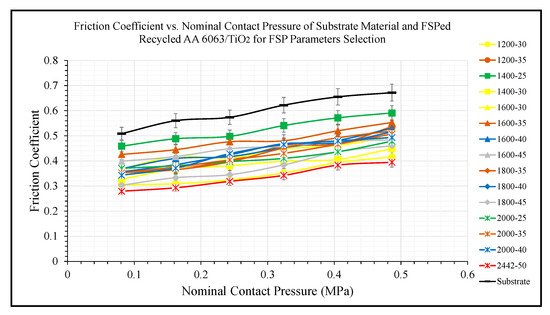

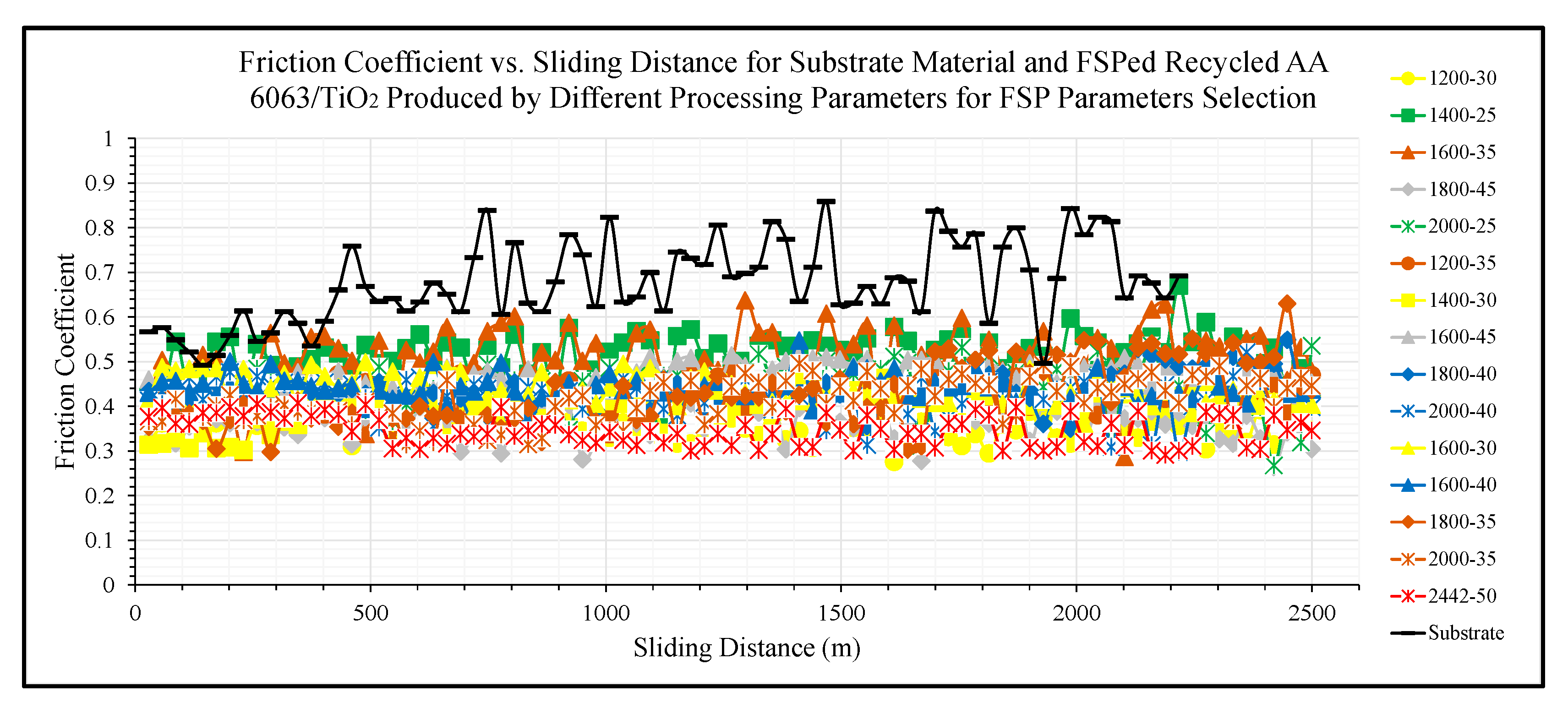

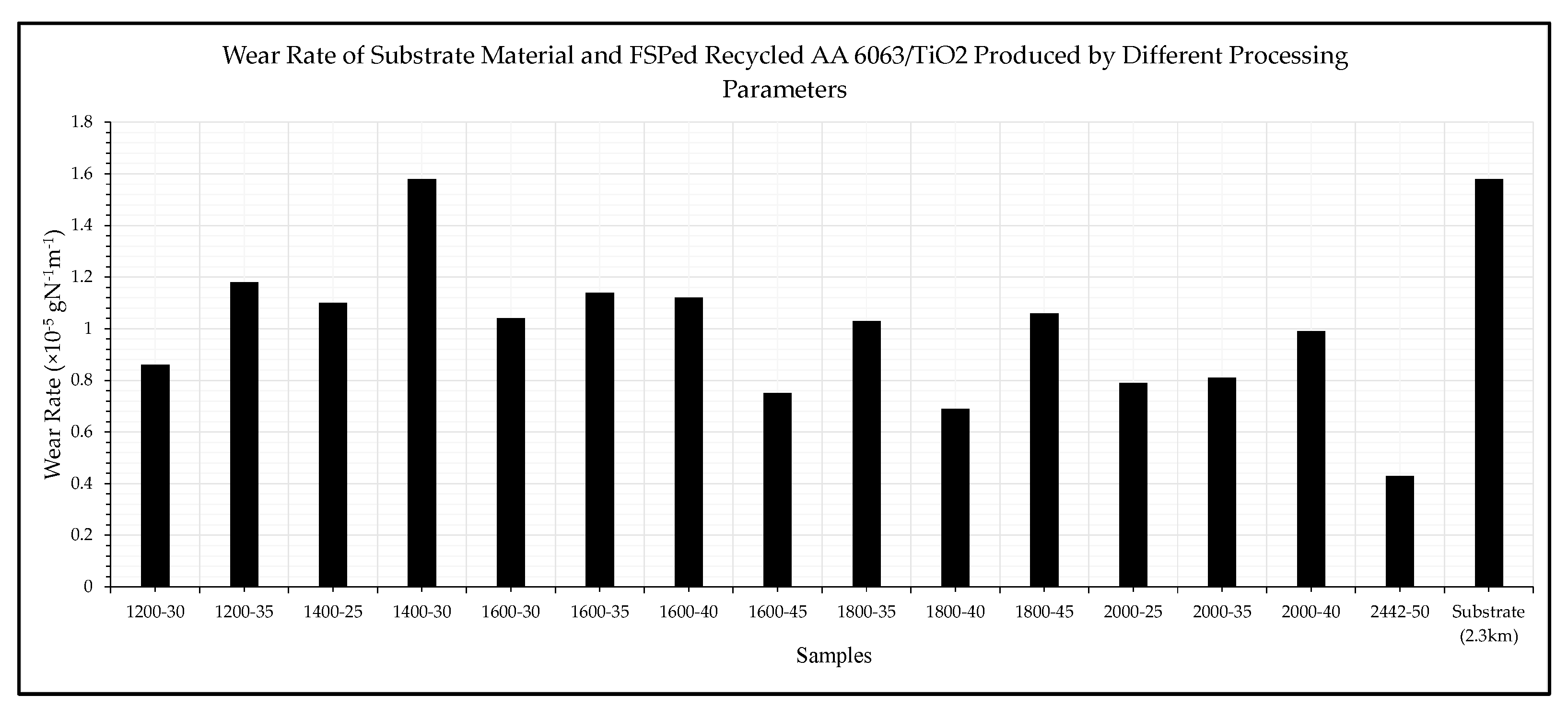

- The FSPed recycled AA6063/TiO2 sample produced at 1200 rpm with 30 mm/min, 1800 rpm with 45 mm/min and 2442 rpm with 50 mm/min give relatively low friction coefficients, while only the sample produced at 2442 rpm and 50 mm/min has the lowest friction coefficient and wear rate. This sample has an average friction coefficient of 0.33 and a wear rate of 0.43 × 10−5 gN−1m−1. This result reduced the friction coefficient and wear rate of the substrate by 39% and 73%, respectively.
- The wear morphology shows that both adhesive and abrasive wear can be observed. The FSPed samples have mostly plastic deformation with some fractures and a small number of voids. However, only plastic deformation can be observed in the sample produced at 2442 rpm and 50 mm/min.
- In short, the most suitable processing parameters used in this study for the fabrication of FSPed recycled AA 6063/TiO2 are 2442 rpm and 50 mm/min. These parameters produced the sample with the highest surface microhardness, and lowest wear rate and friction coefficient. However, further study is needed to investigate the effect of rotational speeds and feed rates that are higher and lower than 2442 rpm and 50 mm/min for enhancing tribological performance of FSPed recycled AA 6063/TiO2 surface composites.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Deamley, P.A.; Weiss, H. Energy conservation through surface engineering. Tribol. Energy Conserv. 1998, 34, 311–318. [Google Scholar]
- Teo, G.S.; Liew, K.W.; Kok, C.K. Enhancement of Microhardness and Tribological Properties of Recycled AA 6063 Using Energy-Efficient and Environment-Friendly Friction Stir Processing. IOP Conf. Ser. Earth Environ. Sci. 2021, 943, 12–19. [Google Scholar] [CrossRef]
- Sharma, V.; Prakash, U.; Manoj Kumar, B.V. Surface composites by friction stir processing: A review. J. Mater. Process. Technol. 2015, 224, 117–134. [Google Scholar] [CrossRef]
- Weglowski, M.S.; Hamilton, C.B. An Experimental Investigation and Modelling of Friction Stir Processing. Eng. Trans. 2013, 61, 65–80. [Google Scholar]
- Smith, C.B.; Harington, J.; Kouch, T. Friction Stir Processing for Efficient Manufacturing; Friction Stir Link, Inc.: Waukesha, WI, USA, 2012. [Google Scholar]
- Lorenzo-Martin, C.; Ajayi, O.; Smith, C.; Krol, S. Energy efficient surface hardening of 4140 steel by friction stir processing for tribological applications. Int. Jt. Tribol. Conf. 2011, 54747, 63–65. [Google Scholar]
- Gibsona, B.T.; Lammleinb, D.H.; Praterc, T.J.; Longhurstd, W.R.; Coxa, C.D.; Balluna, M.C.; Dharmaraja, K.J.; Cooka, G.E.; Straussa, A.M. Friction Stir Welding: Process, automation, and control. J. Manuf. Process. 2014, 16, 56–73. [Google Scholar] [CrossRef]
- Lima, D.K.; Shibayanagib, T.; Gerlicha, A.P. Synthesis of multi-walled CNT reinforced aluminium alloy composite via friction stir processing. Mater. Sci. Eng. 2009, 507, 194–199. [Google Scholar] [CrossRef]
- Har Moosbrugger, C. Introduction to Magnesium Alloy. Engineering Properties of Magnesium Alloys, 2nd ed.; Marken, K., Marquard, L., Eds.; ASM International: Materials Park, OH, USA, 2017; pp. 1–12. [Google Scholar]
- Teo, G.S.; Liew, K.W.; Kok, C.K. Optimization of Friction Stir Processing Parameters of Recycled AA 6063 for Enhanced Surface Microhardness and Tribological Properties. Metals 2022, 12, 310. [Google Scholar] [CrossRef]
- Shanmugasundaram, A.; Arul, S.; Sellamuthu, R. Investigating the Effect of WC on the Hardness and Wear Behavior of Surface Modified AA 6063. Mater. Todays 2018, 5, 6579–6587. [Google Scholar] [CrossRef]
- Rathee, S.; Maheshwari, S.; Siddiquee, A.N.; Srivastava, M. Analysis of Microstructural Changes in Enhancement of Surface Properties in Sheet Forming of Al alloys via Friction Stir Processing. Mater. Today Proc. 2017, 4, 452–458. [Google Scholar] [CrossRef]
- Srivastava, M.; Rathee, S.; Maheshwari, S.; Siddiquee, A.N. Optimization of Friction Stir Processing Parameters to Fabricate AA6063/SiC Surface Composites Using Taguchi Technique. Int. J. Mater. Prod. Technol. 2019, 58, 16–31. [Google Scholar] [CrossRef]
- Murali, S.; Chockalingam, A.; Suresh Kumar, S.; Remanan, M. Production, Characterization and Friction Stir Processing of AA6063-T6/Al3Tip in-situ Composites. Int. J. Mech. Prod. 2018, 2018, 399–406. [Google Scholar]
- Liang, X.; Cui, S.; Lia, H.; Abdelhady, A.; Wang, H.; Zhou, H. Removal effect on stormwater runoff pollution of porous concrete treated with nanometer titanium dioxide. Transp. Res. 2019, 73, 34–45. [Google Scholar] [CrossRef]
- Skocaj, M.; Filipic, M.; Petkovic, J.; Novak, S. Titanium dioxide in our everyday life; Is it safe? Radiol. Oncol. 2011, 45, 227–247. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Heidarpour, A.; Mazaheri, Y.; Roknian, M.; Ghasemi, S. Development of Cu-TiO2 surface nanocomposite: Effect of pass number on microstructure, mechanical properties, tribological and corrosion behavior. J. Alloys Compd. 2019, 783, 886–897. [Google Scholar] [CrossRef]
- Khodabakhshi, F.; Simchi, A.; Kokabi, A.H.; Gerlich, A.P.; Nosko, M. Effects of post-annealing on the microstructure and mechanical properties of friction stir processed Al–Mg–TiO2 nanocomposites. Mater. Des. 2014, 63, 30–41. [Google Scholar] [CrossRef]
- Abraham, S.J.; Dinaharan, I.; Selvam, J.D.R.; Akinlabi, E.T. Microstructural Characterization and Tensile Behavior of Rutile (TiO2)-Reinforced AA6063 Aluminum Matrix Composites Prepared by Friction Stir Processing. Acta Metall. Sin. 2019, 32, 52–62. [Google Scholar] [CrossRef] [Green Version]
- Sathiskumar, R.; Dinaharan, I.; Murugan, N.; Vijay, S.J. Influence of tool spindle speed on microstructure and sliding wear behavior of Cu/B4C surface composite synthesized by friction stir processing. Trans. Nonferrous Met. Soc. China 2015, 25, 95–102. [Google Scholar] [CrossRef]
- Eskandari, H.; Taheri, R.; Khodabakhshi, F. Friction-stir processing of an AA8026-TiB2-Al2O3 hybrid nanocomposite: Microstructural developments and mechanical properties. Mater. Sci. Eng. 2016, 660, 84–96. [Google Scholar] [CrossRef]
- Qin, D.; Shen, H.; Shen, Z.; Chen, H.; Fu, L. Manufacture of biodegradable magnesium alloy by high speed friction stir processing. J. Manuf. Process. 2018, 36, 22–32. [Google Scholar] [CrossRef]
- Zhang, Z.Y.; Yang, R.; Li, Y.; Chen, G.; Zhao, Y.T.; Liu, M.P. Microstructural evolution and mechanical properties of friction stir processed ZrB2/6061Al nanocomposites. J. Alloys Compd. 2018, 762, 312–318. [Google Scholar] [CrossRef]
- Kar, S.; Sahu, B.B.; Kousaka, H.; Han, J.G.; Hori, M. Study of the effect of normal load on friction coefficient and wear properties of CNx thin films. AIP Adv. 2020, 10, 1–9. [Google Scholar] [CrossRef]
- Yasavol, N.; Ramalho, A. Wear properties of friction stir processed AISI D2 tool steel. Tribol. Int. 2015, 91, 177–183. [Google Scholar] [CrossRef]
- Iwaszko, J.; Kuda, K.; Fila, K.; Strzelecka, M. The effect of friction stir processing (fsp) on the microstructure and properties of am60 magnesium alloy. Arch. Metall. Mater. 2016, 61, 1209–1214. [Google Scholar] [CrossRef] [Green Version]
Element | Zn | Mg | Cu | Si | Fe | Mn | Cr | Ni | Ti | Al |
---|---|---|---|---|---|---|---|---|---|---|
wt.% | 0.0331 | 0.581 | 0.0338 | 0.43 | 0.309 | 0.0252 | 0.0335 | 0.0333 | 0.0269 | Balance |
Sample | Processing Parameters | |
---|---|---|
Rotational Speed (rpm) | Feed Rate (mm/min) | |
1200-30 | 1200 | 30 |
1200-35 | 1200 | 35 |
1400-25 | 1400 | 25 |
1400-30 | 1400 | 30 |
1600-30 | 1600 | 30 |
1600-35 | 1600 | 35 |
1600-40 | 1600 | 40 |
1600-45 | 1600 | 45 |
1800-35 | 1800 | 35 |
1800-40 | 1800 | 40 |
1800-45 | 1800 | 45 |
2000-25 | 2000 | 25 |
2000-35 | 2000 | 35 |
2000-40 | 2000 | 40 |
2442-50 | 2442 | 50 |
Tribo-Tests | Parameters |
---|---|
Varying nominal contact pressures | Nominal contact pressures: 0.08 MPa, 0.16 MPa, 0.24 MPa, 0.32 MPa, 0.41 MPa, 0.47 MPa Speed: 5.18 m/s Sliding duration: 120 s |

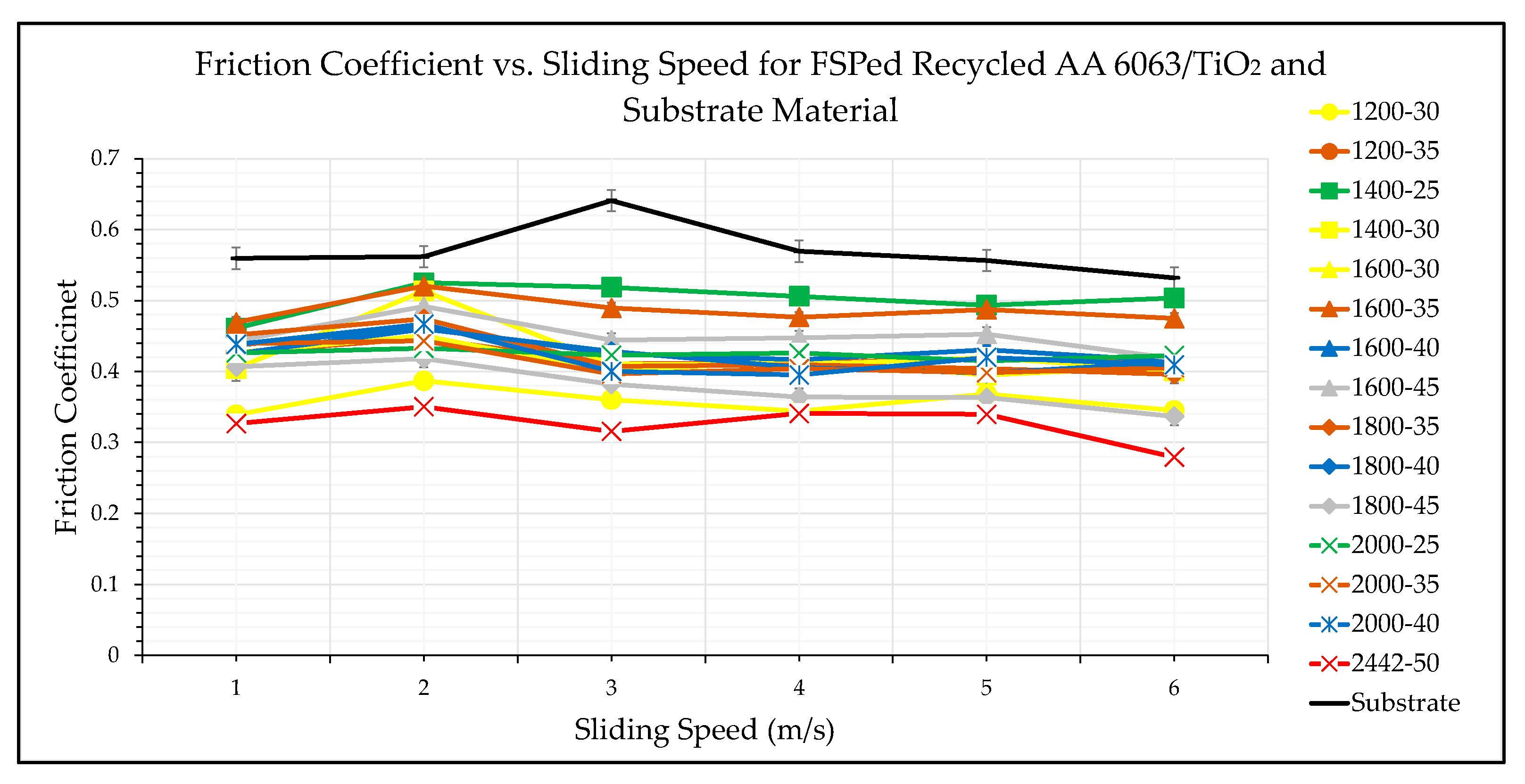

Varying speeds | Speeds: 1 m/s, 2 m/s, 3 m/s, 4 m/s, 5 m/s, 6 m/s Nominal contact pressure: 0.28 MPa Sliding duration: 120 s |
Varying sliding distances | Sliding distance: 2.5 km Speed: 2.88 m/s Nominal contact pressure: 0.24 MPa |
