Leaching of Sm, Co, Fe, and Cu from Spent SmCo Magnets Using Organic Acid
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Equipment
2.3. Experimental Procedures

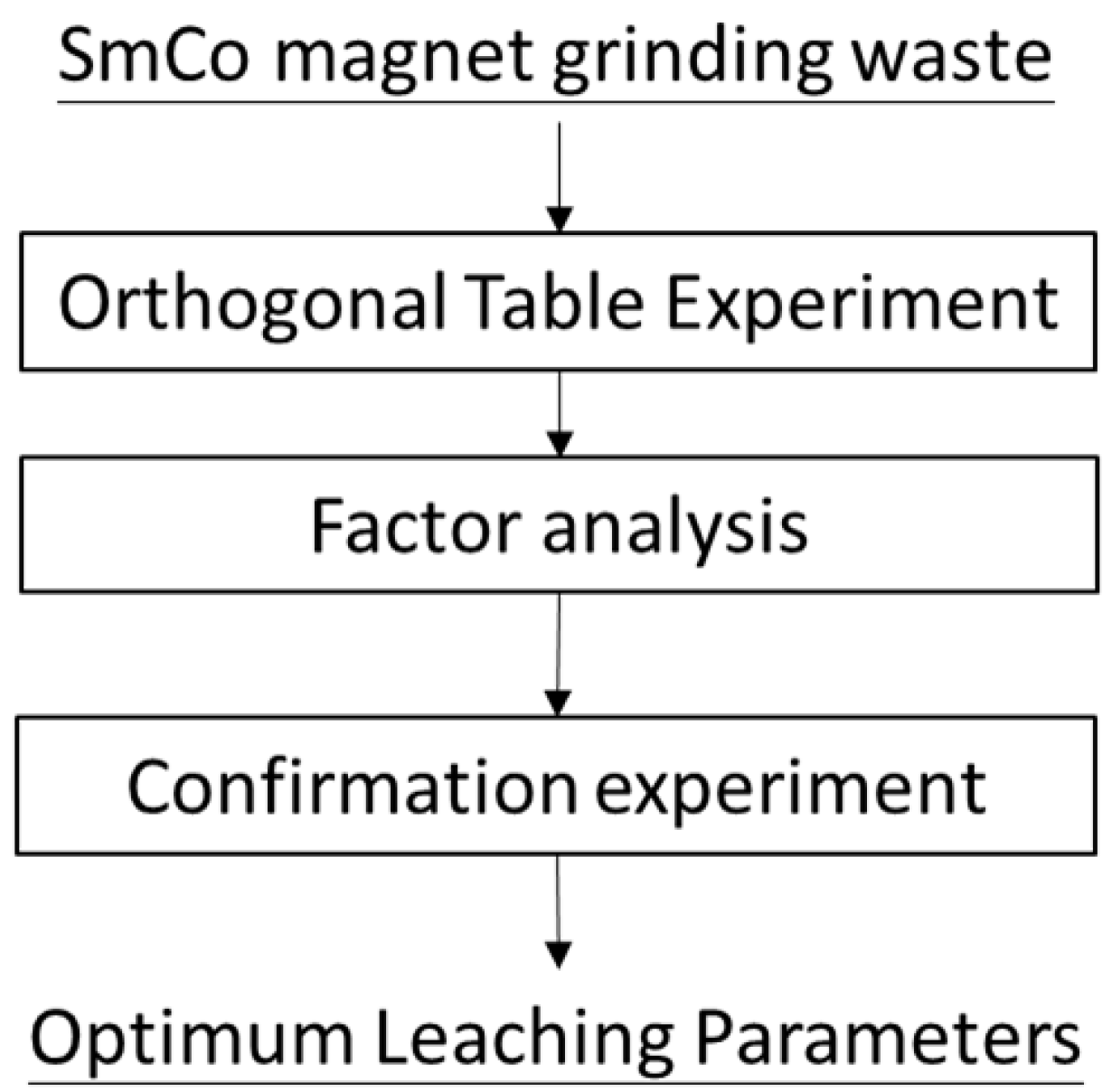

2.4. Experimental Method
3. Results
3.1. Orthogonal Experiment
3.2. Factor Analysis
3.3. Confirmation Experiments
4. Discussion
4.1. Comparison of Organic Acid Leaching

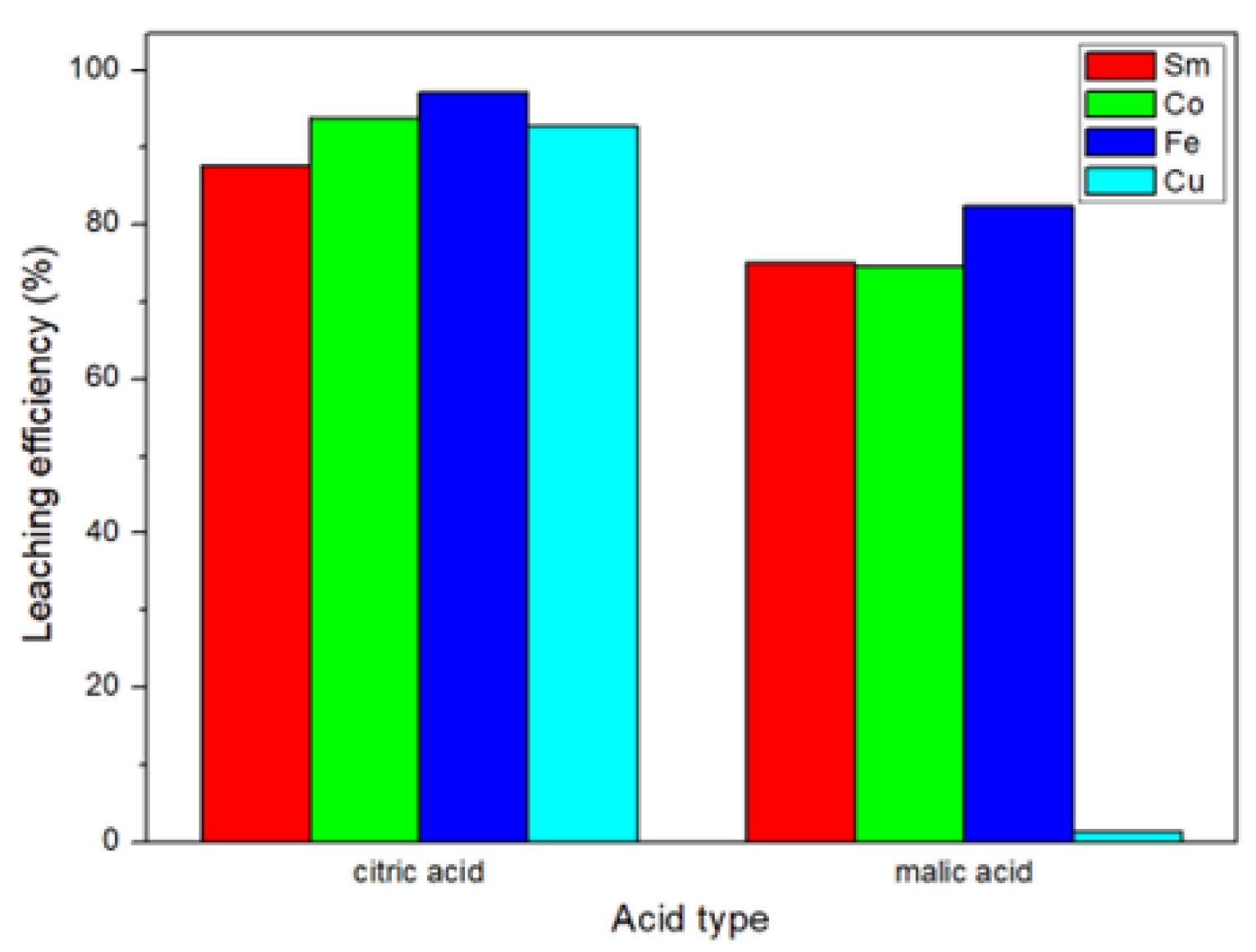

4.2. Leaching Efficiency of Comparison
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Makarova, I.; Soboleva, E.; Osipenko, M.; Kurilo, I.; Laatikainen, M.; Repo, E. Electrochemical leaching of rare-earth elements from spent NdFeB magnets. Hydrometallurgy 2020, 192, 105264. [Google Scholar] [CrossRef]
- Orefice, M.; Binnemans, K. Solvometallurgical process for the recovery of rare-earth elements from Nd–Fe–B magnets. Sep. Purif. Technol. 2021, 258, 117800. [Google Scholar] [CrossRef]
- Chen, Q.; Ni, S.; Ai, G.; Zhang, T.; Sun, X. A recovery strategy of Sm, Co for waste SmCo magnets by fatty acid based ionic liquids. Miner. Eng. 2020, 158, 106581. [Google Scholar] [CrossRef]
- Mishra, B.B.; Devi, N. D2EHPA is a potential extractant for extraction of europium and samarium from chloride medium. Mater. Today: Proc. 2020, 30, 254–257. [Google Scholar] [CrossRef]
- Onoda, H.; Kurioka, Y. Recovery of samarium from cobalt-samarium solution using phosphoric acid. J. Environ. Chem. Eng. 2015, 3, 2825–2828. [Google Scholar] [CrossRef]
- Swain, N.; Mishra, S.; Acharya, M.R. Hydrometallurgical route for recovery and separation of samarium (III) and cobalt (II) from simulated waste solution using tri-n-octyl phosphine oxide—A novel pathway for synthesis of samarium and cobalt oxides nanoparticles. J. Alloy. Compd. 2020, 815, 152423. [Google Scholar] [CrossRef]
- Su, X.; Wang, Y.; Guo, X.; Dong, Y.; Gao, Y.; Sun, X. Recovery of Sm(III), Co(II) and Cu(II) from waste SmCo magnet by ionic liquid-based selective precipitation process. Waste Manag. 2018, 78, 992–1000. [Google Scholar] [CrossRef]
- Balaram, V. Rare earth elements: A review of applications, occurrence, exploration, analysis, recycling, and environmental impact. Geosci. Front. 2019, 10, 1285–1303. [Google Scholar] [CrossRef]
- Patil, A.S.; Patil, A.V.; Dighavkar, C.G.; Adole, V.A.; Tupe, U.J. Synthesis techniques and applications of rare earth metal oxides semiconductors: A review. Chem. Phys. Lett. 2022, 796, 139555. [Google Scholar] [CrossRef]
- Severson, M.H.; Nguyen, R.; Ormerod, J.; Palasyuk, A.; Cui, J. A preliminary feasibility study of potential market applications for non-commercial technology magnets. Heliyon 2022, 8, 11773. [Google Scholar] [CrossRef]
- Nababan, D.C.; Mukhlis, R.; Durandet, Y.; Pownceby, M.I.; Prentice, L.; Rhamdhani, M.A. Mechanism and microstructure evolution of high temperature oxidation of end-of-life NdFeB rare earth permanent magnets. Corros. Sci. 2021, 182, 109290. [Google Scholar] [CrossRef]
- Coey, J.M.D. Perspective and prospects for rare earth permanent magnets. Engineering 2020, 6, 119–131. [Google Scholar] [CrossRef]
- Kumari, A.; Sinha, M.K.; Pramanik, S.; Sahu, S.K. Recovery of rare earths from spent NdFeB magnets of wind turbine: Leaching and kinetic aspects. Waste Manag. 2018, 75, 486–498. [Google Scholar] [CrossRef] [PubMed]
- Lee, C.H.; Chen, Y.J.; Liao, C.H.; Popuri, S.R.; Tsai, S.L.; Hung, C.E. Selective leaching process for neodymium recovery from scrap Nd-Fe-B magnet. Metall. Mater. Trans. A 2013, 44, 5825–5833. [Google Scholar] [CrossRef]
- Niam, A.C.; Wang, Y.F.; Chen, S.W.; You, S.J. Recovery of rare earth elements from waste permanent magnet (WPMs) via selective leaching using the Taguchi method. J. Taiwan Inst. Chem. Eng. 2019, 97, 137–145. [Google Scholar] [CrossRef]
- Parhi, P.K.; Sethy, T.R.; Rout, P.C.; Sarangi, K. Separation and recovery of neodymium and praseodymium from permanent magnet scrap through the hydrometallurgical route. Sep. Sci. Technol. 2016, 51, 2232–2241. [Google Scholar] [CrossRef]
- Yoon, H.S.; Kim, C.J.; Chung, K.W.; Jeon, S.; Park, I.; Yoo, K.; Jha, M.K. The effect of grinding and roasting conditions on the selective leaching of Nd and Dy from NdFeB magnet scraps. Metals 2015, 5, 1306–1314. [Google Scholar] [CrossRef]
- Sinha, M.K.; Pramanik, S.; Kumar, A.; Sahu, S.K.; Prasad, L.B.; Jha, M.K.; Yoo, K.; Pandey, B.D. Recovery of value added products of Sm and Co from waste SmCo magnet by hydrometallurgical route. Sep. Purif. Technol. 2017, 179, 1–12. [Google Scholar] [CrossRef]
- Sahoo, K.; Nayak, A.K.; Ghosh, M.K.; Sarangi, K. Preparation of Sm2O3 and Co3O4 from SmCo magnet swarf by hydrometallurgical processing in chloride media. J. Rare Earths 2018, 36, 725–732. [Google Scholar] [CrossRef]
- Zhou, K.; Wang, A.; Zhang, D.; Zhang, X.; Yang, T. Sulfuric acid leaching of SmCo alloy waste and separation of samarium from cobalt. Hydrometallurgy 2017, 174, 66–70. [Google Scholar] [CrossRef]
- Ji, B.; Li, Q.; Zhang, W. Leaching recovery of rare earth elements from the calcination product of a coal coarse refuse using organic acids. J. Rare Earths 2022, 40, 318–327. [Google Scholar] [CrossRef]
- Li, L.; Dunn, J.B.; Zhang, X.X.; Gaines, L.; Chen, R.J.; Wu, F.; Amine, K. Recovery of metals from spent lithium-ion batteries with organic acids as leaching reagents and environmental assessment. J. Power Sources 2013, 233, 180–189. [Google Scholar] [CrossRef]
- Schuster, J.; Ebin, B. Investigation of indium and other valuable metals leaching from unground waste LCD screens by organic and inorganic acid leaching. Sep. Purif. Technol. 2021, 279, 119659. [Google Scholar] [CrossRef]
- Hussaini, S.; Kursunoglu, S.; Top, S.; Ichlas, Z.T.; Kaya, M. Testing of 17-different leaching agents for the recovery of zinc from a carbonate-type Pb-Zn ore flotation tailing. Miner. Eng. 2021, 168, 106935. [Google Scholar] [CrossRef]
- Zheng, C.; Jiang, K.; Cao, Z.; Wang, H.; Liu, S.; Waters, K.E.; Ma, H. Pressure leaching behaviors of copper-cobalt sulfide concentrate from Congo. Sep. Purif. Technol. 2023, 309, 123010. [Google Scholar] [CrossRef]
- Feng, Q.; Tang, W.; Wen, S.; Wang, H.; Zhao, W.; Han, G. Flotation of copper oxide minerals: A review. Int. J. Min. Sci. Technol. 2022, 32, 1351–1364. [Google Scholar] [CrossRef]
Element | Sm | Co | Fe | Cu |
---|---|---|---|---|
wt.% | 27.7 | 59.3 | 17.5 | 5.75 |
Factors | Temperature | S/L Ratio | Time | Acid | H2O2 |
---|---|---|---|---|---|
Unit | °C | g L−1 | min | mol L−1 | vol.% |
Level 1 | 60 | 5 | 30 | 0.5 | 0 |
Level 2 | 70 | 10 | 60 | 1.0 | 1 |
Level 3 | 80 | 15 | 90 | 1.5 | 2 |
Level 4 | 90 | 20 | 120 | 2.0 | 3 |
No. | Temp. | S/L Ratio | Time | Acid | H2O2 | Sm | Co | Fe | Cu |
---|---|---|---|---|---|---|---|---|---|
Unit | °C | g L−1 | min | mol L−1 | vol.% | % | % | % | % |
1 | 60 | 5 | 30 | 0.5 | 0 | 19.61 | 20.49 | 27.41 | 0 |
2 | 60 | 10 | 60 | 1.0 | 1 | 58.37 | 64.46 | 70.11 | 0.33 |
3 | 60 | 15 | 90 | 1.5 | 2 | 61.95 | 68.74 | 80.11 | 0.43 |
4 | 60 | 20 | 120 | 2.0 | 3 | 63.19 | 70.50 | 81.69 | 0.33 |
5 | 70 | 5 | 60 | 1.5 | 3 | 57.07 | 84.21 | 97.60 | 79.77 |
6 | 70 | 10 | 30 | 2.0 | 2 | 64.98 | 76.67 | 89.14 | 2.91 |
7 | 70 | 15 | 120 | 0.5 | 1 | 70.87 | 72.18 | 83.26 | 0.16 |
8 | 70 | 20 | 90 | 1.0 | 0 | 48.66 | 50.82 | 60.69 | 0.14 |
9 | 80 | 5 | 90 | 2.0 | 1 | 63.54 | 78.56 | 95.03 | 4.54 |
10 | 80 | 10 | 120 | 1.5 | 0 | 65.36 | 72.50 | 81.08 | 1.56 |
11 | 80 | 15 | 30 | 1.0 | 3 | 61.78 | 84.18 | 95.63 | 0.73 |
12 | 80 | 20 | 60 | 0.5 | 2 | 64.81 | 68.21 | 78.95 | 0.05 |
13 | 90 | 5 | 120 | 1.0 | 2 | 67.84 | 80.44 | 95.83 | 88.37 |
14 | 90 | 10 | 90 | 0.5 | 3 | 68.45 | 73.53 | 76.51 | 7.68 |
15 | 90 | 15 | 60 | 2.0 | 0 | 58.54 | 52.76 | 58.31 | 0.47 |
16 | 90 | 20 | 30 | 1.5 | 1 | 52.77 | 57.77 | 66.47 | 0.17 |
No. | Temp. | S/L Ratio | Time | Acid | H2O2 | Sm | Co | Fe | Cu |
---|---|---|---|---|---|---|---|---|---|
Unit | °C | g L−1 | min | mol L−1 | vol.% | % | % | % | % |
1 | 60 | 5 | 30 | 0.5 | 0 | 18.24 | 18.54 | 24.12 | 0 |
2 | 60 | 10 | 60 | 1.0 | 1 | 21.65 | 23.48 | 33.33 | 0 |
3 | 60 | 15 | 90 | 1.5 | 2 | 32.64 | 35.94 | 38.62 | 0.02 |
4 | 60 | 20 | 120 | 2.0 | 3 | 38.18 | 39.57 | 46.09 | 0.03 |
5 | 70 | 5 | 60 | 1.5 | 3 | 55.86 | 56.56 | 71.41 | 0.33 |
6 | 70 | 10 | 30 | 2.0 | 2 | 26.86 | 26.98 | 37.95 | 0.03 |
7 | 70 | 15 | 120 | 0.5 | 1 | 45.43 | 50.16 | 57.09 | 0.04 |
8 | 70 | 20 | 90 | 1.0 | 0 | 40.09 | 42.44 | 45.10 | 0.07 |
9 | 80 | 5 | 90 | 2.0 | 1 | 63.05 | 63.92 | 79.85 | 1.14 |
10 | 80 | 10 | 120 | 1.5 | 0 | 59.67 | 65.09 | 73.10 | 1.73 |
11 | 80 | 15 | 30 | 1.0 | 3 | 37.23 | 36.63 | 44.02 | 0.04 |
12 | 80 | 20 | 60 | 0.5 | 2 | 38.56 | 43.54 | 50.88 | 0 |
13 | 90 | 5 | 120 | 1.0 | 2 | 71.13 | 76.13 | 89.44 | 2.27 |
14 | 90 | 10 | 90 | 0.5 | 3 | 52.42 | 72.59 | 72.56 | 0.02 |
15 | 90 | 15 | 60 | 2.0 | 0 | 56.49 | 53.51 | 55.27 | 0.62 |
16 | 90 | 20 | 30 | 1.5 | 1 | 37.81 | 36.47 | 37.04 | 0.09 |
Effect Factor | Temp. (%) | Time (%) | Acid (%) | H2O2 (%) | S/L (%) | Effect Factor | Temp. (%) | Time (%) | Acid (%) | H2O2 (%) | S/L (%) | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sm | K1 | 50.78 | 49.78 | 55.93 | 48.04 | 52.01 | Co | K1 | 56.05 | 59.78 | 58.60 | 49.14 | 65.93 |
K2 | 60.40 | 59.70 | 59.16 | 61.39 | 64.29 | K2 | 70.97 | 67.41 | 69.98 | 68.24 | 71.79 | ||
K3 | 63.87 | 60.65 | 59.29 | 64.90 | 63.29 | K3 | 75.86 | 67.91 | 70.81 | 73.52 | 69.47 | ||
K4 | 61.90 | 66.82 | 62.56 | 62.62 | 57.36 | K4 | 66.13 | 73.91 | 69.62 | 78.11 | 61.83 | ||
Extreme deviation | 13.09 | 17.03 | 6.63 | 16.85 | 12.28 | Extreme deviation | 19.82 | 14.13 | 12.20 | 28.97 | 9.97 | ||
Priority order | Time > H2O2 > Temperature > S/L > Acid | Priority order | H2O2 > Temperature > Time > Acid > S/L | ||||||||||
Fe | K1 | 64.83 | 69.66 | 66.53 | 56.87 | 78.97 | Cu | K1 | 0.27 | 0.95 | 1.97 | 0.54 | 43.17 |
K2 | 82.67 | 76.24 | 80.57 | 78.72 | 79.21 | K2 | 20.74 | 20.15 | 22.39 | 1.30 | 3.12 | ||
K3 | 87.67 | 78.09 | 81.32 | 86.01 | 79.33 | K3 | 1.72 | 3.20 | 20.48 | 22.94 | 0.45 | ||
K4 | 74.28 | 85.46 | 81.04 | 87.86 | 71.95 | K4 | 24.17 | 22.61 | 2.06 | 22.13 | 0.17 | ||
Extreme deviation | 22.84 | 15.80 | 14.79 | 30.99 | 7.38 | Extreme deviation | 23.90 | 21.66 | 20.42 | 22.40 | 43.00 | ||
Priority order | H2O2 > Temperature > Time > Acid > S/L | Priority order | S/L > Temperature > H2O2 > Time > Acid |
Effect Factor | Temp. (%) | Time (%) | Acid (%) | H2O2 (%) | S/L (%) | Effect Factor | Temp. (%) | Time (%) | Acid (%) | H2O2 (%) | S/L (%) | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sm | K1 | 27.68 | 30.03 | 38.66 | 43.62 | 52.07 | Co | K1 | 29.38 | 29.66 | 46.21 | 44.90 | 53.79 |
K2 | 42.06 | 43.14 | 42.53 | 41.98 | 40.15 | K2 | 44.04 | 44.27 | 44.67 | 43.51 | 47.03 | ||
K3 | 49.62 | 47.05 | 46.49 | 42.30 | 42.95 | K3 | 52.30 | 53.72 | 48.52 | 45.65 | 44.06 | ||
K4 | 54.46 | 53.60 | 46.15 | 45.92 | 38.66 | K4 | 59.68 | 57.74 | 46.00 | 51.34 | 40.51 | ||
Extreme deviation | 26.78 | 23.57 | 7.83 | 3.94 | 13.41 | Extreme deviation | 30.29 | 28.08 | 3.85 | 7.83 | 13.28 | ||
Priority order | Temperature > Time > S/L > Acid > H2O2 | Priority order | Temperature > Time > S/L > H2O2 > Acid | ||||||||||
Fe | K1 | 35.54 | 35.78 | 51.16 | 49.40 | 66.20 | Cu | K1 | 0.01 | 0.04 | 0.01 | 0.61 | 0.94 |
K2 | 52.89 | 52.72 | 52.97 | 51.83 | 54.23 | K2 | 0.12 | 0.24 | 0.60 | 0.32 | 0.45 | ||
K3 | 61.96 | 59.03 | 55.04 | 54.22 | 48.75 | K3 | 0.73 | 0.31 | 0.54 | 0.58 | 0.18 | ||
K4 | 63.58 | 66.43 | 54.79 | 58.52 | 44.78 | K4 | 0.75 | 1.02 | 0.46 | 0.11 | 0.05 | ||
Extreme deviation | 28.04 | 30.65 | 3.88 | 9.12 | 21.43 | Extreme deviation | 0.74 | 0.98 | 0.58 | 0.50 | 0.89 | ||
Priority order | Time > Temperature > S/L > H2O2 > Acid | Priority order | Time > S/L > Temperature > Acid > H2O2 |
Effect Factor | Temperature | Time | Acid | H2O2 | S/L | |
---|---|---|---|---|---|---|
Four metals | K1 | 42.98 | 45.04 | 45.76 | 38.65 | 60.02 |
K2 | 58.70 | 55.88 | 58.02 | 52.41 | 54.60 | |
K3 | 57.28 | 52.46 | 57.97 | 61.84 | 53.13 | |
K4 | 56.62 | 62.20 | 53.82 | 62.68 | 47.83 | |
Extreme deviation | 19.91 | 17.15 | 13.51 | 24.80 | 18.16 | |
Priority order | Acid |
Effect Factor | Temperature | Time | Acid | H2O2 | S/L | |
---|---|---|---|---|---|---|
Four metals | K1 | 23.15 | 23.88 | 34.01 | 34.63 | 43.25 |
K2 | 34.78 | 35.09 | 35.19 | 34.41 | 35.47 | |
K3 | 41.15 | 40.03 | 37.65 | 35.69 | 33.98 | |
K4 | 44.62 | 44.70 | 36.85 | 38.97 | 31.00 | |
Extreme deviation | 21.46 | 20.82 | 4.03 | 5.35 | 12.25 | |
Priority order | Temperature > Time > S/L > H2O2 > Acid |
