Investigation of Microstructure and Mechanical Properties of Layered Material Produced by Adding Al2O3 to 316L Stainless Steel

by
Osama Albahl Alshtewe Albahlol
1,
Rajab Elkilani
1,
Harun Çuğ
1,
Mehmet Akif Erden
2,*,
Ramazan Özmen
3 and
Ismail Esen
1
1
Department of Mechanical Engineering, Karabuk University, Karabuk 78050, Türkiye
2
Department of Biomedical Engineering, Karabuk University, Karabuk 78050, Türkiye
3
Department of Mechatronics Engineering, Karabuk University, Karabuk 78050, Türkiye
*
Author to whom correspondence should be addressed.
Metals 2023, 13(7), 1226; https://doi.org/10.3390/met13071226
Submission received: 18 May 2023 / Revised: 20 June 2023 / Accepted: 28 June 2023 / Published: 3 July 2023
(This article belongs to the Special Issue Development of New Metallic Materials via Macrodesign of Microstructure)
Browse Figures
Versions Notes

Abstract

:
This study developed new advanced composite materials consisting of functional grading of 316L and Al2O3 specially designed for potential biomedical applications. Mechanical properties were characterized by tensile testing, and microstructural properties by optical microscope, scanning electron microscope (SEM), and Energy Dispersive X-Ray (EDX) analyses. The uniform mixture in the material, up to 40% by weight of Al2O3, is uniformly distributed in the 316L matrix that shows disintegration. Then, samples with 2, 3, 4, and 5 layers were produced in functionally graded 6, 7, 8, and 9 material types, respectively. The layer thicknesses were formed with an average of 900 µm. The results show that new composite materials can be produced functionally using 316L and Al2O3 in a layered manner. As a result of the mechanical experiments, it has been observed that the tensile strength of the layered composite structures remains within the range of 91–191 MPa, depending on the layer type. It has been observed that the elongation varies between 3.16 and 12.46%. According to these results, the materials obtained are considered suitable for use as an alternative prosthetic material in biomedical applications. The tensile strength, % elongation of the Composition 7, and yield strength of functionally graded (316 + (316L-10 Al2O3) + (316L-20 Al2O3) + (316L-30 Al2O3)) material are 123 megapascals (MPa), 7.3%, and 111MPa, respectively, and according to the literature, the mechanical strength of human bone is very close to this composition properties.

1. Introduction

Powder metallurgy (PM) is a self-contained production method that is economical for mass production, produces no loss or a maximum of about 3% waste material during production, and generally does not require a secondary process. Thanks to these superior features, its preferability is increasing day by day, and it is an alternative to other known traditional methods. In addition, the parts produced by the PM method have a smooth, clean surface close to the final shape compared to other methods. Stainless steels, on the other hand, are known as a frequently preferred material group in many sectors, such as the biomedical industry, due to their excellent mechanical properties, their ability to maintain their mechanical properties at high and low temperatures, as well as their excellent wear, and corrosion resistance [1,2,3,4,5].
Austenitic stainless steels are the materials of choice in many industrial applications. High corrosion resistance, toughness, and good weldability are the properties that make austenitic stainless steel attractive for the industry [6,7,8].
Due to these properties, austenitic stainless steels are preferred in petrochemistry, implants, kitchen equipment, and automotive industries. As a result, many studies have been conducted to increase the strength, hardness, and toughness of austenitic stainless steel. In particular, researchers have tried to improve this material’s mechanical properties without sacrificing its toughness [4,9].
Implants have been used for a long time in human history and have been developed as a replacement material for any damaged bone fragment in the body. In order for the implants to be in complete harmony with the body, the material used as the implant material should be developed from alloying elements that will not harm the body’s chemistry. In cases where it will be used as a substitute for bone, Young’s modulus should be close to the bone, be compatible with the body in a short time, and should not cause infection. AISI 316L material, known as a biomaterial, is also used as an implant material for high corrosion resistance, non-toxicity, and machinability [10,11,12].
Aluminum oxide (Al2O3), also called alumina, is also known as technical ceramic and is used in manufacturing advanced ceramics. Furthermore, alumina is used in construction, fuel cells, abrasive or chemical waste cleaners, microelectronics, etc. In addition to its excessive hardness, electrical resistance, corrosion resistance, and refractoriness, alumina is an inert material with the highest biocompatibility currently used in the clinical field [13,14].
It is a biomaterial used in sterilization devices, drug delivery systems, and ventilation tubes. Single-crystal alumina is used as a dental implant; if alumina is produced from particles smaller than 4 μm, the modulus of elasticity rises to 30 Gigapascal (GPa) [15]. Therefore, its use as a biomaterial causes other problems. Reducing the mechanical properties by increasing the particle size is vital in its use as a prosthesis [15].
Canpolat et al. [16] reported successfully fabricating SS316L/Al2O3 functionally graded material (FGM) for biomedical applications utilizing powder metallurgy, where the microstructure, corrosion resistance, and mechanical and bioactivity properties were examined. The FGM layers were made of three distinct composites with 5, 10, and 15 wt% Al2O3 and were made of 316L. The hardness of the layers rose with the alumina level, according to experimental results, and the powder metallurgy approach successfully produced FGM without cracks. According to the electrochemical test results, samples examined in Ringer’s solution were more prone to pitting corrosion than samples tested in Hank’s solution. After 7, 14, and 21 days of in vitro bioactivity experiments, the development of apatite layers was seen in each sample. Biocompatibility is considered to be increased by the development of hydroxyapatite (HA) [16].
Kuforiji and Nganbe [17] successfully created 50 wt% SS316L and 50 wt% Al2O3 composite samples using powder metallurgy. They claimed that the samples had the best microstructure, the highest density, hardness, and toughness, and as a result, the maximum wear resistance. Hence, compared to commercial SS316L, the inclusion of 50 wt% alumina particles resulted in a roughly 86% reduction in wear rate and a reduction in volume loss of up to 7.2 times [17].
Using the FGM technique, Radwan et al. [18] created a highly dense, crack-free stainless steel type 316L and alumina (SS316L/Al2O3) from powders and stated that the hardness values progressively rose as the Al2O3 content increased [18].
Using powder metallurgy, Shamsuddin et al. [19] have created composite Fe-Cr-Al2O3 powders. They looked at how different alumina particle wt% affected the final physical characteristics of the composites, including density, shrinkage, porosity, and hardness. According to experimental data, the best wt% of reinforcement in the matrix is 20 wt%. Higher reinforcement wt% caused the reinforcement to cluster in the matrix, which increased porosity, and decreased the density of the composites, lowering their hardness [19].
Al-Moameri et al. [13] investigated the biological uses of alumina and found that it is quite inactive and corrosion-resistant. Alumina applies smoothly for several years and causes little tissue reaction. While many of the implants are polycrystalline, some are single crystals. It is frequently employed in load-bearing applications due to its exceptional resistance to corrosion, superior tear resistance, biocompatibility, and high compressive strength. Alumina also possesses the best tribological characteristics for articulating surfaces in orthopedic implants [13].
Tsukamoto [20] has created continuous-gradient zirconia (ZrO2)/304 stainless steel (SUS304) FGMs using centrifugal slurry techniques and spark plasma sintering (SPS). He looked at several continuous gradient patterns made possible by adjusting the concentration of a dispersant like ammonium poly-carboxylic acid (PCA) in the slurry. According to him, the gradient patterns in the FGMs switched from being rich in metal (SUS304) to being rich in ceramic (ZrO2) as the amount of PCA increased. Simulations of Stokes sedimentation velocity show that SUS304 particles have a higher sedimentation velocity than ZrO2 particles. The speed of the particles’ sedimentation reduces as PCA is applied with higher amounts. Results from cyclic thermal shock tests showed that FGMs, 5-layered materials, and ZrO2 single materials exhibited the strongest resistance among samples of FGMs with SUS304-rich continuous gradient patterns [20].
The structural, physical, and compressive mechanical characteristics of the (SS-316L)/HA, SS-316L/calcium silicate (CS) biocomposites, and FGMs on load-bearing applications were examined by Oshkour et al. [21]. They showed that mechanical characteristics of the FGM SS316L/HA declined as temperature increased. In contrast, the mechanical properties of the FGM SS316L/CS improved as temperature grew after sintering FGM samples at three different temperatures: 1000 °C, 1100 °C, and 1200 °C. Hybrid FGM comprising micro, and nano-sized hydroxyapatite (HA), stainless steel 316L (SS316L), and carbon nanotubes (CNT) were produced by Hussain et al. [22] for use in biomedical implants. The inclusion of CNT and nanocrystalline HA enhances the densification of the FGM. In addition, both FGM reinforced with CNT increased hardness and fracture toughness. However, the increase in hardness and fracture toughness is more pronounced in FGM with micro and nanocrystalline H.A. ZrO2/AISI316L functionally graded materials created using spark plasma sintering for a joint prosthesis by Mishina et al. [23]. They also investigated their mechanical and tribological properties. They claimed that the fracture toughness and wear resistance rose as the FGM’s layer thickness grew (more than 2 mm). The impact of micro and nano-sized hydroxyapatite (HA) reinforcement on SS316L matrix functional grade materials was investigated by Akmal et al. [24]. A pressureless sintering process for bioimplants was used to create the FGMs. Unlike micro-sized HA FGMs, nano-sized HA FGMs demonstrated superior densification, hardness, and corrosion resistance.
A survey of the literature revealed that some research had been conducted on the fabrication of (FGM) made from SS316L/0–5–10–15 wt% of Al2O3 for biomedical applications. Research has also demonstrated that the production of SS316L/Al2O3 involves using powder metal metallurgy to incorporate Al2O3 as a reinforcement component.
This study aimed to enhance the 316L stainless steel’s mechanical characteristics because it is employed in two different ways as a biomaterial using powder metallurgical procedures. First, the samples were made by adding reinforcement compositions of 0%, 10%, 20%, 30%, and 40%wt of Al2O3. Producing samples of functionally graded SS316L/Al2O3 with 10%, 20%, 30%, and 40%wt of Al2O3 is the alternative. According to the literature, the prosthesis and implant made using FGM will be able to adapt to the body more quickly due to the increased amount of Al2O3 in the 316L matrix material. Al2O3 was added up to 15% by weight, and it was found that doing so caused more HA to form, which led to the conclusion that the biocompatibility had improved.

The Novelty of This Study

In this study, four new FGM and five single-layered materials with SS316L matrix with up to 40% Al2O3 reinforcements, which have never been studied before in the literature, were formed. In terms of the chemical composition, the number of layers, and the characterization of the material, such as the determination of mechanical properties by tensile test, single and layered production of 316L/Al2O3 differs from previous studies in the literature. In the literature, for example, the quantity of Al2O3 reinforcement available via layered powder metallurgical process is up to 15%. Up to 40% was added in this investigation. In the literature, cylindrical samples were typically made, and hardness tests were performed. Mechanical characteristics were measured using a tensile test in this investigation. Compositions 7 and 8 in this study have mechanical properties that are remarkably similar to human femoral cortical bone. These differences highlight the study’s initial importance. The purpose of this research is to determine how different Al2O3 reinforcements, both single and multilayer, affect the microstructural, mechanical properties of 316L stainless steel produced by powder metallurgy. Materials with near-bone qualities were created when the results obtained were investigated in terms of mechanical properties [5,6,7,16]. Material development investigations for prosthetic applications have been more serious recently. As a result, the relevance of bone-like materials in the human body has increased. These materials are lightweight and resistant to fatigue, wear, and corrosion. [1,2,3,4,5,6,7]. In this study, nine different alternative composite materials were developed and characterized. Of these materials, the mechanical properties of Composition 7 (316L + (316L-10Al2O3) + (316L-20Al2O3)) and Composition 8 (316L + (316L-10Al2O3) + (316L-20Al2O3) + (316L-30Al2O3)) are very close to the mechanical properties of human femoral cortical bone, where the tensile yield stress, ultimate tensile stress, and elongation are 71.56 MPa, 92.95 MPa, and 0.67%, respectively.

2. Materials and Methods

In this study, SS316L/Al2O3 samples were produced by PM. Table 1 gives the purity, the size of SS316L, and Al2O3 powder. The effect of single addition (non-layered) alumina and functionally graded (layered) production of microstructure and mechanical properties were investigated. The steps used in producing the samples are shown in Figure 1.
In accordance with ASTM 8M requirements, mixed powders are pressed in a single direction at a pressure of 700 MPa [27]. The pressed samples were sintered for two hours at 1250 °C with a heating rate of 5 °C/min in an argon environment. Figure 2 displays the manufactured samples after sintering. The chemical makeup of the samples has been listed in Table 2.
Employing a SHIMADZU tensile test instrument with a 50 kN capacity (Shimadzu, Tokyo, Japan) to apply the tensile test of sintered samples at 1 mm/min speed, ultimate tensile strengths, elongation% values, and yield strengths were calculated. Based on ASTM B 328-96, the density kit for the Radwag brand sensitive scale by Bruker Alpha, Bursa, Turkey, computed density using the Archimedes principle [28].
The surfaces of sintered samples were polished using a variety of mesh sizes of abrasive sheets (400, 600, 800, 1000, 1500, 2000, 2500, 3000, 4000, 5000, and 7000 meshes, from coarse to fine) prior to the use of an optical microscope. After that, 0.3 µm of Al2O3 suspension was polished. After being cleaned with distilled water, and ethyl alcohol, all samples were dried with hot air. Composition 1 sample was submitted to an electrolytic distribution with a 2-amp current intensity and 12 volts after being etched with 10 g of oxalic acid in 90 mL of clean water solution. Following the metallographic sample’s fabrication, the sample’s microstructure was examined by obtaining images under an optical microscope (Nikon Epiphot 200) and a scanning electron microscope (Carl Zeiss Ultra Plus Gemini FESEM) with an enlargement capacity of ×50–×1000. The fracture surfaces of the tensile samples were also examined.

3. Results

Microstructure and tensile testing were performed on stainless steel materials made from 316L/Al2O3 using the powder metallurgy process. Tensile curves for SS316L/Al2O3 samples are presented in Figure 3. The results for density, porosity, and tensile strength are given in Table 3.
As expected, increased porosity was observed with the increase of Al2O3 in the form of a single layer (Composition 1, 2, 3, 4, and 5). An increase in pores showed a significant decrease in yield strength, tensile strength, and elongation%. This is also an expected situation. There are many studies on the negative effects of porosity on mechanical properties [29,30]. In addition, when the porosity values of the layered produced samples (composition 6, 7, 8, and 9) are examined, it shows that an increase in the number of layers also increases pores. However, when the compositions with single Al2O3 are compared, it is observed that their mechanical properties are better; similar results have been reported in other studies [16,18,31]. Canpolat et al. determined that porosity increased with the increase in Al2O3 quantities in samples containing 0–5–10–15 wt% of Al2O3 [16,29]. When comparing Composition 7 with Composition 3, both compositions contain 20% Al2O3 by weight. However, while the tensile strength, % elongation, and yield strength values of Composition 3 are 33 MPa, 3.01%, and 15 MPa, respectively, the tensile strength, % elongation, and yield strength values of Composition 7 (4-layer composition) are 123 MPa, 6.70%, and 111 MPa, respectively. It has been observed that the layered sample (Composition 7) containing 20% Al2O3 by weight is seven times better in terms of yield strength and approximately three times better in terms of tensile strength compared to the sample (Composition 3) produced without a layer containing the same amount of Al2O3. In addition, the percent elongation of Composition 7 was two times better than Composition 3, as shown in Figure 4. The reasons behind the better mechanical properties of the layered samples are the lesser porosity and the heterogeneity of the Al2O3 distribution in layered form. As a result, although the porosity values were close, the mechanical properties of the layered compositions were better than the unlayered compositions [16,18,31].
When the microstructure images in Figure 5 are examined, the gaps can be seen because the materials with different quantities of alumina and layer 316L materials are produced by powder metallurgy by making one-way cold pressing. This is due to small gaps in production made with powder metallurgy [32].
Figure 5a,b is examined in the pictures taken from the optical microscope. The Al2O3 composition and the Scanning Electron Microscope (SEM) microstructure in Figure 5c is examined in the material, and Energy-dispersive X-ray spectroscopy (EDS) analysis of the material added in the material as well as Al2O3 (spectrum 5), SiCrMoC (Spectrum 6), MoC(N), CrC(N), MoCrC(N), and CrMnMoC(N) in one, two, and multiple particles. In the literature, studies are conducted using SEM, X-ray diffraction analysis (XRD), and Transmission electron microscopy (TEM) to form single, binary, and multiple precipitates [33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53]. The interface properties of 316L/ Al2O3 are evaluated by giving optical microscope images in Figure 6. It is seen that the increase in the amount of Al2O3 significantly increases the porosity between the matrix and the Al2O3 reinforcing element and in the general microstructure. This adversely affects the mechanical properties [29,30].
These particles increase the strength of the material with strength-enhancing mechanisms such as grain size reduction, dispersion hardening, precipitation hardening, and clustering hardening [33,34,45,47,48]. Another study investigated the effect of Nb and Al addition to micro-alloy steels produced with powder metallurgy on microstructure and mechanical properties and observed that the mechanical properties improved with Nb and Al addition. In the study, SEM, EDS, and XRD analyses were applied, and NbC was associated with precipitates, which occur with precisions, increased strength as well as grain size [35,36,37,38,39,40,41,42,43,49,50,51,52,53,54]. When Figure 7 and Figure 8 are examined, it is observed that the production of single and layered composites up to 40% Al2O3 with 316L stainless steel matrix is carried out successfully. As the amount of reinforcement increases, it is observed that porosity increases. Similar results are shown in the literature [41,42,43,44]. Figure 9 shows SEM microstructure line EDS analysis taken from samples with different layers. When the line cuts the Al2O3 composition, it is observed that the Fe element rises. Figure 10 shows SEM Mapping analyses taken from the sample produced with layers. When Figure 10 is examined, it is observed that the amount of reinforcement of the Al2O3 composition increases in a layered manner.
In Figure 11, there are the fracture surface pictures taken from the samples reinforced with different ratios of Al2O3 into the 316L matrix after the tensile test. When the fracture surface pictures (Figure 10) are examined, it is observed that the honeycomb structure, which represents the ductility, decreases with the increase in the amount of Al2O3, and the separation planes, which represent the brittleness, increase. Studies in the literature show that brittleness increases with the increase in reinforcement [24,35,46,47,48]. For example, Özdemirler et al. investigated the effects of NbC additives on microstructure and mechanical properties. As the amount of NbC increased, it was observed that the separation planes representing the brittleness of the material increased, while the honeycomb structure representing the ductility decreased. In addition, the increase in the amount of reinforcement increased the porosity. Especially with the addition of 40% Al2O3 by weight, it is seen that the voids between the Al2O3 embedded in the matrix and the matrix are concentrated. The increase in the amount of alumina and pores in single-layer compositions caused a decrease in the tensile strength and a decrease in the % elongation values and adversely affected the mechanical properties. In Figure 12, there are fracture surface pictures taken from the fracture surfaces of the samples reinforced with Al2O3 in different ratios to the 316L matrix produced as layers after the tensile test. When the cracked surface pictures are examined, it is seen that the honeycomb structure decreases with the increase in the amount of Al2O3 in each layer; the separation planes and the number of pores increase. Increasing the amount of Al2O3 increased the brittleness and porosity. Although the number of pores in the layered compositions was approximately the same compared to the single-layer compositions, the yield strength, tensile strength, and % elongation values were higher. The good mechanical properties are due to the heterogeneous distribution of pores in the matrix. During the tensile test, it is thought that the fracture crack starts from the layer containing 40% Al2O3 by weight with high porosity and progresses to the 316L layer that does not contain Al2O3.

4. Conclusions

This work examined the impacts of layer manufacturing and the addition of Al2O3 composition to 316L stainless steel at various ratios (0, 10, 20, 30, and 40%) on the mechanical properties and microstructure. The following is a list of some of the significant findings from this study:
  • Powder metallurgy of 316L steels added at various rates has been used successfully in single and multilayer manufacturing;
  • For all samples, the porosity rises as the amount of Al2O3 does. The samples that were functionally graded, however, exhibited slightly less porosity;
  • Functionally graded samples’ yield strength, ultimate tensile strength, and elongation values declined marginally, but those of single composition samples decreased dramatically as Al2O3 content was increased;
  • Although the porosity of layered and single composition samples was comparable for the same amount of Al2O3 applied, the layered composition samples had superior mechanical characteristics;
  • When compared to the sample (Composition 3) generated with a single composition containing the same quantity of Al2O3, Composition 7 containing 20% Al2O3 by weight is seven times better in terms of yield strength, about three times better in terms of tensile strength and two times better in elongation, including the additional samples while contrasting functionally graded samples with samples of a single composition with the same concentration of Al2O3;
  • Images of the fracture surface demonstrate that as the amount of Al2O3 increases, the honeycomb structure, which represents ductility, diminishes while the separation planes, a representation of brittleness, grow.
As a result of the mechanical tests, it has been observed that the tensile strength of the laminated composite structures is in the range of 91–191 MPa, depending on the layer type. It has been observed that the elongation varies between 3.16% and 12.46% and is close to the mechanical properties of human bone.

Author Contributions

M.A.E., H.Ç., O.A.A.A. and I.E. designed the experiments; H.Ç., M.A.E., O.A.A.A. and R.E. performed the experiments. O.A.A.A., R.E., R.Ö., H.Ç., M.A.E. and I.E. analyzed the data and wrote the paper. O.A.A.A., M.A.E. and I.E. directed the research and contributed to the discussion and interpretation of the results. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Data are contained within the article.

Acknowledgments

This study was carried out as a Ph.D. thesis by Osama Albahl Alshtewe Albahlol in the Graduate Education Institute at Karabuk University, Karabuk, Türkiye.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Türkmen, M.; Erden, M.A.; Karabulut, H.; Gündüz, S. The Effects of Heat Treatment on the Microstructure and Mechanical Properties of Nb–V Microalloyed Powder Metallurgy Steels. Acta Phys. Pol. A 2019, 135, 834–836. [Google Scholar] [CrossRef]
  2. Erden, M.A.; Ayvacı, B. The Effect on Mechanical Properties of Pressing Technique in PM Steels. Acta Phys. Pol. A 2019, 135, 1078–1080. [Google Scholar] [CrossRef]
  3. Simsir, H.; Akgul, Y.; Erden, M.A. Hydrothermal Carbon Effect on Iron Matrix Composites Produced by Powder Metallurgy. Mater. Chem. Phys. 2020, 242, 122557. [Google Scholar] [CrossRef]
  4. Erden, M.A.; Gündüz, S.; Karabulut, H.; Türkmen, M. Wear Behaviour of Sintered Steels Obtained Using Powder Metallurgy Method. Mechanika 2017, 23, 574–580. [Google Scholar] [CrossRef] [Green Version]
  5. Erden, M.A.; Erer, A.M.; Odabaşi, Ç.; Gündüz, S. The Investigation of the Effect of Cu Addition on the Nb-V Microalloyed Steel Produced by Powder Metallurgy. Sci. Sinter. 2022, 54, 153–167. [Google Scholar] [CrossRef]
  6. Lo, K.H.; Shek, C.H.; Lai, J.K.L. Recent Developments in Stainless Steels. Mater. Sci. Eng. R Rep. 2009, 65, 39–104. [Google Scholar] [CrossRef]
  7. Saha Podder, A.; Bhanja, A. Applications of Stainless Steel in Automobile Industry. In Advanced Materials Research; Trans Tech Publications Ltd.: Zürih, Switzerland, 2013; Volume 794, pp. 731–740. [Google Scholar]
  8. Kurgan, N.; Sun, Y.; Cicek, B.; Ahlatci, H. Production of 316L Stainless Steel Implant Materials by Powder Metallurgy and Investigation of Their Wear Properties. Chin. Sci. Bull. 2012, 57, 1873–1878. [Google Scholar] [CrossRef] [Green Version]
  9. Esmaeilzadeh, R.; Salimi, M.; Zamani, C.; Hadian, A.M.; Hadian, A. Effects of Milling Time and Temperature on Phase Evolution of AISI 316 Stainless Steel Powder and Subsequent Sintering. J. Alloys Compd. 2018, 766, 341–348. [Google Scholar] [CrossRef]
  10. Zhou, J.; Sun, Y.; Huang, S.; Sheng, J.; Li, J.; Agyenim-Boateng, E. Effect of Laser Peening on Friction and Wear Behavior of Medical Ti6Al4V Alloy. Opt. Laser Technol. 2019, 109, 263–269. [Google Scholar] [CrossRef]
  11. Ahmadi, R.; Izanloo, S. Development of HAp/GO/Ag Coating on 316 LVM Implant for Medical Applications. J. Mech. Behav. Biomed. Mater. 2022, 126, 105075. [Google Scholar] [CrossRef]
  12. Manam, N.S.; Harun, W.S.W.; Shri, D.N.A.; Ghani, S.A.C.; Kurniawan, T.; Ismail, M.H.; Ibrahim, M.H.I. Study of Corrosion in Biocompatible Metals for Implants: A Review. J. Alloys Compd. 2017, 701, 698–715. [Google Scholar] [CrossRef] [Green Version]
  13. Hasoon Al-Moameri, H.; Majid Nahi, Z.; Raheem Rzaij, D.; Al-Sharify, N.T. A review on the biomedical applications of alumina. J. Eng. Sustain. Dev. 2022, 24, 28–36. [Google Scholar] [CrossRef]
  14. Ruys, A.J. Metal-Reinforced Ceramics; Woodhead Publishing: Sawston, UK, 2021. [Google Scholar]
  15. Evis, Z. Çeşitli İyonlar Eklenmiş NanoHidroksiapatitler: Üretim Yöntemleri, İç Yapı, Mekanik ve Biyouyumluluk Özellikleri Yönlerinden İncelenmesi. Uluslararası Mühendislik Araştırma Ve Geliştirme Derg. 2011, 3, 55–65. [Google Scholar]
  16. Canpolat, Ö.; Çanakçı, A.; Erdemir, F. SS316L/Al2O3 Functionally Graded Material for Potential Biomedical Applications. Mater. Chem. Phys. 2023, 293, 126958. [Google Scholar] [CrossRef]
  17. Kuforiji, C.; Nganbe, M. Powder Metallurgy Fabrication, Characterisation and Wear Assessment of SS316L-Al2O3 Composites. Tribol. Int. 2019, 130, 339–351. [Google Scholar] [CrossRef]
  18. Radwan, M.; Nygren, M.; Flodström, K.; Esmaelzadeh, S. Fabrication of Crack-Free SUS316L/Al2O3 Functionally Graded Materials by Spark Plasma Sintering. J. Mater. Sci. 2011, 46, 5807–5814. [Google Scholar] [CrossRef]
  19. Shamsuddin, S.; Jamaludin, S.; Hussain, Z.H.; Ahmad, Z. Characterization of Fe-Cr-Al2O3 Composites Fabricated by Powder Metallurgy Method with Varying Weight Percentage of Alumina. J. Phys. Sci. 2008, 44, 085201. [Google Scholar]
  20. Tsukamoto, H. Cyclic Thermal Shock Response of Zirconia/304 Stainless Steel Functionally Graded Materials Fabricated by Centrifugal Slurry Methods. J. Compos. Sci. 2023, 7, 69. [Google Scholar] [CrossRef]
  21. Ataollahi Oshkour, A.; Pramanik, S.; Mehrali, M.; Yau, Y.H.; Tarlochan, F.; Abu Osman, N.A. Mechanical and Physical Behavior of Newly Developed Functionally Graded Materials and Composites of Stainless Steel 316L with Calcium Silicate and Hydroxyapatite. J. Mech. Behav. Biomed. Mater. 2015, 49, 321–331. [Google Scholar] [CrossRef]
  22. Hussain, M.A.; Maqbool, A.; Khalid, F.A.; Farooq, M.U.; Abidi, I.H.; Bakhsh, N.; Amin, W.; Kim, J.Y. Improved Sinterability of Hydroxyapatite Functionally Graded Materials Strengthened with SS316L and CNTs Fabricated by Pressureless Sintering. Ceram. Int. 2015, 41, 10125–10132. [Google Scholar] [CrossRef]
  23. Mishina, H.; Inumaru, Y.; Kaitoku, K. Fabrication of ZrO2/AISI316L Functionally Graded Materials for Joint Prostheses. Mater. Sci. Eng. A 2008, 475, 141–147. [Google Scholar] [CrossRef]
  24. Akmal, M.; Khalid, F.A.; Hussain, M.A. Interfacial Diffusion Reaction and Mechanical Characterization of 316L Stainless Steel-Hydroxyapatite Functionally Graded Materials for Joint Prostheses. Ceram. Int. 2015, 41, 14458–14467. [Google Scholar] [CrossRef]
  25. Hoganas Company. Hoganas. Available online: https://www.hoganas.com/en/powder-technologies/pressing-sintering/products/stainless-steel-powders/ (accessed on 20 June 2023).
  26. Nanografi Company. Nanografi. Available online: https://nanografi.com/microparticles/aluminum-oxide-al2o3-micron-powder-purity-99-5-size-28-70-m/ (accessed on 20 June 2023).
  27. ASTM E8/E8M; Standard Test Methods for Tension Testing of Metallic Materials. ASTM International: West Conshohocken, PA, USA, 2013.
  28. ASTM B328-96; Standard Test Method for Density, Oil Content, and Interconnected Porosity of Sintered Metal Structural Parts and Oil-Impregnated Bearings. ASTM International: West Conshohocken, PA, USA, 2004.
  29. Canpolat, Ö.; Çanakçı, A.; Erdemir, F. Evaluation of Microstructure, Mechanical, and Corrosion Properties of SS316L/Al2O3 Composites Produced by Hot Pressing. Mater. Chem. Phys. 2022, 280, 125826. [Google Scholar] [CrossRef]
  30. Sugawara, E.; Nikaido, H. Properties of AdeABC and AdeIJK Efflux Systems of Acinetobacter Baumannii Compared with Those of the AcrAB-TolC System of Escherichia Coli. Antimicrob. Agents Chemother. 2014, 58, 7250–7257. [Google Scholar] [CrossRef] [Green Version]
  31. Tang, Y.; Qiu, W.; Chen, L.; Yang, X.; Song, Y.; Tang, J. Preparation of W–V Functionally Gradient Material by Spark Plasma Sintering. Nucl. Eng. Technol. 2020, 52, 1706–1713. [Google Scholar] [CrossRef]
  32. Hussain, M.A.; Ul Haq, E.; Munawar, I.; Maqbool, A.; Saleem, M.; Rafiq, M.A.; Inam, A.; Hakeem, A.S. Influence of Spark Plasma Sintering Temperature and Hydroxyapatite Nanoparticles on Properties of HA Based Functionally Graded Materials for Bone Prosthesis. Ceram. Int. 2022, 48, 14481–14490. [Google Scholar] [CrossRef]
  33. Erden, M.A. The Effect of the Sintering Temperature and Addition of Niobium and Vanadium on the Microstructure and Mechanical Properties of Microalloyed PM Steels. Metals 2017, 7, 329. [Google Scholar] [CrossRef] [Green Version]
  34. Clyne, T.W. Metallic Composite Materials. In Physical Metallurgy; Elsevier: Amsterdam, The Netherlands, 1996; pp. 2567–2625. [Google Scholar]
  35. Erden, M.A.; Aydın, F. Wear and Mechanical Properties of Carburized AISI 8620 Steel Produced by Powder Metallurgy. Int. J. Miner. Metall. Mater. 2021, 28, 430–439. [Google Scholar] [CrossRef]
  36. Ahssi, M.A.M.; Erden, M.A.; Acarer, M.; Çuğ, H. The Effect of Nickel on the Microstructure, Mechanical Properties and Corrosion Properties of Niobium-Vanadium Microalloyed Powder Metallurgy Steels. Materials 2020, 13, 4021. [Google Scholar] [CrossRef]
  37. Erden, M.A.; Elitaş, M. Toz Metalürjisi İle Üretilen Alaşimsiz Çeliğin Çekme Dayanimina Çinko Stearat Miktarinin Etkisinin Araştirilmasi. Çelik Araştırma ve Geliştirme Derg. 2022, 3, 12–16. [Google Scholar]
  38. Türkmen, M.; Karabulut, H.; Erden, M.A.; Gündüz, S. Effect of TiN addition on The microstructure and mechanical properties of PM steels. NWSA Acad. J. 2017, 12, 178–184. [Google Scholar] [CrossRef]
  39. Gündüz, S.; Karabulut, H.; Erden, M.A.; Türkmen, M. Microstructural Effects on Fatigue Behaviour of a Forged Medium Carbon Microalloyed Steel. Mater. Test. 2013, 55, 865–870. [Google Scholar] [CrossRef]
  40. Güney, B.; Dilay, Y. Determination of Abrasion Resistance of Fe28Cr5C1Mn Coating Applied to 30MnB5 Boron Alloy Cultivator Blades via Electric Arc Spray. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2022, 236, 9687–9699. [Google Scholar] [CrossRef]
  41. Guney, B. Microstructure Analysis of Welding Fume of Low and Medium Carbon Steels. Rev. Metal. 2021, 57, e187. [Google Scholar] [CrossRef]
  42. Kurt, B.; Özdoğan, L.; Güney, B.; Bölükbaşı, Ö.S.; Günen, A. Characterization and Wear Behavior of TiBC Coatings Formed by Thermo-Reactive Diffusion Technique on AISI D6 Steel. Surf. Coat. Technol. 2020, 385, 497–508. [Google Scholar] [CrossRef]
  43. Erden, M.A.; Tasliyan, M.F.; Akgul, Y. Effect of TiC, TiN, and TiCN on Microstructural, Mechanical and Tribological Properties of PM Steels. Sci. Sinter. 2021, 53, 497–508. [Google Scholar] [CrossRef]
  44. Özdemirler, D.; Gündüz, S.; Erden, M.A. Influence of NbC Addition on the Sintering Behaviour of Medium Carbon PM Steels. Metals 2017, 7, 121. [Google Scholar] [CrossRef]
  45. Elitas, M. Effects of Welding Parameters on Tensile Properties and Fracture Modes of Resistance Spot Welded DP1200 Steel. Mater. Test. 2021, 63, 124–130. [Google Scholar] [CrossRef]
  46. Özdemirler, D.; Gündüz, S.; Erden, M.A.; Karabulut, H.; Türkmen, M. Microstructure and Mechanical Properties of Nb Added PM Steels Sintered at Different Temperatures. J. Sci. Eng. Sci. 2016, 16, 87–91. [Google Scholar]
  47. Erden, M.A.; Akgün, M. Effect of Mo Addition on Microstructure, Mechanical and Machinability Properties of Cr-PM Steels. Proc. Inst. Mech. Eng. Part C J. Mech. Eng. Sci. 2022, 236, 5455–5467. [Google Scholar] [CrossRef]
  48. Guldibi, A.S.; Demir, H. Aging Effect on Microstructure and Machinability of Corrax Steel. Eng. Technol. Appl. Sci. Res. 2020, 10, 5168–5174. [Google Scholar] [CrossRef]
  49. Gündüz, S.; Erden, M.A.; Karabulut, H.; Türkmen, M. Effect of the Addition of Niobium and Aluminium on the Microstructures and Mechanical Properties of Micro-Alloyed Pm Steels. Mater. Tehnol. 2016, 50, 641–648. [Google Scholar] [CrossRef]
  50. Muhamed, G.A.; Gündüz, S.; Erden, M.A.; Taştemur, D. Dynamic Strain Aging Behaviour in AISI 316L Austenitic Stainless Steel under As-Received and As-Welded Conditions. Metals 2017, 7, 362. [Google Scholar] [CrossRef] [Green Version]
  51. Akgul, Y.; Nusrev Tanrıverdi, A.; Erden, M.A. A Novel Approach on Production of Carbon Steels Using Graphene via Powder Metallurgy. Can. Metall. Q. 2022, 61, 85–93. [Google Scholar] [CrossRef]
  52. Erden, M.A.; Yaşar, N.; Korkmaz, M.E.; Ayvacı, B.; Nimel Sworna Ross, K.; Mia, M. Investigation of Microstructure, Mechanical and Machinability Properties of Mo-Added Steel Produced by Powder Metallurgy Method. Int. J. Adv. Manuf. Technol. 2021, 114, 2811–2827. [Google Scholar] [CrossRef]
  53. Karabulut, H.; Erden, M.A.; Karacif, K.; Gündüz, S. Investigation of the Effects of SiC Reinforcement Ratio in Iron-Based Composite Materials on Corrosion Properties. J. S. Afr. Inst. Min. Metall. 2022, 122, 317–322. [Google Scholar] [CrossRef]
  54. Kowalski, K.; Nowak, M.; Jakubowicz, J.; Jurczyk, M. The Effects of Hydroxyapatite Addition on the Properties of the Mechanically Alloyed and Sintered Mg-RE-Zr Alloy. J. Mater. Eng. Perform. 2016, 25, 4469–4477. [Google Scholar] [CrossRef]
Metals 13 01226 g001 550
Figure 1. A schematic depiction of the fabrication stage.
Figure 1. A schematic depiction of the fabrication stage.
Metals 13 01226 g001
Metals 13 01226 g002 550

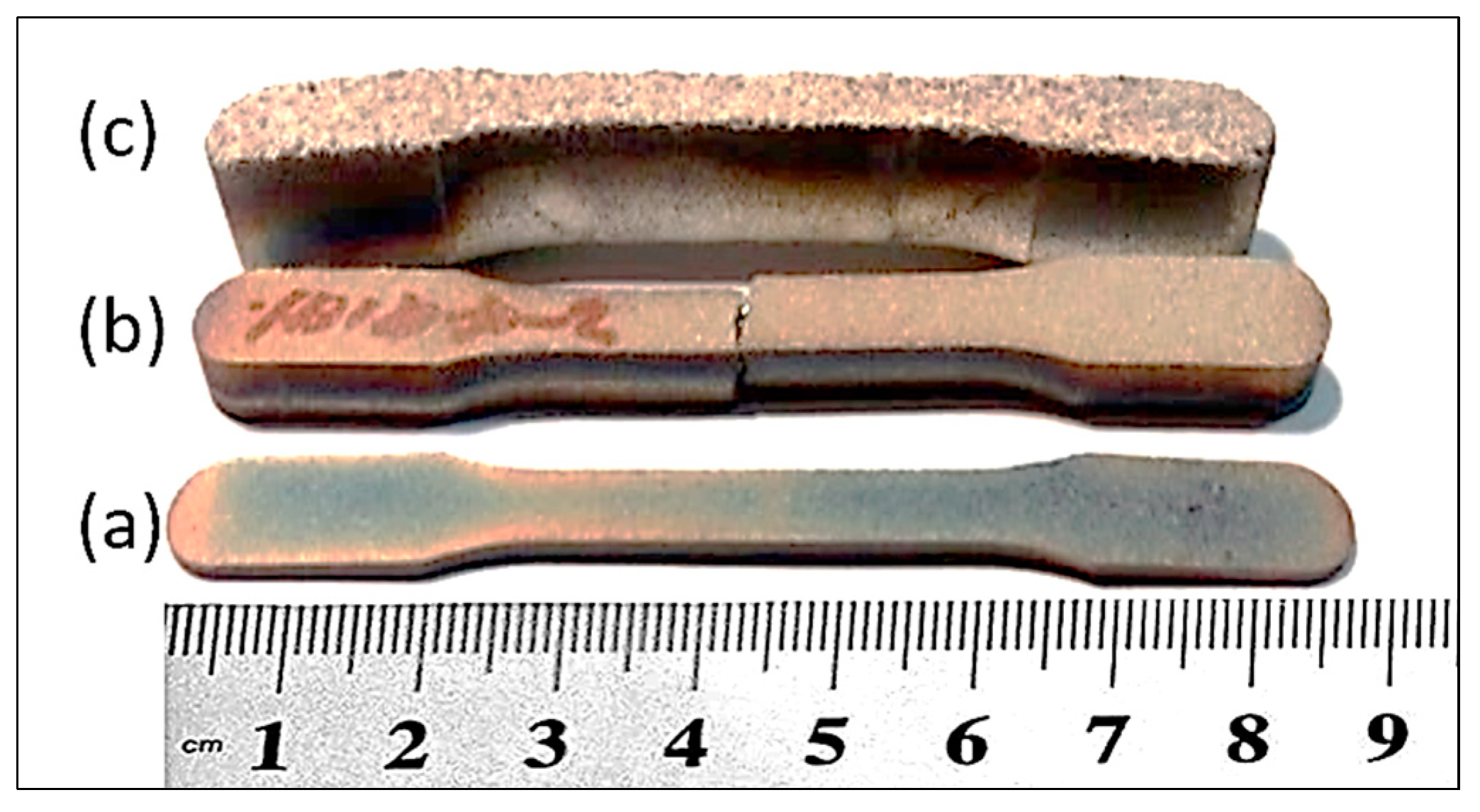

Figure 2. The produced samples after sintering. ((a)—Composition 1, (b)—Composition 7, (c)—Composition 9).
Figure 2. The produced samples after sintering. ((a)—Composition 1, (b)—Composition 7, (c)—Composition 9).
Metals 13 01226 g002
Metals 13 01226 g003 550

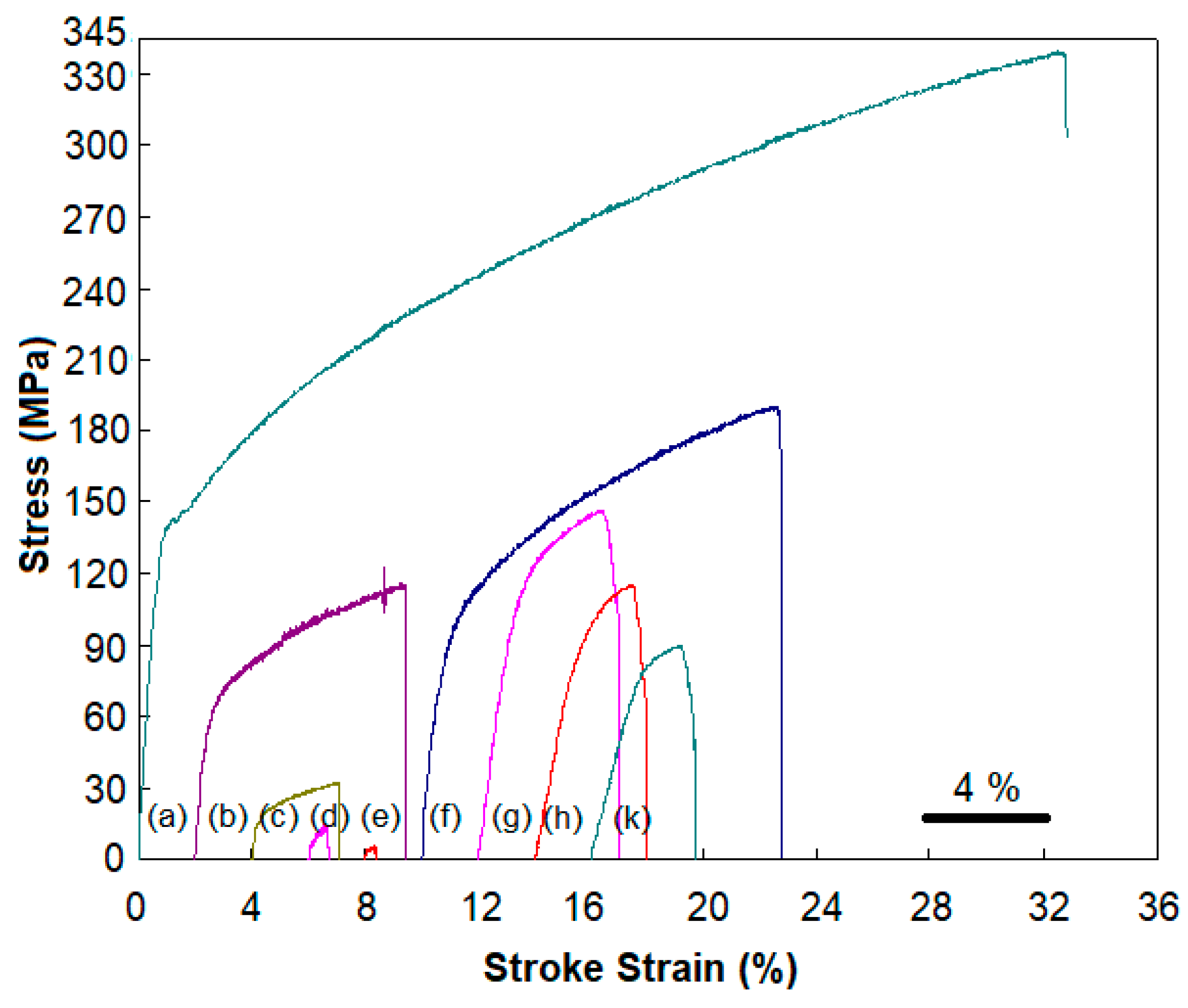

Figure 3. Tensile curves of 316L steel samples added in different amounts of weight (respectively) (Composition 1 (a), 2 (b), 3 (c), 4 (d), 5 (e), 6 (f), 7 (g), 8 (h), and 9 (k)).
Figure 3. Tensile curves of 316L steel samples added in different amounts of weight (respectively) (Composition 1 (a), 2 (b), 3 (c), 4 (d), 5 (e), 6 (f), 7 (g), 8 (h), and 9 (k)).
Metals 13 01226 g003
Metals 13 01226 g004 550

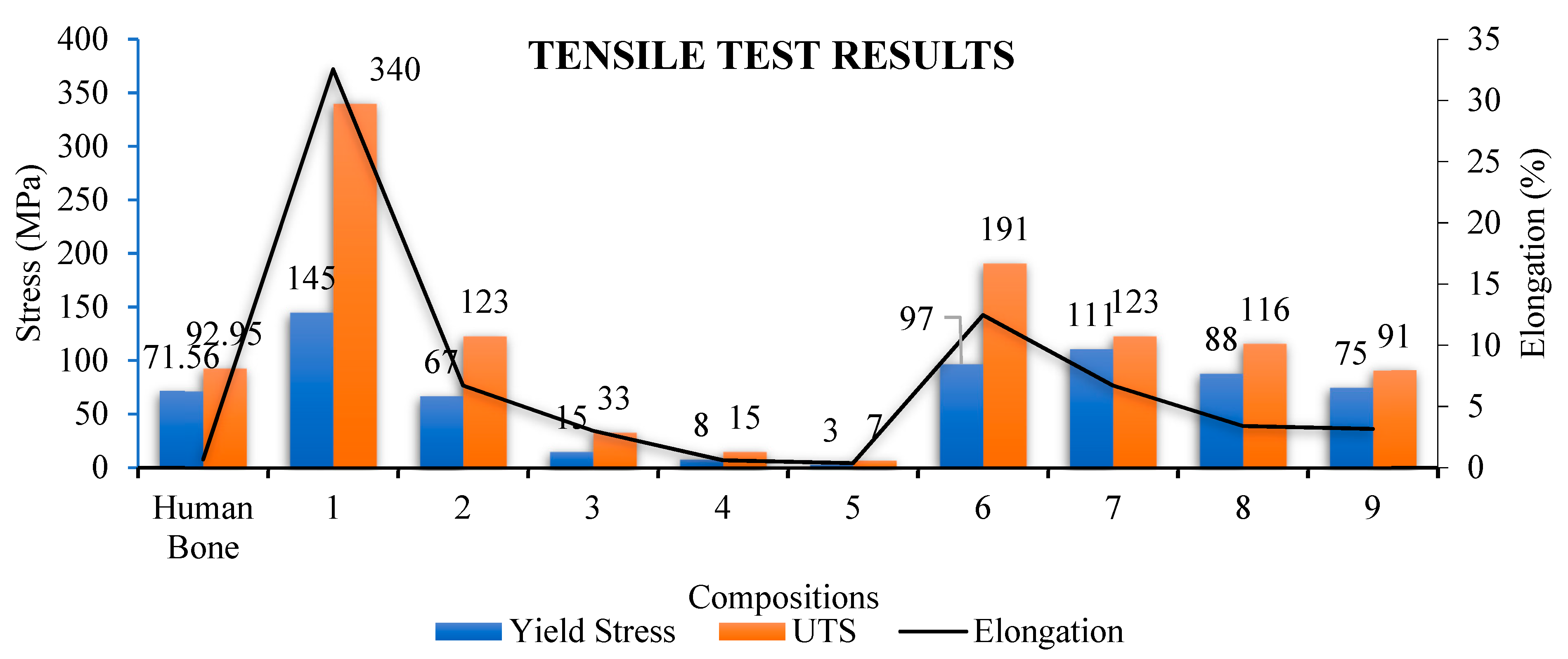

Figure 4. Yield stress, UTS, and elongation of 316L/Al2O3 samples.
Figure 4. Yield stress, UTS, and elongation of 316L/Al2O3 samples.
Metals 13 01226 g004
Metals 13 01226 g005a 550Metals 13 01226 g005b 550

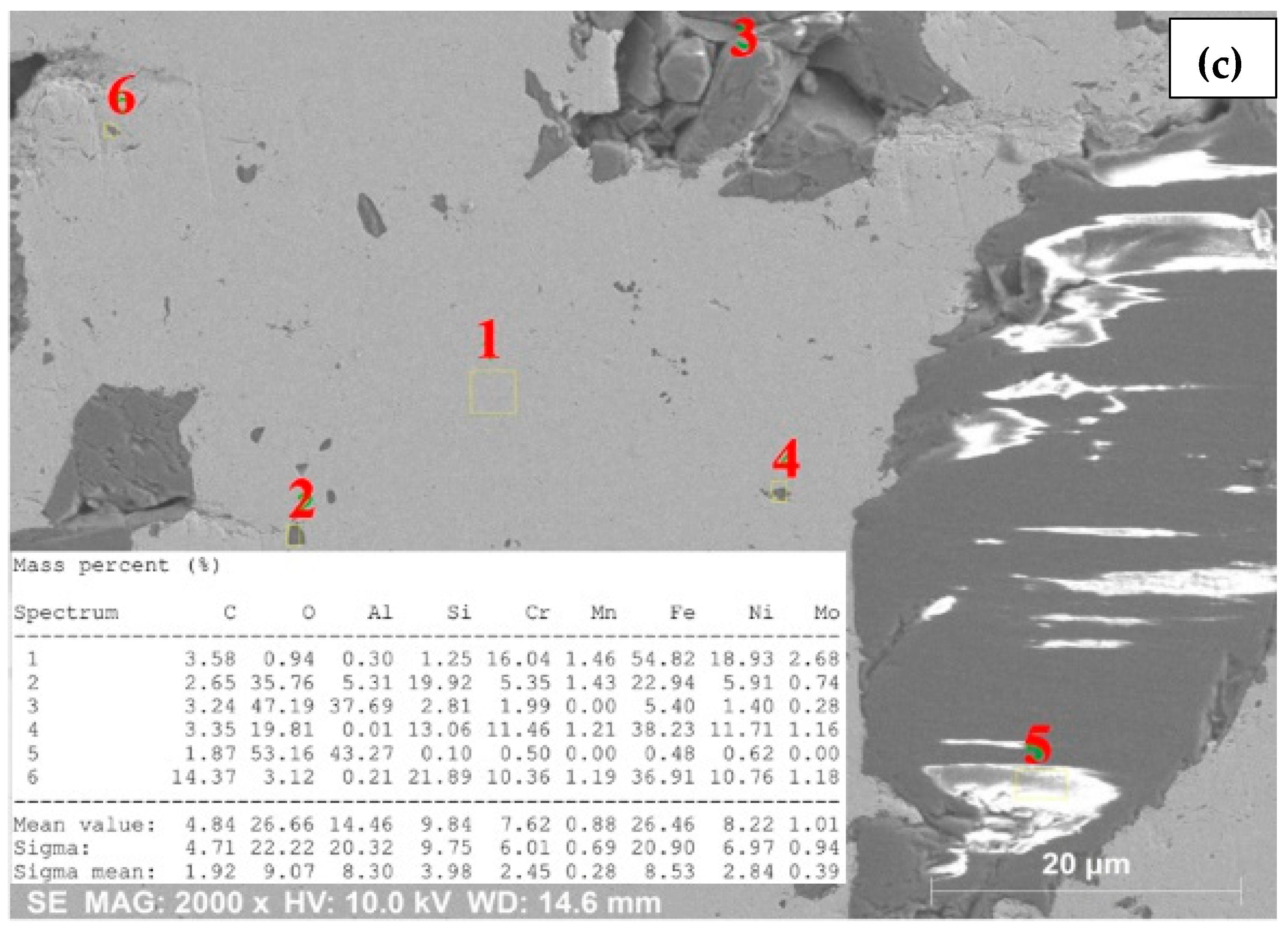

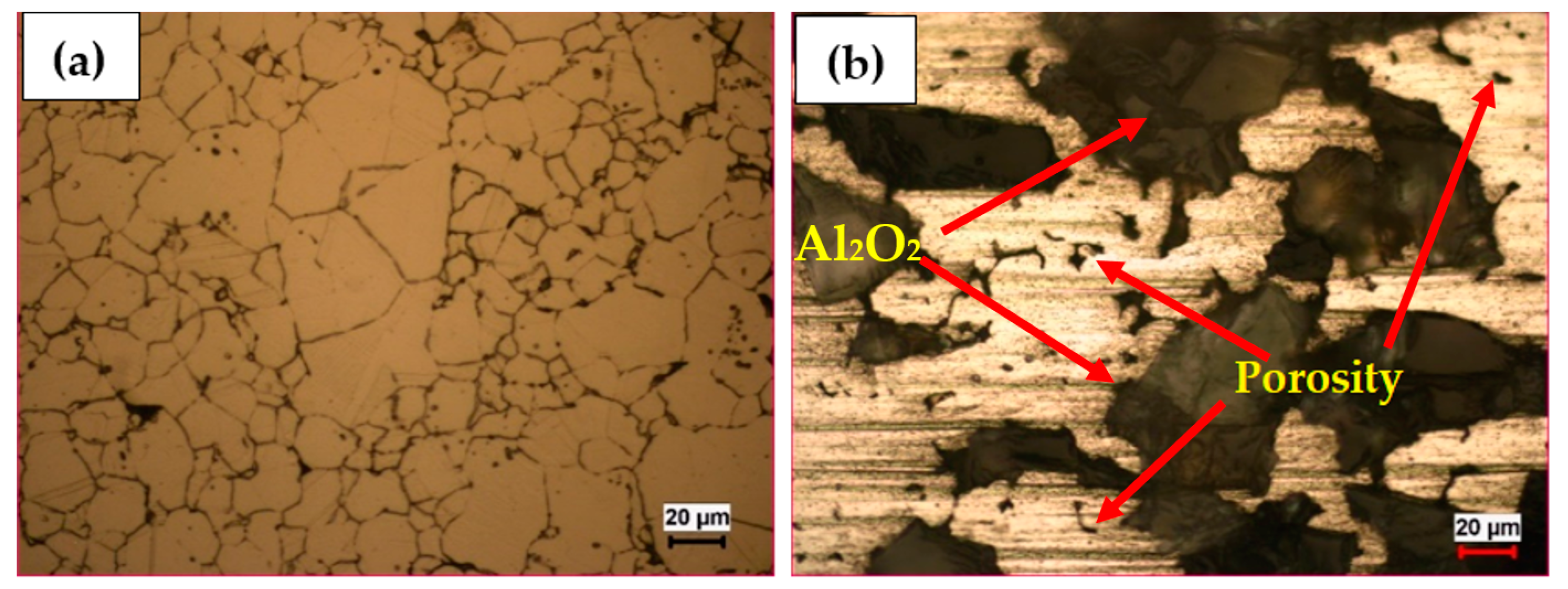

Figure 5. Optical microscope and SEM point EDS analysis of samples with different Al2O3 ratios. ((a)—316L (Composition 1), (b)—Composition 4, (c)—Composition 3).
Figure 5. Optical microscope and SEM point EDS analysis of samples with different Al2O3 ratios. ((a)—316L (Composition 1), (b)—Composition 4, (c)—Composition 3).
Metals 13 01226 g005aMetals 13 01226 g005b
Metals 13 01226 g006 550
Figure 6. Optical microscope images of samples (Composition 1–3 (a–c), and Composition 4 (d)), (200×–500×).
Figure 6. Optical microscope images of samples (Composition 1–3 (a–c), and Composition 4 (d)), (200×–500×).
Metals 13 01226 g006
Metals 13 01226 g007a 550Metals 13 01226 g007b 550

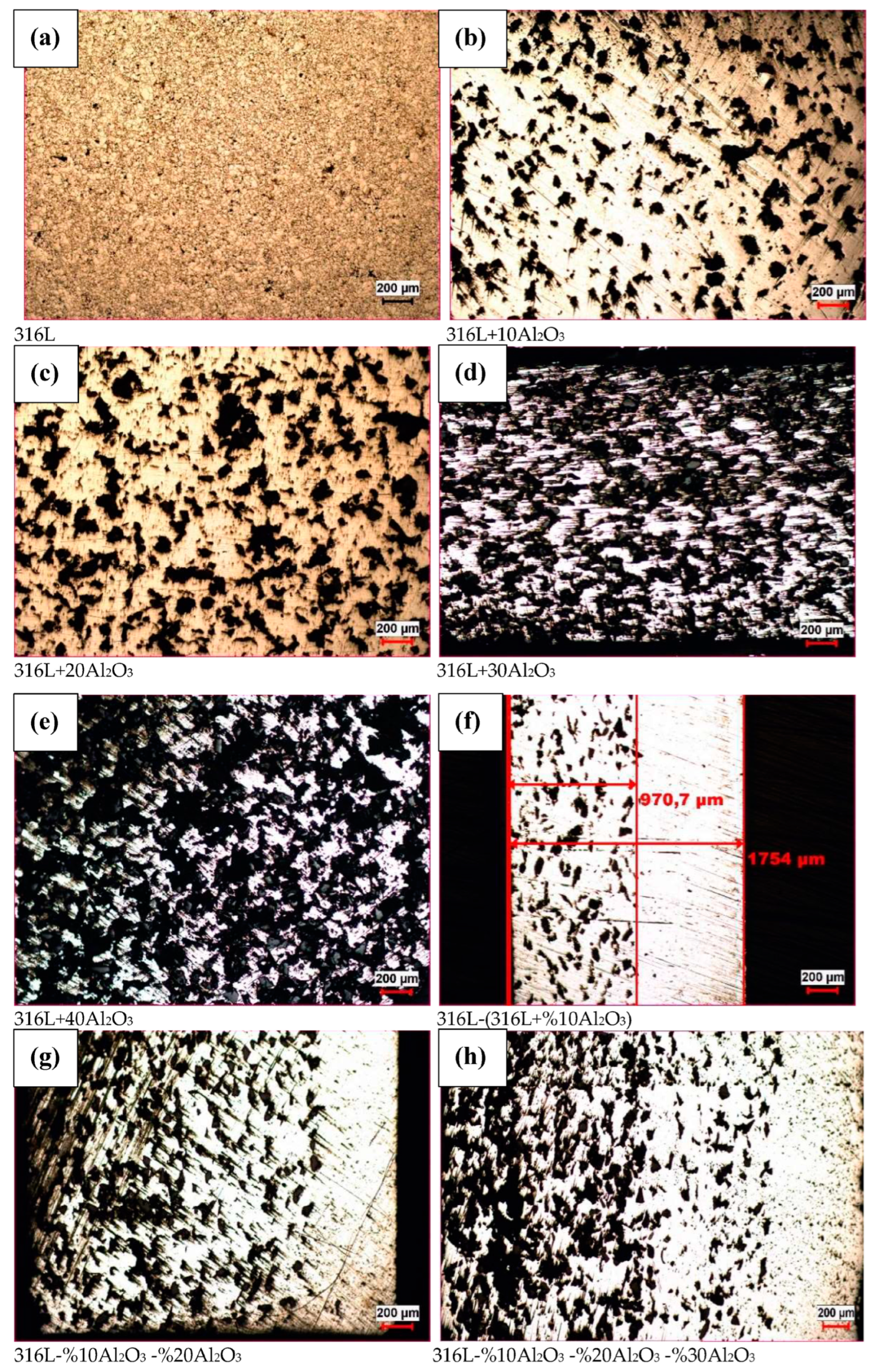

Figure 7. Optical microscope images of samples (Composition 1–8 (a–h), and Composition 9 (i)), (50×).
Figure 7. Optical microscope images of samples (Composition 1–8 (a–h), and Composition 9 (i)), (50×).
Metals 13 01226 g007aMetals 13 01226 g007b
Metals 13 01226 g008 550

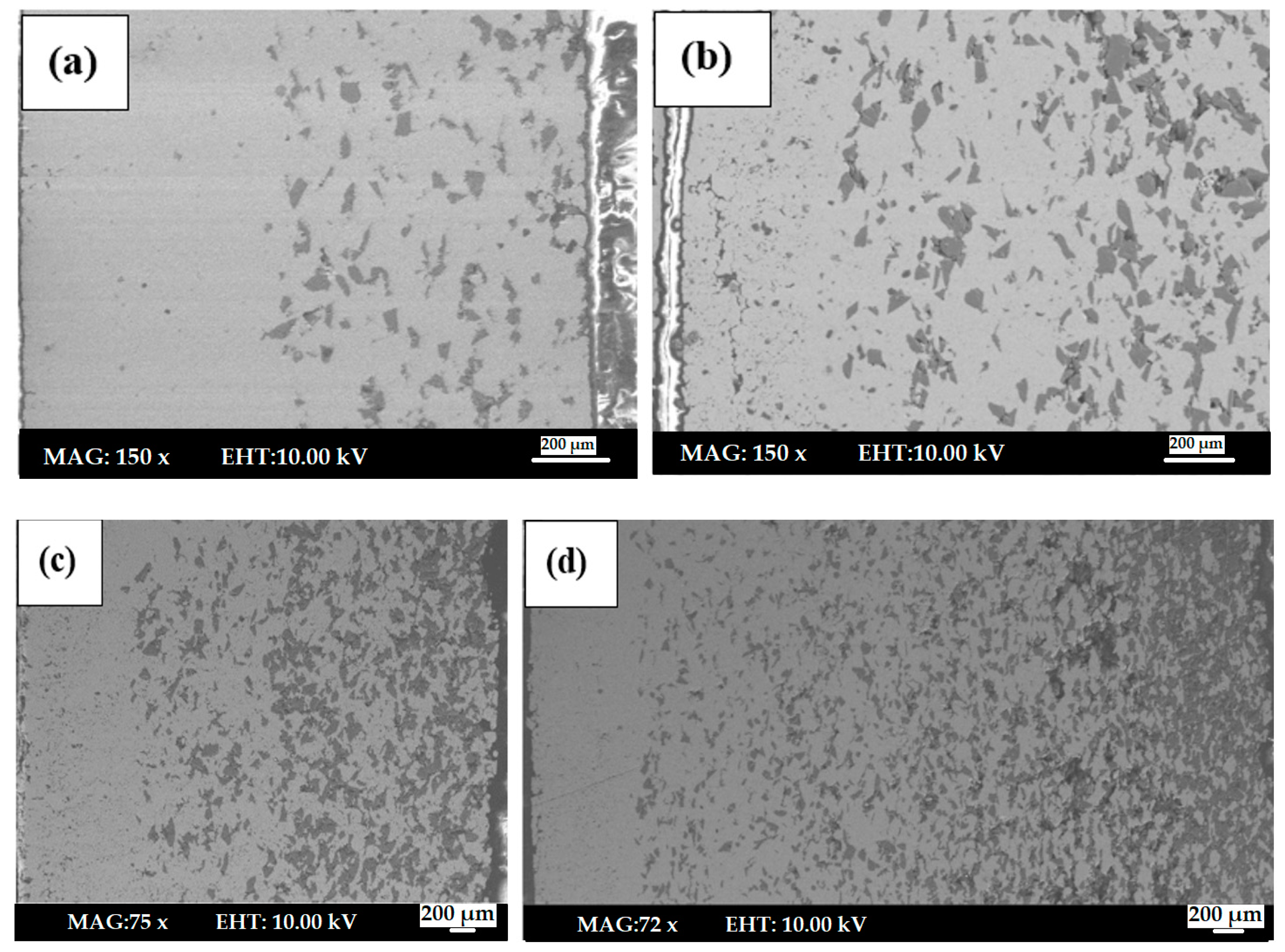

Figure 8. SEM Microstructure pictures of the layered samples (composition 6 (a), 7 (b), 8 (c), and 9 (d)).
Figure 8. SEM Microstructure pictures of the layered samples (composition 6 (a), 7 (b), 8 (c), and 9 (d)).
Metals 13 01226 g008
Metals 13 01226 g009 550
Figure 9. SEM. Line E.D.S. images of Composition 7 (a), 8 (b), and Composition 9 (c).
Figure 9. SEM. Line E.D.S. images of Composition 7 (a), 8 (b), and Composition 9 (c).
Metals 13 01226 g009
Metals 13 01226 g010a 550Metals 13 01226 g010b 550

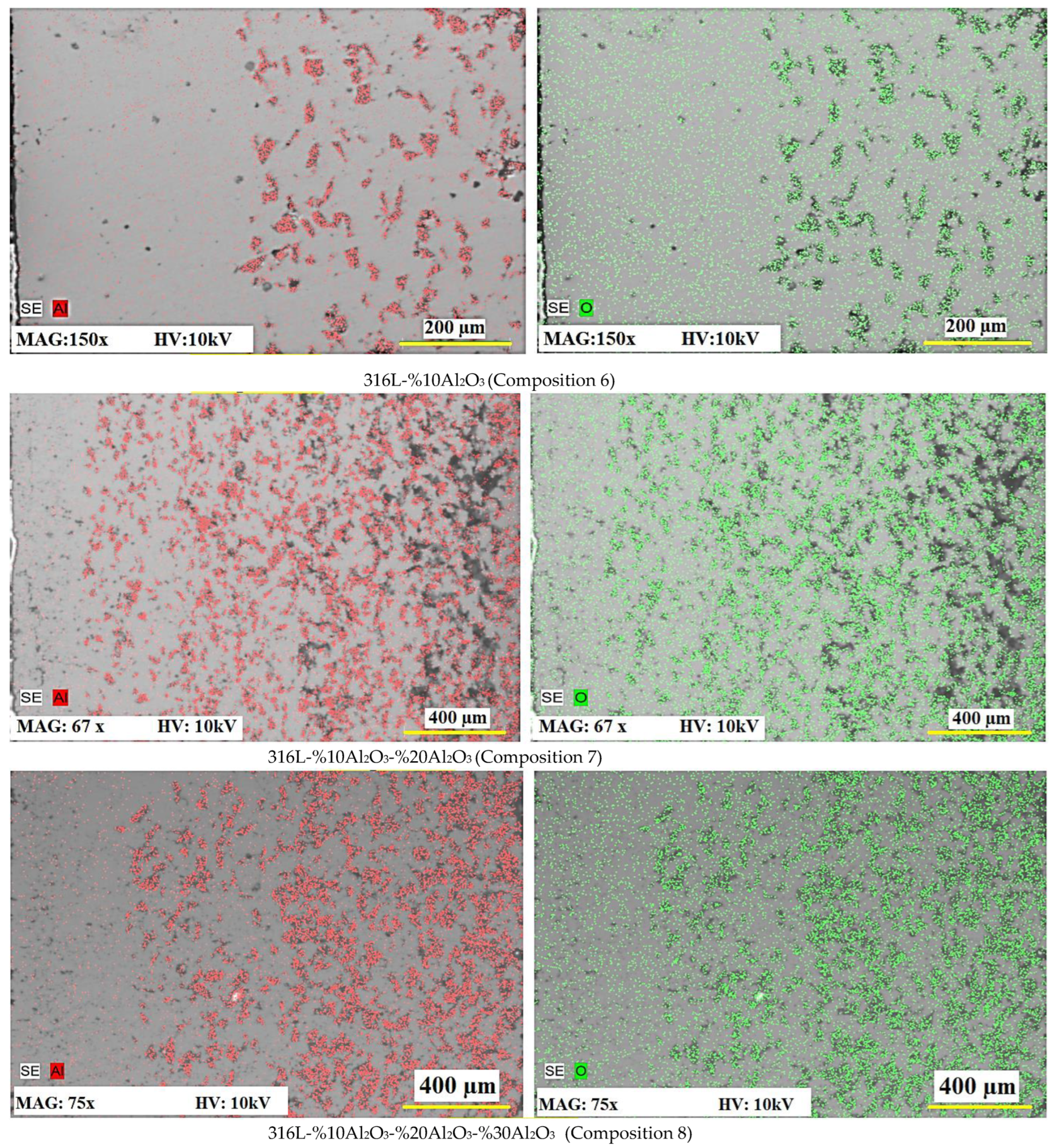

Figure 10. SEM mapping images of samples.
Figure 10. SEM mapping images of samples.
Metals 13 01226 g010aMetals 13 01226 g010b
Metals 13 01226 g011 550

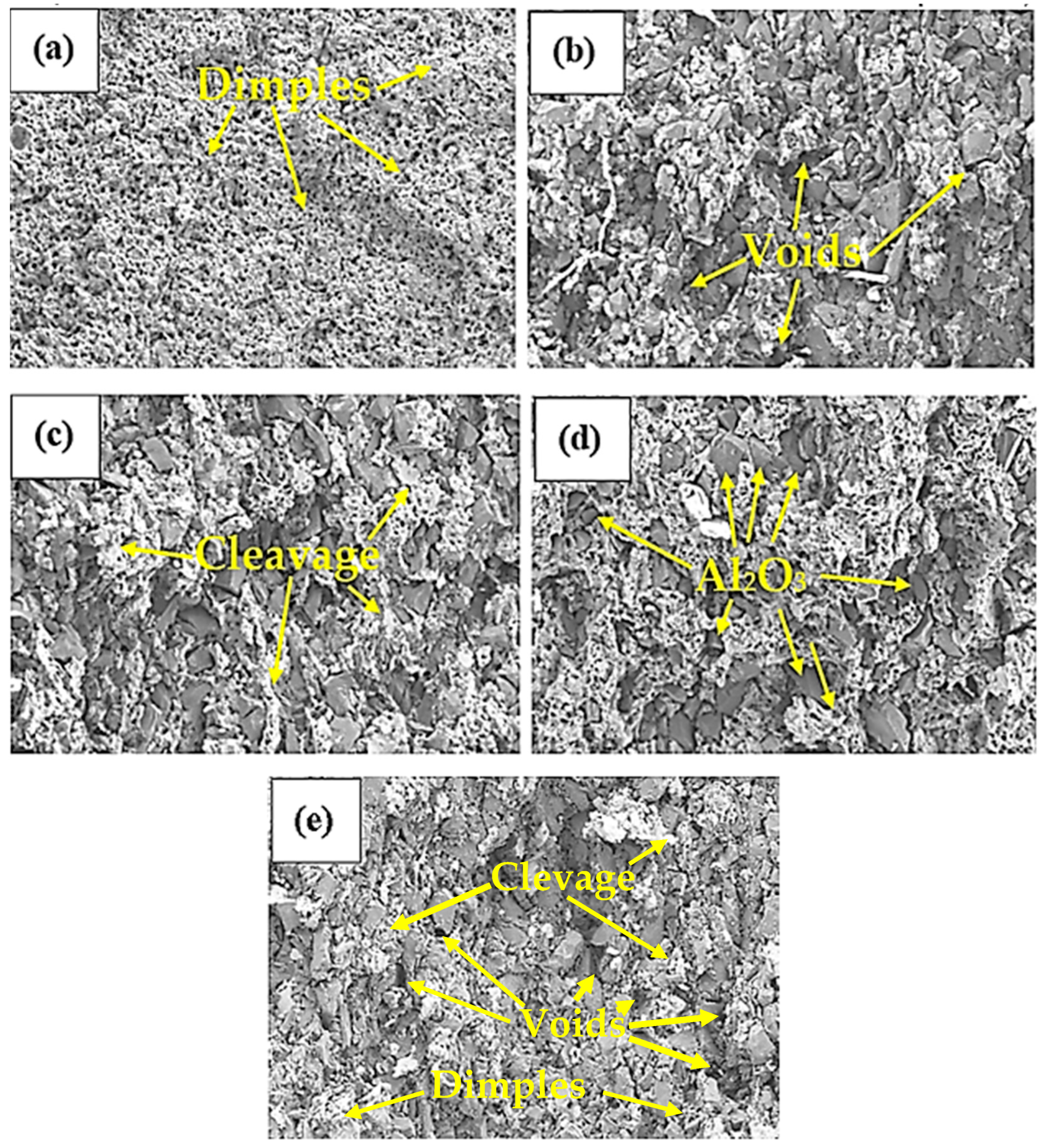

Figure 11. Fractured surface images of single-layer compositions. (Composition 1–5 (a–d), and Composition 5 (e)); (250×).
Figure 11. Fractured surface images of single-layer compositions. (Composition 1–5 (a–d), and Composition 5 (e)); (250×).
Metals 13 01226 g011
Metals 13 01226 g012 550

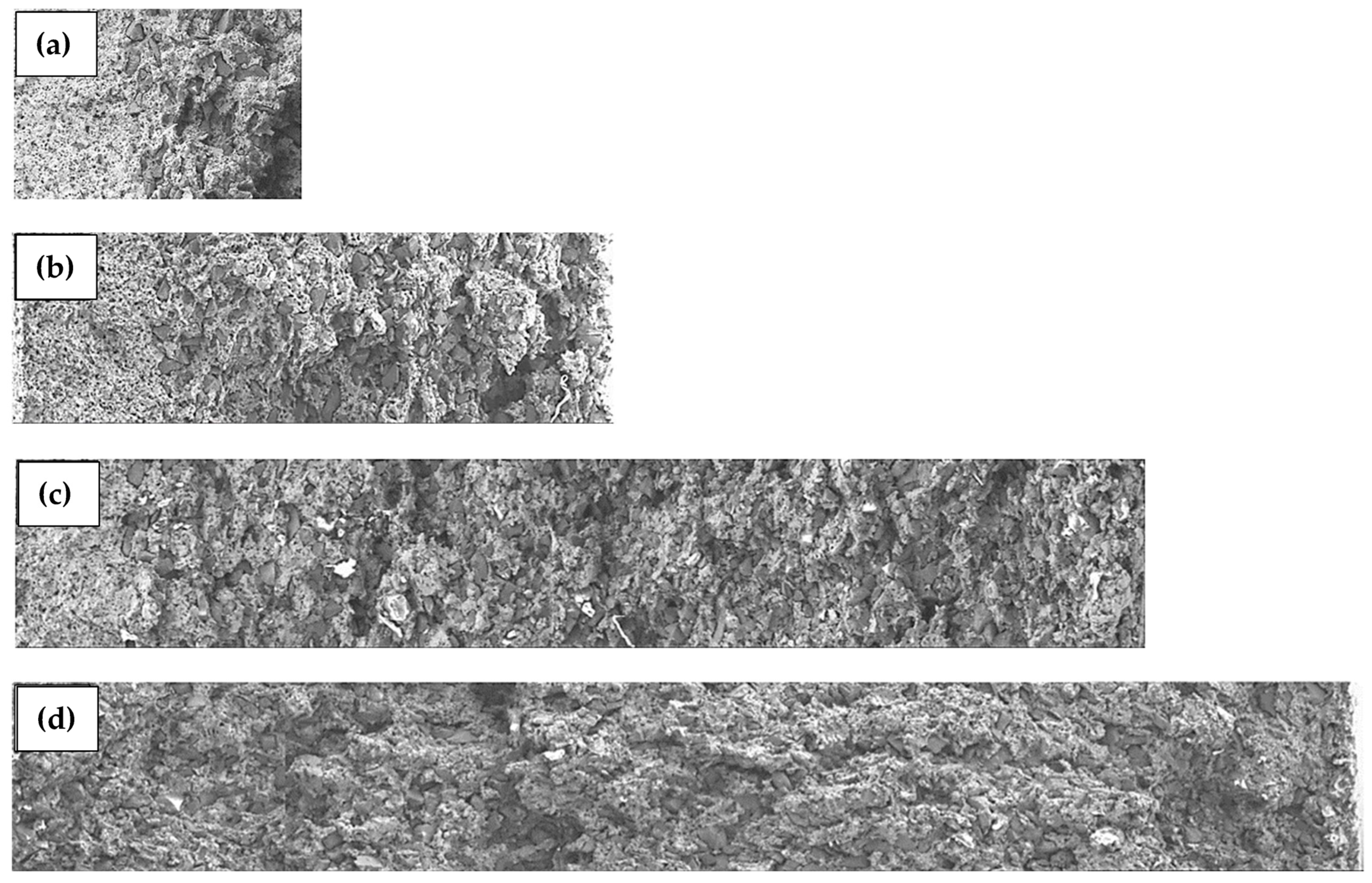

Figure 12. Fractured surface images of layered compositions. (Composition 6–8 (a–c), and Composition 9 (d)); (250×).
Figure 12. Fractured surface images of layered compositions. (Composition 6–8 (a–c), and Composition 9 (d)); (250×).
Metals 13 01226 g012
Table
Table 1. Powders and Properties.
Table 1. Powders and Properties.
Elemental PowdersPowder Size (µm)% PuritySupplied Company
1316L<14999.9Höganas [25]
2Al2O328–7099.5Nanografi [26]
Table
Table 2. Chemical composition of the samples produced.
Table 2. Chemical composition of the samples produced.
SampleCompositionAl2O3 (%Weight)316L (%Weight)
Composition 1316L-100%
Composition 2316L-10Al2O31090%
Composition 3316L-20Al2O32080%
Composition 4316L-30Al2O33070%
Composition 5316L-40Al2O34060%
Composition 6316L-(316L-10Al2O3)1. Layer-100%
2. Layer1090%
Composition 7316L-(316L-10Al2O3)-(316L-20Al2O3)1. Layer-100%
2. Layer1090%
3. Layer2080%
Composition 8316L-(316L-10Al2O3)-(316L-20Al2O3)-(316L-30Al2O3)1. Layer-100%
2. Layer1090%
3. Layer2080%
4. Layer3070%
Composition 9316L-(316L-10Al2O3)-(316L-20Al2O3)-(316L-30Al2O3)-(316L-40Al2O3)1. Layer-100%
2. Layer1090%
3. Layer2080%
4. Layer3070%
5. Layer4060%
Table
Table 3. Tensile, density, and porosity results.
Table 3. Tensile, density, and porosity results.
CompositionYield
Strength		UTSElongation
(%)		Theoretical D.
(gr/cm3)		Experimental D.
(gr/cm3)		Density
%		Porosity (%)
316L14534032.547.957.1189.4310.57
316L-10Al2O3671236.707.4576.514387.3612.64
316L-20Al2O315333.017.0645.915983.7516.25
316L-30Al2O38150.606.6715.463281.9018.10
316L-40Al2O3370.366.2785.111781.4218.58
316-(316L-10Al2O3)9719112.467.65356.720787.8112.19
316-(316L-10Al2O3)-(316L-20Al2O3)1111236.707.4576.492687.0612.94
316-(316L-10Al2O3)-(316L-20Al2O3)-(316L-30Al2O3)881163.407.26086.308886.8813.12
316-(316L-10Al2O3)-(316L-20Al2O3)-(316L-30Al2O3)-(316L-40Al2O3)75913.167.06265.844782.7617.24
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Albahlol, O.A.A.; Elkilani, R.; Çuğ, H.; Erden, M.A.; Özmen, R.; Esen, I. Investigation of Microstructure and Mechanical Properties of Layered Material Produced by Adding Al2O3 to 316L Stainless Steel. Metals 2023, 13, 1226. https://doi.org/10.3390/met13071226

AMA Style

Albahlol OAA, Elkilani R, Çuğ H, Erden MA, Özmen R, Esen I. Investigation of Microstructure and Mechanical Properties of Layered Material Produced by Adding Al2O3 to 316L Stainless Steel. Metals. 2023; 13(7):1226. https://doi.org/10.3390/met13071226

Chicago/Turabian Style

Albahlol, Osama Albahl Alshtewe, Rajab Elkilani, Harun Çuğ, Mehmet Akif Erden, Ramazan Özmen, and Ismail Esen. 2023. "Investigation of Microstructure and Mechanical Properties of Layered Material Produced by Adding Al2O3 to 316L Stainless Steel" Metals 13, no. 7: 1226. https://doi.org/10.3390/met13071226

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
