Oxide Scale Formation on Low-Carbon Steels in Future Reheating Conditions
Abstract
:1. Introduction
2. Materials and Methods
3. Results and Discussion

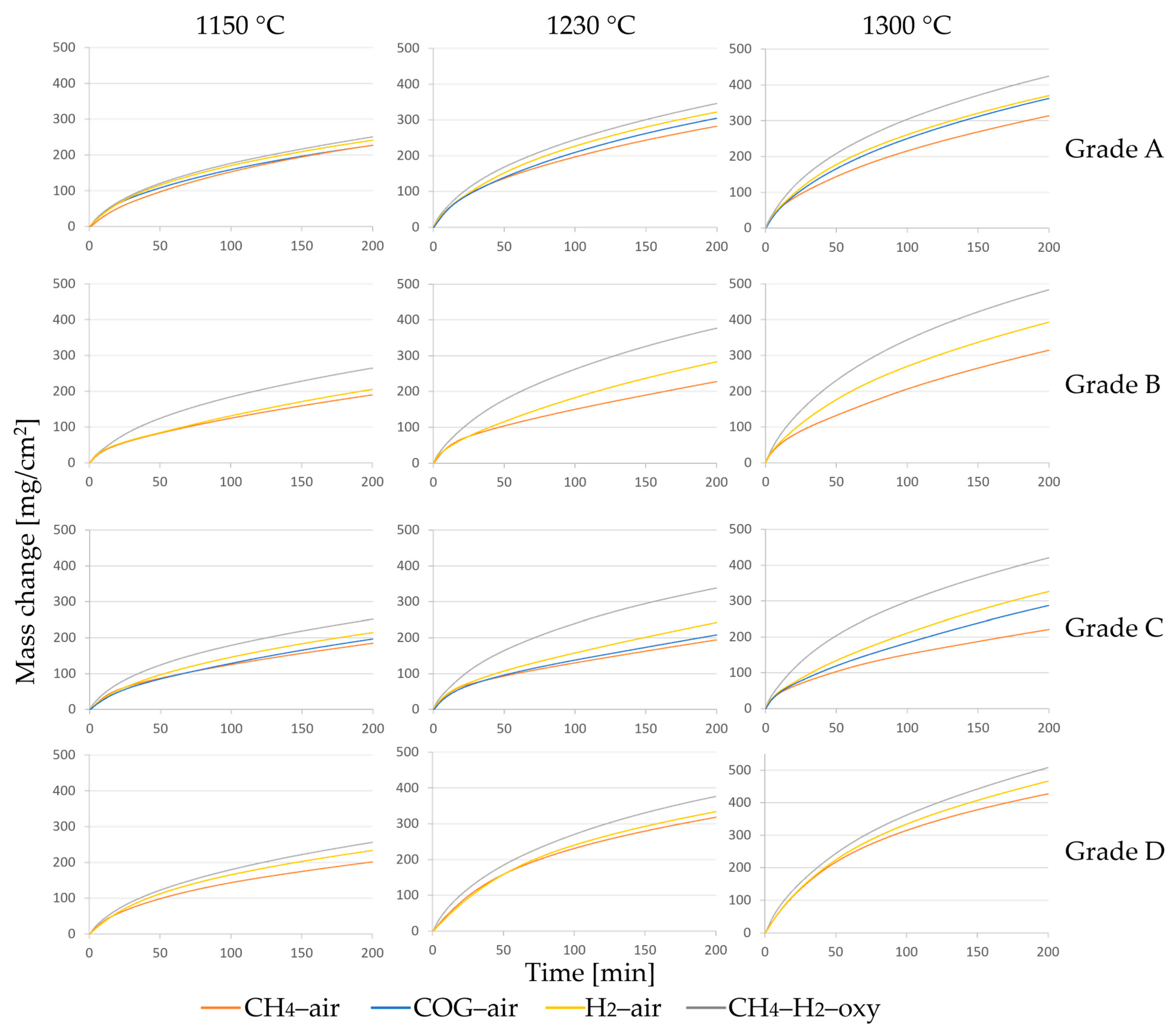

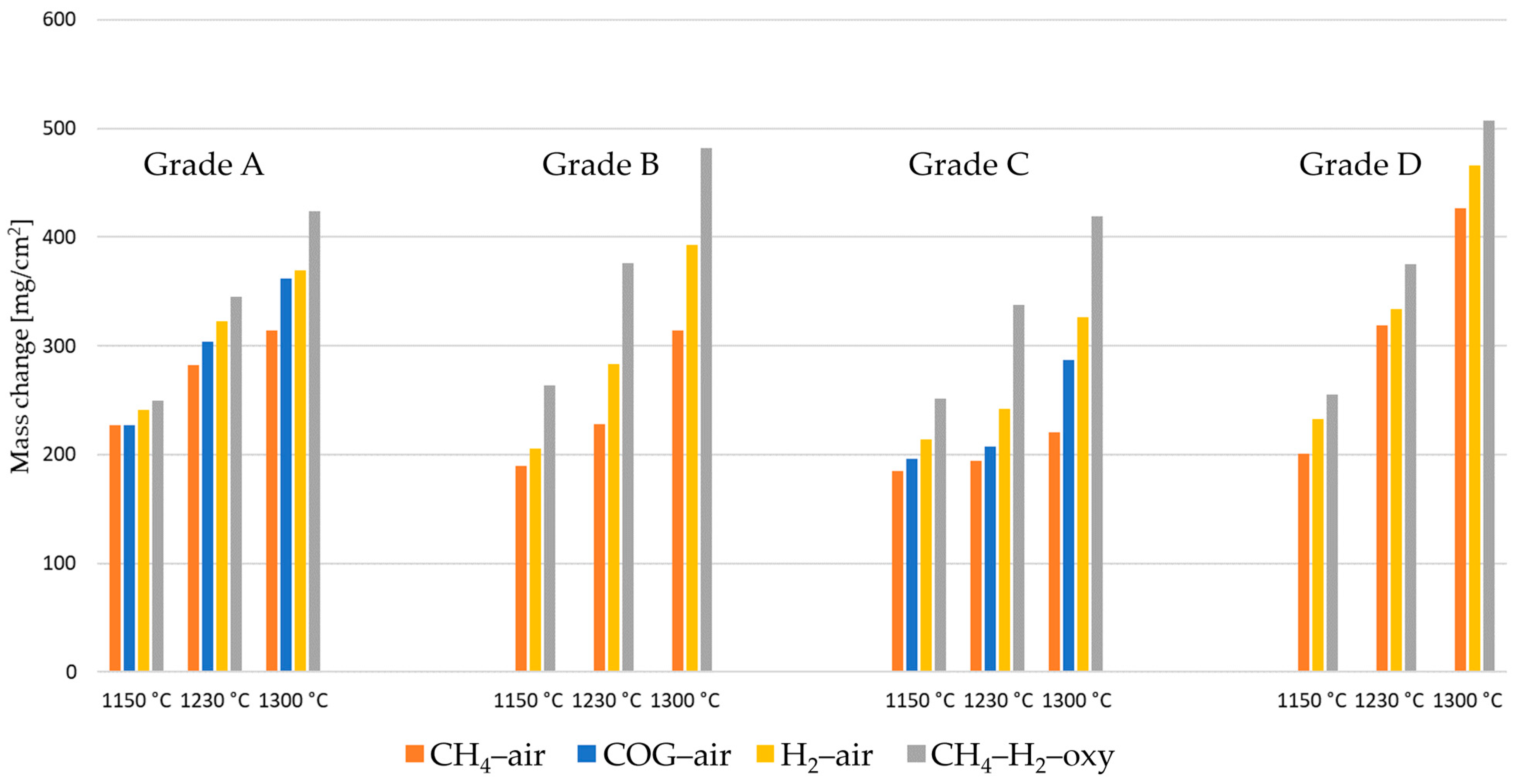

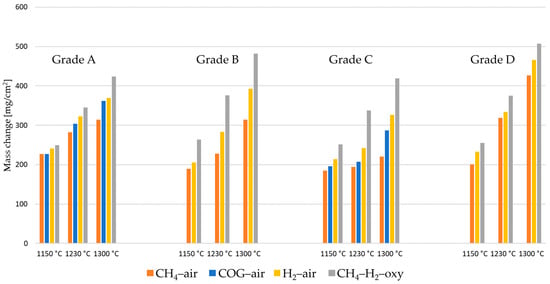

3.1. Oxidation in Isothermal Conditions
- CH4–air (least oxidizing)
- COG–air
- H2–air
- CH4–H2–oxy (most oxidizing)

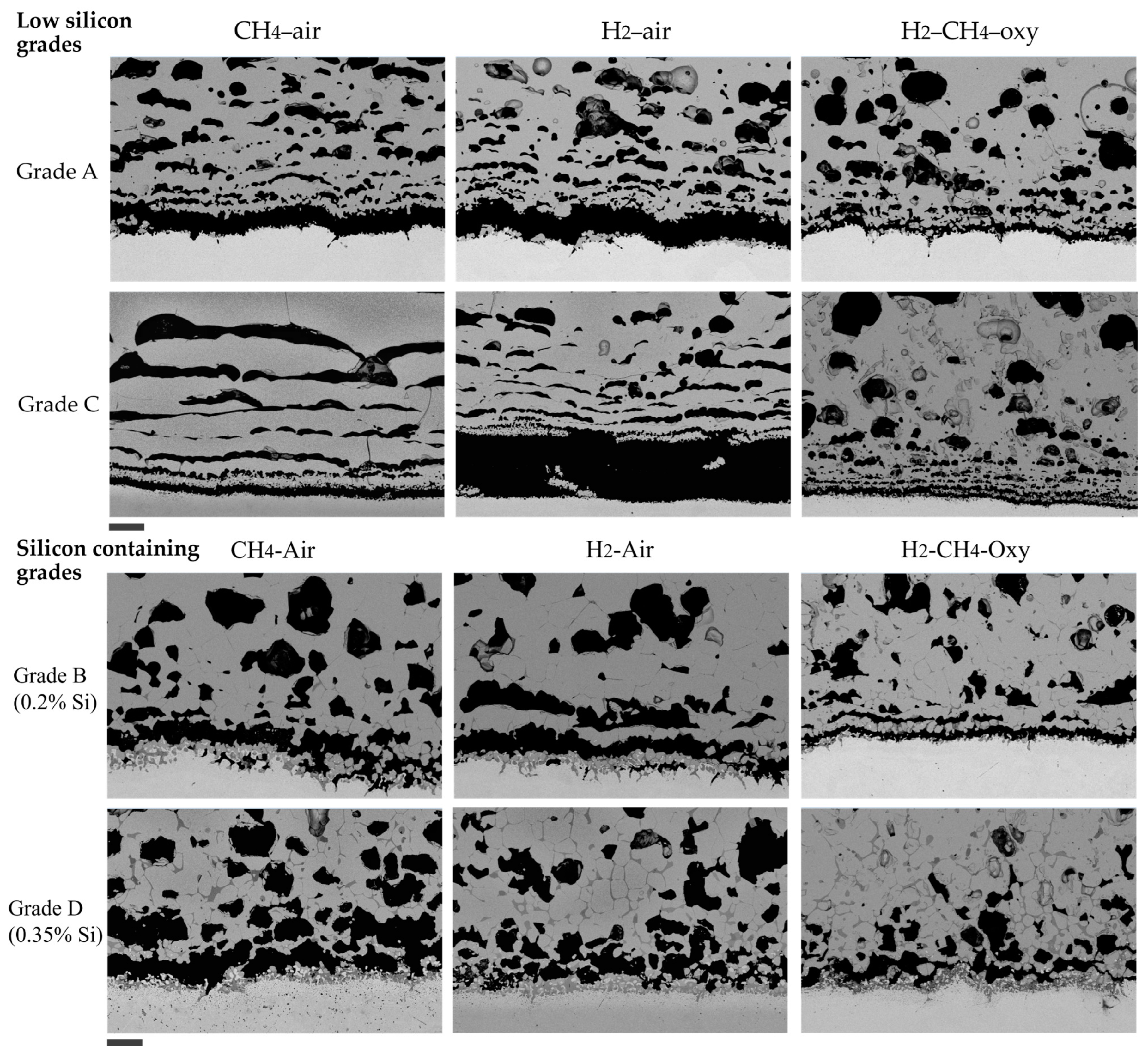

3.2. Morphology of the Formed Oxide Scales
3.3. Adhesion of the Steel–Scale Interface

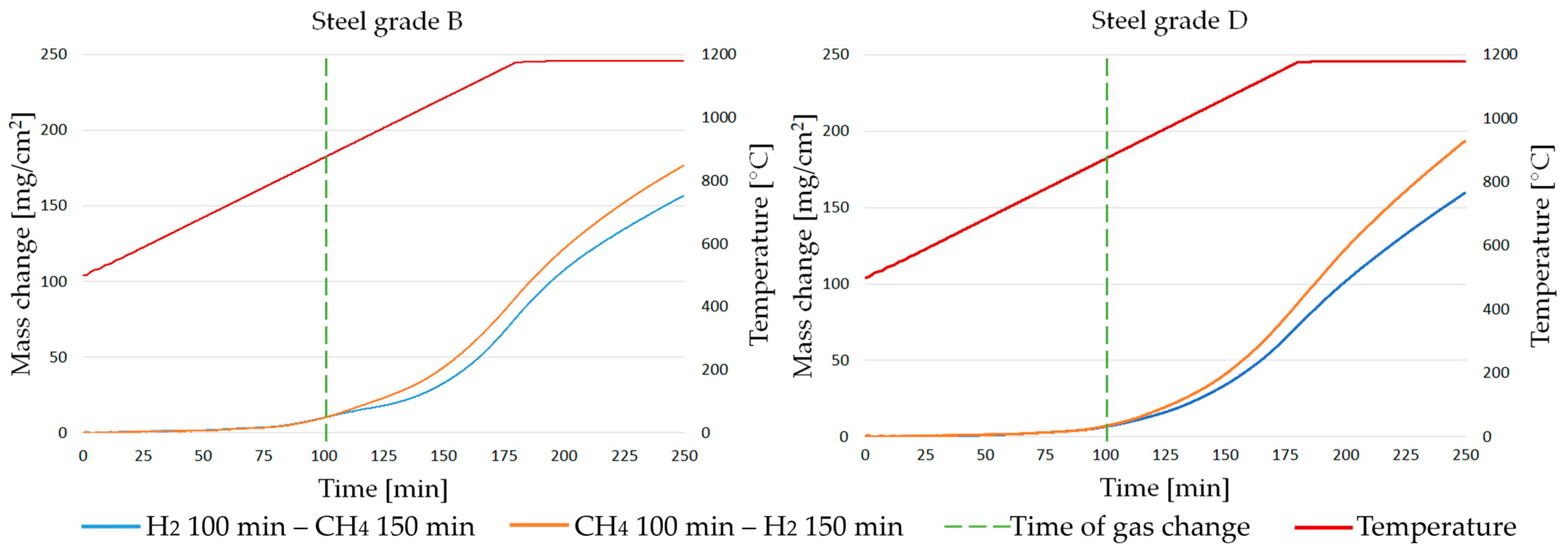

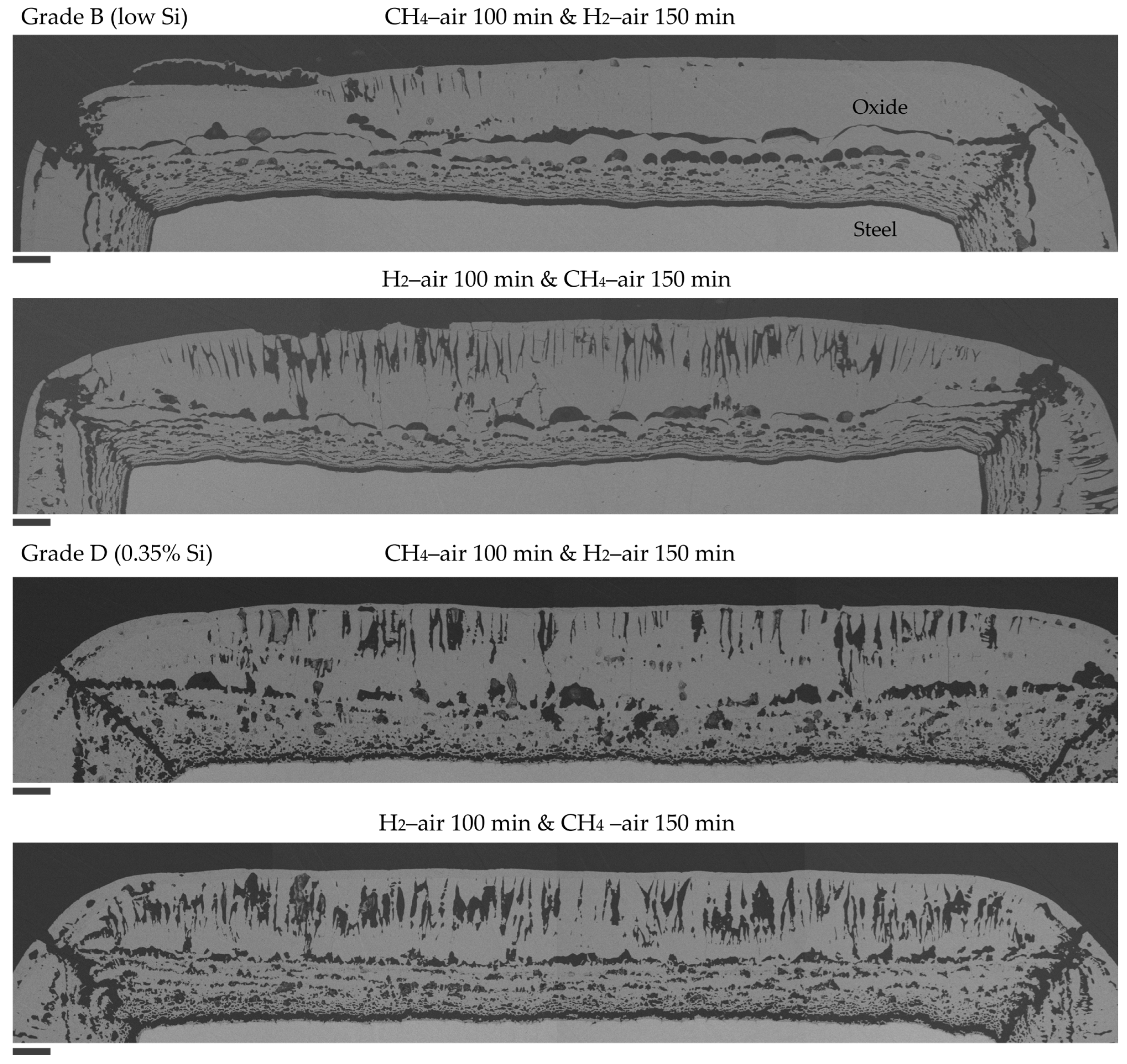

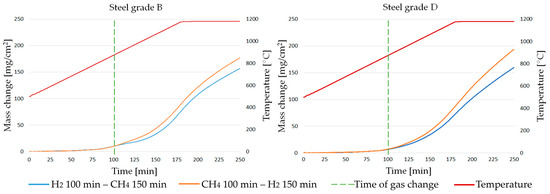

3.4. Dynamic Tests in CH4–Air and H2–Air
4. Conclusions

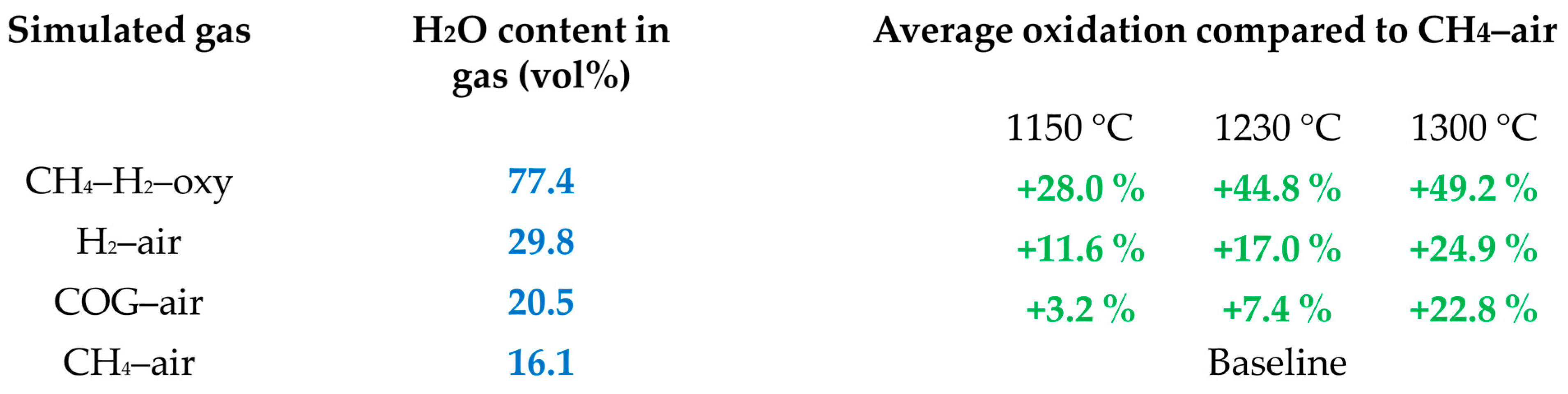

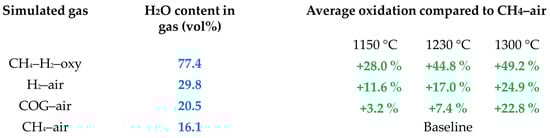

- Oxide formation increased in all four steel grades in the novel gas atmospheres H2–air and CH4–H2–oxyfuel when compared to the current practices of methane–air and coke oven gas–air. From a scaling loss standpoint, the transition to H2 burn in air produced a more moderate increase, whereas the oxyfuel scenario was by far the most oxidizing. The total oxidation in the four tested gas atmospheres correlated with the water vapor content.
- Large differences were found between individual steel grades regarding the increase in oxidation in the novel gas atmospheres. In other words, some grades may be better suited for H2 or oxyfuel reheating gas atmospheres than others.
- No significant differences were observed between the gas atmospheres regarding the adhesion of the steel–scale interface after cooling in ambient air. Hence, the novel reheating gas atmospheres are not expected to cause significant descaling problems.
- The adhesion of the steel–scale interface was mainly determined by the silicon content of the steel and temperature. For the silicon-containing grades, the test temperature had a large influence on adhesion due to the formation of a liquid FeO–Fe2SiO4 phase, which penetrated the oxide and steel creating a strong entanglement. Temperature, however, had little influence on the low-silicon steel grades with regards to the adhesion of the metal–scale interface.
- The increase in water vapor in the novel gas atmospheres did seem to have an influence on the porosity and pore shape of the iron oxides; however, a more detailed study is required on this topic.
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Rogelj, J.; Shindell, D.; Jiang, K.; Fifita, S.; Forster, P.; Ginzburg, V.; Handa, C.; Haroon, K.; Kobayashi, S.; Kriegler, E.; et al. Mitigation Pathways Compatible with 1.5 °C in the Context of Sustainable Development. In IPCC Special Report on Global Warming of 1.5 °C; Cambridge University Press: Cambridge, UK, 2018; Chapter 2. [Google Scholar]
- Rissman, J.; Bataille, C.; Masanet, E.; Aden, N.; Morrow, W.R.; Zhou, N.; Elliott, N.; Dell, R.; Heeren, N.; Huckestein, B.; et al. Technologies and Policies to Decarbonize Global Industry: Review and Assessment of Mitigation Drivers through 2070. Appl. Energy 2020, 266, 114848. [Google Scholar] [CrossRef]
- Ginzburg, V.B. Steel-Rolling Technology: Theory and Practice, 1st ed.; CRC Press: Boca Raton, FL, USA, 1989. [Google Scholar]
- Young, D.J. High Temperature Oxidation and Corrosion of Metals, 2nd ed.; Elsevier: Amsterdam, The Netherlands, 2016. [Google Scholar]
- Fukagawa, T.; Okada, H.; Maehara, Y. Mechanism of Red Scale Defect Formation in Si-Added Hot-Rolled Steel Sheets. ISIJ Int. 1994, 34, 906–911. [Google Scholar] [CrossRef]
- Mayr, B.; Prieler, R.; Demuth, M.; Moderer, L.; Hochenauer, C. CFD Modelling and Performance Increase of a Pusher Type Reheating Furnace Using Oxy-Fuel Burners. Energy Procedia 2017, 120, 462–468. [Google Scholar] [CrossRef]
- Hu, Y.; Tan, C.K.; Niska, J.; Chowdhury, J.I.; Balta-Ozkan, N.; Varga, L.; Roach, P.A.; Wang, C. Modelling and Simulation of Steel Reheating Processes under Oxy-Fuel Combustion Conditions—Technical and Environmental Perspectives. Energy 2019, 185, 730–743. [Google Scholar] [CrossRef]
- Schmitz, N.; Sankowski, L.; Kaiser, F.; Schwotzer, C.; Echterhof, T.; Pfeifer, H. Towards CO2-Neutral Process Heat Generation for Continuous Reheating Furnaces in Steel Hot Rolling Mills—A Case Study. Energy 2021, 224, 120155. [Google Scholar] [CrossRef]
- Saunders, S.R.J.; Monteiro, M.; Rizzo, F. The Oxidation Behaviour of Metals and Alloys at High Temperatures in Atmospheres Containing Water Vapour: A Review. Prog. Mater Sci. 2008, 53, 775–837. [Google Scholar] [CrossRef]
- Rahmel, A.; Tobolski, J. Einfluss von Wasserdampf Und Kohlendioxyd Auf Die Oxydation von Eisen in Sauerstoff Bei Hohen Temperaturen. Corros. Sci. 1965, 5, 333–340. [Google Scholar] [CrossRef]
- Chen, R.Y.; Yuen, W.Y.D. Effects of the Presence of Water Vapour on the Oxidation Behaviour of Low Carbon-Low Silicon Steel in 1%O2-N2 at 1073 K. Oxid. Met. 2013, 79, 655–678. [Google Scholar] [CrossRef]
- Lee, V.H.J.; Gleeson, B.; Young, D.J. Scaling of Carbon Steel in Simulated Reheat Furnace Atmospheres. Oxid. Met. 2005, 63, 15–31. [Google Scholar] [CrossRef]
- Tuck, C.W.; Odgers, M.; Sachs, K. The Oxidation of Iron at 950 °C in Oxygen/Water Vapour Mixtures. Corros. Sci. 1969, 9, 271–280. [Google Scholar] [CrossRef]
- Yun, J.Y.; Ha, S.A.; Kang, C.Y.; Wang, J.P. Oxidation Behavior of Low Carbon Steel at Elevated Temperature in Oxygen and Water Vapor. Steel. Res. Int. 2013, 84, 1252–1257. [Google Scholar] [CrossRef]
- Gaiser, G.; Presoly, P.; Bernhard, C. High-Temperature Oxidation of Steel under Linear Flow Rates of Air and Water Vapor—An Experimental Determined Set of Data. Metals 2023, 13, 892. [Google Scholar] [CrossRef]
- Arreola-Villa, S.A.; Vergara-Hernández, H.J.; Solorio-Diáz, G.; Pérez-Alvarado, A.; Vázquez-Gómez, O.; Chávez-Campos, G.M. Kinetic Study of Oxide Growth at High Temperature in Low Carbon Steel. Metals 2022, 12, 147. [Google Scholar] [CrossRef]
- Osei, R.; Lekakh, S.; O’Malley, R. Effect of Al Additions on Scale Structure and Oxidation Kinetics of 430-Ferritic Stainless Steel Reheated in a Combustion Atmosphere. Metall. Mater. Trans. B 2021, 52, 3423–3438. [Google Scholar] [CrossRef]
- Cheng, L.; Sun, B.; Du, C.; Gao, W.; Cao, G. High-Temperature Oxidation Behavior of Fe–10Cr Steel under Different Atmospheres. Materials 2021, 14, 3453. [Google Scholar] [CrossRef] [PubMed]
- Haapakangas, J.; Suopajärvi, H.; Iljana, M.; Kemppainen, A.; Mattila, O.; Heikkinen, E.P.; Samuelsson, C.; Fabritius, T. Coke Reactivity in Simulated Blast Furnace Shaft Conditions. Metall. Mater. Trans. B 2016, 47, 2357–2370. [Google Scholar] [CrossRef]
- Faramawy, S.; Zaki, T.; Sakr, A.A.E. Natural Gas Origin, Composition, and Processing: A Review. J. Nat. Gas Sci. Eng. 2016, 34, 34–54. [Google Scholar] [CrossRef]
- Zhang, H.; Yu, L.; Liu, T.; Ni, H.; Li, Y.; Chen, Z.; Yang, Y. Optimizing the Preheating Temperature of Hot Rolled Slab from the Perspective of the Oxidation Kinetic. J. Mater. Res. Technol. 2020, 9, 12501–12511. [Google Scholar] [CrossRef]
- Chang, Y.N.; Wei, F.I. High Temperature Oxidation of Low Alloy Steels. J. Mater. Sci. 1989, 24, 14–22. [Google Scholar] [CrossRef]
- Alaoui Mouayd, A.; Koltsov, A.; Sutter, E.; Tribollet, B. Effect of Silicon Content in Steel and Oxidation Temperature on Scale Growth and Morphology. Mater. Chem. Phys. 2014, 143, 996–1004. [Google Scholar] [CrossRef]
- Suarez, L.; Schneider, J.; Houbaert, Y. High-Temperature Oxidation of Fe-Si Alloys in the Temperature Range 900–1250 °C. Defect Diffus. Forum 2008, 273–276, 661–666. [Google Scholar] [CrossRef]
- Yuan, Q.; Xu, G.; Zhou, M.; He, B. The Effect of the Si Content on the Morphology and Amount of Fe2SiO4 in Low Carbon Steels. Metals 2016, 6, 94. [Google Scholar] [CrossRef]
- Mikl, G.; Höfler, T.; Gierl-Mayer, C.; Danninger, H.; Linder, B.; Angeli, G. Scaling Behaviour of Si-Alloyed Steel Slabs under Reheating Conditions. J. Cast. Mater. Eng. 2021, 5, 71–74. [Google Scholar] [CrossRef]
- Luzzo, I.; Cirilli, F.; Jochler, G.; Gambato, A.; Longhi, J.; Rampinini, G. Feasibility Study for the Utilization of Natural Gas and Hydrogen Blends on Industrial Furnaces. Mater. Tech. 2021, 109, 306. [Google Scholar] [CrossRef]
- Chen, R.Y.; Yuen, W.Y.D. Review of the High-Temperature Oxidation of Iron and Carbon Steels in Air or Oxygen. Oxid. Met. 2003, 59, 433–468. [Google Scholar] [CrossRef]
- Raman, R.K.S.; Gleeson, B.; Young, D.J. Laser Raman Spectroscopy: A Technique for Rapid Characterisation of Oxide Scale Layers. Mater. Sci. Technol. 1998, 14, 373–376. [Google Scholar] [CrossRef]
- Yuan, Q.; Xu, G.; He, B.; Zhou, M.X.; Hu, H.J. A Method to Reduce the Oxide Scale of Silicon-Containing Steels by Adjusting the Heating Route. Trans. Indian Inst. Met. 2018, 71, 677–684. [Google Scholar] [CrossRef]
- Hultquist, G.; Tveten, B.; Hörnlund, E.; Limbäck, M.; Haugsrud, R. Self-Repairing Metal Oxides. Oxid. Met. 2001, 56, 313–346. [Google Scholar] [CrossRef]
Abbreviation | Fuel Gas | Oxidant | N2 | CO2 | H2O | O2 |
---|---|---|---|---|---|---|
1. CH4–air | Methane (CH4) | Air | 72.60 | 8.05 | 16.10 | 3.22 |
2. COG–air | Coke oven gas (COG) | Air | 70.50 | 6.13 | 20.50 | 2.82 |
3. H2–air | Hydrogen (H2) | Air | 67.20 | - | 29.80 | 3.00 |
4. CH4–H2–oxy | 50% CH4–50% H2 | Oxygen (O2) | - | 19.36 | 77.42 | 3.22 |
Steel Grade | C | Si | Mn | Nb | Al | Cr | Mo | Other | Fe |
---|---|---|---|---|---|---|---|---|---|
Grade A | 0.12 | 0.01 | 0.2 | - | 0.02 | 0.04 | 0.005 | - | Bal. |
Grade B | 0.06 | 0.20 | 1.2 | 0.04 | 0.04 | 0.04 | 0.005 | V | Bal. |
Grade C | 0.10 | 0.02 | 1.5 | 0.04 | 0.03 | 0.04 | 0.005 | Ti | Bal. |
Grade D | 0.11 | 0.36 | 1.7 | - | <1.0 | 0.04 | 0.005 | - | Bal. |
Grade A | Grade B | Grade C | Grade D | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Temperature (°C) | 1150 | 1230 | 1300 | 1150 | 1230 | 1300 | 1150 | 1230 | 1300 | 1150 | 1230 | 1300 |
CH4–H2–oxy | 10.1% | 22.2% | 35.0% | 39.1% | 65.1% | 53.3% | 35.9% | 74.1% | 90.0% | 27.1% | 17.7% | 18.7% |
H2–air | 6.2% | 14.3% | 17.8% | 8.2% | 24.2% | 24.8% | 16.0% | 24.8% | 47.9% | 15.9% | 4.6% | 9.1% |
COG–air | 0.1% | 7.8% | 15.3% | 6.3% | 7.0% | 30.3% | ||||||
CH4–air | Baseline | Baseline | Baseline | Baseline |

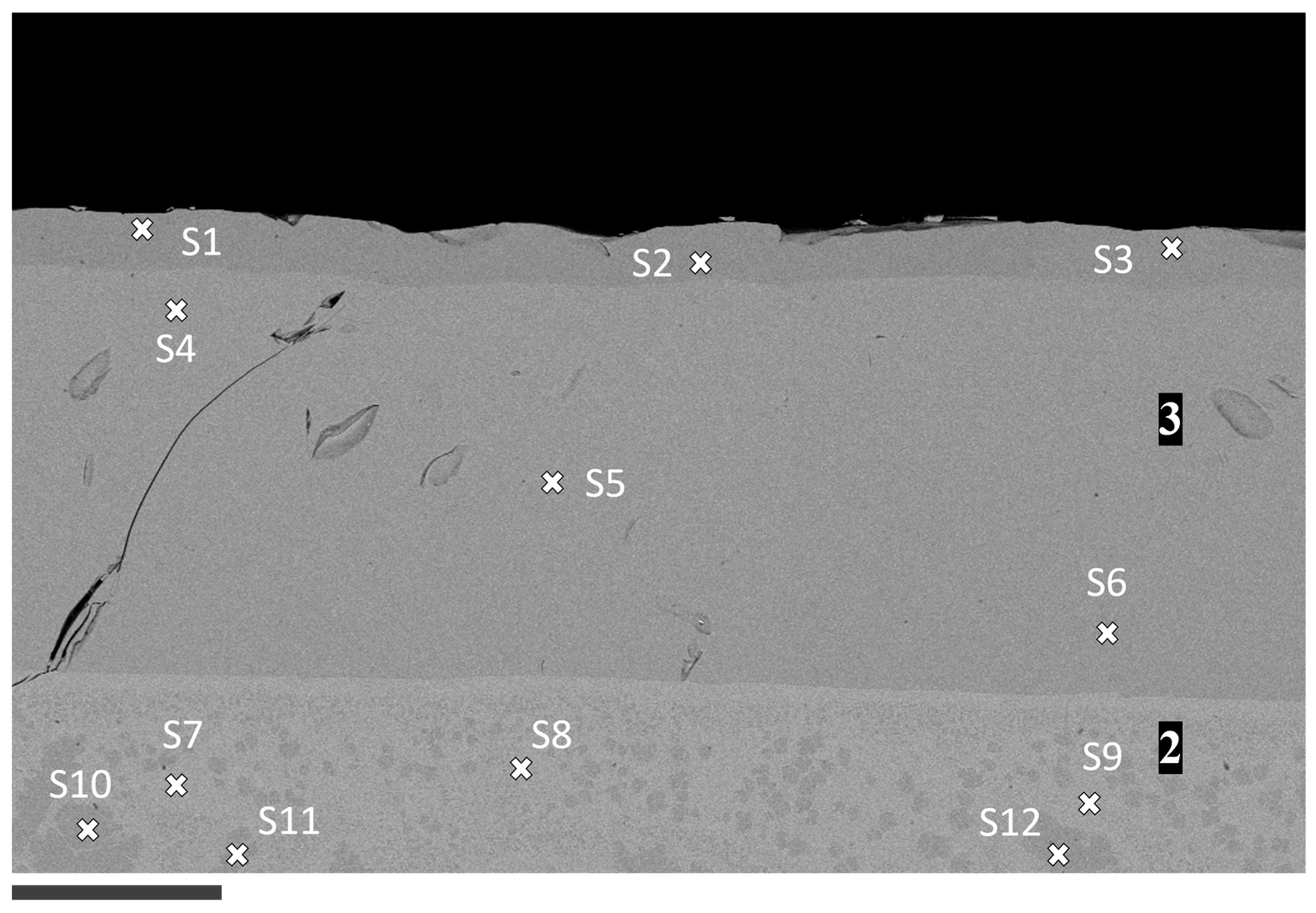

S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S9 | S10 | S11 | S12 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Fe | 74.4 | 74.3 | 74.4 | 77.0 | 76.6 | 76.4 | 80.1 | 79.5 | 80.4 | 77.4 | 76.7 | 76.6 |
O | 25.6 | 25.7 | 25.6 | 23.0 | 23.4 | 23.6 | 19.9 | 20.1 | 19.7 | 22.6 | 23.3 | 23.4 |
