1. Introduction
Welding is a complex process that involves various physical and chemical transformations. It includes melting and solidifying metal, fluid motion, and vaporization, all triggered by the heat input. The quality of a seam depends on its geometrical and metallurgical properties, which are determined by the fluid movement and heat transfer experienced by the molten pool [
1]. Therefore, the temperature distribution within the weld pool can be an important source of data to assess the quality of welded joints. Thermal monitoring techniques have been the object of interest and studied by several researchers. Non-contact methods have been employed to measure and monitor the temperature in arc welding processes, such as the use of infrared cameras as the most common approach [
2,
3,
4]. When the material radiative properties are well known, high accuracy can be reached. However, the difficulty in determining the emissivity of melted materials is well known [
5], which is a function of material composition, temperature, and surface features. To overcome this challenge, new temperature measurement methods have been developed and studied.
Coniglio et al. [
6] showcased the temperature measurement of the weld pool by determining the polarization properties of the radiation in one wavelength. The measurement system is not dependent on surface emissivity, but it works only for the assumption that the refractive index of the materials is independent of temperature. However, this system is sensitive and it can be modified as a result of changes in both the degree of emission and the spatial orientation of the surface. Schöpp et al. [
5] and Muller et al. [
7] combined a near-infrared high-speed camera with a spectrometer. Based on radiation theory and the measured spectrum, the temperature and emissivity are computed with the help of a least-square fitting. This punctual measurement is then used to calibrate the high-speed camera and to reconstruct the surface temperature distribution. Despite seeming effective and able to estimate the temperature and the emissivity during the process, Schöpp et al. [
5] mentioned that slag formed on the surface can influence the emissivity and hence leads to local overestimations of the surface temperature. However, the method looks difficult to apply as a monitoring strategy. Beyond rendering a complex setup (synchronization between the camera and spectrometer), it always raises the challenge of emissivity dependence on the measurement orientation.
Another technique that is applied for measuring the temperature field of radiation targets is the dual charge-coupled device (CCD). Briefly, in this method, one commercial colour camera is used, and a relationship between two of its three spectral responses from the red/green/blue output channels is established based on Planck’s law. Nevertheless, according to Yu et al. [
8], when CCD is used in welding the measurement, precision can be affected by the spectral bandwidth response and also the material’s emissivity uncertainty. To improve the CCD method accuracy, the authors developed a model by using a backpropagation neural network to measure the temperature field of the weld pool with the red/green output channel values. The authors achieved higher accuracy with a maximum relative fitting error of 0.38%, and a mean absolute error of 1.3277 °C. Myers et al. [
9] also discussed about the uncertainties and limitations of the CCD method, mainly due to the camera’s thermal sensitivity range and the slope of the ratiometric response curves obtained from the red/green channels.

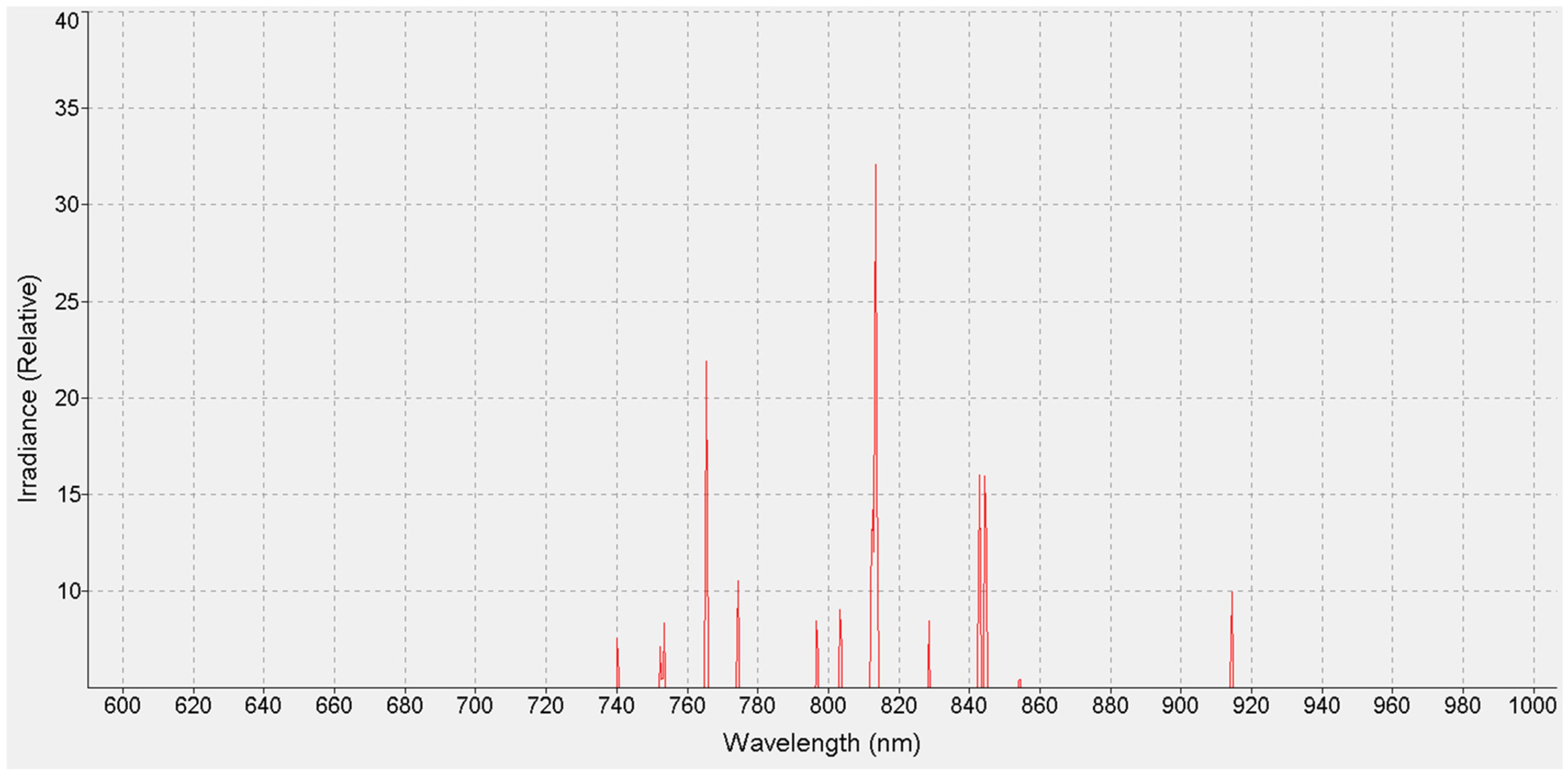

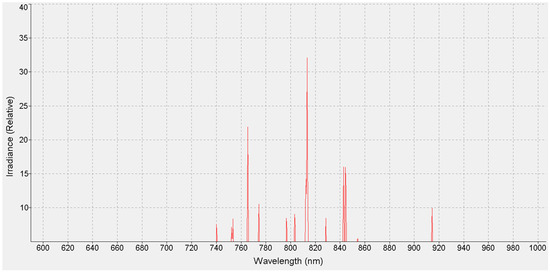

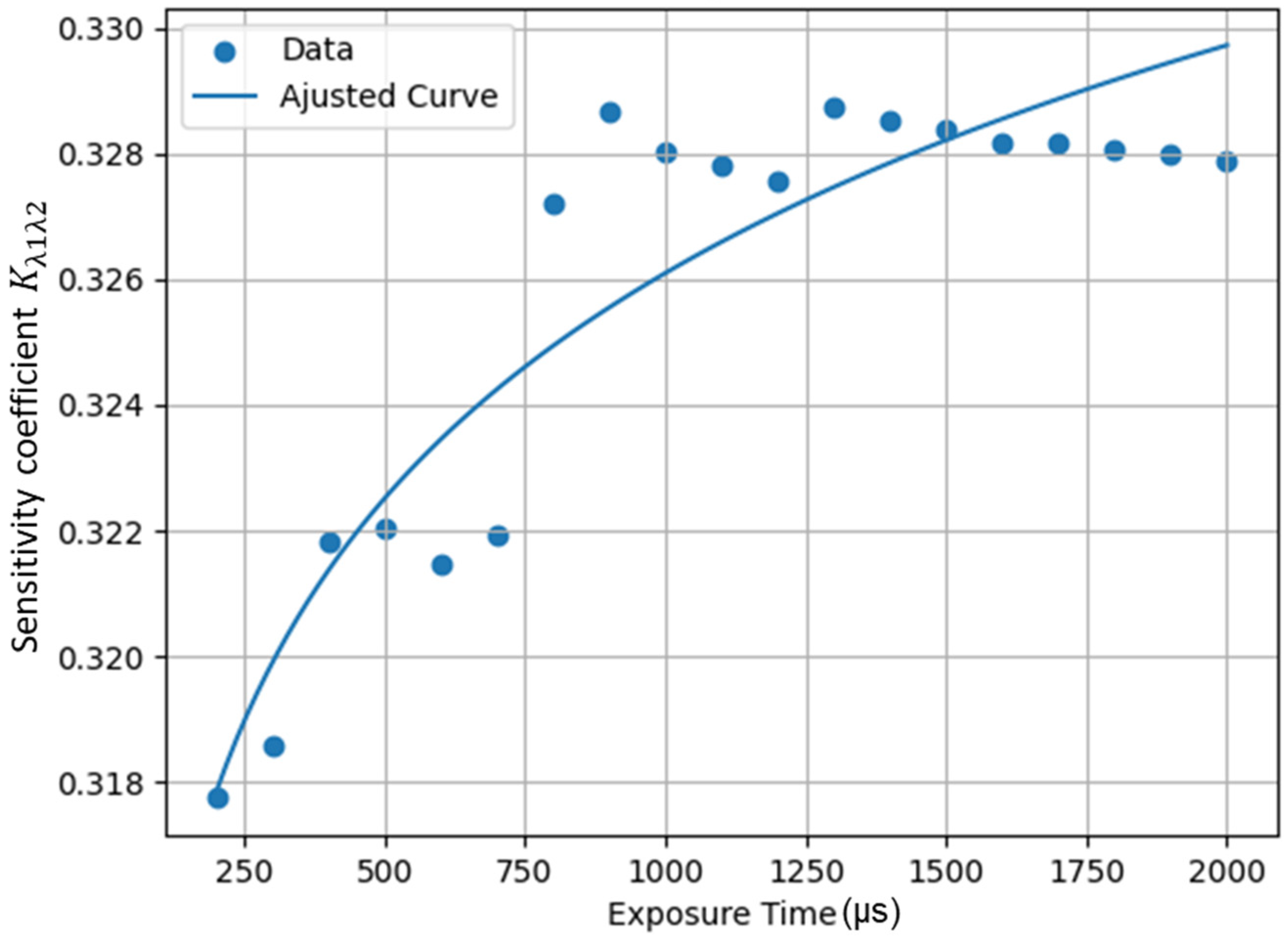

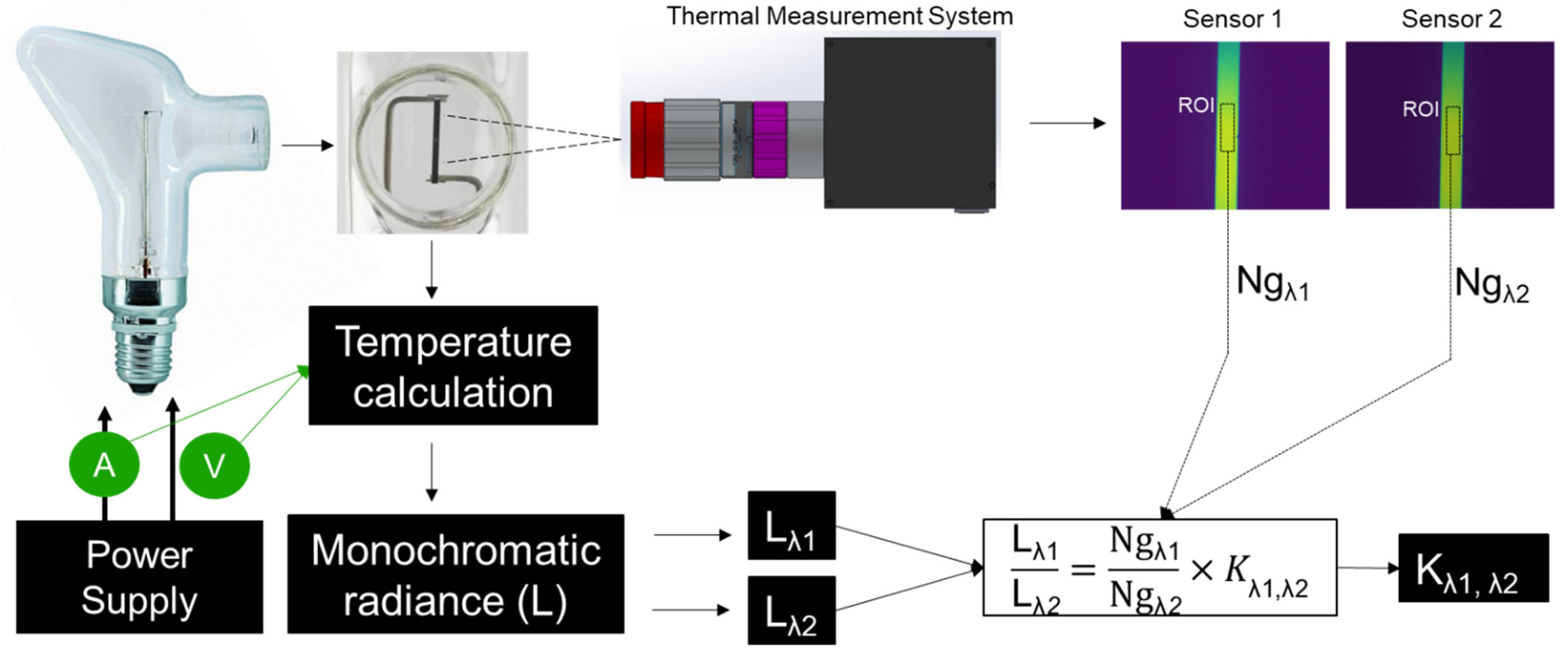

An alternative method that has been widely used and that is of interest for this current work is the two-colour pyrometer (TCP). The details of this method will be discussed in
Section 2. Monier et al. [
10] evaluated this method’s performance over pure material melting measurements. Three combinations of a couple of filters were evaluated. The authors stated that the selection of the wavelengths directly affects the uncertainties of the measurement, and the choice of the filters is the technical key point. A minimum global uncertainty of 6.21% was reached by the authors. Innovatively, Richter et al. [
11] measured the weld pool temperature using the GMAW process directly pointing out the measurement system through the arc. The authors were able to measure the arc spectrum and select the narrow-bandwidth optical filters at wavelengths of lower arc intensity (suppression of the plasma radiation). On the other hand, despite not using the same method, Yu et al. [
8] were not able to obtain molten pool monitoring data from the images captured in the arcing time, but only in a short-circuiting time. Schwarzkopf et al. [
12] also employed a two-colour-thermography system that enables acquiring spatial and temporal temperature information for low-melting temperature ranges (<1200 K). The study demonstrates that temperature can be accurately determined despite variations in signal intensity and emissivity for objects emitting constant thermal radiation.
Alongside the development of thermal measurement techniques, several strategies and methods have been developed to study phenomena and monitor the process, and are even being used in closed-loop control strategies. Ngo Huu et al. [
13] used the TCP method to confirm the Marangoni force activity in the weld pool with keyhole plasma arc welding. Monier et al. [
14] also used this method to measure the surface temperature of the droplet in pulsed GMAW and establish a correlation to the surface tension. Richter et al. [
11] proposed a study to associate the weld pool temperature to the estimation of the weld pool volume using a sensor developed based on TCP. Using CCD method, Myers et al. [
9] employed thermal weld pool images to validate complex physics models. Moreover, Myers et al. [
15] used the melt pool thermal field produced by a laser-directed energy deposition (L-DED) process to determine the effective absorptivity and temperature dependent coefficient of surface tension in a multi-physics model. To make it possible, the authors associated the thermal measurements to cross-sectional weld bead features.
The increasing usage of artificial intelligence (AI) methods in welding and additive manufacturing processes is still worth mentioning. In an extended review, Yu et al. [
16] showed and discussed the strategies that have been developed to monitor weld penetration and also the gaps in its advancements. According to the authors, various kinds of raw information sources have been tried for being used to predict the penetration state for different processes and applications. Regarding temperature measurements and the employment of AI, Yu et al. [
17] developed a novel approach for measuring the weld penetration of variable groove weldments using CCD and a neural network. According to the authors, the method reaches a strong generalization ability and can be applied to the online measurement of welding penetration for weldments with various groove angles and sizes. Buongiorno et al. [
18] conducted an experimental study using a sequence of near-infrared images from a laser welding process as input for a customized convolutional neural network. The aim was to develop an industrial diagnostic framework for detecting weld defects. The results showed that the neural network architecture was highly effective in classifying malfunctioning weld joints with an average accuracy of 99%. The authors emphasized the potential for integrating thermographic-based quality control frameworks across the production line, where fast and accurate recognition and safety assurance are essential industrial requirements. In the same context, Knaack et al. [
19] conducted a study that intended to locate critical welding defects such as lack of fusion, sagging, lack of penetration, and geometric deviations of the weld seam. The authors used infrared images and laser welding as a process and employed a comprehensive scheme based on classical machine learning methods. In addition, state-of-the-art deep learning algorithms and manual features extraction were also used. The study showed that the weld defect recognition method can be applied to real-time applications that require low latency.

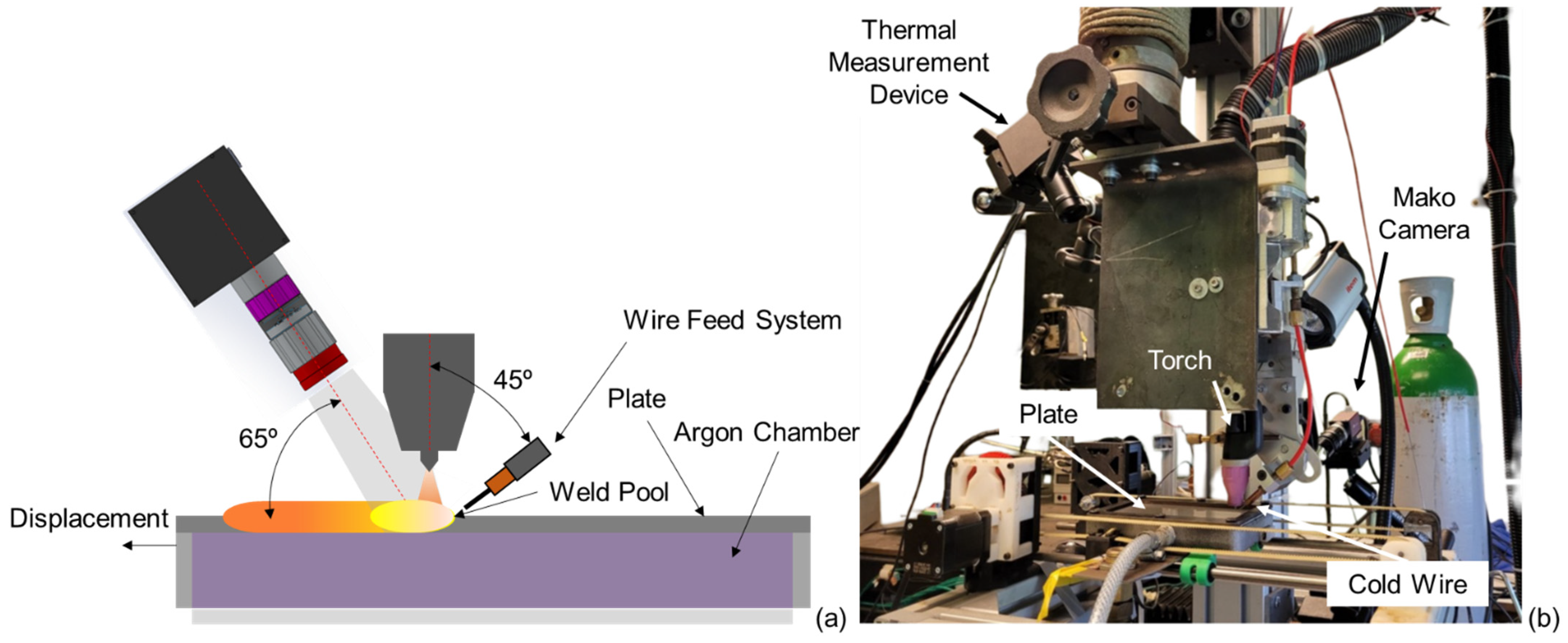

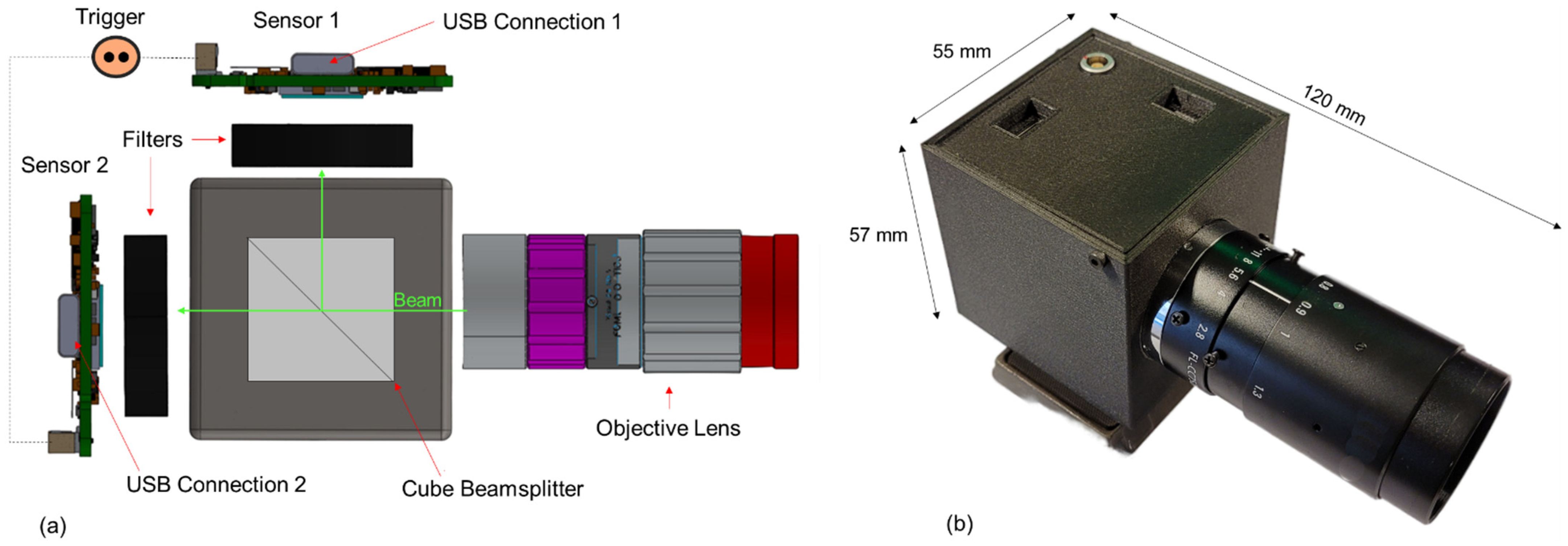

Given this context, the challenges surrounding thermal measurement methods in terms of reliability when the systems are applied to welding processes is notorious. Although there are already studies addressing the thermal features of the weld pool as a potential source of data, an evaluation of the rear weld pool thermal monitoring in the GTAW process right next to the arc radiation has not been referenced in the literature yet, to the knowledge of this work’s authors. Besides the heat input being the key point for welding quality, it directly impacts the weld pool temperature and might be sensed by its rear part. Hence, the global aim of this work was to evaluate the feasibility and detect potentialities of accessing the thermal field from the rear weld pool in the GTAW process. Moreover, a second goal, which had a technical characteristic, was to develop a two-colour pyrometer that could be miniaturized and more easily embedded.
3. Results and Discussion

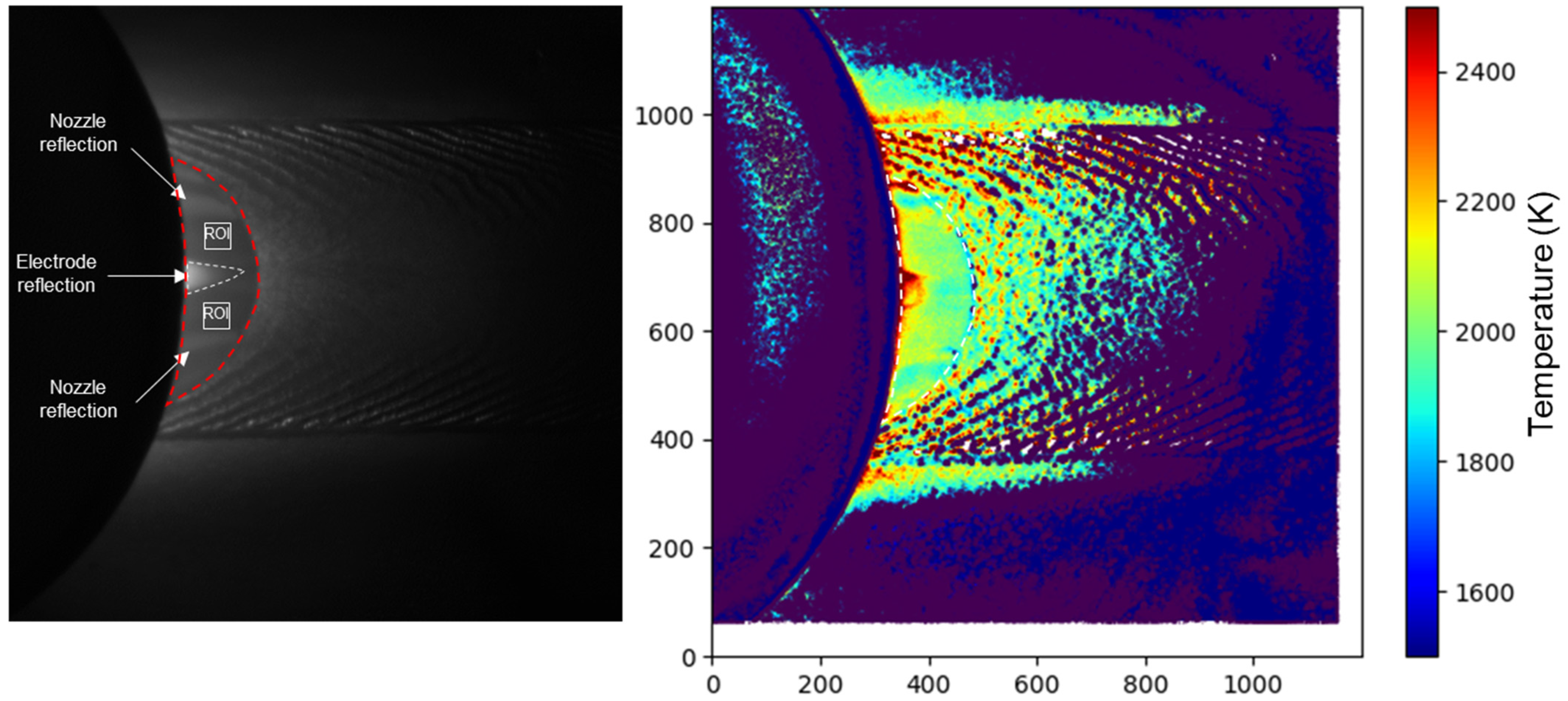

Figure 8 shows a raw frame of Experiment 1 and its corresponding computed thermal field. At first glance, it may not be immediately clear where the boundaries of the weld pool are in the thermal image. Some regions outside the weld pool appear to have higher temperatures. However, upon examining the raw image, it becomes apparent that these regions correspond to the ones that have higher brightness. Additionally, the weld pool boundaries are clearly visible in the raw image. It can be said that the increase in brightness is due to the light coming from the arc and the electrode. It is important to state that the method used to compute temperatures relies on the gray level of each pixel. Thus, incorrect temperature readings may result from increased gray levels caused by the light of the arc/electrode.
Still considering the raw image in

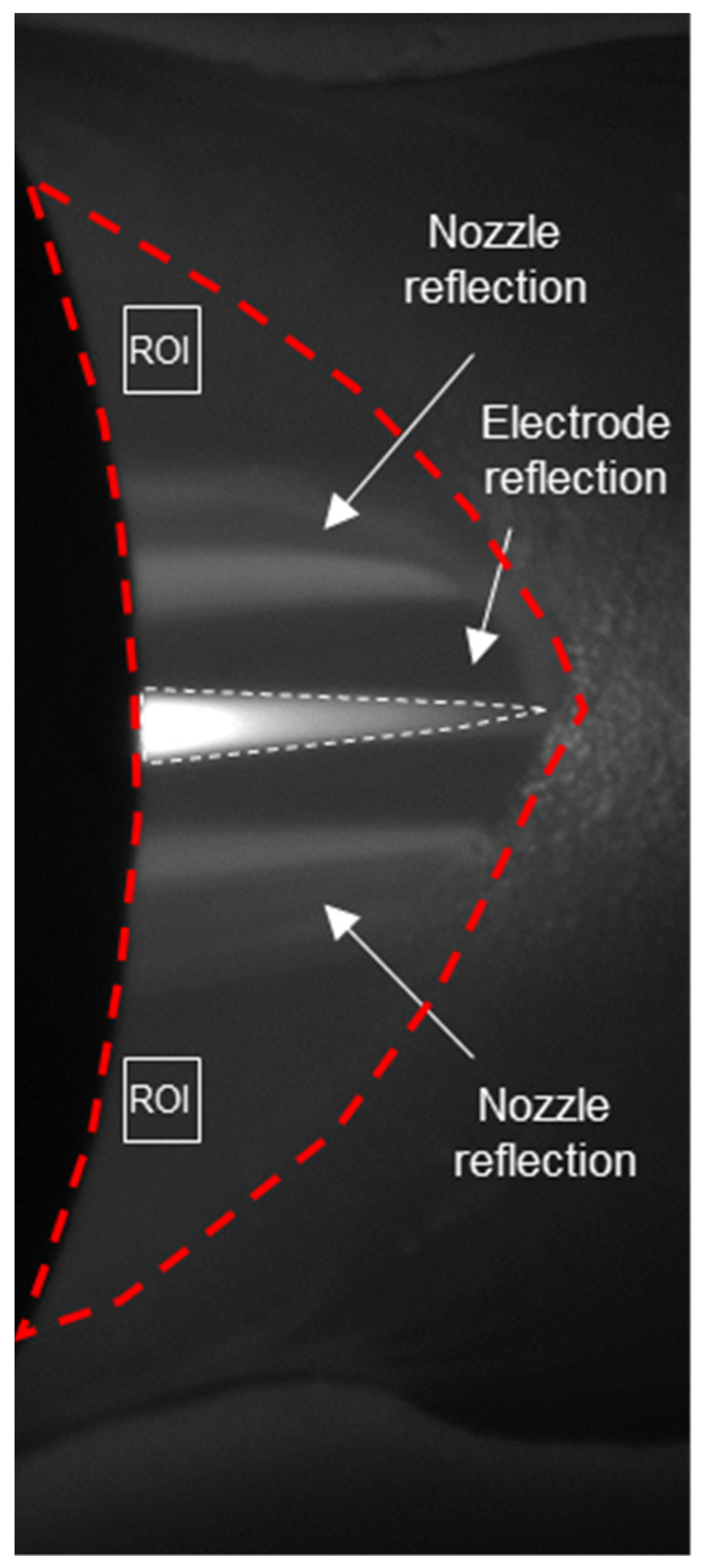

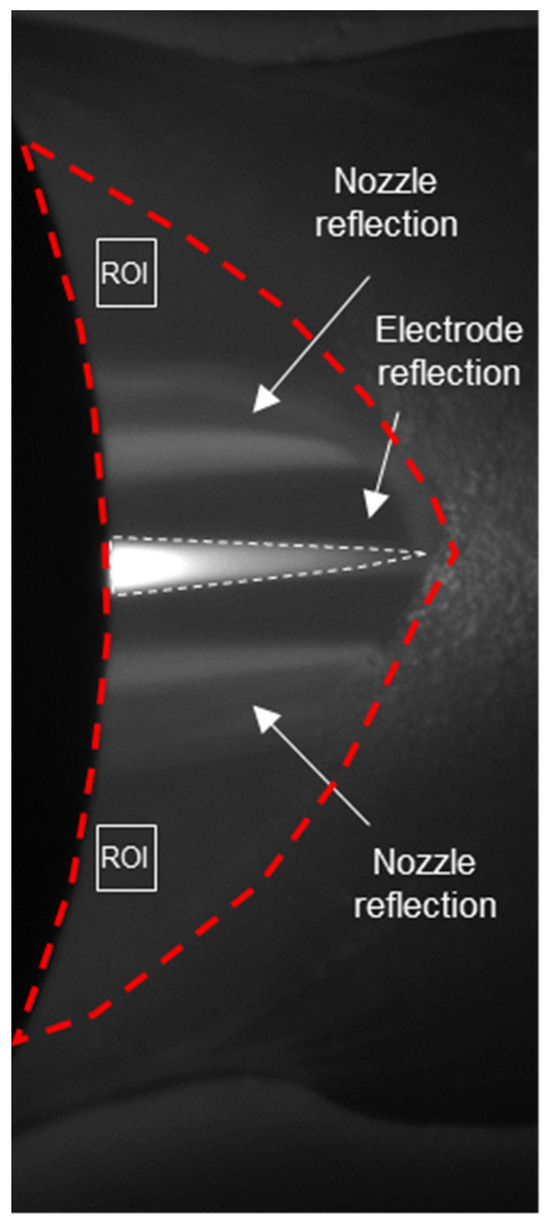

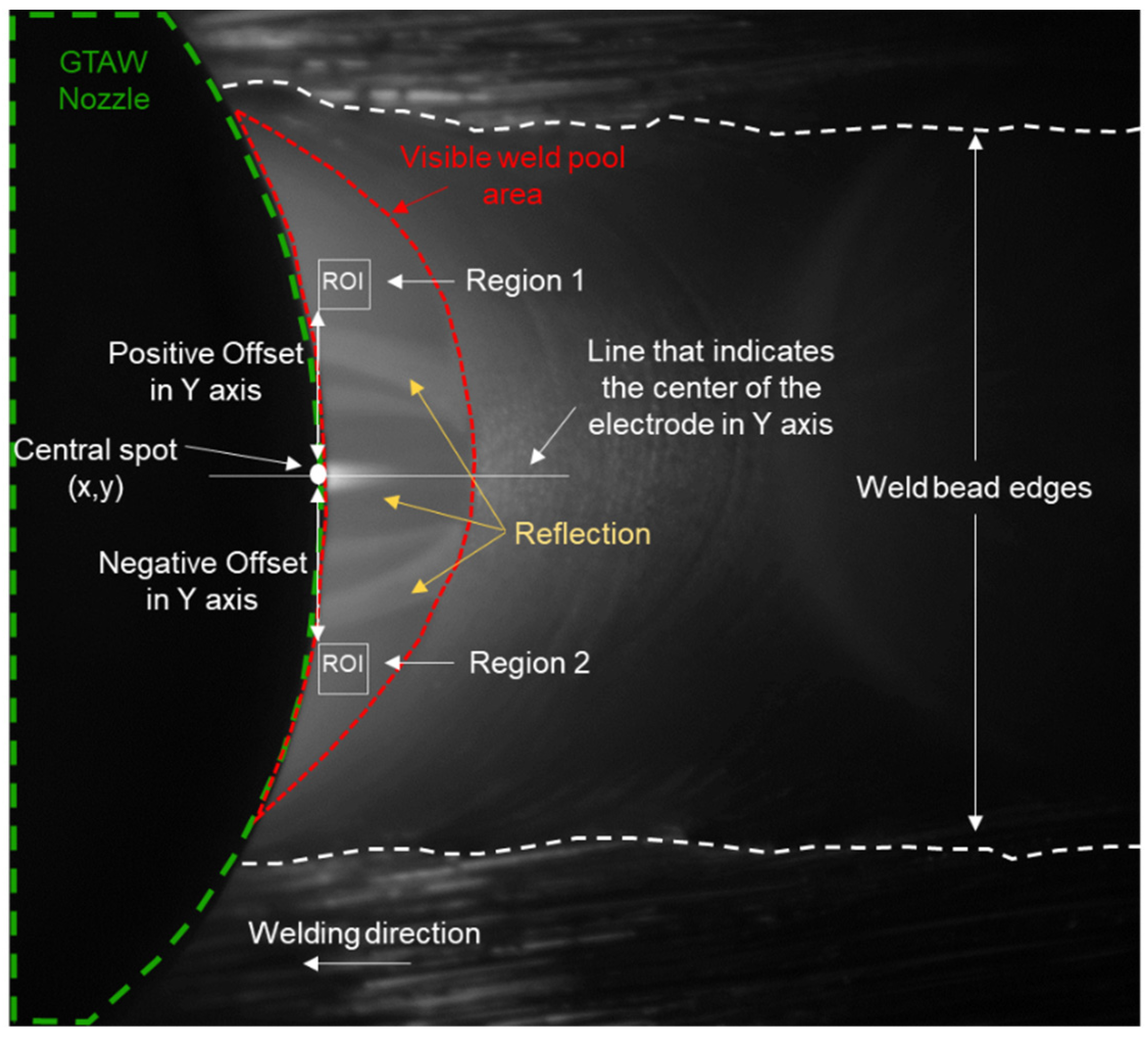

Figure 8, and now focusing only on the area corresponding to the weld pool, the existence of electrode and nozzle reflection can be noted. These reflections are indicated to have higher temperatures in the thermal field and may not reflect the actual temperature of the weld pool. However, there are regions with no reflection incidence where the thermal field could represent the real temperature of the weld pool. Within them, regions of interest (ROIs) were positioned and the mean temperature was calculated by the contribution of each frame. The results are plotted in

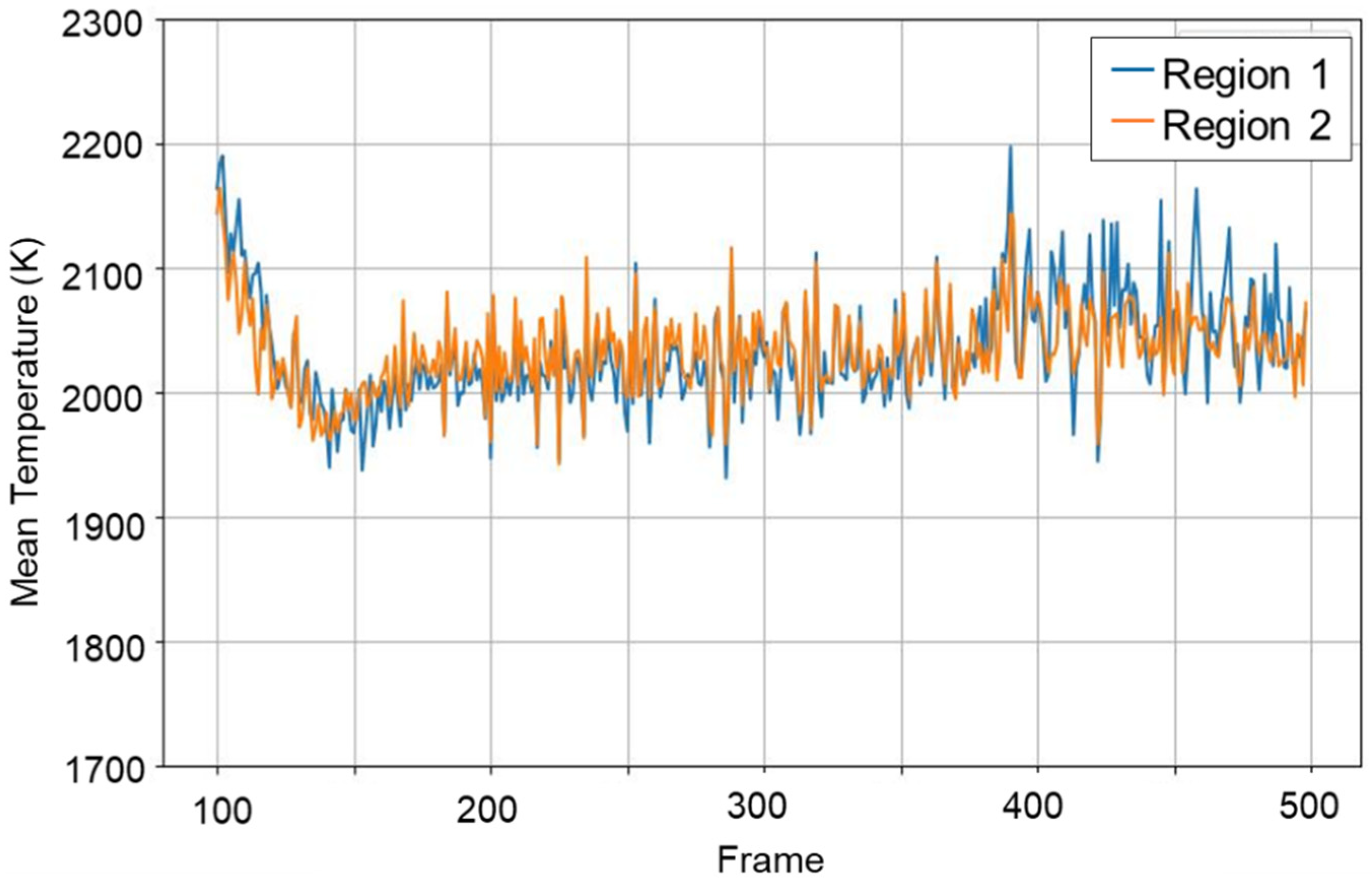

Figure 9. It can be observed that the mean temperature evolution of both regions is similar, despite having some peaks that will be discussed. However, the usage of some filters on the temperature curve would be possible, improving its visualization, despite the author’s preference being to show the raw data separate from the temperature measurement. Even with these peaks, the raw temperature curves of the ROIs are practically superimposed. Particularly in this experiment, large mean temperature variations comparing the ROIs would be expected, as they were positioned symmetrically from the electrode centre line, and a stable welding condition was reached. This is supported by data extracted from various sources, including raw images, voltage/current signals, and the weld bead appearance. Nevertheless, it could still be questioned whether the luminosity of the arc and electrode would affect the actual temperature value within the ROIs. Furthermore, the effect of the absorption could also lead to the misreading of the temperature.
To evaluate the influence of the arc and the electrode brightness on the weld pool temperature measurement (first specific objective), four frames extracted from Experiment 2 are displayed in

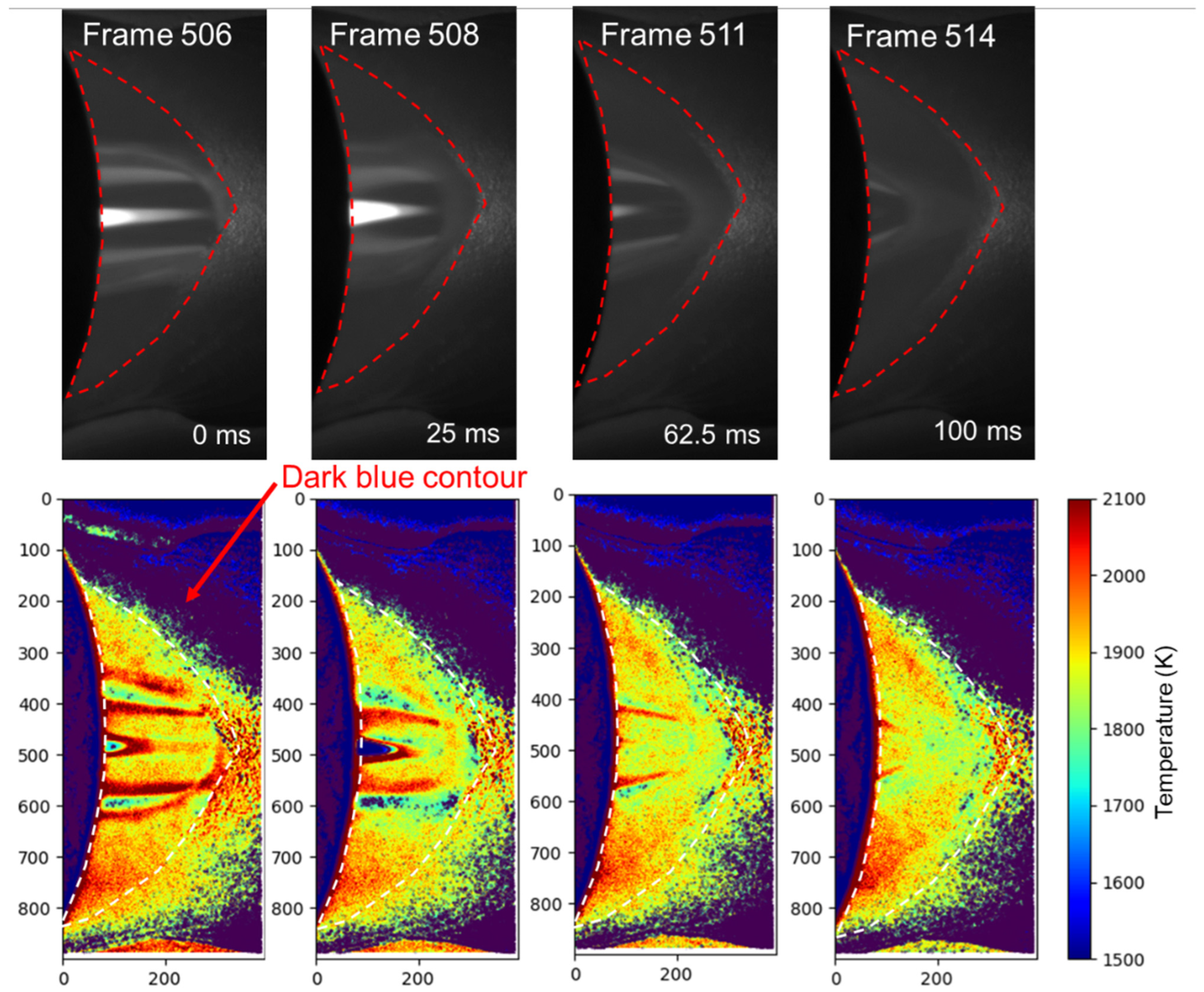

Figure 10. The top frames are raw images, while the bottom ones are their respective thermal field. This sequence represents moments before and after the arc has been interrupted. The interruption occurred between frames 506 and 508, and the time between two consecutive frames is about 12.5 ms. Looking at frames 511 and 514, it is possible to see the electrode cooling by the reduction of its reflected light at the weld pool. As previously stated in Experiment 1, there is also reflection incidence in Experiment 2, as seen in
Figure 11. However, it takes up a different location and configuration. In Experiment 2, the wire feed was added and thus the weld pool assumed a different shape. Therefore, two ROIs were positioned at a higher Y offset value compared to Experiment 1.

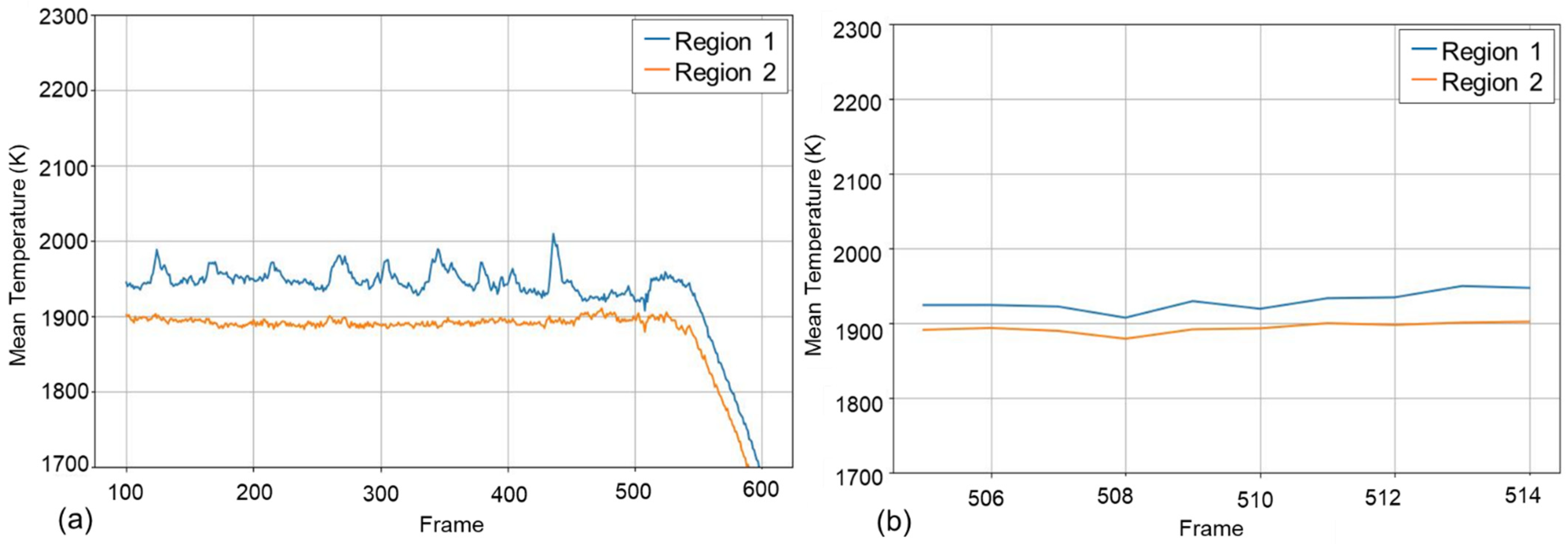

Figure 12a shows the mean temperature evolution of the ROIs during the opening arc time until a few milliseconds after the arc’s shutdown.
Likewise,
Figure 12b displays in detail the mean temperature of frames 506 to 514. It is possible to note a slight temperature decrease when the arc has ceased between frames 506 and 508. There are two possible explanations for this observation. Firstly, the light from the arc could have reduced over the weld pool, making the region of interest (ROI) appear less bright, leading to an error in temperature computation. Secondly, the temperature might have actually dropped because the arc has shut down. In other words, the heat source’s interruption leads to a decrease in the weld pool’s temperature surface within a short period. If the light from the arc and the electrode could affect the temperature measurement of the weld pool within the ROIs, then we would expect to see a decrease in temperature from frame 511 to 514 as the light from the electrode reduces. However, the temperature increased even though the light from the electrode had reduced. It is crucial to state that even after the arc’s shutdown, convection and heating mass transfer still occur within the weld pool. This observation implies that the hypothesis that the arc light could lead to misreading of the temperature loses weight.
To evaluate the impact of the metallic transfer on the temperature measurement following the proposed strategy, the results from Experiment 3 (bridge metallic transfer) and 4 (intermittent metallic transfer) will be discussed.

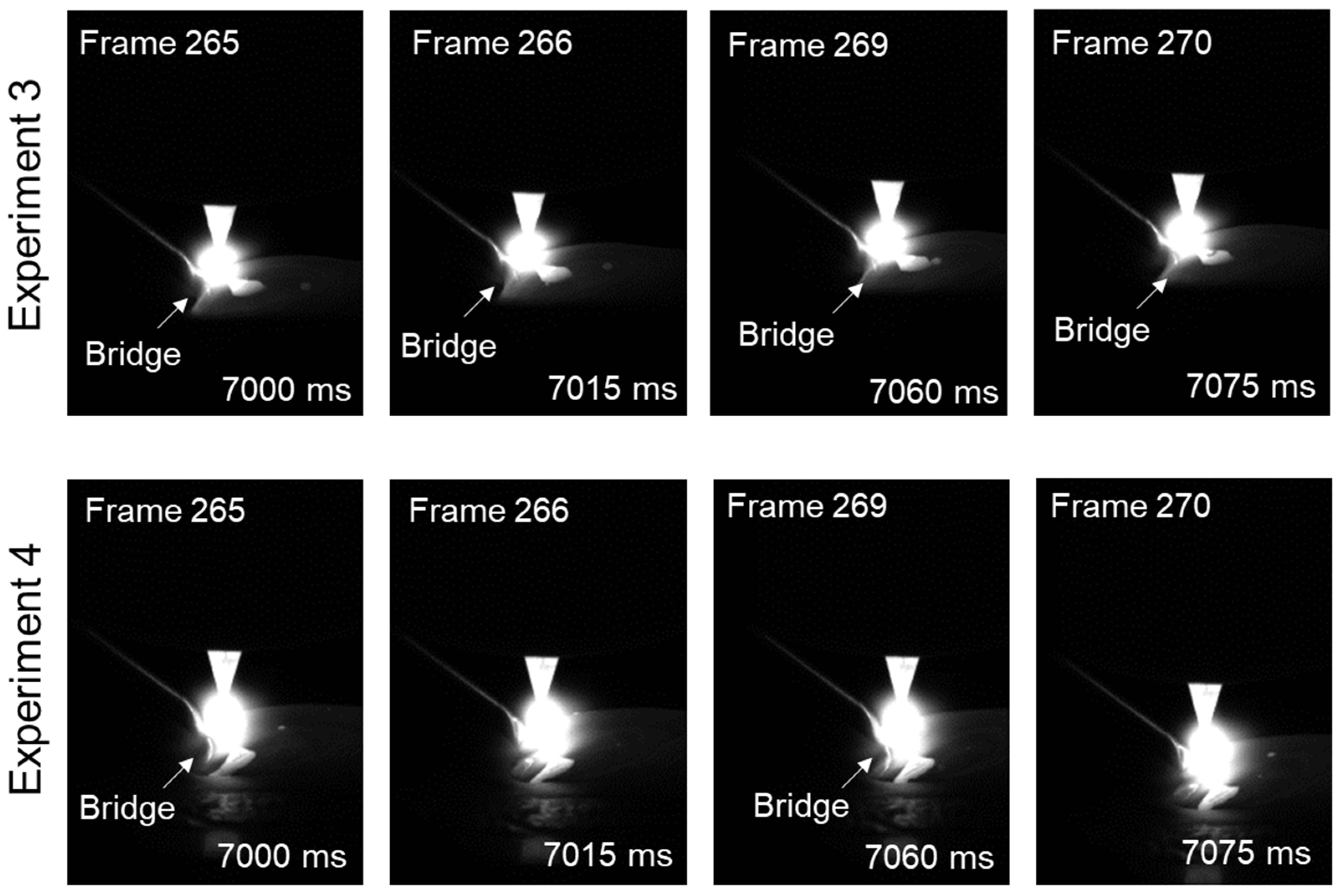

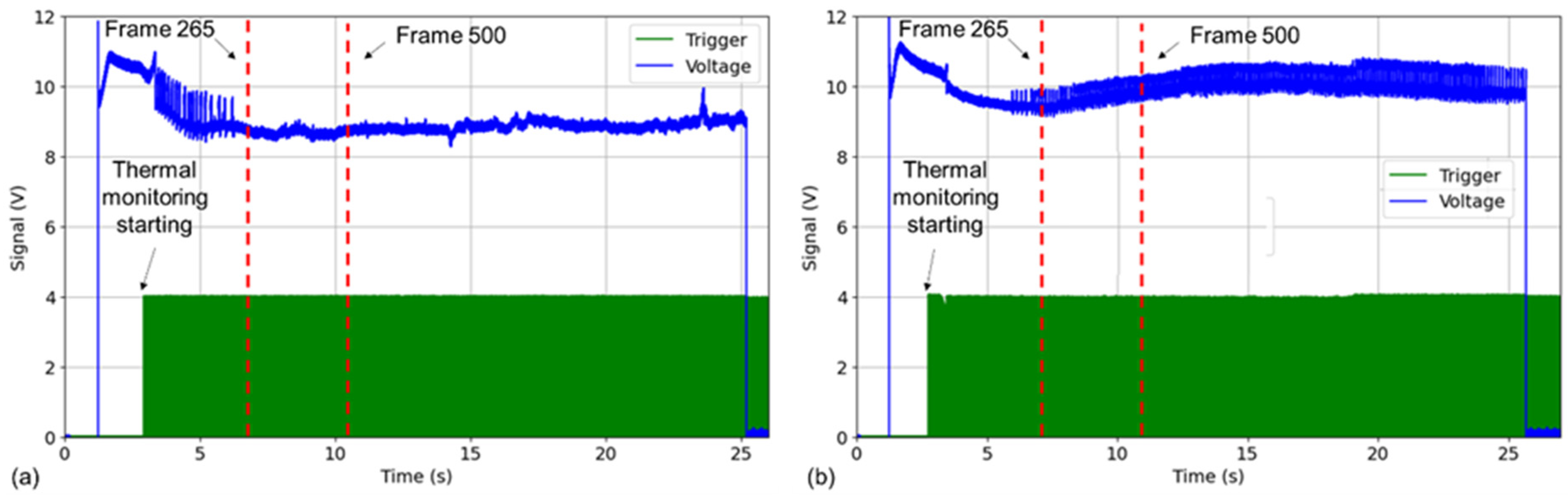

Figure 13 illustrates a sequence of frames captured by a camera positioned sideward from the nozzle. In addition, the voltage signal is displayed in

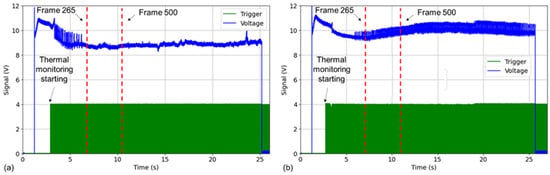

Figure 14. As the trigger signal that was sent to the sensor was recorded by the acquisition system, it was possible to synchronize and thus find the exact time of each captured frame of both cameras (400 representative frames were captured in each experiment for the analyses). The voltage signal shows the presence of ripples when the metallic transfer assumes an intermittent condition. It can be explained by the instantaneous change in weld pool volume that leads to variations in the arc length. In addition, the arc can deflect cyclically and part of it moves from the cold-wire extreme/pool surface to the cold-wire surface. This behaviour concerning metallic transfer is also discussed by other authors [
23,

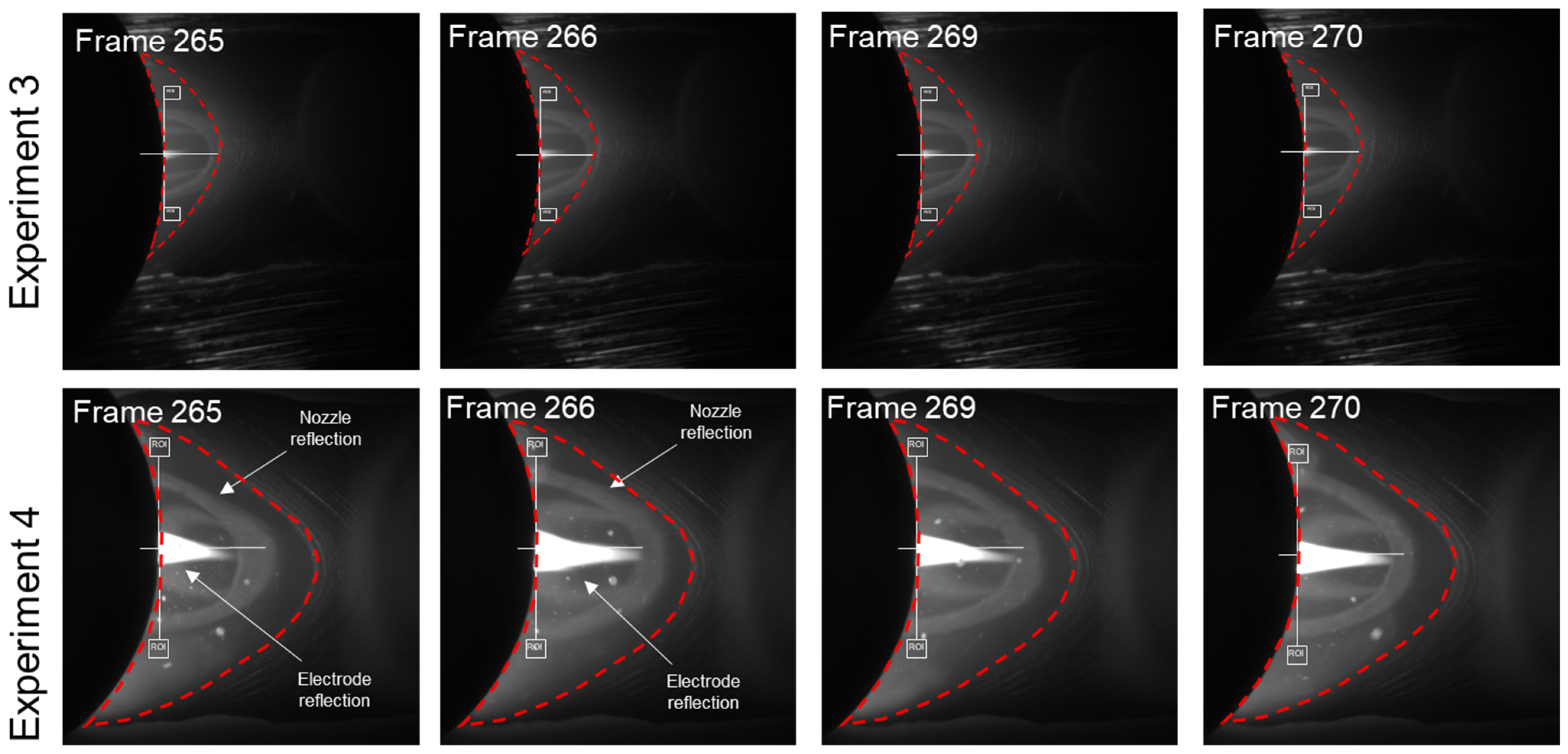

24]. Regarding the thermal system, a sequence of raw frames from Experiment 3 and 4 are displayed in
Figure 15 which corresponds to the same instants as those shown in
Figure 13. Both experiments exhibit the presence of reflection within the weld pool. However, in Experiment 4, due to the fluctuating shape and volume of the weld pool caused by the wire feed interruption, the size of the reflection varies significantly. For instance, comparing the frames 165 and 166 of Experiment 4 in
Figure 15, there is an observable increase/decrease in the reflection’s size. Nevertheless, there are still areas without reflection where the ROIs (regions of interest) could be positioned.
To facilitate the correlation between the thermal measurement and the geometrical features,
Figure 15 and

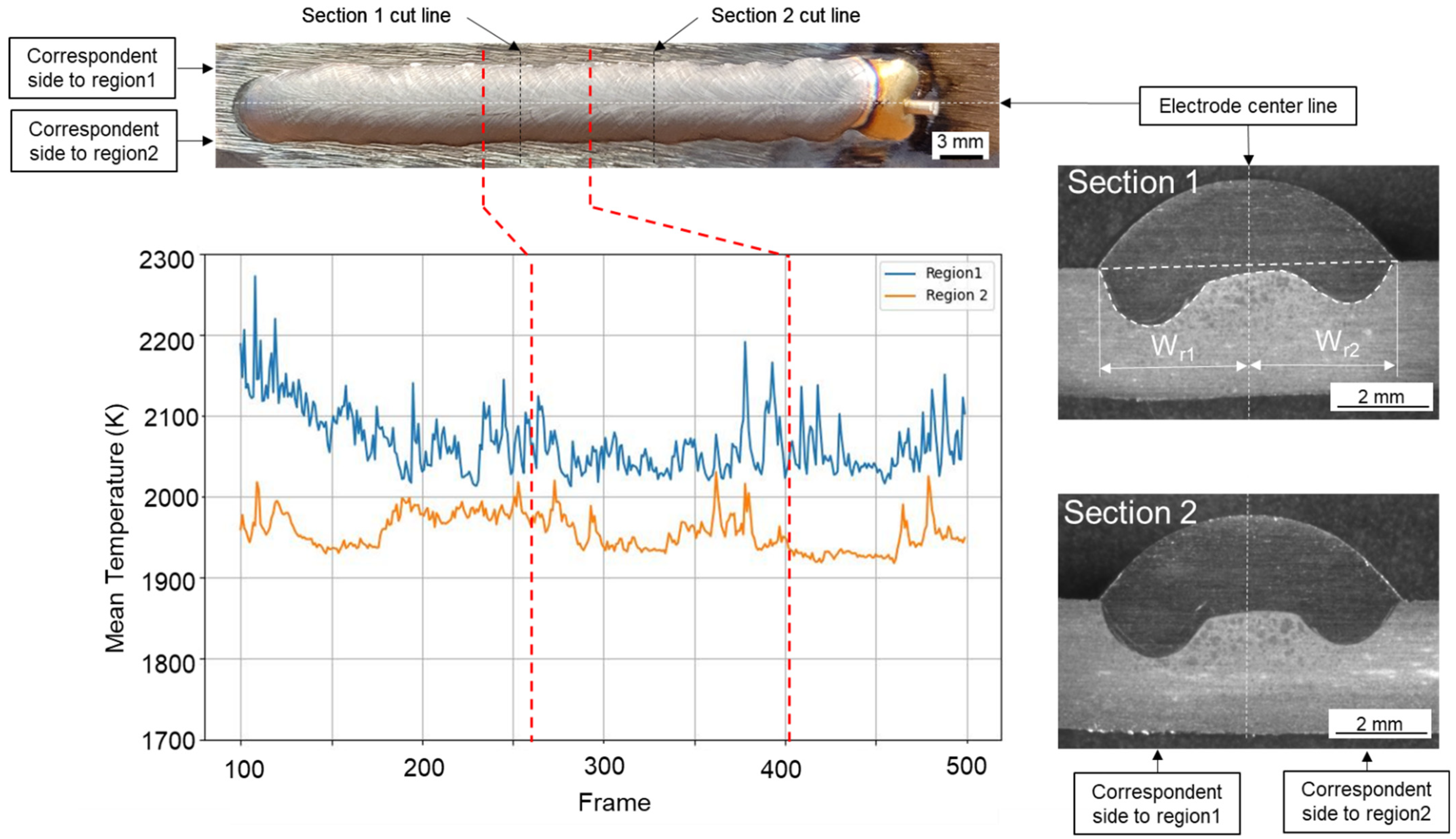

Figure 16 combine the surface aspect of the weld bead, the corresponding two cross-section macrographs, and also the evolution of the mean temperature along the welding for the respective ROIs of
Figure 15. A white dashed line corresponding to the electrode centre was drawn and regions 1 and 2 were indicated. At first glance looking at

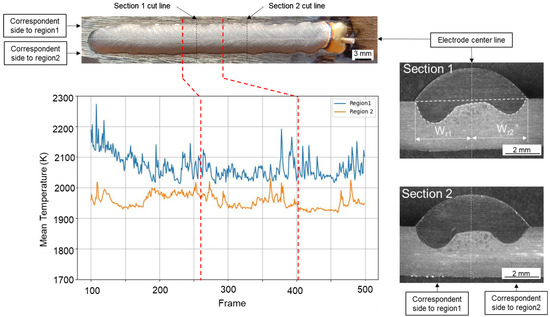

Figure 16, it is possible to perceive a good appearance of the weld bead, although followed by small fluctuations along its borders (seeming minor ripples) for Experiment 3. However, a slight difference in the weld bead penetration profiles can be observed comparing regions 1 and 2 at the cross-sections. The penetration, width, and melted zone results are quantified in

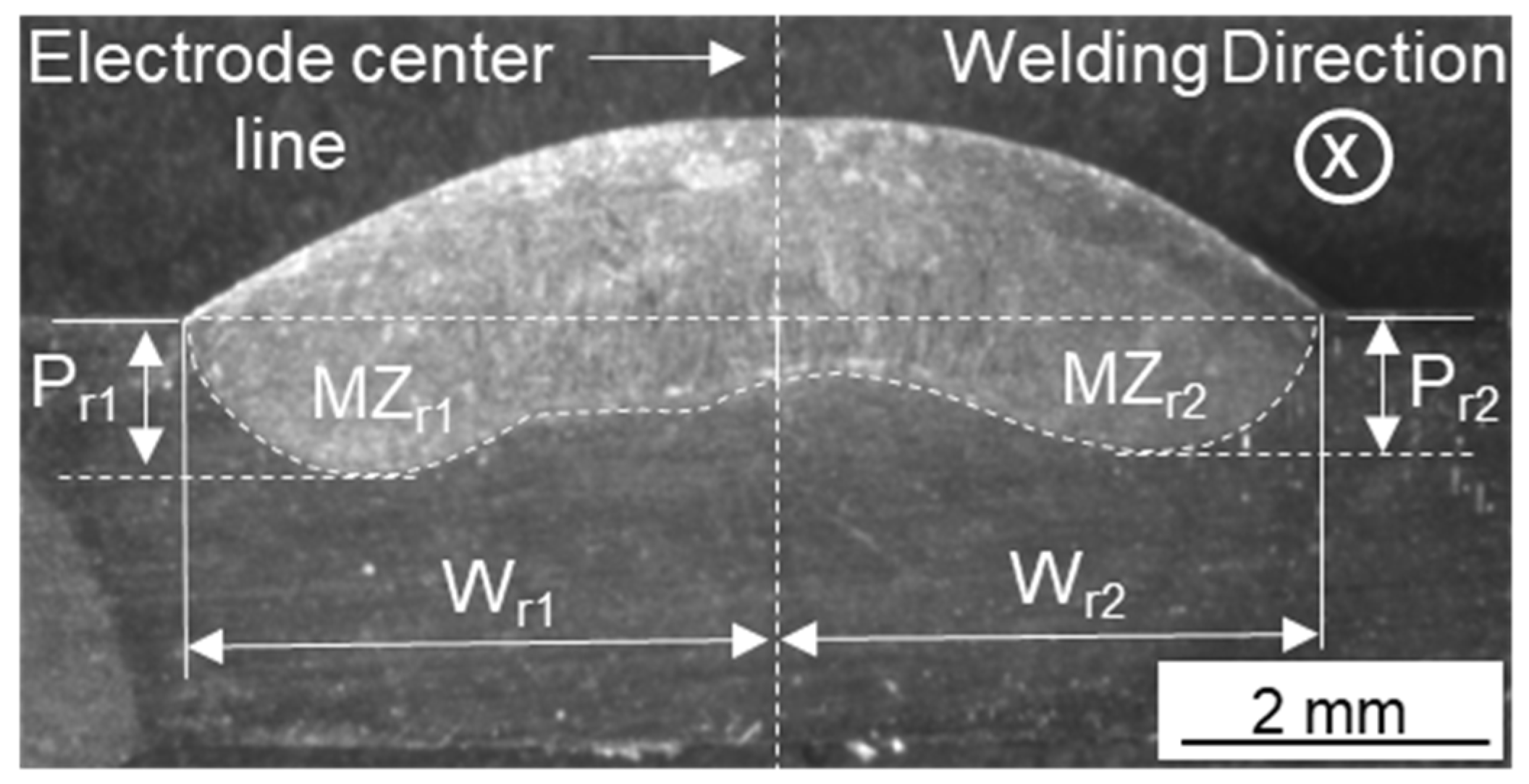

Table 2. As the penetration profiles were very similar in both sections, the features were measured only for
Section 1. There is an increase in the penetration and the melted zone for region 1 compared to region 2, while the width remains very close. Some hypotheses can be pointed out to justify this difference, such as a misalignment between the entrance of wire into the weld pool and the electrode centre. It could have caused an arc deviation and thus heating differences provided to regions 1 and 2. Therefore, independent of the causes that may have affected the heating distribution within the weld pool, it is possible to visualize a higher mean temperature for the ROI positioned in region 1 compared to region 2 during the welding time, registered by the thermal system (both from the
Figure 15 and
Table 2). From the thermal point of view, higher heating leads to melt power growth and can justify higher values of melted zone and penetration in region 1.
Still looking at the mean temperature curves in
Figure 16, the appearance of fluctuations in the mean temperature and some moments when these fluctuations increase/decrease abruptly can also be noted. It is important to mention that the presence of oxides supernatant in the weld pool can punctually affect the measurement leading to some peak or downfall in the temperature. In addition, the coupling of the arc and weld pool surface depends on how the weld pool experiences motion, as well as by the presence of oxides. Thus, quick deviations or perturbations of the arc may happen (it is already known the intrinsic sensibility of the GTAW process) that can cause swift changes in the surface’s thermal field and then the heat flux. The thermal field within the weld pool is a complex phenomenon that depends on physical and chemical transformations and heat mass transfer.
Following the same approach,

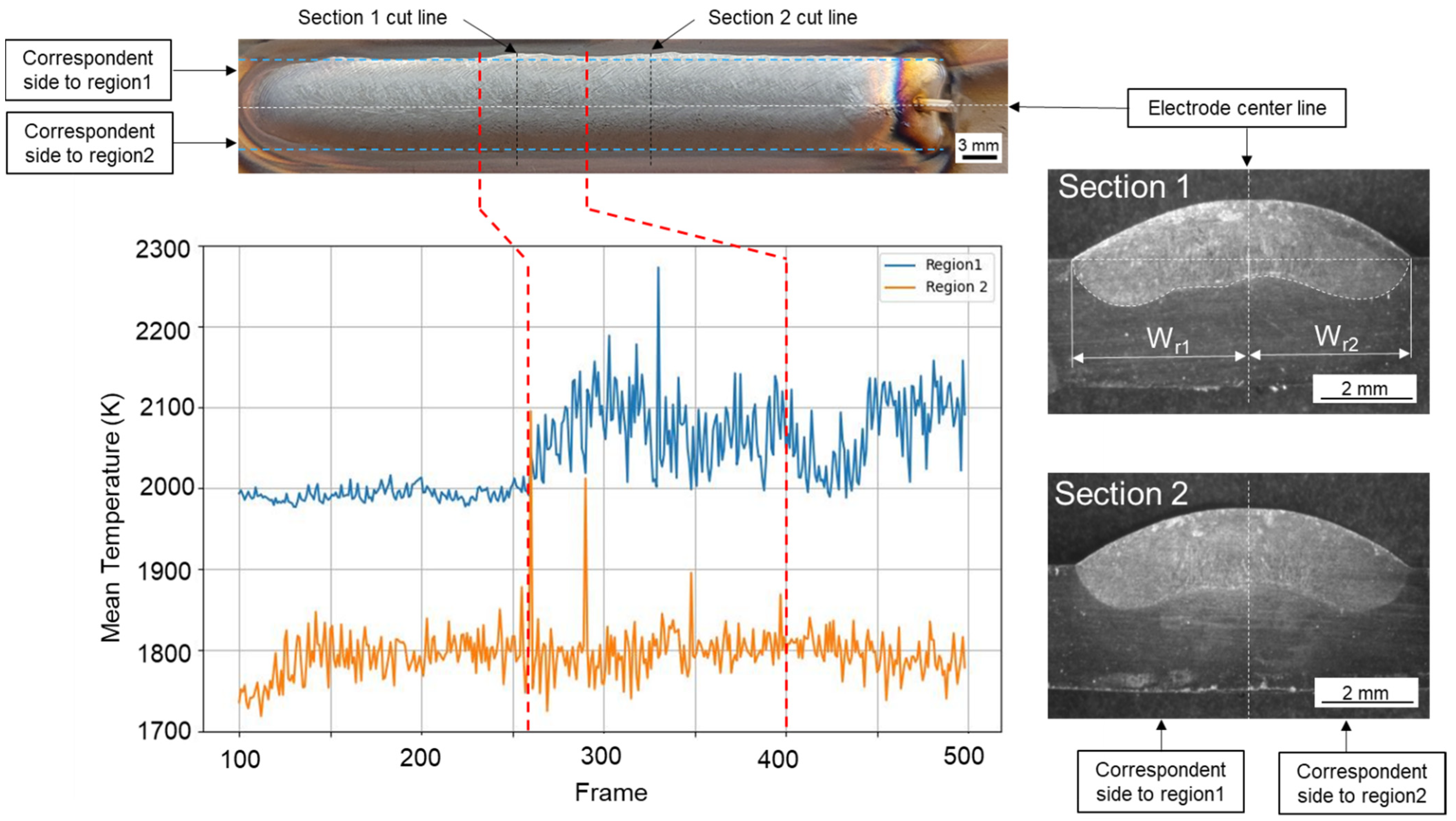

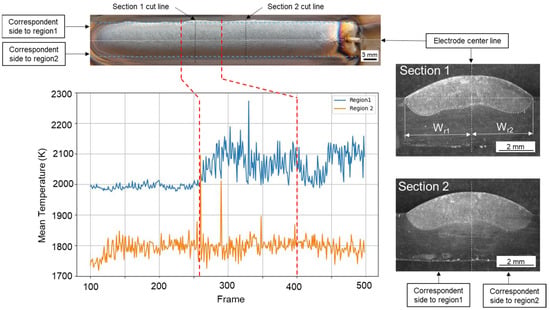

Figure 17 displays the surface appearance of the weld bead, and its corresponding two cross-section macrographs, and also the evolution of the mean temperature during the welding for Experiment 4. Using the measured features of
Table 2, it is possible to indicate the increase mainly for the width and melted zone of region 1 compared to region 2. Obtaining the mean temperature, a significant difference can be stated comparing both regions during all welding time. Succeeding the same thermal affirmation given for Experiment 3, the higher temperature could justify the growth of the melted zone and width in Experiment 4. In addition, what calls for attention is the major fluctuations of the mean temperature in region 1 while it practically assumes a linear trend in region 2 despite some punctual peaks. Additionally, looking now at the weld bead appearance, it can be noted that the borders along the weld bead of region 2 tended to assume features with fewer variations. Blue dashed lines equally spaced from the electrode centre line (white dashed) were charted to facilitate the visualization. On the other hand, more deviations can be realized regarding the weld bead borders in region 2. Furthermore, a slight enlargement of the weld bead around the frame 260 is followed by an increase in the temperature. These insights suggest a correlation between the weld pool temperature and the geometrical features of the resulting weld bead.
4. General Discussion
Overall, the constant search for strategies to ensure the quality of the welded joint in automatic welding processes is unanimous. However, some intrinsic features such as the penetration and volume of molten material take place beneath workpieces and are not readily observable during the manufacturing process, presenting a challenge for in situ non-intrusive monitoring on the surface. The complexity of factors that govern the weld bead formation in welding is remarkable. In summary, Jorge et al. [
25] updated a hierarchical representation of the weld bead formation in the GMAW process. In fact, despite such differences and particularities that can lead the GTAW process to have distinct mechanisms, it can be affirmed that the weld bead formation is ruled by thermal and mechanical effects. According to Yu et al. [
16], the temperature field reflects the heating and melting and thus provides certain information about the penetration. However, they also mentioned that it is not clear if there is an exact mapping between the temperature field and the penetration.
The findings of this current work firstly demonstrate the feasibility of using the developed system to access the thermal field of the rear weld pool, although the reflection must impose the necessity of a ROI selection within the weld pool. The presence of the reflection is also discussed by other authors [
26,
27]. What is interesting to mention is that they also used the reflection of the arc/electrode as a source of data for a penetration prediction employing deep learning. In fact, looking at the experiments of this current work, the reflection feature changes depending on the welding parameters were also stated, although it was not the scope to evaluate these changes. Anyway, it is possible to perceive the potentialities given by the advent of AI. In future work, the authors intend to use strategies of deep learning segmentation to select the ROI in order to better take advantage of the thermal field. As can be seen in

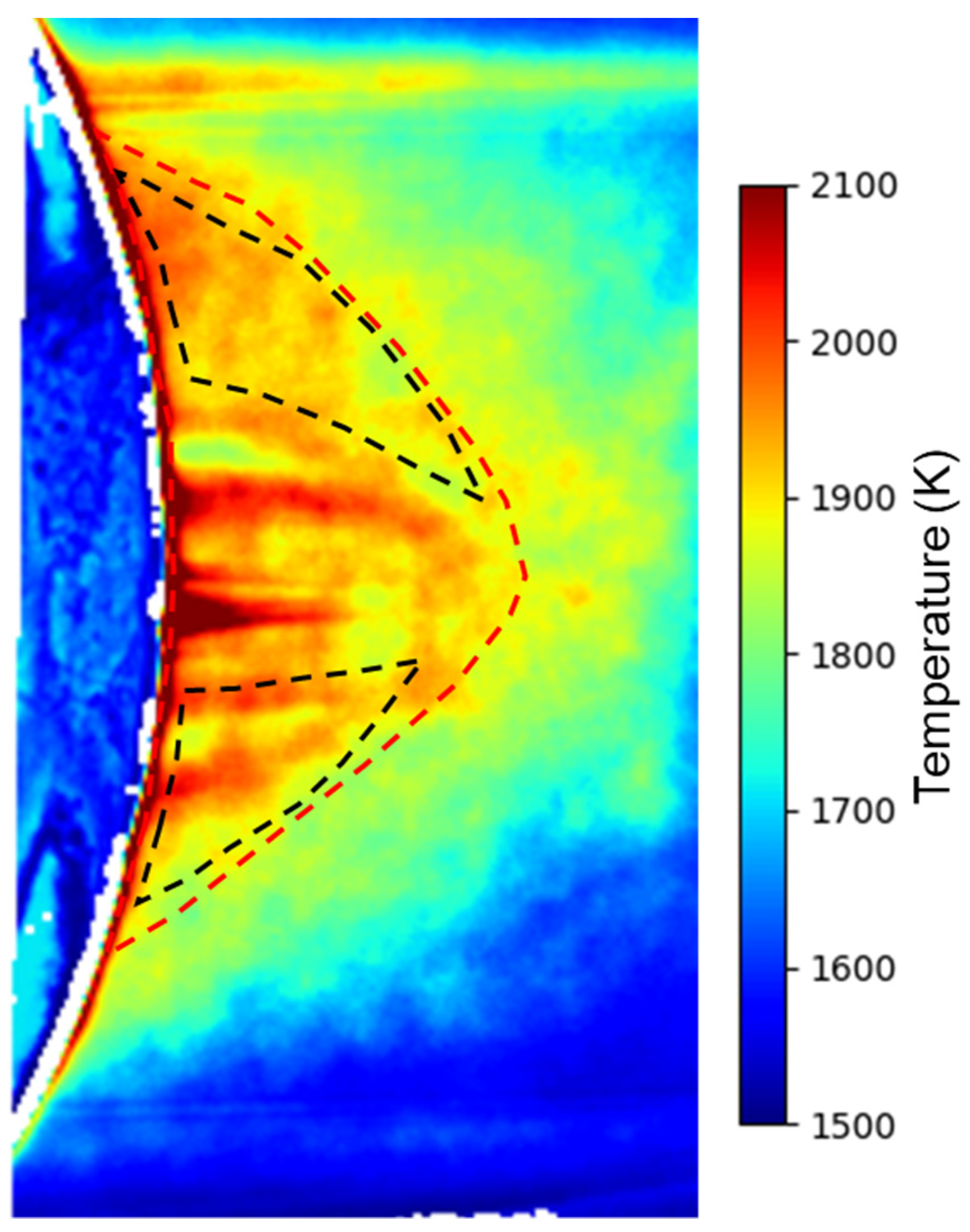

Figure 18, the regions of interest must not have to assume a square shape. It could be selected by a segmentation AI algorithm, hypothetically illustrated by the black dashed lines. In addition, the temperature distribution inside the ROI could reveal details of movements of liquid patterns, becoming another important source of data. According to Yu et al. [
16], using the transfer learning can improve the accuracy through more effectively extracting all possible patterns in the data.
Secondly, a correlation between the mean temperature measured by the method proposed in this work and the weld bead features was found. In the last half century, researchers have focused on finding promising real-time observable phenomena and correlating them to weld beads using technics such as instant and/or dynamic weld pool images, acoustic monitoring, and welding electrical signals. In the field of weld pool observation, the findings demonstrate that the mean temperature can be a promising method to indicate geometrical changes in the weld bead. Further experiments will be proposed in the future, especially to verify the current strategy applied to welding joints. For instance, in a groove, it is expected that weld bead defects (such as lack of fusion or geometric deviations) can be predicted by the weld pool temperature during the welding. As verified, a difference in the mean temperature within two regions equally spaced from the electrode centre line can lead to differences in melted zone, width, or penetration.
Last but not least, the application of the proposed approach will depend on the welding condition in which the weld pool features might change depending on the welding parameters, joint type, and material. The large temperature gradients in the molten pool and many driving forces acting simultaneously can lead to surface flow patterns and thus variable temperature fields during the welding in the GTAW process, as stated by Blanc et al. [
28]. In such cases, if the current strategy is adopted, a careful framerate selection should be considered, as well as the number of frames to be obtained for the significance of the mean temperature within the ROI. It is also important to mention that in the experiments of this work, the weld pool assumed a stable condition, i.e., no huge geometrical deviations along the welding that could be caused by a change in the current level (pulsed current), transversal oscillation of the torch, or even the usage of dynamic cold wire feed systems. They could increase the weld pool surface perturbations (waves) and might challenge the use of the current strategy due to the difficulty of positioning the ROIs by the presence of reflections and/or high surface curvatures, interfering with the temperature measurement. Still considering the trouble of ROI’s positioning, the joint can directly impose an obstacle where the reflection can capture a massive area over the rear of the weld pool, for instance, in narrow gaps. Finally, the rear weld pool monitoring can be extended to other materials, since the emissivity behaviour of the metal liquid is carefully checked allowing for the application of a gray body assumption. However the purity of the material should be considered, that is, the lesser the purity of the material (for example carbon steels), the higher the amount of oxides’ supernatant in the weld pool, which can lead to the temperature misreading by the current strategy due to its high emissivity change. The positive highlight is that with the advent of IA, there are already strategies for object detection in images which are seen by authors to overcome the challenges due to oxides. Before extracting the mean temperature of a certain region of interest, the oxide island could be predicted, thus not taking into account its temperature. Hence, a deep evaluation concerning all of these potential limitations is necessary and they will be the object of study in future work.
